Microstructure and Charpy Impact Toughness of a 2.25Cr-1Mo-0.25V Steel Weld Metal
Abstract
:1. Introduction

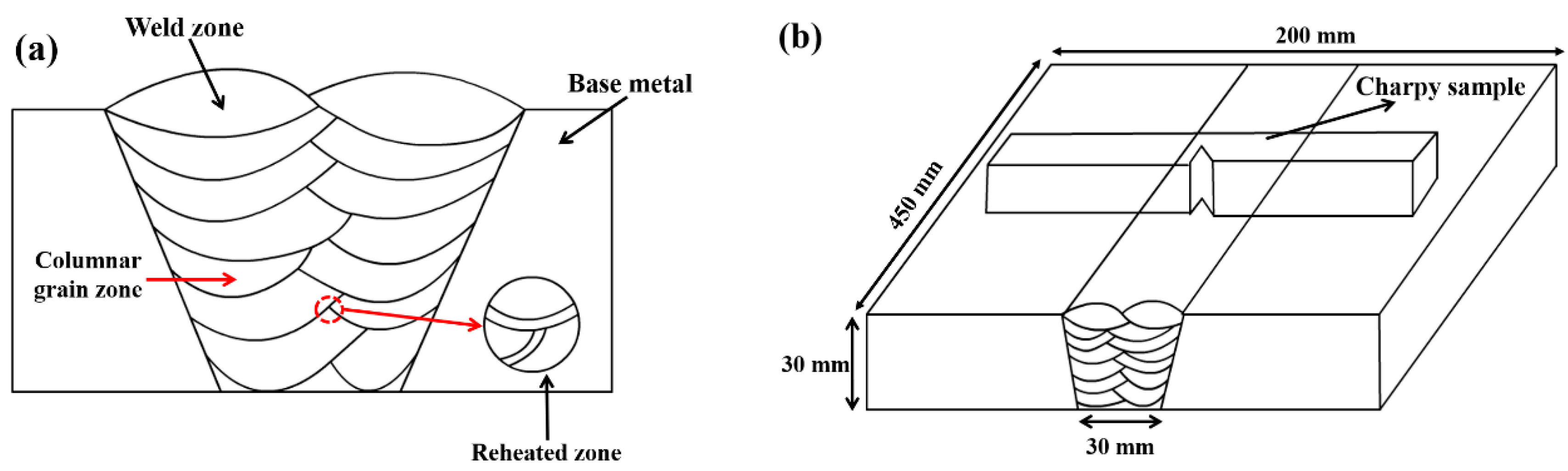

2. Experimental
2.1. Materials and Welding Patameters

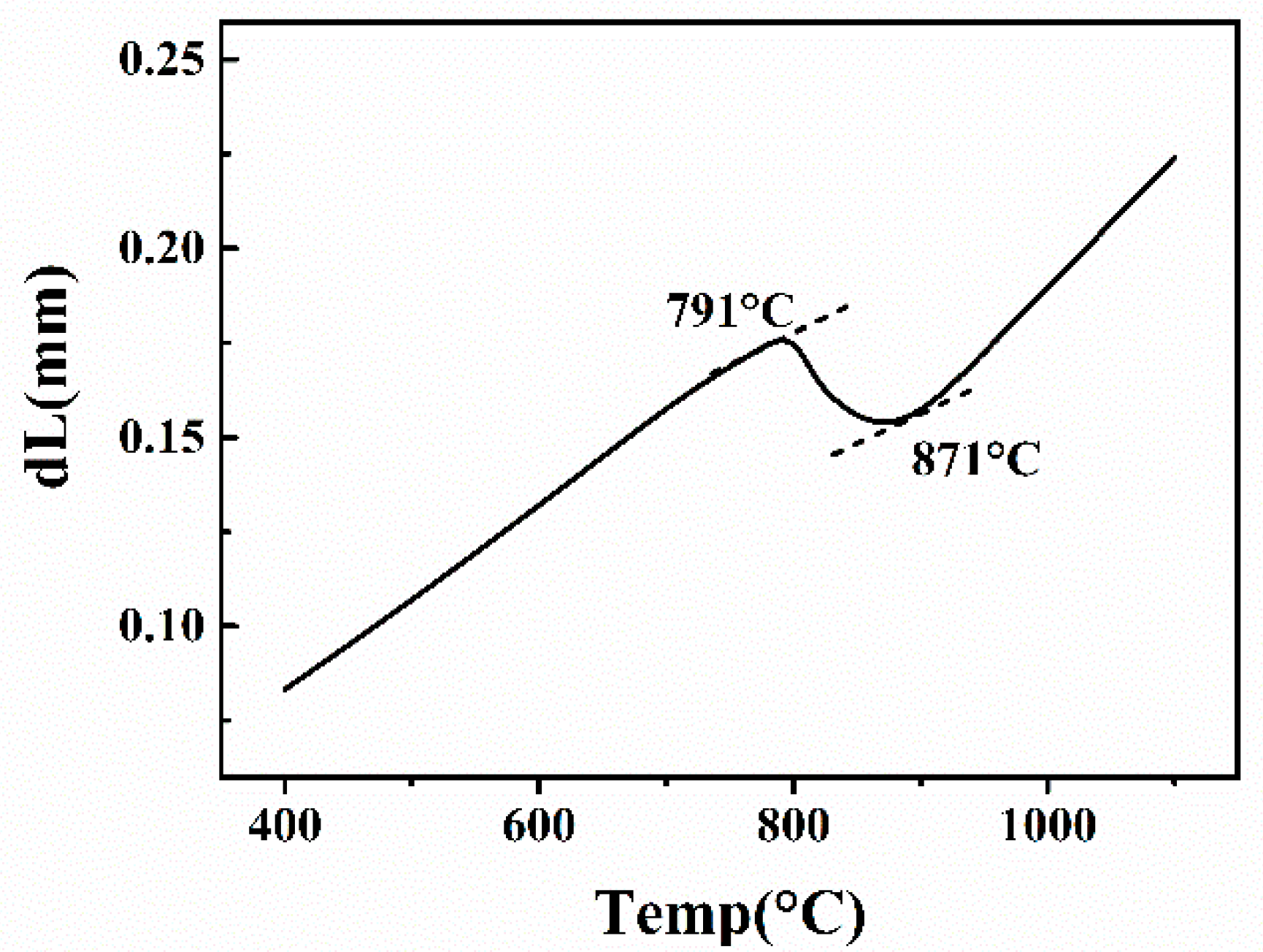

2.2. Thermal Expansion Experiment
2.3. Procedure for Post-Weld Heat Treatment (PWHT)
2.4. Charpy Impact Toughness Experiment

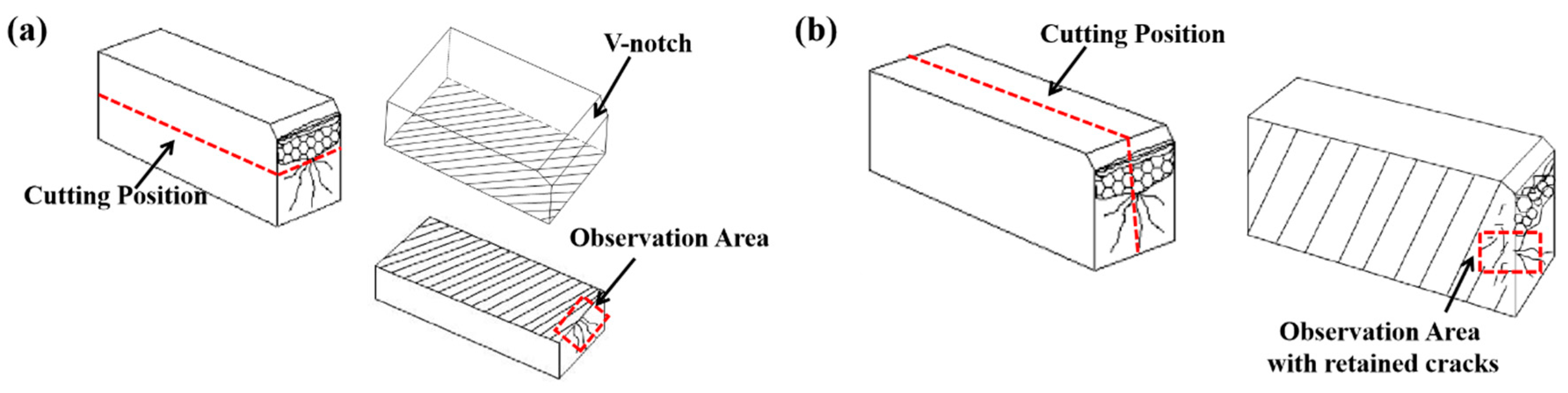

2.5. Microstructural Analyses
2.6. In Situ Observation of Microstructure Evolution
3. Experimental Results

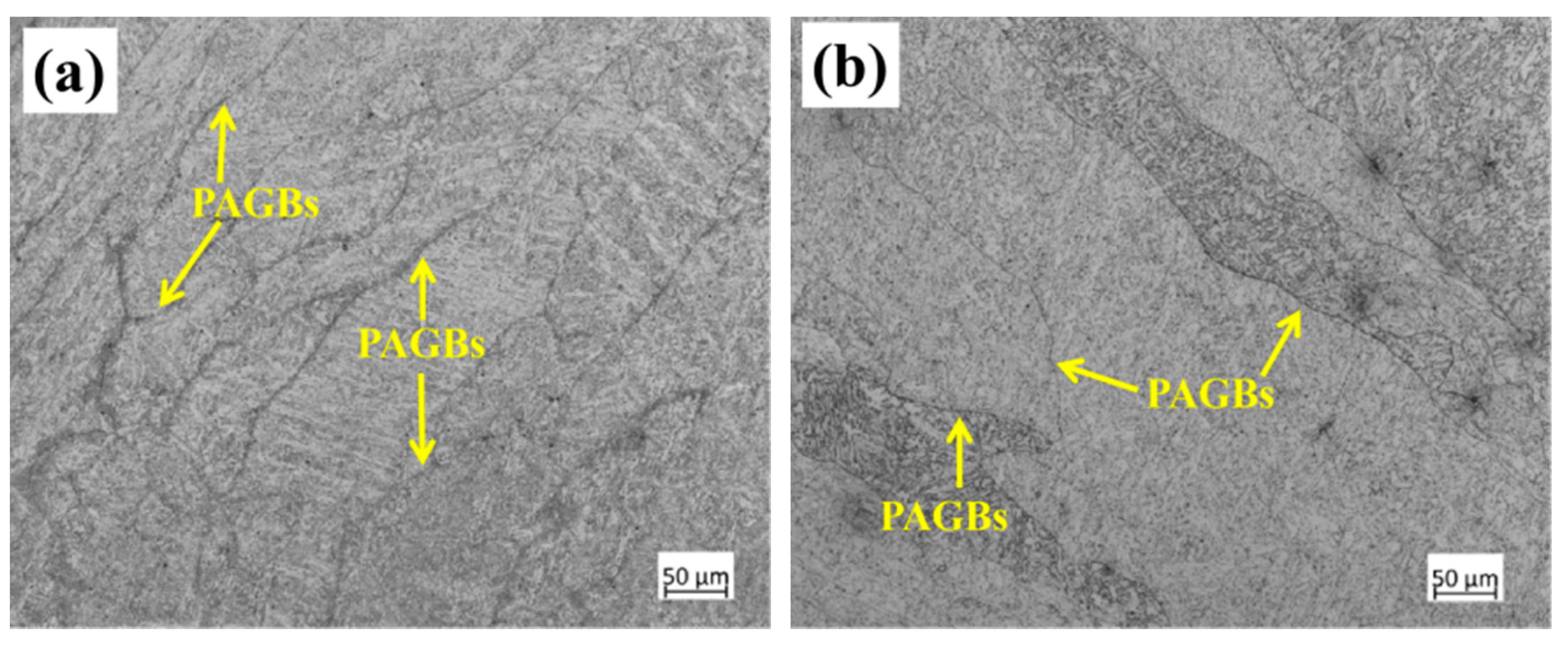

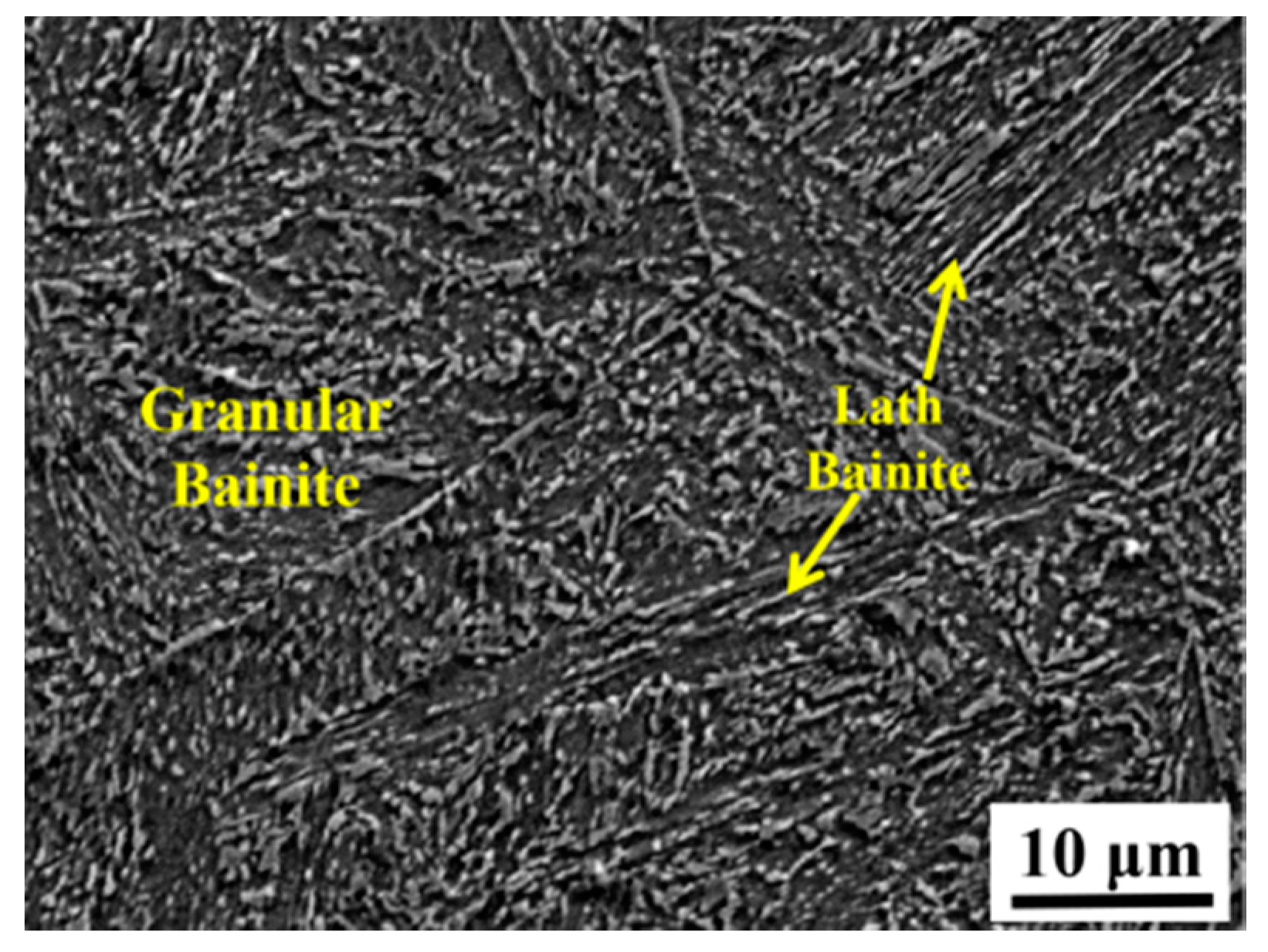

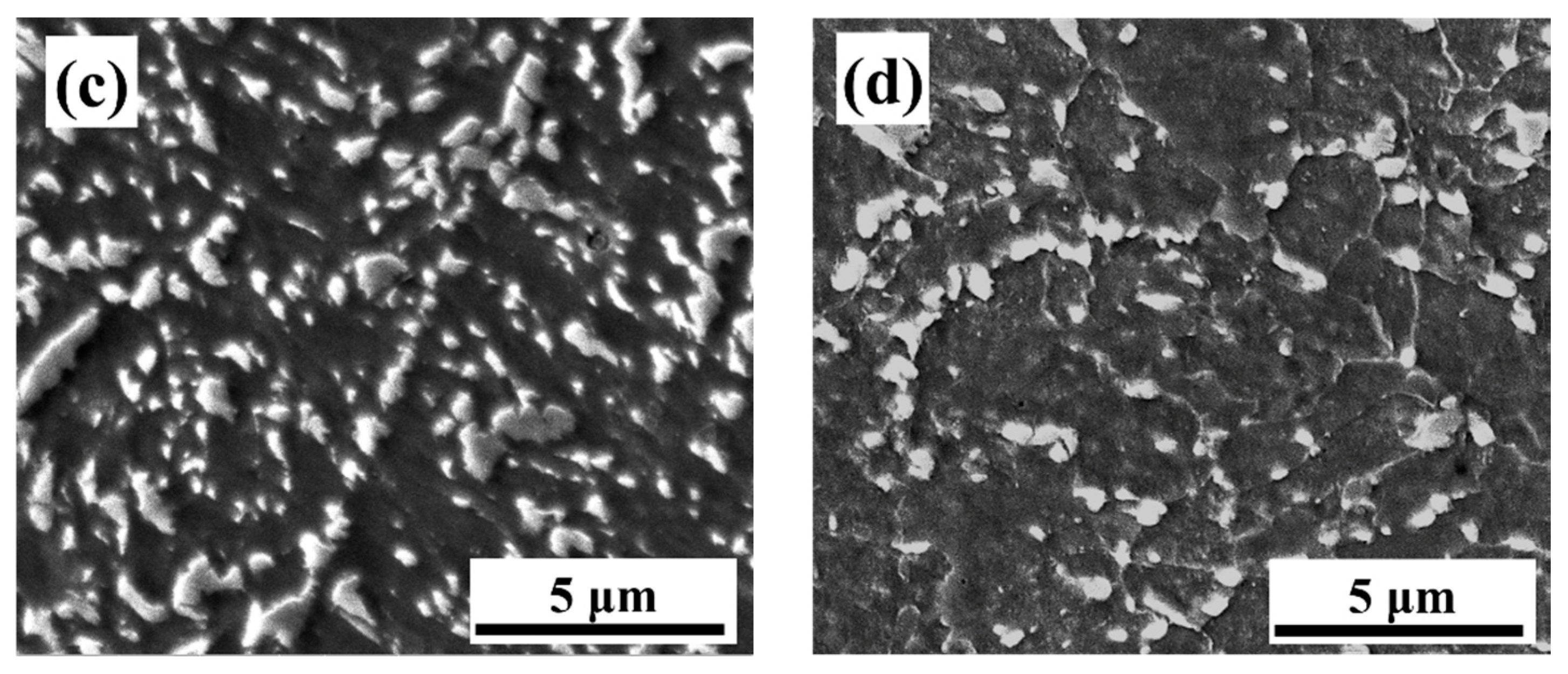

3.1. The Microstructure of the Weld Metals

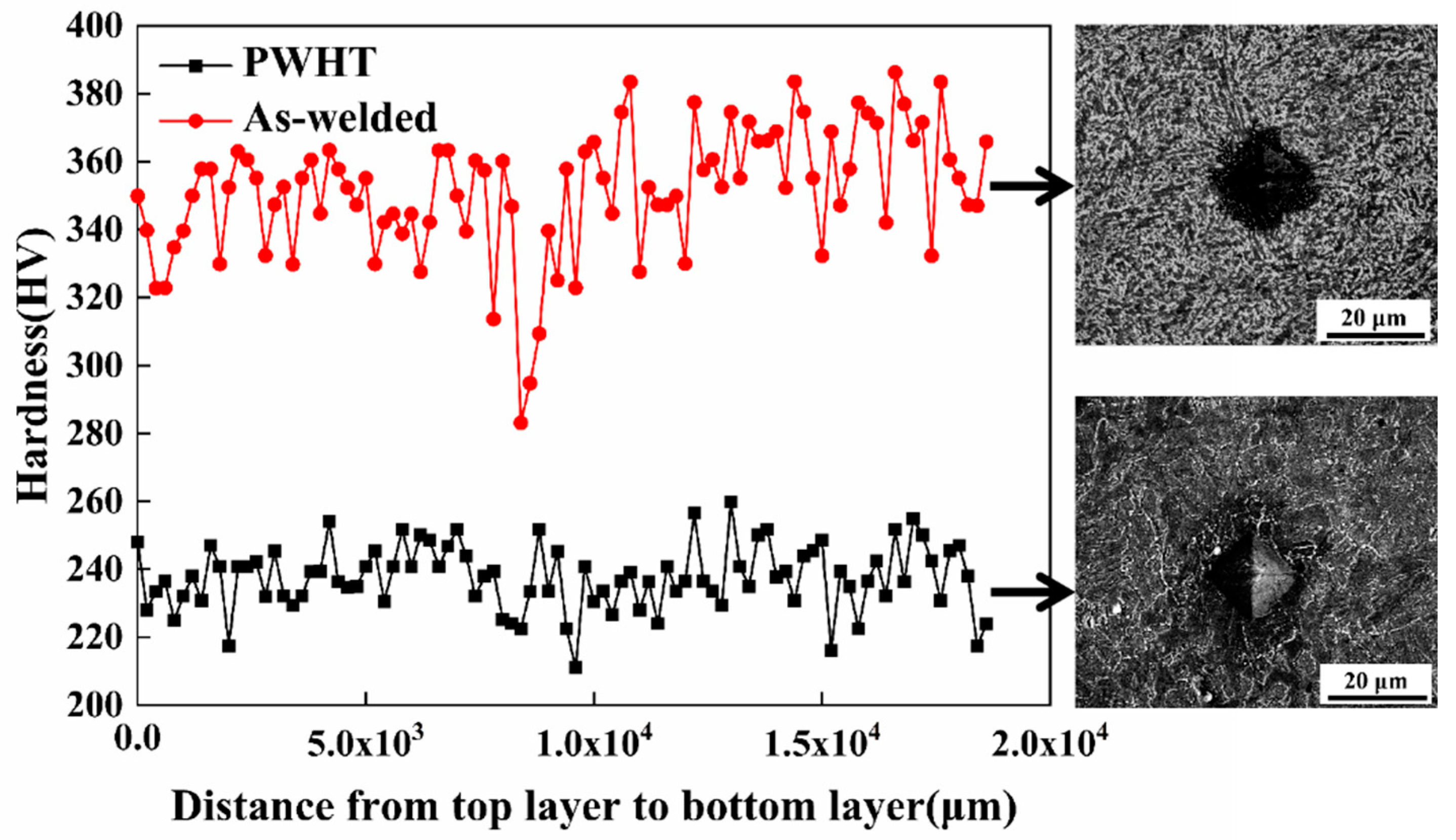

3.2. Mechanical Properties of the Weld Metals

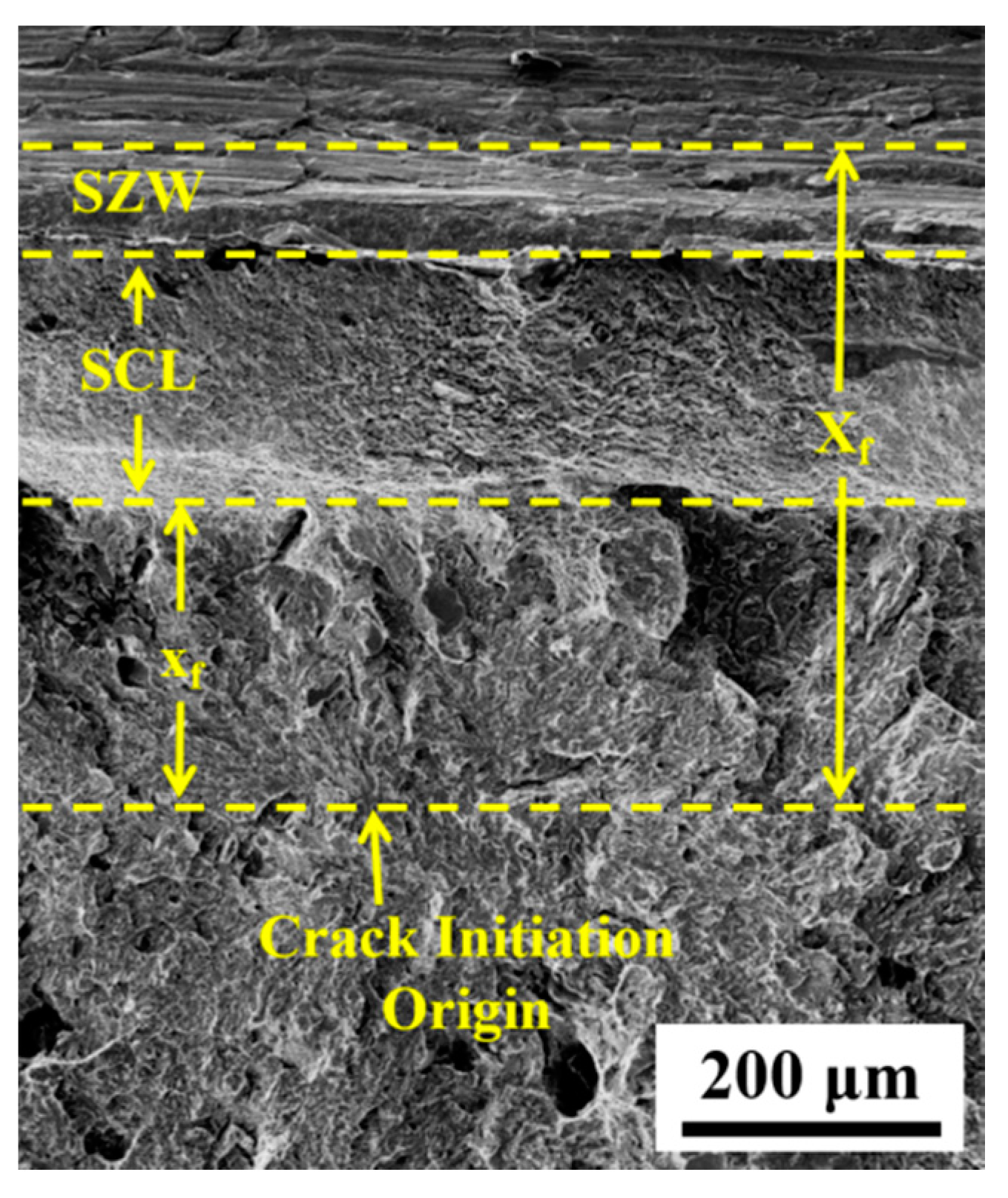

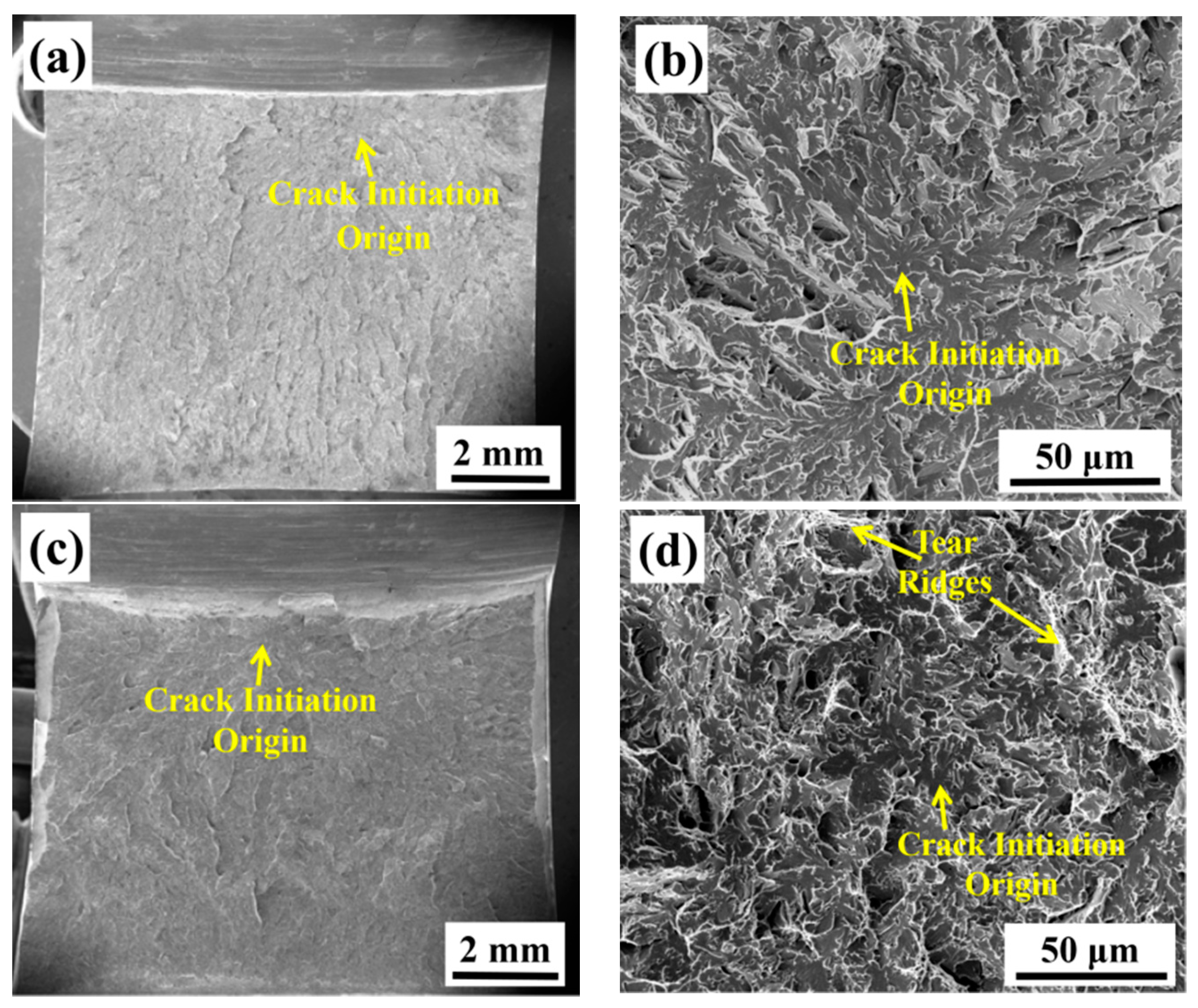

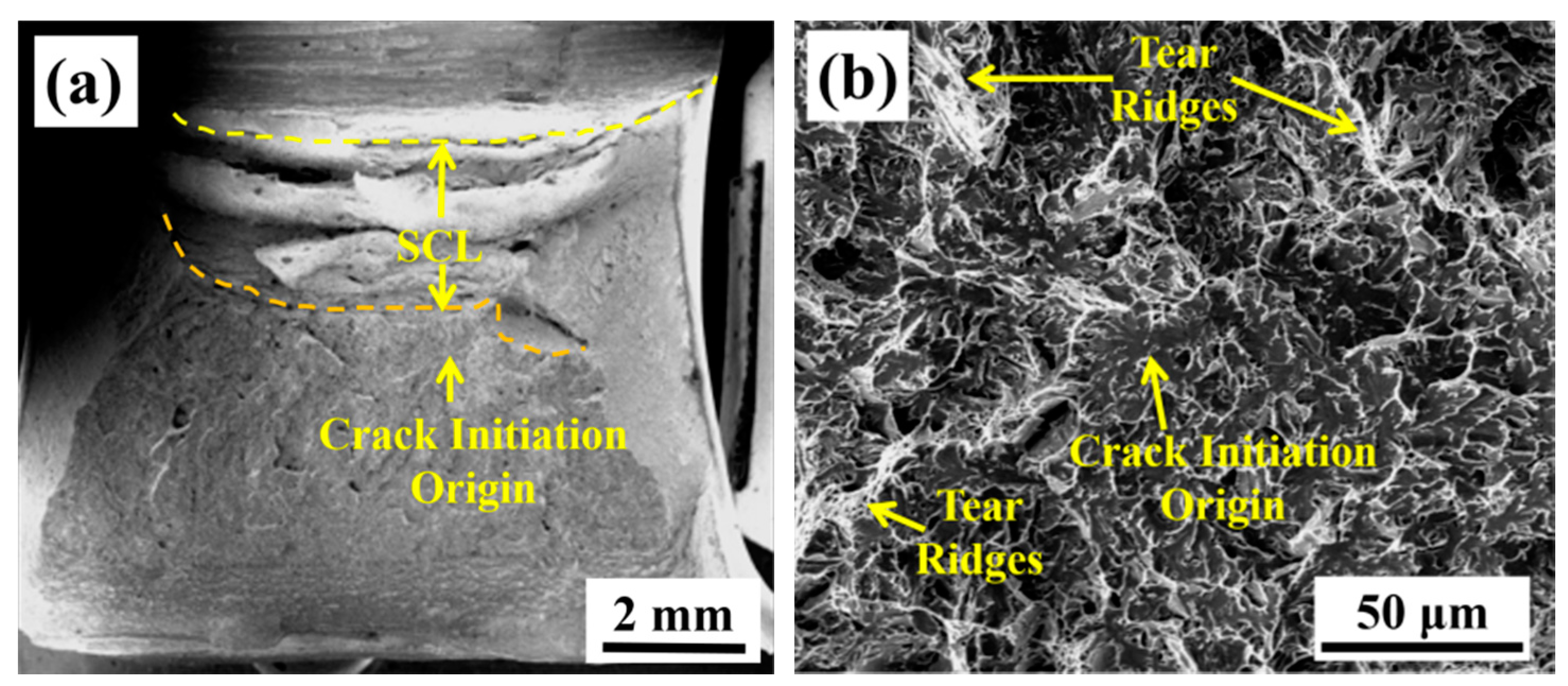

3.3. Fracture Surface of the Impact Specimens
3.4. Effective Microstructure for Determining Impact Toughness

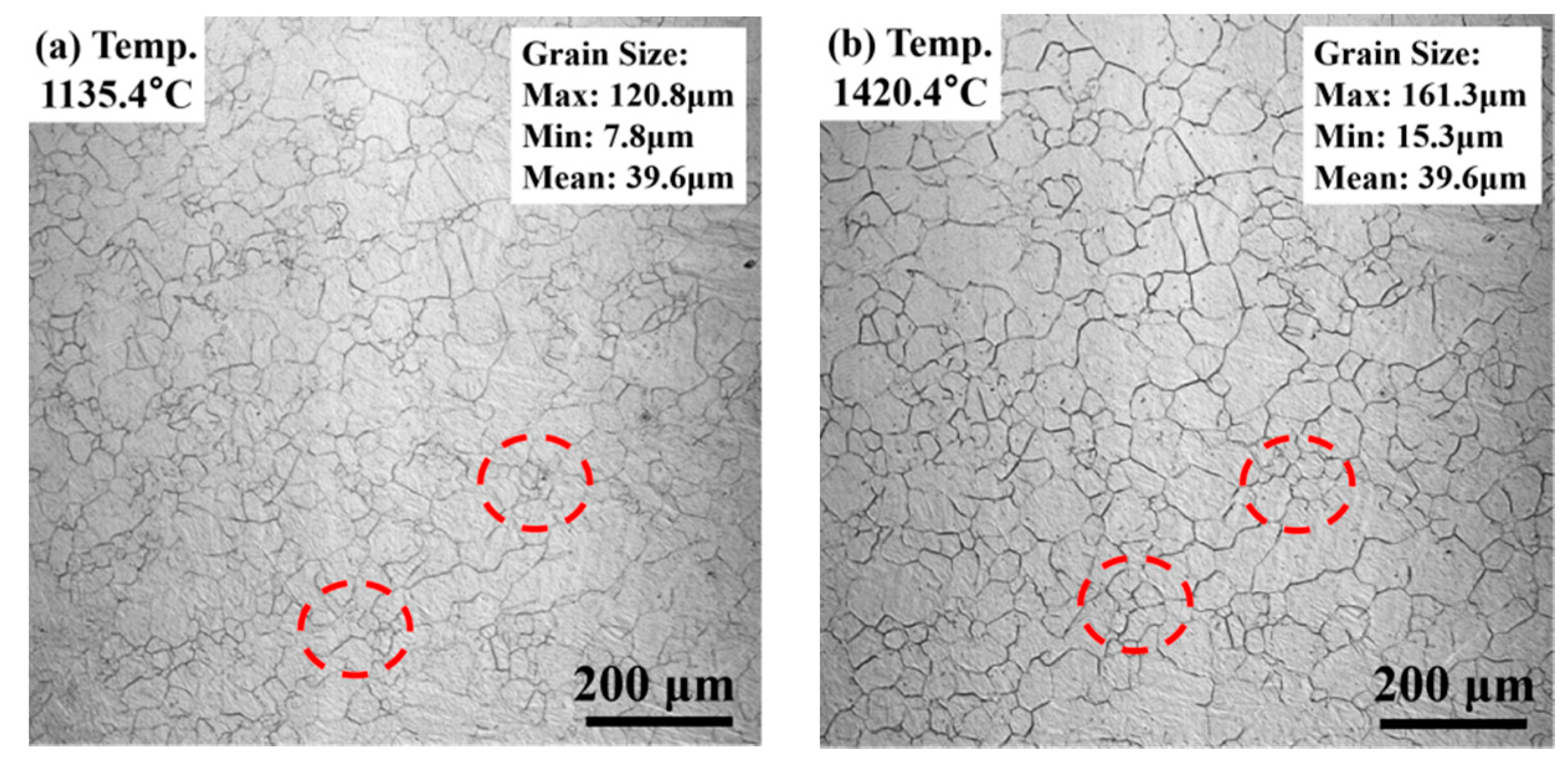

3.5. In Situ Observation of Microstructure Evolution
3.6. Improving the Low-Temperature Toughness of the Weld Metals
4. Discussion
4.1. The Effect of Type of the Microstructure on Mechanical Properties of the Weld Metals
4.2. The Effect of Ferrite Grain Size on Impact Toughness of the Weld Metals
4.3. The Effect of Prior Austenite on Low-Temperature Impact Toughness of the Weld Metals

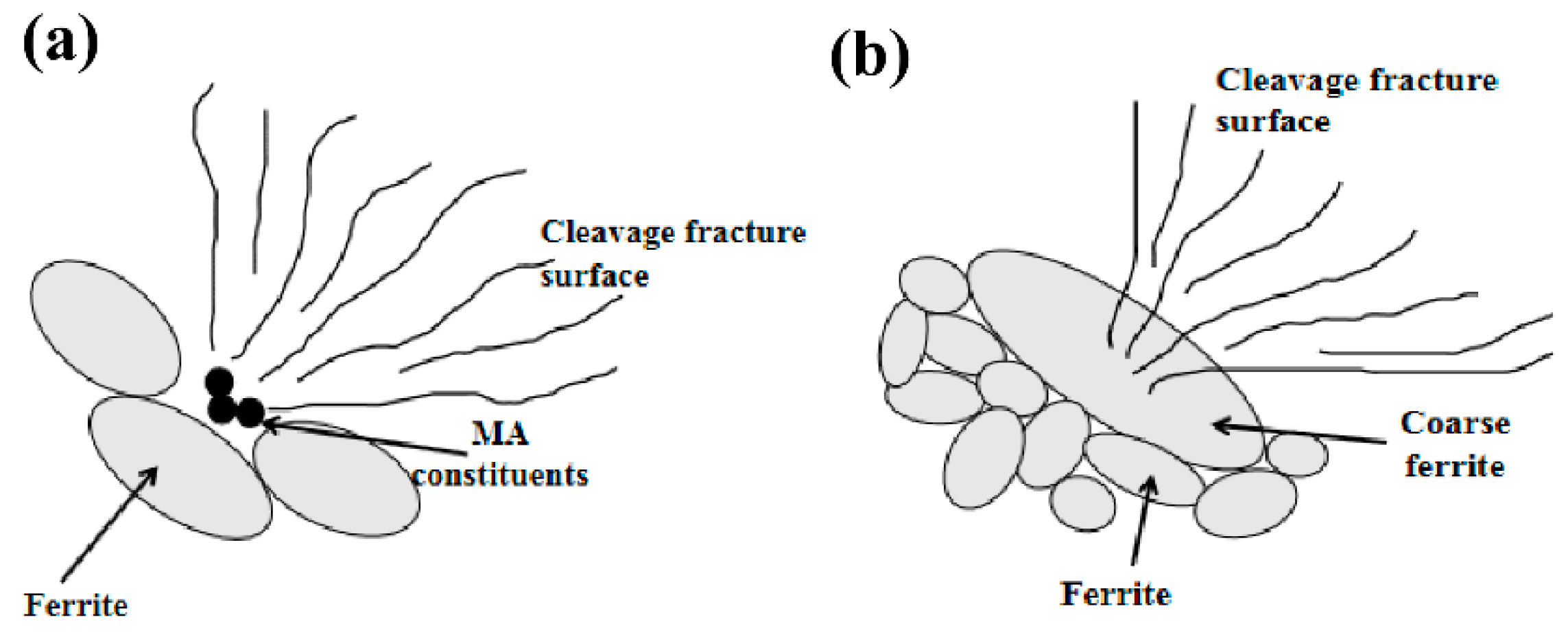

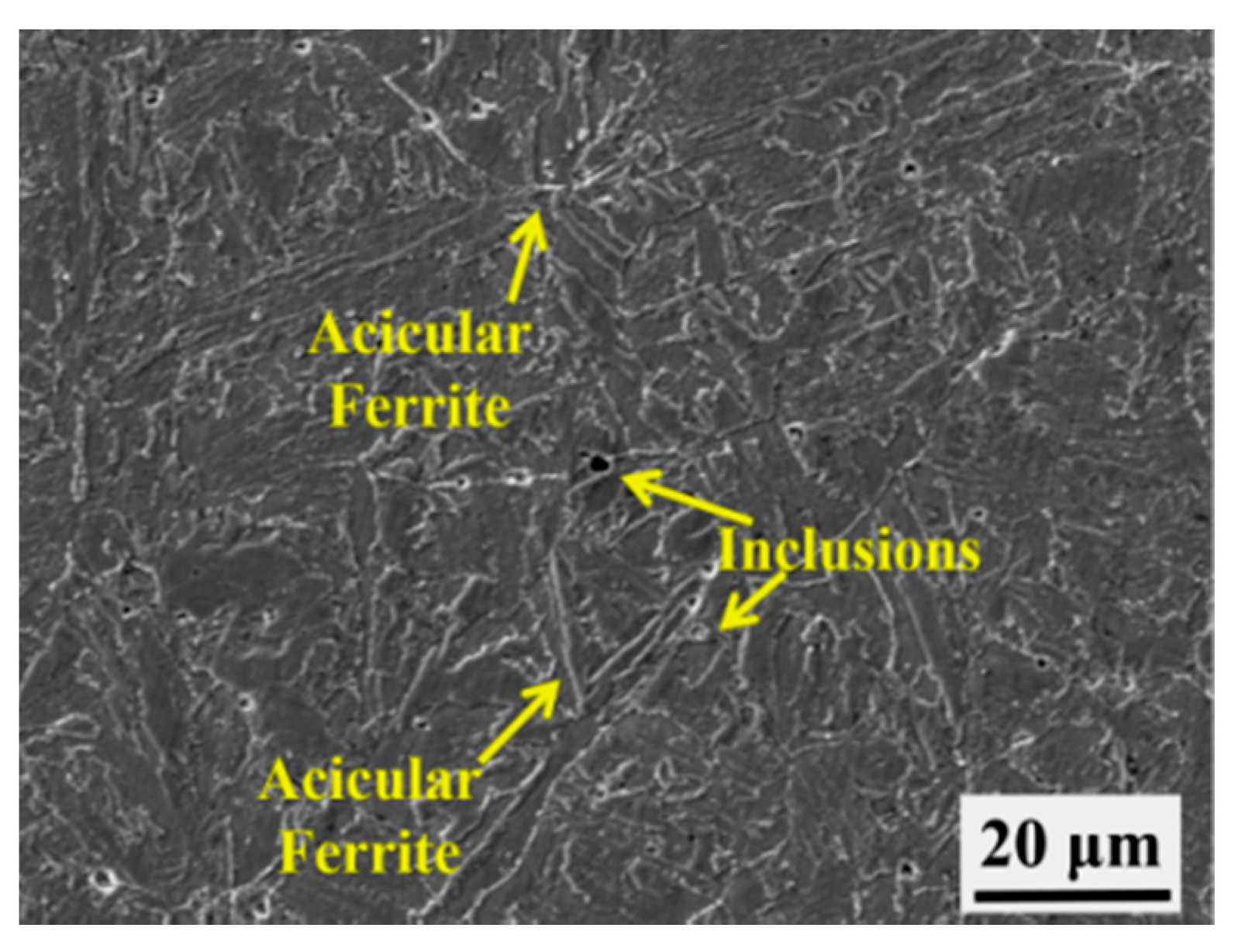

4.4. The Effect of Mn Content and Inclusions on the Low-Temperature Impact Toughness of the Weld Metals
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Masuyama, F. History of Power Plants and Progress in Heat Resistant Steels. ISIJ. Int. 2001, 41, 612–625. [Google Scholar] [CrossRef]
- Avazkonandehgharavol, M.H.; Haddadsabzevar, M.; Haerian, A. Effect of chromium content on the microstructure and mechanical properties of multipass MMA, low alloy steel weld metal. J. Mater. Sci. 2009, 44, 186–197. [Google Scholar] [CrossRef]
- Jorge, J.C.F.; de Souza, L.F.G.; Rebello, J.M.A. The effect of chromium on the microstructure/toughness relationship of C–Mn weld metal deposits. Mater. Charact. 2001, 47, 195–205. [Google Scholar] [CrossRef]
- Bhole, S.D.; Nemade, J.B.; Collins, L.; Liu, C. Effect of nickel and molybdenum additions on weld metal toughness in a submerged arc welded HSLA line-pipe steel. J. Mater. Process. Technol. 2006, 173, 92–100. [Google Scholar] [CrossRef]
- Yang, G.; Sun, X.; Li, Z.; Li, X.; Yong, Q. Effects of vanadium on the microstructure and mechanical properties of a high strength low alloy martensite steel. Mater. Des. 2013, 50, 102–107. [Google Scholar] [CrossRef]
- Show, B.K.; Veerababu, R.; Balamuralikrishnan, R.; Malakondaiah, G. Effect of vanadium and titanium modification on the microstructure and mechanical properties of a microalloyed HSLA steel. Mater. Sci. Eng. A 2010, 527, 1595–1604. [Google Scholar] [CrossRef]
- Cheruvu, N.S. Degradation of mechanical properties of Cr-Mo-V and 2.25Cr-1Mo steel components after long-term service at elevated temperatures. Metall. Mater. Trans. A 1989, 20, 87–97. [Google Scholar] [CrossRef]
- Klueh, R.L.; Swindeman, R.W. The microstructure and mechanical properties of a modified 2.25Cr-lMo steel. Metall. Mater. Trans. A 1986, 17, 1027–1034. [Google Scholar] [CrossRef]
- Ahmed, S.R.; Agarwal, L.A.; Daniel, S.B.S. Effect of Different Post Weld Heat Treatments on the Mechanical properties of Cr-Mo Boiler Steel Welded with SMAW Process. Mater. Today 2015, 2, 1059–1066. [Google Scholar] [CrossRef]
- Jiang, Z.; Wang, P.; Li, D.; Li, Y. Effects of tempering temperature on the microstructure and mechanical properties of granular bainite in 2.25 Cr-1Mo-0.25 V steel. Acta Metall. Sin. 2015, 51, 925–934. [Google Scholar]
- Jiang, Z.; Wang, P.; Li, D.; Li, Y. Influence of the decomposition behavior of retained austenite during tempering on the mechanical properties of 2.25Cr-1Mo-0.25 V steel. Mater. Sci. Eng. A 2019, 742, 540–552. [Google Scholar] [CrossRef]
- Jiang, Z.; Wang, P.; Li, D.; Li, Y. The evolutions of microstructure and mechanical properties of 2.25Cr-1Mo-0.25V steel with different initial microstructures during tempering. Mater. Sci. Eng. A 2017, 699, 165–175. [Google Scholar] [CrossRef]
- Ohtani, T.; Ogi, H.; Hirao, M. Evolution of microstructure and acoustic damping during creep of a Cr-Mo-V ferritic steel. Acta Mater. 2006, 54, 2705–2713. [Google Scholar] [CrossRef]
- Zhang, Y.; Han, H.; Miao, L.; Zhang, H.; Li, J. Quantitative carbide analysis using the Rietveld method for 2.25Cr-1Mo-0.25V steel. Mater. Charact. 2009, 60, 953–956. [Google Scholar]
- Fu, R.; Wang, T.S.; Zhou, W.H.; Zhang, W.H.; Zhang, F. Characterization of precipitates in a 2.25Cr-1Mo-0.25V steel for large-scale cast-forged products. Mater. Charact. 2007, 58, 968–973. [Google Scholar] [CrossRef]
- Han, C.; Li, K.; Liu, X.; Cao, R.; Cai, Z. Effect of Ti content and martensite–austenite constituents on microstructure and mechanical property. Sci. Technol. Weld. Join. 2018, 23, 410–419. [Google Scholar] [CrossRef]
- Lee, K.; Lee, S.; Na, H.; Kang, C. Ghost microstructure evolution and identification in the coarse grain heat affected zone of 2.25Cr-1Mo-V-Ti steel using tint etching. Mater. Charact. 2016, 121, 31–39. [Google Scholar] [CrossRef]
- Rodriguezgaleano, K.F.; Rodriguezbaracaldo, R.; Mestrarodriguez, A.; Cabreramarrero, J.M.; Olayaflorez, J.J. Influence of boron content on the fracture toughness and fatigue crack propagation kinetics of bainitic steels. Theor. Appl. Fract. Mech. 2016, 86, 351–360. [Google Scholar] [CrossRef]
- Jiang, Z.; Wang, P.; Li, D.; Li, Y. Effects of Rare Earth on Microstructure and Impact Toughness of Low Alloy Cr-Mo-V Steels for Hydrogenation Reactor Vessels. J. Mater. Sci. Technol. 2020, 45, 1–14. [Google Scholar] [CrossRef]
- Xu, Y.W.; Song, S.H.; Wang, J. Effect of rare earth cerium on the creep properties of modified 9Cr–1Mo heat-resistant steel. Mater. Lett. 2015, 161, 616–619. [Google Scholar] [CrossRef]
- Kawashima, F.; Tokiyoshi, T.; Igari, T.; Kanaya, A.; Hiroe, T.; Takao, N. Prediction of crack growth in CrMoV cast steel after long-term service at high temperature. Mater. Sci. Eng. A 2009, 510, 149–153. [Google Scholar] [CrossRef]
- Lee, C.; Seol, W.; Kim, B.H.; Kim, S.; Jang, J.H.; Lee, T.; Moon, S.; Kim, S. Investigation on new type of fracture in Cr-Mo-V steel slab. Eng. Fail. Anal. 2019, 98, 240–248. [Google Scholar] [CrossRef]
- Davis, C.L.; King, J.E. Effect of cooling rate on intercritically reheated microstructure and toughness in high strength low alloy steel. Mater. Sci. Technol. 1993, 9, 8–15. [Google Scholar] [CrossRef]
- Elrefaey, A.; Javadi, Y.; Francis, J.A.; Callaghan, M.D.; Leonard, A.J. Evolution of microstructure and toughness in 2.25Cr-1Mo steel welds. Int. J. Pres. Ves. Pip. 2018, 165, 20–28. [Google Scholar] [CrossRef] [Green Version]
- Aucott, L.; Wen, S.W.; Dong, H. The role of Ti carbonitride precipitates on fusion zone strength-toughness in submerged arc welded linepipe joints. Mater. Sci. Eng. A 2015, 622, 194–203. [Google Scholar] [CrossRef]
- Song, H.Y.; Evans, G.M.; Babu, S.S. Effect of microstructural heterogeneities on scatter of toughness in multi-pass weld metal of C–Mn steels. Sci. Technol. Weld. Join. 2014, 19, 376–384. [Google Scholar] [CrossRef]
- Wang, X.L.; Nan, Y.R.; Xie, Z.J.; Tsai, Y.T.; Yang, J.R.; Shang, C. Influence of welding pass on microstructure and toughness in the reheated zone of multi-pass weld metal of 550 MPa offshore engineering steel. Mater. Sci. Eng. A 2017, 702, 196–205. [Google Scholar] [CrossRef]
- Zhao, M.S.; Chiew, S.P.; Lee, C.K. Post weld heat treatment for high strength steel welded connections. J. Constr. Steel Res. 2016, 122, 167–177. [Google Scholar] [CrossRef] [Green Version]
- Rabiei, A.; Derakhshandeh-Haghighi, R. Studying the Effect of PWHT on Microstructural Evolution and Mechanical Properties of Welded A517 Quenched and Tempered Steel. J. Mater. Eng. Perform. 2017, 26, 4567–4577. [Google Scholar] [CrossRef]
- Aloraier, A.S.; Joshi, S.; Price, J.W.H.; Alawadhi, K. Hardness, Microstructure, and Residual Stresses in Low Carbon Steel Welding with Post-weld Heat Treatment and Temper Bead Welding. Metall. Mater. Trans. A 2014, 45, 2030–2037. [Google Scholar] [CrossRef]
- Manugula, V.L.; Rajulapati, K.V.; Reddy, G.M.; Rao, K.B.S. Role of evolving microstructure on the mechanical properties of electron beam welded ferritic-martensitic steel in the as-welded and post weld heat treated states. Mater. Sci. Eng. A 2017, 698, 36–45. [Google Scholar] [CrossRef]
- Luo, X.; Chen, X.; Wang, T.; Pan, S.; Wang, Z. Effect of morphologies of martensite–austenite constituents on impact toughness in intercritically reheated coarse-grained heat-affected zone of HSLA steel. Mater. Sci. Eng. A 2018, 710, 192–199. [Google Scholar] [CrossRef]
- Cao, R.; Yuan, J.J.; Xiao, Z.G.; Ma, J.Y.; Mao, G.; Zhang, X.; Chen, J.H. Sources of Variability and Lower Values in Toughness Measurements of Weld Metals. J. Mater. Eng. Perform. 2017, 26, 2472–2483. [Google Scholar] [CrossRef]
- Cao, R.; Chan, Z.S.; Yuan, J.J.; Han, C.Y.; Xiao, Z.G.; Zhang, X.; Yan, Y.J.; Chen, J.H. The effects of Silicon and Copper on microstructures, tensile and Charpy properties of weld metals by refined X120 wire. Mater. Sci. Eng. A 2018, 718, 350–362. [Google Scholar] [CrossRef]
- Pickering, F.B.; Gladman, T. Metallurgical developments in carbon steels. ISI Spec. Rep. 1961, 81, 10–20. [Google Scholar]
- Mao, G.; Cayron, C.; Cao, R.; Loge, R.E.; Chen, J. The relationship between low-temperature toughness and secondary crack in low-carbon bainitic weld metals. Mater. Charact. 2018, 145, 516–526. [Google Scholar] [CrossRef]
- Babu, S.S. The mechanism of acicular ferrite in weld deposits. Curr. Opin. Solid State Mater. Sci. 2004, 8, 267–278. [Google Scholar] [CrossRef]
- Farrar, R.A.; Harrison, P.L. Acicular ferrite in carbon-manganese weld metals: An overview. J. Mater. Sci. 1987, 22, 3812–3820. [Google Scholar] [CrossRef]
- Costin, W.; Lavigne, O.; Kotousov, A. A study on the relationship between microstructure and mechanical properties of acicular ferrite and upper bainite. Mater. Sci. Eng. A 2016, 663, 193–203. [Google Scholar] [CrossRef]
- Griffith, A.A. The Phenomena of Rupture and Flow in Solids. Philos. Trans. R. Soc A 1921, 221, 163–198. [Google Scholar]
- Orowan, E. Energy criteria of fracture. Weld Res. 1955, 35, 379–386. [Google Scholar]
- Chen, J.H.; Wang, G.Z.; Ma, H. Fracture behavior of C-Mn steel and weld metal in notched and precracked specimens: Part II. micromechanism of fracture. Metall. Mater. Trans. A 1990, 21, 321–330. [Google Scholar] [CrossRef]
- Chen, J.H.; Wang, G.Z.; Yan, C.; Ma, H.; Zhu, L. Advances in the mechanism of cleavage fracture of low alloy steel at low temperature. Part II: Fracture model. Int. J. Fract. 1997, 83, 121–138. [Google Scholar] [CrossRef]
- Chen, J.H.; Wang, G.Z.; Yan, C.; Ma, H.; Zhu, L. Advances in the mechanism of cleavage fracture of low alloy steel at low temperature. Part III: Local fracture stress σ. Int. J. Fract. 1997, 83, 139–157. [Google Scholar] [CrossRef]
- Morris, J.J.; Lee, C.S.; Guo, Z. The Nature and Consequences of Coherent Transformations in Steel. ISIJ. Int. 2003, 43, 410–419. [Google Scholar] [CrossRef]
- Wu, B.; Wang, X.; Wang, Z.; Zhao, J.; Jin, Y.; Wang, C.; Shang, C.; Misra, R. New insights from crystallography into the effect of refining prior austenite grain size on transformation phenomenon and consequent mechanical properties of ultra-high strength low alloy steel. Mater. Sci. Eng. A 2019, 745, 126–136. [Google Scholar] [CrossRef]
- Lan, H.F.; Du, L.X. Improvement of strength-toughness combination in austempered low carbon bainitic steel: The key role of refining prior austenite grain size. J. Alloys Compd. 2017, 710, 702–710. [Google Scholar] [CrossRef]
- Zhang, Z.; Farrar, R.A. Influence of Mn and Ni on the microstructure and toughness of C-Mn-Ni weld metals. Weld. J. 1997, 76, 183. [Google Scholar]
- Zhuo, X.; Wang, X.; Wang, W.; Haegeon, L. Thermodynamic calculations and experiments on inclusions to be nucleation sites for intragranular ferrite in Si-Mn-Ti deoxidized steel. Int. J. Min. Met. Mater. 2007, 14, 14–21. [Google Scholar] [CrossRef]
- Jaberi, F.S.; Kokabi, A.H. Influence of nickel and manganese on microstructure and mechanical properties of shielded metal arc-welded API-X80 steel. J. Mater. Eng. Perform. 2012, 21, 1447–1454. [Google Scholar] [CrossRef]
- Yamamoto, K.; Hasegawai, T.; Takamura, J. Effect of Boron on Intra-granular Ferrite Formation in Ti-Oxide Bearing Steels. ISIJ. Int. 1996, 36, 80–86. [Google Scholar] [CrossRef]
C | Mn | Si + Cr + Mo + Ni + V | S + P |
---|---|---|---|
0.094 | 1.04 | 3.9 | 0.0101 |
Specimens | YS(MPa) | UTS(MPa) | Ψ(%) | Charpy Impact Energy (J) |
---|---|---|---|---|
As-welded | 709 | 965 | 64% | 6, 6, 7 (−30 °C) |
PWHT | 581 | 695 | 71% | 24, 32, 36 (−30 °C) |
Standard (BM) | ≥ 415 | 585–760 | ≥ 45 | ≥54 (−18 °C) |
As-Welded | Impact Toughness (−30 °C) (J) | xf (μm) | SCL (μm) | SZW (μm) | Xf (μm) |
---|---|---|---|---|---|
1 | 6 | 188.6 | 31.1 | 47.7 | 267.4 |
2 | 6 | 258 | 29 | 31.1 | 318.1 |
3 | 7 | 185.8 | 37.3 | 65.3 | 288.4 |
PWHT | Impact toughness (−30 °C) (J) | xf (μm) | SCL (μm) | SZW (μm) | Xf (μm) |
1 | 30 | 587.7 | 365 | 117.5 | 1070.2 |
2 | 32 | 458 | 432 | 267.7 | 1157.7 |
3 | 36 | 504.4 | 511 | 286.4 | 1301.8 |
HM(Mn1.27wt%) | Impact toughness (−30 °C) (J) | xf (μm) | SCL (μm) | SZW (μm) | Xf (μm) |
1 | 95 | 571 | 1119.2 | 340.4 | 2030.6 |
2 | 132 | 830 | 2267.3 | 271.2 | 3368.5 |
3 | 157 | 629.2 | 3160.9 | 219.5 | 4009.6 |
O | Mn | Si | C | Al | Fe | V | Al | Mo |
---|---|---|---|---|---|---|---|---|
41.73 | 21.92 | 16.79 | 6.11 | 3.58 | 4.03 | 3.92 | 3.58 | 1.82 |
© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Share and Cite
Wu, K.; Yan, Y.; Cao, R.; Li, X.; Jiang, Y.; Yang, F.; Jia, X.; Chen, J. Microstructure and Charpy Impact Toughness of a 2.25Cr-1Mo-0.25V Steel Weld Metal. Materials 2020, 13, 3013. https://doi.org/10.3390/ma13133013
Wu K, Yan Y, Cao R, Li X, Jiang Y, Yang F, Jia X, Chen J. Microstructure and Charpy Impact Toughness of a 2.25Cr-1Mo-0.25V Steel Weld Metal. Materials. 2020; 13(13):3013. https://doi.org/10.3390/ma13133013
Chicago/Turabian StyleWu, Kefan, Yingjie Yan, Rui Cao, Xinyu Li, Yong Jiang, Fei Yang, Xingwang Jia, and Jianhong Chen. 2020. "Microstructure and Charpy Impact Toughness of a 2.25Cr-1Mo-0.25V Steel Weld Metal" Materials 13, no. 13: 3013. https://doi.org/10.3390/ma13133013
