Tuning the Photo-Luminescence Properties of WO3 Layers by the Adjustment of Layer Formation Conditions

by
Milda Petruleviciene
1,
Jurga Juodkazyte
1,
Maliha Parvin
1,
Alla Tereshchenko
2,3,
Simonas Ramanavicius
1,
Renata Karpicz
1,
Urte Samukaite-Bubniene
2 and
Arunas Ramanavicius
1,2,*
1
Center for Physical Sciences and Technology, Sauletekio av. 3, LT-10257 Vilnius, Lithuania
2
Department of Physical Chemistry, Institute of Chemistry, Faculty of Chemistry and Geosciences, Vilnius University, Naugarduko 24, LT-03225 Vilnius, Lithuania
3
Department of Experimental Physics, Faculty of Mathematics, Physics and Information Technologies, Odesa National I.I. Mechnikov University, Pastera 42, 65023 Odesa, Ukraine
*
Author to whom correspondence should be addressed.
Materials 2020, 13(12), 2814; https://doi.org/10.3390/ma13122814
Submission received: 20 May 2020 / Revised: 14 June 2020 / Accepted: 18 June 2020 / Published: 23 June 2020
(This article belongs to the Section Energy Materials)
Browse Figures
Review Reports Versions Notes

Abstract

In this research we have applied sol-gel synthesis for the deposition of tungsten (VI) oxide (WO3) layers using two different reductants (ethanol and propanol) and applying different dipping times. WO3 samples were characterized by X-ray diffraction (XRD), scanning electron microscopy (SEM), Fourier Transform Infrared spectroscopy (FTIR), photoluminescence (PL) and time-resolved photoluminescence decay methods. Photoelectrochemical (PEC) behaviour of synthesized coatings was investigated using cyclic voltammetry in the dark and under illumination. Formation of different structures in differently prepared samples was revealed and significant differences in the PL spectra and PEC performance of the samples were observed. The results showed that reductant used in the synthesis and dipping time strongly influenced photo-electrochemical properties of the coatings. Correlation between the morphology, PL and PEC behaviour has been explained.

Graphical Abstract

1. Introduction

The demand for sensors with advanced analytical characteristics is constantly increasing [1]. Various metal oxides (TiO2, ZnO, SnO2, WO3, etc.) are widely used for numerous technological purposes including application in analytical signal transduction systems [2,3]. Nanostructured metal oxides are especially attractive in sensors due to their electrochemical properties and their large chemically active surface. Among other oxide materials, tungsten (VI) oxide (WO3) is very promising n-type semiconductor. Due to relevant physical, photoelectrochemical and catalytic properties, WO3 is used in lithium-ion batteries [4], electrochromic windows [5], solar energy conversion systems [6,7,8,9,10,11], volatile organic compounds (VOCs) and gas sensors [12]. The sensors based on WO3 still suffer from high operating temperature, low sensitivity or high limit of detection (LOD). The improvement of sensitivity and LOD is especially significant for medical purposes, where sensitive and accurate detection is necessary. Therefore, it is very important to find out how different crystallinity and morphology of coatings influence WO3 activity. The mechanism of gas sensing is a complex process. It involves adsorption/(catalytic action)/desorption steps, which in air atmosphere are significantly affected by oxygen molecules that are chemisorbed and/or physically-adsorbed on the WO3 surface. Depending on the operating temperature, the negatively charged (O−, O2− and O2−) oxygen species on the surface of WO3 can be formed. Formation of these species can be presented by following Equations [13,14,15]:
O2(gaseous)→O2(adsorbed)
O2(adsorbed) + e− →O2− (<150 °C)
O2− + e− →2O−(150–400 °C)
O− + e− →O2−(>400 °C)
When analyte gas molecules are adsorbed on tungsten oxide, the electrons are either accepted from the surface (oxidizing gas) or donated to the tungsten oxide surface (reductive gas), which leads to an increase or decrease of WO3 resistance, respectively. In most cases, the highest catalytic activity of WO3-based structures is observed at high temperatures. Working at a high temperature requires more sophisticated and expensive sensor construction and additional equipment for regulation of temperature in order to get a stable sensor response, which eventually leads to high power consumption. Therefore, in recent years, low-temperature gas sensors based on light-activated metal oxide semiconductors have attracted a lot of attention [16,17,18,19,20,21,22,23]. It was suggested that light affects gas sensor performance in the following ways: (1) light influences dissociation of oxygen species and, consequently, the adsorption of VOC-based analyte molecules; (2) light increases density of free electron–hole pairs and facilitates carrier generation, thus enabling the sensor to work at room temperature with high sensitivity and selectivity [16,24]. The gas-sensing properties of metal oxide semiconductors are also known to be strongly influenced by illumination conditions [1,25,26] because light modulates the density of charge carriers. Effective generation, separation and transport of light-generated charge carriers and, consequently, the sensing ability of WO3 are highly dependent on the method of synthesis. Various techniques, including hydrothermal [27,28], reactive sputtering [27], spray pyrolysis [29], sol-gel [30,31] and electrodeposition [32,33] are used for the formation of tungsten (VI) oxide layers. Among them, the sol-gel method is very popular because it is easily controllable, does not require any sophisticated procedures or specialized tools and allows adjustment of the most optimal parameters in a simple way [31,34,35,36]. Proper understanding of how some factors influence the properties of semiconductor oxide films is essential for tailoring sensors’ response to light as well as their sensing performance.
The aim of this research was to form WO3 layers under different conditions using sol-gel synthesis method and to determine their photo-induced redox properties at room temperature. Crystalline structure, composition, and morphology of WO3 coatings were characterized using X-ray diffraction (XRD), scanning electron microscopy (SEM) and Fourier Transform Infrared spectroscopy (FTIR). Photoelectrochemical activity of the coatings was evaluated by cyclic voltammetry, and correlation of the data with the results of time-resolved photoluminescence decay measurements was analysed.

2. Experimental

2.1. Chemicals

All chemicals were of ‘Analytical grade’ and were used as received from suppliers, without any further purification.
Sodium tungstate was purchased from Carl Roth (Karlsruhe, Germany), ammonium oxalate from Chempur (Piekary Śląskie, Poland), hydrochloric acid from Chempur (Piekary Śląskie, Poland), hydrogen peroxide from Chempur (Piekary Śląskie, Poland), ethanol from Reachem (Bratislava, Slovakia), propanol from Reachem (Bratislava, Slovakia), sulfuric acid from Reachem (Bratislava, Slovakia).

2.2. Formation of Photoelectrochemically Active Tungsten Oxide Layers on the FTO and Glass Substrate

WO3 thin films on FTO and glass substrate were prepared by sol-gel method in aqueous solution. Firstly, FTO substrates were cut into 1 mm × 2 mm slides and washed under ultrasonication with acetone, ethanol and finally deionized water for 15 min per wash. During the synthesis, a sodium tungstate dihydrate (Na2WO4 × 2H2O) (from Carl Roth) was used as a precursor and ammonium oxalate ((NH4)C2O4; AO) (from Chempur) was used as capping agent. They were dissolved in distilled water and then HCl (from Chempur) was added under continuous stirring for 10 min at 40 °C. Afterwards the hydrogen peroxide (H2O2) (from Chempur) was added to the above-mentioned solution under continuous stirring for 10 min at 40 °C to obtain peroxotungsten acid (PTA). Further, ethanol (EtOH) (from Reachem) was added as a reductant to the prepared PTA mixture (PTA + EtOH), which was used for the formation of WO3 coating. After 10 min, cleaned FTO substrates were dipped in a ‘face-down position’ into the prepared mixture and incubated for 140 min and 180 min. Synthesis was carried out at 85 °C constant temperature in a water bath. After the formation of WO3 coating, the slides were rinsed in distilled water for 1 min and then they were dried in the drying oven at 40 °C for 10 h. The same procedures were followed for preparing of PTA and propanol (PrOH) (from Reachem) sol-gels, just instead of ethanol a propanol was added to PTA solution. Finally, samples were annealed at 500 °C for 2 h in ambient atmosphere; heating rate was 1 °C min−1 and starting temperature was 20 °C.

2.3. Characterization of Oxide Layers

2.3.1. X-ray Diffraction, Scanning Electron Microscopy

XRD patterns of the films on FTO substrate were obtained using an X-ray diffractometer SmartLab (Rigaku, Oxford, UK) equipped with 9 kW rotating Cu anode X-ray tube. Grazing incidence (GIXRD) method was used in 2θ range at 20–80 °C. An angle between a parallel beam of X-rays and a specimen surface (ω angle) was adjusted to 0.5°. Match software and Crystallography Open Database (COD) was used for phase identification. The average crystallite size D, of each sample was calculated using the Scherrer equation [37,38].
The surface morphology of the tungsten oxide layers on FTO substrate was investigated using Helios NanoLab dual beam workstation equipped with X-Max 20 mm2 energy dispersion spectrometer (Oxford Instruments, Oxford, UK).
The phase composition was investigated by Fourier Transform Infrared spectroscopy using a PerkinElmer spectrophotometer, with a resolution of 4 cm−1 over a wavenumber range of 450–4000 cm−1.

2.3.2. Electrochemical Measurements

Voltammetric measurements were performed using three-electrode cell and potentiostat/galvanostat AUTOLAB 302 from Ecochemie (Utrecht, The Netherlands). Tungsten (VI) oxide films deposited on flouride-doped tin oxide (FTO) substrates were used as working electrodes. Silver chloride electrode with saturated KCl solution (Ag/AgCl/sat. KCl) and Pt wire were used as reference and counter electrodes, respectively. The surface of working electrodes was illuminated with high intensity discharge Xe-lamp with 6000 K spectrum and calibrated with a silicon diode to simulate AM 1.5 illumination (∼100 mW cm−2) at the sample surface. Experiments were performed in the solution of 0.5 M H2SO4. Current density values were calculated based on geometric area of the working electrode.

2.3.3. Time-Resolved Photoluminescence Decay Based Evaluation of WO3-Based Coatings

Optical characterization was performed by the evaluation of photoluminescence signal from the samples using a time-correlated single photon counting Edinburgh-F900 spectrophotometer (Edinburg Instruments Ltd., Livingston, UK). The photoluminescence spectra of WO3 coatings were excited by solid-state laser with an excitation wavelength of 375 nm (the average pulse power was about 0.15 mW/mm2, the pulse duration 76 ps) and measured in the range of 400 to 700 nm. All photoluminescence spectra were corrected for the instrument sensitivity. The photoluminescence decay kinetics was measured with the same Edinburgh-F900 spectrophotometer. The pulse repetition rate was 1 MHz and the time resolution of the setup was about 100 ps taking into account temporal deconvolution procedure.
The position and intensity of the photoluminescence maximum was determined as the corresponding characteristics of Gauss function using the Origin program.

3. Results and Discussion

3.1. XRD, SEM and FTIR Analysis of WO3 Coatings

The crystalline structure and surface morphology of tungsten (VI) oxide coatings were characterized by XRD and SEM techniques. In Figure 1, XRD patterns of samples prepared from PTA + PrOH and PTA + EtOH sol-gels and annealed at 500 °C 2 h are shown. It is obvious that different reductants used in the synthesis and different dipping times influence crystalline structure of the coatings. The main crystalline phase of synthesized coatings in all samples is monoclinic tungsten (VI) oxide. Sample prepared from PTA + PrOH sol-gel with 140 min dipping time has the highest crystallinity, because the peaks investigated in the whole range of 2θ values are the most intensive. Clusters of three peaks at 2θ = 23.20°, 23.60°, 24.29° and two peaks at 2θ = 33.42° and 34.12° are attributed to monoclinic tungsten trioxide (marked with asterisk) in accordance with PDF no. 96-210-6383 of the COD. The sample with 180 min dipping time has less intensive peaks, but a cluster of three peaks, which correspond to (002) (020) (200) facets, is well observed. It is noteworthy that the intensity of facet (200) in this sample decreased dramatically. This means that dipping duration influences the formation of the facets in tungsten trioxide crystallite and lattice parameters as well. Diffractograms of the samples prepared from PTA + EtOH sol-gel exhibit the clusters of three and two peaks. The crystallinity of the coating with 180 min dipping time is slightly higher, because peaks are more intensive.
The facets are the same as in the case of films formed from PTA + PrOH sol-gel. Facet (200) in all the samples has the highest intensity, suggesting selective orientation of the (200) planes parallel to the substrate and [200] direction vertical to the substrate. This can be attributed to the fact that this facet is growing parallel to the FTO substrate [39,40]. Among various crystalline structures of WO3, the monoclinic structure is highly stable and the photoelectrochemical activity of the films is known to depend on the facets exposed to solution phase [41].
The crystallite size is an important parameter that influences the properties of metal oxide nanostructures; therefore, the crystallites size of all samples was evaluated using Scherrer’s equation:
D = kλ/(βcos θ),
where D is the crystallite size, k is a shape factor, λ is the X-ray wavelength (0.15406 nm), β is the full width at half maximum intensity in radians and θ is the Bragg angle. For calculation, the most intensive XRD pattern at 23.20° position was used and results are presented in Table 1. In PrOH-180, EtOH-140 and EtOH-180 coatings 5.58 nm, 5.51 nm and 5.55 nm crystallites were formed, respectively; however, in the coating, PrOH-140 crystallites are approximately 20% bigger and reach 6.57 nm, but in general, the differences in crystallite sizes of the formed samples are insignificant. During the process of synthesis these crystallites combine to form larger particles, i.e., the structural units constituting the coating. Contrary to crystallites, the shape and size of particles was found to differ very significantly depending on synthesis conditions.
In Figure 2, the SEM images of tungsten trioxide coatings are presented. Morphology of the coatings formed from PTA + PrOH and PTA + EtOH sol-gels differs significantly. Longer synthesis time influences the growth of the WO3 H2O structure as well as the final crystalline tungsten trioxide morphology after annealing [39]. Coatings synthesized from PTA + PrOH sol-gel are composed of very dense layer of 20–100 nm sized particles with randomly distributed 2 µm size agglomerates. With increasing dipping time (180 min), bigger agglomerates are formed (b). Morphology of the samples prepared from PTA + EtOH sol-gel is completely different (c,d). The coatings are dense, composed of randomly oriented submicrometer-sized (200–1000 nm), vertically aligned plates, which are located very close one to each other forming the network with high surface area. Dipping time does not influence the size of the plates significantly, however the presence of very fine-grained areas can be seen on the surface of “180 min” coating. In both samples, small pores between the particles can be observed. All coatings prepared from PTA + EtOH and PTA + PrOH sol-gels are without cracks in the structure, what facilitates the transfer of photogenerated charge carriers. In accordance with literature data, the difference in the morphology of the coatings can be explained considering the colloidal stability of oxide particles in different solvents as well as reducing ability of different alcohols. It has been reported [42] that reducing ability of primary alcohol increases with decreasing carbon chain length. Thus, ethanol is stronger reductant than propanol and the crystallization of WO3 •H2O should initiate and proceed faster in EtOH-containing medium. On the other hand, the energy barrier, which inhibits the agglomeration of the particles, is directly proportional to the dielectric constant of the liquid medium and the surface potential [43]. In the case of ethanol, the dielectric constant of solution is relatively high and the energy barrier is high enough. Therefore, the primary oxide particles precipitated from this solution are stable, do not agglomerate and their growth proceeds mainly in two directions, resulting in plate-shaped morphology. When propanol containing solvent is used, the crystallization and growth of the WO3•H2O phase is slower and the dielectric constant of solution is lower. Consequently, the primary particles are unstable and prone to agglomeration when attraction forces are predominating against repulsion forces. This leads to nanoparticulate morphology with random distribution of micro- and nano-scale agglomerates. SEM observations are in agreement with XRD results, which are quite similar for “EtOH-140” and “EtOH-180” coatings, but differ significantly between “PrOH-140” and “PrOH-180” as well as between “PTA + EtOH” and “PTA + PrOH” sol-gels. Although crystallite sizes in all the synthesized coatings are almost the same (Table 1), the shapes and sizes of particles differ significantly and play a crucial role in determining the photoluminescence properties and photoelectrochemical performance of WO3 films, as shown below.
Fourier transform infrared (FTIR) spectroscopy confirmed the structural composition and the purity of the formed WO3. In Figure 3 the broad absorption peaks at <1000 cm−1 indicate the presence of pure tungsten oxide. The band at 619 cm−1 is attributed to W–O stretching vibration, while bands at 801 and 762 cm−1 are attributed to the inter-bridge stretching O-W-O and the corner-sharing mode W-O-W, respectively [44,45]. Tungsten oxide synthesized from PTA + EtOH sol-gel has much sharper peaks due to a more orderly structure with well-expressed W-O stretching vibration. The broad band at 3400 cm−1 can be attributed to W-OH stretching vibration, and the peak located at 1625 cm−1 corresponds to W-OH bending vibration mode of the adsorbed water molecules [46].

3.2. Time-Resolved Photoluminescence Decay Based Evaluation of WO3 Coatings

The normalized photoluminescence spectra of four investigated samples measured at room temperature are presented in Figure 4. It is well known that the PL signals of semiconductors are generated by the recombination of photo-induced charge carriers [47]. The photoluminescence signal is characterized by wide non-symmetric maximum in the range of 400–600 nm, cantered at 426 (2.9 eV), 428 (2.9 eV), 436 (2.85 eV) and 445 (2.8 eV) nm for PrOH-140, PrOH-180, EtOH-140 and EtOH-180 samples, respectively. It is clearly seen that PL maximum shifts to the red spectra region in the case of EtOH-140 and EtOH-180 samples, what can be caused by the differences in particle size and shape compared with PrOH-140 and PrOH-180 samples. Such displacement can be attributed to the fact that different shape of particles can lead to an increase in the concentration of surface defects responsible for PL [48]. It is well known that the size and shape of nanomaterial affect their physicochemical properties [49]. Generally, oxygen vacancies are known to be the most common defects. They usually act as radiative centres in the luminescence processes and can serve as deeply trapped holes in the semiconductors [47]; however, other impurities or defects within WO3 thin film might also contribute to the emission at 426, 428, 436 and 445 nm [48,50,51,52] observed in this study.
It is necessary to mention that blue photoluminescence band in the 400–440 nm region also could be attributed to optical transition in the isolated -OH groups formed at the WO3 coating surface [53,54]. This correlates well with FTIR results, because W-OH stretching and bending vibrations were observed at 3400 cm−1 and 1625 cm−1 wavenumbers, respectively. This fact is in good agreement with investigations of several metal oxides, which show the same photoluminescence of -OH-based photoluminescence centres, which are present in oxidized nanocrystalline and porous silicon, hydrated alumina oxide, hydrated lead oxide and zinc oxide [55].
The presence of oxygen in the surrounding atmosphere is also important for the generation of photoluminescence and for the catalytic activity of tungsten oxide layer [56,57] as it can interact with oxygen vacancies as represented by the following equations:
½ O2(g) + e− + As ↔ O(ads)− As is an oxygen adsorption site
O(ads) − + VO+ ↔ O(bulk) VO is an oxygen vacancy
Oxygen adsorption (Equation (6)) and WO3 oxidation (Equation (7)) are happening consecutively and adsorbed/integrated oxygen (Equations (6) and (7)) leads to the formation of electron depletion layer on the surface of WO3 film. When adsorbed O(ads)− oxygen species are removed from the surface reacting with the reducing gases or organic compounds, then the injection of the electrons is narrowing ‘the width’ of the electron depletion layer, which leads to the decrease in WO3 layer resistance. Two different charge transfer mechanisms are observed for WO3 layers: the first is based on n-type conductivity that is typical to stoichiometric WO3 [58,59,60] and the other mechanism is based on p-type conductivity that is characteristic for non-stoichiometric tungsten oxide WO3-x. The latter was reported and can be responsible for the low-temperature sensitivity of WO3-x-based layers towards gaseous analytes [61,62].
Time-resolved photoluminescence decay measurements presented in Figure 5 reveal that the average photoluminescence decay time of PrOH-140, PrOH-180, EtOH-140, EtOH-180 samples is 11.2, 11.3, 4.5 and 10.9 ns, respectively (Table 2). It is noteworthy that in the case of sample EtOH-140 the intensity of photoluminescence was the lowest (not shown) and average photoluminescence decay time was the shortest. In addition, it is necessary to mention that, in the case of EtOH-140 sample, no formation of dense nanostructured particles was observed (Figure 2). The reasons for different behaviour of sample EtOH-140 and correlation between PL properties, photoelectrochemical performance and morphological features of WO3 films formed under different conditions are discussed in the next section.

3.3. Photoelectrochemical Evaluation of WO3 Coatings Deposited on FTO-Glass Electrode

Photoelectrochemical behaviour of WO3 films deposited on conducting glass/FTO substrate was investigated in the solution of 0.5 M H2SO4 in dark and under illumination and the results are presented in Figure 6. Cyclic voltammogram (CV) of sample EtOH-140 in the dark (Figure 6a, curve 1) represent a typical response of tungsten (VI) oxide. The increase in cathodic current at E < 0.2 V and the anodic current peak that is observed in the same range of potentials reflects the reversible redox transition between W (VI) and W (V) oxygen species. Under dark conditions, the zone between 0.4 V and 1.8 V is the range of passivity, where no electrochemical processes occur. Under illumination, a remarkable increase of photoanodic current is observed at E > 0.4 V (Figure 6a, curve 2). This is consistent with n-type conductivity of WO3 coatings formed by sol-gel technology. In accordance with references [41,63], the main photoanodic process occurring in sulfuric acid solution is the oxidation of HSO4− into S2O82 by holes photogenerated in tungsten (VI) oxide, because the energy of holes is high enough to drive this redox reaction (E0(S2O82−/2HSO4−) = 2.12 V). The processes of reversible redox transition between W(VI)/W(V) oxygen compounds at E < 0.4 V are not affected by illumination conditions. Comparison of CVs of FTO-supported WO3 films formed under different synthesis conditions is presented in Figure 6b. It should be noted here that in the E range below 0.4 V the curves of all samples practically coincide. This means that electrochemically active surface area of differently formed samples is very similar. In terms of photoelectrochemical activity, the sample EtOH-140 significantly outperforms all the rest WO3 films, as can be seen from the comparison of cyclic voltammograms at E > 0.4 V. These observations imply that the differences in PEC activity of the samples cannot be attributed to mere difference in their surface area. The photoelectrochemical activity of WO3 coatings decreases in the following sequence: EtOH-140 > EtOH-180 > PrOH-140 > PrOH-180. Interestingly, the sample EtOH-140 with the shortest photoluminescence decay time (τave = 4.5 ns), i.e., the fastest recombination, exhibits the highest photoelectrochemical activity. Such a discrepancy can be explained by taking into account the morphological features of the samples, as shown in Figure 2. One can see that the sample EtOH-140 is the only one which does not have the very fine-grained nanocrystalline areas discussed above. Most likely, these areas have a very high concentration of grain boundaries, which act as traps for the photogenerated charge carriers. The presence of such traps impedes the radiative recombination of charge carriers, leading to higher values of τave. From the viewpoint of PEC performance of the samples, these trap states slow the transport of photogenerated charge carriers towards WO3/solution interface, resulting in lower photocurrent. Consequently, slower kinetics of recombination due charge carrier trapping correlates with lower photoelectrochemical activity, i.e., the efficiency of charge transfer at the WO3/solution interface. The effect of particle size and grain morphology on the movement of photogenerated electrons and holes in semiconductors is well-known [64,65]. In the case of tungsten (VI) oxide, it has been reported [40,66] that films composed of irregular disordered perpendicularly oriented crystallites show higher photoelectrochemical performance than films with nanocrystalline particles. Under conditions of applied external bias (Figure 6), the rate of electron-hole recombination is suppressed, and the morphology of vertically aligned submicrometer sized plates results in the highest photocurrent of sample EtOH-140.
Here, the presented experimental results reveal that using ethanol as a reductant in the sol-gel synthesis applied in this study and 140 min dipping time in PTA + EtOH-based solution ensures the formation of WO3 structure, which is optimal for efficient separation and transport of photogenerated charge carriers due to formation of vertically aligned plates. Longer dipping duration or the use of propanol as a reductant favour the formation of a nanocrystalline structure, which is detrimental for fast transport of charge carriers due to presence of numerous grain boundaries which act as traps for photogenerated electrons.

4. Conclusions and Future Trends

Layers of tungsten (VI) oxide were formed on conducting glass substrate by sol-gel synthesis method using two different reducing agents and different durations of coating formation. It was found that using propanol as a reductant leads to formation of dense nanostructured WO3 films with randomly distributed agglomerates composed of particles of several micrometres size, whereas using ethanol as a reductant favours formation of uniform layers of vertically aligned submicrometer sized plates. Investigations of time-resolved photoluminescence and photoelectrochemical activity of WO3 films revealed that the latter microstructure is favourable for the efficient transport of photogenerated charge carriers. Vertically aligned plates were found to quench the PL of WO3 coatings as such morphology is characterized by lower intensity and fast decay (4.5 ns) of photoluminescence compared to the films containing fragments of dense nanostructure. These dense nano-structured areas were suggested to be responsible for rather strong photoluminescence in the range of 400–440 nm and photoluminescence decay times of 11 ns. Moreover, numerous grain boundaries present in the nano-structured fragments of WO3 coatings contain oxygen vacancies and other defects, which act as traps for the photogenerated charge carriers, slowing down their transport and leading to inferior photo-electrochemical performance. These findings provide guidelines for the synthesis of light-sensitive WO3 films, which will be assessed for gas sensing properties at room temperature.

Author Contributions

Conceptualization, A.R.; methodology, S.R. and M.P. (Milda Petruleviciene); photoluminescence experiments, R.K. and A.T.; preparation of samples, M.P. (Maliha Parvin); writing, original draft, M.P. (Milda Petruleviciene), U.S.-B. and J.J.; visualization, U.S.-B.; discussion and data analysis M.P. (Milda Petruleviciene), A.R., R.K., A.T., S.R. and J.J., all authors contributed to the final editing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partially funded by Lithuanian Research Council project No: 09.3.3-ESFA V-711-01-0001.

Acknowledgments

Authors are grateful to Vidas Pakštas and Arnas Naujokaitis for the results of XRD and SEM measurements.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xu, F.; Ho, H.-P. Light-Activated Metal Oxide Gas Sensors: A Review. Micromachines 2017, 8, 333. [Google Scholar] [CrossRef] [PubMed]
  2. Tereshchenko, A.; Bechelany, M.; Viter, R.; Khranovskyy, V.; Smyntyna, V.; Starodub, N.; Yakimova, R. Optical biosensors based on ZnO nanostructures: Advantages and perspectives. A review. Sens. Actuators B Chem. 2016, 229, 664–677. [Google Scholar] [CrossRef]
  3. Tereshchenko, A.; Smyntyna, V.; Ramanavicius, A. Interaction mechanism between TiO2 nanostructures and bovine leukemia virus proteins in photoluminescence-based immunosensors. RSC Adv. 2018, 8, 37740–37748. [Google Scholar] [CrossRef]
  4. Zheng, M.; Tang, H.; Hu, Q.; Zheng, S.; Li, L.; Xu, J.; Pang, H. Tungsten-Based Materials for Lithium-Ion Batteries. Adv. Funct. Mater. 2018, 28, 1707500. [Google Scholar] [CrossRef]
  5. Niklasson, G.A.; Berggren, L.; Larsson, A.-L. Electrochromic tungsten oxide: The role of defects. Sol. Energy Mater. Sol. Cells 2004, 84, 315–328. [Google Scholar] [CrossRef]
  6. Huang, Z.-F.; Song, J.; Pan, L.; Zhang, X.; Wang, L.; Zou, J.-J. Tungsten Oxides for Photocatalysis, Electrochemistry, and Phototherapy. Adv. Mater. 2015, 27, 5309–5327. [Google Scholar] [CrossRef]
  7. Nath, N.C.D.; Choi, S.Y.; Jeong, H.W.; Lee, J.-J.; Park, H. Stand-alone photoconversion of carbon dioxide on copper oxide wire arrays powered by tungsten trioxide/dye-sensitized solar cell dual absorbers. Nano Energy 2016, 25, 51–59. [Google Scholar] [CrossRef]
  8. Zheng, G.; Wang, J.; Liu, H.; Murugadoss, V.; Zu, G.; Che, H.; Lai, C.; Li, H.; Ding, T.; Gao, Q.; et al. Tungsten oxide nanostructures and nanocomposites for photoelectrochemical water splitting. Nanoscale 2019, 11, 18968–18994. [Google Scholar] [CrossRef]
  9. Sivakarthik, P.; Thangaraj, V.; Parthibavarman, M. A facile and one-pot synthesis of pure and transition metals (M = Co & Ni) doped WO3 nanoparticles for enhanced photocatalytic performance. J. Mater. Sci. Mater. Electron. 2017, 28, 5990–5996. [Google Scholar] [CrossRef]
  10. Gao, W.-B.; Ling, Y.; Liu, X.; Sun, J.-L. Simple point contact WO3 sensor for NO2 sensing and relevant impedance analysis. Int. J. Miner. Met. Mater. 2012, 19, 1142–1148. [Google Scholar] [CrossRef]
  11. Juodkazytė, J.; Šebeka, B.; Savickaja, I.; Petrulevičienė, M.; Butkutė, S.; Jasulaitienė, V.; Selskis, A.; Ramanauskas, R. Electrolytic splitting of saline water: Durable nickel oxide anode for selective oxygen evolution. Int. J. Hydrogen Energy 2019, 44, 5929–5939. [Google Scholar] [CrossRef]
  12. Xu, Y.; Lou, C.; Zheng, L.; Zheng, W.; Liu, X.; Kumar, M.; Zhang, J. Highly sensitive and selective detection of acetone based on platinum sensitized porous tungsten oxide nanospheres. Sens. Actuators B Chem. 2020, 307, 127616. [Google Scholar] [CrossRef]
  13. Gao, P.; Ji, H.; Zhou, Y.; Li, X. Selective acetone gas sensors using porous WO3–Cr2O3 thin films prepared by sol–gel method. Thin Solid Films 2012, 520, 3100–3106. [Google Scholar] [CrossRef]
  14. Navarrete, E.; Bittencourt, C.; Umek, P.; Llobet, E. AACVD and gas sensing properties of nickel oxide nanoparticle decorated tungsten oxide nanowires. J. Mater. Chem. C 2018, 6, 5181–5192. [Google Scholar] [CrossRef]
  15. Urasinska-Wojcik, B.; Vincent, T.A.; Chowdhury, M.F.; Gardner, J.W. Ultrasensitive WO3 gas sensors for NO2 detection in air and low oxygen environment. Sens. Actuators B Chem. 2017, 239, 1051–1059. [Google Scholar] [CrossRef]
  16. Zhang, C.; Boudiba, A.; De Marco, P.; Snyders, R.; Olivier, M.-G.; Debliquy, M. Room temperature responses of visible-light illuminated WO3 sensors to NO2 in sub-ppm range. Sens. Actuators B Chem. 2013, 181, 395–401. [Google Scholar] [CrossRef]
  17. Ramanavicius, S.; Tereshchenko, A.; Karpicz, R.; Ratautaite, V.; Bubniene, U.; Maneikis, A.; Jagminas, A.; Ramanavicius, A. TiO2-x/TiO2-Structure Based ’Self-Heated’ Sensor for the Determination of Some Reducing Gases. Sensors 2019, 20, 74. [Google Scholar] [CrossRef]
  18. Dilova, T.; Atanasova, G.; Dikovska, A.O.; Nedyalkov, N. The effect of light irradiation on the gas-sensing properties of nanocomposites based on ZnO and Ag nanoparticles. Appl. Surf. Sci. 2020, 505, 144625. [Google Scholar] [CrossRef]
  19. Chinh, N.D.; Kim, C.; Kim, D. UV-light-activated H2S gas sensing by a TiO2 nanoparticulate thin film at room temperature. J. Alloys Compd. 2019, 778, 247–255. [Google Scholar] [CrossRef]
  20. Trawka, M.P.; Smulko, J.; Hasse, L.Z.; Granqvist, C.-G.; Ionescu, R.; Llobet, E.; Annanouch, F.E.; Kish, L.B. UV-Light Induced Fluctuation Enhanced Sensing by WO3-based Gas Sensors. IEEE Sens. J. 2016, 16, 5152–5159. [Google Scholar] [CrossRef]
  21. Trawka, M.; Smulko, J.; Hasse, L.; Granqvist, C.-G.; Annanouch, F.E.; Ionescu, R. Fluctuation enhanced gas sensing with WO3-based nanoparticle gas sensors modulated by UV light at selected wavelengths. Sens. Actuators B Chem. 2016, 234, 453–461. [Google Scholar] [CrossRef]
  22. Su, P.-G.; Yu, J.-H.; Pi-Guey, S.; Jia-Hao, Y. Enhanced NO2 gas-sensing properties of Au-Ag bimetal decorated MWCNTs/WO3 composite sensor under UV-LED irradiation. Sens. Actuators A Phys. 2020, 303, 111718. [Google Scholar] [CrossRef]
  23. Gonzalez, O.; Welearegay, T.G.; Llobet, E.; Vilanova, X. Pulsed UV Light Activated Gas Sensing in Tungsten Oxide Nanowires. Procedia Eng. 2016, 168, 351–354. [Google Scholar] [CrossRef]
  24. Saidi, T.; Palmowski, D.; Babicz-Kiewlicz, S.; Welearegay, T.G.; El Bari, N.; Ionescu, R.; Smulko, J.; Bouchikhi, B. Exhaled breath gas sensing using pristine and functionalized WO3 nanowire sensors enhanced by UV-light irradiation. Sens. Actuators B Chem. 2018, 273, 1719–1729. [Google Scholar] [CrossRef]
  25. Cho, M.; Park, I. Recent Trends of Light-enhanced Metal Oxide Gas Sensors: Review. J. Sens. Sci. Technol. 2016, 25, 103–109. [Google Scholar] [CrossRef]
  26. Yao, Y.; Yin, M.; Yan, J.; Yang, N.; Liu, S. Controllable synthesis of Ag-WO3 core-shell nanospheres for light-enhanced gas sensors. Sens. Actuators B Chem. 2017, 251, 583–589. [Google Scholar] [CrossRef]
  27. Lemire, C.; Lollman, D.B.; Al Mohammad, A.; Gillet, E.; Aguir, K. Reactive R.F. magnetron sputtering deposition of WO3 thin films. Sens. Actuators B Chem. 2002, 84, 43–48. [Google Scholar] [CrossRef]
  28. Hu, L.; Hu, P.; Chen, Y.; Lin, Z.; Qiu, C. Synthesis and Gas-Sensing Property of Highly Self-assembled Tungsten Oxide Nanosheets. Front. Chem. 2018, 6, 4–7. [Google Scholar] [CrossRef]
  29. Nakakura, S.; Arif, A.F.; Rinaldi, F.G.; Hirano, T.; Tanabe, E.; Balgis, R.; Ogi, T. Direct synthesis of highly crystalline single-phase hexagonal tungsten oxide nanorods by spray pyrolysis. Adv. Powder Technol. 2019, 30, 6–12. [Google Scholar] [CrossRef]
  30. Yamaguchi, Y.; Imamura, S.; Ito, S.; Nishio, K.; Fujimoto, K. Influence of oxygen gas concentration on hydrogen sensing of Pt/WO3 thin film prepared by sol–gel process. Sens. Actuators B Chem. 2015, 216, 394–401. [Google Scholar] [CrossRef]
  31. Chai, Y.; Ha, F.; Yam, F.; Hassan, Z. Fabrication of Tungsten Oxide Nanostructure by Sol-Gel Method. Procedia Chem. 2016, 19, 113–118. [Google Scholar] [CrossRef]
  32. Poongodi, S.; Kumar, P.S.; Mangalaraj, D.; Ponpandian, N.; Meena, P.; Masuda, Y.; Lee, C. Electrodeposition of WO3 nanostructured thin films for electrochromic and H2S gas sensor applications. J. Alloys Compd. 2017, 719, 71–81. [Google Scholar] [CrossRef]
  33. Yan, D.; Li, S.; Liu, S.; Tan, M.; Cao, M. Electrodeposited tungsten oxide films onto porous silicon for NO2 detection at room temperature. J. Alloys Compd. 2018, 735, 718–727. [Google Scholar] [CrossRef]
  34. Zhou, D.; Che, B.; Kong, J.; Lu, X. A nanocrystalline tungsten oxide electrochromic coating with excellent cycling stability prepared via a complexation-assisted sol–gel method. J. Mater. Chem. C 2016, 4, 8041–8051. [Google Scholar] [CrossRef]
  35. Au, B.W.-C.; Chan, K.Y.; Knipp, D. Effect of film thickness on electrochromic performance of sol-gel deposited tungsten oxide (WO3). Opt. Mater. 2019, 94, 387–392. [Google Scholar] [CrossRef]
  36. Malakauskaite-Petruleviciene, M.; Stankeviciute, Z.; Niaura, G.; Prichodko, A.; Kareiva, A. Synthesis and characterization of sol–gel derived calcium hydroxyapatite thin films spin-coated on silicon substrate. Ceram. Int. 2015, 41, 7421–7428. [Google Scholar] [CrossRef]
  37. Hariharan, V.; Radhakrishnan, S.; Parthibavarman, M.; Dhilipkumar, R.; Chinnathambi, S. Synthesis of polyethylene glycol (PEG) assisted tungsten oxide (WO3) nanoparticles for l-dopa bio-sensing applications. Talanta 2011, 85, 2166–2174. [Google Scholar] [CrossRef]
  38. Ng, K.H.; Minggu, L.J.; Kassim, M.B. Gallium-doped tungsten trioxide thin film photoelectrodes for photoelectrochemical water splitting. Int. J. Hydrog. Energy 2013, 38, 9585–9591. [Google Scholar] [CrossRef]
  39. Zeng, Q.; Li, J.; Bai, J.; Li, X.; Xia, L.; Zhou, B. Preparation of vertically aligned WO3 nanoplate array films based on peroxotungstate reduction reaction and their excellent photoelectrocatalytic performance. Appl. Catal. B Environ. 2017, 202, 388–396. [Google Scholar] [CrossRef]
  40. Amano, F.; Li, D.; Ohtani, B. Fabrication and photoelectrochemical property of tungsten(vi) oxide films with a flake-wall structure. Chem. Commun. 2010, 46, 2769–2771. [Google Scholar] [CrossRef]
  41. Kalanur, S.S.; Duy, L.T.; Seo, H. Recent Progress in Photoelectrochemical Water Splitting Activity of WO3 Photoanodes. Top. Catal. 2018, 61, 1043–1076. [Google Scholar] [CrossRef]
  42. Xiong, Y.; Zhu, Z.; Guo, T.; Li, H.; Xue, Q. Synthesis of nanowire bundle-like WO3-W18O49 heterostructures for highly sensitive NH3 sensor application. J. Hazard. Mater. 2018, 353, 290–299. [Google Scholar] [CrossRef] [PubMed]
  43. Kim, K.H.; Lee, Y.B.; Choi, E.Y.; Park, H.C.; Park, S.S. Synthesis of nickel powders from various aqueous media through chemical reduction method. Mater. Chem. Phys. 2004, 86, 420–424. [Google Scholar] [CrossRef]
  44. Imran, M.; Rashid, S.S.A.A.H.; Sabri, Y.M.; Motta, N.; Tesfamichael, T.; Sonar, P.M.; Shafiei, M.; Rashi, S.S.A.A.H. Template based sintering of WO3 nanoparticles into porous tungsten oxide nanofibers for acetone sensing applications. J. Mater. Chem. C 2019, 7, 2961–2970. [Google Scholar] [CrossRef]
  45. Hatel, R.; Baitoul, M. Nanostructured Tungsten Trioxide (WO3): Synthesis, structural and morphological investigations. J. Phys. Conf. Ser. 2019, 1292, 012014. [Google Scholar] [CrossRef]
  46. Shen, Y.; Wang, W.; Chen, X.; Zhang, B.; Wei, D.; Gao, S.; Cui, B. Nitrogen dioxide sensing using tungsten oxide microspheres with hierarchical nanorod-assembled architectures by a complexing surfactant-mediated hydrothermal route. J. Mater. Chem. A 2016, 4, 1345–1352. [Google Scholar] [CrossRef]
  47. Zhang, J.; Zhang, W.; Yang, Z.; Yu, Z.; Zhang, X.; Chang, T.C.; Javey, A. Vertically aligned tungsten oxide nanorod film with enhanced performance in photoluminescence humidity sensing. Sens. Actuators B Chem. 2014, 202, 708–713. [Google Scholar] [CrossRef]
  48. Mendoza-Agüero, N.; Agarwal, V. Optical and structural characterization of tungsten oxide electrodeposited on nanostructured porous silicon: Effect of annealing atmosphere and temperature. J. Alloys Compd. 2013, 581, 596–601. [Google Scholar] [CrossRef]
  49. Patil, V.; Adhyapak, P.; Suryavanshi, S.; Mulla, I. Oxalic acid induced hydrothermal synthesis of single crystalline tungsten oxide nanorods. J. Alloys Compd. 2014, 590, 283–288. [Google Scholar] [CrossRef]
  50. Wang, N.; Sun, J.; Cao, X.; Zhu, Y.; Wang, Q.; Wang, G.; Han, Y.; Lu, G.; Pang, G.; Feng, S. High-performance gas sensing achieved by mesoporous tungsten oxide mesocrystals with increased oxygen vacancies. J. Mater. Chem. A 2013, 1, 8653–8657. [Google Scholar] [CrossRef]
  51. Su, C.-Y.; Lin, H.-C. Direct Route to Tungsten Oxide Nanorod Bundles: Microstructures and Electro-Optical Properties. J. Phys. Chem. C 2009, 113, 4042–4046. [Google Scholar] [CrossRef]
  52. Feng, M.; Pan, A.L.; Zhang, H.; Li, Z.A.; Liu, F.; Liu, H.; Shi, D.X.; Zou, B.S.; Gao, H.J. Strong photoluminescence of nanostructured crystalline tungsten oxide thin films. Appl. Phys. Lett. 2005, 86, 141901. [Google Scholar] [CrossRef]
  53. Chernyakova, K.; Karpicz, R.; Zavadski, S.; Poklonskaya, O.; Jagminas, A.; Vrublevsky, I. Structural and fluorescence characterization of anodic alumina/carbon composites formed in tartaric acid solution. J. Lumin. 2017, 182, 233–239. [Google Scholar] [CrossRef]
  54. Chernyakova, K.; Karpicz, R.; Rutkauskas, D.; Vrublevsky, I.; Hassel, A.W. Structural and Fluorescence Studies of Polycrystalline α-Al2 O3 Obtained From Sulfuric Acid Anodic Alumina. Phys. Status Solidi (A) 2018, 215, 1700892. [Google Scholar] [CrossRef]
  55. Rückschloss, M.; Wirschem, T.; Tamura, H.; Rühl, G.; Oswald, J.; Veprek, S. Photoluminescence from OH-related radiative centres in silica, metal oxides and oxidized nanocrystalline and porous silicon. J. Lumin. 1995, 63, 279–287. [Google Scholar] [CrossRef]
  56. Chen, D.; Hou, X.; Li, T.; Yin, L.; Fan, B.; Wang, H.; Li, X.; Xu, H.; Lu, H.; Zhang, R.; et al. Effects of morphologies on acetone-sensing properties of tungsten trioxide nanocrystals. Sens. Actuators B Chem. 2011, 153, 373–381. [Google Scholar] [CrossRef]
  57. Shi, J.; Hu, G.; Sun, Y.; Geng, M.; Wu, J.; Liu, Y.; Ge, M.; Tao, J.; Cao, M.; Dai, N. WO3 nanocrystals: Synthesis and application in highly sensitive detection of acetone. Sens. Actuators B Chem. 2011, 156, 820–824. [Google Scholar] [CrossRef]
  58. Horsfall, L.A.; Pugh, D.C.; Blackman, C.; Parkin, I.P. An array of WO3 and CTO heterojunction semiconducting metal oxide gas sensors used as a tool for explosive detection. J. Mater. Chem. A 2017, 5, 2172–2179. [Google Scholar] [CrossRef]
  59. Vuong, N.M.; Kim, D.; Kim, H. Surface gas sensing kinetics of a WO3 nanowire sensor: Part 2—Reducing gases. Sens. Actuators B Chem. 2016, 224, 425–433. [Google Scholar] [CrossRef]
  60. Patil, V.B.; Adhyapak, P.V.; Patil, P.S.; Suryavanshi, S.S.; Mulla, I.S. Hydrothermally synthesized tungsten trioxide nanorods as NO2 gas sensors. Ceram. Int. 2015, 41, 3845–3852. [Google Scholar] [CrossRef]
  61. Ramanavičius, S.; Petrulevičienė, M.; Juodkazytė, J.; Grigucevičienė, A.; Ramanavicius, A. Selectivity of Tungsten Oxide Synthesized by Sol-Gel Method Towards Some Volatile Organic Compounds and Gaseous Materials in a Broad Range of Temperatures. Materials 2020, 13, 523. [Google Scholar] [CrossRef] [PubMed]
  62. Yao, Y.; Yin, M.; Yan, J.; Liu, S. P-type sub-tungsten-oxide based urchin-like nanostructure for superior room temperature alcohol sensor. Appl. Surf. Sci. 2018, 441, 277–284. [Google Scholar] [CrossRef]
  63. Sayama, K. Production of High-Value-Added Chemicals on Oxide Semiconductor Photoanodes under Visible Light for Solar Chemical-Conversion Processes. ACS Energy Lett. 2018, 3, 1093–1101. [Google Scholar] [CrossRef]
  64. Cass, M.J.; Qiu, F.L.; Walker, A.B.; Fisher, A.C.; Peter, L.M. Influence of Grain Morphology on Electron Transport in Dye Sensitized Nanocrystalline Solar Cells. J. Phys. Chem. B 2003, 107, 113–119. [Google Scholar] [CrossRef]
  65. Amano, F.; Ishinaga, E.; Yamakata, A. Effect of Particle Size on the Photocatalytic Activity of WO3 Particles for Water Oxidation. J. Phys. Chem. C 2013, 117, 22584–22590. [Google Scholar] [CrossRef]
  66. Thimsen, E.; Rastgar, N.; Biswas, P. Nanostructured TiO2 Films with Controlled Morphology Synthesized in a Single Step Process: Performance of Dye-Sensitized Solar Cells and Photo Watersplitting. J. Phys. Chem. C 2008, 112, 4134–4140. [Google Scholar] [CrossRef]
Materials 13 02814 g001

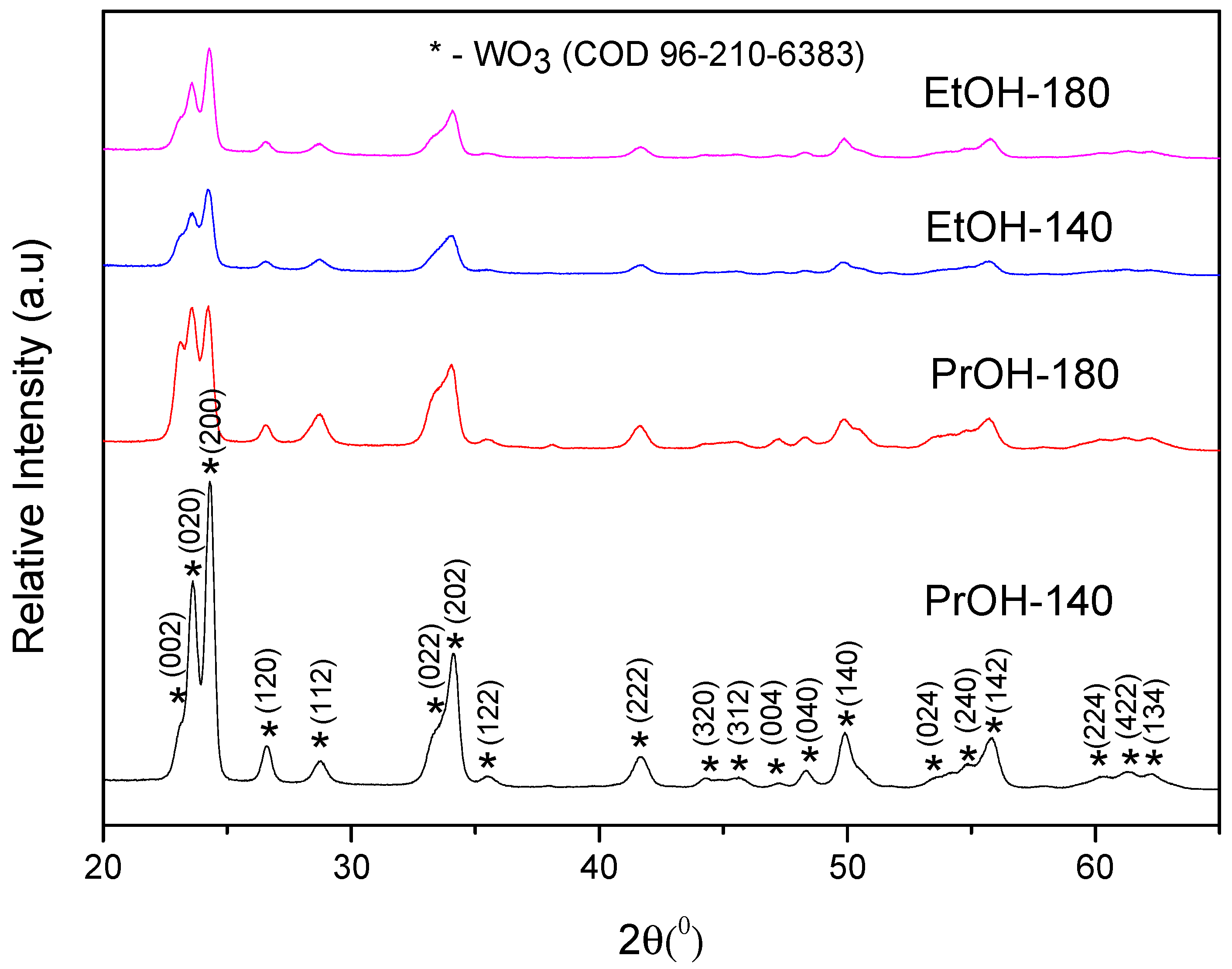

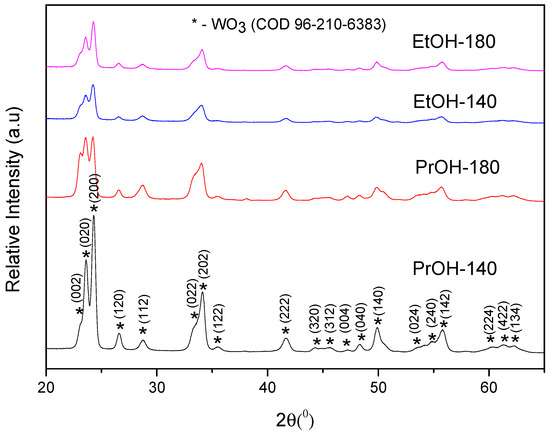

Figure 1. X-ray diffraction (XRD) spectra of WO3 layers prepared from PTA + EtOH and PTA + PrOH sol-gels using dipping times of 140 min and 180 min; samples wereannealed at 500 °C for 2 h.
Figure 1. X-ray diffraction (XRD) spectra of WO3 layers prepared from PTA + EtOH and PTA + PrOH sol-gels using dipping times of 140 min and 180 min; samples wereannealed at 500 °C for 2 h.
Materials 13 02814 g001
Materials 13 02814 g002
Figure 2. SEM images of WO3 sample prepared from PTA + PrOH sol-gel dipped for 140 min (a); dipped for 180 min (b) and PTA + EtOH sol-gel dipped for 140 min (c); dipped for 180 min (d) and annealed at 500 °C for 2 h. Magnification ×25,000.
Figure 2. SEM images of WO3 sample prepared from PTA + PrOH sol-gel dipped for 140 min (a); dipped for 180 min (b) and PTA + EtOH sol-gel dipped for 140 min (c); dipped for 180 min (d) and annealed at 500 °C for 2 h. Magnification ×25,000.
Materials 13 02814 g002
Materials 13 02814 g003

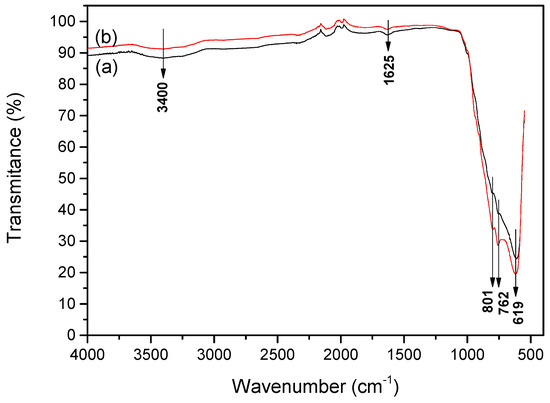

Figure 3. Fourier Transform Infrared (FTIR) spectrum of WO3 powder prepared from (a) PTA + PrOH sol-gel and (b) PTA + EtOH sol-gel and annealed at 500 °C.
Figure 3. Fourier Transform Infrared (FTIR) spectrum of WO3 powder prepared from (a) PTA + PrOH sol-gel and (b) PTA + EtOH sol-gel and annealed at 500 °C.
Materials 13 02814 g003
Materials 13 02814 g004

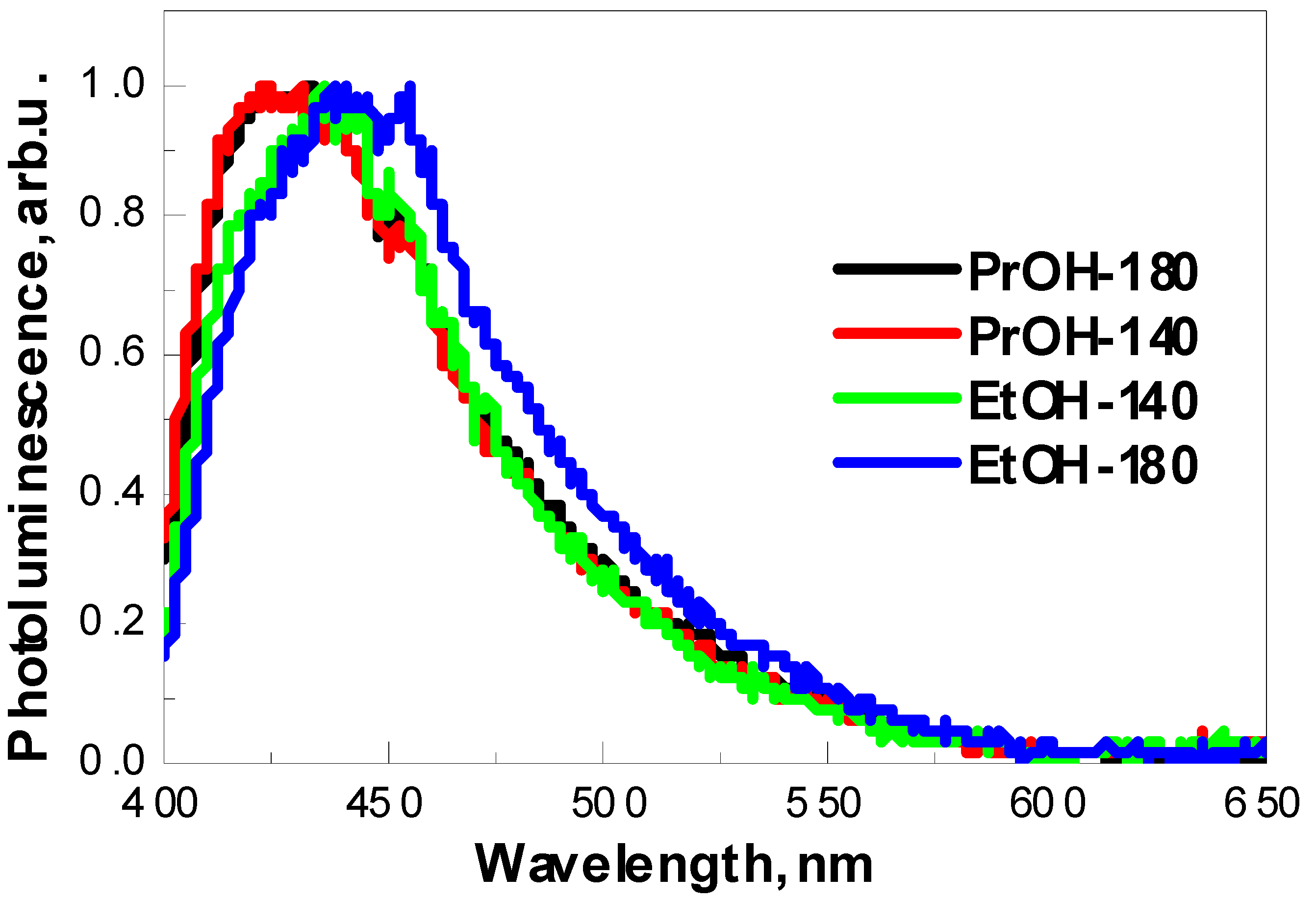

Figure 4. Normalized photoluminescence spectra of samples PrOH-140, PrOH-180, EtOH-140 and EtOH-180 under 375 nm excitation.
Figure 4. Normalized photoluminescence spectra of samples PrOH-140, PrOH-180, EtOH-140 and EtOH-180 under 375 nm excitation.
Materials 13 02814 g004
Materials 13 02814 g005

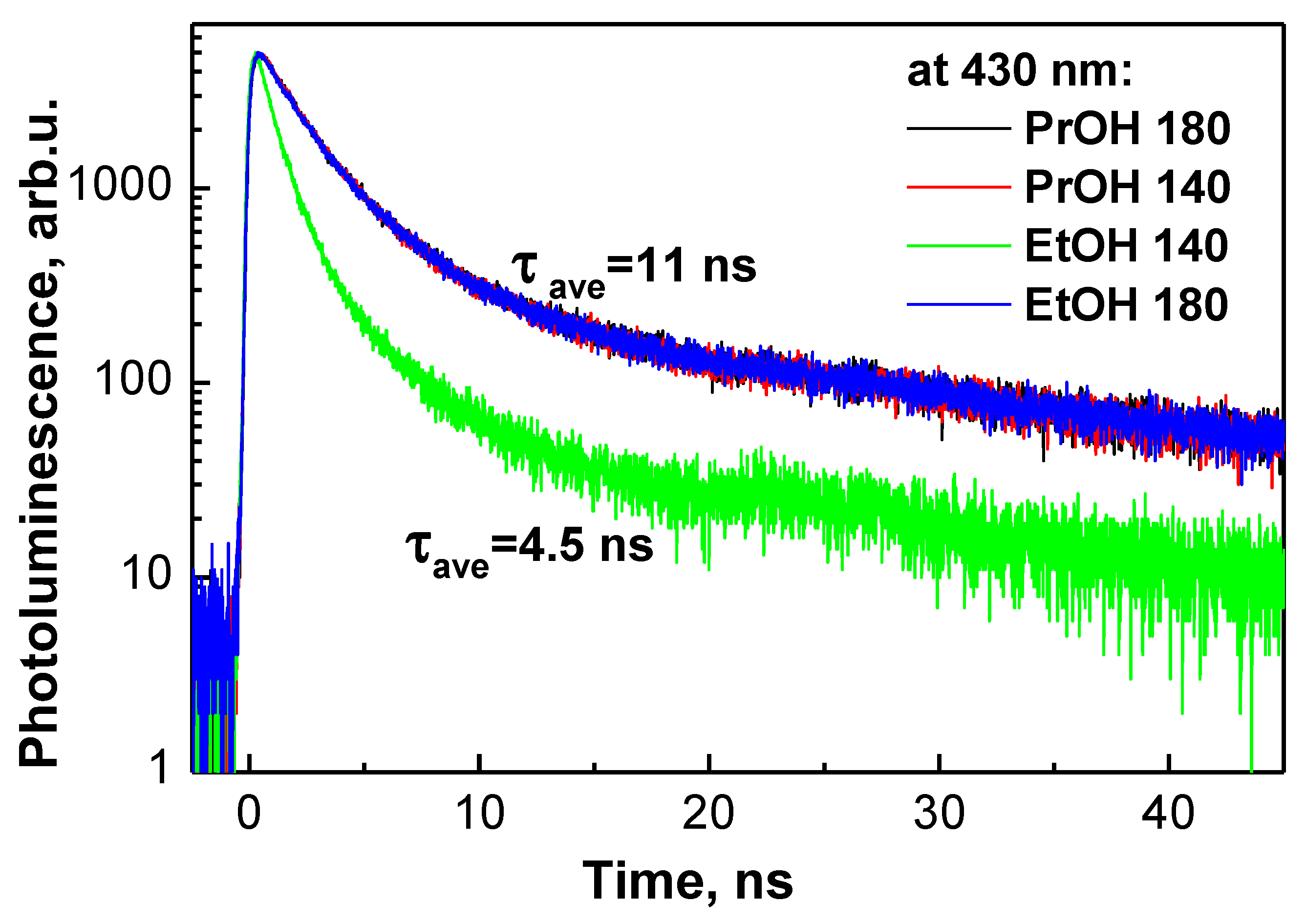

Figure 5. Time resolved photoluminescence decay kinetics of samples PrOH-140, PrOH-180, EtOH-140 and EtOH-180 at 430 nm.
Figure 5. Time resolved photoluminescence decay kinetics of samples PrOH-140, PrOH-180, EtOH-140 and EtOH-180 at 430 nm.
Materials 13 02814 g005
Materials 13 02814 g006

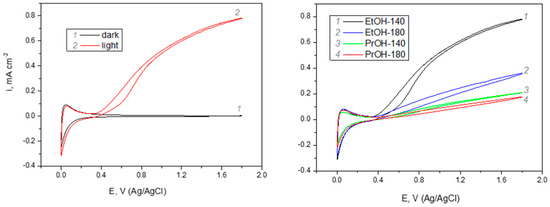

Figure 6. Photoelectrochemical response of FTO/WO3 samples formed under different synthesis conditions: (a) cyclic voltammograms of sample EtOH-140 in dark and under illumination; (b) cyclic voltammograms of indicated samples under illumination; solution 0.5 M H2SO4, potential scan rate of 50 mV s−1, intensity of illumination~100 mW cm−2.
Figure 6. Photoelectrochemical response of FTO/WO3 samples formed under different synthesis conditions: (a) cyclic voltammograms of sample EtOH-140 in dark and under illumination; (b) cyclic voltammograms of indicated samples under illumination; solution 0.5 M H2SO4, potential scan rate of 50 mV s−1, intensity of illumination~100 mW cm−2.
Materials 13 02814 g006
Table 1. Crystallite size of PrOH-140, PrOH-180; EtOH-140 and EtOH-180.
Table 1. Crystallite size of PrOH-140, PrOH-180; EtOH-140 and EtOH-180.
SampleCoating Formation Time (min)Crystallite Size (nm)
PrOH-1401406.57
PrOH-1801805.58
EtOH-1401405.51
EtOH-1801805.55
Table 2. Photoluminescence data of WO3 samples formed under different conditions.
Table 2. Photoluminescence data of WO3 samples formed under different conditions.
Sampleλem, nmτ1, ns (%)τ2, ns (%)τ3, ns (%)τave, ns
PrOH-1404261.6 (37%)4.1 (32%)30 (31%)11.2
PrOH-1804281.6 (37%)4.4 (32%)30 (31%)11.3
EtOH-1404360.7 (55%)2.6 (30%)22 (15%)4.5
EtOH-1804431.5 (33%)3.9 (36%)29 (31%)10.9

Share and Cite

MDPI and ACS Style

Petruleviciene, M.; Juodkazyte, J.; Parvin, M.; Tereshchenko, A.; Ramanavicius, S.; Karpicz, R.; Samukaite-Bubniene, U.; Ramanavicius, A. Tuning the Photo-Luminescence Properties of WO3 Layers by the Adjustment of Layer Formation Conditions. Materials 2020, 13, 2814. https://doi.org/10.3390/ma13122814

AMA Style

Petruleviciene M, Juodkazyte J, Parvin M, Tereshchenko A, Ramanavicius S, Karpicz R, Samukaite-Bubniene U, Ramanavicius A. Tuning the Photo-Luminescence Properties of WO3 Layers by the Adjustment of Layer Formation Conditions. Materials. 2020; 13(12):2814. https://doi.org/10.3390/ma13122814

Chicago/Turabian Style

Petruleviciene, Milda, Jurga Juodkazyte, Maliha Parvin, Alla Tereshchenko, Simonas Ramanavicius, Renata Karpicz, Urte Samukaite-Bubniene, and Arunas Ramanavicius. 2020. "Tuning the Photo-Luminescence Properties of WO3 Layers by the Adjustment of Layer Formation Conditions" Materials 13, no. 12: 2814. https://doi.org/10.3390/ma13122814

APA Style

Petruleviciene, M., Juodkazyte, J., Parvin, M., Tereshchenko, A., Ramanavicius, S., Karpicz, R., Samukaite-Bubniene, U., & Ramanavicius, A. (2020). Tuning the Photo-Luminescence Properties of WO3 Layers by the Adjustment of Layer Formation Conditions. Materials, 13(12), 2814. https://doi.org/10.3390/ma13122814

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
