A New Cr3+ Electrochemical Sensor Based on ATNA/Nafion/Glassy Carbon Electrode

by
Reda M. El-Shishtawy
1,*,
Mohammed M. Rahman
1,*,
Tahir Ali Sheikh
2,
Muhammad Nadeem Arshad
1,
Fatimah A. M. Al-Zahrani
3 and
Abdullah M. Asiri
1
1
Chemistry Department, Faculty of Science, King Abdulaziz University, Jeddah 21589, Saudi Arabia
2
Irrigation Research Institute, Irrigation Department, Government of the Punjab, Old Anarkali, Lahore-54000, Pakistan
3
Chemistry Department, Faculty of Science, King Khalid University, P.O. Box 9004, Abha 61413, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(12), 2695; https://doi.org/10.3390/ma13122695
Submission received: 21 April 2020 / Revised: 3 June 2020 / Accepted: 11 June 2020 / Published: 12 June 2020
(This article belongs to the Special Issue Environment-Friendly Electrochemical Processes)
Browse Figures
Versions Notes

Abstract

:
A new electrochemical sensor of metal cation in an aqueous solution based on homobifunctional tridentate disulfide Schiff base and named 1,1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis(methaneylylidene))bis(naphthalene-2-ol) (ATNA) was easily obtained quantitatively from the condensation reaction of 2-hydroxy-1-naphthaldehyde and 2-aminothiophenol, and then fully characterized by spectroscopic techniques for structure elucidation. The molecular structure of ATNA was also confirmed by a single-crystal X-ray diffraction study to reveal a new conformation in which the molecule was stabilized by the O–H…N type intramolecular hydrogen bonding interactions in both moieties. The ATNA was used as a selective electrochemical sensor for the detection of chromium ion (Cr3+). A thin film of ATNA was coated on to the flat surface of glassy carbon electrode (GCE) followed by 5 % ethanolic Nafion in order to make the modified GCE (ATNA/Nafion/GCE) as an efficient and sensitive electrochemical sensor. It was found to be very effective and selective against Cr3+ cations in the company of other intrusive heavy metal cations such as Al3+, Ce3+, Co2+, Cu2+, Ga3+, Hg2+, Mn2+, Pb2+, and Y3+. The detection limit at 3 S/N was found to be 0.013 nM for Cr3+ ions within the linear dynamic range (LDR) (0.1 nM–10.0 mM) of Cr3+ ions with r2 = 0.9579. Moreover; this work instigates a new methodology for developing the sensitive as well as selective electrochemical toxic cationic sensors in the field of environmental and health care.

Graphical Abstract

1. Introduction

The chemical factories and mining facilities throughout the world discharge overwhelming metal particles and severely affect the environment [1,2,3,4]. Hence, accurate quantitative and qualitative detection of such heavy metal ions in an aqueous solution is of prime importance for the protection of the environment. In this regard, the Schiff base structure represents an extraordinary class of ligands because of their facile synthesis from diverse reagents, and the formation of a wide range of complexes with potential applications in different fields such as dye affinity chromatography [5], liquid crystals [6,7], nanocomposite-based polyazommethine [8], medicine [9,10], corrosion inhibitors [11], catalysis [12] and electrochemical sensors [13,14,15]. Schiff base-derived from 2-aminobenzothiophenol, on the other hand, may have an interesting geometry owing to its propensity for the in situ formed disulfide bond [16]. Accordingly, the present work was made to explore the possibility of synthesizing and using of homobifunctional tridentate disulfide Schiff base derived from 2-hydroxy-1-naphthaldehyde and 2-aminothiopheno as a selective cation sensor by an electrochemical approach.
Chromium, among the most well known components, that exists in the earth crust as Cr3+ or Cr6+ cations in combination with other anions as ore e.g., chromite. Cr3+ is a vital component in nutrition, while Cr6+ is profoundly harmful. Cr3+ plays a vital role during metabolism via enzyme activation [17,18,19]. On the other hand, Cr3+ deficiency in the human body may cause health disorders, including diabetes and cardiovascular diseases. However, a high level of chromium ion in the human body is very harmful as it affects the enzymatic activities and the cellular structures [20]. The maximum permissible level of total chromium, as set by the Environmental Protection Agency (EPA) is 0.1 mg/mL [18,21,22].
Several analytical techniques, for example, atomic absorption spectrometry (AAS) [23,24,25,26,27], high-performance liquid chromatography (HPLC) coupled with inductive coupled plasma–mass spectrometry (HPLC–ICP–MS), high-performance liquid chromatography coupled with diode array detector (HPLC–DAD), reverse phase ion-pair high-performance liquid chromatography [28,29,30,31,32,33], ion chromatography inductively coupled plasma–mass spectrometry (IC–ICP–MS) [34,35], mass spectrometry [31], colorimetric and fluorescence spectroscopy [36,37,38,39], capillary electrophoresis coupled with UV spectrophotometer [40,41], and chemiluminescence [42] have been reported for the detection of chromium ionic species in addition to some electrochemical approaches such as differential pulse voltammetry [43], adsorptive stripping voltammetry [44], cyclic voltammetry and amperometry [45,46,47,48]. Some of the methods that have been stipulated above are very expensive and complicated for the detection of chromium. If some are fortunately cost effective, then they are not effectual with respect to the detection limit, and some exist with other old classical electrochemical methods for its detection.
Therefore, it is of great interest to develop a new, trustworthy, efficient, selective and cost-effective (cheap) techniques for the detection of chromium ion (Cr3+), qualitatively, and quantitatively. In this study, an electrochemical approach, current-potential (I-V) technique, based on newly modified glassy carbon electrode, 1,1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis(methaneylylidene))bis(naphthalene-2-ol) (ATNA)/Nafion/GCE, as an agile and selective electrochemical sensor, was applied for the first time for the practical determination of Cr3+ ions in an aqueous media (phosphate buffer saline (PBS)). The modified GCE (ATNA/Nafion/GCE) was fabricated by coating the newly synthesized, homobifunctional tridentate ATNA Schiff base, which acts as a chelating agent onto its flat surface followed by 5% ethanolic Nafion as conducting the polymer binder. It furnishes the very sensitive transduction at the interface of liquid/surface electrode in phosphate buffer saline (PBS) (0.1 M at 7.0 pH). To the best of our knowledge, this is the first cationic electrochemical sensing application based on the current-potential technique by using a newly modified GCE as a working electrode for sensing the Cr3+ ions within a very short response time of 10 to 20 s, qualitatively and quantitatively, in an aqueous neutral solution.

2. Experimental

2.1. Materials and Methods

All solvents and reagents were purchased from Sigma-Aldrich Company and used as received. Then, 1 H and 13C NMR spectra were recorded in CDCl3 solutions on a Bruker Avance 850 MHz spectrometer. The attenuated total reflectance–Fourier transform infrared (ATR–FTIR) spectrum was performed on a PerkinElmer spectrum 100 FT-IR spectrometer. The melting point was determined in an open capillary tube in a Stuart Scientific melting point apparatus (SMP3) and was uncorrected. De-ionized water was used for the making the stock as well as the chemical solutions of different concentration in whole study.
The current-potential (I-V) technique was measured using the Keithley 6517A, Electrometer (USA), as a constant voltage source. The detection of chromium cation (Cr3+) in the phosphate buffer medium at applied potential ranging from 0 to + 1.5 V was made using a newly designed ATNA/Nafion/GCE and Pt-wire as the working electrode and counter electrode, respectively, by measuring the I-V responses in two electrode systems (lab-made electrochemical cell). Moreover, this novel (I-V) method follows the Ohms law that measures the current against the potential applied.

2.2. Synthesis of 1,1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis(methaneylylidene))bis(naphthalen-2-ol) (ATNA)

A solution of 2-aminothiophenol (0.88 g, 7.0 mmol) and 2-hydroxy-1-naphthaldehyde (1.21 g, 7.0 mmol) in 50.0 ml absolute ethanol was refluxed with stirring overnight, and then left to cool. The brownish-orange precipitate was filtered and then washed with ethanol to give 1.8 g, 92.5% yield. The product was re-crystallized slowly from toluene to obtain the single crystal. Mp: 221–220 °C. 1H NMR (CDCl3, 850 MHz,δ = ppm): 7.20 (6H, m, Ar-H), 7.27 (2H, d, J = 8.5 Hz, ArH), 7.40 (2H, t, J = 7.65–8.5 Hz, Ar-H), 7.56 (2H, t, J =7.65–8.5 Hz, Ar-H), 7.73 (2H, d, J = 7.65 Hz, Ar-H), 7.80 (2H, d, J = 7.65 Hz, Ar-H), 7.89 (2H, d,J = 8.5 Hz, Ar-H), 8.19 (2H, d, J = 8.5 Hz, Ar-H), 9.45 (2H, s, 2N = CH), 14.95 (2H, s, 2OH), 13C NMR (CDCl3, 213 MHz, δ = ppm):109.56, 118.08, 119.31, 120.60, 123.69, 127.30, 127.76, 128.06,128.36, 129.07, 129.39, 130.98, 132.99, 135.98, 146.45, 157.55, 157.61; FTIR (ATR, cm−1): 3061, 3001, 2972, 1622, 1602, 1586, 1551, 1461, 1217, 819, 744, 449.

2.3. X-ray Crystallography of ATNA

The sample compound was crystalized for single crystal diffraction studies. The crystals were taken out from the crystallization flask and screened out under the microscope. The suitable crystal was selected and pasted over the glass tip using commercial glue. The glass tip was immersed into the wax supported by a hollow copper rod and a magnetic base. This holder was mounted on an Agilent SuperNova (Dual source) Agilent Technologies Diffractometer, equipped with graphite-monochromatic Cu/Mo Kα radiation for data collection. The data collection was accomplished using CrysAlisPro software [49] at 296 K under the Cu Kα radiation. The structure solution was performed using SHELXS–97 [50] and refined by full-matrix least-squares methods on F2 using SHELXL–97 [50], in-built with WinGX [51]. All non-hydrogen atoms were refined anisotropically by full-matrix least squares methods [50]. Figures were drawn using PLATON [52] and ORTEP-3 [53].
All the aromatic hydrogen atoms were positioned geometrically and treated as riding atoms with C–H = 0.93 Å and Uiso(H) = 1.2 Ueq(C) carbon atoms. The O–H = 0.82 Å and O–H = 0.93(6) Å, hydrogen atom was also positioned geometrically and treated as a riding atom with Uiso (H) = 1.5 Ueq(O), respectively. The crystallographic information file (CIF) of compound I was submitted to the Cambridge Crystallographic Data Centre (CCDC). The CCDC number (1953254) obtained against it is mentioned in Table 1. These data can be obtained free of charge at www.ccdc.cam.ac.uk/conts/retrieving.html or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK.

2.4. Fabrication of ATNA/Nafion/GCE as a Selective Cr3+ Electrochemical Sensor

For the fabrication of ATNA/Nafion/GCE as a selective Cr3+ electrochemical sensor, a simple and reliable approach was practiced. The geometrical dimension of the GCEs that were used for the fabrication of GCE as a selective Cr3+ electrochemical sensor, was 12 cm in length with a copper rod and 0.0316 cm2 in surface area. Before the fabrication of the GCE, it was washed by using a very simple protocol. First, the GCE was dipped in acetone for 10 min. After that, it was washed thoroughly with deionized water followed by ethanol-soaked cotton buds and dried in an oven for 15 min at 80 ºC. After proper washing, a slurry of approximately 1.5 mg of synthesized ATNA was made with ethanol, and then applied onto the flat surface of GCE with one to two drops of 5% ethanolic Nafion as an adhesive conducting binder. Then, the freshly fabricated electrode was dried at 35 ºC for 45 min in an oven in order to get the ATNA/Nafion/GCE as a selective and sensitive Cr3+ electrochemical sensor, Scheme 1. This newly designed ATNA/Nafion/GCE as a selective Cr3+ sensor was therefore used as a working electrode to measure the I-V (current-potential) response in a phosphate buffer saline (PBS) medium of pH = 7, in the presence or absence of Cr3+ ions, in a lab-made electrochemical cell (beaker) in which Pt-wire was used as a counter electrode. The (PBS) medium of pH = 7 was made by mixing the equimolar solution of disodium phosphate (0.2 M, 39.0 mL) with monosodium phosphate (0.2 M, 61.0 mL) in a 100 mL measuring flask. In the whole study, Cr3+ was used as a target analyte in the presence of other interference cations. The stock solution of Cr3+ was used to get the different concentration range of Cr3+ (full concentration range: 0.01 nM ~ 0.1 M) in deionized water by dilution method. Similarly, the amount (10.0 mL) of (0.2 M) PBS of pH = 7 was kept constant in every trial or throughout the whole study in a lab-made electrochemical cell in order to measure the I-V response, in the presence as well as in the absence of the target analyte. Correspondingly, different analytical parameters such as sensitivity, full concentration range as well as linear dynamic range (LDR), regression coefficient r2, the limit of detection at S/N 3 (LOD) and limit of quantification (LOQ), for Cr3+ were also measured from the slope of the calibration plot (current versus concentration) by using the newly designed ATNA/Nafion/GCE as a selective Cr3+ sensor.

3. Results and Discussion

3.1. Synthesis

It was envisioned that having disulfide-containing homobifunctional Schiff base as a tridentate ligand would make a stable film on a glassy carbon electrode for the electrochemical detection of toxic metal ions from aqueous solution. Little information on ATNA with a different single-crystal structure from the present one has been reported [16]. The synthesis of ATNA was easily obtained in one step in excellent yield by refluxing the 1:1 molar ratio of 2-aminothiphenol and 2-hydroxynaphthaldehyde in absolute ethanol for 19 h (Scheme 2a). The single crystal of the product was obtained by recrystallization from toluene. It is suggested that the formation of the ATNA ligand proceeds via condensation to get the corresponding Schiff base, which further undergoes the in situ oxidation of thiol to the corresponding disulfide by virtue of the dissolved oxygen. The oxidation proceeds via a thyil radical in a one-electron transfer process that dimerizes to give the disulfide (Scheme 2b) [54].
NMR (proton and carbon, see Supplementary Files S1–S6, Figures S1 and S2), ATR–FTIR, and single-crystal measurements were made to confirm the chemical structure of ATNA. The ATR–FTIR spectrum of ATNA reveals the characteristic bands of aromatic Schiff base imine group (CH=N) at 1622 cm−1. It is noteworthy to observe, as shown in Figure 1, the absence of the vibration peak of the OH group, but instead the appearance of weak bands at 2972, 3001, 3061 cm−1 due to the stretching vibrations of C–H of imine and phenyl groups. The absence of OH vibration is attributed to the existence of the intramolecular hydrogen bond between OH and CH=N and S–S (Scheme 3), as it will be emphasized further below in 1H NMR and single-crystal data. This IR attribution is in accordance with a similar Schiff base reported earlier [14,15,55]. The stretching vibration frequency of aromatic disulfide (S–S) appears at 449 cm−1 as similarly reported [56]. The sharp band appearing at 744 cm−1 may correspond to disulfides (C–S stretch) and 1,2-disubstituted aromatic. The band at 819 cm−1 corresponds to the aromatic C–H bending vibration [56]. Moreover, the stretching vibrations due to C=N- appear at 1602 and 1586 cm−1. On the other hand, bands due to C=C aromatic and C-0 of phenolic groups appear at 1551, 1461, and 1217 cm−1, respectively.
The proton NMR data reveals the imine protons as a singlet at 9.45 ppm and OH groups as singlet downfield at 14.95 ppm because of the existence of intramolecular hydrogen bonds that increase the acidity of OH groups. Furthermore, the formation of such intramolecular hydrogen bonds near aromatic moieties may deshield the OH groups by magnetic anisotropic effect [14,15]. Other protons with their coupling constants are nicely correlated, and the total number of protons are presented per the chemical structure of ATNA. In addition, 13C NMR reveals all the carbons present in ATNA and the characteristic peak of imine carbon appears at 165.49 ppm.

3.2. Crystal Description

The molecule 1,1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis (methaneylylidene))bis(naphthalen-2-ol) is basically a dimer of 1-[(2-Mercapto-phenylimino)-methyl]-naphthalen-2-ol which are connected through a sulphur atom. The single crystal diffractions were carried out to support our spectroscopic data, the confirmation of the synthesized product and to attract the readers for further any applications. The S–S bond distance is 2.0234 (10) Å, which is in accordance with already published related structures [57]. The Schiff base parts (A and B) of the molecule around the S–S bonds have a different geometry, due to which there is no center of symmetry or point symmetry in it, Figure 2. The crystallographic parameters are given in Table 1, while selected bond lengths and bond angles are provided in Tables S1 and S2. In part A (C1–C17), the benzene ring and naphthalene rings were twisted at a dihedral angle of 2.396(1)° while the in part B (C18–C34), these rings were twisted at a dihedral angle of 28.396 (1)°. The conformation around the imine bond (C=N) in both parts is trans, favoring the molecule to stay in the most stable form. The molecule was stabilized by the O–H…N type intramolecular hydrogen bonding interactions (Table 2). These interactions produced six-membered ring motifs [S(6)] with the root mean square deviation values of 0.0250 (2)Å and 0.0190 Å for the rings (C1/C2/C11/N1/H1O/O1) and (C24/C25/C26/N2/H2O/O2). The former ring motif is turned at dihedral angles of 79.72(7) with respect to the benzene ring (C12–C17) while the later ring is twisted by 4.071(15) with the aromatic ring (C18–C23) Figure 3. The O2–H2O…N2 and O2–H2O…S2 interactions produced two ring motifs (Figure 3 and Figure S3), (i) a nine-membered ring motif (C18/C19/N2/C24/C25/C26/O2/H2O/S2) which can be represented mathematically as S(9) [58], (ii) a five-membered ring motif where O2 acts as donor atom via H2O to N2 and S2 so this can be represented as S12(5). From Figure S4, we can observe that planes of aromatic benzene and naphthalene are parallel to each other give rise to the π–π interactions among them to afford the extra stability to the crystal structure of the subjected compound.

3.3. Application: Detection of Cr3+ Cation with ATNA Modified GCE

The most inspiring application of the homobifunctional tridentate ATNA Schiff base is the selective electrochemical sensing of Chromium (III) cations in an aqueous system in the presence of other interfering toxic/heavy metal cations. An electrochemical current-potential (I-V) approach based on a newly modified GCE (ATNA/Nafion/GCE) was applied for the first time for the sensing of Cr3+ ions in a lab-made electrochemical cell (two-electrode system accommodating a working electrode and a counter electrode in an aqueous solution). Moreover, the fabrication of the newly modified GCE has already been discussed in the experimental section of this study. Therefore, the fabrication of ATNA/Nafion/GCE for the probe of Cr3+ ions in an aqueous solution by means of the (I-V) technique is the new approach. It is highly efficient as well as a selective electrochemical sensor against the Cr3+. Moreover, no other reports have been cited in the literature by using this newly designed ATNA/Nafion/GCE as a selective Cr3+ electrochemical sensor. A remarkable variation in the current response was observed against the potential applied (0 to +1.5 V) in response to the absorbed analyte, Cr3+ onto the surface of the modified GCE. During the whole study, the concentration of our target analyte, as well as other heavy metal cations, were taken as 25.0 µL of 0.1 µM through a micropipette. After the fertile change in the current response, analytical parameters such as LDR, LOD, and LOQ were calculated from the calibration curve so as to optimize the ATNA/Nafion/GCE sensor as a sensitive and selective electrochemical sensor for the detection of Cr3+, qualitatively and quantitatively.
At first, a change in the current response of the modified GCE (ATNA/Nafion/GCE) against the potential applied was recorded and evaluated with bare GCE. It was observed, that the ATNA/Nafion/GCE shows the high current response in contrast to a non-modified GCE due to the sensitive and excellent communication of the electron transduction in a PBS medium at the liquid/surface electrode interface, Figure 4a. After that, a selectivity study was conducted, and it was found to be very selective against the Cr3+ ions in the presence of other heavy metal cations such as Al3+, Ce3+, Co2+, Cu2+, Ga3+, Hg2+, Mn2+, Pb2+, and Y3+, Figure 4b. After the confirmation of selectivity of a newly modified GCE (ATNA/Nafion/GCE) against the Cr3+ ions, then a change in the current response of ATNA/Nafion/GCE against the potential applied was also checked in the presence and absence of a Cr3+ ion in order to check its affinity for Cr3+ ions. It was noticed that newly modified GCE gives a high response in the presence of Cr3+ ions as compared to its response in the absence of Cr3+ ions in PBS of pH = 7, Figure 4a.
After the selectivity, the interference study was conducted by using a statistical approach. The interference effect, in the presence of Cr3+ ions and of other heavy metal cations (Al3+, Ce3+, Co2+, Cu2+, Ga3+, Hg2+, Mn2+, Pb2+, and Y3+) on ATNA/Nafion/GCE was checked by measuring the I-V response at +1.1 V at STP and shown in Figure 5 and Table 3. The concentration of each analyte was taken at (0.1 µM, 25 µL) in PBS medium of pH =7. By this experiment, it was concluded that the modified GCE (ATNA/Nafion/GCE) is very selective for the Cr3+ ions, and it does not have any impressive impact towards the other above stipulated interfering heavy metal cations. Therefore, Figure 4b (selectivity) as well as Figure 5 (interference study) show that our synthesized compound has more affinity with Cr3+. Moreover, our synthesized ATNA also shows very little affinity with other heavy metal ions but these metal ions showed the similar current response against the potential applied up to +1.0 V but still cannot be distinguished with each other.
A control experiment was also performed to check the effect of Nafion coating onto GCE. For this purpose, it was compared the electrochemical investigation with only GCE and Nafion/GCE were presented in Figure 6a. Here, it was observed that in presence of Nafion coating, the sensor signal did not have any significant changes compared to only the bare GCE in identical conditions. The Nafion/GCE electrode exhibited an almost similar current like bare GCE, and no significant changes in the current were observed. In this study, Nafion is used as a conducting coating binders to stick the ATNA materials onto the GCE for electrochemical analysis. Additionally, we performed a control experiment with both tri- and hexa-valent chromium as well as without analyte by ATNA/Nafion/GCE sensor probe and included the results in Figure 6b. Here, Cr(VI) shows less electrochemical response compared to the Cr3+ in identical conditions. Therefore, in this investigation, it was selected as the only Cr3+ sensor probe development based on ATNA/Nafion/GCE by using the selectivity study in the electrochemical investigation.
The ATNA Schiff base accommodates highly electronegative e−-donating atoms, which were also confirmed by structure characterization through single-crystal X-ray diffraction analysis (Figure 1 and Figure 2). It donates the electron pairs to Cr3+ ions, which results in a change in (I-V) response as presented in the proposed mechanism (Scheme 4). It was also shown from the interference study that the ATNA Schiff base has a high affinity with Cr3+ ions in the company of other heavy metal cations. Moreover, the (I-V) response of newly designed ATNA/Nafion/GCE (as a selective as well as sensitive Cr3+ cationic electrochemical sensor) against the potential applied (0 −1.5 V) become functional in the presence of Cr3+ ions. The current responses in the presence and absence of Cr3+ ions are shown in Scheme 4a–c. Upon adding a small amount (25.0 µL of 0.1 µM) of the target analyte (Cr3+) in a PBS medium of pH = 7 through a digital micropipette, a marginal increase in the current response was observed due to the small surface of the modified GCE that was occupied by the Cr3+ ions. Therefore, the surface reaction continues and does not stop here. It proceeds continuously by increasing the concentration of the Cr3+ analytes onto the flat surface of the modified GCE in the system (π–π* interaction), which gives the regular increment of a current response as a function of our target analytes. We can get a better idea from the concentration plot, Figure 7a, which gives us an idea about the increase in the current response by increasing the concentration of Cr3+ in the system. Thus, the observed increase in the current response was in accordance with the occupation of the coated surface of modified GCE with the target analytes (Cr3+) and at the end, the coated surface became saturated with Cr3+ ions as shown in Scheme 4d. Furthermore, it caused an increase in the π–π* interaction between the functional groups of ATNA and Cr3+ ions, which is responsible for the change in the current response, Scheme 4b. The same phenomena based on the above stipulated proposed mechanism for the detection of toxic chemicals have also been cited in the literature [59,60].
In order to optimize the newly designed ATNA/Nafion/GCE as sensitive as well as a selective and efficient Cr3+ cationic electro-chemical sensor, a concentration variation plot was drawn at the different concentration range of Cr3+ analytes (0.1 M to 0.1 nM) in addition to the calibration curve at +1.1 V from for above discussed concentration range of Cr3+ analytes, Figure 7a,b. It was observed that the current responses of ATNA/Nafion/GCE, as a selective cationic electrochemical Cr3+ sensor, progressively increased against the potential applied, from a lower to a higher value, as a function of Cr3+ concentration at standard temperature and pressure (STP), Figure 7a. Moreover, analytical parameters such as the LDR, LOD, LOQ, sensitivity, and the regression coefficient (r2) were calculated from the calibration plot at +1.1 V and these were found to be as (0.1 nM–10 mM), 0.013 nM, 0.044 nM, 0.0071202 µAµM−1cm−2 and 0.9579, respectively, Figure 7b.
Repeatability and response time, in addition to stability, were also checked in order to validate the newly designed ATNA/Nafion/GCE as an efficient electrochemical sensor. The repeatability test was conducted with successive nine to ten measurements of our target analyte (Cr3+), which were taken as 0.25 µL of 0.1 µM of Cr3+ cations in each measurement, Figure 8a. In addition, a stability (reproducibility) test was also conducted and examined up to 17 days. It was found to be very stable with no significant change in the I-V response in addition to electrode poisoning and erosion up to 9 days, Figure 8b.

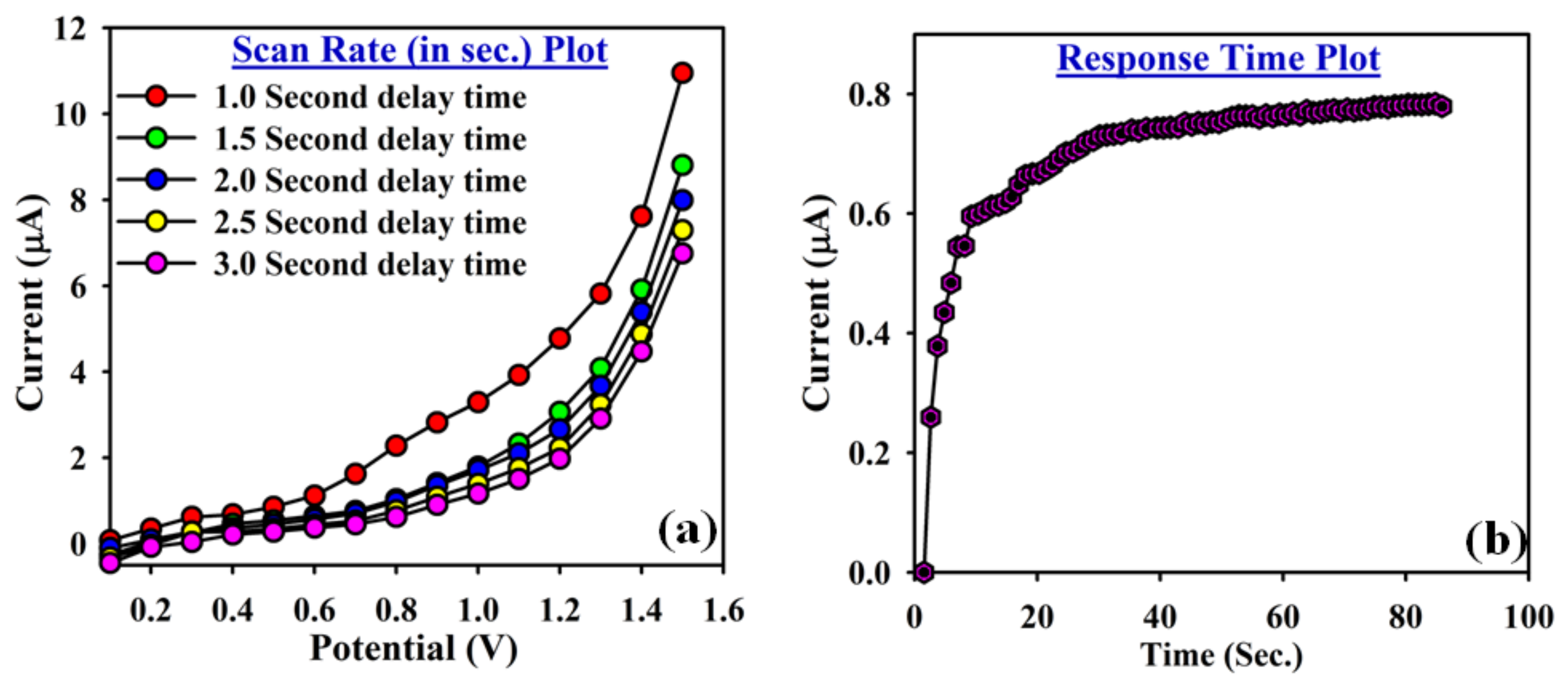

Similarly, the response time of the modified GCE was recorded (as current (µA) versus (s) time), and it was found to be very sensitive with a fast response in a short time that was from 10 to 20 s. It was also noticed that it gave a good current response at pH = 7 against the potential applied (0–1.5 V) at a 1.0 s delay time as the scan rate, compared to the other scan rates in the presence of Cr3+, Figure 9a,b.
The above conducted experiments enlighten us that the sensitivity of the newly designed ATNA/Nafion/GCE as a selective Cr3+ cationic electrochemical sensor is correlated with the adsorption as well as the absorption ability of the target analyte (Cr3+) on to the surface of the modified GCE. It also depends on the affinity of the homobifunctional tridentate Schiff base with Cr3+ ions in addition to the high electronic communication feature which exists among the active sites of ATNA and Cr3+ ions. Moreover, the sensitivity and detection limits were also in good accordance as compared to the previous methods that have been reported in the literature, Table 4. This current study also introduces a very simple, reliable approach to a significant extent for the optimistic detection of toxic chemicals in an aqueous media/solution in an ideal environmental and different care fields by using the newly designed ATNA as a tridentate homobifunctional disulphide Schiff base as a cationic electrochemical sensor. The obtained sensor analytical results exhibited the higher sensitivity and lower detection limit as well as the short response time as compared to other sensors fabricated with other materials for heavy metal ions in recent reports [61,62,63,64]. This is an initial report for the qualitative as well as the quantitative detection of Cr3 + ions by the electrochemical current-potential (I-V) approach based on newly modified GCE (ATNA/Nafion/GCE).

3.4. Real Sample Analysis

The analysis of the real samples was also conducted by using this new proposed I-V approach through a standard addition method [15] so as to validate the newly modified GCE as an efficient and selective cationic electrochemical sensor for Cr3+ ion. A fixed quantity i.e., 25.0 µL of each sample was investigated in PBS (0.2 M, pH = 7.0). Table 5 shows the results, which indicate that this proposed technique with newly modified GCE is also reliable for the investigation of Cr3+ in real samples.

4. Conclusions

A new electrochemical sensor for the selective detection of Cr3+ in aqueous solution based on homobifunctional tridentate disulfide Schiff base was presented for the first time. The conformation of ATNA as confirmed by the single crystal X-ray diffractions indicate that the imine bond (C=N) in both parts in the molecule is trans, favoring the molecule to stay in the most stable form. The molecule was stabilized by the O–H…N type intramolecular hydrogen bonding interactions. The ATNA/Nafion/GCE as an efficient and sensitive electrochemical sensor for the detection of toxic cations in an aqueous solution by means of the electrochemical (I-V) approach was investigated. It was found to be very stable as well as sensitive against the Cr3+ ions in a short response time with a detection limit as low as 0.013 nM. Therefore, this study offers the new idea that can be used for the invention of newly non-reported cationic electrochemical sensors based on multidentate ligands or chelating agents for the investigation of heavy metals cations in commercially.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/13/12/2695/s1.

Author Contributions

R.M.E., M.M.R., T.A.S., M.N.A., F.A.M.A., and A.M.A. contributed to the ideas, executed all the experiments, analyzed and interpreted the data, as well as the writing, reviewing and editing of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. (DF-671-130-1441).

Acknowledgments

This project was funded by the Deanship of Scientific Research (DSR), King Abdulaziz University, Jeddah, under grant No. (DF-671-130-1441). The authors, therefore, gratefully acknowledge DSR technical and financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Word Health Organization. Organization, Guidelines for Drinking Water Quality; Word Health Organization: Geneva, Switzerland, 2011. [Google Scholar]
  2. Rassaei, L.; Marken, F.; Sillanpää, M.; Amiri, M.; Cirtiu, C.M.; Sillanpää, M. Nanoparticles in electrochemical sensors for environmental monitoring. Trends Anal. Chem. 2011, 30, 1704–1715. [Google Scholar] [CrossRef]
  3. Arvand, M.; Lashkari, Z. Sensitive and selective detection of trace copper in standard alloys, food and biological samples using a bulk optode based on N,N′-(4,4′-ethylene biphenyl) bis(3-methoxy salicylidine imine) as neutral carrier. Spectrochim. Acta Part A 2013, 107, 280–288. [Google Scholar] [CrossRef] [PubMed]
  4. Kara, D.; Fisher, A. Modified silica gels and their use for the preconcentration of trace elements. Sep. Purif. Rev. 2012, 41, 267–317. [Google Scholar] [CrossRef]
  5. El-Shishtawy, R.M.; Mohamed, S.A.; Asiri, A.M.; Ahmed, N.S. Synthesis of hemicyanine-based chitosan ligands in dye-affinity chromatography for the purification of chewing stick peroxidase. Int. J. Biol. Macromol. 2020, 148, 401–414. [Google Scholar] [CrossRef]
  6. Nafee, S.S.; Hagar, M.; Ahmed, H.A.; Alhaddad, O.; El-Shishtawy, R.M.; Raffah, B.M. New two rings Schiff base liquid crystals; ball mill synthesis, mesomorphic, Hammett and DFT studies. J. Mol. Liq. 2020, 299, 112161. [Google Scholar] [CrossRef]
  7. Nafee, S.S.; Hagar, M.; Ahmed, H.A.; El-Shishtawy, R.M.; Raffah, B.M. The synthesis of new thermal stable schiff base/ester liquid crystals: A computational, mesomorphic, and optical study. Molecules 2019, 24, 3032. [Google Scholar] [CrossRef] [Green Version]
  8. Hussein, M.A.; El-Shishtawy, R.M.; Obaid, A.Y.; Salam, M.A. Influence of single-walled carbon nanotubes on the performance of Poly(Azomethine-Ether) composite materials. Polym. Technol. Eng. 2017, 57, 1150–1163. [Google Scholar] [CrossRef]
  9. Noureddin, S.A.; El-Shishtawy, R.M.; Al-Footy, K.O. Curcumin analogues and their hybrid molecules as multifunctional drugs. Eur. J. Med. Chem. 2019, 182, 111631. [Google Scholar] [CrossRef]
  10. Zayed, M.E.; El-Shishtawy, R.M. Synthesis and antimicrobial activity of Aluminium(III), Nickel(II) and Zinc(II) schiff base complexes derived from o-phenylenediamine and salicylaldehyde. Asian J. Chem. 2013, 25, 2719–2721. [Google Scholar] [CrossRef]
  11. Ando, R.; Ono, H.; Yagyu, T.; Maeda, M. Spectroscopic characterization of mononuclear, binuclear, and insoluble polynuclear oxovanadium(IV)–Schiff base complexes and their oxidation catalysis. Inorg. Chim. Acta 2004, 357, 817–823. [Google Scholar] [CrossRef]
  12. Saravanamoorthy, S.; Sivan, V. Physiochemical interactions of chiral Schiff bases on high carbon steel surface: Corrosion inhibition in acidic media. Prog. Org. Coat. 2013, 76, 1527–1535. [Google Scholar] [CrossRef]
  13. Aqlan, F.M.; Alam, M.; Asiri, A.M.; Zayed, M.E.; Al-Eryani, D.A.; Al-Zahrani, F.A.; El-Shishtawy, R.M.; Uddin, J.; Rahman, M.M. Fabrication of selective and sensitive Pb2+ detection by 2,2′-(-(1,2-phenylenebis(azaneylylidene))bis(methaneylylidene))diphenol by electrochemical approach for environmental remediation. J. Mol. Liq. 2019, 281, 401–406. [Google Scholar] [CrossRef]
  14. El-Shishtawy, R.M.; Al-Ghamdi, H.A.; Alam, M.M.; Al-Amshany, Z.M.; Asiri, A.M.; Rahman, M.M. Development of Cd2+ sensor based on BZNA/Nafion/Glassy carbon electrode by electrochemical approach. Chem. Eng. J. 2018, 352, 225–231. [Google Scholar] [CrossRef]
  15. Rahman, M.M.; Sheikh, T.A.; El-Shishtawy, R.M.; Arshad, M.N.; Al-Zahrani, F.A.M.; Asiri, A.M. Fabrication of Sb3+ sensor based on 1,1′-(-(naphthalene-2,3-diylbis(azanylylidene)) bis(methanylylidene))bis(naphthalen-2-ol)/nafion/glassy carbon electrode assembly by electrochemical approach. RSC Adv. 2018, 8, 19754–19764. [Google Scholar] [CrossRef] [Green Version]
  16. Ramadan, R.; Elantabli, F.M.; El-Medani, S.M. Conversion of thiol to homodisulfide-Schiff base derivative: Synthesis, molecular structure, crystal structure and DFT studies. J. Mol. Struct. 2019, 1196, 547–554. [Google Scholar] [CrossRef]
  17. Singh, A.; Gupta, V.; Gupta, B. Chromium(III) selective membrane sensors based on Schiff bases as chelating ionophores. Anal. Chim. Acta 2007, 585, 171–178. [Google Scholar] [CrossRef]
  18. Vincent, J.B. Quest for the molecular mechanism of chromium action and its relationship to diabetes. Nutr. Rev. 2000, 58, 67–72. [Google Scholar] [CrossRef]
  19. Latva, S.; Jokiniemi, J.; Peräniemi, S.; Ahlgrén, M. Separation of picogram quantities of Cr(III) and Cr(VI) species in aqueous solutions and determination by graphite furnace atomic absorption spectrometry. J. Anal. At. Spectrom. 2003, 18, 84–86. [Google Scholar] [CrossRef]
  20. McRae, R.; Bagchi, P.; Sumalekshmy, S.; Fahrni, C.J. In situ imaging of metals in cells and tissues. Chem. Rev. 2009, 109, 4780–4827. [Google Scholar] [CrossRef] [Green Version]
  21. O’Brien, T.; Mandel, H.G.; Pritchard, D.E.; Patierno, S.R. Critical role of Chromium (Cr)−DNA interactions in the formation of Cr-induced polymerase arresting lesions. Biochemistry 2002, 41, 12529–12537. [Google Scholar] [CrossRef]
  22. Zhitkovich, A.; Quievryn, G.; Messer, J.; Motylevich, Z. Reductive activation with cysteine represents a chromium(III)-dependent pathway in the induction of genotoxicity by carcinogenic chromium(VI). Environ. Health Perspect. 2002, 110, 729–731. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Mondal, B. Synthesis and characterization of a new resin functionalized with 2-naphthol-3,6-disulfonic acid and its application for the speciation of chromium in natural water. Talanta 2002, 56, 145–152. [Google Scholar] [CrossRef]
  24. Beinrohr, E.; Manova, A.; Dzurov, J. Preconcentration of Cr(III) and total Cr in waters for flame AAS in a flow-through electrochemical/sorption cell. Anal. Bioanal. Chem. 1996, 355, 528–531. [Google Scholar] [CrossRef] [PubMed]
  25. Posta, J.; Berndt, H.; Luo, S.K.; Schaldach, G. High-performance flow flame atomic absorption spectrometry for automated on-line separation and determination of chromium (III)/chromium (VI) and preconcentration of chromium (VI). Anal. Chem. 1993, 65, 2590–2595. [Google Scholar] [CrossRef]
  26. Cox, A.G.; Cook, I.G.; McLeod, C. Rapid sequential determination of chromium(III)-chromium(VI) by flow injection analysis-inductively coupled plasma atomic-emission spectrometry. Analyst 1985, 110, 331. [Google Scholar] [CrossRef]
  27. Wu, P.; Chen, H.; Cheng, G.; Hou, X. Exploring surface chemistry of nano-TiO2 for automated speciation analysis of Cr(iii) and Cr(vi) in drinking water using flow injection and ET-AAS detection. J. Anal. At. Spectrom. 2009, 24, 1098. [Google Scholar] [CrossRef]
  28. Cathum, S.; Brown, C.; Wong, W. Determination of Cr3+, CrO42−, and Cr2O72− in environmental matrixes by high-performance liquid chromatography with diode-array detection (HPLC–DAD). Anal. Bioanal. Chem. 2002, 373, 103–110. [Google Scholar] [CrossRef]
  29. Krull, I.S.; Bushee, D.; Savage, R.N.; Schleicher, R.G.; Smith, S.B., Jr. Speciation of Cr (III) and Cr (VI) via reversed phase HPLC with inductively coupled plasma emission spectroscopic detection (HPLC-ICP) 24. Anal. Lett. 1982, 15, 267–281. [Google Scholar] [CrossRef] [Green Version]
  30. Bond, A.M.; Wallace, G.G. Simultaneous determination of copper, nickel, cobalt, chromium(VI), and chromium(III) by liquid chromatography with electrochemical detection. Anal. Chem. 1982, 54, 1706–1712. [Google Scholar] [CrossRef]
  31. Wang, H.-J.; Du, X.-M.; Wang, M.; Wang, T.-C.; Ou-Yang, H.; Wang, B.; Zhu, M.-T.; Wang, Y.; Jia, G.; Feng, W.; et al. Using ion-pair reversed-phase HPLC ICP-MS to simultaneously determine Cr(III) and Cr(VI) in urine of chromate workers. Talanta 2010, 81, 1856–1860. [Google Scholar] [CrossRef]
  32. Jen, J.-F.; Ou-Yang, G.-L.; Chen, C.-S.; Yang, S.-M. Simultaneous determination of chromium(III) and chromium (VI) with reversed-phase ion-pair high-performance liquid chromatography. Analyst 1993, 118, 1281. [Google Scholar] [CrossRef]
  33. Bittner, M.; Broekaert, J. Speciation of chromium by solid-phase extraction coupled to reversed-phase liquid chromatography with UV detection. Anal. Chim. Acta 1998, 364, 31–40. [Google Scholar] [CrossRef]
  34. Gürleyük, H.; Wallschläger, D. Determination of chromium(iii) and chromium(vi) using suppressed ion chromatography inductively coupled plasma mass spectrometry. J. Anal. At. Spectrom. 2001, 16, 926–930. [Google Scholar] [CrossRef]
  35. Michalski, R. Trace level determination of Cr (III)/Cr (VI) in water samples using ion chromatography with UV detection. J. Liq. Chromatogr. Relat. Technol. 2005, 28, 2849–2862. [Google Scholar] [CrossRef]
  36. Hettipathirana, T.D. Speciation of sub-parts per billion levels of Cr(III) in waters by solid-phase adsorption followed by thin-layer X-ray fluorescence spectrometry. X-Ray Spectrom. 2001, 30, 330–337. [Google Scholar] [CrossRef]
  37. Elavarasi, M.; Alex, S.A.; Chandrasekaran, N.; Mukherjee, A. Simple fluorescence-based detection of Cr(iii) and Cr(vi) using unmodified gold nanoparticles. Anal. Methods 2014, 6, 9554–9560. [Google Scholar] [CrossRef]
  38. Wang, N.; Shiraishi, Y.; Hirai, T. A distyryl BODIPY derivative as a fluorescent probe for selective detection of chromium(III). Tetrahedron Lett. 2010, 51, 2545–2549. [Google Scholar] [CrossRef]
  39. Dong, C.; Wu, G.; Wang, Z.; Ren, W.; Zhang, Y.; Shen, Z.; Li, T.; Wu, A. Selective colorimetric detection of Cr(iii) and Cr(vi) using gallic acid capped gold nanoparticles. Dalton Trans. 2016, 45, 8347–8354. [Google Scholar] [CrossRef]
  40. Timerbaev, A.R.; Semenova, O.; Buchberger, W.; Bonn, G.K. Speciation studies by capillary electrophoresis- Simultaneous determination of chromium(III) and chromium(VI). Anal. Bioanal. Chem. 1996, 354, 414–419. [Google Scholar] [CrossRef]
  41. Himeno, S.; Nakashima, Y.; Sano, K.-I. Simultaneous determination of Chromium(VI) and Chromium(III) by capillary electrophoresis. Anal. Sci. 1998, 14, 369–373. [Google Scholar] [CrossRef] [Green Version]
  42. Seitz, W.R.; Suydam, W.W.; Hercules, D.M. Determination of trace amounts of chromium(III) using chemiluminescence analysis. Anal. Chem. 1972, 44, 957–963. [Google Scholar] [CrossRef]
  43. Stefan, R.-I.; Bairu, S.G.; Van Staden, J.F. Diamond paste-based electrodes for determination of Cr(III) in pharmaceutical compounds. Anal. Bioanal. Chem. 2003, 376, 844–847. [Google Scholar] [CrossRef] [PubMed]
  44. Vukomanovic, D.V.; VanLoon, G.W.; Nakatsu, K.; Zoutman, D.E. Determination of Chromium (VI) and (III) by adsorptive stripping voltammetry with pyrocatechol violet. Microchem. J. 1997, 57, 86–95. [Google Scholar] [CrossRef]
  45. Jin, W.; Wu, G.; Chen, A. Sensitive and selective electrochemical detection of chromium(vi) based on gold nanoparticle-decorated titania nanotube arrays. Analyst 2014, 139, 235–241. [Google Scholar] [CrossRef] [PubMed]
  46. Paniagua, A.R.; Vazquez, M.D.; Tascon, M.L.; Batanero, P.S. Determination of chromium(VI) and chromium(III) by using a diphenylcarbazide-modified carbon paste electrode. Electroanalysis 1993, 5, 155–163. [Google Scholar] [CrossRef]
  47. Metters, J.P.; Kadara, R.O.; Banks, C.E. Electroanalytical sensing of chromium(iii) and (vi) utilising gold screen printed macro electrodes. Analyst 2012, 137, 896. [Google Scholar] [CrossRef]
  48. Renedo, O.D.; Lomillo, M.A.A.; Martinez, M.J.A. Optimisation procedure for the inhibitive determination of chromium (III) using an amperometrictyrosinase biosensor. Anal. Chim. Acta 2004, 521, 215–221. [Google Scholar] [CrossRef]
  49. Agilent. CrysAlis PRO; Agilent Technologies: Yarnton, UK, 2012. [Google Scholar]
  50. Sheldrick, G.M. A short history ofSHELX. Acta Crystallogr. A 2007, 64, 112–122. [Google Scholar] [CrossRef] [Green Version]
  51. Farrugia, L.J. WinGX and ORTEP for Windows: An update. J. Appl. Crystallogr. 2012, 45, 849–854. [Google Scholar] [CrossRef]
  52. Spek, A.L. PLATON-a Multipurpose Crystallographic Tool; Utrecht University: Utrecht, The Netherlands, 2005. [Google Scholar]
  53. Farrugia, L.J. WinGX suite for small-molecule single-crystal crystallography. J. Appl. Crystallogr. 1999, 32, 837–838. [Google Scholar] [CrossRef]
  54. Denes, F.; Pichowicz, M.; Povie, G.; Renaud, P. Thiyl radicals in organic synthesis. Chem. Rev. 2014, 114, 2587–2693. [Google Scholar] [CrossRef] [PubMed]
  55. Moosavi-Tekyeh, Z.; Dastani, N. Intramolecular hydrogen bonding in N-salicylideneaniline: FT-IR spectrum and quantum chemical calculations. J. Mol. Struct. 2015, 1102, 314–322. [Google Scholar] [CrossRef]
  56. Coates, J. Interpretation of infrared spectra, a practical approach. In Encyclopedia of Analytical Chemistry; Wiley: Hoboken, NJ, USA, 2006; pp. 10815–11083. [Google Scholar]
  57. Raj, P.; Singh, A.; Singh, N.; Singh, N. Syntheses and photophysical properties of schiff base Ni(II) complexes: Application for sustainable antibacterial activity and cytotoxicity. Chem. Eng. 2017, 5, 6070–6080. [Google Scholar] [CrossRef]
  58. Bernstein, J.; Davis, R.E.; Shimoni, L.; Chang, N.-L. Patterns in hydrogen bonding: Functionality and graph set analysis in crystals. Angew. Chem. Int. Ed. 1995, 34, 1555–1573. [Google Scholar] [CrossRef]
  59. Sheikh, T.A.; Arshad, M.N.; Asiri, A.M.; Rahman, M.M.; Shaikh, T.A. Development of a selective and sensitive Ga3+ sensor for environmental safety: A comparative study of cyclohexyl and aromatic bis-sulphonamide fabricated glassy carbon electrodes. New J. Chem. 2018, 42, 13589–13601. [Google Scholar] [CrossRef]
  60. Sheikh, T.A.; Arshad, M.N.; Rahman, M.M.; Asiri, A.M.; Marwani, H.M.; Awual, R.; Bawazir, W.A. Trace electrochemical detection of Ni2+ ions with bidentate N, N′-(ethane-1, 2-diyl) bis (3, 4-dimethoxy benzenesulfonamide)[EDBDMBS] as a chelating agent. Inorg. Chim. Acta 2017, 464, 157–166. [Google Scholar] [CrossRef]
  61. Hussain, M.M.; Asiri, A.M.; Arshad, M.N.; Rahman, M.M. Synthesis, characterization, and crystal structure of (E)-Nʹ-(4-Bromobenzylidene)-benzenesulfonohydrazide and its application as a sensor of chromium ion detection from environmental samples. J. Mol. Struct. 2020, 1207, 127810. [Google Scholar] [CrossRef]
  62. Khan, A.; Khan, A.A.P.; Rahman, M.M.; Asiri, A.M.; Alamry, K. Preparation of polyaniline grafted graphene oxide–WO3 nanocomposite and its application as a chromium(iii) chemi-sensor. RSC Adv. 2015, 5, 105169–105178. [Google Scholar] [CrossRef]
  63. Asiri, A.M.; BahadarKhanab, S.; Alamry, K.; Marwani, H.; Rahman, M.M. Growth of Mn3O4 on cellulose matrix: Nanohybrid as a solid phase adsorbent for trivalent chromium. Appl. Surf. Sci. 2013, 270, 539–544. [Google Scholar] [CrossRef]
  64. Rahman, M.M.; Balkhoyor, H.B.; Asiri, A.M. Phenolic sensor development based on chromium oxide-decorated carbon nanotubes for environmental safety. J. Environ. Manag. 2017, 188, 228–237. [Google Scholar] [CrossRef]
Materials 13 02695 sch001 550

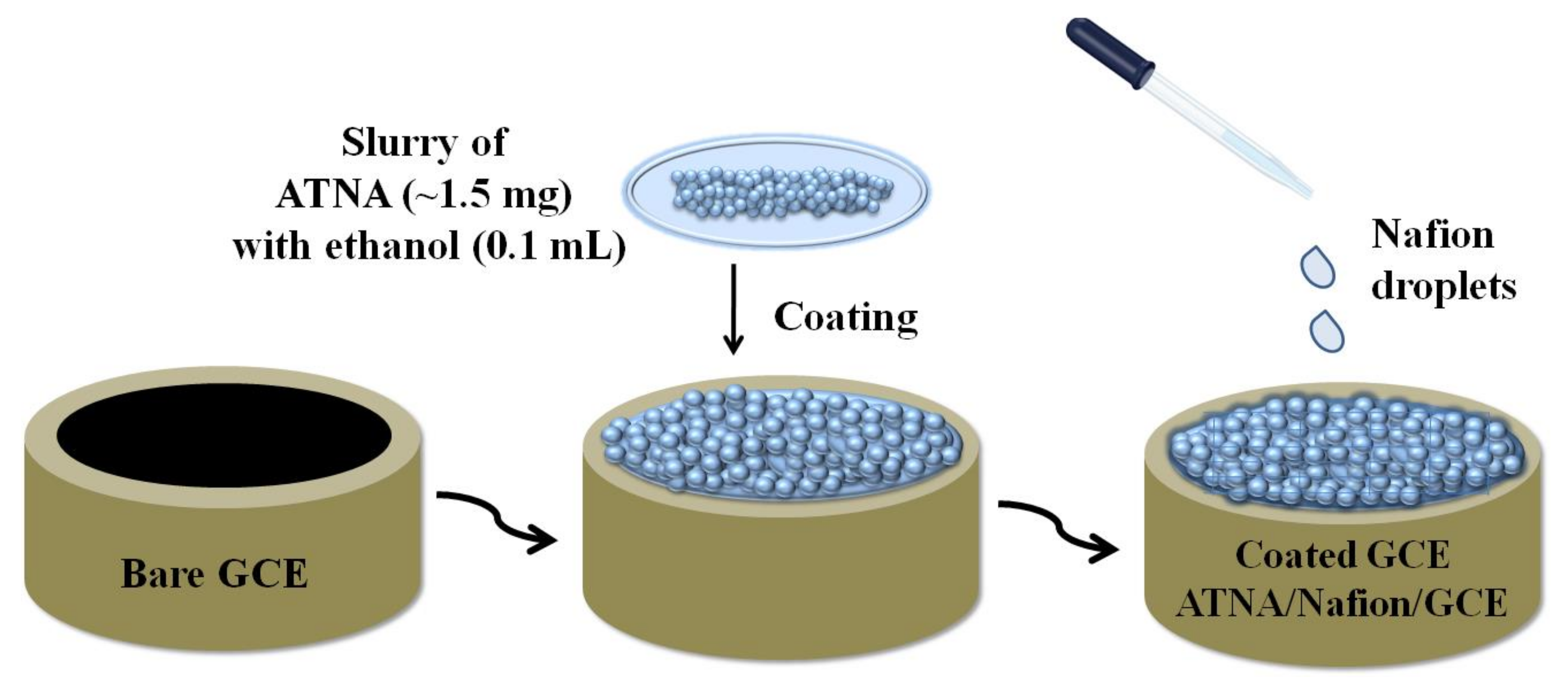

Scheme 1. Fabrication of glassy carbon electrode GCE modified by, 1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis(methaneylylidene))bis(naphthalene-2-ol) (ATNA) with the conducting binder, 5% Nafion.
Scheme 1. Fabrication of glassy carbon electrode GCE modified by, 1′-(-((disulfanediylbis(2,1-phenylene))bis(azaneylylidene))bis(methaneylylidene))bis(naphthalene-2-ol) (ATNA) with the conducting binder, 5% Nafion.
Materials 13 02695 sch001
Materials 13 02695 sch002 550

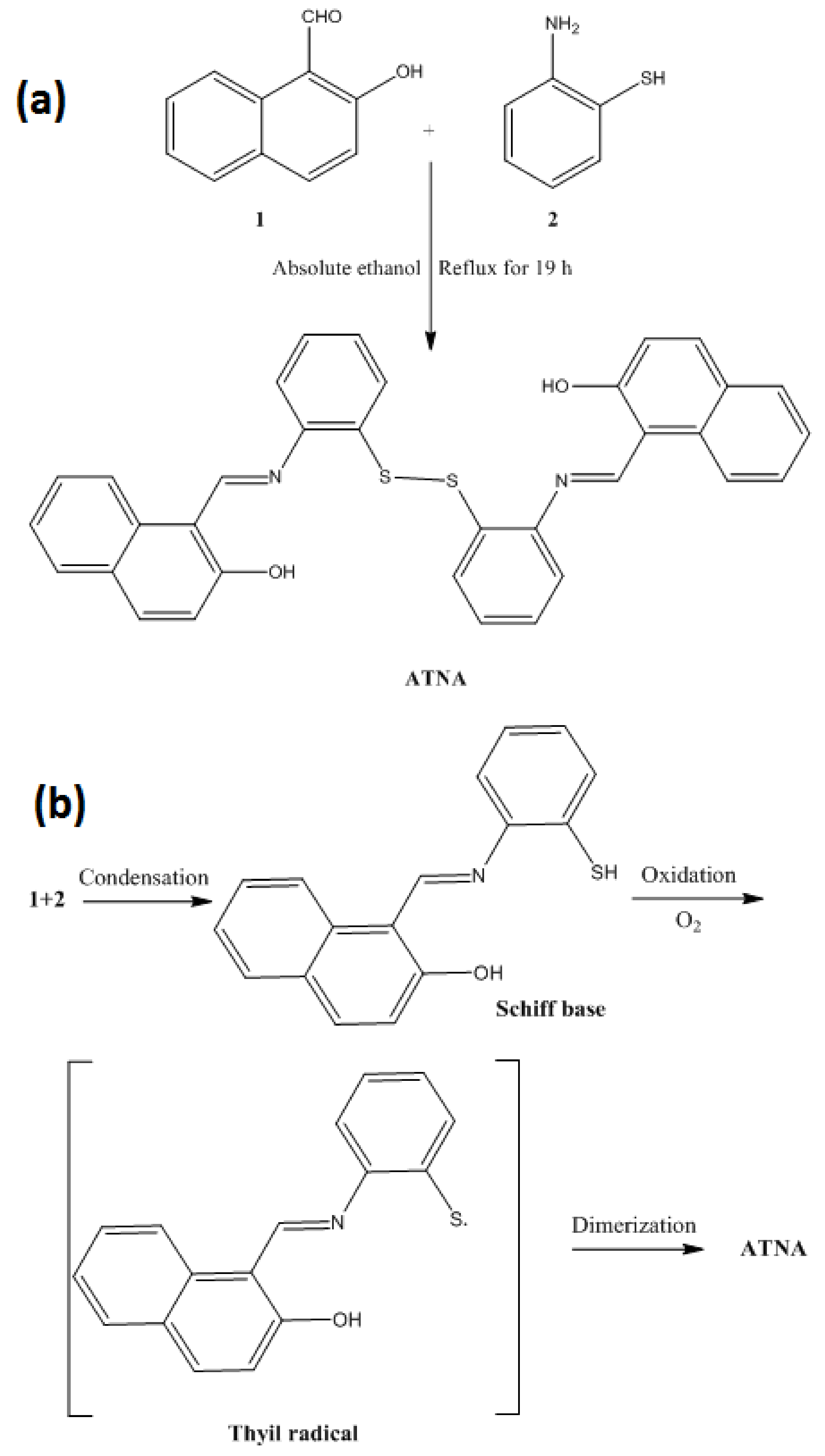

Scheme 2. (a) Synthesis of ATNA. (b) Suggested mechanism for the formation of ATNA.
Scheme 2. (a) Synthesis of ATNA. (b) Suggested mechanism for the formation of ATNA.
Materials 13 02695 sch002
Materials 13 02695 sch003 550

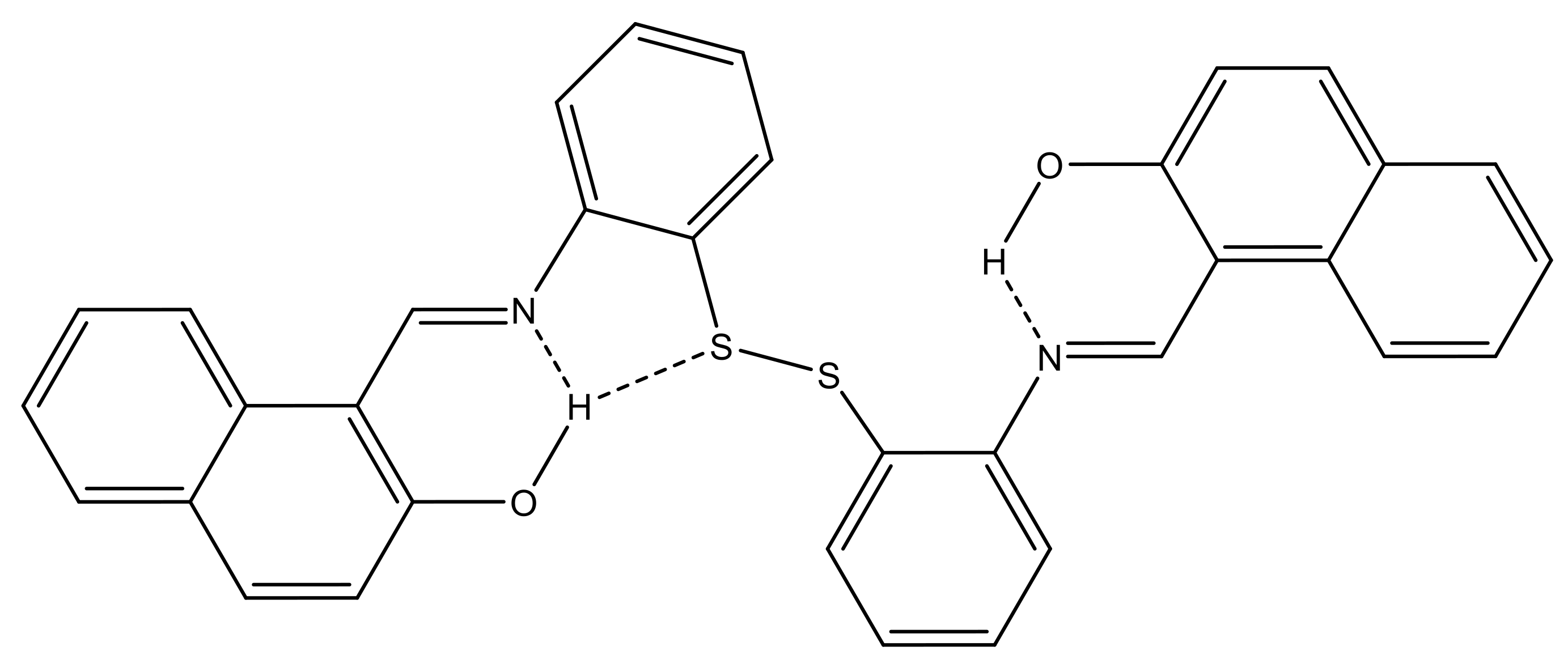

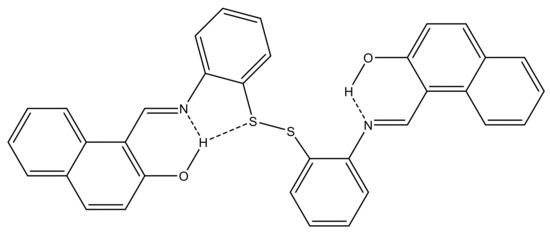

Scheme 3. Intramolecular hydrogen bonds in ATNA.
Scheme 3. Intramolecular hydrogen bonds in ATNA.
Materials 13 02695 sch003
Materials 13 02695 g001 550

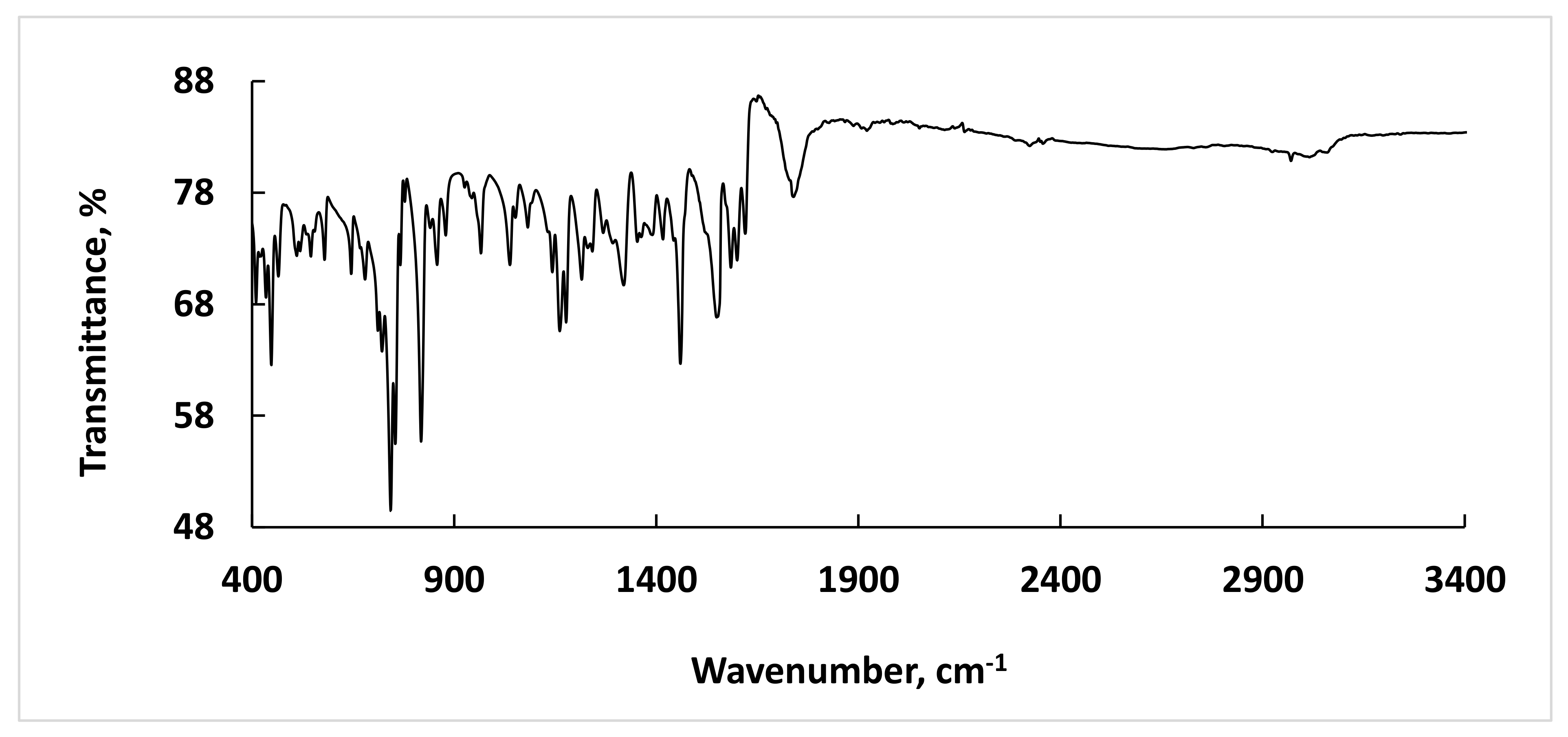

Figure 1. Attenuated total reflectance–Fourier transform infrared (ATR–FTIR) of the ATNA molecule.
Figure 1. Attenuated total reflectance–Fourier transform infrared (ATR–FTIR) of the ATNA molecule.
Materials 13 02695 g001
Materials 13 02695 g002 550

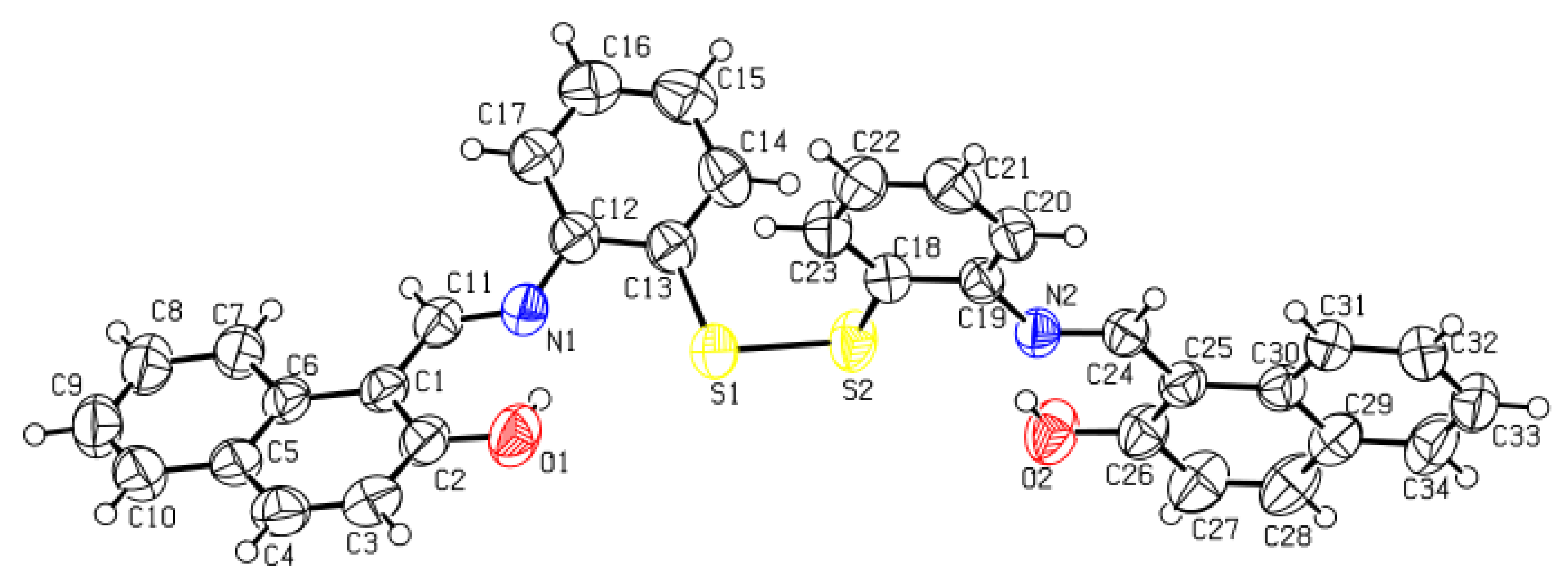

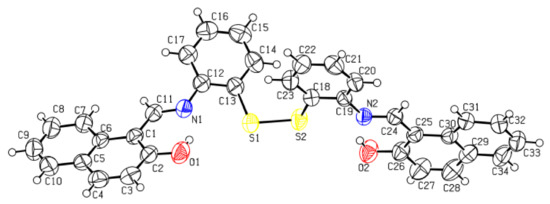

Figure 2. Plot for ATNA with 50% probability of thermal ellipsoids.
Figure 2. Plot for ATNA with 50% probability of thermal ellipsoids.
Materials 13 02695 g002
Materials 13 02695 g003 550

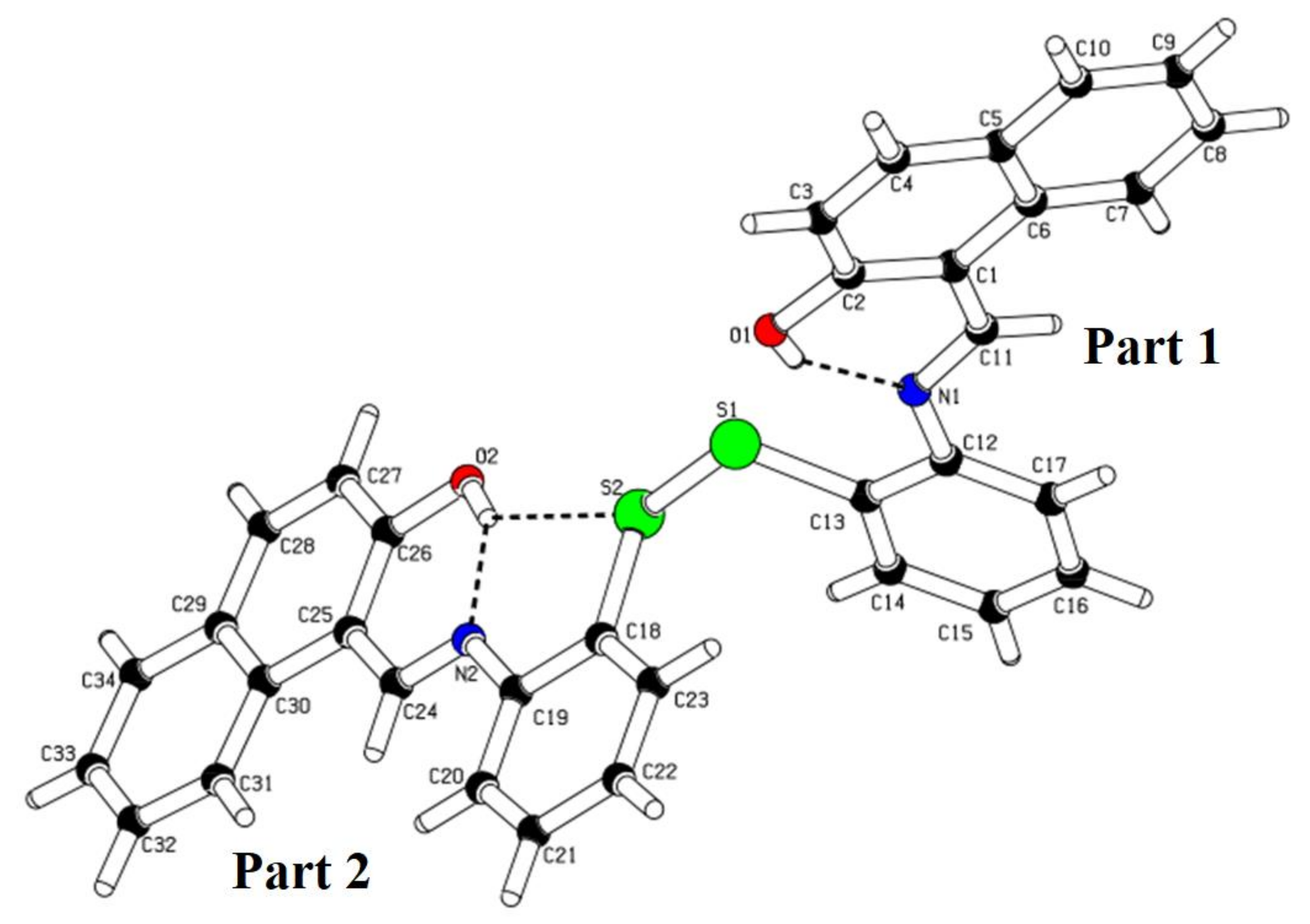

Figure 3. A labeled diagram showing the intramolecular interactions and the formation of different ring motifs.
Figure 3. A labeled diagram showing the intramolecular interactions and the formation of different ring motifs.
Materials 13 02695 g003
Materials 13 02695 g004 550

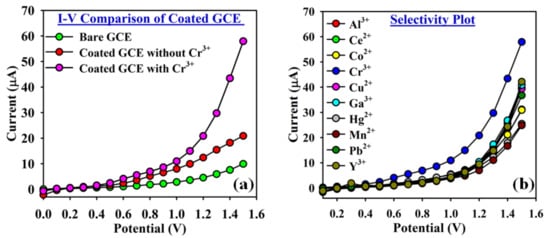

Figure 4. Selectivity study: (a) current potential (I-V) response of the bare and coated GCE (ATNA/Nafion/GCE) in the presence and absence of Cr3+ ions as our target analyte at 0.1 µM, 25.0 µL; (b) I-V response with various analytes (showing affinity with Cr3+), concentration of each analyte was taken at (0.1 µM, 25.0 µL).
Figure 4. Selectivity study: (a) current potential (I-V) response of the bare and coated GCE (ATNA/Nafion/GCE) in the presence and absence of Cr3+ ions as our target analyte at 0.1 µM, 25.0 µL; (b) I-V response with various analytes (showing affinity with Cr3+), concentration of each analyte was taken at (0.1 µM, 25.0 µL).
Materials 13 02695 g004
Materials 13 02695 g005 550

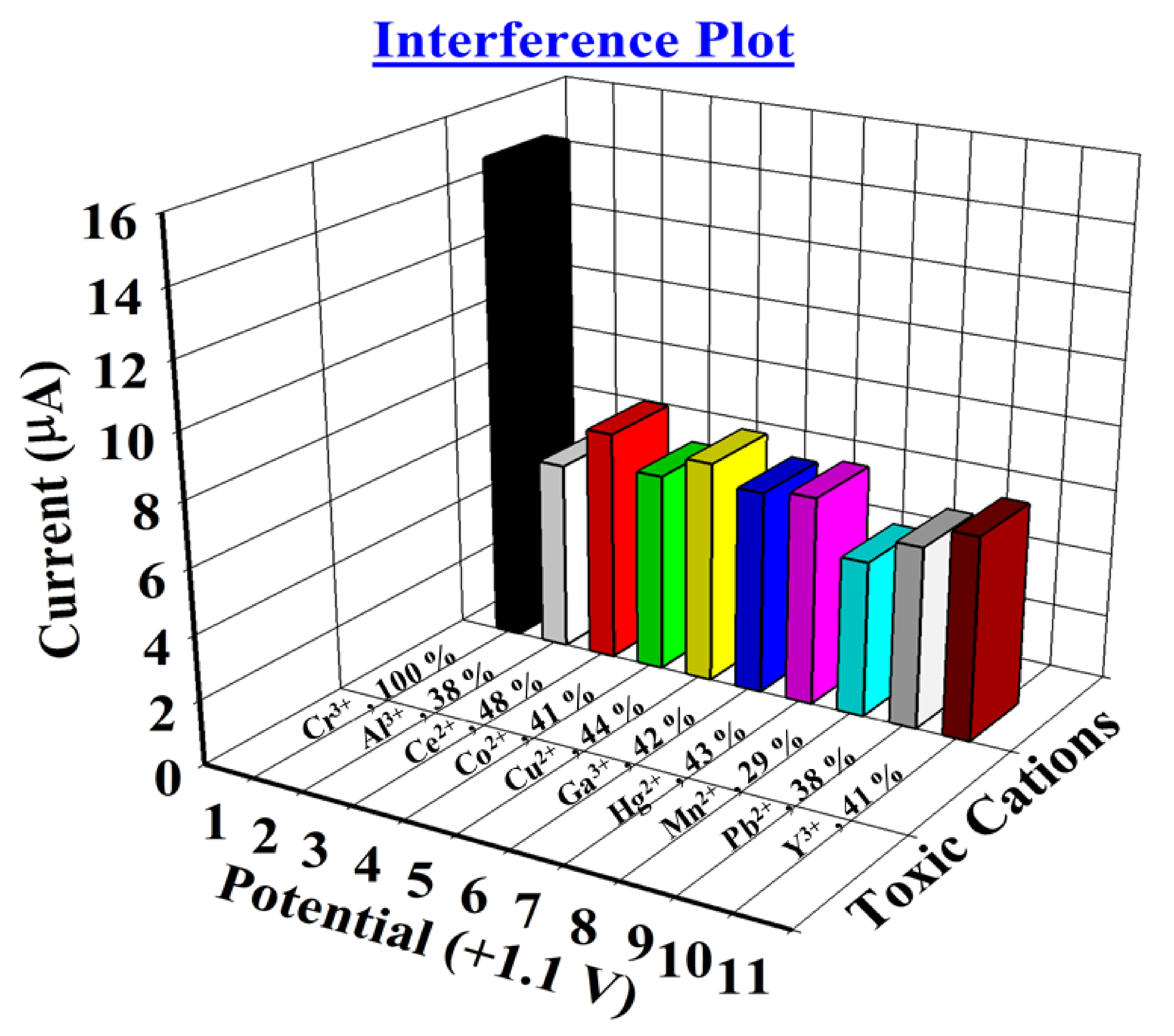

Figure 5. Interference study: comparison of the I-V responses of the interfering heavy metal cations at potential (+1.1 V). Analytes concentrations were taken as 25 µL of 0.1 µM, delay time one second.
Figure 5. Interference study: comparison of the I-V responses of the interfering heavy metal cations at potential (+1.1 V). Analytes concentrations were taken as 25 µL of 0.1 µM, delay time one second.
Materials 13 02695 g005
Materials 13 02695 g006 550

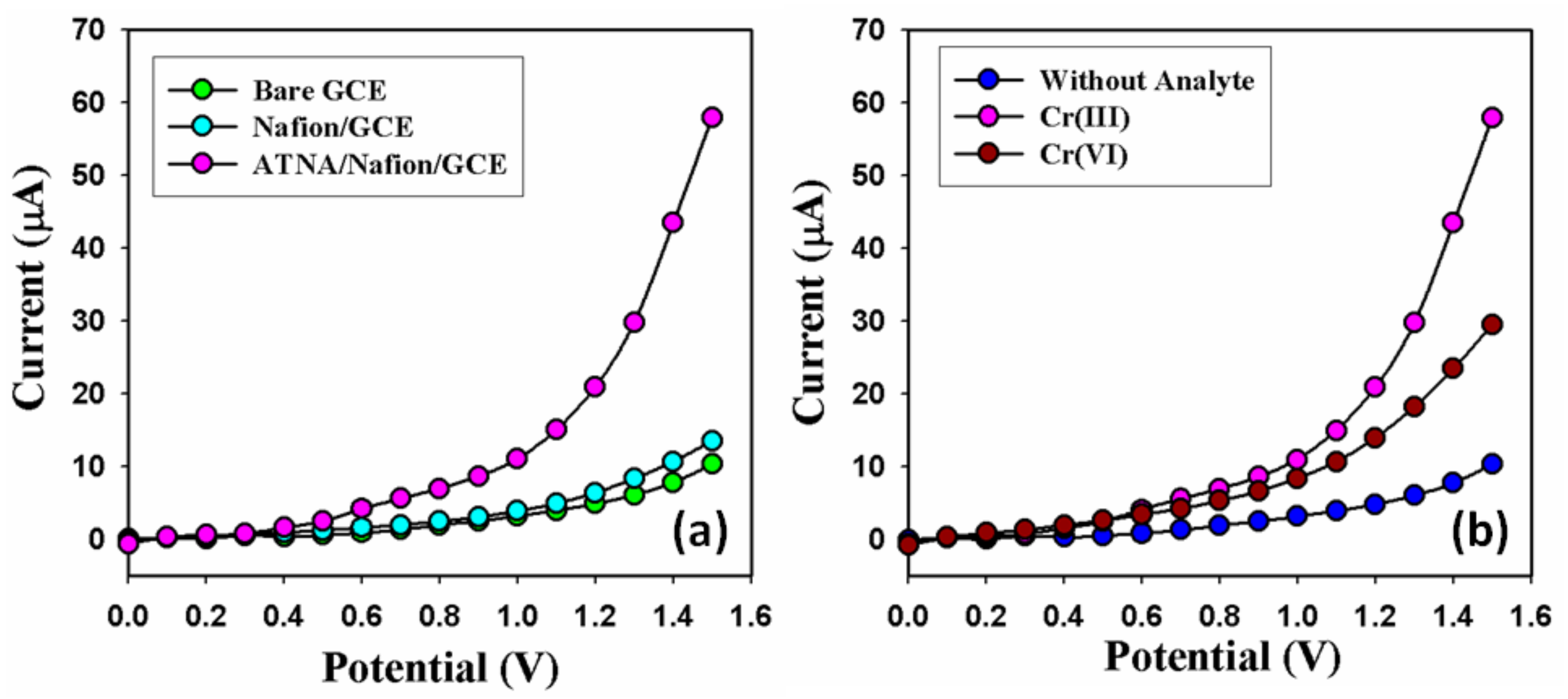

Figure 6. Control experiment: (a) the electrochemical responses of the bare GCE and the Nafion-coated GCE; and (b) the electrochemical responses of ATNA/Nafion/GCE in the presence of Cr3+ and Cr(VI).
Figure 6. Control experiment: (a) the electrochemical responses of the bare GCE and the Nafion-coated GCE; and (b) the electrochemical responses of ATNA/Nafion/GCE in the presence of Cr3+ and Cr(VI).
Materials 13 02695 g006
Materials 13 02695 sch004 550

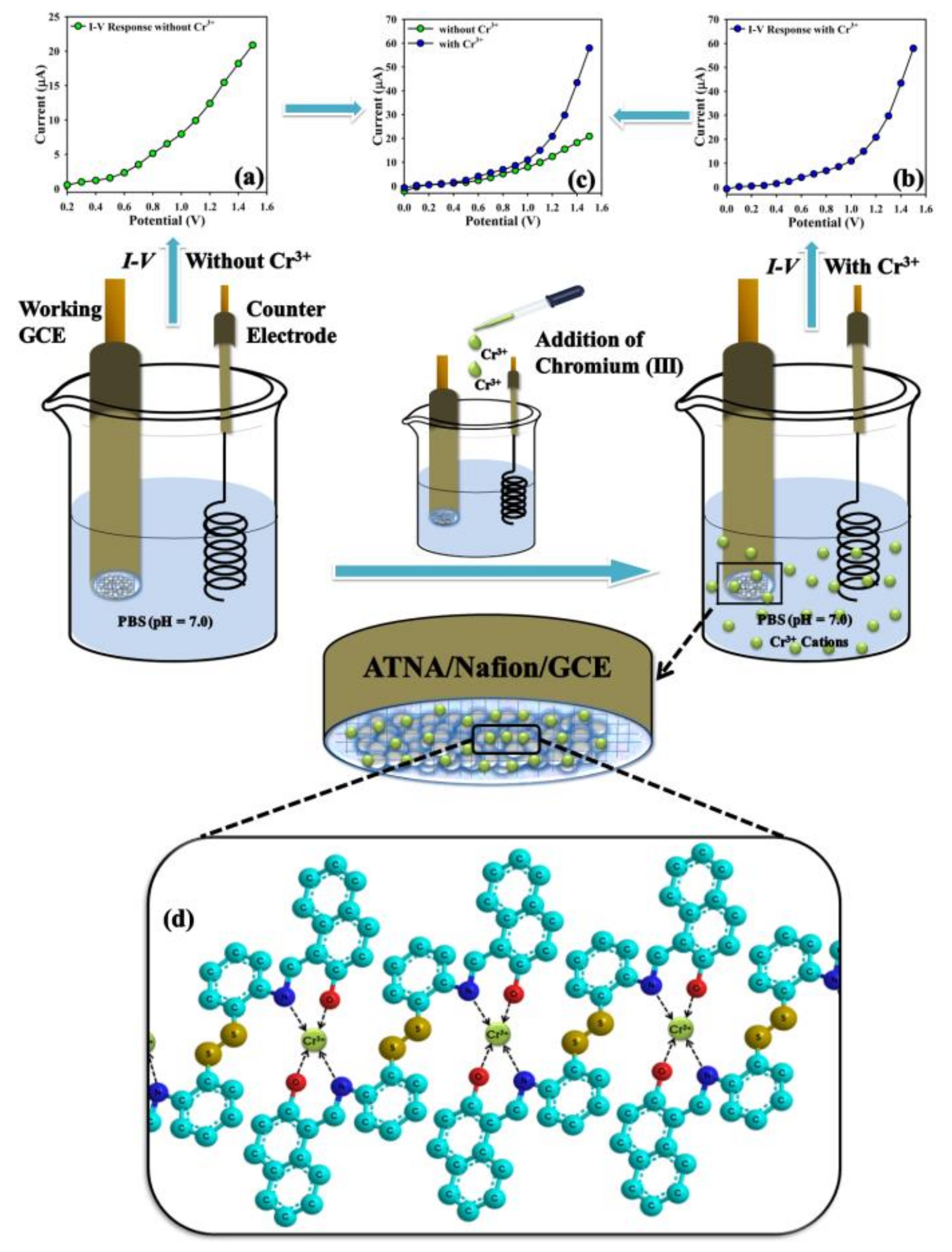

Scheme 4. Proposed mechanism of the probable interaction of Cr3+ with ATNA/Nafion/GCE: (a) the I-V response without Cr3+; (b) the I-V response with Cr3+; (c) the comparison of the I-V response with and without Cr3+; and (d) the probable π–π* interaction between the Cr3+ ions and ATNA.
Scheme 4. Proposed mechanism of the probable interaction of Cr3+ with ATNA/Nafion/GCE: (a) the I-V response without Cr3+; (b) the I-V response with Cr3+; (c) the comparison of the I-V response with and without Cr3+; and (d) the probable π–π* interaction between the Cr3+ ions and ATNA.
Materials 13 02695 sch004
Materials 13 02695 g007 550

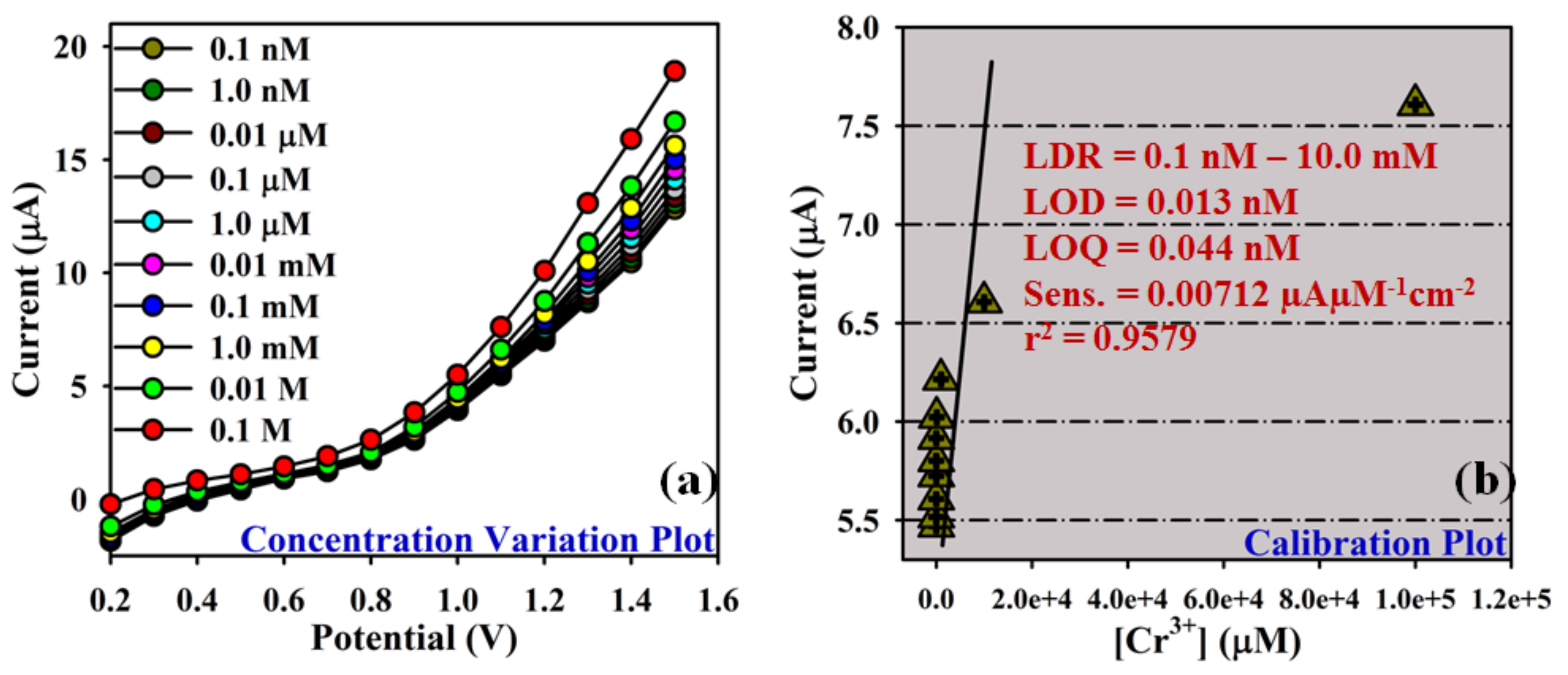

Figure 7. Optimization of the newly designed Cr3+ sensor: (a) the concentration variation plot of Cr3+ (0.1 M to 0.1 nM); and (b) the calibration plot (at + 1.1 V) of ATNA/Nafion/GCE.
Figure 7. Optimization of the newly designed Cr3+ sensor: (a) the concentration variation plot of Cr3+ (0.1 M to 0.1 nM); and (b) the calibration plot (at + 1.1 V) of ATNA/Nafion/GCE.
Materials 13 02695 g007
Materials 13 02695 g008 550

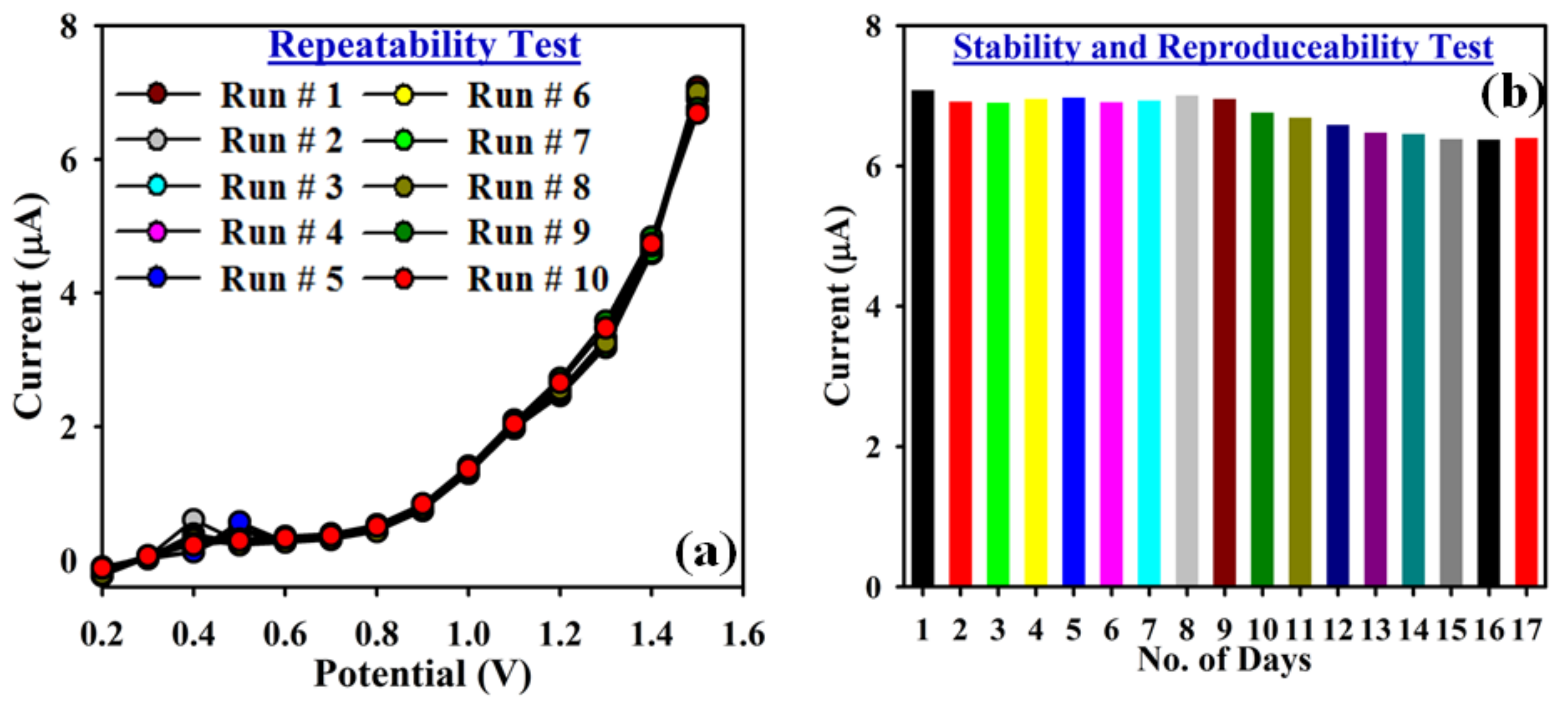

Figure 8. Repeatability and stability study: (a) the repeatability rest; and (b) the stability test of newly modified GCE (ATNA/Nafion/GCE as an efficient and sensitive Cr3+ cationic electrochemical sensor).
Figure 8. Repeatability and stability study: (a) the repeatability rest; and (b) the stability test of newly modified GCE (ATNA/Nafion/GCE as an efficient and sensitive Cr3+ cationic electrochemical sensor).
Materials 13 02695 g008
Materials 13 02695 g009 550
Figure 9. Response time: (a) the evaluation of the scan rates against the potential applied (0–1.5 V); and (b) the response time from 10 to 20 s to reach the saturated steady state.
Figure 9. Response time: (a) the evaluation of the scan rates against the potential applied (0–1.5 V); and (b) the response time from 10 to 20 s to reach the saturated steady state.
Materials 13 02695 g009
Table
Table 1. Data and structure refinement for ATNA.
Table 1. Data and structure refinement for ATNA.
CCDC Code (Cambridge Crystallographic Data Centre)1953254
Empirical formulaC34H24N2O2S2
Formula weight556.67
Temperature/K296(2)
Crystal systemtriclinic
Space groupP-1
a/Å8.6843(5)
b/Å11.8282(6)
c/Å13.5159(9)
α/°78.828(5)
β/°82.291(5)
γ/°86.223(4)
Volume/Å31348.59(14)
Z2
ρcalcg/cm31.371
μ/mm−10.233
F(000)580.0
Crystal size/mm30.22 × 0.17 × 0.12
RadiationMoKα (λ = 0.71073)
2θ range for data collection/°5.942 to 58.364
Index ranges−11 ≤ h ≤ 7, −15 ≤ k ≤ 15, −17 ≤ l ≤ 18
Reflections collected12,053
Independent reflections6334 (Rint = 0.0338, Rsigma = 0.0553)
Data/restraints/parameters6334/0/361
Goodness-of-fit on F21.031
Final R indexes indexes (I>=2σ (I)) R1 = 0.0538, wR2 = 0.1211
Final R indexes (all data)R1 = 0.1039, wR2 = 0.1544
Largest diff. peak/hole / e Å−30.23/−0.27
Table
Table 2. Hydrogen bonds for ATNA.
Table 2. Hydrogen bonds for ATNA.
DHAd(D-H)/Åd(H-A)/Åd(D-A)/ÅD-H-A/°
O1H1ON10.821.852.575(3)146.8
O2H2ON20.821.852.574(3)147.4
O2H2OS20.822.743.410(2)139.7
Table
Table 3. Interference effect of the various cations with ATNA/Nafion/GCE.
Table 3. Interference effect of the various cations with ATNA/Nafion/GCE.
Metal IonsObserved Current (µA)Interference Effect (%)*SD (n= 3)#RSD (%) (n = 3)
R1R2R3Average
Cr3+14.961814.824115.142314.97601000.15951.07
Al3+5.24566.13235.86255.7468380.45457.91
Ce2+7.19197.20317.18797.1943480.00780.11
Co2+6.17926.29556.00956.1614410.14382.33
Cu2+6.54416.61926.89946.6875440.18722.80
Ga3+6.37396.20846.32156.3012420.08451.34
Hg2+6.55126.49896.30036.4501430.13232.05
Mn2+4.09584.38534.85544.4455290.38338.62
Pb2+5.92855.79695.67145.7989380.12852.22
Y3+5.82756.27916.34616.1509410.28204.59
Interference effect of Cr3+ is considered to be 100%; R = reading; *SD = standard deviation; and #RSD = relative standard deviation.
Table
Table 4. Comparison of the proposed I-V method with different previously reported analytical methods for the detection of Cr3+.
Table 4. Comparison of the proposed I-V method with different previously reported analytical methods for the detection of Cr3+.
MethodsMaterialSensitivity*LDR#LOD@LOQRef.
AmperometricTyrosinase biosensor–2.0 × 10−4 M500.0 nM–[48]
Capillary electrophoresis1,2-Cyclohexanediaminetetraacetic acid (CDTA)–0.0 M–0.0019 M961.6 nM–[40]
Capillary electrophoresisHexamolybdochromate–5 × 10−6–1 × 10−5 M2000 nM–[41]
ChemiluminescenceEthylene diamine tetra acetate (EDTA)–0.0–1 × 10−6 M0.5 nM–[42]
Cyclic voltammetry&amperometryGold nanoparticle-decorated titania nanotube arrays6.91 µAµM−10.10 µM–105 µM0.03 µM–[45]
Electrothermal atomic absorption spectrometricNano TiO2–1 × 10−3–0.5 M0.11 nM–[27]
Thin-layer X-ray fluorescence spectrometrySolid-phase hydrous ferric hydroxide (HFO)–0.0–1.0 µM16.9 nM–[36]
High-performance liquid chromatography with diode-array detectionAmmonium pyrrolidinedithiocarbamate (APDC)–190 nM–0.76 mM76,900–134,000 nM–[28]
Inductively Coupled PlasmaAtomic-emission SpectrometryMicro-column of activated alumina–0.0–1.9 × 10−5 M26.0 nM–[26]
Electrochemical I-V methodATNA/Nafion/GCE0.0071202 µAµM−1cm−21.0 nM–0.01 M0.013 nM0.04 nMThis work
*LDR = linear dynamic ranger; #LOD = limit of detection; @LOQ = limit of quantification
Table
Table 5. Real sample analysis of Cr3+ in various environmental samples.
Table 5. Real sample analysis of Cr3+ in various environmental samples.
Real SamplesAmount of 3-CP AddedNo. of ReadingsMeasured Response in (µA)% RecoveryMean (% Recovery)SDRSDSEM
Cr3+0.1 µM, 25 µL-13.6808100----
Plastic baby feeding bottle0.1 µM, 25 µLR113.237696.791.24.7655.222.75
R212.212989.3
R312.018387.8
Industrial effluent0.1 µM, 25.0 µLR114.9859109.5106.73.1432.951.81
R214.6821107.3
R314.1258103.3
Sea water0.1 µM, 25.0 µLR112.103688.588.11.8332.081.05
R211.774886.1
R312.275789.7
Tap water0.1 µM, 25.0 µLR113.245796.897.91.8501.891.06
R213.6980 100.1
R313.268297.0
SD = standard deviation; RSD = relative standard deviation; SEM = standard error of mean

Share and Cite

MDPI and ACS Style

El-Shishtawy, R.M.; Rahman, M.M.; Sheikh, T.A.; Nadeem Arshad, M.; Al-Zahrani, F.A.M.; Asiri, A.M. A New Cr3+ Electrochemical Sensor Based on ATNA/Nafion/Glassy Carbon Electrode. Materials 2020, 13, 2695. https://doi.org/10.3390/ma13122695

AMA Style

El-Shishtawy RM, Rahman MM, Sheikh TA, Nadeem Arshad M, Al-Zahrani FAM, Asiri AM. A New Cr3+ Electrochemical Sensor Based on ATNA/Nafion/Glassy Carbon Electrode. Materials. 2020; 13(12):2695. https://doi.org/10.3390/ma13122695

Chicago/Turabian Style

El-Shishtawy, Reda M., Mohammed M. Rahman, Tahir Ali Sheikh, Muhammad Nadeem Arshad, Fatimah A. M. Al-Zahrani, and Abdullah M. Asiri. 2020. "A New Cr3+ Electrochemical Sensor Based on ATNA/Nafion/Glassy Carbon Electrode" Materials 13, no. 12: 2695. https://doi.org/10.3390/ma13122695

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
