Equivalent Pore Channel Model for Fluid Flow in Rock Based on Microscale X-ray CT Imaging
Abstract
:1. Introduction
2. Specimen and Microscale X-ray CT Imaging
3. Development of the Pore Channel Model

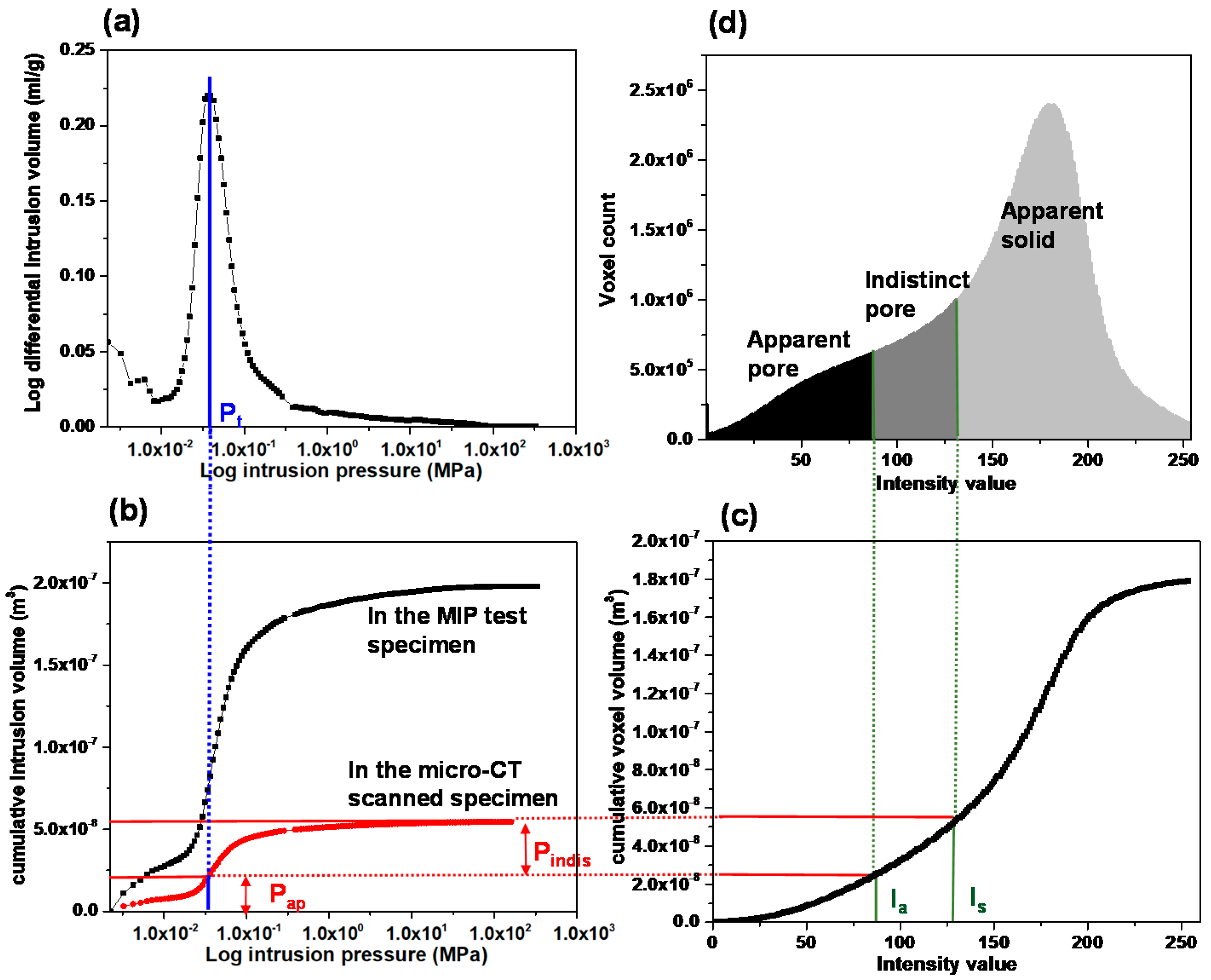

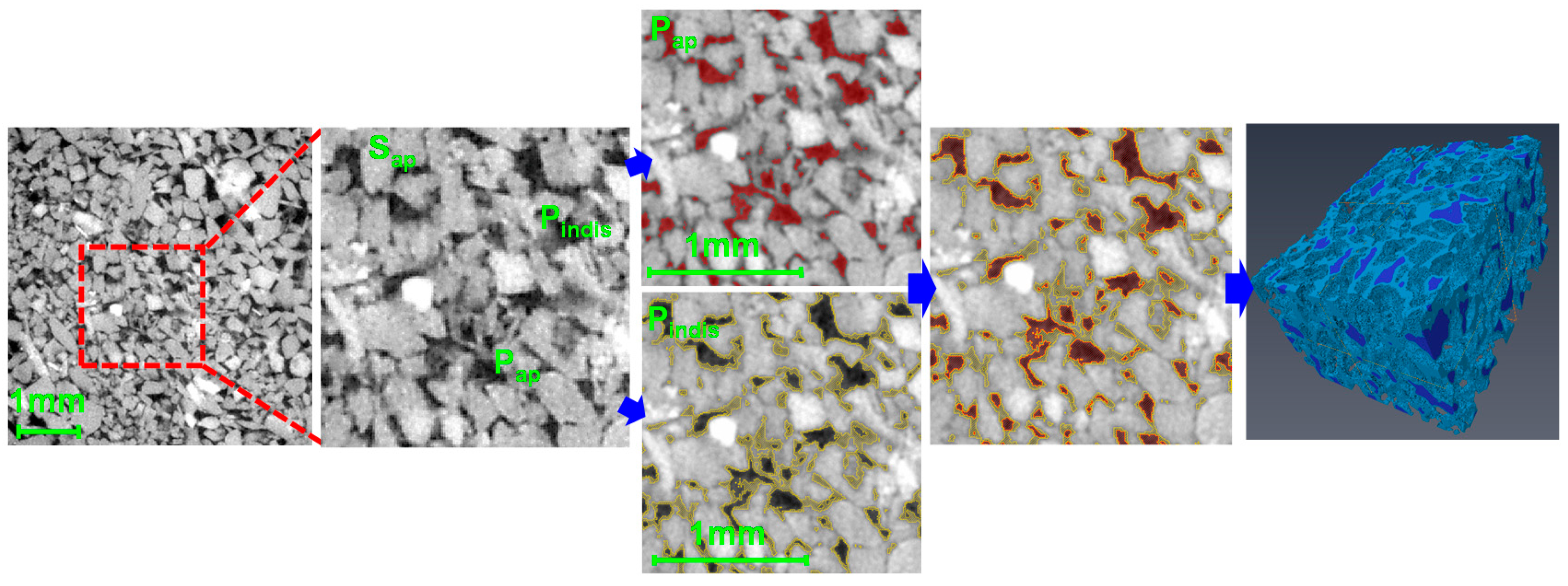

3.1. Ternary Segmentation
3.2. Analysis and Determination of Representative Pore Shape
3.3. Application of Tortuous Flow Path
3.4. Construction of 3D Domain and Its Properties

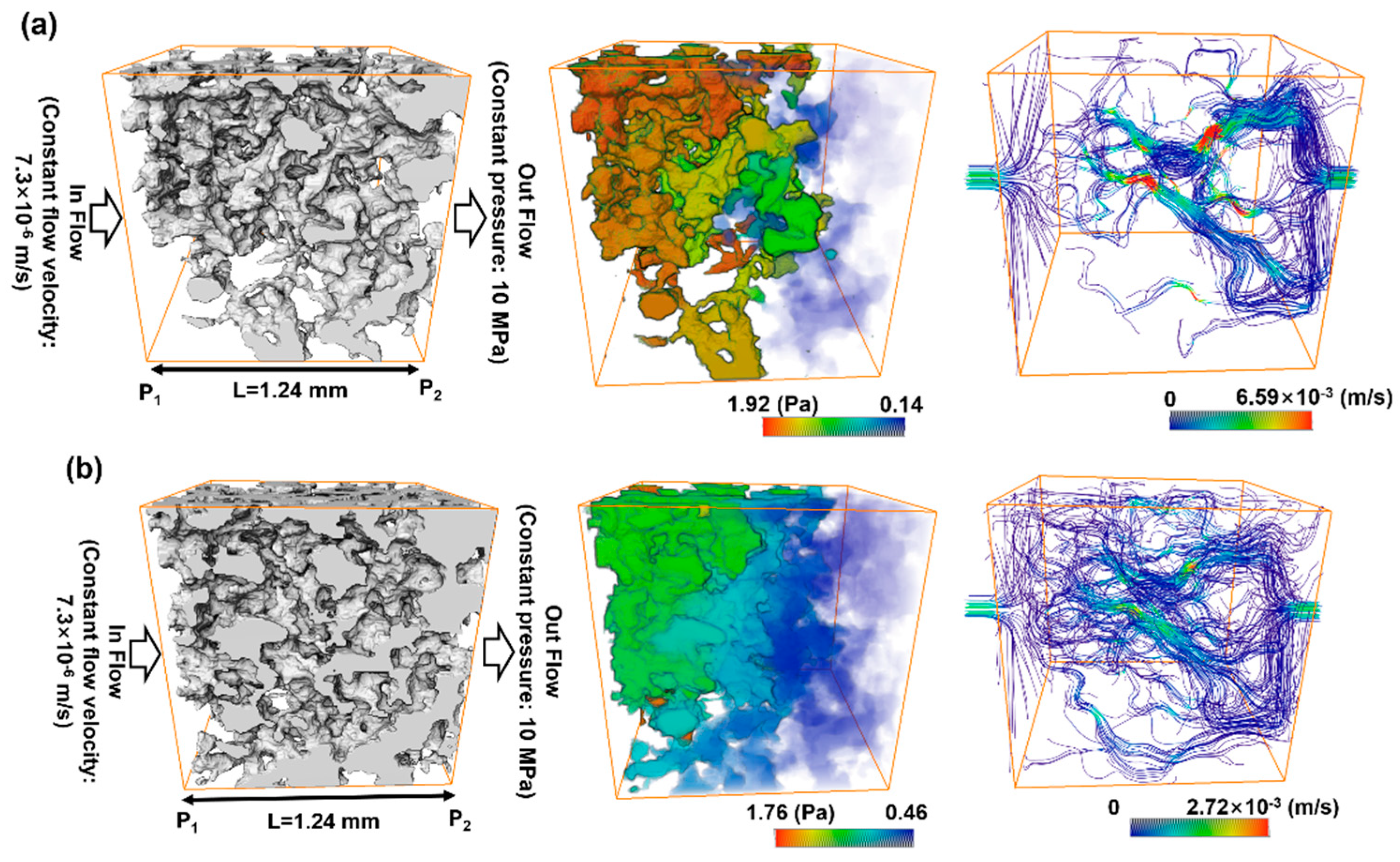

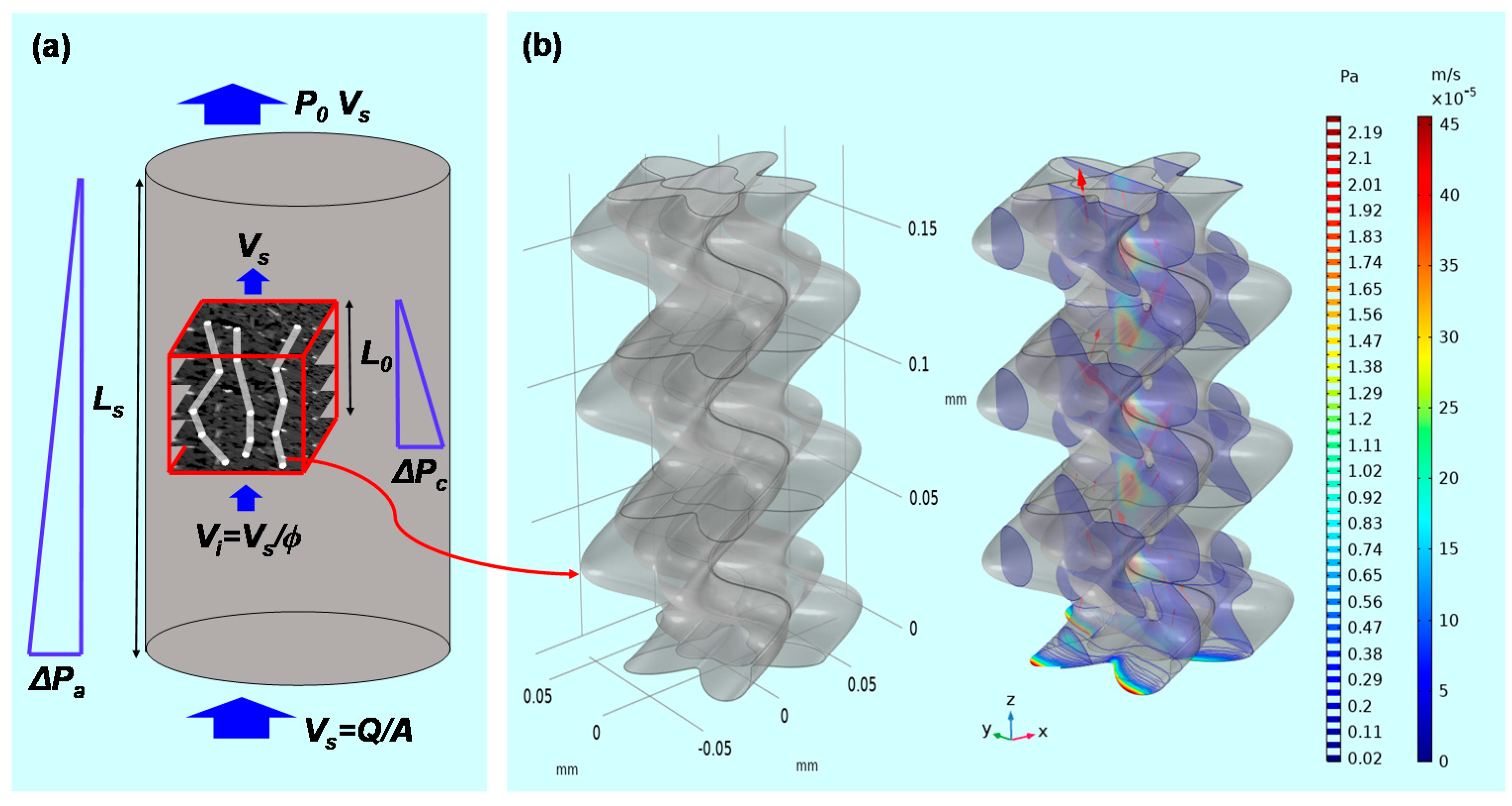

4. Numerical Modeling and Results
5. Discussion
5.1. Effect of Tortuosity Factor
5.2. Comparison with Direct Numerical Simulation
6. Conclusions
- Representative streamline channels of five types of sandstones were determined from a ternary image segmentation to distinguish apparent and indistinct pores. Threshold intensity values of the micro-CT images were examined through matching experimentally measured pore volumes from MIP tests with the CT image voxel volumes.

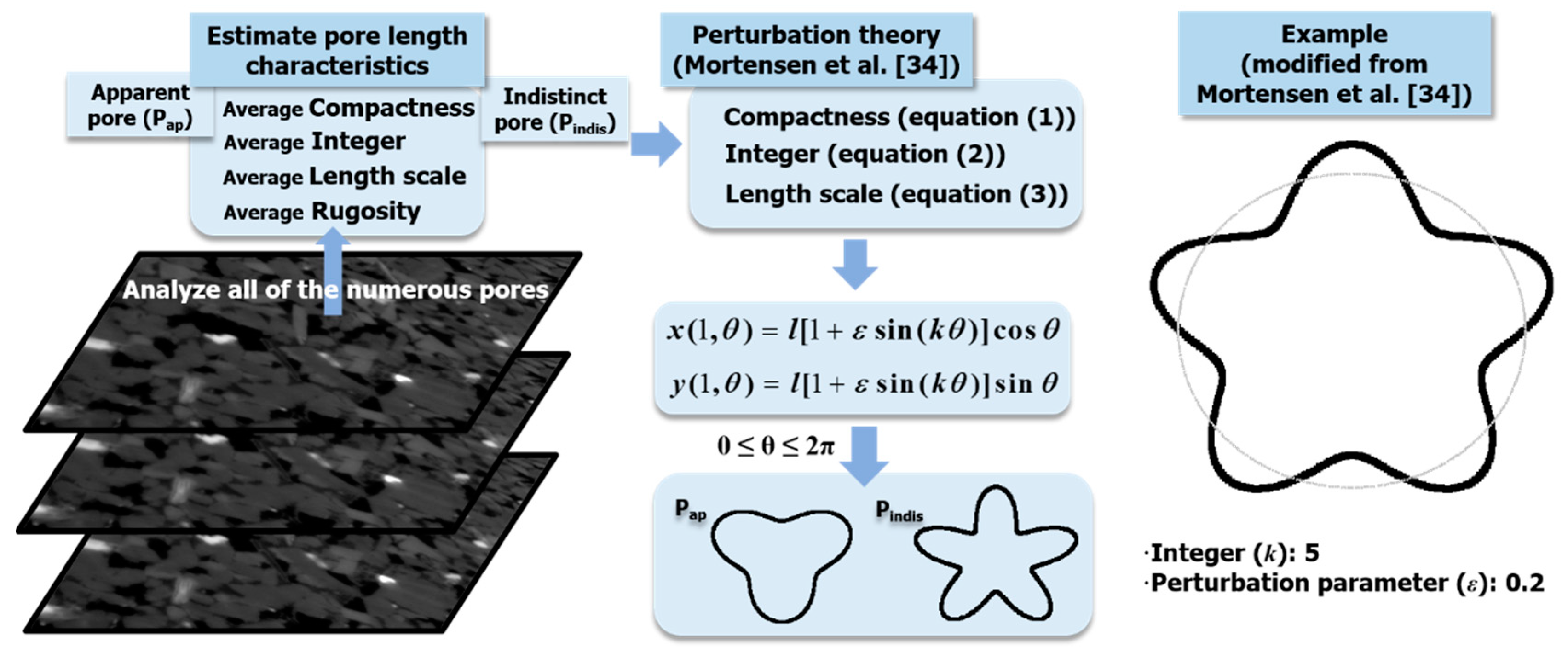

- In two dimensions, a shape perturbation theory was applied to extend the pore channel flow for the case of irregular pores with a shape-dependent flow resistance. The results of micro-CT image analysis of pore perimeter, area, and rugosity were used for determining the parameters in the perturbation theory. A representative pore shape for each of the different sandstones could be derived.

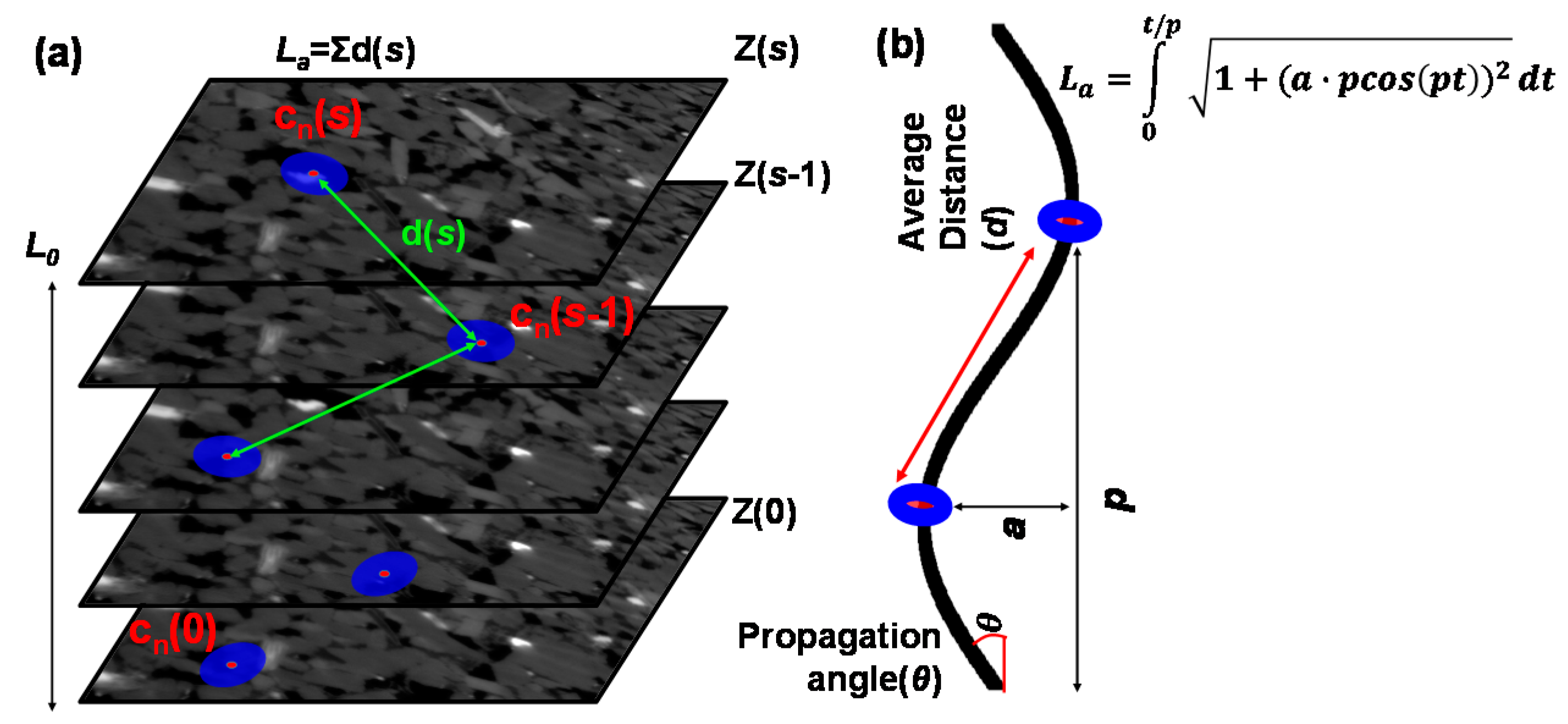

- In three dimensions, the effect of tortuosity was modeled by expressing the flow as sinusoidal curves expressing the degree of tortuosity, average distance and propagation angle of connected pores along the z-axis. Each factor was also investigated through image analysis, and the results indicated a dependence on the chosen object region, i.e., whether the pore phase was defined as only the apparent pores or the combination of apparent and indistinct pores.

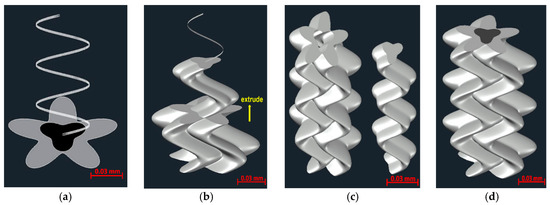

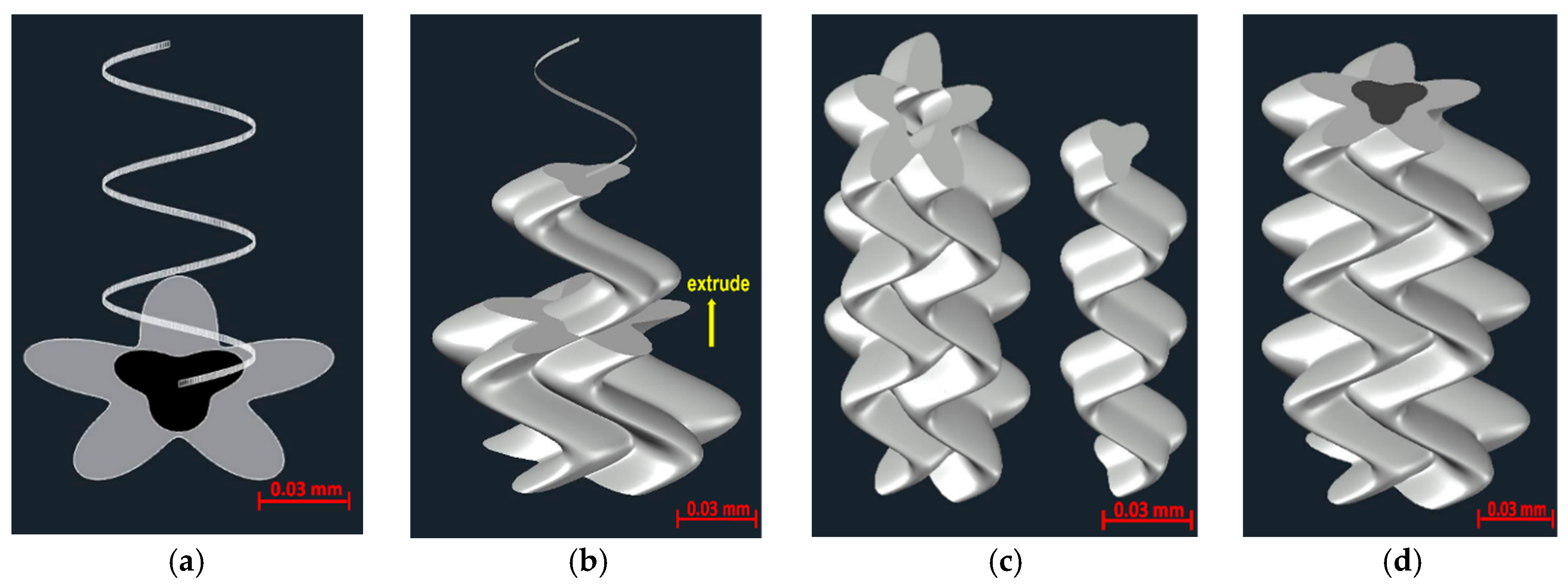

- Distinct 3D domains of apparent and indistinct pores were constructed through combining a 2D section with representative pore shapes and a 3D tortuous flow path. Both the Stokes and Brinkman equations were solved to compute the interaction flow regime with the two domains. A coupling simulation was achieved and evaluated against the experimental results in the Darcy flow regime.
Supplementary Materials
Author Contributions
Funding
Conflicts of Interest
References
- Blunt, M.J.; Bijeljic, B.; Dong, H.; Charbi, O.; Iglauer, S.; Mostaghimi, P.; Paluszny, A.; Pentland, C. Pore-scale imaging and modeling. Adv. Water Resour. 2013, 51, 197–216. [Google Scholar] [CrossRef] [Green Version]
- Taillon, J.A.; Pellegrinelli, C.; Huang, Y.L.; Wachsman, E.D.; Salamanca-Riba, L.G. Improving microstructural quantification in FIB/SEM nanotomography. Ultramicroscopy 2018, 184, 24–38. [Google Scholar] [CrossRef] [PubMed]
- Golparvar, A.; Zhou, Y.; Wu, K.; Ma, J.; Yu, Z. A comprehensive review of pore scale modeling methodologies for multiphase flow in porous media. Adv. Geo-Energy Res. 2018, 2, 418–440. [Google Scholar] [CrossRef] [Green Version]
- Iglauer, S.; Paluszny, A.; Pentland, C.H.; Blunt, M.J. Residual CO2 imaged with X-ray micro-tomography. Geophys. Res. Lett. 2011, 38, L21403. [Google Scholar] [CrossRef] [Green Version]
- Bijeljic, B.; Raeini, A.Q.; Mostaghimi, P.; Blunt, M.J. Prediction of non-Fickian solute transport in different classes of porous media using direct simulation on pore-scale images. Phys. Rev. E 2013, 87, 013011. [Google Scholar] [CrossRef] [Green Version]
- Andrew, M.; Bijeljic, B.; Blunt, M.J. Pore by pore capillary pressure mesurements using X-ray microtomography at reservoir conditions: Curvature, snap-off, and remobilization of residual CO2. Water Resour. Res. 2014, 50, 8760–8774. [Google Scholar] [CrossRef] [Green Version]
- Muljadi, B.P.; Blunt, M.J.; Raeini, A.Q.; Bijeljic, B. The impact of porous media heterogeneity on non-Darcy flow behaviour from pore-scale simulation. Adv. Water Resour. 2016, 95, 329–340. [Google Scholar] [CrossRef]
- Zhao, Y.; Zhu, G.; Zhang, C.; Liu, S.; Elsworth, D.; Zhang, T. Pore-Scale reconstruction and simulation of non-Darcy flow in synthetic porous rocks. J. Geophys. Res. Solid Earth 2018, 123, 2770–2786. [Google Scholar] [CrossRef]
- Bird, M.B.; Butler, S.L.; Hawkes, C.D.; Kotzer, T. Numerical modeling of fluid and electrical currents through geometries based on synchrotron X-ray tomographic images of reservoir rocks using Avizo and COMSOL. Comput. Geosci. 2014, 73, 6–16. [Google Scholar] [CrossRef]
- Akbarnejad, S. Experimental and Mathematical Study of Incompressible Fluid Flow through Ceramic Foam Filters. Ph.D. Thesis, KTH Royal Institute of Technology, Stockholm, Sweden, 2016. [Google Scholar]
- Song, R.; Liu, J.; Cui, M. A new method to reconstruct structured mesh model from microcomputed tomography images of porous media and its application. Int. J. Heat Mass Transf. 2017, 109, 705–715. [Google Scholar] [CrossRef]
- Bartley, J.T.; Ruth, D.W. Relative permeability analysis of tube bundle models, including capillary pressure. Transp. Porous Media 2001, 45, 447–480. [Google Scholar] [CrossRef]
- Benavente, D.; Lock, P.; Cura, A.G.D.; Ordonez, S. Predicting the capillary imbibition of porous rocks from microstructure. Transp. Porous Media 2002, 49, 59–76. [Google Scholar] [CrossRef]
- Cai, J.; Perfect, E.; Cheng, C.L.; Hu, X. Generalized modeling of spontaneous imbibition based on Hagen-Poiseuille flow in tortuous capillaries with variably shaped apertures. Langmuir 2014, 30, 5142–5151. [Google Scholar] [CrossRef] [PubMed]
- Shin, C. Permeability estimations and frictional flow features passing through porous media comprised of structured microbeads. AIP Adv. 2017, 7, 125320. [Google Scholar] [CrossRef] [Green Version]
- Choi, C.S.; Song, J.J. Estimation of the non-Darcy coefficient using supercritical CO2 and various sandstones. J. Geophys. Res. Solid Earth 2019, 124, 442–455. [Google Scholar] [CrossRef] [Green Version]
- Peng, S.; Marone, F.; Dultz, S. Resolution effect in X-ray microcomputed tomography imaging and small pore’s contribution to permeability for a Berea sandstone. J. Hydrol. 2014, 510, 403–411. [Google Scholar] [CrossRef]
- Shah, S.M.; Gray, F.; Crawshaw, J.P.; Boek, E.S. Micro-computed tomography pore-scale study of flow in porous media: Effect of voxel resolution. Adv. Water Resour. 2016, 95, 276–287. [Google Scholar] [CrossRef] [Green Version]
- Petrasch, J.; Meier, F.; Friss, H.; Steinfeld, A. Tomography based determination of permeability, Dupuit-Forchheimer coefficient, and interfacial heat transfer coefficient in reticulate porous ceramics. Int. J. Heat Fluid Flow 2008, 29, 315–326. [Google Scholar] [CrossRef]
- Korost, D.V.; Mallants, D.; Balushkina, N.S.; Vasilyev, R.V.; Khamidullin, R.; Karsanina, M.V.; Gerke, K.M.; Kalmykov, G.A. Determining physical properties of unconventional reservoir rocks: From laboratory methods to pore-scale modeling. In Proceedings of the SPE Unconventional Resources Conference and Exhibition-Asia Pacific, Brisbane, Australia, 11–13 November 2013. [Google Scholar]
- Bijeljic, B.; Mostaghimi, P.; Blunt, M.J. Insights into non-Fickian solute transport in carbonates. Water Resour. Res. 2013, 49, 2714–2728. [Google Scholar] [CrossRef] [Green Version]
- Peszynska, M.; Trykozko, A. Pore-to-core simulations of flow with large velocities using continuum models and imaging data. Comput. Geosci. 2013, 17, 623–645. [Google Scholar] [CrossRef]
- Sukop, M.C.; Huang, H.; Alvarez, P.F.; Variano, E.A.; Cunningham, K.J. Evaluation of permeability and non-Darcy flow in vuggy macroporous limestone aquifer samples with lattice Boltzmann methods. Water Resour. Res. 2013, 49, 216–230. [Google Scholar] [CrossRef]
- Bultreys, T.; Hoorebeke, L.V.; Cnudde, V. Multi-scale, micro-computed tomography-based pore network models to simulate drainage in heterogeneous rocks. Adv. Water Resour. 2015, 78, 24–36. [Google Scholar] [CrossRef]
- Scheibe, T.D.; Perkins, W.A.; Richmond, M.C.; Mckinley, M.I.; Romero-Gomez, P.D.J.; Oostrom, M.; Wietsma, T.W.; Serkowski, J.A.; Zachara, J.M. Pore-scale and multiscale numerical simulation of flow and transport in a laboratory-scale column. Water Resour. Res. 2015, 51, 1023–1035. [Google Scholar] [CrossRef]
- Lin, Q.; Al-Khulaifi, Y.; Blunt, M.J.; Bijeljic, B. Quantification of sub-resolution porosity in carbonate rocks by applying high salinity contrast brine using X-ray microtomography differential imaging. Adv. Water Resour. 2016, 96, 306–322. [Google Scholar] [CrossRef] [Green Version]
- Kang, D.H.; Yang, E.; Yun, T.S. Stokes-Brinkman flow simulation based on 3-D μ-CT images of porous rock using grayscale pore voxel permeability. Water Resour. Res. 2019, 55, 4448–4464. [Google Scholar] [CrossRef]
- Otsu, N. A threshold selection method from gray-level histograms. IEEE Trans. Syst. Man Cybern. 1979, 9, 62–66. [Google Scholar] [CrossRef] [Green Version]
- Liao, P.S.; Chen, T.S.; Chung, P.C. A fast algorithm for multilevel thresholding. J. Inf. Sci. Eng. 2001, 17, 713–727. [Google Scholar]
- Beckers, E.; Plougonven, E.; Roisin, C.; Hapca, S.; Leonard, A.; Degre, A. X-ray microtomography: A porosity-based thresholding method to improve soil pore network characterization. Geoderma 2014, 219, 145–154. [Google Scholar] [CrossRef]
- Soulaine, C.; Gjetvaj, F.; Garing, C.; Roman, S.; Russian, A.; Couze, P.; Tchelepi, H.A. The impact of sub-resolution porosity of X-ray microtomography images on the permeability. Transp. Porous Media 2016, 113, 227–243. [Google Scholar] [CrossRef] [Green Version]
- Katz, A.J.; Thompson, A.H. A quantitative prediction of permeability in porous rock. Phys. Rev. B 1986, 34, 8179–8181. [Google Scholar] [CrossRef]
- Katz, A.J.; Thompson, A.H. Prediction of rock electrical conductivity from mercury injection measurements. J. Geophys. Res. Solid Earth 1987, 92, 599–607. [Google Scholar] [CrossRef]
- Gao, Z.; Hu, Q. Estimating permeability using median pore-throat radius obtained from mercury intrusion porosimetry. J. Geophys. Eng. 2013, 10, 025014. [Google Scholar] [CrossRef]
- Mortensen, N.A.; Okkels, F.; Bruus, H. Reexamination of Hagen-Poiseuille flow: Shape-dependence of the hydraulic resistance in microchannels. Phys. Rev. E 2005, 71, 057301. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Cooper, S.J.; Bertei, A.; Shearing, P.R.; Kilner, J.A.; Brandon, N.P. TauFactor: An open-source application for calculating tortuosity factors from tomographic data. SoftwareX 2016, 5, 203–210. [Google Scholar] [CrossRef]
- Al-Raoush, R.I.; Madhoun, I.T. Tort3D: A MATLAB code to compute geometric tortuosity from 3D images of unconsolidated porous media. Powder Technol. 2017, 320, 99–107. [Google Scholar] [CrossRef]
- Du-Plessis, J.P. Analytical quantification of coefficient in the Ergun equation for fluid friction in packed beds. Transp. Porous Media 1994, 16, 189–207. [Google Scholar] [CrossRef]
- Wu, J.; Yu, B.; Yun, M. A resistance model for flow through porous media. Transp. Porous Media 2008, 71, 331–343. [Google Scholar] [CrossRef]
- Ghanbarian, B.; Hunt, A.G.; Ewing, R.P.; Sahimi, M. Tortuosity in porous media: A critical review. Soil Sci. Soc. Am. J. 2013, 77, 1461–1477. [Google Scholar] [CrossRef]
- Xu, W.S.; Luo, P.Y.; Sun, L.; Lin, N. A prediction model of the capillary pressure J-function. PLoS ONE 2016, 11, e0162123. [Google Scholar] [CrossRef] [Green Version]
- David, C.; Wong, T.; Zhu, W.; Zhang, J. Laboratory measurement of compaction-induced permeability change in porous rocks: Implications for the generation and maintenance of pore pressure excess in the crust. Pure Appl. Geophys. 1994, 143, 425–456. [Google Scholar] [CrossRef]
- Metwally, Y.M.; Sondergeld, C.H. Measuring low permeabilities of gas-sands and shales using a pressure transmission technique. Int. J. Rock Mech. Min. Sci. 2011, 48, 1135–1144. [Google Scholar] [CrossRef]
- Zuo, L.; Krevor, S.; Falta, R.W.; Benson, S.M. An experimental study of CO2 exsolution and relative permeability measurements during CO2 saturated water depressurization. Transp. Porous Media 2011, 91, 459–478. [Google Scholar] [CrossRef]
- Zhou, G.; Zhang, Q.; Bai, R.; Ni, G. Characterization of coal micro-pore structure and simulation on the seepage rules of low-pressure water based on CT scanning data. Minerals 2016, 6, 78. [Google Scholar] [CrossRef] [Green Version]
- Yang, X.; Scheibe, T.D.; Richmond, M.C.; Perkins, W.A.; Vogt, S.J.; Codd, S.L.; Seymour, J.D.; McKinley, M.I. Direct numerical simulation of pore-scale flow in a bead pack: Comparison with magnetic resonance imaging observations. Adv. Water Resour. 2013, 54, 228–241. [Google Scholar] [CrossRef] [Green Version]
- Raeini, A.Q.; Blunt, M.J.; Bijeljic, B. Direct simulations of two-phase flow on micro-CT images of porous media and upscaling of pore-scale forces. Adv. Water Resour. 2014, 74, 116–126. [Google Scholar] [CrossRef]
- Miller, K.J.; Zhu, W.I.; Montesi, L.G.J.; Gaetani, G.A. Experimental quantification of permeability of partially molten mantle rock. Earth Planet. Sci. Lett. 2014, 388, 273–282. [Google Scholar] [CrossRef]
Pore Characteristics | Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|---|
Average mean pore diameter (μm) | 2.61 (±0.31) | 0.75 (±0.03) | 1.00 (±0.04) | 0.24 (±0.01) | 0.13 (±0.01) |
Average median pore diameter (µm) | 43.39 (±2.99) | 11.69 (±0.18) | 17.76 (±0.59) | 5.03 (±1.30) | 7.01 (±0.60) |
Average porosity | 29.5 (±0.76) | 21.1 (±0.35) | 23.8 (±0.71) | 20.7 (±0.82) | 10.1 (±0.44) |
Voxel size (µm) | 10 | 4.138 | 4.138 | 3.396 | 3.847 |
Pore Phase | Title | Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|---|---|
Intensity value | Ia | 87 | 85 | 97 | 87 | 107 |
Is | 131 | 128 | 143 | 118 | 121 | |
Apparent pore | Average pore area (m2) | 1.17 × 10−8 (± 2.41 × 10−9) | 1.87 × 10−9 (±0.31 × 10−9) | 3.81 × 10−9 (±0.67 × 10−9) | 1.16 × 10−9 (±0.21 × 10−9) | 1.96 × 10−9 (±0.57 × 10−9) |
Average Perimeter (μm) | 433 (±55.8) | 159 (±15.1) | 239 (±26.3) | 129 (±14.4) | 152 (±25.2) | |
Average Hydraulic D (μm) | 66.4 (±4.17) | 31.7 (±1.87) | 41.2 (±2.54) | 24.1 (±1.38) | 26.2 (±2.05) | |
Indistinct pore | Average pore area (m2) | 1.63 × 10−8 (±4.01 × 10−9) | 3.04 × 10−9 (±0.50 × 10−9) | 4.56 × 10−9 (±0.91 × 10−9) | 1.35 × 10−9 (±0.27 × 10−9) | 1.18 × 10−9 (±0.51 × 10−9) |
Average Perimeter (μm) | 1341 (±316.2) | 380 (±55.9) | 597 (±112.1) | 273 (±60.3) | 153 (±44.4) | |
Average Hydraulic D (μm) | 42.8 (±1.57) | 27.7 (±1.06) | 28.2 (±1.06) | 13.9 (±5.51) | 13.9 (±8.88) |
Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|
| | | | |
<Pap> | <Pap> | <Pap> | <Pap> | <Pap> |
C = 21.1 (±1.3) | C = 17.7 (±0.7) | C = 19.8 (±1.0) | C = 18.3 (±0.9) | C = 18.0 (±1.2) |
k = 4 (±2) | k = 3 (±0.3) | k = 3 (±0.4) | k = 3 (±0.4) | k = 4 (±0.5) |
l = 4.51 (±0.38) × 10−5 | l = 1.93 (±0.14) × 10−5 | l = 2.64 (±0.21) × 10−5 | l = 1.50 (±0.13) × 10−5 | l =1.69 (±0.17) × 10−5 |
ε = 0.31 (±0.106) | ε = 0.30 (±0.095) | ε = 0.37 (±0.084) | ε = 0.27 (±0.094) | ε = 0.22 (±0.084) |
<Pindis> | <Pindis> | <Pindis> | <Pindis> | <Pindis> |
C = 115.2 (±25.7) | C = 49.79 (±6.8) | C = 83.2 (±14.6) | C = 75.7 (±14.2) | C = 35.3 (±5.4) |
k = 9 (±3) | k = 5 (±1.5) | k = 7 (±2.3) | k = 8 (±2.4) | k = 9 (±2.2) |
l = 6.99 (±0.48) × 10−5 | l = 3.00 (±0.17) × 10−5 | l = 3.67 (±0.23) × 10−5 | l = 2.02 (±0.11) × 10−5 | l = 1.92 (±0.13) × 10−5 |
ε = 0.36 (±0.101) | ε = 0.38 (±0.084) | ε = 0.39 (±0.077) | ε = 0.32 (±0.097) | ε = 0.19 (±0.086) |
Tortuous Characteristics | Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|---|
Tortuosity | 1.44 | 1.99 | 1.77 | 1.72 | 2.75 |
Tortuous propagation angle (°) | 47.4 (±2.6) | 61.2 (±1.2) | 63.8 (±6.7) | 58.0 (±0.4) | 48.7 (±2.5) |
Avg. z-axis distance of connected pore (mm) | 0.1135 (±1.41 × 10−4) | 0.06034 (±6.55 × 10−6) | 0.05518 (±9.14 × 10−6) | 0.04635 (±2.71 × 10−6) | 0.0529 (±5.29 × 10−6) |

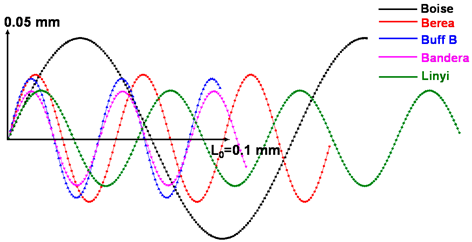

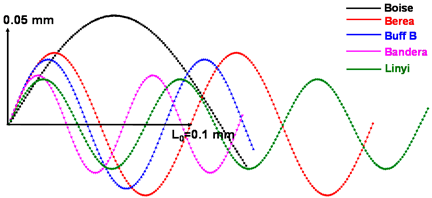

Tortuous flow path | |
Indistinct Pore Properties | Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|---|
Derived permeability (m2) | 1.06 × 10−11 | 3.49 × 10−12 | 3.52 × 10−12 | 8.49 × 10−13 | 3.75 × 10−13 |
Porosity | 0.186 | 0.147 | 0.157 | 0.124 | 0.063 |
Property | Value | Description | |
---|---|---|---|
μ | 2.842 × 10−5 Pa·s | Dynamic viscosity | |
vs | 7.29 × 10−6 m/s | Superficial velocity | |
vi | Boise | 2.51 × 10−5 m/s | Interstitial inlet velocity |
Berea | 3.46 × 10−5 m/s | ||
Buff Berea | 3.08 × 10−5 m/s | ||
Bandera | 3.56 × 10−5 m/s | ||
Linyi | 7.35 × 10−5 m/s | ||
P0 | 10 MPa | Initial outlet pressure |
Results | Boise | Berea | Buff Berea | Bandera | Linyi | |
---|---|---|---|---|---|---|
Permeability (m2) | Pore channel model | 9.49 × 10−13 | 1.04 × 10−13 | 2.17 × 10−13 | 5.01 × 10−14 | 1.80 × 10−14 |
Experiment | 1.14 × 10−12 (±1.08 × 10−13) | 1.34 × 10−13 (±4.32 × 10−15) | 2.78 × 10−13 (±1.81 × 10−14) | 3.30 × 10−14 (±1.06 × 10−15) | 2.47 × 10−15 (±8.06 × 10−17) |
Tortuous Characteristics | Boise | Berea | Buff Berea | Bandera | Linyi |
---|---|---|---|---|---|
Tortuosity | 1.93 | 3.59 | 2.54 | 2.70 | 3.96 |
Tortuous propagation angle (°) | 44.7 (±0.7) | 56.4 (±0.3) | 57.7 (±0.6) | 58.3 (±0.2) | 51.4 (±2.3) |
Avg. z-axis distance of connected pores (mm) | 0.1613 (±0.49 × 10−4) | 0.08935 (±0.99 × 10−5) | 0.07961 (±0.12 × 10−4) | 0.05961 (±0.52 × 10−5) | 0.0598 (±0.68 × 10−5) |
Tortuous flow path | |
| |
Average outlet superficial velocity (vs, 10−6 m/s): 7.185 | Average outlet superficial velocity (vs, 10−6 m/s): 7.196 |
Average pressure gradient (ΔPc, Pa): 0.0216 | Average pressure gradient (ΔPc, Pa): 0.0179 |
Results | Boise | Berea | Buff Berea | Bandera | Linyi | |
---|---|---|---|---|---|---|
Permeability (m2) | Modified pore channel model | 1.14 × 10−12 | 1.29 × 10−13 | 2.75 × 10−13 | 3.41 × 10−14 | 1.20 × 10−14 |
Experiment | 1.14 × 10−12 (±1.08 × 10−13) | 1.34 × 10−13 (±4.32 × 10−15) | 2.78 × 10−13 (±1.81 × 10−14) | 3.30 × 10−14 (±1.06 × 10−15) | 2.47 × 10−15 (±8.06 × 10−17) |

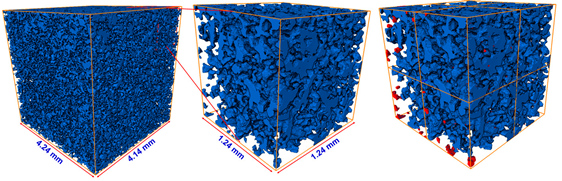

Object Phase | A z-axis Connected Pore Structure | Extract A Region of Interest | Detection of Unconnected Pores |
---|---|---|---|
Apparent pore (Pap) | | ||
Total pore (Pap + Pindis) | |
Results | Object Phase | Boise | Berea | Buff Berea | Bandera | Linyi | |
---|---|---|---|---|---|---|---|
Permeability (m2) | Direct numerical simulation | Apparent pore (Pap) | 1.01 × 10−12 | 1.45 × 10−13 | 2.92 × 10−13 | 3.04 × 10−14 | 6.22 × 10−15 |
Total pore (Pap + Pindis) | 1.26 × 10−12 | 1.98 × 10−13 | 3.74 × 10−13 | 5.60 × 10−14 | 3.15 × 10−14 | ||
Pore channel model | 1.14 × 10−12 | 1.29 × 10−13 | 2.75 × 10−13 | 3.41 × 10−14 | 1.20 × 10−14 | ||
Experiment | 1.14 × 10−12 | 1.34 × 10−13 | 2.78 × 10−13 | 3.30 × 10−14 | 2.47 × 10−15 |
