Next Article in Journal
Fatigue Behavior of PBO FRCM Composite Applied to Concrete Substrate
Previous Article in Journal
Mechanical Behavior of Masonry Mortars Made with Recycled Mortar Aggregate
Previous Article in Special Issue
Fullerene Nanoarchitectonics with Shape-Shifting
Open AccessArticle

Nanoporous Carbon Materials Derived from Washnut Seed with Enhanced Supercapacitance

1
Department of Chemistry, Amrit Campus, Tribhuvan University, Kathmandu 44613, Nepal
2
Department of Chemistry, Tri-Chandra Multiple Campus, Tribhuvan University, Kathmandu 44600, Nepal
3
International Center for Materials Nanoarchitectonics (WPI-MANA), National Institute for Materials Science (NIMS), 1-1 Namiki, Ibaraki 305-0044, Japan
4
Graduate School of Frontier Sciences, The University of Tokyo, 5-1-5 Kashiwanoha, Kashiwa, Chiba 277-8561, Japan
*
Authors to whom correspondence should be addressed.
Materials 2020, 13(10), 2371; https://doi.org/10.3390/ma13102371
Received: 21 April 2020 / Revised: 18 May 2020 / Accepted: 19 May 2020 / Published: 21 May 2020

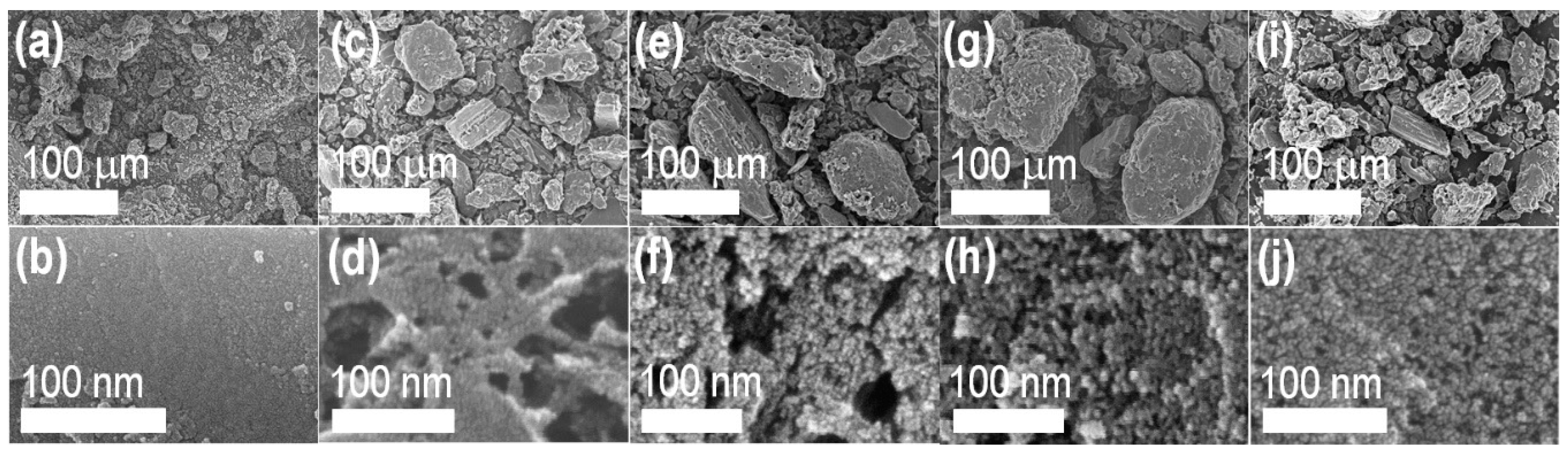

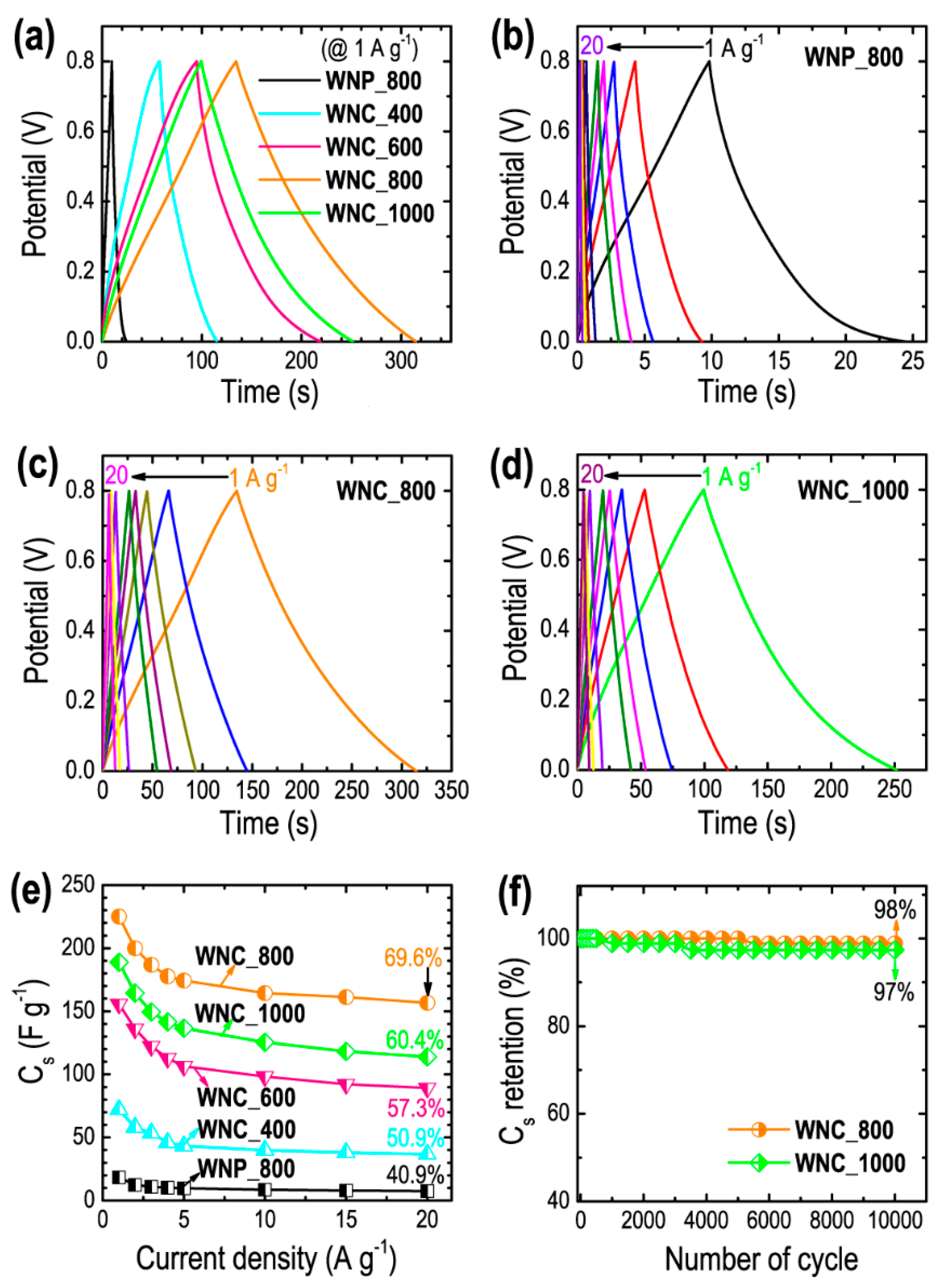

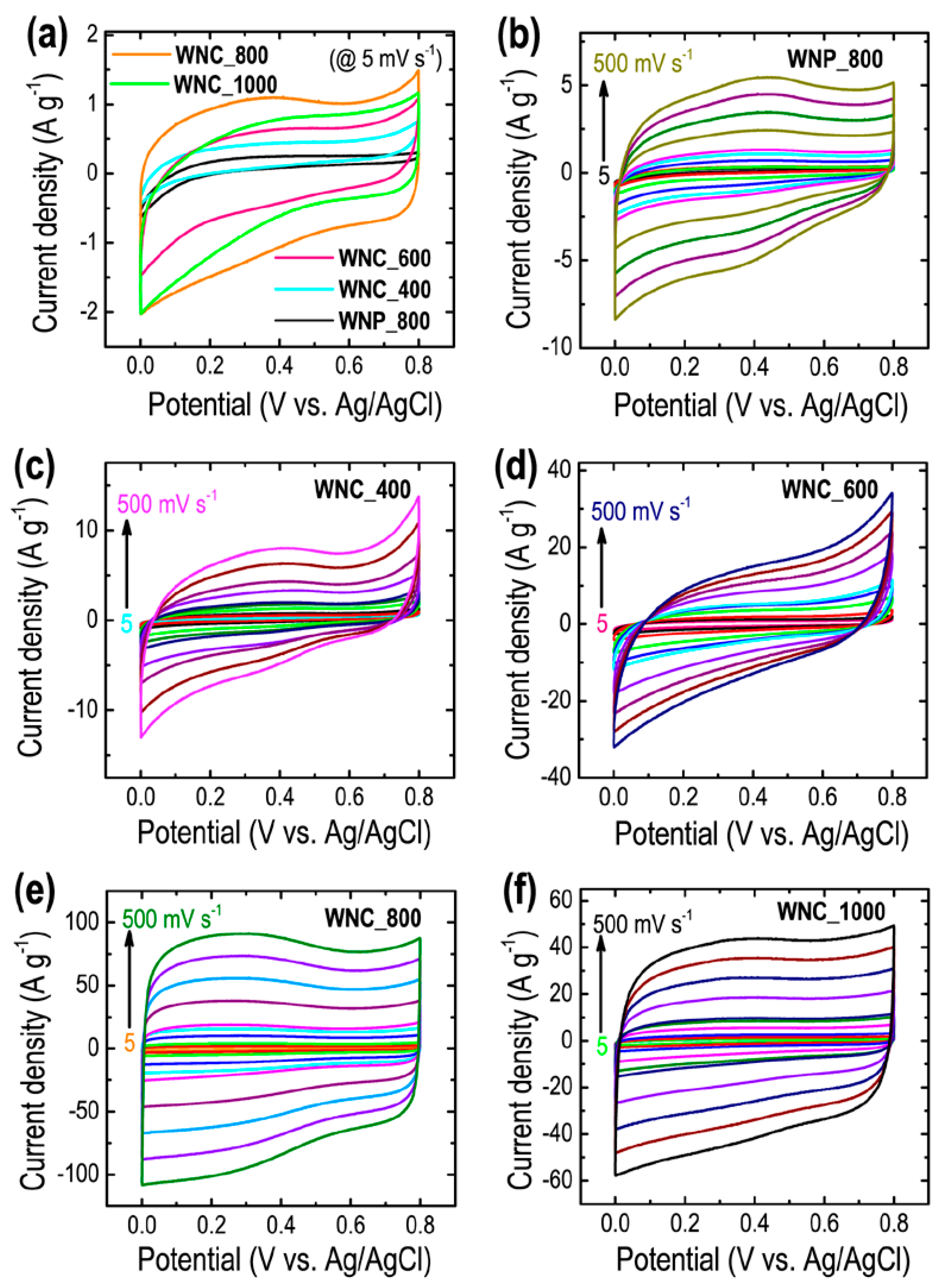

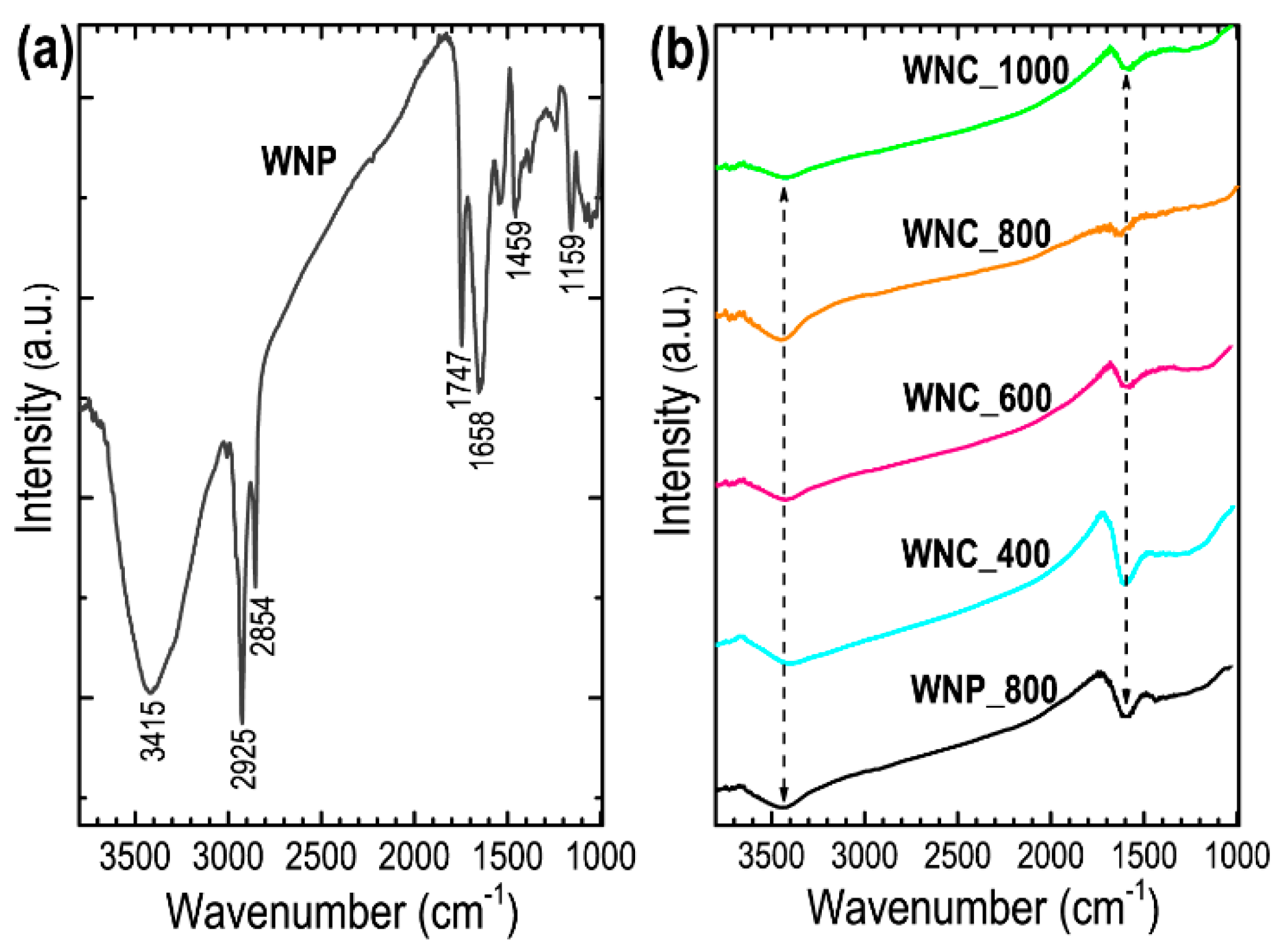

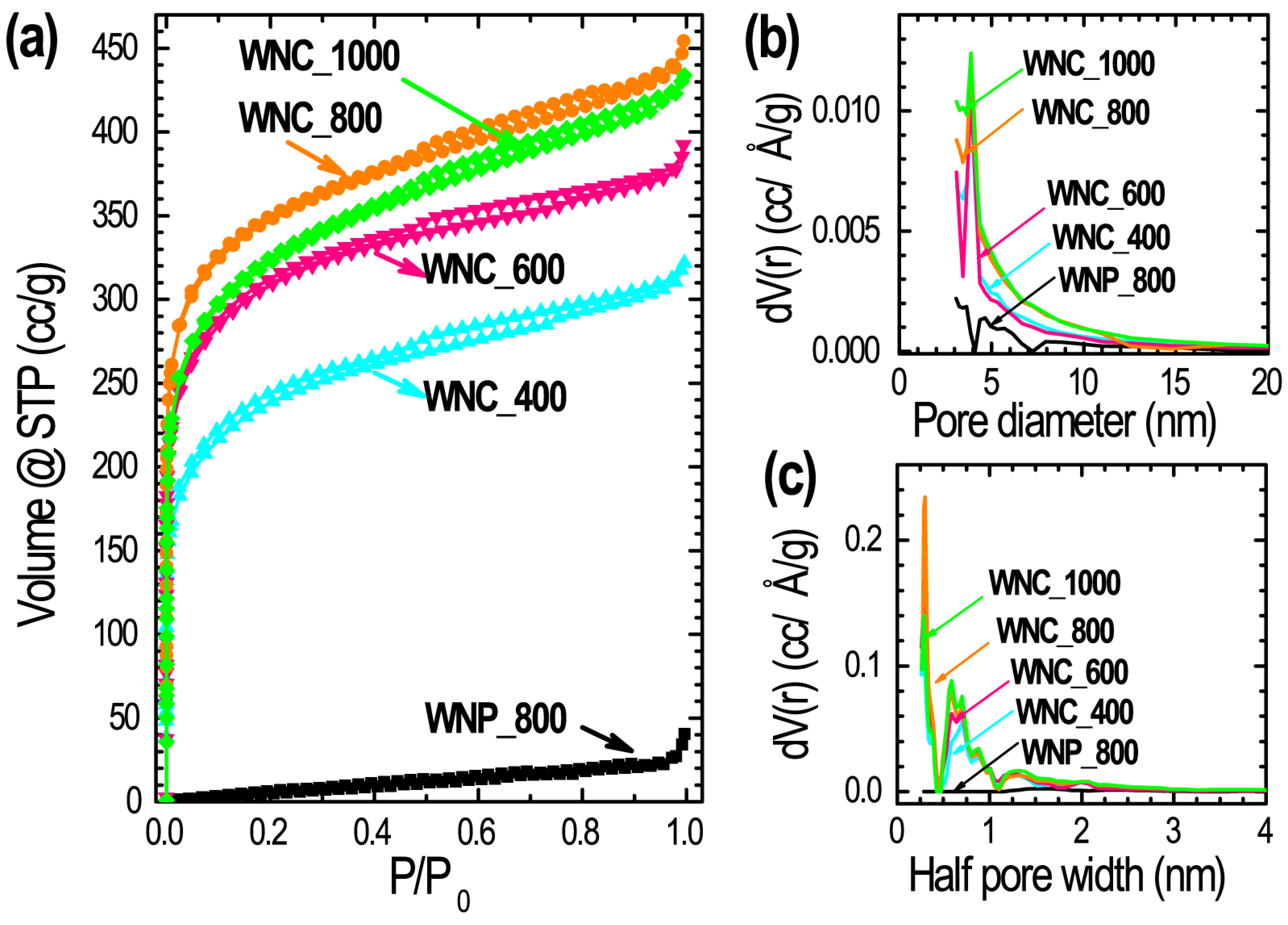

Nanoporous activated carbons-derived from agro-waste have been useful as suitable and scalable low-cost electrode materials in supercapacitors applications because of their better surface area and porosity compared to the commercial activated carbons. In this paper, the production of nanoporous carbons by zinc chloride activation of Washnut seed at different temperatures (400–1000 °C) and their electrochemical supercapacitance performances in aqueous electrolyte (1 M H2SO4) are reported. The prepared nanoporous carbon materials exhibit hierarchical micro- and meso-pore architectures. The surface area and porosity increase with the carbonization temperature and achieved the highest values at 800 °C. The surface area was found in the range of 922–1309 m2 g−1. Similarly, pore volume was found in the range of 0.577–0.789 cm3 g−1. The optimal sample obtained at 800 °C showed excellent electrochemical energy storage supercapacitance performance. Specific capacitance of the electrode was calculated 225.1 F g−1 at a low current density of 1 A g−1. An observed 69.6% capacitance retention at 20 A g−1 indicates a high-rate capability of the electrode materials. The cycling stability test up to 10,000 cycles revealed the outstanding stability of 98%. The fascinating surface textural properties with outstanding electrochemical performance reveal that Washnut seed would be a feasible agro-waste precursor to prepare nanoporous carbon materials as a low-cost and scalable supercapacitor electrode. View Full-Text
Keywords: Washnut seed; chemical activation; micro/mesoporous carbon; supercapacitor Washnut seed; chemical activation; micro/mesoporous carbon; supercapacitor
Show Figures

Graphical abstract

MDPI and ACS Style

Shrestha, R.L.; Shrestha, T.; Tamrakar, B.M.; Shrestha, R.G.; Maji, S.; Ariga, K.; Shrestha, L.K. Nanoporous Carbon Materials Derived from Washnut Seed with Enhanced Supercapacitance. Materials 2020, 13, 2371.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Search more from Scilit

Search
Back to TopTop
