Revealing the Microstructure Evolution and Carbonation Hardening Mechanism of β-C2S Pastes by Backscattered Electron Images
School of Materials Science and Engineering, Henan Polytechnic University, 2001 Century Avenue, Jiaozuo 454000, China
*
Authors to whom correspondence should be addressed.
Received: 17 April 2019 / Accepted: 8 May 2019 / Published: 13 May 2019

Abstract

:
β-dicalcium silicate (β-C2S) minerals were prepared. The compositions, microstructures, and distributions of the carbonation products of hardened β-C2S paste were revealed by X-ray diffraction (XRD), Fourier transform-infrared (FT-IR) spectroscopy, and backscattered electron (BSE) image analysis. The results show that a dense hardened paste of β-C2S can be obtained after 24 h of carbonation curing. The hardened pastes are composed of pores, silica gel, calcium carbonate, and unreacted dicalcium silicate, with relative volume fractions of 1.3%, 42.1%, 44.9%, and 11.7%, respectively. The unreacted dicalcium silicate is encapsulated with a silica gel rim, and the pores between the original dicalcium silicate particles are filled with calcium carbonate. The sufficient carbonation products that rapidly formed during the carbonation curing process, forming a dense microstructure, are responsible for the carbonation hardening of the β-C2S mineral.
Keywords:
backscattered electron image; dicalcium silicate; carbonation; microstructure

1. Introduction

Portland cement is the most widely consumed cementitious material in the world. However, due to the high calcium minerals such as tricalcium silicate, the production of Portland cement is an energy-intensive process which also releases a high amount of CO2. Reducing the calcium oxide content in Portland cement and developing low-calcium cementitious materials which can partially replace Portland cement are hot topics [1,2,3,4]. Among them, the carbonation-hardened cementitious materials with low-calcium silicates (β-C2S, γ-C2S, C3S2, and CS) as the main minerals have significantly reduced CO2 emissions and achieve excellent mechanical performance by a short carbonation curing process, and thus are receiving extensive attention all over the world.
Numerous research efforts have focused on the carbonation hardening mechanical performances, reaction product compositions, and microstructures of calcium silicates [5,6,7,8]. The results show that amounts of CaCO3 crystals (including calcite, vaterite, and aragonite) and highly polymerized SiO2 gels are formed within 24 h of carbonation curing, which contributes to the excellent mechanical strength of hardened pastes (achieving 70–80 MPa after carbonation for 24 h) [7,9]. However, little research has been done on the distributions and relative volume fractions of the above two types of carbonation products (CaCO3 crystal and SiO2 gel), which are of great significance for revealing the carbonation reaction process and hardening mechanism of low-calcium silicate-based cementitious materials.
In recent years, backscattered electron image quantitative analysis technology has been widely used to reveal the microstructure, hydration degree, and porous structure of cement-based materials [10,11,12,13,14]. Since cement clinkers and hydration products have different grayscale features, the relative volume fractions of each product with different grayscale features can be obtained by analyzing the gray level distributions of backscattered electron images. The hardened calcium silicate pastes after carbonation are composed of unreacted C2S, CaCO3, and amorphous SiO2 gel formed during the carbonation reactions. The average atomic numbers of C2S, CaCO3, and SiO2 are 14.56, 12.56, and 10.81, respectively, showing obvious grayscale features [15]. Therefore, the distributions and relative volume fractions of C2S, CaCO3, and SiO2 can be well characterized by backscattering electron image analysis. However, there are still few related reports.
In this work, β-dicalcium silicate (β-C2S) minerals were prepared. The compositions, microstructure distributions, and relative volume fractions of the carbonation reaction products of hardened β-C2S pastes were determined by X-ray diffraction (XRD), Fourier transform-infrared spectroscopy (FT-IR), and backscattered electron (BSE) image analysis. Moreover, the microstructure formation process and carbonation hardening mechanism of β-C2S were also revealed.

2. Materials and Methods

2.1. Preparation of β-C2S

76.9% of CaCO3 and 23.1% of SiO2 analytical purification reagents were weighed and mixed uniformly. Additionally, barium oxide with a mass fraction of 0.3% was added to the above mixture to prevent the conversion of β-C2S to γ-C2S. Then, the mixture was pelleted and calcined at 1350 °C for 2 h in a high-temperature furnace. Subsequently, the resulting clinker was quenched and re-calcined until the free-CaO content in the resulting clinker was negligible. Finally, the resulting β-C2S was ground to powder with a Blaine specific surface area of 4100 cm2/g. The polymorph of prepared C2S is β-C2S, which was determined by XRD [16]. The XRD pattern is shown in Figure 1.

2.2. Carbonation of β-C2S Pastes

The prepared β-C2S powder was mixed uniformly with 10% by mass of water. The wet mixture was then poured into a mold and subjected to a compression molding process under a molding pressure of 4 MPa at maximum pressure for 30 s. The obtained block size was about 40 × 40 × 50 mm. After demolding, the obtained block was immediately placed into a sealed carbonation reactor with a CO2 gas concentration of 99% and a CO2 pressure of 0.1 MPa at room temperature [17]. The sample was removed from the carbonation reactor after carbonation for 24 h.

2.3. Test Methods

The hardened pastes were crushed, dried, and ground with an agate mortar. The XRD and FT-IR spectra of the powder samples were determined to characterize the phase change before and after carbonation. The XRD patterns were obtained by using a Rigaku SmartLab diffractometer (Tokyo, Japan) with Cu Kα radiation (λ = 1.5406 Å) at the range of 10–70°. The FT-IR spectroscopy data were collected by using a Bruker V70 spectrometer (Billerica, MA, USA) at a range of 400–2000 cm−1 with a resolution of 4 cm−1. A small cut portion of the hardened pastes after carbonation was dried and epoxy impregnated. After impregnation, one of the surfaces was polished to 0.5 μm finish [13]. The polished surface was sputter-coated with a thin layer of gold (Au) and examined under a scanning electron microscope (SEM) in backscattered mode. A Merlin Compact ultrahigh-resolution field emission scanning electron microscope (SEM, Oberkochen, Germany) coupled with Oxford energy-dispersive spectroscopy (EDS, Abingdon, UK) at 20 kV was used to acquire the images. The gray level distribution analysis and phase separation of the acquired BSE images were performed by Image-Pro plus image analysis software. In order to ensure data consistency, each BSE image was acquired under the same test conditions (acceleration voltage, beam spot value, brightness, contrast, etc.), and all BSE images were subjected to the same image analysis step [18]. Each quantitative analysis result presented in this paper is an average of 10 BSE image analysis data, and the standard deviations are presented in brackets.

3. Results and Discussion

3.1. The Carbonation Products of β-C2S Pastes

The XRD patterns of β-C2S minerals before and after carbonation are shown in Figure 1a. It was observed from Figure 1a that the diffraction patterns of the prepared β-C2S minerals match well with the β-C2S mineral PDF standard card. After carbonation curing, the diffraction peak intensities of β-C2S minerals decreased significantly, and the diffraction peaks of calcite and vaterite appeared. Moreover, the diffraction peak intensity of calcite was significantly higher than that of vaterite, indicating that a large amount of CaCO3 crystals dominated by calcite were formed during the carbonation curing process. There was no diffraction peak of SiO2 after carbonation, and SiO2 exists in the form of an amorphous gel.
In order to further verify the structure of the SiO2 gel formed during the carbonation, the FT-IR spectra of the β-C2S minerals before and after carbonation were tested, as shown in Figure 1b. It can be seen from Figure 1b that the asymmetric stretching vibration band (υ3) of the silicon–oxygen bond in the β-C2S mineral appears at 909 cm−1, indicating that the β-C2S mineral belongs to the nesosilicate structure with a bridging oxygen number of 0 (Q0). After carbonation curing, the υ3 of the silicon–oxygen bond shifts to a higher wavenumber (1085 cm-1, corresponding to Q4) [19,20], indicating that a highly polymerized SiO2 gel with a three-dimensional network structure was formed. Meanwhile, due to the reaction of the β-C2S mineral, the out-of-plane bending vibration (υ4) of the silicon–oxygen bond is also greatly weakened (located at 514 cm−1) after carbonation curing. In addition, after carbonation, the new absorption bands at 709, 876, and 1426 cm−1 are respectively the in-plane bending vibration (υ2), the out-of-plane bending vibration (υ4), and the asymmetric stretching (υ3) of carbon–oxygen bonds in CaCO3 crystal. Therefore, the carbonation reaction equation of the β-C2S mineral can be abbreviated as shown in Formula (1):
β-C2S + 2CO2 + H2O → 2CaCO3 + SiO2 (gels) + H2O

3.2. Microstructure and Distribution of the Carbonation Products

Figure 2 shows a typical BSE image of the hardened β-C2S pastes after carbonation and the corresponding EDS spectrum. From Figure 2a, it was clearly observed that a dense microstructure was formed after carbonation. According to the grayscale features and the corresponding EDS maps (Figure 2g–i), the hardened β-C2S pastes were composed of pores (the darkest phase), SiO2 gel (average atomic number is 10.81, darker phase), CaCO3 (average atomic number is 12.56, gray phase), and uncarbonated C2S (average atomic number is 14.56, white phase). In addition, it can be seen from Figure 2a–f that the unreacted β-C2S particles are coated with a layer of SiO2 gel, and the pores between the original β-C2S particles are filled with CaCO3 crystals. The distribution of the carbonation products is closely related to the carbonation reaction process of β-C2S minerals.

3.3. Quantitative Analysis of the Carbonation Products

In order to further quantitatively analyze the relative volume fractions of each phase in the carbonation-hardened β-C2S pastes, the obtained BSE images were subjected to phase separation treatment using Image-Pro plus image analysis software. The phase distributions of the separated phases are shown in Figure 3c–f, representing pores, SiO2 gel, CaCO3, and uncarbonated β-C2S, respectively. The layered distributions of each phase of the hardened β-C2S pastes were clearly seen from Figure 3b. In addition, the gray level distribution histogram of different BSE images can be obtained by Image-Pro plus image analysis software. By counting the gray level distribution histograms of 10 BSE images, the gray level frequency and the cumulative distribution curves were obtained, as shown in Figure 4. The abscissa represents 0–255 gray levels, and the ordinate represents the frequency at which a certain gray level appears in the image. As can be seen from the gray level frequency distribution curve in Figure 4, there are four distinct gray level distribution intervals, (0–40), (40–120), (120–168), and (168–255), corresponding to pores, SiO2 gel, CaCO3, and uncarbonated β-C2S, respectively. According to the cumulative distribution curve, the relative volume fractions of the components were 1.3%, 42.1%, 44.9%, and 11.7%, respectively.

3.4. The Carbonation Hardening Mechanism of β-C2S Pastes

Based on the above results, the carbonation hardening mechanism of β-C2S pastes is shown in Figure 5. Before carbonation curing, β-C2S minerals are uniformly mixed with 10% of the mixing water, and then pressed and formed. The compacted β-C2S pastes are piled up by β-C2S mineral particles which are covered by a layer of water film. There are lots of pores between the particles. Since the hydration rate of β-C2S minerals is very slow, there is no adhesion between the particles. When the test block is placed into the carbonation reactor, the CO2 gas can rapidly diffuse into the compacted β-C2S pastes and dissolve in the water of the particle surface to form carbonic acid. The carbonic acid ionizes to produce H+, HCO3, and CO32−, and the reaction equation is as shown in the Formulas (2)–(4).
CO2 + H2O → H2CO3
H2CO3 → H+ + HCO3
HCO3 → H+ + CO32−
It is generally believed that the hydration rate of β-C2S minerals is mainly controlled by the surface dissolution rate of β-C2S minerals. Under neutral conditions, β-C2S minerals dissolve slowly. However, under carbonation curing conditions, a large amount of H+ is generated due to the ionization of carbonic acid, and the pH of the pore solution is reduced from 7 to 4 at room temperature. Compared with neutral water, the elevated H+ concentration greatly accelerates the dissolution of Ca2+ and H4SiO4 from β-C2S minerals. Meanwhile, in a weakly acidic environment, H4SiO4 will gradually polymerize to form a three-dimensional network of SiO2 gel. Since H4SiO4 is more difficult to migrate than Ca2+, the resulting SiO2 gel is coated on the surface of the original β-C2S particles. The reaction equation is as shown in Formulas (5) and (6).
4H+ + 2CaO·SiO2 → 2Ca2+ + H4SiO4
H4SiO4 → SiO2 (gel) + 2H2O
As the reaction proceeds, H+ is gradually consumed so that the ionization equilibrium of Formula (4) continues to the right. The resulting CO32− combines with the dissolved Ca2+ to precipitate in the pore solution to form CaCO3, as shown in Formula (7). Therefore, CaCO3 formed during the carbonation is filled between the pores of the original β-C2S particles.
Ca2+ + CO32− → CaCO3
With the continuous formation of SiO2 gel and CaCO3 crystal, the original loose β-C2S particles gradually bond to form a dense hardened structure. The formation of the hardened structure greatly hinders the diffusion rate of the reactants, and the carbonation reaction rate is greatly reduced, leaving an unreacted β-C2S center. Rapid generation of a sufficient number of SiO2 gels and CaCO3 crystals, and the formation of network structures of these carbonation products are responsible for the carbonation hardening of the β-C2S pastes.

4. Conclusions

In the present work, the composition and microstructure distributions of the carbonation products of hardened β-C2S paste were revealed by X-ray diffraction (XRD), Fourier transform-infrared (FT-IR) spectroscopy, and backscattered electron (BSE) image analysis. The main conclusions drawn are as follows:
  • After the carbonation curing of β-C2S for 24 h, a dense hardened paste was obtained. The hardened pastes are composed of pores, silica gel, calcium carbonate, and unreacted dicalcium silicate, with relative volume fractions of 1.3%, 42.1%, 44.9%, and 11.7%, respectively.
  • The unreacted β-C2S center is coated with a layer of SiO2 gel, and the pores between the original β-C2S particles are filled with CaCO3.
  • Rapid generation of a sufficient number of SiO2 gels and CaCO3 crystals, and the formation of network structures of these carbonation products are responsible for the carbonation hardening of the β-C2S mineral.
  • These results obtained may provide a profound understanding of the carbonation reaction process and hardening mechanism of low-calcium silicate-based cementitious materials.

Author Contributions

Conceptualization and Supervision: H.Z. and Y.W.; Methodology: S.L., M.G. and H.Z.; Analysis: S.L. and X.G.; Writing and Editing: S.L., X.G. and Y.W.

Funding

This research was funded by the Natural Science Foundation of China (Project No. U1604118, U1704148, 51502080).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, B.; Shi, C.; Hou, G. Strength and microstructure of CO2 cured low-calcium clinker. Constr. Build. Mater. 2018, 188, 417–423. [Google Scholar] [CrossRef]
  2. Mo, L.; Zhang, F.; Deng, M. Mechanical performance and microstructure of the calcium carbonate binders produced by carbonating steel slag paste under CO2 curing. Cement Concrete Res. 2016, 88, 217–226. [Google Scholar] [CrossRef]
  3. Luukkonen, T.; Abdollahnejad, Z.; Yliniemi, J.; Kinnunen, P.; Illikainen, M. One-part alkali-activated materials: A review. Cement Concrete Res. 2018, 103, 21–34. [Google Scholar] [CrossRef]
  4. Ashraf, W.; Olek, J. Carbonation behavior of hydraulic and non-hydraulic calcium silicates: potential of utilizing low-lime calcium silicates in cement-based materials. J. Mater. Sci. 2016, 51, 6173–6191. [Google Scholar] [CrossRef]
  5. Chang, J.; Fang, Y.; Shang, X. The role of β-C2S and γ-C2S in carbon capture and strength development. Mater. Struct. 2016, 49, 4417–4424. [Google Scholar] [CrossRef]
  6. Qian, B.; Li, X.; Shen, X. Preparation and accelerated carbonation of low temperature sintered clinker with low Ca/Si ratio. J. Clean. Prod. 2016, 120, 249–259. [Google Scholar] [CrossRef]
  7. Guan, X.; Liu, S.; Feng, C.; Qiu, M. The hardening behavior of γ-C2S binder using accelerated carbonation. Constr. Build. Mater. 2016, 114, 204–207. [Google Scholar] [CrossRef]
  8. Li, Z.; He, Z.; Shao, Y. Early Age Carbonation Heat and Products of Tricalcium Silicate Paste Subject to Carbon Dioxide Curing. Materials 2018, 11, 730. [Google Scholar] [CrossRef] [PubMed]
  9. Mu, Y.; Liu, Z.; Wang, F.; Huang, X. Carbonation characteristics of γ-dicalcium silicate for low-carbon building material. Constr. Build. Mater. 2018, 177, 322–331. [Google Scholar] [CrossRef]
  10. Igarashi, S.; Kawamura, M.; Watanabe, A. Analysis of cement pastes and mortars by a combination of backscatter-based SEM image analysis and calculations based on the Powers model. Cement Concrete Compos. 2004, 26, 977–985. [Google Scholar] [CrossRef][Green Version]
  11. Li, Y.; Guo, W.; Li, H. Quantitative analysis on ground blast furnace slag behavior in hardened cement pastes based on backscattered electron imaging and image analysis technology. Constr. Build. Mater. 2016, 110, 48–53. [Google Scholar] [CrossRef]
  12. Wong, H.S.; Head, M.K.; Buenfeld, N.R. Pore segmentation of cement-based materials from backscattered electron images. Cement Concrete Res. 2006, 36, 1083–1090. [Google Scholar] [CrossRef][Green Version]
  13. Kjellsen, K.O.; Mons, Y.A.; Isachsen, K.; Detwiler, R.J. Preparation of flat-polished specimens for SEM-backscattered electron imaging and X-ray microanalysis-importance of epoxy impregnation. Cement Concrete Res. 2003, 33, 611–616. [Google Scholar] [CrossRef]
  14. Scrivener, K.L. Backscattered electron imaging of cementitious microstructures: understanding and quantification. Cement Concrete Compos. 2004, 26, 935–945. [Google Scholar] [CrossRef]
  15. Stutzman, P. Scanning electron microscopy imaging of hydraulic cement microstructure. Cement Concrete Compos. 2004, 26, 957–966. [Google Scholar] [CrossRef]
  16. Wesselsky, A.; Jensen, O.M. Synthesis of pure Portland cement phases. Cement Concrete Res. 2009, 39, 973–980. [Google Scholar] [CrossRef]
  17. Liu, S.; Dou, Z.; Zhang, S.; Zhang, H.; Guan, X.; Feng, C.; Zhang, J. Effect of sodium hydroxide on the carbonation behavior of γ-dicalcium silicate. Constr. Build. Mater. 2017, 150, 591–594. [Google Scholar] [CrossRef]
  18. Ashraf, W.; Olek, J.; Tian, N. Multiscale characterization of carbonated wollastonite paste and application of homogenization schemes to predict its effective elastic modulus. Cement Concrete Compos. 2016, 72, 284–298. [Google Scholar] [CrossRef]
  19. Okada, Y.; Masuda, T.; Takada, M.; Xu, L.; Mitsuda, T. Relationship between NMR 29Si Chemical Shifts and FT-IR Wave Numbers in Calcium Silicates. In Nuclear Magnetic Resonance Spectroscopy of Cement-Based Materials; Colombet, P., Grimmer, A.R., et al., Eds.; Springer: Berlin, Germany, 1998. [Google Scholar]
  20. Park, S.; Jang, J.; Chae, S.; Lee, H. An NMR Spectroscopic Investigation of Aluminosilicate Gel in Alkali-Activated Fly Ash in a CO2-Rich Environment. Materials 2016, 9, 308. [Google Scholar] [CrossRef] [PubMed]

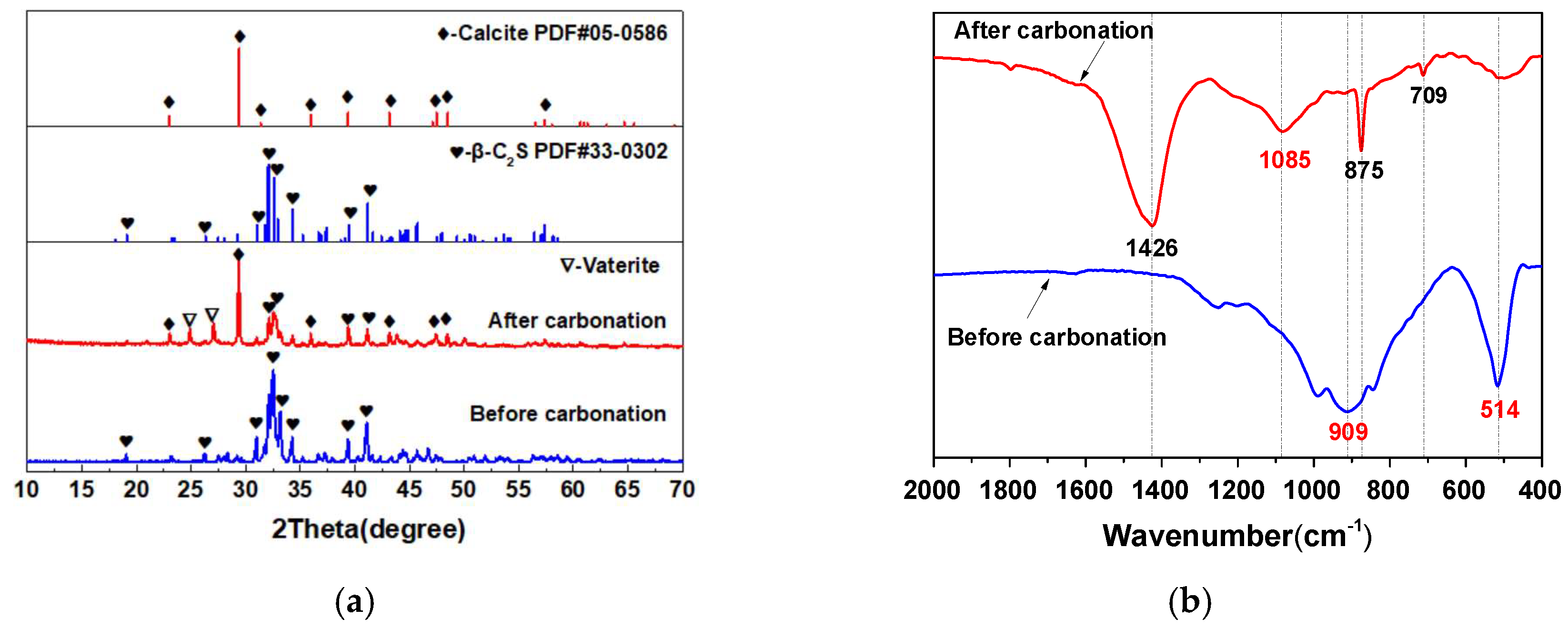

Figure 1. X-ray diffraction and Fourier transform-infrared spectra of β-C2S before and after carbonation. (a) XRD; (b) FT-IR.
Figure 1. X-ray diffraction and Fourier transform-infrared spectra of β-C2S before and after carbonation. (a) XRD; (b) FT-IR.
Materials 12 01561 g001

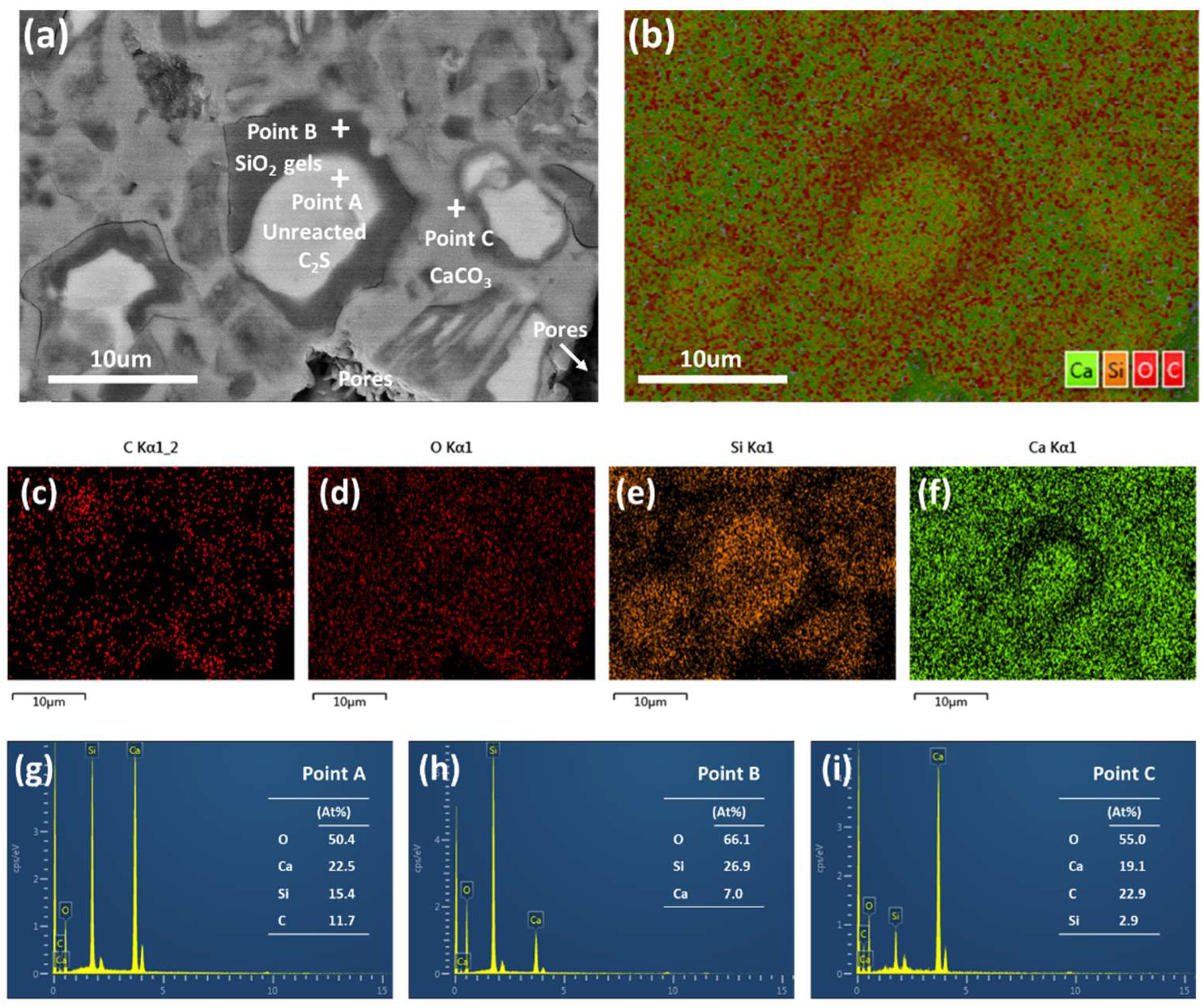

Figure 2. Backscattered electron (BSE) and energy-dispersive spectroscopy (EDS) images of β-C2S after carbonation. (a) BSE image; (b) elemental maps for composite element; (cf) elemental maps for individual C, O, Si, and Ca, respectively; (gi) EDS analysis of points A, B, and C.
Figure 2. Backscattered electron (BSE) and energy-dispersive spectroscopy (EDS) images of β-C2S after carbonation. (a) BSE image; (b) elemental maps for composite element; (cf) elemental maps for individual C, O, Si, and Ca, respectively; (gi) EDS analysis of points A, B, and C.
Materials 12 01561 g002

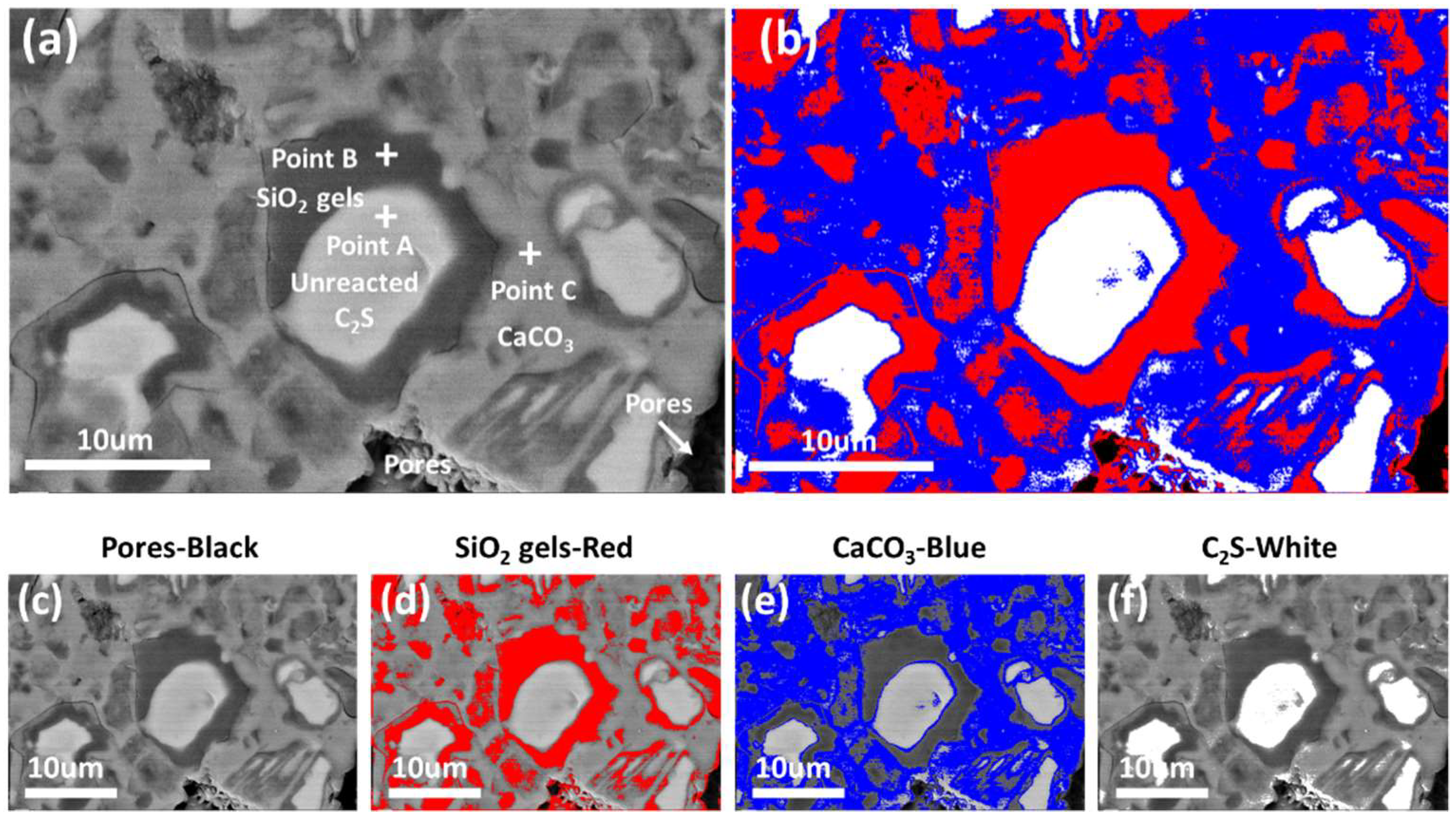

Figure 3. BSE images and phase distribution maps of β-C2S after carbonation. (a) BSE image; (b) images of the composite phases; (c–f) images of the individual phases after the gray level separation.
Figure 3. BSE images and phase distribution maps of β-C2S after carbonation. (a) BSE image; (b) images of the composite phases; (c–f) images of the individual phases after the gray level separation.
Materials 12 01561 g003

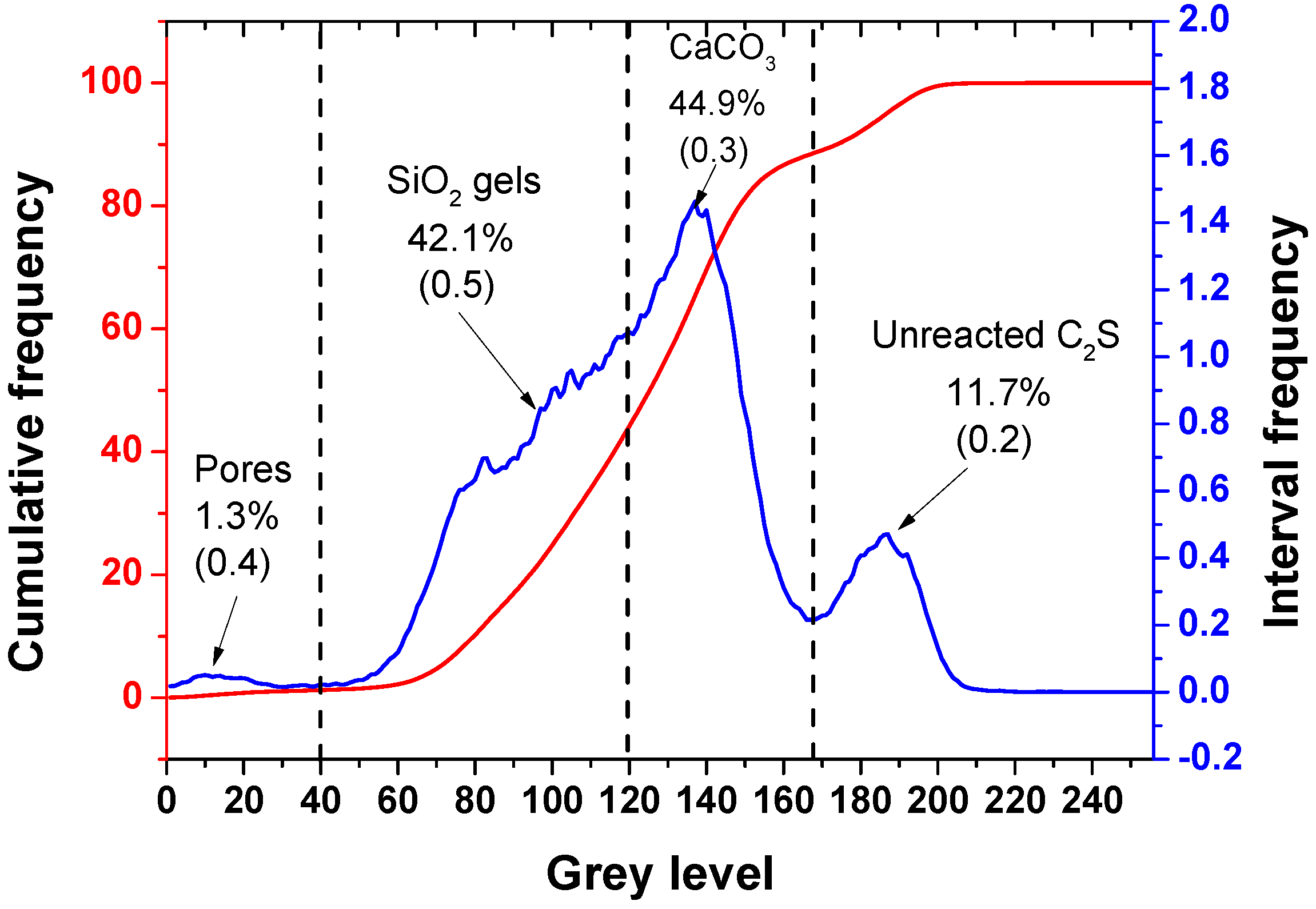

Figure 4. The gray level frequency and the cumulative distribution curves for different phases.
Figure 4. The gray level frequency and the cumulative distribution curves for different phases.
Materials 12 01561 g004

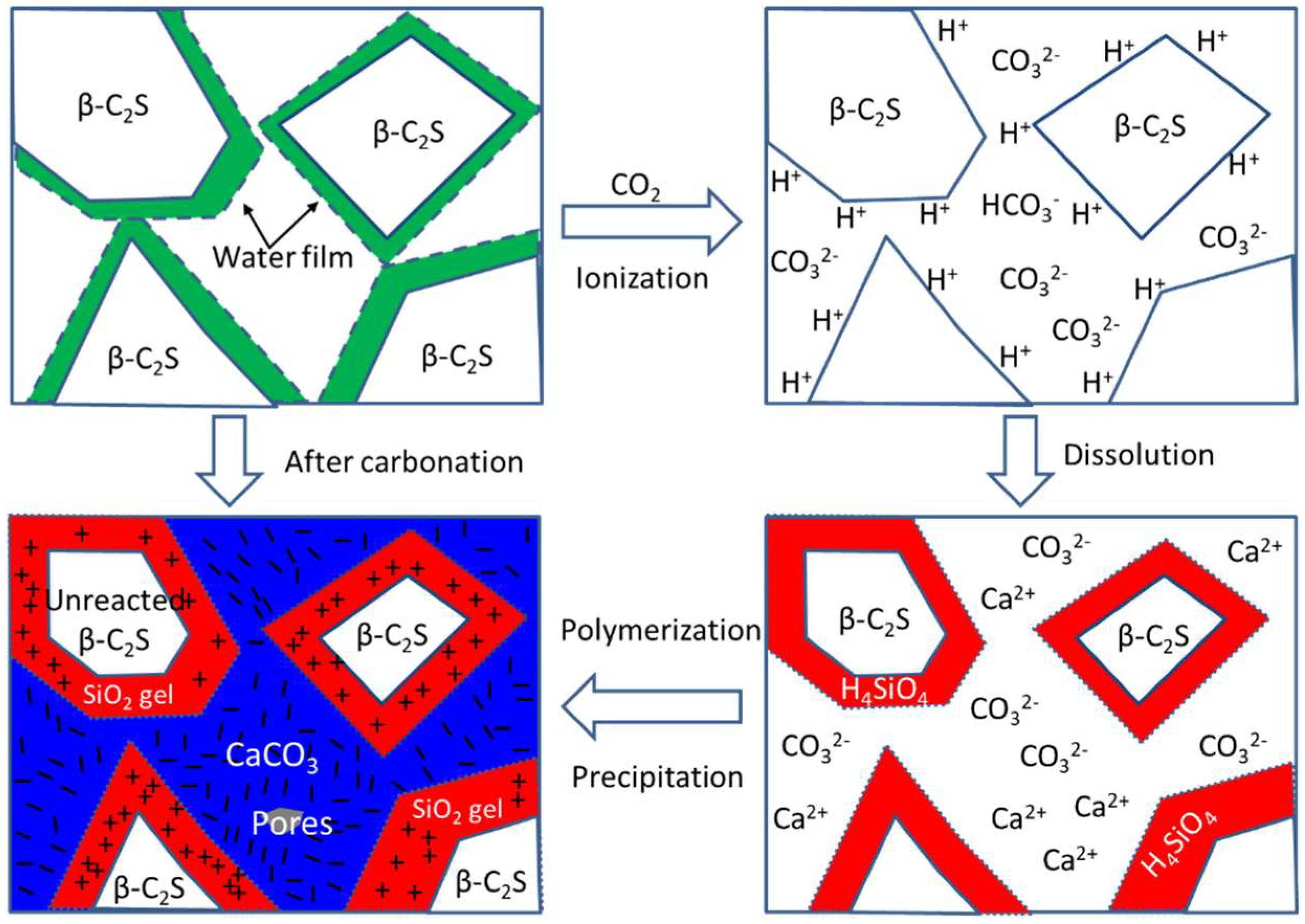

Figure 5. Schematic of carbonation hardening for β-C2S.
