Study of the Interfacial Interaction Performance of Branched Bonding Agents and CL-20
Abstract
:1. Introduction
2. Materials and Methods
2.1. Materials
2.2. Preparation of CL-20 Coated with Bonding Agents
2.3. Characterization
3. Results and Discussion

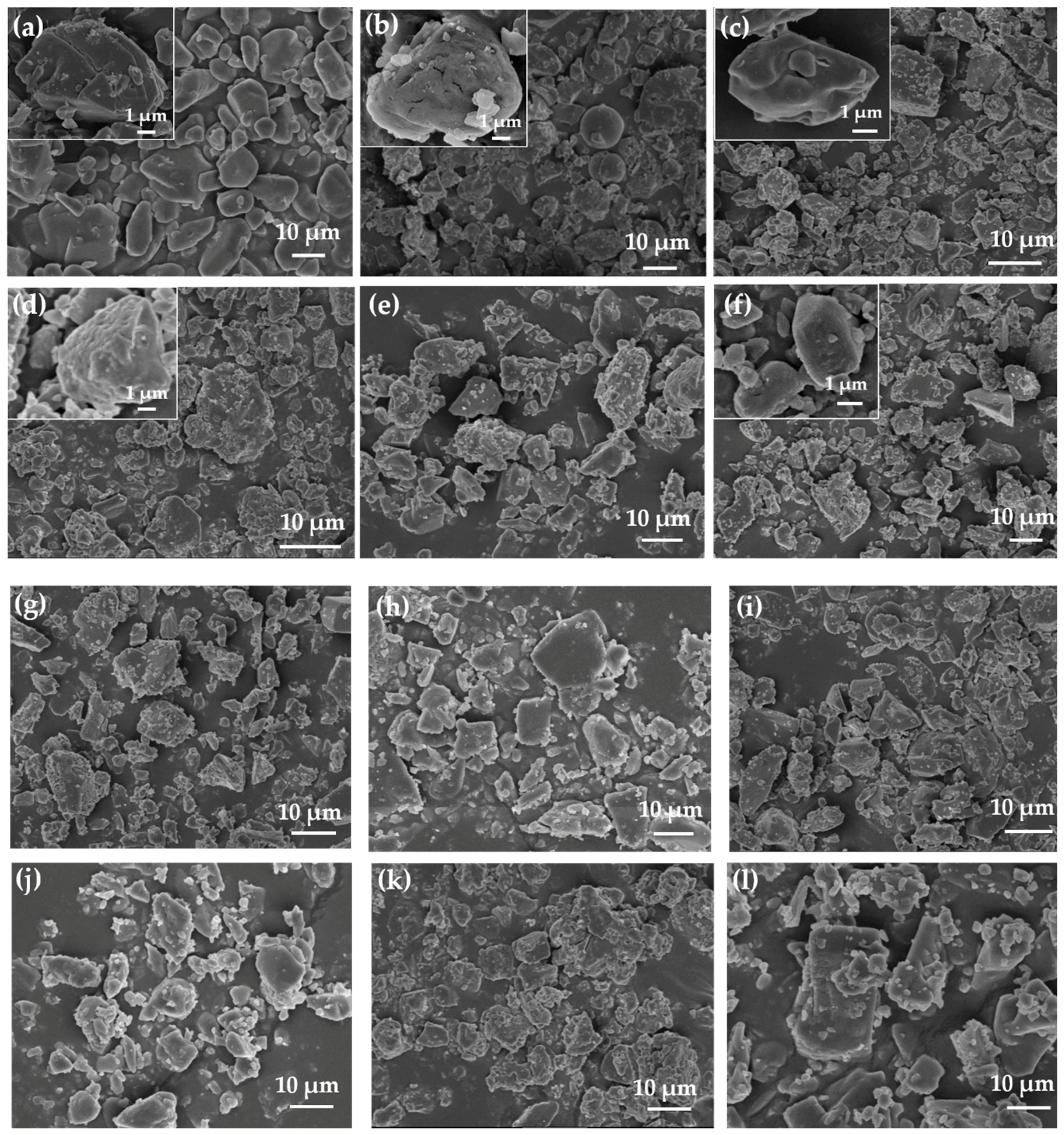

3.1. Morphology of CL-20 and CL-20 Coated with Bonding Agents
3.2. The Adhesion Work and Interfacial Tension between CL-20 and the Bonding Agents

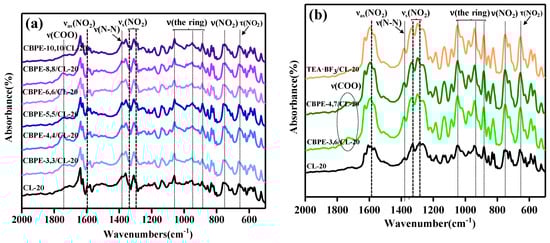

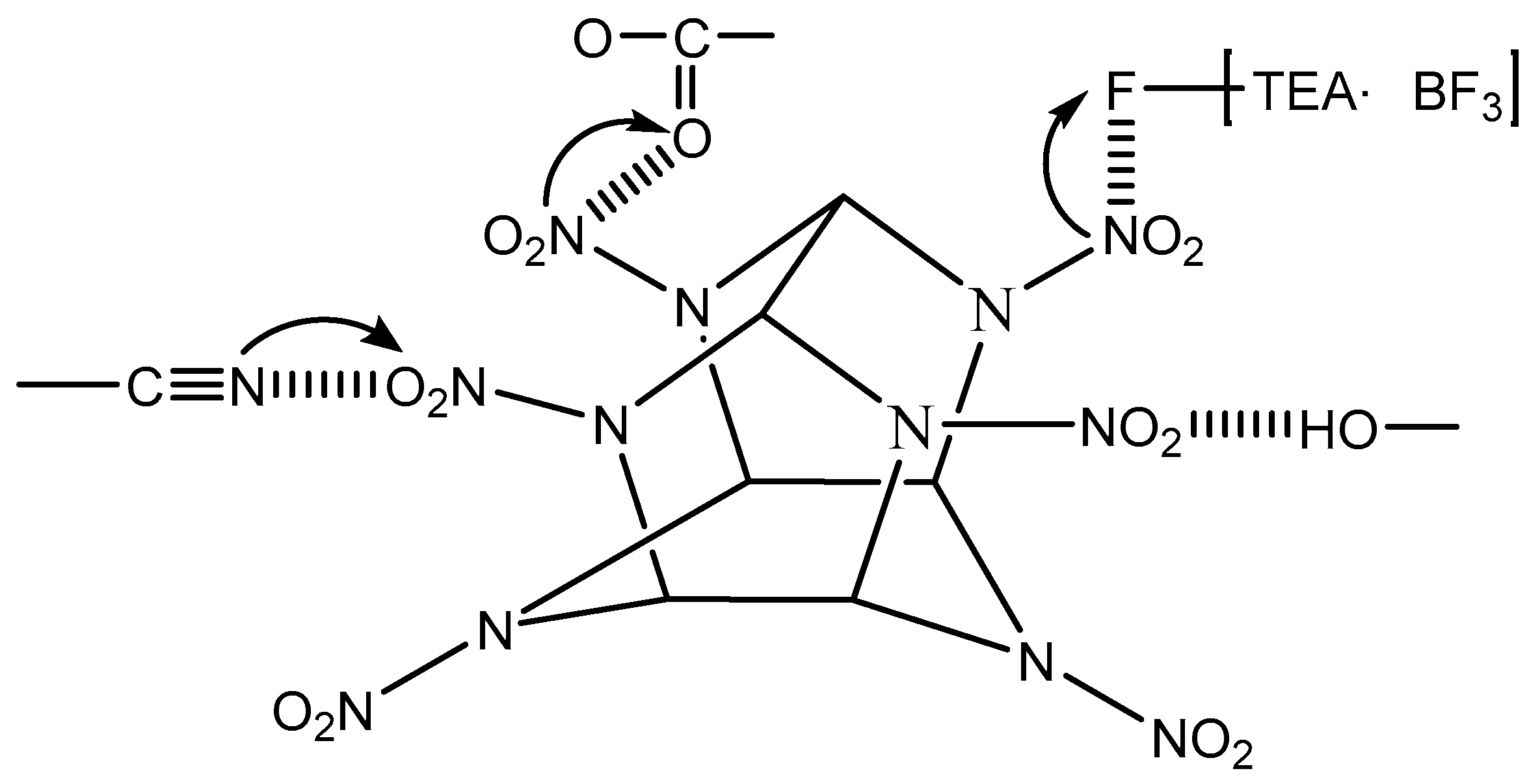

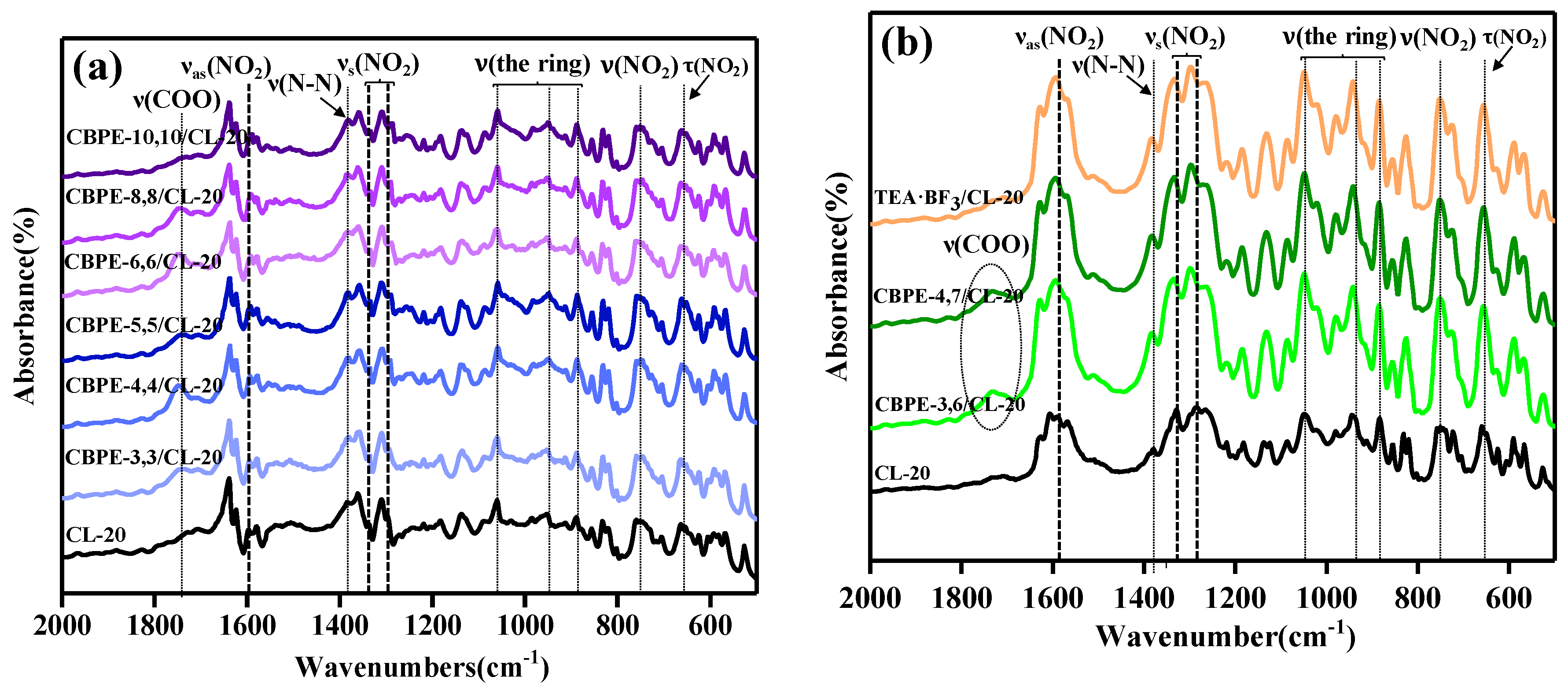

3.3. Interaction between CL-20 and the Bonding Agents Studied by Fourier Transform Infrared Spectroscopy (FTIR)

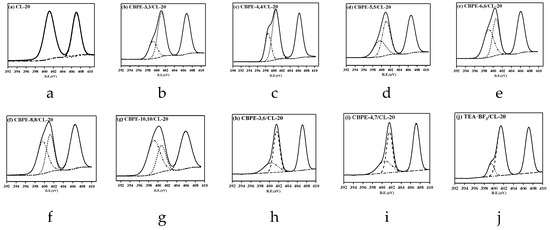

3.4. Interaction between CL-20 and the Bonding Agents Studied by X-ray Photoelectron Spectroscopy (XPS)
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
