Prediction of Deflection of Reinforced Concrete Beams Strengthened with Fiber Reinforced Polymer
Abstract
:1. Introduction
2. Analyzed Beams

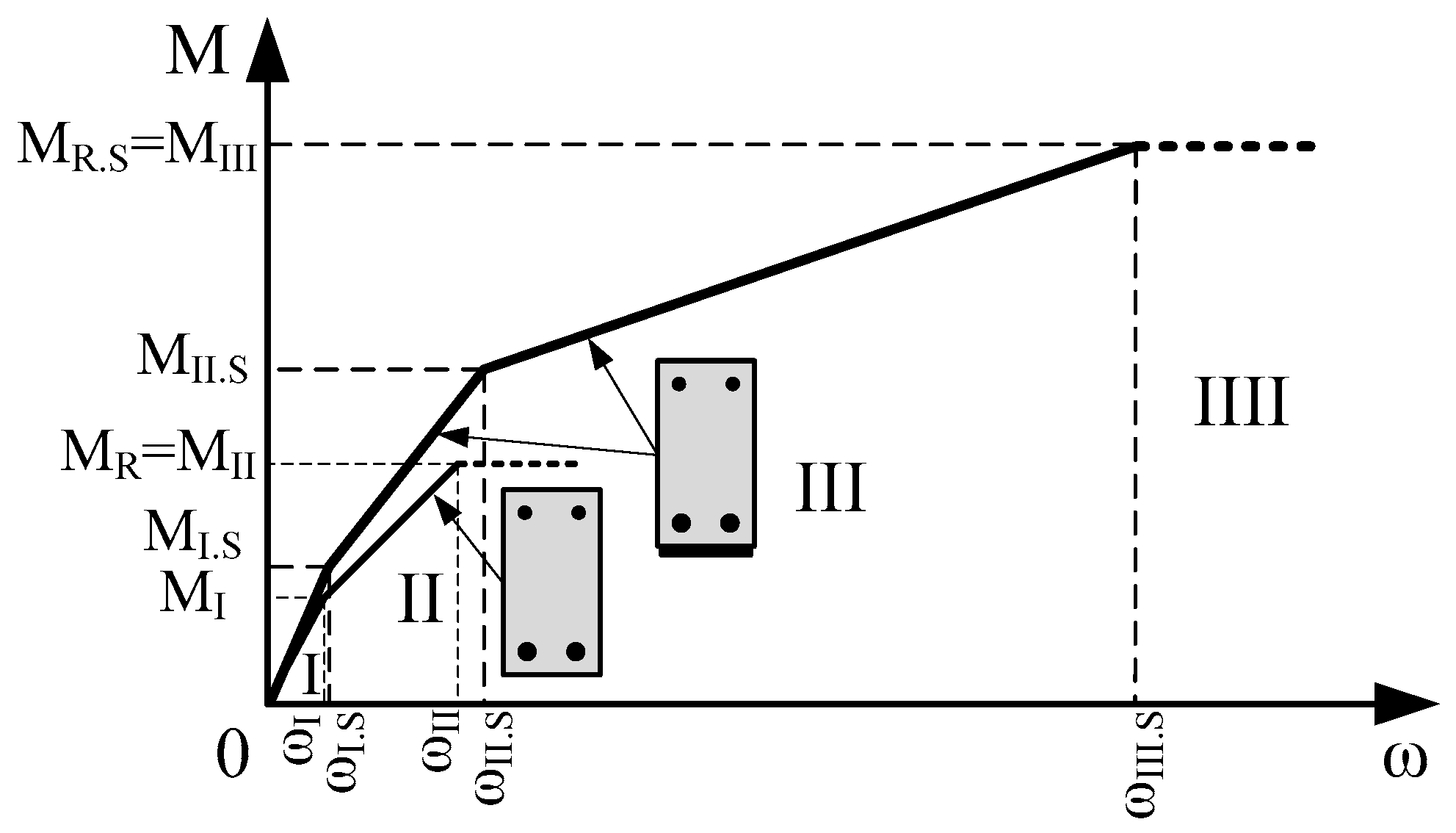

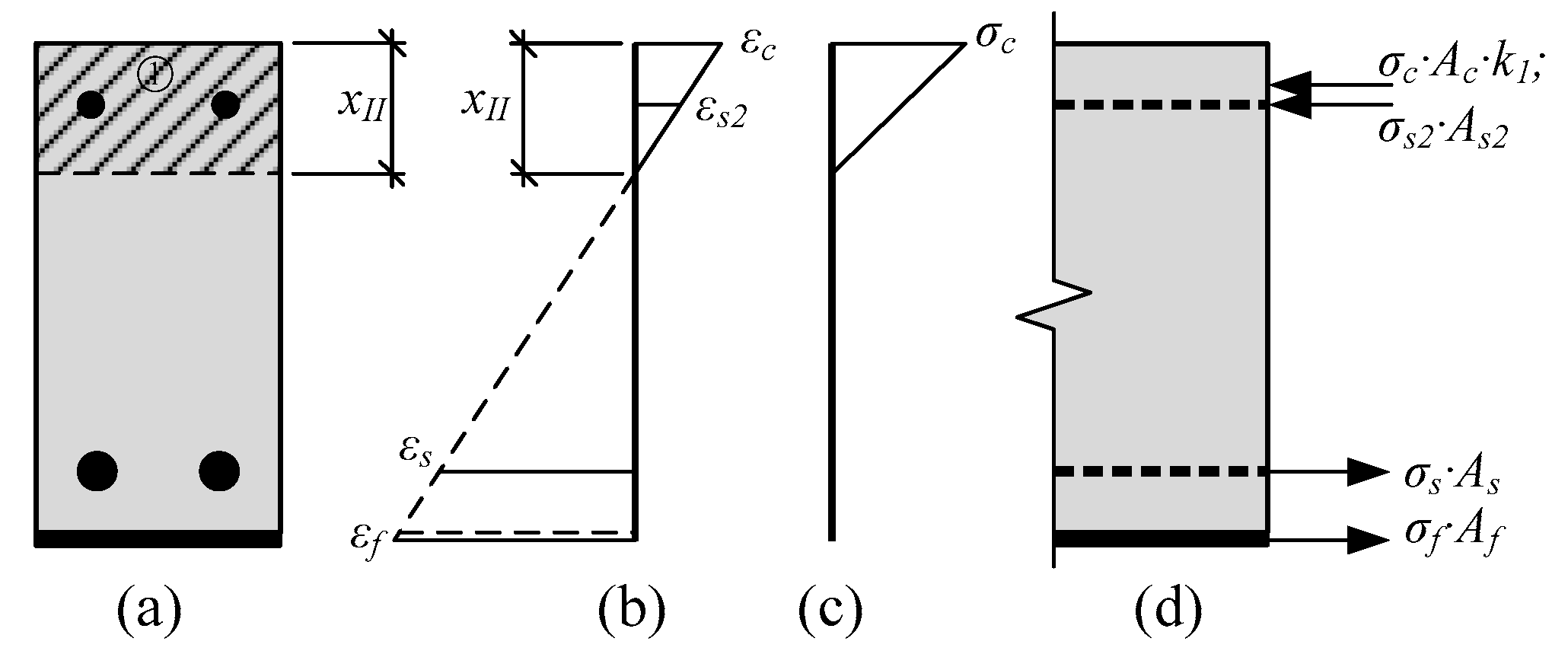

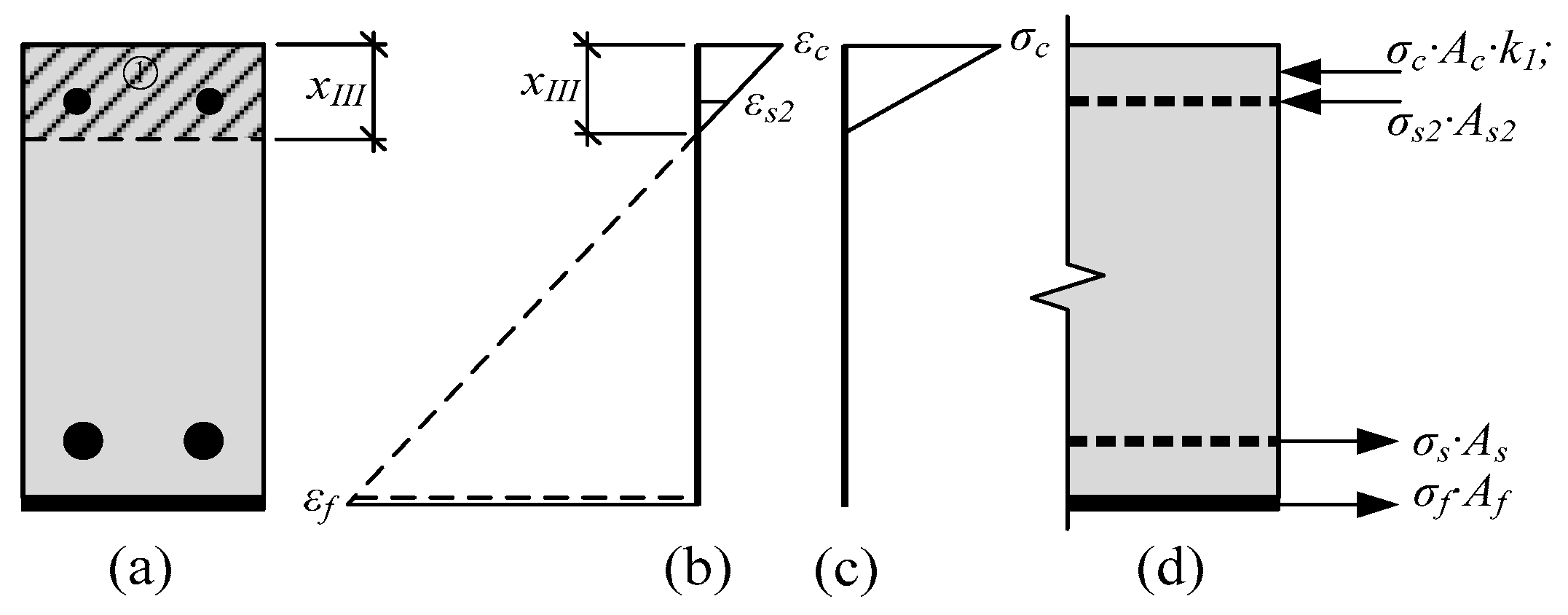

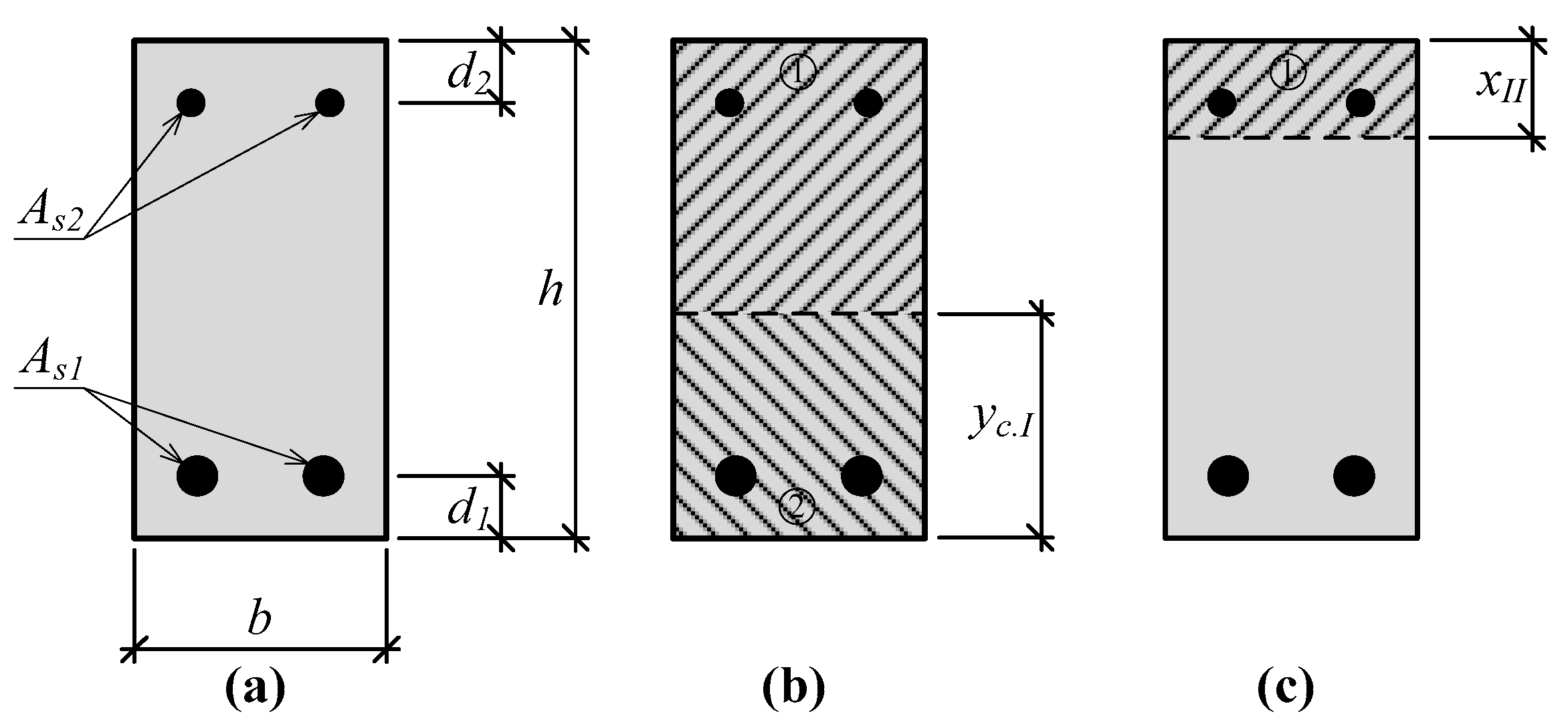

3. Calculation of Deflection

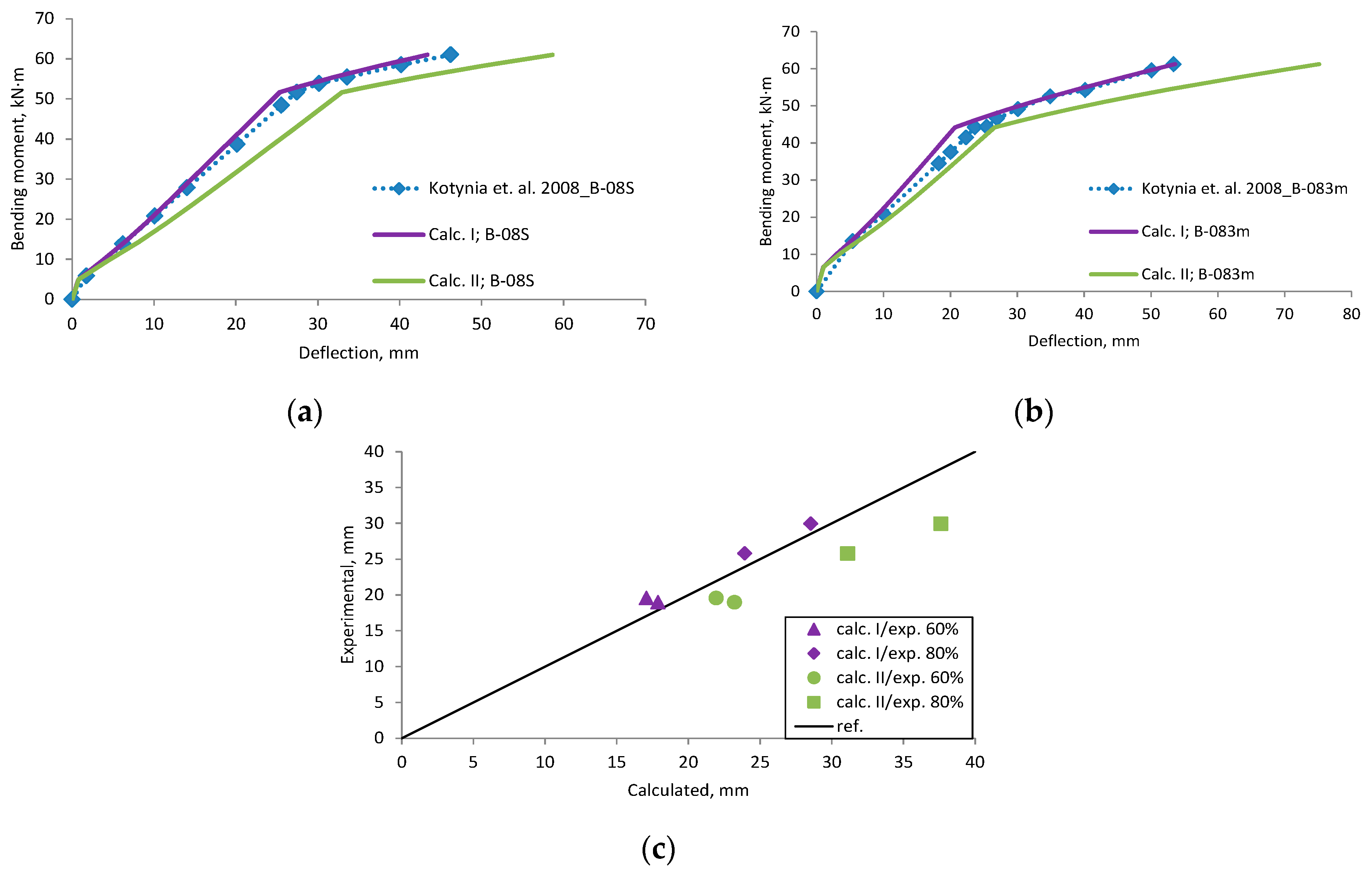

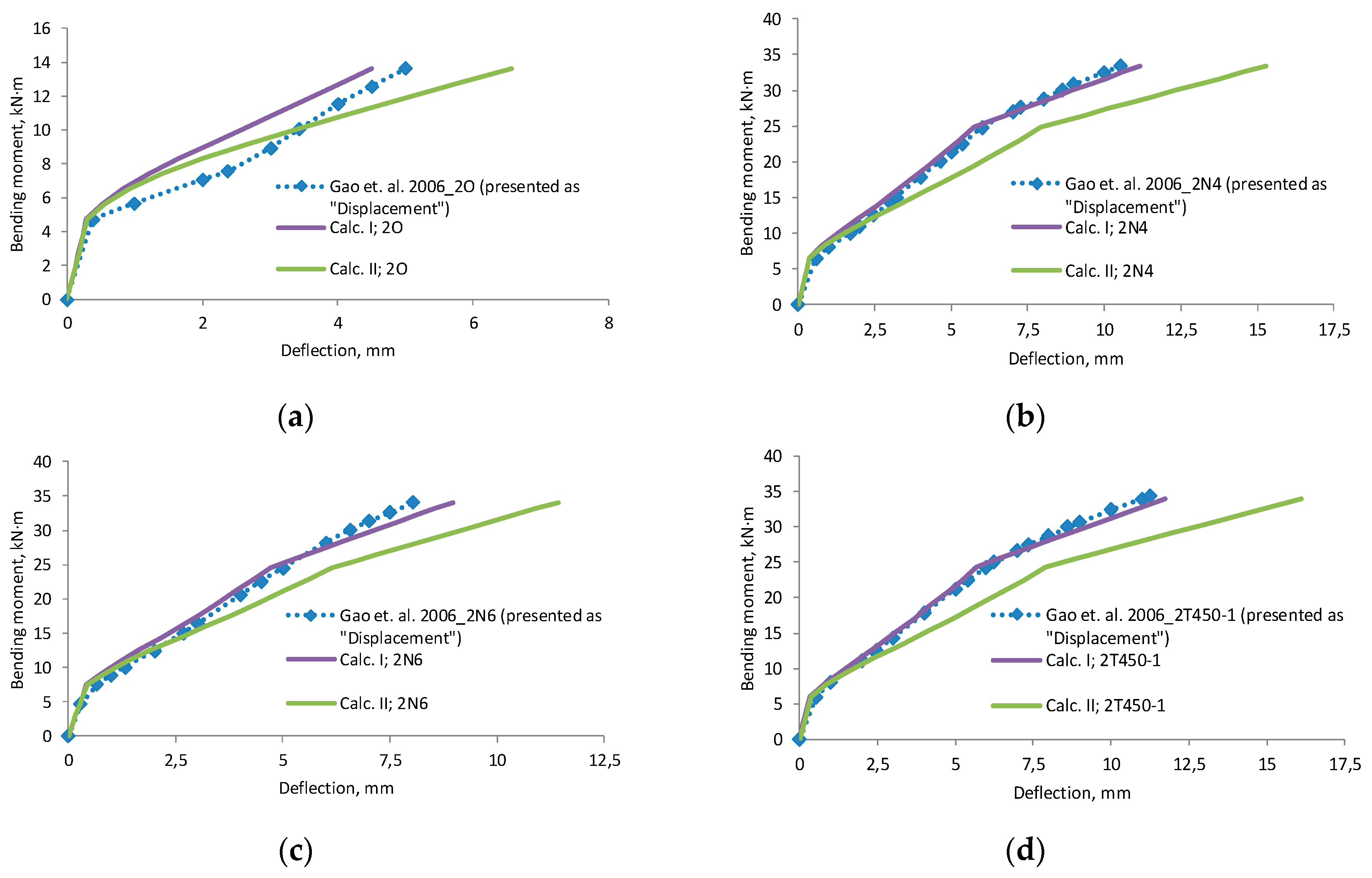

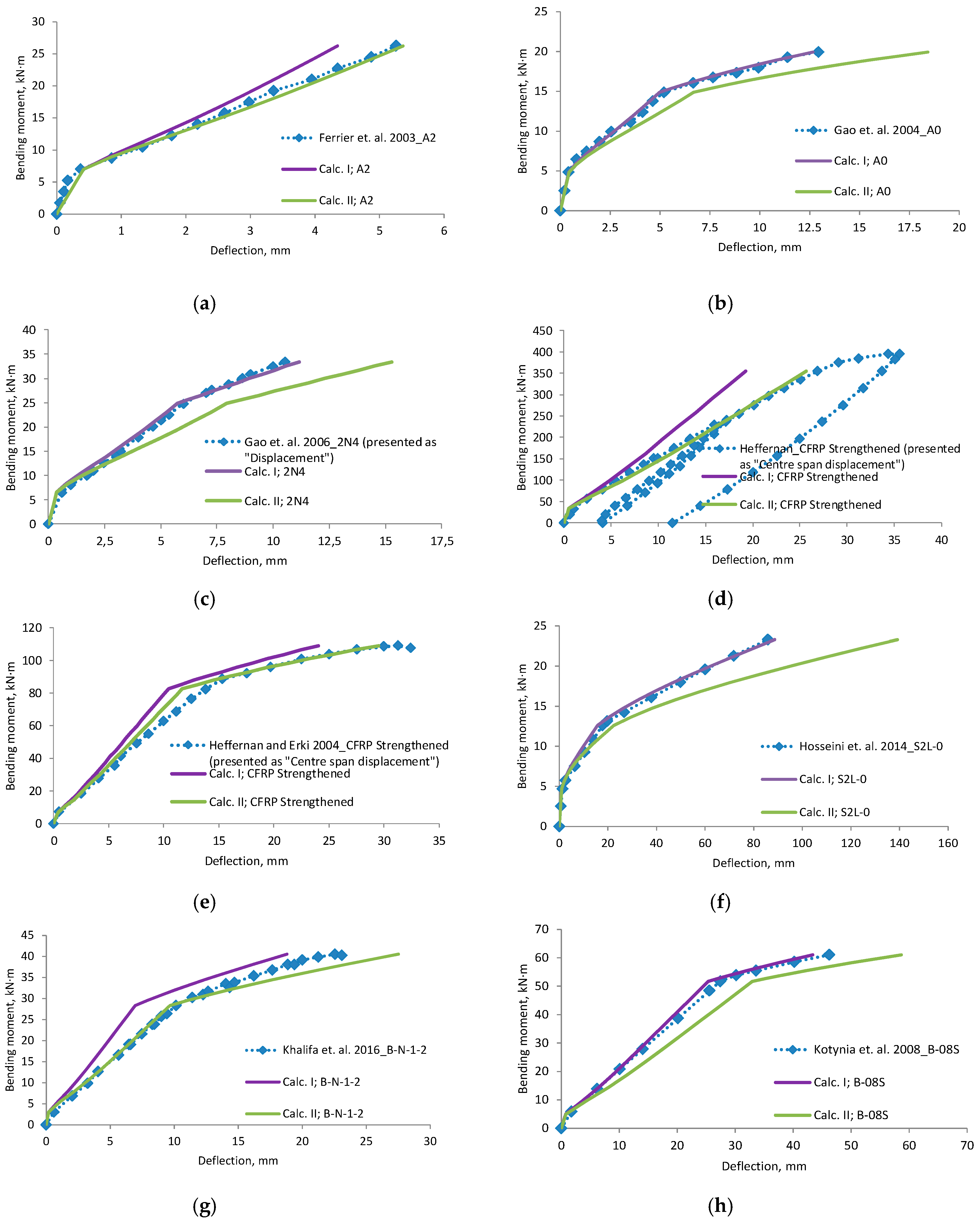

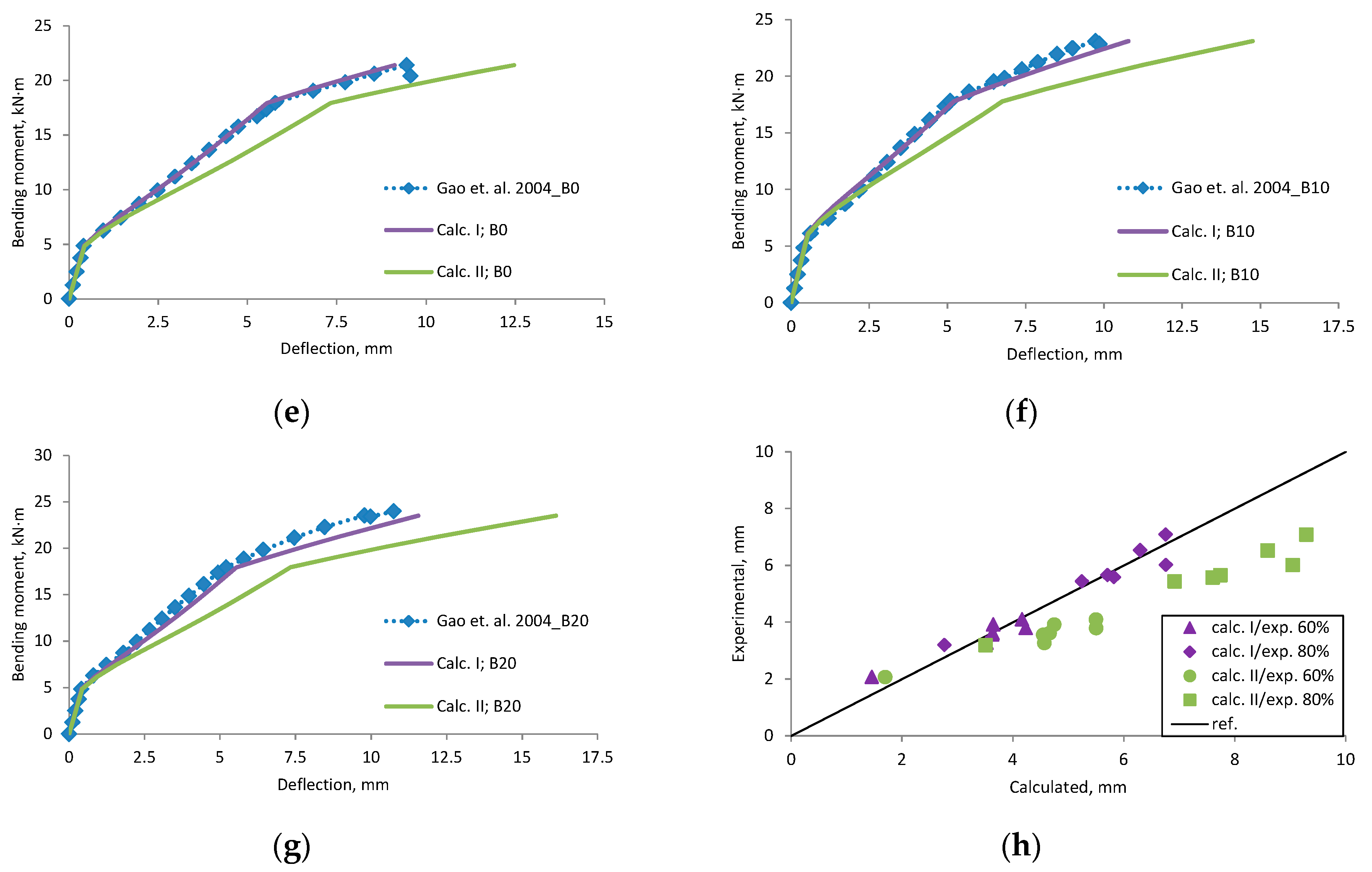

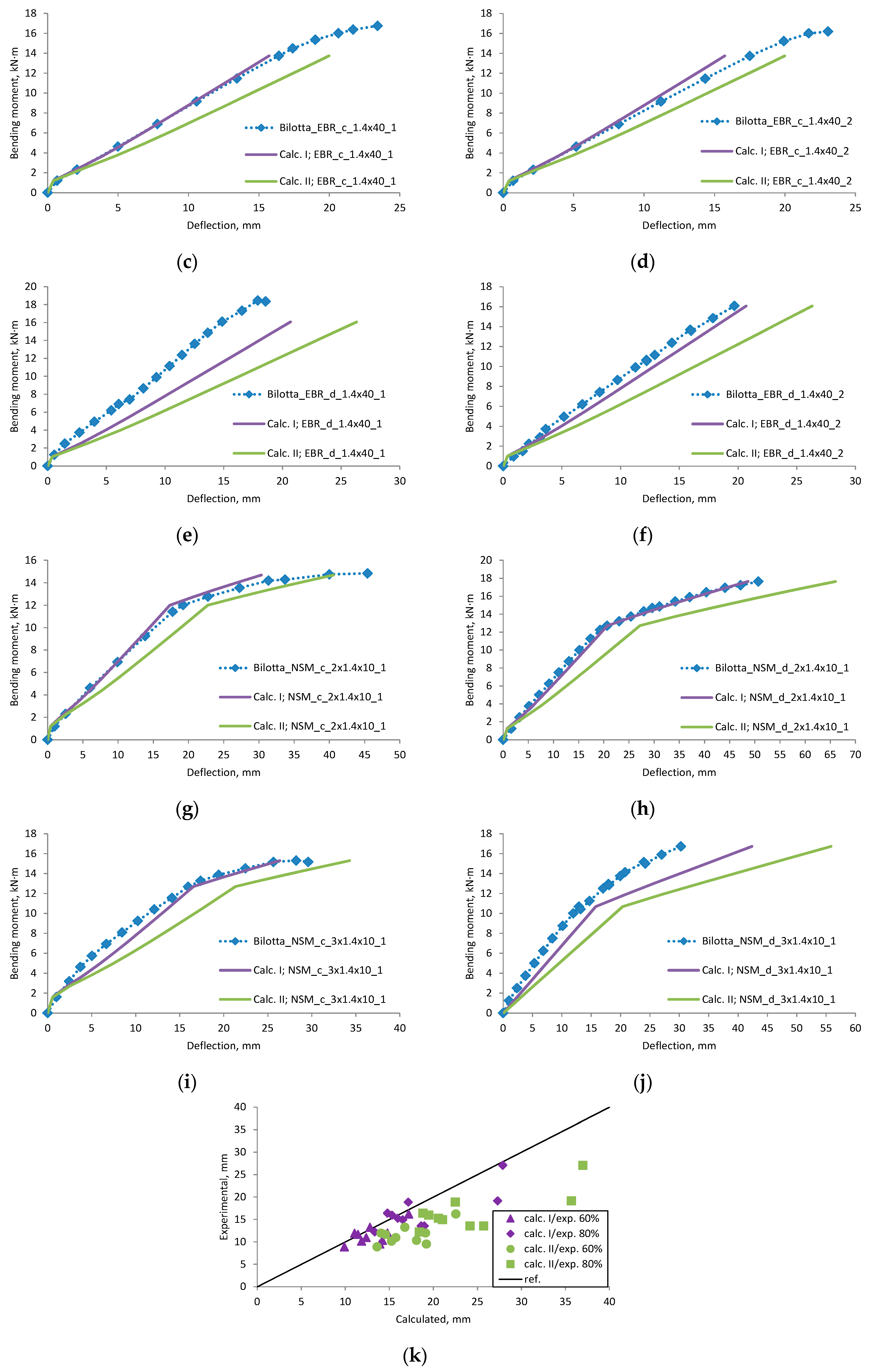

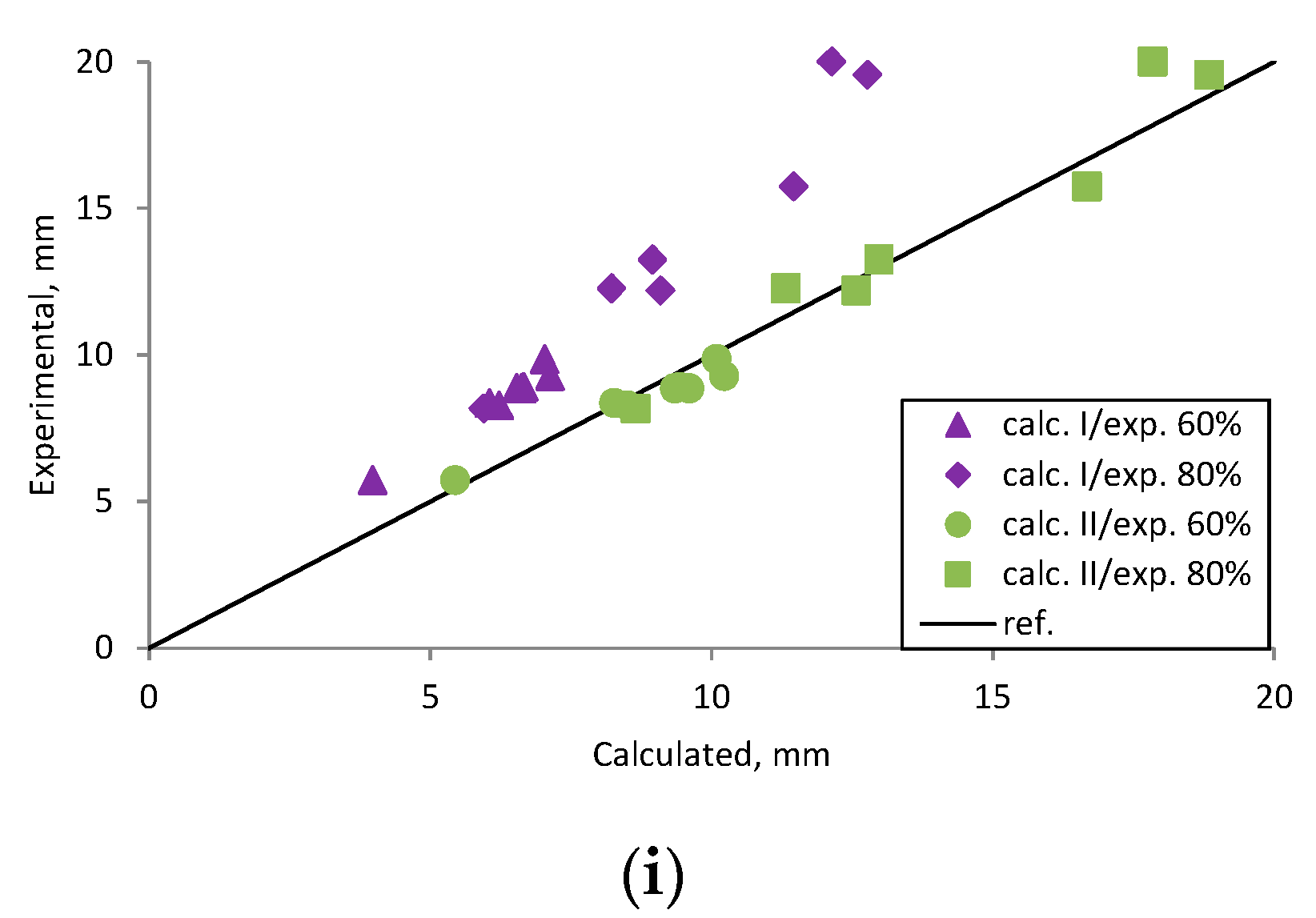

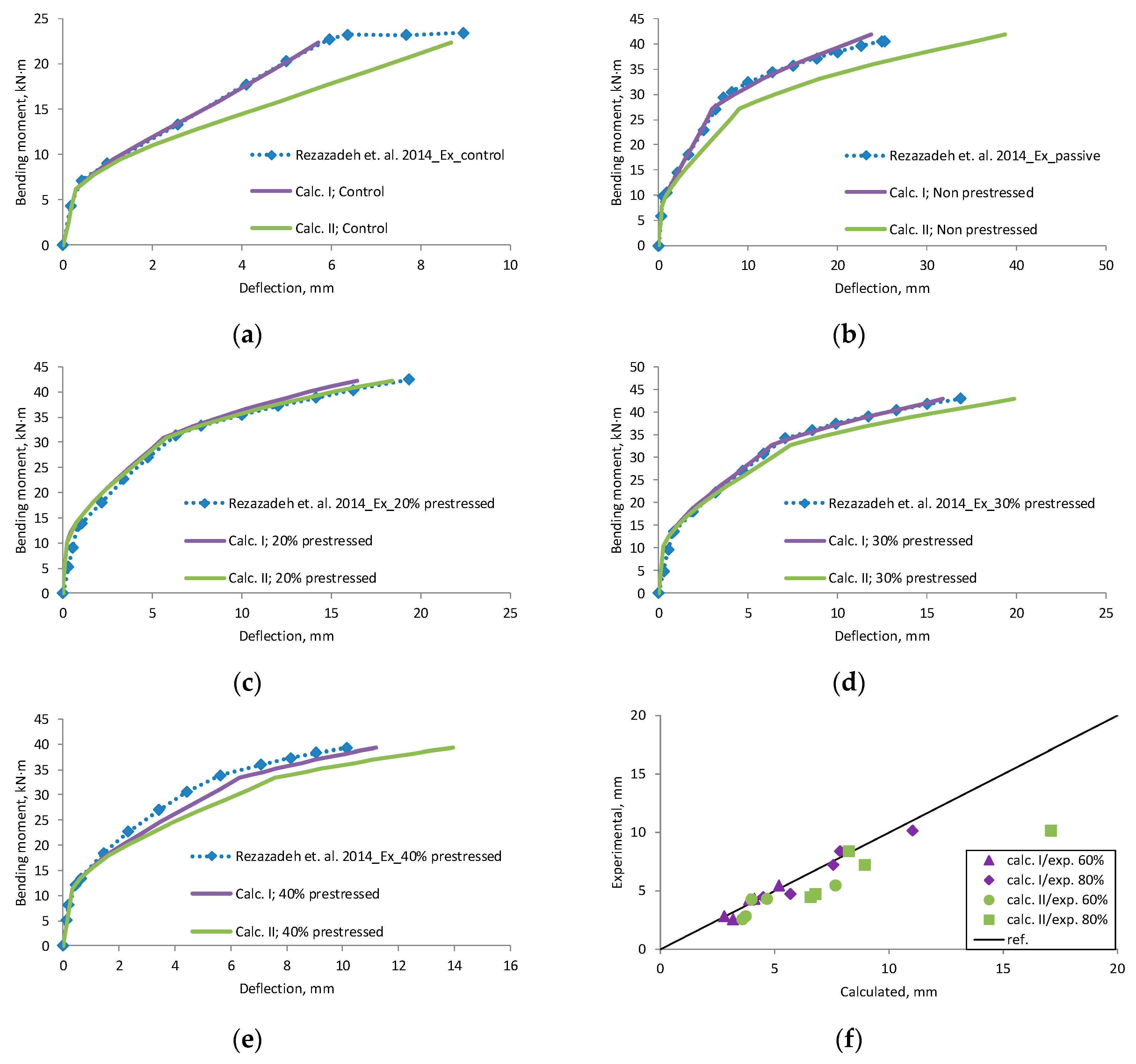

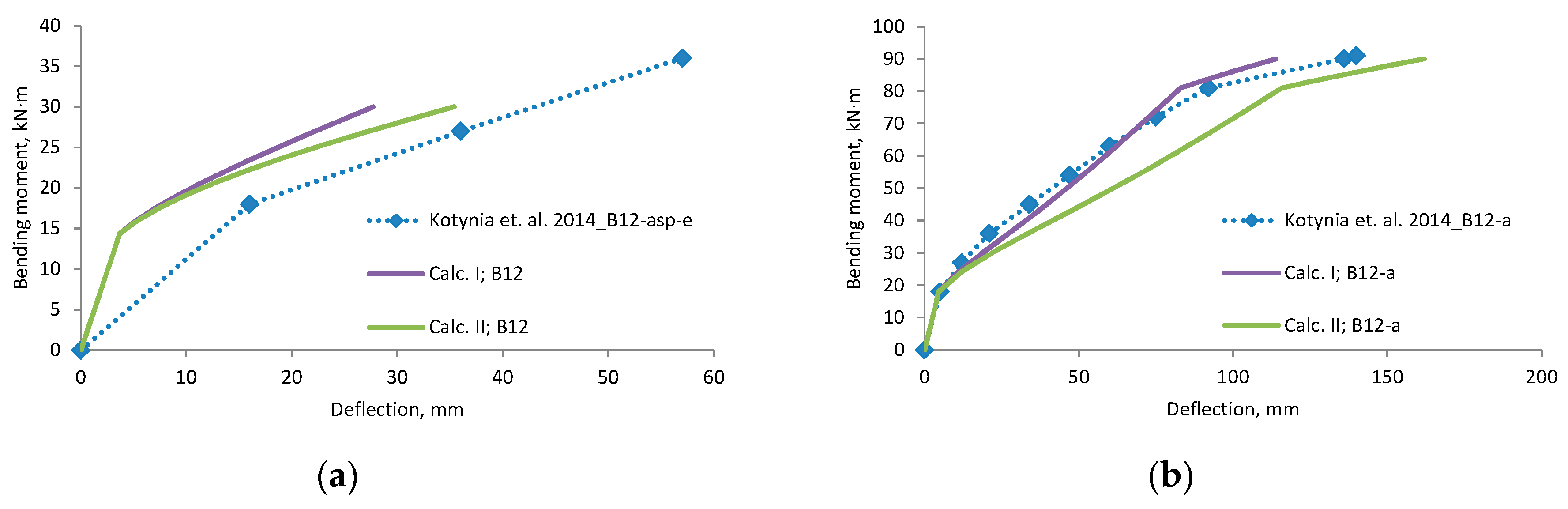

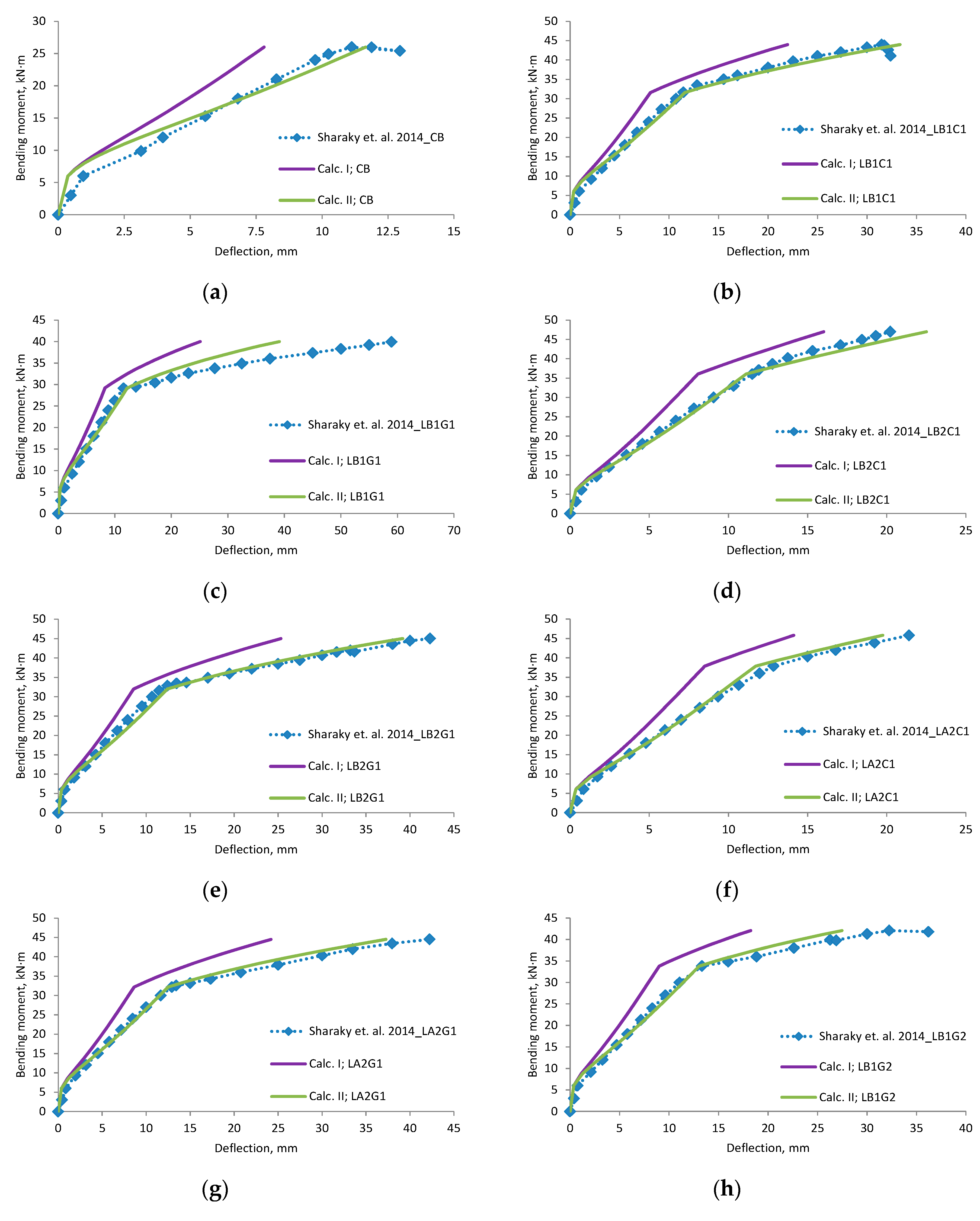

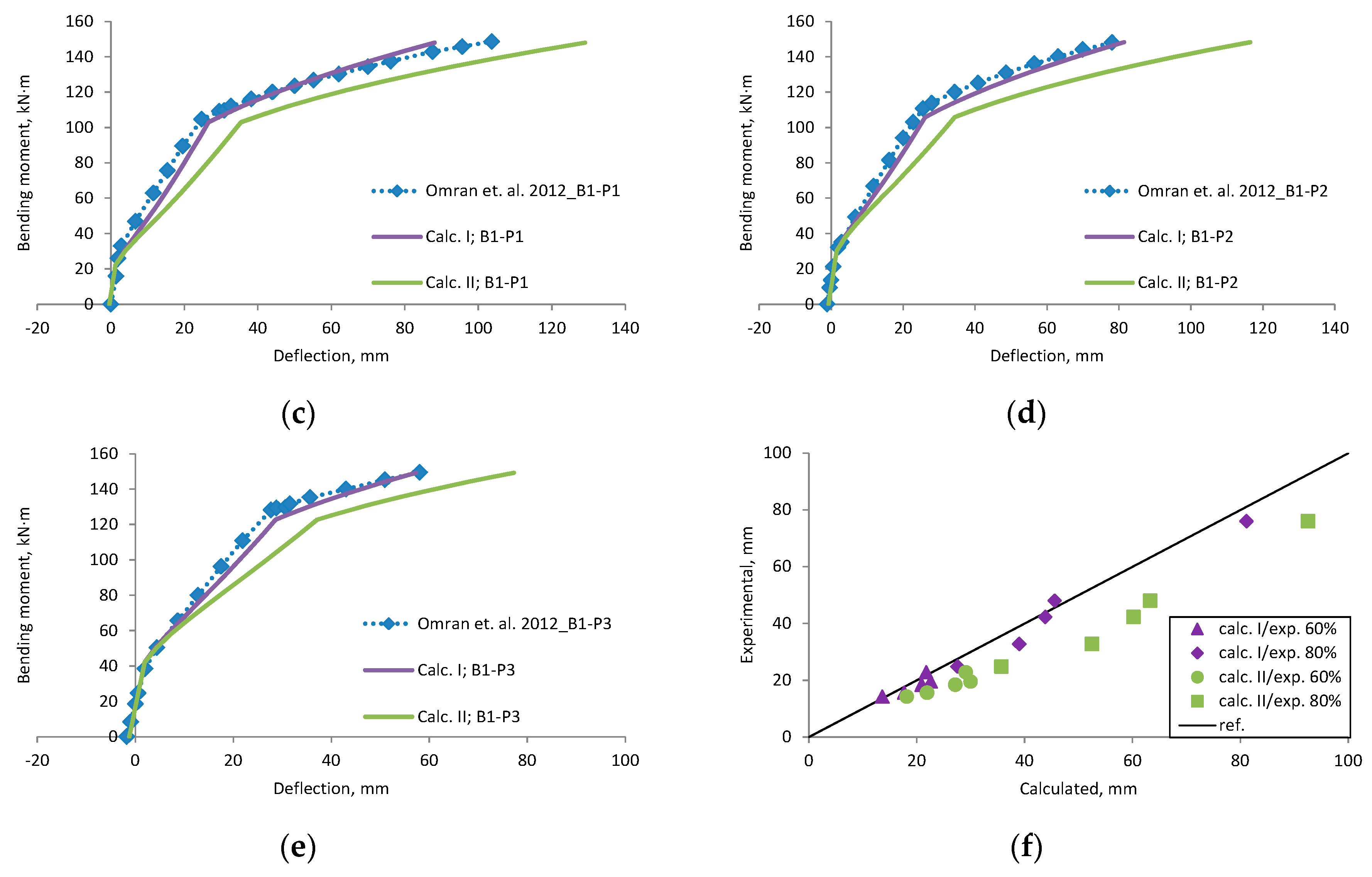

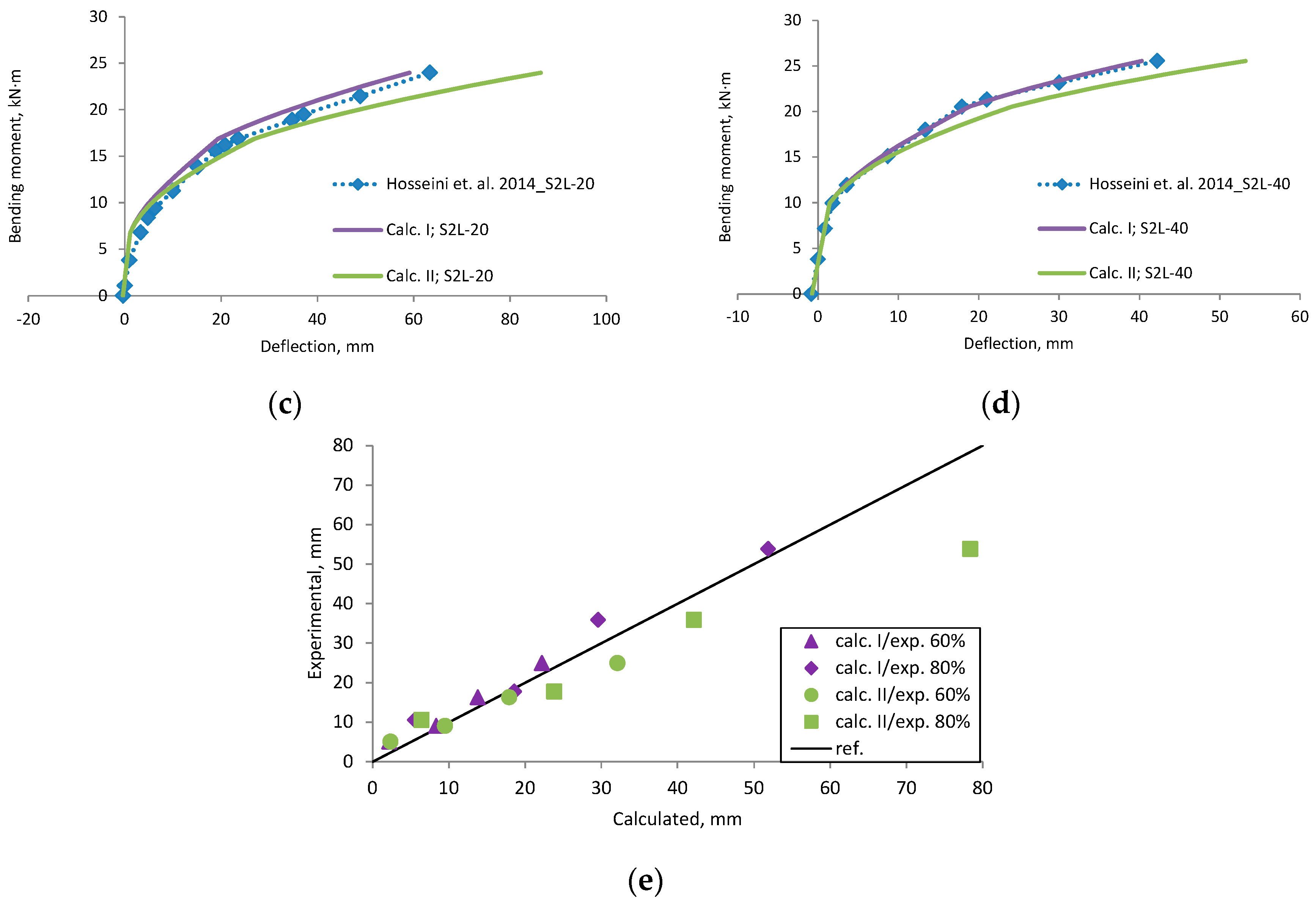

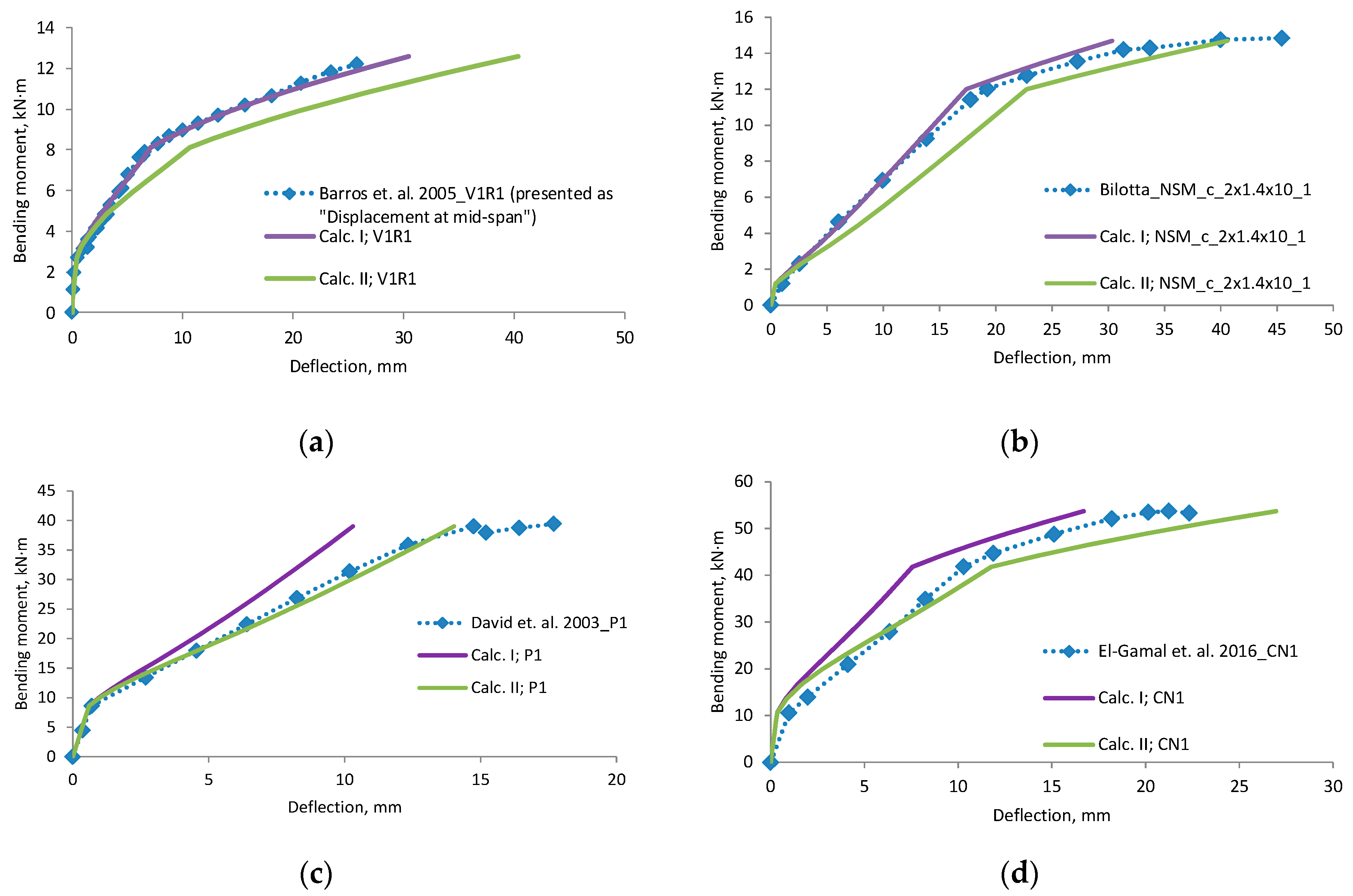

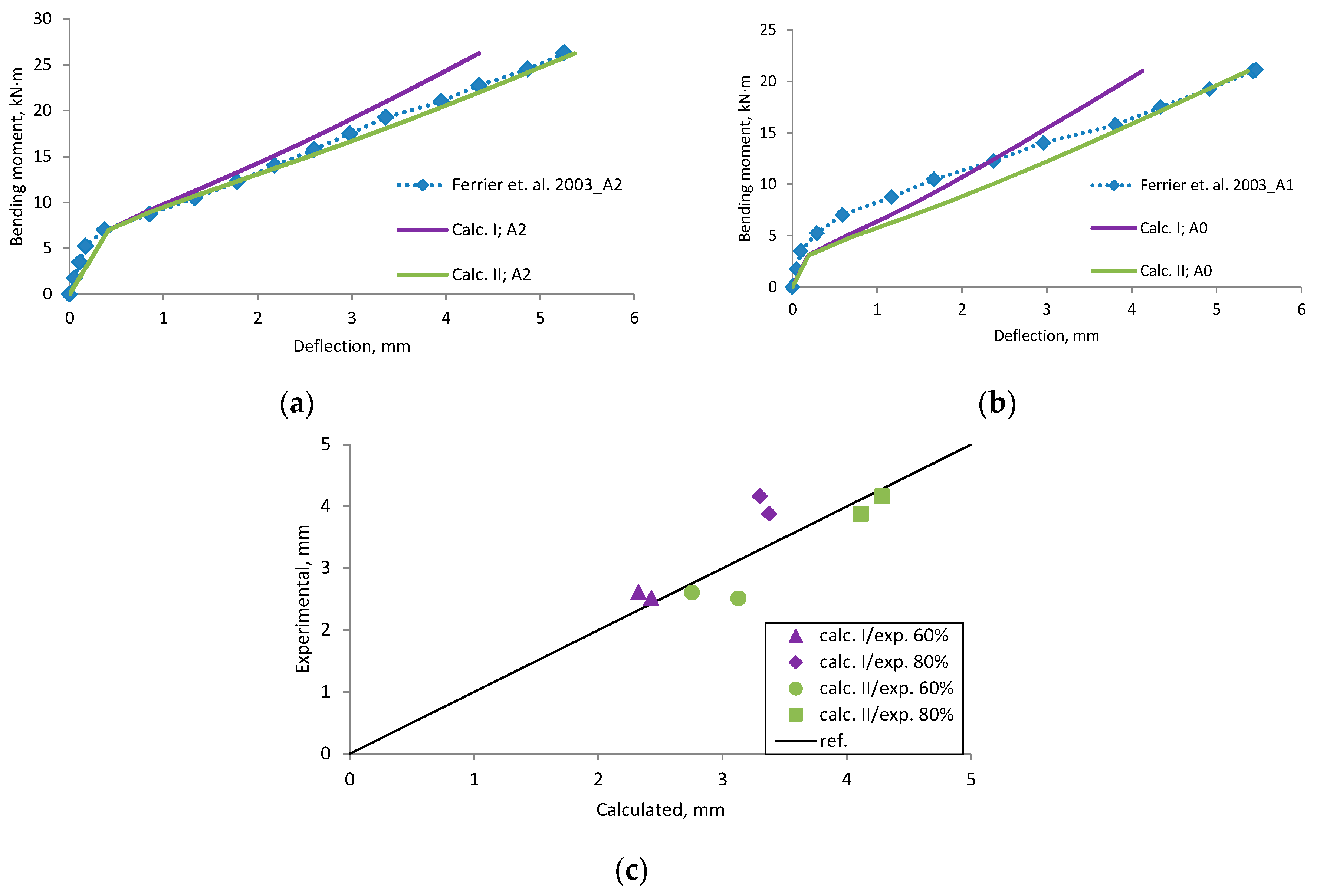

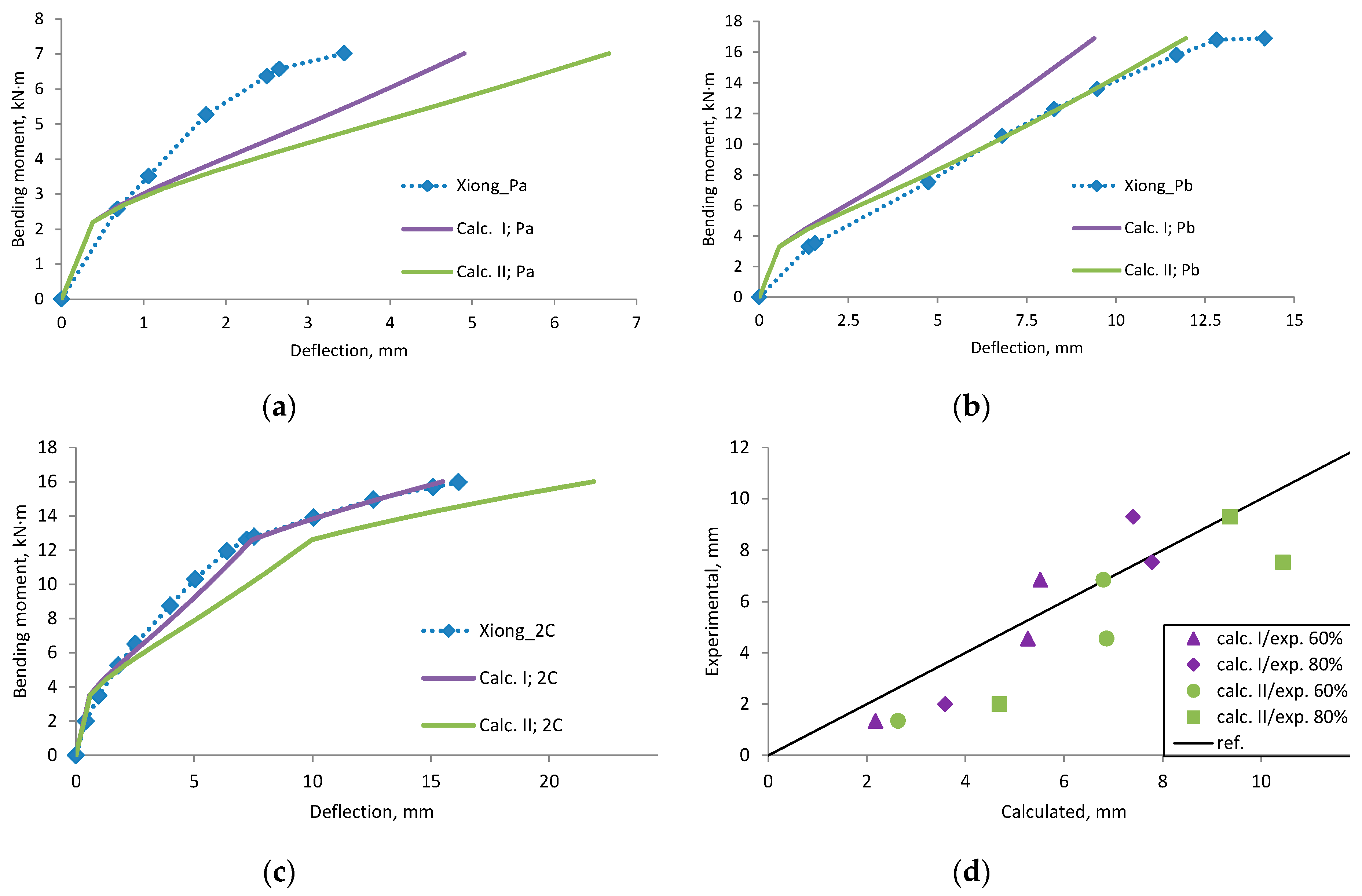

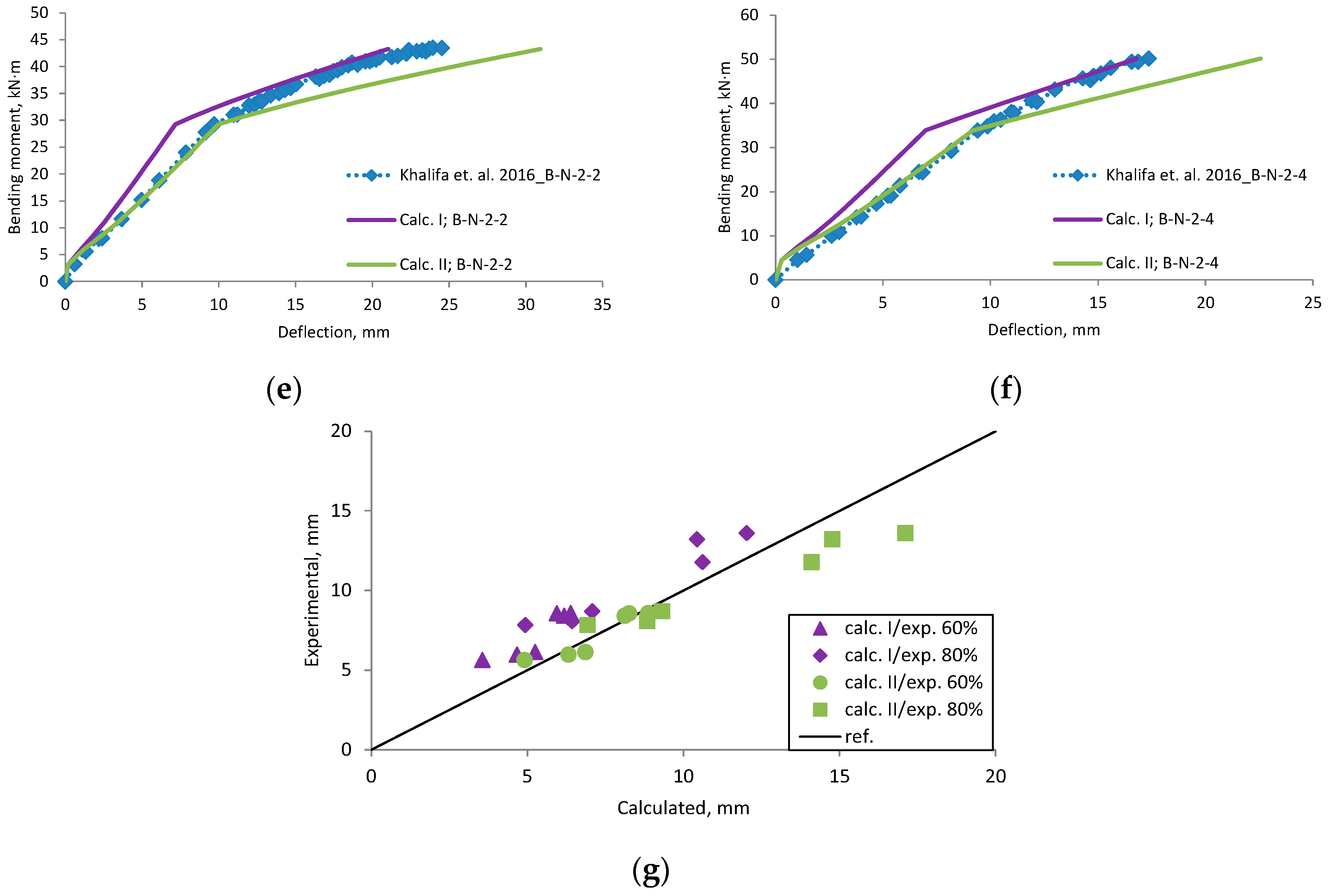

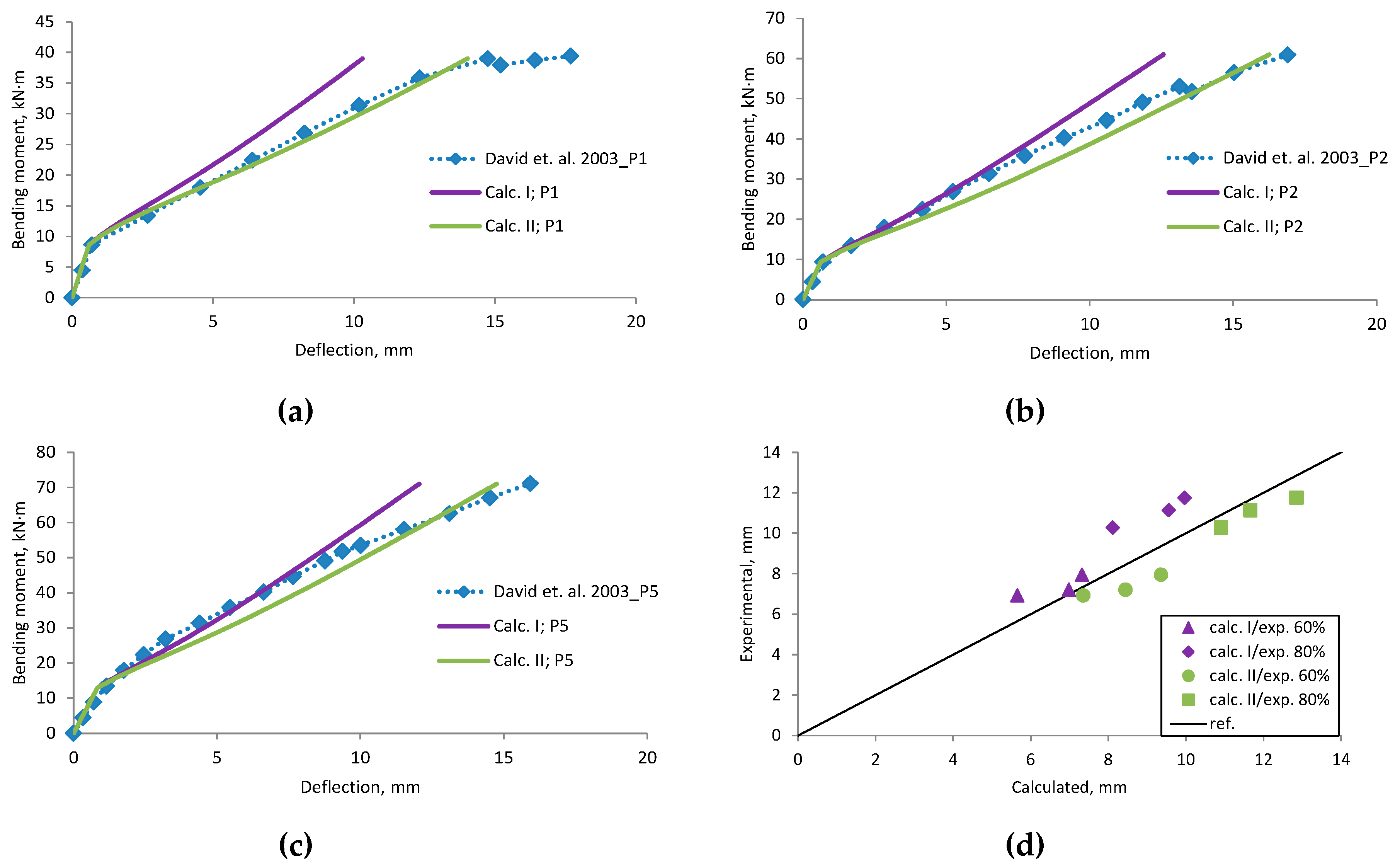

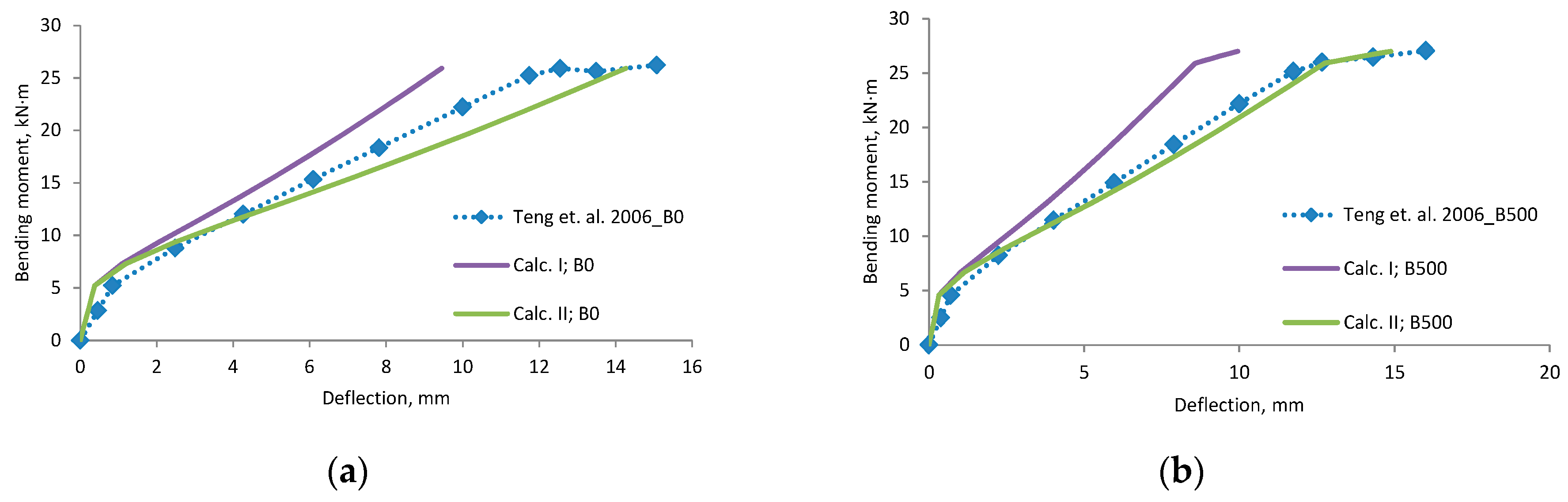

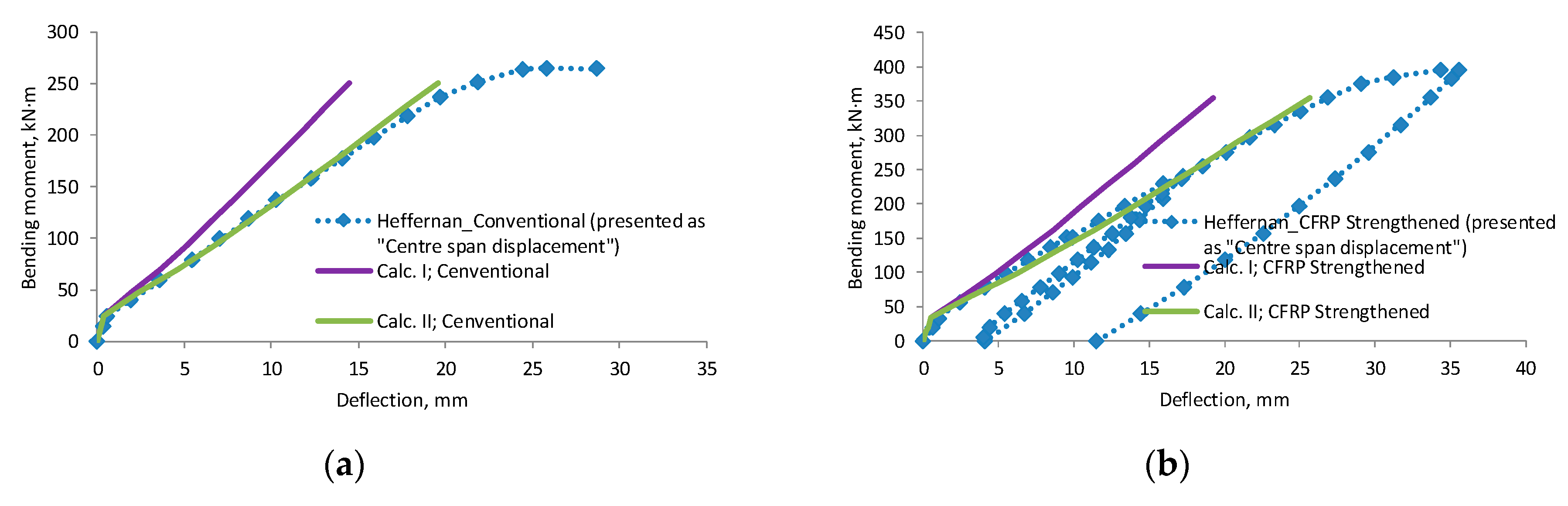

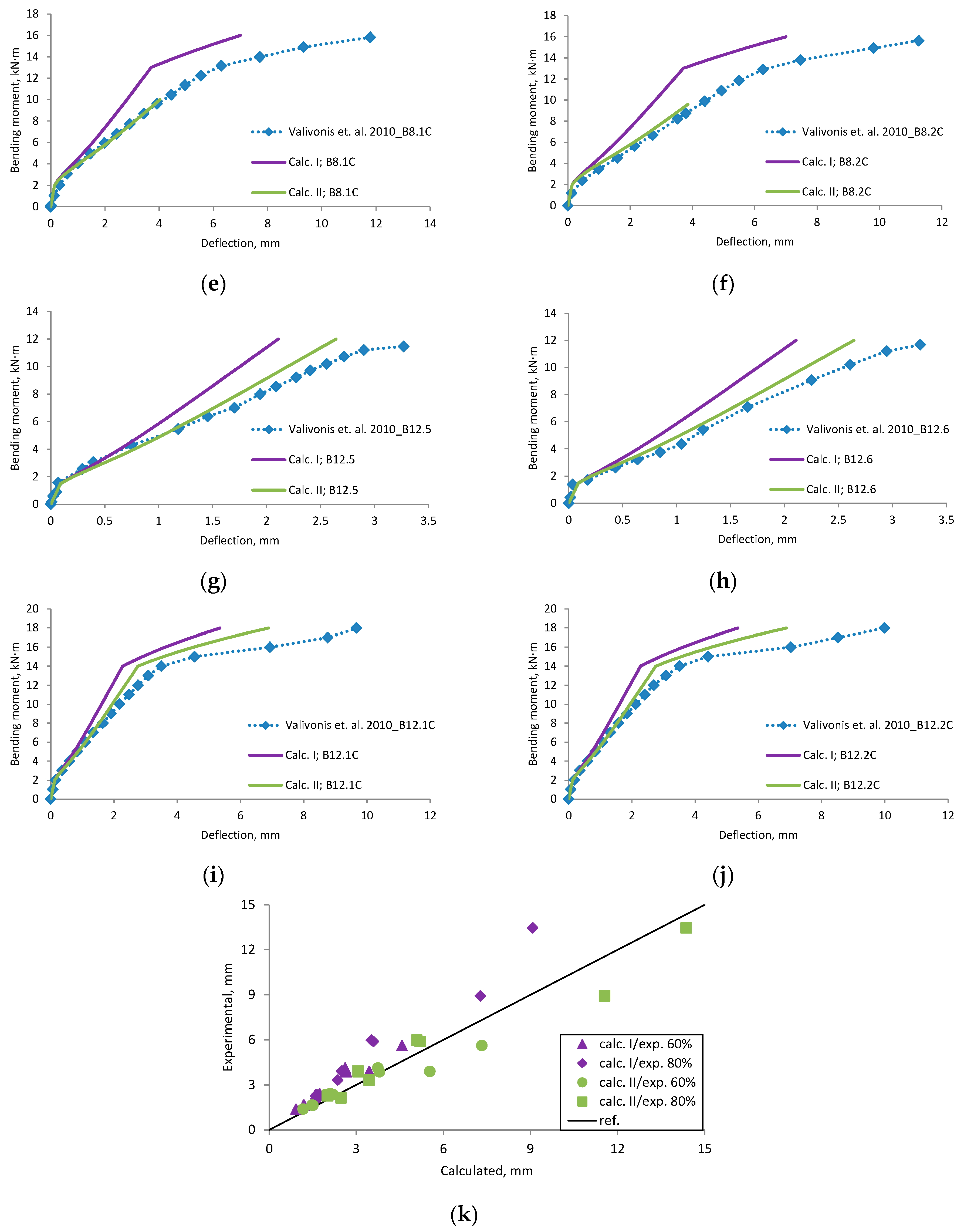

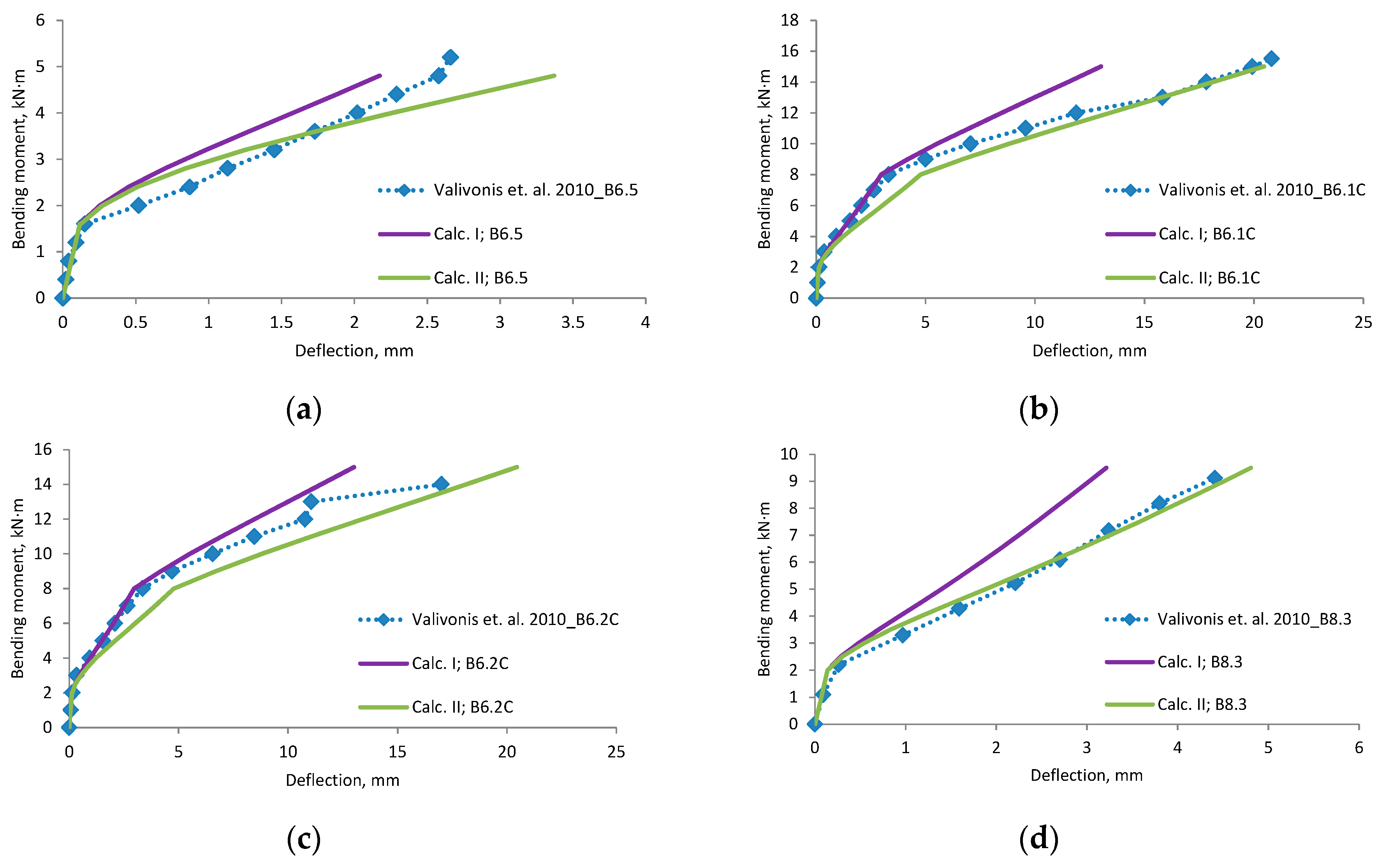

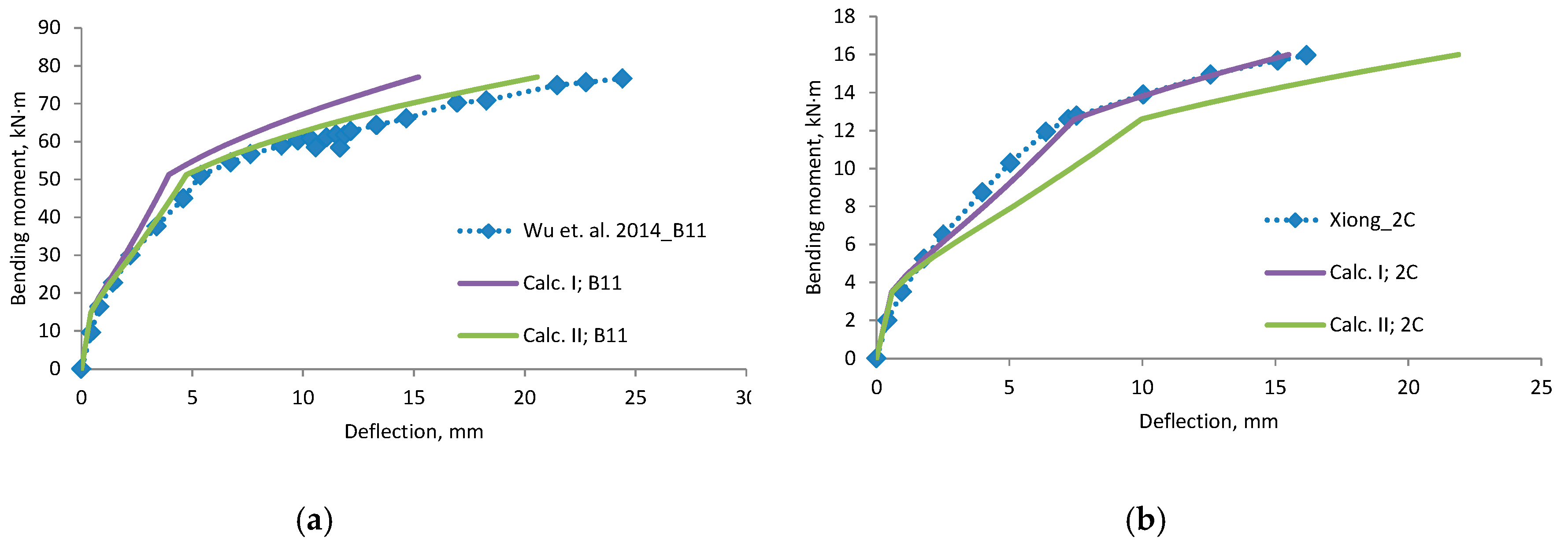

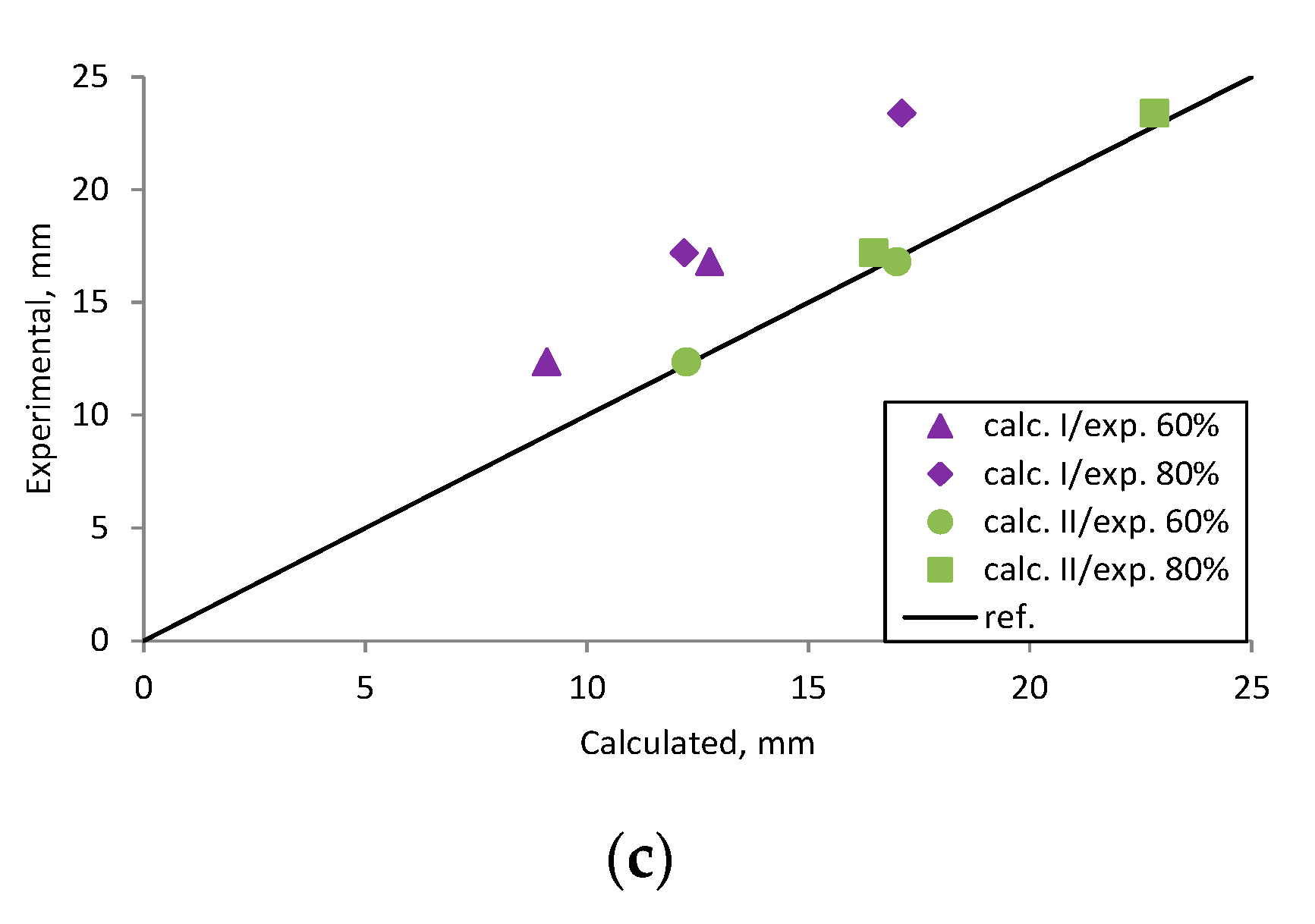

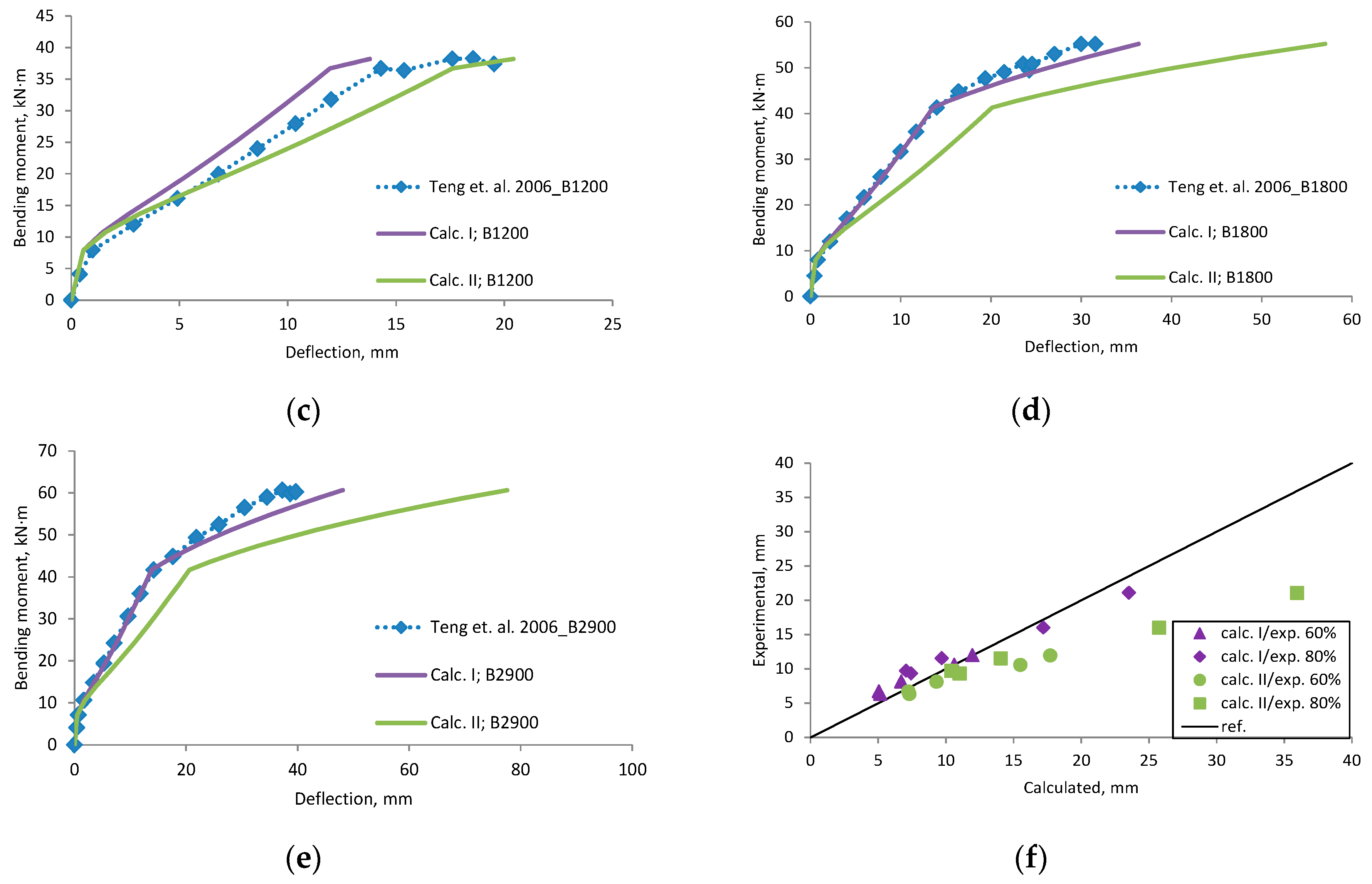

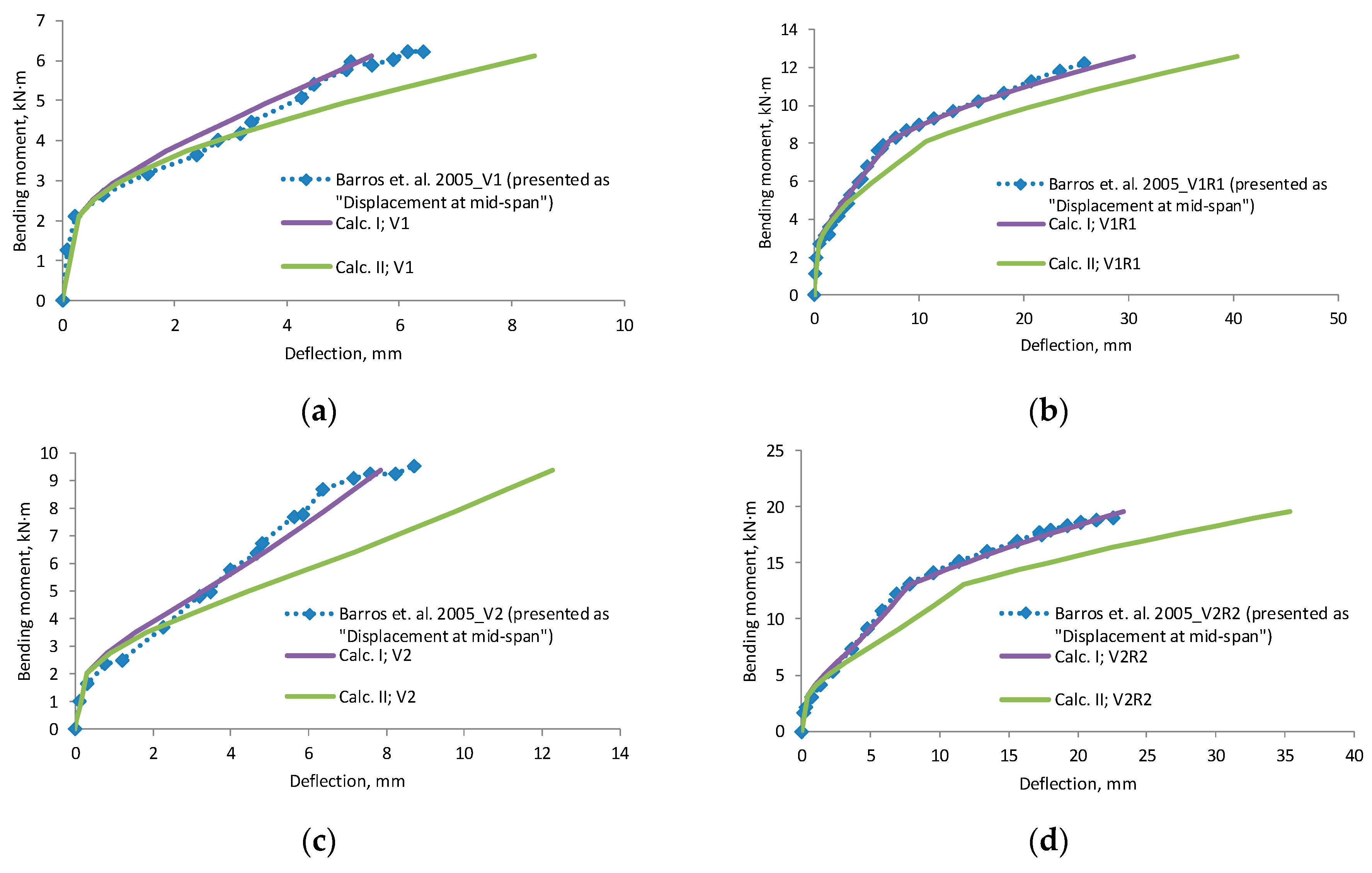

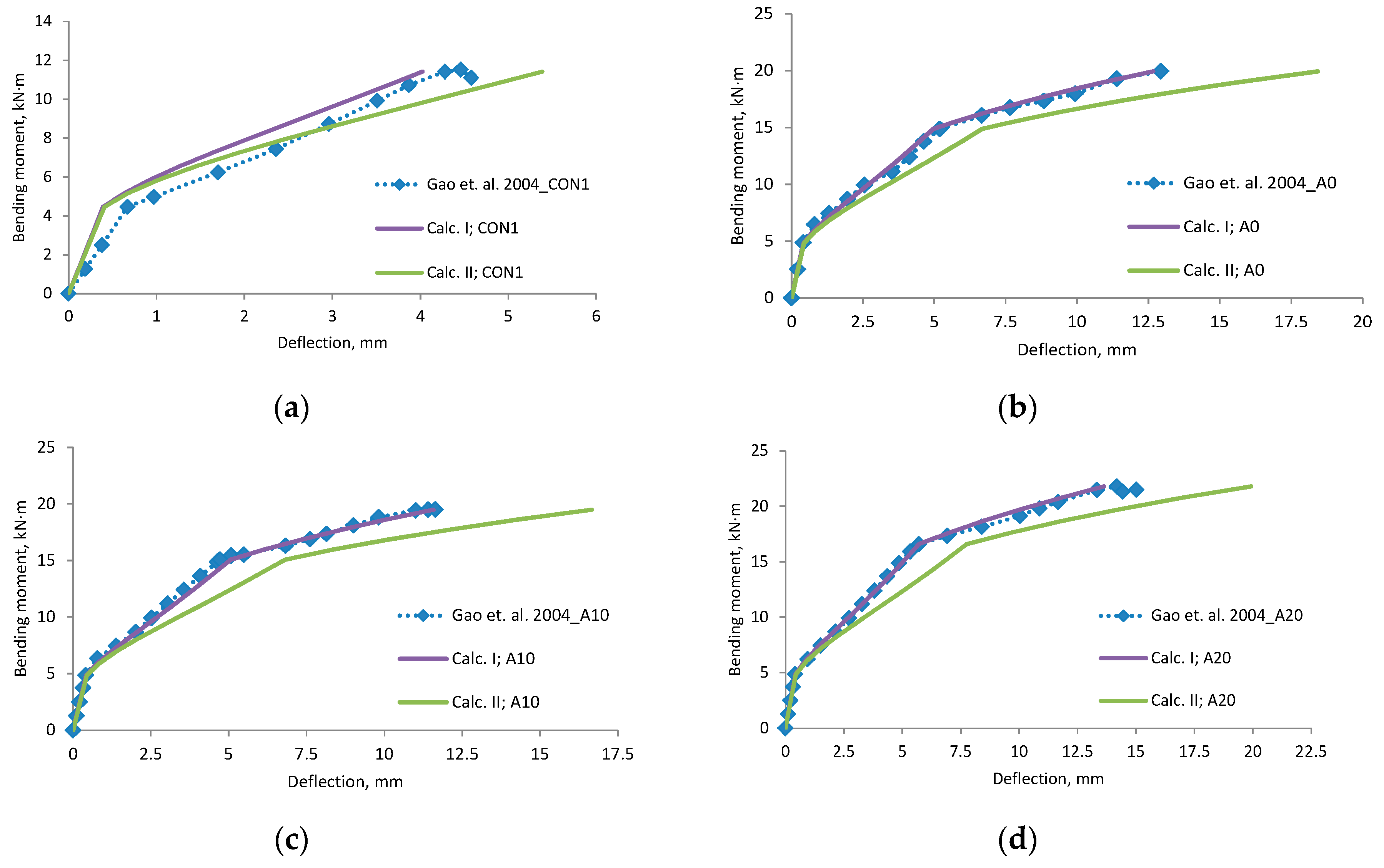

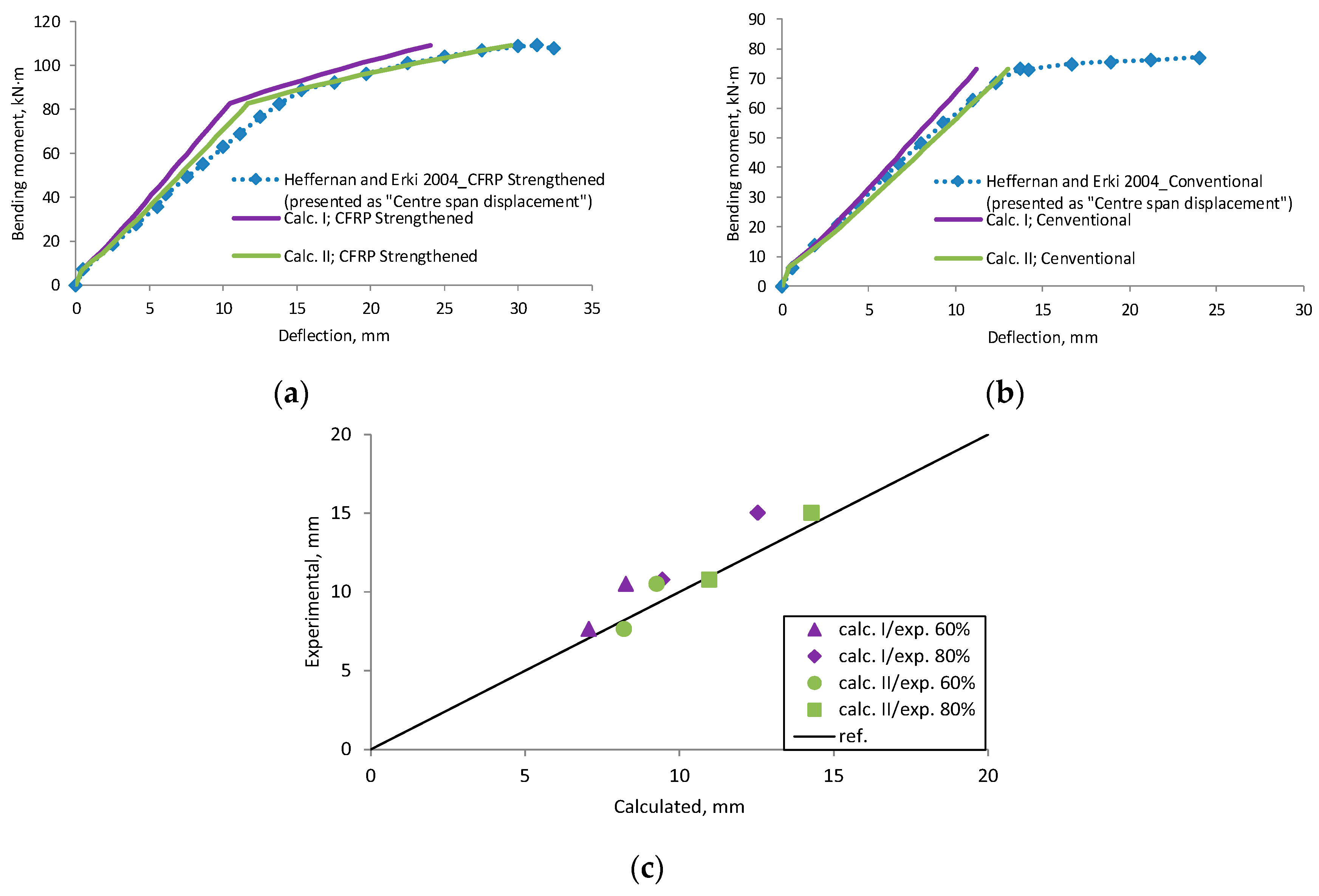

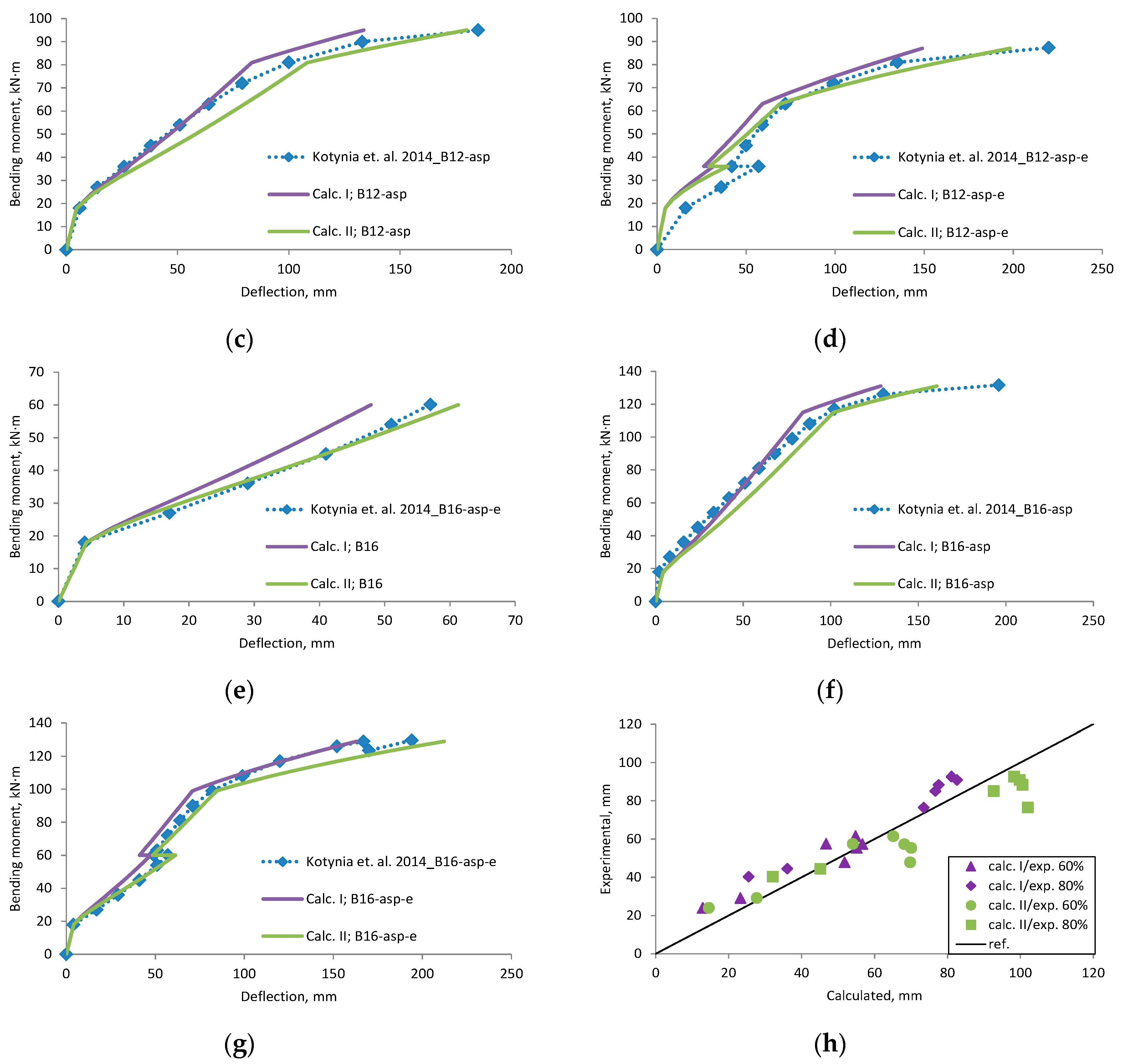

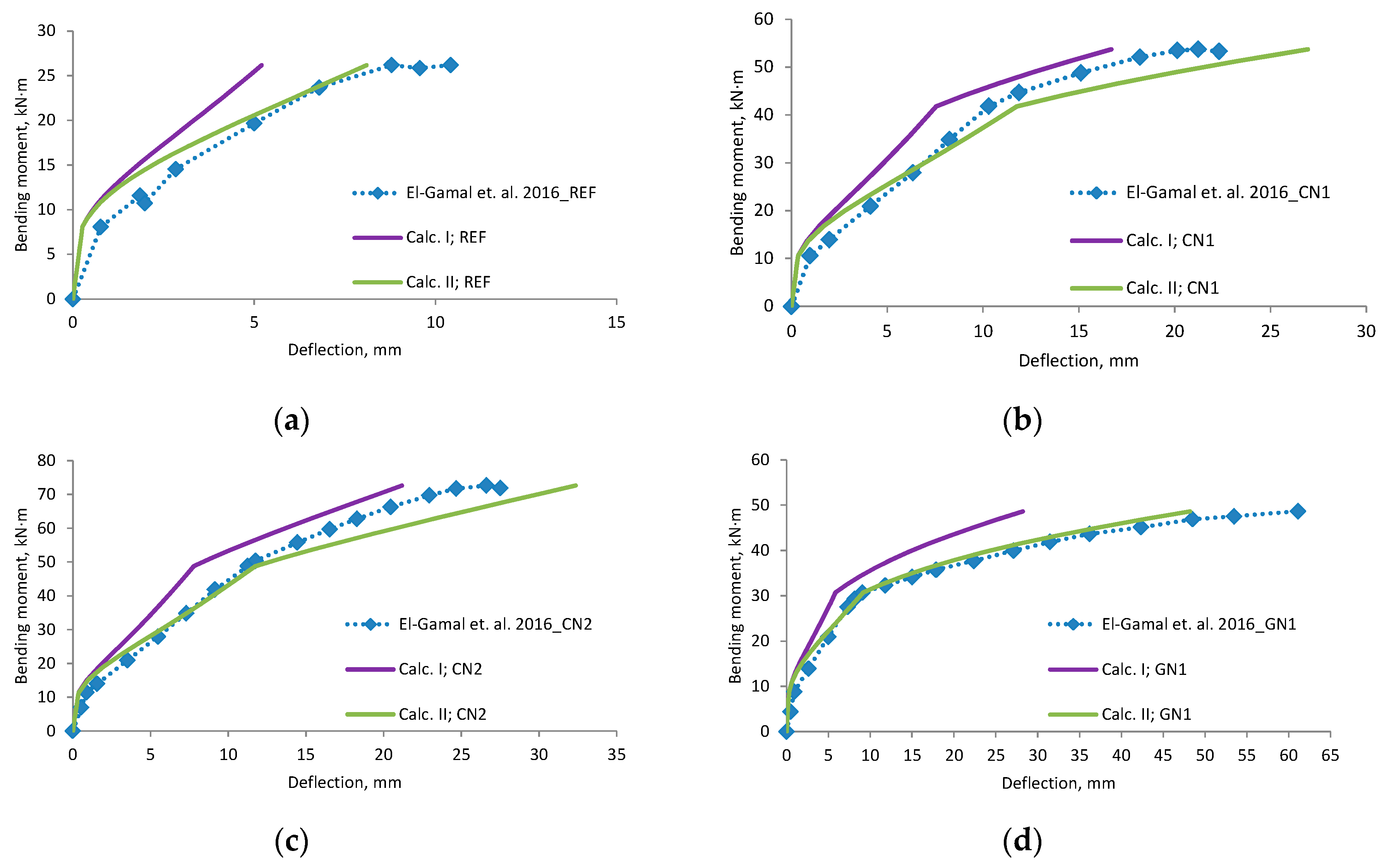

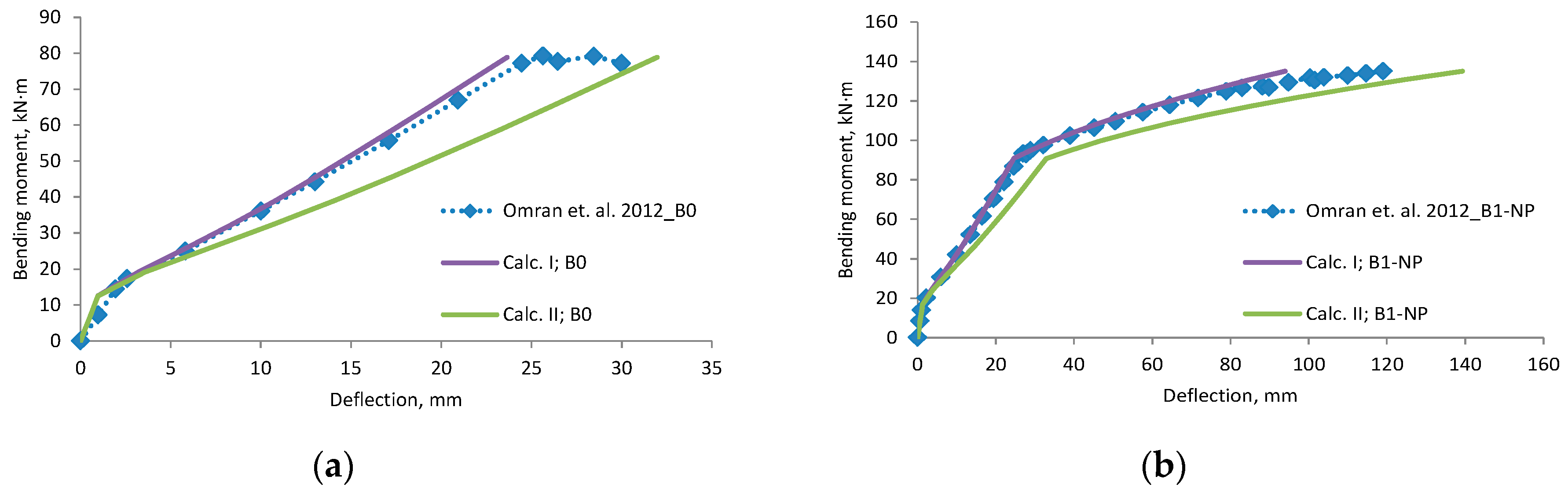

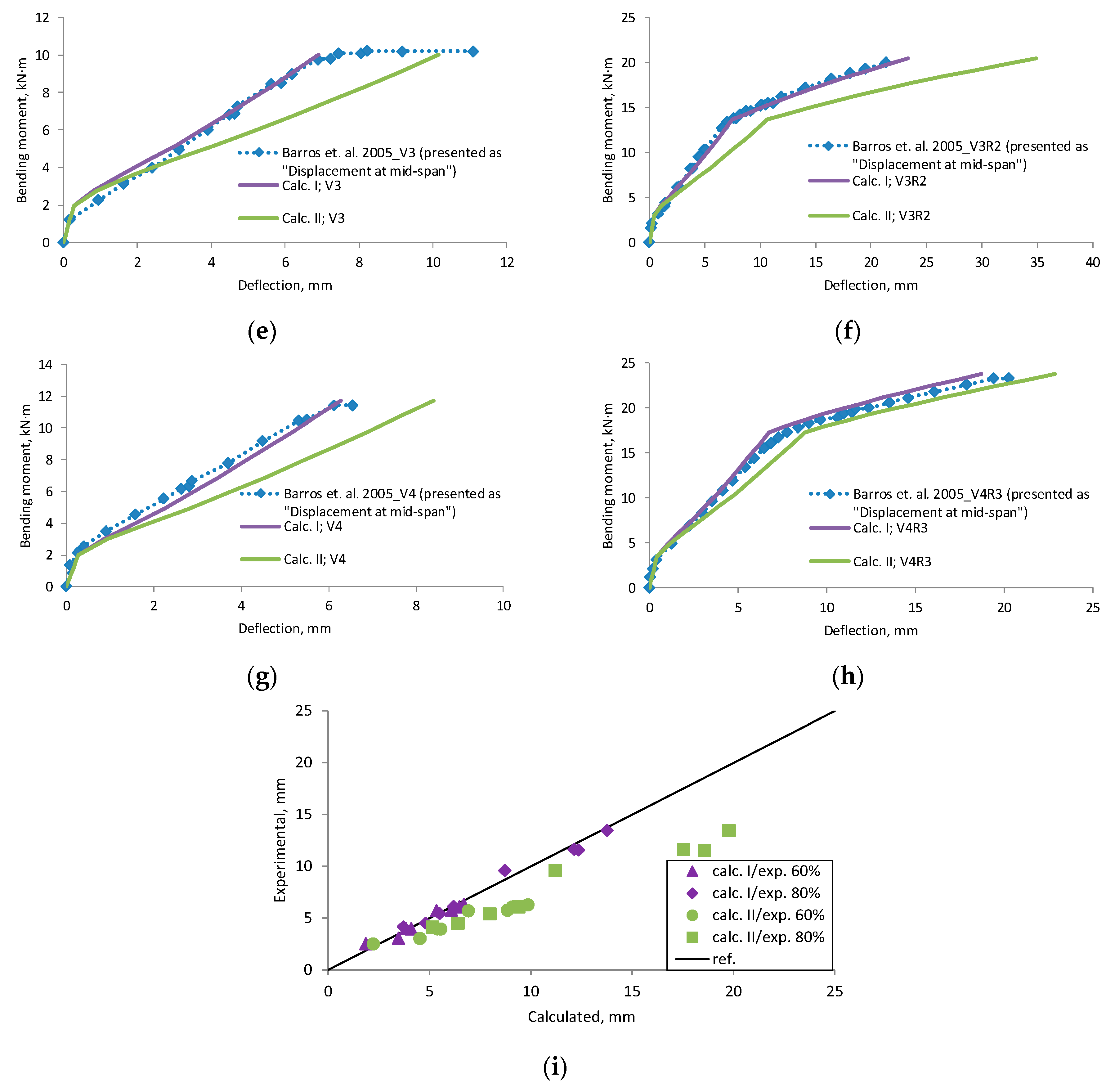

4. Results
5. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Notation
A, B, C | the designation of the equation for the depth of the neutral axis; |
Ac | the cross section of the compressed concrete layer; |
Af | the cross-section area of carbon fiber; |
Ared | the transformed cross section of the beam; |
As1 and As2 | the cross-section area of the tensioned and compressed reinforcement; |
Ecm | the modulus of elasticity of concrete; |
Ef | the modulus of elasticity of carbon fiber; |
Es1, Es2 | the modulus of elasticity of steel bars; |
III, IIII | the effective moment of inertia at stages 2 and 3; |
II.red, III.red, IIII.red | the moment of the inertia of the transformed cross-section at stages 1, 2, and 3; |
MI and MI.S | the cracking moment of the unstrengthened beam and strengthened beam respectively; |
MII.S | the bending moment of the strengthened beam when the yielding of reinforcement is reached; |
MR, MII | the maximum carrying bending moment of the unstrengthened beam; |
MR.S, MIII | the maximum carrying bending moment of the strengthened beam; |
Sred | the static moment of the transformed cross-section; |
a | distance from the support to loading; |
b | the width of the beam; |
d1 and d2 | distance from the beam edge to the center of the tensioned and compressed reinforcement; |
fc | the compressive strength of concrete cylinders; |
fct | the tensile strength of concrete; |
h | the height of the beam; |
k1 | the coefficient evaluating the shape of stress distribution; |
l | the span length of the beam; |
tf | the thickness of the carbon fiber layer; |

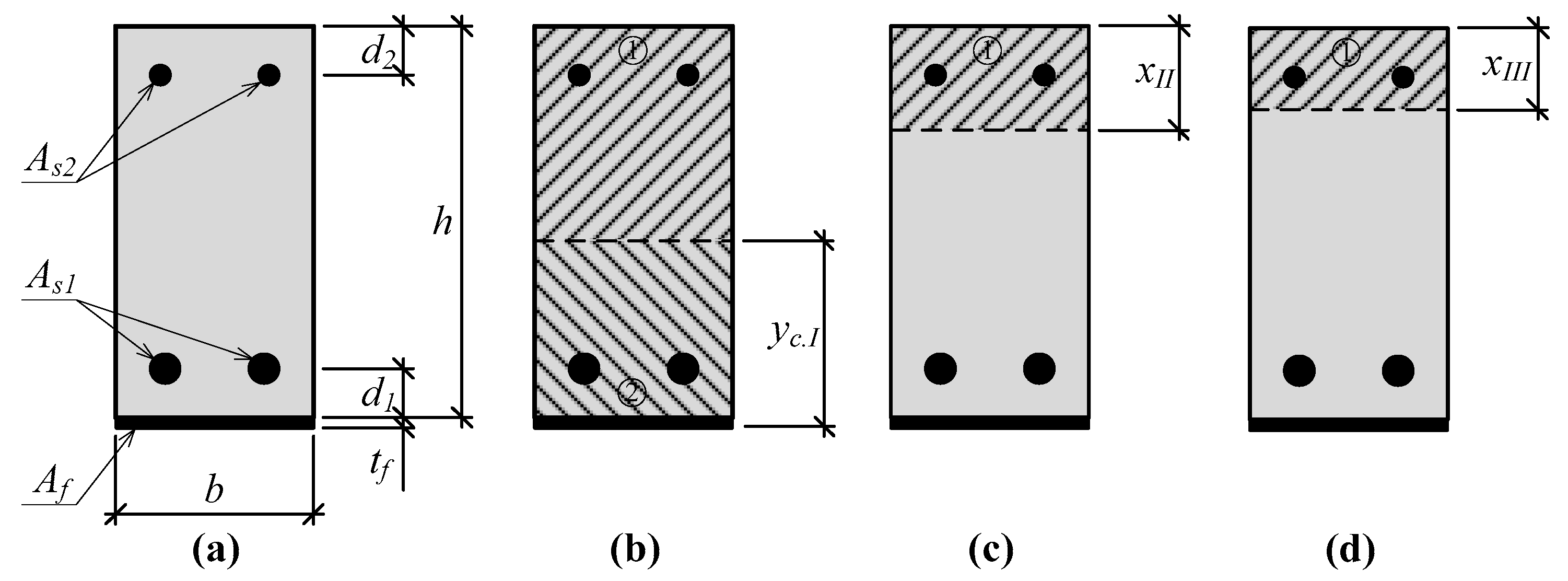

xI, xII and xIII | the depth of the neutral axis at stages 1, 2 and 3; |
yc.I, yc.II, yc.III, | the centre of the gravity of the beam cross-section at stages 1, 2 and 3; |
αf, αs1, αs2 | relative coefficients; |
γ1.c, γ1.t | relative coefficients evaluating a change in the depth of the neutral axis at stage 2; |
γ2.c, γ2.t | relative coefficients evaluating a change in the depth of the neutral axis at stage 3; |
εc | the strain of the compressed concrete; |
εc1 | strain when the maximum strength of concrete material is reached; |
εf | the strain of the carbon fiber layer; |
εs | the strain of the tensioned reinforcement; |
εs2 | the strain of the compressed reinforcement; |
σc | stresses in the layer of the compressed concrete; |
σf | stresses in the layer of carbon fiber; |
σs | stresses in the tensioned reinforcement; |
σs2 | stresses in the compressed reinforcement; |
ωI, ωII | the deflection of the control beam up to the end of stages I and II. |
ωI.S, ωII.S, ωIII.S | the deflection of the strengthened beam up to the end of stages I, II, and III. |
