Next Article in Journal
Influence of Crystallite Size on the Magnetic Order in Semiconducting ZnCr2Se4 Nanoparticles
Previous Article in Journal
A Facile Method to Fabricate Anisotropic Extracellular Matrix with 3D Printing Topological Microfibers
Open AccessLetter

Substitutions of Zr4+/V5+ for Y3+/Mo6+ in Y2Mo3O12 for Less Hygroscopicity and Low Thermal Expansion Properties

1
Collage of Electric Power, North China University of Water Resources and Electric Power, Zhengzhou 450011, China
2
Henan Key Laboratory of Photovoltaic Materials and Low Dimensional Materials Science Laboratory, Henan University, Kaifeng 475004, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(23), 3945; https://doi.org/10.3390/ma12233945
Received: 11 October 2019 / Revised: 22 November 2019 / Accepted: 24 November 2019 / Published: 28 November 2019
In this investigation, ZrxY2−xVxMo3−xO12 (0 ≤ x ≤ 1.4) is developed and the effects of the substitutions of Zr4+/V5+ for Y3+/Mo6+ in Y2Mo3O12 on the hygroscopicity and thermal expansion property are investigated. For the smaller substitution content (x ≤ 0.5), their crystal structures remain orthorhombic, while there is crystal water still in the lattice. The linear coefficients of thermal expansions (CTEs), for x = 0.1, 0.3, 0.5, and 0.7, are about −4.30 × 10−6, −0.97 × 10−6, 0.85 × 10−6, and 0.77 × 10−6 K−1, respectively, from 476 to 773 K, which means that the linear CTE could be changed linearly with the substitution content of Zr4+/V5+ for Y3+/Mo6+ in Y2Mo3O12. As long as the substitution content reaches x = 1.3/1.4, almost no hygroscopicity and low thermal expansion from room temperature are obtained and are discussed in relation to the crystal structure and microstructure. View Full-Text
Keywords: hygroscopicity; thermal expansion; substitutions; microstructure hygroscopicity; thermal expansion; substitutions; microstructure
Show Figures

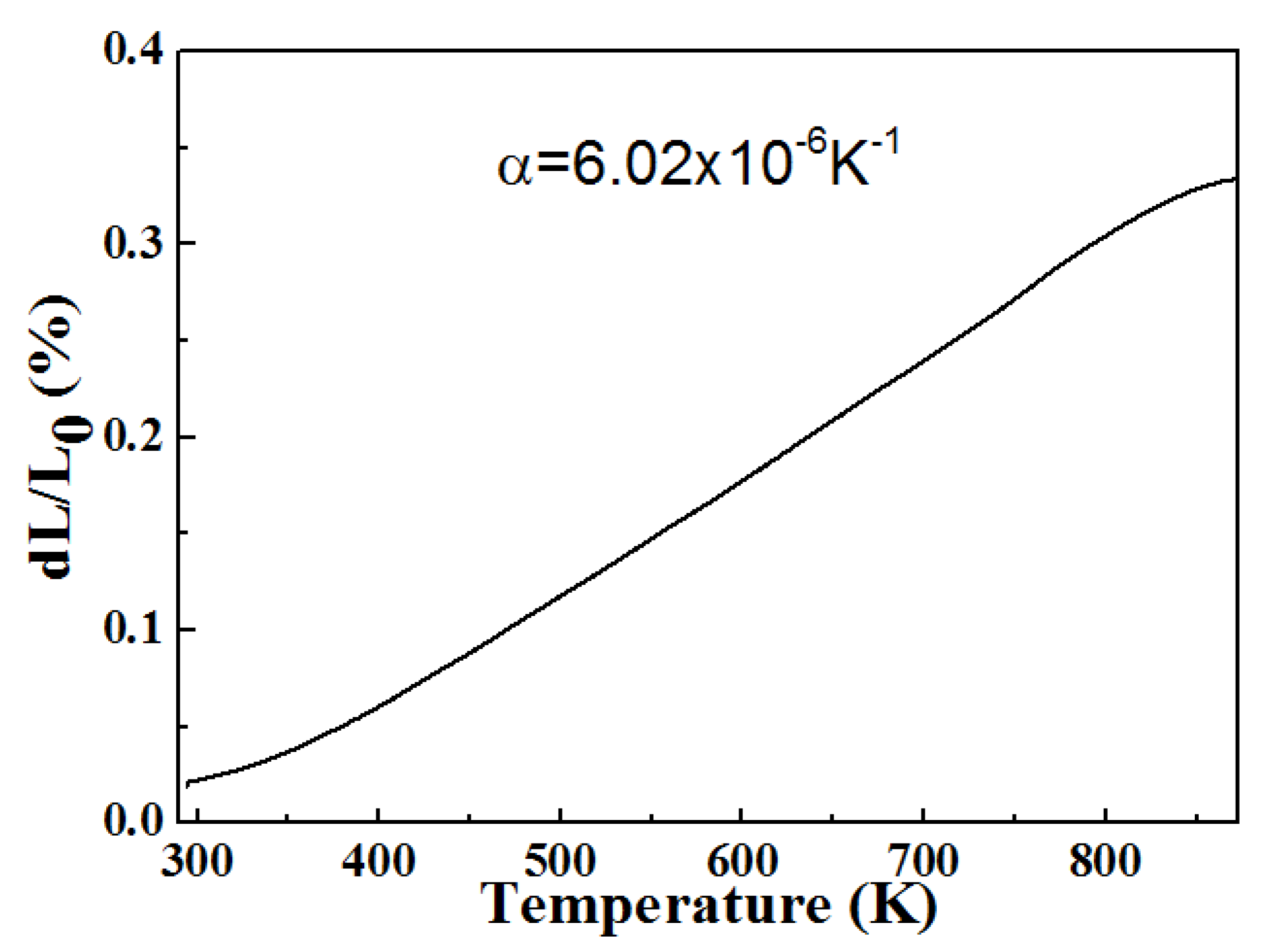

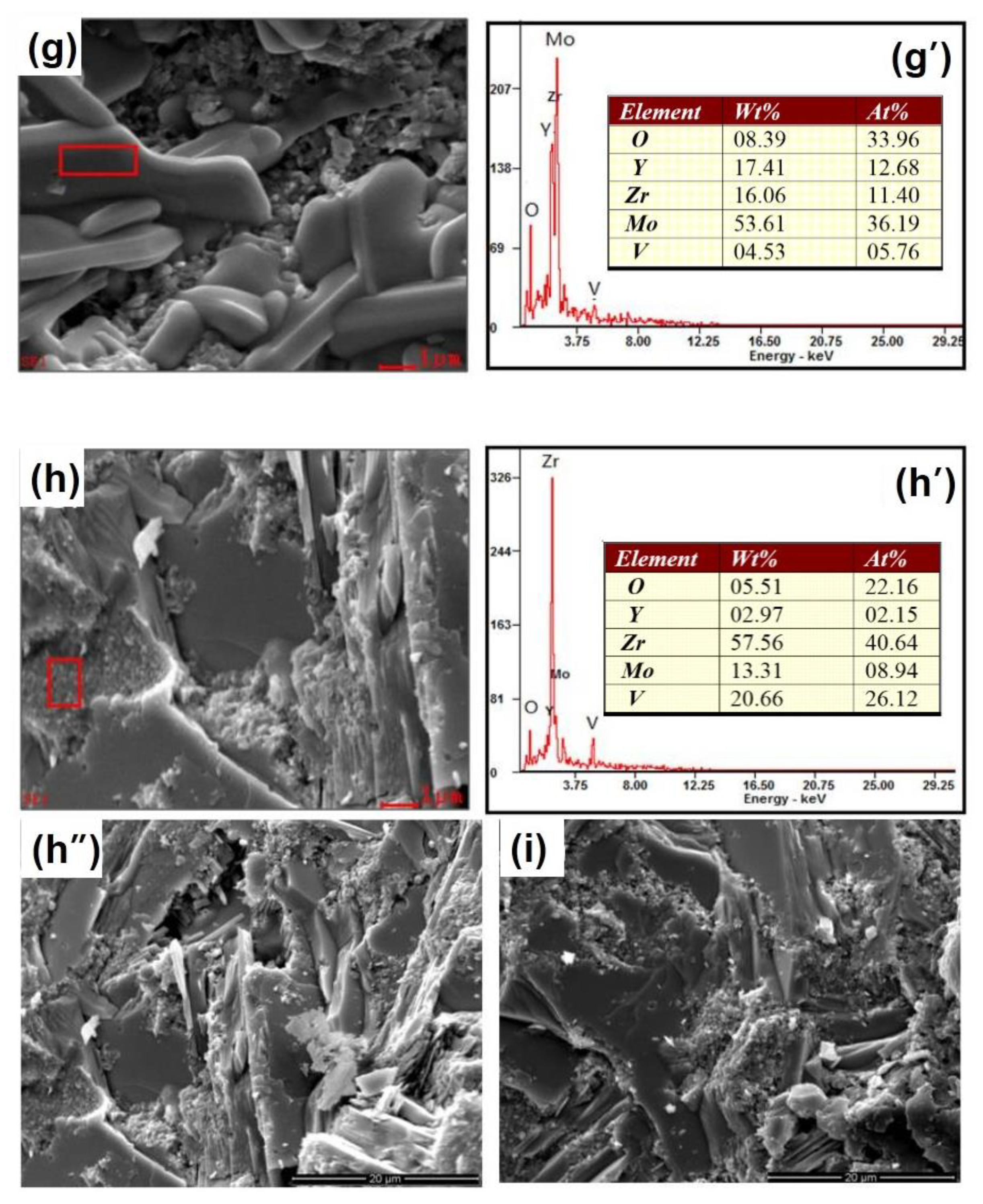

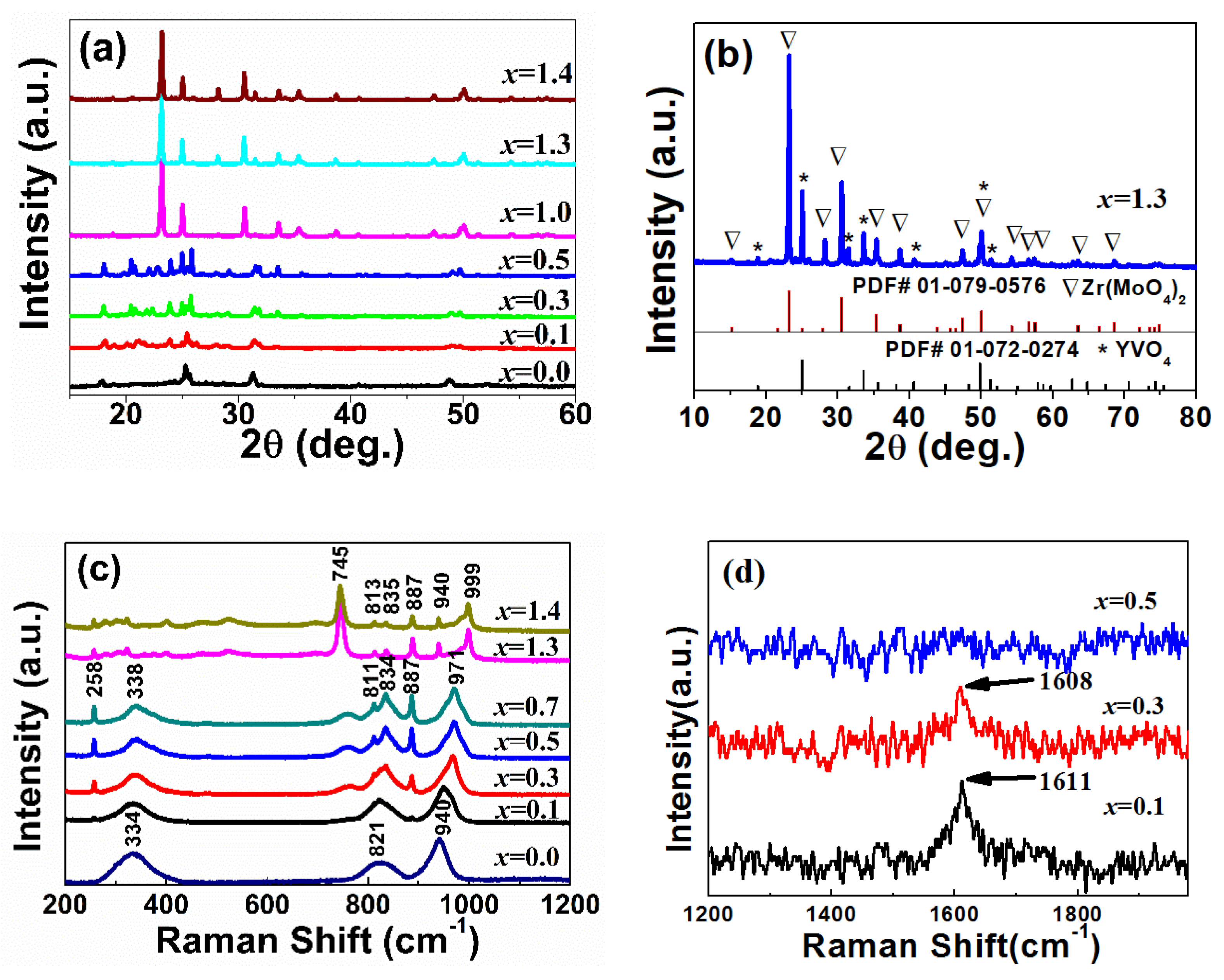

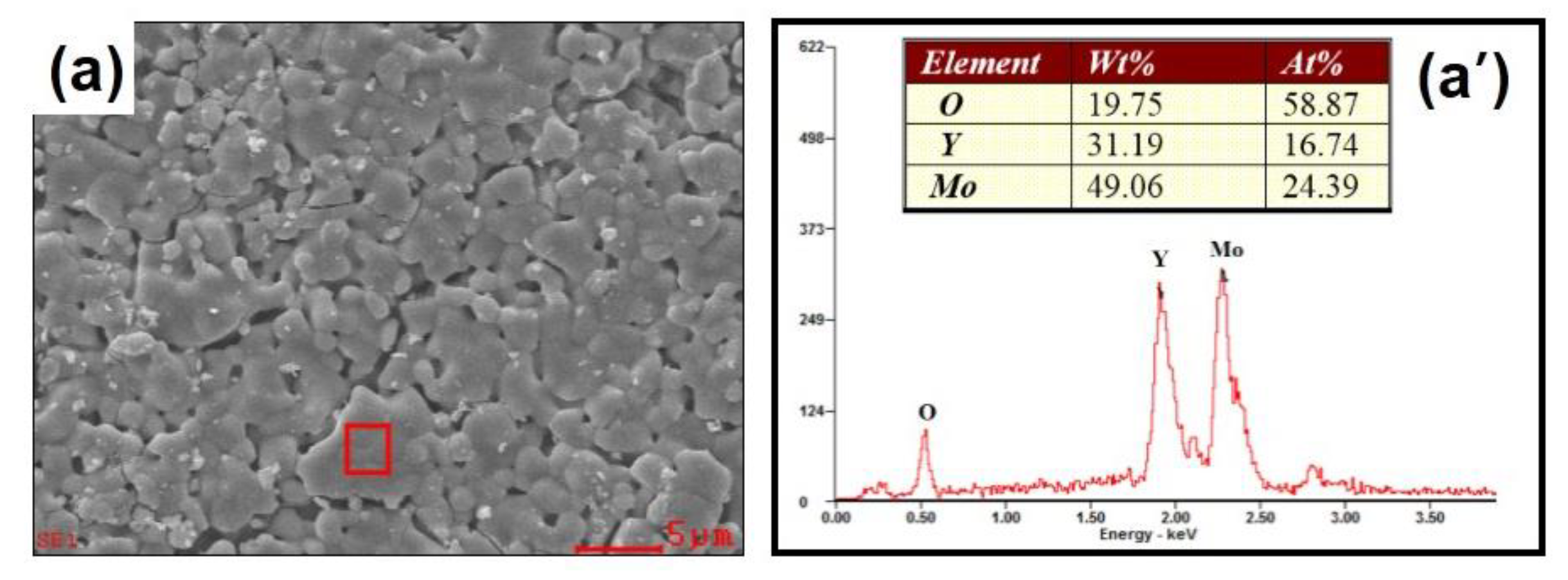

Figure 1

MDPI and ACS Style

Ma, Q.; Chen, L.; Qi, H.; Xu, Q.; Yuan, B.; Liu, X.; Xu, L. Substitutions of Zr4+/V5+ for Y3+/Mo6+ in Y2Mo3O12 for Less Hygroscopicity and Low Thermal Expansion Properties. Materials 2019, 12, 3945.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
