Influence of Alloyed Ga on the Microstructure and Corrosion Properties of As-Cast Mg–5Sn Alloys
Key Laboratory of Solidification Control and Digital Preparation Technology (Liaoning Province), School of Materials Science and Engineering, Dalian University of Technology, Dalian 116024, China
*
Authors to whom correspondence should be addressed.
Received: 18 September 2019 / Accepted: 5 November 2019 / Published: 8 November 2019

Abstract

:
In this paper, the microstructures and corrosion behaviors of as-cast Mg–5Sn–xGa alloys with varying Ga content (x = 0, 0.5, 1, 2, 3 wt %) were investigated. The results indicated that Ga could not only adequately refine the grain structure of the alloys, but could also improve the corrosion resistance. The microstructures of all alloys exhibited typical dendritic morphology. No Ga-rich secondary phases were detected when 0.5 wt % Ga was added, while only the morphology of Mg2Sn phase was changed. However, when the addition rate of Ga exceeded 0.5 wt %, an Mg5Ga2 intermetallic compound started to form from the interdendritic region. The volume fraction of Mg5Ga2 monotonically increased with the increasing Ga addition level. Although Mg5Ga2 phase was cathode phase, its pitting sensitivity was weaker than Mg2Sn. In addition, the standard potential of Ga (−0.55 V) was lower than that of Sn (−0.14 V), which relieved the driving force of the secondary phases for the micro-galvanic corrosion. An optimized composition of 3 wt % Ga was concluded based on the immersion tests and polarization measurements, which recorded the best corrosion resistance.
Keywords:
magnesium; immersion test; polarization; microstructure; corrosion resistance

1. Introduction

Magnesium alloys, with their excellent properties of low density and high specific strength, have received extensive attention in automobile, aerospace, electronics, and other industries [1,2,3,4]. Among many of the binary alloy systems, the Mg–Sn phase diagram demonstrates that the Mg-rich side has a very shallow α-Mg solvus curve, indicating that it is conducive to maximizing the precipitation of the thermally stable Mg2Sn particles. This infers that adding Sn potentially helps to enhance the mechanical integrity of the alloy at elevated temperatures [5,6,7,8,9]. On this account, the Mg–Sn-based alloy system is one of the most extensively studied alloys in recent years [6,7,8,9,10,11,12,13].
Aside from the mechanical strength, other factors that limit the application of magnesium alloys are their high chemical activity and poor corrosion resistance. It was documented, however, that alloying with some Sn results in superior corrosion resistance. Ha et al. [14] reported that Sn decreases the cathodic current density and inhibits the cathodic H2 evolution. Similar effects were also observed in Mg–5Al–1Zn alloy [11] and Mg–7Al–0.2Mn alloy [12]. The reason for inhibition of H2 evolution by alloying Sn was studied. Ha et al. [13] observed that the main reason for the decrease of H2 evolution rate was that Sn elements were enriched on the metal surface. They further reported that Sn had a higher potential H2 evolution than the Mg matrix [15,16]. Moreover, under the condition of a high cathode, Sn could form SnH4 [14]. That is to say, when the matrix is corroded, the element Sn is spontaneously enriched on the matrix surface, acting as a barrier to further corrosion [13].
The addition of Ga in magnesium alloy has important research value in seawater battery and sacrificial anode [17]. In those applications, Ga enhances the mechanical performance of Mg-based alloys by solid solution and precipitation strengthening [17,18]. It was suggested that Mg–Ga, Mg–In, and Mg–Sn alloys have potential use as biomaterials [15]. Among the aforementioned three binary alloys, Mg–Ga alloys appeared to be the best candidates, considering both the mechanical properties and corrosion behaviors in 0.9 wt % NaCl solution. Marta et al. [19] pointed out that the superior corrosion resistance of Mg–Ga is mainly related to the microgalvanic corrosion between α-Mg and the second phases, and the morphology and distribution of Mg5Ga2 phase.
The purpose of this study is to explore the effect of Ga on the microstructure and corrosion resistance of Mg–5Sn alloy. Both potentiodynamic polarization measurements and immersion weightlessness experiments were conducted to evaluate the corrosion property of the experimental Mg–5Sn–xGa alloys. By investigating the microstructures of Mg–5Sn–xGa alloys with varying Ga contents, the immanent relationship between the microstructure and corresponding corrosion behavior is established, and the results are discussed.

2. Materials and Methods

2.1. Specimen Preparation

As-cast Mg–5Sn–xGa (x = 0, 0.5, 1, 2, and 3, all in weight percentage unless otherwise specified) alloys were investigated in this work. The experimental alloys were prepared by melting pure metals in an electric resistance furnace under the protection of an atmosphere containing CO2 and SF6 mixture in a ratio of 99:1. Pure Mg (99.99%) ingot was cut into small pieces and put in a magnesia crucible. Once the temperature of the melt reached 973 K, pure Sn (99.99%) and Ga (99.999%) granules were added to the melt. The melt was fully stirred with a graphite impeller for 180 s before it was poured into a cylindrical steel mold preheated at 523 K. The chemical compositions of the alloys were measured by X-ray fluorescence analysis (XRF-1800, Shimadzu, Kyoto, Japan), and the results are summarized in Table 1.

2.2. Microstructural Characterization

The samples for microstructural observation were cut 10 mm from the bottom of the ingot. The exposed surfaces were ground by SiC abrasive papers up to 4000 grit and then polished up to 1 μm in a suspension of diamond pastes. The polished surfaces were etched in a mixed solution of picric and acetic acid (10 mL acetic acid, 4.2 g picric acid, 10 mL distilled water, and 70 mL ethanol). The microstructures and corrosion morphologies of the specimens were observed using an optical microscope (OM, Olympus GX51, Olympus Corp., Tokyo, Japan) and a field emission scanning electron microscope (FESEM, Zeiss supra 55, Zeiss Corp., Oberkochen, Germany), equipped with energy-dispersive X-ray spectroscopy (EDS). Phases were identified by an X-ray diffraction instrument (XRD, PANalytical Empyrean, Almelo, The Netherlands) with Cu Kα radiation at a scanning speed of 0.142224°/s. An electron microprobe analyzer (EPMA, JXA-8530F PLUS, Tokyo, Japan) equipped with a wavelength dispersive spectrometer (WDS) was used to examine the elemental distribution of selected phases. Grain size was measured using the OM micrographs of the alloys by the intercept method regulated in GB/T 6394-2002:
τ = L M × N
where τ is the average grain size, L is the measured mesh length, M is the magnification for observation (50× in this work), and N is the number of intercept points on the measured mesh as indicated in Equation (1). The grain sizes were averaged with values measured from six micrographs for each alloy.

2.3. Corrosion Tests

The corrosion behaviors of the as-cast Mg–5Sn–xGa (x = 0, 0.5, 1, 2, and 3 wt %) alloys were investigated using a potentiodynamic polarization test and immersion test. All experiments were carried out at room temperature (298 ± 1 K).
For the electrochemical test, a conventional three-electrode cell was employed. The cell was composed of a working electrode (sample), a reference electrode (Ag/AgCl electrode, saturated KCl with electrode potential of 0.1981 V vs. Standard Hydrogen Electrode), and a Pt plate counter electrode. The test was carried out using a Gamry electrochemical workstation (Reference 600, Gamry Instruments Inc., Warminster, PA, USA). The samples were ground using SiC abrasive papers up to 2000 grit, and the surface of a round specimen with an area of 1.0 cm2 was exposed to 3.5 wt % NaCl solution. After reaching a steady open circuit potential (OCP), the polarization test was initiated from −0.3 V versus the OCP level of the sample to +0.3 V vs. OCP at a scanning rate of 1 mV/s. Three samples were tested for each alloy to ensure repeatability. The corrosion current density (icorr, mA/cm2) of the investigated alloys, which was obtained by fitting the cathodic branch of the potentiodynamic polarization curve, was converted to the average corrosion rate (Ri, mm/y) according to the following equation [20,21]:
R i = 22.85 × i corr
The immersion test was performed on three parallel samples for each alloy. Samples with dimensions of 20 mm wide, 25 mm long, and 3 mm thick were mechanically ground using SiC abrasive papers up to 2000 grit. The ground samples were immersed in a 3.5 wt % NaCl solution at 298 K for 72 h. After immersion, the samples were taken out and cleaned with chromate acid (200 g/L CrO3 + 10 g/L AgNO3) to remove the corrosion products [22,23]. The obtained samples were rinsed with distilled water, cleaned in alcohol, and dried in air. The final specimens were weighed on an analytical balance (ME204E, Mettler Toledo Corp., Greifensee, Switzerland), and the corrosion rate (CR) for each sample was calculated by Equation (3) [24,25]:
C R = K × W A × T × D
where K is a constant (8.76 × 104), W is the mass loss in g, A is the exposed area of the sample in cm2, T is the exposure time in hours, and D is the density in g/cm3.
Another group of samples for observation of corrosion surface morphology, corrosion depth, and products identification were Φ 12 mm in diameter and 3 mm in thickness. These samples were prepared following the same procedure as the samples for microstructural observation mentioned in Section 2.2. Measures were taken to ensure that corrosion occurred only on the transverse surface of the cylindrical samples. After immersion in 3.5 wt % NaCl solution for 24 h, XRD was used to identify the phases in the corrosion product. The surface and cross-section morphologies of the corroded samples were observed in SEM and EPMA, respectively.

3. Results and Discussion

3.1. Microstructure Analysis

The OM micrographs of the as-cast Mg–5Sn–xGa alloys with varying Ga contents are shown in Figure 1. All the alloys present a similar typical dendritic grain structure. The solute elements could have significant effects on the growth behavior of α-Mg grains and the final morphological patterns [26,27,28,29]. It was documented that Sn could form a composition undercooling zone of liquid ahead of the solid–liquid interface, leading to dendrite formation [30]. The average grain sizes were measured to be 300.4 ± 18.4, 227.1 ± 19.3, 205.7 ± 16.7, 183.3 ± 12.7, and 155.9 ± 8.6 μm for the Mg–5Sn, Mg–5Sn–0.5Ga, Mg–5Sn–1Ga, Mg–5Sn–2Ga, and Mg–5Sn–3Ga alloys, respectively. The result suggests that the grain size decreased monotonically with increasing Ga content, probably due to the increasing grain growth restriction factor (GRF), which can be expressed by Equation (4) for a binary alloy [26]:
G R F = m L C 0 ( k 0 1 )
where mL is the slope of liquidus (assumed to be straight), k0 the equilibrium distribution coefficient, and C0 the concentration of a solute. According to the Mg–Ga phase diagram [31], in dilute binary magnesium alloys, the GRF value for Ga element is calculated to be 4.04, which is similar to Al and Zn element (GRFAl = 4.32, GRFZn = 5.31 [26]). Composition undercooling was established by the Ga concentration gradient in the diffusion layer adjacent to the solid–liquid interface, restricting grain growth as a consequence of slow diffusion; and thus, the growth rate is limited and grain size is refined.
As for the case of the Mg–5Sn–0.5Ga alloy, the quantitative results from the WDS analysis of the areas marked by the white rectangles in Figure 1f are given in Table 2. It was found that Mg–5Sn alloy with 0.5 wt % Ga did not cause the formation of any new phases. Most of the Ga and a part of the Sn were either dissolved in the α-Mg matrix or enriched at the interdendritic region (indicated by arrow a).
Dozens of studies have shown that the microstructural features, such as the grain size and the morphology of second phase, may have impacts on the corrosion resistance of magnesium alloys [32,33]. Grain refinement led to the decreased corrosion rates, possibly because of the enhanced passivity of the oxide film [34]. Because the experimental alloy with 3 wt % Ga had the finest equiaxed grains, it was most likely that the as-cast Mg–5Sn–3Ga alloy would exhibit the greatest corrosion resistance.
The backscattered electron (BSE) micrographs of the Mg–5Sn–xGa alloys with varying Ga content are shown in Figure 2a–e. The OM and BSE micrographs of the alloys confirm the presence of second phases and element enrichment in the interdendritic regions. The elemental mapping results of the Ga, Mg, and Sn in the Mg–5Sn–3Ga sample using EPMA are shown in Figure 2f–i. Contrasts along the interdendritic contours demonstrate that there are two types of phases with different chemistries. According to the quantitative results measured by WDS in Table 3, the grey eutectic phase indicated by the letter a is Mg5Ga2 intermetallic compound, and the brighter phase indicated by the letter b is Mg2Sn. The inserts in Figure 2a–e are zoom-in views of the two phases embedded in the interdendritic region. When 0.5 wt % Ga was added, no Ga-rich second phases were detected, according to the composition analysis in Table 2. When the addition of Ga exceeded 0.5 wt %, Ga formed from the interdendritic region in the form of Mg5Ga2 phase, while Mg2Sn did so in the form of divorced eutectic phase.
The XRD spectra in Figure 3a further confirmed that the Mg–5Sn alloy consisted of α-Mg matrix and Mg2Sn. When the Ga content exceeded 1 wt %, a new phase containing Ga was formed. Survey on Joint Committee on Powder Diffraction Standards indicates that the new peaks correspond to the reflections of the Mg5Ga2 compound, which normally exists in Mg–Ga binary [15,35] and Mg–Hg–Ga ternary [18] alloys. This is consistent with the quantitative results measured by WDS in Table 3. The increasing density of the Mg5Ga2 peaks is expected with the increase in the Ga content of the alloys. Figure 3b shows the area fraction of the second phases in the investigated alloy calculated by ImageJ 1.47 (US NIH, Bethesda, MD, USA) [36]. It is also clear that the area fraction of Mg5Ga2 particles increased with increasing Ga content, while the area fraction of Mg2Sn particles decreased accordingly.

3.2. Polarization Tests

Figure 4 shows the potentiodynamic polarization curves of the as-cast Mg–5Sn–xGa alloys. The corrosion current density (icorr), corrosion potential (Ecorr), and the average corrosion rate (Ri) obtained from the potentiodynamic polarization curves are listed in Table 4. The icorr of the as-cast Mg–5Sn–xGa alloys in 3.5 wt % NaCl solution increase in the order of Mg–5Sn–3Ga, Mg–5Sn–2Ga, Mg–5Sn–0.5Ga, Mg–5Sn–1Ga, and Mg–5Sn. The lowest corrosion current density and corrosion potential are 2.79 × 10−2 mA/cm2 and −1.684 V for Mg–5Sn–3Ga alloy, respectively.
It is accepted that the corrosion of Mg-based alloys is generally caused by the cathodic reaction of hydrogen evolution. The anodic reaction of Mg dissolution can be described as [37,38]:
Anodic reaction: Mg → Mg+ + e
Mg+ + H2O → Mg2+ + OH + ½H2
Cathodic reaction: 2H2O + 2e → H2 + 2OH
Ga is reported to have relatively high hydrogen overpotentials [15]. Alloys with Ga are thus anticipated to inhibit the cathodic reaction of Equation (6). The cathodic branches of the polarization curves show that the cathodic current density decreases with increasing Ga content, demonstrating that Ga indeed delays cathodic reaction and thus reduces corrosion rate.
Figure 5a shows the representative anode branches of the polarization curves of the Mg–5Sn–xGa alloys in 0.01 M NaCl solution. Within the whole range of anode polarization, the relation between the passive current density (ipassive) of the alloys at any potential remains unchanged, so the relation between the current density of the alloys at an eigenvalue potential can be selected to describe the change of the trend of the passive current density of the alloys after adding Ga element. This method is favored by scholars in many studies. Ha et al. [39,40] used this method to study the change trend of anode passive current density at −1.7 V and cathode hydrogen evolution current density at −1.9 V of Mg–5Sn–(1–4 wt %)Zn alloy system. Similarly, Kim et al. [41] studied the polarization curve of Mg–8Sn–1Zn alloy with this method. In order to explore the role that Ga played in the anodic passive layer, Figure 5b compares the passive current density values for the alloys of different Ga contents with the alloy without Ga addition. The ipassive values were measured at the anodic potentials of −1.65 V. Evidently, compared with the Mg–5Sn alloy, the ipassive values decreased after adding Ga element, among which the Mg–5Sn–0.5Ga alloy exhibited the lowest ipassive value. Decreased ipassive indicates enhanced passive film stability. As mentioned above, Mg5Ga2 phase will be formed when Ga addition exceeds 0.5 wt %, which belongs to the cathode phase and destroys the stability of passive film to some extent. Moreover, the passive film of magnesium alloy is extremely unstable and cannot protect the matrix, so the corrosion rate is mainly controlled by hydrogen evolution reaction of the cathode.
Another factor that also influences the corrosion rate is the microstructural features of an alloy [42,43,44]. With the increase in Ga element, the area fraction of Mg2Sn particles monotonically decreases, while the opposite trend is the case for the Mg5Ga2, as shown in Figure 2 and Figure 3. Liu et al. [16] reported that both the hydrogen evolution rate and corrosion potential decreased with decreasing volume fraction of the Mg2Sn particles, which is consistent with the experimental results in this study.

3.3. The Immersion Tests

Figure 6 shows the average corrosion rates of the alloys with continuously increasing Ga content calculated by Equation (2). In essence, the variation trend of the corrosion rate obtained by immersion test is in accord with the potentiodynamic polarization results. The lowest weight loss rate is 1.15 ± 0.1 mm/y for the Mg–5Sn–3Ga alloy. This confirms that the addition of Ga improves the corrosion resistance of Mg–5Sn alloy.
After immersion at 298 K for 6 h, the corrosion initiation sites were observed using SEM and EDS. Figure 7 presents the representative BSE micrographs of three alloys (Mg–5Sn, Mg–5Sn–0.5Ga, and Mg–5Sn–3Ga) and the corresponding EDS spectra of the marked areas. Figure 7a,b reveals that the Mg2Sn phase was not covered with corrosion films, and cracks were formed in the vicinity of Mg2Sn phase. Combining with the EDS analysis of points A and B (Figure 7d,e), it is inferred that corrosion began in the magnesium matrix around the Mg2Sn phase. Moreover, the adjacent distribution of the two types of phases provides the possibility for analyzing the initial corrosion location. In the Mg–5Sn–3Ga alloy (Figure 7c), the phase at point C is rich in Ga element compared with its neighboring phase (marked by point D), suggesting that points C and D are Mg5Ga2 phase and Mg2Sn phase, respectively. Also shown in Figure 7c is that the surface film on Mg2Sn phase was broken, while this was not the case for the film on Mg5Ga2 phase. Mg2Sn phase was detached from the matrix after immersion for 6 h. All the aforementioned observations indicate that Mg2Sn phase, rather than the Mg5Ga2 phase, provided the sites to initiate corrosion. Moreover, compared with the larger Mg2Sn phase, eutectic Mg5Ga2 phase is deemed to stay more firmly in the alloy matrix. Therefore, with the increase in Ga content, the increasing area fraction of Mg5Ga2 further improved the corrosion resistance of the alloys.
Figure 8 shows the evolution of the surface morphologies of the investigated alloys after immersing for different durations. The surfaces of the Mg–5Sn–xGa alloys are covered by a mixture of dark film and bright corrosion product. A number of deep corrosion pits are observed after immersion (Figure 8a). It is noticeable that the white corrosion products increase with the decrease in Ga content.
It is noted in Figure 8 that the Mg–5Sn–0.5Ga alloy was more seriously corroded than the Mg–5Sn–1Ga alloy, while the immersion tests produced an opposite result. The reason is that in the Mg–5Sn–0.5Ga alloy, there is no Ga-rich second phase, which has a marginal effect on initiating corrosion. In addition, Sn and Ga elements are more passive than Mg (the standard potentials of Mg, Sn, and Ga are −2.36 V, −0.14 V, and −0.55 V, respectively) [45]. The dissolved Ga element was expected to increase the potential of α-Mg, reducing the potential difference between Mg2Sn and the matrix. When the Ga content exceeded 0.5 wt %, Mg5Ga2 was formed and acted as the cathode phase to accelerate the corrosion rate.
Based on the above analysis, at the initial stage of corrosion, the initiation site of Mg–5Sn–0.5Ga alloy is likely to cause corrosion. However, the corrosion initiation sites of Mg–5Sn–1Ga multiply with immersion time, promoting further corrosion. Therefore, in the case of immersion test, the Mg–5Sn–0.5Ga showed superior corrosion resistance than the Mg–5Sn–1Ga alloy.
Precipitation of Mg(OH)2, as the main corrosion product on the surface, occurs when Mg2+ from anodic dissolution meets OH from water reduction [37]. The XRD patterns (Figure 9) of the investigated alloys after immersion for 24 h evidence the presence of Mg(OH)2 on the surfaces, and the peak intensities of Mg(OH)2 reflections decrease with increasing Ga content. This indicates that the corrosion resistance of the Mg–5Sn–xGa alloys was improved by the addition of Ga. As the addition amount of Ga was very small, the corrosion products containing Ga were not detected by XRD.
Figure 10 shows the BSE micrographs of the Mg–5Sn–xGa alloys in cross-section after immersion in 3.5 wt % NaCl solution for 72 h. The samples have good uniformity. After many experiments, it was found that the corrosion depth of all three samples with the same composition showed little discrepancy. As given in Figure 10, corrosion started from the matrix near the second phases and penetrated the matrix along the area of the element-rich region. The thickness of the corrosion layer was the result of measuring the deepest corrosion in a sample. The inserts are an enlarged view of the deepest corrosion of the samples. Again, the thickness of the surface film decreases with increasing Ga content, indicating the positive effect of Ga on influencing the corrosion resistance of the alloys. Figure 10a reveals that the corrosion layer of the Mg–5Sn alloy was 99.1 μm in thickness. The mismatch between the matrix and corrosion product would induce local mechanical stress. Such stress increases with the gradual increasing thickness of the film after immersion [46], and once it reaches a critical value, the surface film will break. The aggressive solution will penetrate the substrate surface through the broken membrane. The relatively complete surface film can protect the substrate to some extent. As a result, the pits grow along a vertical direction.
According to the immersion test, the Mg–5Sn–0.5Ga alloy is more corrosion-resistant than the Mg–5Sn–1Ga alloy. However, this is not consistent with morphologic observations made in the cross-section. The surface film of the Mg–5Sn–0.5Ga alloy (54.7 μm) is thicker than that of the Mg–5Sn–1Ga (38.8 μm) alloy. The calculated mass loss estimates the average corrosion rate in a whole immersion period, while the corrosion section reflects the local corrosion level. It is significant to see that local corrosion occurs around the second phase along the interdendritic region to the interior of the matrix in Mg–5Sn alloy (Figure 10a). The only second phase in the Mg–5Sn–0.5Ga alloy is Mg2Sn; hence, the two alloys should behave following the same corrosion mode. However, the oxidation state of Ga is higher than Mg in the Mg(OH)2 lattice, which locally induces positive charge in the brucite lattice. Such an increase in positive charge is apt to be balanced by the interaction between Ga element and the harmful Cl anions, slowing down the penetration of Cl into the hydroxide layer [15].
To sum up, the second phases, Mg2Sn and Mg5Ga2, exhibit more positive corrosion potentials than the α-Mg matrix [42]. They act as the cathode, and α-Mg the anode, resulting in galvanic corrosion in 3.5 wt % NaCl solution. It is worth noting that Mg5Ga2 phase has a volta potential difference (VPD) vs. matrix around +75 mV, which will cause marginal local corrosion if the immersion time is not long [19]. Therefore, the presence of Mg5Ga2 phase increases the area ratio between cathode and anode, which is not conducive to the corrosion resistance, but the local corrosion sensitivity does not increase. Nevertheless, a problem with Ga addition is the uneconomic cost of metallic gallium. Therefore, higher addition levels of Ga content were not performed in this study.

4. Conclusions

The main findings of this work are:
  • The microstructures of the Mg–5Sn–xGa alloys similarly present a typical dendritic morphology, regardless of the content of Ga. Ga refines the grain structure adequately. An average grain size of 155.9 ± 8.6 μm was obtained for the Mg–5Sn–3Ga alloy, recording a 48.3% reduction in grain size as compared to the Mg–5Sn alloy;
  • When 0.5 wt % Ga is added to Mg–5Sn alloy, no new phase is formed. When Ga content exceeds 0.5 wt %, a new eutectic phase, identified as Mg5Ga2, is found in the interdendritic region. Increasing the Ga content decreases the area fraction of Mg2Sn phase, while gradually increasing that of Mg5Ga2 phase;
  • Immersion test in 3.5 wt % NaCl solution shows that the corrosion of the studied Mg–Sn–Ga alloys is initiated in a pitting mode, which rapidly propagates with intense H2 evolution on the surface. With the addition of 3 wt % Ga, the overall corrosion rate is decreased significantly. Despite the fact that corrosion is also initiated in a pitting mode, the number of pits is reduced, and the propagation rate is decelerated. The potentiodynamic polarization tests are basically in accordance with the immersion tests.

Author Contributions

Conceptualization, J.R., E.G., X.W., and Z.C.; Formal analysis, J.R.; Funding acquisition, E.G., H.K., Z.C., and T.W.; Investigation, J.R.; Methodology, X.W.; Project administration, X.W.; Resources, E.G., X.W., H.K., and T.W.; Supervision, H.K., Z.C., and T.W.; Writing—original draft, J.R.; Writing—review and editing, J.R., X.W., and Z.C.

Funding

This research was funded by the National Key Research and Development Program of China [grant No. 2016YFB0701203]; the National Natural Science Foundation of China [Grant Nos. 51525401, 51601028, 51774065, 51974058, 51728101, and 51690163]; and the fundamental research funds for the central universities [Nos. DUT18RC(3)042, DUT17RC(3)108].

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ghali, E.; Dietzel, W.; Kainer, K. Testing of General and Localized Corrosion of Magnesium Alloys: A Critical Review. J. Mater. Eng. Perform. 2004, 13, 517–529. [Google Scholar] [CrossRef]
  2. Kang, D.H.; Park, S.S.; Kim, N.J. Development of Creep Resistant Die Cast Mg–Sn–Al–Si Alloy. Mater. Sci. Eng. A 2005, 413–414, 555–560. [Google Scholar] [CrossRef]
  3. Luo, A.A. Recent Magnesium Alloy Development for Elevated Temperature Applications. Int. Mater. Rev. 2013, 49, 13–30. [Google Scholar] [CrossRef]
  4. Song, G.; Atrens, A. Understanding Magnesium Corrosion—A Framework for Improved Alloy Performance. Adv. Eng. Mater. 2003, 5, 837–858. [Google Scholar] [CrossRef]
  5. Mendis, C.L.; Bettles, C.J.; Gibson, M.A.; Hutchinson, C.R. An Enhanced Age Hardening Response in Mg–Sn Based Alloys Containing Zn. Mater. Sci. Eng. A 2006, 435–436, 163–171. [Google Scholar] [CrossRef]
  6. Cheng, W.; Zhang, Y.; Ma, S.; Arthanari, S.; Cui, Z.; Wang, H.; Wang, L. Tensile Properties and Corrosion Behavior of Extruded Low-Alloyed Mg–1Sn–1Al–1Zn Alloy: The Influence of Microstructural Characteristics. Materials 2018, 11, 1157. [Google Scholar] [CrossRef]
  7. Sasaki, T.T.; Oh-ishi, K.; Ohkubo, T.; Hono, K. Enhanced Age Hardening Response by the Addition of Zn in Mg–Sn Alloys. Scr. Mater. 2006, 55, 251–254. [Google Scholar] [CrossRef]
  8. Liu, H.; Chen, Y.; Tang, Y.; Wei, S.; Niu, G. The Microstructure, Tensile Properties, and Creep Behavior of as-Cast Mg–(1–10)%Sn Alloys. J. Alloys Compd. 2007, 440, 122–126. [Google Scholar] [CrossRef]
  9. Huang, X.; Han, G.; Huang, W. T6 Treatment and its Effects on Corrosion Properties of an Mg–4Sn–4Zn–2Al Alloy. Materials 2018, 11, 628. [Google Scholar] [CrossRef] [PubMed]
  10. Zhao, Z.; Hua, Z.; Li, D.; Wei, D.; Liu, Y.; Wang, J.; Luo, D.; Wang, H. Effect of Sn Content on the Microstructure, Mechanical Properties and Corrosion Behavior of Biodegradable Mg–X (1, 3 and 5 wt.%) Sn–1Zn–0.5Ca Alloys. Materials 2018, 11, 2378. [Google Scholar] [CrossRef] [PubMed]
  11. Park, K.C.; Kim, B.H.; Kimura, H.; Park, Y.H.; Park, I.M. Microstructure and Corrosion Properties of Mg–xSn–5Al–1Zn (x = 0, 1, 5 and 9 mass%) Alloys. Mater. Trans. 2010, 51, 472–476. [Google Scholar] [CrossRef]
  12. Song, G. Effect of Tin Modification on Corrosion of Am70 Magnesium Alloy. Corros. Sci. 2009, 51, 2063–2070. [Google Scholar] [CrossRef]
  13. Ha, H.; Kang, J.; Yang, J.; Yim, C.D.; You, B.S. Role of Sn in Corrosion and Passive Behavior of Extruded Mg-5 wt % Sn Alloy. Corros. Sci. 2016, 102, 355–362. [Google Scholar] [CrossRef]
  14. Ha, H.; Kang, J.; Kim, S.G.; Kim, B.; Park, S.S.; Yim, C.D.; You, B.S. Influences of Metallurgical Factors on the Corrosion Behaviour of Extruded Binary Mg-Sn Alloys. Corros. Sci. 2014, 82, 369–379. [Google Scholar] [CrossRef]
  15. Kubásek, J.; Vojtěch, D.; Lipov, J.; Ruml, T. Structure, Mechanical Properties, Corrosion Behavior and Cytotoxicity of Biodegradable Mg–X (X = Sn, Ga, in) Alloys. Mater. Sci. Eng. C 2013, 33, 2421–2432. [Google Scholar] [CrossRef] [PubMed]
  16. Liu, X.; Shan, D.; Song, Y.; Chen, R.; Han, E. Influences of the Quantity of Mg2Sn Phase on the Corrosion Behavior of Mg–7Sn Magnesium Alloy. Electrochim. Acta 2011, 56, 2582–2590. [Google Scholar] [CrossRef]
  17. Feng, Y.; Wang, R.; Peng, C.; Wang, N. Influence of Mg21Ga5Hg3 Compound on Electrochemical Properties of Mg-5%Hg-5%Ga Alloy. Trans. Nonferr. Met. Soc. China 2009, 19, 154–159. [Google Scholar] [CrossRef]
  18. Feng, Y.; Wang, R.-c.; Peng, C.-q.; Tang, H.-p.; Liu, H.-y. Influence of Mg5Ga2 Compound on Microstructures and Electrochemical Properties of Mg-5%Hg-22%Ga Alloy. Prog. Nat. Sci. 2011, 21, 73–79. [Google Scholar] [CrossRef]
  19. Mohedano, M.; Blawert, C.; Yasakau, K.A.; Arrabal, R.; Matykina, E.; Mingo, B.; Scharnagl, N.; Ferreira, M.G.S.; Zheludkevich, M.L. Characterization and Corrosion Behavior of Binary Mg-Ga Alloys. Mater. Charact. 2017, 128, 85–99. [Google Scholar] [CrossRef]
  20. Shi, Z.; Liu, M.; Atrens, A. Measurement of the Corrosion Rate of Magnesium Alloys Using Tafel Extrapolation. Corros. Sci. 2010, 52, 579–588. [Google Scholar] [CrossRef]
  21. Cai, S.; Lei, T.; Li, N.; Feng, F. Effects of Zn On Microstructure, Mechanical Properties and Corrosion Behavior of Mg–Zn Alloys. Mater. Sci. Eng. C 2012, 32, 2570–2577. [Google Scholar] [CrossRef]
  22. Gu, X.; Zheng, Y.; Zhong, S.; Xi, T.; Wang, J.; Wang, W. Corrosion of, and Cellular Responses to Mg–Zn–Ca Bulk Metallic Glasses. Biomaterials 2010, 31, 1093–1103. [Google Scholar] [CrossRef] [PubMed]
  23. Ha, H.; Kang, J.; Yang, J.; Yim, C.D.; You, B.S. Limitations in the Use of the Potentiodynamic Polarisation Curves to Investigate the Effect of Zn On the Corrosion Behaviour of as-Extruded Mg–Zn Binary Alloy. Corros. Sci. 2013, 75, 426–433. [Google Scholar] [CrossRef]
  24. Yang, F.; Kang, H.; Guo, E.; Li, R.; Chen, Z.; Zeng, Y.; Wang, T. The Role of Nickel in Mechanical Performance and Corrosion Behaviour of Nickel-Aluminium Bronze in 3.5 Wt.% Nacl Solution. Corros. Sci. 2018, 139, 333–345. [Google Scholar] [CrossRef]
  25. Jayalakshmi, S.; Sankaranarayanan, S.; Koh, S.P.X.; Gupta, M. Effect of Ag and Cu Trace Additions on the Microstructural Evolution and Mechanical Properties of Mg–5Sn Alloy. J. Alloys Compd. 2013, 565, 56–65. [Google Scholar] [CrossRef]
  26. Lee, Y.C.; Dahle, A.K.; StJohn, D.H. The Role of Solute in Grain Refinement of Magnesium. Metall. Mater. Trans. A 2000, 31, 2895–2906. [Google Scholar] [CrossRef]
  27. Easton, M.; StJohn, D. Grain Refinement of Aluminum Alloys: Part II. Confirmation of, and a Mechanism for, the Solute Paradigm. Metall. Mater. Trans. A 1999, 30, 1625–1633. [Google Scholar] [CrossRef]
  28. Easton, M.; StJohn, D. Grain Refinement of Aluminum Alloys: Part I. The Nucleant and Solute Paradigms—A Review of the Literature. Metall. Mater. Trans. A 1999, 30, 1613–1623. [Google Scholar] [CrossRef]
  29. Fu, J.W.; Yang, Y.S. Formation of the Solidified Microstructure in Mg–Sn Binary Alloy. J. Cryst. Growth 2011, 322, 84–90. [Google Scholar] [CrossRef]
  30. Liu, H.; Zhao, G.; Liu, C.; Zuo, L. Effects of Different Tempers On Precipitation Hardening of 6000 Series Aluminium Alloys. Trans. Nonferr. Met. Soc. China 2007, 17, 122–127. [Google Scholar] [CrossRef]
  31. Liu, C.; Zhu, X.; Zhou, H. Magnesium Alloy Phase Atlas; Central South University Press: Changsha, China, 2006; p. 23. [Google Scholar]
  32. Zhao, C.; Pan, F.; Zhao, S.; Pan, H.; Song, K.; Tang, A. Preparation and Characterization of as-Extruded Mg–Sn Alloys for Orthopedic Applications. Mater. Des. 2015, 70, 60–67. [Google Scholar] [CrossRef]
  33. Hamu, G.B.; Eliezer, D.; Wagner, L. The Relation Between Severe Plastic Deformation Microstructure and Corrosion Behavior of Az31 Magnesium Alloy. J. Alloys Compd. 2009, 468, 222–229. [Google Scholar] [CrossRef]
  34. Liao, J.; Hotta, M.; Yamamoto, N. Corrosion Behavior of Fine-Grained Az31B Magnesium Alloy. Corros. Sci. 2012, 61, 208–214. [Google Scholar] [CrossRef]
  35. Liu, H.; Qi, G.; Ma, Y.; Hao, H.; Jia, F.; Ji, S.; Zhang, H.; Zhang, X. Microstructure and Mechanical Property of Mg–2.0Ga Alloys. Mater. Sci. Eng. A 2009, 526, 7–10. [Google Scholar] [CrossRef]
  36. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  37. Zhen, Z.; Xi, T.; Zheng, Y.; Li, L.; Li, L. In Vitro Study on Mg–Sn–Mn Alloy as Biodegradable Metals. J. Mater. Sci. Technol. 2014, 30, 675–685. [Google Scholar] [CrossRef]
  38. Song, G.; Unocic, K.A. The Anodic Surface Film and Hydrogen Evolution on Mg. Corros. Sci. 2015, 98, 758–765. [Google Scholar] [CrossRef]
  39. Ha, H.; Kang, J.; Yim, C.D.; Yang, J.; You, B.S. Role of Hydrogen Evolution Rate in Determining the Corrosion Rate of Extruded Mg–5Sn–(1–4 Wt.%) Zn Alloys. Corros. Sci. 2014, 89, 275–285. [Google Scholar] [CrossRef]
  40. Ha, H.; Kim, H.J.; Baek, S.; Kim, B.; Sohn, S.; Shin, H.; Jeong, H.Y.; Park, S.H.; Yim, C.D.; You, B.S.; et al. Improved Corrosion Resistance of Extruded Mg–8Sn–1Zn–1Al Alloy by Microalloying with Mn. Scr. Mater. 2015, 109, 38–43. [Google Scholar] [CrossRef]
  41. Kim, H.J.; Kim, B.; Baek, S.; Sohn, S.; Shin, H.; Jeong, H.Y.; Yim, C.D.; You, B.S.; Ha, H.; Park, S.S. Influence of Alloyed Al On the Microstructure and Corrosion Properties of Extruded Mg–8Sn–1Zn Alloys. Corros. Sci. 2015, 95, 133–142. [Google Scholar] [CrossRef]
  42. Zhao, C.; Pan, F.; Zhao, S.; Pan, H.; Song, K.; Tang, A. Microstructure, Corrosion Behavior and Cytotoxicity of Biodegradable Mg–Sn Implant Alloys Prepared by Sub-Rapid Solidification. Mater. Sci. Eng. C 2015, 54, 245–251. [Google Scholar] [CrossRef] [PubMed]
  43. Rad, H.R.B.; Idris, M.H.; Kadir, M.R.A.; Farahany, S. Microstructure Analysis and Corrosion Behavior of Biodegradable Mg–Ca Implant Alloys. Mater. Des. 2012, 33, 88–97. [Google Scholar] [CrossRef]
  44. Yim, C.D.; Yang, J.; Woo, S.K.; Ha, H.; You, B.S. The Effects of Microstructural Factors on the Corrosion Behaviour of Mg–5Sn–X Zn (X = 1, 3 wt%) Extrusions. Corros. Sci. 2015, 90, 597–605. [Google Scholar] [CrossRef]
  45. Bratsch, S.G. Standard Electrode Potentials and Temperature Coefficients in Water at 298.15 K. J. Phys. Chem. Ref. Data 1989, 18, 1–21. [Google Scholar] [CrossRef]
  46. Chen, J.; Wang, J.; Han, E.; Ke, W. In Situ Observation of Pit Initiation of Passivated Az91 Magnesium Alloy. Corros. Sci. 2009, 51, 477–484. [Google Scholar] [CrossRef]
Figure 1. OM micrographs of the Mg–5Sn–xGa alloys: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, (e) Mg–5Sn–3Ga, and (f) backscattered electron (BSE) micrograph of the Mg–5Sn–0.5Ga alloy.
Figure 1. OM micrographs of the Mg–5Sn–xGa alloys: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, (e) Mg–5Sn–3Ga, and (f) backscattered electron (BSE) micrograph of the Mg–5Sn–0.5Ga alloy.
Materials 12 03686 g001

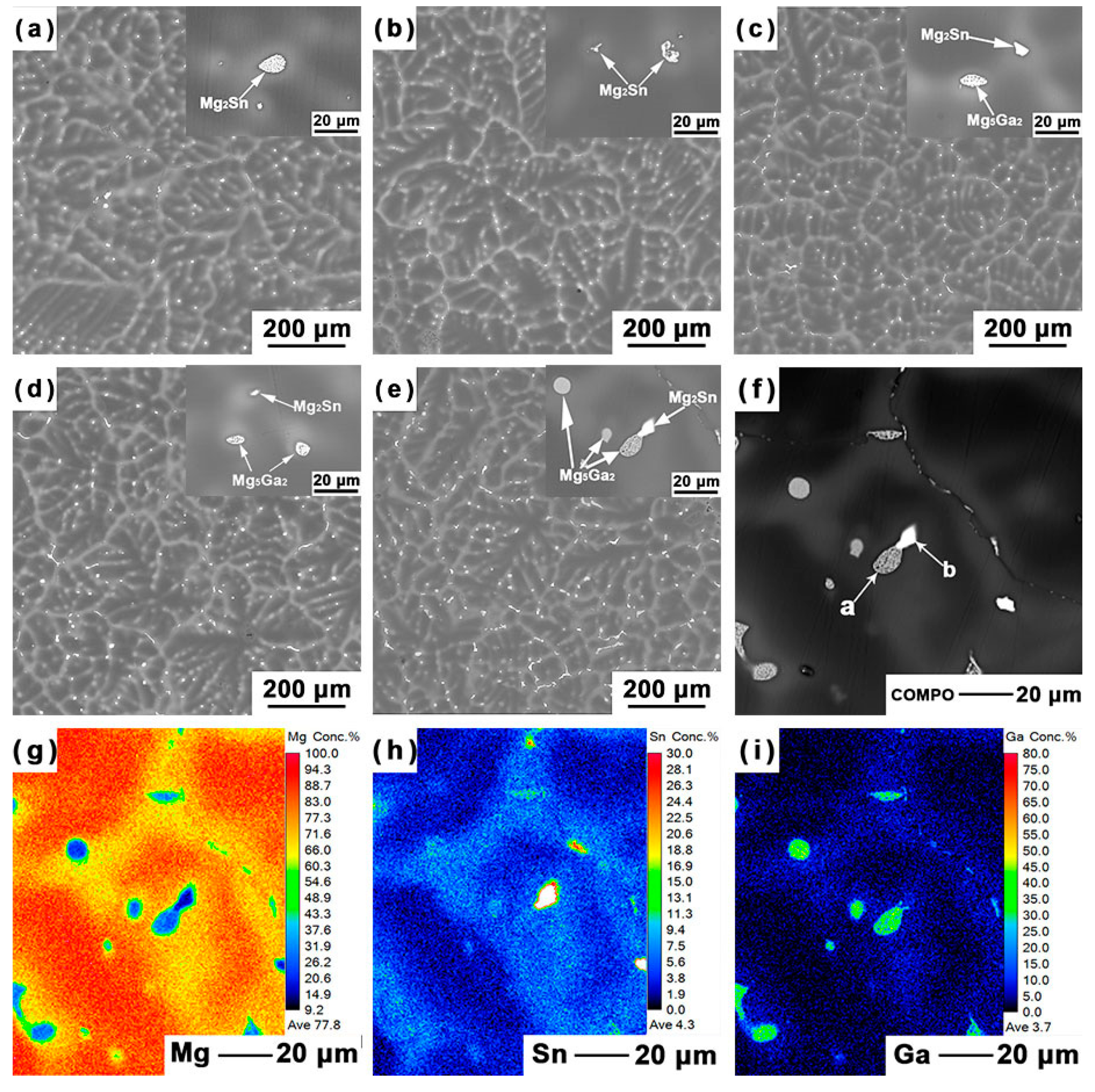

Figure 2. BSE micrographs of the Mg–5Sn–xGa alloys: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, (e) Mg–5Sn–3Ga. The inserts are zoom-in views showing the second phases. (fi) Elemental mapping of the Mg, Sn, and Ga in the Mg–5Sn–3Ga sample using electron microprobe analyzer (EPMA).
Figure 2. BSE micrographs of the Mg–5Sn–xGa alloys: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, (e) Mg–5Sn–3Ga. The inserts are zoom-in views showing the second phases. (fi) Elemental mapping of the Mg, Sn, and Ga in the Mg–5Sn–3Ga sample using electron microprobe analyzer (EPMA).
Materials 12 03686 g002

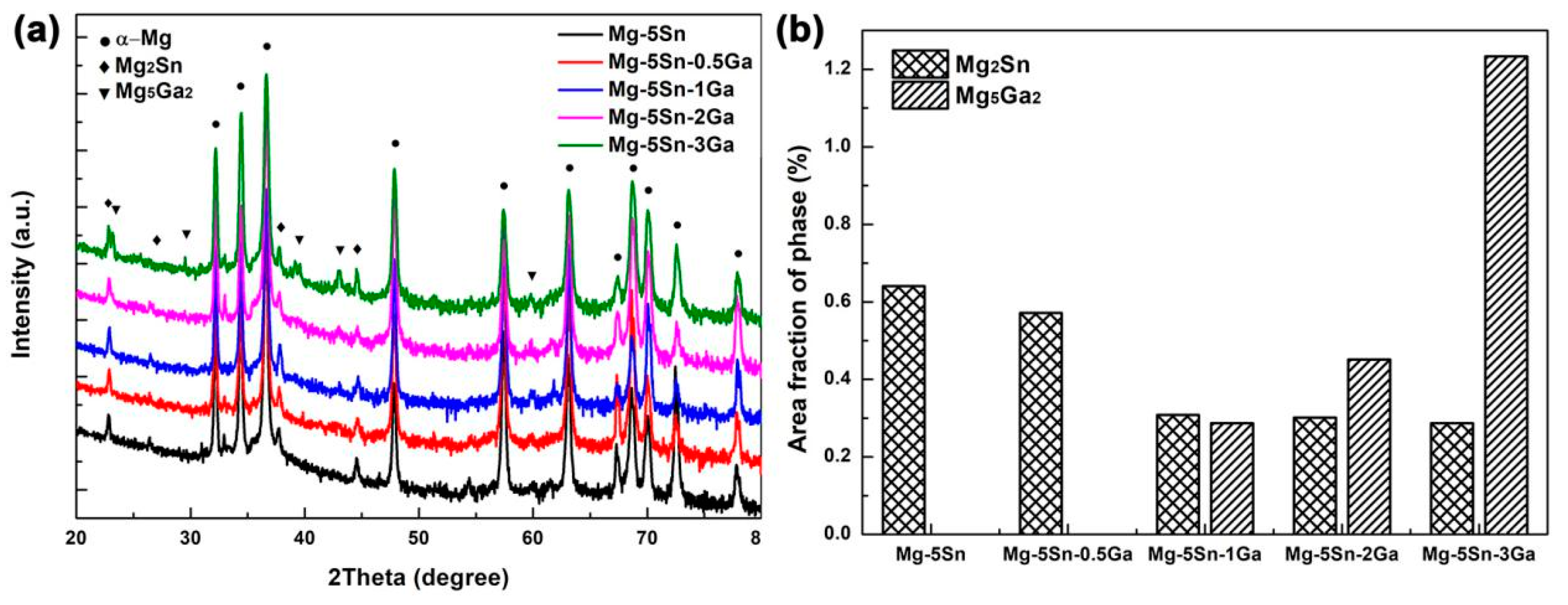

Figure 3. (a) X-ray diffraction (XRD) patterns of the Mg–5Sn–xGa alloys; (b) the area fraction of the second phases in the investigated alloy.
Figure 3. (a) X-ray diffraction (XRD) patterns of the Mg–5Sn–xGa alloys; (b) the area fraction of the second phases in the investigated alloy.
Materials 12 03686 g003

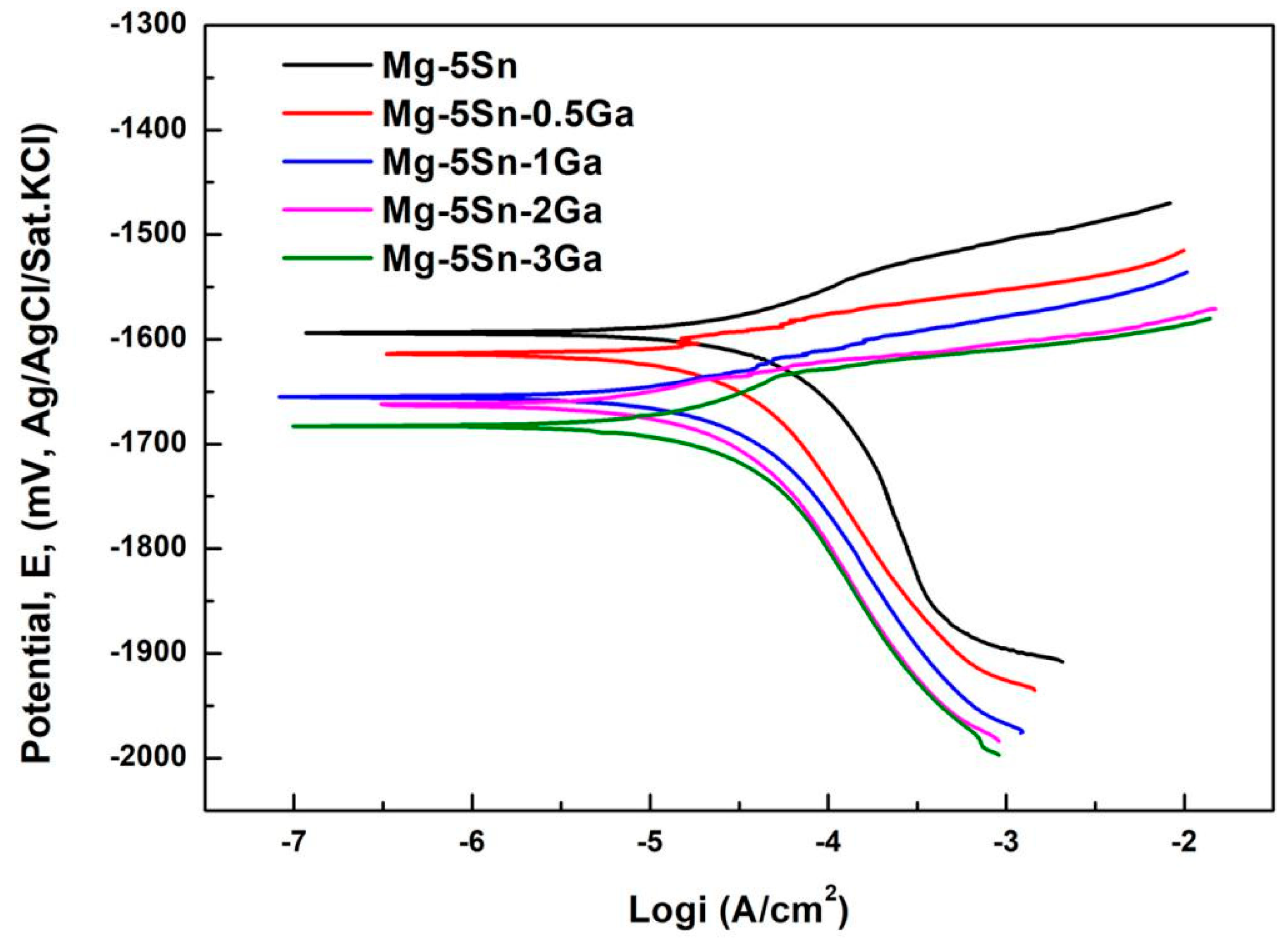

Figure 4. Polarization curves of the Mg–5Sn–xGa alloys in 3.5 wt % NaCl solution.
Figure 4. Polarization curves of the Mg–5Sn–xGa alloys in 3.5 wt % NaCl solution.
Materials 12 03686 g004
Figure 5. (a) The representative polarization curves of the Mg–5Sn–xGa alloys in 0.01 M NaCl solution. (b) Passive current density (ipassive) values measured at −1.65 V based on (a). The average and standard deviation were obtained from at least five measurements.
Figure 5. (a) The representative polarization curves of the Mg–5Sn–xGa alloys in 0.01 M NaCl solution. (b) Passive current density (ipassive) values measured at −1.65 V based on (a). The average and standard deviation were obtained from at least five measurements.
Materials 12 03686 g005

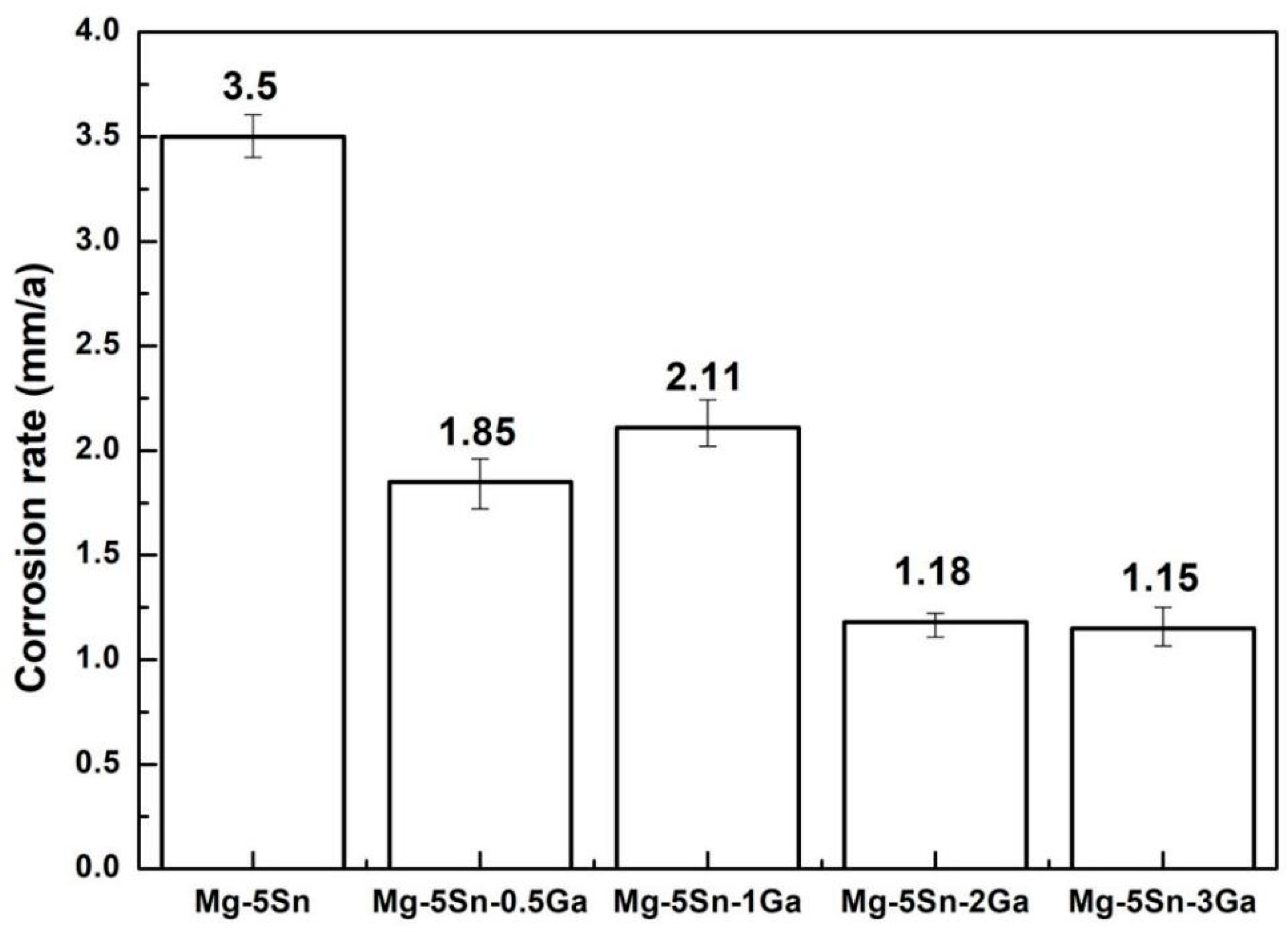

Figure 6. Average corrosion rate of the Mg–5Sn–xGa alloys after immersion in 3.5 wt % NaCl solution for 72 h.
Figure 6. Average corrosion rate of the Mg–5Sn–xGa alloys after immersion in 3.5 wt % NaCl solution for 72 h.
Materials 12 03686 g006
Figure 7. High magnification BSE micrographs showing the alloy surfaces after immersion in 3.5 wt % NaCl solution at 298 K for 6 h: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–3Ga; (dg) energy-dispersive X-ray spectroscopy (EDS) spectra of the points as indicated by the arrows in the BSE micrographs.
Figure 7. High magnification BSE micrographs showing the alloy surfaces after immersion in 3.5 wt % NaCl solution at 298 K for 6 h: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–3Ga; (dg) energy-dispersive X-ray spectroscopy (EDS) spectra of the points as indicated by the arrows in the BSE micrographs.
Materials 12 03686 g007

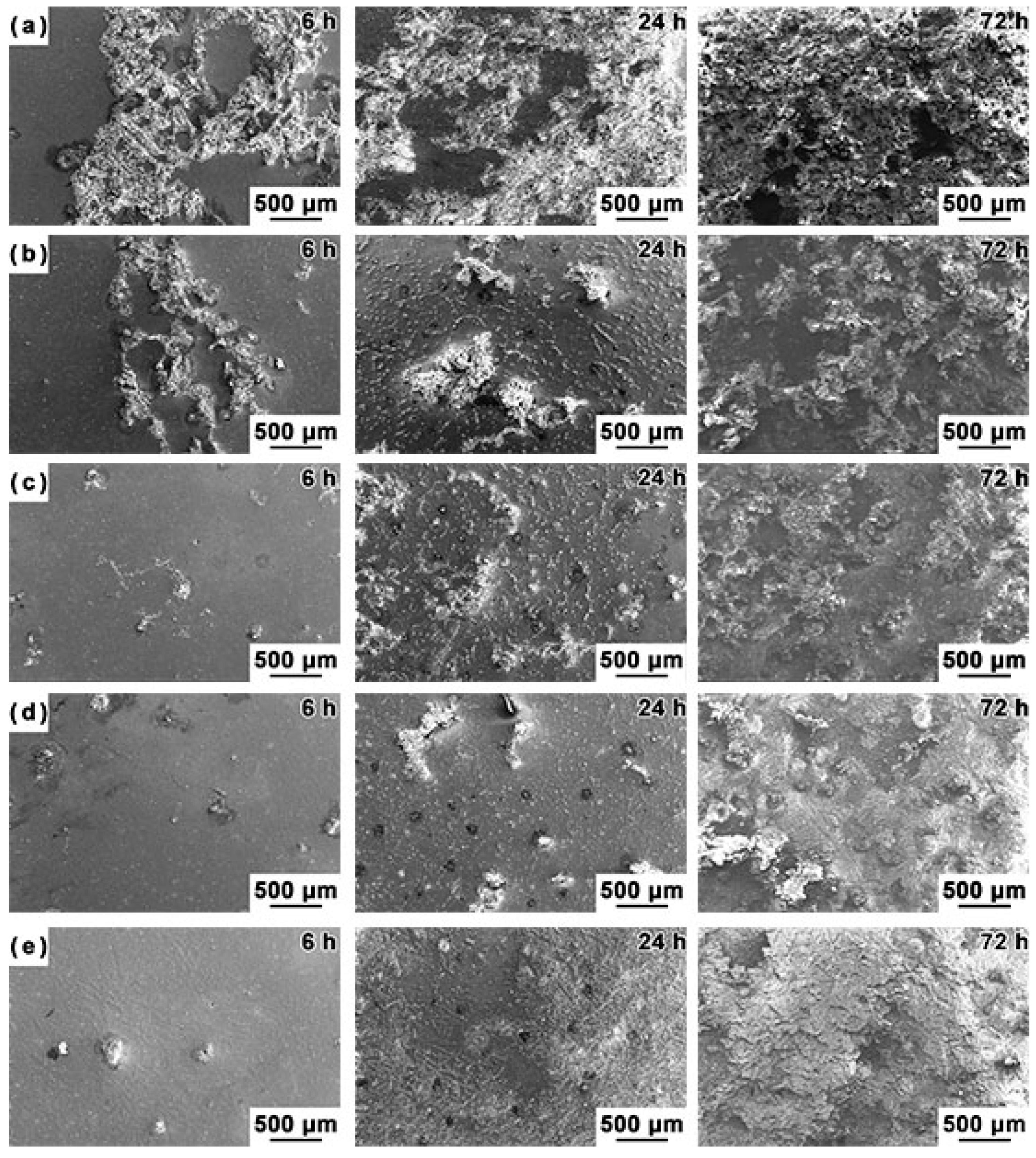

Figure 8. The evolution of the surface morphology of the investigated alloys after soaking for different durations in 3.5 wt % NaCl solution: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, and (e) Mg–5Sn–3Ga, respectively.
Figure 8. The evolution of the surface morphology of the investigated alloys after soaking for different durations in 3.5 wt % NaCl solution: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, and (e) Mg–5Sn–3Ga, respectively.
Materials 12 03686 g008

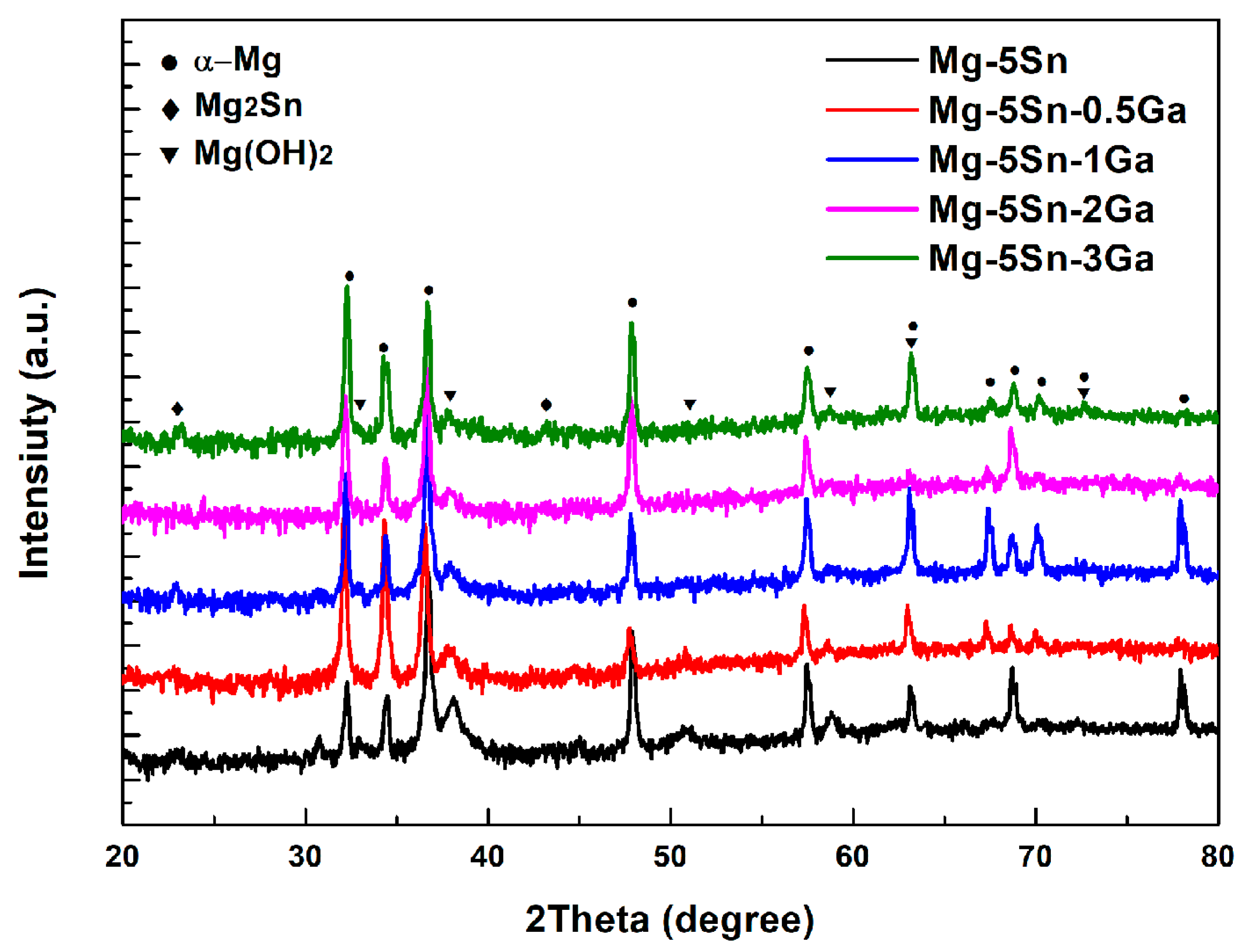

Figure 9. XRD patterns of the Mg–5Sn–xGa alloys after immersion in 3.5 wt % NaCl solution for 24 h.
Figure 9. XRD patterns of the Mg–5Sn–xGa alloys after immersion in 3.5 wt % NaCl solution for 24 h.
Materials 12 03686 g009

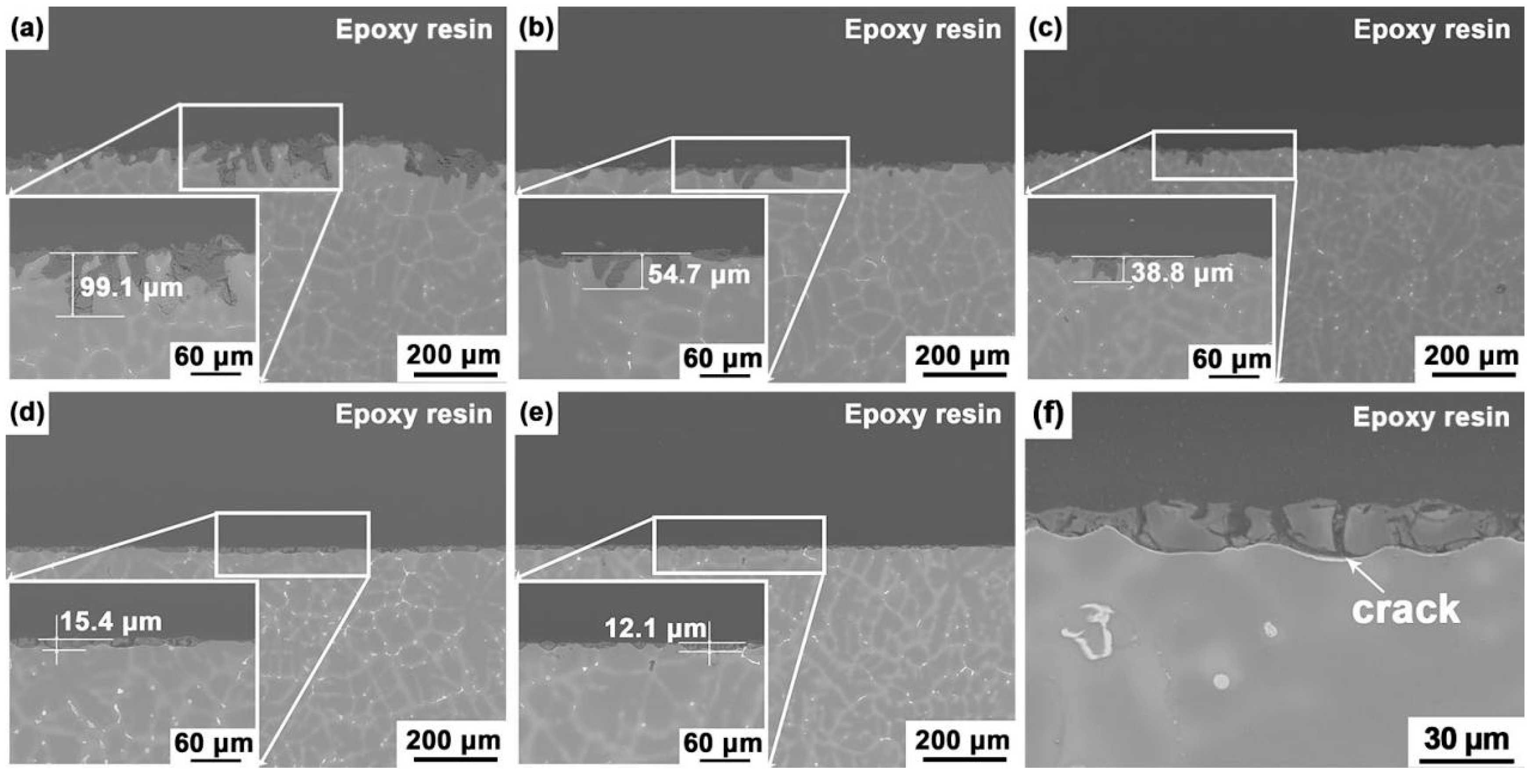

Figure 10. Cross-section morphologies of the Mg–5Sn–xGa alloys after immersion in 3.5 wt % NaCl solution for 72 h: (a) Mg–5Sn, (b) Mg–5Sn–0.5Ga, (c) Mg–5Sn–1Ga, (d) Mg–5Sn–2Ga, (e) Mg–5Sn–3Ga; the inserts are high-magnification scanning electron microscope (SEM) micrographs of the alloys; (f) a typical SEM micrograph showing the cracks on the surface of the Mg–5Sn–3Ga alloy.
