Next Article in Journal
Mechanical Behaviour of Silicone Membranes Saturated with Short Strand, Loose Polyester Fibres for Prosthetic and Rehabilitative Surrogate Skin Applications
Previous Article in Journal
Randomized Controlled Clinical Trial of Nanostructured Carbonated Hydroxyapatite for Alveolar Bone Repair
Previous Article in Special Issue
The Effect of Shear Deformation on Permeability of 2.5D Woven Preform
Open AccessArticle

Interfacial Bonding and Abrasive Wear Behavior of Iron Matrix Composite Reinforced by Ceramic Particles

1
State Key Laboratory for Mechanical Behavior of Materials, Xi’an Jiaotong University, Xi’an 710049, China
2
Xi’an Microelectronic Technology Institute, Xi’an 710054, China
3
Guangdong Institute of Materials and Processing, Guangzhou 510650, China
4
Yancheng Jiuheng Industry & Trade Co., Ltd., Yancheng 224021, China
*
Author to whom correspondence should be addressed.
Materials 2019, 12(22), 3646; https://doi.org/10.3390/ma12223646
Received: 18 October 2019 / Revised: 1 November 2019 / Accepted: 1 November 2019 / Published: 6 November 2019

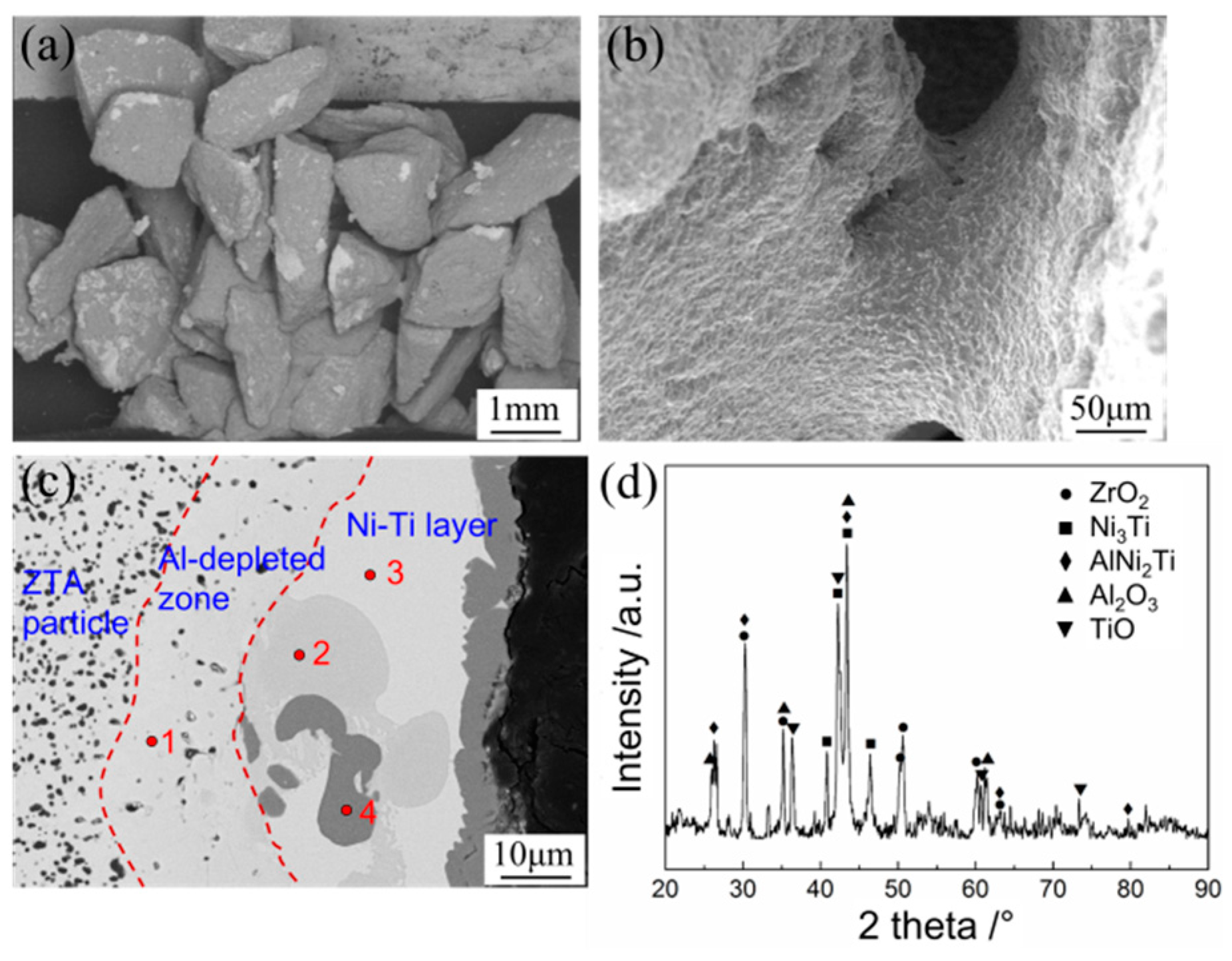

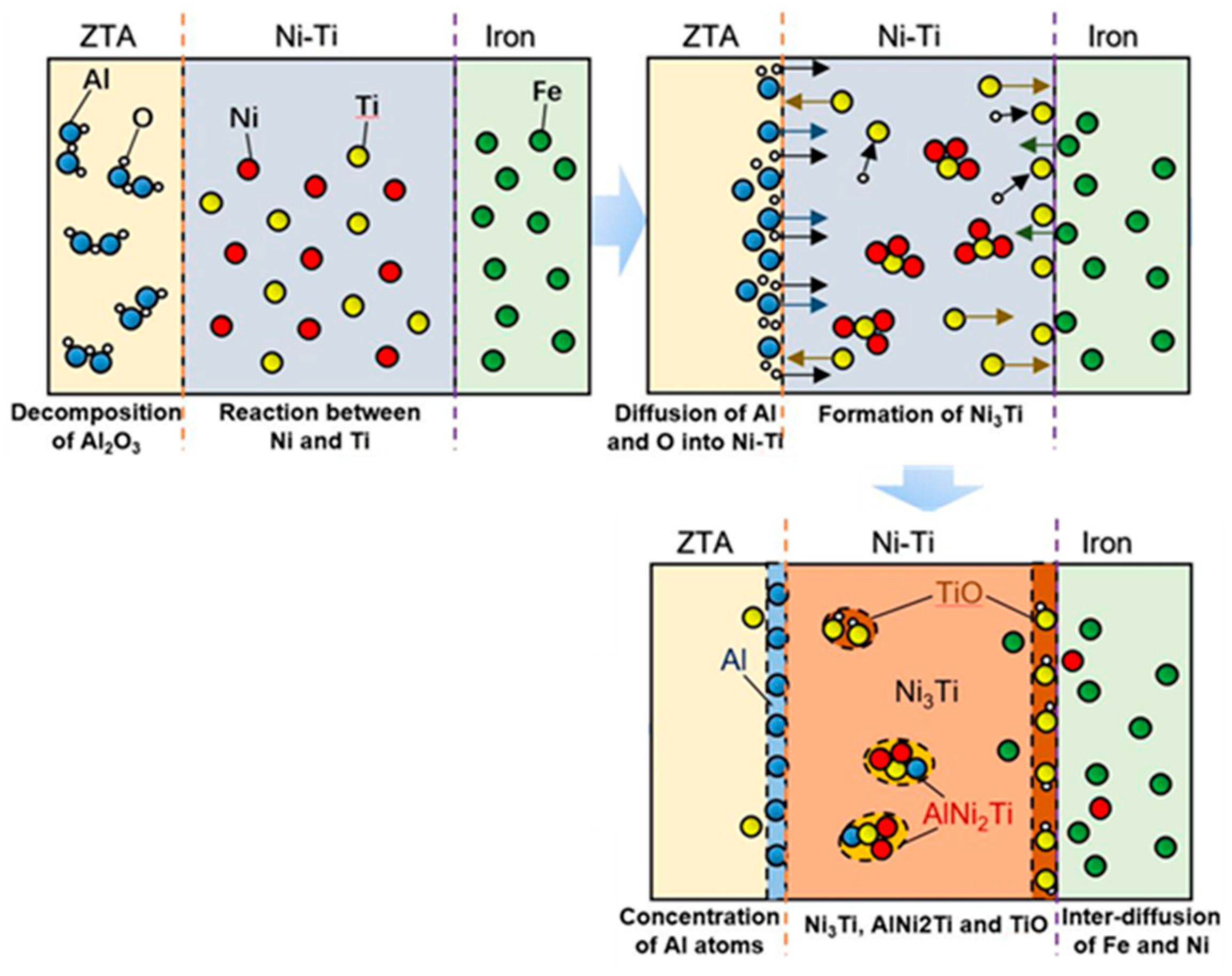

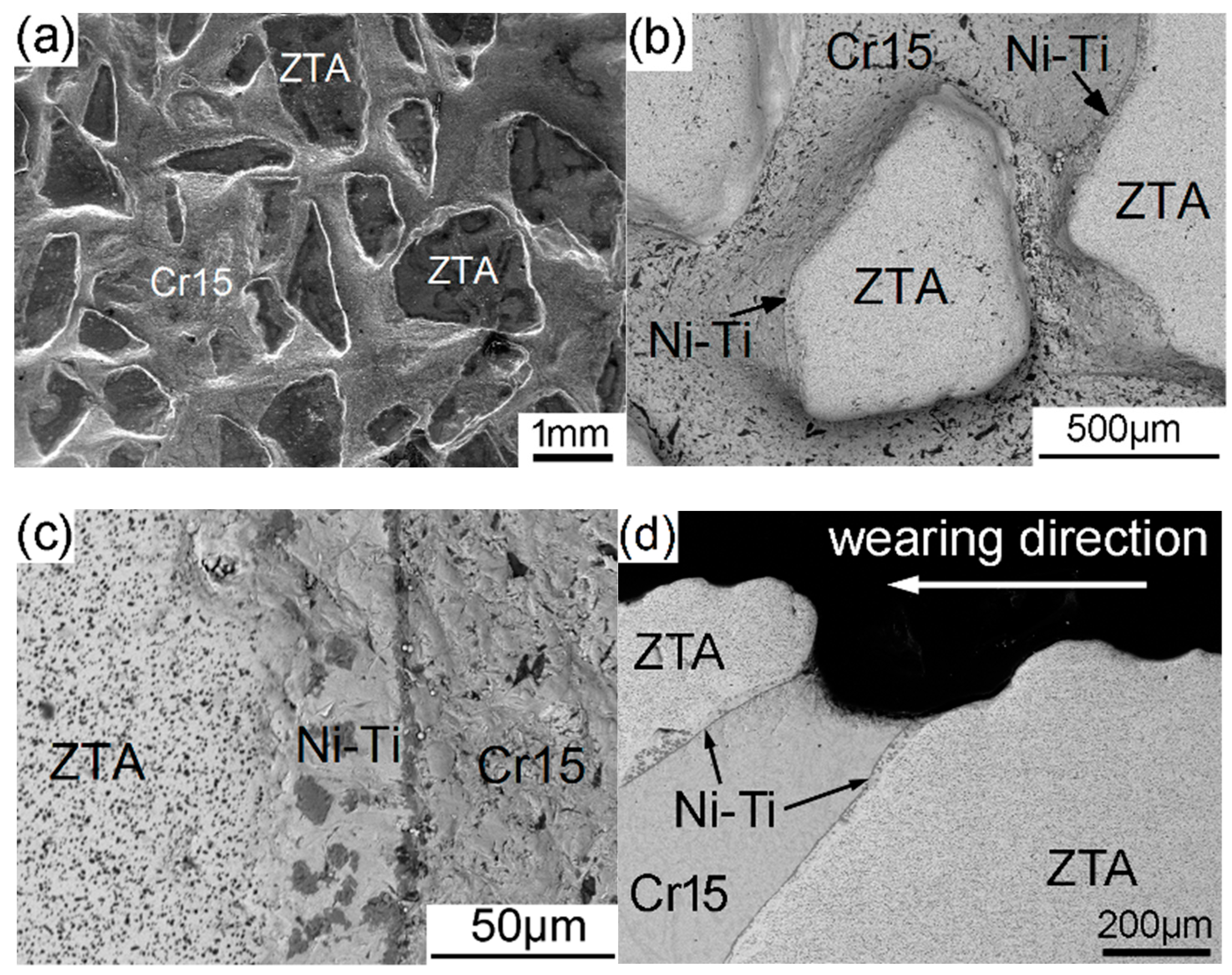

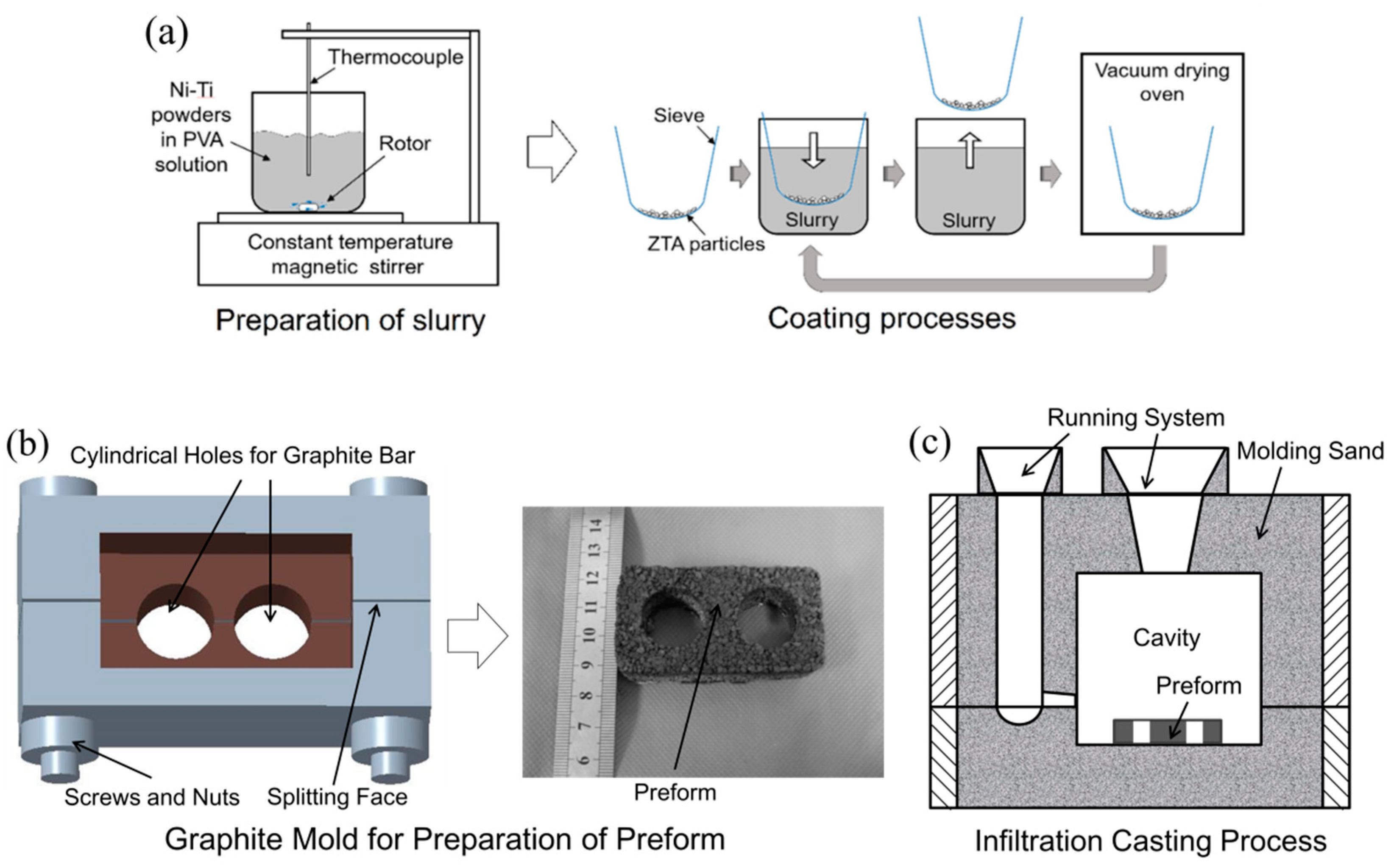

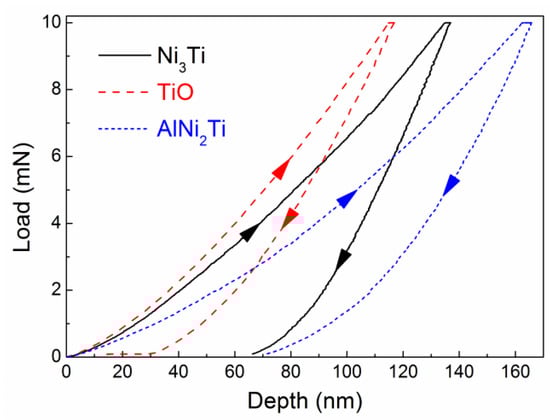

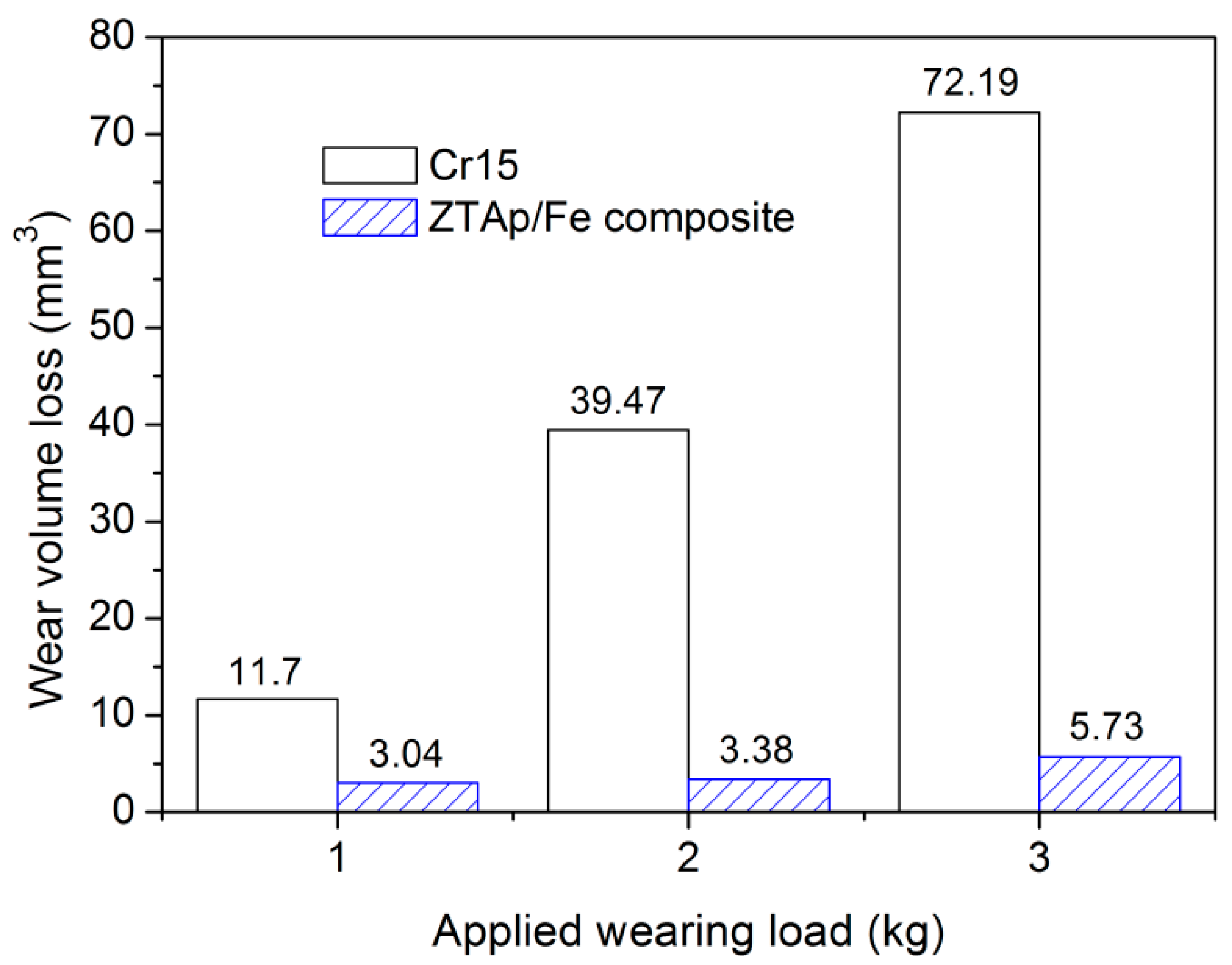

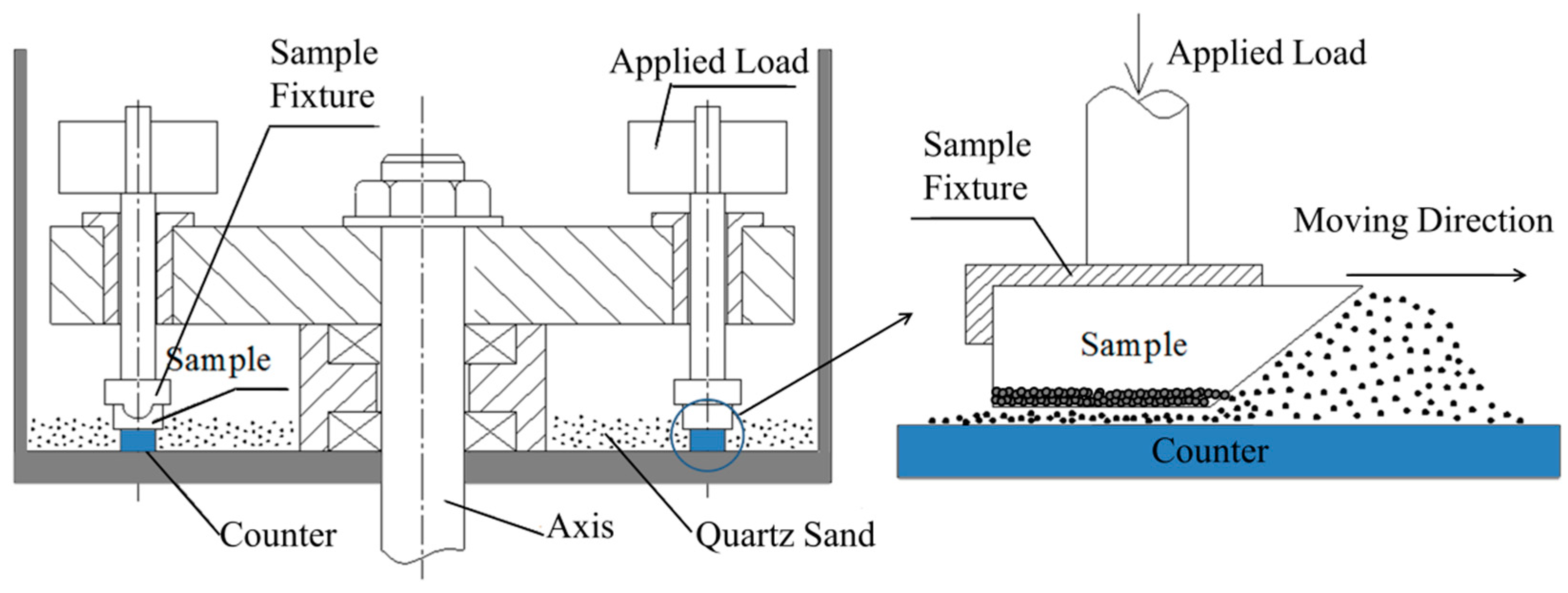

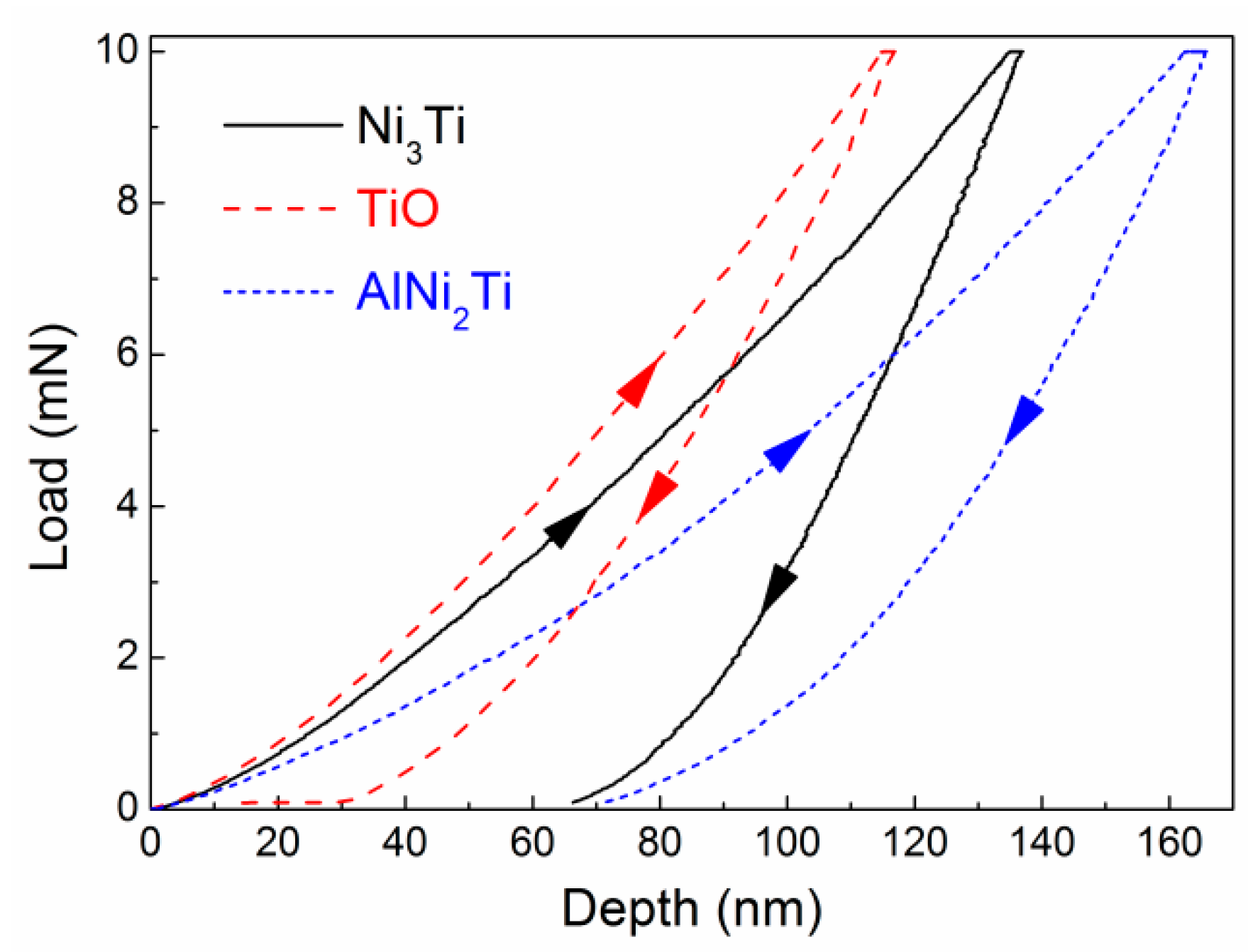

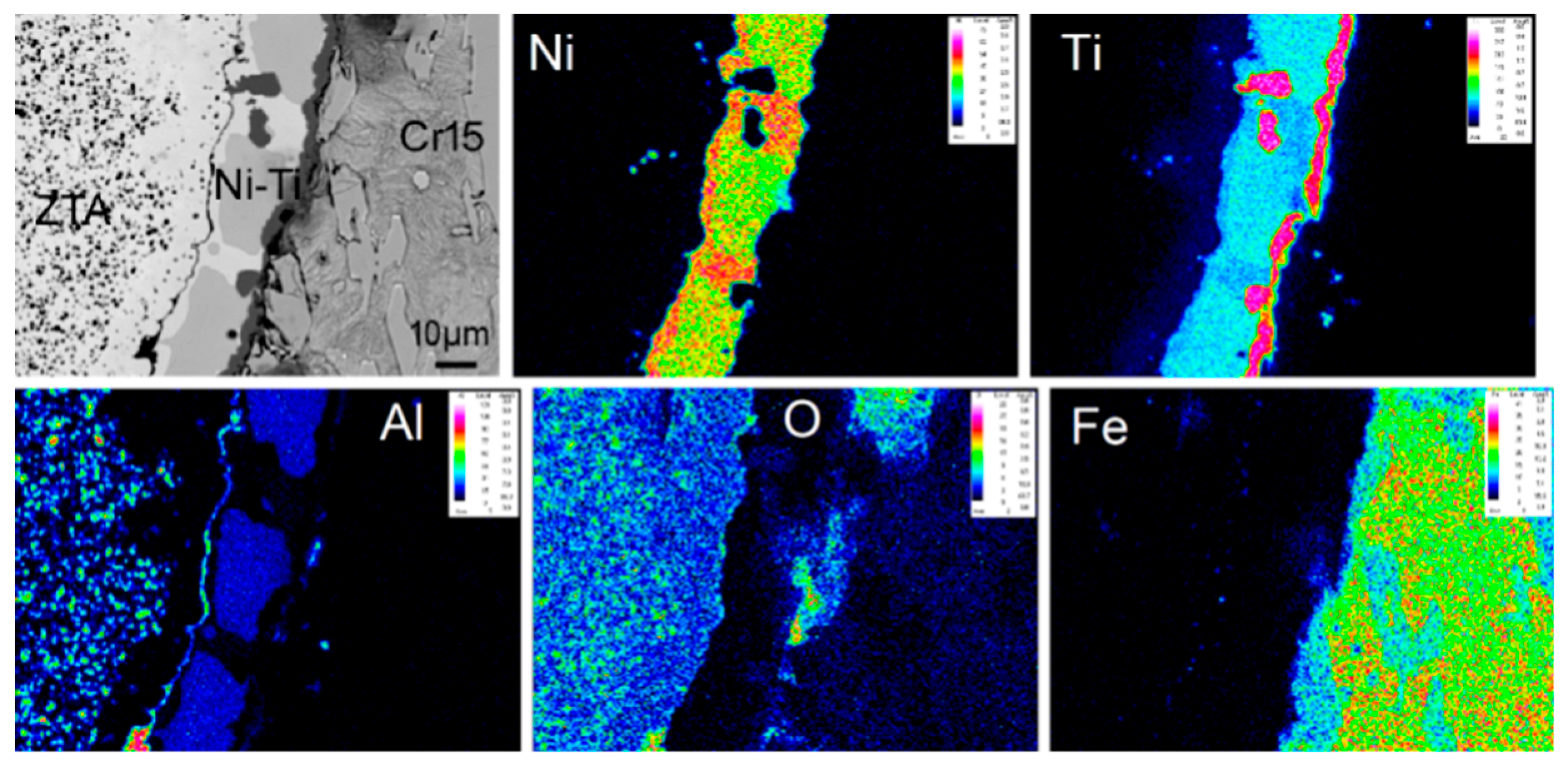

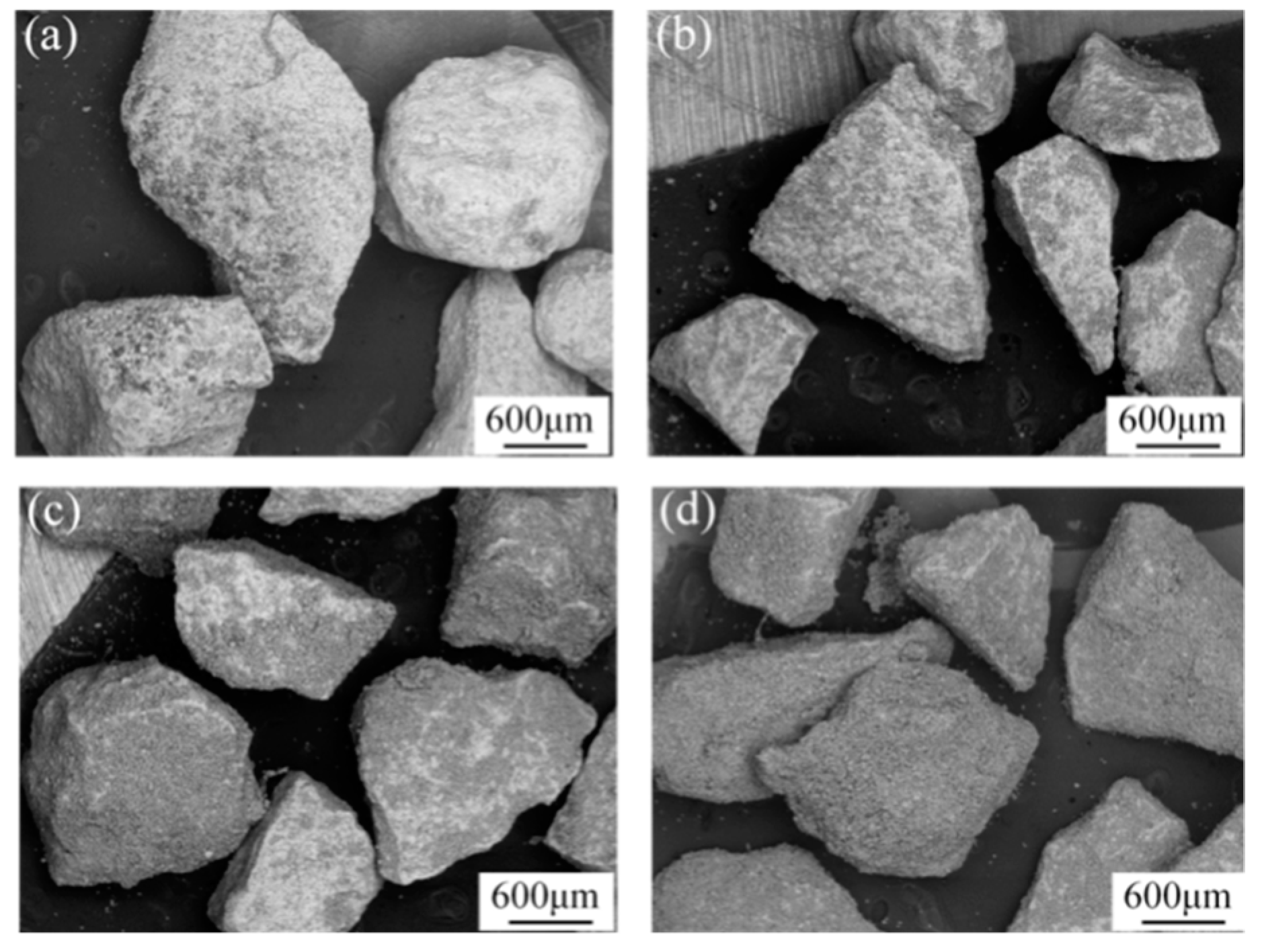

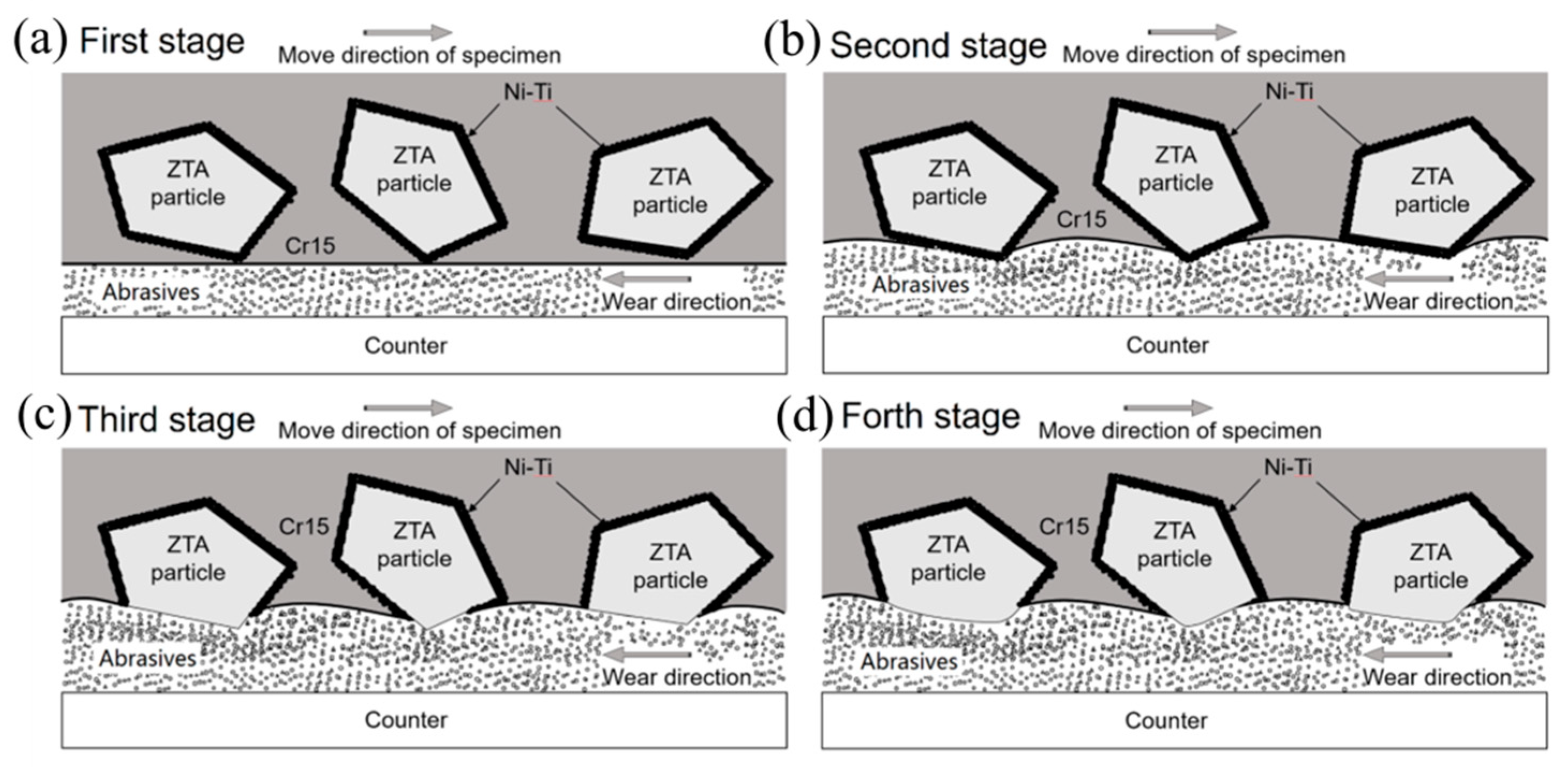

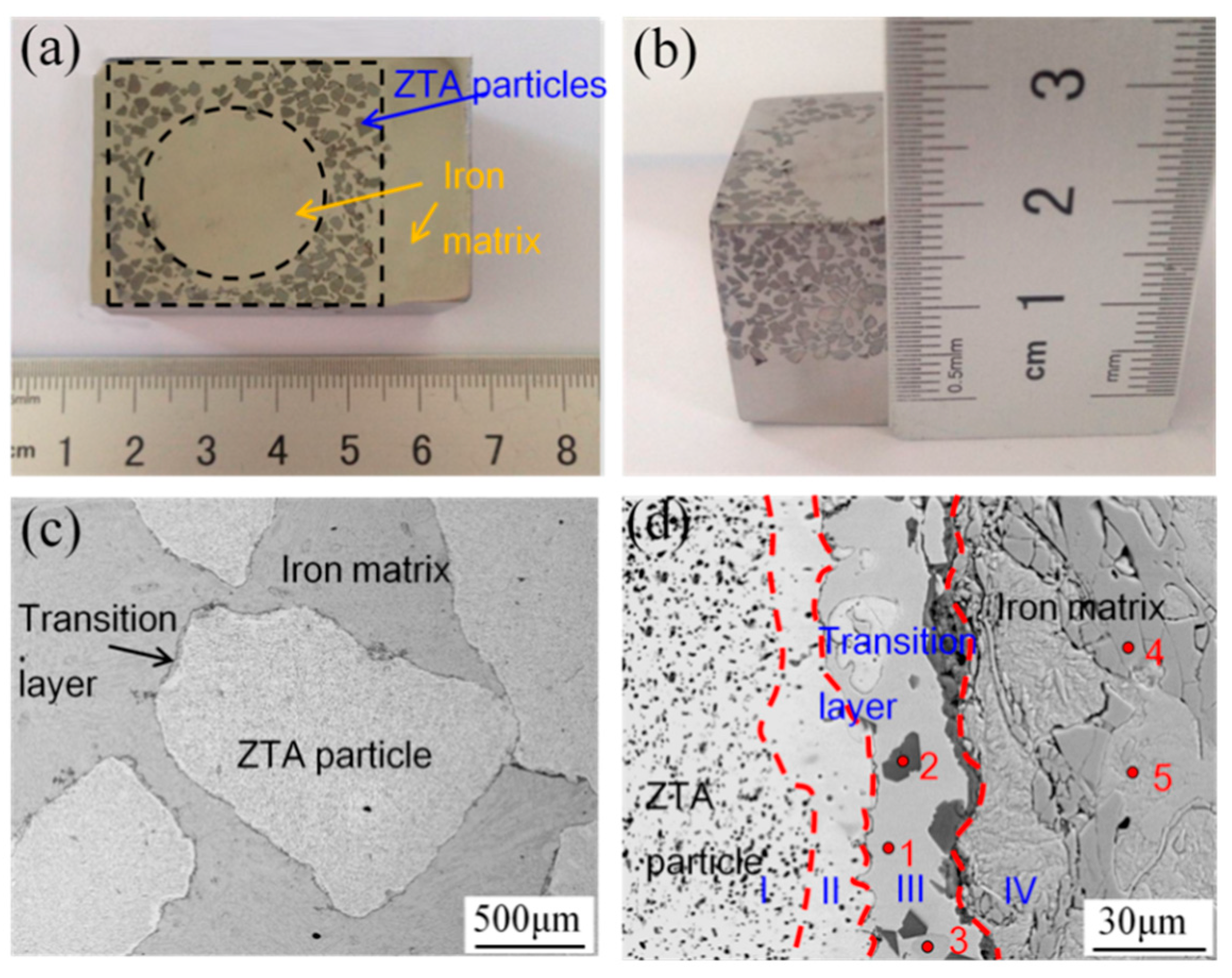

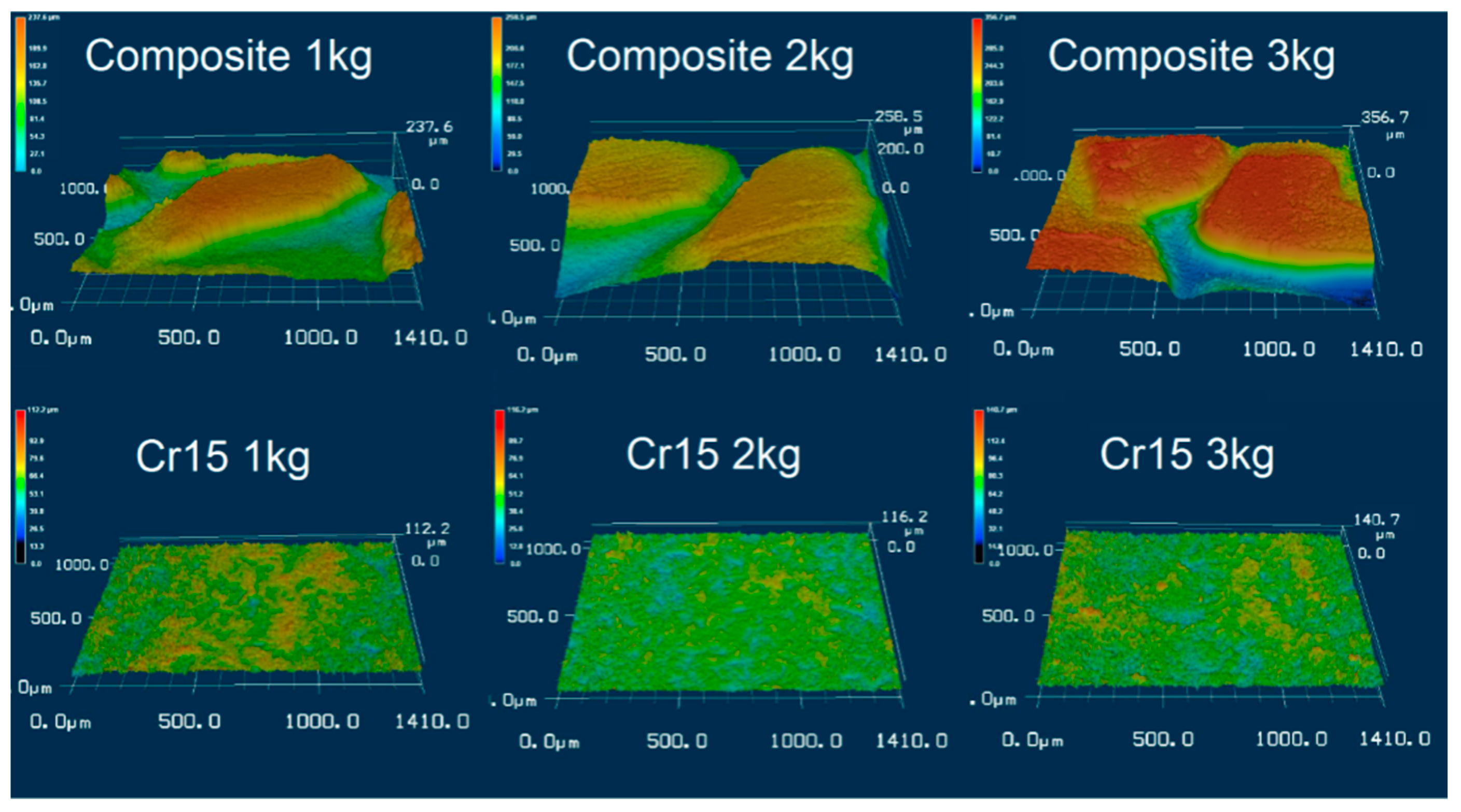

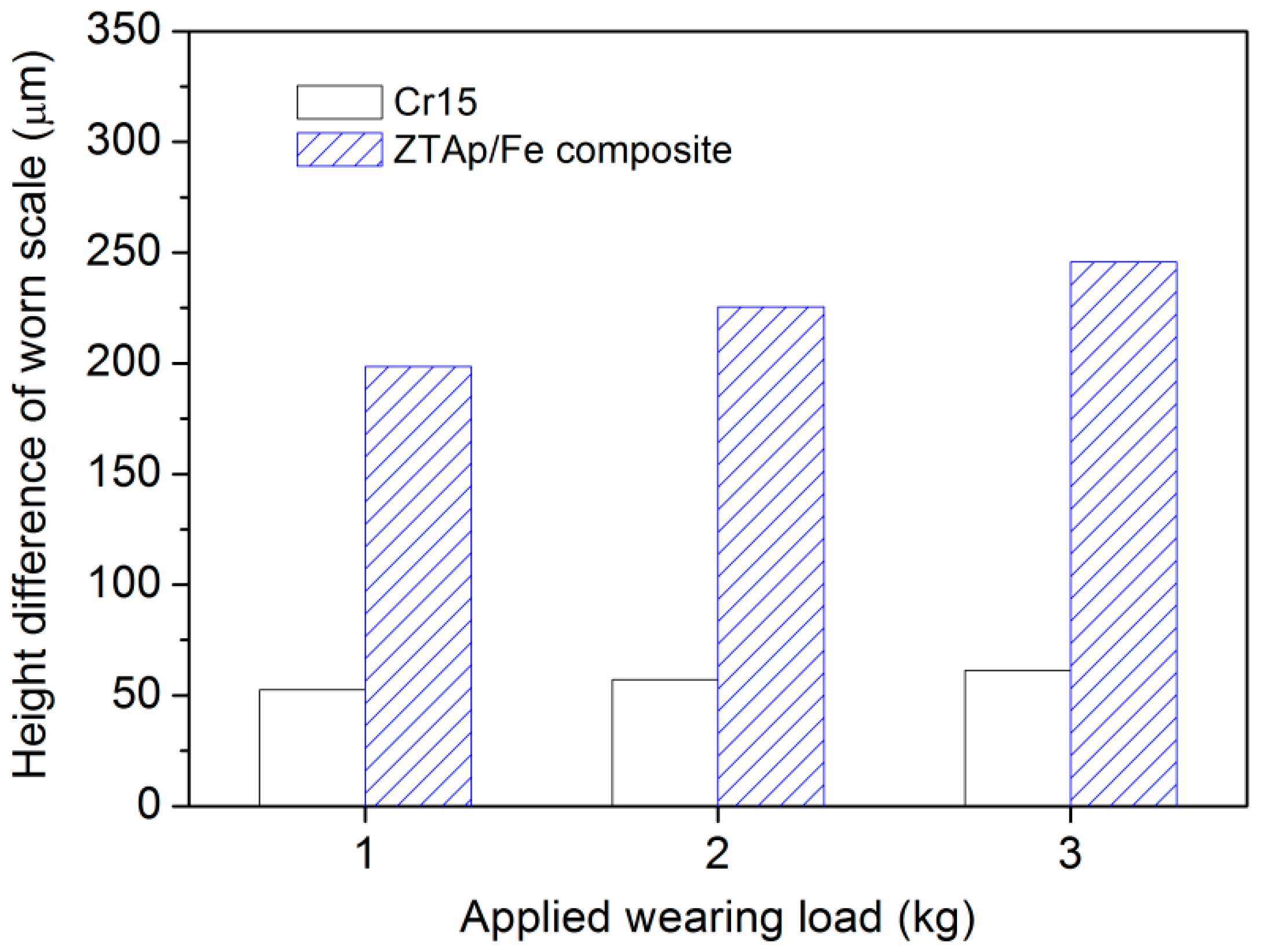

Using zirconia toughened alumina (ZTA) particles and Ni–Ti complex powders as raw materials, high-Cr cast iron reinforced by ZTA particles was prepared by an infiltration casting process. A continuous transition layer formed at the interface between ZTA particles and the Cr15 matrix, which proves that there is strong metallurgical interfacial bonding at the interface. The phases in the Ni–Ti layer of the ZTAP/Fe composite were preserved compared with the microstructure of sintered ZTA ceramic preform. The hardness of the Ni3Ti, TiO and AlNi2Ti phases in the interfacial transition layer was measured by the nano-indentation method, which is 12.5 GPa, 16.1 GPa and 9.2 GPa, respectively. The three-body wear resistance of the composite reached 12.6 times that of high-Cr cast iron. View Full-Text
Keywords: iron matrix composite; ceramic particle; slurry coating; three-body abrasive wear iron matrix composite; ceramic particle; slurry coating; three-body abrasive wear
Show Figures

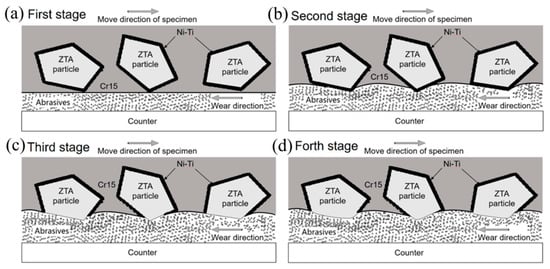

Figure 1

MDPI and ACS Style

Li, Y.; Li, C.; Tang, S.; Zheng, Q.; Wang, J.; Zhang, Z.; Wang, Z. Interfacial Bonding and Abrasive Wear Behavior of Iron Matrix Composite Reinforced by Ceramic Particles. Materials 2019, 12, 3646.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
