Erosion Behavior of a Cu-Ti3AlC2 Cathode by Multi-Electric Arc
by 1,2,3,*, 4,*, 1,2,3 and 1,2,3
1
School of Material and Chemical Engineering, Bengbu University, Bengbu 233030, China
2
Engineering Technology Research Center of Silicon-based Materials, Bengbu University, Bengbu 233030, China
3
Research and Applications of Silicon-based Materials of Bengbu University Academician Workstation, Bengbu 233030, China
4
School of Materials Science and Engineering, Hefei University of Technology, Hefei 230009, China
*
Authors to whom correspondence should be addressed.
Received: 17 August 2019 / Accepted: 10 September 2019 / Published: 11 September 2019

Abstract

:
A Cu-Ti3AlC2 cathode was eroded by arc discharging at 10 kV. The cross-sectional and horizontal morphologies of the eroded surface were recorded by a field emission scanning electron microscope (FE-SEM). The energy dispersive X-ray spectroscopy (EDS) and Raman spectrometry were carried out to analyze the compositions. The color-eroded surface was obtained by a three-dimensional laser scanning confocal microscope (3D LSCM). After 100 times of arc erosion, the Cu-Ti3AlC2 melted and resolidified. An eroded layer about 10 μm thick was formed, covered with pits, protrusions, and pores. The breakdown current was kept between 37 to 43 A. Under the action of a high temperature arc, Cu-Ti3AlC2 was oxidized to CuO and TiO2, accompanying the evaporation of the Al element.
Keywords:
Cu-Ti3AlC2; cross-sectional morphology; arc erosion mechanism

1. Introduction

Electrical contact material is a key material for making on-off control and load current appliances in electric power and electrical circuits [1]. On top of good conductivity and thermal conductivity, electrical contact materials should also have a certain strength, hardness, weld resistance, and arc ablation resistance. Copper is widely used in electrical contacts because of its good conductivity, thermal conductivity, and low price. However, the hardness and strength of copper do not meet the use requirements, so a second phase is added to the copper matrix to improve its comprehensive performance. The typical representative of copper-based electrical contact materials was CuW. Based on the high conductivity and high strength of CuW, Liang et al. [2] focused on the effect of arc erosion on the microstructure of CuW under vacuum conditions (10−3 Pa). It was found that both the grain sizes of Cu and W were refined, and that the arc occurred in the specific crystal direction of Cu, while it happened randomly in W. After graphite was added into a CuW alloy, Chen et al. [3] found that the arc that originally occurred on the copper phase was transferred to the graphite, which greatly reduced the splashing phenomenon and improved the dielectric strength of the CuW alloy under vacuum conditions (10−2 Pa). Zhang et al. [4] found that the cathode spot moved randomly on the matrix of a copper carbon fiber composite under vacuum conditions (10−3 Pa), rather than on the carbon fiber. Wei et al. [5] studied the microstructures of CuCr contact alloys after 100 times of vacuum breakdown. They found that the spheres and sheets of the Cr phase appeared in the melting layer. Liu et al. [6] studied the arc ablation mechanism of Cu/Cr20 in vacuum. It was found that with the increase of current, the material began to transfer with increased arc energy. Zhang et al. [7] found that droplets, needle-like structures, pits, and bulges were formed on the eroded surface of an Al2O3-Cu/W contact material by the vacuum arc. The content of these morphologies was affected by the W content. In recent years, MAX phase materials (where M is an early transition metal, A is a group IIIA or IVA element, and X is carbon or nitrogen) are often selected as the reinforced phases of the metal matrix of contact materials because of their excellent metal and ceramic properties [8,9,10,11,12,13,14,15]. In particular, Ti3Al(Si)C2 has excellent thermal conductivity, low electrical resistivity ((2.87–3.45) × 10−7 Ω·m), and a low friction coefficient. In addition, the coefficient of thermal expansion of Ti3Al(Si)C2 (9.0–9.2 × 10−6 K−1) is close to that of pure Cu (8.5 × 10−6·K−1). Therefore, the outstanding properties of Ti3Al(Si)C2 make reinforcement possible for the Cu matrix to use as a potential brush and sliding electrical contact material [16,17,18]. Tian et al. [19] found that with the increase of Ti3AlC2 content, the number of surface cracks increased after arc ablation. Tungwai Leo Ngai et al. [16] studied the arc ablation characteristics of Cu-Ti3SiC2 in vacuum conditions (10−2 Pa). It was found that Ti3SiC2 turned into TiCx after arc ablation. Previous work showed that Ti3AlC2 material had the effect of dispersing arc under atmospheric conditions, and the dispersing effect was better with higher Ti3AlC2 content [17,18,20,21]. Sun et al. [19,22,23,24,25,26] systematically studied the wettability between the Ag and MAX phases. It was found that the wettability angles between Ag and MAX were 14°, 18°, and 72°. Such good wettability significantly reduced the splashing phenomenon after arc ablation and greatly improved the anti-arc ablation performance. However, rare studies about the performance of Cu-Ti3AlC2 composites after multiple arc ablation have been previously reported. Therefore, it is necessary to understand the arc ablation mechanism of Cu-Ti3AlC2 composites for their application as a potential sliding electrical contact material. In this paper, 100 times arc ablation of Cu-20 vol.% Ti3AlC2 at 10 kV were carried out under atmospheric environment. The breakdown current was recorded after every erosion. Through characterizing the morphologies and compositions of the eroded surface and the cross-sectional sample, the arc ablation mechanism of the Cu-Ti3AlC2 composite was systematically explained.

2. Materials and Methods

Copper powder (99.5%, ≤45 μm, Sinopharm Chemical Reagent Co., Ltd. Shanghai, China) and Ti3AlC2 powder (99.2%, ~5 μm, for details on synthesis process, see [27]) were mixed for 3 h with a constant Cu/Ti3AlC2 volume ratio of 80:20. The mixture was put into a high strength graphite mold. Subsequently, under a pressure of 30 MPa, the mixture was held at 800 °C for 1 h, surrounded by an Ar atmosphere in a hot-pressing furnace (ZT-40-20Y, Shanghai Chenhua Science Technology Corp., Ltd, Shanghai, China). Then, the mold was cooled down in the furnace. The polished Cu-20 vol.% Ti3AlC2 was chosen as the cathode, which can be moved upward and downward by a stepping motor controller (AKS-01Z, Shanghai Siheng Motor Manufacturing Co., Ltd., Shanghai, China). A W rod was chosen as the anode. The load voltage of 10 kV was added between the cathode and anode. The cathode moved towards the anode with a velocity of 0.2 mm/min until the electric arc was ignited. Once the arc was generated between the electrodes, the breakdown current was recorded by the digital memory oscilloscope (ADS1102CAL, Shenzhen Anxintai Electronics Co., Ltd, Shenzhen, China). The experimental procedures of the arc discharging test were described in [18]. After the arc discharging test was repeated 100 times in air atmosphere, the morphology of the eroded surface was recorded by a field emission scanning electron microscope with energy dispersive X-ray spectroscopy (FE-SEM, JEM-2100F, JEOL, Tokyo, Japan) system. Three-dimensional laser scanning with a confocal microscope (3D LSCM, VK-X1000, Keyence, Osaka, Japan) was conducted to reconstruct the morphology characteristics with laser color observations. The cross-sectional images of the eroded surfaces were recorded by scanning electron microscopy (SEM, Tabletop microscopes TM4000Plus, Hitachi, Tokyo, Japan) with the image signals of backscattered electrons. The products of the eroded samples were analyzed by a Raman spectrometer (LabRAM HR, HORIBA JOBIN YVON, Paris, France), which was performed over a wavenumber range of 100–1000 cm−1 with an Nd: YAG laser.

3. Results and Discussion

In order to compare the samples before and after arc erosion, the corresponding pictures of the original Cu-20 vol.% Ti3AlC2 material are shown in Figure 1. Figure 1a was obtained by 3D LSCM with laser color observation. Figure 1b,c were obtained by SEM. Figure 1b is the cross-sectional image. Spectrum 1 mainly contains Cu, Ti, and Al elements. The data are listed in Table 1. The laser of the Raman spectrometer is shown on the green cross in the inset of Figure 1d, where a gray particle is located. The peaks of 272 and 610 cm−1 corresponded to Ti3AlC2 [28]. It can be seen from Figure 1a–c that Ti3AlC2 particles were evenly distributed on the copper matrix.
After each arc discharging test, the breakdown current was recorded, as shown in Figure 2. It can be seen from the figure that the breakdown current is basically between 37 and 43 A. It is worth noting that 10% of the breakdown current data points fell in the 43 to 48 A range. The results indicate that the breakdown current does not change much with the increase of arc discharge times. For a certain material, if the current between the cathode and anode increases, the friction coefficient and wear rate of the sliding electrical contact material will seriously increase, resulting in the seriously wear and premature failure of the material [29]. The stable breakdown current of Cu-20 vol.% Ti3AlC2 has little influence on the wear properties of sliding electrical contact materials.
Micro-morphologies of the eroded Cu-Ti3AlC2 are displayed in Figure 3. Figure 3a is the whole surface of the eroded Cu-Ti3AlC2 cathode, covered with pits, protrusions, and pores. Under the high energy of the electric arc, the Cu-Ti3AlC2 composite melts and resolidifies, leaving the morphologies of ablation edge on the surface, as shown by green arrows in Figure 3b,c,h, which is an example of one of the 100 times of arc discharging. In Figure 3d, coral-like particles are formed in the green circle. The bigger blue rectangle in Figure 3d is the enlarged image of the smaller blue rectangle. Obviously, pores are generated on the eroded surface, which is caused by the changed solubility of gases in air during the rapid solidification process [30]. Under the action of electromagnetic force, gravity, and plasma force, the molten liquid accumulates in one direction, as shown in the green rectangle in Figure 3e. Some eroded area accumulates to small protrusions, as indicated by the arrow in Figure 3f. In the magnified image in the blue rectangle in Figure 3f, sputtered particles are observed, which also arises from the forces mentioned above. Black holes are revealed in the blue rectangle in Figure 3g, which indicates that the material evaporates into the surroundings.
The images obtained by 3D LSCM with laser color observation are close to the original appearance of the material, which are shown in Figure 4. In Figure 4a, the area in red rectangle is the original material. It can be seen from Figure 4a–d that the eroded surfaces are black. Some areas are yellower than the original area, which is always surrounded by a black area. These morphologies are magnified in green circles in Figure 4h. The yellower areas correspond to the eroded center. Under the action of the electric arc, the material melts and moves around, resulting in the exposure of the copper matrix, as seen in the green circles in Figure 4h. Meanwhile, the resolidified material forms the color edges. Under the action of electromagnetic force, gravity, and plasma force, small particles are sputtered on the eroded surface, as seen in the green circles in Figure 4f. The protrusions in Figure 4g and the area in the green rectangle in Figure 4e also arise from these forces.
In order to observe the changes of longitudinal microstructures and compositions of materials, cross-sectional images are shown in Figure 5. Figure 5a–c were obtained with the signals of backscattered electrons, which can display the distribution of elements and phases. It can be seen from Figure 5a that the image is divided into three regions. The region surrounded by blue lines is the eroded layer. On the top of the layer is resin, which comes from the sample preparation. The remaining region is the original material, which contains two colors, gray and dark gray. The eroded layer is about 10 μm thick, as labeled in Figure 5b. Under the eroded layer, micro cracks are formed along grain boundaries, as shown in blue arrows in Figure 5b. In order to preliminarily analyze the distribution of elements on the eroded Cu-Ti3AlC2 surface, energy dispersive X-ray spectroscopy (EDS) was used in the areas in red rectangles in Figure 5b,c. Spectrum 2 was obtained as seen in red rectangle 2 in Figure 5c, which mainly contains O element, indicating that the material is oxidized under the action of electric arc. The data are listed in Table 1. The types of oxides still need to be further confirmed by Raman spectroscopy at a later time. It is worth noting that the value of Ti/Al is bigger than the theoretical value 3, meaning that part of the Al elements escape from Ti3AlC2, due to the weak combination with Ti and C elements [26]. Spectrum 3 and spectrum 4 were obtained from the dark gray area and gray areas in Figure 5b,c, respectively, as shown specifically in Figure 5e,f. The dark gray area in the red rectangle in Figure 5b mainly contains Ti element, indicating that the area is Ti3AlC2. However, the value of Ti/Al is larger than 3, meaning that some Al elements diffuse out to the Cu matrix. Meanwhile, Cu elements diffuse into the Ti3AlC2 crystal structure, resulting in a minor amount of Cu element also being detected. The gray area in red rectangle 4 in Figure 5c mainly contains Cu element, while minor amounts of Al element are also detected, which arises from the diffusion of Al from Ti3AlC2 [31]. Minor Si elements are detected from spectrum 2 to 4, which arise from the abrasive papers during the polishing process.
In order to confirm the products on the eroded surface of Cu-Ti3AlC2, the Raman spectrum is shown in Figure 6. The laser acts at the green cross. The peaks at 294, 631, and 740 cm−1 are assigned to CuO (R060978, R120076). The peaks located at 156 and 426 cm−1 arise from TiO2 [32,33,34]. Raman spectrum results demonstrate that the Cu-Ti3AlC2 cathode is oxidized to TiO2 and CuO. Aluminum oxide is not detected, possibly because its content is very low, and there’s no aluminum oxide generated on the area of laser action. The peak intensity of the generated CuO is about 6000 a.u. or 5500 a.u., which is higher than that of TiO2 (4500 a.u. or 1500 a.u.), indicating that the copper is oxidized more quantitatively than Ti [35,36,37].
Except for the component detection from the cross-sectional eroded layer, the results of which are also revealed in the horizontal direction in Figure 7. Spectrums 5 and 6 in Figure 7b,c are detected in the areas of rectangles 5 and 6 in Figure 7a, respectively. The data are listed in lines 6 and 7 in Table 1. Both spectrum 5 and 6 mainly contain O element. If all the detected Cu, Ti, Al, and W are oxidized to CuO, TiO2, Al2O3, and WO2, the atomic percentages of O element should be 50.55 and 49.35, which are lower than the detected values of 60.3 and 62.3, respectively. In Figure 3d, pores are formed on the eroded surface. During the process of arc ablation, gases are dissolved in the material, some gases escape, and some gases remain in the resolidified material, which results in the higher O content in spectrums 5 and 6. It is worth noting that a minor amount of W element is also detected, which comes from the W anode, due to the multi-electric arc. What’s more, previous studies have shown that the addition of a single metal oxide in electric contact materials can effectively improve the wettability between the matrix material and the oxide, reducing both the droplet splashes and the mass loss of a cathode material [38,39,40]. The effect of TiO2 and CuO on the wettability of Cu-Ti3AlC2 still needs further systematic study in the future.

4. Conclusions

In the application process of electrical contact materials, arcs often appear. Here, a Cu-Ti3AlC2 cathode, a potential electrical contact material, is eroded by arc discharging at a load voltage of 10 kV for 100 times in air. The breakdown current is kept between 37 and 43 A and does not change significantly with the increase of breakdown times, which has little influence on the wear properties of sliding electrical contact materials. Under the action of the electric arc, pits and protrusions are formed on the eroded surface. The material melts and resolidifies with a colored edge. The eroded layer is about 10 μm thick, as detected from the cross-sectional image. Cu-Ti3AlC2 is oxidized to CuO and TiO2, which may improve the wettability between the matrix material and its reinforcement. Meanwhile, aluminum oxides evaporate to the surrounding area and the Al diffuses out to the Cu matrix. Due to the multi-electric arc, the W element on the anode is transferred to the Cu-Ti3AlC2 cathode. Due to the stable breakdown current and slight sputtered particles, Cu-Ti3AlC2 is more suitable than a Cu or Cu alloy for sliding electrical contact material. This study is of great significance to the application of Cu-Ti3AlC2 material as a sliding contact material, and lays a foundation for further research on electrical friction and wear properties under the same environmental conditions.

Author Contributions

X.H. and Y.F. conceived and designed the whole study. X.H. performed the experiments. L.L. and Z.L. analyzed the data. X.H. wrote the paper. Y.F. helped with correction and modification of the manuscript.

Funding

This research was funded by the Natural Science Foundation of Anhui Province (1908085QE218), the University Natural Science Research Project of Anhui Province (Grant Nos. KJ2019A0852), the National Natural Science Foundation of China (Grant Nos. 51871085 and 51571078), the Program of College Students Innovation of Laboratory Construction (2016ckjh116), and the Research Funds for High-level Talents of Bengbu University (Grant No. BBXY2018KYQD14).

Acknowledgments

This work was supported by the Natural Science Foundation of Anhui Province (Grant No. 1908085QE218), the University Natural Science Research Project of Anhui Province (Grant Nos. KJ2019A0852), the National Natural Science Foundation of China (Grant Nos. 51871085 and 51571078), the Program of College Students Innovation of Laboratory Construction (2016ckjh116), and the Research Funds for High-level Talents of Bengbu University (Grant No. BBXY2018KYQD14).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhang, X.; Zheng, Z.; Ren, W.B. An experimental investigation of dynamic welding mechanism of contacts used in low current switching devices. In Proceedings of the 64th IEEE Holm Conference on Electrical Contacts and the 29th International Conference on Electrical Contacts, Albuquerque, NM, USA, 14–18 October 2018; pp. 488–495. [Google Scholar]
  2. Chen, Q.Y.; Liang, S.H.; Wang, F.; Zhuo, L.C. Microstructural investigation after vacuum electrical breakdown of the w-30 wt.% Cu contact material. Vacuum 2018, 149, 256–261. [Google Scholar]
  3. Dong, L.L.; Chen, W.G.; Deng, N.; Song, J.L.; Wang, J.J. Investigation on arc erosion behaviors and mechanism of W70Cu30 electrical contact materials adding graphene. J. Alloy. Compd. 2017, 696, 923–930. [Google Scholar] [CrossRef]
  4. Zhang, C.; Liu, Y.; Yang, Z.; Chen, L.; Qiao, S. Cathode spot movement on a continuous carbon fiber reinforced cu matrix composite in vacuum. Vacuum 2013, 93, 45–49. [Google Scholar] [CrossRef]
  5. Wei, X.; Wang, J.; Yang, Z.; Sun, Z.; Yu, D.; Song, X.; Ding, B.; Yang, S. Liquid phase separation of Cu-Cr alloys during the vacuum breakdown. J. Alloy. Compd. 2011, 509, 7116–7120. [Google Scholar] [CrossRef]
  6. Zhu, S.; Liu, Y.; Tian, B.; Zhang, Y.; Song, K. Arc erosion behavior and mechanism of Cu/Cr20 electrical contact material. Vacuum 2017, 143, 129–137. [Google Scholar] [CrossRef]
  7. Zhang, X.H.; Zhang, Y.; Tian, B.H.; An, J.C.; Zhao, Z.; Volinsky, A.A.; Liu, Y.; Song, K.X. Arc erosion behavior of the Al2o3-Cu/(W, Cr) electrical contacts. Compos. Part B Eng. 2019, 160, 110–118. [Google Scholar] [CrossRef]
  8. Barsoum, M.W. The Mn+1AXN phases: A new class of solids: Thermodynamically stable nanolaminates. Prog. Solid State Chem. 2000, 28, 201–281. [Google Scholar] [CrossRef]
  9. Radovic, M.; Barsoum, M.W. Max phases: Bridging the gap between metals and ceramics. Am. Ceram. Soc. Bull. 2013, 92, 20–27. [Google Scholar]
  10. Sun, Z.M. Progress in research and development on max phases: A family of layered ternary compounds. Int. Mater. Rev. 2011, 56, 143–166. [Google Scholar] [CrossRef]
  11. Bentzel, G.W.; Sokol, M.; Griggs, J.; Lang, A.C.; Barsoum, M.W. On the interactions of Ti2ALC, Ti3ALC2, Ti3SIC2 and Cr2ALC with palladium at 900 °C. J. Alloy. Compd. 2019, 771, 1103–1110. [Google Scholar] [CrossRef]
  12. Wang, H.; Han, H.; Yin, G.; Wang, C.-Y.; Hou, Y.-Y.; Tang, J.; Dai, J.-X.; Ren, C.-L.; Zhang, W.; Huai, P. First-principles study of vacancies in Ti3SIC2 and Ti3ALC2. Materials 2017, 10, 103. [Google Scholar] [CrossRef] [PubMed]
  13. Zhang, H.; Liu, X.; Jiang, Y. Pore formation process of porous Ti3SIC2 fabricated by reactive sintering. Materials 2017, 10, 163. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, X.; Bei, G. Toughening mechanisms in nanolayered max phase ceramics—A review. Materials 2017, 10, 366. [Google Scholar] [CrossRef] [PubMed]
  15. Scheibe, B.; Kupka, V.; Peplińska, B.; Jarek, M.; Tadyszak, K. The influence of oxygen concentration during max phases (Ti3ALC2) preparation on the α-Al2O3 microparticles content and specific surface area of multilayered mxenes (Ti3C2Tx). Materials 2019, 12, 353. [Google Scholar] [CrossRef]
  16. Zhang, P.; Ngai, T.L.; Wang, A.D.; Ye, Z.Y. Arc erosion behavior of Cu-Ti3SIC2 cathode and anode. Vacuum 2017, 141, 235–242. [Google Scholar] [CrossRef]
  17. Huang, X.C.; Feng, Y.; Qian, G.; Zhao, H.; Song, Z.K.; Zhang, J.C.; Zhang, X.B. Arc corrosion behavior of Cu-Ti3ALC2 composites in air atmosphere. Sci. China Technol. Sci. 2018, 61, 551–557. [Google Scholar] [CrossRef]
  18. Huang, X.C.; Feng, Y.; Qian, G.; Zhao, H.; Zhang, J.C.; Zhang, X.B. Physical, mechanical, and ablation properties of Cu-Ti3ALC2 composites with various Ti3ALC2 contents. Mater. Sci. Technol. 2018, 34, 757–762. [Google Scholar] [CrossRef]
  19. Ding, J.; Tian, W.B.; Zhang, P.; Zhang, M.; Zhang, Y.M.; Sun, Z.M. Arc erosion behavior of Ag/Ti3ALC2 electrical contact materials. J. Alloy. Compd. 2018, 740, 669–676. [Google Scholar] [CrossRef]
  20. Huang, X.C.; Feng, Y.; Qian, G.; Liu, K. Erosion behavior of Ti3ALC2 cathode under atmosphere air arc. J. Alloy. Compd. 2017, 727, 419–427. [Google Scholar] [CrossRef]
  21. Huang, X.C.; Feng, Y.; Qian, G.; Zhang, J.C.; Zhang, X.B. Influence of breakdown voltages on arc erosion of a Ti3ALC2 cathode in an air atmosphere. Ceram. Int. 2017, 43, 10601–10605. [Google Scholar] [CrossRef]
  22. Ding, J.; Tian, W.; Wang, D.; Zhang, P.; Chen, J.; Zhang, Y.; Sun, Z. Microstructure evolution, oxidation behavior and corrosion mechanism of Ag/Ti2SNC composite during dynamic electric arc discharging. J. Alloy. Compd. 2019, 785, 1086–1096. [Google Scholar] [CrossRef]
  23. Ding, J.; Tian, W.; Zhang, P.; Zhang, M.; Chen, J.; Zhang, Y.; Sun, Z. Preparation and arc erosion properties of Ag/Ti2SNC composites under electric arc discharging. J. Adv. Ceram. 2019, 8, 90–101. [Google Scholar] [CrossRef]
  24. Zhang, M.; Tian, W.-B.; Zhang, P.; Ding, J.; Zhang, Y.; Sun, Z. Microstructure and properties of Ag-Ti3SIC2 contact materials prepared by pressureless sintering. Int. J. Miner. Metall. Mater. 2018, 25, 810–816. [Google Scholar] [CrossRef]
  25. Ding, J.; Tian, W.; Wang, D.; Zhang, P.; Chen, J.; Zhang, Y.; Sun, Z. Corrosion and degradation mechanism of Ag/Ti3ALC2 composites under dynamic electric arc discharge. Corros. Sci. 2019, 156, 147–160. [Google Scholar] [CrossRef]
  26. Wang, D.; Tian, W.; Ma, A.; Ding, J.; Wang, C.; You, Y.; Zhang, P.; Chen, J.; Zhang, Y.; Sun, Z. Anisotropic properties of Ag/Ti3ALC2 electrical contact materials prepared by equal channel angular pressing. J. Alloy. Compd. 2019, 784, 431–438. [Google Scholar] [CrossRef]
  27. Hai, T.; Yi, F.; Xiaochen, H.; Yakun, D.; Dongdong, D.; Meng, X.; Pei, T.; Gang, Q.; Xuebin, Z. Reactive synthesis of polycrystalline Ti3ALC2 and its sintering behavior. Rare Met. Mater. Eng. 2017, 46, 2108–2113. [Google Scholar] [CrossRef]
  28. Presser, V.; Naguib, M.; Chaput, L.; Togo, A.; Hug, G.; Barsoum, M.W. First-order raman scattering of the max phases: Ti2ALN, Ti2ALC0.5N0.5, Ti2ALC, (Ti0.5V0.5)2ALC, V2ALC, Ti3ALC2, and Ti3GEC2. J. Raman Spectrosc. 2012, 43, 168–172. [Google Scholar]
  29. Zhao, H.; Feng, Y.; Qian, G.; Huang, X.; Guo, S.; Sun, X. Effect of Ti3ALC2 content on electrical friction and wear behaviors of Cu-Ti3ALC2 composites. Tribol. Lett. 2019, 67, 96. [Google Scholar] [CrossRef]
  30. Huang, X.; Feng, Y.; Qian, G.; Zhou, Z. Arc ablation properties of Ti3SIC2 material. Ceram. Int. 2019, 45, 20297–20306. [Google Scholar] [CrossRef]
  31. Zhang, J.; Zhou, Y.C. Microstructure, mechanical, and electrical properties of Cu-Ti3ALC2 and in situ Cu-TiCx composites. J. Mater. Res. 2011, 23, 924–932. [Google Scholar] [CrossRef]
  32. Parker, J.C.; Siegel, R.W. Calibration of the raman spectrum to the oxygen stoichiometry of nanophase TiO2. Appl. Phys. Lett. 1990, 57, 943–945. [Google Scholar] [CrossRef]
  33. Parker, J.C.; Siegel, R.W. Raman microprobe study of nanophase TiO2 and oxidation-induced spectral changes. J. Mater. Res. 1990, 5, 1246–1252. [Google Scholar] [CrossRef]
  34. Sun, D.; Zhou, A.; Li, Z.; Wang, L. Corrosion behavior of Ti3ALC2 in molten KOH at 700 °C. J. Adv. Ceram. 2013, 2, 313–317. [Google Scholar] [CrossRef]
  35. Kumar, H.V.; Woltornist, S.J.; Adamson, D.H. Fractionation and characterization of graphene oxide by oxidation extent through emulsion stabilization. Carbon 2016, 98, 491–495. [Google Scholar] [CrossRef]
  36. Li, X.; Magnuson, C.W.; Venugopal, A.; Tromp, R.M.; Hannon, J.B.; Vogel, E.M.; Colombo, L.; Ruoff, R.S. Large-area graphene single crystals grown by low-pressure chemical vapor deposition of methane on copper. J. Am. Chem. Soc. 2011, 133, 2816–2819. [Google Scholar] [CrossRef] [PubMed]
  37. Freedy, K.M.; Beechem, T.E.; Litwin, P.M.; Sales, M.G.; Huang, M.; Ruoff, R.S.; McDonnell, S.J. Unraveling chemical interactions between titanium and graphene for electrical contact applications. ACS Appl. Nano Mater. 2018, 1, 4828–4835. [Google Scholar] [CrossRef]
  38. Wang, J.; Kang, Y.; Wang, C. Microstructure and vacuum arc characteristics of CuO skeletal structure Ag-CuO contact materials. J. Alloy. Compd. 2016, 686, 702–707. [Google Scholar] [CrossRef]
  39. Wang, H.; Wen, P.; Liang, L.; Zhu, Y. Effect of wettability on properties of AgSnO2TiO2 contact material. Electron. Compon. Mater. 2016, 35, 80–83. [Google Scholar]
  40. Li, G.J.; Cui, H.J.; Chen, J.; Fang, X.Q.; Feng, W.J.; Liu, J.X. Formation and effects of CuO nanoparticles on Ag/SnO2 electrical contact materials. J. Alloy. Compd. 2017, 696, 1228–1234. [Google Scholar] [CrossRef]

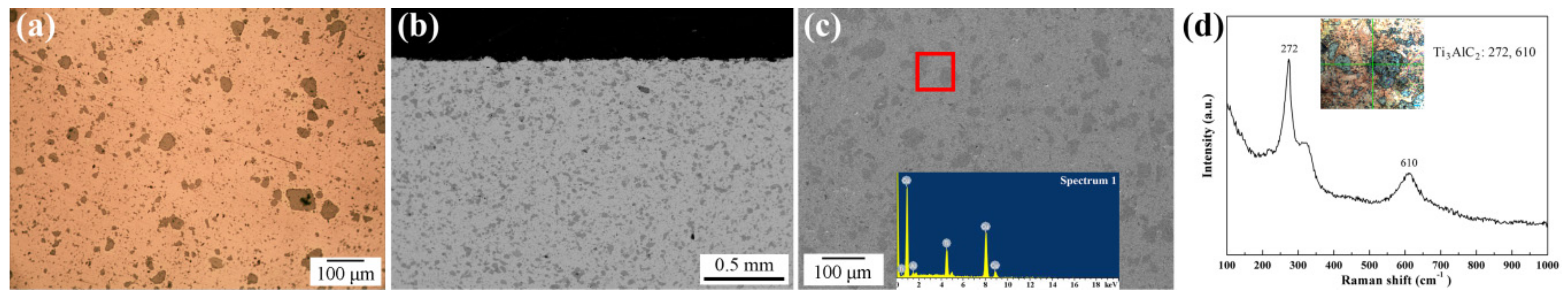

Figure 1. Original surface morphologies of Cu-20 vol.% Ti3AlC2 material by (a) 3D LSCM, (c) SEM, (d) Raman spectrometer. (b) Cross-sectional image of original Cu-20 vol.% Ti3AlC2 surface.
Figure 1. Original surface morphologies of Cu-20 vol.% Ti3AlC2 material by (a) 3D LSCM, (c) SEM, (d) Raman spectrometer. (b) Cross-sectional image of original Cu-20 vol.% Ti3AlC2 surface.
Materials 12 02947 g001

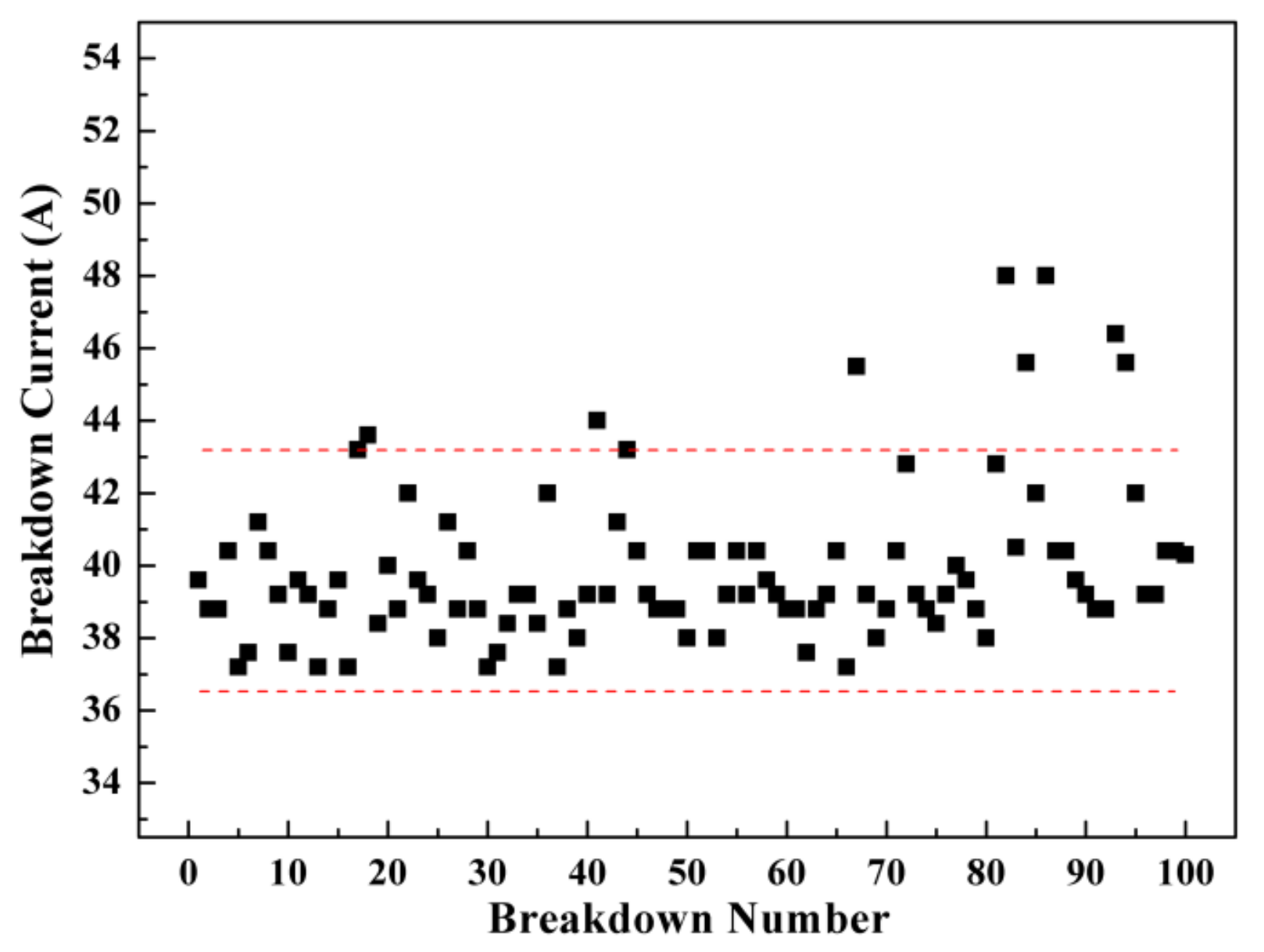

Figure 2. Curve of breakdown current to breakdown number.
Figure 2. Curve of breakdown current to breakdown number.
Materials 12 02947 g002

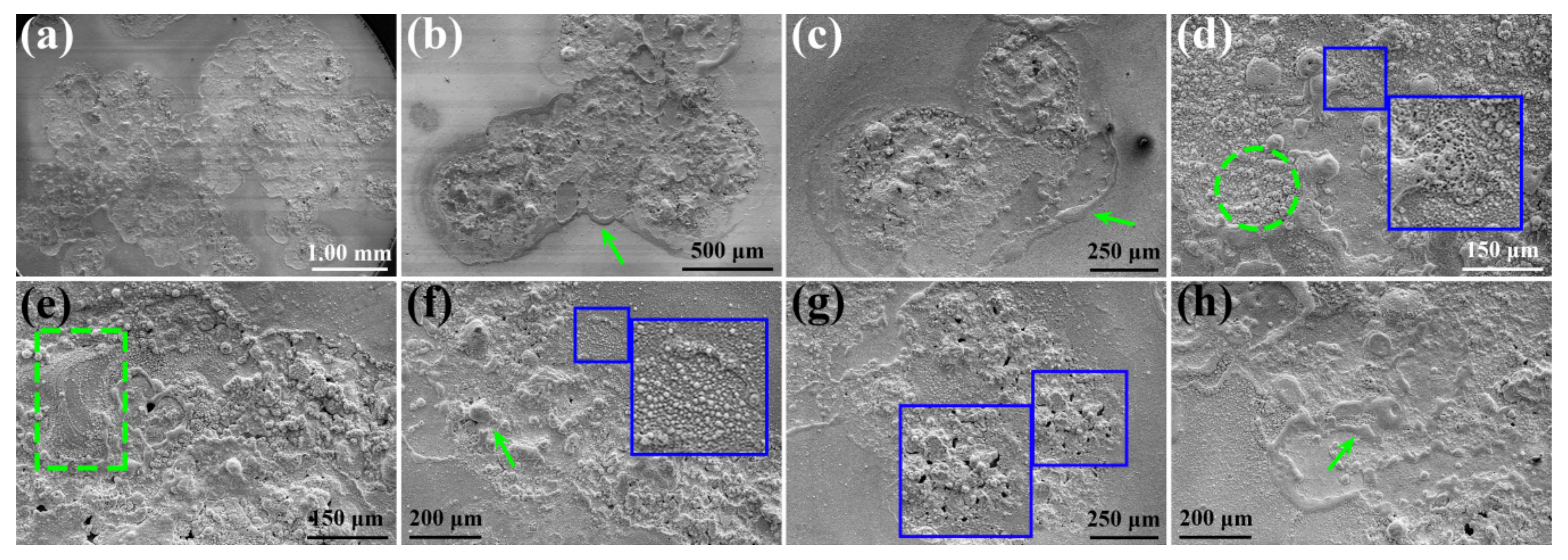

Figure 3. SEM images of (a) whole eroded Cu-Ti3AlC2 surface; (b,c) ablation edge; (d) coral-like particles; (e) molten liquid accumulation; (f) protrusions; (g) black holes; (h) ablation edge after being eroded 100 times by arc discharging.
Figure 3. SEM images of (a) whole eroded Cu-Ti3AlC2 surface; (b,c) ablation edge; (d) coral-like particles; (e) molten liquid accumulation; (f) protrusions; (g) black holes; (h) ablation edge after being eroded 100 times by arc discharging.
Materials 12 02947 g003

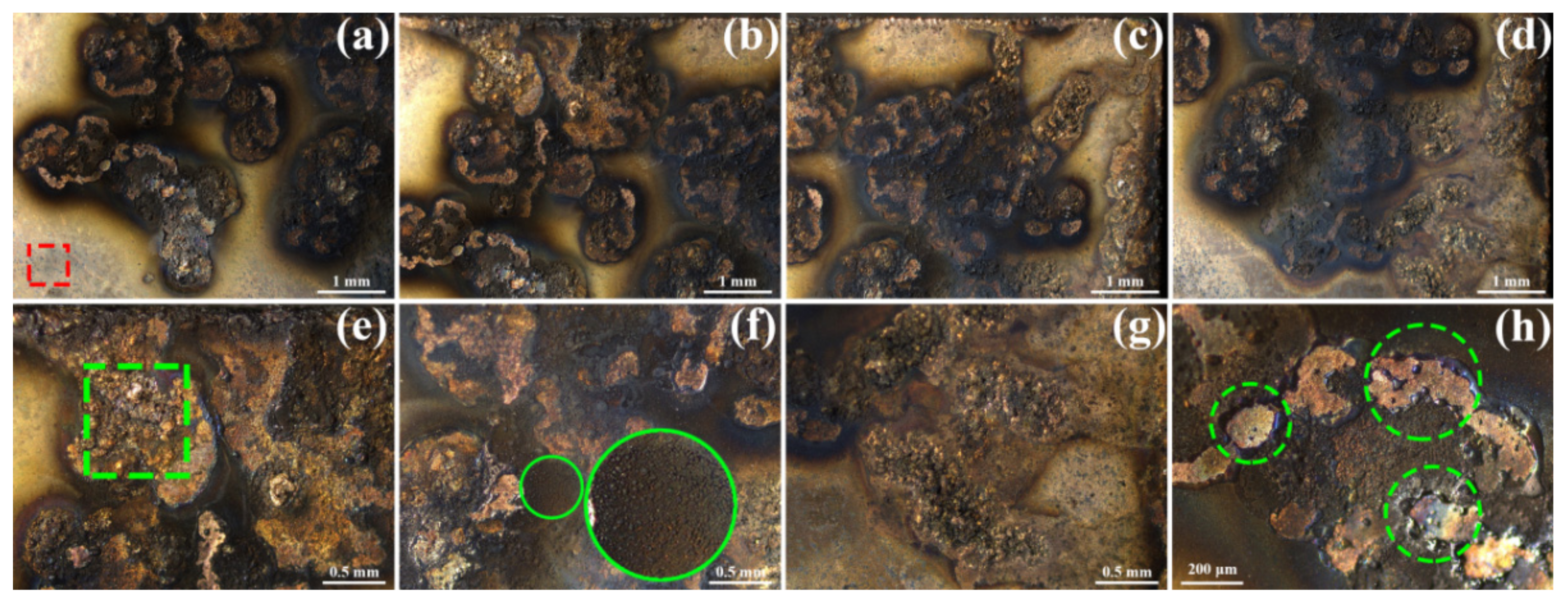

Figure 4. 3D LSCM images of (a)–(d) whole eroded Cu-Ti3AlC2 surface; (e) and (g) morphologies caused by forces; (f) sputtered particles; (h) magnified morphology in (b).
Figure 4. 3D LSCM images of (a)–(d) whole eroded Cu-Ti3AlC2 surface; (e) and (g) morphologies caused by forces; (f) sputtered particles; (h) magnified morphology in (b).
Materials 12 02947 g004

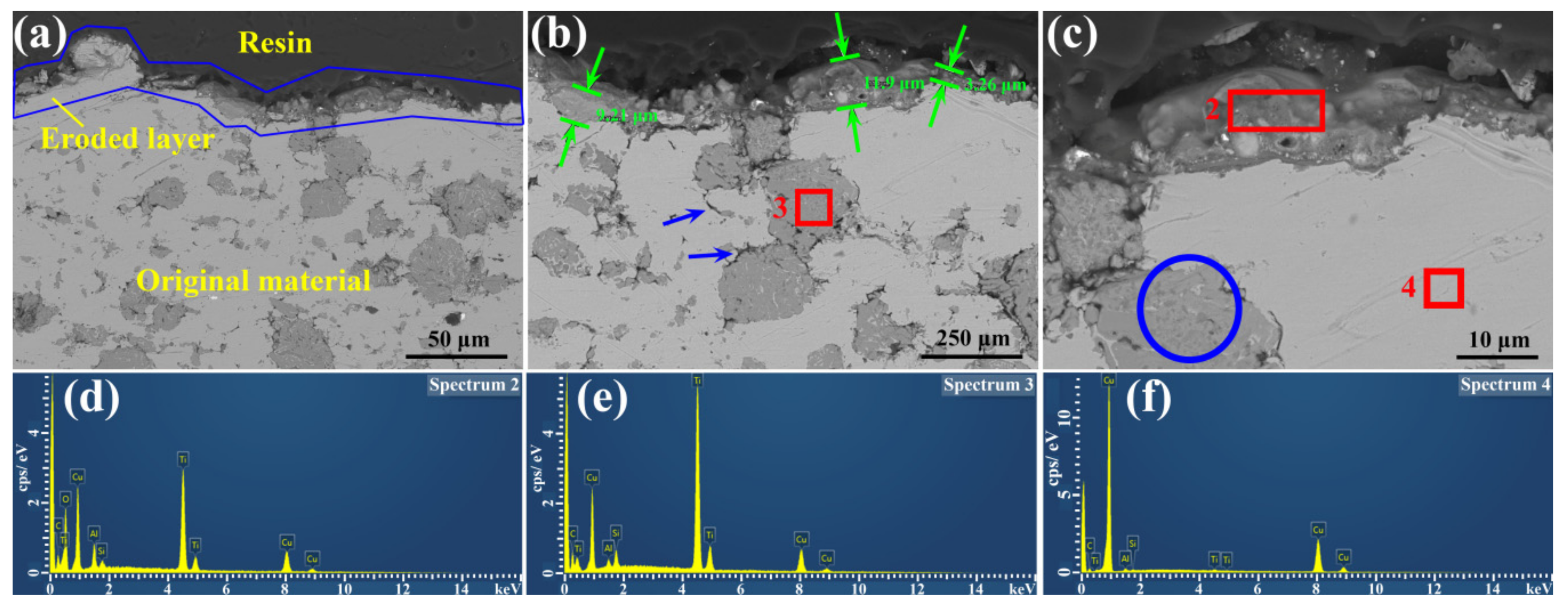

Figure 5. (a)–(c) Cross-sectional image of Cu-Ti3AlC2 surface after being eroded 100 times by arc discharging; Energy dispersive X-ray spectroscopy (EDS) results of (d) in the rectangle in (c); (e) in the rectangle in (b) and (f) in the rectangle in (c).
Figure 5. (a)–(c) Cross-sectional image of Cu-Ti3AlC2 surface after being eroded 100 times by arc discharging; Energy dispersive X-ray spectroscopy (EDS) results of (d) in the rectangle in (c); (e) in the rectangle in (b) and (f) in the rectangle in (c).
Materials 12 02947 g005

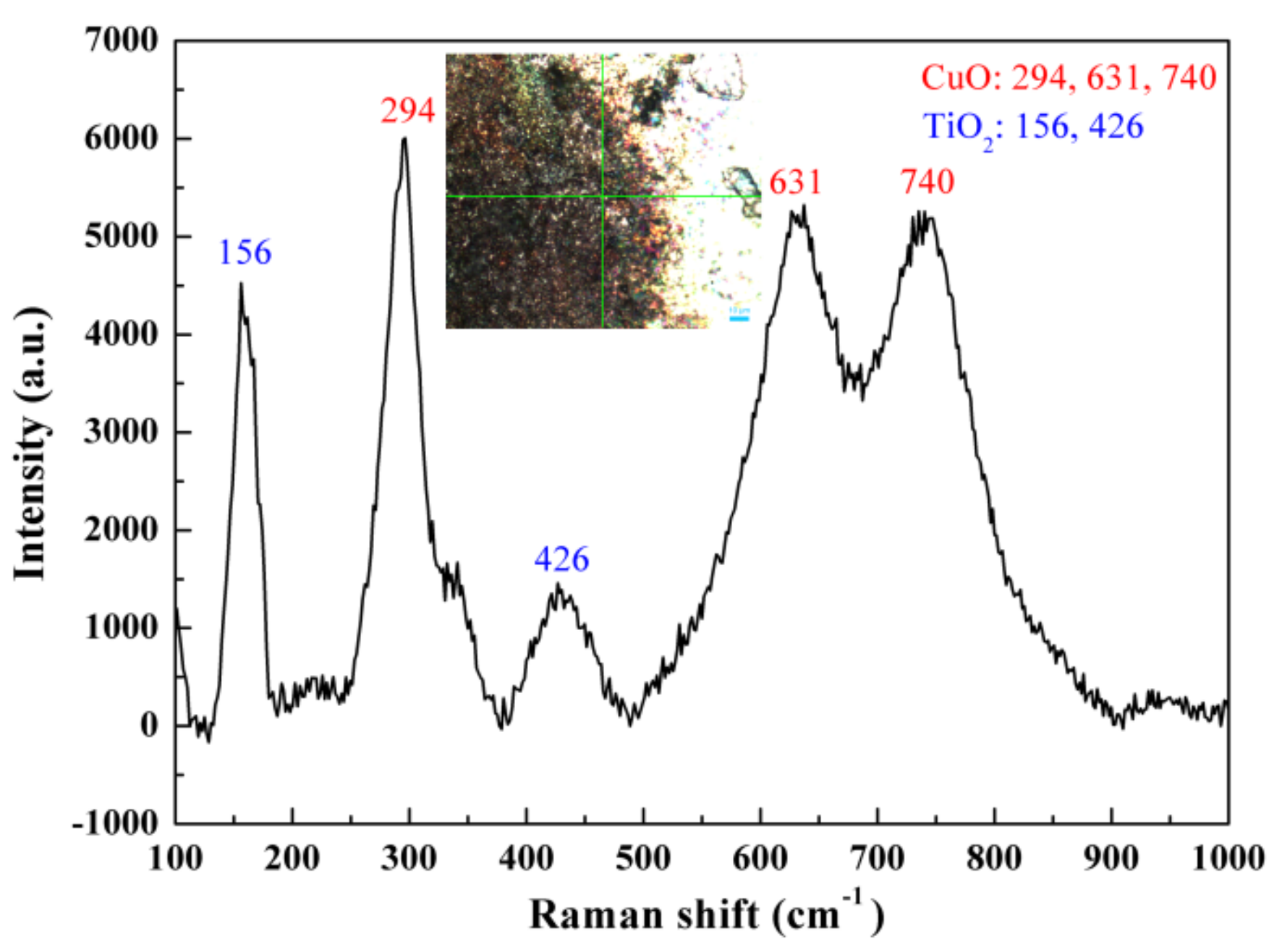

Figure 6. Raman spectrum of Cu-Ti3AlC2 surface after being eroded 100 times by arc discharging.
Figure 6. Raman spectrum of Cu-Ti3AlC2 surface after being eroded 100 times by arc discharging.
Materials 12 02947 g006

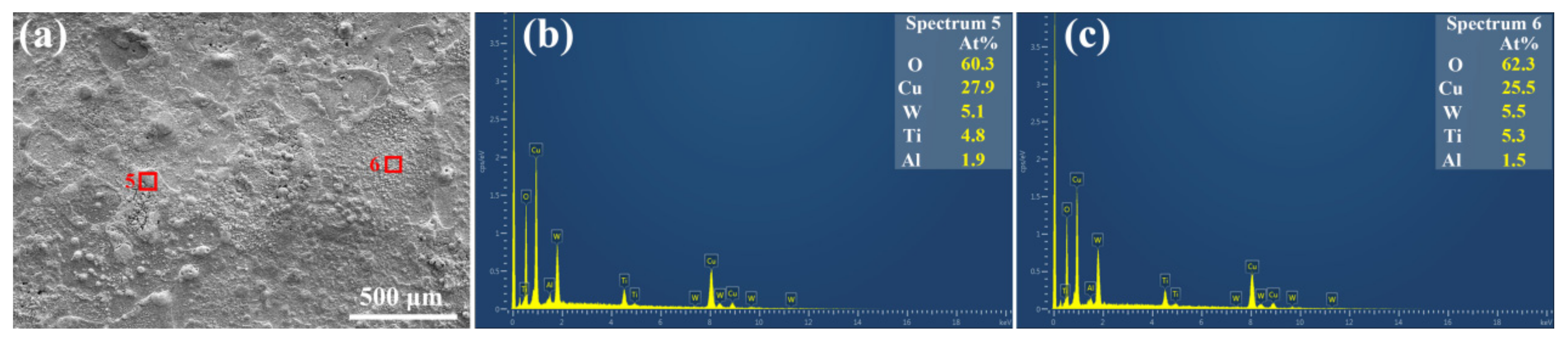

Figure 7. (a) SEM morphology of the eroded Cu-Ti3AlC2 surface by 100 times arc discharging; EDS results in (b) and (c) corresponding to the rectangles 5 and 6 in (a), respectively.
