Defects, Diffusion, and Dopants in Li2Ti6O13: Atomistic Simulation Study

Navaratnarajah Kuganathan
Sashikesh Ganeshalingam
3 and
Alexander Chroneos
Department of Materials, Imperial College London, London SW7 2AZ, UK
Faculty of Engineering, Environment and Computing, Coventry University, Coventry CV1 5FB, UK
Department of Chemistry, University of Jaffna, Sir. Pon Ramanathan Road, Thirunelvely, Jaffna 40000, Sri Lanka
Author to whom correspondence should be addressed.
Materials 2019, 12(18), 2851;
Submission received: 30 July 2019 / Revised: 29 August 2019 / Accepted: 3 September 2019 / Published: 4 September 2019


In this study, force field-based simulations are employed to examine the defects in Li-ion diffusion pathways together with activation energies and a solution of dopants in Li2Ti6O13. The lowest defect energy process is found to be the Li Frenkel (0.66 eV/defect), inferring that this defect process is most likely to occur. This study further identifies that cation exchange (Li–Ti) disorder is the second lowest defect energy process. Long-range diffusion of Li-ion is observed in the bc-plane with activation energy of 0.25 eV, inferring that Li ions move fast in this material. The most promising trivalent dopant at the Ti site is Co3+, which would create more Li interstitials in the lattice required for high capacity. The favorable isovalent dopant is the Ge4+ at the Ti site, which may alter the mechanical property of this material. The electronic structures of the favorable dopants are analyzed using density functional theory (DFT) calculations.

Graphical Abstract

1. Introduction

Energy demand arising from non-renewable fossil fuels has led to research activity towards alternative renewable energy devices. Rechargeable batteries have the potential to store clean energy without the hazards of carbon emission.
Rechargeable lithium-ion batteries (LIBs) are promising in portable energy storage applications due to the low weight and non-toxicity of lithium. Producing an efficient LIB requires promising electrode and electrolyte materials. A variety of materials have been examined for the last two decades to make LIBs promising [1,2,3,4,5,6,7,8,9,10,11,12].
Lithium titanates, such as Li2Ti3O7, LiTi2O4, and Li4Ti5O12, were recently considered as anode materials for LIBs due to their zero-strain behavior upon Li intercalation/de-intercalation, though they exhibit low ionic and electronic conductivity [13,14,15]. The long cycle life of such materials is due to the structural stability arising from zero strain and would lead to the development of LIBs with long life. Spinel-type Li4Ti5O12 is an attractive anode material because of its reversible Li intercalation/de-intercalation at ~1.6 V [15,16]. Furthermore, Li2Ti3O7 has been identified as a fast Li-ion conductor [17].
Lithium hexatitanate (Li2Ti6O13) is another type of titanate exhibiting one-dimensional tunnels in the crystal structure needed for fast Li-ion diffusion [18]. Li2Ti6O13 has been synthesized and its electrochemical properties examined [18,19,20]. Kataoka et al. [18] used an ion exchange experiment to prepare Li2Ti6O13 from Na2Ti6O13. Their study showed that a stable, reversible capacity of ~90–95 mA·h·g−1 was observed after the first cycle. Furthermore, conductivity measurements show that this material exhibits a good Li-ion conduction at room temperature. In a different experimental study [19], it was shown that a five Li per formula unit can be inserted into Li2Ti6O13 between 1.5 and 1.0 V. Density functional theory (DFT) and a classical simulation study performed by Zulueta et al. [21] showed that Li2Ti6O13 is a semiconductor, having a band gap of 3.10 eV, and the activation energy for the Li-ion diffusion is 0.47 eV, though the Li-ion diffusion path was not reported.
The present study aims to examine the crystallographic defects in Li-ion diffusion paths together with activation energies and the impact of dopants in these materials, using force field methods, as reported in previous studies [22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44] for various battery materials. DFT method was applied to study the electronic structure of promising dopants substituted at the Ti site in Li2Ti6O13.

2. Computational Methods

The General Utility Lattice Program (GULP Version 3.4.7) [45] was used to run atomistic simulations based on the classical force field. In this simulation code, lattice energy is calculated by considering Coulombic (long-range) attraction and short-range repulsion (i.e., Pauli electron-electron) and attraction (i.e., van der Waals). To model short-range interaction, Buckingham potentials [see Table S1 in the Supplemental Materials] were used. The Broyden–Fletcher–Goldfarb–Shanno (BFGS) algorithm [46] as implemented in the GULP code was used to model perfect and defect structures of Li2Ti6O13. In all-relaxed configuration, the forces on the atoms were less than below 0.001 eV/Å. Point defects were modeled using the Mott–Littleton method [47]. An overestimation in the defect enthalpies was expected due to the low concentration of ions with spherical shape. Nevertheless, the relative energy trend would be consistent. In the current simulation, isobaric parameters were used to calculate the formation and migration energies. In previous work, we have discussed the thermodynamical relations associated with isobaric parameters in detail [48,49,50,51,52].
Spin-polarized DFT calculations, as implemented in the Vienna Ab initio Simulation Package (VASP Version 5.3.5) [53,54], were performed to examine the electronic structures of the promising dopants substituted at the Ti site. The generalized gradient approximation (GGA) as described by Perdew, Burke, and Ernzerhof (PBE) [55] was used to model the exchange-correlation term. A plane-wave basis set with a cut off value of 500 eV was used. Defect modeling was performed in a supercell containing 126 atoms. In all cases, a 2 × 2 × 2 Monkhorst–Pack k-point mesh [56] containing 8 k points was used. Geometry optimizations were performed using a conjugate gradient algorithm [57]. Using the Hellman–Feynman theorem together with Pulay corrections, forces on the atoms were obtained. Forces on the atoms were smaller than 0.001 eV/Å, and the stress tensor was less than 0.002 GPa in all optimized configurations. Dispersion was applied in all calculations in the form of a pair-wise force field as parameterized by Grimme et al. [58] (DFT-D3) in VASP.

3. Results and Discussion

3.1. Crystal Structure of Li2Ti6O13

Li2Ti6O13 crystalizes in the monoclinic system (space group C2/m). Figure 1 shows the crystal structure of Li2Ti6O13. Kataoka et al. [18] synthesized monoclinic Li2Ti6O13 using sodium/lithium ion exchange method from monoclinic Na2TiO3. Lattice parameters from their study were reported to be a = 15.3065 Å, b = 3.74739 Å, c = 9.1404 Å, α = γ = 90.0°, and β = 99.379°. In the crystal structure, Ti forms distorted octahedra, and they were interconnected by edge sharing. A distorted planar LiO4 unit was observed, and this planar coordination is not normal for Lithium.
The validity of the Buckingham potentials used in the force field method and the projector augmented wave (PAW) potentials [59] used in the DFT method were tested by performing a full geometry optimization of bulk Li2Ti6O13 under constant pressure. The calculated structural parameters are in good agreement with the experimental values reported by Kataoka et al. [18]. The calculated and experimental lattice parameters and angles are listed in Table 1.

3.2. Intrinsic Defect Process

Defects in a material are important, as they influence the properties’ materials in many ways. Diffusion is one of the important properties that is dominated by defects. Anti-site defects can change the mechanical property of the material and the concentration of the point defects. Current atomistic simulation method enabled us to examine the defects. Schematics showing vacancy, interstitial, and anti-site defects are reported in Figure 2. In this section, we examine the process of calculating the Schottky, Frenkel, and anti-site defect energies. First, we calculated the formation energies of point defects (vacancies and interstitials), and then resulting energies were used to evaluate the Schottky and Frenkel defect formation energies. The Li–Ti anti-site defect process was considered by exchanging their positions. The intrinsic point defects are important, as they influence the ion diffusion in the crystal. We used Kröger–Vink notation [60] to represent the Schottky, Frenkel, and anti-site reaction energy processes derived by combining the point defects. The reaction equations decribing the defect processess are as follows:
Li   Frenkel :   Li Li X     V Li +   Li i
O   Frenkel :   O O X     V O +   O i
Ti   Frenkel :   Ti Ti X     V Ti +   Ti i
Schottky : 2   Li Li   X +   6 Ti Ti X   +   13   O O X   2   V Li +   6   V Ti   +   13   V O + Li 2 Ti 6 O 13
Li 2 O   Schottky : 2   Li Li X +   O O X   2   V Li + V O +   Li 2 O
TiO 2   Schottky :   Ti Ti X +   2   O O X     V Ti + 2   V O +   TiO 2
Li / Ti   antisite   ( isolated ) :   Li Li X +   Ti Ti X   Li Ti + Ti Li
Li / Ti   antisite   ( cluster ) :   Li Li X +   Ti Ti X   { Li Ti : Ti Li } .
Figure 3 shows the energy per defect for each of the defect processes. The lowest energy was for the Li Frenkel (0.66 eV/defect). This defect process can facilitate the formation of Li vacancies required for the Li-ion diffusion in Li2Ti6O13. The second most favorable defect was the Li–Ti anti-site defect cluster (2.13 eV/defect), but its magnitude was high, implying that a small amount of such defect can be present only at high temperatures. In previous experimental and theoretical studies of oxide materials, this defect has been discussed [6,24,61,62,63,64]. The formation energy of Li2O was calculated to be 3.14 eV/defect, suggesting that the loss of Li2O in this material requires high temperatures. Schottky and other Frenkel defect energies were high, suggesting that such defect processes are not significant in this material.

3.3. Lithium-Ion Diffusion

A promising electrode material requires high Li-ion diffusion. The present force field-based simulation enables the calculation of long-range Li-ion diffusion pathways with activation energies. Two different local Li hops, A and B (see Figure 4), were identified with jump distances of 3.73 Å and 4.74 Å, respectively. Activation energies together with the Li–Li separations are listed in Table 2. Figure 5 shows the energy profile diagrams for the local Li hops (A and B). Diffusion of Li ions in hop A can be observed in the bc-plane with an activation energy of 0.25 eV, implying very fast Li-ion diffusion in agreement with the experimental measurements reported by Kataoka et al. [18]. Li ions migrated in hop B with a significantly higher activation energy of 0.90 eV. This was due to the longer jump distance than that observed in hop A.
Next, we constructed possible long-range Li-ion diffusion pathways by connecting local hops. Only one possible long-range Li-ion diffusion channel consisting of local hops A was identified. A long-range movement of Li-ion along the b direction in the bc-plane was observed. The activation energy was 0.25 eV for this long-range diffusion. Local hops B could not form long-range diffusion, as these hops were discontinuous in the lattice. The calculated activated energy was lower than the value calculated for other titanates, such as Li2TiO3 (0.51 eV) [34] and Li2Ti3O7 (0.67–0.74 eV) [65]. The Li-ion diffusion barrier in Li2Ti6O13 was reported to be 0.47 eV by Zulueta et al. [21]. Nevertheless, the direction of diffusion was not reported. In the present study, we calculated both the migration pathways and their activation energies.
In line with previous studies [22,23,24,25,26,27], Li-ion migration calculations were performed by following the method developed by Catlow et al. [66]. Two adjacent Li vacancy sites were first created, and Li-ion interstitial positions were then systematically placed at regular intervals along the diagonal connecting them. Seven interstitial positions were considered in all cases and the interstitial ion was fixed while all other ions were free to relax. However, fixing the interstitial ion position does not guarantee the minimum energy path, and it will give only a direct diffusion path. Therefore, interstitial positions were allowed to move x, y, z, xy, yz, and xz directions separately. Finally, the lowest activation energy pathway (curved pathway) was reported. The difference in energy between the saddle point position and the system in its initial state was calculated and reported as the activation energy.

3.4. Trivalent Doping

Generating extra lithium in Li2Ti6O13 can increase its capacity. A way to achieve this is by doping trivalent dopants at the Ti site, as this process can instigate Li interstitials in the lattice according to the following reaction:
R 2 O 3 + 2 Ti Ti X +   Li 2 O   2   R Ti + 2   Li i +   2 Ti O 2 .
Figure 6 shows the solution enthalpies calculated for this process. In all cases, solution enthalpies are exothermic, meaning that they are all candidate dopants for this process. The most promising dopant is Co3+ with the solution enthalpy of −1.32 eV. The least favorable dopant is Gd3+. In a previous experimental study [67], substitutional doping by Co3+ at the Ru site was performed in Li2RuO3, and the resultant over-lithiated Li2+xRu1−xCoO3 compound exhibited an improvement in the electrochemical lithium reversibility and extraction of the Li+ ion compared with the un-doped Li2RuO3. In general, there is a reduction in the solution enthalpy with ionic radius from Co to La.

3.5. Tetravalent Doping

The isovalent doping process by displacing Ti with Si, Ge, Mn, Sn, and Ce is considered here. This doping strategy can alter the mechanical, electrical, and optical properties of Li2Ti6O13. Solution enthalpy for this process was calculated using the following equation:
R O 2 + Ti Ti X     R Ti X + Ti O 2 .
Figure 7 reports the solution enthalpies. Exoergic solution enthalpies are noted for Ge4+, Mn4+, and Sn4+, while dopants Si4+ and Ce4+ exhibited endoergic solution enthalpies. The most favorable promising dopant is Ge4+. Both Mn4+ and Sn4+ are also worth examining experimentally. The solution enthalpy for Ce4+ is 1.75 eV, suggesting that a high temperature is needed for this dopant. In a theoretical study by Zulueta et al. [21], it was predicted that Li2Sn6O13 can be synthesized by Ti4+/Sn4+ ion exchange method. This supports our exoergic solution enthalpy for the doping of Sn4+ at the Ti site. Future experimental studies need to consider the exchange of Ti with Ge4+ and Mn4+, as these two dopants also exhibit exoergic solution enthalpy.
Substitutional doping can impact the Li-ion diffusion barrier because of the change in the local environment. In our recent study [43], we showed that the activation energy of Na-ion diffusion slightly changes upon doping due to reduction or elongation in the Na–Na distance in NaNiO2.

3.6. Electronic Structures of Co3+- and Ge4+-Doped Li2Ti6O13

DFT simulations were carried out to look at the chemical environment of doped atoms and the electronic structures of both defect-free and doped Li2Ti6O13. Here, we only considered the promising dopants, as discussed earlier. In the case of Co3+, Co–O bond distances in the CoO6 unit were slightly shorter than Ti–O bond distances in the TiO6 unit (see Figure 8). This is because of the smaller ionic radius of Co3+ (0.61 Å) than that of Ti4+ (0.71 Å) in an octahedral coordination. The total density of states (DOS) plot indicates that Li2Ti6O13 is a semiconductor with a band gap of 2.90 eV. This value agrees reasonably with the estimated band gap of 3.00 eV from GGA–PBE-based DFT calculation [18] and the experimental value of 3.52 eV [18]. The doping of Co3+ at the Ti site introduces gap states arising from Co (3d) states, confirmed by the atomic DOS of Co (see Figure 8e) and the constant charge density plot associated with the 3d states (see Figure 8f).
Next, we examined the relaxed configuration and electronic structure of Ge-doped Li2Ti6O13 and compared those with that of un-doped Li2Ti6O13. The Ge–O bonds were slightly shorter than the Ti–O bonds due to the smaller radius of Ge4+ (0.53 Å) than that of Ti4+ (0.71 Å) (see Figure 9). However, the degree of distortion in the bond distances was less than that observed in the case of Co3+. This could be due to the fact that both Ti and Ge are isovalent atoms with +4 charge. The doping of Ge dd not change the electronic structure much. The band gap is almost the same. The states arising from Ge were observed at ~−7.5 eV (deep valence band level), showing the strong bonding nature of Ge–O, and this state is confirmed by the constant charge density plot (see Figure 9f).

4. Conclusions

Computational modeling techniques were applied to examine the defect energetics, Li-ion migration, solution of dopants, and electronic structures of doped Li2Ti6O13. Defect energetics show that the Li Frenkel was calculated to be the most stable defect process, while Schottky defects were unfavorable to occur. The Li–Ti anti-site defect was the second most favorable defect process. Li-ion diffusion took place in the bc-plane, with a low activation energy of 0.25 eV. The energetics of solution of trivalent dopants revealed that Li generation in the form of interstitial can be executed by doping Co3+ at the Ti site. Tetravalent dopant Ge4+ is a promising dopant at the Ti site. The efficacy of these dopants and the exact amount should be verified experimentally. Finally, doping of Co3+ introduced gap states, whereas Ge4+ did not change the complete electronic structure. In both cases, the semiconductor nature of Li2Ti6O13 was not altered by the both dopants. However, high concentrations of dopants are likely to influence the electronic structure of Li2Ti6O13.

Supplementary Materials

The following are available online at, Table S1: Interatomic potential parameters used in the atomistic simulations of Li2Ti6O13.

Author Contributions

Computation, N.K.; writing, N.K.; analysis and editing, S.G. and A.C.


This research was financially supported by the European Union’s H2020 Programme under Grant Agreement no. 824072–HARVESTORE.


We acknowledge Imperial College for providing high-performance computing facilities.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652. [Google Scholar] [CrossRef] [PubMed]
  2. Whittingham, M.S. Lithium Batteries and Cathode Materials. Chem. Rev. 2004, 104, 4271–4302. [Google Scholar] [CrossRef] [PubMed]
  3. Padhi, A.K.; Nanjundaswamy, K.S.; Goodenough, J.B. Phospho-olivines as Positive-Electrode Materials for Rechargeable Lithium Batteries. J. Electrochem. Soc. 1997, 144, 1188–1194. [Google Scholar] [CrossRef]
  4. Nytén, A.; Abouimrane, A.; Armand, M.; Gustafsson, T.; Thomas, J.O. Electrochemical performance of Li2FeSiO4 as a new Li-battery cathode material. Electrochem. Commun. 2005, 7, 156–160. [Google Scholar] [CrossRef]
  5. Nishimura, S.-I.; Hayase, S.; Kanno, R.; Yashima, M.; Nakayama, N.; Yamada, A. Structure of Li2FeSiO4. J. Am. Chem. Soc. 2008, 130, 13212–13213. [Google Scholar] [CrossRef]
  6. Armstrong, A.R.; Kuganathan, N.; Islam, M.S.; Bruce, P.G. Structure and Lithium Transport Pathways in Li2FeSiO4 Cathodes for Lithium Batteries. J. Am. Chem. Soc. 2011, 133, 13031–13035. [Google Scholar] [CrossRef] [PubMed]
  7. Masquelier, C.; Croguennec, L. Polyanionic (Phosphates, Silicates, Sulfates) Frameworks as Electrode Materials for Rechargeable Li (or Na) Batteries. Chem. Rev. 2013, 113, 6552–6591. [Google Scholar] [CrossRef]
  8. Wang, J.; Zhang, G.; Liu, Z.; Li, H.; Liu, Y.; Wang, Z.; Li, X.; Shih, K.; Mai, L. Li3V(MoO4)3 as a novel electrode material with good lithium storage properties and improved initial coulombic efficiency. Nano Energy 2018, 44, 272–278. [Google Scholar] [CrossRef]
  9. Recham, N.; Chotard, J.N.; Dupont, L.; Delacourt, C.; Walker, W.; Armand, M.; Tarascon, J.M. A 3.6 V lithium-based fluorosulphate insertion positive electrode for lithium-ion batteries. Nat. Mater. 2009, 9, 68. [Google Scholar] [CrossRef]
  10. Afyon, S.; Wörle, M.; Nesper, R. A Lithium-Rich Compound Li7Mn(BO3)3 Containing Mn2+ in Tetrahedral Coordination: A Cathode Candidate for Lithium-Ion Batteries. Angew. Chem. Inter. Ed. 2013, 52, 12541–12544. [Google Scholar] [CrossRef]
  11. Nishimura, S.-I.; Nakamura, M.; Natsui, R.; Yamada, A. New Lithium Iron Pyrophosphate as 3.5 V Class Cathode Material for Lithium Ion Battery. J. Am. Chem. Soc. 2010, 132, 13596–13597. [Google Scholar] [CrossRef] [PubMed]
  12. Jay, E.E.; Rushton, M.J.D.; Chroneos, A.; Grimes, R.W.; Kilner, J.A. Genetics of superionic conductivity in lithium lanthanum titanates. Phys. Chem. Chem. Phys. 2015, 17, 178–183. [Google Scholar] [CrossRef] [PubMed]
  13. De Dompablo, M.E.A.Y.; Morán, E.; Várez, A.; García-Alvarado, F. Electrochemical lithium intercalation in Li2Ti3O7-ramsdellite structure. Mater. Res. Bull. 1997, 32, 993–1001. [Google Scholar] [CrossRef]
  14. Kuhn, A.; Baehtz, C.; García-Alvarado, F. Structural evolution of ramsdellite-type LixTi2O4 upon electrochemical lithium insertion–deinsertion (0 ≤ x ≤ 2). J. Power Sources 2007, 174, 421–427. [Google Scholar] [CrossRef]
  15. Ohzuku, T.; Ueda, A.; Yamamoto, N. Zero-Strain Insertion Material of Li [Li1/3Ti5/3 ]O4 for Rechargeable Lithium Cells. J. Electrochem. Soc. 1995, 142, 1431–1435. [Google Scholar] [CrossRef]
  16. Colbow, K.M.; Dahn, J.R.; Haering, R.R. Structure and electrochemistry of the spinel oxides LiTi2O4 and Li43Ti53O4. J. Power Sources 1989, 26, 397–402. [Google Scholar] [CrossRef]
  17. Boyce, J.B.; Mikkelsen, J.C. Anisotropic conductivity in a channel-structured superionic conductor: Li2Ti3O7. Solid State Commun. 1979, 31, 741–745. [Google Scholar] [CrossRef]
  18. Kataoka, K.; Awaka, J.; Kijima, N.; Hayakawa, H.; Ohshima, K.-I.; Akimoto, J. Ion-Exchange Synthesis, Crystal Structure, and Electrochemical Properties of Li2Ti6O13. Chem. Mater. 2011, 23, 2344–2352. [Google Scholar] [CrossRef]
  19. Pérez-Flores, J.C.; Kuhn, A.; García-Alvarado, F. Synthesis, structure and electrochemical Li insertion behaviour of Li2Ti6O13 with the Na2Ti6O13 tunnel-structure. J. Power Sources 2011, 196, 1378–1385. [Google Scholar] [CrossRef]
  20. Pérez-Flores, J.C.; Baehtz, C.; Hoelzel, M.; Kuhn, A.; García-Alvarado, F. Full structural and electrochemical characterization of Li2Ti6O13 as anode for Li-ion batteries. Phys. Chem. Chem. Phys. 2012, 14, 2892–2899. [Google Scholar] [CrossRef]
  21. Zulueta, Y.A.; Nguyen, M.T. Lithium Hexastannate: A Potential Material for Energy Storage. Phys. Status Solidi (b) 2018, 255, 1700669. [Google Scholar] [CrossRef]
  22. Fisher, C.A.J.; Hart Prieto, V.M.; Islam, M.S. Lithium Battery Materials LiMPO4 (M = Mn, Fe, Co and Ni): Insights into Defect Association, Transport Mechanisms, and Doping Behavior. Chem. Mater. 2008, 20, 5907–5915. [Google Scholar] [CrossRef]
  23. Islam, M.S.; Driscoll, D.J.; Fisher, C.A.J.; Slater, P.R. Atomic-Scale Investigation of Defects, Dopants, and Lithium Transport in the LiFePO4 Olivine-Type Battery Material. Chem. Mater. 2005, 17, 5085–5092. [Google Scholar] [CrossRef]
  24. Kuganathan, N.; Islam, M.S. Li2MnSiO4 Lithium Battery Material: Atomic-Scale Study of Defects, Lithium Mobility, and Trivalent Dopants. Chem. Mater. 2009, 21, 5196–5202. [Google Scholar] [CrossRef]
  25. Fisher, C.A.J.; Kuganathan, N.; Islam, M.S. Defect chemistry and lithium-ion migration in polymorphs of the cathode material Li2MnSiO4. J. Mater. Chem. A 2013, 1, 4207–4214. [Google Scholar] [CrossRef]
  26. Kuganathan, N.; Sgourou, E.N.; Panayiotatos, Y.; Chroneos, A. Defect Process, Dopant Behaviour and Li Ion Mobility in the Li2MnO3 Cathode Material. Energies 2019, 12, 1329. [Google Scholar] [CrossRef]
  27. Kuganathan, N.; Kordatos, A.; Anurakavan, S.; Iyngaran, P.; Chroneos, A. Li3SbO4 lithium-ion battery material: Defects, lithium ion diffusion and tetravalent dopants. Mater. Chem. Phys. 2019, 225, 34–41. [Google Scholar] [CrossRef]
  28. Kordatos, A.; Kuganathan, N.; Kelaidis, N.; Iyngaran, P.; Chroneos, A. Defects and lithium migration in Li2CuO2. Sci. Rep. 2018, 8, 6754. [Google Scholar] [CrossRef]
  29. Kuganathan, N.; Chroneos, A. Defects and dopant properties of Li3V2(PO4)3. Sci. Rep. 2019, 9, 333. [Google Scholar] [CrossRef] [PubMed]
  30. Kuganathan, N.; Ganeshalingam, S.; Chroneos, A. Defects, Dopants and Lithium Mobility in Li9V3(P2O7)3 (PO4)2. Sci. Rep. 2018, 8, 8140. [Google Scholar] [CrossRef] [PubMed]
  31. Kuganathan, N.; Kordatos, A.; Chroneos, A. Li2SnO3 as a Cathode Material for Lithium-ion Batteries: Defects, Lithium Ion Diffusion and Dopants. Sci. Rep. 2018, 8, 12621. [Google Scholar] [CrossRef] [PubMed]
  32. Kuganathan, N.; Kordatos, A.; Chroneos, A. Defect Chemistry and Li-ion Diffusion in Li2RuO3. Sci. Rep. 2019, 9, 550. [Google Scholar] [CrossRef] [PubMed]
  33. Kuganathan, N.; Kordatos, A.; Kelaidis, N.; Chroneos, A. Defects, Lithium Mobility and Tetravalent Dopants in the Li3NbO4 Cathode Material. Sci. Rep. 2019, 9, 2192. [Google Scholar] [CrossRef] [PubMed]
  34. Kuganathan, N.; Kordatos, A.; Fitzpatrick, M.E.; Vovk, R.V.; Chroneos, A. Defect process and lithium diffusion in Li2TiO3. Solid State Ion. 2018, 327, 93–98. [Google Scholar] [CrossRef]
  35. Kuganathan, N.; Tsoukalas, L.H.; Chroneos, A. Defects, dopants and Li-ion diffusion in Li2SiO3. Solid State Ion. 2019, 335, 61–66. [Google Scholar] [CrossRef]
  36. Kuganathan, N.; Chroneos, A. Defect Chemistry and Na-Ion Diffusion in Na3Fe2(PO4)3 Cathode Material. Materials 2019, 12, 1348. [Google Scholar] [CrossRef] [PubMed]
  37. Kuganathan, N.; Chroneos, A. Defects, Dopants and Sodium Mobility in Na2MnSiO4. Sci. Rep. 2018, 8, 14669. [Google Scholar] [CrossRef] [PubMed]
  38. Kuganathan, N.; Chroneos, A. Na3V(PO4)2 cathode material for Na ion batteries: Defects, dopants and Na diffusion. Solid State Ion. 2019, 336, 75–79. [Google Scholar] [CrossRef]
  39. Treacher, J.C.; Wood, S.M.; Islam, M.S.; Kendrick, E. Na2CoSiO4 as a cathode material for sodium-ion batteries: Structure, electrochemistry and diffusion pathways. Phys. Chem. Chem. Phys. 2016, 18, 32744–32752. [Google Scholar] [CrossRef]
  40. Kuganathan, N.; Iyngaran, P.; Chroneos, A. Lithium diffusion in Li5FeO4. Sci. Rep. 2018, 8, 5832. [Google Scholar] [CrossRef]
  41. Kuganathan, N.; Iyngaran, P.; Vovk, R.; Chroneos, A. Defects, dopants and Mg diffusion in MgTiO3. Sci. Rep. 2019, 9, 4394. [Google Scholar] [CrossRef] [PubMed]
  42. Kuganathan, N.; Dark, J.; Sgourou, E.N.; Panayiotatos, Y.; Chroneos, A. Atomistic Simulations of the Defect Chemistry and Self-Diffusion of Li-ion in LiAlO2. Energies 2019, 12, 2895. [Google Scholar] [CrossRef]
  43. Kaushalya, R.; Iyngaran, P.; Kuganathan, N.; Chroneos, A. Defect, Diffusion and Dopant Properties of NaNiO2: Atomistic Simulation Study. Energies 2019, 12, 3094. [Google Scholar] [CrossRef]
  44. Kuganathan, N.; Gkanas, E.I.; Chroneos, A. Mg6MnO8 as a Magnesium-Ion Battery Material: Defects, Dopants and Mg-Ion Transport. Energies 2019, 12, 3213. [Google Scholar] [CrossRef]
  45. Gale, J.D.; Rohl, A.L. The General Utility Lattice Program (GULP). Mol. Simul. 2003, 29, 291–341. [Google Scholar] [CrossRef]
  46. Gale, J.D. GULP: A computer program for the symmetry-adapted simulation of solids. J. Chem. Soc. Faraday Trans. 1997, 93, 629–637. [Google Scholar] [CrossRef]
  47. Mott, N.F.; Littleton, M.J. Conduction in polar crystals. I. Electrolytic conduction in solid salts. Trans. Faraday Soc. 1938, 34, 485–499. [Google Scholar] [CrossRef]
  48. Varotsos, P. Comparison of models that interconnect point defect parameters in solids with bulk properties. J. Appl. Phys. 2007, 101, 123503. [Google Scholar] [CrossRef]
  49. Varotsos, P. Defect volumes and the equation of state in α-PbF2. Phys. Rev. B 2007, 76, 092106. [Google Scholar] [CrossRef]
  50. Varotsos, P. Point defect parameters in β-PbF2 revisited. Solid State Ion. 2008, 179, 438–441. [Google Scholar] [CrossRef]
  51. Chroneos, A.; Vovk, R.V. Modeling self-diffusion in UO2 and ThO2 by connecting point defect parameters with bulk properties. Solid State Ion. 2015, 274, 1–3. [Google Scholar] [CrossRef]
  52. Cooper, M.W.D.; Grimes, R.W.; Fitzpatrick, M.E.; Chroneos, A. Modeling oxygen self-diffusion in UO2 under pressure. Solid State Ion. 2015, 282, 26–30. [Google Scholar] [CrossRef]
  53. Kresse, G.; Furthmüller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef] [PubMed]
  54. Kresse, G.; Joubert, D. From ultrasoft pseudopotentials to the projector augmented-wave method. Phys. Rev. B 1999, 59, 1758–1775. [Google Scholar] [CrossRef]
  55. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized Gradient Approximation Made Simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [Green Version]
  56. Monkhorst, H.J.; Pack, J.D. Special points for Brillouin-zone integrations. Phys. Rev. B 1976, 13, 5188–5192. [Google Scholar] [CrossRef]
  57. Press, W.H.; Flannery, B.P.; Teukolsky, S.A.; Vetterling, W.T. Numerical Recipes; The Art of Scientific Computing Cambridge University Press: Cambridge, UK, 1986; 818p. [Google Scholar]
  58. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed]
  59. Blöchl, P.E. Projector augmented-wave method. Phys. Rev. B 1994, 50, 17953–17979. [Google Scholar] [CrossRef] [Green Version]
  60. Kröger, F.A.; Vink, H.J. Relations between the Concentrations of Imperfections in Crystalline Solids. In Solid State Physics; Seitz, F., Turnbull, D., Eds.; Academic Press: Cambridge, MA, USA, 1956; Volume 3, pp. 307–435. [Google Scholar]
  61. Nytén, A.; Kamali, S.; Häggström, L.; Gustafsson, T.; Thomas, J.O. The lithium extraction/insertion mechanism in Li2FeSiO4. J. Mater. Chem. 2006, 16, 2266–2272. [Google Scholar] [CrossRef]
  62. Politaev, V.V.; Petrenko, A.A.; Nalbandyan, V.B.; Medvedev, B.S.; Shvetsova, E.S. Crystal structure, phase relations and electrochemical properties of monoclinic Li2MnSiO4. J. Solid State Chem. 2007, 180, 1045–1050. [Google Scholar] [CrossRef]
  63. Liu, H.; Choe, M.-J.; Enrique, R.A.; Orvañanos, B.; Zhou, L.; Liu, T.; Thornton, K.; Grey, C.P. Effects of Antisite Defects on Li Diffusion in LiFePO4 Revealed by Li Isotope Exchange. J. Phys. Chem. C 2017, 121, 12025–12036. [Google Scholar] [CrossRef]
  64. Kempaiah Devaraju, M.; Duc Truong, Q.; Hyodo, H.; Sasaki, Y.; Honma, I. Synthesis, characterization and observation of antisite defects in LiNiPO4 nanomaterials. Sci. Rep. 2015, 5, 11041. [Google Scholar] [CrossRef] [PubMed]
  65. Islam, M.M.; Heitjans, P.; Bredow, T. Structural Analysis and Li Migration Pathways in Ramsdellite Li2Ti3O7: A Theoretical Study. J. Phys. Chem. C 2016, 120, 5–10. [Google Scholar] [CrossRef]
  66. Arunkumar, P.; Jeong, W.J.; Won, S.; Im, W.B. Improved electrochemical reversibility of over-lithiated layered Li2RuO3 cathodes: Understanding aliovalent Co3+ substitution with excess lithium. J. Power Sources 2016, 324, 428–438. [Google Scholar] [CrossRef]
  67. Catlow, C.R.A. Solid State Chemistry—Techniques; Cheetham, A.K., Day, P., Eds.; Clarendon Press: Oxford, UK, 1987; p. 231. [Google Scholar]

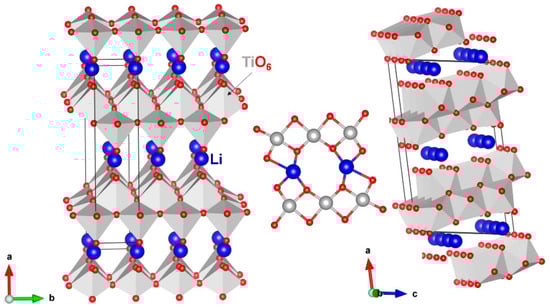

Figure 1. Monoclinic crystal structure of Li2Ti6O13 (space group C2/m).
Figure 1. Monoclinic crystal structure of Li2Ti6O13 (space group C2/m).
Materials 12 02851 g001

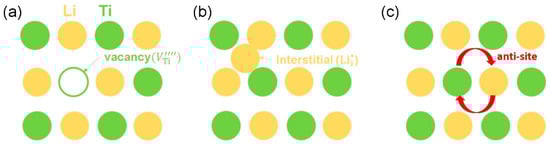

Figure 2. Schematic diagrams showing (a) vacancy, (b) interstitial, and (c) anti-site defects in Li2Ti6O13.
Figure 2. Schematic diagrams showing (a) vacancy, (b) interstitial, and (c) anti-site defects in Li2Ti6O13.
Materials 12 02851 g002

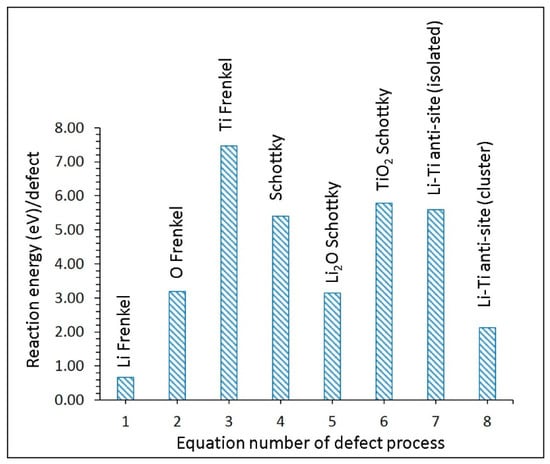

Figure 3. Energetics of intrinsic defect processes.
Figure 3. Energetics of intrinsic defect processes.
Materials 12 02851 g003

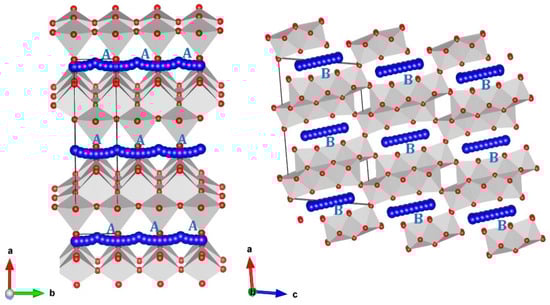

Figure 4. Li-ion diffusion paths calculated in Li2Ti6O13. Blue atoms correspond to local Li-ion hopping trajectories.
Figure 4. Li-ion diffusion paths calculated in Li2Ti6O13. Blue atoms correspond to local Li-ion hopping trajectories.
Materials 12 02851 g004

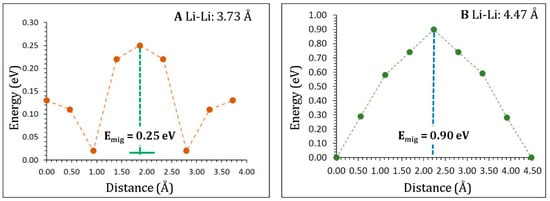

Figure 5. Energy profile diagrams for Li-ion local hops A and B as shown in Figure 4.
Figure 5. Energy profile diagrams for Li-ion local hops A and B as shown in Figure 4.
Materials 12 02851 g005

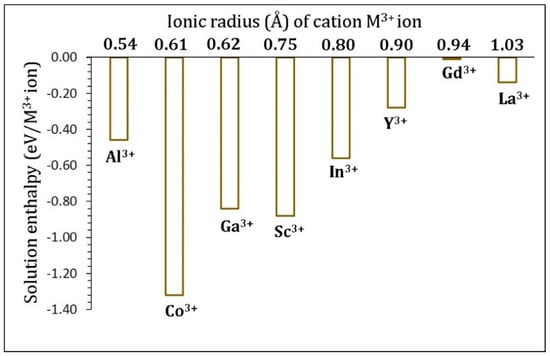

Figure 6. Solution enthalpies calculated for R2O3 (R = Al, Co, Ga, Sc, In, Y, Gd, and La) with reference to the M3+ radius in an octahedral coordination.
Figure 6. Solution enthalpies calculated for R2O3 (R = Al, Co, Ga, Sc, In, Y, Gd, and La) with reference to the M3+ radius in an octahedral coordination.
Materials 12 02851 g006

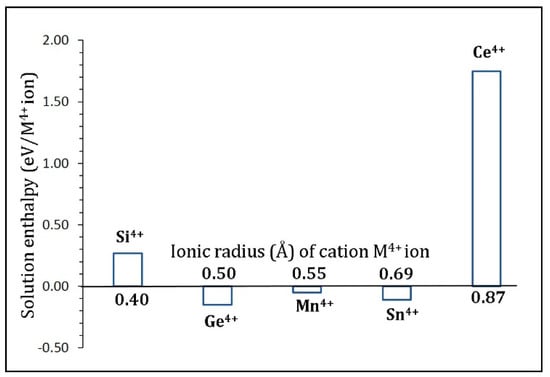

Figure 7. Solution enthalpies calculated for RO2 (R = Si, Ge, Mn, Sn, and Ce) at the Ti site with reference to M4+ radius in an octahedral coordination.
Figure 7. Solution enthalpies calculated for RO2 (R = Si, Ge, Mn, Sn, and Ce) at the Ti site with reference to M4+ radius in an octahedral coordination.
Materials 12 02851 g007

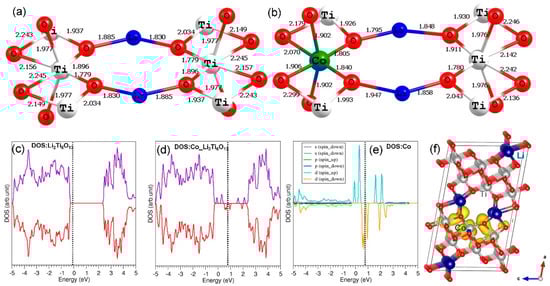

Figure 8. (a) TiO6 octahedral unit in the optimized un-doped Li2Ti6O13 structure, (b) CoO6 octahedral unit in the doped configuration, (c) total density of states (DOS) of Li2Ti6O13, (d) total DOS of Co-doped Li2Ti6O13, (e) atomic DOS of Co, and (f) constant charge density plot associated with the gap states arising from Co.
Figure 8. (a) TiO6 octahedral unit in the optimized un-doped Li2Ti6O13 structure, (b) CoO6 octahedral unit in the doped configuration, (c) total density of states (DOS) of Li2Ti6O13, (d) total DOS of Co-doped Li2Ti6O13, (e) atomic DOS of Co, and (f) constant charge density plot associated with the gap states arising from Co.
Materials 12 02851 g008

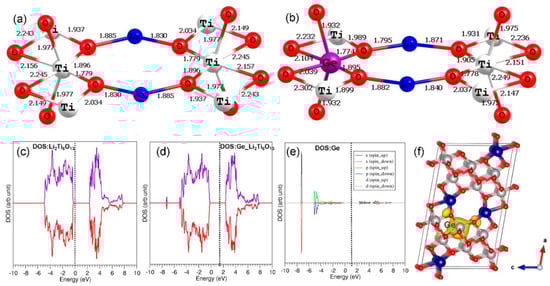

Figure 9. (a) TiO6 octahedral unit in the optimized un-doped Li2Ti6O13 structure, (b) GeO6 octahedral unit in the doped configuration, (c) total density of states (DOS) of Li2Ti6O13, (d) total DOS of Ge-doped Li2Ti6O13, (e) atomic DOS of Ge, and (f) constant charge density plot associated with the states responsible for Ge at ~−7.5 eV.
Figure 9. (a) TiO6 octahedral unit in the optimized un-doped Li2Ti6O13 structure, (b) GeO6 octahedral unit in the doped configuration, (c) total density of states (DOS) of Li2Ti6O13, (d) total DOS of Ge-doped Li2Ti6O13, (e) atomic DOS of Ge, and (f) constant charge density plot associated with the states responsible for Ge at ~−7.5 eV.
Materials 12 02851 g009
Table 1. Calculated structural parameters and corresponding experimental values reported for monoclinic (C2/m) Li2Ti6O13.
Table 1. Calculated structural parameters and corresponding experimental values reported for monoclinic (C2/m) Li2Ti6O13.
ParameterCalculatedExperiment [18]|∆| (%)
Force FieldDFTForce FieldDFT
a (Å)15.7437 15.458915.3065 2.82 0.99
b (Å)3.7254 3.77193.7474 0.59 0.65
c (Å)9.0525 9.24999.1404 0.96 1.19
α = γ (°)90.00 90.0090.00 0.00 0.00
β (°)99.2636 100.0399.3790 0.12 0.65
Table 2. Li–Li distances and their corresponding activation energies for the Li-ion migration in Li2Ti6O13 as reported in the Figure 4.
Table 2. Li–Li distances and their corresponding activation energies for the Li-ion migration in Li2Ti6O13 as reported in the Figure 4.
Migration PathLi–Li Separation (Å)Activation Energy (eV)
