Next Article in Journal
Mix Design and Mechanical Properties of High-Performance Pervious Concrete
Previous Article in Journal
Decision Tree Methods for Predicting Surface Roughness in Fused Deposition Modeling Parts
Open AccessArticle

Hydrogen-Assisted Crack Growth in the Heat-Affected Zone of X80 Steels during in Situ Hydrogen Charging

1,2,†, 3,†, 1,3, 1, 1, 3 and 3,*
1
High Temperature Materials Research Institute, Central Iron & Steel Research Institute, Beijing 100081, China
2
Beijing GAONA Materials & Technology Co., LTD, Beijing 100081, China
3
State Key Laboratory of Heavy Oil Processing and Department of Materials Science and Engineering, China University of Petroleum, Beijing 102249, China
*
Author to whom correspondence should be addressed.
The first two authors contributed equally to this work and should be considered co-first authors.
Materials 2019, 12(16), 2575; https://doi.org/10.3390/ma12162575
Received: 7 July 2019 / Revised: 1 August 2019 / Accepted: 8 August 2019 / Published: 12 August 2019
(This article belongs to the Section Corrosion and Materials Degradation)
  |
PDF [7735 KB, uploaded 19 August 2019]
  |     |

Abstract

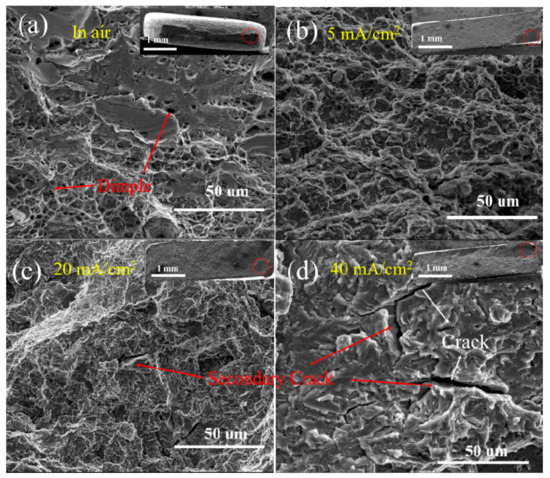

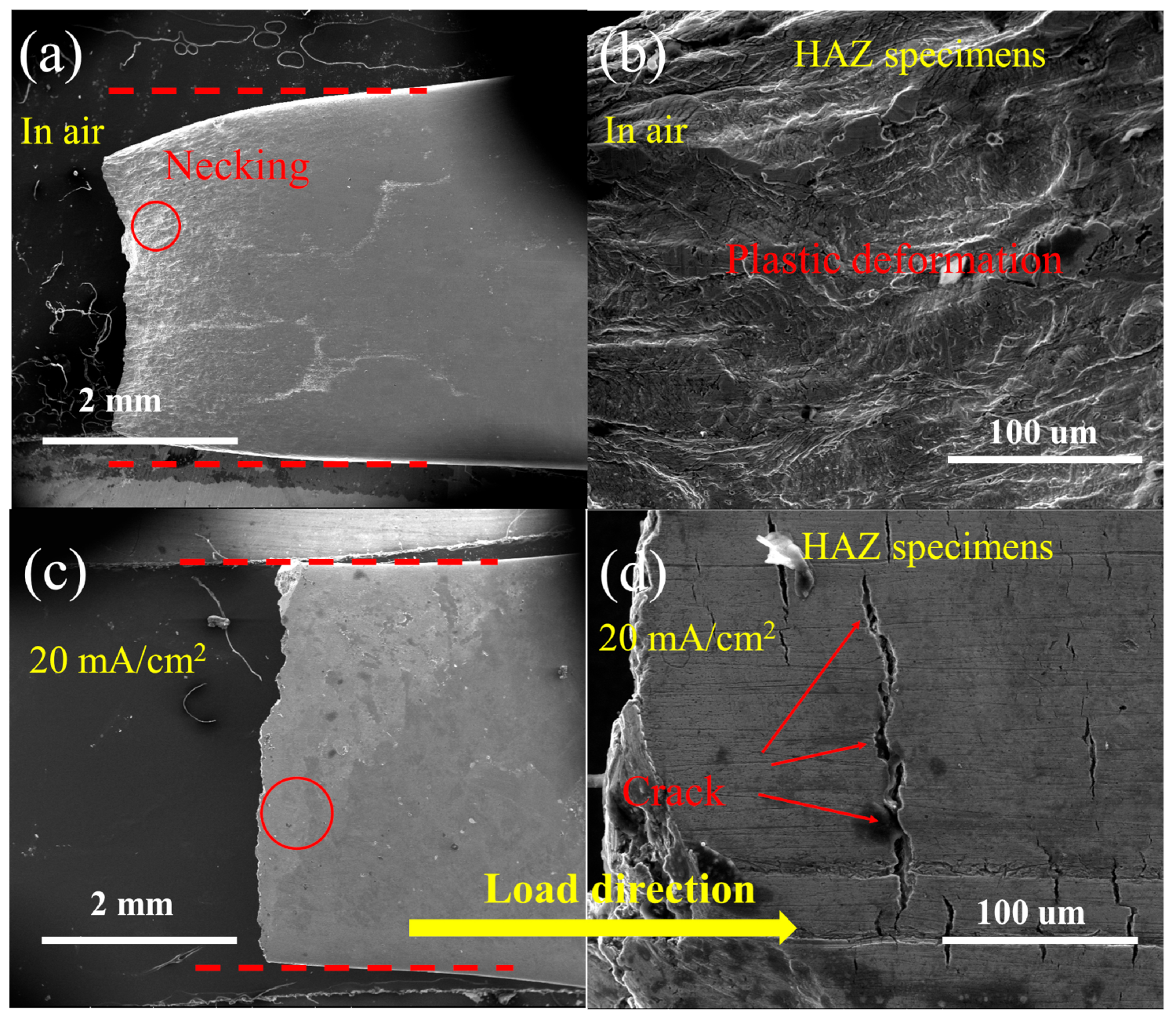

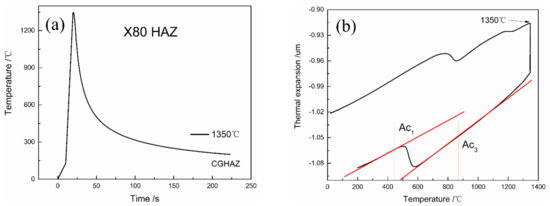

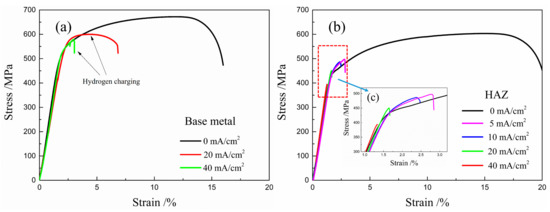

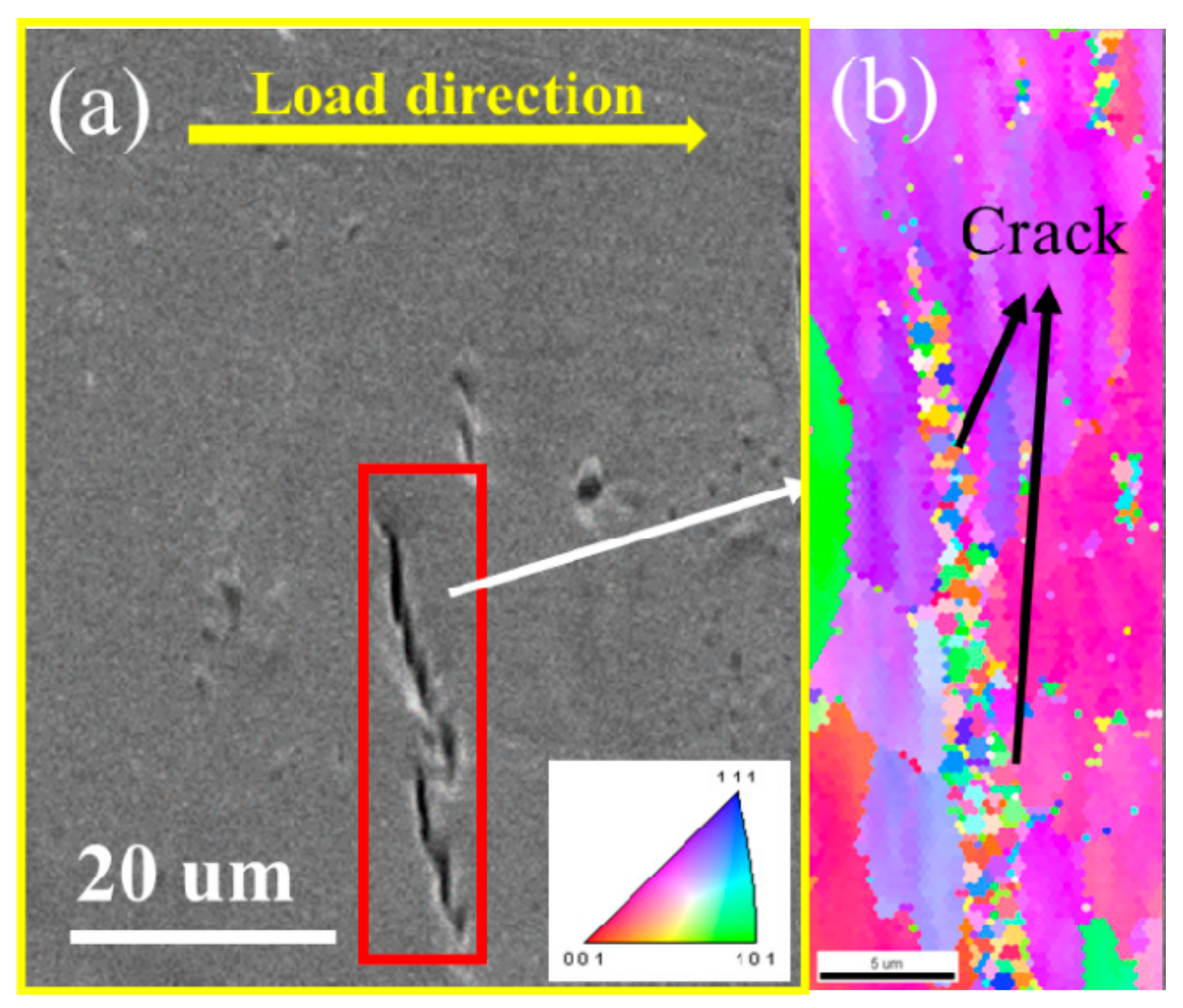

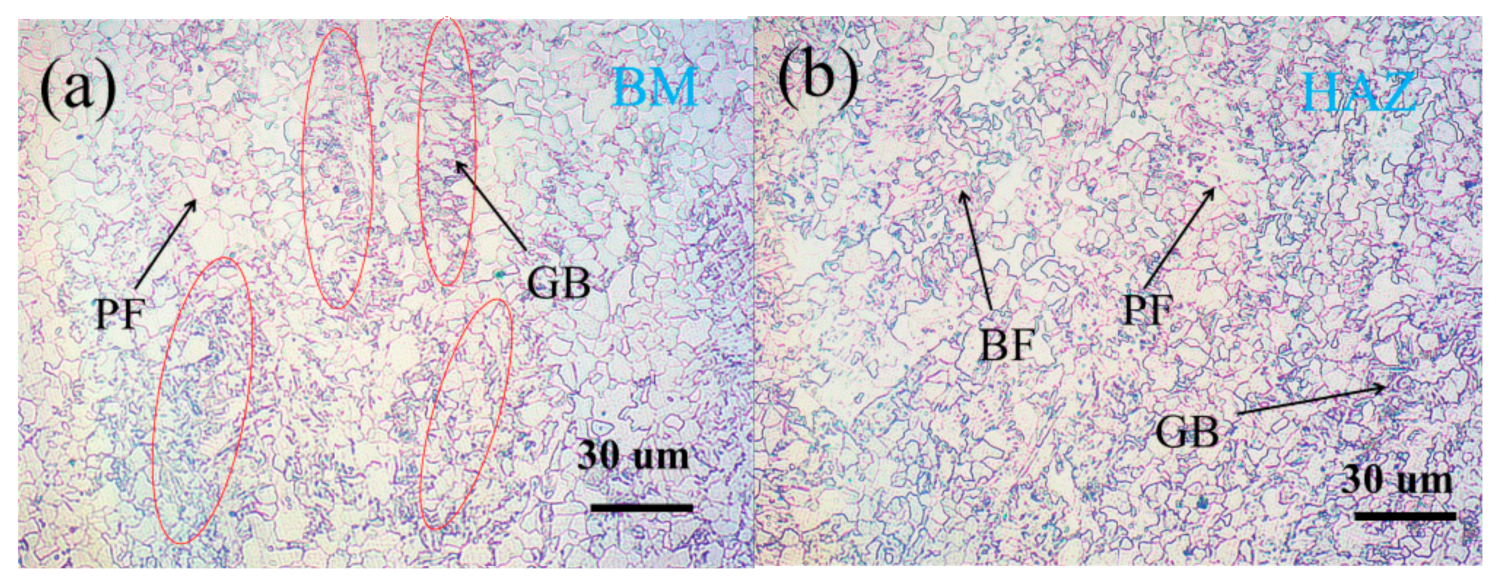

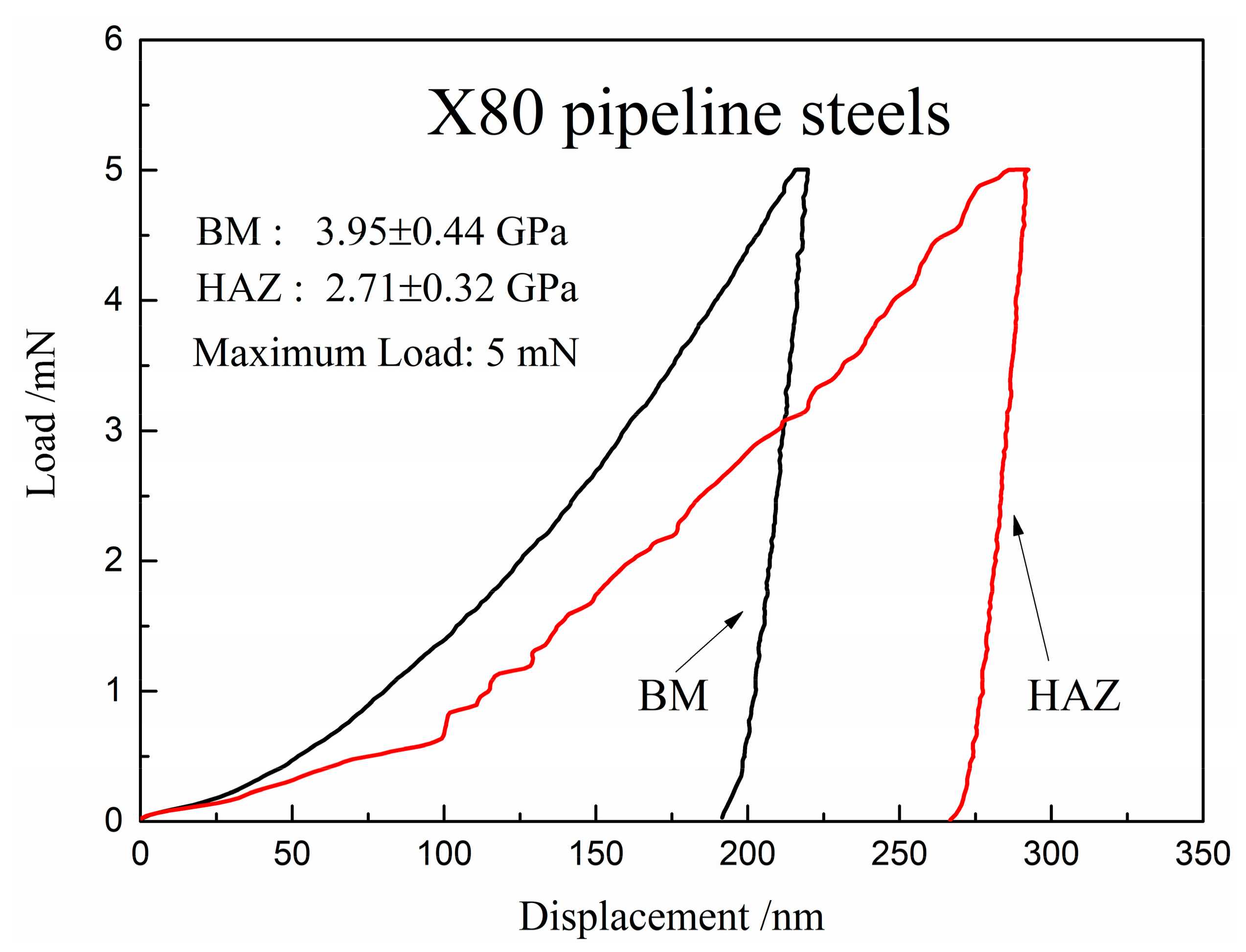

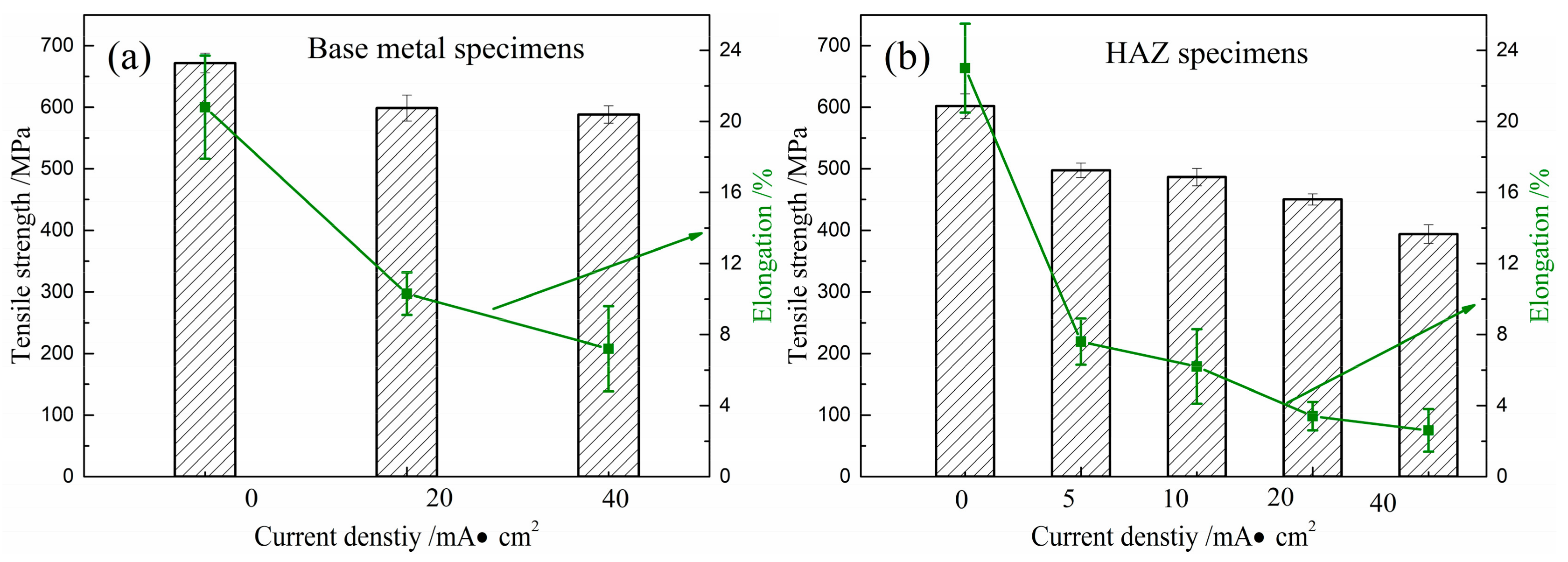

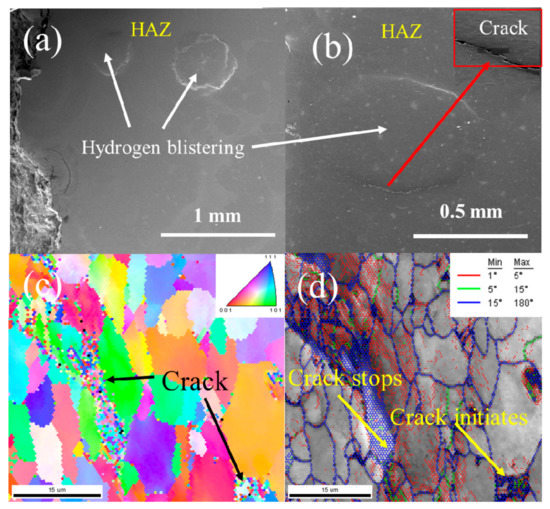

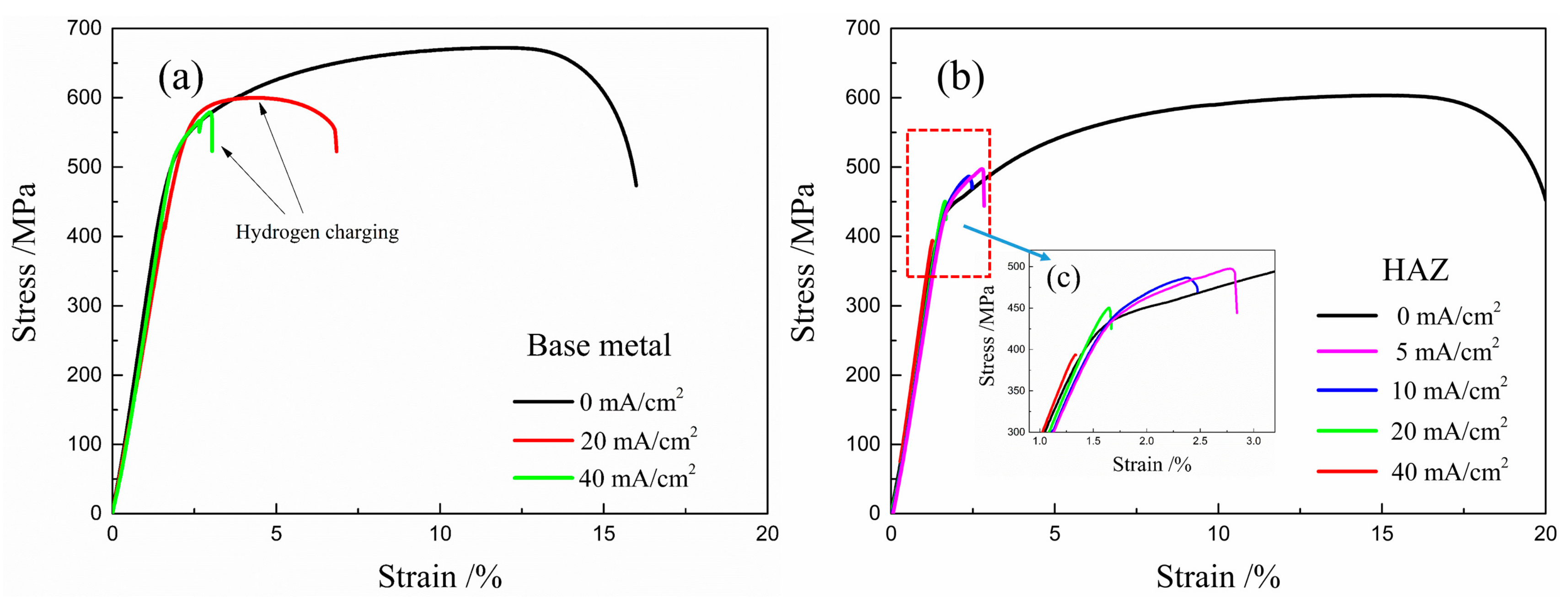

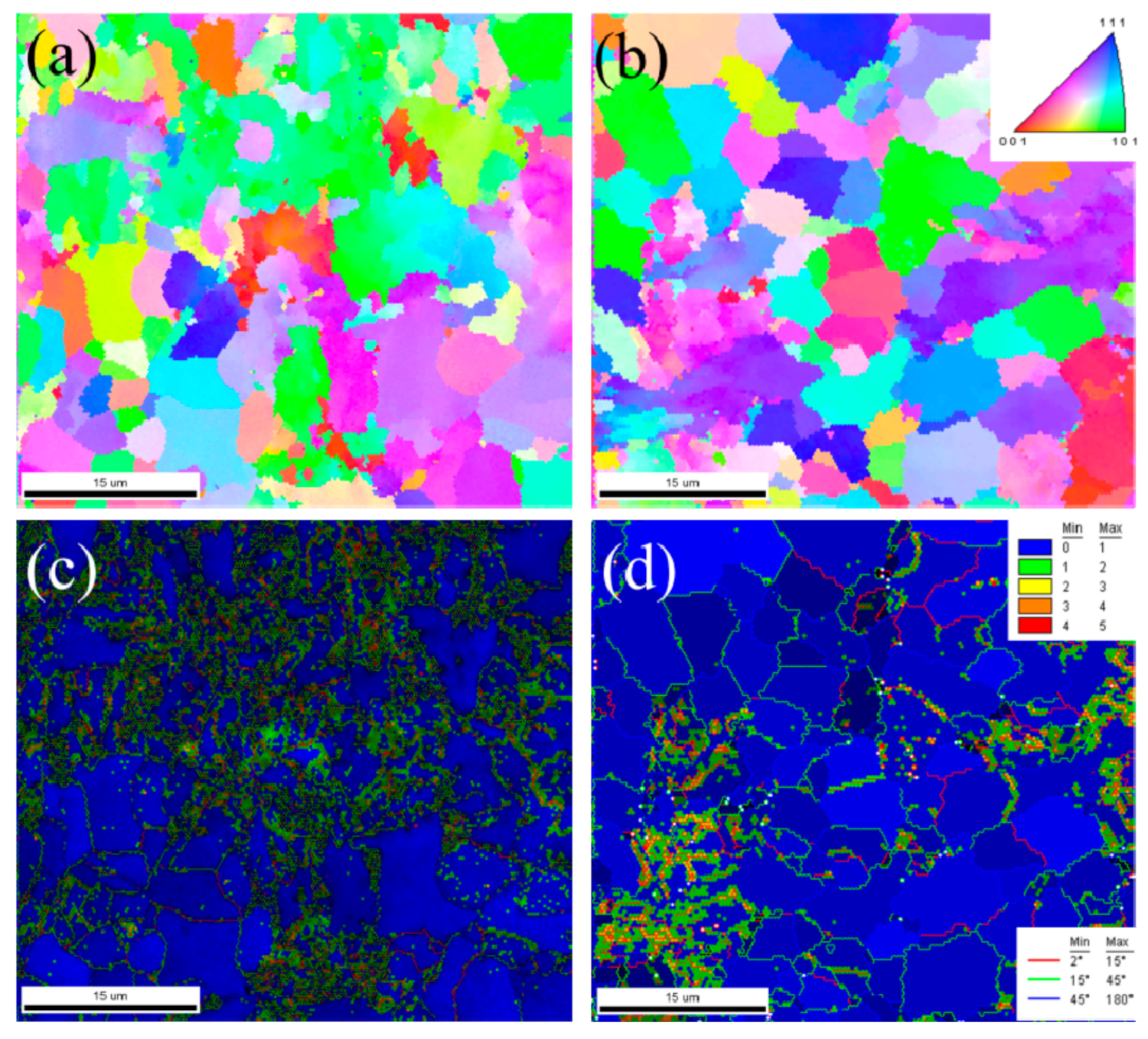

Herein, the hydrogen embrittlement of a heat-affected zone (HAZ) was examined using slow strain rate tension in situ hydrogen charging. The influence of hydrogen on the crack path of the HAZ sample surfaces was determined using electron back scatter diffraction analysis. The hydrogen embrittlement susceptibility of the base metal and the HAZ samples increased with increasing current density. The HAZ samples have lower resistance to hydrogen embrittlement than the base metal samples in the same current density. Brittle circumferential cracks located at the HAZ sample surfaces were perpendicular to the loading direction, and the crack propagation path indicated that five or more cracks may join together to form a longer crack. The fracture morphologies were found to be a mixture of intergranular and transgranular fractures. Hydrogen blisters were observed on the HAZ sample surfaces after conducting tensile tests at a current density of 40 mA/cm2, leading to a fracture in the elastic deformation stage. View Full-Text
Keywords: heat-affected zone; hydrogen embrittlement; electron backscatter diffraction; crack propagation path heat-affected zone; hydrogen embrittlement; electron backscatter diffraction; crack propagation path
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Qu, J.; Feng, M.; An, T.; Bi, Z.; Du, J.; Yang, F.; Zheng, S. Hydrogen-Assisted Crack Growth in the Heat-Affected Zone of X80 Steels during in Situ Hydrogen Charging. Materials 2019, 12, 2575.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
