Materials 2019, 12(16), 2555; https://doi.org/10.3390/ma12162555

Article
Low-Temperature High-Efficiency Preparation of TiB2 Micro-Platelets via Boro/Carbothermal Reduction in Microwave Heated Molten Salt
The State Key Laboratory of Refractories and Metallurgy, Wuhan University of Science and Technology, Wuhan 430081, China
*
Authors to whom correspondence should be addressed.
Received: 4 July 2019 / Accepted: 8 August 2019 / Published: 11 August 2019

Abstract

:
A molten-salt and microwave co-facilitated boro/carbothermal reduction methodology was developed for low temperature high-efficiency synthesis of TiB2 powders. By using relatively inexpensive titanium oxide (TiO2), boron carbide (B4C) and amorphous carbon (C) as raw materials, single-phase TiB2 powders were prepared after 60 min at as low as 1150 °C or after only 20 min at 1200 °C. Such synthesis conditions were remarkably milder than those required by the conventional reduction routes using the identical reducing agent. As-synthesized TiB2 powders exhibited single-crystalline nature and well-grown hexagonal-platelet-like morphology. The achievement of low temperature high-efficiency preparation of high-quality TiB2 microplatelets in the present work was mainly attributable to the synergistic effects of molten-salt medium and microwave heating.
Keywords:
TiB2; hexagonal microplatelet; microwave heating; molten-salt synthesis

1. Introduction

As one of the most important ultra-high temperature ceramics (UHTCs), titanium diboride (TiB2) exhibits many useful properties, including a high melting point (3225 °C), low density (4.52 g∙cm−3), good corrosion resistance, and high hardness (25–35 GPa) [1,2,3,4]. It is thus regarded as a candidate material that is potentially applicable to versatile structural-applications, e.g., in armors, high-temperature wear-resistant parts, cutting tools, and neutron absorbers [5,6,7]. Currently, the most popular method to prepare TiB2-based UHTCs is high temperature consolidation of constituent powders, in which case the synthesis process and the quality of raw material powders (in particular, TiB2 powder) are key in optimization of the properties and performance of the final products.
The main synthesis techniques of TiB2 powders developed to date can be categorized into three types, including self-propagating high-temperature synthesis (SHS) [8], carbo/boro/metallothermic reduction [9,10,11,12,13,14,15,16,17,18,19,20,21] and sol-gel processing [22,23]. Owing to its relatively low material cost and good processing controllability, the reduction methodology has been and is still being used extensively. For instance, Moradi et al. [13] synthesized TiB2 powders from TiO2, B2O3 and graphite via carbothermal reduction at 1380 °C for 60 min. Yu et al. [12] prepared TiB2 powders by firing powder mixtures of TiO2, B4C and carbon black at 1600 °C for 30 min. Nevertheless, it is still a great challenge to moderate the synthesis conditions of TiB2 and the overall production cost.
To address the aforementioned issues, several advanced strategies, e.g., molten-salt medium and microwave heating, were employed to modify the conventional boro/carbothermal reduction method (BCTR) in the synthesis of TiB2 [14,24]. As is well documented [17,18], molten-salt, as a liquid medium, exhibits several important merits in materials synthesis. Apart from reducing the synthesis temperature and accelerating the reaction process, it facilitates diffusive mass transfer and self-assembly processes and thus the formation of highly-crystalline product with intrinsically-anisotropic morphology [25]. On the other hand, microwave heating is capable of selectively heating the material with good microwave absorbability, thus additionally reducing the synthesis temperature and significantly accelerating the overall reaction process. More importantly, it is also effective in inducing the nucleation and therefore accelerating the growth process and enhancing the crystalline degree of synthesized crystals [26,27,28]. Consequently, the introduction of molten-salt medium combined with microwave heating showed crucial positive effects on the overall synthesis process, as well as on the crystalline degree and morphology of the powder product [29,30].
In this work, such a molten-salt and microwave heating co-facilitated boro/carbothermal reduction method (MSM-BCTR), was adopted to prepare TiB2 powders with high crystalline degree and anisotropic morphology by using inexpensive TiO2, B4C and amorphous C as raw materials, while avoiding using any costly B or active metal (Mg or Al) reducing agents. The influence of processing parameters including temperature, dwelling time, microwave/salt medium conditions and the amount of reducing agent on the phase composition and microstructure of powder product was systematically investigated, so as to confirm the superiority of MSM-BCTR over the conventional methods in the preparation of high-quality TiB2 powders as well as a broad range of UHTCs.

2. Experimental Procedures

2.1. Raw Materials

Amorphous carbon was purchased from Sinopharm chem. Co. Ltd (Shanghai, China), boron carbide (B4C, purity > 95.0 wt%) was purchased from Mudanjiang Jingangzuan Boron-Carbide Co. Ltd. (Mudanjiang, China). titanium oxide (TiO2, rutile phase, purity > 99.9 wt%), sodium chloride (NaCl, purity > 99.9 wt%) and potassium chloride (KCl, purity > 99.9 wt%) were purchased from Bodi Chem. Co. Ltd. (Tianjin, China).
2TiO2(s) + B4C(s) + 3C(s) = 2TiB2(s) + 4CO(g)
B4C took part in the overall synthesis reaction (Reaction 1), as both boron source and reducing agent. To compensate for the volatilization loss of boron species at high temperature [30], the amount of B4C was slightly higher than the stoichiometric amount indicated by Reaction 1. To minimize the residual carbon in the final powder product, the stoichiometric amount of carbon was used in all the cases. The batch compositions, along with processing conditions, are listed in Table 1.

2.2. Methodologies

The reactants and salts (NaCl/KCl) in a weight ratio of 1:2 were mixed manually and then contained in a crucible of 10 mm in diameter and 15 mm in height. The crucible was placed in a columnar saggar, which was subsequently positioned in a microwave furnace (HAMiLab-V3000, Changsha Longtech Co. Ltd. Changsha, China) protected by flowing argon atmosphere. Green silicon carbide (SiC) powder was used to fill the free space of saggar to assist with microwave heating of the powder mixture. The furnace temperature was monitored by an infrared thermometer (Yongtai, Xi’an, China). In a typical MSM-BCTR process, the furnace was firstly heated at a constant rate of 10 °C/min to a pre-determined temperature within 1150–1200 °C, and then held for 0–60 min before cooling naturally to the ambient temperature. The reacted powders were repeatedly rinsed with hot deionized water (80 °C) to remove the residual salt, followed by overnight drying in a vacuum oven at 80 °C.
Phases in raw materials and product samples were analyzed by an X-ray diffractometer (XRD, PANalytical, Hillsboro, The Netherlands) with CuKα radiation (λ = 0.1542 nm) at a scan rate of 5°(2θ)/min. ICDD cards of No.00-035-0741, No.03-065-8805, No.03-035-0798 and No.03-065-1118 were used to identify the crystallographic phases of TiB2, TiC, B4C and TiO2, respectively. Morphologies and sizes of TiB2 product powders were examined using a field-emission scanning electron microscope (FE-SEM, 15 kV, Nova400NanoSEM, PHILIPS, Amsterdam, The Netherlands) equipped with an energy dispersive spectrometer (EDS, IET 200, Oxford, UK), and a transmission electron microscope (TEM, 200 kV, JEM-2100UHRSTEM, JEOL, Tokyo, Japan). For TEM characterization, the as-obtained powders were firstly ultrasonically dispersed in ethanol for 30 min, followed by natural seasoning in the air.

3. Results and Discussion

Figure 1 presents X-ray diffraction (XRD) patterns of samples prepared by MSM-BCTR at 1150 °C for 20 and 60 min, respectively. In the case of 20 min (sample MSMBC-1), only TiB2 and TiC (formed respectively from Reaction 1 and Reaction 2) but no other phases were detected, indicating the complete reduction of the TiO2 precursor via Reaction 2 and incompletion of Reaction 3. Interestingly, upon just extending the dwelling time at 1150 °C from 20 to 60 min, TiC disappeared and only TiB2 was formed (sample MSMBC-2), indicating the high efficiency of the conversion reaction from TiC to TiB2 (Reaction 3), and the completion of the overall reaction (Reaction 1) after a short time period at such a low firing temperature.
TiO2(s) + 3C(s) = TiC(s) + 2CO(g)
2TiC(s) + B4C(s) = 2TiB2(s) + 3C(s)
Figure 2 further shows XRD patterns of samples after MSM-BCTR at a slightly higher temperature of 1200 °C. In the case of zero dwelling time (sample MSMBC-3), TiB2 was already formed as the main crystalline phase, although certain amounts of reactants (TiO2 and B4C) still remained along with minor intermediate phase of TiC. Despite this, upon slightly extending the dwelling time to 20 min (sample MSMBC-4), other than the desired TiB2, all other impurity phases disappeared completely. Comparing Figure 1 with Figure 2 suggests that such a small enhancement in firing temperature was effective in accelerating not only the direct formation of TiB2 but also the conversion from TiC to TiB2 (Reactions 1–3). It was worth noting that the synthesis conditions (1150 °C/60 min and 1200 °C/20 min) in the present work were considerably milder than in the cases of conventional BCTR (up to 1600 °C for several hours) using the identical type of reducing agent [12], and the molten-salt-solely-assisted BCTR (firing temperature of 1000 °C and dwelling time of 4 h) using even much more expensive magnesium (Mg) as a reducing agent [16]. These results demonstrated that the present MSM-BCTR method was promising for low-cost, energy-saving, and high-efficiency preparation of TiB2 powders, which should be attributed to the combined effect of molten-salt medium and microwave heating, as described in the “Introduction” section and discussed in our previous papers [29,30].
For comparison and further confirming the effectiveness of microwave heating and molten-salt medium on the synthesis of TiB2, samples with the same batch compositions were also fired at as-optimized temperature conditions (1200 °C/20 min), using solely microwave heating or salt medium. As shown in Figure 3, in the case without using microwave (sample MSMBC-5), TiO2 remained as the dominant phase and no TiB2 was detected, indicating the crucial role played by microwave heating in the TiB2 formation (via Reaction 1–3). On the other hand, due to microwave-assisted BCTR under identical processing conditions, the XRD pattern of sample (sample MSMBC-6) shows the peaks of TiB2, B4C and TiBO3, in which the intensities of TiB2 peaks were obviously higher than that of others, indicating the higher crystallization degree of the TiB2 phase. Apart from TiB2, un-reacted B4C were still present along with the intermediate phase of TiBO3 which was formed via Reaction 4 but tended to be further converted into TiB2 (via Reaction 5) [13]. The above comparison verified the respective role played by microwave heating and molten-salt medium in the low-temperature rapid synthesis of TiB2.
2TiO2(s) + B2O3(g) + C(s) = 2TiBO3(s) + CO(g)
2TiBO3(s) + B2O3(g) + 9C(s) = 2TiB2(s) + 9CO(g)
In addition to firing temperature and dwelling time, the amount of B4C significantly affected the synthesis process and the quality of the product powder. Specifically, the use of inadequate amount of B4C would hinder the desirable reduction reaction due to lack of reducing atmosphere, whereas the use of excessive B4C would leave high levels of impurities (mainly amorphous C), seriously deteriorating the purity and sinterability of the product powder [9]. Figure 4, as an example, compares phase compositions and reaction extents of the samples initially containing respectively 60 mol% and 40 mol% excess B4C, after 20 min MSM-BCTR at 1200 °C. In the case of the former (MSMBC-4), apart from TiB2, neither the residual reducing agent nor an impurity phase was detected. However, in the case of the latter (MSMBC-7), despite the presence of the main phase of TiB2 and the absence of reducing agent, two diffraction peaks of TiO2 with low intensities were still visible, which demonstrated the importance of using appropriately excess amount of reducing agent for ensuring the overall synthetic reactions (Reactions 1–3) to go to completion. It should be noted that, in this process, the requirement of excess boron source was mainly attributable to the evaporation loss of the intermediate product of B2O3. Specifically, owing to its low melting point and high volatility, B2O3, as the product of borothermal reduction reaction (Reaction 6) would suffer from significant evaporation loss even at a low temperature range of 900–1100 °C, thus resulting in incompletion of the subsequent carbothermal reduction reaction (Reaction 7) for synthesizing TiB2 [21]. Based on the comparison result, it could be concluded that, under the present MSM-BCTR conditions, 60 mol% excessive B4C should be used for synthesizing phase pure TiB2 powder.
7TiO2(s) + 5B4C(s) = 7TiB2(s) +3B2O3(s) + 5CO(g)
TiO2(s) + B2O3(s) + 5C(s) = TiB2(s) + 5CO(g)
Figure 5 shows microstructure and phase morphology of MSMBC-4, along with the corresponding EDS results. A small amount of monodispersed well-defined hexagonal microplatelets (Figure 5a) coexisted with a large quantity of agglomerates comprising dozens of interlaced micro-platelets (Figure 5b). The corresponding EDS results (presented in Figure 5c–f) revealed that only Ti and B were detected and homogeneously distributed in the microplatelets, confirming that they were TiB2. Moreover, except for TiB2, no impurity phases (TiO2, B4C and carbon) were detected, further confirming the high purity of the microplatelets. And the highly-crystallized hexagonal TiB2 micro-platelets generally had micron-scale lengths (average length of 4.2 µm) and submicron-scale thicknesses (average thickness of 0.6 µm) with narrow size distributions. Such well-grown hexagonal TiB2 microplatelets looked similar to those formed via the conventional reduction routes using the identical raw materials, but the synthesis conditions in the case of the latter were much harsher (1600 °C/30 min) [12].
TEM (Figure 6a) further reveals the high crystalline extent of as-prepared TiB2 particles and their hexagonal plate-like morphology. SAED (Figure 5b) taken from a well-defined TiB2 microplatelet (indicated by the red circle in Figure 5a) verifies its single-crystalline nature, and its anisotropic structure formed from the preferential growth along the [010] direction. The high-resolution TEM image shown in Figure 5c further reveals that the hexagonal micro-platelet had well-aligned lattice fringes with a constant interplanar spacing of 0.262 nm, which was in good agreement with the (100) interplanar distance of TiB2 crystal [24]. On the basis of these results, it could be considered that the TiB2 powders prepared via MSM-BCTR exhibited single-crystalline nature, uniform hexagonal plate-like morphology as well as great potential in reinforcing their bulk counterparts. Such results and the much reduced synthesis temperature and dwelling time described and discussed above, were mainly attributed to the synergistic effects of microwave heating and molten salt medium.

4. Conclusions

Phase pure TiB2 microplatelets were successfully prepared from inexpensive raw material powders of TiO2, B4C and C via MSM-BCTR treatments in KCl-NaCl medium at either 1150 °C/60 min or 1200 °C/20 min. Such synthetic conditions were considerably milder than that required by the conventional BCTR routes using the identical reducing agent. As-synthesized TiB2 powders were single-crystalline, and exhibited well-defined hexagonal plate-like morphology with great potential in toughening their bulk counterparts. The achievement in high-efficiency, energy-saving and low-cost preparation of high-quality TiB2 microplatelets was attributable to the synergistic effects of microwave heating and molten-salt medium.

Author Contributions

Conceptualization, J.H.L. and H.J.Z; Formal Analysis, J.L; Investigation, J.L; Data Curation, Y.Z and Z.L.; Writing-Original Draft Preparation, J.L; Writing-Review & Editing, J.H.L.

Funding

This work was financially supported by the National Natural Science Foundation of China (51502212, 51272188), Hubei Province Natural Science Foundation of China (2018CFB760), Key Program of Natural Science Foundation of Hubei Province, China (2017CFA004), the Program for Innovative Teamsof Outstanding Young and Middle-aged Researchers in the Higher Education Institutions of Hubei Province (T201602).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Guo, W.; Zhang, G.; You, Y.; Wu, S.; Lin, H. TiB2 powders synthesis by borothermal reduction in TiO2 under vacuum. J. Am. Ceram. Soc. 2014, 97, 1359–1362. [Google Scholar] [CrossRef]
  2. Zhang, G.; Ni, D.; Zou, J.; Liu, H.; Wu, W.; Liu, J.; Suzuki, T.S.; Sakka, Y. Inherent anisotropy in transition metal diborides and microstructure/property tailoring in ultra-high temperature ceramics-A review. J. Eur. Ceram. Soc. 2018, 38, 371–389. [Google Scholar] [CrossRef]
  3. Fahrenholtz, W.; Hilmas, G.; Talmy, I.; Zaykoski, J. Refractory diborides of Zirconium and Hafnium. J. Am. Ceram. Soc. 2007, 90, 1347–1364. [Google Scholar] [CrossRef]
  4. Basu, B.; Raju, G.; Suri, A. Processing and properties of monolithic TiB2 based materials. Int. Mater. Rev. 2013, 51, 352–374. [Google Scholar] [CrossRef]
  5. Chlup, Z.; Bača, Ľ.; Halasová, M.; Neubauer, E.; Hadraba, H.; Stelzer, N.; Roupcová, P. Effect of metallic dopants on the microstructure and mechanical properties of TiB2. J. Eur. Ceram. Soc. 2015, 35, 2745–2754. [Google Scholar] [CrossRef]
  6. Taranenko, V.I.; Zarutskii, I.V.; Shapoval, V.I.; Matiasovsk, M.; Matiasovsk, K. Mechanism of the cathode process in the electrochemical synthesis of TiB2 in molten salts-II. Chloride-Fluoride Electrolytes. Electrochim. Acta 1992, 37, 263–268. [Google Scholar] [CrossRef]
  7. Sahoo, S.; Singh, S.K. Synthesis of TiB2 by extended arc thermal plasma. Ceram. Int. 2017, 43, 15561–15566. [Google Scholar] [CrossRef]
  8. Tabriz, B.N.; Adhami, T.; Kahrizsangi, R.E. Effect of processing parameters on the formation of TiB2 nanopowder by mechanically induced self-sustaining reaction. Ceram. Int. 2014, 40, 7345–7354. [Google Scholar] [CrossRef]
  9. Kang, S.H.; Kim, D.J. Synthesis of nano-titanium diboride powders by carbothermal reduction. J. Eur. Ceram. Soc. 2007, 27, 715–718. [Google Scholar] [CrossRef]
  10. Yu, J.; Ma, L.; Zhang, Y.; Gong, H.; Zhou, L. Synthesis of TiB2 powders via carbothermal reduction of TiO2, HBO2 and carbon black. Ceram. Int. 2016, 42, 5512–5516. [Google Scholar] [CrossRef]
  11. Derin, B.; Kurtoglu, K.; Sahin, F.C.; Yucel, O. Thermochemical modeling and experimental studies on the formation of TiB2 through carbothermic synthesis from TiO2 and B2O3 or B4C. Ceram. Int. 2017, 43, 10975–10982. [Google Scholar] [CrossRef]
  12. Yu, J.; Ma, L.; Abbas, A.; Zhang, Y.; Gong, H.; Wang, X.; Zhou, L.; Liu, H. Carbothermal reduction synthesis of TiB2 ultrafine powders. Ceram. Int. 2016, 42, 3916–3920. [Google Scholar] [CrossRef]
  13. Moradi, V.; Nikzad, L.; Mobasherpour, I.; Razavi, M. Low temperature synthesis of titanium diboride by carbothermal method. Ceram. Int. 2018, 44, 19421–19426. [Google Scholar] [CrossRef]
  14. Liu, D.; Chu, Y.; Jing, S.; Ye, B.; Zhou, X. Low-temperature synthesis of ultrafine TiB2 nanopowders by molten-salt assisted borothermal reduction. J. Am. Ceram. Soc. 2018, 101, 5299–5303. [Google Scholar] [CrossRef]
  15. Welham, N.J. Formation of nanometric TiB2 from TiO2. J. Am. Ceram. Soc. 2000, 83, 1290–1292. [Google Scholar] [CrossRef]
  16. Bao, K.; Wen, Y.; Khangkhamano, M.; Zhang, S. Low-temperature preparation of titanium diboride fine powder via magnesiothermic reduction in molten salt. J. Am. Ceram. Soc. 2017, 100, 2266–2272. [Google Scholar] [CrossRef]
  17. Tan, C.; Liu, J.; Zhang, H.; Wang, J.; Li, S.; Song, J.; Zhang, Y.; Zhang, S. Low-temperature synthesis of 2H-SiC powders via molten-salt-mediated magnesiothermic reduction. Ceram. Int. 2017, 43, 2431–2437. [Google Scholar] [CrossRef]
  18. Zhang, S.; Khangkhamano, M.; Zhang, H.; Yeprem, H.A. Novel synthesis of ZrB2 powder via molten-salt-mediated magnesiothermic reduction. J. Am. Ceram. Soc. 2014, 97, 1686–1688. [Google Scholar] [CrossRef]
  19. Subramanian, C.; Murthy, T.S.R.C.; Suri, A.K. Synthesis and consolidation of titanium diboride. Int. J. Refract. Met. Hard Mater. 2007, 25, 345–350. [Google Scholar] [CrossRef]
  20. Wu, J.; Niu, B.; Zhang, F.; Lei, L.; Zhang, J.; Ren, L.; Wang, W.; Fu, Z. Effect of titanium diboride on the homogeneity of boron carbide ceramic by flash spark plasma sintering. Ceram. Int. 2018, 44, 15323–15330. [Google Scholar] [CrossRef]
  21. Ma, L.; Yu, J.; Guo, X.; Xie, B.; Gong, H.; Zhang, Y.; Zhai, Y.; Wu, X. Preparation and sintering of ultrafine TiB2 powders. Ceram. Int. 2018, 44, 4491–4495. [Google Scholar] [CrossRef]
  22. Rabiezadeh, A.; Hadian, A.M.; Ataie, A. Synthesis and sintering of TiB2 nanoparticles. Ceram. Int. 2014, 40, 15775–15782. [Google Scholar] [CrossRef]
  23. Zhang, H.; Li, F. Preparation and microstructure evolution of diboride ultrafine powder by sol–gel and microwave carbothermal reduction method. J. Sol-Gel Sci. Technol. 2007, 45, 205–211. [Google Scholar] [CrossRef]
  24. Javadi, A.; Pan, S.; Cao, C.; Yao, G.; Li, X. Facile synthesis of 10 nm surface clean TiB2 nanoparticles. Mater. Lett. 2018, 229, 107–110. [Google Scholar] [CrossRef]
  25. Wei, T.; Liu, Z.; Ren, D.; Deng, X.; Deng, Q.; Huang, Q.; Ran, S. Low-temperature synthesis of TaB2 nanorods by molten-salt assisted borothermal reduction. J. Am. Ceram. Soc. 2018, 101, 45–49. [Google Scholar] [CrossRef]
  26. Danko, G.A.; Silberglitt, R.; Colombo, P.; Pippel, E.; Woltersdorf, J. Comparison of microwave hybrid and conventional heating of preceramic polymers to form silicon carbide and silicon oxycarbideceramics. J. Am. Ceram. Soc. 2004, 83, 1617–1625. [Google Scholar] [CrossRef]
  27. Gordon, J.; Kazemian, H.; Rohani, S. Rapid and efficient crystallization of MIL-53(Fe) by ultrasound and microwave irradiation. Microporous Mesoporous Mater. 2012, 162, 36–43. [Google Scholar] [CrossRef]
  28. Liu, H.; Xiang, K.; Yang, B.; Yang, S.; Chai, L. Microwave intensified synthesis of regular shaped sodium bisulfate crystal. Chem. Eng. Process. Process Intensif. 2015, 95, 208–213. [Google Scholar] [CrossRef]
  29. Liu, J.; Huang, Z.; Huo, C.; Li, F.; Zhang, H.; Zhang, S. Low-temperature rapid synthesis of rod-like ZrB2 powders by molten-salt and microwave co-assisted carbothermal reduction. J. Am. Ceram. Soc. 2016, 99, 2895–2898. [Google Scholar] [CrossRef]
  30. Zeng, Y.; Liang, F.; Liu, J.; Zhang, J.; Zhang, H.; Zhang, S. Highly efficient and low-temperature preparation of plate-like ZrB2-SiC powders by a molten-salt and microwave-modified boro/carbothermal reduction method. Materials 2018, 11, 1811. [Google Scholar] [CrossRef]
Figure 1. Phase formation in samples prepared by MSM-BCTR at 1150 °C for respectively 20 and 60 min.
Figure 1. Phase formation in samples prepared by MSM-BCTR at 1150 °C for respectively 20 and 60 min.
Materials 12 02555 g001
Figure 2. Phase formation in samples after MSM-BCTR treatments at 1200 °C for 0 and 20 min, respectively.
Figure 2. Phase formation in samples after MSM-BCTR treatments at 1200 °C for 0 and 20 min, respectively.
Materials 12 02555 g002

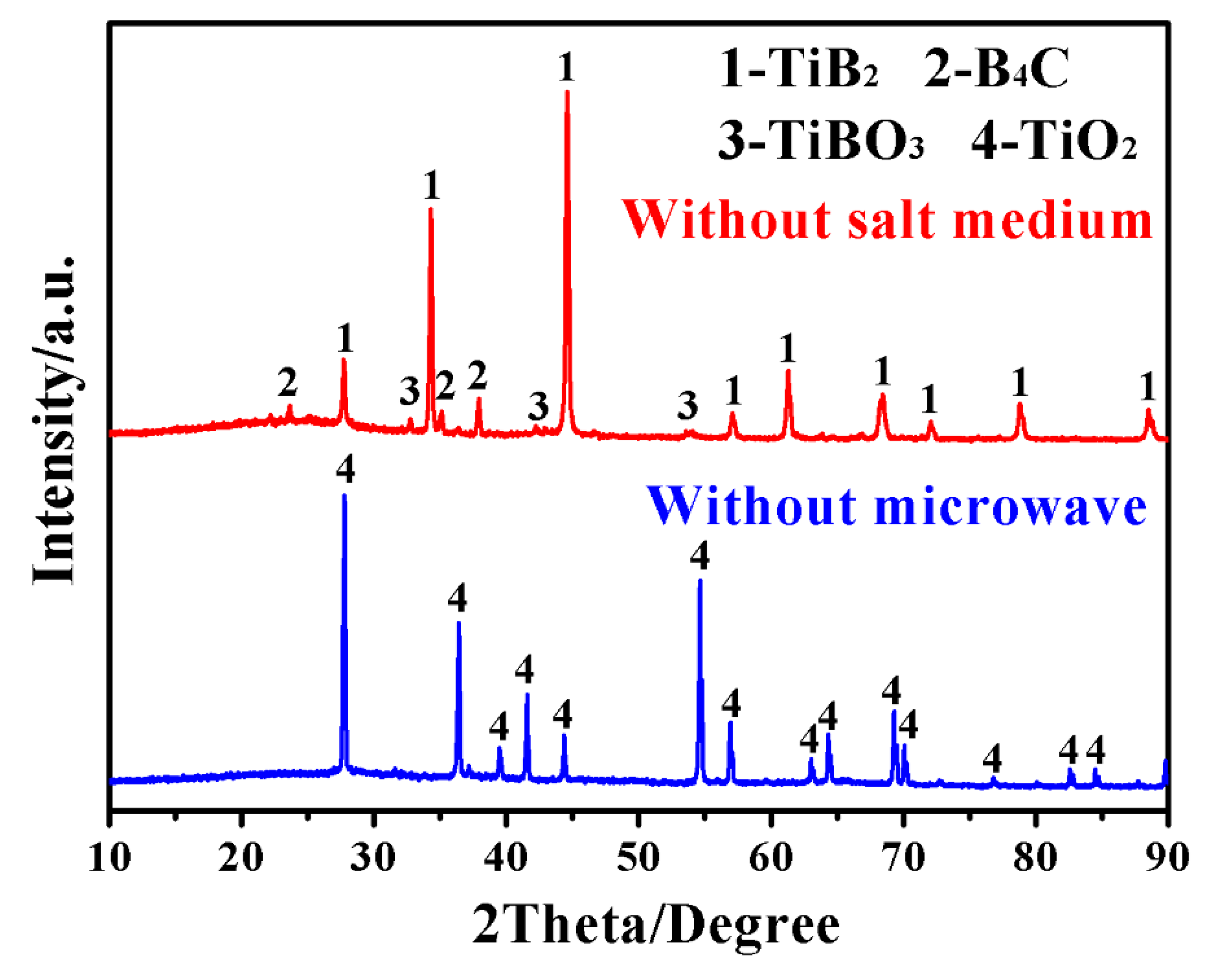

Figure 3. Phase formation in MSM-BCTR samples resultant from 20 min firing at 1200 °C, using solely microwave heating or molten-salt medium.
Figure 3. Phase formation in MSM-BCTR samples resultant from 20 min firing at 1200 °C, using solely microwave heating or molten-salt medium.
Materials 12 02555 g003

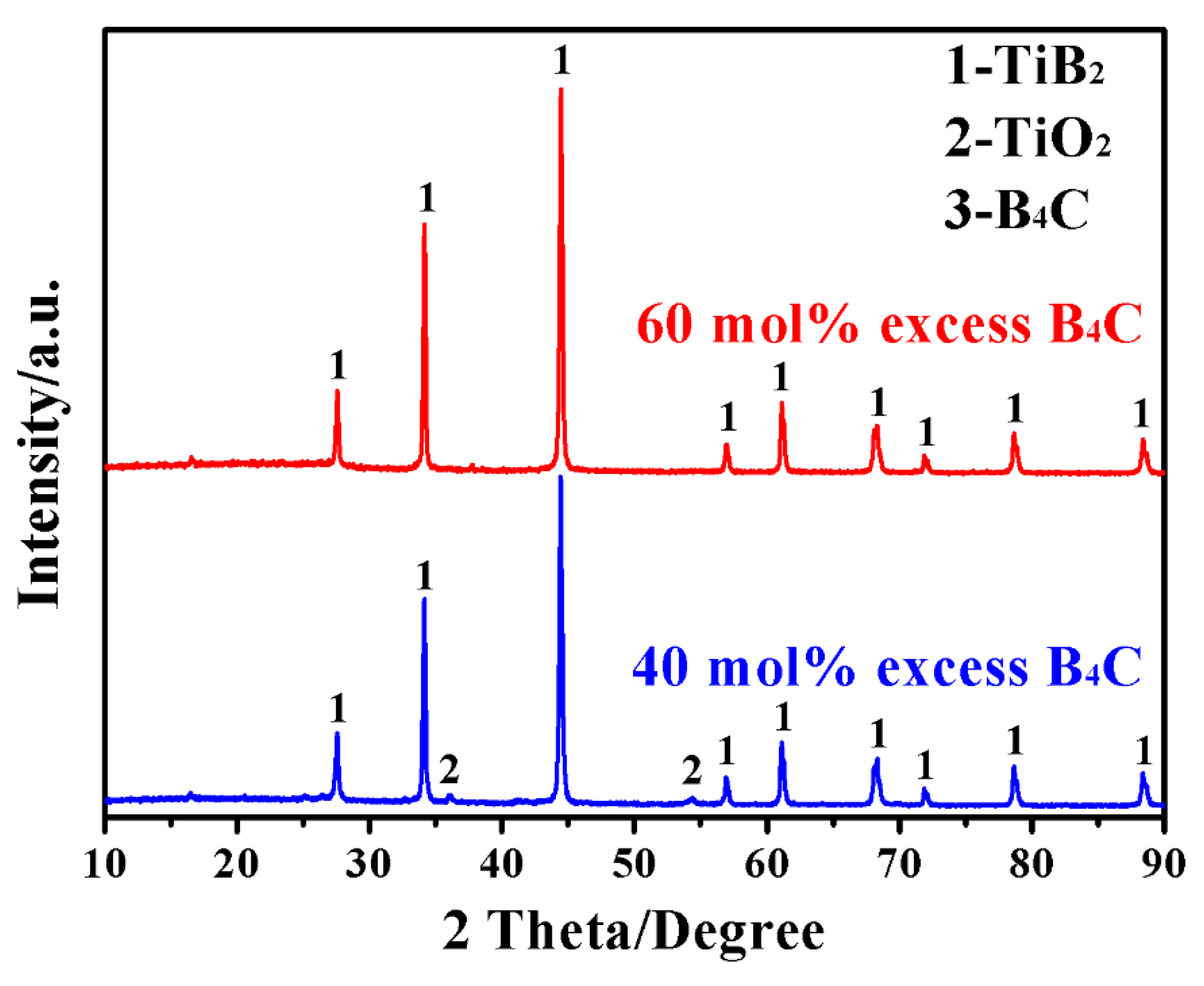

Figure 4. XRD patterns of samples containing initially 40 and 60 mol% excessive B4C, after MSM-BCTR treatments at 1200 °C for 20 min.
Figure 4. XRD patterns of samples containing initially 40 and 60 mol% excessive B4C, after MSM-BCTR treatments at 1200 °C for 20 min.
Materials 12 02555 g004

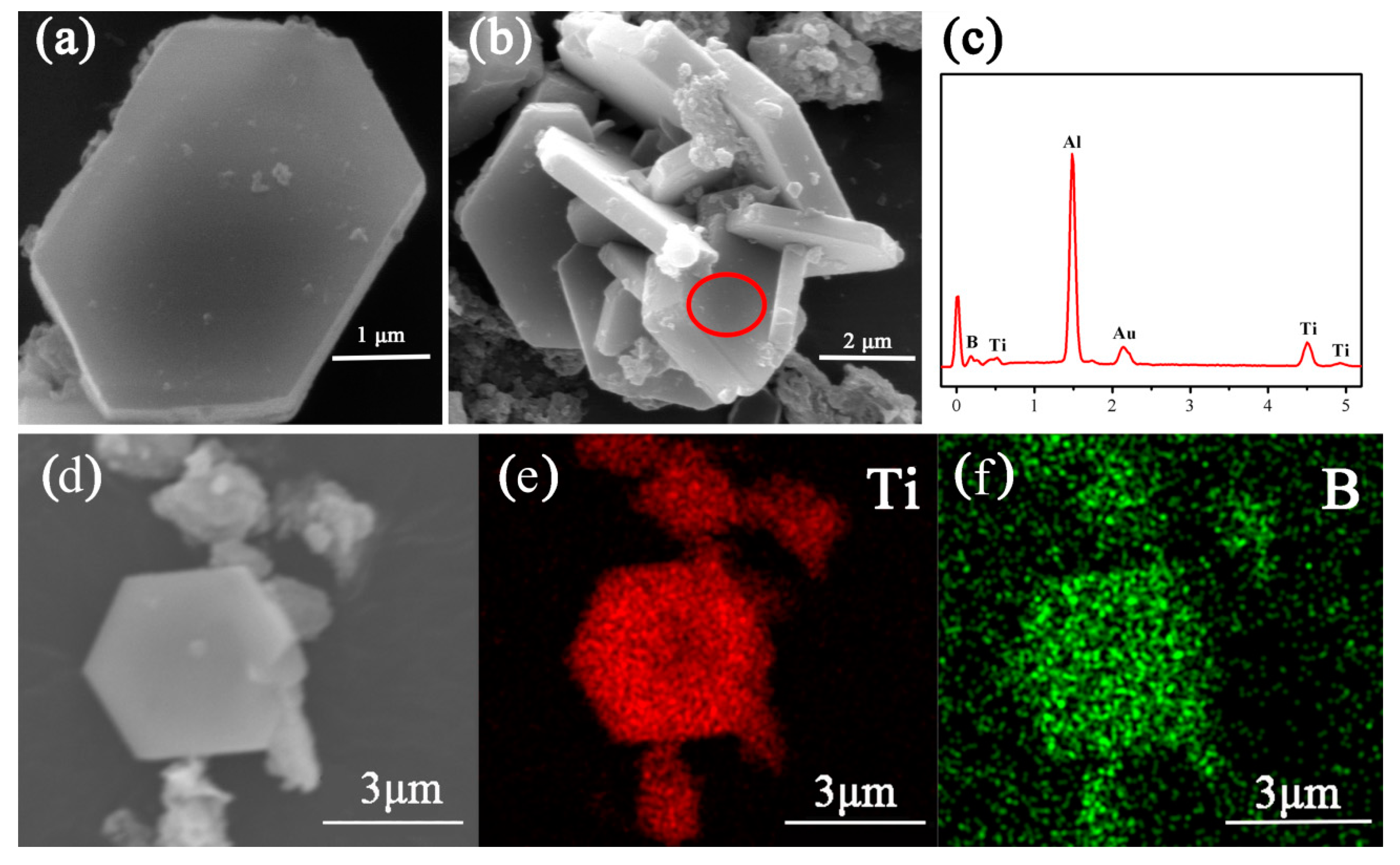

Figure 5. SEM images of (a) monodispersed TiB2 microplatelet and (b) interlaced TiB2 microplatelets, (c) corresponding EDS results of TiB2 microplatelets, (d) a lower magnification SEM image with EDS mappings of (e) Ti element and (f) B element prepared via MSM-BCTR at 1200 °C for 20 min. (Au and Al peaks in Figure 5b were from the gold coating and aluminum foil used for enhancing electrical conductivity of the powder sample.)
