Investigation on the Cooling and Evaporation Behavior of Semi-Flexible Water Retaining Pavement based on Laboratory Test and Thermal-Mass Coupling Analysis
Previous Article in Journal
Microwave Sintering of Alumina at 915 MHz: Modeling, Process Control, and Microstructure Distribution
Previous Article in Special Issue
Evolution of Oxygen–Ion and Proton Conductivity in Ca-Doped Ln2Zr2O7 (Ln = Sm, Gd), Located Near Pyrochlore–Fluorite Phase Boundary
Open AccessFeature PaperArticle

Comparative Study of Electrophoretic Deposition of Doped BaCeO3-Based Films on La2NiO4+δ and La1.7Ba0.3NiO4+δ Cathode Substrates

1
Laboratory of Complex Electrophysic Investigations, Ural Branch, Russian Academy of Sciences, Institute of Electrophysics, Yekaterinburg 620016, Russia
2
Department of Physical and Inorganic Chemistry, Institute of Natural Sciences and Mathematics, Ural Federal University, Yekaterinburg 620002, Russia
3
Laboratory of Solid State Oxide Fuel Cells, Ural Branch, Russian Academy of Sciences, Institute of High Temperature Electrochemistry, Yekaterinburg 620137, Russia
4
Department of Environmental Economics, Graduate School of Economics and Management, Ural Federal University, Yekaterinburg 620002, Russia
5
Laboratory of Materials and Devices for Clean Power Industry, Institute of Chemical Engineering, Ural Federal University, Yekaterinburg 620002, Russia
6
Department of Technical Physics, Institute of Physics and Technology, Ural Federal University, Yekaterinburg 620002, Russia
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(16), 2545; https://doi.org/10.3390/ma12162545
Received: 3 July 2019 / Revised: 30 July 2019 / Accepted: 7 August 2019 / Published: 9 August 2019
  |
PDF [7394 KB, uploaded 9 August 2019]
  |

Abstract

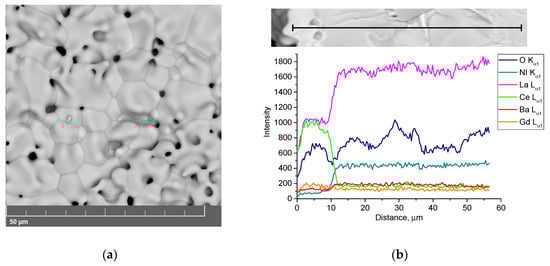

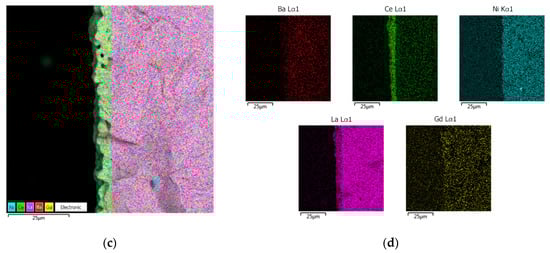

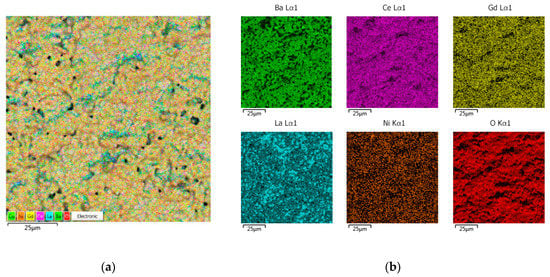

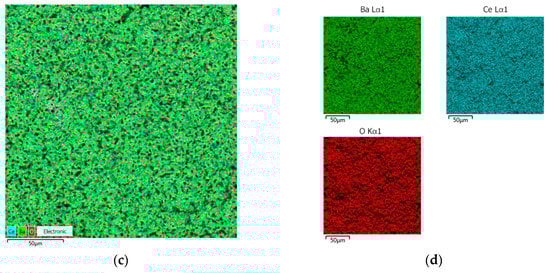

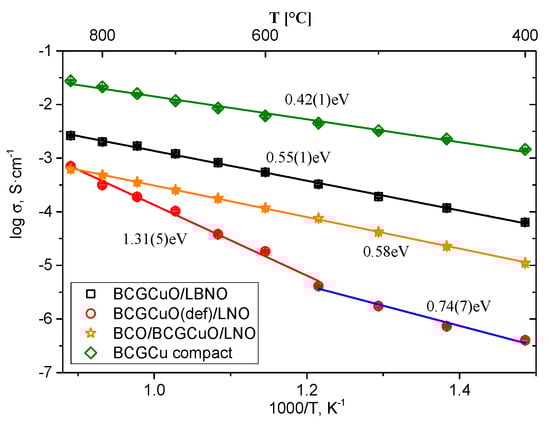

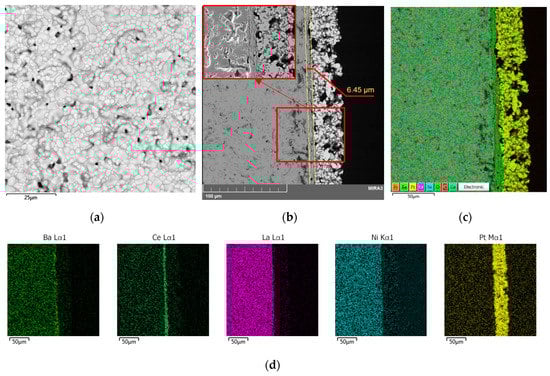

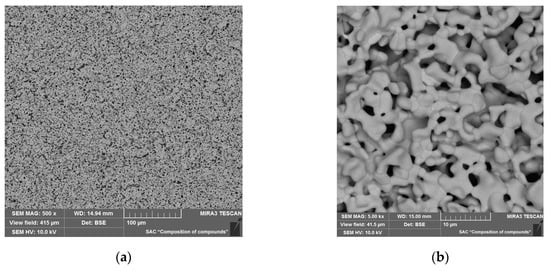

This paper presents the results of a comparative study of methods to prevent the loss of barium during the formation of thin-film proton-conducting electrolyte BaCe0.89Gd0.1Cu0.01O3−δ (BCGCuO) on La2NiO4+δ-based (LNO) cathode substrates by electrophoretic deposition (EPD). Three different methods of the BCGCuO film coating were considered: the formation of the BCGCuO electrolyte film without (1) and with a protective BaCeO3 (BCO) film (2) on the LNO electrode substrate and the formation of the BCGCuO electrolyte film on a modified La1.7Ba0.3NiO4+δ (LBNO) cathode substrate (3). After the cyclic EPD in six stages, the resulting BCGCuO film (6 μm) (1) on the LNO substrate was completely dense, but the scanning electron microscope (SEM) analysis revealed the absence of barium in the film caused by its intensive diffusion into the substrate and evaporation during the sintering. The BCO layer prevented the barium loss in the BCGCuO film (2); however, the protective film possessed a porous island structure, which resulted in the deterioration of the film’s conductivity. The use of the modified LBNO cathode also effectively prevented the loss of barium in the BCGCuO film (3). A BCGCuO film whose conductivity behavior most closely resembled that of the compacts was obtained by using this method which has strong potential for practical applications in solid oxide fuel cell (SOFC) technology. View Full-Text
Keywords: SOFC; proton-conducting electrolyte; thin-film technology; cathode substrate; electrophoretic deposition; stable suspension; Ba loss; protective layer; electrical conductivity SOFC; proton-conducting electrolyte; thin-film technology; cathode substrate; electrophoretic deposition; stable suspension; Ba loss; protective layer; electrical conductivity
