Next Article in Journal
Application of Graphene and Carbon Nanotubes on Carbon Felt Electrodes for the Electro-Fenton System
Next Article in Special Issue
Physical Properties of Concrete Containing Graphene Oxide Nanosheets
Previous Article in Journal
Enhancement of Complex Permittivity and Attenuation Properties of Recycled Hematite (α-Fe2O3) Using Nanoparticles Prepared via Ball Milling Technique
Previous Article in Special Issue
Experimental Study on the Preparation of Recycled Admixtures by Using Construction and Demolition Waste
Article Menu
Issue 10 (May-2) cover image

Export Article

Open AccessArticle

Bonding Behavior of Repair Material Using Fly-Ash/Ground Granulated Blast Furnace Slag-Based Geopolymer

Department of Civil Engineering, National Kaohsiung University of Science and Technology, Kaohsiung 807, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2019, 12(10), 1697; https://doi.org/10.3390/ma12101697
Received: 29 April 2019 / Revised: 22 May 2019 / Accepted: 22 May 2019 / Published: 24 May 2019
(This article belongs to the Special Issue Concrete and Construction Materials)
  |
PDF [7285 KB, uploaded 28 May 2019]
  |

Abstract

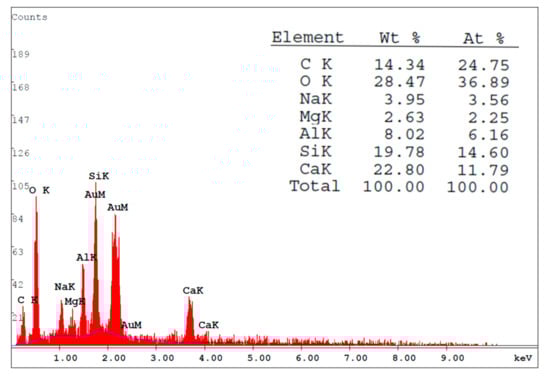

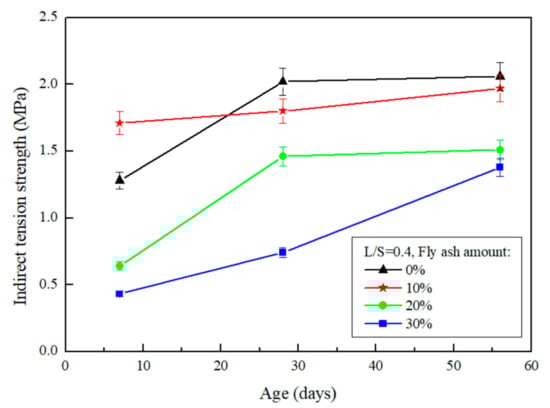

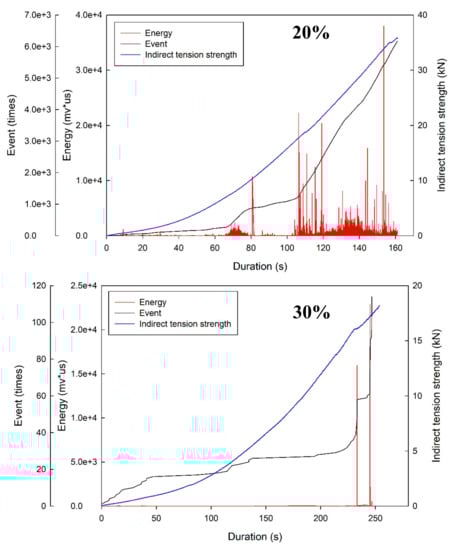

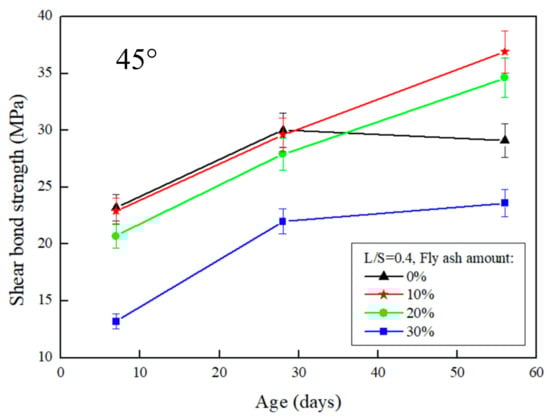

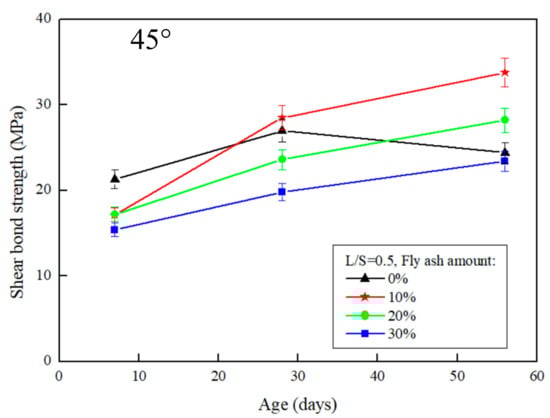

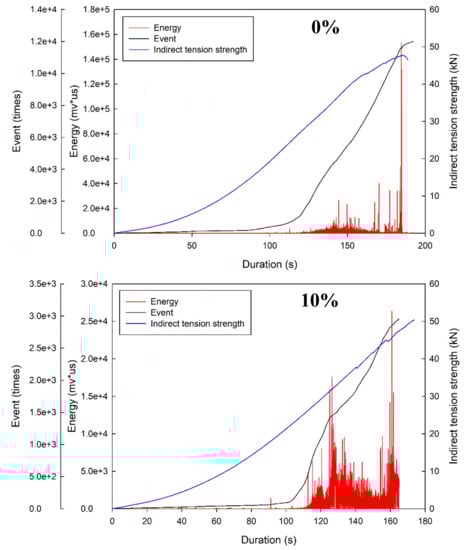

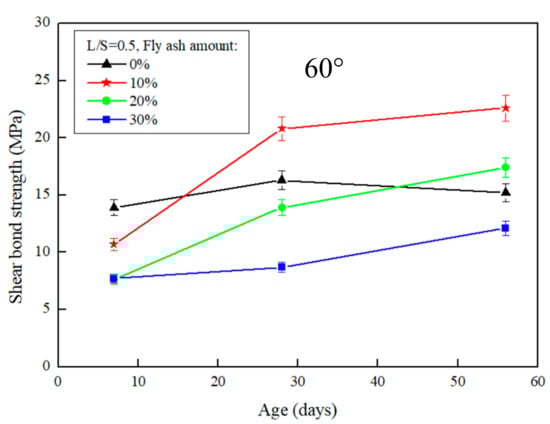

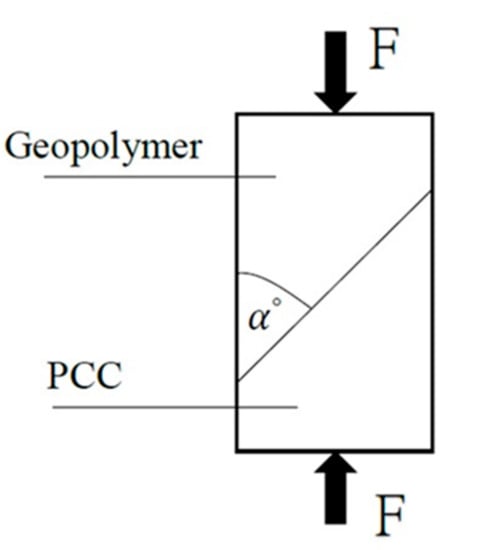

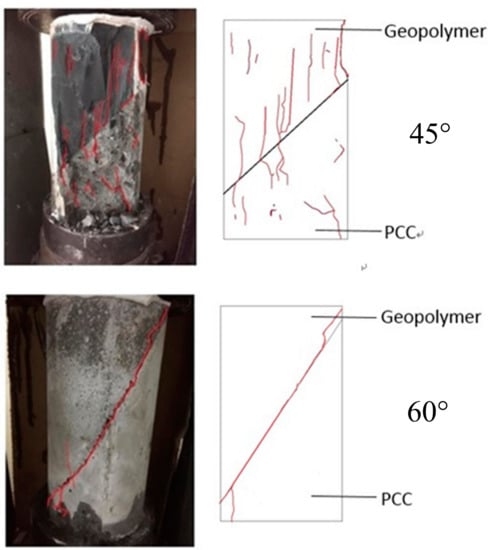

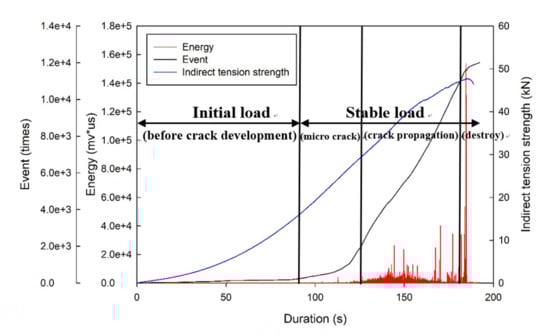

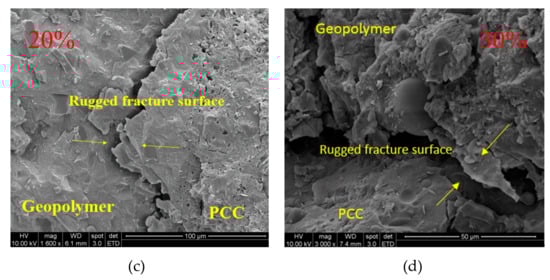

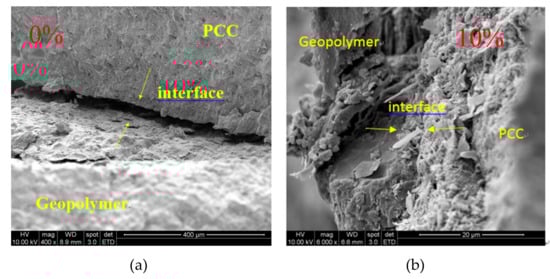

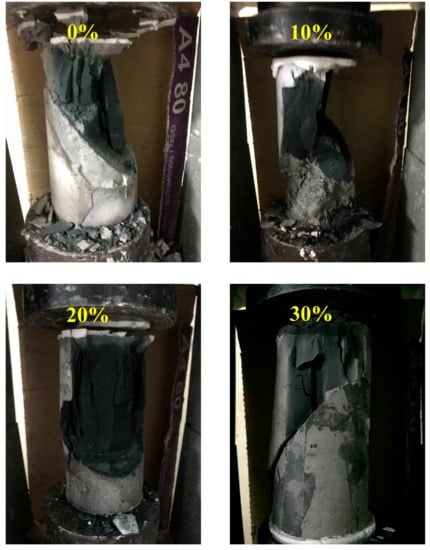

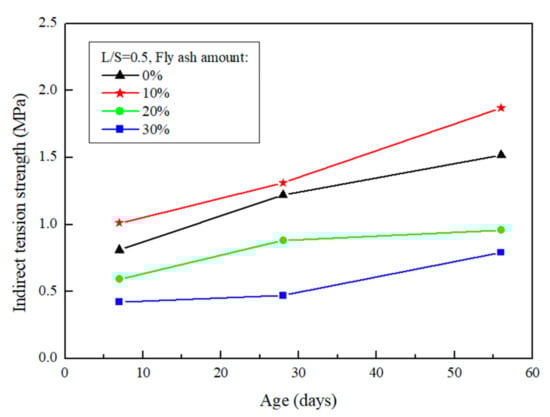

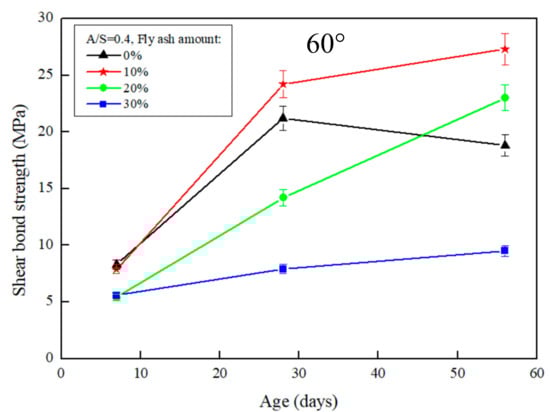

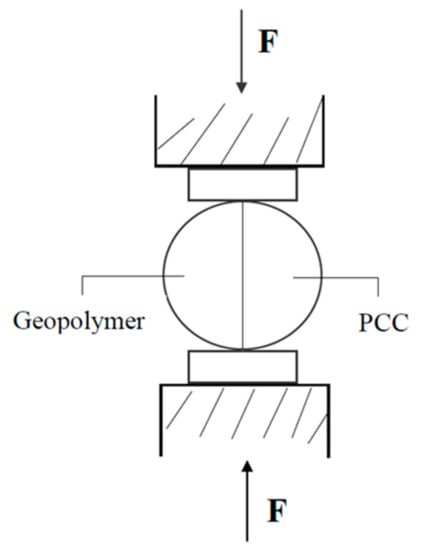

Fly ash/ground-granulated blast-furnace slag geopolymer (FGG) contains reaction products with a high volume of Ca, hydrated CaSiO3, and hydrated AlCaSiO3. These compounds enable the filling of large air voids in a structure, thus increasing compactness. Therefore, FGG is a more effective repair material to stabilize structures and can function as a sealing and insulating layer. This study used FGG as the repair material for concrete with ground-granulated blast-furnace slag (GGBFS) as the main cement material. The bond strength of the repair was discussed from different aspects, including for fly-ash substitution rates of 0%, 10%, 20%, and 30% and for liquid–solid ratios of 0.4 and 0.5. The slant shear test, and the split tensile test were employed in this analysis. Moreover, acoustic emission (AE) and scanning electron microscopy were used to confirm the damage modes and microstructural characteristics of these repairs. The results revealed that when the liquid–solid ratio increased from 0.4 to 0.5, the slant shear strength of the repaired material decreased from 36.9 MPa to 33.8 MPa, and the split tensile strength decreased from 1.97 MPa to 1.87 MPa. The slant shear test and split tensile test demonstrated that the repair material exhibited the highest effectiveness when the fly-ash substitution was 10%, and revealed that the repair angle directly affected the damage modes. The AE technique revealed that the damage behavior pattern of the FGG repair material was similar to that of Portland concrete. The microstructural analysis revealed that the FGG–concrete interphase contained mostly hydration products, and based on energy-dispersive X-ray spectroscopy (EDX), the compactness in the interphase and bond strength increased after the polymerization between the geopolymer and concrete. This indicated that the geopolymer damage mode was highly related to the level of polymerization. View Full-Text
Keywords: fly ash/ground-granulated blast-furnace slag geopolymer; repair material; bond strength; repair mechanism fly ash/ground-granulated blast-furnace slag geopolymer; repair material; bond strength; repair mechanism
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Kuo, W.-T.; Liu, M.-Y.; Juang, C.-U. Bonding Behavior of Repair Material Using Fly-Ash/Ground Granulated Blast Furnace Slag-Based Geopolymer. Materials 2019, 12, 1697.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
