Next Article in Journal
Effect of Heat Treatment on Repetitively Scanned SLM NiTi Shape Memory Alloy
Previous Article in Journal
Thermal Decomposition Properties of Epoxy Resin in SF6/N2 Mixture
Article Menu
Issue 1 (January-1) cover image

Export Article

Open AccessArticle

Effect of Ce Addition on Modifying the Microstructure and Achieving a High Elongation with a Relatively High Strength of As-Extruded AZ80 Magnesium Alloy

Key Laboratory of Automobile Materials of Ministry of Education & School of Materials Science and Engineering, Nanling Campus, Jilin University, No. 5988 Renmin Street, Changchun 130025, China
*
Authors to whom correspondence should be addressed.
Materials 2019, 12(1), 76; https://doi.org/10.3390/ma12010076
Received: 4 December 2018 / Revised: 20 December 2018 / Accepted: 21 December 2018 / Published: 26 December 2018
(This article belongs to the Section Structure Analysis and Characterization)
  |
PDF [4801 KB, uploaded 26 December 2018]
  |     |

Abstract

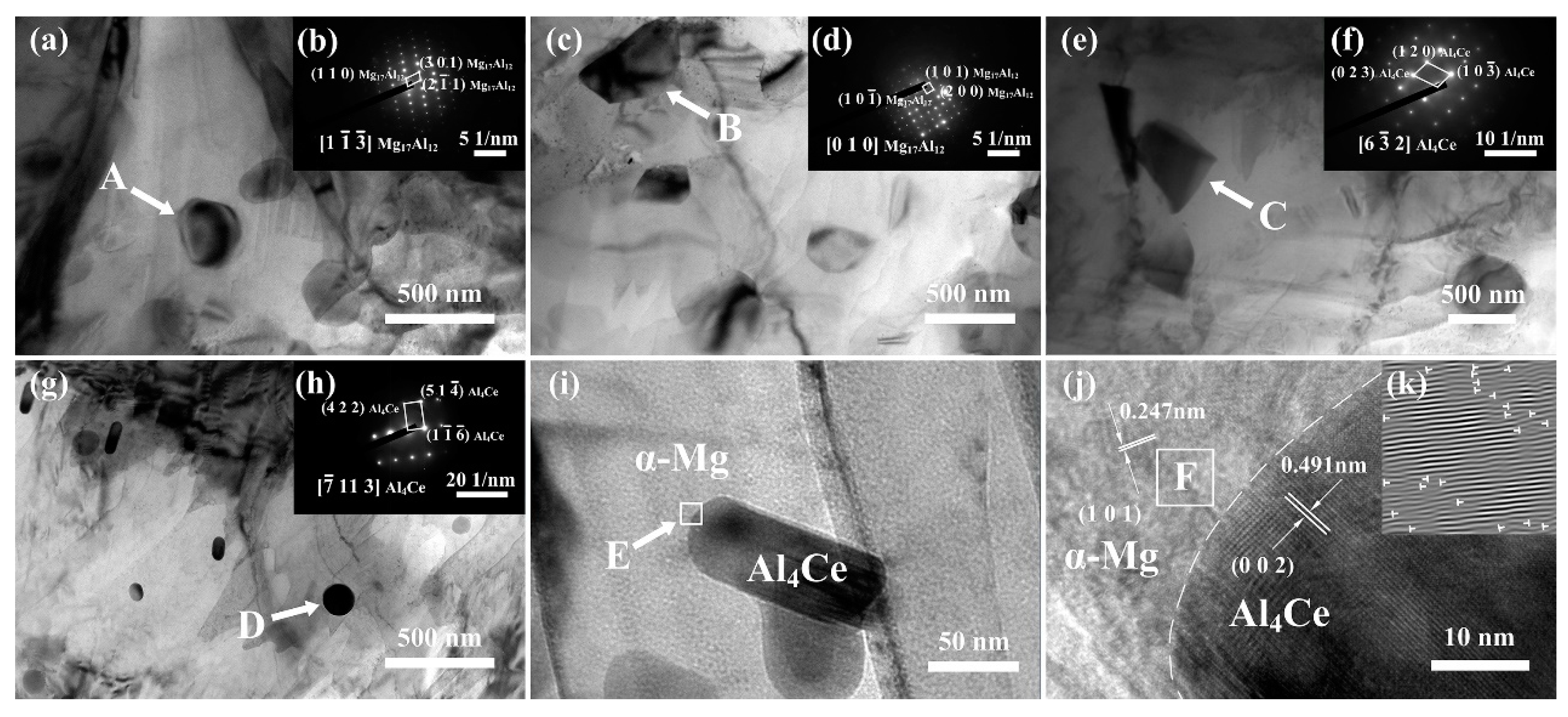

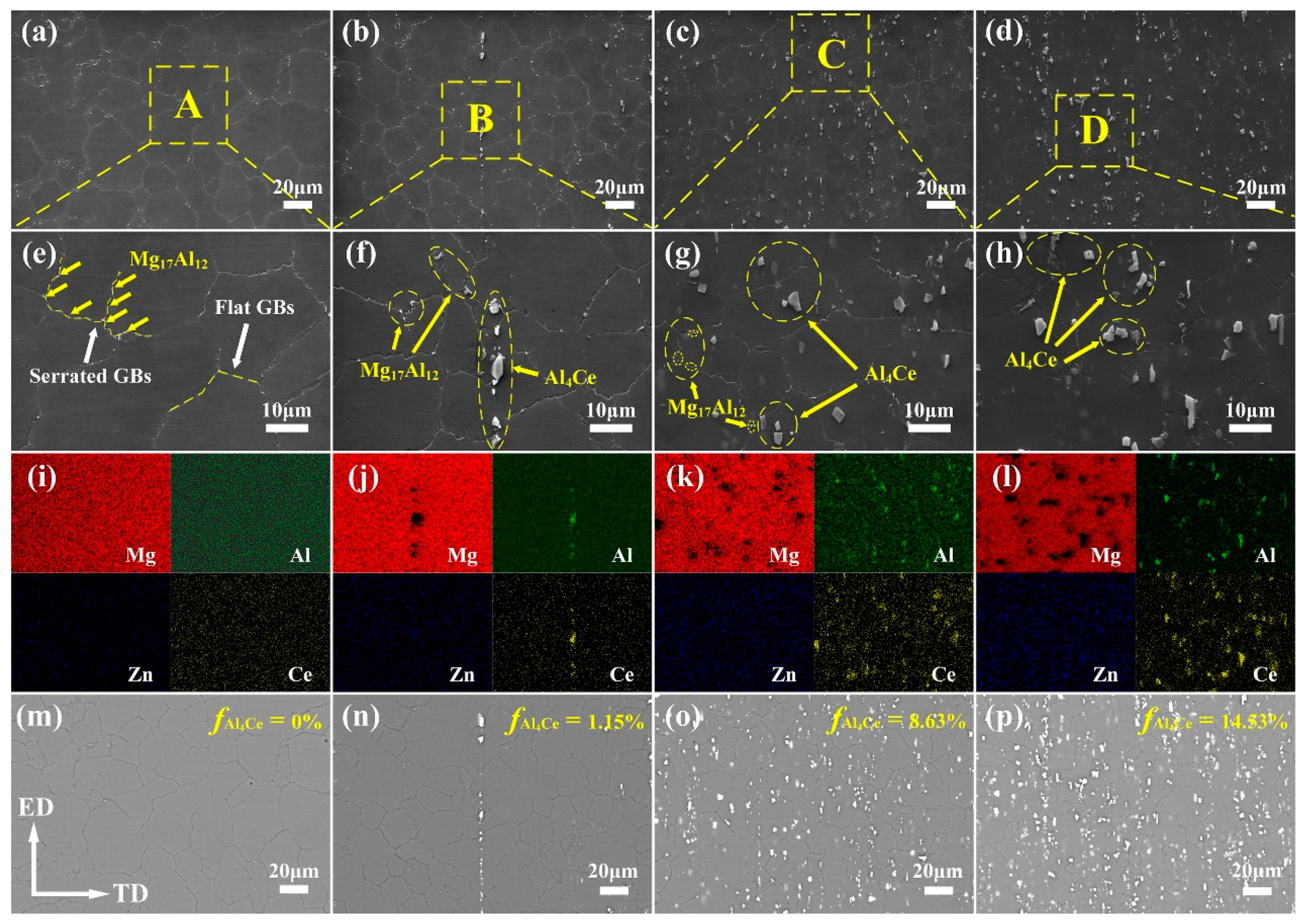

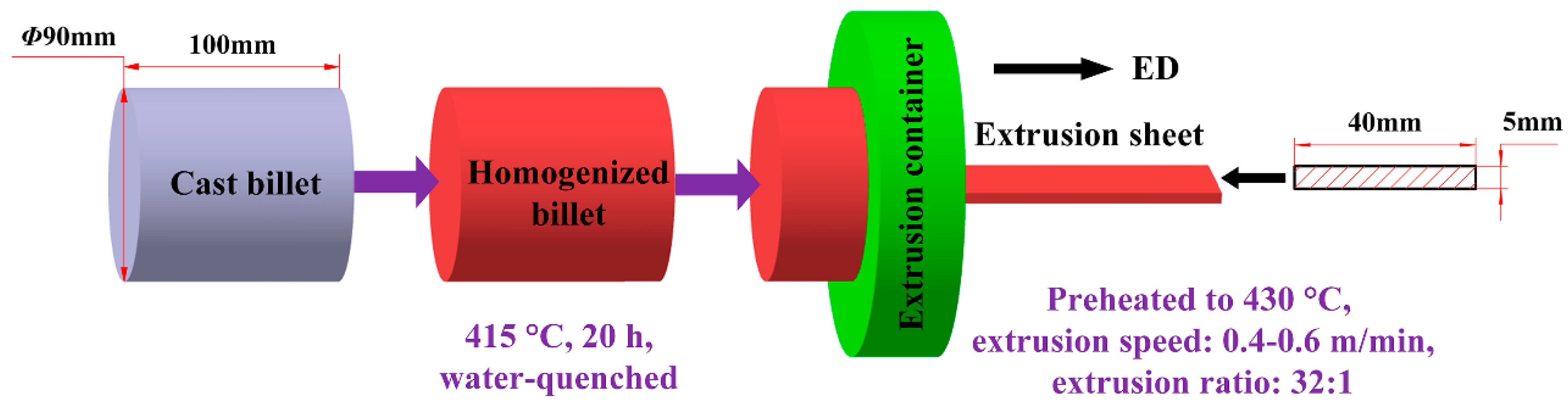

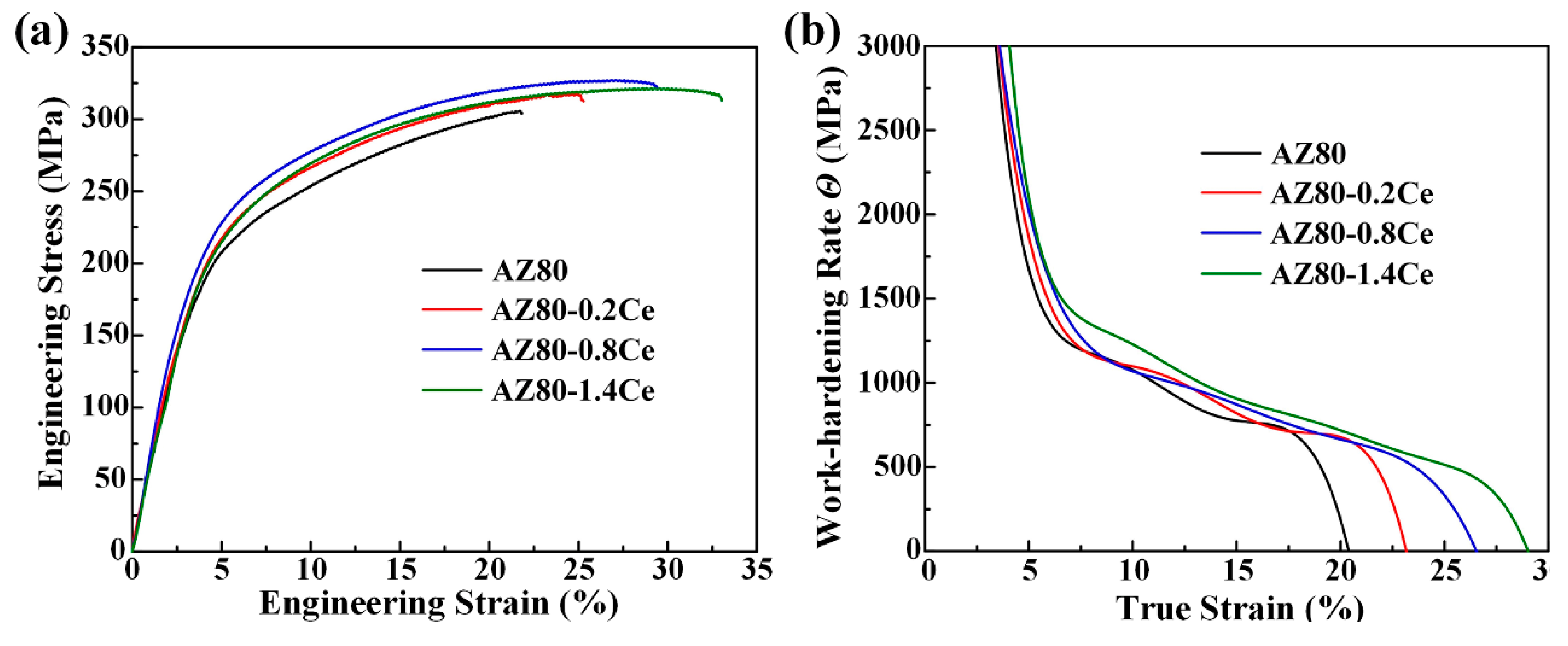

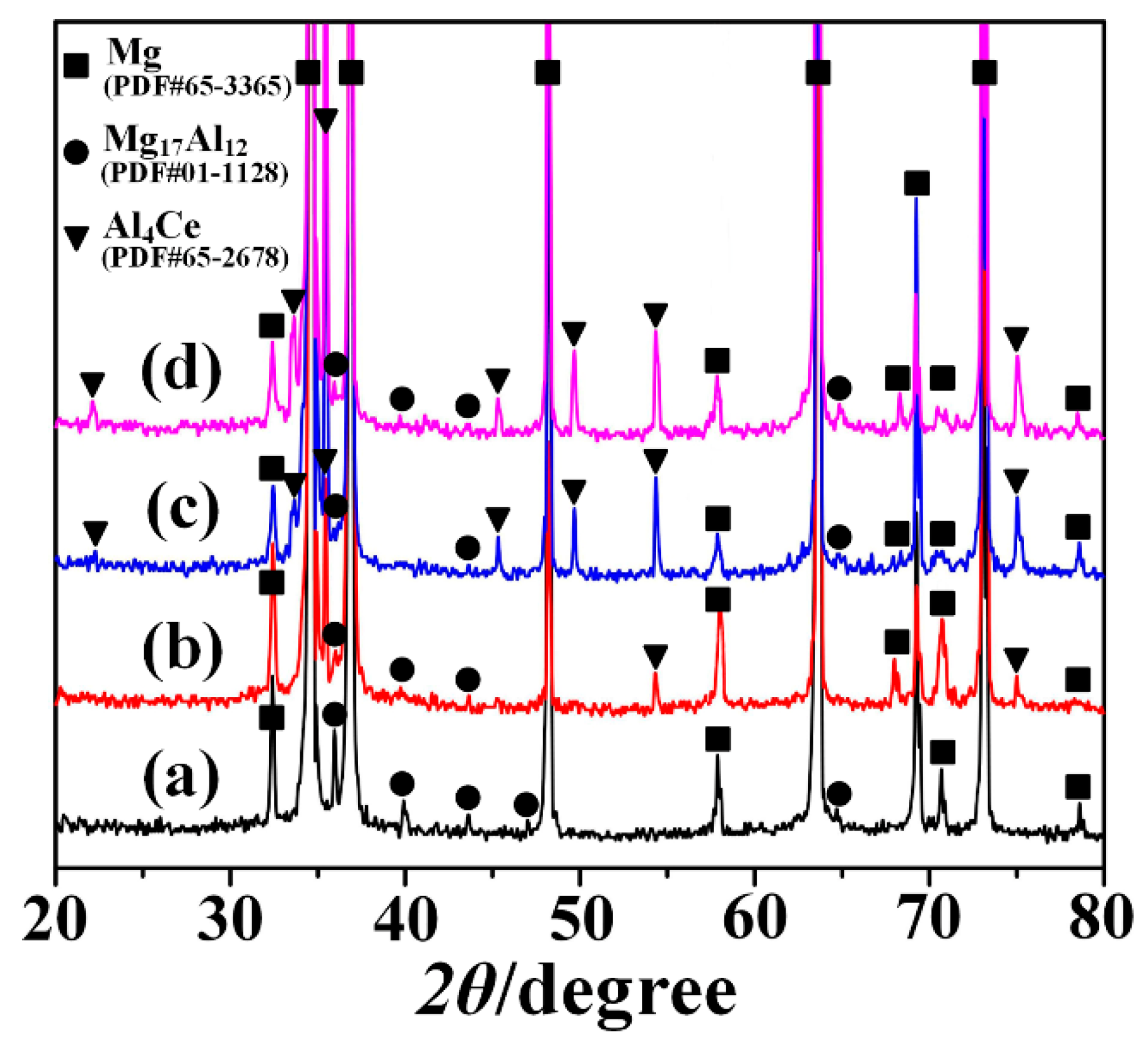

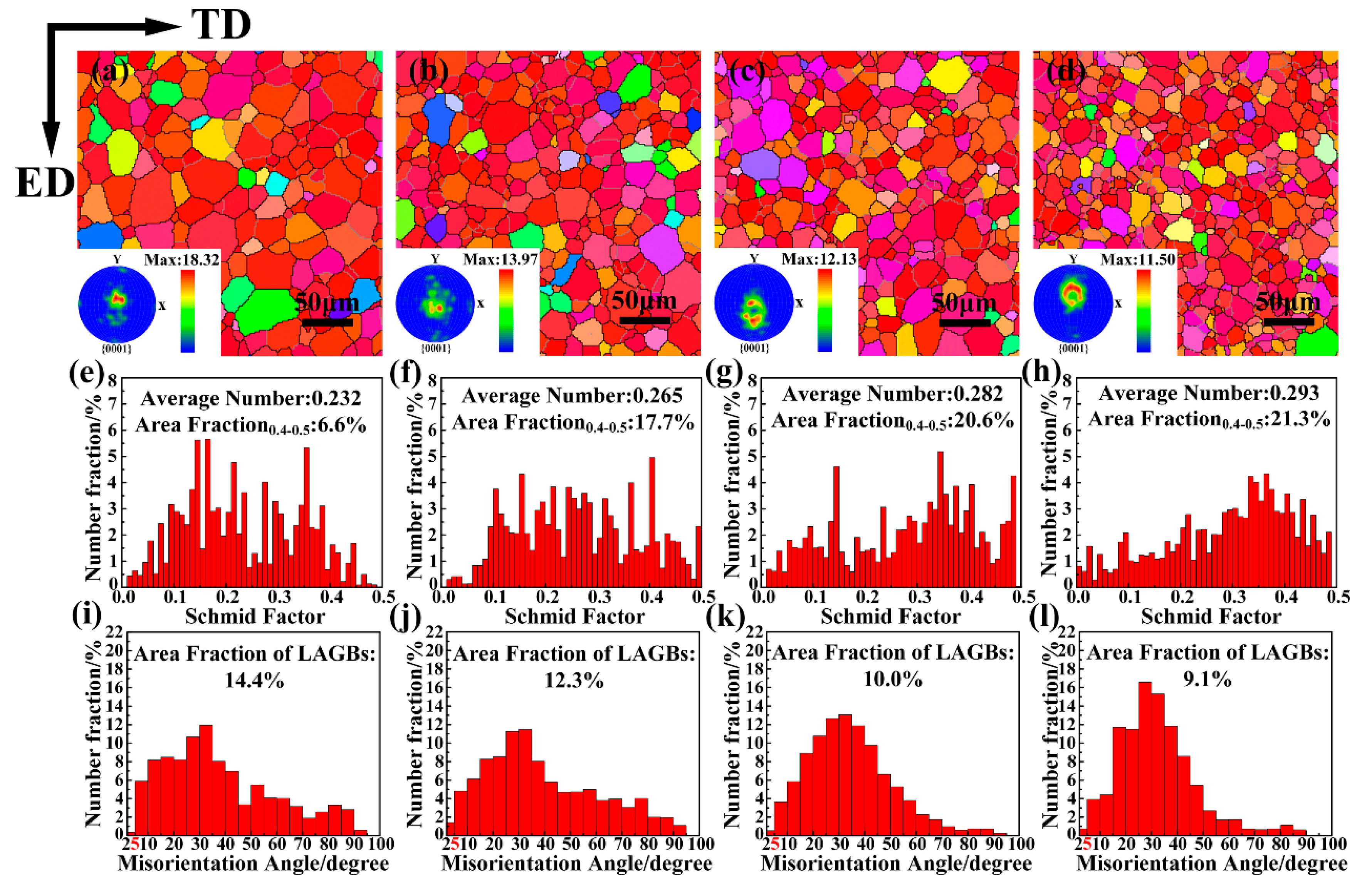

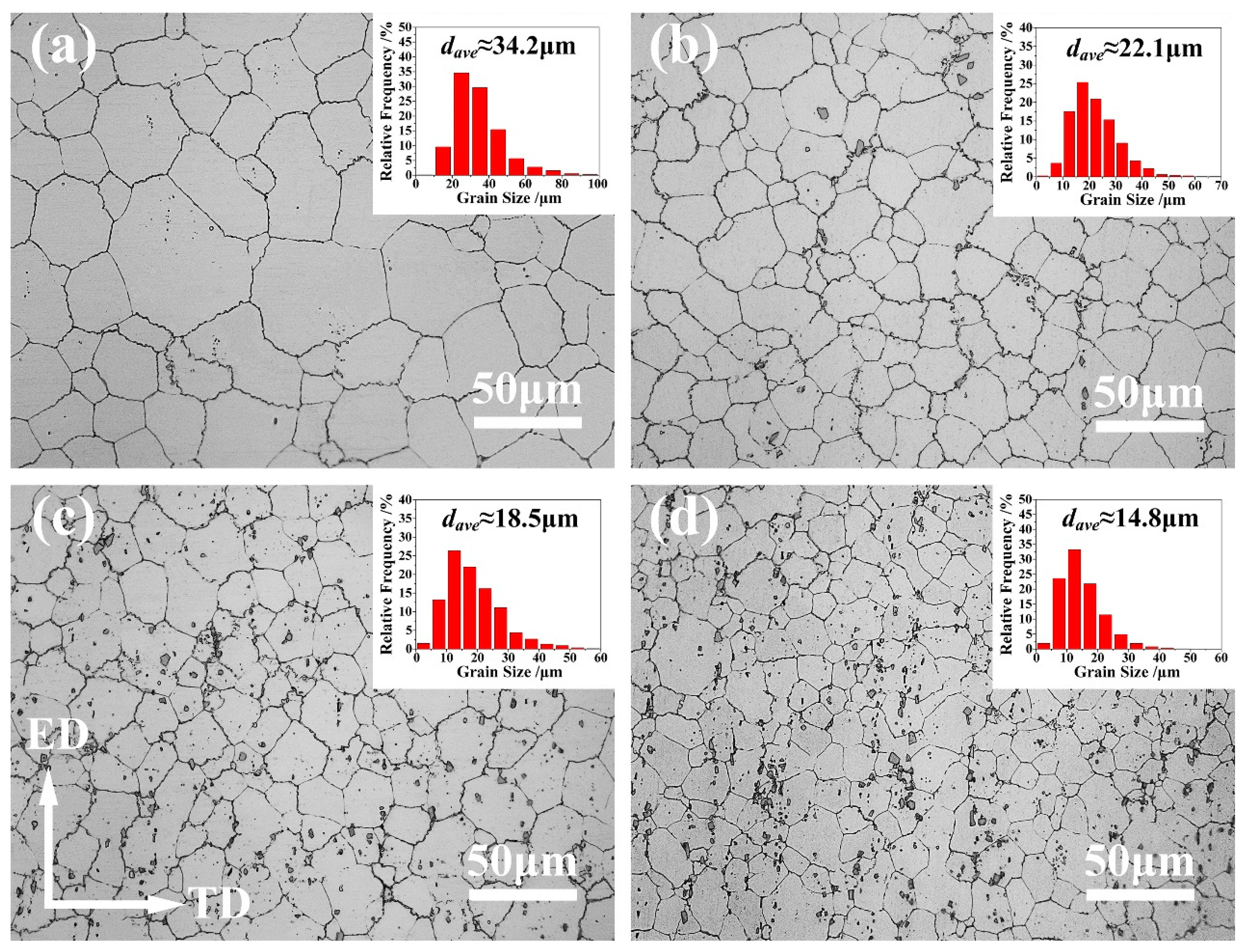

Forming magnesium alloys with rare earth elements (La, Gd, Nd, Y, Ce) is a routine method for modifying their microstructure and properties. In the present work, the effect of Ce addition on the microstructure evolution and the mechanical properties of as-extruded Mg-8Al-0.5Zn (AZ80) alloy was investigated. All of the extruded AZ80-xCe (x = 0, 0.2, 0.8 and 1.4 wt %) alloys exhibited equiaxed grains formed by fully dynamic recrystallization, and the grain size of the extruded AZ80 alloy was remarkably reduced by ~56.7% with the addition of 1.4 wt % Ce. Furthermore, the bulk-shaped Al4Ce phase formed when Ce was first added, with the Ce content rising to 0.8 wt % or higher, and Al4Ce particles in both the nano- and micron sizees were well distributed in the primary α-Mg matrix. The area fraction of the Al4Ce particles expanded with increasing Ce content, providing more nuclei for dynamic recrystallization, which could contribute to the grain refinement. The results of the tensile tests in this study showed that Ce addition effectively improved the room temperature formability of the as-extruded AZ80 alloy, without sacrificing strength. The significantly improved mechanical properties were ascribed to excellent grain refinement, weakened texture strength, an increased Schmid factor, and a reduced area fraction of low-angle grain boundaries, all resulting from Ce addition to the as-extruded AZ80 alloy. The contribution of the nano-Al4Ce precipitates on improving the mechanical properties was also discussed in this paper. View Full-Text
Keywords: AZ80 magnesium alloy; Ce modification; extrusion; microstructure; elongation; strength AZ80 magnesium alloy; Ce modification; extrusion; microstructure; elongation; strength
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
SciFeed

Share & Cite This Article

MDPI and ACS Style

Wang, Z.; Wang, J.-G.; Chen, Z.-Y.; Zha, M.; Wang, C.; Liu, S.; Yan, R.-F. Effect of Ce Addition on Modifying the Microstructure and Achieving a High Elongation with a Relatively High Strength of As-Extruded AZ80 Magnesium Alloy. Materials 2019, 12, 76.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
