Materials 2019, 12(1), 18; https://doi.org/10.3390/ma12010018

Article
Candida auris Dry Surface Biofilm (DSB) for Disinfectant Efficacy Testing
School of Pharmacy and Pharmaceutical Sciences, Cardiff University, Cardiff CF10 3NB, UK
*
Author to whom correspondence should be addressed.
Received: 20 November 2018 / Accepted: 14 December 2018 / Published: 21 December 2018

Abstract

:
Candida auris is an emerging pathogen that needs to be controlled effectively due to its association with a high mortality rate. The presence of biofilms on dry surfaces has been shown to be widespread in healthcare settings. We produced a C. auris dry surface biofilm (DSB) on stainless steel surfaces following sequential hydration and desiccation cycles for 12 days. The ASTM2967-15 was used to measure the reduction in viability of 12 commercially wipe-based disinfectants and sodium hypochlorite (1000 ppm) against C. auris DSB. We also evaluated C. auris transferability and biofilm regrowth post-treatment. A peracetic acid (3500 ppm) product and two chlorine-based products (1000 ppm available chlorine) were successful in reducing C. auris viability and delaying DSB regrowth. However, 50% of the products tested failed to decrease C. auris viability, 58% failed to prevent its transferability, and 75% did not delay biofilm regrowth. Using three different parameters to measure product efficacy provided a practical evaluation of product effectiveness against C. auris DSB. Although log10 reduction in viability is traditionally measured, transferability is an important factor to consider from an infection control and prevention point of view as it allows for determination of whether the surface is safe to touch by patients and hospital staff post-treatment.
Keywords:
Candida auris; dry-biofilm; disinfection; peracetic acid; sodium hypochlorite; chlorine dioxide; sodium dichloroisocyanurate; transferability; regrowth

1. Introduction

Candida auris was first isolated and identified in Japan in 2009 [1]. C. auris is an emerging pathogen responsible for many life-threating infections and it can be associated with high mortality rates [2]. C. auris infections are difficult to treat mostly due to the unpredictable resistance profile of the yeast to anti-fungal agents, frequent misidentification, non-aggregative phenotype, and its ability to form biofilm [3]. Higher risk of candidemia occurs in immunocompromised patients, patients that have undergone antibiotic or anti-fungal therapy, patients after surgeries, and patients with central venous catheters [4].
Contaminated surfaces in healthcare settings contribute to the transmission of infectious diseases [5,6,7]. Vickery and colleagues [8] showed that pathogens embedded in dry surface biofilms (DSB) remain on hospital surfaces despite rigorous surface decontamination. The widespread presence of dry surface biofilms on healthcare surfaces has now been established [9,10]. C. auris can persist on surfaces for weeks [11,12] and transmission of C. auris in healthcare settings have been reported [2,4,13,14]. The elimination of C. auris from surfaces is therefore important to consider. However, not many studies have investigated the effectiveness of disinfectants against C. auris [15]. Public Health England guidance [16] for the management and infection prevention and control of C. auris recommends using hypochlorite at 1000 ppm available chlorine to terminally clean room or bed space after the discharge of a C. auris infected or colonized patient. Not surprisingly, the majority of efficacy studies against C. auris relates to chlorine-releasing agents [14,17,18,19], although other biocides have been considered, such as quaternary ammonium compounds [14,18], acetic acid [18], peracetic acid [19], and hydrogen peroxide [17]. All these studies but one studied planktonic (suspension of) C. auris [20]. None of these studies investigated the transferability of C. auris to other surfaces post-treatment. Here, we investigated the efficacy of 12 commercially available products and sodium hypochlorite 1000 ppm against C. auris DSB using a modified product efficacy test protocol ASTM2967-15 [21] to measure decreases in viability, transferability, and biofilm regrowth post-treatment. The evaluation of three different parameters provides a better and more practical understanding of product efficacy against this pathogen.

2. Materials and Methods

C. auris Growth and Maintenance

C. auris (DSM 21092) was propagated overnight in malt extract broth (MEB, Oxoid, Thermo Scientific™, Loughborough, UK) at 25 °C and the pellet was re-suspended in MEB following centrifugation at 1200× g. The yeast suspension was adjusted to 1 × 106 CFU/mL.

C. auris Organic Load (OL) Dry-Biofilm Model

The C. auris DSB model is based on a recently developed Staphylococcus aureus DSB protocol [22]. Briefly, dry-biofilm formation consists of alternating hydration and desiccation phases in the presence of an organic load (OL). Stainless steel AISI 430 discs (0.7 ± 0.07 mm thickness; 10 ± 0.5 mm diameter, Goodfellow Cambridge Limited, Huntington, UK) were used as support. Sterile discs were placed in wells of a Corning™ Costar™ flat-bottom cell culture plates (Fisher Scientific™, Loughborough, UK), containing 1 mL of MEB with 5% anhydrous D-glucose (Fisher Scientific, Loughborough, UK), 3 g/L bovine serum albumin (BSA; Sigma® Life Science, Dorset, UK), and 106 CFU/mL washed C. auris suspension. Yeasts were first allowed to attach and form a biofilm on the disc surface for 2 days at 25 °C under gentle agitation using an Orbit P4 plate rocker (Labnet International, Edison, NJ, USA). The suspension was then drained from the wells, and plates were incubated at 25 °C for 48 h. Following this dry phase, 1 mL of MEB with 3 g/L BSA was added to each well, and a new hydrated phase began for 48 h. Hydrated and dry phases alternated every 48 h for a period of 12 days, ending with biofilm in a dry phase.

Scanning Electron Microscopy (SEM) Imaging

C. auris DSB samples were prepared by overnight incubation of discs in a 2.5% glutaraldehyde solution (ACROS Organics™, Fisher Scientific, Loughborough, UK) followed by immersion in successive concentrations of 10%, 25%, 50%, 70%, 90%, and 100% ethanol (Honeywell, Fisher Scientific Ltd., Loughborough, UK) for 10 min each. Prior to scanning electron microscopy (SEM, Carl Zeiss Ltd., Cambridge, UK) scanning, samples were coated with 20 nm of AuPd coating with a sputter coater (SC500, Biorad, UK). Secondary electron images were acquired with a beam energy of 5 kV using an in-lens detector on a Sigma HD Field Emission Gun Scanning Electron Microscope (Carl Zeiss Ltd., Cambridge, UK) at ×2000 and ×10,000 magnification and a 5 mm working distance. SEM images were false-colored to help visualization and contrast using GNU Image manipulation program (GIMP 2.8) software. Images were not otherwise altered.

Product Tested

The effectiveness of four commercially available wipes and eight commercially available liquid disinfectants was tested against C. auris OL dry-biofilm (Table 1). Disinfectants were prepared according to manufacturers’ instructions and combined with Rubbermaid® HYGEN™ disposable microfiber cloth (Rubbermaid Products, Surrey, UK), allowing 2.5 mL of disinfectant per 1 g of wipe. Wipes were cut into 3 × 3 cm2 squares prior to testing.

ASTM E2967-15 Test

Disinfection tests were performed according to a modified ASTM E2967-15 test [21]. Briefly, DSB were wiped with the Wiperator (Filtaflex Ltd., Almonte, Ontario, Canada) from both sides for 10 s under 500 g pressure, left for 2 min at 25 °C, and then neutralized in Dey-Engley neutralizing (DE) broth (Neogen® Corporation, Ayr, UK). Transfer of viable yeasts from used wipes to clean sterile disc was not performed.

Reduction in Viability for Yeasts Embedded in Dry Biofilms

Following wiping, samples were incubated for 1 h at 25 °C in 2 mL DE with 100 µg/mL proteinase K (Fisher Bioreagents™, Fisher Scientific, Loughborough, UK) and 1 g of glass beads (Fisher Scientific, Loughborough, UK). After incubation, samples were vortexed for 2 min and then serially diluted, and 3 × 10 µL2 drops of each dilution was plated onto tryptone soya agar (TSA; Oxoid, Thermo Fisher Scientific, Newport, UK). Reduction in yeast viability, expressed as a log10 reduction, was calculated as the difference between the number of yeasts recovered from untreated (control) and treated samples.

Transferability Test

Following wiping, discs were pressed 36 separate times with 100 g pressure on the surface of DE agar. Following the transfer test, DE agar was incubated at 25 °C for a up to 5 days until colonies appeared. Positive growth/adpression was recorded, and transferability was calculated as the number of positive contact/number of adpressions.

Dry-Biofilm Regrowth

Following wiping, discs were placed in 30 mL capacity flat bottom glass bottle with 2 mL of DE broth. The number of days for turbidity change, which is indicative of growth, was recorded. Samples were plated on TSA to confirm yeast growth and purity.

Statistical Analysis

The statistical significance of data sets was evaluated with GraphPad PRISM® (version 7.04, GraphPad Software, San Diego, CA, USA) using two- and one-way Analysis of Variance (ANOVA). All experiments were performed in triplicates in three independent biological replicates unless otherwise stated. The sample standard deviation was evaluated with Bassel’s correction.

3. Results

SEM Analysis of C. auris Dry Surface Biofilm

C. auris formed a thin biofilm that was evenly scattered throughout the stainless-steel disc surface with no evidence of extracellular polymeric substances (Figure 1). There was no statistically significant difference (two-way ANOVA, p = 0.06) in viable count of yeasts (log10 CFU/mL = 7.8 ± 0.3) recovered from each disc between four independent biofilm batches.

Product Efficacy

The most effective treatments including PAA-1 (3500 ppm), NaDCC-5 (1000 ppm), NaOCl-Ref (1000 ppm), and NaOCl-3 (1000 ppm) removed or killed more than 7 log10 of C. auris embedded in DSB (Figure 2). Peracetic acid at 3500 ppm combined with a non-woven wipe was significantly (one-way ANOVA, p < 0.05) more effective in biofilm eradication than PAA at 250 ppm combined with a microfiber cloth (0.84 ± 0.11 log10 reduction). NaDCC-5 was the most effective (two-way ANOVA, p < 0.05) in killing or removing C. auris DSB compared to the other NaDCC-based products that all failed to produce a 4 log10 reduction in viability (Figure 2). Chlorine-dioxide-based products overall did not perform very well, achieving less than 2.5 log10 reduction even with ClO2-2 containing a higher concentration (1000 ppm) of available chlorine (Figure 2). There was no difference (one-way ANOVA, p = 0.22) in activity between ClO2-1 and ClO2-2. Overall, half of the products tested (ClO2-1, NaDCC-2, and NaOCl-2) showed either a similar performance (one-way ANOVA, p > 0.05) to water combined with the microfiber cloth or performed worse (one-way ANOVA, p < 0.05) than water combined with the microfiber cloth (ClO2-2, NaDCC-3, and PAA-2).
Only two products, PAA-1 and NaOCl-3, prevented C. auris transfer after treatment (Figure 3). Seven out of 12 commercially available disinfectants were not effective in lowering the transferability of C. auris from DSB post-wiping. For four product/materials combinations (ClO2-2, NaDCC-2, NaDCC-3, and NaOCl-1), there was no statistically significant difference (one-way ANOVA, for each pair p > 0.05) between their performance and that of water (Figure 3). The remaining three treatments (NaDCC-4, NaOCl-2 and PAA-2) were even less effective than wiping with water (one-way ANOVA, for each pair p < 0.05).
The best commercial products, NaDCC-3, NaDCC-5, and PAA-1, delayed the recovery of biofilm post-treatment for more than 4 days (5.0 ± 0.0, 4.7 ± 1.2 and 6.5 ± 2.1 days, respectively; Figure 4). Such activity was similar (two-way ANOVA, p = 0.53) to NaOCl-Ref which delayed regrowth by 4.5 ± 0.7 days. Nine out of 12 commercial treatments failed to prevent the regrowth of C. auris DSB for more than 2 days (Figure 4).
The less-reactive chemistry (as compared to the oxidizing chemistries) based on a quaternary ammonium compound produced a 4 log10 reduction in C. auris on surfaces and reduced transferability post-wiping to 20%.

4. Discussion

Environmental surfaces play an important role in the transmission of infection [5,6]. Infection control regimens include the combination of cleaning and disinfection processes [16] and are often based on the use of a disinfectant or cleaner combined with diverse materials [31]. Performance of biocidal products still relies, however, on testing the efficacy of the formulation and not the combination of formulation and material [22]. A number of US-based protocols to test wipe activity have been described, but all had severe limitations in their setting or performance [31]. Recently, the ASTM2967-15 and the EN16615-15 protocols [32] have been recommended for evaluating the efficacy of antimicrobial wipes, although EN16615-15 has recently been shown to lack stringency [33]. Both tests evaluate the reduction in microbial number from the test surface and the transfer of micro-organisms during wiping. Attaining a > 5log10 reduction in microbial inoculum following treatment has been, until now, deemed to provide enough assurance that all micro-organisms would be killed on surfaces in practice. Although this might be the case where surfaces are contaminated with a low number of microorganisms, this might not be correct with surfaces contaminated with a high number of microorganisms or when dry surface biofilms are present. Hence, the evaluation of microbial transferability post-treatment is important to take into consideration to provide reassurance that a surface would be safe to touch. The presence of DSB on healthcare surfaces has been established [8,9,10], and the resilience of DSB to disinfection has been described [8]. The presence of C. auris DSB has not been yet established in healthcare settings, although its persistence in healthcare settings has been described [11,12].
Here, we have successfully produced reproducible dry surface biofilms of C. auris on stainless steel surfaces, for which appearance and characteristics are not dissimilar to artificial DSB of Staphylococcus aureus (Ledwoch, Said and Maillard, unpublished results) or DSB isolated from endoscopes [34]. These dry surface biofilms of C. auris provided a platform for testing the efficacy of commercially available wipe-based products or formulation combined with a microfiber cloth. Here, we observed that the majority of commercially available chlorine-releasing agents widely used by hospitals do not effectively eradicate a C. auris DSB or lower its transferability. The ability of C. auris to form dry surface biofilm on surfaces contribute somewhat to its resistance against disinfection. We showed that C. auris inactivation was product dependent. NaOCl-containing products are widely used in healthcare settings, although the efficacy of NaOCl against C. auris dried on surfaces differs in the literature. While only 2.5–3 log10 of C. auris were killed by NaOCl (1000 ppm) within 5 min [20], a 3000 ppm NaOCl solution resulted in reducing C. auris dried on surfaces for 2 h by 6 log10 in 1 min [18]. An 8000 ppm NaOCl solution, however, produced a 6 log10 reduction in 10 min for C. auris dried on surfaces for 1 h [14]. Here, NaOCl-Ref (1000 ppm) and NaOCl-3 (1000 ppm) produced a 7 log10 reduction in number within 2 min following wiping.
The microfiber cloth loaded with sterile water enabled the removal of C. auris (2 log10 reduction) but failed to prevent transfer or biofilm re-growth post wiping. Interestingly, a number of products performed similarly to water, indicating either that the combination with the Rubbermaid® HYGEN™ disposable microfiber cloth was incompatible with the product formulation, or that the product activity was caused by the material only. Wesgate et al. [33] recently showed that the type of material might have a small impact on the formulation presumably because the concentration of the active ingredient was high. In this study, it was interesting to observe that lower concentration and, possibly, the type of material affected the efficacy of peracetic acid and NaOCl. It has also been reported that the formulation itself impacts activity [35]. Here, different NaOCl formulations produced different results. While the use of unformulated NaOCl (NaOCl-Ref) was effective in reducing counts of C. auris on surfaces and prolonged biofilm regrowth, it failed to prevent C. auris transfer. The formulated NaOCl product (NaOCl-3) containing the same concentration of available chlorine produced a high reduction in count, thus preventing transfer but was less efficacious in delaying biofilm regrowth. NaOCl-2 containing a lower concentration of available chlorine was not effective in reducing C. auris count, preventing transfer, or delaying regrowth. The impact of formulation is also evident with NaDCC-based products. Overall, the peracetic acid wipe product containing 3500 ppm of PAA performed the best against C. auris DSB.

5. Conclusions

We successfully developed a dry surface biofilm in vitro model of C. auris. Although C. auris has not yet been isolated from environmental DSB, its presence on surfaces and associated high pathogenicity highlights the need to select an efficient infection control regimen. The use of a product efficacy test such as ASTM2967-15 is essential to evaluate the efficacy of formulated products. The additional evaluation of transferability of microorganisms post-wiping provides important information on a product’s overall efficacy as well as reassurance that surfaces are safe to touch post-treatment. Here, we observed that measuring log10 reduction in viability was not enough to discriminate between product efficacy. Importantly, we observed that a number of commercially-available formulations combined with a microfiber cloth, or products, failed to control dry surface biofilms of C. auris. It was also clear that high concentration and an appropriate formulation of the active ingredient was key for efficacy, with the PAA-based product performing better.

Author Contributions

Conceptualization, J.-Y.M.; Data Curation, K.L.; Formal Analysis, K.L.; Funding Acquisition, J.-Y.M.; Investigation, K.L. and J.-Y.M.; Methodology, K.L.; Project Administration, J.-Y.M.; Supervision, J.-Y.M.; Writing–Original Draft, K.L.; Writing–Review & Editing, J.-Y.M.

Funding

This research was funded by GAMA Healthcare Ltd.

Acknowledgments

The authors wish to acknowledge D.D. Duncan for his help with SEM imaging

Conflicts of Interest

K. Ledwoch is partially funded by GAMA Healthcare Ltd.

References

  1. Satoh, K.; Makimura, K.; Hasumi, Y.; Nishiyama, Y.; Uchida, K.; Yamaguchi, H. Candida auris sp. nov., a novel ascomycetous yeast isolated from the external ear canal of an inpatient in a Japanese hospital. Microbiol. Immunol. 2009, 53, 41–44. [Google Scholar] [CrossRef]
  2. Araúz, A.B.; Caceres, D.H.; Santiago, E.; Armstrong, P.; Arosemena, S.; Ramos, C.; Espinosa-Bode, A.; Borace, J.; Hayer, L.; Cedeño, I.; et al. Isolation of Candida auris from 9 patients in Central America: Importance of accurate diagnosis and susceptibility testing. Mycoses 2018, 61, 44–47. [Google Scholar] [CrossRef]
  3. Morales-López, S.E.; Parra-Giraldo, C.M.; Ceballos-Garzón, A.; Martínez, H.P.; Rodríguez, G.J.; Álvarez-Moreno, C.A.; Rodríguez, J.Y. Invasive Infections with Multidrug-Resistant Yeast Candida auris, Colombia. Emerg. Infect. Dis. 2017, 23, 162. [Google Scholar] [CrossRef]
  4. Calvo, B.; Melo, A.S.A.; Perozo-Mena, A.; Hernandez, M.; Francisco, E.C.; Hagen, F.; Meis, J.F.; Colombo, A.L. First report of Candida auris in America: Clinical and microbiological aspects of 18 episodes of candidemia. J. Infect. 2016, 73, 369–374. [Google Scholar] [CrossRef]
  5. Weber, D.J.; Rutala, W.A.; Miller, M.B.; Huslage, K.; Sickbert-Bennett, E. Role of hospital surfaces in the transmission of emerging healthcare associated pathogens: Norovirus, Clostridium difficile, and Acinetobacter species. Am. J. Infect. Control 2010, 38, S25–S33. [Google Scholar] [CrossRef] [PubMed]
  6. Weber, D.J.; Anderson, D.; Rutala, W.A. The role of the surface environment in healthcare-associated infections. Curr. Opin. Infect. Dis. 2013, 26, 338–344. [Google Scholar] [CrossRef]
  7. Otter, J.A.; Yezli, S.; Salkeld, J.A.G.; French, G.L. Evidence that contaminated surfaces contribute to the transmission of hospital pathogens and an overview of strategies to address contaminated surfaces in hospital settings. Am. J. Infect. Control 2013, 41, S6–S11. [Google Scholar] [CrossRef] [PubMed]
  8. Vickery, K.; Deva, A.; Jacombs, A.; Allan, J.; Valente, P.; Gosbell, I.B. Presence of biofilm containing viable multiresistant organisms despite terminal cleaning on clinical surfaces in an intensive care unit. J. Hosp. Infect. 2012, 80, 52–55. [Google Scholar] [CrossRef] [PubMed]
  9. Hu, H.; Johani, K.; Gosbell, I.B.; Jacombs, A.S.W.; Almatroudi, A.; Whiteley, G.S.; Deva, A.K.; Jensen, S.; Vickery, K. Intensive care unit environmental surfaces are contaminated by multidrug-resistant bacteria in biofilms: Combined results of conventional culture, pyrosequencing, scanning electron microscopy, and confocal laser microscopy. J. Hosp. Infect. 2015, 91, 35–44. [Google Scholar] [CrossRef]
  10. Ledwoch, K.; Dancer, S.J.; Otter, J.A.; Kerr, K.; Roposte, D.; Rushton, L.; Weiser, R.; Mahenthiralingam, E.; Muir, D.D.; Maillard, J.-Y. Beware biofilm! Dry biofilms containing bacterial pathogens on multiple healthcare surfaces; a multi-centre study. J. Hosp. Infect. 2018, 100, 47–56. [Google Scholar] [CrossRef]
  11. Piedrahita, C.T.; Cadnum, J.L.; Jencson, A.L.; Shaikh, A.A.; Ghannoum, M.A.; Donskey, C.J. Environmental surfaces in healthcare facilities are a potential source for transmission of Candida auris and other Candida species. Infect. Control Hosp. Epidemiol. 2017, 38, 1107–1109. [Google Scholar] [CrossRef] [PubMed]
  12. Welsh, R.M.; Bentz, M.L.; Shams, A.; Houston, H.; Lyons, A.; Rose, L.; Litvintseva, A.P. Survival, persistence, and isolation of the emerging multidrug-resistant pathogenic yeast Candida auris on a plastic health care surface. J. Clin. Microbiol. 2017, 55, 2996–3005. [Google Scholar] [CrossRef] [PubMed]
  13. Vallabhaneni, S.; Kallen, A.; Tsay, S.; Chow, N.; Welsh, R.; Kerins, J.; Kemble, S.K.; Pacilli, M.; Black, S.R.; Landon, E.; et al. Investigation of the first seven reported cases of Candida auris, a globally emerging invasive, multidrug-resistant fungus-United States, May 2013–August 2016. Am. J. Transplant. 2017, 17, 296–299. [Google Scholar] [CrossRef] [PubMed]
  14. Biswal, M.; Rudramurthy, S.M.; Jain, N.; Shamanth, A.S.; Sharma, D.; Jain, K.; Yaddanapudi, L.N.; Chakrabarti, A. Controlling a possible outbreak of Candida auris infection: Lessons learnt from multiple interventions. J. Hosp. Infect. 2017, 97, 363–370. [Google Scholar] [CrossRef] [PubMed]
  15. Ku, T.S.N.; Walraven, C.J.; Lee, S.A. Candida auris: Disinfectants and implications for infection control. Front. Microbiol. 2018, 9, 1–12. [Google Scholar] [CrossRef] [PubMed]
  16. Guidance for the Laboratory Investigation, Management and Infection Prevention and Control for Cases of Candida auris (August 2017 v2.0); Public Health England: London, UK, 2016; PHE publications gateway number: 2016122.
  17. Abdolrasouli, A.; Armstrong-James, D.; Ryan, L.; Schelenz, S. In vitro efficacy of disinfectants utilised for skin decolonization and environmental decontamination during a hospital outbreak with Candida auris. Mycoses 2017, 60, 758–763. [Google Scholar] [CrossRef] [PubMed]
  18. Cadnum, J.L.; Shaikh, A.A.; Piedrahita, C.T.; Sankar, T.; Jencson, A.L.; Larkin, E.L.; Ghannoum, M.A.; Donskey, C.J. Effectiveness of disinfectants against Candida auris and other Candida species. Infect. Control Hosp. Epidemiol. 2017, 38, 1240–1243. [Google Scholar] [CrossRef] [PubMed]
  19. Moore, G.; Schelenz, S.; Borman, A.M.; Johnson, E.M.; Brown, C.S. Yeasticidal activity of chemical disinfectants and antiseptics against Candida auris. J. Hosp. Infect. 2017, 97, 371–375. [Google Scholar] [CrossRef]
  20. Kean, R.; Sherry, L.; Townsend, E.; McKloud, E.; Short, B.; Akinbobola, A.; Mackay, W.G.; Williams, C.; Jones, B.L.; Ramage, G. Surface disinfection challenges for Candida auris: An in vitro study. J. Hosp. Infect. 2018, 98, 433–436. [Google Scholar] [CrossRef]
  21. ASTM E2967-15 Standard Test Method for Assessing the Ability of Pre-wetted Towelettes to Remove and Transfer Bacterial Contamination on Hard, Non-Porous Environmental Surfaces Using the Wiperator; ASTM: West Conshohocken, PA, USA, 2015.
  22. Ledwoch, K.; Said, J.; Maillard, J.-Y. Artificial dry-biofilm models for disinfectant efficacy testing. Lett. Appl. Microbiol. 2018. under review. [Google Scholar]
  23. Maris, P. Modes of action of disinfectants. Rev. Sci. Tech. 1995, 14, 47–55. [Google Scholar] [CrossRef]
  24. Virto, R.; Mañas, P.; Álvarez, I.; Condon, S.; Raso, J. Membrane damage and microbial inactivation by chlorine in the absence and presence of a chlorine-demanding substrate. Appl. Environ. Microbiol. 2005, 71, 5022–5028. [Google Scholar] [CrossRef] [PubMed]
  25. Russell, A.D. Microbial sensitivity and resistance to chemical and physical agents. In Topley and Wilson’s Microbiology and Microbial Infections, 9th ed.; Edward Arnold: London, UK, 1998; pp. 149–184. [Google Scholar]
  26. McDonnell, G.; Russell, A.D. Antiseptics and disinfectants: Activity, action and resistance. Clin. Microbiol. Rev. 1999, 12, 147–179. [Google Scholar] [CrossRef] [PubMed]
  27. Estrela, C.; Estrela, C.R.A.; Barbin, E.L.; Spanó, J.C.E.; Marchesan, M.A.; Pécora, J.D. Mechanism of action of sodium hypochlorite. Braz. Dent. J. 2002, 13, 113–117. [Google Scholar] [CrossRef] [PubMed][Green Version]
  28. Block, S.S. Disinfection, Sterilization and Preservation, 4th ed.; Lea & Febiger Press: Philadelphia, PA, USA, 1991. [Google Scholar]
  29. Kitis, M. Disinfection of wastewater with peracetic acid: A review. Environ. Int. 2004, 30, 47–54. [Google Scholar] [CrossRef]
  30. Tutumi, M.; Imamura, K.; Hatano, S.; Watanabe, T. Antimicrobial action of peracetic acid. J. Food Hyg. Soc. Jpn. 1973, 14, 443–447. [Google Scholar] [CrossRef]
  31. Sattar, S.A.; Maillard, J.Y. The crucial role of wiping in decontamination of high-touch environmental surfaces: Review of current status and directions for the future. Am. J. Infect. Control 2013, 41, S97–S104. [Google Scholar] [CrossRef]
  32. Chemical Disinfectants and Antiseptics-Quantitative Test Method for The Evaluation of Bactericidal and Yeasticidal Activity on Non-Porous Surfaces with Mechanical Action Employing Wipes in the Medical Area (4-Field Test); British Standards Institute: London, UK, 2015.
  33. Wesgate, R.; Robertson, A.; Barrell, M.; Tesca, P.; Maillard, J.-Y. Impact of test protocols and material binding on antimicrobial wipes efficacy. J. Hosp. Infect. 2018, in press. [Google Scholar] [CrossRef]
  34. Pajkos, A.; Vickery, K.; Cossart, Y. Is biofilm accumulation on endoscope tubing a contributor to the failure of cleaning and decontamination? J. Hosp. Infect. 2004, 58, 224–229. [Google Scholar] [CrossRef]
  35. Forbes, S.; Cowley, N.; Humphreys, G.; Mistry, H.; Amézquita, A.; McBain, A.J. Formulation of biocides increases antimicrobial potency and mitigates the enrichment of nonsusceptible bacteria in multispecies biofilms. Appl. Environ. Microbiol. 2017, 83, AEM.03054-16. [Google Scholar] [CrossRef]
Figure 1. Scanning electron microscope images of C. auris organic load (OL) dry surface biofilm: (a) ×2000 magnification; (b) ×10,000 magnification. The images presented are representative for the whole disc surface. Observations were made on three independent triplicates of C. auris dry-biofilm, and whole disc surface (~0.8 cm2) was investigated each time with ×500 magnification. Images of dry surface biofilm (DSB) were colored in green to help visualization and contrast using GNU Image manipulation program (GIMP 2.8) software. Images were not otherwise altered.
Figure 1. Scanning electron microscope images of C. auris organic load (OL) dry surface biofilm: (a) ×2000 magnification; (b) ×10,000 magnification. The images presented are representative for the whole disc surface. Observations were made on three independent triplicates of C. auris dry-biofilm, and whole disc surface (~0.8 cm2) was investigated each time with ×500 magnification. Images of dry surface biofilm (DSB) were colored in green to help visualization and contrast using GNU Image manipulation program (GIMP 2.8) software. Images were not otherwise altered.
Materials 12 00018 g001
Figure 2. Product efficacy in killing/removing C. auris embedded in a DSB. 1: indicates no statistical difference (one-way ANOVA, p > 0.05) in log10 reduction/removal from surfaces; 2: log10 reduction/removal lower than wiping with water (one-way ANOVA, p < 0.05); and 3: indicates that only two biological replicates were performed.
Figure 2. Product efficacy in killing/removing C. auris embedded in a DSB. 1: indicates no statistical difference (one-way ANOVA, p > 0.05) in log10 reduction/removal from surfaces; 2: log10 reduction/removal lower than wiping with water (one-way ANOVA, p < 0.05); and 3: indicates that only two biological replicates were performed.
Materials 12 00018 g002

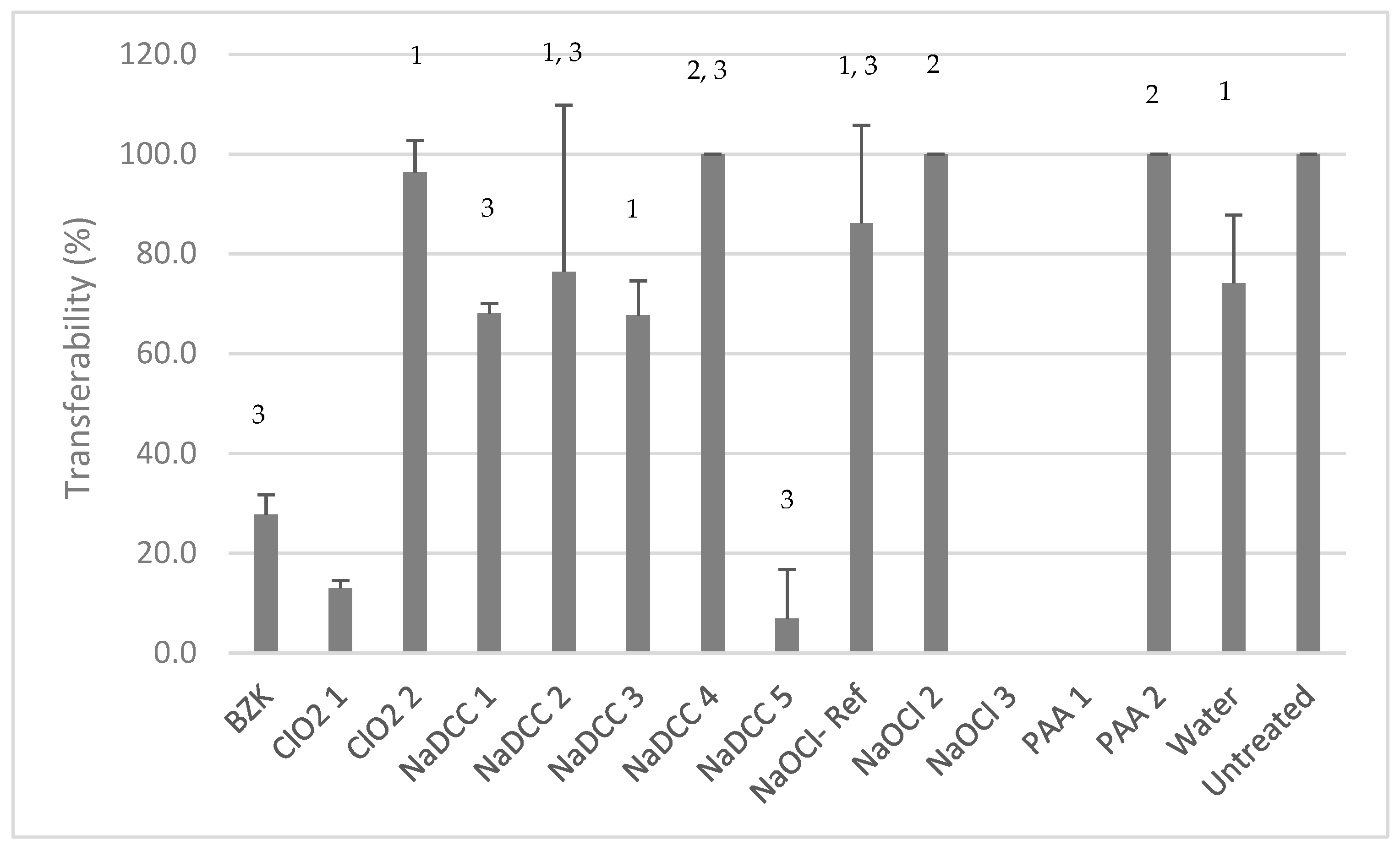

Figure 3. Product efficacy in preventing C. auris transferability post-wiping. 1: indicates no statistical difference (one-way ANOVA, for each pair p > 0.05) in transferability; 2: higher transferability (one-way ANOVA, for each pair p < 0.05) than with water control; and 3: indicates that only two biological replicates were performed.
Figure 3. Product efficacy in preventing C. auris transferability post-wiping. 1: indicates no statistical difference (one-way ANOVA, for each pair p > 0.05) in transferability; 2: higher transferability (one-way ANOVA, for each pair p < 0.05) than with water control; and 3: indicates that only two biological replicates were performed.
Materials 12 00018 g003

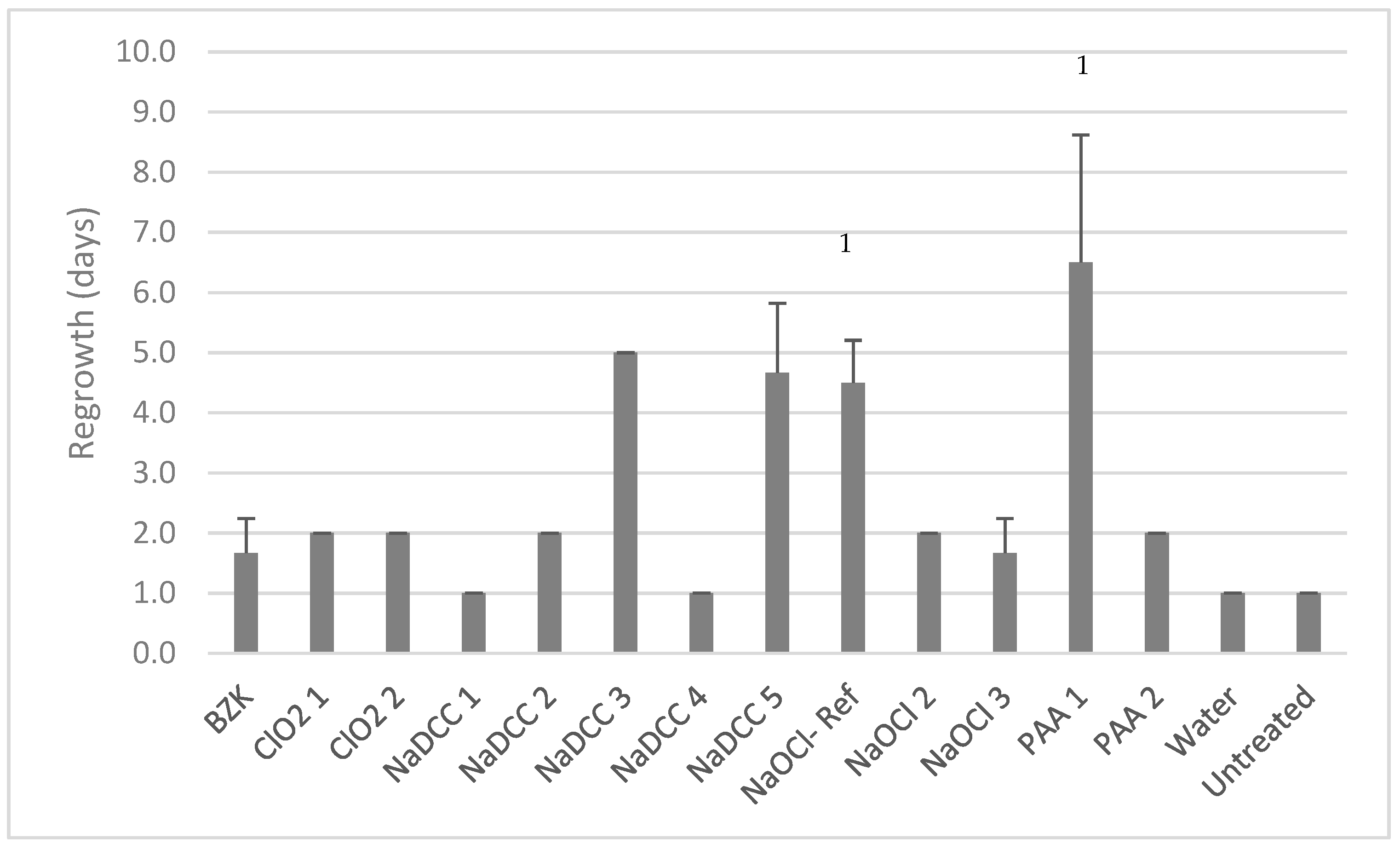

Figure 4. Efficacy of products in preventing regrowth post-wiping. 1: indicates that only two biological replicates were performed.
Figure 4. Efficacy of products in preventing regrowth post-wiping. 1: indicates that only two biological replicates were performed.
Materials 12 00018 g004
Table 1. Disinfectants tested.
Table 1. Disinfectants tested.
AbbreviationMain Active Ingredient 1Excipients (from MSDS) 1Concentration of the Main Active Ingredient 4pH 5Mechanism of Disinfectant Action 6Wipe Material
BZKBenzalkonium chloride, polyhexamethylene biguanide (PHMB)Didecyl dimethyl ammonium chloride< 0.5% (<5000 ppm)5.41Membrane active agents; damage cytoplasmic membrane and increase permeability [23]Non-Woven Wipe 7
ClO2-1Chlorine dioxideSodium chlorite, sodium dodecyl sulphate, sodium carbonate, citric acid, sodium dichloroisocyanurate300 ppm5.05Affect membrane permeability of the membrane and inhibits cellular respiration [23]Microfiber cloth 8
ClO2-2Chlorine dioxideNot mentioned1000 ppm4.31Microfiber cloth 8
NaDCC-1Sodium dichloroisocyanurateAdipic acid, arylsulfonates, sodium fatty acid sarcosides1000 ppm6.31Permeabilization of the cytoplasmic membrane [24], progressive oxidation of thiol groups to disulphides [25] and deleterious effects on DNA synthesis [26]Microfiber cloth 8
NaDCC-2Sodium dichloroisocyanurateAdipic acid, sodium toluene sulphonate, sodium n-lauroylsarcosinate1000 ppm5.93Microfiber cloth 8
NaDCC-3Sodium dichloroisocyanurateSulfonic acid10,000 ppm5.77Non-woven wipe 9
NaDCC-4Sodium dichloroisocyanurateAdipic acid, sodium carbonate1000 ppm5.86Microfiber cloth 8
NaDCC-5Sodium dichloroisocyanurateAdipic acid, sodium toluenesulphonate, sodium N-lauroyl sarcosinate1000 ppm5.64Microfiber cloth 8
NaOCl-Ref 2Sodium hypochloriteN/A1000 ppm11.31Biosynthetic alterations in cellular metabolism [27], phospholipid degradation, irreversible enzymatic inactivation in bacteria, lipid and fatty acid degradation [28] Microfiber cloth 8
NaOCl-2Sodium hypochloriteSodium hydroxide, sodium chloride500 ppm8.68Non-woven wipe 7
NaOCl-3Sodium hypochloritephosphoric acid (trisodium salt, dodecahydrate), sodium hydroxide, phosphoric acid1000 ppm13.13Non-woven wipe 7
PAA-1Peracetic acidsodium percarbonate, citric acid3500 ppm8.82Rupture or dislocation of cell wall, disruption of biochemical processes intercellularly [29] and impairment of DNA replication [30]Non-woven wipe 9
PAA-2Peracetic acidNot mentioned250 ppm7.74Microfibre cloth 8
Water 3N/AN/AN/A6.99N/AMicrofibre cloth 8
1: Main active ingredient and excipients mentioned in the MSDS information of the commercial products used in this study. 2: Unformulated sodium hypochlorite (1000 ppm), used as reference. 3: Sterile deionized water. 4: Concentration of available chlorine/peracetic acid concentration was measured with Pocket Colorimeter™ (HACH®, Manchester, UK) (regardless of the product claim on label) via the N, N-diethyl-p-phenylenediamine (DPD) method. 5: pH was measured by bench top pH meter (HANNA® Instruments, Leighton Buzzard, UK). 6: Reported mechanisms of action, mainly from studies of bacteria. 7: Wipe originally moisturized with disinfectant by the manufacturer. 8: Disinfectant prepared according to manufacturer’s instruction and then placed on Rubbermaid® HYGEN™ disposable microfiber cloth (2.5 mL of liquid per 1 g of cloth). 9: Dry non-woven wipe impregnated with powder particles—needs to be wetted according to manufacturer instructions prior to use.
