Article

The Effects of Using Aluminum Oxide Nanoparticles as Heat Transfer Fillers on Morphology and Thermal Performances of Form-Stable Phase Change Fibrous Membranes Based on Capric–Palmitic–Stearic Acid Ternary Eutectic/Polyacrylonitrile Composite

by
Huizhen Ke
* and
Yonggui Li
Fujian Key Laboratory of Novel Functional Textile Fibers and Materials, Faculty of Clothing and Design, Minjiang University, Fuzhou 350108, Fujian, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(9), 1785; https://doi.org/10.3390/ma11091785
Submission received: 17 August 2018 / Revised: 7 September 2018 / Accepted: 14 September 2018 / Published: 19 September 2018
Browse Figures
Versions Notes

Abstract

:
In this paper, innovative capric–palmitic–stearic acid ternary eutectic/polyacrylonitrile/aluminum oxide (CA–PA–SA/PAN/Al2O3) form-stable phase change composite fibrous membranes (PCCFMs) with different mass ratios of Al2O3 nanoparticles were prepared for thermal energy storage. The influences of Al2O3 nanoparticles on morphology and thermal performances of the form-stable PCCFMs were investigated by scanning electron microscopy (SEM), differential scanning calorimetry (DSC), and measurement of melting and freezing times, respectively. The results showed that there was no apparent leakage trace from the SEM observation. The DSC analysis indicated that the addition of Al2O3 nanoparticles had no significant effect on phase transition temperatures and enthalpies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs. The melting peak temperatures and melting enthalpies of form-stable PCCFMs were about 25 °C and 131–139 kJ/kg, respectively. The melting and freezing times of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs were shortened by approximately 21% and 23%, respectively, compared with those of the CA–PA–SA/PAN form-stable PCCFMs due to the addition of Al2O3 nanoparticles acting as heat transfer fillers.

1. Introduction

Thermal energy storage technologies for reducing energy consumption and improving energy efficiency have become increasingly important with the growth of population and the development of industry. Among the available strategies for energy storage, latent heat storage technology using phase change materials (PCMs) is considered as one of the most promising technologies. Currently, PCMs have been widely researched and successfully applied in numerous fields such as solar thermal collectors [1], heat recovery systems [2], residential and commercial buildings [3], refrigerated containers [4], greenhouse systems [5], Li-ion battery thermal management [6], thermal regulating fibers and textiles [7], and so forth.
Fatty acid eutectics, as a derivative of fatty acids, exhibit the same desirable properties as those of fatty acids, such as good thermal and chemical stabilities, high latent heat storage capacities, reversible phase change behavior, no supercooling and phase segregation, nontoxicity, noncorrosiveness, and cost effectiveness [8]. However, low thermal conductivity and liquid leakage problems limit their feasibility in thermal energy storage applications to a certain extent. According to the literature, the disadvantage of liquid leakage of organic solid–liquid PCMs can be overcome by combining them with supporting materials to develop form-stable PCMs through different methods such as absorbing method [9,10], miniemulsion polymerization [11], melt mixing method [12], vacuum impregnation method [13,14], electrospinning [15,16,17], casting molding method [18], physical adsorption [19,20], emulsion evaporation method [21], and so on. The supporting materials involve various materials including inorganic materials (e.g., expanded perlite [9], diatomite [10], expanded vermiculite [13]) and polymers (e.g., poly(methyl methacrylate) [11], linear low-density polyethylene [12], ethylene-vinyl acetate [14], polyacrylonitrile [15], polyamide 6 [16], polyethylene terephthalate [17], epoxy resin [18], polyurethane [19], cellulose acetate [20], polylactic acid [21]). Moreover, the overall heat transfer efficiencies of phase transition systems can be improved by adding or dispersing heat transfer fillers with high thermal conductivity such as metal materials (e.g., silver nanoparticles [19] and copper foam [22]), carbon materials (e.g., expanded graphite [10,12], carbon fibers [14], carbon nanotubes [23], graphene oxide, and graphene nanoplatelets [24]), and ceramic materials (e.g., hexagonal boron nitride [25] and aluminium oxide nanoparticles [26]). Among the above-mentioned materials, aluminium oxide (Al2O3) is a promising ceramic thermal conductivity enhancer due to its outstanding advantages, such as stable chemical property, high thermal conductivity (about 30 W/(m.K)), good dispersity within the solid–liquid PCMs, and greater cost-effectiveness compared to other ceramic materials (e.g., boron nitride).
According to the literature, there is no report about the preparation and investigation of electrospun polymer-based nanofibrous membranes loading different amounts of Al2O3 nanoparticles acting as supporting materials. Therefore, the objective of this paper was to prepare a new kind of supporting material to develop form-stable PCMs in which electrospun polyacrylonitrile (PAN) nanofibrous membranes acted as polymer supporting matrices and the Al2O3 nanoparticles acted as heat transfer fillers. Moreover, the capric–palmitic–stearic acid ternary eutectic (CA–PA–SA) with the melting peak temperature of about 25 °C was prepared as solid–liquid PCMs. Thereafter, the innovative CA–PA–SA/PAN/Al2O3 form-stable phase change composite fibrous membranes (PCCFMs) with different mass fractions of Al2O3 nanoparticles (i.e., 0, 5, and 10 wt.%) were fabricated by physical adsorption. The morphological structure, phase change temperatures, and enthalpies, as well as thermal energy storage and release performances of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs were systematically studied by scanning electron microscopy (SEM), differential scanning calorimetry (DSC), and measurement of melting and freezing times, respectively.

2. Experimental

2.1. Materials

The polyacrylonitrile (PAN, Mw = 150,000) powder was purchased from Polysciences, Inc. (Warrington, PA, USA) The aluminum oxide (Al2O3) nanoparticles with >99 wt.% purity and 8–12 nm particle diameter were supplied by Nanjing XFNANO Materials Tech Co., Ltd. (Nanjing, China). The chemicals, including capric acid (CA), palmitic acid (PA), stearic acid (SA), and N,N-dimethyl formamide (DMF) were purchased from Sinopharm Group Chemical Reagent Co., Ltd. (Shanghai, China). All of the chemicals were used as received without further purification.

2.2. Fabrication of Electrospun PAN/Al2O3 Supporting Membranes

In this paper, the PAN/Al2O3 supporting membranes with different amounts of Al2O3 nanoparticles were fabricated by electrospinning. The 10 wt.% PAN solution was firstly prepared by dissolving the PAN powder into the DMF solvent. Thereafter, the Al2O3 nanoparticles were added into the PAN solution with the mass ratios [WAl2O3: (WPAN + WAl2O3)] of 5 wt.% and 10 wt.%. Finally, these PAN/Al2O3 composite solutions were magnetically stirred to achieve the homogeneous solutions for electrospinning. The equipment for the electrospinning process was comprised of high-voltage power supply, syringe pump, and collector. The PAN or PAN/Al2O3 solution was placed into a 20 mL syringe with a stainless-steel needle whose inner diameter was 0.6 mm. The solution feed rate was set at 1 mL/h. A roller wrapped with aluminum foil was used as the collector, which was connected to the ground. A positive high voltage was applied to the needle during the electrospinning process. The electrospinning parameters, such as applied voltage, tip-to-collector distance, and rotating speed of the roller, were fixed at 18 kV, 18 cm, and 200 rpm, respectively. The obtained nanofibrous membranes were named as PAN, PAN/Al2O35, and PAN/Al2O310.

2.3. Fabrication of CA–PA–SA/PAN/Al2O3 Form-Stable PCCFMs

The CA–PA–SA ternary eutectic with eutectic mass ratio of 83.82/10.19/5.99 was prepared as solid–liquid PCMs by heating-ultrasonic method, which has been reported by my previous published literatures [27,28]. The prepared PAN/Al2O3 supporting membranes were immersed into the molten CA–PA–SA ternary eutectic for 1 h in the oven at 40 °C until the absorption was saturated. Subsequently, the PAN/Al2O3 nanofibrous membranes absorbed with CA–PA–SA ternary eutectic were hung in the oven for 5 h to removal residual CA–PA–SA ternary eutectic on the surface of membranes. Finally, the prepared form-stable PCCFMs were termed as CA–PA–SA/PAN, CA–PA–SA/PAN/Al2O35, and CA–PA–SA/PAN/Al2O310. The similar preparation method has been reported in the literatures published by my research group [19,20,28].

2.4. Characterizations

2.4.1. Scanning Electron Microscopy

Morphological structure of electrospun PAN and PAN/Al2O3 nanofibrous membranes, as well as the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles, were observed by scanning electron microscope (SEM, S-3400N, Hitachi, Tokyo, Japan).

2.4.2. Differential Scanning Calorimeter

Differential scanning calorimeter (DSC-Q200, TA Instruments-Waters LLC, Shanghai, China was used to investigate the thermal energy storage properties including peak onset temperatures (To), melting peak temperatures (Tm), freezing peak temperatures (Tf), peak end temperatures (Te), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA ternary eutectic and the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs from −20 °C to 60 °C with the scanning rate of 8 °C/min under a nitrogen atmosphere. The flow rate of nitrogen was set at 50 mL/min for DSC measurement.
Moreover, good thermal stability over a number of thermal cycles are necessary for form-stable PCCFMs. Therefore, the accelerated thermal cycling experiment containing 100 heating and cooling thermal cycles was conducted to investigate the thermal stability of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs in a climatic chamber (Binder MK56, BINDER GmbH, Tuttlingen, Germany) with the heating and cooling rates of 5 °C/min in the temperature range of −10–50 °C. Subsequently, the phase change temperatures and enthalpies of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after thermal cycling were also measured by DSC analysis under the same test conditions.

2.4.3. Measurement of Melting and Freezing Times

Improvement of heat transfer performances of the fabricated CA–PA–SA/PAN/Al2O3 form-stable PCCFMs was evaluated by measurement of melting and freezing times. The CA–PA–SA/PAN/Al2O3 form-stable PCCFMs were cut and put in the test bottle. The test bottle was placed into a water bath at 40 °C for melting measurement. Thereafter, the test bottle was rapidly transferred to a refrigerator at −10 °C for freezing measurement. A thermocouple positioned at the center of the bottle was employed to measure temperature variation of samples during the testing process. The temperature variation caused by thermal energy storage and release was automatically recorded by a computer with the temperature measuring accuracy of ±2 °C. The same analytical method has also been reported by my previous literatures [19,20,28].

3. Results and Discussion

3.1. Morphological Structure

Figure 1 shows the SEM images of electrospun PAN fibrous membrane, PAN/Al2O35, and PAN/Al2O310 composite fibrous membranes. As shown in Figure 1, electrospun PAN nanofibers exhibited the smooth surface and uniform fiber diameters along their lengths. The average fiber diameter was observed to be about 200 nm. It can be clearly seen from Figure 1 that electrospun PAN nanofibers were randomly deposited to form fibrous membranes with a three-dimensional porous network structure during the electrospinning process. Figure 1b,c reveal that electrospun PAN/Al2O3 composite fibrous membranes with different amounts of Al2O3 nanoparticles also presented three-dimensional porous network structures consisting of randomly distributed PAN/Al2O3 composite nanofibers with the average fiber diameter being in the range of approximately 218–274 nm. It was clear that electrospun PAN/Al2O3 composite nanofibers showed a relatively rough surface structure compared to that of the pure PAN nanofibers owing to the addition of Al2O3 nanoparticles. Moreover, Figure 2 presents the SEM images of the CA–PA–SA/PAN, CA–PA–SA/PAN/Al2O35, and CA–PA–SA/PAN/Al2O310 form-stable PCCFMs. It can be clearly found from Figure 2 that the CA–PA–SA ternary eutectic was uniformly adsorbed into the three-dimensional porous network structure of electrospun PAN/Al2O3 fibrous membranes due to the high infiltrating ability of the CA–PA–SA ternary eutectic as well as capillary effect and surface tension force of fibrous membranes. Figure 2 indicated that the combination of Al2O3 nanoparticles had no significant effect on the morphological structure of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs. It is worthwhile to note that the melting temperature of the CA–PA–SA ternary eutectic was in the range of around 20–33 °C, and its melting peak temperature was about 25 °C (see Table 1). As we know, the working temperature of SEM characterization was also about 25 °C, which meant that the solid–liquid phase change behavior (i.e., melting process) of the CA–PA–SA ternary eutectic adsorbed into the form-stable PCCFMs was taking place during the process of SEM observation. However, the SEM images clearly demonstrated that the melted CA–PA–SA ternary eutectic was still encapsulated into the three-dimensional porous network structure of electrospun PAN/Al2O3 fibrous membranes even when the ambient temperature was consistent with its melting peak temperature. In other words, the developed CA–PA–SA/PAN/Al2O3 PCCFMs exhibited a form-stable structure because of the supporting effect of electrospun PAN/Al2O3 nanofibrous membranes.

3.2. Thermal Energy Storage Properties

Figure 3 illustrates DSC curves of the CA–PA–SA ternary eutectic and the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles during melting and freezing processes. The obtained thermal performance data are listed in Table 1. It can be clearly seen from Figure 3 that no solid–liquid phase change peak (i.e., endothermic or exothermic peak) was observed from the DSC curves of electrospun PAN and PAN/Al2O310 nanofibrous membranes, which confirmed that electrospun PAN and PAN/Al2O3 nanofibrous membranes acting as supporting materials did not provide any phase change enthalpies within the temperature range of the DSC measurement. As shown in Table 1, the melting temperatures of the CA–PA–SA ternary eutectic were in the range of about 20–33 °C, and its melting peak temperature was approximately 25 °C. It is interesting to note that this temperature was generally considered as the most appropriate temperature for temperature regulation fibers and textiles as well as energy-saving building applications, thus the CA–PA–SA ternary eutectic was chosen as solid–liquid PCMs in this paper. Figure 3 presents that only one endothermic or exothermic peak was observed from the DSC curves of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs, which was similar to those of the pure CA–PA–SA ternary eutectic. DSC analysis also indicated that the phase change temperatures of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs were around 10–30 °C, as revealed in Table 1. Additionally, compared with those of pure CA–PA–SA ternary eutectic, the phase change enthalpies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs had a varying degree of reduction because electrospun PAN/Al2O3 nanofibrous membranes acting as supporting materials accounted for a certain proportion of the form-stable PCCFMs. Meanwhile, Figure 3 and Table 1 also suggest that the addition of Al2O3 nanoparticles had no significant effect on the phase transition temperatures and enthalpies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs in comparison to those of the CA–PA–SA/PAN form-stable PCCFMs. The absorption capacities of electrospun PAN/Al2O3 nanofibrous membranes with different amounts of Al2O3 nanoparticles on the CA–PA–SA ternary eutectic were also determined in this paper (i.e., melting enthalpy of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs divided by melting enthalpy of the CA–PA–SA ternary eutectic). The corresponding absorption capacities were respectively confirmed as 95.13% for CA–PA–SA/PAN, 90.80% for CA–PA–SA/PAN/Al2O35, and 89.98% for CA–PA–SA/PAN/Al2O310, indicating that electrospun PAN and PAN/Al2O3 nanofibrous membranes had high absorption capacity on the CA–PA–SA ternary eutectic. This might have resulted because the excellent features of nanofibrous membranes, such as porous network structure, as well as the high surface-to-volume ratio, had a positive contribution to absorbing large amounts of solid–liquid PCMs.
Figure 4 shows the DSC curves of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after thermal cycling. The phase change temperatures and enthalpies extracted from DSC curves are summarized in Table 2. It can be seen from Figure 4 that the endothermic and exothermic curves of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after thermal cycling had no obvious variation compared with each other. It should be noted that the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs were hung in the climatic chamber for the accelerated thermal cycling experiment. If the leakage behavior occurred during the measurement, the CA–PA–SA eutectic mixture leaking out of the form-stable PCCFMs would be removed from the membranes and dropped by gravity, which would lead to the decrease of phase change enthalpies. The data listed in Table 2 indicated that no significant change in phase change enthalpies of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs was observed, suggesting that the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs had good thermal reliability and reusability in terms of thermal energy storage and release properties.
It is worthwhile to note that the phase change temperatures and enthalpies of form-stable PCCFMs are important thermal performance characteristics that could obviously affect whether they can be used in the specific practical engineering applications. For example, Xu and coworkers reported that the PCMs should have suitable phase change temperature of about 18–30 °C to maintain thermal comfort for building energy-saving applications [29]. Mondal reported that an important performance requirement of a PCM for temperature-regulating fibers and textiles application is that its melting temperature should be between 15 °C and 35 °C [30]. Table 3 summarizes the phase change peak temperatures and enthalpies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs and their comparison with some form-stable PCMs reported in the literatures [9,10,13,14,16,17,20,24]. As shown in Table 3, the solid–liquid PCMs loaded in the form-stable PCMs published in the literatures included pure fatty acids (i.e., stearic acid [13] and lauric acid [16]), paraffin [9,14], fatty acid ester (i.e., glycerol monostearate [17]), fatty acid eutectics (i.e., capric–palmitic acid binary eutectic [10] and capric–myristic–stearic acid ternary eutectic [20]) and polyethylene glycol [24]. It was clearly found from Table 3 that the form-stable PCMs, including paraffin/EP [9], CA–PA/diatomite/EG [10], and CA–MA–SA/CA [20], exhibited similar phase change peak temperatures with those of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs reported in this paper (i.e., about 25 °C), but their phase change enthalpies were obviously lower than those of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs.
Based on the consideration of phase change temperature, the developed CA–PA–SA/PAN/Al2O3 form-stable PCCFMs could be considered as promising form-stable PCMs for thermal energy storage applications such as temperature-regulating textiles and building energy conservation.

3.3. Thermal Energy Storage and Release Performance

The improvement of heat transfer efficiencies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different mass fractions of Al2O3 nanoparticles was discussed through the comparison of melting and freezing times during phase change processes. The corresponding temperature–time curves acquired from thermal performance tests are shown in Figure 5. The interval time between the initial temperature (around −5 °C) and the melting peak temperature (around 25 °C) was defined as the melting time, and the interval time between the initial temperature (around 35 °C) and the freezing peak temperature (around 17 °C) was defined as the freezing time. As shown in Figure 5, the melting/freezing times were determined as about 15.1/20.0 min for CA–PA–SA/PAN, 13.7/17.8 min for CA–PA–SA/PAN/Al2O35, and 12.0/15.5 min for CA–PA–SA/PAN/Al2O310, respectively. Apparently, the corresponding melting/freezing times were shortened by approximately 9%/11% (CA–PA–SA/PAN/Al2O35) and approximately 21%/23% (CA–PA–SA/PAN/Al2O310) compared to those of the CA–PA–SA/PAN form-stable PCCFMs. These results illustrated a significant increase in heat transfer rates with the increase of content of the Al2O3 nanoparticles, which can be attributed to the formation of heat conduction network helping to provide an efficient percolating path for heat flow in the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs owing to the addition of Al2O3 nanoparticles.

4. Conclusions

The novel CA–PA–SA/PAN/Al2O3 form-stable PCCFMs were prepared by developing electrospun PAN/Al2O3 nanofibrous membranes with different mass ratios of Al2O3 nanoparticles as supporting materials to incorporate CA–PA–SA ternary eutectic via physical adsorption for thermal energy storage. The SEM images revealed that the CA–PA–SA ternary eutectic was successfully absorbed into the three-dimensional porous network structure of electrospun PAN/Al2O3 nanofibrous membranes owing to the high wetting ability of CA–PA–SA ternary eutectic, the capillary effect, and surface tension force of nanofibrous membranes. The melting peak temperatures and melting enthalpies of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs were approximately 25 °C and 131–139 kJ/kg, respectively. The absorption capacities were determined as about 90–95%. The results of thermal performance tests indicated that there was a significant improvement in heat transfer rates of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs as the Al2O3 nanoparticles loading increased. The melting and freezing times of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs were shortened by around 21% and 23%, respectively, in comparison with those of the CA–PA–SA/PAN form-stable PCCFMs. Therefore, based on these results, the developed CA–PA–SA/PAN/Al2O3 form-stable PCCFMs are concluded to have potential applications in the fields of temperature-regulating fibers and textiles, as well as building energy conservation.

Author Contributions

H.K. conceived and designed the experiments, did the experiments and data analysis, as well as wrote this article. Y.L. contributed reagents/materials/analysis tools, did the measurements and data analysis, as well as performed the literature study.

Funding

This research was financially supported by the National Natural Science Foundation of China (No. 51706092), Natural Science Foundation of Fujian Province (No.2018J05091), Cultivation Program for Outstanding Young Scholars in Colleges and Universities of Fujian Province, Education Science Research Program for Young and Middle-aged Teacher of Fujian Province (No. JAT170445), Open Project Program of Fujian Key Laboratory of Novel Functional Textile Fibers and Materials, Minjiang University (No. FKLTFM1709), Open Project Program of Key Laboratory of Eco-textiles, Ministry of Education, Jiangnan University (No. KLET1610), and the Science and Technology Pre-research Program of Minjiang University (No. MJY16001).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Serale, G.; Goia, F.; Perino, M. Numerical model and simulation of a solar thermal collector with slurry phase change material (PCM) as the heat transfer fluid. Sol. Energy 2016, 134, 429–444. [Google Scholar] [CrossRef]
  2. Zhang, S.L.; Wu, W.; Wang, S.F. Integration highly concentrated photovoltaic module exhaust heat recovery system with adsorption air-conditioning module via phase change materials. Energy 2017, 118, 1187–1197. [Google Scholar] [CrossRef]
  3. Zhang, D.; Chen, M.Z.; Liu, Q.T.; Wan, J.M.; Hu, J.X. Preparation and thermal properties of molecular-bridged expanded graphite/polyethylene glycol composite phase change materials for building energy conservation. Materials 2018, 11, 818. [Google Scholar] [CrossRef] [PubMed]
  4. Fioretti, R.; Principi, P.; Copertaro, B. A refrigerated container envelope with a PCM (phase change material) layer: Experimental and theoretical investigation in a representative town in Central Italy. Energy Convers. Manag. 2016, 122, 131–141. [Google Scholar] [CrossRef]
  5. Ziapour, B.M.; Hashtroudi, A. Performance study of an enhanced solar greenhouse combined with the phase change material using genetic algorithm optimization method. Appl. Therm. Eng. 2017, 110, 253–264. [Google Scholar] [CrossRef]
  6. Jiang, G.W.; Huang, J.H.; Fu, Y.S.; Cao, M.; Liu, M.C. Thermal optimization of composite phase change material/expanded graphite for Li-ion battery thermal management. Appl. Therm. Eng. 2016, 108, 1119–1125. [Google Scholar] [CrossRef]
  7. Iqbal, K.; Sun, D.M. Development of thermal stable multifilament yarn containing micro-encapsulated phase change materials. Fiber. Polym. 2015, 16, 1156–1162. [Google Scholar] [CrossRef]
  8. Sharma, A.; Shukla, A. Thermal cycle test of binary mixtures of some fatty acids as phase change materials for building applications. Energy Build. 2015, 99, 196–203. [Google Scholar] [CrossRef]
  9. Li, X.Y.; Chen, H.S.; Liu, L.; Lu, Z.Y.; Sanjayan, J.G.; Duan, W.H. Development of granular expanded perlite/paraffin phase change material composites and prevention of leakage. Sol. Energy 2016, 137, 179–188. [Google Scholar] [CrossRef]
  10. Tang, F.; Su, D.; Tang, Y.J.; Fang, G.Y. Synthesis and thermal properties of fatty acid eutectics and diatomite composites as shape-stabilized phase change materials with enhanced thermal conductivity. Sol. Energy Mater. Sol. Cells 2015, 141, 218–224. [Google Scholar] [CrossRef]
  11. Yu, F.; Chen, Z.H.; Zeng, X.R.; Gao, X.N.; Zhang, Z.G. Poly(methyl methacrylate) copolymer nanocapsules containing phase-change material (n-dodecanol) prepared via miniemulsion polymerization. J. Appl. Polym. Sci. 2015, 132, 42334. [Google Scholar] [CrossRef]
  12. Sobolciak, P.; Abdelrazeq, H.; Ouederni, M.; Karkri, M.; Al-Maadeed, M.A.; Krupa, I. The stabilizing effect of expanded graphite on the artificial aging of shape stabilized phase change materials. Polym. Test. 2015, 46, 65–71. [Google Scholar] [CrossRef]
  13. Li, X.Q.; Wei, H.T.; Lin, X.S.; Xie, X.Z. Preparation of stearic acid/modified expanded vermiculite composite phase change material with simultaneously enhanced thermal conductivity and latent heat. Sol. Energy Mater. Sol. Cells 2016, 155, 9–13. [Google Scholar] [CrossRef]
  14. Tian, B.Q.; Yang, W.B.; Luo, L.J.; Wang, J.; Zhang, K.; Fan, J.H.; Wu, J.Y.; Xing, T. Synergistic enhancement of thermal conductivity for expanded graphite and carbon fiber in paraffin/EVA form-stable phase change materials. Sol. Energy 2016, 127, 48–55. [Google Scholar] [CrossRef]
  15. Ke, H.Z.; Li, Y.G. A series of electrospun fatty acid ester/polyacrylonitrile phase change composite nanofibers as novel form-stable phase change materials for storage and retrieval of thermal energy. Text. Res. J. 2017, 87, 2314–2322. [Google Scholar] [CrossRef]
  16. Cai, Y.B.; Gao, C.T.; Xu, X.L.; Fu, Z.; Fei, X.Z.; Zhao, Y.; Chen, Q.; Liu, X.Z.; Wei, Q.F.; He, G.F.; et al. Electrospun ultrafine composite fibers consisting of lauric acid and polyamide 6 as form-stable phase change materials for storage and retrieval of solar thermal energy. Sol. Energy Mater. Sol. Cells 2012, 103, 53–61. [Google Scholar] [CrossRef]
  17. Ke, H.Z.; Li, D.W.; Wang, X.L.; Wang, H.; Cai, Y.B.; Xu, Y.; Huang, F.L.; Wei, Q.F. Thermal and mechanical properties of nanofibers-based form-stable PCMs consisting of glycerol monostearate and polyethylene terephthalate. J. Therm. Anal. Calorim. 2013, 114, 101–111. [Google Scholar] [CrossRef]
  18. Fang, Y.T.; Kang, H.Y.; Wang, W.L.; Liu, H.; Gao, X.N. Study on polyethylene glycol/epoxy resin composite as a form-stable phase change material. Energy Convers. Manag. 2010, 51, 2757–2761. [Google Scholar] [CrossRef]
  19. Ke, H.Z.; Ghulam, M.U.H.; Li, Y.G.; Wang, J.; Peng, B.; Cai, Y.B.; Wei, Q.F. Ag-coated polyurethane fibers membranes absorbed with quinary fatty acid eutectics solid-liquid phase change materials for storage and retrieval of thermal energy. Renew. Energy 2016, 99, 1–9. [Google Scholar] [CrossRef]
  20. Cai, Y.B.; Song, X.F.; Liu, M.M.; Li, F.; Xie, M.S.; Cai, D.L.; Wei, Q.F. Flexible cellulose acetate nano-felts absorbed with capric-myristic-stearic acid ternary eutectic mixture as form-stable phase-change materials for thermal energy storage/retrieval. J. Therm. Anal. Calorim. 2017, 128, 661–673. [Google Scholar] [CrossRef]
  21. Fashandi, M.; Leung, S.N. Preparation and characterization of 100% bio-based polylactic acid/palmitic acid microcapsules for thermal energy storage. Mater. Renew. Sustain. Energy 2017, 6, 1–14. [Google Scholar]
  22. Zhang, P.; Meng, Z.N.; Zhu, H.; Wang, Y.L.; Peng, S.P. Melting heat transfer characteristics of a composite phase change material fabricated by paraffin and metal foam. Appl. Energy 2017, 185, 1971–1983. [Google Scholar] [CrossRef]
  23. Karaipekli, A.; Biçer, A.; Sarı, A.; Tyagi, V.V. Thermal characteristics of expanded perlite/paraffin composite phase change material with enhanced thermal conductivity using carbon nanotubes. Energy Convers. Manag. 2017, 134, 373–381. [Google Scholar] [CrossRef]
  24. Yang, J.; Qi, G.Q.; Liu, Y.; Bao, R.Y.; Liu, Z.Y.; Yang, W.; Xie, B.H.; Yang, M.B. Hybrid graphene aerogels/phase change material composites: Thermal conductivity, shape-stabilization and light-to-thermal energy storage. Carbon 2016, 100, 693–702. [Google Scholar] [CrossRef]
  25. Su, D.; Jia, Y.T.; Alva, G.; Tang, F.; Fang, G.Y. Preparation and thermal properties of n-octadecane/stearic acideutectic mixtures with hexagonal boron nitride as phase change materials for thermal energy storage. Energy Build. 2016, 131, 35–41. [Google Scholar] [CrossRef]
  26. Esfe, M.H.; Karimipour, A.; Yan, W.M.; Akbari, M.; Safaei, M.R.; Dahari, M. Experimental study on thermal conductivity of ethylene glycol based nanofluids containing Al2O3 nanoparticles. Int. J. Heat Mass Transf. 2015, 88, 728–734. [Google Scholar] [CrossRef]
  27. Ke, H.Z. Phase diagrams, eutectic mass ratios and thermal energy storage properties of multiple fatty acid eutectics as novel solid-liquid phase change materials for storage and retrieval of thermal energy. Appl. Therm. Eng. 2017, 113, 1319–1331. [Google Scholar] [CrossRef]
  28. Ke, H.Z.; Pang, Z.Y.; Peng, B.; Wang, J.; Cai, Y.B.; Huang, F.L.; Wei, Q.F. Thermal energy storage and retrieval properties of form-stable phase change nanofibrous mats based on ternary fatty acid eutectics/polyacrylonitrile composite by magnetron sputtering of silver. J. Therm. Anal. Calorim. 2016, 123, 1293–1307. [Google Scholar] [CrossRef]
  29. Xu, T.; Chen, Q.L.; Zhang, Z.G.; Gao, X.N.; Huang, G.S. Investigation on the properties of a new type of concrete blocks incorporated with PEG/SiO2 composite phase change material. Build. Environ. 2016, 104, 172–177. [Google Scholar] [CrossRef]
  30. Mondal, S. Phase change materials for smart textiles-An overview. Appl. Therm. Eng. 2008, 28, 1536–1550. [Google Scholar] [CrossRef]
Materials 11 01785 g001a 550Materials 11 01785 g001b 550

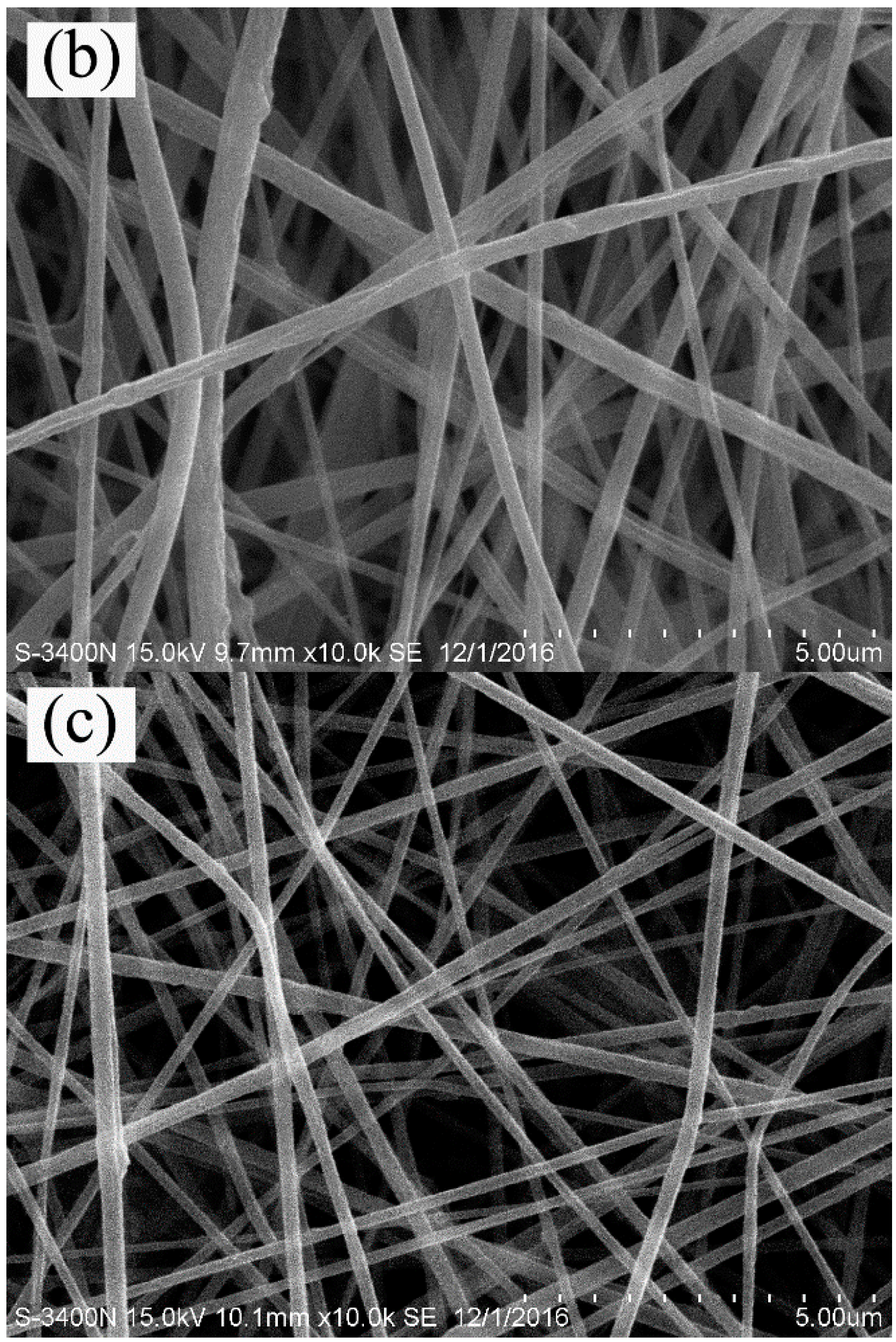

Figure 1. Representative SEM images of electrospun nanofibrous membranes: (a) PAN, (b) PAN/Al2O35, (c) PAN/Al2O310.
Figure 1. Representative SEM images of electrospun nanofibrous membranes: (a) PAN, (b) PAN/Al2O35, (c) PAN/Al2O310.
Materials 11 01785 g001aMaterials 11 01785 g001b
Materials 11 01785 g002a 550Materials 11 01785 g002b 550

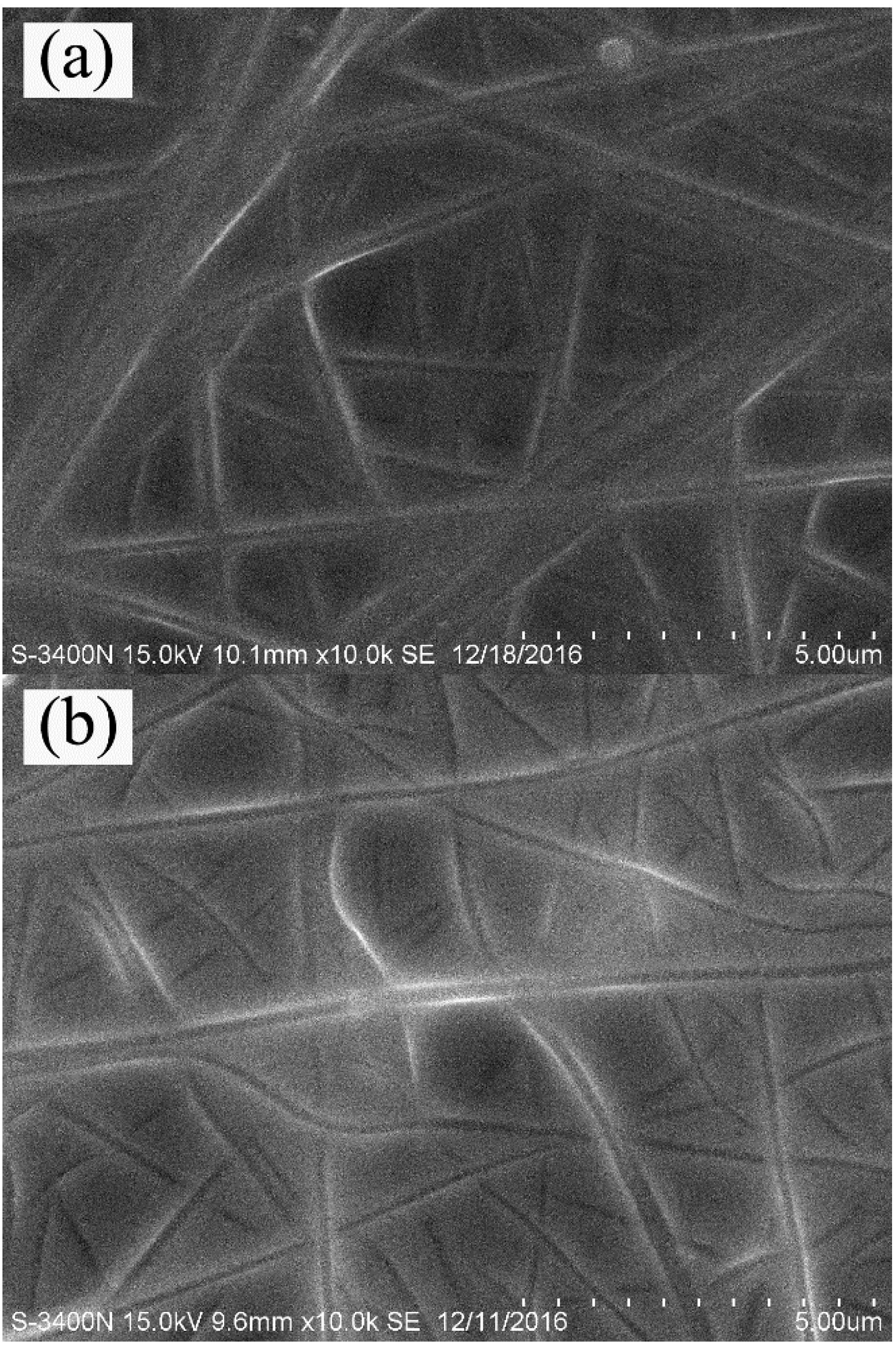

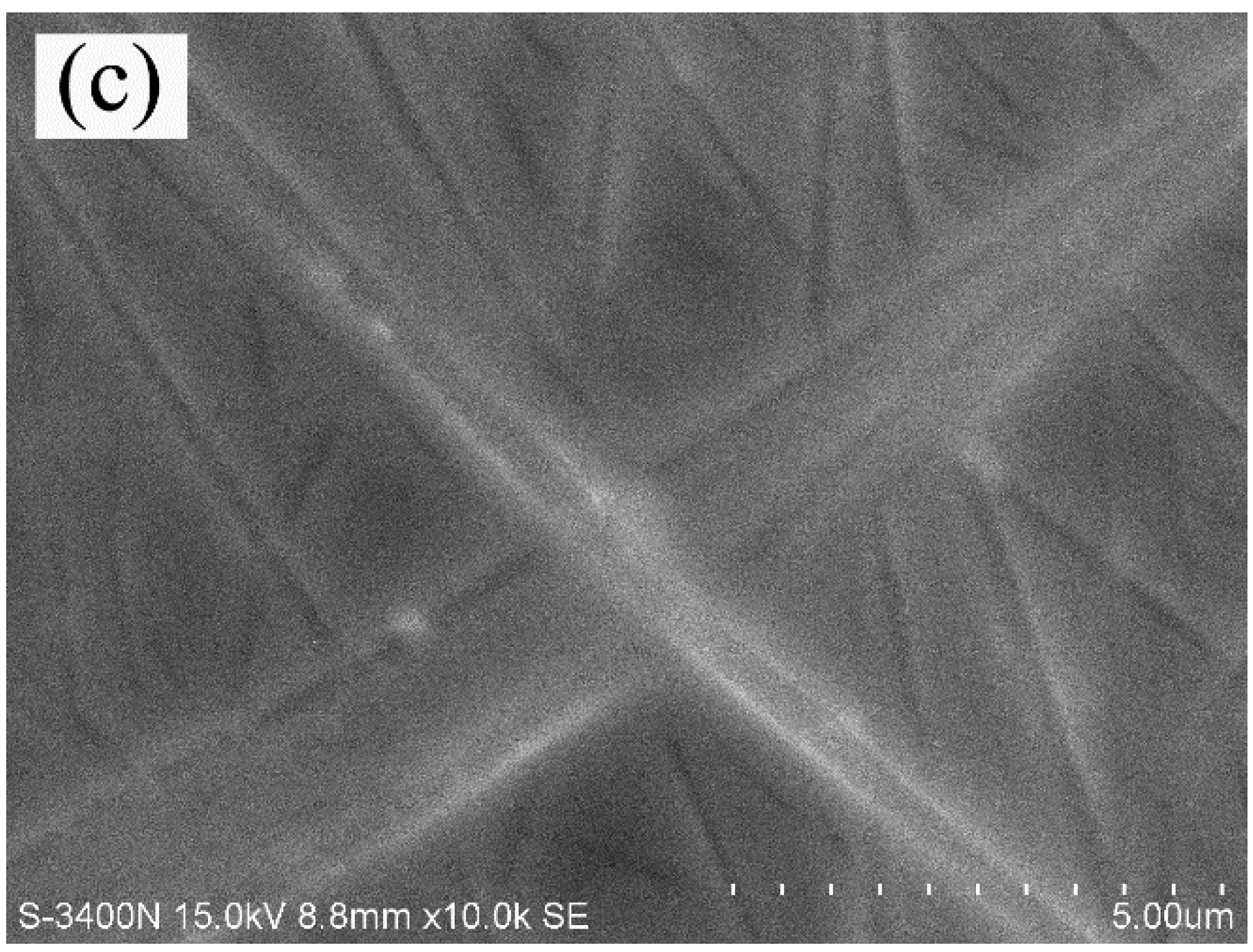

Figure 2. Representative SEM images of form-stable PCCFMs: (a) CA–PA–SA/PAN, (b) CA–PA–SA/PAN/Al2O35, (c) CA–PA–SA/PAN/Al2O310.
Figure 2. Representative SEM images of form-stable PCCFMs: (a) CA–PA–SA/PAN, (b) CA–PA–SA/PAN/Al2O35, (c) CA–PA–SA/PAN/Al2O310.
Materials 11 01785 g002aMaterials 11 01785 g002b
Materials 11 01785 g003 550
Figure 3. DSC curves of the CA–PA–SA ternary eutectic, electrospun PAN, and PAN/Al2O310 nanofibrous membranes, as well as the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles.
Figure 3. DSC curves of the CA–PA–SA ternary eutectic, electrospun PAN, and PAN/Al2O310 nanofibrous membranes, as well as the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles.
Materials 11 01785 g003
Materials 11 01785 g004 550
Figure 4. DSC curves of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after thermal cycles.
Figure 4. DSC curves of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after thermal cycles.
Materials 11 01785 g004
Materials 11 01785 g005 550

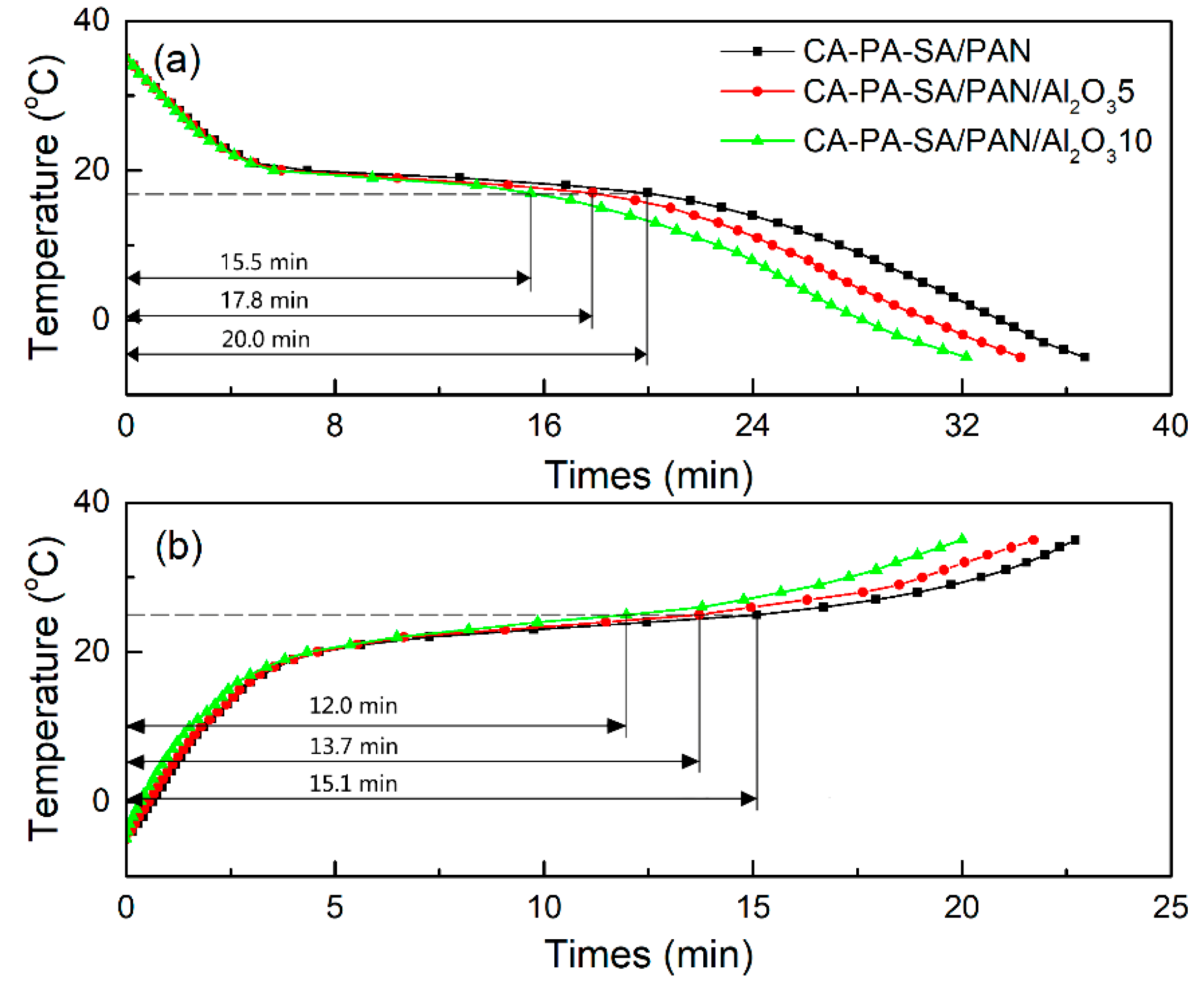

Figure 5. Thermal energy storage and release curves of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3: (a) thermal energy release, (b) thermal energy storage.
Figure 5. Thermal energy storage and release curves of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3: (a) thermal energy release, (b) thermal energy storage.
Materials 11 01785 g005
Table
Table 1. The peak onset temperatures (To), melting peak temperatures (Tm), freezing peak temperatures (Tf), peak end temperatures (Te), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA ternary eutectic and CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles.
Table 1. The peak onset temperatures (To), melting peak temperatures (Tm), freezing peak temperatures (Tf), peak end temperatures (Te), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA ternary eutectic and CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with different amounts of Al2O3 nanoparticles.
SamplesMelting ProcessFreezing Process
To (°C)Tm (°C)Te (°C)ΔHm (kJ/kg)To (°C)Tf (°C)Te (°C)ΔHf (kJ/kg)
CA–PA–SA19.7225.1233.08145.717.6415.606.29144.5
CA–PA–SA/PAN19.1024.0627.02138.617.5017.1711.30137.4
CA–PA–SA/PAN/Al2O3519.1724.2928.85132.317.3316.819.59130.3
CA–PA–SA/PAN/Al2O31019.5525.2029.56131.117.4616.559.52127.0
Table
Table 2. The peak onset temperatures (To), melting peak temperatures (Tm), freezing peak temperatures (Tf), peak end temperatures (Te), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after 50 and 100 thermal cycles.
Table 2. The peak onset temperatures (To), melting peak temperatures (Tm), freezing peak temperatures (Tf), peak end temperatures (Te), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA/PAN/Al2O310 form-stable PCCFMs after 50 and 100 thermal cycles.
Cycle No. Melting ProcessFreezing Process
To (°C)Tm (°C)Te (°C)ΔHm (kJ/kg)To (°C)Tf (°C)Te (°C)ΔHf (kJ/kg)
50 cycles19.4827.3333.61131.118.2413.766.47129.7
100 cycles19.4726.9333.39130.618.2513.846.51129.4
Table
Table 3. Comparisons on thermal performance data including melting peak temperatures (Tm), freezing peak temperatures (Tf), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with those of some form-stable PCMs reported in the literatures.
Table 3. Comparisons on thermal performance data including melting peak temperatures (Tm), freezing peak temperatures (Tf), melting enthalpies (ΔHm), and freezing enthalpies (ΔHf) of the CA–PA–SA/PAN/Al2O3 form-stable PCCFMs with those of some form-stable PCMs reported in the literatures.
Form-Stable PCMsMelting ProcessFreezing ProcessReferences
Tm (°C)ΔHm (kJ/kg)Tf (°C)ΔHf (kJ/kg)
paraffin/EP25.1063.30--[9]
CA–PA/diatomite/EG26.6998.2621.8590.03[10]
SA/aEVT65.90146.8--[13]
paraffin/EVA/EG–CF45.63167.4--[14]
LA/PA644.5370.4440.6757.14[16]
GMS/PET57.8966.9946.6566.02[17]
CA–MA–SA/CA21.8069.6014.5068.80[20]
PEG/GO/GNP65.50177.81.70170.1[24]
CA–PA–SA/PAN24.06138.617.17137.4Present work
CA–PA–SA/PAN/Al2O3524.29132.316.81130.3Present work
CA–PA–SA/PAN/Al2O31025.20131.116.55127.0Present work
EP: expanded perlite; CA–PA: capric–palmitic acid binary eutectic; EG: expanded graphite; SA: stearic acid; aEVT: expanded vermiculite/titanium dioxide composite with acid treatment; EVA: ethylene-vinyl acetate; EG–CF: expanded graphite and carbon fiber; LA: lauric acid; PA6: polyamide 6; GMS: glycerol monostearate; PET: polyethylene terephthalate; CA–MA–SA: capric–myristic–stearic acid ternary eutectic; CA: cellulose acetate; PEG: polyethylene glycol; GO: graphene oxide; GNP: graphene nanoplatelets.

Share and Cite

MDPI and ACS Style

Ke, H.; Li, Y. The Effects of Using Aluminum Oxide Nanoparticles as Heat Transfer Fillers on Morphology and Thermal Performances of Form-Stable Phase Change Fibrous Membranes Based on Capric–Palmitic–Stearic Acid Ternary Eutectic/Polyacrylonitrile Composite. Materials 2018, 11, 1785. https://doi.org/10.3390/ma11091785

AMA Style

Ke H, Li Y. The Effects of Using Aluminum Oxide Nanoparticles as Heat Transfer Fillers on Morphology and Thermal Performances of Form-Stable Phase Change Fibrous Membranes Based on Capric–Palmitic–Stearic Acid Ternary Eutectic/Polyacrylonitrile Composite. Materials. 2018; 11(9):1785. https://doi.org/10.3390/ma11091785

Chicago/Turabian Style

Ke, Huizhen, and Yonggui Li. 2018. "The Effects of Using Aluminum Oxide Nanoparticles as Heat Transfer Fillers on Morphology and Thermal Performances of Form-Stable Phase Change Fibrous Membranes Based on Capric–Palmitic–Stearic Acid Ternary Eutectic/Polyacrylonitrile Composite" Materials 11, no. 9: 1785. https://doi.org/10.3390/ma11091785

APA Style

Ke, H., & Li, Y. (2018). The Effects of Using Aluminum Oxide Nanoparticles as Heat Transfer Fillers on Morphology and Thermal Performances of Form-Stable Phase Change Fibrous Membranes Based on Capric–Palmitic–Stearic Acid Ternary Eutectic/Polyacrylonitrile Composite. Materials, 11(9), 1785. https://doi.org/10.3390/ma11091785

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
