3.1. Asn (n = 2–8) Clusters

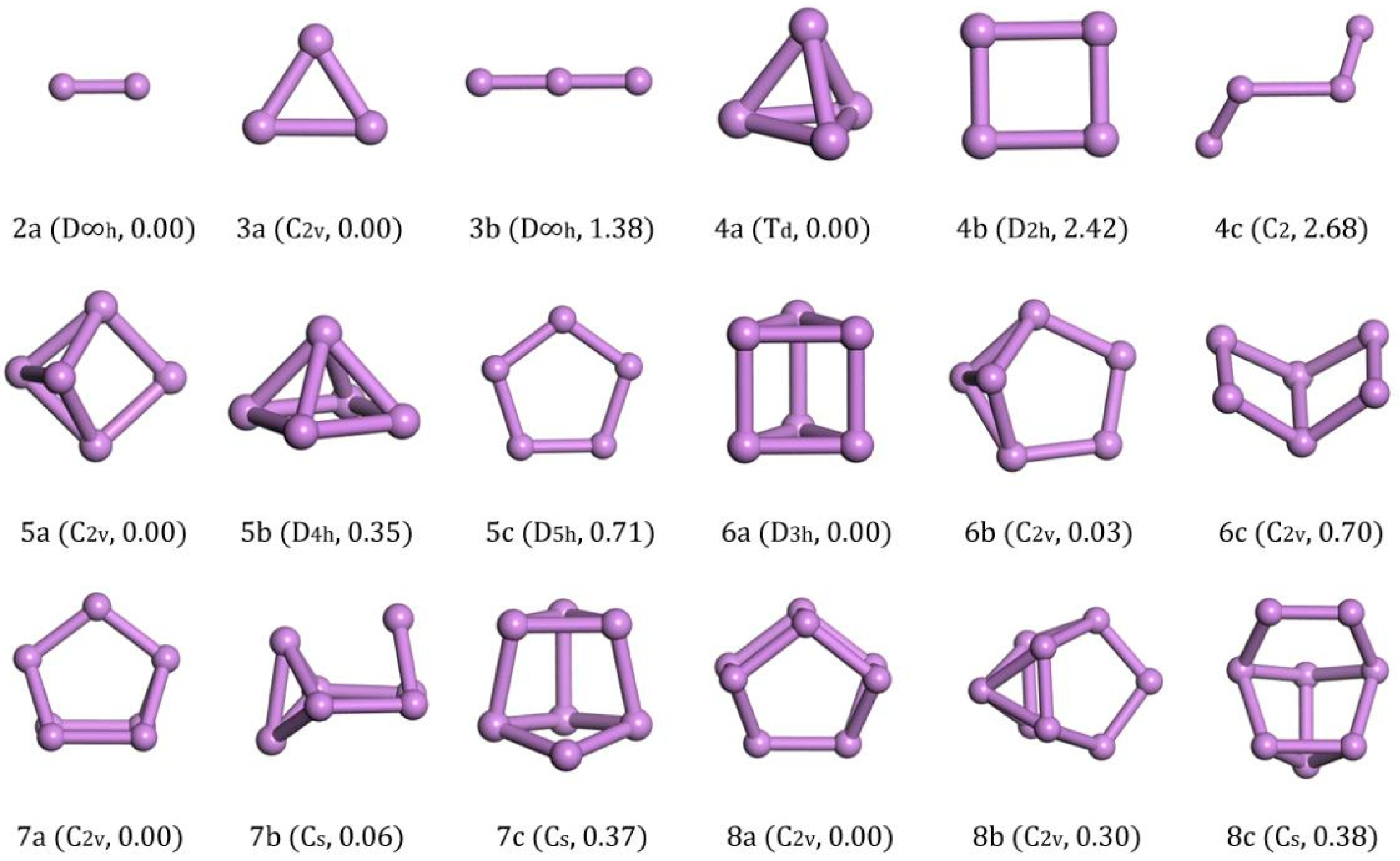

The bond length of an As
2 cluster (2a in
Figure 1) is 2.103 Å through experimental measurement [
30]. In our calculation the distance between the As atoms was 2.118 Å, which is closer to the experimental data compared with the 2.142 Å calculated using PBE/DND methods [
22].
For the As
3 cluster, the energy of the structure with C
2v symmetry (3a in
Figure 1) was the global minimum. It was an isosceles triangle structure with a top angle of 65.14° and side length of 2.325 Å. It was energetically lower than the linear chain structure with D∞h symmetry (3b in
Figure 1), in which structure, the bond length was 2.204 Å.
The ground-state structure of As
4 with T
d symmetry (4a in
Figure 1) was a regular tetrahedron, which was consistent with the previous reports [
18,
19,
20]. Its energy was much lower than other isomorphic configurations. The energy of the rectangular structure with D
2h symmetry (4b in
Figure 1) was 0.605 eV/atom higher than that of the ground state and the chain structure with C
2 symmetry (4c in
Figure 1) was energetically higher than the rectangular structure.
The lowest energy structure of As
5 had C
2v symmetry (5a in
Figure 1) and it may be considered as adding an atom in the cross section of a dihedral formed by four atoms. It had 0.07 eV/atom less energy than the rectangular pyramid structure with D
4h symmetry (5b in
Figure 1) and 0.142 eV/atom less than the planar structure with D
5h symmetry (5c in
Figure 1).
The trigonal prism with D
3h symmetry (6a in
Figure 1) was the ground-state structure for As
6 and was only 0.005 eV/atom lower than the benzvalene type with C
2v symmetry (6b in
Figure 1) and 0.117 eV/atom lower than the dihedral angle structure of six atoms with C
2v symmetry (6c in
Figure 1). The side length was 2.522 Å and the edge length was 2.559 Å. Our ground state was consistent with the result calculated by B3LYP/6-311+G(d) [
20] or PBE/DND methods [
22]. However, the structure 6b in
Figure 1 was found to be the lowest energy by Liang [
19] using MP2(full)/g-31G(d) methods and Bai [
21] using B3LYP/DZP++ methods. As the outer shell structure of As is 3
s23
p3, we think our results are reasonable as the completely three-coordination structure (6a in
Figure 1) must be more stable than the structure with two two-coordinations (6b in
Figure 1).
In the case of As
7, the ground-state structure with C
2v symmetry (7a in
Figure 1) could be derived from the trigonal prism of As
6 by edge-capping with an additional As atom. This low-energy structure is also predicted in Refs. [
19,
20,
21]. Its energy was lower than the structure with Cs symmetry (7b in
Figure 1) by 0.008 eV/atom and the structure with Cs symmetry (7c in
Figure 1) by 0.053 eV/atom.
The wedge-like structure that looks like a cage with C
2v symmetry was obtained as the lowest energy structure for As
8, as seen from 8a in
Figure 1. It was energetically lower than the structure with C
2v symmetry (8b in
Figure 1) by 0.038 eV/atom and the structure with Cs symmetry (8c in
Figure 1) by 0.048 eV/atom. We also checked the cage structure with O
h symmetry cut from the bulk phase reported by Baruah [
23], and we found that it was 0.64 eV energy higher than our ground state structure.
After analysis of the ground structures of As
n (
n = 2–8) clusters, we find that As
2 was a one-dimensional bridge, As
3 was a two-dimensional isosceles triangle and As
4 became a three-dimensional tetrahedron. When
n was larger than 3, the two-dimensional cluster structure, such as 4b and 5c in
Figure 1, sorts more and more backward energetically. We can conclude that the structure of small As clusters tends towards a three-dimensional cage structure and it was not stable for a 2-D planar structure.
3.2. Asn (n = 9–18) Clusters

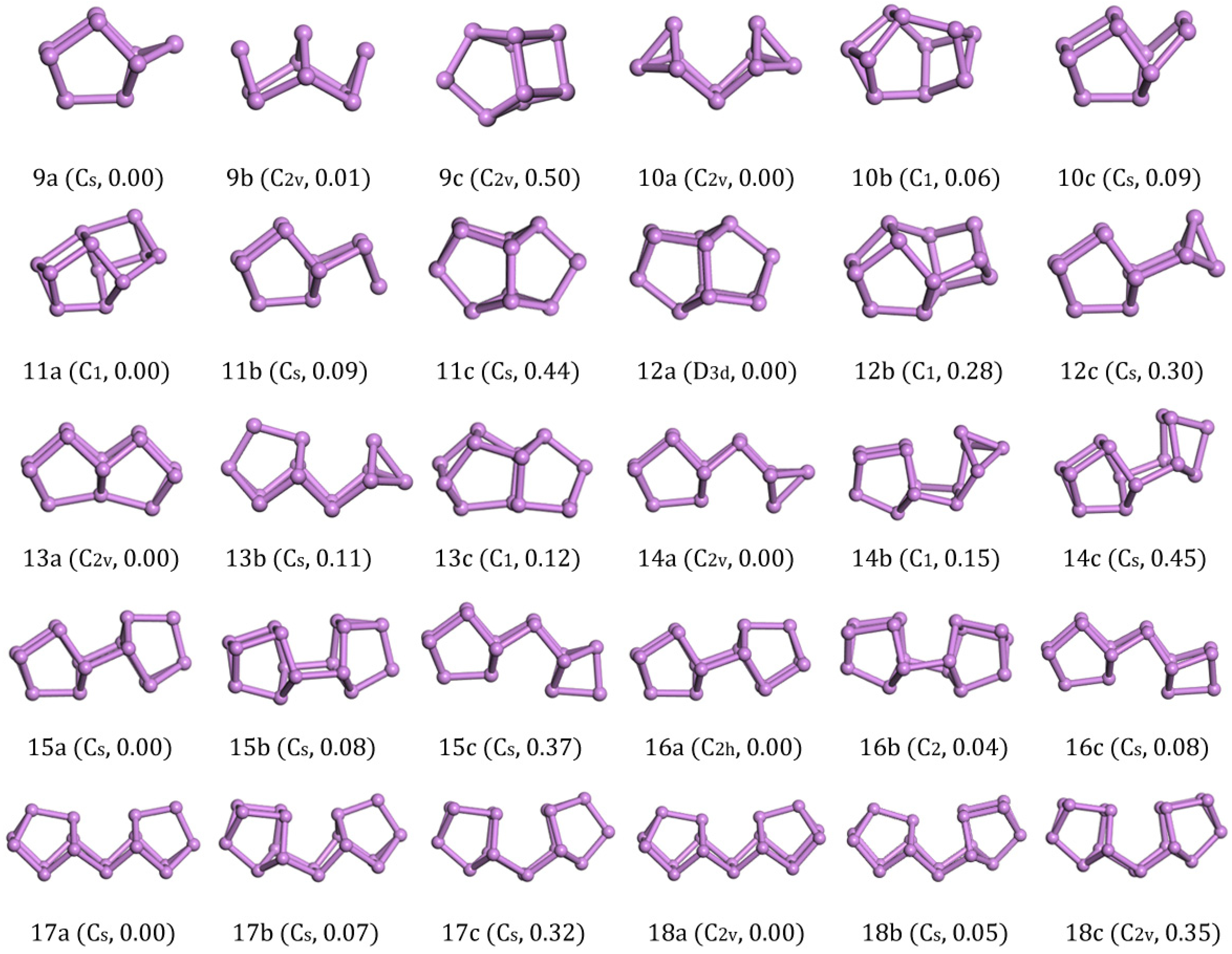

The ground-state structure of As
9 with C
s symmetry (9a in
Figure 2) could be regarded as being derived from a cage-like As
8 structure by attaching an As atom at one side. The isomers (C
2v) with a higher symmetry (9b,c in
Figure 2) were less stable based on our
VASP calculations. It also hinted to us that the ground structure of As
8 might be a stable cluster with a magic number. From further calculations, we found that the cage-like As
8 structures unit served as the primary building unit for forming the As clusters with larger sizes.
The lowest-energy structure (C
2v) of As
10 consistd of the cage structure of 8a in
Figure 1 that was edge-capped by each As atom. After relaxation, the upper bond broke to form two four-atom cages and an As
2 bridge. The structure 10b in
Figure 2 was a new structure discovered by our GA global searching. The structure obtained by Zhao [
22] is structure 10c in
Figure 2, whose energy was higher than 10b in
Figure 2 by 0.006 eV/atom and 10a in
Figure 2 by 0.009 eV/atom.
The ground structure of As
11 was 11a in
Figure 2 which was formed on the base of As
10 with an As atom added above the As
2 dimer and linked with an As
8 cage. It was more stable than the 11b in
Figure 2 isomer with C
s symmetry by 0.008 eV/atom and 11c in
Figure 2 isomer by 0.04 eV/atom with C
s symmetry in energy.
For As
12, the structure with D
3d symmetry was confirmed to be the lowest energy structure among all the structural candidates considered. The highly-symmetric structure was shaped of two As
8 cages that share a four-atom plane. From another point of view, the ground-state structure of As
12 was a layered structure of three layers of atoms (3 + 6 + 3). Such a nice structure was energetically lower than 12b in
Figure 2 with C
1 symmetry by 0.023 eV/atom and 12c in
Figure 2 with C
s symmetry by 0.025 eV/atom.
Viewing the ground-state structure of As
13 carefully, we also found two As
8 cages. Different from As
12, the two cages jointly owned a three-atom plane. It had 0.008 eV/atom less energy than the structural 13b in
Figure 2 (C
1) and 0.009 eV/atom less than the structure 13c in
Figure 2 (C
s).
As shown in the picture, As
14 with Cs symmetry could be considered to be composed of an As atom link to the three-atom plane on one side of the As
13 (13a in
Figure 2). The less stable isomer 14b was a distorted structure of 14a, which was energetically higher by 0.011eV/atom. The 14c was a structure without an As
2 dimer bridge, it was linked by As
8 cage with an As
6 cage and had 0.032 eV/atom more energy than 14a in
Figure 2.
The ground-state structure of As
15 with C
s symmetry was composed of two connected cages (As
8 and As
7). The other two candidates 15b in
Figure 2 with C
s symmetry and 15c in
Figure 2 with C
s symmetry were less stable than the ground-state structure by 0.005 eV/atom and 0.025 eV/atom in energy, respectively.
An upward As
8 cage and a downward As
8 cage connected to form a new structure as the ground state of As
16 (16a in
Figure 2 with C
2h symmetry). It was more stable than the C
2-symmetry isomer 16b in
Figure 2 and the C
s-symmetry isomer 16c in
Figure 2 by 0.05 eV and 0.08 eV in energy. Although structural 16c in
Figure 2 contained an As
8 cage and an As
2 bridge, the As
6 cage in the structure led to the overall energy as being higher than other two isomers.
The lowest energy structure of As
17 (17a in
Figure 2) with C
s symmetry was built by As
8 and As
7 units with an As
2 bridge in the middle. The two C
s-symmetry isomorphic structure 17b,c in
Figure 2 were also formed by the As
8 and As
7 units with different orientation connections.
The ground-state of As
18 (18a in
Figure 2) with C
2v symmetry was formed by two identical As
8 units and an As
2 bridge in the middle. Our structure was exactly the same as that in Ref. [
22]. Two slightly higher energy isomers (18b in
Figure 2) with C
2h symmetry and 18c in
Figure 2 with C
2v symmetry were combined by the same units as 18a in
Figure 2 with different orientations, and they were energetically higher than 18a in
Figure 2 by 0.05 eV and 0.35 eV energy. The calculations showed that the structure with As
8 unit and As
2 bridge in the middle was more stable than other cage structures. We also generated one As
18 structure cut from bulk phase and the energy was 3.17 eV higher than the ground state. So, we think the chain structure with As
8 units and an As
2 bridge is much more important for middle-sized As
n clusters.
3.3. Asn (n = 19–24) Clusters

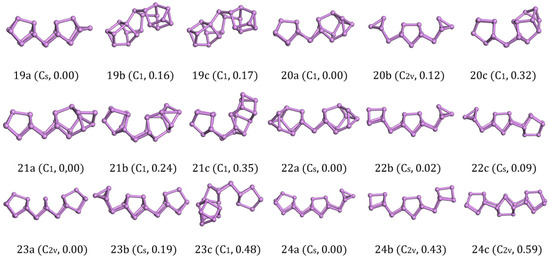

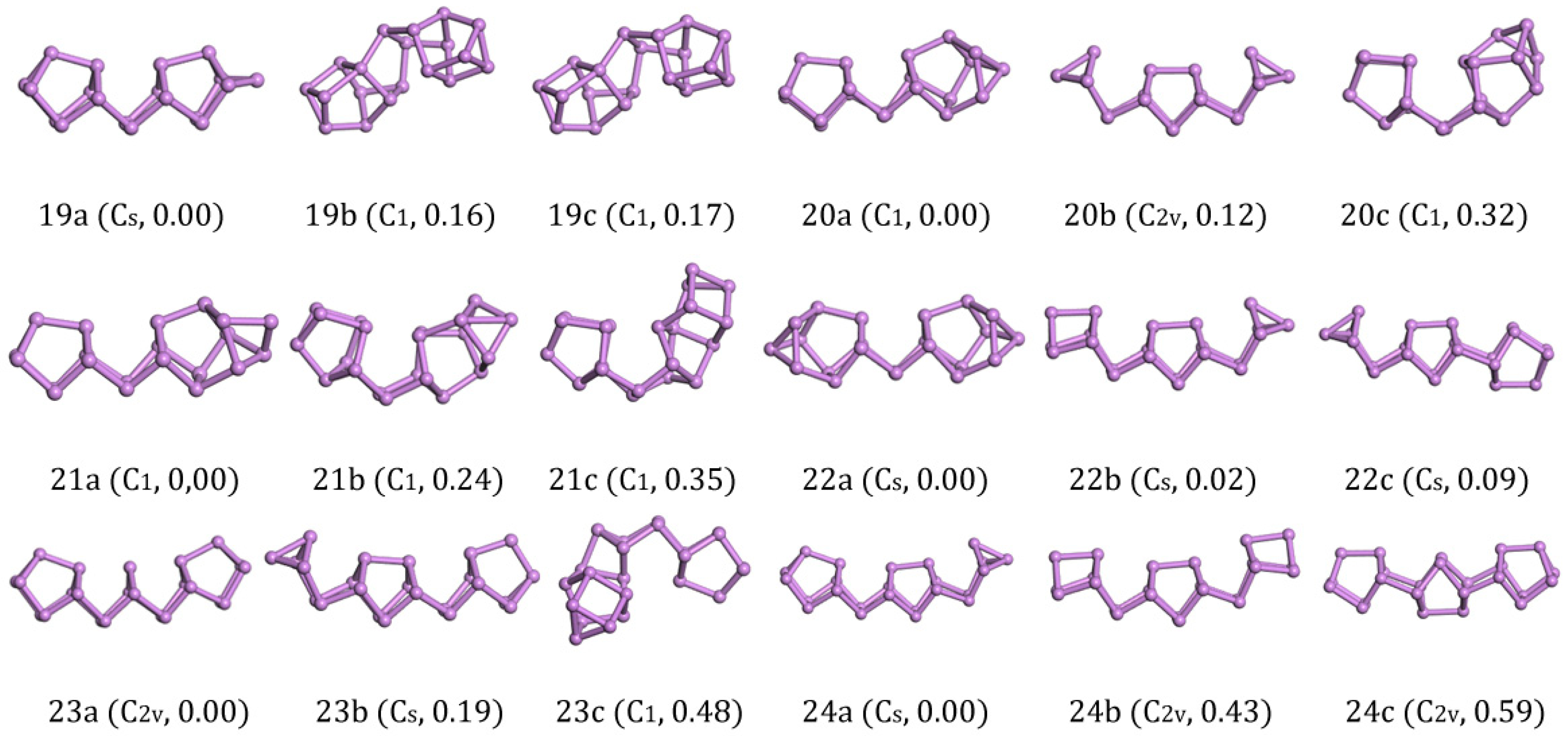

The ground-state structure of As
19 (19a in
Figure 3) with C
s symmetry could be regarded as an As atom added into one side of As
18. Therefore, As
19 (19a in
Figure 3) could be considered as the combination of As
8-As
2-As
8-As
1. The isomers of As
19 (19b,c in
Figure 3) with only C
1 symmetry were both built up by two identical As
8 units and an As
3 bridge. Due to the distortion of the structures, they had 0.008 eV/atom and 0.009 eV/atom higher energy than 19a in
Figure 3.
The ground-state structures of As
20 was predicted to be C
1 symmetry, as shown in 20a in
Figure 3. It could be regarded as an As
8 cage link with an As
10 cage joined by an As
2 bridge. As
20 (20a in
Figure 3) could be considered as the combination of As
8-As
2-As
10. Zhao [
22] predicted the optimal combinations for the As
20 is super-clusters of As
4-As
2-As
8-As
2-As
4. The energy of As
20 (20a in
Figure 3) we got based on the genetic algorithm was energetically lower than the structure 20b in
Figure 3 with C
2v symmetry. A distorted structure 20c in
Figure 3 originated from 20a in
Figure 3 also appeared in our calculations. After the calculations with VASP, two isomers showed 0.006 eV/atom and 0.053 eV/atom higher energy than 20a in
Figure 3. This result shows the super-clusters of As
4-As
2-As
8-As
2-As
4 did not have much of an advantage.
For As
21, the most stable structure (21a in
Figure 3) could be regarded as an As atom link to the As
10 cage of As
20 (20a in
Figure 3). Two other isomers (21b,c in
Figure 3) were constituted by an As
8 cage and an irregular As
11 structure linked with an As
2 bridge. They were energetically higher than 21a in
Figure 3 by 0.011 eV/atom and 0.017 eV/atom.
Rather than simply increasing the number of atoms on the edge, the ground-state structure of As
22 with C
s symmetry are formed with two symmetrical As
10 cages in the As
20 units and an As
2 bridge in the middle. The isomers were two kinds of super-clusters (22b in
Figure 3, As
6-As
2-As
8-As
2-As
4 and 22c in
Figure 3, As
4-As
2-As
8-As
8), and they were stretched by more units compared to the ground-state structures (22a in
Figure 3). Although we could find stable As
8 and As
4 units in isomers, they each had 0.02 eV and 0.09 eV higher energy than 22a in
Figure 3. According to previous findings, it can be found that the second lower energy As
10 cage 10b in
Figure 2 will be favorable if the structure is composed by an As
8 unit connected with an As
2 bridge.
The ground-state structures of As
23 (23a in
Figure 3) with C
2v symmetry seemed to be four As
8 cages linked to each other to share the three-atom plane, and the bottom edge of the middle two cages were broken. At the same time, we could also regard 23a in
Figure 3 as a super-cluster of As
8-As
2-As
3-As
2-As
8. The other two candidates, 23b in
Figure 3 with C
s symmetry and 23c in
Figure 3 with C
1 symmetry, were less stable than the structure 23a in
Figure 3 by 0.008 eV/atom and 0.021 eV/atom in energy, respectively.
The lowest energy structure of As
24 with C
s symmetry (24a in
Figure 3) was built by three units (an As
4 cage and two identical As
8 cages), connecting the neighboring structure with an As
2 bridge. Zhao [
22] considered that the optimal combinations of the super-clusters As
24 are As
6-As
2-As
8-As
2-As
6 (24b in
Figure 3) with C
2v symmetry. DFT calculations show that the ground-state structure of As
24 we get based on the genetic algorithm weare the combinations of As
8-As
2-As
8-As
2-As
4, which was energetically lower than the structure 24b in
Figure 3 by 0.018 eV/atom. Besides, we also gained another high symmetric structure with C
2v symmetry (24c in
Figure 3) that was constituted by three As
8 units. However, its energy was 0.025 eV/atom higher than the ground state structure (24a in
Figure 3). We could realize from this result that the lowest energy structures of larger As clusters not only have the combination of As
8 units but also needed an As
2 bridge in the middle of adjacent units.

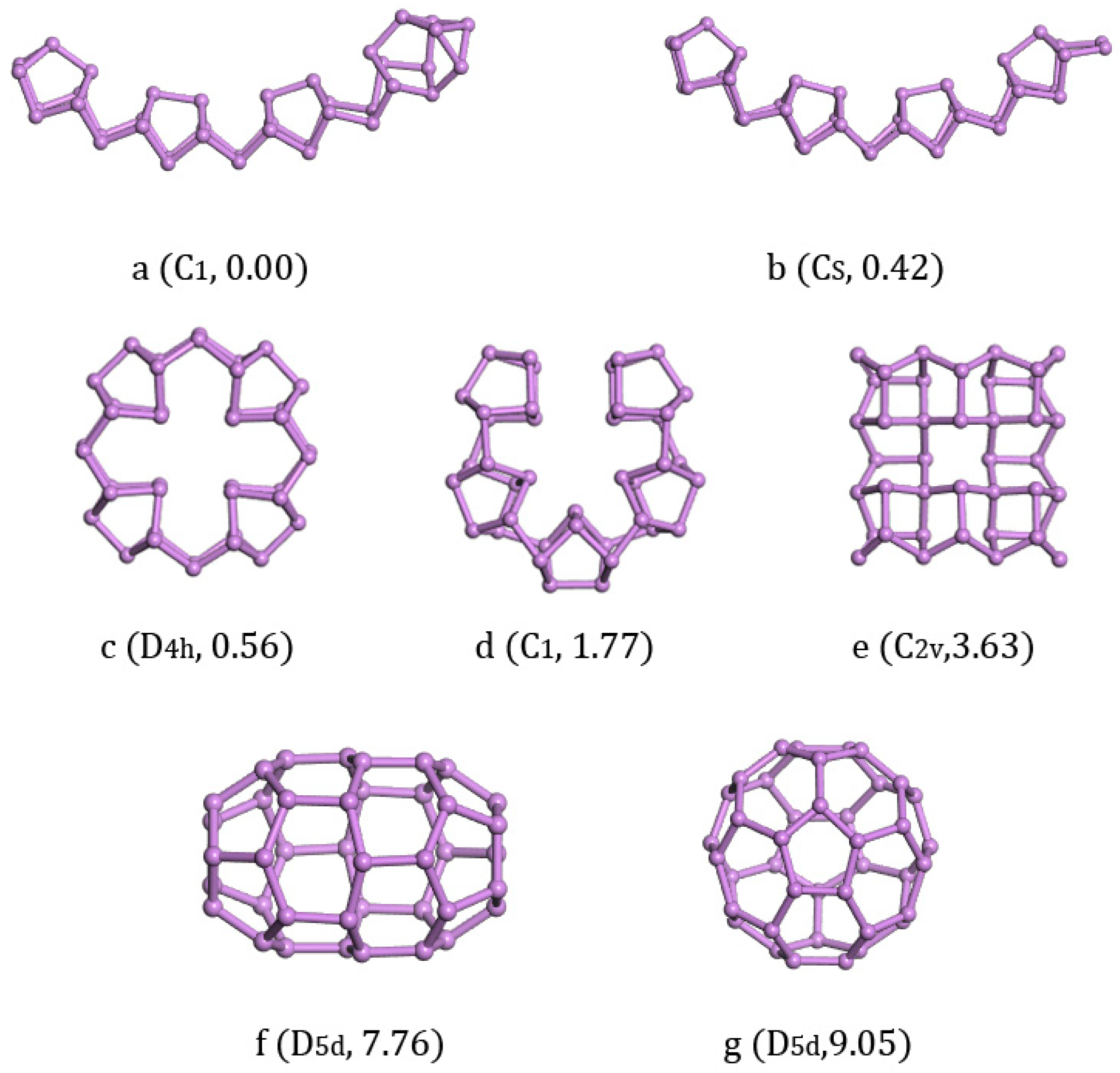

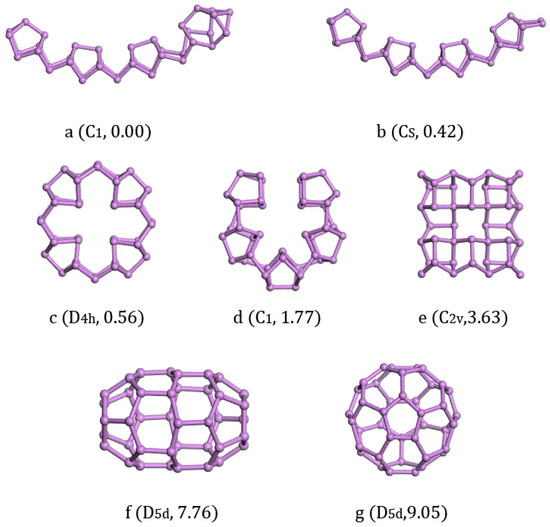

3.5. Asn (n = 28, 38, 40, 180) Clusters
With the increase of cluster size, it was more and more difficult to exhaust all possible local minimum structures. We tried to study the larger clusters As
28, As
38, and As

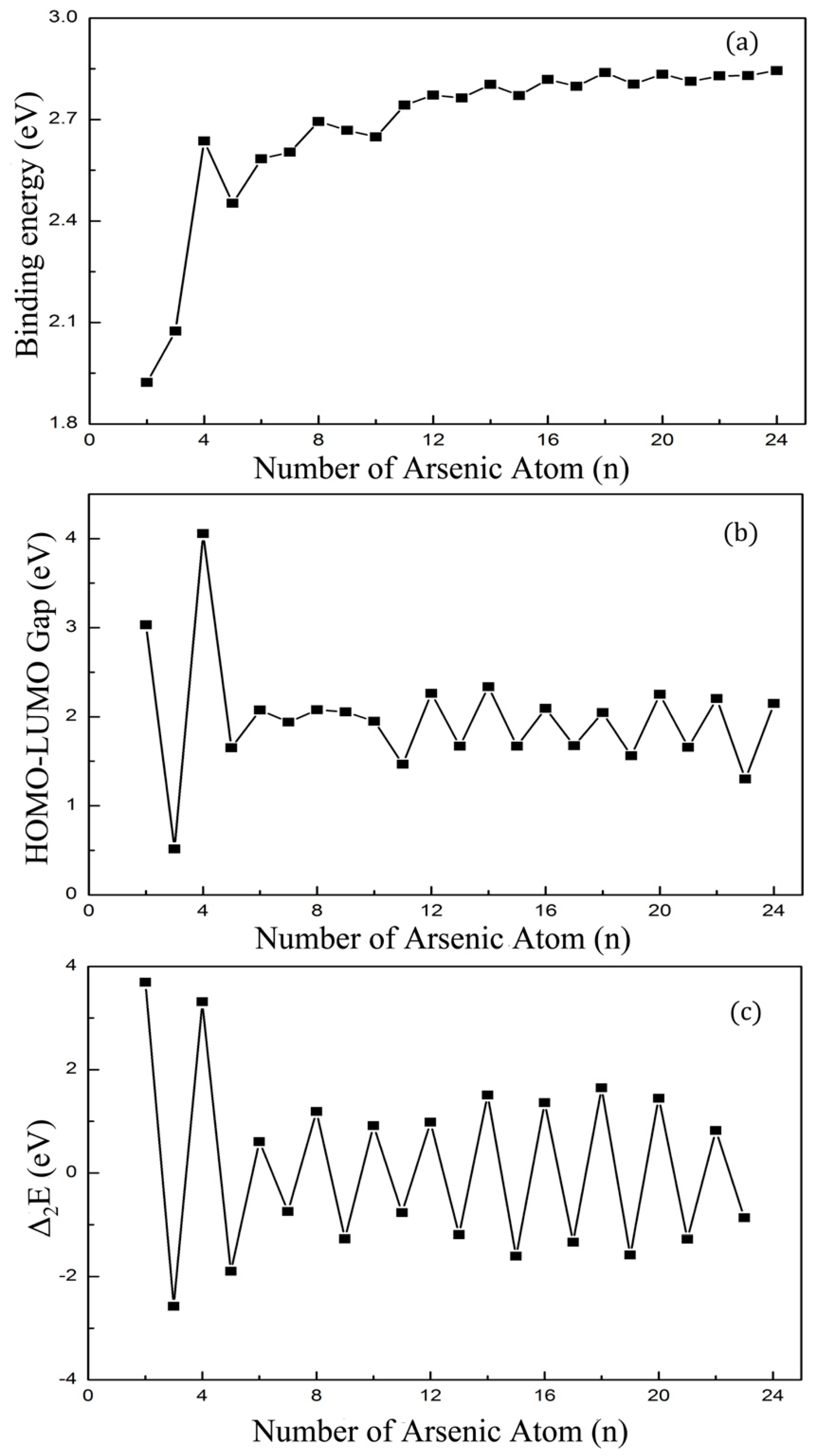

40 based on the above findings. The structural size evolution and electronic properties of arsenic clusters indicated that the clusters combined by an As
2 bridge and an As
8 cage had lower energy than their isomers and showed more stability in each local size-dependent range. Here we have to emphasize that As
4 and As
6 units were not dominant for the larger As
n cluster, which was different from Zhao’s result [
22]. Furthermore, different sizes of fullerene cage structure isomers were also calculated to compare with our ground state structures in energy, and their energies were far more than units-linked one-dimensional structures. Given this understanding, we constructed As
28 as As
8-As
2-As
8-As
2-As
8 and As
38 as As
8-As
2-As
8-As
2-As
8-As
2-As

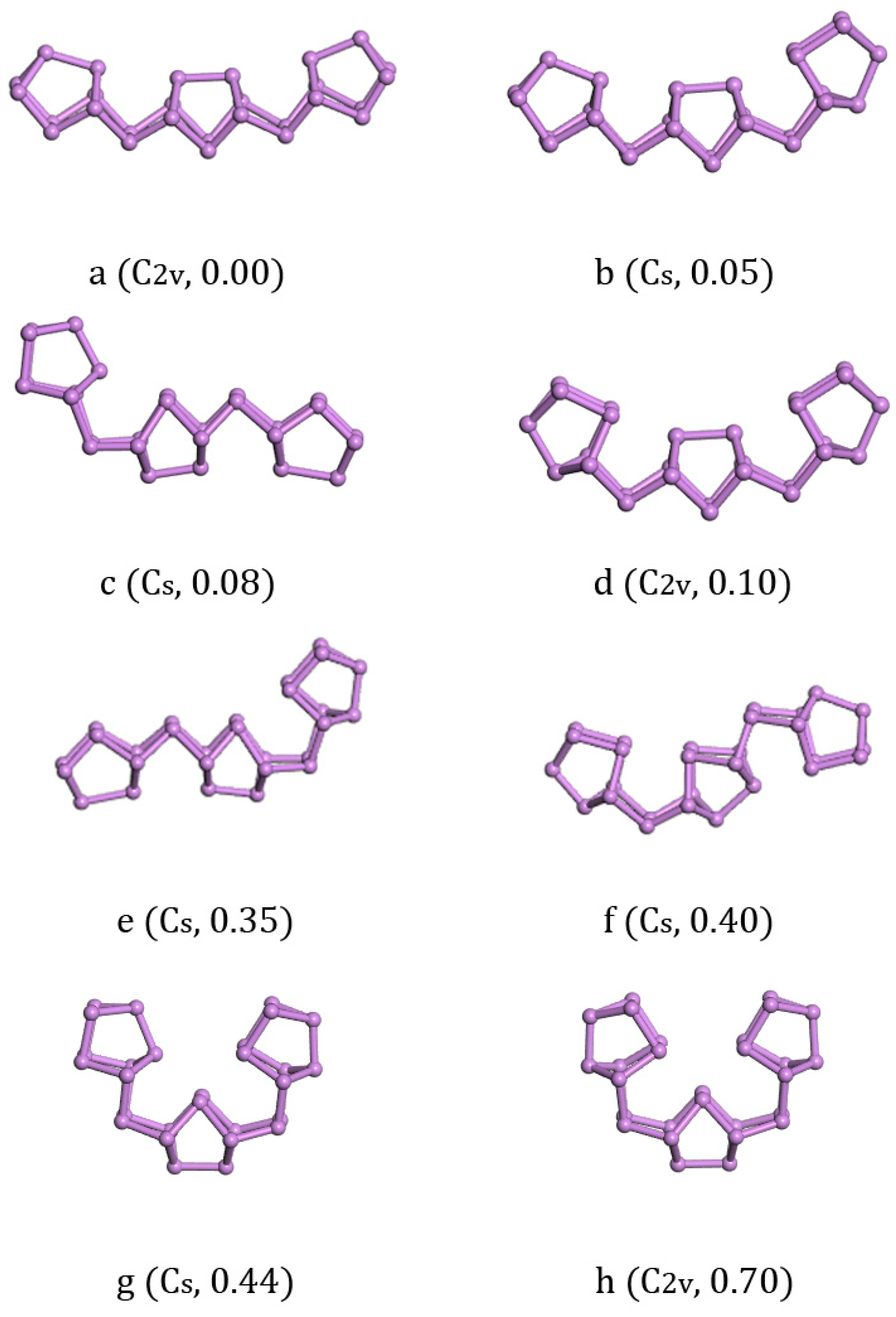

8 in all possible ways. The structures we calculated of As
28 are listed along with the increase of energy in
Figure 4. The lowest energy structure of As
28 with C
2v symmetry (
Figure 4a) had 0.05 eV less energy than the structure with C
s symmetry (
Figure 4b) and 0.10 eV less than the structure with C
2v symmetry (
Figure 4c). In addition to considering structure growth in the one-dimensional direction, we also calculated the longitudinal growth mode. Three isomers
Figure 4c,e,f were all with C
s symmetry and energetically higher than the lowest energy structure a with 0.08 eV, 0.35 eV, and 0.40 eV, respectively. Besides, the other two semi-ring isomers
Figure 4g,h had 0.44 eV and 0.70 eV energy higher than the ground state structure. Compared with the bulk truncated structure of As
28, the lowest energy structure of As
28 was 0.16 eV/atom lower.

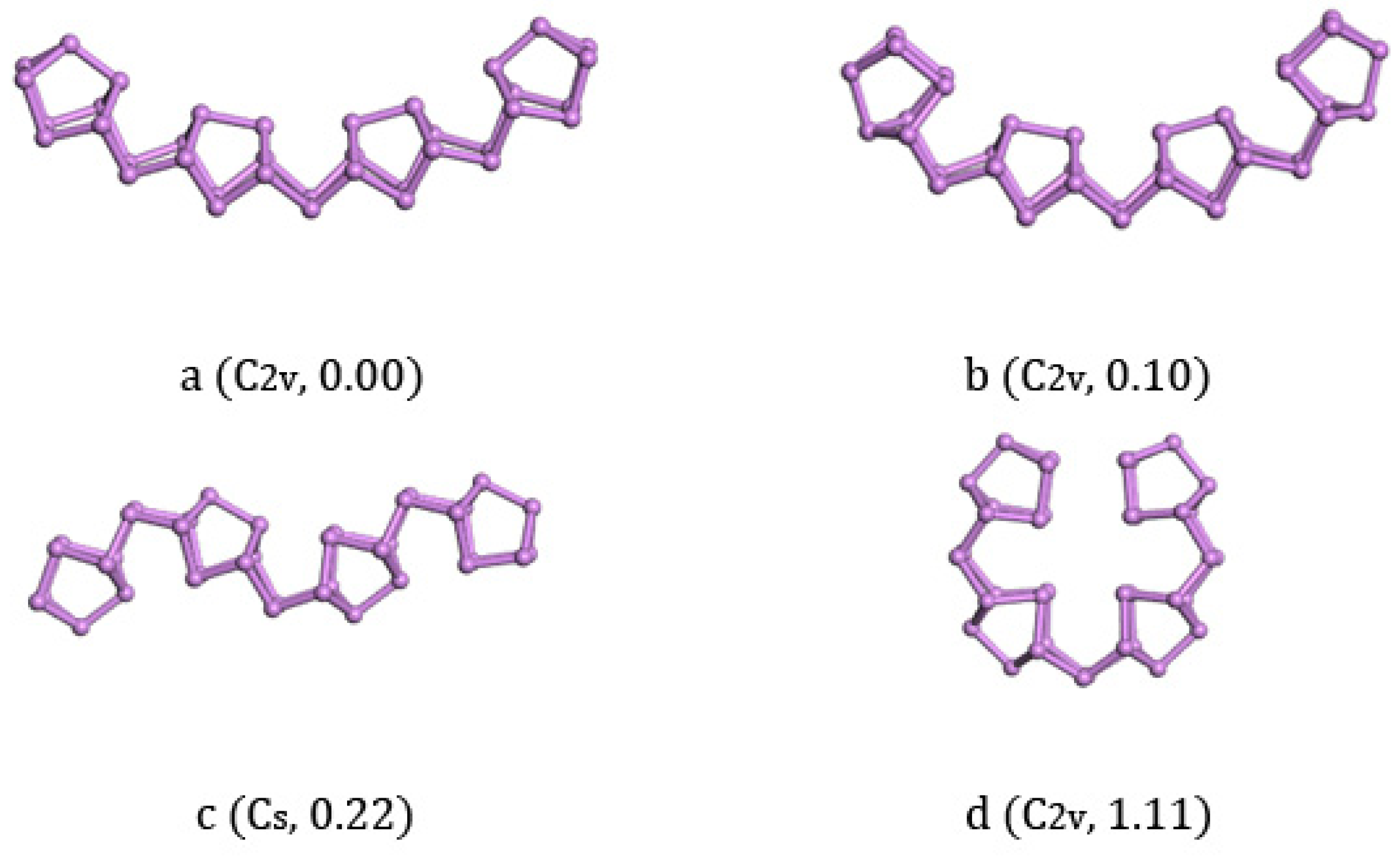

The lowest energy structure of As
38 with C
2v symmetry (
Figure 5a) and its isomers are listed in
Figure 5. We could find that the structure of
Figure 5a was a continuation of As
8, As
18, and As
28 clusters, and all of them were constructed with As
8 cages in the same direction with As
2 bridges. The structural isomers
Figure 5b with C
2v symmetry and
Figure 5c with C
2h symmetry could be regarded as one-dimensional chain structures, the same as
Figure 5a. Their respective energies were 0.10 eV and 0.22 eV higher than
Figure 5a. The C
2v isomer
Figure 5d could be regarded as a two-dimensional structure that has four As
8 cages held in four directions and all of them point to the center. The energy of this structure was highest in our calculation with 1.11 eV higher energy than a. Compared with the bulk truncated structure of As
38, the lowest energy structure of As
38 was 0.156 eV/atom lower. We could find that the structures did not change previous growth tendencies even with increasing the size of the clusters.
Considering that As
40 can form ring and fullerene cage structures, we also studied the structures of As
40. The structures we calculated of As
40 are listed along with the increase of energy in
Figure 6. We found that the lowest energy structure of As
40 with C
1 symmetry (
Figure 6a) and its isomers
Figure 6b (0.42 eV energy higher) with C
s symmetry both were one-dimensional chain structures. Three isomers
Figure 6c,d,e could all be regarded as two-dimensional structures and energetically higher than the lowest energy structure a with 0.014 eV/atom, 0.044 eV/atom, and 0.09 eV/atom, respectively. Seemingly stable three-dimensional fullerene cage isomers
Figure 6f with D
5d symmetry and
Figure 6g with D
5d symmetry were 0.194 eV/atom and 0.226 eV/atom higher in energy than the lowest energy structure.

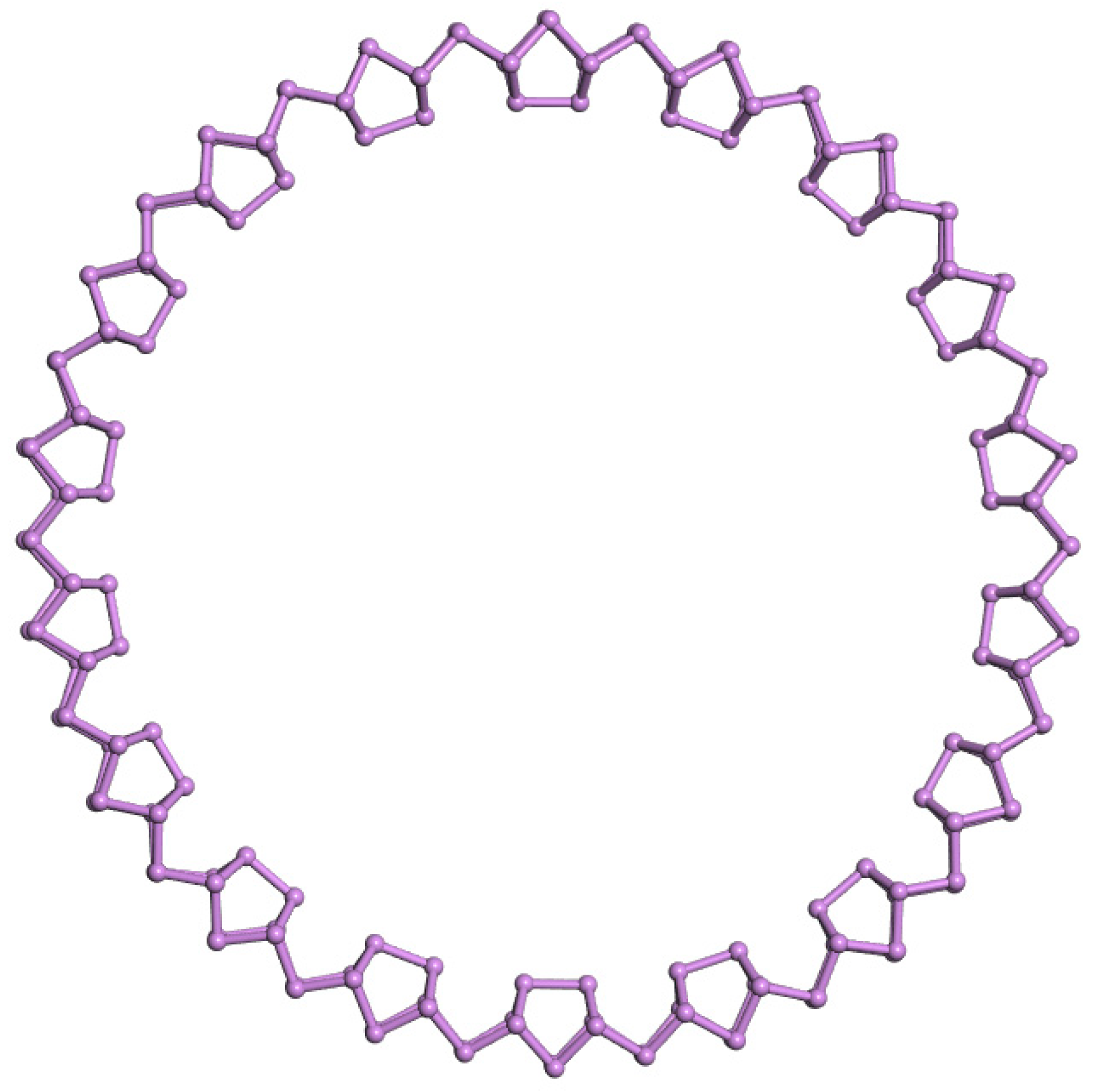

Based on the finding above, we could construct the ring structure of an As
180 cluster based on the As
8 units and As
2 bridge, which is shown in
Figure 7. The HOMO-LUMO gap of As
180 was 1.868 eV and the binding energy per atom was −2.901 eV.
3.6. Electronic Properties of Asn Clusters
The binding energy per atom for the ground states of As
n (
n = 2–24) clusters are shown in
Figure 8a. In the size range of
n = 12–24, the binding energy increased smoothly with weak odd-even oscillation properties. This result can be related to the evolution of the ground-state from cage-like structure to cage-link structure at
n = 12. Besides, the binding energy of As
8 was a peak value in the small size of
n = 3–11, and this suggests the ground structure of As
8 would be a vital growth unit in larger structures. Our next calculation also proved the conjecture.
In
Figure 8b, we present the energy gaps between the highest occupied molecular orbital (HOMO) and lowest unoccupied molecular orbital (LUMO) for the lowest-energy state of As
n (
n = 2–24) clusters. As is known, the cluster with the larger energy gap is more stable and easier to prepare. As the largest energy gap of As
4 is 4.06 eV, it is the most prominent species in arsenic vapor, leading to a number of experimental and theoretical studies on As
4 clusters. Although the gaps of As
n clusters from
n = 5–10 change smoothly, we also observe the gap of As
8 is highest locally, which points out that the stability of As
8 was higher than the neighboring cluster. The HOMO-LUMO gap was higher for As
n (
n = 4, 6, 8, 12, 14, 16, 18, 20, 22, and 24) than their adjacent structures. The atoms in these even-numbered sequences were all three-coordination and eight-electron structure. The odd-numbered clusters were unable to achieve this condition, so they were less stable than the odd-numbered species.
In clusters physics, the second-order difference of cluster energy is a more sensitive datum to reflect the stability of clusters. We plotted the second-order difference of cluster energies defined by Δ
2E = E(
n + 1) + E(
n − 1) − 2E(
n).
Figure 8c describes how the second-order differential energy changed with the increase of atom number and it shows good odd–even oscillation properties. The second-order difference of cluster energies of even-numbered clusters were all higher than their adjacent odd-numbered clusters. Therefore, we could draw the conclusion that even-numbered clusters were more stable than their neighboring odd-numbered clusters. Above all peaks for Δ
2E, three local maximum peaks were found at
n = 4, 8, and 18, where As
n (
n = 4, 8, and 18) clusters were chemically stable.
