High Capacity and High Efficiency Maple Tree-Biomass-Derived Hard Carbon as an Anode Material for Sodium-Ion Batteries

Center of Excellence in Transportation Electrification and Energy Storage, Hydro-Québec, 1806 Boulevard Lionel-Boulet, Varennes, QC J3X1S1, Canada
*
Author to whom correspondence should be addressed.
Materials 2018, 11(8), 1294; https://doi.org/10.3390/ma11081294
Received: 28 June 2018 / Revised: 23 July 2018 / Accepted: 24 July 2018 / Published: 26 July 2018
(This article belongs to the Special Issue Electrode Materials for High Performance Sodium-ion Batteries)

Abstract

Sodium-ion batteries (SIBs) are in the spotlight because of their potential use in large-scale energy storage devices due to the abundance and low cost of sodium-based materials. There are many SIB cathode materials under investigation but only a few candidate materials such as carbon, oxides and alloys were proposed as anodes. Among these anode materials, hard carbon shows promising performances with low operating potential and relatively high specific capacity. Unfortunately, its low initial coulombic efficiency and high cost limit its commercial applications. In this study, low-cost maple tree-biomass-derived hard carbon is tested as the anode for sodium-ion batteries. The capacity of hard carbon prepared at 1400 °C (HC-1400) reaches 337 mAh/g at 0.1 C. The initial coulombic efficiency is up to 88.03% in Sodium trifluoromethanesulfonimide (NaTFSI)/Ethylene carbonate (EC): Diethyl carbonate (DEC) electrolyte. The capacity was maintained at 92.3% after 100 cycles at 0.5 C rates. The in situ X-ray diffraction (XRD) analysis showed that no peak shift occurred during charge/discharge, supporting a finding of no sodium ion intercalates in the nano-graphite layer. Its low cost, high capacity and high coulombic efficiency indicate that hard carbon is a promising anode material for sodium-ion batteries.
Keywords: hard carbon; sodium ion batteries; high capacity; high coulombic efficiency; NaTFSI hard carbon; sodium ion batteries; high capacity; high coulombic efficiency; NaTFSI

1. Introduction

The room-temperature sodium-ion battery was proposed as an alternative candidate for large-scale energy storage due to sodium’s abundance in the Earth′s crust and its low cost [1,2,3]. In addition, aluminum foil can be used in place of copper as the anode current collector to further decrease the cost because sodium does not alloy with aluminum [4]. Up to present, numerous cathode materials have been evaluated, such as the P2 or O3-layered oxide NaxMO2 (0.5 < x < 1, M:Ni, Co, Mn, Fe, Cr, Ti, etc.) [5,6,7,8,9,10,11,12,13,14,15,16,17,18], tunnel-type Na0.44MnO2 [19,20], Na0.66[Mn0.66Ti0.34]O2 [21], Na superionic conductor (NASICON)-Na3V2(PO4)3/C [22], ferrocyanide-like copper hexacyanoferrate (CuHCF) [23], nickel and copper hexacyanoferrate (Ni-CuHCF) [24], etc. In contrast, the choices of anode materials for sodium-ion batteries are limited to carbonaceous materials, alloys, Ti-based oxides and some organic compounds. Although alloy materials such as Sb/C [25,26], Sn/C [27], SnSb/C [28] and P [29,30] can deliver a high specific capacity, the destruction of their structure by large volume expansion during reaction with Na leads to cycling instability. Ti-based oxides that include Na2Ti3O7 [3,31], O3-layered NaTiO2 [32], spinel-Li4Ti5O12 [33] and P2-layered Na0.66[Li0.22Ti0.78]O2 [34] exhibit a suitable sodium storage voltage and stable cycling, but their low electronic conductivity, low capacity, and low coulombic efficiency or multiple-phase mechanism hinders their applications. Organic compounds, such as Na4C8H2O6 [35] and Na2C8H4O4 [36], have been studied as the anode for SIBs and found to deliver a large reversible capacity with good capacity retention. Nevertheless, suffering from poor electronic conductivity and low initial coulombic efficiency makes them less promising for commercial development. Among the available anode candidates for SIBs, carbonaceous materials [37] hold the most promise considering the various sources of precursors (such as sugars [38], apple [39], banana [40], cotton [41], peanut shells [42], etc.) and cost. However, their reversible capacity is less than 300 mAh/g and initial columbic efficiency is less than 80%. Therefore, improving the capacity and initial columbic efficiency are major steps to satisfying the requirements for hard carbon’s practical applications.
In this study, we report the electrochemical performance of hard carbon derived from a precursor of maple trees branches as anodes for sodium-ion batteries. By heating the precursor at 1400 °C for 6 h, the hard carbon obtained exhibited approximately 332 mAh/g reversible capacity and 88.03% initial coulombic efficiency at a 0.1 C rate with NaTFSI/EC:DEC. At the one-hundredth cycle, 92.3% capacity was observed at a 0.5 C rate. These benefits, along with their low cost, make hard carbons a promising anode material for sodium-ion batteries.

2. Results and Discussion

2.1. Structure and Morphology

The X-ray diffraction (XRD) spectra of the structure of hard carbon formed at different pyrolysis temperatures are shown in Figure 1a. Two broad peaks, centered at approximately 29° and 51° are observed in the XRD (Co-Kα radiation) spectra of each of the three samples, which are close to the (002) and (101) planes of graphite (Inorganic Crystal Structure Database ICSD:617290, space group (S.G).:P63/mmc) respectively. The broad peaks suggest the amorphous or nano-crystalline structure of these hard carbon materials. As the heating temperature rose from 1000 to 1400 °C (samples will be named with their corresponding temperature hereafter), the position of the (002) peak shifts to the higher two theta direction, indicating the decrease of the interplanar space between (002) planes due to the structural rearrangement from disorder to short-range order towards the thermodynamically stable state. The XRD spectrum of hard carbon (HC)-1400 shows graphite peaks around 30° and 51°, indicating the co-existence of nano/amorphous-graphite particles. The (101) peak becomes sharper with increased pyrolysis temperature. Raman spectra present the carbon D-band peak at 1340 cm−1 (the defect-induced band) and the G-band peak at 1595 cm−1 (the crystalline graphite band). The ratio of the intensity of the D-Raman peak and G-Raman peak (IG/ID) is often used for the characterization of the disorder degree of carbon materials. Figure 1b shows the Raman curves of hard carbons obtained at different temperatures. Interestingly, with increasing pyrolysis temperature, the intensity of the D band increases, but the full width at half maximum (FWHM) gradually decreases, and the value of IG/ID keeps increasing from 0.58 to 0.82, which is attributed to the change in the structure from amorphous to planar graphite. The results are consistent with the XRD results.
The morphologies of hard carbon at the different temperatures are shown in Figure 2a–c and Figure S1. The size of particles ranges from 1 to 20 μm and the distributions are non-uniform. HC-1000 has a cellulose porous structure, inherited from the tree branch, with some small particles, whereas HC-1400 contains large platy particles greater than 10 µm. The high-resolution transmission electron microscopy (HRTEM) images of hard carbon at the different temperatures are displayed in Figure 2d−f (inset with selected area electron diffraction (SAED)). There is no obvious long-range ordered structure observed in the transmission electron microscopy (TEM) micrographs despite the local ordered structures, representing the nano-graphite domains, becoming more distinct in XRD spectra at higher carbonization temperatures. All SAED patterns exhibit dispersive diffraction rings, which further confirm the disordered microstructure. The diffraction rings become less diffused with increasing carbonization temperature, with some bright spots for HC-1200 and HC-1400, which demonstrates a tendency toward an ordered structure. In addition, some graphitic domains arise in the local ordered structure of HC-1400. Thus, the results of TEM and SAED further demonstrate that the temperature can promote graphitization and improve ordered-ness, which is consistent with the XRD and Raman results.

2.2. Sodium Storage Performance in Sodium Ion Batteries

The low initial coulombic efficiency caused by the formation of a solid electrolyte interphase (SEI) layer limits the application of hard carbon due to the irreversible loss of Na in the cathode. To solve the problem of low initial coulombic efficiency and to form a stable SEI, we optimized the electrolyte by using various sodium salts, such as sodium hexafluorophosphate (NaPF6), sodium perchlorate (NaClO4), NaTFSI and sodium (I) bis(fluorosulfonyl)imide (NaFSI), which are normally used to improve the low initial coulombic efficiency and cycle performance of the electrode materials in sodium ion batteries. The electrochemical properties of anodes which were derived from hard carbons, processed at different temperatures, as anode materials were tested in coin cells using sodium metal as the counter electrode. Figure 3a–f and Table 1 shows the initial discharge/charge curves and summary of initial coulombic efficiency in 1mol NaPF6, NaClO4, NaTFSI and NaFSI in EC:DEC. The voltage range is 0 to 2.5 V. The first galvanostatic discharge/charge curves at a current rate of 0.1 C (30 mA g−1) are shown in Figure 3a–f. The voltage profiles of all electrodes exhibit two distinct regions: (1) A gradual voltage decay around 0.15 1.2 V and (2) a plateau around 0.15 V. The results obtained in 1M NaPF6/EC:DEC electrolyte show that HC-1000 displays a relatively low charge capacity (262 mAh/g) and a low coulombic efficiency of 75.1%, while the HC-1400 electrode exhibits a high charge capacity of 337 mAh/g and a coulombic efficiency of 86.1%. The cells in NaClO4, NaTFSI and NaFSI in EC:DEC electrolytes yield similar results, which are attributed to the low brunauer-emmett-teller (BET) surface areas (Table S1), and the capacity percentage of the plateau region of around 70%. We also examined the influence of different salts on the capacity of electrodes. Using NaPF6, NaClO4 and NaTFSI as salts, the initial coulombic efficiency and capacity of the cells with the same electrode are comparable or better than those using NaFSI. Figure 4 illustrates the cycle performance of HC electrodes in different electrolytes. The capacity fades rapidly for the conventional NaPF6 and NaClO4 electrolytes. In the case of the NaFSI electrode, a low capacity is obtained in the first cycle; the reversible capacity increases after five cycles and then decreases rapidly. However, the NaTFSI electrolyte exhibits stable capacity with around 95% capacity retained after few cycles at 0.1 C rate. Note that after optimization, HC-1400 outperforms the existing carbon anode materials for sodium-ion batteries. The rate capability of HC-1400 in 1M NaTFSI/EC:DEC electrolyte was tested in a sodium ion cell, and the results in Figure 5a show that the reversible capacities are 332, 264, 210 and 145 mAh/g at constant current rates of C/10, C/5, C/2 and 1 C, respectively. The HC-1400 electrode exhibits capacity retention of 92.3% at a current rate of 0.5 C after 100 cycles. The coulombic efficiency after the third cycle is nearly 99.5%.

2.3. Structure Evolution

The sodium storage mechanism was investigated by in situ XRD. Until now, three different Na storage environments and three corresponding models have been reported in the literature for Na interactions with hard carbon: (i) Adsorption on the surface’s active sites; (ii) nano pore filling analogous to adsorption; and (iii) intercalation between the graphene layers with suitable distance—spacing. The electrochemical results show two distinct voltage regions: A slope above 0.15 V and a plateau below 0.15 V. A number of studies were conducted aiming at elucidate Na interactions with hard carbon, but the Na storage mechanisms in different voltage regions are still being debated. In 2001, Stevens and Dahn [43] first reported Na storage in glucose-pyrolyzed hard carbon, and assigned the voltage sloping region to Na-ion insertion in the graphene layers and the low voltage plateau region to Na filling/plating into nanopores. Later, Komaba et al. [44]. corroborated this mechanism by spectrometric characterization. In their study, ex situ XRD showed that the (002) peak of hard carbon shifted from 2θ = 23.4° to 21–22° when the voltage is reduced to 0.1 V, then returned to the pristine position when charged back to 2.0 V, indicating the reversible Na removal from graphene sheets. Recently, Tarascon and co-workers [45] investigated the structural variation of polyacrylonitrile-derived carbon nanofibers. They concluded that the slope region between 1.0 and 0.1 V is due to Na-ion adsorption on disordered isolated graphene sheets, and the 0.1 V plateau is due to mesopore filling by Na ions. Our results are more consistent with those of Tarascon et al. For HC-1400, the graphite peak around 29° becomes obvious. In situ XRD is employed to directly investigate whether the sodium ions intercalate in the nano graphite sheet. Figure 6 shows the (002) diffraction peak evolution in XRD patterns of the HC-1400 electrode cycled at 0.05 C rates in the voltage range of 0 to 2.5 V during the initial discharge and charge. No obvious shift of the graphite peak was observed when the cell discharged to the cut-off voltage, implying that neither the high potential slope nor the low voltage plateau can be assigned to sodium intercalation between graphitic layers.

3. Methods

3.1. Materials Synthesis

The hard carbon samples were produced from direct pyrolysis of inner parts of a maple tree. Firstly, pieces from the inner of the maple tree have been treated in 1M HCl for 2h, washed three times using deionized water and dried in the oven at 100 °C for 6 h. Secondly, pieces from the inner of the maple tree were carbonized for 6 h in a tube furnace under argon flow. The pyrolysis temperatures were 1000 °C, 1200 °C and 1400 °C, respectively, and the obtained product was ground in a mortar for use. The prepared samples that were obtained are designated as HC-1000, HC-1200 and HC-1400, respectively.

3.2. Characterization

The carbonized structure was characterized by an X-ray diffractometer (SmartlabRigaku, (Rigaku Corporation: Tokyo, Japan) using Co−Kα radiation (1.788965 Å). The sample morphologies were investigated with a scanning electron microscope (TESCAN) (TESCAN Corporation: Libušina tř. 21623 00 Brno—Kohoutovice Czech Republic). Transmission electron microscope images (TEM) and selected area electron diffraction (SAED) patterns were obtained using a cold- Field Emission Gun (FEG) TEM-Hitachi HF3300 (Hitachi high technologies: Tokyo, Japan) operated at 300 kV.

3.3. Electrochemistry

Composite electrodes were fabricated from samples of HC-1000, HC-1200, or HC-1400, and Super P and polytetrafluoroethylene (PVDF) binder mixture in a mass ratio of 80:12:8 was coated onto Al foil. The loading of electrodes for HC-1000, HC-1200 and HC-1400 are 3.85 mg/cm2, 3.67 mg/cm2 and 4.15 mg/cm2, respectively. The electrolyte consists of 1M NaPF6 (>98%, Sigma-Aldrich, Oakville, ON, Canada), NaClO4 (>99%, Sigma-Aldrich, Canada), sodium trifluoromethanesulfonimide (NaTFSI, >99%, Solvionic, Toulouse cede, France) or sodium bis(fluorosulfonyl)imide (NaFSI, >99%, Solvionic, Toulouse cedex, France) in ethylene carbonate (EC) and diethyl carbonate (DEC) (3:7 in volume). A sodium foil was used as the counter electrode and glass fiber (GF/D 47, Whatman, UK) was used as the separator. All the operations were conducted in an argon-filled glovebox. The discharge and charge tests were conducted on EC-Lab battery test system (Bio-Logic acquired Uniscan Ltd., Vaucanson, France) in a voltage range of 0–2 V at various C-rates at room temperature.

4. Conclusions

In summary, we have developed a new hard carbon derived from maple trees. With an optimised electrolyte such as the NaTFSI/EC:DEC, initial coulombic efficiency is up to 88.03% and the specific capacity is 332 mAh/g. Furthermore, 92.3% of the capacity is still retained after 100 cycles at 0.5 C. Most importantly, we observed no graphite peak shift in in situ XRD, indicating no sodium intercalation to graphite. We believe these findings not only provide a novel anode material for sodium-ion batteries, but also expand the electrolyte options to improve initial coulombic efficiency or capacity for the commercialization of sodium-ion batteries.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1944/11/8/1294/s1, Figure S1: SEM images of HC obtained at different temperatures (a) HC-1000, (b) HC-1200 and (c) HC-1400 observed by SEM (scale bar:50 µm), Table S1: BET parameters. BET surface area for HC-1000, HC-1200,HC-1400.

Author Contributions

K.Z. and Y.W. designed this work; Y.W. and C.G. carried out the synthesis and electrochemical experiments; W.Z. and V.G. performed XRD measurements; W.Z. and R.V. performed the Raman; M.P. performed the BET measurements; D.L. carried out the TEM measurements; Y.W. and Z.F. wrote the paper; all the authors participated in the analysis of the experimental data and discussions of the results, as well as preparation of the paper.

Funding

This research received no external funding.

Acknowledgments

Hydro-Québec supports this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Armand, M.; Tarascon, J.M. Building better batteries. Nature 2008, 451, 652–657. [Google Scholar] [CrossRef] [PubMed]
  2. Zu, C.X.; Li, H. Thermodynamic analysis on energy densities of batteries. Energy Environ. Sci. 2011, 4, 2614–2624. [Google Scholar] [CrossRef]
  3. Pan, H.L.; Lu, X.; Yu, X.Q.; Hu, Y.S.; Li, H.; Yang, X.Q.; Chen, L.Q. Sodium Storage and Transport Properties in Layered Na2Ti3O7 for Room-Temperature Sodium-Ion Batteries. Adv. Energy Mater. 2013, 3, 1186–1194. [Google Scholar] [CrossRef]
  4. Liu, S.; Tang, S.; Zhang, X.; Wang, A.; Yang, Q.-H.; Luo, J. Porous Al Current Collector for Dendrite-Free Na Metal Anodes. Nano Lett. 2017, 17, 5862–5868. [Google Scholar] [CrossRef] [PubMed]
  5. Delmas, C.; Braconnier, J.-J.; Fouassier, C.; Hagenmuller, P. Electrochemical intercalation of sodium in NaxCoO2 bronzes. Solid State Ionics 1981, 3–4, 165–169. [Google Scholar] [CrossRef]
  6. Berthelot, R.; Carlier, D.; Delmas, C. Electrochemical investigation of the P2-NaxCoO2 phase diagram. Nat. Mater. 2011, 10, 74–80. [Google Scholar] [CrossRef] [PubMed]
  7. Komaba, S.; Takei, C.; Nakayama, T.; Ogata, A.; Yabuuchi, N. Electrochemical intercalation activity of layered NaCrO2 vs. LiCrO2. Electrochem. Commun. 2010, 12, 355–358. [Google Scholar] [CrossRef]
  8. Wang, X.; Tamaru, M.; Okubo, M.; Yamada, A. Electrode Properties of P2–Na2/3MnyCo1–yO2 as Cathode Materials for Sodium-Ion Batteries. J. Phys. Chem. C 2013, 117, 15545–15551. [Google Scholar] [CrossRef]
  9. Shinichi, K.; Tetsuri, N.; Atsushi, O.; Takaya, S.; Chikara, T.; Takada, S.; Hokura, A.; Nakai, I. Electrochemically Reversible Sodium Intercalation of Layered NaNi0.5Mn0.5O2 and NaCrO2. ECS Trans. 2009, 16, 43–55. [Google Scholar] [CrossRef]
  10. Vassilaras, P.; Toumar, A.J.; Ceder, G. Electrochemical properties of NaNi1/3Co1/3Fe1/3O2 as a cathode material for Na-ion batteries. Electrochem. Commun. 2014, 38, 79–81. [Google Scholar] [CrossRef]
  11. Xu, J.; Lee, D.H.; Raphaële, J.C.; Yu, X.Q.; Michal, L.; Andrew, J.P.; Pintacuda, G.; Yang, X.-Q.; Grey, C.P.; Meng, Y.S. Identifying the Critical Role of Li Substitution in P2–Nax[LiyNizMn1–y–z]O2 (0 < x, y, z < 1) Intercalation Cathode Materials for High-Energy Na-Ion Batteries. Chem. Mater. 2014, 26, 1260–1269. [Google Scholar] [CrossRef]
  12. Gupta, A.; Buddie, M.C.; Goodenough, J.B. Na2Ni2TeO6: Evaluation as a cathode for sodium battery. J. Power Sources 2013, 243, 817–821. [Google Scholar] [CrossRef]
  13. Wang, Y.; Xiao, R.; Hu, Y.-S.; Avdeev, M.; Chen, L. P2-Na0.6Cr0.6Ti0.4O2 cation-disordered electrode for high-rate symmetric rechargeable sodium-ion batteries. Nat. Commun. 2015, 6, 6954. [Google Scholar] [CrossRef] [PubMed]
  14. Carlier, D.; Cheng, J.H.; Berthelot, R.; Guignard, M.; Yoncheva, M.; Stoyanova, R.; Hwang, B.J.; Delmas, C. The P2-Na2/3Co2/3Mn1/3O2 phase: structure, physical properties and electrochemical behavior as positive electrode in sodium battery. Dalton Trans. 2011, 40, 9306–9312. [Google Scholar] [CrossRef] [PubMed]
  15. Yabuuchi, N.; Kajiyama, M.; Iwatate, J.; Nishikawa, H.; Hitomi, S.; Okuyama, R.; Usui, R.; Yamada, Y.; Komaba, S. P2-type NaxFe1/2Mn1/2 O2 made from earth-abundant elements for rechargeable Na batteries. Nat. Mater. 2012, 11, 512–517. [Google Scholar] [CrossRef] [PubMed]
  16. Caballero, A.; Hernan, L.; Morales, J.; Sanchez, L.; Pena, J.S.; Aranda, M. Synthesis and characterization of high-temperature hexagonal P2-Na0.6MnO2 and its electrochemical behaviour as cathode in sodium cells. J. Mater. Chem. 2002, 12, 1142–1147. [Google Scholar] [CrossRef]
  17. Mu, L.Q.; Xu, S.Y.; Li, Y.M.; Hu, Y.-S.; Li, H.; Chen, L.Q.; Huang, X.J. Prototype Sodium-Ion Batteries Using an Air-Stable and Co/Ni-Free O3-Layered Metal Oxide Cathode. Adv. Mater. 2015, 27, 6928–6933. [Google Scholar] [CrossRef] [PubMed]
  18. Yabuuchi, N.; Yoshida, H.; Komaba, S. Crystal Structures and Electrode Performance of Alpha-NaFeO2 for Rechargeable Sodium Batteries. Electrochemical 2012, 80, 716–719. [Google Scholar] [CrossRef]
  19. Wang, Y.S.; Liu, J.; Lee, B.; Qiao, R.M.; Yang, Z.Z.; Xu, S.Y.; Yu, X.Q.; Gu, L.; Hu, Y.-S.; Yang, W.L.; et al. Ti-substituted tunnel-type Na0.44MnO2 oxide as a negative electrode for aqueous sodium-ion batteries. Nat. Commun. 2015, 6, 6401. [Google Scholar] [CrossRef] [PubMed]
  20. Kim, D.J.; Ponraj, R.; Kannan, A.G.; Lee, H.-W.; Fathi, R.; Ruffo, R.; Mari, C.M.; Kim, D.K. Diffusion behavior of sodium ions in Na0.44MnO2 in aqueous and non-aqueous electrolytes. J. Power Sources 2013, 244, 758–763. [Google Scholar] [CrossRef]
  21. Wang, Y.S.; Mu, L.Q.; Liu, J.; Yang, Z.Z.; Yu, X.Q.; Gu, L.; Hu, Y.-S.; Li, H.; Yang, X.-Q.; Chen, L.Q.; et al. A Novel High Capacity Positive Electrode Material with Tunnel-Type Structure for Aqueous Sodium-Ion Batteries. Adv. Energy Mater. 2015, 5, 1501005. [Google Scholar] [CrossRef]
  22. Jian, Z.L.; Han, W.Z.; Lu, X.; Yang, H.X.; Hu, Y.-S.; Zhou, J.; Zhou, Z.B.; Li, J.Q.; Chen, W.; Chen, D.F.; et al. Superior Electrochemical Performance and Storage Mechanism of Na3V2(PO4)3 Cathode for Room-Temperature Sodium-Ion Batteries. Adv. Energy Mater. 2013, 3, 156–160. [Google Scholar] [CrossRef]
  23. Wessells, C.D.; Huggins, R.A.; Cui, Y. Copper hexacyanoferrate battery electrodes with long cycle life and high power. Nat. Commun. 2011, 2, 1563. [Google Scholar] [CrossRef] [PubMed]
  24. Wessells, C.D.; Peddada, S.V.; Huggins, R.A.; Cui, Y. Nickel Hexacyanoferrate Nanoparticle Electrodes For Aqueous Sodium and Potassium Ion Batteries. Nano Lett. 2011, 11, 5421–5425. [Google Scholar] [CrossRef] [PubMed]
  25. Zhu, Y.J.; Han, X.G.; Xu, Y.H.; Liu, Y.H.; Zheng, S.Y.; Xu, K.; Hu, L.B.; Wang, C.S. Electrospun Sb/C Fibers for a Stable and Fast Sodium-Ion Battery Anode. Acs Nano 2013, 7, 6378–6386. [Google Scholar] [CrossRef]
  26. Darwiche, A.; Marino, C.; Sougrati, M.T.; Fraisse, B.; Stievano, L.; Monconduit, L. Better Cycling Performances of Bulk Sb in Na-Ion Batteries Compared to Li-Ion Systems: An Unexpected Electrochemical Mechanism. J. Am. Chem. Soc. 2012, 134, 20805–20811. [Google Scholar] [CrossRef] [PubMed]
  27. Komaba, S.; Matsuura, Y.; Ishikawa, T.; Yabuuchi, N.; Murata, W.; Kuze, S. Redox reaction of Sn-polyacrylate electrodes in aprotic Na cell. Electrochem. Commun. 2012, 21, 65–68. [Google Scholar] [CrossRef]
  28. Xiao, L.F.; Cao, Y.L.; Xiao, J.; Wang, W.; Libor, K.; Nie, Z.M.; Liu, J. High capacity, reversible alloying reactions in SnSb/C nanocomposites for Na-ion battery applications. Chem. Commun. 2012, 48, 3321–3323. [Google Scholar] [CrossRef] [PubMed]
  29. Qian, J.; Wu, X.; Cao, Y.; Ai, X.; Yang, H. High Capacity and Rate Capability of Amorphous Phosphorus for Sodium Ion Batteries. Angew. Chem. Int. Ed. 2013, 125, 4731–4734. [Google Scholar] [CrossRef]
  30. Kim, Y.; Park, Y.; Choi, A.; Choi, N.-S.; Kim, J.; Lee, J.; Ryu, J.H.; Seung, M.O.; Lee, K.T. An Amorphous Red Phosphorus/Carbon Composite as a Promising Anode Material for Sodium Ion Batteries. Adv. Mater. 2013, 25, 3045–3049. [Google Scholar] [CrossRef] [PubMed]
  31. Senguttuvan, P.; Rousse, G.; Seznec, V.; Tarascon, J.-M.; Palacín, M.R. Na2Ti3O7: Lowest Voltage Ever Reported Oxide Insertion Electrode for Sodium Ion Batteries. Chem. Mater. 2011, 23, 4109–4111. [Google Scholar] [CrossRef]
  32. Wu, D.; Li, X.; Xu, B.; Wu, N.; Liu, L.; Ceder, G. NaTiO2: A layered anode material for sodium-ion batteries. Energy Environ. Sci. 2015, 8, 195–202. [Google Scholar] [CrossRef]
  33. Sun, Y.; Zhao, L.; Pan, H.L.; Lu, X.; Gu, L.; Hu, Y.-S.; Li, H.; Armand, M.; Ikuhara, Y.; Chen, L.Q.; et al. Direct atomic-scale confirmation of three-phase storage mechanism in Li4Ti5O12 anodes for room-temperature sodium-ion batteries. Nat. Commun. 2013, 4, 1870. [Google Scholar] [CrossRef] [PubMed]
  34. Wang, Y.S.; Yu, X.Q.; Xu, S.Y.; Bai, J.M.; Xiao, R.J.; Hu, Y.-S.; Li, H.; Yang, X.-Q.; Chen, L.Q.; Huang, X.J. A zero-strain layered metal oxide as the negative electrode for long-life sodium-ion batteries. Nat. Commun. 2013, 4, 2365. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Wang, S.; Wang, L.; Zhu, Z.; Hu, Z.; Zhao, Q.; Chen, J. All Organic Sodium-Ion Batteries with Na4C8H2O6. Angew. Chem. Int. Ed. 2014, 53, 5892–5896. [Google Scholar] [CrossRef] [PubMed]
  36. Zhao, L.; Zhao, J.M.; Hu, Y.-S.; Li, H.; Zhou, Z.B.; Armand, M.; Chen, L.Q. Disodium Terephthalate (Na2C8H4O4) as High Performance Anode Material for Low-Cost Room-Temperature Sodium-Ion Battery. Adv. Energy Mater 2012, 2, 962–965. [Google Scholar] [CrossRef]
  37. Alcántara, R.; Jiménez-Mateos, J.M.; Lavela, P.; Tirado, J.L. Carbon black: a promising electrode material for sodium-ion batteries. Electrochem. Commun. 2001, 3, 639–642. [Google Scholar] [CrossRef]
  38. Li, Y.M.; Xu, S.Y.; Wu, X.Y.; Yu, J.Z.; Wang, Y.S.; Hu, Y.-S.; Li, H.; Chen, L.Q.; Huang, X.J. Amorphous monodispersed hard carbon micro-spherules derived from biomass as a high performance negative electrode material for sodium-ion batteries. J. Mater. Chem. A 2015, 3, 71–77. [Google Scholar] [CrossRef]
  39. Wu, L.; Buchholz, D.; Vaalma, C.; Giffin, G.A.; Passerini, S. Apple-Biowaste-Derived Hard Carbon as a Powerful Anode Material for Na-Ion Batteries. Chem. Electr. Chem. 2016, 3, 292–298. [Google Scholar] [CrossRef]
  40. Elmira, M.L.; Jia, D.; Cui, K.; Alireza, K.; Kalisvaart, W.P.; Hazelton, M.; Mitlin, D. High-Density Sodium and Lithium Ion Battery Anodes from Banana Peels. ACS Nano 2014, 8, 7115–7129. [Google Scholar] [CrossRef]
  41. Li, Y.; Hu, Y.S.; Titirici, M.M.; Chen, L.; Huang, X. Hard Carbon Microtubes Made from Renewable Cotton as High-Performance Anode Material for Sodium-Ion Batteries. Adv. Energy Mater. 2016, 6, 1600659. [Google Scholar] [CrossRef]
  42. Lv, W.M.; Wen, F.S.; Xiang, J.Y.; Zhao, J.; Li, L.; Wang, L.M.; Liu, Z.Y.; Tian, Y.J. Peanut shell derived hard carbon as ultralong cycling anodes for lithium and sodium batteries. Electrochim. Acta 2015, 176, 533–541. [Google Scholar] [CrossRef]
  43. Stevens, D.A.; Dahn, J.R. High capacity anode materials for rechargeable sodium-ion batteries. J. Electrochem. Soc. 2000, 147, 1271–1273. [Google Scholar] [CrossRef]
  44. Shinichi, K.; Wataru, M.; Toru, I.; Naoaki, Y.; Tomoaki, O.; Tetsuri, N.; Atsushi, O.; Kazuma, G.; Kazuya, F. Electrochemical Na Insertion and Solid Electrolyte Interphase for HardCarbon Electrodes and Application to Na-Ion Batteries. Adv. Funct. Mater. 2011, 21, 3859–3867. [Google Scholar] [CrossRef]
  45. Zhang, B.; Ghimbeu, C.M.; Laberty, C.; Vix, Guterl, C.; Tarascon, J.M. Correlation Between Microstructure and Na Storage Behavior in Hard Carbon. Adv. Energy Mater. 2016, 6, 1501588. [Google Scholar] [CrossRef]

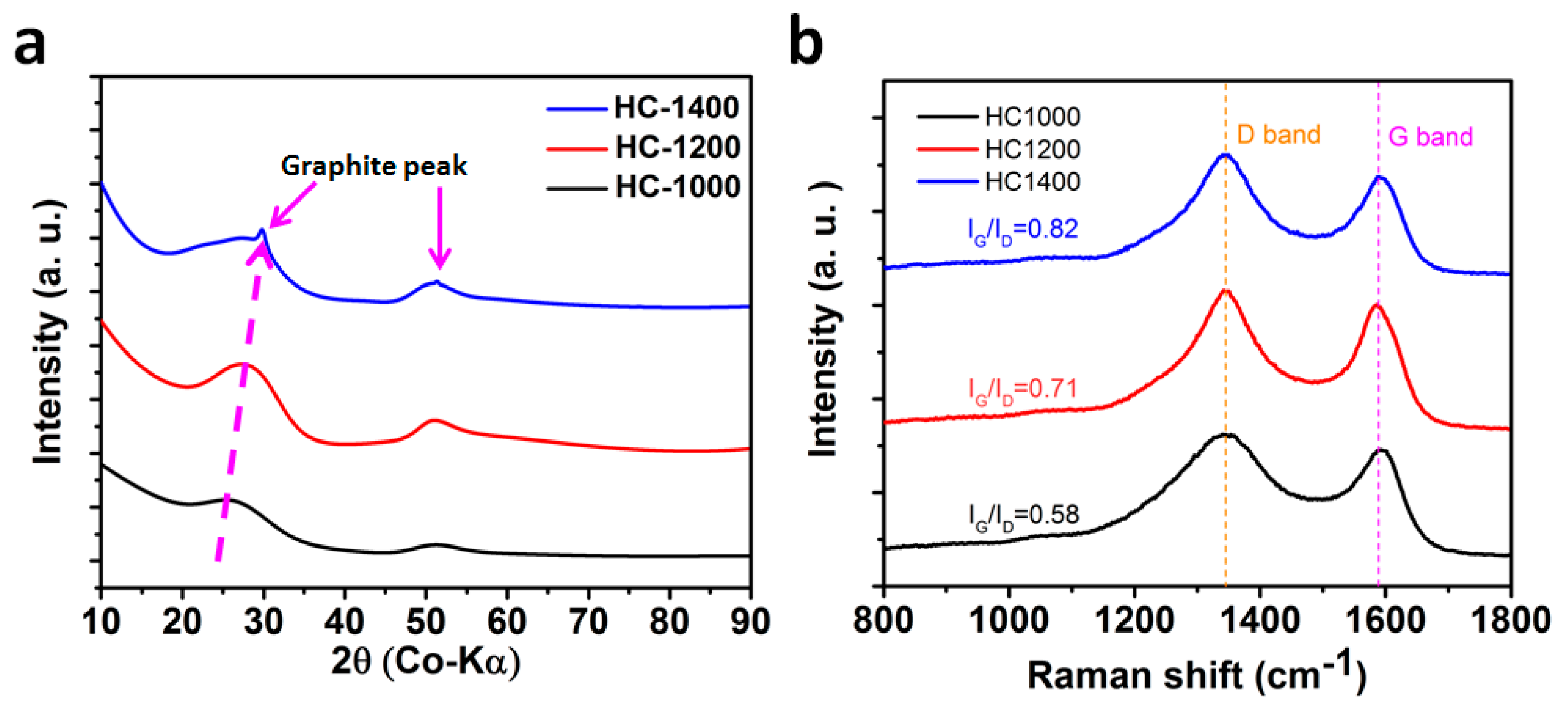

Figure 1. Structure analysis of hard carbon (HC) obtained under different conditions. (a) X-ray diffraction (XRD) patterns and (b) Raman spectra normalized by the peak height of the G band of HC carbonized at temperatures of 1000 °C, 1200 °C, and 1400 °C.
Figure 1. Structure analysis of hard carbon (HC) obtained under different conditions. (a) X-ray diffraction (XRD) patterns and (b) Raman spectra normalized by the peak height of the G band of HC carbonized at temperatures of 1000 °C, 1200 °C, and 1400 °C.
Materials 11 01294 g001
Figure 2. Morphologies of HC obtained at different temperatures observed by scanning electron microscope (SEM) (scale bar: 10 µm): (a) HC-1000; (b) HC-1200; and (c) HC-1400. TEM images and SAED patterns of (d) HC-1000; (e) HC-1000; and (f) HC-1400.
Figure 2. Morphologies of HC obtained at different temperatures observed by scanning electron microscope (SEM) (scale bar: 10 µm): (a) HC-1000; (b) HC-1200; and (c) HC-1400. TEM images and SAED patterns of (d) HC-1000; (e) HC-1000; and (f) HC-1400.
Materials 11 01294 g002

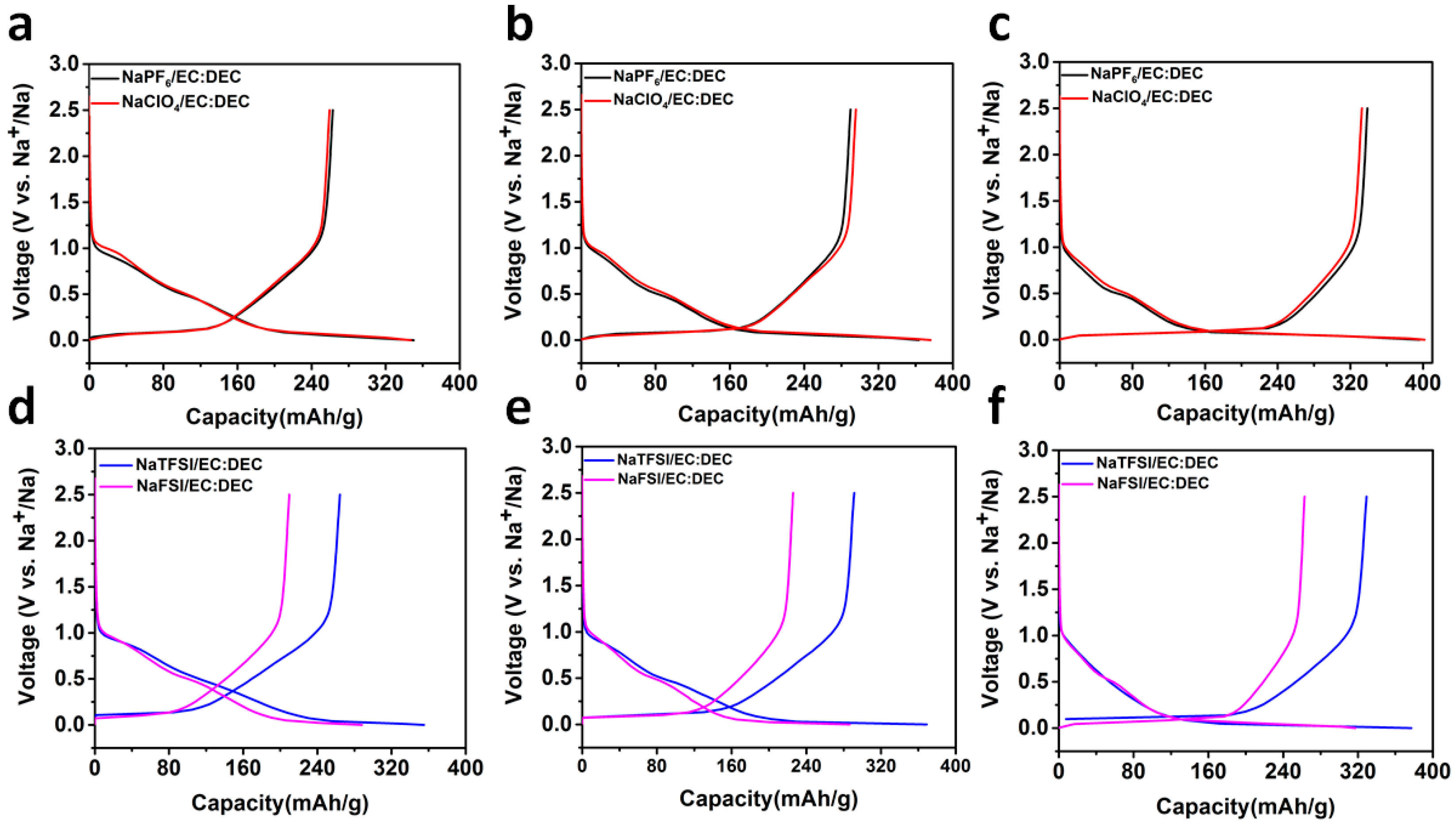

Figure 3. Storage performance of half-cells in different electrolytes. Discharge/charge curves with NaPF6/EC:DEC and NaClO4/EC:DEC electrolytes: (a) HC-1000; (b) HC-1200; and (c) HC-1400. Discharge/charge curves with NaTFSI/EC:DEC and NaFSI/EC:DEC electrolytes: (d) HC-1000; (e) HC-1200; and (f) HC-1400.
Figure 3. Storage performance of half-cells in different electrolytes. Discharge/charge curves with NaPF6/EC:DEC and NaClO4/EC:DEC electrolytes: (a) HC-1000; (b) HC-1200; and (c) HC-1400. Discharge/charge curves with NaTFSI/EC:DEC and NaFSI/EC:DEC electrolytes: (d) HC-1000; (e) HC-1200; and (f) HC-1400.
Materials 11 01294 g003

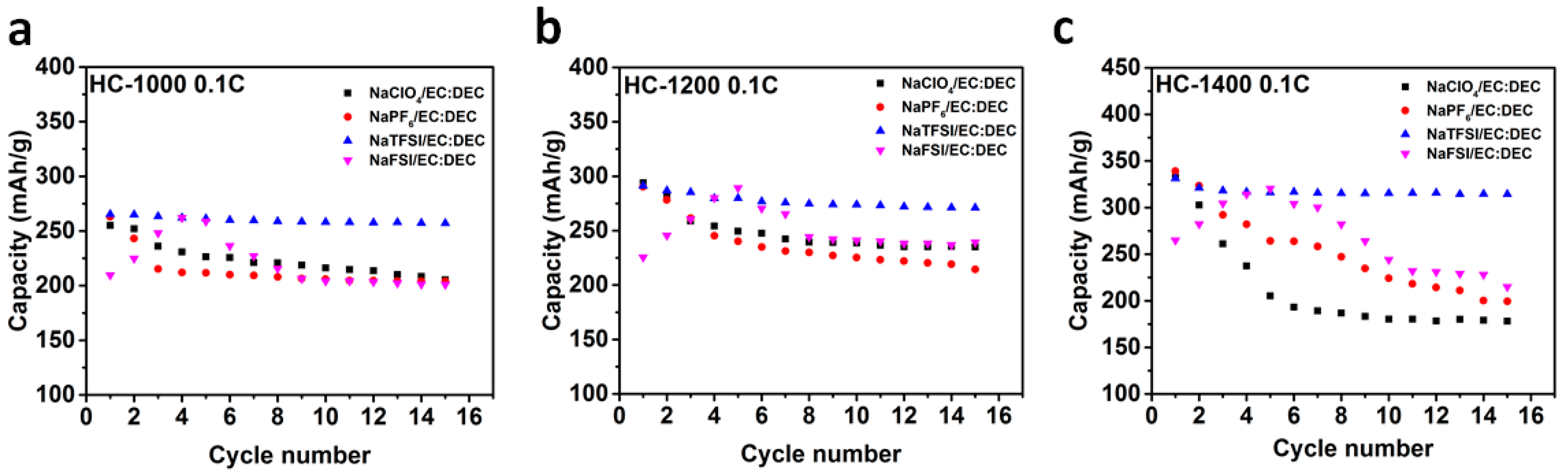

Figure 4. Cycle performance. Cycle performance of HC samples at a current rate of 0.1 C with different electrolytes: (a) HC-1000; (b) HC-1200; and (c) HC-1400.
Figure 4. Cycle performance. Cycle performance of HC samples at a current rate of 0.1 C with different electrolytes: (a) HC-1000; (b) HC-1200; and (c) HC-1400.
Materials 11 01294 g004

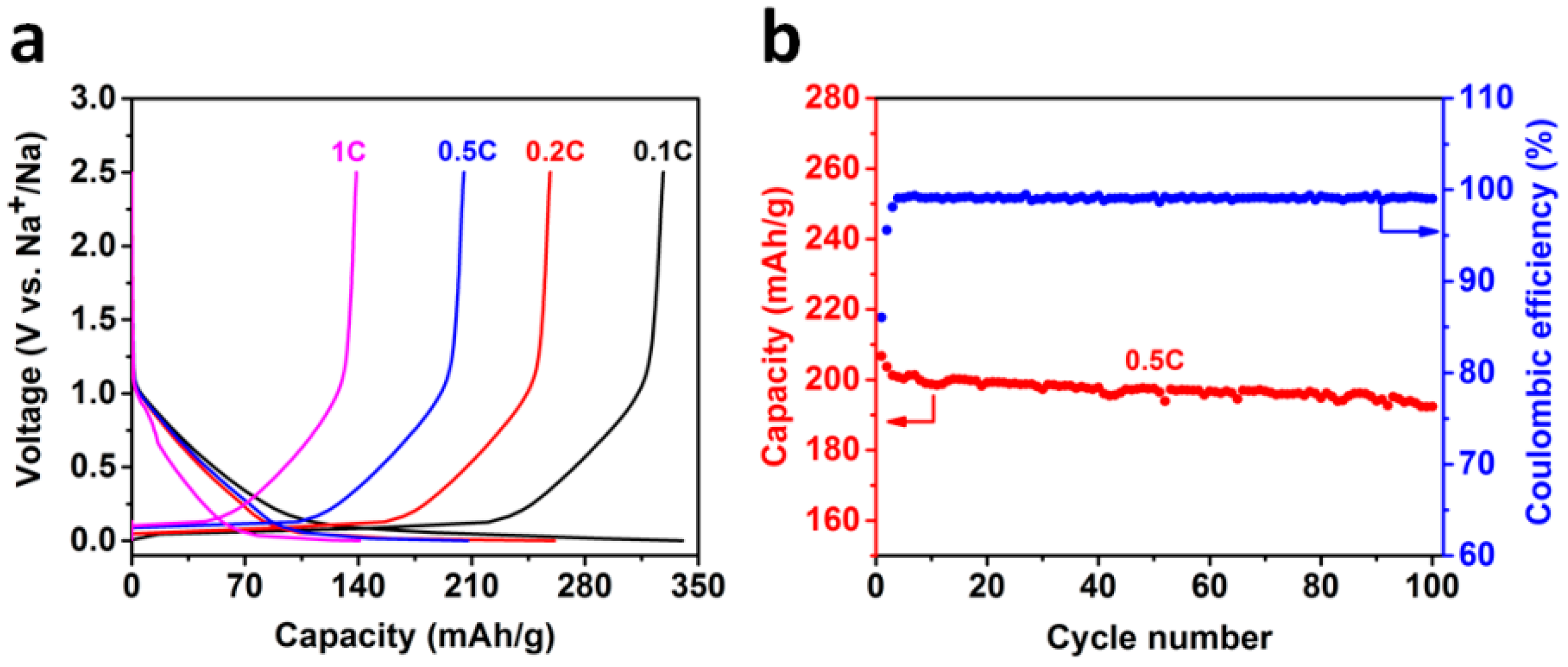

Figure 5. Rate and cycle performance. (a) Discharge/charge curves at the different rate from 0.1–1 C; and (b) cycle performance of HC-1400 with NaTFSI/EC:DEC at a current rate of 0.5 C.
Figure 5. Rate and cycle performance. (a) Discharge/charge curves at the different rate from 0.1–1 C; and (b) cycle performance of HC-1400 with NaTFSI/EC:DEC at a current rate of 0.5 C.
Materials 11 01294 g005

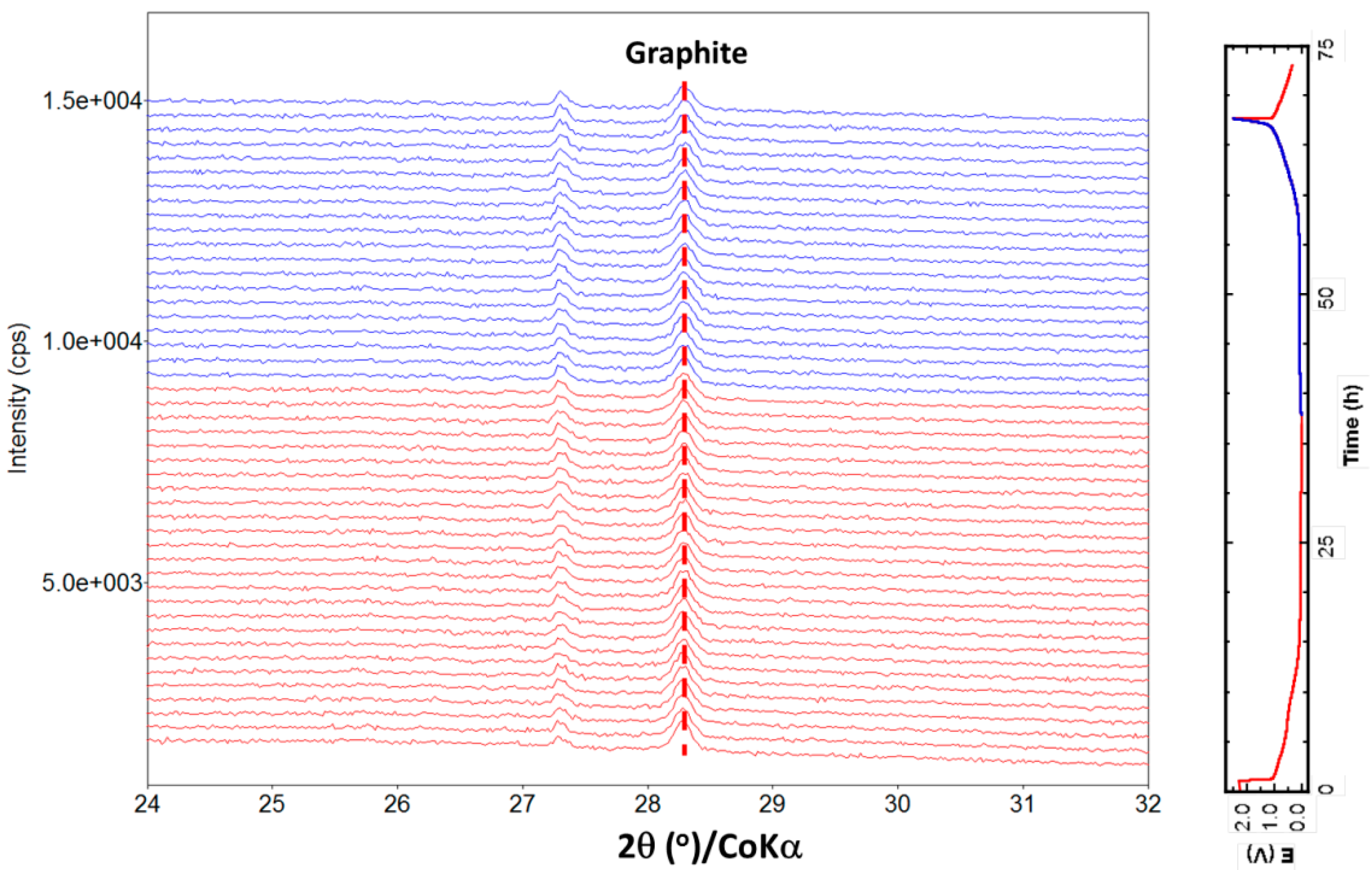

Figure 6. Structure evolution during electrochemical cycle. In situ XRD patterns collected during the first discharge/charge of the HC-1400 electrode cycled between 0–2.5 V at 0.05 C rate with 1M NaTFSI/EC:DEC electrolyte.
Figure 6. Structure evolution during electrochemical cycle. In situ XRD patterns collected during the first discharge/charge of the HC-1400 electrode cycled between 0–2.5 V at 0.05 C rate with 1M NaTFSI/EC:DEC electrolyte.
Materials 11 01294 g006
Table 1. Initial efficiency of hard carbon as anode with different electrolytes.
Table 1. Initial efficiency of hard carbon as anode with different electrolytes.
Electrode ElectrolyteHC-1000
1st Charge/Discharge (ICE)
HC-1200
1st Charge/Discharge (ICE)
HC-1400
1st Charge/Discharge (ICE)
NaPF6/EC:DEC262/349 (75.1%)290/362 (80.1%)337/391 (86.1%)
NaClO4/EC:DEC260/347(74.8%)296/376(78.5%)332/401(82.7%)
NaTFSI/EC:DEC264/354(74.5%)291/368(79.1%)332/378(88.03%)
NaFSI/EC:DEC209/287(72.8%)225/286(78.6%)264/317(83.1%)
Note: ICE is initial coulombic efficiency.
