Micromechanical Modeling of the Elasto-Viscoplastic Behavior and Incompatibility Stresses of β-Ti Alloys
Abstract
:1. Introduction
2. Micromechanical Model
2.1. Fields Equations
2.2. Single Crystal’s Constitutive Behavior
2.3. Self-Consistent Approximation Based on Affine Translated Field Method
3. Results and Discussions

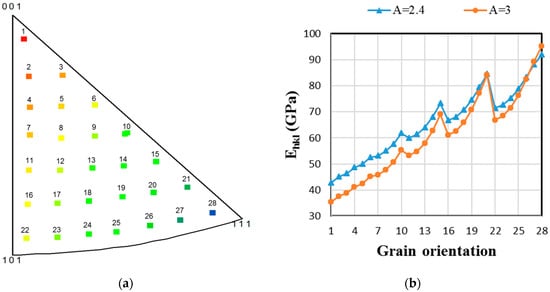

3.1. Model Parameters

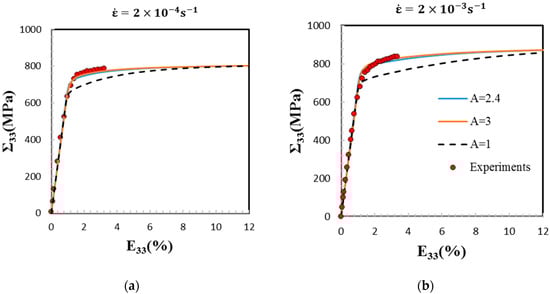

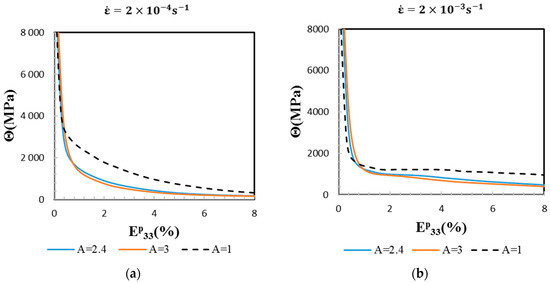

3.2. Macroscopic Stress–Strain Responses and Strain-Hardening Behavior

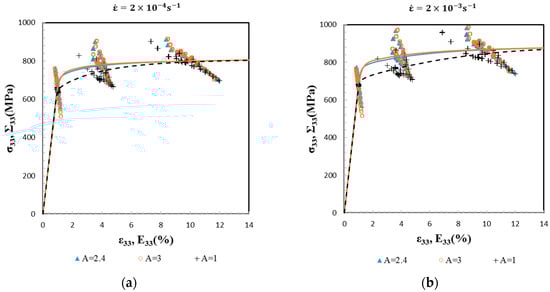

3.3. Local Mechanical Fields Analysis

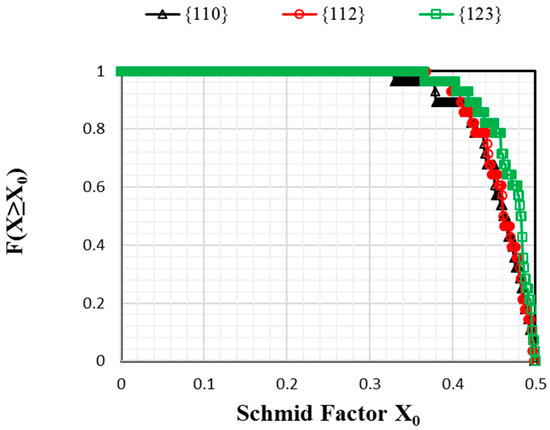

3.4. Effect of Anisotropic Elasticity on Relative Slip Activities in 100% β-Ti
4. Conclusions
- At the macroscopic scale, the two sets of β-phase SEC well predict the tensile elasto-viscoplastic behavior of a randomly oriented and equiaxed β Ti-17 at two strain rates by the EVPSC model. This shows the relevancy of the model for the prediction of the material’s hardening and strain rate sensitivity;
- In contrast, at the grain scale, the two sets of SEC lead to the scattered incompatibility of stresses and strains. These incompatibilities increase in magnitude with the Zener factor A and depend on the grain orientation. The grains oriented with their <100> direction parallel to the tensile axis are more sensitive to the anisotropy factor A (Figure 5). The local mechanical fields analysis demonstrates that considering only the macroscopic behavior is not sufficient to evaluate the effect of the elastic anisotropy of the β-phase;

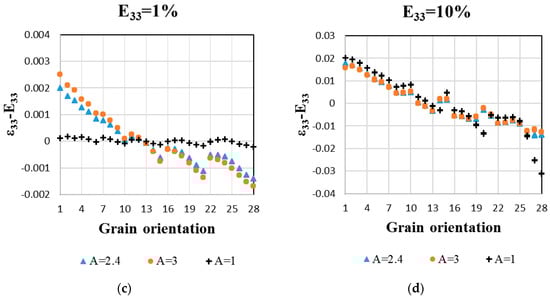

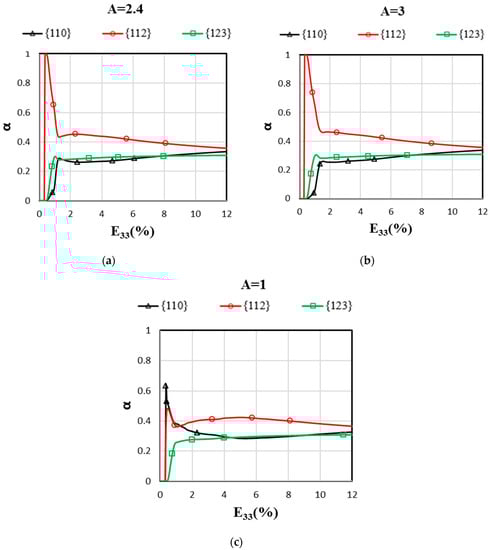

- Lastly, it is shown that the elastic anisotropy of the β-phase can affect the slip activities of a fully β-phase microstructure. Contrary to the isotropic elastic case, {112} <111> slip systems are clearly predominant at the onset of plasticity in the simulations with A = 2.4 and 3 (Figure 6).
