Next Article in Journal
Design, Development and FE Thermal Analysis of a Radially Grooved Brake Disc Developed through Direct Metal Laser Sintering
Next Article in Special Issue
Effect of Doubled Sandblasting Process and Basic Simulated Body Fluid Treatment on Fabrication of Bioactive Stainless Steels
Previous Article in Journal
Hydrolytic Hydrogen Production on Al–Sn–Zn Alloys Processed by High-Pressure Torsion
Previous Article in Special Issue
Facile Preparation and Characterization of Short-Fiber and Talc Reinforced Poly(Lactic Acid) Hybrid Composite with In Situ Reactive Compatibilizers
Open AccessArticle

Synthesis and Characterizations of (CoxMg(2−x))SiO4 Forsterite Ceramic Pigments from Mirror Waste

Department of Materials Science and Engineering, Faculty of Engineering and Industrial Technology, Silpakorn University, Nakhon Pathom 73000, Thailand
Author to whom correspondence should be addressed.
Materials 2018, 11(7), 1210;
Received: 10 June 2018 / Revised: 3 July 2018 / Accepted: 11 July 2018 / Published: 13 July 2018

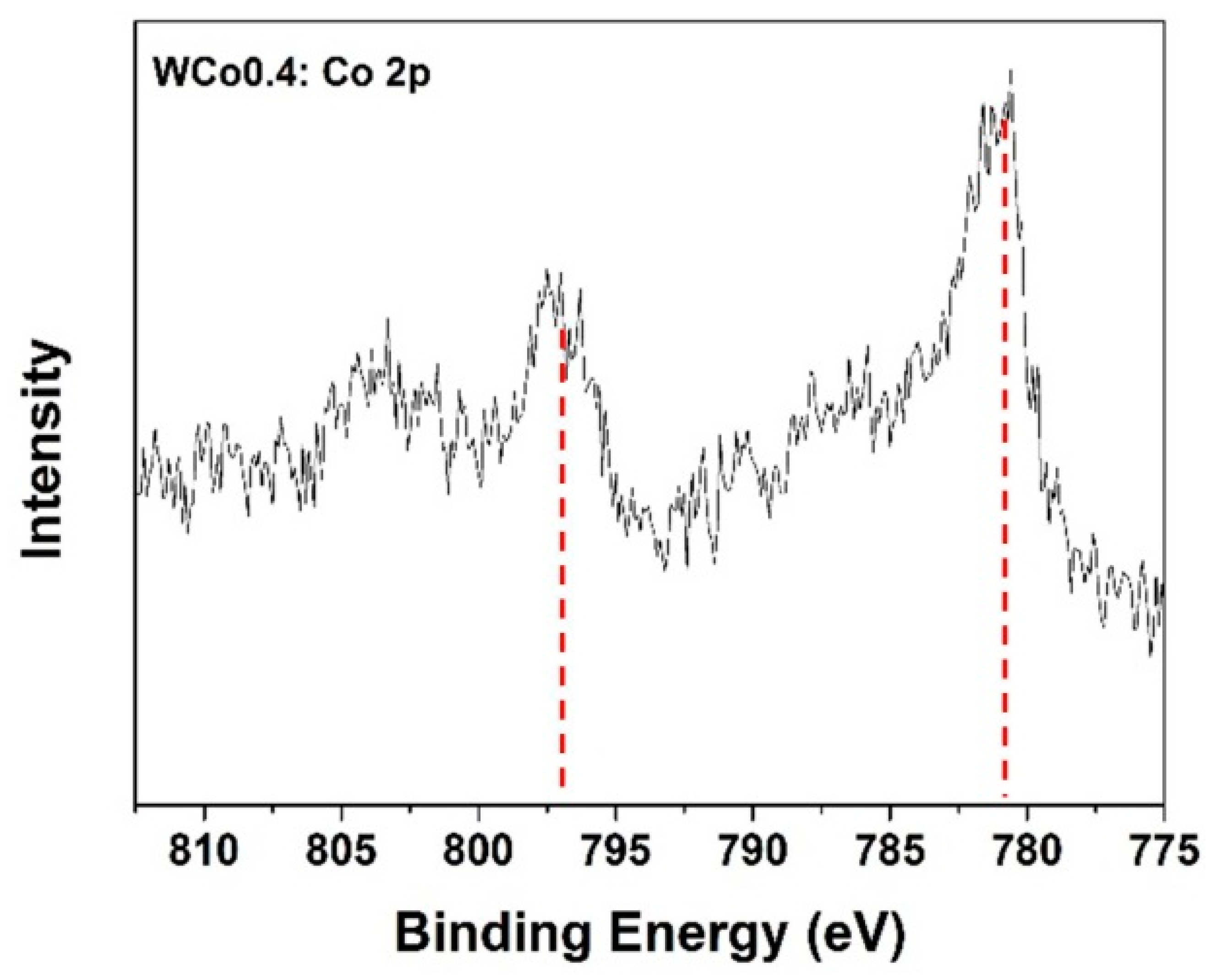

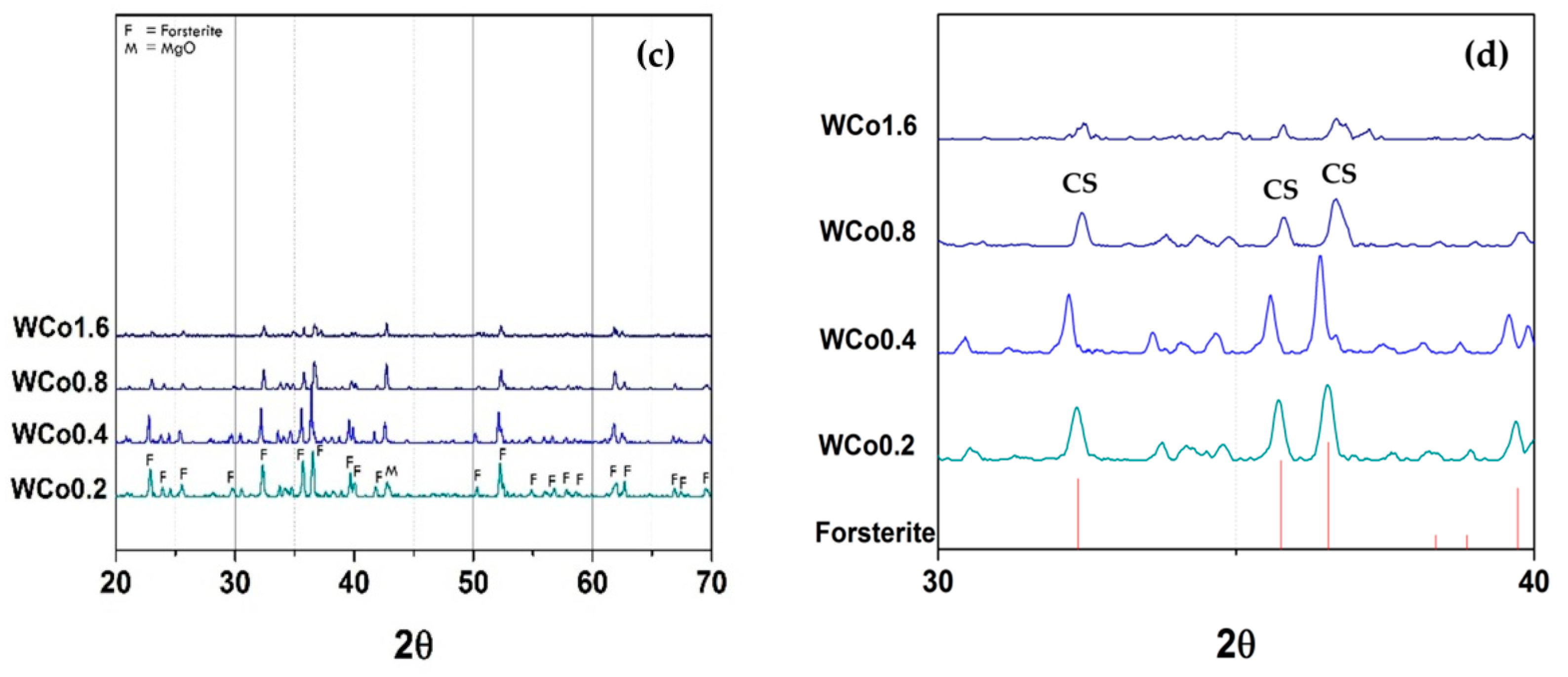

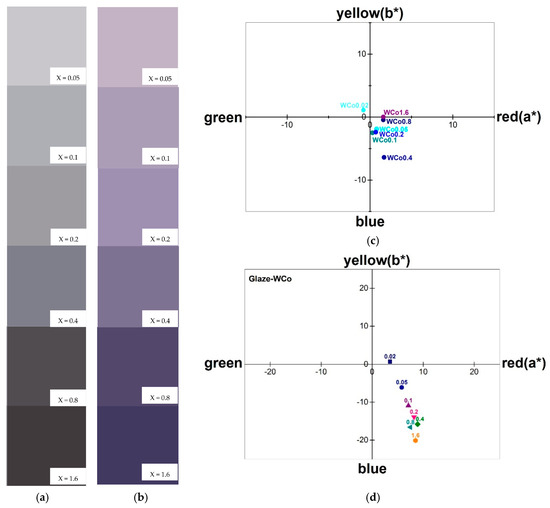

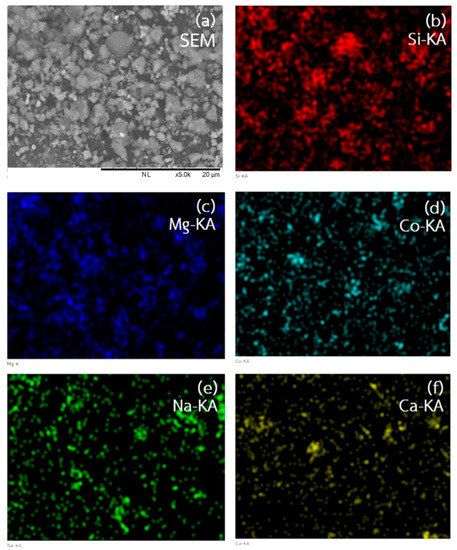

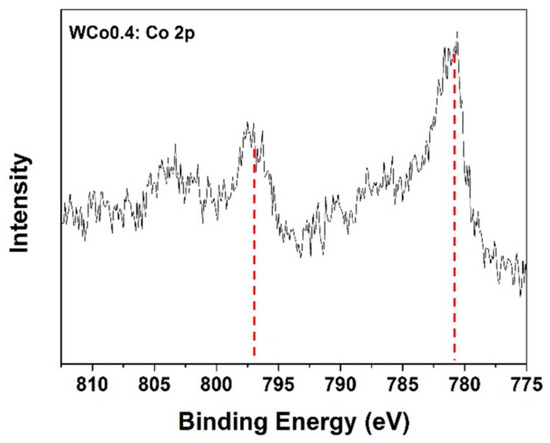

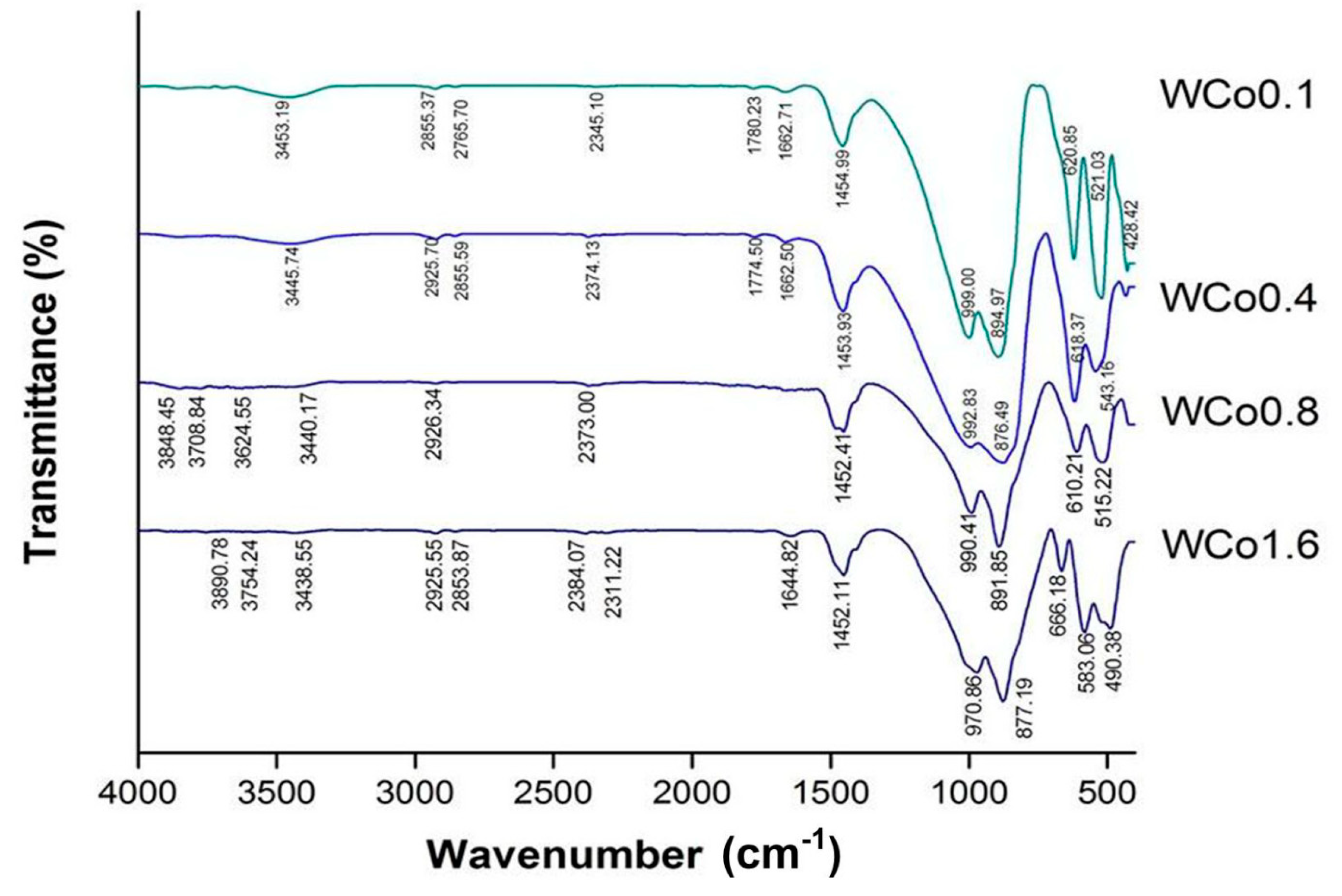

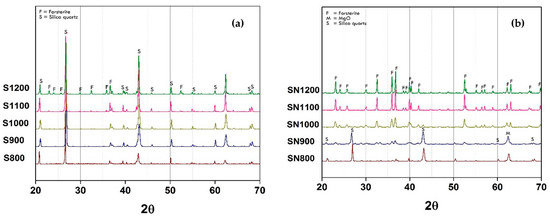

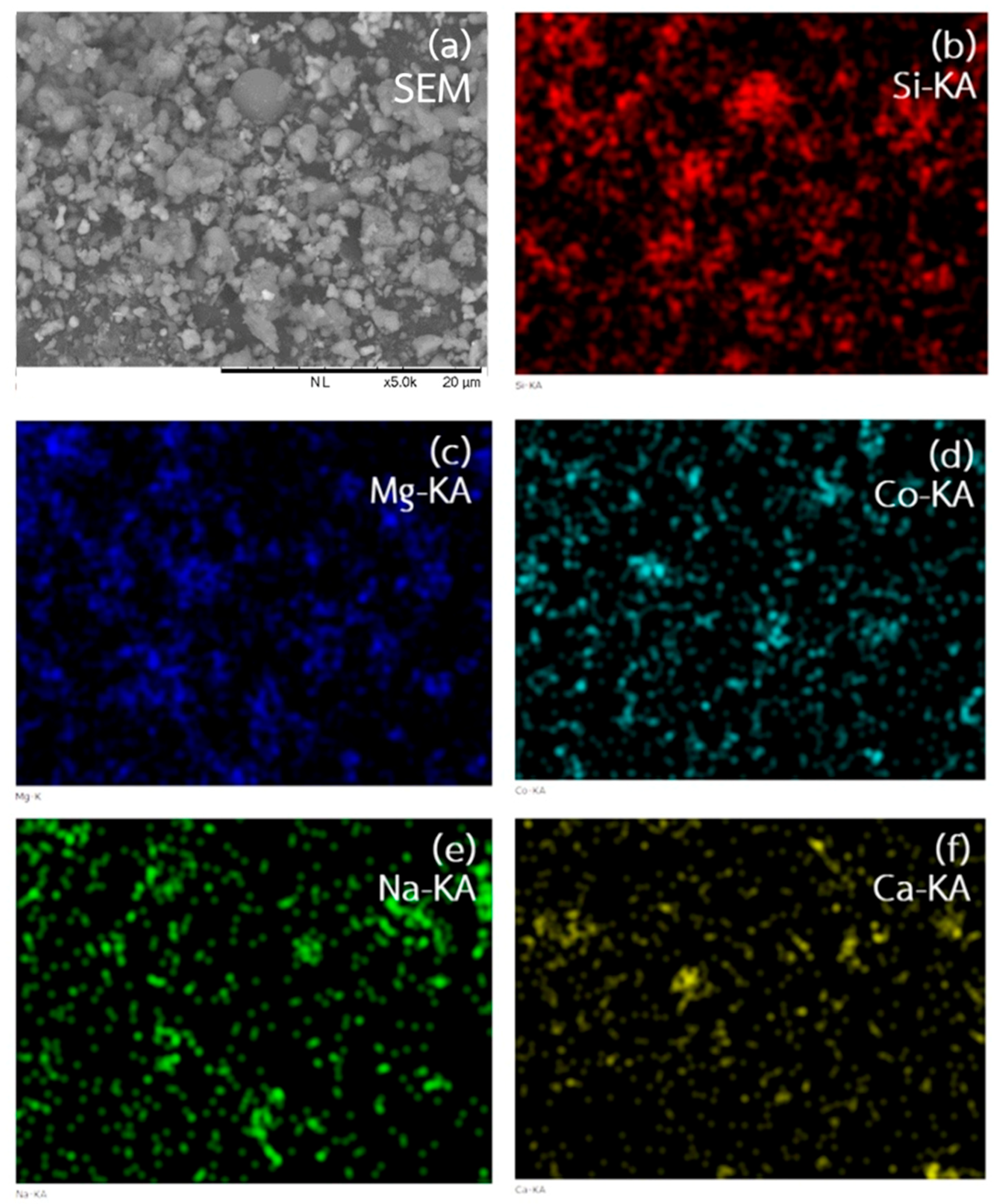

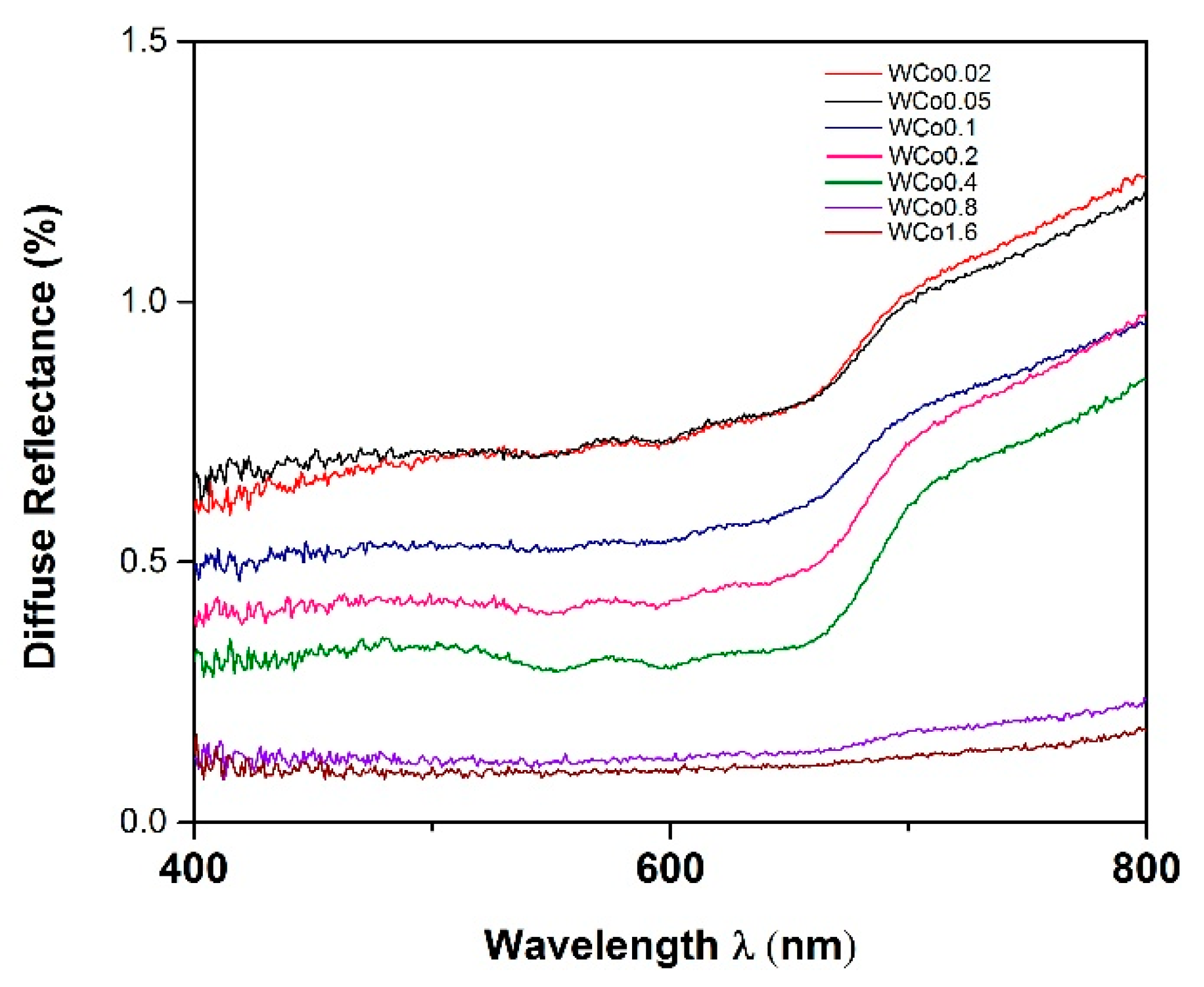

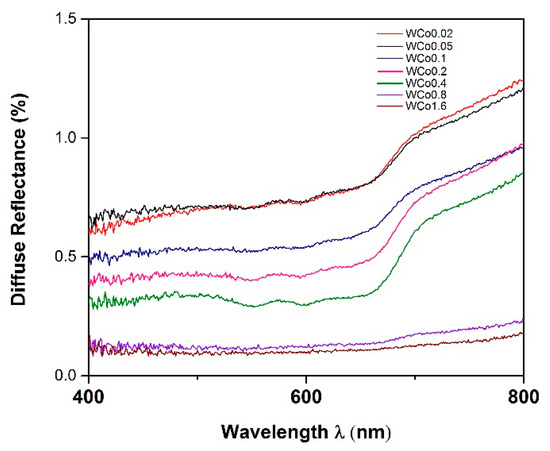

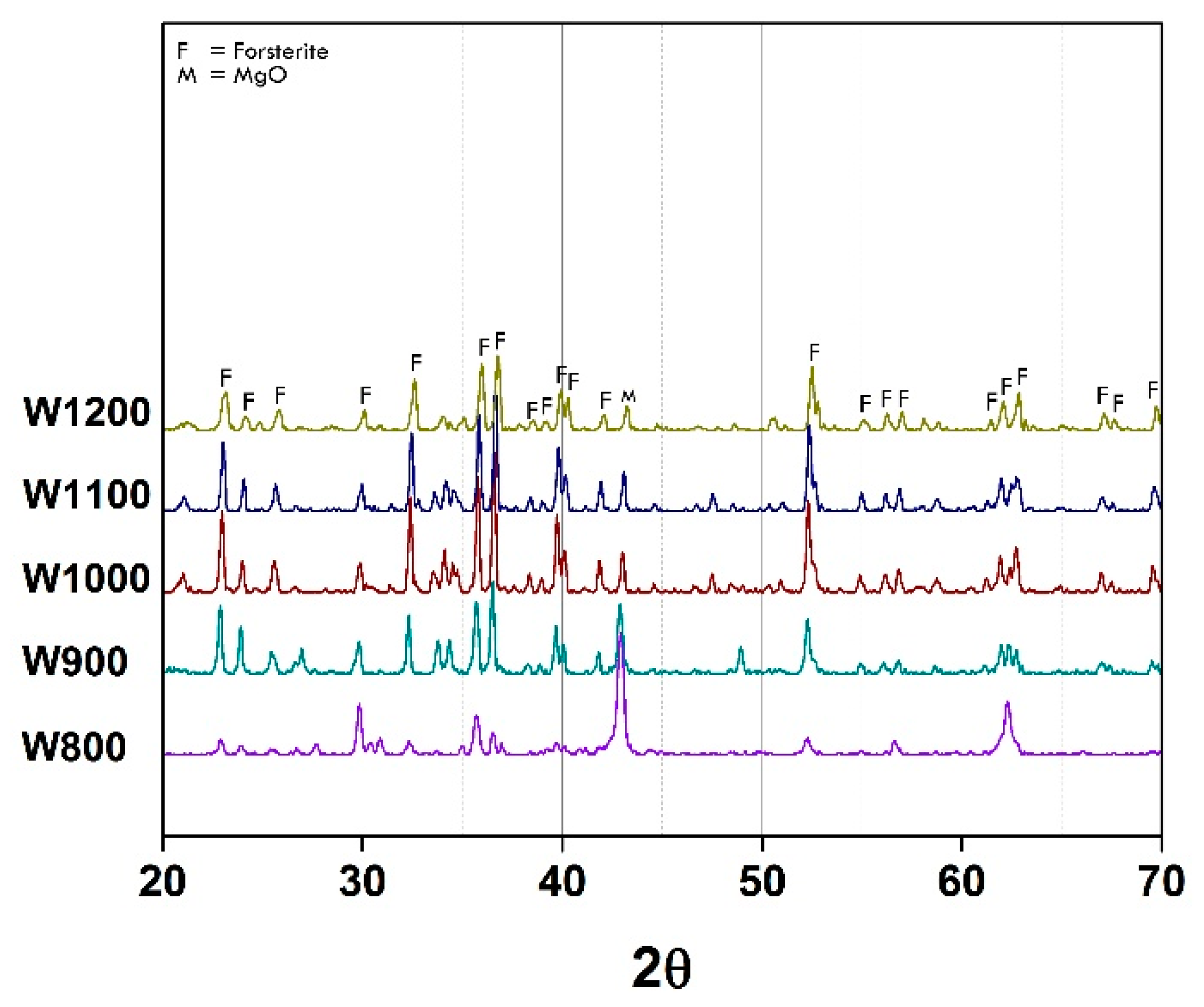

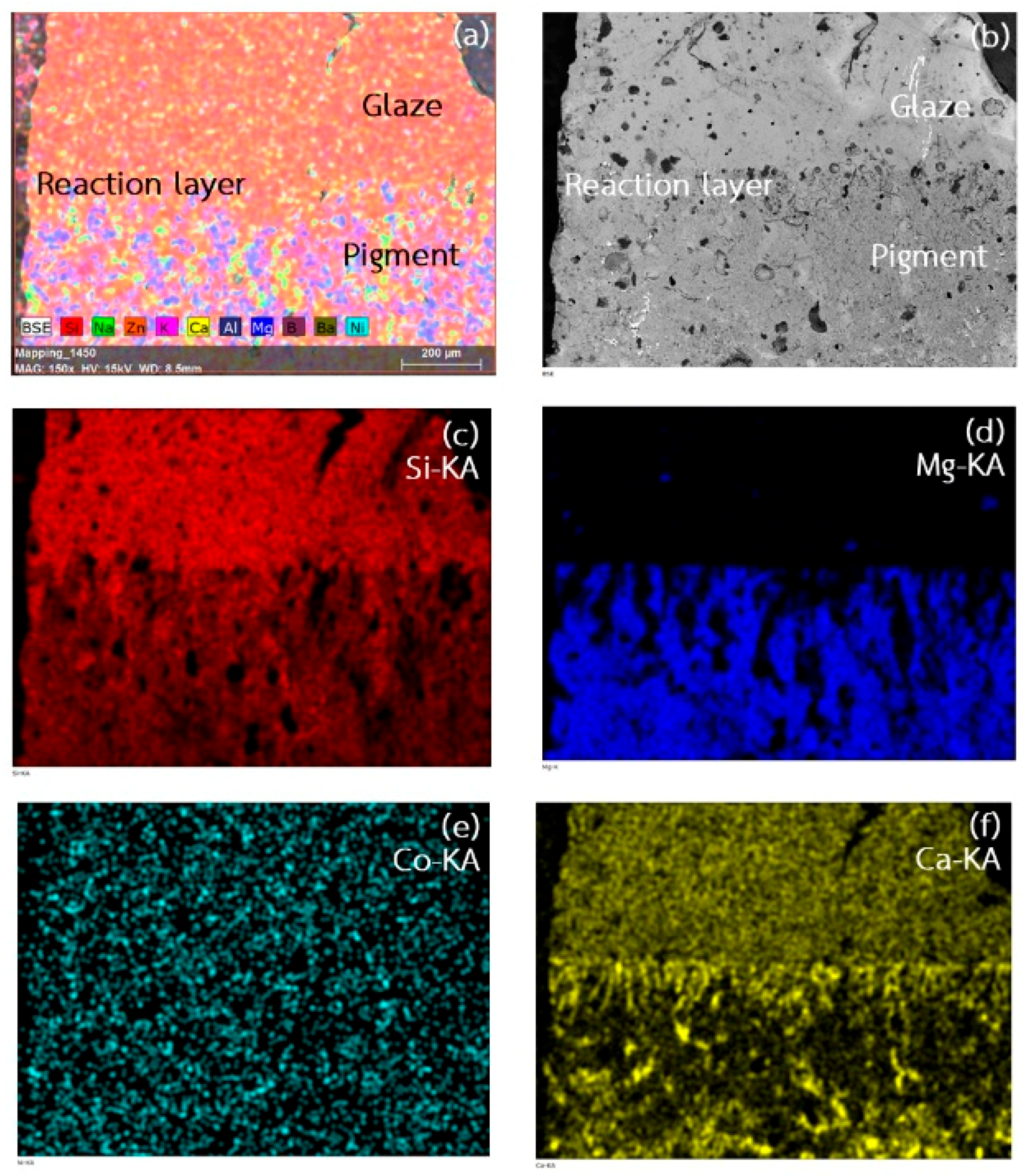

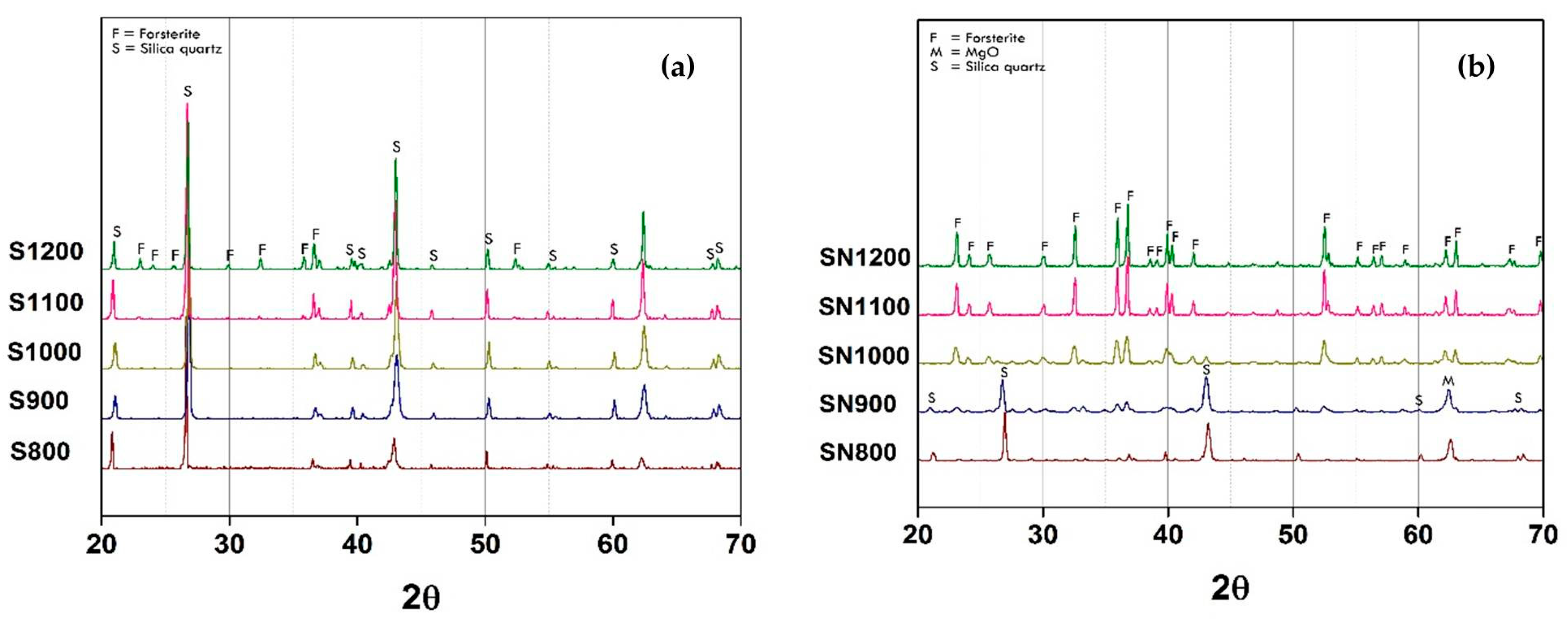

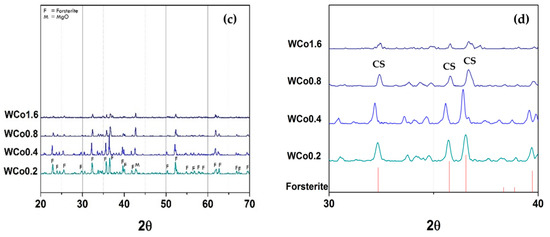

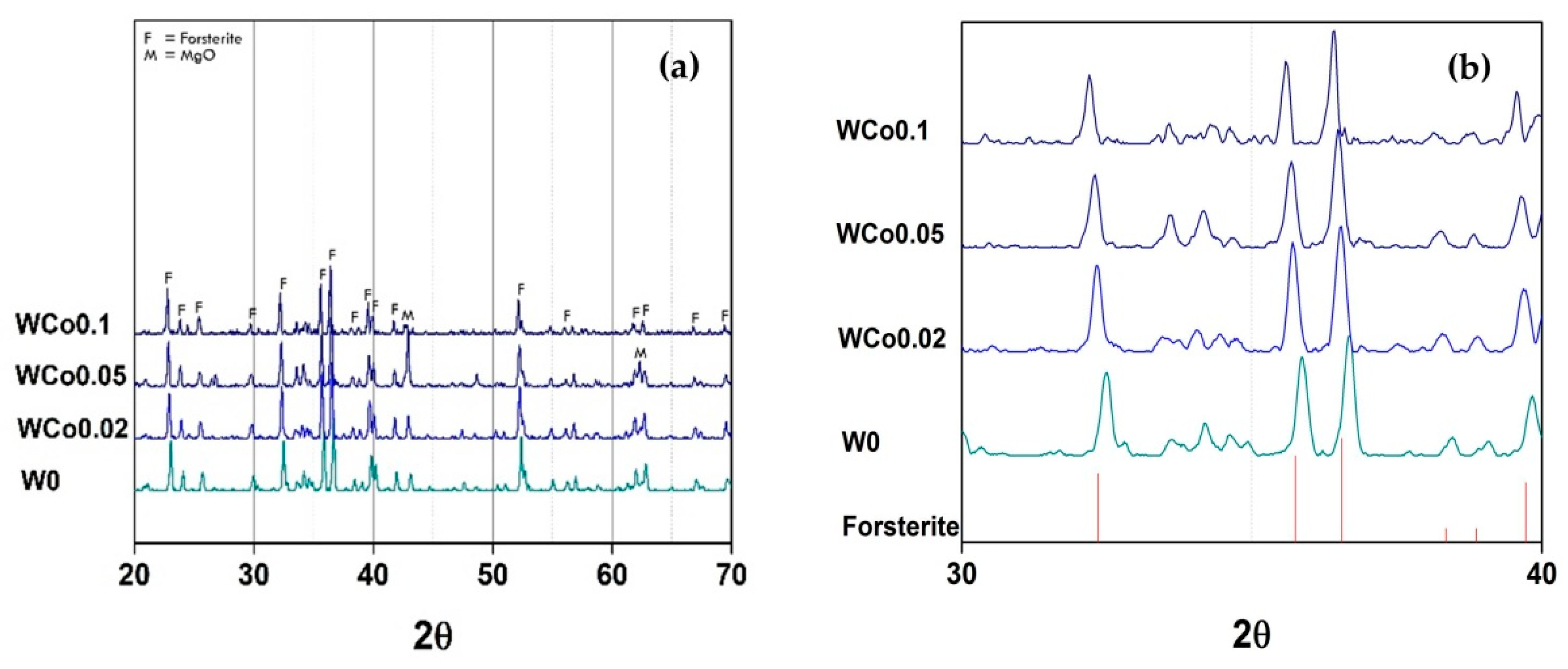

Ceramic pigments have been widely used in a variety of industries because of their excellent properties, such as high thermal stability, low-cost productions, and simple manufacturing processes. Re-use of mirror waste, which consists of silicon dioxide greater than 70%, is a method that can reduce raw materials cost. In this work, ceramic pigment with forsterite structure, Mg2SiO4, was synthesized via conventional solid state reaction by using mirror waste as a precursor. Solid solutions of Co-doped forsterite pigment, CoxMg(2−x)SiO4 where x = 0.02–1.6, were calcined at 1000 °C for 2 h. The calcined powders were characterized by X-ray diffraction technique (XRD), Fourier-transform infrared spectroscopy (FTIR), scanning electron microscope (SEM), X-ray photoelectron spectroscopy (XPS), UV-Vis spectrophotometer, and color measurement (CIEL*a*b*). XRD results confirmed that forsterite phase was found as a main phase in the ceramic powder. However, the forsterite phase decreased with increased concentration of Co to x = 0.8–1.6. This could be because of the solubility limit of Co in solid solution. In addition, the use of mirror waste as a raw material was able to reduce calcination temperature compared to the use of oxide reagents. Color measurements or CIEL*a*b* color space of forsterite pigments were located in red-blue quadrant for Co-doped pigment. View Full-Text
Keywords: ceramic pigment; forsterite; mirror waste ceramic pigment; forsterite; mirror waste
Show Figures

Figure 1

MDPI and ACS Style

Yongvanich, N.; Supanichwatin, K.; Penglan, J.; Triamnak, N. Synthesis and Characterizations of (CoxMg(2−x))SiO4 Forsterite Ceramic Pigments from Mirror Waste. Materials 2018, 11, 1210.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
