Article

Waterborne Superhydrophobic and Superoleophobic Coatings for the Protection of Marble and Sandstone

by
Dimitra Aslanidou
,
Ioannis Karapanagiotis
* and
Dimitrios Lampakis
Department of Management and Conservation of Ecclesiastical Cultural Heritage Objects, University Ecclesiastical Academy of Thessaloniki, 54250 Thessaloniki, Greece
*
Author to whom correspondence should be addressed.
Materials 2018, 11(4), 585; https://doi.org/10.3390/ma11040585
Submission received: 20 February 2018 / Revised: 22 March 2018 / Accepted: 4 April 2018 / Published: 10 April 2018
(This article belongs to the Special Issue Selected Papers from TechnoHeritage 2017)

Abstract

:
Silica nanoparticles were dispersed in an aqueous emulsion of alkoxy silanes and organic fluoropolymer. The dispersion was sprayed onto white marble and sandstone. The deposited composite coatings exhibited (i) superhydrophobicity and superoleophobicity, as evidenced by the high (>150°) static contact angles of water and oil drops as well as (ii) water and oil repellency according to the low (<7°) corresponding tilt contact angles. Apart from marble and sandstone, the coatings with extreme wetting properties were deposited onto concrete, silk, and paper, thus demonstrating the versatility of the method. The siloxane/fluoropolymer product was characterized using Fourier Transform Infrared Spectroscopy (FT-IR), Raman spectroscopy and Scanning Electron Microscopy equipped with an Energy Dispersive X-ray Spectrometer (SEM-EDX). Moreover, SEM and FT-IR were used to reveal the surface structures of the composite coatings and their transition from superhydrophobicity to superhydrophilicity which occurred after severe thermal treatment. The composite coatings slightly reduced the breathability of marble and sandstone and had practically no optical effect on the colour of the two stones. Moreover, the coatings offered good protection against water penetration by capillarity.

1. Introduction

Atmospheric water and rain can penetrate the porosity channels of natural stones causing direct (e.g., through freezing–thawing cycles) or indirect (e.g., by the deposition of pollutants) degradation effects in cultural heritage monuments, buildings and objects. The application of hydrophobic materials as protective coatings has been suggested as a potential solution for the surface protection of natural stones, used in cultural heritage [1,2,3,4,5]. More recently, advanced hybrid and composite materials of special surface structures were produced for stone protection, offering enhanced hydrophobicity and in some cases superhydrophobicity [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. The static contact angle (θS) of a water drop on a hydrophobic surface is 150° < θS < 90°, whereas on a superhydrophobic surface, θS becomes very large, typically > 150°. Consequently, superhydrophobic coatings can offer, in principle, better stone protection against the deteriorative activity of water, provided that superhydrophobicity is accompanied by water repellency. The hydrophobic/hydrophilic character of a surface is associated with the θS but water repellency/adhesion is better assessed by the tilt contact angle (θt), defined as the angle that a surface must be tilted to move a water drop. In a truly water repellent surface, θt is very small, typically < 10°. Alternatively, instead of the θt, the contact angle hysteresis, defined as the difference between the advancing and the receding contact angles, can be used to describe the dynamic wettability of a surface [7]. Large θS (i.e., superhydrophobicity) is not necessarily accompanied by small θt (i.e., water repellency). For example, a water drop on the surface of a rose petal corresponds to θS > 150° [36,37]; yet, the drop cannot roll off even when the surface is turned upside down [36], implying that the drop is pinned [37] and adheres to the superhydrophobic surface of the rose petal. Consequently, both θS and θt are important to evaluate the protection efficacy which a coating offers to natural stone.
Several methods to produce superhydrophobic and water repellent coatings can be found in the literature [6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. For example, the wetting properties of polymer surfaces can change dramatically from a usual inherent hydrophobicity (or slight hydrophilicity) to superhydrophobicity and water repellency by embedding nanoparticles into the polymer matrices [6,7]. The presence of nanoparticles results in the formation of rough surface structures which induce extreme wetting properties [6,7]. This method of controlled nanoparticle-embedding into macromolecular matrices has some important advantages for the effective and sustainable protection of the cultural heritage [32]. It is an easy, low-cost, and one-step method which can be applied to treat large surfaces in ambient conditions and it uses common silane/siloxane products (or organic polymers), nanoparticles, and solvents. Silane/siloxane products are extensively used in stone consolidation and conservation [38]. Based on the aforementioned advantages, polysiloxane + nanoparticles (or organic polymer + nanoparticles) coatings have recently received significant attention and have been suggested for the protection of natural stone [6,7,8,9,11,12,13,14,16,17,20,22,23,24,25,27,28,29,32,33,34,35].
We have recently shown that, with careful selection of the silane/siloxane product and the concentration of added nanoparticles, the resulting polysiloxane + nanoparticles coating can evince both superhydrophobicity and superoleophobicity as well as water and oil repellency [39]. This is a major improvement, as monuments and other cultural heritage objects are often exposed to urban air pollution. Consequently, designing coatings which can repel not only water but also other liquids of lower surface tension (e.g., oil) is of great importance. To the best of our knowledge, this was the first report describing the production and deposition of a superoleophobic and oil repellent coating onto calcareous stones such as marble and sandstone [39]. In this previously published study, attention was focused largely on the interaction of the composite coatings with drops of various liquids and the measurements of the θS and θt contact angles [39]. In the present study, the wetting properties of the composite coatings are further investigated. Other important evaluation tests in the field of stone conservation, such as capillary water absorption, vapour permeability, and colour change, are carefully carried out. Furthermore, the selected macromolecular product (Silres BS29A) is characterized using several spectroscopic techniques. Spectroscopy is also used to explain a severe transition from superhydrophobicity to superhydrophilicity which is induced by extreme thermal treatment. Finally, it is shown that the coatings can be easily deposited on several substrates, thus demonstrating the versatility of the method.

2. Materials and Methods

A commercially available emulsion of alkoxy silanes and organic fluoropolymer (Silres BS29A, Wacker, Munich, Germany) was diluted in distilled water to prepare a stock emulsion of 7 % w/w. Silica (SiO2) nanoparticles of 7 nm in mean diameter (Sigma-Aldrich, St. Louis, MO, USA) were added to the stock emulsion at a concentration of 2 % w/w. This concentration was selected after an extensive investigation on the effect of the SiO2 nanoparticle concentration on the wetting properties of the resulting composite film [39]. Dispersions were stirred vigorously for 30 min and sprayed immediately onto various substrates which were covered by composite films hereafter designated as Silres + nanoparticles coatings. Blocks of white marble and sandstone were used as substrates for extensive studies whereas pieces of silk and corrugated paper and blocks of concrete were used only for contact angle measurements. For comparison, pure Silres BS29A emulsion (without nanoparticles) was also sprayed onto the aforementioned substrates which were then covered by films hereafter designated as Silres coatings.
Each coating was deposited by spraying 1 mL of the dispersion or emulsion while the tip of the nozzle (660 μm in diameter) of the airbrush system (Paasche Airbrush, Chicago, IL, USA) was held at a distance of 20 cm from the sample’s surface. Coated samples were annealed at 40 °C overnight to remove residual solvent (water) and kept at room temperature for two to three days. In another set of experiments, coated sandstone specimens were subjected to extreme thermal treatment; the specimens were heated at 750 °C for 3 s.
Drops of distilled water and olive oil were placed on the treated substrates. Static (θS) and tilt (θt) contact angles were measured using an optical tensiometer apparatus (Attension Theta, Gothenburg, Sweden). For the measurements of the θt, the tilt rate was adjusted to 1°/s. The reported contact angles are averages of five measurements. Variations of the θS and θt measurements were within ±3° and ±1.5°, respectively.
The surface structures of the deposited coatings were revealed using Scanning Electron Microscopy (SEM; JEOL, JSM-6510, Tokyo, Japan). Prior to the SEM study, the samples were coated with a thin layer of carbon. Furthermore, SEM was coupled to an Energy Dispersive X-ray Spectrometer (EDX; Oxford Instruments, Abingdon, UK) and was used to characterize the Silres coating. The latter was further studied using Raman spectroscopy and Fourier Transform Infrared Spectroscopy (FT-IR).
Raman spectra were obtained at room temperature using a Horiba Lab RAM HR spectrometer (Kyoto, Japan) equipped with a Peltier-cooled charge coupled device and a microscope. Excitation was provided by the 514.5 nm line of an Ar+ laser with a laser power of ~1 mW focused on the sample by a standard 100× objective in a spot with a diameter of ~1 μm. Spectra were collected at 3 cm−1 resolution in the range of 155–3460 cm−1; typical accumulation times were 2–5 min. For the best performance of the spectrometer, the instrument was calibrated just before and right after each measurement by using the spectrum of a silicon wafer as a reference.
FT-IR measurements were obtained using a Spectrum Spotlight 400 PerkinElmer spectrometer (Waltham, MA, USA), coupled to a microscope fitted with both white light and infrared optics and a liquid nitrogen-cooled MCT (Mercury Cadmium Telluride) detector. Spectra were collected with a resolution of 4 cm−1 and were the result of 256 scans. The aperture size was 100 × 100 μm2. All spectra were processed following a two-step procedure consisting of baseline correction and normalization. Apart from the characterization of the Silres coating, the FT-IR spectroscopy was useful to reveal chemical changes which were induced on the product after extreme thermal treatment.
Colourimetric measurements were carried out using a Miniscan XE Plus spectrophotometer (HunterLab, Reston, VA, USA) and the results were evaluated using the L*, a* b* coordinates of the CIE 1976 scale. The reported results are averages of three measurements; variations are reported
The water capillary absorption measurements were carried out by the gravimetric sorption technique [5] using uncoated bare marble and sandstone blocks and stone specimens covered by Silres and Silres + nanoparticles coatings. Sample blocks (2.5 × 2.5 × 1 cm) were placed on a filter paper pad (1 cm of Whatman paper, No. 4) partially immersed in distilled water. The setup was within a climatic chamber (RH = 30% and T = 25 °C). Samples were removed and weighed for consecutive periods of treatment time to measure the amount of absorbed water. The measurements were carried out in triplicate and variations are provided as error bars.
For the vapour permeability tests, sample blocks were fixed on top of cylindrical poly(vinyl chloride) (PVC) containers which were partially (1/2) filled with water [5]. The sealed containers were placed in a climatic chamber, (RH = 20% and T = 30 °C). The containers were weighed every 24 h. Under constant vapour flow, the water vapour permeability was evaluated as the mass of water vapour passing through the surface unit in 24 h. Three consecutive measurements were carried out with intervals of 24 h and average values and variations were calculated.

3. Results and Discussion

3.1. Characterisation of Silres BS29A

Figure 1a shows the FT-IR spectrum of the Silres coating (Silres BS29A without nanoparticles) on marble. The spectrum of the uncoated marble is included in the figure for comparison. Observations including the coating spectrum of the hydroxyl group vibrations broad band at ~3350 cm−1, the dominant bands appearing at around 2900 cm−1 (which were assigned to the C–H modes of the methylene groups), the intense carbonyl band at ~1710 cm–1 and various C–O, C–H, Si–O, Si–C modes appearing in the 1650–700 cm−1 region, indicate that the coating consisted primarily of an alkoxy silane material [40,41]. Moreover, the characteristic absorption bands at 1195 cm−1 and 955 cm−1 were probably due to the C–F2 and C–F stretching modes, respectively [42], thus suggesting the presence of a fluoropolymer in the composition of the Silres coating. The FT-IR results (Figure 1a) are in agreement with the Raman spectrum which was obtained for the Silres coating, as shown in Figure 1b. The dominant bands appearing at around 2900 cm−1, which were assigned to the C–H modes of the methylene groups as well as the various C–O, C–H, Si–O, C–C, Si–C modes appearing in the low energy region (below 1500 cm−1), indicate that the Silres coating consists predominantly of an organo alkoxy silane [43]. Furthermore, the peak at 730 cm−1 may be attributed to symmetric stretching vibrations of C–F2 scissoring and the band at ~1214 cm−1 is probably a result of asymmetric stretching vibrations of C–F2 [44]. Consequently, the results of the FT-IR and Raman spectra in Figure 1 are in agreement with the product’s (Silres BS29A) description provided by the manufacturer (Wacker) and suggest that the Silres coating is a mixture of alkoxy silanes and fluoropolymer. The presence of silicon (Si) and fluorine F in the Silres composition was furthermore evidenced using SEM-EDX, as described in the Supplementary File.
Fluoropolymer had a key role in the wetting properties of the coating as it resulted in a reduced surface energy and therefore enhanced the repulsive character of the coating against the deposition of any liquid. It was reported that the surface energy decreases in the order –CH2 > –CH3 > –CF2 > –CF2H > –CF3 [45]. Fluorinated and perfluorinated materials have low wettabilities and have therefore become the logical choice to produce superomniphobic materials, which are designed to repel any liquid [46]. However, fluorinated chemicals, including perfluoroalkylsilanes and fluoroacrylic polymers, have potentially effects on human health and on the environment [47]. Major attention has been focused on the hazardous properties of the short and long chain PFAAs (perfluoroalkyl acids) which have been recognized as contaminants of high concern owing to their high persistence, toxicity, bioaccumulation potential, and distribution in the environment [48,49].

3.2. Superhydrophobicity, Superoleophobicity, Water and Oil Repellency

Table 1 shows the θS and θt results of water and oil drops on Silres + nanoparticles coatings. For comparison, the corresponding results obtained on Silres coatings are included. Apart from marble and sandstone which were the target materials of the study, other materials including silk, corrugated paper, and concrete were coated. According to the results of Table 1, superhydrophobicity and water repellency were induced in all materials coated by Silres + nanoparticles, as water drops on these composite coatings corresponded to θS > 150° and θt < 10°. Likewise, superoleophobicity and oil repellency were achieved on Silres + nanoparticles coatings as oil drops on these composite coatings corresponded to θS > 150° and θt < 10°, except for treated paper where θS = 145°. The results of Table 1 suggest that the use of SiO2 nanoparticles enhanced the hydrophobic and oleophobic character of the coatings and their repellency against both water and oil. Lower and higher θS and θt, respectively, of water and oil drops were measured on Silres than on Silres + nanoparticles coatings.
According to the results of Table 1, contact angles of water drops on Silres + nanoparticles coatings were nearly independent of the substrate material. Static contact angles (θS) of water drops on the composite coatings were between a very small range from 158° to 165° and θt values varied within 3°–5°. Larger variations of θS and θt are reported in Table 1 for water drops on Silres coatings. It was reported that the surface structure and the apparent wetting properties of a polysiloxane coating is affected by the roughness of the underlying substrate [7]. Accordingly, different θS and θt were measured on Silres coatings placed on different substrates (Table 1). However, when nanoparticles were added, their role in the surface structure of the composite coating was dominant and therefore any effect from the underlying substrate became negligible [7,32]. This effect of the nanoparticles was previously shown [7,32] and it is herein revealed in the SEM images of Figure 2. The surfaces of the Silres + nanoparticles coatings which were deposited on marble and sandstone are shown in Figure 2a,b, respectively. It is observed that the surface structures of the two coatings are similar and therefore practically independent of the substrate morphology. Consequently, the different underlying substrates should have no effect on the interaction of the two coated surfaces of Figure 2 with the water drops, as supported by the results of Table 1.
According to the results of Table 1, the θS values of oil drops onto Silres + nanoparticles coatings on the different substrates were within 145°–160°. This is a much broader range compared to the 158°–165° range observed for the water drops. The surface tension of oil (=32 mN/m) is lower than that of water (=72 mN/m). Hence, oil drops are more sensitive in slight changes of the coating’s surface structure than water drops. This agrees with the results of a previously published paper [39]. It was reported that the effect of the nanoparticle concentration, which affected the resulting surface structure of the coating, was more dramatic on the θS of oil drops compared to the θS of water drops [39]. Consequently, small changes in the surface structure of the Silres + nanoparticles coatings induced by the underlying substrate had practically no impact on the shape of water drops but they have substantially affected the θS of oil drops.
Drops of water and oil on Silres + nanoparticles coatings which were deposited on silk, paper, and concrete are shown in Figure 3. The superhydrophobic and superoleophobic properties of the composite coatings are demonstrated. The easy/self-cleaning ability of the composite coatings is shown in Figure 4 using a block of coated sandstone. Large drops of water contaminated with soil were placed on the treated sandstone specimen (Figure 4a,b). The large drops rolled off when the specimen was slightly tilted (Figure 4b). The surface could be easily cleaned with fresh water which removed the soil contaminants (Figure 4c,d) without leaving any visible stain.
An interesting property of polysiloxane surfaces is their transition from hydrophobicity/superhydrophobicity to hydrophilicity/superhydrophilicity, which occurs after thermal treatment at high temperatures. This is a result of the degradation of the hydrophobic functional groups and their replacement by hydrophilic functional groups generated through oxidation [50,51]. For the Silres + nanoparticles coatings, this transition is reported in Figure 5. In particular, Figure 5a shows the FT-IR spectrum of the bare sandstone which was taken as a reference background. The hydrophilic nature of the stone is revealed in the corresponding photograph of Figure 5a. The measurements in Figure 5b,c were taken from a Silres + nanoparticles coating on sandstone prior and after treatment at a high temperature (750 °C), respectively. The methyl group bands at ~2900 cm−1 appeared to be strong in the fresh composite coating (Figure 5b). However, the intensities of these C−H peaks were substantially reduced after thermal treatment whereas an intensity increment of the hydroxyl group broad band was recorded (Figure 5c). This chemical change in the coating’s surface led to a severe transition from superhydrophobicity to superhydrophilicity, as evidenced by the photographs included in Figure 5b,c.

3.3. Water Capillary Absorption

The efficacy of the Silres + nanoparticles coatings to repel water absorbed by capillarity was evaluated for treated marble and sandstone specimens. For comparison, uncoated stone blocks and samples coated by Silres were included in the study. The amount of the absorbed water per unit area (Qi) after leaving the specimen in contact with water for time ti was calculated as follows [52,53]:
Q i = w i w o A
where wi is the weight of the sample after being in contact with water for time ti, wo is the initial weight of the sample prior to the test and A is the sample’s area which had been in contact with water during the test. The calculated Qi values were plotted as a function of time ti for marble (Figure 6a) and sandstone (Figure 6b) specimens.
Figure 6a shows that the bare and coated marble specimens quickly became saturated in absorbed water, as evidenced by the recorded plateaus of the three Qi − ti curves. The amounts of water were absorbed according to the following order: uncoated sample -> sample coated by Silres -> sample coated by Silres + nanoparticles, with the latter being the sample that absorbed the least amount of water at each specific ti. Consequently, the use of nanoparticles in the coating had a positive effect in the protection of marble against water penetration by capillarity. However, according to the results of Figure 6a, the difference in the Qi results between marble samples treated with hydrophobic Silres and superhydrophobic Silres + nanoparticles coatings, was within the experimental error bars.
The results for the sandstone specimens in Figure 6b qualitatively follow the same trend with the results of Figure 6a (marble). In particular, both Silres and Silres + nanoparticles coatings offered protection to the sandstone, against water absorption through capillarity, as their use resulted in reduced Qi compared to the bare, uncoated sandstone sample (Figure 6b). Moreover, the superhydrophobic composite coating gave somewhat better results but its superiority over the hydrophobic Silres coating was within the experimental error (Figure 6b).
A comparison of the two Figure 6a,b, suggests that the saturation points were recorded in longer ti for sandstone specimens which absorbed larger amounts of water compared to the corresponding marble specimens. In particular, saturations of the absorbed amounts of water were recorded at ~160 (Figure 6b) and ~10 min (Figure 6a) for sandstone and marble, respectively. Notably, after 250 min of contact with water, the amounts of water absorbed by the sandstone specimens were as follows: 0.037 g/cm2 for the uncoated sample, 0.021 g/cm2 for the sample coated by Silres, and 0.019 g/cm2 for the sample coated by Silres + nanoparticles (Figure 6b). The corresponding values for the marble specimens were lower at 0.022 g/cm2, 0.008 g/cm2, and 0.006 g/cm2, respectively (Figure 6a). Sandstone has a higher porosity and therefore a capacity to absorb larger amounts of water than marble. For this reason, the sandstone specimens needed a longer time to become saturated in absorbed water than the marble specimens, as revealed by the results of Figure 6.
For the maximum amounts of absorbed water corresponding to the plateaus of the curves in Figure 6, the reduction percentage of water absorption by capillarity (RC%) was calculated using Equation (2) [2,5]:
R C % = ( m u w m t w m u w ) × 100
where muw and mtw are the masses of water absorbed by capillarity by the untreated/bare and treated/coated specimens, respectively. An ideal coating must eliminate the amount of water absorbed by capillarity (RC% = 100).
The results are summarised in Table 2. The application of the Silres coating resulted in reductions in the amounts of absorbed water by 66.5% and 44.7% for marble and sandstone samples, respectively. These values of RC% increased by roughly an additional 10%, when nanoparticles were added to the protective coatings. In particular, the RC became 75.1% and 53.8% for the marble and sandstone samples coated by Silers + nanoparticles.

3.4. Water Vapour Permeability

A coating that is designed for the protection of stone should not affect the water vapour transport properties. The effects of the Silres and the Silres + nanoparticles coatings on water vapour permeability were evaluated for the treated marble and sandstone specimens. The reduction percentage of vapour permeability (RVP%) was calculated according to Equation (3) [5]:
R V P % = ( m u v m t v m u v ) × 100
where muv and mtv are the masses of water vapour penetrating the untreated/bare and treated/coated specimens, respectively. An ideal coating must have no effect on the water vapour permeability (RVP% = 0).
The RVP% results are reported in Table 2. The two coatings, Silres and Silres + nanoparticles, had roughly the same effect on the breathability of sandstone. A slight reduction of the RVP was noticed when nanoparticles were added to the protective coating, as the RVP% was reduced from 23.6 for sandstone coated by Silres to 20.0 for sandstone coated by Silres + nanoparticles. However, this was a very slight improvement on the transport of the water vapour. Sandstone has a high porosity which plays a dominant role in the vapour transport process. Therefore, the exact type of the surface protective coating had only a minor effect on the RVP% of the treated sandstone. This was demonstrated by the results reported for sandstone in Table 2 and is also supported by previously published reports. Rhodorsil 224 and Porosil VV Plus are two solvent-based siloxane products which were applied to sandstone and gave RVPs which were on the order of 20% [8]. Silica nanoparticles added to Rhodorsil and Porosil coatings did not have any major effect on the measured RVPs [8]. Consequently, three siloxane (Silres BS29A, Rhodorsil 224 and Porosil VV Plus) coatings on sandstone, with or without silica nanoparticles, gave roughly the same RVP, suggesting that the specific type of protective coating does not have any major effect on the breathability of sandstone.
In contrast to the highly porous sandstone, the use of nanoparticles had a major effect on the breathability of marble, which is a stone of low porosity. A major improvement on vapour transport was noticed when nanoparticles were added to the protective coating; the RVP% was reduced from 42.8 for marble coated by Silres to 16.8 for marble coated by Silres + nanoparticles. The augmented RVP% (=42.8), which was recorded when Silres was applied, indicates that the marble’s small pores were blocked by the protective material. The positive role that the nanoparticles had on water vapour permeability can be attributed to two effects. First, nanoparticles enhanced the coating’s surface roughness. Therefore, nanoparticles increased the active coating’s surface which was exposed to air; this facilitated the transport of vapour. Second, it has been reported that the diffusion rate of water vapour through a porous network increases as the hydrophobic character of the pores is enhanced [54]. In a previously published report, higher diffusion rates of water vapour through hydrophobic pores were measured than through hydrophilic pores [55]. In the present study, the nanoparticles enhanced the hydrophobic character of the coating inducing superhydrophobicity and therefore they should have a positive effect on water vapour transport through marble.

3.5. Colour Change

The optical effects of the Silres and Silres + nanoparticles coatings on marble and sandstone were evaluated through colourimetric measurements, as discussed below. The global colour differences (ΔΕ*) of marble and sandstone, induced upon coating application, was derived from Equation (4):
Δ E * = ( L t * L u * ) 2 + ( a t * a u * ) 2 + ( b t * b u * ) 2
where L*, a* and b* are the brightness, the red–green component and the yellow–blue component of the CIE 1976 scale, respectively. The “u” and “t” subscript characters correspond to the untreated/bare and treated/coated specimens, respectively.
The results are summarized in Table 3, which shows that the application of the superhydrophobic and superoleophobic Silres + nanoparticles coatings did not have any considerable optical effect on the aesthetic appearances of both marble and sandstone. The applications of the composite coatings led to colour changes in marble (ΔΕ* = 0.48) and sandstone (ΔΕ* = 1.43) which are not perceived by the human eye (ΔΕ* < 1.5).
According to the results of Table 3, the highest ΔΕ* (=3.11) was measured for sandstone coated by Silres. This optical effect is detectable by the human eye and it was largely a result of the change of the L* component which was reduced from 58.57 (uncoated sandstone) to 56.15 (sandstone coated by Silres). Moreover, a major contribution to the recorded ΔΕ* came from the change of the b* component which was increased from 3.43 to 5.37 when Silres was applied onto sandstone. The effect of the change of the a* component on the ΔΕ* was negligible. When SiO2 nanoparticles were embedded in the protective coating, their high L* (=88.00) and low b* (=−7.00) resulted in an increase of L* and decrease of b*, which became 58.00 and 4.74, respectively (sandstone coated by Silres + nanoparticles). Accordingly, this approached the corresponding values of the uncoated sandstone. Consequently, the use of the SiO2 nanoparticles had a positive effect on the optical change of sandstone: a lower ΔΕ* was measured when sandstone was coated with the composite coating than with Silres.
On the contrary, the use of the SiO2 nanoparticles had a negative effect on the optical change of marble: a higher ΔΕ* was measured when marble was coated with the composite coating compared to the colour change recorded when Silres was deposited onto the marble. In particular, ΔΕ* increased from 0.10 (marble coated by Silres) to 0.48 (marble coated by Silres + nanoparticles). In relative terms, this is a major increase. However, both colour changes are negligible in terms of perception by the human eye.

4. Conclusions

Superhydrophobic, water repellent, superoleophobic, and oil repellent properties were induced in marble and sandstone which were sprayed and coated with an aqueous dispersion that contained alkoxy silanes, organic fluoropolymer (revealed by FT-IR, Raman, and SEM-EDX studies) and silica nanoparticles. High static (>150°) and low tilt (<7°) contact angles of water and oil drops on coated stones were measured. Similar extreme wetting properties were achieved when the composite coatings were applied onto concrete, silk, and paper, demonstrating that the method can be effectively applied to treat various surfaces at ambient conditions. According to SEM images, the deposited coatings exhibited augmented roughnesses raised by surface structures at the micro/nano-meter scale.
A severe transition of the coating wettability, from superhydrophobicity to superhydrophilicity, was observed upon extreme thermal treatment as hydrophobic (methyl) groups were replaced by hydrophilic (hydroxyl) groups according to a FT-IR study.
The composite coatings slightly reduced the breathability of marble and sandstone by approximately 17 and 20% respectively, and had practically no optical effect on the colour of the two stones. Moreover, the coatings offered good protection against water penetration by capillarity.
The distinctive role of the silica nanoparticles in the aforementioned properties was elucidated, as coatings without nanoparticles were deposited on marble and sandstone and studied on a comparative basis with the composite coatings. Overall, it was demonstrated that the nanoparticles improved the properties of the protective coatings.

Supplementary Materials

Supplementary File 1

Author Contributions

I.K. conceived and designed the experiments; D.A. and D.L. performed the experiments and analyzed the data; I.K. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Allesandrini, G.; Aglietto, M.; Castelvetro, V.; Ciardelli, F.; Peruzzi, R.; Toniolo, L. Comparative evaluation of fluorinated and unfluorinated acrylic copolymers as water-repellent coating materials for stone. J. Appl. Polym. Sci. 2000, 76, 962–977. [Google Scholar] [CrossRef]
  2. Rizzarelli, P.; La Rosa, C.; Torrisi, A. Testing a fluorinated compound as a protective material for calcarenite. J. Cult. Herit. 2001, 2, 55–62. [Google Scholar] [CrossRef]
  3. Toniolo, L.; Poli, T.; Castelvetro, V.; Manariti, A.; Chiantore, O.; Lazzari, M. Tailoring new fluorinated acrylic copolymers as protective coatings for marble. J. Cult. Herit. 2002, 3, 309–316. [Google Scholar] [CrossRef]
  4. Borgia, G.C.; Piace, F.; Camaiti, M.; Cerri, F.; Fantazzini, P.; Piacenti, F. Hydrophobic treatments for stone conservation: Influence of the application method on penetration, distribution, and efficiency. Stud. Conserv. 2003, 48, 217–226. [Google Scholar] [CrossRef]
  5. Tsakalof, A.; Manoudis, P.; Karapanagiotis, I.; Chryssoulakis, I.; Panayiotou, C. Assessment of synthetic polymeric coatings for the protection and preservation of stone monuments. J. Cult. Herit. 2007, 8, 69–72. [Google Scholar] [CrossRef]
  6. Manoudis, P.N.; Papadopoulou, S.; Karapanagiotis, I.; Tsakalof, A.; Zuburtikudis, I.; Panayiotou, C. Polymer-silica nanoparticles composite films as protective coatings for stone-based monuments. J. Phys. Conf. Ser. 2007, 61, 1361–1365. [Google Scholar] [CrossRef]
  7. Manoudis, P.N.; Karapanagiotis, I.; Tsakalof, A.; Zuburtikudis, I.; Panayiotou, C. Superhydrophobic composite films produced on various substrates. Langmuir 2008, 24, 11225–11232. [Google Scholar] [CrossRef] [PubMed]
  8. Manoudis, P.N.; Karapanagiotis, I.; Tsakalof, A.; Zuburtikudis, I.; Kolinkeov, B.; Panayiotou, C. Superhydrophobic films for the protection of outdoor cultural heritage assets. Appl. Phys. A 2009, 97, 351–360. [Google Scholar] [CrossRef]
  9. Manoudis, P.N.; Tsakalof, A.; Karapanagiotis, I.; Zuburtikudis, I.; Panayiotou, C. Fabrication of super-hydrophobic surfaces for enhanced stone protection. Surf. Coat. Technol. 2009, 203, 1322–1328. [Google Scholar] [CrossRef]
  10. Mosquera, M.J.; De los Santos, D.M.; Rivas, T. Surfactant-synthesized ormosils with application to stone restoration. Langmuir 2010, 26, 6737–6745. [Google Scholar] [CrossRef] [PubMed]
  11. De Ferri, L.; Lottici, P.P.; Lorenzi, A.; Montenero, A.; Salvioli-Mariani, E. Study of silica nanoparticles–polysiloxane hydrophobic treatments for stone based monument protection. J. Cult. Herit. 2011, 12, 356–363. [Google Scholar] [CrossRef]
  12. Tian, S.; Liu, S.; Gao, F.; Ren, J. Preparation and assessment of superhydrophobic organic-inorganic hybrid coatings for conservation of Yungang Grottoes. Mater. Res. Soc. Symp. Proc. 2011, 1319, 333–338. [Google Scholar] [CrossRef]
  13. Facio, D.S.; Mosquera, M.J. Simple strategy for producing superhydrophobic nanocomposite coatings in situ on a building substrate. ACS Appl. Mater. Inter. 2013, 5, 7517–7526. [Google Scholar] [CrossRef] [PubMed]
  14. Chatzigrigoriou, A.; Manoudis, P.N.; Karapanagiotis, I. Fabrication of water repellent coatings using waterborne resins for the protection of the cultural heritage. Macromol. Symp. 2013, 331–332, 158–165. [Google Scholar] [CrossRef]
  15. Pedna, A.; Giuntoli, G.; Frediani, M.; Frediani, P.; Rosia, L. Synthesis of functionalized polyolefins with novel applications as protective coatings for stone cultural heritage. Prog. Org. Coat. 2013, 76, 1600–1607. [Google Scholar] [CrossRef]
  16. Li, D.; Xu, F.; Liu, Z.; Zhu, J.; Zhang, Q.; Shao, L. The effect of adding PDMS-OH and silica nanoparticles on sol–gel properties and effectiveness in stone protection. Appl. Surf. Sci. 2013, 266, 368–374. [Google Scholar] [CrossRef]
  17. Kapridaki, C.P.; Maravelaki-Kalaitzaki, P. TiO2–SiO2–PDMS nano-composite hydrophobic coating with self-cleaning properties for marble protection. Prog. Org. Coat. 2013, 76, 400–410. [Google Scholar] [CrossRef]
  18. Karapanagiotis, I.; Pavlou, A.; Manoudis, P.N.; Aifantis, K.E. Water repellent ORMOSIL films for the protection of stone and other materials. Mater. Lett. 2014, 131, 276–279. [Google Scholar] [CrossRef]
  19. Fermo, P.; Cappelletti, G.; Cozzi, N.; Padeletti, G.; Kaciulis, S.; Brucale, M.; Merlini, M. Hydrophobizing coatings for cultural heritage. A detailed study of resin/stone surface interaction. Appl. Phys. A 2014, 116, 341–348. [Google Scholar] [CrossRef]
  20. D’Amato, R.; Caneve, L.; Giancristofaro, C.; Persia, F.; Pilloni, L.; Rinaldi, A. Development of nanocomposites for conservation of artistic stones. Proc. Inst. Mech. Eng. Part N J. Nanoeng. Nanosyst. 2014, 228, 19–26. [Google Scholar] [CrossRef]
  21. Ugur, I. Surface characterization of some porous natural stones modified with a waterborne fluorinated polysiloxane agent under physical weathering conditions. J. Coat. Technol. Res. 2014, 11, 639–649. [Google Scholar] [CrossRef]
  22. Esposito Corcione, C.; Striani, R.; Frigione, M. Hydrophobic photopolymerizable nanostructured hybrid materials: An effective solution for the protection of porous stones. Polym. Compos. 2015, 36, 1039–1047. [Google Scholar] [CrossRef]
  23. Luo, Y.; Xiao, L.; Zhang, X. Characterization of TEOS/PDMS/HA nanocomposites for application as consolidant/hydrophobic products on sandstones. J. Cult. Herit. 2015, 16, 470–478. [Google Scholar] [CrossRef]
  24. D’Orazio, L.; Grippo, A. A water dispersed Titanium dioxide/poly (carbonate urethane) nanocomposite for protecting cultural heritage: Preparation and properties. Prog. Org. Coat. 2015, 79, 1–7. [Google Scholar] [CrossRef]
  25. Cappelletti, G.; Fermo, P.; Camiloni, M. Smart hybrid coatings for natural stones conservation. Prog. Org. Coat. 2015, 78, 511–516. [Google Scholar] [CrossRef]
  26. Kronlund, D.; Bergbreiter, A.; Lindén, M.; Grosso, D.; Smått, J.-H. Hydrophobization of marble pore surfaces using a total immersion treatment method—Influence of co-solvents and temperature on fluorosurfactant vesicle behaviour. Colloid. Surf. A 2015, 483, 104–111. [Google Scholar] [CrossRef]
  27. Gherardi, F.; Colombo, A.; D’Arienzo, M.; Di Credico, B.; Goidanich, S.; Morazzoni, F.; Simonutti, R.; Toniolo, L. Efficient self-cleaning treatments for built heritage based on highly photo active and well-dispersible TiO2 nanocrystals. Microchem. J. 2016, 126, 54–62. [Google Scholar] [CrossRef]
  28. La Russa, M.F.; Rovella, N.; De Buergo, M.A.; Belfiore, C.M.; Pezzino, A.; Crisci, G.M.; Ruffolo, S.A. Nano-TiO2 coatings for cultural heritage protection: The role of the binder on hydrophobic and self-cleaning efficacy. Prog. Org. Coat. 2016, 91, 1–8. [Google Scholar] [CrossRef]
  29. Helmi, F.M.; Hefni, Y.K. Using nanocomposites in the consolidation and protection of sandstone. Int. J. Conserv. Sci. 2016, 7, 29–40. [Google Scholar]
  30. Liu, Y.; Liu, J. Synthesis of TEOS/PDMS-OH/CTAB composite coating material as a new stone consolidant formulation. Constr. Build. Mater. 2016, 122, 90–94. [Google Scholar] [CrossRef]
  31. Striani, R.; Esposito Corcione, C.; Dell’Anna Muia, G.; Frigione, M. Durability of a sunlight-curable organic–inorganic hybrid protective coating for porous stones in natural and artificial weathering conditions. Prog. Org. Coat. 2016, 101, 1–14. [Google Scholar] [CrossRef]
  32. Karapanagiotis, I.; Manoudis, P. Superhydrophobic and water repellent polymer-nanoparticle composite films. In Industrial Applications for Intelligent Polymers and Coatings; Hosseini, M., Makhlouf, A.S.H., Eds.; Springer: Cham, Switzerland, 2016; pp. 205–221. ISBN 978-3-319-26891-0. [Google Scholar]
  33. Pino, F.; Fermo, P.; La Russa, M.; Ruffolo, S.; Comite, V.; Baghdachi, J.; Pecchioni, E.; Fratini, F.; Cappelletti, G. Advanced mortar coatings for cultural heritage protection. Durability towards prolonged UV and outdoor exposure. Environ. Sci. Pollut. Res. 2017, 24, 12608–12617. [Google Scholar] [CrossRef] [PubMed]
  34. Facio, D.S.; Carrascosa, L.A.M.; Mosquera, M.J. Producing lasting amphiphobic building surfaces with self-cleaning properties. Nanotechnology 2017, 28, 265601. [Google Scholar] [CrossRef] [PubMed]
  35. Mosquera, M.J.; Carrascosa, L.A.M.; Badreldin, N. Producing superhydrophobic/oleophobic coatings on Cultural Heritage building materials. Pure Appl. Chem. 2017, in press. [Google Scholar] [CrossRef]
  36. Feng, L.; Zhang, Y.; Xi, J.; Zhu, Y.; Wang, N.; Xia, F.; Jiang, L. Petal effect: A superhydrophobic state with high adhesive force. Langmuir 2008, 24, 4114–4119. [Google Scholar] [CrossRef] [PubMed]
  37. Manoudis, P.N.; Gemenetzis, D.; Karapanagiotis, I. A comparative study of the wetting properties of a superhydrophobic siloxane material and rose petal. Sci. Cult. 2017, 3, 7–12. [Google Scholar]
  38. Hosseini, M.; Karapanagiotis, I. (Eds.) Advanced Materials for the Conservation of Stone; Springer: Cham, Switzerland, 2018; ISBN 978-3-319-72259-7. [Google Scholar]
  39. Aslanidou, D.; Karapanagiotis, I.; Panayiotou, C. Tuning the wetting properties of siloxane-nanoparticle coatings to induce superhydrophobicity and superoleophobicity for stone protection. Mater. Des. 2016, 108, 736–744. [Google Scholar] [CrossRef]
  40. Nagai, H. Infrared spectra of stereoregular polymethyl methacrylate. J. Appl. Polym. Sci. 1963, 7, 1697–1714. [Google Scholar] [CrossRef]
  41. Kahraman, M.V.; Kuğu, M.; Menceloğlu, Y.; Kayaman-Apohan, N.; Güngör, A. The novel use of organo alkoxy silane for the synthesis of organic–inorganic hybrid coatings. J. Non-Cryst. Solids 2006, 352, 2143–2151. [Google Scholar] [CrossRef]
  42. Liu, H.; Bian, J.; Wang, Z.; Hou, C.-J. Synthesis and characterization of waterborne fluoropolymers prepared by the one-step semi-continuous emulsion polymerization of chlorotrifluoroethylene, vinyl acetate, butyl acrylate, Veova 10 and acrylic acid. Molecules 2017, 22, 184. [Google Scholar] [CrossRef] [PubMed]
  43. Domingo, C.; De Buergo, M.A.; Sánchez-Cortés, S.; Fort, R.; García-Ramos, J.V.; Gomez-Heras, M. Possibilities of monitoring the polymerization process of silicon-based water repellents and consolidants in stones through infrared and Raman spectroscopy. Prog. Org. Coat. 2008, 63, 5–12. [Google Scholar] [CrossRef]
  44. Subramanian, R.; Shanmugam, K.; Marappan, S. Fabrication of robust superhydrophobic coatings using PTFE-MWCNT nanocomposite: Supercritical fluid processing. Surf. Interface Anal. 2018, 50, 464–470. [Google Scholar] [CrossRef]
  45. Hare, E.F.; Shafrin, E.G.; Zisman, W.A. Properties of films of adsorbed fluorinated acids. J. Phys. Chem. 1954, 58, 236–239. [Google Scholar] [CrossRef]
  46. Kota, A.K.; Kwon, G.; Tuteja, A. The design and applications of superomniphobic surfaces. NPG Asia Mater. 2014, 6, e109. [Google Scholar] [CrossRef]
  47. Zhang, P.; Dong, S.; Li, B.; Wei, X.; Zhang, X. Durable and fluorine-free superhydrophobic coatings from palygorskite-rich spent bleaching earth. Appl. Clay Sci. 2018. [Google Scholar] [CrossRef]
  48. Martin, J.W.; Mabury, S.A.; Solomon, K.R.; Muir, D.C. Dietary accumulation of perfluorinated acids in juvenile rainbow trout (Oncorhynchus mykiss). Environ. Toxicol. Chem. 2003, 22, 189–195. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, Z.; Cousins, I.T.; Scheringer, M.; Hungerbuehler, K. Hazard assessment of fluorinated alternatives to long-chain perfluoroalkyl acids (PFAAs) and their precursors: Status quo, ongoing challenges and possible solutions. Environ. Int. 2015, 75, 172–179. [Google Scholar] [CrossRef] [PubMed]
  50. Schutzius, T.M.; Bayer, I.S.; Jursich, G.M.; Dasa, A.; Megaridis, C.M. Superhydrophobic−superhydrophilic binary micropatterns by localized thermal treatment of polyhedral oligomeric silsesquioxane (POSS)–silica films. Nanoscale 2012, 4, 5378–5385. [Google Scholar] [CrossRef] [PubMed]
  51. Karapanagiotis, I.; Manoudis, P.N.; Zurba, A.; Lampakis, D. From hydrophobic to superhydrophobic and superhydrophilic siloxanes by thermal treatment. Langmuir 2014, 30, 13235–13243. [Google Scholar] [CrossRef] [PubMed]
  52. Lettieri, M.; Masieri, M. Performances and coating morphology of a siloxane-based hydrophobic product applied in different concentrations on a highly porous stone. Coatings 2016, 6, 60. [Google Scholar] [CrossRef]
  53. Gherardi, F.; Roveri, M.; Goidanich, S.; Toniolo, L. Photocatalytic nanocomposites for the protection of European architectural heritage. Materials 2018, 11, 65. [Google Scholar] [CrossRef] [PubMed]
  54. Dumée, L.; Campbell, J.L.; Sears, K.; Schütz, J.; Finn, N.; Duke, M.; Gray, S. The impact of hydrophobic coating on the performance of carbon nanotube bucky-paper membranes in membrane distillation. Desalination 2011, 283, 64–67. [Google Scholar] [CrossRef]
  55. Kronlund, D.; Bergbreiter, A.; Meierjohann, A.; Kronberg, L.; Lindén, M.; Grosso, D.; Smått, J.-H. Hydrophobization of marble pore surfaces using a total immersion treatment method—Product selection and optimization of concentration and treatment time. Prog. Org. Coat. 2015, 85, 159–167. [Google Scholar] [CrossRef]

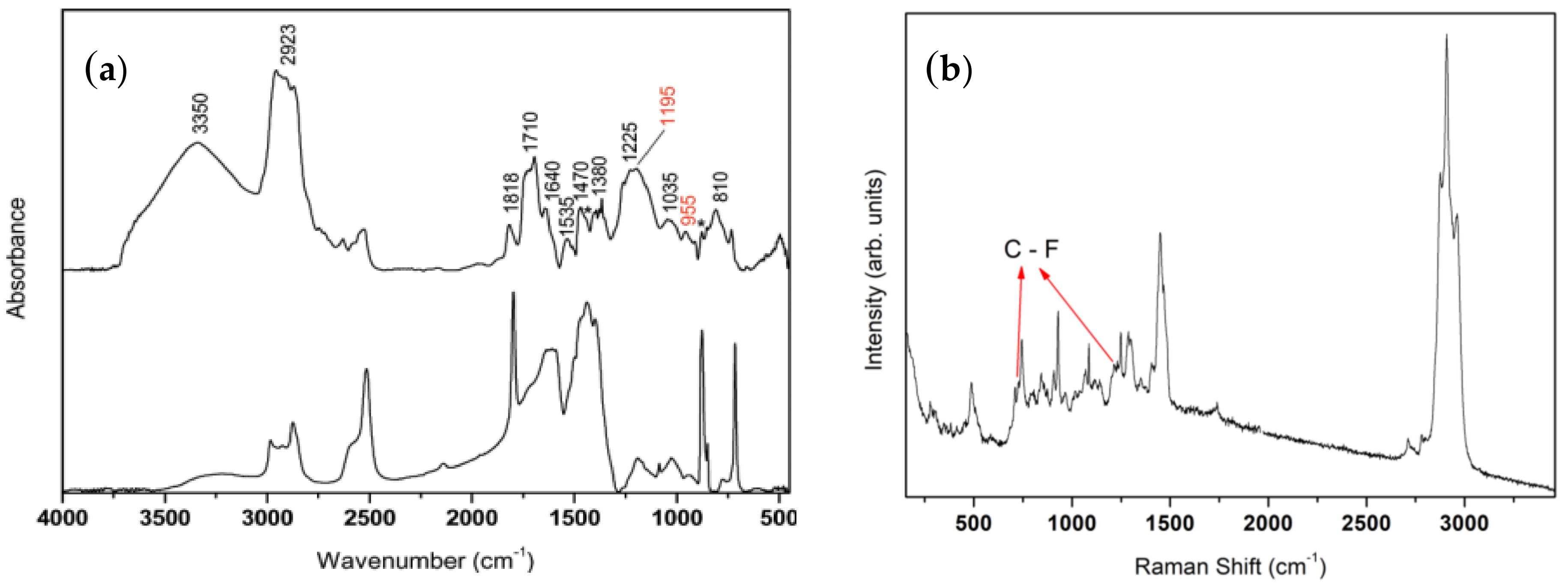

Figure 1. (a) FT-IR spectra of bare, uncoated marble (bottom) and marble coated by Silres (top). The peaks marked with an asterisk (*) are a result of the marble substrate. (b) Raman spectrum of Silres on marble.
Figure 1. (a) FT-IR spectra of bare, uncoated marble (bottom) and marble coated by Silres (top). The peaks marked with an asterisk (*) are a result of the marble substrate. (b) Raman spectrum of Silres on marble.
Materials 11 00585 g001
Figure 2. SEM images of (a) marble and (b) sandstone coated by Silres + nanoparticles films. Photographs of water and oil drops are included.
Figure 2. SEM images of (a) marble and (b) sandstone coated by Silres + nanoparticles films. Photographs of water and oil drops are included.
Materials 11 00585 g002
Figure 3. Water and oil drops on various materials which were coated by Silres + nanoparticles.
Figure 3. Water and oil drops on various materials which were coated by Silres + nanoparticles.
Materials 11 00585 g003
Figure 4. Demonstration of the easy/self-cleaning property of the Silres + nanoparticles coating on sandstone. Large drops of soiled water on the surface of coated sandstone (a,b) could be easily removed (b) and cleaned with fresh water (c,d).
Figure 4. Demonstration of the easy/self-cleaning property of the Silres + nanoparticles coating on sandstone. Large drops of soiled water on the surface of coated sandstone (a,b) could be easily removed (b) and cleaned with fresh water (c,d).
Materials 11 00585 g004

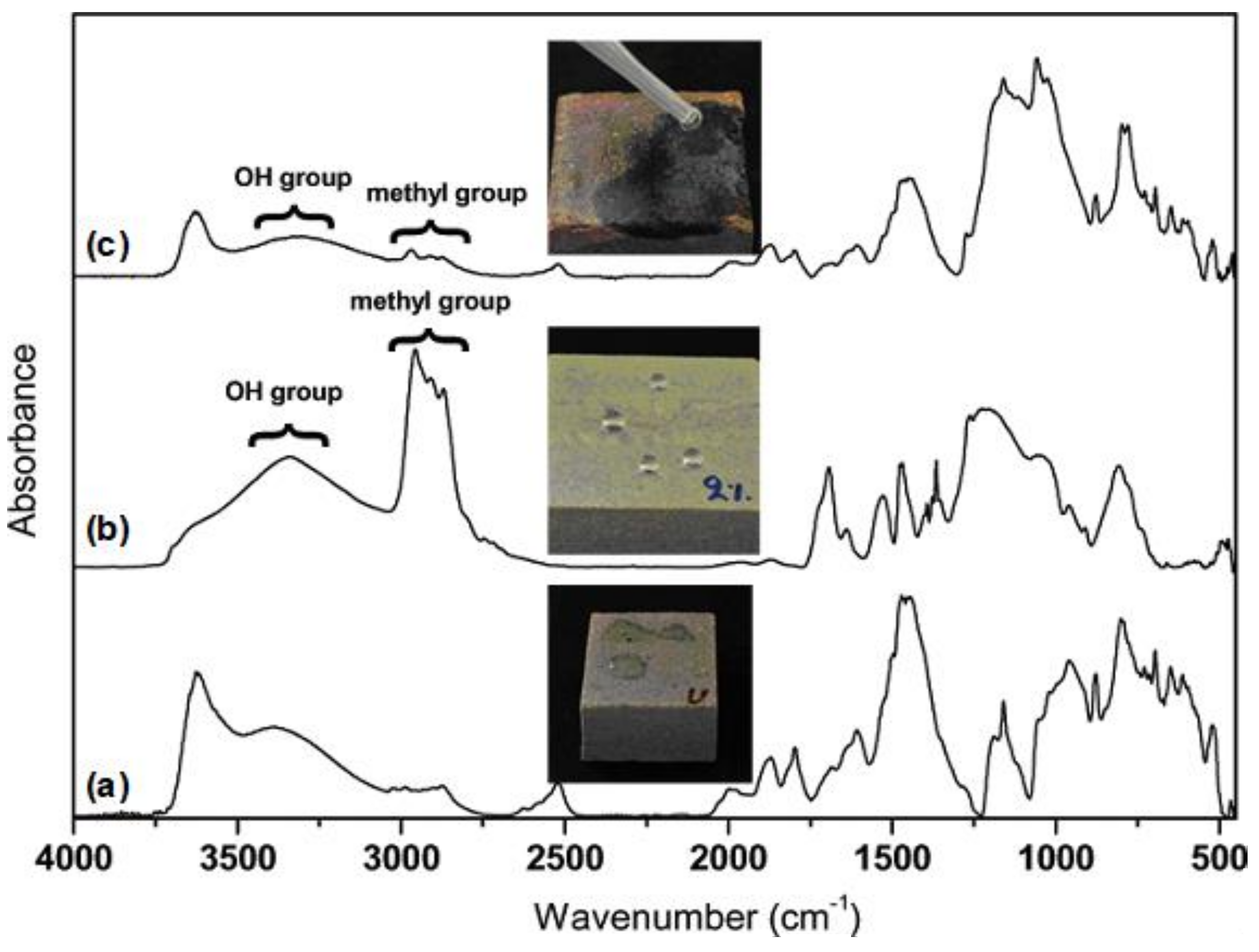

Figure 5. FT-IR spectra of (a) bare, uncoated sandstone, (b) fresh Silres + nanoparticles coating on sandstone and (c) Silres + nanoparticles coating on sandstone after extensive thermal treatment. Photographs which demonstrate the interaction of water drops with the three surfaces are included. In particular, the (a) hydrophilic, (b) superhydrophobic and (c) superhydrophilic properties of the corresponding surfaces are revealed.
Figure 5. FT-IR spectra of (a) bare, uncoated sandstone, (b) fresh Silres + nanoparticles coating on sandstone and (c) Silres + nanoparticles coating on sandstone after extensive thermal treatment. Photographs which demonstrate the interaction of water drops with the three surfaces are included. In particular, the (a) hydrophilic, (b) superhydrophobic and (c) superhydrophilic properties of the corresponding surfaces are revealed.
Materials 11 00585 g005

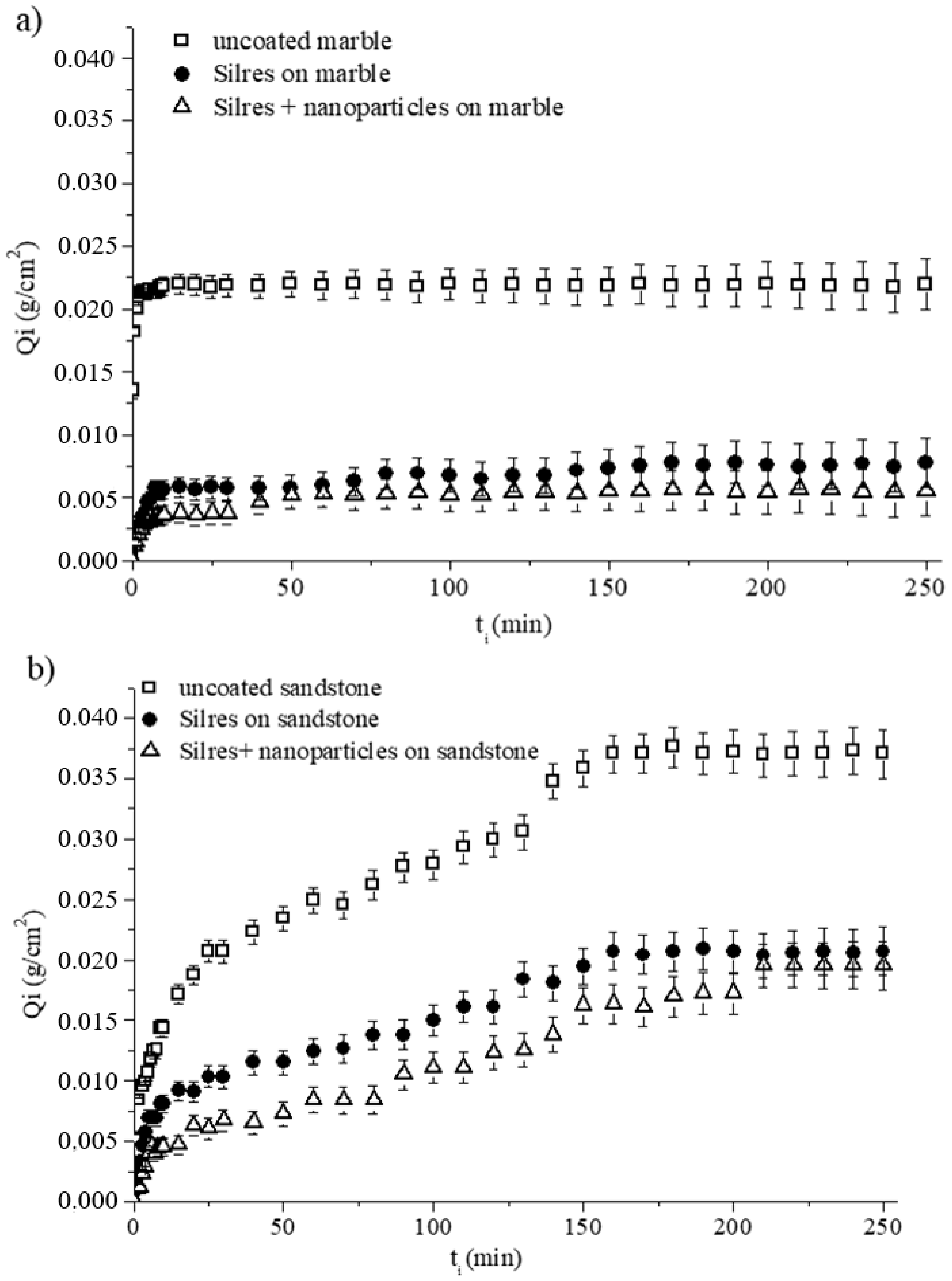

Figure 6. Amounts of absorbed water per unit area (Qi) as a function of treatment time ti, for (a) marble and (b) sandstone specimens which were uncoated and coated by Silres and Silres + nanoparticles.
Figure 6. Amounts of absorbed water per unit area (Qi) as a function of treatment time ti, for (a) marble and (b) sandstone specimens which were uncoated and coated by Silres and Silres + nanoparticles.
Materials 11 00585 g006
Table 1. Static (θS) and tilt (θt) contact angles of water and oil drops on Silres and Silres + nanoparticles coatings which were deposited on various substrate materials.
Table 1. Static (θS) and tilt (θt) contact angles of water and oil drops on Silres and Silres + nanoparticles coatings which were deposited on various substrate materials.
SubstrateWater DropsOil Drops
SilresSilres + NanoparticlesSilresSilres + Nanoparticles
θS (o)θt (o)θS (o)θt (o)θS (o)θt (o)θS (o)θt (o)
Marble14014162310791576
Sandstone156121613140111533
Silk1487158413961554
Paper108>901655109>901457
Concrete 1564161314941603
Table 2. Results for the relative reduction of water absorption by capillarity (RC%) and vapour permeability (RVP%) for marble and sandstone specimens covered by Silres and Silres + nanoparticles coatings. Calculations were carried out using Equations (2) and (3).
Table 2. Results for the relative reduction of water absorption by capillarity (RC%) and vapour permeability (RVP%) for marble and sandstone specimens covered by Silres and Silres + nanoparticles coatings. Calculations were carried out using Equations (2) and (3).
SubstrateRC%RVP%
SilresSilres + NanoparticlesSilresSilres + Nanoparticles
Marble66.5 ± 1.975.1 ± 0.642.8 ± 2.616.8 ± 1.5
Sandstone44.7 ± 1.653.8 ± 5.4 23.6 ± 1.420.0 ± 1.0
Table 3. Mean values of colour coordinates of SiO2 nanoparticles, uncoated and coated marble and sandstone specimens. The global colour differences (ΔΕ*) of marble and sandstone, induced upon coating applications, are included.
Table 3. Mean values of colour coordinates of SiO2 nanoparticles, uncoated and coated marble and sandstone specimens. The global colour differences (ΔΕ*) of marble and sandstone, induced upon coating applications, are included.
MaterialL*a*b*ΔΕ*
SiO2 nanoparticles88.00−2.50−7.00-
Uncoated marble94.60−0.052.03-
Marble coated by Silres94.650.012.100.10 ± 0.01
Marble coated by Silres + nanoparticles95.05−0.021.860.48 ± 0.02
Uncoated sandstone58.57−0.353.43-
Sandstone coated by Silres56.15−0.195.373.11 ± 1.30
Sandstone coated by Silres + nanoparticles58.00−0.394.741.43 ± 0.30
