Characteristics of the Arcing Plasma Formation Effect in Spark-Assisted Chemical Engraving of Glass, Based on Machine Vision

1
Graduate Institute of Manufacturing Technology and Department of Mechanical Engineering, National Taipei University of Technology, 1, Sec. 3, Zhongxiao E. Rd., Taipei 10608, Taiwan
2
Department of Mechanical Engineering, National Yunlin University of Science and Technology, Yunlin 64002, Taiwan
*
Author to whom correspondence should be addressed.
Materials 2018, 11(4), 470; https://doi.org/10.3390/ma11040470
Received: 6 February 2018 / Revised: 19 March 2018 / Accepted: 20 March 2018 / Published: 22 March 2018
(This article belongs to the Special Issue Machining—Recent Advances, Applications and Challenges)
  |
PDF [36219 KB, uploaded 3 May 2018]
  |

Abstract

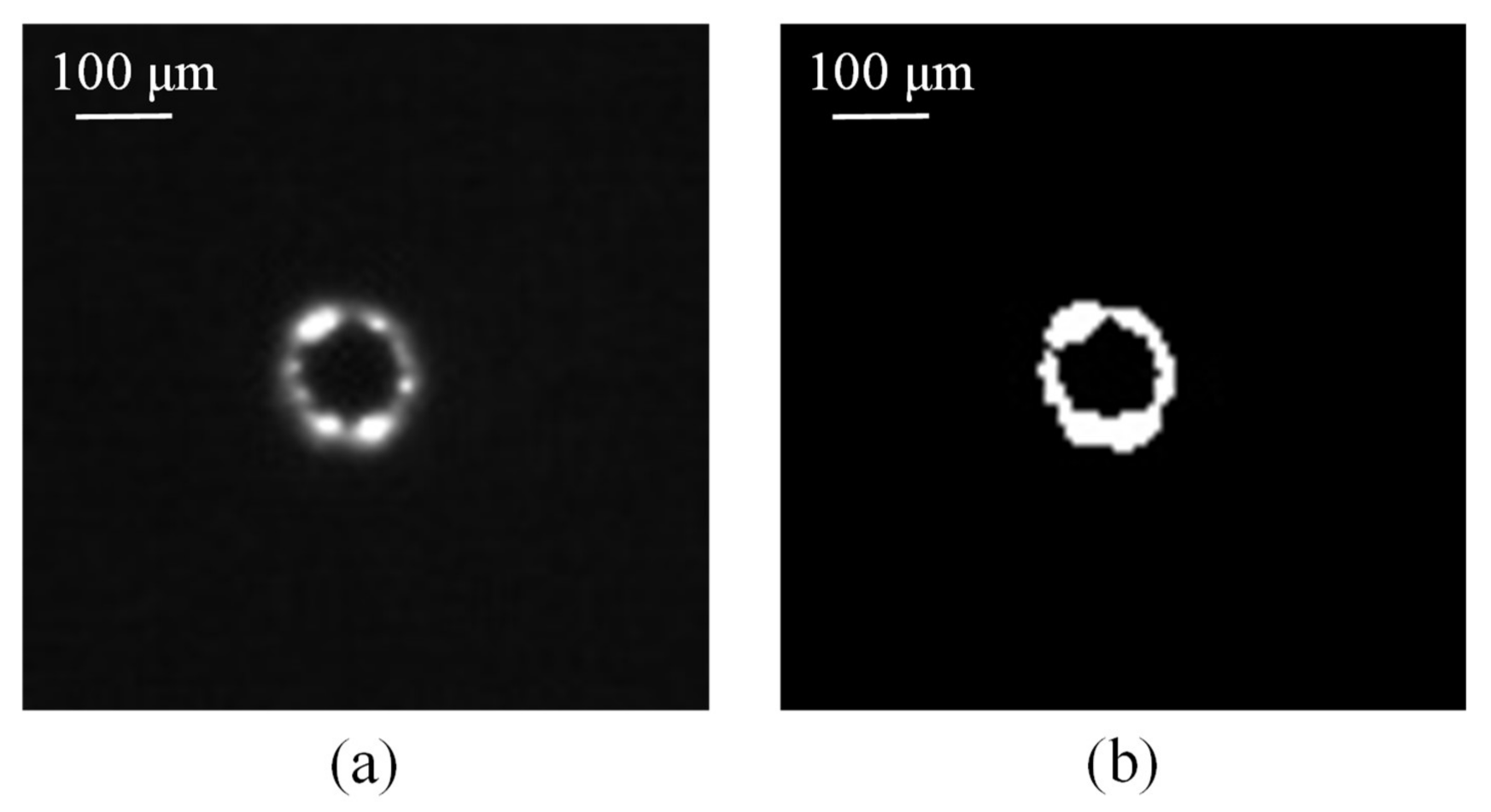

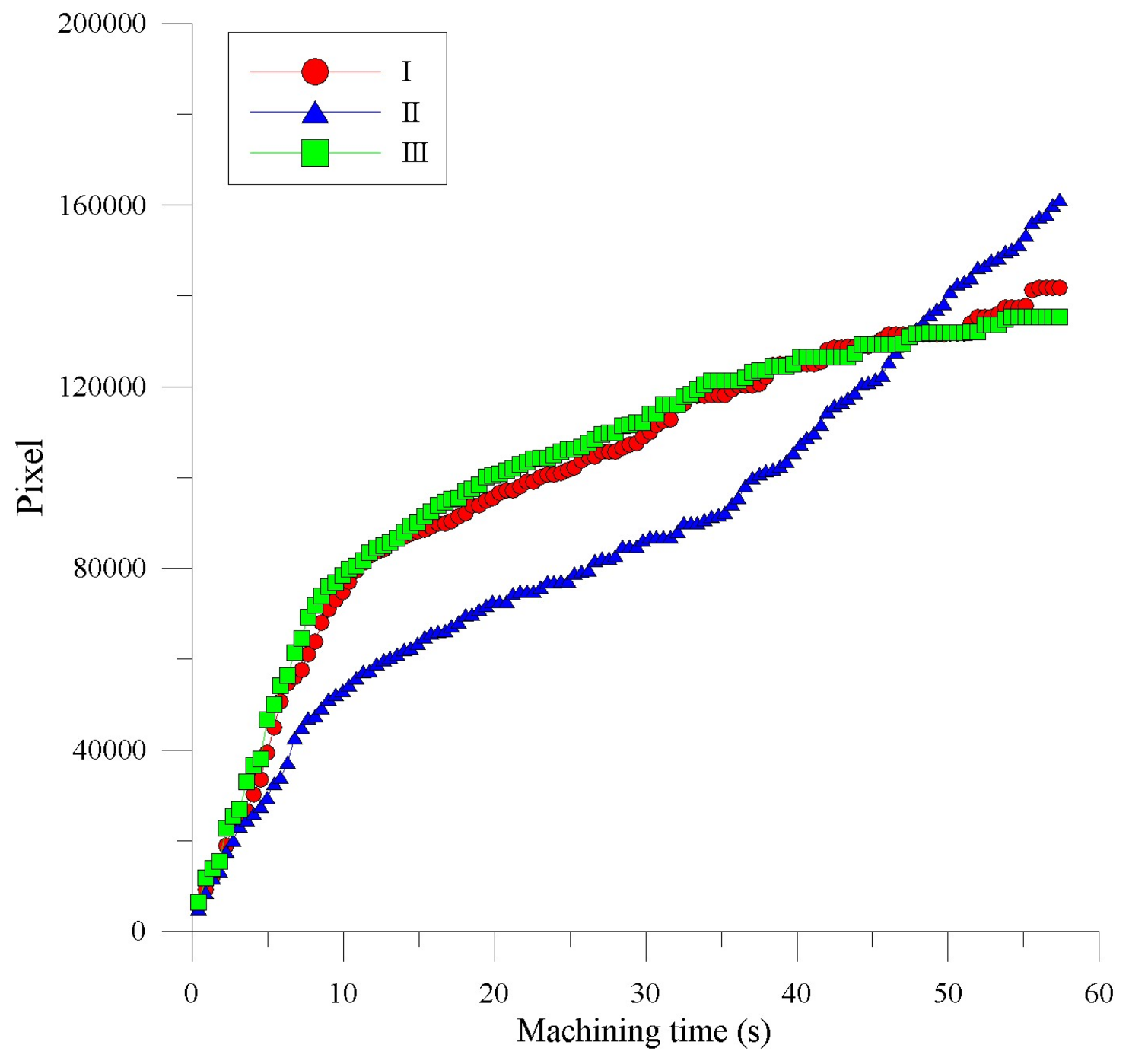

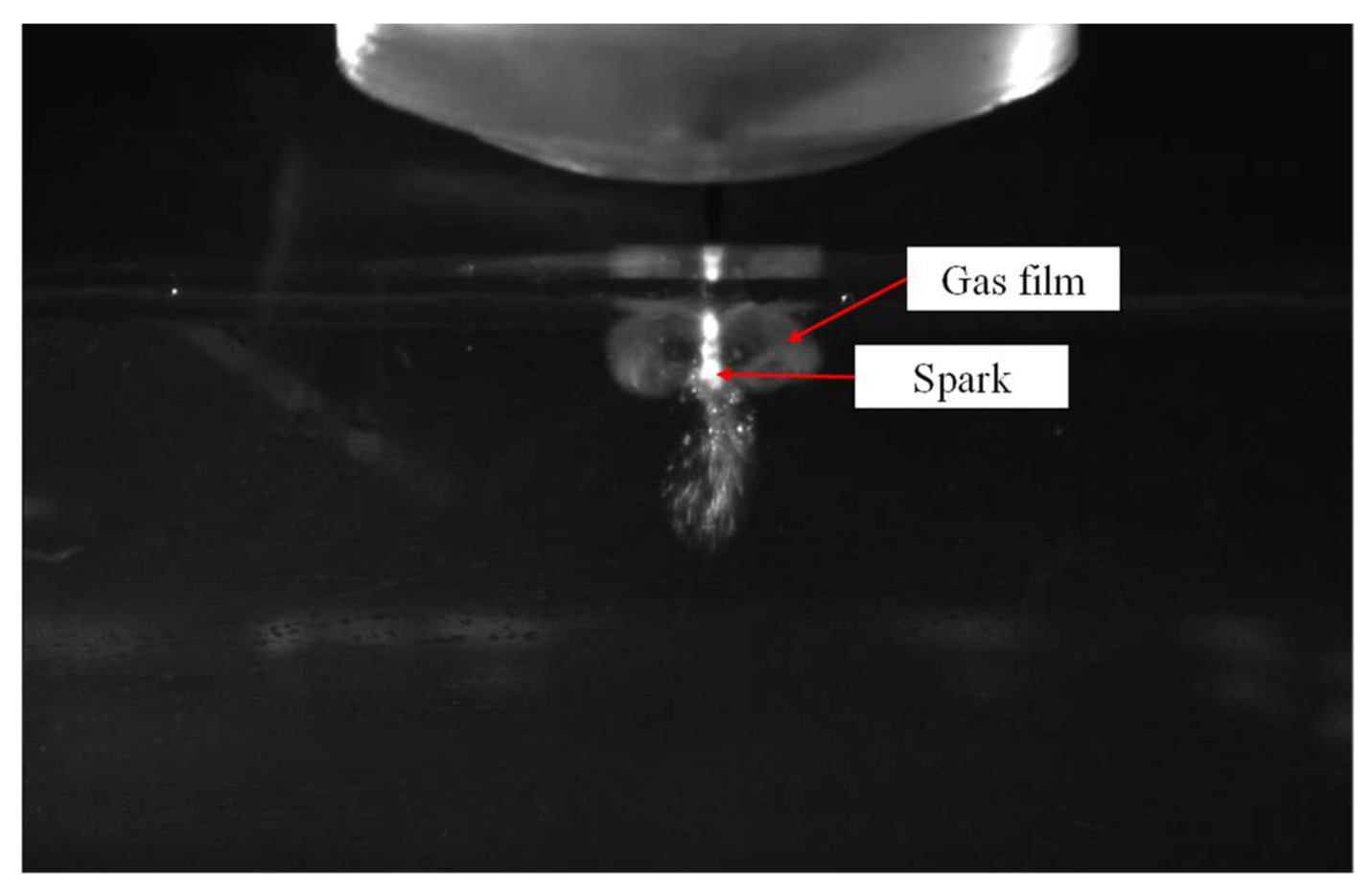

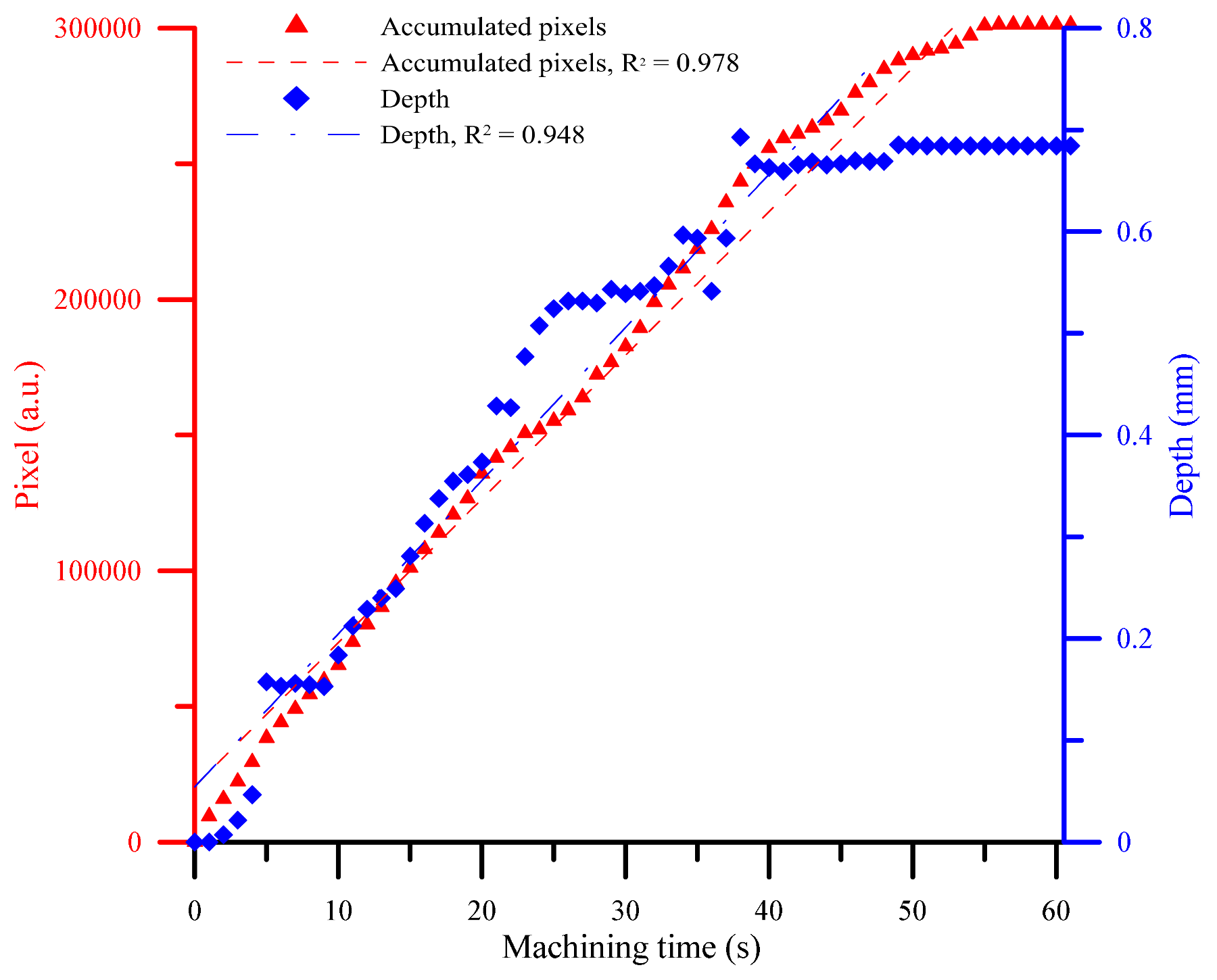

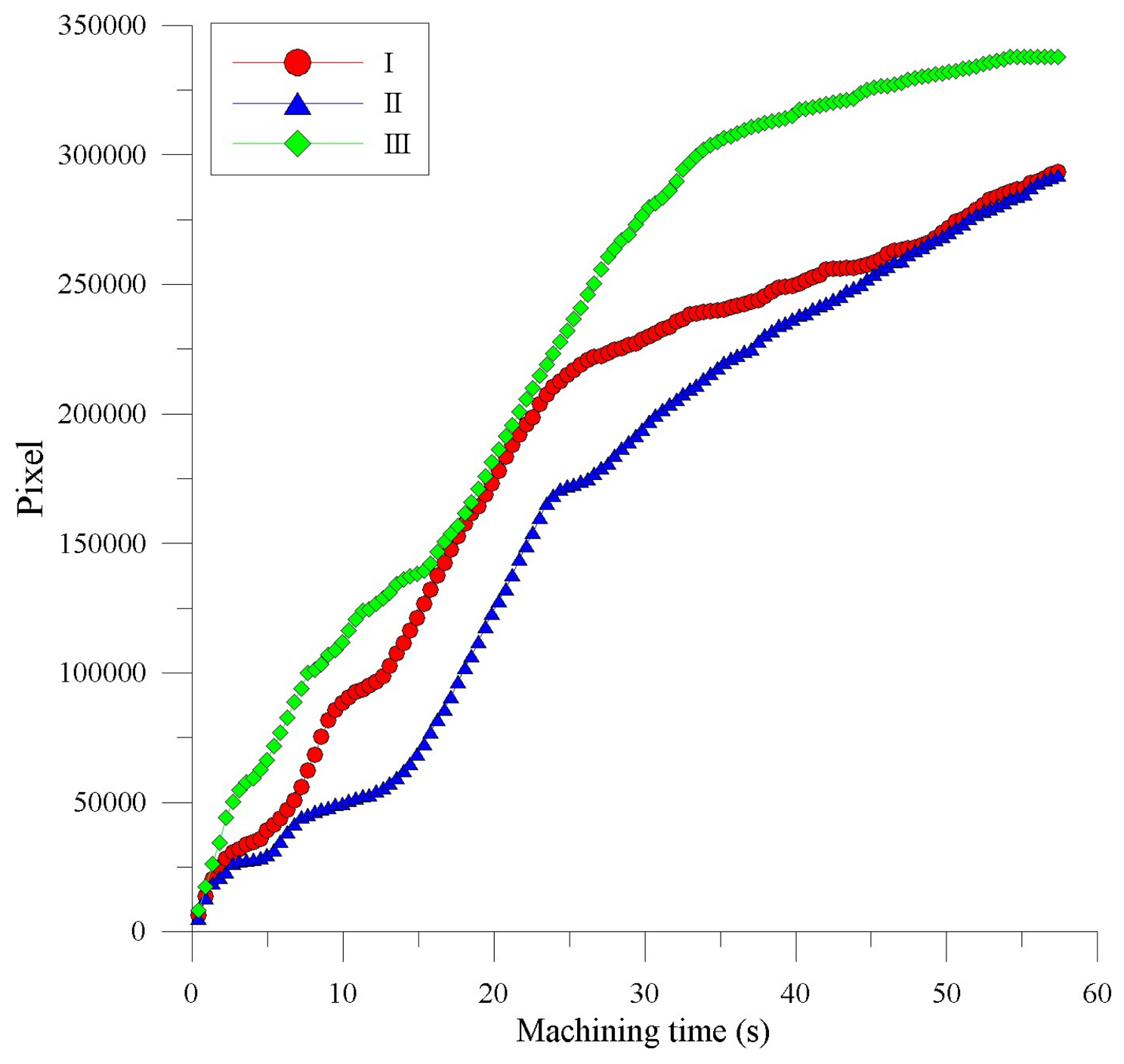

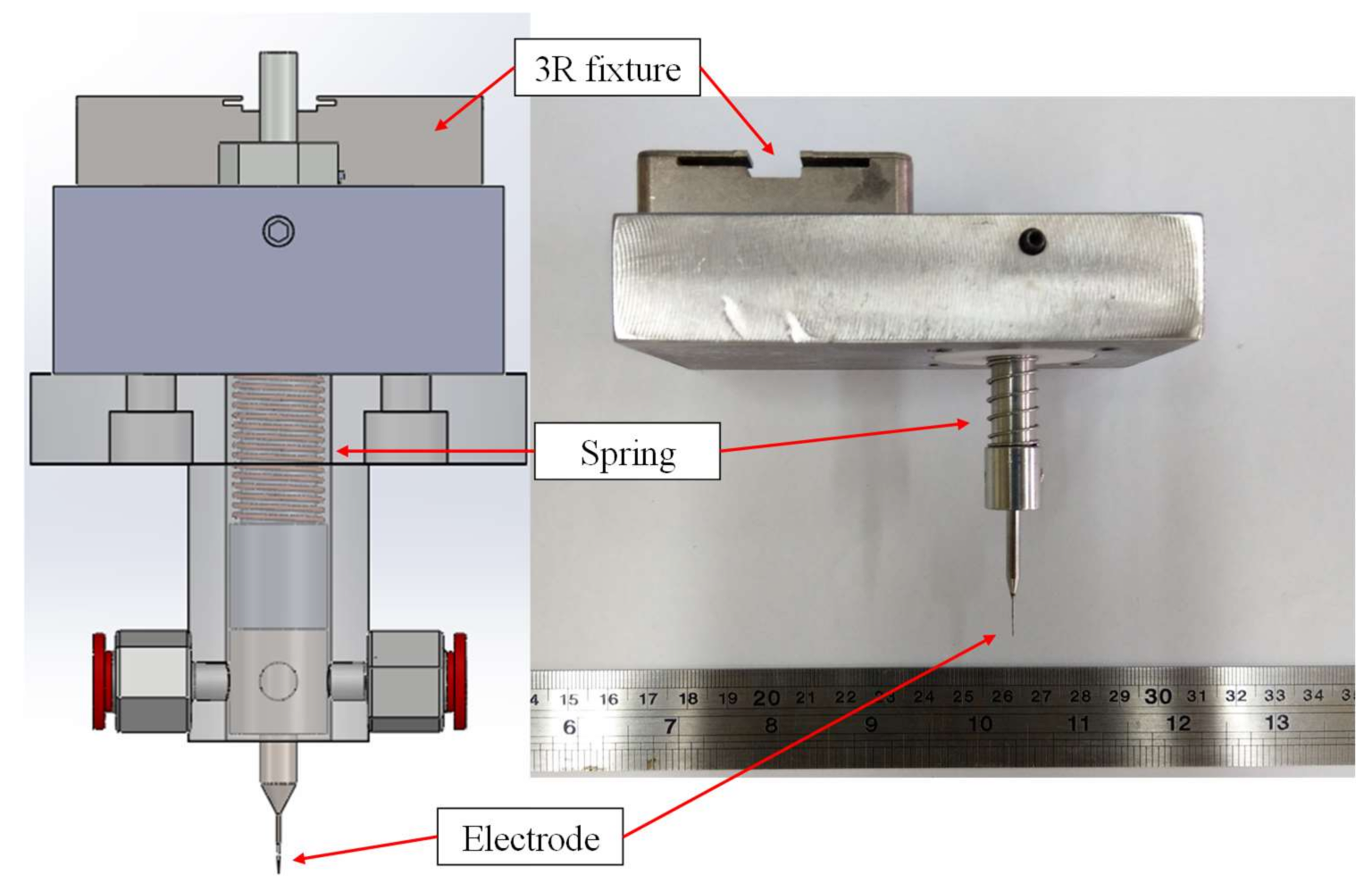

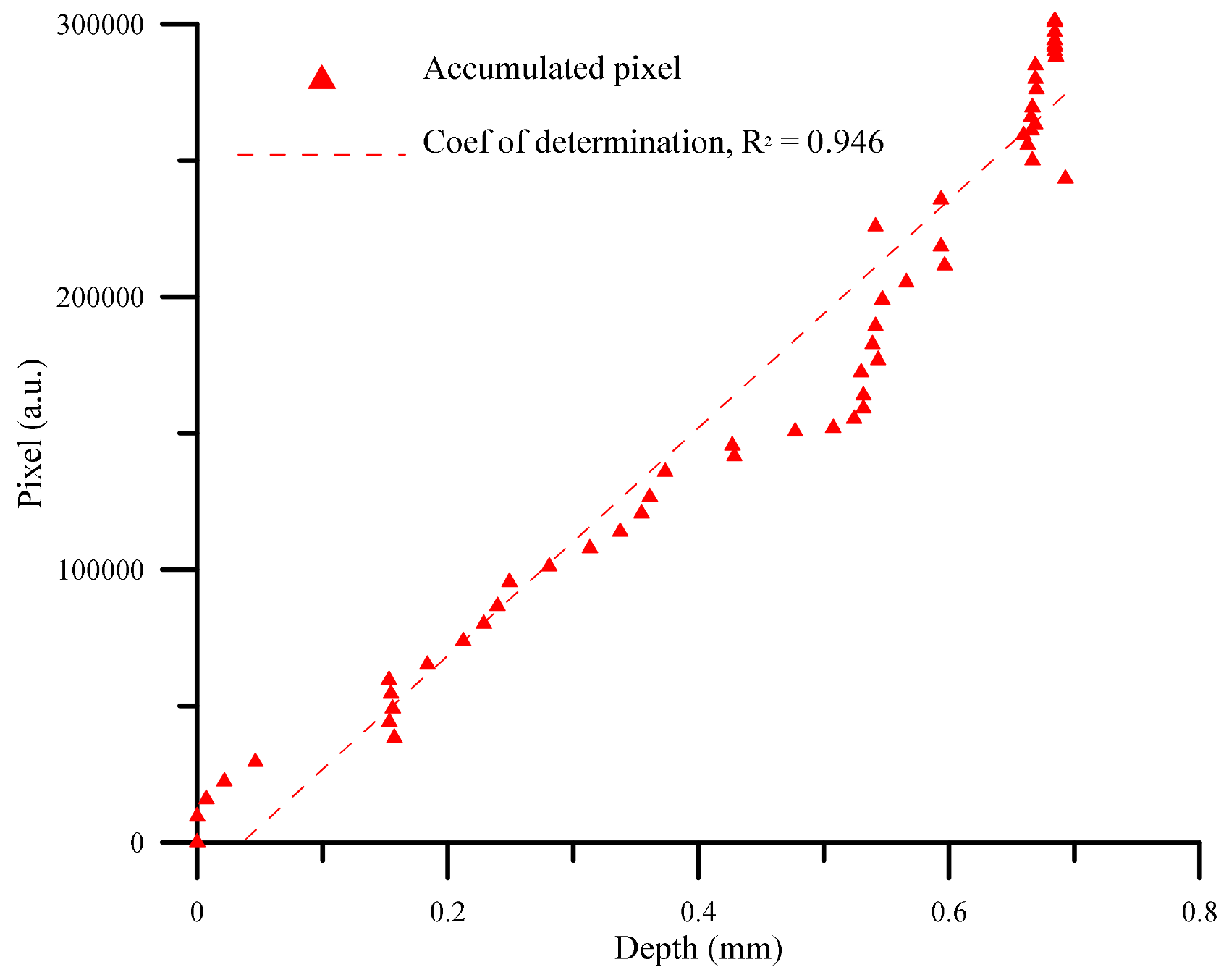

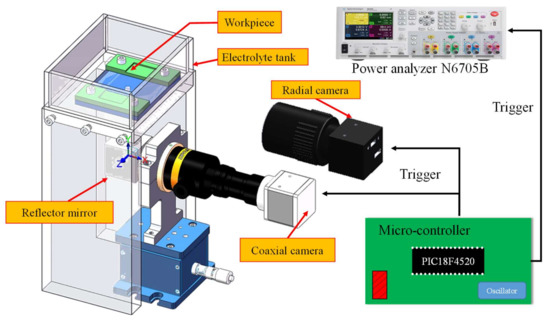

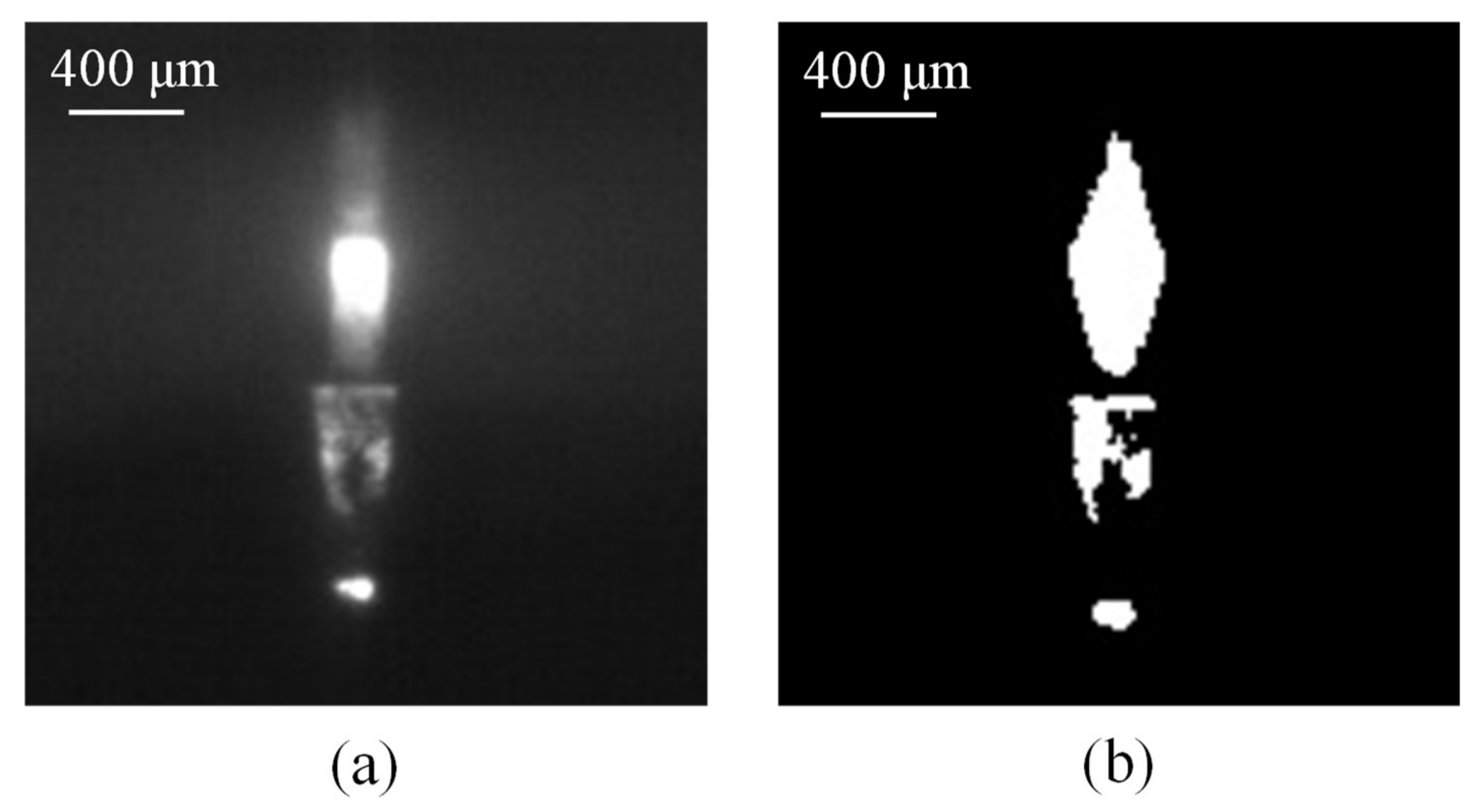

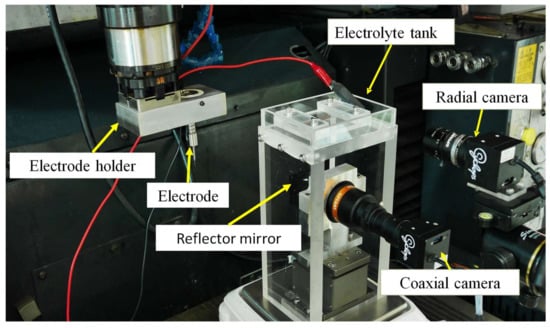

Spark-assisted chemical engraving (SACE) is a non-traditional machining technology that is used to machine electrically non-conducting materials including glass, ceramics, and quartz. The processing accuracy, machining efficiency, and reproducibility are the key factors in the SACE process. In the present study, a machine vision method is applied to monitor and estimate the status of a SACE-drilled hole in quartz glass. During the machining of quartz glass, the spring-fed tool electrode was pre-pressured on the quartz glass surface to feed the electrode that was in contact with the machining surface of the quartz glass. In situ image acquisition and analysis of the SACE drilling processes were used to analyze the captured image of the state of the spark discharge at the tip and sidewall of the electrode. The results indicated an association between the accumulative size of the SACE-induced spark area and deepness of the hole. The results indicated that the evaluated depths of the SACE-machined holes were a proportional function of the accumulative spark size with a high degree of correlation. The study proposes an innovative computer vision-based method to estimate the deepness and status of SACE-drilled holes in real time. View Full-Text
Keywords: in situ estimation; SACE-drilled hole depth; spark-assisted chemical engraving; glass machining; computer vision; electrochemical discharge machining in situ estimation; SACE-drilled hole depth; spark-assisted chemical engraving; glass machining; computer vision; electrochemical discharge machining
