Combined Effect of Alternating Current Interference and Cathodic Protection on Pitting Corrosion and Stress Corrosion Cracking Behavior of X70 Pipeline Steel in Near-Neutral pH Environment

by
Liwei Wang
1,*,
Lianjun Cheng
1,*,
Junru Li
1,
Zhifu Zhu
1,*,
Shuowei Bai
1 and
Zhongyu Cui
2
1
College of Electromechanical Engineering, Qingdao University, Qingdao 266071, China
2
Institute of Materials Science and Engineering, Ocean University of China, Qingdao 266100, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(4), 465; https://doi.org/10.3390/ma11040465
Submission received: 28 January 2018 / Revised: 15 March 2018 / Accepted: 15 March 2018 / Published: 22 March 2018
(This article belongs to the Section Advanced Materials Characterization)
Browse Figures
Versions Notes

Abstract

:
Influence of alternating current (AC) on pitting corrosion and stress corrosion cracking (SCC) behavior of X70 pipeline steel in the near-neutral pH environment under cathodic protection (CP) was investigated. Both corrosion and SCC are inhibited by −0.775 VSCE CP without AC interference. With the superimposition of AC current (1–10 mA/cm2), the direct current (DC) potential shifts negatively under the CP of −0.775 VSCE and the cathodic DC current decreases and shifts to the anodic direction. Under the CP potential of −0.95 VSCE and −1.2 VSCE, the applied AC current promotes the cathodic reaction and leads to the positive shift of DC potential and increase of cathodic current. Local anodic dissolution occurs attributing to the generated anodic current transients in the positive half-cycle of the AC current, resulting in the initiation of corrosion pits (0.6–2 μm in diameter). AC enhances the SCC susceptibility of X70 steel under −0.775 VSCE CP, attributing to the promotion of anodic dissolution and hydrogen evolution. Even an AC current as low as 1 mA/cm2 can enhance the SCC susceptibility.

1. Introduction

With the increasing development of high voltage power transmission, its sharing common grid with oil and gas pipelines has brought huge risk to pipeline integrity [1,2]. It has been acknowledged that AC interference can speed up the corrosion rate of most metals [3], but the actual mechanism of AC corrosion is not clear. Effect of AC on polarization behavior of metals has been modeled theoretically by Lalvani et al. [4,5]. They related the AC caused change of corrosion potential and corrosion current density to the ratio between the anodic and cathodic Tafel slopes (indicated as r = βa/βc). In their theory, corrosion kinetic parameters, such as Tafel slope and exchange current density are supposed to be invariable with the interference of AC. Goidanich et al. [6,7] suggested that AC has strong influence on corrosion kinetic parameters depending on the system studied. Our previous work [8] showed that AC interference changed the specific adsorption of chloride ions, which can influence the pitting susceptibility of mild steel [9].
Recently, AC corrosion of pipeline steels has been paid much attention due to the numerous pipeline failure cases caused by AC interference [10,11,12]. Cheng and co-workers found that an applied AC would accelerate corrosion of pipeline steels in both high pH [13] and near-neutral pH environments [14]. The critical AC current densities to initiate pitting in these two solutions were approximately 300 and 200 A/m2, respectively. Du and co-workers investigated the influence of AC on the stress corrosion cracking (SCC) behavior of pipeline steels in high pH [15] and near-neutral pH solutions [16]. They found that AC interference changed the high pH SCC mode from intergranular to transgranular [15] and the near-neutral pH SCC susceptibility was enhanced by AC current [16]. However, the abovementioned works do not consider the cathodic protection (CP), which is mandatory for pipeline steels in the field [17].
Previous works [2,18,19,20] showed that AC affected the performance of CP system and caused deviation of CP potential from designed values. Hosokawa et al. [18] and Kajiyama et al. [19] reported that pipelines would suffer serious AC corrosion even if they satisfied the CP criterion potential of −0.85 VCSE (CSE corresponds to the copper sulfate electrode). Xu et al. [20] found that the presence of AC would decrease the corrosion protection effectiveness of CP and the pipelines can be completely protected only when the CP potential was negative enough. On the contrary, Ormellese et al. [21] revealed that overprotection (potential more negative than −1.1 VCSE) seemed to be more dangerous than lack protection when pipelines are under AC interference. Nielsen et al. [22] also suggested that excessive CP increased AC corrosion risk of pipelines and should be avoided. Accordingly, influence of AC interference on corrosion of pipeline steels under CP has not reached consensus. Moreover, SCC problem under the combined effect of CP and AC has not been considered.
In this work, effect of AC current on the electrochemical, corrosion and SCC behavior of X70 steel in the near-neutral pH environment under cathodic protection is investigated. The shift of CP potential and current by AC interference is measured and analyzed. Localized corrosion behavior including pitting and SCC are discussed.

2. Material and Methods

2.1. Material and Solution

The material used in this study was the as received X70 pipeline steel with the chemical composition (wt %) of: 0.065 C, 1.57 Mn, 0.23 Si, 0.2 Ni, 0.18 Cr, 0.22 Cu, 0.056 Nb, 0.002 S, 0.0019 P and Fe balance. Figure 1 shows the microstructure of the X70 steel, which mainly consists of massive polygonal ferrite and a small amount of pearlite, with fine M/A islands in the grain interior.
The test solution was the near-neutral pH (NS4) solution with the chemical composition of: KCl 0.122 g/L, CaCl2·2H2O 0.181 g/L, NaHCO3 0.483 g/L and MgSO4·7H2O. This solution is the simulation solution of the electrolyte trapped under disbonded coatings. Before testing, the solution was purged with 95% N2 + 5% CO2 for 4 h to achieve an anaerobic and near-neutral pH condition (pH = 6.8). The gas flow was maintained throughout the test. All tests were performed at ambient temperature (about 22 °C).

2.2. Electrochemical Equivalent Circuit for the Experiment

Figure 2 shows the schematic diagram of the experimental set-up for studies of AC corrosion under cathodic protection. The electric circuit was specially designed to supply and measure AC and DC signals independently [6]. Ormellese et al. [21] and Büchler et al. [23,24] have used this circuit to investigate the alternating current corrosion of cathodically protected pipelines. In this work, an AT1645-3 function generator (ATTEN, Shenzhen, China) which was connected to the ground through its power supply was used to provide the AC signal. The sinusoidal AC signal with a frequency of 50 Hz was applied between the working electrode and a graphite electrode. A rheostat, with a range of 0–9999 Ω, was used to adjust the AC current to the present value. Within the AC mesh, an electrolytic capacitor (50 V, 470 μF) in series was used to prevent DC circulation. As described by Goidanich et al. [6], by using two electrolytic 1000 μF capacitors (total capacity of 500 μF and a capacitive reactance of about 6 Ω), the efficiency of the DC filter was 100%, i.e., no DC flowed in the AC mesh. Within the DC mesh, DC current was supplied by an electrochemical workstation and a 4H inductance with a series resistance of 76 Ω was introduced to avoid the interference of the AC signal to the electrochemical workstation. Despite the inductance, a small part of the AC flowed in the DC mesh, which is negligible for the tests planned. The root-mean-square value of the AC current was measured with a clamp meter. The experimental details were illustrated separately in the following sections.

2.3. Electrochemical Measurements

Specimens used for electrochemical measurements were coated with epoxy resin, leaving an exposure area of 1 cm2 as the working surface. The electrode was ground sequentially to 1500 grit emery paper, and then cleaned by acetone. The electrochemical tests were carried out through the Gamry Reference 3000 electrochemical workstation (Gamry, Warminster, PA, USA) using a three-electrode cell system, where the X70 steel was used as working electrode (WE), a saturated calomel electrode (SCE) as reference electrode (RE), and a platinum plate as counter electrode (CE, Figure 2). The distance between RE and WE was about 1 mm to reduce the ohmic drop in potential measurements. The steel was potentiostatically polarized by the electrochemical workstation to the cathodic direction and the variations of DC potential and DC current were measured. Simultaneously, the AC current was applied to the specimen through the AC circuit. In this work, the CP potentials of −0.775 VSCE, −0.95 VSCE and −1.2 VSCE were used to provide cathodic protection. The AC current densities of 1, 3, 5 and 10 mA/cm2 were imposed to the WE. During the tests, a Fluke 289C true RMS multimeter (Fluke Co., Everett, WA, USA) which had a high impendence was used to measure the potential between WE and RE.

2.4. Immersion Tests

For the immersion tests, the samples were identical to those used in the electrochemical measurements, and the circuit in Figure 2 was used. Prior to the test, the specimens were wet ground with successive grades of silicon carbide abrasive papers from P120 to P2000 followed by diamond polishing to 0.1 mm. Then, the specimens were subjected to the DC/AC interferences for 2 h with DC potentials of open circuit potential (OCP), −0.775 VSCE, −0.95 VSCE, −1.2 VSCE and AC current densities of 3 and 10 mA/cm2. After the test, the specimens were rinsed and dried carefully. Then, the corrosion morphology was observed via scanning electron microscope (SEM, Quanta 250, FEI, Hillsboro, OR, USA). For comparison, the immersion tests of the X70 steel under OCP and cathodic protection were also conducted, and the corrosion morphology was observed.

2.5. Slow Strain Rate Tensile Tests (SSRT)

SSRT tests were used to characterize the SCC behavior of X70 steel in the near-neutral pH solution under CP and AC interference. The tensile test specimens were made according to GB T15970 specification [25] and the dimension of the specimens was shown in Figure 3. Prior to the test, the gauge length of the specimen was ground to 2000 grit emery paper along the tensile direction, then degreased with acetone and finally dried in air [26]. The specimen was soaked in the solution for 24 h before the SSRT test. During the process of SSRT test, the electrical circuit in Figure 2 was used to apply DC cathodic potential and AC current to the tensile samples. A basalt fiber was put in between the specimen and the pin to insure the insulation. Firstly, the SCC behavior of the cathodically protected X70 steel in the NS4 solution under the application of various CP potential without AC interference was investigated. The applied CP potential includes −0.775 VSCE, −0.85 VSCE, −0.95 VSCE, −1.05 VSCE, and −1.2 VSCE. For comparison, the SSRT tests of the X70 steel in air and under OCP without AC current were also conducted. Then, different AC current densities were superimposed to the −0.85 VCSE (−0.775 VSCE) cathodically protected specimens. AC current densities of 1, 5 and 10 mA/cm2 were used. The SSRT strain rate of all tests was 1 × 10−6 s−1. All the tests were performed at ambient temperature (~22 °C) and repeated at least three times.
To investigate the SCC susceptibilities quantitatively, sensitivity index including loss of elongation (Rδ) and reduction-in-area (Rψ) were calculated with the following equations:
R δ = ( 1 − δ s δ 0 ) × 100 %
R Ψ = ( 1 − ψ s ψ 0 ) × 100 %
where δs and ψs are the elongation and the reduction-in-area in solution, respectively; and δ0 and ψ0 are the elongation and the reduction-in-area measured in air, respectively.
After SSRT tests, the fracture parts were cut off from the specimen and corrosion products on the fracture surface were cleaned in the HCl solution containing 1000 mL HCl, 1000 mL pure water and 3 g hexamethylene tetramine. After stirring in ultrasonic oscillator, cleaned by ethanol and then dried in air, the morphologies of the fracture surface were observed by SEM.

3. Results

3.1. DC Potential and DC Current Density Measurements

The real-time DC potential and DC current density on the X70 steel at various AC current densities under different CP potentials were illustrated in Figure 4, and the corresponding steady-state values in the CP + AC region are listed in Table 1. For the DC potential measurements, each test is conducted in three stages and each stage lasts for 10 minutes. In the first stage from 0 to 600 s, the designed CP potentials are applied to the steel (CP region). Then, the AC interference is overlying to the CP protected steel in the second stage from 600 to 1200 s (CP + AC region). The last region is the open circuit region from 1200 s to 1800 s, both CP and AC are stopped.
Figure 4a shows that the CP potential reaches a relatively stable value in the CP region. With the superimposition of AC after 600 s, the DC potential experiences negative shift. The deviation of DC potential is enlarged by the increase of AC current density. The values of the DC potential under different AC current are recorded in Table 1. When the mandatory polarization of CP and AC is rescinded, the DC potential of the specimens come back to OCP. Figure 4c,e shows the influence of AC on DC potentials when the steady value of CP is −0.95 VSCE and −1.2 VSCE, respectively. Different from that of −0.775 VSCE, potentials are shifted positively when the AC current is imposed. The higher the AC current density is, the more positive the DC potentials are. When CP and AC are stopped, all DC potentials reach a steady state value of −0.75 VSCE, which is the open circuit corrosion potential of X70 steel in the near-neutral pH environment.
Figure 4b shows the DC current densities under the CP potential of −0.775 VSCE. The three regions same as the DC potential measurement are recorded. In the first region from 0 to 300 s, the CP current density is about −15 μA/cm2 when there is no AC interference. In the second region, various AC current densities are imposed to the steel while the CP is maintained. When a 1 mA/cm2 AC current density is imposed, the cathodic current density decreases to −5.5 μA/cm2. When the iAC is 3 mA/cm2 or higher, anodic current density is detected. The higher the iAC applied, the more anodic the current density is. When the mandatory polarization of CP and AC is rescinded, the DC current densities decrease to values that are similar with those in the first region. Figure 4d,f shows the DC current densities recorded on the X70 steel under the CP potential of −0.95 VSCE and −1.2 VSCE. It is seen that the DC current densities increase to more cathodic values when AC is applied. Moreover, the higher the AC current density is, the more negative the DC current densities are. When the AC current density increases to 10 mA/cm2, the cathodic current densities reach to −109 and −547 μA/cm2 under −0.95 VSCE and −1.2 VSCE, respectively. When the AC is stopped, the current densities decrease to the values that are similar with those in the first region.

3.2. Corrosion Morphology Observation

The corrosion morphology of X70 steel after immersion in the NS4 solution for 24 h without CP and AC is shown in Figure 5a. It is seen that preferential dissolution occurs in ferrite matrix, and the grain boundaries and carbides remain contact, illustrating the metallographic microstructure of the X70 steel. Figure 5b shows the corrosion morphology of X70 steel under cathodic polarization of −0.775 VSCE for 24 h. It is seen that no corrosion attacks can be detected when the specimen is polarized under this CP potential. Under more negative cathodic protection potentials, the anodic dissolution current densities of the steel become much lower and the corrosion tendency is even lower than that under −0.775 VSCE, while the calcium magnesium deposit can be found on the specimen surface.
Figure 6 shows the corrosion morphologies of X70 steel immersed in the NS4 solution for 2 h before removing the corrosion products. Under OCP with the interference of AC, preferential dissolution occurs inside the ferrite grains, while the carbides and the ferrite grain boundaries remain intact as shown in Figure 6a,b. When the AC current is 3 mA/cm2, corrosion morphology of the specimen immersed for 2 h is similar with that immersed for 24 h without AC, indicating that AC current accelerates corrosion of X70 steel. With the increase of AC current density, selective dissolution becomes more manifest. Figure 6c,d shows the corrosion morphologies of X70 steel under the combined effect of −0.775 VSCE CP and AC current interference for 2 h in the NS4 solution. When AC current is 3 mA/cm2, it is seen that corrosion becomes less severe under the application of −0.775 VSCE CP than that under OCP and only part of the specimen manifests the metallographic microstructure of the steel, which means that −0.775 VSCE CP reduces general corrosion of the steel. When the AC current density increases to 10 mA/cm2, corrosion is promoted as compared with that under 3 mA/cm2. However, when comparing with that at OCP under the same AC current density, general corrosion is inhibited by −0.775 VSCE CP. Figure 6e,f shows the corrosion morphologies of X70 steel under the combined effect of −0.95 VSCE CP and AC current interference for 2 h in the NS4 solution. The steel surface is covered with deposits which are proved to be calcium and magnesium compounds by EDS analysis. There is no general corrosion under the deposits but some pits are formed accompanying with the deposition of calcium and magnesium compounds. With the increase of AC current density, more calcium and magnesium compounds deposit on the steel surface. Under −1.2 VSCE CP, the AC interference has similar effects as that under −0.95 VSCE as shown in Figure 5g,h, but more crystallographic calcium and magnesium deposits on the steel surface.
Figure 7 shows the corrosion morphologies of X70 steel immersed in the NS4 solution for 2 h after removing the corrosion products. Figure 7a,b shows that no apparent localized corrosion occurs with the interference of 3 and 10 mA/cm2 AC current at OCP. Under −0.775 VSCE CP, corrosion pits with the average diameter of 0.75 μm are formed on the specimen when the AC current of 3 mA/cm2 is applied (Figure 7c). As the AC current density increases to 10 mA/cm2, the diameter of corrosion pits becomes bigger (2.1 μm in average), as shown in Figure 7d. Figure 7e,f shows the corrosion morphologies of X70 steel under the combined effect of −0.95 VSCE CP and AC interference for 2 h after removing the corrosion products. Under this CP potential, bigger corrosion pits (1.6 μm in average) are initiated than that formed under −0.775 VSCE when 3 mA/cm2 AC current is applied to the specimen. As the AC current density is increased to 10 mA/cm2, severe localized corrosion occurs and some pits with the average diameter of 0.8 μm distribute in isolation. Under the CP potential of −1.2 VSCE and AC current of 3 mA/cm2, pit density is much lower than that formed under −0.95 VSCE CP and some metastable pits with low diameters are generated, as shown in Figure 7g. The pit diameter increases to about 0.6 μm when the AC current of 10 mA/cm2 is imposed (Figure 7h).

3.3. Slow Strain Rate Tension Tests

Figure 8 shows the stress–strain curves of the X70 steel in air and in the NS4 solution under OCP and different CP potentials without AC interference. In air, the steel exhibits the highest tensile strength and largest elongation. With the application of −0.775 VSCE and −0.85 VSCE CP, the elongation of the steel is higher than that under OCP. However, as the CP potential continues to decrease, the elongation of the steel decreases. Figure 9 shows the SCC susceptibility of the X70 steel under different CP potentials. It is seen that both Rδ (Figure 9a) and Rψ (Figure 9b) decreases when a −0.775 VSCE CP is applied to the steel, means that the SCC susceptibility of the steel under −0.775 VSCE is lower than that under OCP. The Rδ presents the lowest value under −0.85 VSCE, while the Rψ presents the lowest value under −0.775 VSCE. This discordance is due to the hydrogen-induced plasticity (HIP) effect, which has been found on pipeline steels under soft cathodic protection [27]. Under −0.85 VSCE, the HIP effect dominates the hydrogen effect on the steel properties as compared with hydrogen embrittlement effect. The small amount of HIP delays the initiation of SCC by releasing the stress intensity and thus increases elongation and decreases Rδ [25]. Meanwhile, the anodic dissolution will still occur and contribute to the SCC process even when the steel is under cathodic protection, resulting in the increase of the Rψ [28]. That is to say, the SCC sensitivity increases under −0.85 VSCE, although the elongation increases. As the CP potential continues to decrease, both Rδ and Rψ increase, indicating the increase of SCC susceptibility, and the more negative the CP potential is, the more susceptible the steel is to SCC.
Figure 10 shows the morphology of the fracture surface after SSRT tests when the X70 steel is in air, at OCP and at different CP potentials. The surface fractured in air is consisted of a great number of small dimples and microvoids and the necking characteristic is clear (Figure 10a1,a2). When the specimen is tested in near-neutral pH solution under OCP, brittle fracture area is found on the edge of the fracture surface, and the remaining area contains dimples (Figure 10b1,b2). When −0.775 VSCE CP potential is applied, the necking characteristic become more pronounced, but the fracture morphology shows no visible changes (Figure 10c1,c2). Decrease the CP potential to −0.85 VSCE, the fracture surface tends to be flat. As the CP potentials continue to decrease, necking of the steel becomes lower and the brittle fracture becomes more manifest, which is consistent with the change of Iψ. Combining the SCC susceptibility and fracture morphology results, it can be concluded that the −0.775 VSCE provides proper protection for the SCC of X70 steel in near-neutral pH environment. Therefore, the CP potential of −0.775 VSCE, which is the industrial-recommended CP criterion (−0.85 VCSE), is used to investigate the influence of AC interference on SCC under CP in this work.
Figure 11 shows the stress–strain curves of X70 steel measured in the NS4 solution under the combined effect of −0.775 VSCE CP and AC interference. The highest elongation is observed when the specimen is tested without AC interference, and it decreases significantly with increase of AC current density, suggesting that AC decreases SCC resistance of X70 steel. Figure 12 shows the SCC susceptibility of the X70 steel under −0.775 VSCE CP and superimposed AC interference. It is seen that the Rδ (Figure 12a) and Rψ (Figure 12b) present the same changing tendency as the experimental condition varies. Both increase as the AC current is applied. Combined with Figure 9, the experimental results illustrate that AC enhances the SCC susceptibility of X70 steel, and the higher the AC current is, the more susceptible the steel is to SCC. It is worth noting that even a small AC current of 1 mA/cm2 could promote the SCC process.
Figure 13 shows the SEM views of the fracture surface morphology after SSRT tests when the X70 steel is under combined CP and AC interference. When AC current is superimposed, large brittle fracture zones can be observed. The micro-morphology of the fracture surface shows apparent brittle characteristics when the AC current is 5 mA/cm2 (Figure 13c,d) and 10 mA/cm2 (Figure 13e,f), which also indicates that AC decreases the resistance of X70 steel to SCC when it is under cathodic protection.

4. Discussion

It is seen that both the corrosion dissolution (Figure 5) and stress corrosion cracking process (Figure 8) are inhibited by −0.775 VSCE CP when there is no AC interference, while localized corrosion such as pitting and SCC are promoted with the superimposition of AC. The following sections will discuss the mechanism of the AC-induced variation of the corrosion process.

4.1. Influence of AC on CP Potential and Current

It has been acknowledged [29] that DC potential is closely related to the quantity of electrons on the electrode surface. Thus, the shifting direction of the DC potential is decided by the relative magnitude of anodic and cathodic current densities of the electrode. There are three circumstances according to the electrons produced by anodic reactions and consumed by cathodic reactions, which has also been reported by Xu and Cheng [20]:
(I)
| i a + i e | > | i c | , that is the sum of the free electrons from the externally applied current and the anodic reaction is more than that consumed by the cathodic reaction. In this case, anodic dissolution is promoted and redundant electrons remain in the steel surface, leading to the negative shift of DC potential.
(II)
| i a + i e | = | i c | , that is the sum of the supply rate of electrons by external current and anodic reaction is balanced by the consumption rate. Accordingly, no change of DC potential will be observed.
(III)
| i a + i e | < | i c | , that is the supplying rate of the free electrons is smaller than the cathodic consumption rate. As a result, the cathodic reaction is promoted and DC potential is shifted to the positive direction.
Theoretically, the DC potential gradually stabilized at open circuit potential when there are no external current sources. With the application of CP, new steady state of DC potential lower than the open circuit potential, which is called cathodic polarization, is reached because of the constant input of excess electrons. With the superimposition of AC, the steel is anodically and cathodcially polarized periodically. Under a weak cathodic protection potential of −0.775 VSCE, the cathodic polarization is enhanced by AC and more electrons are provided by external current sources, which causes the negative shift of DC potential in the CP + AC region (Figure 4a). When the CP potential is maintained at −0.95 VSCE or −1.2 VSCE, far more electrons are provided than that of −0.775 VSCE, resulting in the large deviation of the electrode from natural equilibrium state of OCP. In this case, the electrode has strong tendency to come back to the equilibrium state and only a slight disturbance of AC can cause the positive shift of DC potential (Figure 4c,e).
It has been reported that the process occurring during anodic half-cycle of the AC signal is not completely reversed during the cathodic half-cycle [7], meaning that a larger anodic current density than the cathodic current density is induced by AC when there is no CP. When the CP potential is −0.775 VSCE, the AC interference has similar effect with that of OCP. Anodic dissolution reaction rate is promoted, resulting in the increase of DC current from −15 to −6 μA/cm2 when 1 mA/cm2 iAC is superimposed to the electrode (Figure 4b). When the iAC is 3 mA/cm2 or higher, the anodic reaction is accelerated more heavily. As a result, the current densities become anodic in CP + AC region. With the application of −0.95 VSCE or −1.2 VSCE CP, the electrode has the tendency to come back to the equilibrium state of OCP when there is another external disturbance. Thus, more electrons are needed to maintain the cathodic polarization potential of the electrode with the disturbance of AC. More electrons mean higher cathodic current density. Therefore, DC current density is cathodic and the cathodic current density increases with the application of AC, as shown in Figure 4d,f.

4.2. Influence of AC on Corrosion Morphology

When there is no AC interference, no corrosion is detected under the application of CP (Figure 5). While when AC current is superimposed, the steel is corroded, even though it is cathodically protected (Figure 6). In the initial period of immersion under AC interference, the surface of the steel shows a metallurgic microstructure-like morphology. It reveals that α ferrite grains are prone to dissolve, while the carbides and the grain boundaries are away from attacking, attributing to the micro-galvanic effect between different phases in the steel [30]. Atrens et al. [31] found that grain boundaries of X70 steel had higher carbon concentration than ferrite grains. Liu et al. [32] characterized the local electrochemical activity of grains and grain boundaries of X70 steel and found that the grains were anodic relative to the grain boundaries. Tsuyoshi [33] measured the corrosion potential of iron and various carbides in different electrolytes and reported that all the tested carbides including cementite presented nobler corrosion potential than iron. In conclusion, carbon-rich structures of X70 steel act as cathode in the process of corrosion in the near-neutral pH solution, resulting in the corrosion morphology similar with the microstructure.
Under a CP potential of −0.775 VSCE, corrosion is promoted remarkably by the AC interference (Figure 6c,d). As aforementioned in Section 4.1, the anodic dissolution is enhanced when the AC current is applied. Even though the measured DC current is a cathodic current of −6 μA/cm2 when the iAC is 1 mA/cm2, anodic dissolution also occurs (Figure 8). Moreover, dissolution of the steel is aggravated by the increase of AC current density. This is in accordance with previous studies [34,35], which also found the occurrence of AC corrosion even if the pipeline steels are cathodically protected. More negative CP potentials are needed to decrease the corrosion rate of the steel under AC interference [20].
Under the cathodic protection of −0.95 VSCE and −1.2 VSCE, cathodic reaction is promoted when the AC current is imposed as previously analyzed. However, pitting corrosion still occurs even though the cathodic current is kept at a quite high value (Figure 6e,g). The AC current densities used in this work are lower than the threshold to initiate pitting, which is found to be 20 mA/cm2 by previous study [15], in the near-neutral pH solution. Therefore, no pit forms on the steel surface at OCP (Figure 7a,b) and it can be speculated that the combined effect of CP and AC current is responsible for the initiation of corrosion pits. Under CP condition, the steel is protected from corrosion. When the AC current is imposed, the specimen is anodically and cathodcially polarized periodically [36]. If the AC current is efficiently high, e.g., 3 mA/cm2, the short-term anodic polarization can be achieved. Therefore, anodic current is generated, resulting in the local anodic dissolution of the active sites, such as the scratches, inclusions, dislocation slip steps and dislocation emergence points [17,37]. Because the frequency of AC current is 50 Hz, the anodic polarization, which is followed by the relatively long-term cathodic polarization, could be only kept for a short time. Corrosion pits are initiated at the active sites and other areas are not attacked (Figure 7e,f). When the CP potential is efficiently negative, e.g., −1.2 VSCE, the application of 3 mA/cm2 AC current can only generate a small anodic current. In this case, the metastable pits are formed (Figure 7g). As the AC current density increases to 10 mA/cm2, higher anodic current is induced and corrosion pits with bigger diameters are initiated (Figure 7h).

4.3. Influence of AC on Stress Corrosion Cracking

In the near-neutral pH solution, both dissolution of the steel and hydrogen ingress into the steel are acknowledged to be involved in the SCC process of pipeline steels [38,39,40]. That is to say, SCC of pipeline steels is mix-controlled by anodic dissolution (AD) and hydrogen embrittlement (HE). Therefore, AC-induced increase of SCC susceptibility under CP can be explained by the variation of anodic dissolution and hydrogen evolution processes.
As discussed in Section 4.2, ferrite grains are preferentially attacked when the X70 steel is immersed in the testing solution. Therefore, the electrochemical driving force for cracks to propagate within a grain is higher than that at grain boundaries [32,41], resulting in the transgranular stress corrosion cracking (TGSCC). When the X70 steel is protected by a CP potential of −0.775 VSCE, the anodic reaction is inhibited. There are no preferential sites for SCC cracks to initiate and the SCC susceptibility decreases in comparison with OCP. Upon the application of AC current, the anodic dissolution is enhanced. That is, the ferrite grains are more severely corroded. Thus, stress corrosion cracks more easily propagate once initiated within the grains and the SCC is promoted.
On the other hand, the AC-induced hydrogen evolution also involves in the SCC process. Under the CP potential of −0.775 VSCE, the cathodic hydrogen evolution on X70 steel is weak. The small amount of hydrogen induces the hydrogen-facilitated plasticity and increases the elongation of X70 steel (Figure 9). When the AC current is superimposed, even though the measured DC current is cathodic, such as iAC = 1 mA/cm2, the instantaneous electrode potential induced by both CP and AC polarization can reach a large negative value [42]. If the instantaneous large negative electrode potential is lower than the threshold of hydrogen evolution, H atoms can be produced due to the reduction of H2O and HCO3− [9,43]:
H 2 O + e → H ( ads ) + OH −
HCO 3 − + e → H ( ads ) + CO 3 2 −
The H atoms has great impact on SCC by absorbing on the electrode surface and ingressing into the steel [44], which can be described in two aspects. Firstly, hydrogen can induce alteration of electrochemical kinetic parameters, such as chemical potential and exchange current density of corrosion reactions, which subsequently enhances the anodic dissolution of the steel [45]. With the increase of AC current density, more hydrogen atoms are produced, resulting in the increase of anodic dissolution current density [15]. In addition, the existence of hydrogen can promote local plastic deformation, which is believed to be the key factor for the initiation and propagation of SCC in near-neutral pH environment [28]. The enhancement of local plastic deformation leads to brittle fracture of the steel (Figure 13). Consequently, SCC susceptibility is increased significantly by the application of AC (Figure 12) due to the production of hydrogen. When the iAC is increased, the cathodic current would be higher due to the more negative potential induced by AC [15], and thus the SCC susceptibility increases.

4.4. Implication on the CP Effectiveness of Pipeline in the Field

According to previous studies, AC current density is believed to be the primary factor that affect AC corrosion of pipeline steels [3]. For the pipelines without CP, an AC current density criterion for AC corrosion was educed. When iAC is below 3 mA/cm2, there is probably no risk of AC corrosion. When iAC is between 3 and 10 mA/cm2, corrosion is possible, since conventional criteria are not reliable. At AC current densities in excess of 10 mA/cm2, corrosion damage is to be expected. The European standard EN 15280 [46] also proposed that AC corrosion mitigation was achieved by reducing iAC below 3 mA/cm2 and maintaining CP current density below 0.1 mA/cm2 if iAC was higher than 3 mA/cm2. Büchler [23,24] conducted extensive laboratory and field tests and reported that for current density values determined on coupons one of the criteria below must be met: (i) average iAC < 3 mA/cm2; (ii) average iDC < 0.1 mA/cm2; or (iii) iAC/iDC < 3. However, most of the previous works focus on the corrosion rate without considering the SCC susceptibility. In this work, under the CP potential of −0.775 VSCE, the AC current as low as 1 mA/cm2 can increase the SCC susceptibility to a higher value than OCP condition (Figure 12). It is speculated that SCC susceptibility can be increased by AC under a more negative CP potential. As has been analyzed, the imposed AC can facilitate both the cathodic and the anodic reactions, especially the former. On the one hand, the accelerated hydrogen evolution reactions will generate more hydrogen atoms, contributing to the AD and HE mix-controlled near-neutral pH SCC [15]. On the other hand, the accelerated anodic dissolution will lead to generation of corrosion pits, which usually become the initiation sites for stress corrosion cracks [47], and thus the SCC susceptibility will increase. Therefore, in field operation, when the CP criteria under AC interference is used, the SCC risk should be considered.

5. Conclusions

In the present study, AC interference on corrosion and SCC of X70 steel under cathodic protection was investigated. The main conclusions can be drawn as follows:
(1)
Both corrosion and SCC are inhibited by −0.775 VSCE CP without AC interference. Further decrease the CP potential to more negative values, resistance of the steel to SCC decreases.
(2)
Under the CP of −0.775 VSCE, DC potential shift to the negative direction with the superimposition of AC. Meanwhile, the cathodic DC current decreases and shift to the anodic direction. When the AC current is 3 mA/cm2 or higher, the DC current becomes anodic. The higher the iAC applied is, the more anodic the current density is.
(3)
Under the CP of −0.95 VSCE and −1.2 VSCE, the applied AC current promotes the cathodic reaction and results in a positive shift of the DC potential and an increase of the cathodic current. Local anodic dissolution occurs on the cathodically protected steel under AC interference, attributing to the generated anodic current in the positive half-cycle of the AC current. The active sites on the steel surface are preferentially attacked and corrosion pits are initiated.
(4)
AC enhances the SCC susceptibility of X70 steel under CP, attributing to the promotion of anodic dissolution and hydrogen evolution. Even a small AC current can degrade the SCC resistance. Thus, the SCC susceptibility of pipeline steel should be considered when the CP standard under AC interference is established.

Acknowledgments

The authors wish to acknowledgement the financial support of National Natural Science Foundation of China (Nos. 51701102 and 51601182), Natural Science Foundation of Shandong Province (No. ZR2016EMB08) and Qingdao Basic Application Research Program (No. 16-5-1-14-jch).

Author Contributions

Liwei Wang and Zhongyu Cuiconceived and designed the experiments; Liwei Wang, Junru Li, and Shuowei Bai performed the experiments; Liwei Wang and Lianjun Cheng analyzed the data; Zhifu Zhu contributed reagents/materials/analysis tools; Liwei Wang wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Li, Z.; Li, C.; Qian, H.; Li, J.; Huang, L.; Du, C. Corrosion behavior of X80 steel with coupled coating defects under alternating current Interference in alkaline cnvironment. Materials 2017, 10, 720. [Google Scholar] [CrossRef] [PubMed]
  2. Wang, H.; Du, C.; Liu, Z.; Wang, L.; Ding, D. Effect of alternating current on the cathodic protection and interface structure of X80 steel. Materials 2017, 10, 851. [Google Scholar] [CrossRef] [PubMed]
  3. Koerts, H.C.; Wetzer, J.M. Literature Survey on Corrosion of Underground Metallic Structures Induced by Alternating Currents; European Copper Institute: Arnhem, The Netherlands, 2001. [Google Scholar]
  4. Lalvani, S.B.; Lin, X.A. A theoretical approach for predicting AC-induced corrosion. Corros. Sci. 1994, 36, 1039–1046. [Google Scholar] [CrossRef]
  5. Lalvani, S.B.; Lin, X. A revised model for predicting corrosion of materials induced by alternating voltages. Corros. Sci. 1996, 38, 1709–1719. [Google Scholar] [CrossRef]
  6. Goidanich, S.; Lazzari, L.; Ormellese, M. AC corrosion–Part 1: Effects on overpotentials of anodic and cathodic processes. Corros. Sci. 2010, 52, 491–497. [Google Scholar] [CrossRef]
  7. Goidanich, S.; Lazzari, L.; Ormellese, M. AC corrosion. Part 2: Parameters influencing corrosion rate. Corros. Sci. 2010, 52, 916–922. [Google Scholar] [CrossRef]
  8. Wang, L.W.; Wang, X.H.; Cui, Z.Y.; Liu, Z.Y.; Du, C.W.; Li, X.G. Effect of alternating voltage on corrosion of X80 and X100 steels in a chloride containing solution—Investigated by AC voltammetry technique. Corros. Sci. 2014, 86 (Supple. C), 213–222. [Google Scholar] [CrossRef]
  9. Eliyan, F.F.; Alfantazi, A. Mechanisms of corrosion and electrochemical significance of metallurgy and environment with corrosion of iron and steel in bicarbonate and carbonate solutions—A review. Corrosion 2014, 70, 880–898. [Google Scholar] [CrossRef]
  10. Wakelin, R.G.; Gummow, R.A.; Segall, S.M. AC Corrosion—Case Histories, Test Procedures, and Mitigation. In Corrosion 1998; Paper No. 564; NACE International: Houston, TX, USA, 1998. [Google Scholar]
  11. Cui, Z.Y.; Wang, L.W.; Liu, Z.Y.; Du, C.W.; Li, X.G. Influence of alternating voltages on passivation and corrosion properties of X80 pipeline steel in high pH 0.5 mol L−1 NaHCO3+ 0.25 mol L−1 Na2CO3 solution. Corros. Eng. Sci. Technol. 2015, 50, 248–255. [Google Scholar] [CrossRef]
  12. Allahkaram, S.R.; Isakhani-Zakaria, M.; Derakhshani, M.; Samadian, M.; Sharifi-Rasaey, H.; Razmjoo, A. Investigation on corrosion rate and a novel corrosion criterion for gas pipelines affected by dynamic stray current. J. Nat. Gas Sci. Eng. 2015, 26 (Suppl. C), 453–460. [Google Scholar] [CrossRef]
  13. Fu, A.Q.; Cheng, Y.F. Effects of alternating current on corrosion of a coated pipeline steel in a chloride-containing carbonate/bicarbonate solution. Corros. Sci. 2010, 52, 612–619. [Google Scholar] [CrossRef]
  14. Kuang, D.; Cheng, Y.F. Understand the AC induced pitting corrosion on pipelines in both high pH and neutral pH carbonate/bicarbonate solutions. Corros. Sci. 2014, 85, 304–310. [Google Scholar] [CrossRef]
  15. Zhu, M.; Du, C.; Li, X.; Liu, Z.; Li, H.; Zhang, D. Effect of AC on stress corrosion cracking behavior and mechanism of X80 pipeline steel in carbonate/bicarbonate solution. Corros. Sci. 2014, 87, 224–232. [Google Scholar] [CrossRef]
  16. Wan, H.; Song, D.; Liu, Z.; Du, C.; Zeng, Z.; Yang, X.; Li, X. Effect of alternating current on stress corrosion cracking behavior and mechanism of X80 pipeline steel in near-neutral solution. J. Nat. Gas Sci. Eng. 2017, 38, 458–465. [Google Scholar] [CrossRef]
  17. Liu, Z.Y.; Li, X.G.; Cheng, Y.F. Electrochemical state conversion model for occurrence of pitting corrosion on a cathodically polarized carbon steel in a near-neutral pH solution. Electrochim. Acta 2011, 56, 4167–4175. [Google Scholar] [CrossRef]
  18. Hosokawa, Y.; Kajiyama, F.; Nakamura, Y. New cathodic protection criteria based on direct and alternating current densities measured using coupons and their application to modern steel pipelines. Corrosion 2004, 60, 304–312. [Google Scholar] [CrossRef]
  19. Kajiyama, F.; Nakamura, Y. Effect of induced alternating current voltage on cathodically protected pipelines paralleling electric power transmission lines. Corrosion 1999, 55, 200–205. [Google Scholar] [CrossRef]
  20. Xu, L.Y.; Su, X.; Cheng, Y.F. Effect of alternating current on cathodic protection on pipelines. Corros. Sci. 2013, 66, 263–268. [Google Scholar] [CrossRef]
  21. Ormellese, M.; Brenna, A.; Lazzari, L. AC Corrosion of Cathodically Protected Buried Pipelines: Critical Interference Values and Protection Criteria. In Corrosion 2015; Paper No. 5753; NACE: Dalas, Iran, 2015. [Google Scholar]
  22. Nielsen, L.V. Role of alkalization in AC induced corrosion of pipelines and consequences hereof in relation to CP requirements. In Corrosion 2005; NACE: Houston, TX, USA, 2005. [Google Scholar]
  23. Büchler, M. Alternating current corrosion of cathodically protected pipelines: Discussion of the involved processes and their consequences on the critical interference values. Mater. Corros. 2012, 63, 1181–1187. [Google Scholar] [CrossRef]
  24. Büchler, M.; Schöneich, H. Investigation of alternating current corrosion of cathodically protected pipelines: Development of a detection method, mitigation measures, and a model for the mechanism. Corrosion 2009, 65, 578–586. [Google Scholar] [CrossRef]
  25. Cui, Z.; Liu, Z.; Wang, L.; Li, X.; Du, C.; Wang, X. Effect of plastic deformation on the electrochemical and stress corrosion cracking behavior of X70 steel in near-neutral pH environment. Mater. Sci. Eng. A 2016, 677, 259–273. [Google Scholar] [CrossRef]
  26. Cabrini, M.; Lorenzi, S.; Pastore, T.; Pellegrini, S.; Burattini, M.; Miglio, R. Study of the corrosion resistance of austenitic stainless steels during conversion of waste to biofuel. Materials 2017, 10, 325. [Google Scholar] [CrossRef] [PubMed]
  27. Liu, Z.Y.; Wang, X.Z.; Du, C.W.; Li, J.K.; Li, X.G. Effect of hydrogen-induced plasticity on the stress corrosion cracking of X70 pipeline steel in simulated soil environments. Mater. Sci. Eng. A 2016, 658, 348–354. [Google Scholar] [CrossRef]
  28. Liu, Z.Y.; Li, X.G.; Cheng, Y.F. Mechanistic aspect of near-neutral pH stress corrosion cracking of pipelines under cathodic polarization. Corros. Sci. 2012, 55, 54–60. [Google Scholar] [CrossRef]
  29. Tang, D.Z.; Du, Y.X.; Lu, M.X.; Jiang, Z.T.; Dong, L.; Wang, J.J. Effect of AC current on corrosion behavior of cathodically protected Q235 steel. Mater. Corros. 2015, 66, 278–285. [Google Scholar] [CrossRef]
  30. Yang, Y.; Akid, R. Electrochemical investigation of the corrosion of different microstructural phases of X65 pipeline steel under saturated carbon dioxide conditions. Materials 2015, 8, 2635–2649. [Google Scholar] [CrossRef]
  31. Atrens, A.; Wang, J.Q.; Stiller, K.; Andrén, H.-O. Atom probe field ion microscope measurements of carbon segregation at an α: α grain boundary and service failures by intergranular stress corrosion cracking. Corros. Sci. 2006, 48, 79–92. [Google Scholar] [CrossRef]
  32. Liu, Z.Y.; Li, X.G.; Cheng, Y.F. In-situ characterization of the electrochemistry of grain and grain boundary of an X70 steel in a near-neutral pH solution. Electrochem. Commun. 2010, 12, 936–938. [Google Scholar] [CrossRef]
  33. Tsuyoshi, M. Studies on electrolytic extraction of carbides in irons and steels. ISIJ 1969, 55, 1347–1358. [Google Scholar]
  34. Hosokawa, Y.; Kajiyama, F.; Fukuoka, T. Alternating current corrosion risk arising from alternating current-powered rail transit systems on cathodically protected buried steel pipelines and its measures. Corrosion 2004, 60, 408–413. [Google Scholar] [CrossRef]
  35. Liu, Z.Y.; Li, X.G.; Cheng, Y.F. Understand the occurrence of pitting corrosion of pipeline carbon steel under cathodic polarization. Electrochim. Acta 2012, 60 (Suppl. C), 259–263. [Google Scholar] [CrossRef]
  36. Fu, A.Q.; Cheng, Y.F. Effect of alternating current on corrosion and effectiveness of cathodic protection of pipelines. Can. Metall. Q. 2012, 51, 81–90. [Google Scholar] [CrossRef]
  37. Xue, H.B.; Cheng, Y.F. Characterization of inclusions of X80 pipeline steel and its correlation with hydrogen-induced cracking. Corros. Sci. 2011, 53, 1201–1208. [Google Scholar] [CrossRef]
  38. Parkins, R.N.; Blanchard, W., Jr.; Delanty, B.S. Transgranular stress corrosion cracking of high-pressure pipelines in contact with solutions of near neutral pH. Corrosion 1994, 50, 394–408. [Google Scholar] [CrossRef]
  39. Li, M.C.; Cheng, Y.F. Mechanistic investigation of hydrogen-enhanced anodic dissolution of X-70 pipe steel and its implication on near-neutral pH SCC of pipelines. Electrochim. Acta 2007, 52, 8111–8117. [Google Scholar] [CrossRef]
  40. Liu, Z.; Li, Q.; Cui, Z.; Wu, W.; Li, Z.; Du, C.; Li, X. Field experiment of stress corrosion cracking behavior of high strength pipeline steels in typical soil environments. Constr. Build. Mater. 2017, 148, 131–139. [Google Scholar] [CrossRef]
  41. Wang, L.W.; Du, C.W.; Liu, Z.Y.; Wang, X.H.; Li, X.G. Influence of carbon on stress corrosion cracking of high strength pipeline steel. Corros. Sci. 2013, 76, 486–493. [Google Scholar] [CrossRef]
  42. Xu, L.Y.; Su, X.; Yin, Z.X.; Tang, Y.H.; Cheng, Y.F. Development of a real-time AC/DC data acquisition technique for studies of AC corrosion of pipelines. Corros. Sci. 2012, 61, 215–223. [Google Scholar] [CrossRef]
  43. Eliyan, F.F.; Mahdi, E.; Alfantazi, A. Electrochemical evaluation of the corrosion behaviour of API-X100 pipeline steel in aerated bicarbonate solutions. Corros. Sci. 2012, 58, 181–191. [Google Scholar] [CrossRef]
  44. Cui, Q.; Wu, J.; Xie, D.; Wu, X.; Huang, Y.; Li, X. Effect of nanosized NbC precipitates on hydrogen diffusion in X80 pipeline steel. Materials 2017, 10, 721. [Google Scholar] [CrossRef] [PubMed]
  45. Gu, B.; Yu, W.Z.; Luo, J.L.; Mao, X. Transgranular stress corrosion cracking of X80 and X52 pipeline steels in dilute aqueous solution with near-neutral pH. Corrosion 1999, 55, 312–318. [Google Scholar] [CrossRef]
  46. CEN, UNI/TS 15280. In Evaluation of AC corrosion Likelihood of Buried Pipelines-Application to Cathodically Protected Pipelines, European Standard; NASI: Dublin, Ireland, 2007; Available online: https://infostore.saiglobal.com/preview/is/en/2013/i.s.en15280-2013.pdf?sku=1675140 (accessed on 16 March 2018).
  47. Liu, Z.Y.; Cui, Z.Y.; Li, X.G.; Du, C.W.; Xing, Y.Y. Mechanistic aspect of stress corrosion cracking of X80 pipeline steel under non-stable cathodic polarization. Electrochem. Commun. 2014, 48, 127–129. [Google Scholar]
Materials 11 00465 g001 550

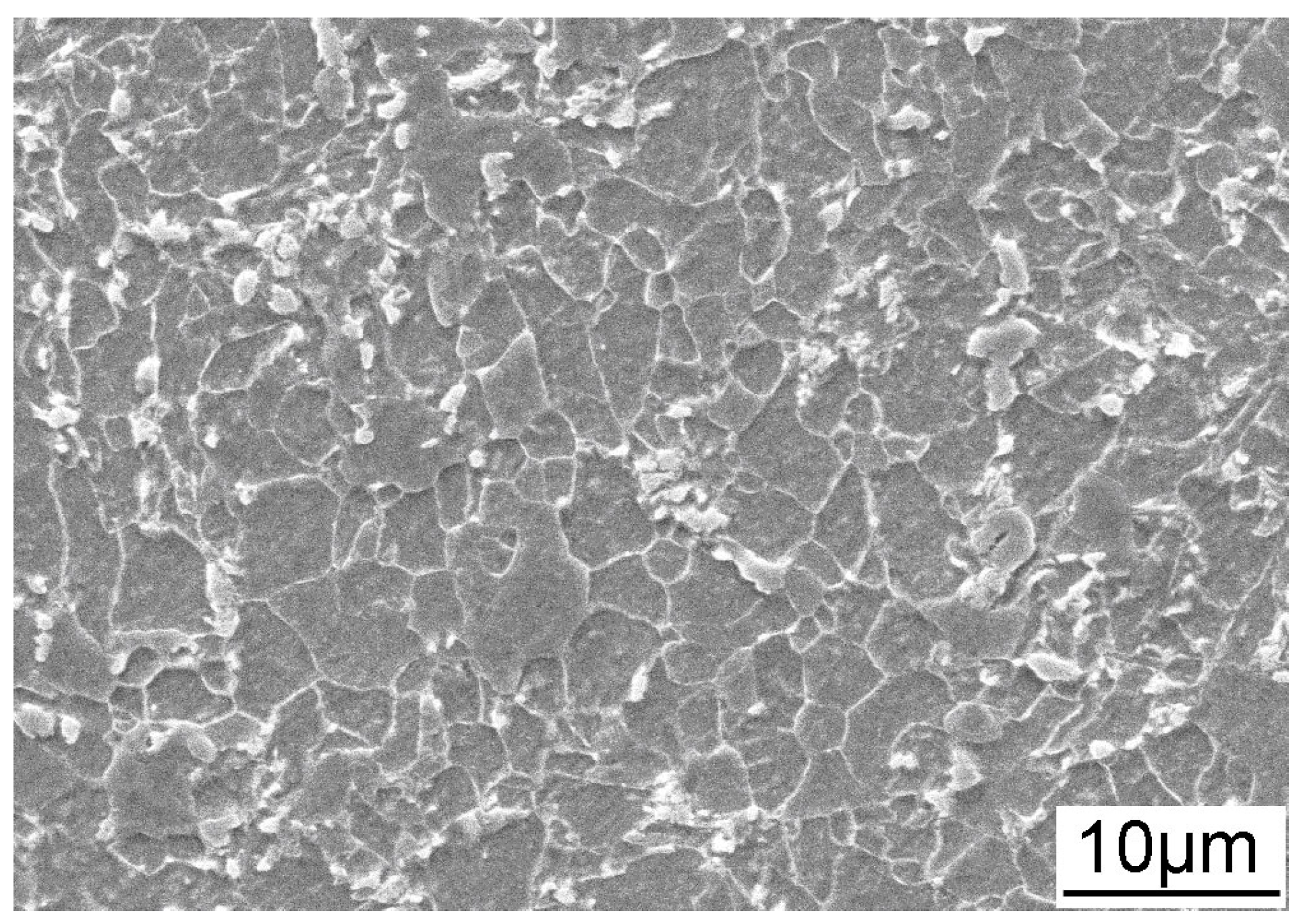

Figure 1. Scanning electron microscope (SEM) image of the microstructure of X70 pipeline steel.
Figure 1. Scanning electron microscope (SEM) image of the microstructure of X70 pipeline steel.
Materials 11 00465 g001
Materials 11 00465 g002 550

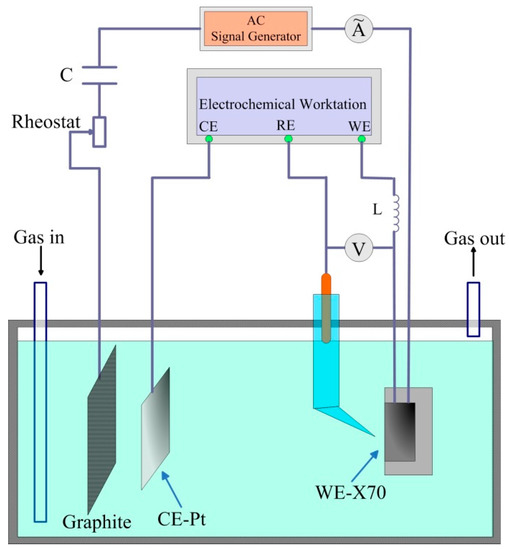

Figure 2. Schematic diagram of the experimental setup for the application of alternating current to the pipeline steel under cathodic protection.
Figure 2. Schematic diagram of the experimental setup for the application of alternating current to the pipeline steel under cathodic protection.
Materials 11 00465 g002
Materials 11 00465 g003 550

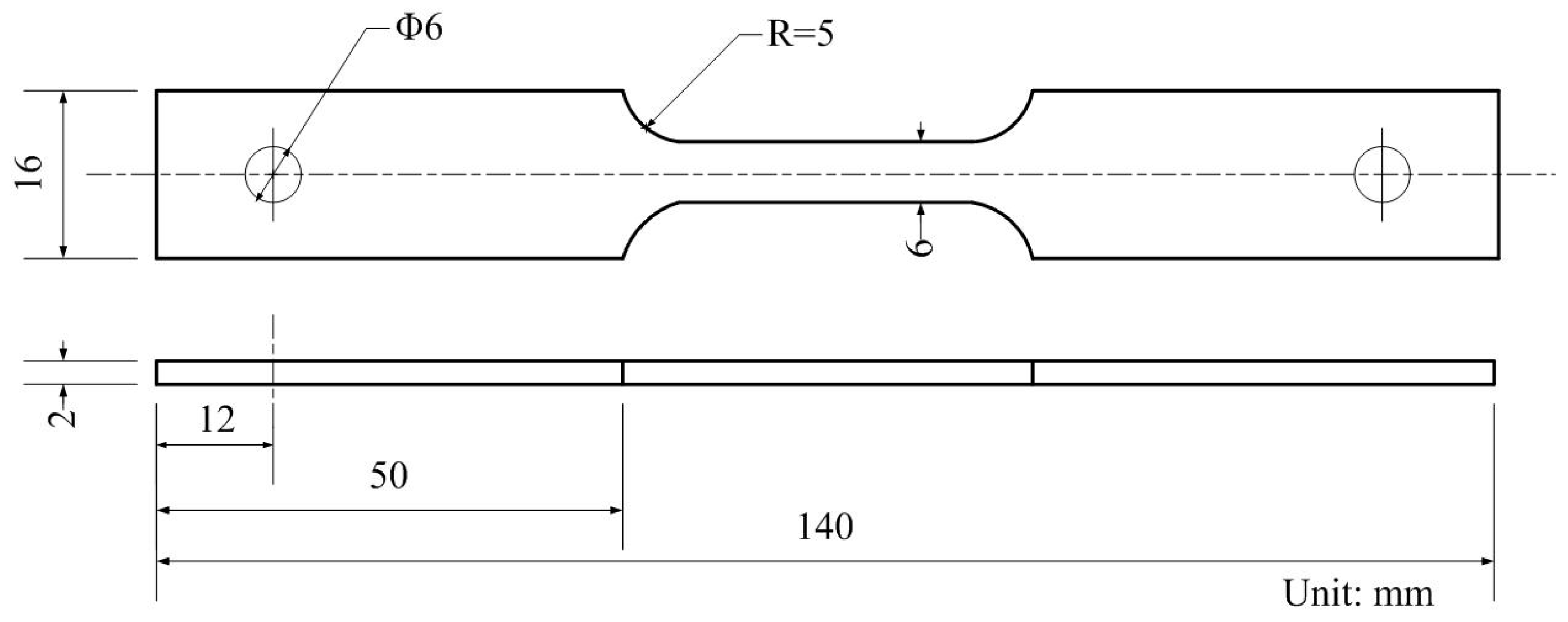

Figure 3. Geometry of the tensile specimen used in the slow strain rate tensile tests.
Figure 3. Geometry of the tensile specimen used in the slow strain rate tensile tests.
Materials 11 00465 g003
Materials 11 00465 g004 550

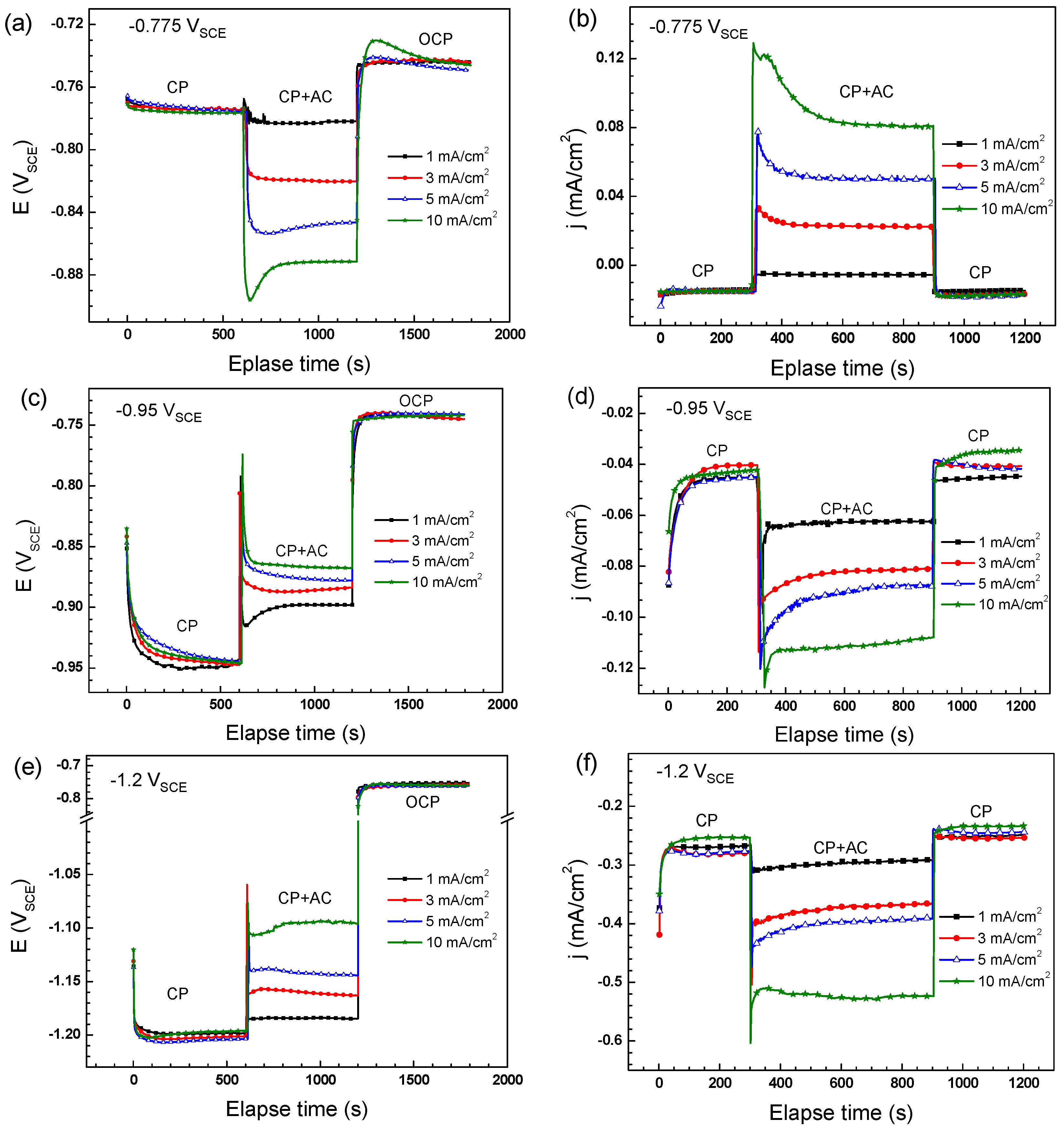

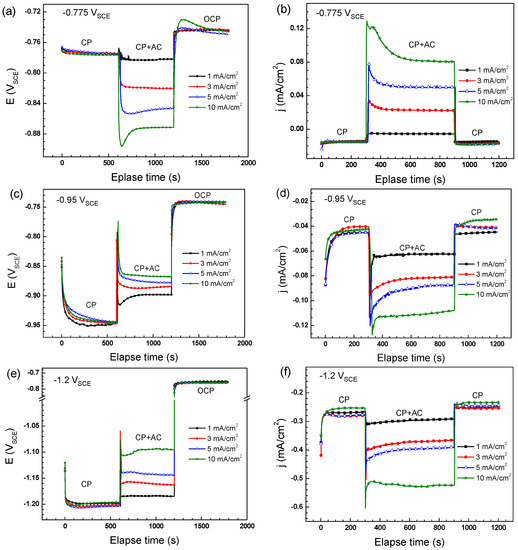

Figure 4. DC potential (a,c,e); and DC current (b,d,f) changes of X70 steel under the combined effect of AC interference and CP potential of: −0.775 VSCE (a,b); −0.95 VSCE (c,d); and −1.2 VSCE (e,f).
Figure 4. DC potential (a,c,e); and DC current (b,d,f) changes of X70 steel under the combined effect of AC interference and CP potential of: −0.775 VSCE (a,b); −0.95 VSCE (c,d); and −1.2 VSCE (e,f).
Materials 11 00465 g004
Materials 11 00465 g005 550

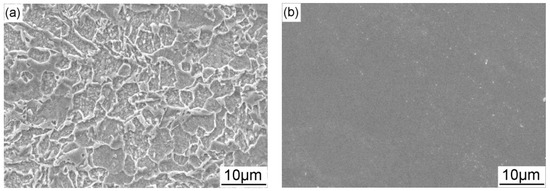

Figure 5. Corrosion morphology of the X70 steel after immersion in the NS4 solution for 24 h without (a) and with (b) −0.775 VSCE cathodic protection.
Figure 5. Corrosion morphology of the X70 steel after immersion in the NS4 solution for 24 h without (a) and with (b) −0.775 VSCE cathodic protection.
Materials 11 00465 g005
Materials 11 00465 g006a 550Materials 11 00465 g006b 550

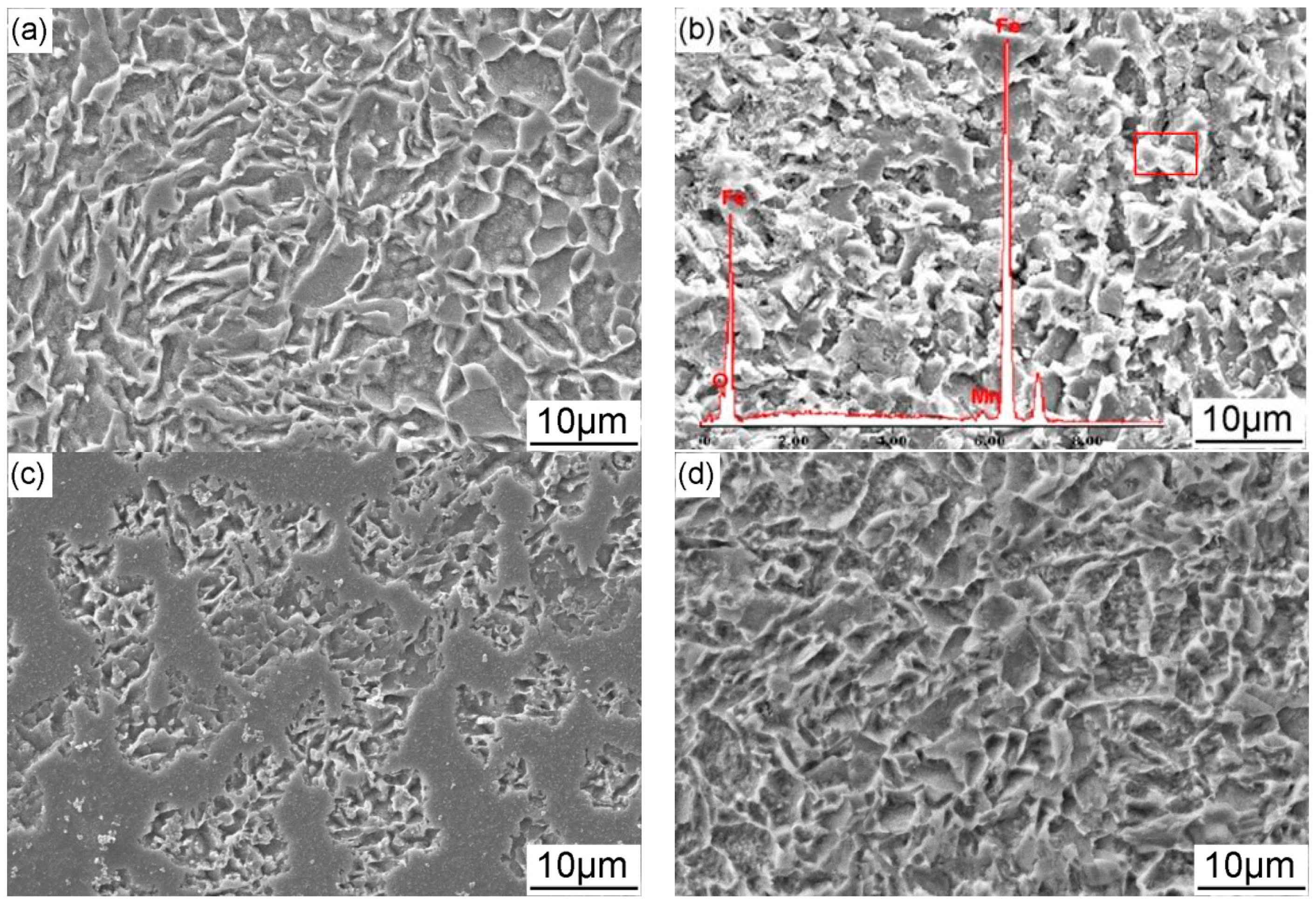

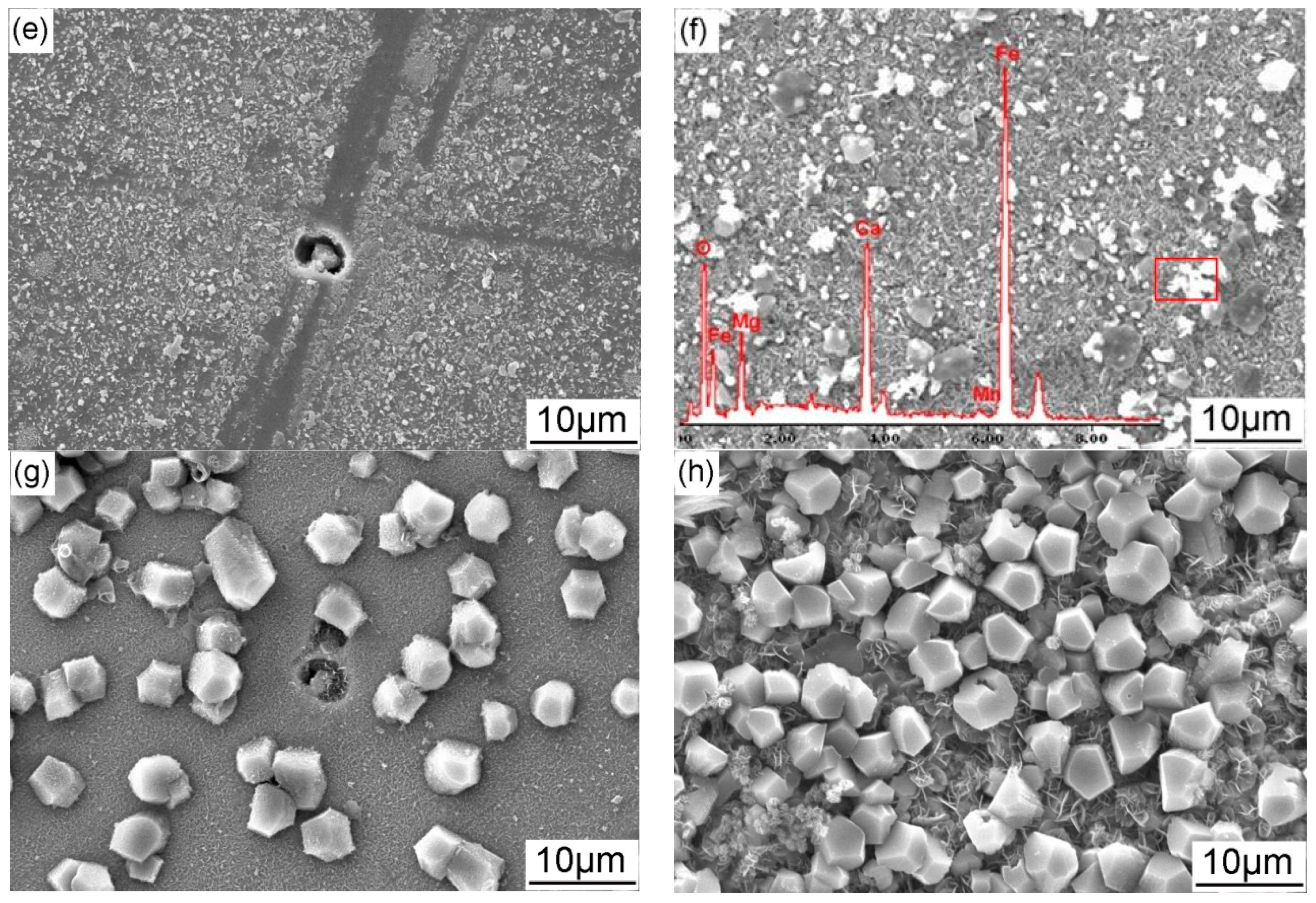

Figure 6. Corrosion morphology of the X70 steel immersed in the NS4 solution for 2 h under the combined effect of CP and AC interference before removing the corrosion products: (a) OCP + 3 mA/cm2; (b) OCP + 10 mA/cm2; (c) −0.775 VSCE CP + 3 mA/cm2; (d) −0.775 VSCE CP + 10 mA/cm2; (e) −0.95 VSCE CP + 3 mA/cm2; (f) −0.95 VSCE CP + 10 mA/cm2; (g) −1.2 VSCE CP + 3 mA/cm2; and (h) −1.2 VSCE CP + 10 mA/cm2. The Energy Dispersive Spectrometer (EDS) results of the corrosion products marked in the square shown are illustrated in b and f.
Figure 6. Corrosion morphology of the X70 steel immersed in the NS4 solution for 2 h under the combined effect of CP and AC interference before removing the corrosion products: (a) OCP + 3 mA/cm2; (b) OCP + 10 mA/cm2; (c) −0.775 VSCE CP + 3 mA/cm2; (d) −0.775 VSCE CP + 10 mA/cm2; (e) −0.95 VSCE CP + 3 mA/cm2; (f) −0.95 VSCE CP + 10 mA/cm2; (g) −1.2 VSCE CP + 3 mA/cm2; and (h) −1.2 VSCE CP + 10 mA/cm2. The Energy Dispersive Spectrometer (EDS) results of the corrosion products marked in the square shown are illustrated in b and f.
Materials 11 00465 g006aMaterials 11 00465 g006b
Materials 11 00465 g007a 550Materials 11 00465 g007b 550

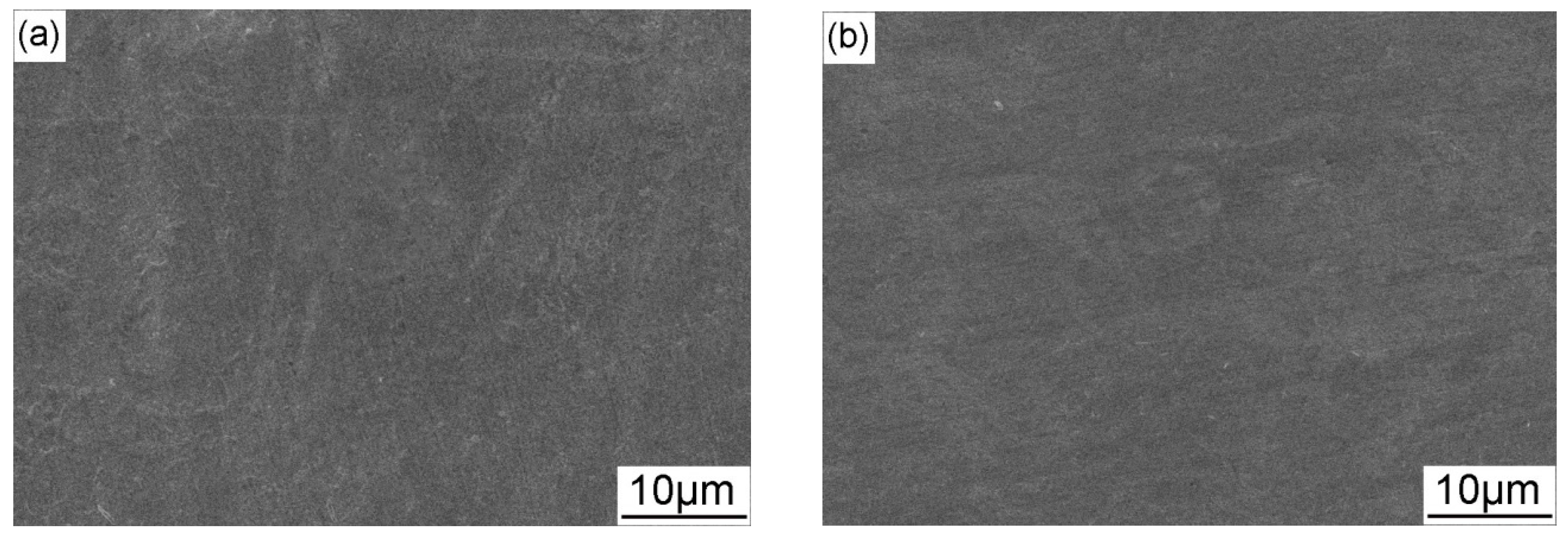

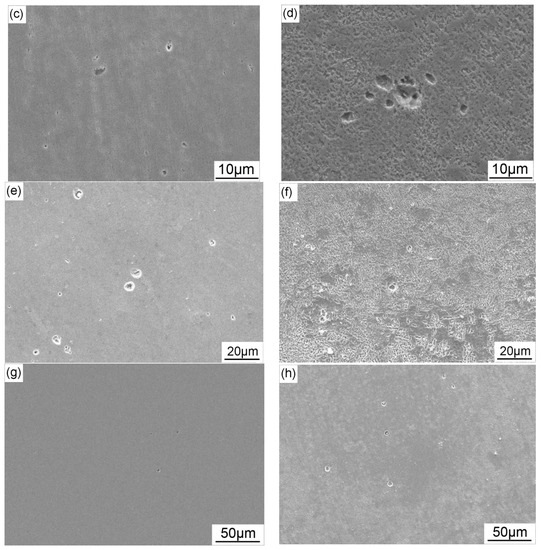

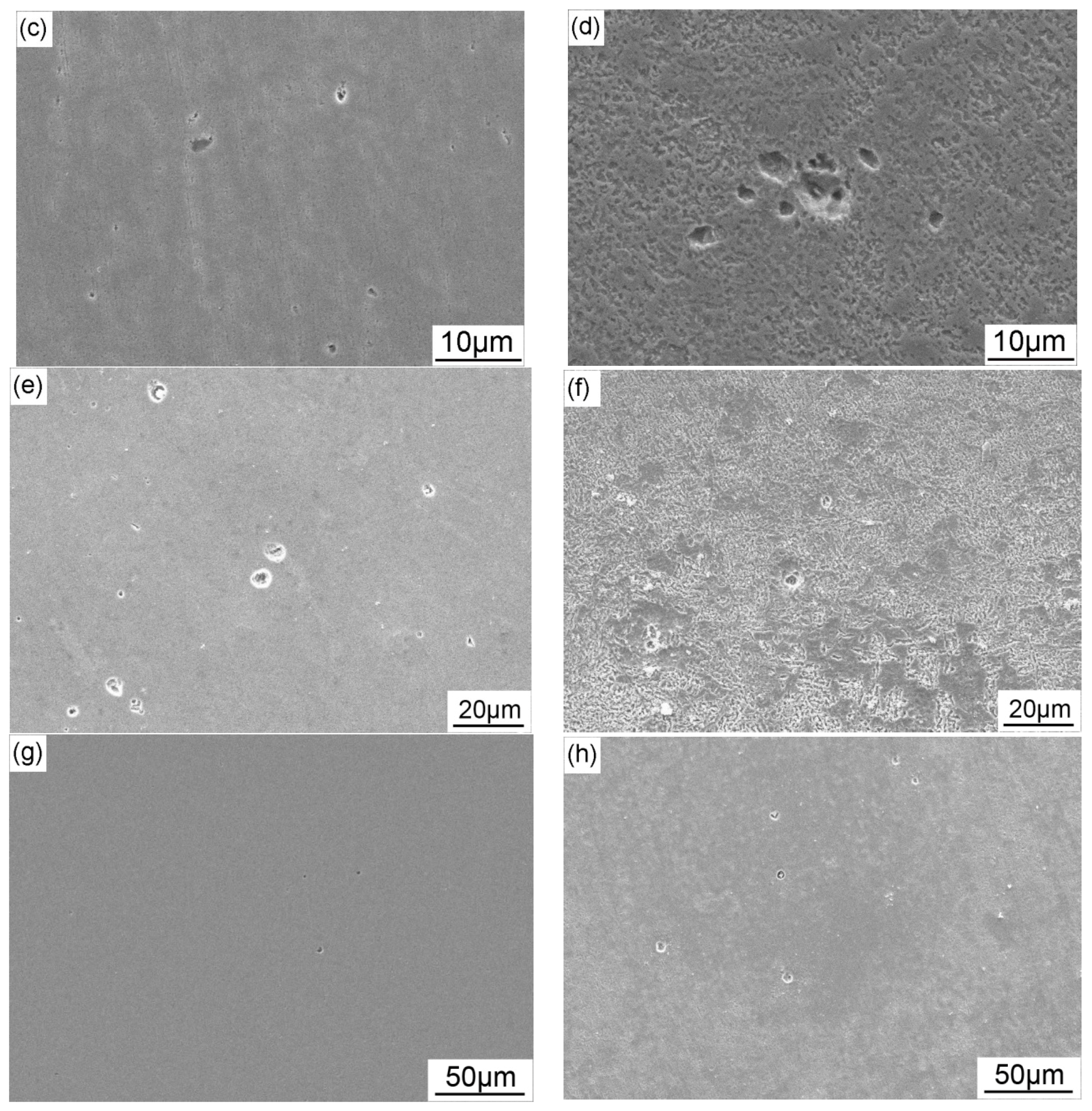

Figure 7. Corrosion morphology of the X70 steel immersed in the NS4 solution for 2 h under the combined effect of CP and AC interference after removing the corrosion products: (a) OCP + 3 mA/cm2; (b) OCP + 10 mA/cm2; (c) −0.775 VSCE CP + 3 mA/cm2; (d) −0.775 VSCE CP + 10 mA/cm2; (e) −0.95 VSCE CP + 3 mA/cm2; (f) −0.95 VSCE CP + 10 mA/cm2; (g) −1.2 VSCE CP + 3 mA/cm2; and (h) −1.2VSCE CP + 10 mA/cm2.
Figure 7. Corrosion morphology of the X70 steel immersed in the NS4 solution for 2 h under the combined effect of CP and AC interference after removing the corrosion products: (a) OCP + 3 mA/cm2; (b) OCP + 10 mA/cm2; (c) −0.775 VSCE CP + 3 mA/cm2; (d) −0.775 VSCE CP + 10 mA/cm2; (e) −0.95 VSCE CP + 3 mA/cm2; (f) −0.95 VSCE CP + 10 mA/cm2; (g) −1.2 VSCE CP + 3 mA/cm2; and (h) −1.2VSCE CP + 10 mA/cm2.
Materials 11 00465 g007aMaterials 11 00465 g007b
Materials 11 00465 g008 550

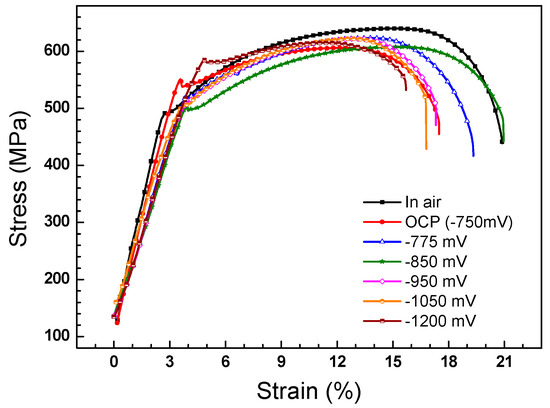

Figure 8. Stress–strain curves of the X70 steel in air and in the NS4 solution under OCP and different CP potentials without AC interference.
Figure 8. Stress–strain curves of the X70 steel in air and in the NS4 solution under OCP and different CP potentials without AC interference.
Materials 11 00465 g008
Materials 11 00465 g009 550

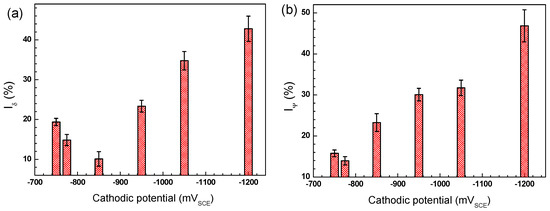

Figure 9. SCC susceptibilities of the X70 steel in air and in NS4 solution under different CP potentials expressed as: the ratio of elongation loss (a); and reduction in area (b).
Figure 9. SCC susceptibilities of the X70 steel in air and in NS4 solution under different CP potentials expressed as: the ratio of elongation loss (a); and reduction in area (b).
Materials 11 00465 g009
Materials 11 00465 g010a 550Materials 11 00465 g010b 550

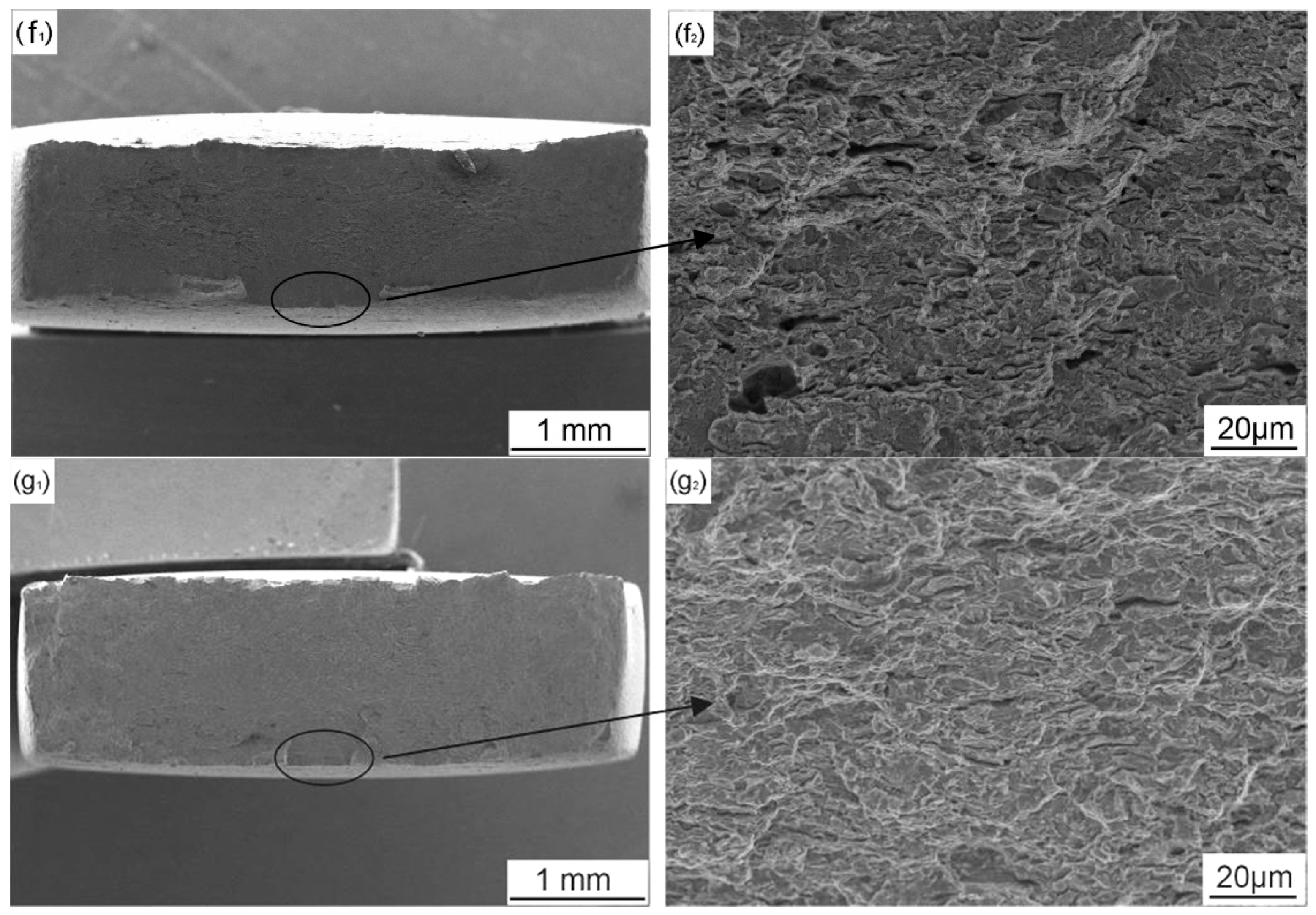

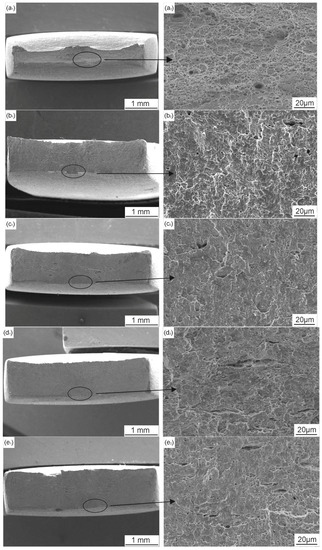

Figure 10. SEM images of the fracture surface of X70 steel: in air (a); and in NS4 solution under different CP potentials: (b) OCP; (c) −0.775 VSCE; (d) −0.85 VSCE; (e) −0.95 VSCE; (f) −1.05 VSCE; and (g) −1.2 VSCE.
Figure 10. SEM images of the fracture surface of X70 steel: in air (a); and in NS4 solution under different CP potentials: (b) OCP; (c) −0.775 VSCE; (d) −0.85 VSCE; (e) −0.95 VSCE; (f) −1.05 VSCE; and (g) −1.2 VSCE.
Materials 11 00465 g010aMaterials 11 00465 g010b
Materials 11 00465 g011 550

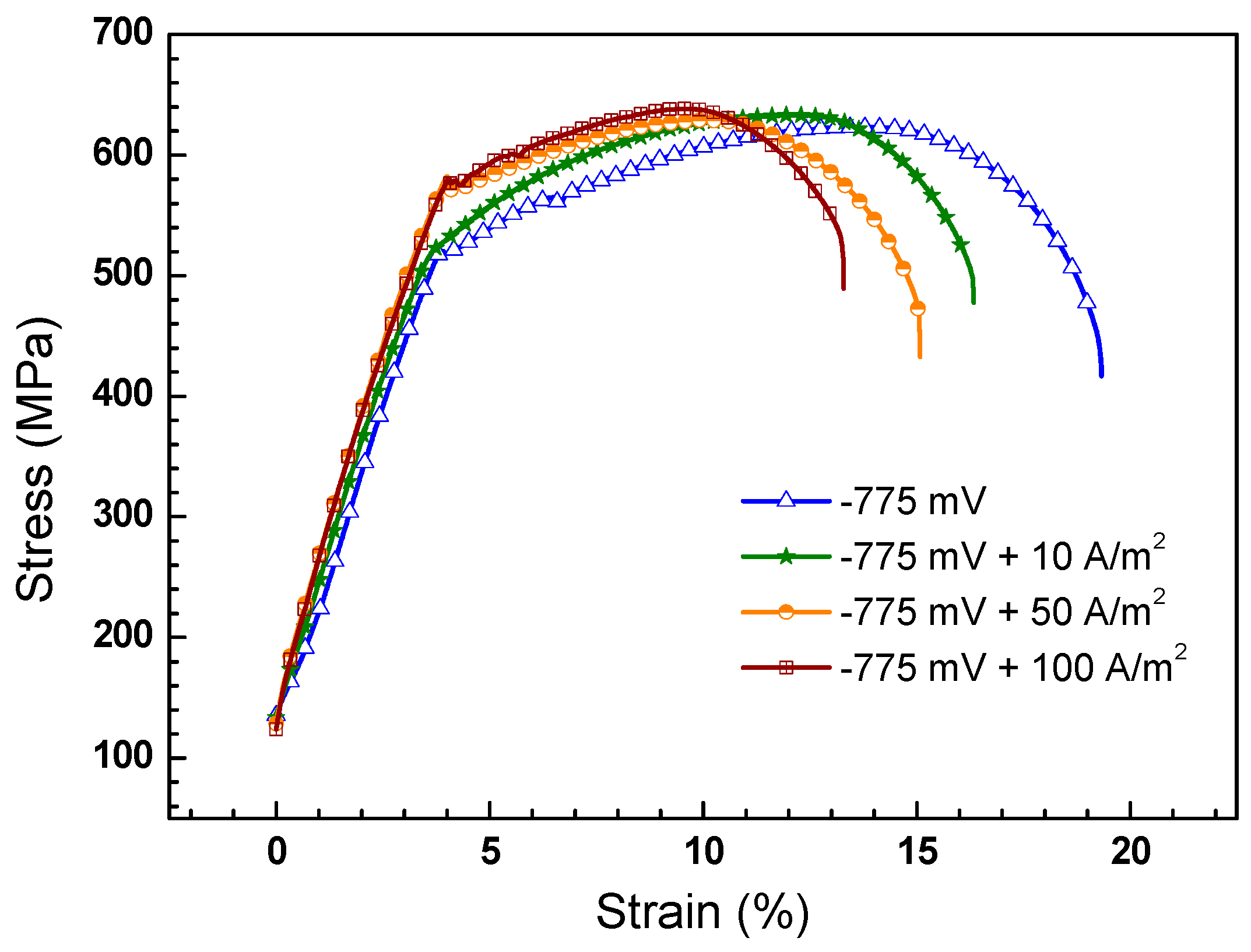

Figure 11. Stress–strain curves of the X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities.
Figure 11. Stress–strain curves of the X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities.
Materials 11 00465 g011
Materials 11 00465 g012 550

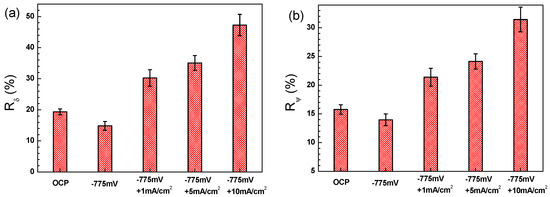

Figure 12. SCC susceptibilities of the X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities expressed as: the ratio of elongation loss (a); and reduction in area (b).
Figure 12. SCC susceptibilities of the X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities expressed as: the ratio of elongation loss (a); and reduction in area (b).
Materials 11 00465 g012
Materials 11 00465 g013 550
Figure 13. SEM images of the fracture surface of X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities: (a,b) 1 mA/cm2; (c,d) 5 mA/cm2; and (e,f) 10 mA/cm2.
Figure 13. SEM images of the fracture surface of X70 steel in NS4 solution under −0.775 VSCE CP with application of different AC current densities: (a,b) 1 mA/cm2; (c,d) 5 mA/cm2; and (e,f) 10 mA/cm2.
Materials 11 00465 g013
Table
Table 1. Steady-state DC potential and DC current density of X70 pipeline steel under the combined effect of CP and AC interference in NS4 solution.
Table 1. Steady-state DC potential and DC current density of X70 pipeline steel under the combined effect of CP and AC interference in NS4 solution.
AC Current Density−0.775 VSCE−0.95 VSCE−1.2 VSCE
DC Potential (VSCE)DC Current (mA/cm2)DC Potential (VSCE)DC Current (mA/cm2)DC Potential (VSCE)DC Current (mA/cm2)
0 mA/cm2−0.775−0.015−0.950−0.044−1.200−0.271
1 mA/cm2−0.781−0.006−0.905−0.063−1.185−0.292
3 mA/cm2−0.8200.022−0.887−0.081−1.163−0.365
5 mA/cm2−0.8460.050−0.878−0.087−1.144−0.391
10 mA/cm2−0.8710.081−0.868−0.109−1.095−0.547

Share and Cite

MDPI and ACS Style

Wang, L.; Cheng, L.; Li, J.; Zhu, Z.; Bai, S.; Cui, Z. Combined Effect of Alternating Current Interference and Cathodic Protection on Pitting Corrosion and Stress Corrosion Cracking Behavior of X70 Pipeline Steel in Near-Neutral pH Environment. Materials 2018, 11, 465. https://doi.org/10.3390/ma11040465

AMA Style

Wang L, Cheng L, Li J, Zhu Z, Bai S, Cui Z. Combined Effect of Alternating Current Interference and Cathodic Protection on Pitting Corrosion and Stress Corrosion Cracking Behavior of X70 Pipeline Steel in Near-Neutral pH Environment. Materials. 2018; 11(4):465. https://doi.org/10.3390/ma11040465

Chicago/Turabian Style

Wang, Liwei, Lianjun Cheng, Junru Li, Zhifu Zhu, Shuowei Bai, and Zhongyu Cui. 2018. "Combined Effect of Alternating Current Interference and Cathodic Protection on Pitting Corrosion and Stress Corrosion Cracking Behavior of X70 Pipeline Steel in Near-Neutral pH Environment" Materials 11, no. 4: 465. https://doi.org/10.3390/ma11040465

APA Style

Wang, L., Cheng, L., Li, J., Zhu, Z., Bai, S., & Cui, Z. (2018). Combined Effect of Alternating Current Interference and Cathodic Protection on Pitting Corrosion and Stress Corrosion Cracking Behavior of X70 Pipeline Steel in Near-Neutral pH Environment. Materials, 11(4), 465. https://doi.org/10.3390/ma11040465

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
