Abstract

Highly promising artificial intelligence tools, including neural network (ANN), genetic algorithm (GA) and particle swarm optimization (PSO), were applied in the present study to develop an approach for the evaluation of Se(IV) removal from aqueous solutions by reduced graphene oxide-supported nanoscale zero-valent iron (nZVI/rGO) composites. Both GA and PSO were used to optimize the parameters of ANN. The effect of operational parameters (i.e., initial pH, temperature, contact time and initial Se(IV) concentration) on the removal efficiency was examined using response surface methodology (RSM), which was also utilized to obtain a dataset for the ANN training. The ANN-GA model results (with a prediction error of 2.88%) showed a better agreement with the experimental data than the ANN-PSO model results (with a prediction error of 4.63%) and the RSM model results (with a prediction error of 5.56%), thus the ANN-GA model was an ideal choice for modeling and optimizing the Se(IV) removal by the nZVI/rGO composites due to its low prediction error. The analysis of the experimental data illustrates that the removal process of Se(IV) obeyed the Langmuir isotherm and the pseudo-second-order kinetic model. Furthermore, the Se 3d and 3p peaks found in XPS spectra for the nZVI/rGO composites after removing treatment illustrates that the removal of Se(IV) was mainly through the adsorption and reduction mechanisms.
Keywords: Se(IV); artificial intelligence; artificial neural networks; genetic algorithm; particle swarm optimization Se(IV); artificial intelligence; artificial neural networks; genetic algorithm; particle swarm optimization

1. Introduction

Selenium (Se) is a metalloid that can exist in a variety of valence states, including selenide (Se(-II)), elemental Se (Se(0)), selenite (Se(IV)) and selenate (Se(VI)) [1,2]. As a valuable element, Se can be widely used in photosensitive drums for copying machines, photoelectric devices, pigments, metallurgical additives, glass manufacturing and semi-conductors [3,4]. Its increasing usage has generated a considerable amount of selenium-contaminated wastewater, mainly containing selenate and selenite [5]. Although Se is an essential trace element for human health at the concentration range from 0.8 to 1.7 µmol/L, excessive intake of Se could lead to serious health issues [6,7]. The United States Environmental Protection Agency (US EPA) has mandated the maximum contaminant level of Se in drinking water at 50 µg/L [5]. The acute toxicity of Se(IV) is almost 10 times higher than that of Se(VI) and both species generally exist simultaneously in aerobic surface water. Therefore, there is an urgent need for developing efficient and feasible methods to remove Se(IV) from waste water [1].
Using the green nanoparticles with a low cost and high adsorption capacity is a good approach to remove pollutants [8]. Nanoscale zero-valent iron (NZVI) particles have been considered as one of the most promising permeable barrier materials applied in wastewater treatment because of their extremely small particle size, large specific surface area, excellent in-situ reactivity and high injectability into aqueous solutions [9,10,11]. Previous reports have indicated that nanoscale zero-valent iron (NZVI) can remove a range of environmental contaminants, such as chlorinated solvents, organochlorine pesticides, polychlorinated biphenyls, organic dyes, and inorganic pollutants, tetracycline [12,13]. However, some technical issues, e.g., easy agglomeration, poor stability, shortage of durability and mechanical strength [14,15], prevent the practical application of NZVI particles. Furthermore, the aggregation is hard to be avoided due to the magnetic interaction among the NZVI particles [8]. Previous researchers have shown that the aggregation of NZVI particles could be reduced when they were supported on the substrates. In this way, their dispersion ability and specific surface area were improved and their reactivity was also enhanced [16,17].
Reduced graphene oxide (rGO) has recently received an intensive attention due to its exceptional electron transport and mechanical properties as well as high surface area [12,18,19]. And the synthesis of most rGO-based multifunctional composites stems from graphene oxide (GO) [20,21], which can be readily made from low-cost natural graphite in a large scale. GO and rGO were broadly used in the adsorption processes to remove the pollutants from wastewater [22], such as heavy metal ions [23,24], radionuclides [25], and many cationic or anionic dyes [26]. NZVI particles supported on graphene do not only increase the dispersion ability and stability but also strengthen electron transfer and removal of pollutants by coupling the advantages of NZVI reactivity with graphene adsorption ability [8]. Therefore, the composites based on rGO are significantly more applicable than those based on bare nanomaterials [12].
The most important stage in a removal process is to improve a system and increase the efficiency of the process via modeling and optimization without increasing the costs [27]. Because the removal processes involve interactions of variables and non-linear behavior, it is highly important that optimum experimental conditions are determined to obtain a maximum efficiency. Optimization techniques based on artificial intelligence (AI) approaches can be an effective solution in these processes [28]. AI tools have broadly applied in various fields, e.g., image understanding, intelligent internet search, autonomous driving, pattern recognition, automatic programming, robotics, human-computer games and big data. As one of the AI primary tools, artificial neural network (ANN) inspired by biological neurons can well describe multivariate nonlinear problems with the suitable amount of data and the appropriate training algorithm applied [29]. Optimization algorithms, e.g., genetic algorithm (GA) and particle swarm optimization (PSO), were inspired from social behavior or natural phenomena, which can be utilized to solve complex problems [30]. Both ANN and GA play an important role in various fields of science and technology. Based on the principles of evolution through a natural selection, GA has been found to be suitable for finding the optimum solutions in some complex systems [31]. PSO is a stochastic optimization technique motivated by the behavior of a bird’s flock [32].
The objective of this study was to apply the reduced graphene oxide-supported nanoscale zero-valent iron (nZVI/rGO) composites in Se(IV) removal from aqueous solutions. Response surface methodology (RSM) as an experimental design tool was employed to examine the effect of process parameters (viz. temperature, contact time, initial pH and initial Se(IV) concentration) on removal efficiency, which was combined with AI techniques (including ANN-PSO and ANN-GA) applied for modeling the removal process of Se(IV) and predicting its maximum removal efficiency. Furthermore, the experimental data obtained were fitted to the adsorption isotherms (Langmuir, Freundlich and Redlich Peterson) and the removal kinetic models (pseudo-first-order, pseudo-second-order and intraparticle diffusion). Finally, the thermodynamic study and the XPS analysis were carried out to explore the mechanisms of Se(IV) removal process.

2. Materials and Methods

All commonly used chemicals of analytical grades (i.e., HCl, NaOH, Na2SeO3, FeSO4·7H2O, and NaBH4) were applied without further purification in this study, and graphite powder (purity > 99.85%, particle size < 30 μm) was obtained from Sinopharm Chemical Reagent (Beijing, China). The Se(IV) stock solution (1000 mg/L) was prepared by dissolving an amount of Na2SeO3 in deionized water. Graphene oxide was synthesized using the modified Hummers method [33], and nZVI/rGO magnetic composites were synthesized according to our previous reports [34,35].

2.1. Characterization of nZVI/rGO Composites

The characterization (XRD, SEM, TEM, Raman, FTIR, and N2 sorption) of nZVI/rGO composites was carried out in our earlier study [34]. The X-ray photoelectron spectroscopy (XPS) measurements were recorded on an ESCALAB 250Xi spectrometer using monochromatized Al Kα radiation (hν = 1486.6 eV), and all binding energies were corrected with the binding energy of C1s (hν = 284.8 eV) as a reference.

2.2. Adsorption Experiments

Removal of the Se(IV) solutions by nZVI/rGO composites was performed in a 100 mL conical flask. 30 mg of the nZVI/rGO composites was added to 50 mL of Se(IV) solution, which was shaken in a vibrator (HZQ-F160, HDL, Jingda Instrument Manufacturing Co. Ltd, Jiangsu, China) at 200 rpm. Batch removal experiments of Se(IV) (single factor experiments) were carried out to examine the effect of initial Se(IV) concentration (C), contact time (t), initial pH and operating temperature (T) on the removal efficiency of Se(IV), and the initial pH of Se(IV) solution was adjusted to the desired value by using 0.1 mol/L HCl or 0.1 mol/L NaOH. The nZVI/rGO composites were separated from aqueous solutions by a magnet after the removal experiment. The Se(IV) concentration in the sample solutions was determined through an inductively coupled plasma-optical emission spectroscopy (optima 5300 V, Perkin Elmer Corporation, Waltham, MA, USA). All experiments were carried out in triplicates and the average values of the results obtained were used for data analysis.
The removal quantity of Se(IV) by nZVI/rGO composites was calculated using the following equation (qe) [27]:
q e = ( C 0 C e ) V m
where qe (mg·g−1) stands for the removal quantity of the Se(IV) per unit mass of the adsorbent, C0 (mg·L−1) and Ce (mg·L−1) represent the initial and equilibrium concentrations of the Se(IV), respectively, V (L) stands for the volume of the solution, and m (g) is the dry weight of the nZVI/rGO composites. The removal percentage (R) of Se(IV) was calculated using the following equation [36]:
R = C 0 C t C 0 × 100 %
where C0 (mg·L−1) and Ct (mg·L−1) represent the concentrations of initial and after time t, respectively.

2.3. Response Surface Methodology

RSM is a main branch of experimental design, which is used to evaluate the effect of several factors and their interaction on the system response. This method is useful for developing and optimizing the independent variables and response, and providing the smaller number of experimental runs [27]. The Box-Behnken design (BBD) model is a standard RSM [37], which can be applied to evaluate the interactive effects of adsorption variables and optimize the removal process. Specifically, C (30–40 mg/L), initial pH (6–8), t (50–70 min) and T (20–30 °C) were selected as independent variables, and the removal efficiency of Se(IV) as the dependent variable. The experimental design involved four parameters, each at three levels, which were coded as shown in Table 1. For the evaluation of experimental data of Se (IV) removal, the response variable was fitted by the quadratic polynomial equation given below:
Y = α0 + α1x1 + α2x2 + α3x3 + α4x4 + α12x1x2 + α13x1x3 + α14x1x4 + α23x2x3 + α24x2x4 + α34x3x4 + α11x12 + α22x22 + α33x32 + α44x42
where Y stands for the removal efficiency of Se(IV) used as the dependent variable, x1, x2, x3, and x4 represent the independent variables, and α0, α1, α2, α3, α4, α12, α13, α14, α23, α24, α34, α11, α22, α33 and α44 represent the model coefficients, respectively.

2.4. Artificial Neural Network

ANN is a good inspiration of human brain and nerve systems that are known for their superior ability to learn and classify the data, thus a feed-forward multilayer perception (MLP) ANN model was utilized in the present study with a back propagation (BP) algorithm, which contains an input layer, a hidden layer and an output layer [27]. The initial Se(IV) concentration, initial pH, operating temperature and contact time were utilized as input parameters, while the removal efficiency of Se(IV) was used as the output parameter. Among the 29 datasets generated from RSM, 24 datasets were employed to train the network and remaining 5 datasets were used for testing of the ANN model [38]. The performance of the ANN models was determined based on the criteria, such as mean squared error (MSE) and the correlation coefficient (R2), which can be shown as follows [39]:
M S E = 1 N i = 1 N ( y p r d , i y e x p , i ) 2
R 2 = 1 i = 1 N ( y p r d , i y e x p , i ) i = 1 N ( y p r d , i y m )
where yprd,i stands for the predicted value by ANN model, yexp,i represents the experimental value, N stands for the number of data, and ym represents the average of the experimental value. Figure 1 is a flow diagram of ANN training:
Sensitivity analysis was carried out to explore the connection weights of the trained ANN [29]. Analysis based on the magnitude of weights are based exclusively on the values stored in the static matrix of weights in order to determine the relative influence of each input variable on each one of the network outputs [40]. The equation below is proposed by Garson for this type of analysis [40,41]:
G i k = j = 1 n ( | w i j | r = 1 m | w r j | | w j k | ) e = 1 m ( j = 1 n ( | w i j | r = 1 m | w r j | | w j k | ) )
where Gik stands for the percentage of influence of the dependent variable xi on the independent variable Yk, w represents the connection weight, i, j and k stand for the number of neurons in the input layer, hidden layer and output layer, respectively.

2.5. Genetic Algorithm

GA has been proven to be a successful method for solving the optimization problems by mimicking the principle of biological evolution [42]. GA based optimization processes can be executed using trained ANN models as the fitness functions to give a global optimum solution [43], which applies crossover, mutation, and selecting operators to a population of encoded variables space. [44,45]. The values of GA-specific parameters used in the optimization technique were as follows: the number of variables = 4, maximum generation = 100, size of population = 20, crossover probability = 0.8 and mutation probability = 0.01, bounds (C: 30–40 mg/L, initial pH: 6–8, t: 50–70 min and T: 20–30 °C). The flow diagram of genetic algorithm is shown in Figure 2. Specific steps were as follows [46]: (1) initial population was chosen randomly; (2) every individual of the population was evaluated; (3) the population with the lowest MSE value (best individual) was selected for the next generation (elitism); (4) the best parents were chosen to generate the children using the GA operators; (5) the same procedure was repeated for the second generation and the algorithm was run for a defined number of cycles. (6) after finishing the GA optimization, the BP algorithm started from the solution provided by GA.

2.6. Particle Swarm Optimization

PSO is an evolutionary computational algorithm proposed by Kennedy and Eberhart in 1995, which is based on the simulation of natural habits of bird flocking [32]. PSO algorithm uses a population of particles that has the ability to evolve during the search for an optimal solution. The system is initialized randomly and the particles fly through the multi-dimensional search space at a certain velocity [47]. PSO computes the particles based on a fitness function and finds a particle with a good position. If a better position is obtained, the previous value will be replaced by the current value. No two particles are the same and each still learns the attributes of others that will help improve their fitness [48]. PSO consists of different control parameters, including acceleration coefficients (c1: personal learning coefficient, c2: global learning coefficient), swarm size, and inertia weight. Wrong initialization of these parameters may lead to divergent or cyclic behavior. The minimum inertia weight, maximum inertia weight, c1, c2, swarm size and maximum iteration number were set as: 0.3, 0.9, 2, 2, 20 and 50. The flow chart of PSO is shown in Figure 3:

2.7. Equilibrium Adsorption Studies

The equilibrium adsorption isotherm is employed to give useful information concerning properties, tendency and mechanism of adsorption of Se(IV) onto nZVI/rGO composites. The data obtained from the equilibrium adsorption study were fitted to different adsorption isotherm equations such as Langmuir, Freundlich and the Redlich Peterson models to discuss the adsorption characteristics [36].
Based on monolayer adsorption onto homogeneous adsorbent surface, the Langmuir isotherm is expressed as follows [39]:
C e q e = 1 K L q max + C e q max
where Ce (mg·L−1) stands for the equilibrium Se(IV) concentration in the solution, qmax (mg·g−1) demonstrates the maximum adsorption capacity, qe (mg·g−1) represents the equilibrium amount of Se(IV) adsorbed per unit mass of sorbent, KL (L·mg−1) stands for the Langmuir constant related to adsorption energy. The favorability of Langmuir isotherm was judged based on the dimensionless equilibrium parameter (RL) [39]:
R L = 1 1 + K L C 0
where RL indicates the type of isotherm to be favorable (0 < RL < 1), irreversible (RL = 0), linear (RL = 1) or unfavorable (RL > 1), C0 (mg·L−1) stands for the initial Se(IV) concentration and KL represents the Langmuir constant.
The Freundlich isotherm is generally employed to investigate the behavior and mechanism of adsorption base on heterogeneous surface. The equation of Freundlich isotherm can be represented as below [39]:
ln q e = ln K F + 1 n ln C e
where KF [(mg·g−1)/(mg·L−1)1/n] stands for the Freundlich constant give useful knowledge about adsorption capacity and n is a coefficient related to adsorption intensity.
The experimental data of Se(IV) removal were also fitted to the Redlich Peterson isotherm, which can be expressed as follows [49]:
q e = A C e 1 + B C e
where A (L·g−1) stands for the Redlich Peterson isotherm constant, and B (L·mg (1/A)−1) represents the Redlich Peterson isotherm constant. In addition, the statistical analysis was performed to investigate the validity of isotherms on the basis of two parameters, e.g., chi square test (x2) and the sum of absolute errors (SAE), which were evaluated using the following equations [50]:
S A E = i = 1 n | q e , exp q e , c a l | i
x 2 = i = 1 n [ q e , exp q e , c a l q e , c a l ] i
where qe,exp and qe,cal stand for the experimental and calculated adsorption capacity (mg·g−1) and n represents the number of measurements.

2.8. Kinetic Studies

Kinetic study was performed to investigate the removal rate that is important in design and modeling of the process. The pseudo-first-order (Equation (13), pseudo-second-order (Equation (14)) and intraparticle diffusion (Equation (15)) were used to perform the kinetic study [36,51,52].
ln ( q e q t ) = ln q e k 1 t
t q t = 1 k 2 q e 2 + t q e
q t = k d t 0.5 + C
where qe (mg·g−1) and qt (mg·g−1) stands for the removal quantity of Se(IV) at equilibrium and at time t, k1 (1·min−1) represents the rate constant of pseudo-first-order removal process, k2 (g·mg−1 min−1) is the pseudo-second-order rate constant of removal, kd (mg·g1·min0.5) represents the intraparticle diffusion constant, and C as the intercept (mg·g1·min0.5).

2.9. Thermodynamic Study

Thermodynamics of Se(IV) adsorption onto nZVI/rGO was employed to evaluate the exothermic, spontaneity or endothermic nature of the removal process at the adsorbate–adsorbent interface [36]. Thermodynamic parameters, viz. Gibbs’ free energy change (ΔG0), enthalpy change (ΔH0) and entropy change (ΔS0) were investigated through the following equations:
ln K T = Δ S 0 R Δ H 0 R T
Δ G 0 = R T ln K T
K T = C 0 C e
where KT stands for the distribution coefficient, R (8.314 J·mol−1 K−1) represents the gas constant, T (K) represents the temperature, C0 (mg·L−1) and Ce (mg·L−1) represent the initial and equilibrium concentrations of Se(IV), respectively.

3. Results and Discussion

3.1. RSM Modeling

The relationship between the independent variables and response can be described by a quadratic model. The empirical relationship between the removal efficiency of Se(IV) (Y) and the independent variables studied (x1, x2, x3, x4) is represented as follows:
Y = 79.63 − 0.89x1 − 0.53x2 − 4.85x3 + 5.79x4 − 0.13x1x2 − 0.99x1x3 + 0.59x1x4 + 1.32x2x3 − 1.52x2x4 + 0.10x3x4 + 0.43 x12 + 0.45x22 − 0.14x32 + 0.81x42
The significance of quadratic regression model was tested by the correlation coefficient, F-value, p-value, and the corresponding results of ANOVA are presented in Table 2. The F-value (51.27) and the p-value (less than 0.0001) of this model implied that the model was highly significant for Se(IV) removal by nZVI/rGO. “Adequate Precision” measures the signal to noise ratio, and the ratio greater than 4.0 is considered desirable [53]. The “Adequate Precision” ratio (30.5) of this model is far greater than 4.0, indicating the presence of adequate signal for the model. The optimum predicted for the maximum removal of Se(IV) by nZVI/rGO is about 94.45%, and the corresponding optimal parameters of removal process are as follows: t = 70.00 min, initial pH = 7.97, T = 30.00 °C and C = 30 mg·L−1.
In order to further understand the effects of mutual interaction of the independent variables on the response, the 3-D surface plots are displayed in Figure 4. These plots can indicate the interactive effect of two independent variables by holding other factors at a fixed level for the removal of Se(IV) by nZVI/rGO composites.

3.2. ANN Modeling

The optimal architecture of the ANN model was selected based on the maximum value of R2 and minimum value of the MSE of testing set [54]. The gradient descent with momentum and adaptive learning rate (traingdx function) was used to evaluate the ANN training [55]. The epoch was set as 2000, the learning rate was designed at 0.1, the goal was set as 1 × 10−5, and momentum factor was set as 0.9. The ANN training was stopped when the epoch reached 577 and the goal reached 8.01 × 10−6. In the network optimization, we used 1 to 10 neurons in the hidden layer. The number of 5 neurons in the hidden layer was found to be the most suitable structure for the Se(IV) removal process. (Figure 5), and the R2 and MSE reached the values of 0.9949 and 0.0020, respectively. Based on the approximation of MSE function, a three layered BP-ANN was used for the modeling of the removal process (Figure 6) [56]. The MSE against the number of epochs for the optimal ANN model is shown in Figure 7, which demonstrated that the training was stopped after about 577 epochs. Sensitivity analysis demonstrates that contact time appears to be the most influential variable for Se(IV) removal, followed by initial pH, operating temperature and initial concentration (Table 3).

3.3. GA Optimization

GA was employed to optimize the weights and thresholds of ANN for an objective to maximize the removal efficiency of Se(IV) [42,45]. Optimum conditions were selected after the evaluation of GA for about 4 generations to achieve a good removal efficiency of Se(IV) (Figure 8). The removal efficiency was 90.89% under the optimized conditions from ANN-GA model (T = 29.65 °C, initial pH = 6.55, C = 36.13 mg/L and t = 64.22 min). The removal efficiency from the confirmatory experiment was 88.01%, and the residual error between the predicted and experimental values was 2.88%, confirming that ANN-GA model is feasible for modeling and optimizing the Se(IV) removal by the nZVI/rGO composites.

3.4. PSO Optimization

PSO was employed to search the space of the developed ANN model and find the optimum input values for the maximum removal [32,46]. of Se(IV) removal efficiency. Optimum conditions were determined after the evaluation of PSO for about 12 iterations to achieve a good removal efficiency of Se(IV) (Figure 9). The optimized process conditions are as follows: t = 60.00 min, initial pH = 6.78, T = 23.74 °C and = 30 mg·L−1. The removal efficiency predicted by the ANN-PSO model was 92.02% in comparison with 87.39% from the confirmatory experiment carried out under the optimized conditions from ANN-PSO model. The residual error (4.63%) shows that ANN-PSO model is an effective tool for the Se(IV) removal process since the predicted value is close to the results of confirmatory experiment.

3.5. Comparison of Different Models

In the present study, the results obtained from the models (RSM model, ANN-GA model and ANN-PSO model) are validated and compared by confirmatory experiments carried out under the predicted optimal operating conditions (Table 4). The ANN model possesses a good accuracy with the higher R2 value (0.9949) than that of RSM (0.9809), furthermore, the residual error of ANN-GA model (2.88%) is lower than that of the ANN-PSO model (4.63%) and the RSM model (5.56%). Therefore, the ANN-GA methodology may present a satisfactory choice for Se(IV) removal from aqueous solutions by nZVI/rGO composites.

3.6. Adsorption Isotherms

The values of R2 and other parameters of the three models are summarized in Table 5, from which it can be found that the adsorption of Se(IV) on nZVI/rGO composites could be more suitably described by the Langmuir model than by the Freundlich model or by the Redlich Peterson model due to higher R2 value and lower values of x2, SAE. This showed that the adsorption process for the nZVI/rGO composites was controlled by the monolayer adsorption on a homogeneous surface. The removal quantity of the nZVI/rGO composites is significantly higher than that of other materials (Table 6). The calculated RL values for the adsorption of Se(IV) onto the nZVI/rGO composites at different initial concentrations are listed in Table 7. All RL values calculated were between 0 and 1, thus this adsorption process is favorable. For the Freundlich isotherm model, the value of n was 4.4897. It is generally stated that the value of n in the range 2–10, 1–2 and less than 1 represents a good, moderately difficult and poor adsorption, respectively [57]. The value of n suggests the satisfactory adsorption of Se(IV) onto the nZVI/rGO composites. The isotherm plots for Se(IV) adsorption are shown in Figure 10, which indicates that the removal quantity calculated by the Langmuir model is in general more compatible with the experimental data than that calculated by the Freundlich model and the Redlich Peterson model.

3.7. Kinetics Study

The parameters for the three kinetic models are given in Table 8. The R2 value of the pseudo-second-order kinetic model (0.9938) was significantly higher than that of the pseudo-first-order kinetic model (0.6134) and the intraparticle diffusion model (0.8590). This indicates that the removal process is best described by the pseudo-second-order kinetic model. The removal process of Se(IV) by the nZVI/rGO composites reached the equilibrium within 60 min (Figure 11), and most of qe computed by using the pseudo-second-order kinetic model were compatible with the experimental data.

3.8. Thermodynamics Studies

The thermodynamic values of ΔG0, ΔH0 and ΔS0 obtained for the removal process of Se(IV) by nZVI/rGO composites are summarized in Table 9. The enthalpy change is related to the chemical bonding, therefore, the positive value of the enthalpy of adsorption ΔH0 obtained in this study confirms the endothermic nature of the adsorption process [63]. The values of ΔG0 at various temperatures were negative, indicating the spontaneous nature of the adsorption process [64]. The value of ΔS0 is related to the order or the geometry of the adsorbed SeO32. The positive value of ΔS0 suggests an increase in disorder and randomness at the solid-solution interface during the adsorption process [63]. In addition, the positive values of ΔH0 and ΔS0 demonstrated that the Se(IV) adsorption onto the nZVI/rGO composites is a entropy-driven process [65].

3.9. Se(IV) Removal Mechanisms

The removal process of heavy metal ions from wastewater is generally controlled by various mechanisms, such as adsorption, reduction and co-precipitation. To further understand the removal process of Se(IV), its mechanism was studied in this study. For investigating the interaction mechanisms between Se(IV) and the nZVI/rGO composites, the nZVI/rGO composites (nZVI/rGO-Se(IV)) after the Se(IV) removal was analyzed with XPS (Figure 12).

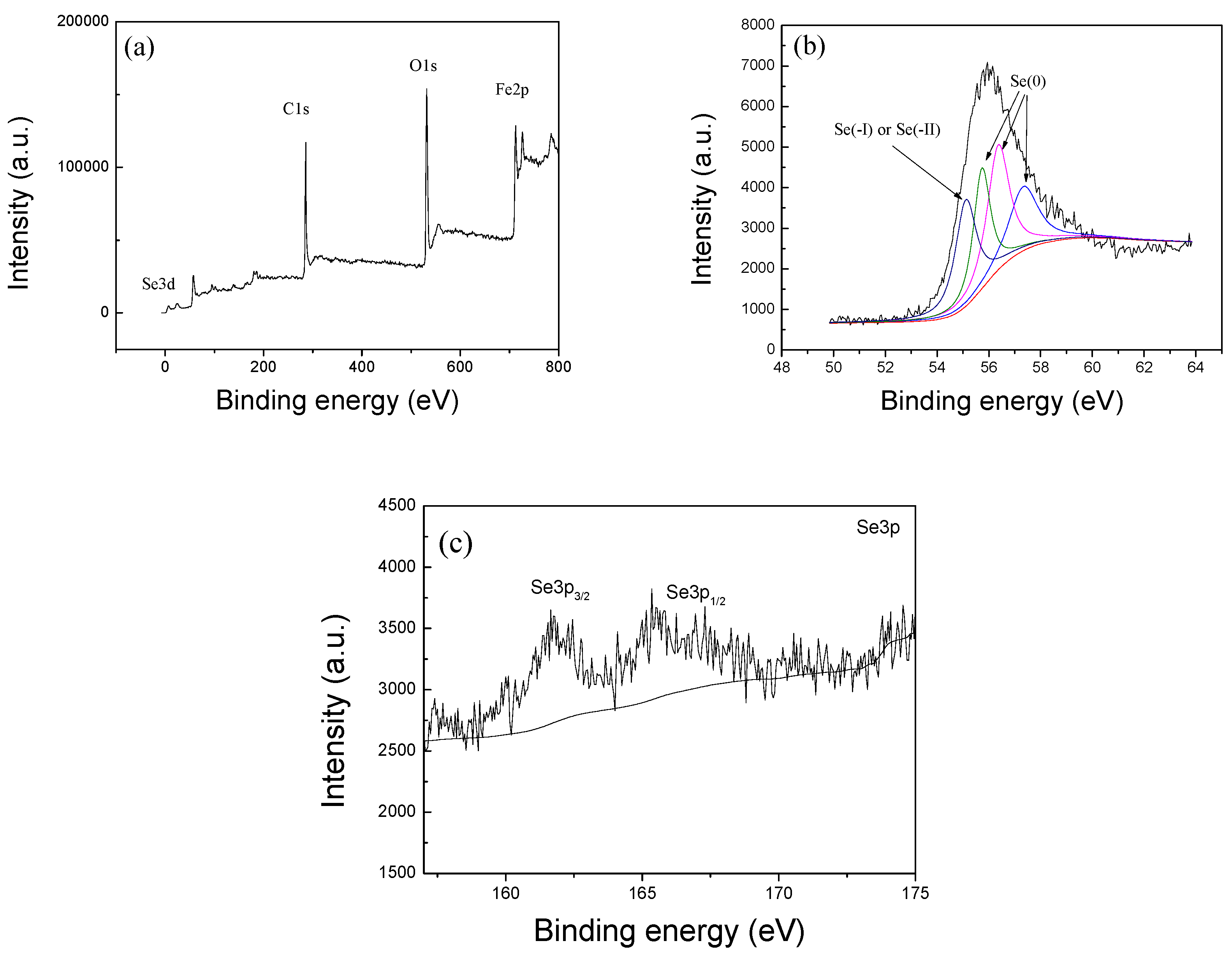

The wide-scan XPS spectrum of the nZVI/rGO composites after the Se(IV) removal indicated that the surface of the nZVI/rGO composites consists mainly of carbon, oxygen, iron and selenium (Figure 12aThe peaks of Se(0), Se(−I) and Se(−II) are shown in the spectrum of Se 3d for nZVI/rGO-Se(IV) (Figure 12b) [66], and the peak at 54.8 eV is attributed to Se(−I) or Se(−II) [67]. Furthermore, the peaks of Se 3p are observed on XPS spectra for nZVI/rGO-Se(IV) (Figure 12c [68]. These results showed that the removal process of Se(IV) by nZVI/rGO was mainly controlled by adsorption and reduction.

4. Conclusions

In this study, artificial intelligence tools (i.e., ANN, GA and PSO) were applied to investigate the effects of different operating conditions (initial pH, temperature, contact time and initial concentration) on the removal of Se(IV) by the nZVI/rGO composites from wastewater. The results showed that the ANN model offered a better prediction than the RSM model with a higher value of R2 (0.9949). The ANN model gave a more precise prediction of the experimental data with a satisfactory value of R2 (0.9949) than the RSM model. The result predicted by the ANN-GA model is better than that by the ANN-PSO model and by the RSM model, which indicated that the ANN-GA model was an effective tool for modeling and optimizing the Se(IV) removal process. Furthermore, the experimental data were best described by the Langmuir isotherm and the adsorption process is favorable (0 < RL ˂ 1). The removal kinetics of Se(IV) by the nZVI/rGO composites was successfully fitted to the pseudo-second-order kinetic model and the removal quantity calculated is generally more compatible with the experimental data. Thermodynamic parameters obtained demonstrated that the Se(IV) removal process is endothermic and spontaneous in nature. The Se 3d and 3p peaks found in XPS spectra for nZVI/rGO-Se(IV) composites demonstrated that the removal of Se(IV) by nZVI/rGO was mainly through the adsorption and reduction mechanisms. Future work will focus on the modeling and optimization of the complex removal processes with the aid of more advanced AI techniques. In addition, the permeable reactive barrier (PRB) system will be used to investigate the heavy metals removal from wastewater.

Acknowledgments

This research was financially supported by the National Natural Science Foundation of China under Grant No. 21667012 and the National 111 Project of China under Grand No. D17016.

Author Contributions

Jiwei Hu, Xionghui Wei and Mingyi Fan conceived and designed the experiments; Xianliang Wu performed the experiments; Wenqian Ruan analyzed the data; Rensheng Cao wrote the paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Liang, L.; Yang, W.; Guan, X.; Li, J.; Xu, Z.; Wu, J.; Huang, Y.; Zhang, X. Kinetics and mechanisms of pH-dependent selenite removal by zero valent iron. Water Res. 2013, 47, 5846–5855. [Google Scholar] [CrossRef] [PubMed]
  2. Liang, L.; Guan, X.; Huang, Y.; Ma, J.; Sun, X.; Qiao, J.; Zhou, G. Efficient selenate removal by zero-valent iron in the presence of weak magnetic field. Sep. Purif. Technol. 2015, 156, 1064–1072. [Google Scholar] [CrossRef]
  3. Kuroda, M.; Notaguchi, E.; Sato, A.; Yoshioka, M.; Hasegawa, A.; Kagami, T.; Narita, T.; Yamashita, M.; Sei, K.; Soda, S. Characterization of pseudomonas stutzeri NT-I capable of removing soluble selenium from the aqueous phase under aerobic conditions. J. Biosci. Bioeng. 2011, 112, 259–264. [Google Scholar] [CrossRef] [PubMed]
  4. Kagami, T.; Narita, T.; Kuroda, M.; Notaguchi, E.; Yamashita, M.; Sei, K.; Soda, S.; Ike, M. Effective selenium volatilization under aerobic conditions and recovery from the aqueous phase by pseudomonas stutzeri NT-I. Water Res. 2013, 47, 1361–1368. [Google Scholar] [CrossRef] [PubMed]
  5. Fu, F.; Lu, J.; Cheng, Z.; Tang, B. Removal of selenite by zero-valent iron combined with ultrasound: Se (IV) concentration changes, se (VI) generation, and reaction mechanism. Ultrason. Sonochem. 2016, 29, 328–336. [Google Scholar] [CrossRef] [PubMed]
  6. Albert, M.; Demesmay, C.; Rocca, J.L. Analysis of organic and non-organic arsenious or selenious compounds by capillary electrophoresis. Anal. Bioanal. Chem. 1995, 351, 426–432. [Google Scholar] [CrossRef]
  7. Nováková, E.; Linhart, O.; Červený, V.; Rychlovský, P.; Hraníček, J. Flow injection determination of Se in dietary supplements using TiO2 mediated uv-photochemical volatile species generation. Spectrochim. Acta Part B At. Spectrosc. 2017, 134, 98–104. [Google Scholar] [CrossRef]
  8. Li, J.; Chen, C.; Zhu, K.; Wang, X. Nanoscale zero-valent iron particles modified on reduced graphene oxides using a plasma technique for Cd (II) removal. J. Taiwan Inst. Chem. Eng. 2016, 59, 389–394. [Google Scholar] [CrossRef]
  9. Sun, Y.; Ding, C.; Cheng, W.; Wang, X. Simultaneous adsorption and reduction of U (VI) on reduced graphene oxide-supported nanoscale zerovalent iron. J. Hazard. Mater. 2014, 280, 399–408. [Google Scholar] [CrossRef] [PubMed]
  10. Kerkez, D.V.; Tomašević, D.D.; Kozma, G.; Bečelić-Tomin, M.R.; Prica, M.D.; Rončević, S.D.; Kukovecz, Á.; Dalmacija, B.D.; Kónya, Z. Three different clay-supported nanoscale zero-valent iron materials for industrial azo dye degradation: A comparative study. J. Taiwan Inst. Chem. Eng. 2014, 45, 2451–2461. [Google Scholar] [CrossRef]
  11. Chen, Z.; Wang, T.; Jin, X.; Chen, Z.; Megharaj, M.; Naidu, R. Multifunctional kaolinite-supported nanoscale zero-valent iron used for the adsorption and degradation of crystal violet in aqueous solution. J. Colloid Interface Sci. 2013, 398, 59–66. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, C.; Luo, H.; Zhang, Z.; Wu, Y.; Zhang, J.; Chen, S. Removal of as (III) and as (V) from aqueous solutions using nanoscale zero valent iron-reduced graphite oxide modified composites. J. Hazard. Mater. 2014, 268, 124–131. [Google Scholar] [CrossRef] [PubMed]
  13. Li, L.; Hu, J.; Shi, X.; Fan, M.; Luo, J.; Wei, X. Nanoscale zero-valent metals: A review of synthesis, characterization, and applications to environmental remediation. Environ. Sci. Pollut. Res. 2016, 23, 17880–17900. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, Y.; Phenrat, T.; Lowry, G.V. Effect of TCE concentration and dissolved groundwater solutes on NZVI-promoted TCE dechlorination and H2 evolution. Environ. Sci. Technol. 2007, 41, 7881–7887. [Google Scholar] [CrossRef] [PubMed]
  15. Yan, S.; Hua, B.; Bao, Z.; Yang, J.; Liu, C.; Deng, B. Uranium (VI) removal by nanoscale zerovalent iron in anoxic batch systems. Environ. Sci. Technol. 2010, 44, 7783–7789. [Google Scholar] [CrossRef] [PubMed]
  16. Lv, X.; Xu, J.; Jiang, G.; Xu, X. Removal of chromium (VI) from wastewater by nanoscale zero-valent iron particles supported on multiwalled carbon nanotubes. Chemosphere 2011, 85, 1204–1209. [Google Scholar] [CrossRef] [PubMed]
  17. Zheng, T.; Zhan, J.; He, J.; Day, C.; Lu, Y.; Mcpherson, G.L.; Piringer, G.; John, V.T. Reactivity characteristics of nanoscale zerovalent iron–silica composites for trichloroethylene remediation. Environ. Sci. Technol. 2008, 42, 4494–4499. [Google Scholar] [CrossRef] [PubMed]
  18. Macosko, C. Graphene/polymer nanocomposites. Macromolecules 2010, 43, 6515–6530. [Google Scholar]
  19. Xia, G.; Tan, Y.; Chen, X.; Fang, F.; Sun, D.; Li, X.; Guo, Z.; Yu, X. Oxygen-free layer-by-layer assembly of lithiated composites on graphene for advanced hydrogen storage. Adv. Sci. 2017, 4, 1600257. [Google Scholar] [CrossRef] [PubMed]
  20. Stankovich, S.; Dikin, D.A.; Piner, R.D.; Kohlhaas, K.A.; Kleinhammes, A.; Jia, Y.; Wu, Y.; Nguyen, S.B.T.; Ruoff, R.S. Synthesis of graphene-based nanosheets via chemical reduction of exfoliated graphite oxide. Carbon 2007, 45, 1558–1565. [Google Scholar] [CrossRef]
  21. Feng, W.; Long, P.; Feng, Y.; Li, Y. Two-dimensional fluorinated graphene: Synthesis, structures, properties and applications. Adv. Sci. 2016, 3, 1500413. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, X.; Yu, S.; Jin, J.; Wang, H.; Alharbi, N.S.; Alsaedi, A.; Hayat, T.; Wang, X. Application of graphene oxides and graphene oxide-based nanomaterials in radionuclide removal from aqueous solutions. Sci. Bull. 2016, 61, 1583–1593. [Google Scholar] [CrossRef]
  23. Dong, Z.; Wang, D.; Liu, X.; Pei, X.; Chen, L.; Jin, J. Bio-inspired surface-functionalization of graphene oxide for the adsorption of organic dyes and heavy metal ions with a superhigh capacity. J. Mater. Chem. A 2014, 2, 5034–5040. [Google Scholar] [CrossRef]
  24. Yuan, Y.; Zhang, G.; Li, Y.; Zhang, G.; Zhang, F.; Fan, X. Poly(amidoamine) modified graphene oxide as an efficient adsorbent for heavy metal ions. Polym. Chem. 2013, 4, 2164–2167. [Google Scholar] [CrossRef]
  25. Romanchuk, A.Y.; Slesarev, A.S.; Kalmykov, S.N.; Kosynkin, D.V.; Tour, J.M. Graphene oxide for effective radionuclide removal. Phys. Chem. Chem. Phys. 2013, 15, 2321–2327. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, Y.; Chen, L.; Bai, H.; Li, L. Graphene oxide-chitosan composite hydrogels as broad-spectrum adsorbents for water purification. J. Mater. Chem. A 2013, 1, 1992–2001. [Google Scholar] [CrossRef]
  27. Shojaeimehr, T.; Rahimpour, F.; Khadivi, M.A.; Sadeghi, M. A modeling study by response surface methodology (RSM) and artificial neural network (ANN) on Cu2+ adsorption optimization using light expended clay aggregate (LECA). J. Ind. Eng. Chem. 2014, 20, 870–880. [Google Scholar] [CrossRef]
  28. Gao, Z.; Zhang, D.; Ge, Y. Design optimization of a spatial six degree-of-freedom parallel manipulator based on artificial intelligence approaches. Robot. Comput. Integr. Manuf. 2010, 26, 180–189. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Pan, B. Modeling batch and column phosphate removal by hydrated ferric oxide-based nanocomposite using response surface methodology and artificial neural network. Chem. Eng. J. 2014, 249, 111–120. [Google Scholar] [CrossRef]
  30. Ghaedi, M.; Shojaeipour, E.; Ghaedi, A.M.; Sahraei, R. Isotherm and kinetics study of malachite green adsorption onto copper nanowires loaded on activated carbon: Artificial neural network modeling and genetic algorithm optimization. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2015, 142, 135–149. [Google Scholar] [CrossRef] [PubMed]
  31. Jiang, B.; Zhang, F.; Sun, Y.; Zhou, X.; Dong, J.; Zhang, L. Modeling and optimization for curing of polymer flooding using an artificial neural network and a genetic algorithm. J. Taiwan Inst. Chem. Eng. 2014, 45, 2217–2224. [Google Scholar] [CrossRef]
  32. Khajeh, M.; Kaykhaii, M.; Sharafi, A. Application of pso-artificial neural network and response surface methodology for removal of methylene blue using silver nanoparticles from water samples. J. Ind. Eng. Chem. 2013, 19, 1624–1630. [Google Scholar] [CrossRef]
  33. Chandra, V.; Park, J.; Chun, Y.; Lee, J.W.; Hwang, I.C.; Kim, K.S. Water-dispersible magnetite-reduced graphene oxide composites for arsenic removal. ACS Nano 2010, 4, 3979–3986. [Google Scholar] [CrossRef] [PubMed]
  34. Fan, M.; Li, T.; Hu, J.; Cao, R.; Wu, Q.; Wei, X.; Li, L.; Shi, X.; Ruan, W. Synthesis and characterization of reduced graphene oxide-supported nanoscale zero-valent iron (nZVI/rGO) composites used for Pb (II) removal. Materials 2016, 9, 687. [Google Scholar] [CrossRef] [PubMed]
  35. Fan, M.; Li, T.; Hu, J.; Cao, R.; Wei, X.; Shi, X.; Ruan, W. Artificial neural network modeling and genetic algorithm optimization for cadmium removal from aqueous solutions by reduced graphene oxide-supported nanoscale zero-valent iron (nZVI/rGO) composites. Materials 2017, 10, 544. [Google Scholar] [CrossRef] [PubMed]
  36. Dil, E.A.; Ghaedi, M.; Ghaedi, A.; Asfaram, A.; Jamshidi, M.; Purkait, M.K. Application of artificial neural network and response surface methodology for the removal of crystal violet by zinc oxide nanorods loaded on activate carbon: Kinetics and equilibrium study. J. Taiwan Inst. Chem. Eng. 2016, 59, 210–220. [Google Scholar] [CrossRef]
  37. Kumar, R.; Singh, R.; Kumar, N.; Bishnoi, K.; Bishnoi, N.R. Response surface methodology approach for optimization of biosorption process for removal of Cr (VI), Ni (II) and Zn (II) ions by immobilized bacterial biomass sp. Bacillus brevis. Chem. Eng. J. 2009, 146, 401–407. [Google Scholar] [CrossRef]
  38. Shi, X.; Ruan, W.; Hu, J.; Fan, M.; Cao, R.; Wei, X. Optimizing the removal of rhodamine B in aqueous solutions by reduced graphene oxide-supported nanoscale zerovalent iron (nZVI/rGO) using an artificial neural network-genetic algorithm (ANN-GA). Nanomaterials 2017, 7, 134. [Google Scholar] [CrossRef] [PubMed]
  39. Ghaedi, M.; Daneshfar, A.; Ahmadi, A.; Momeni, M.S. Artificial neural network-genetic algorithm based optimization for the adsorption of phenol red (PR) onto gold and titanium dioxide nanoparticles loaded on activated carbon. J. Ind. Eng. Chem. 2015, 21, 587–598. [Google Scholar] [CrossRef]
  40. Montaño, J.J.; Palmer, A. Numeric sensitivity analysis applied to feedforward neural networks. Neural Comput. Appl. 2003, 12, 119–125. [Google Scholar] [CrossRef]
  41. Kasiri, M.B.; Aleboyeh, H.; Aleboyeh, A. Modeling and optimization of heterogeneous photo-fenton process with response surface methodology and artificial neural networks. Environ. Sci. Technol. 2008, 42, 7970–7975. [Google Scholar] [CrossRef] [PubMed]
  42. Karimi, H.; Ghaedi, M. Application of artificial neural network and genetic algorithm to modeling and optimization of removal of methylene blue using activated carbon. J. Ind. Eng. Chem. 2014, 20, 2471–2476. [Google Scholar] [CrossRef]
  43. Zafar, M.; Kumar, S.; Kumar, S.; Dhiman, A.K. Artificial intelligence based modeling and optimization of poly(3-hydroxybutyrate-co-3-hydroxyvalerate) production process by using azohydromonas lata MTCC 2311 from cane molasses supplemented with volatile fatty acids: A genetic algorithm paradigm. Bioresour. Technol. 2012, 104, 631–641. [Google Scholar] [CrossRef] [PubMed]
  44. Yasin, Y.; Ahmad, F.B.H.; Ghaffari-Moghaddam, M.; Khajeh, M. Application of a hybrid artificial neural network–genetic algorithm approach to optimize the lead ions removal from aqueous solutions using intercalated tartrate-mg–al layered double hydroxides. Environ. Nanotechnol. Monit. Manag. 2014, 1–2, 2–7. [Google Scholar] [CrossRef]
  45. Bagheri, M.; Mirbagheri, S.A.; Bagheri, Z.; Kamarkhani, A.M. Modeling and optimization of activated sludge bulking for a real wastewater treatment plant using hybrid artificial neural networks-genetic algorithm approach. Process Saf. Environ. Prot. 2015, 95, 12–25. [Google Scholar] [CrossRef]
  46. Karimi, H.; Yousefi, F. Application of artificial neural network–genetic algorithm (ANN–GA) to correlation of density in nanofluids. Fluid Phase Equilib. 2012, 336, 79–83. [Google Scholar] [CrossRef]
  47. Dhanarajan, G.; Mandal, M.; Sen, R. A combined artificial neural network modeling–particle swarm optimization strategy for improved production of marine bacterial lipopeptide from food waste. Biochem. Eng. J. 2014, 84, 59–65. [Google Scholar] [CrossRef]
  48. Das, G.; Pattnaik, P.K.; Padhy, S.K. Artificial neural network trained by particle swarm optimization for non-linear channel equalization. Expert Syst. Appl. 2014, 41, 3491–3496. [Google Scholar] [CrossRef]
  49. Kumar, K.V.; Porkodi, K.; Rocha, F. Comparison of various error functions in predicting the optimum isotherm by linear and non-linear regression analysis for the sorption of basic red 9 by activated carbon. J. Hazard. Mater. 2008, 150, 158–165. [Google Scholar] [CrossRef] [PubMed]
  50. Rahman, N.; Haseen, U. Equilibrium modeling, kinetic, and thermodynamic studies on adsorption of pb (II) by a hybrid inorganic–organic material: Polyacrylamide zirconium (IV) iodate. Ind. Eng. Chem. Res. 2014, 53, 8198–8207. [Google Scholar] [CrossRef]
  51. Yuh-Shan, H. Citation review of lagergren kinetic rate equation on adsorption reactions. Scientometrics 2004, 59, 171–177. [Google Scholar] [CrossRef]
  52. Ho, Y.S.; Mckay, G. Sorption of dye from aqueous solution by peat. Chem. Eng. J. 1998, 70, 115–124. [Google Scholar] [CrossRef]
  53. Han, C.; Pu, H.; Li, H.; Deng, L.; Huang, S.; He, S.; Luo, Y. The optimization of As (V) removal over mesoporous alumina by using response surface methodology and adsorption mechanism. J. Hazard. Mater. 2013, 254–255, 301–309. [Google Scholar] [CrossRef] [PubMed]
  54. Ghaedi, M.; Ghaedi, A.M.; Abdi, F.; Roosta, M.; Sahraei, R.; Daneshfar, A. Principal component analysis-artificial neural network and genetic algorithm optimization for removal of reactive orange 12 by copper sulfide nanoparticles-activated carbon. J. Ind. Eng. Chem. 2014, 20, 787–795. [Google Scholar] [CrossRef]
  55. Ghanbary, F.; Modirshahla, N.; Khosravi, M. Synthesis of TiO2, nanoparticles in different thermal conditions and modeling its photocatalytic activity with artificial neural network. J. Environ. Sci. 2012, 24, 750–756. [Google Scholar] [CrossRef]
  56. Aleboyeh, A.; Kasiri, M.B.; Olya, M.E.; Aleboyeh, H. Prediction of azo dye decolorization by UV/H2O2 using artificial neural networks. Dyes Pigment. 2008, 77, 288–294. [Google Scholar] [CrossRef]
  57. Yao, Y.; Miao, S.; Liu, S.; Ma, L.P.; Sun, H.; Wang, S. Synthesis, characterization, and adsorption properties of magnetic Fe3O4@graphene nanocomposite. Chem. Eng. J. 2012, 184, 326–332. [Google Scholar] [CrossRef]
  58. Goh, K.H.; Lim, T.T. Geochemistry of inorganic arsenic and selenium in a tropical soil: Effect of reaction time, pH, and competitive anions on arsenic and selenium adsorption. Chemosphere 2004, 55, 849–859. [Google Scholar] [CrossRef] [PubMed]
  59. Namasivayam, C.; Prathap, K. Removal of selenite using ‘waste’ Fe (III)/Cr (III) hydroxide: Adsorption kinetics and isotherms. Toxicol. Environ. Chem. 2006, 88, 85–98. [Google Scholar] [CrossRef]
  60. Das, J.; Das, D.; Dash, G.P.; Parida, K.M. Studies on mg/fe hydrotalcite-like-compound (HTLc) I. Removal of inorganic selenite (SeO32−) from aqueous medium. J. Colloid Interface Sci. 2002, 251, 26–32. [Google Scholar] [CrossRef] [PubMed]
  61. Kuan, W.H.; Lo, S.L.; Wang, M.K.; Lin, C.F. Removal of Se (IV) and Se (VI) from water by aluminum-oxide-coated sand. Water Res. 1998, 32, 915–923. [Google Scholar] [CrossRef]
  62. Zhang, N.; Lin, L.S.; Gang, D. Adsorptive selenite removal from water using iron-coated GAC adsorbents. Water Res. 2008, 42, 3809–3816. [Google Scholar] [CrossRef] [PubMed]
  63. Ismaiel, A.A.; Aroua, M.K.; Yusoff, R. Palm shell activated carbon impregnated with task-specific ionic-liquids as a novel adsorbent for the removal of mercury from contaminated water. Chem. Eng. J. 2013, 225, 306–314. [Google Scholar] [CrossRef]
  64. Pan, S.; Shen, H.; Xu, Q.; Luo, J.; Hu, M. Surface mercapto engineered magnetic Fe3O4 nanoadsorbent for the removal of mercury from aqueous solutions. J. Colloid Interface Sci. 2012, 365, 204–212. [Google Scholar] [CrossRef] [PubMed]
  65. Silva, S.M.; Sampaio, K.A.; Ceriani, R.; Verhé, R.; Stevens, C.; Greyt, W.D.; Meirelles, A.J.A. Adsorption of carotenes and phosphorus from palm oil onto acid activated bleaching earth: Equilibrium, kinetics and thermodynamics. J. Food Eng. 2013, 118, 341–349. [Google Scholar] [CrossRef]
  66. Canava, B.; Vigneron, J.; Etcheberry, A.; Guillemoles, J.F.; Lincot, D. High resolution XPS studies of Se chemistry of a Cu(In, Ga)Se2 surface. Appl. Surf. Sci. 2002, 202, 8–14. [Google Scholar] [CrossRef]
  67. Jung, B.; Safan, A.; Batchelor, B.; Abdel-Wahab, A. Spectroscopic study of se (IV) removal from water by reductive precipitation using sulfide. Chemosphere 2016, 163, 351–358. [Google Scholar] [CrossRef] [PubMed]
  68. Sun, W.; Pan, W.; Wang, F.; Xu, N. Removal of Se (IV) and Se (VI) by MFe2O4 nanoparticles from aqueous solution. Chem. Eng. J. 2015, 273, 353–362. [Google Scholar] [CrossRef]

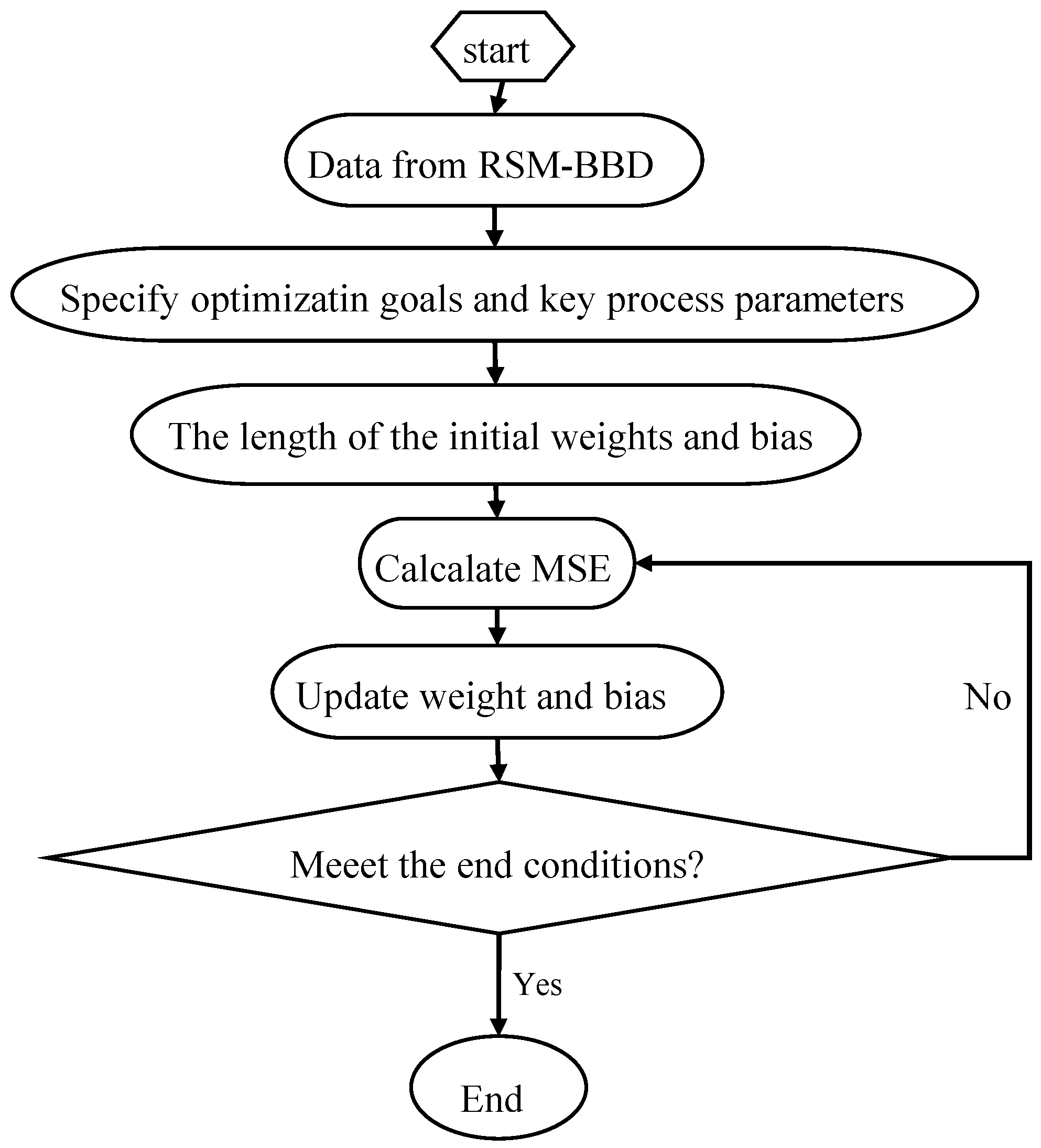

Figure 1. Flow diagram of neural network (ANN) training.
Figure 1. Flow diagram of neural network (ANN) training.
Materials 11 00428 g001

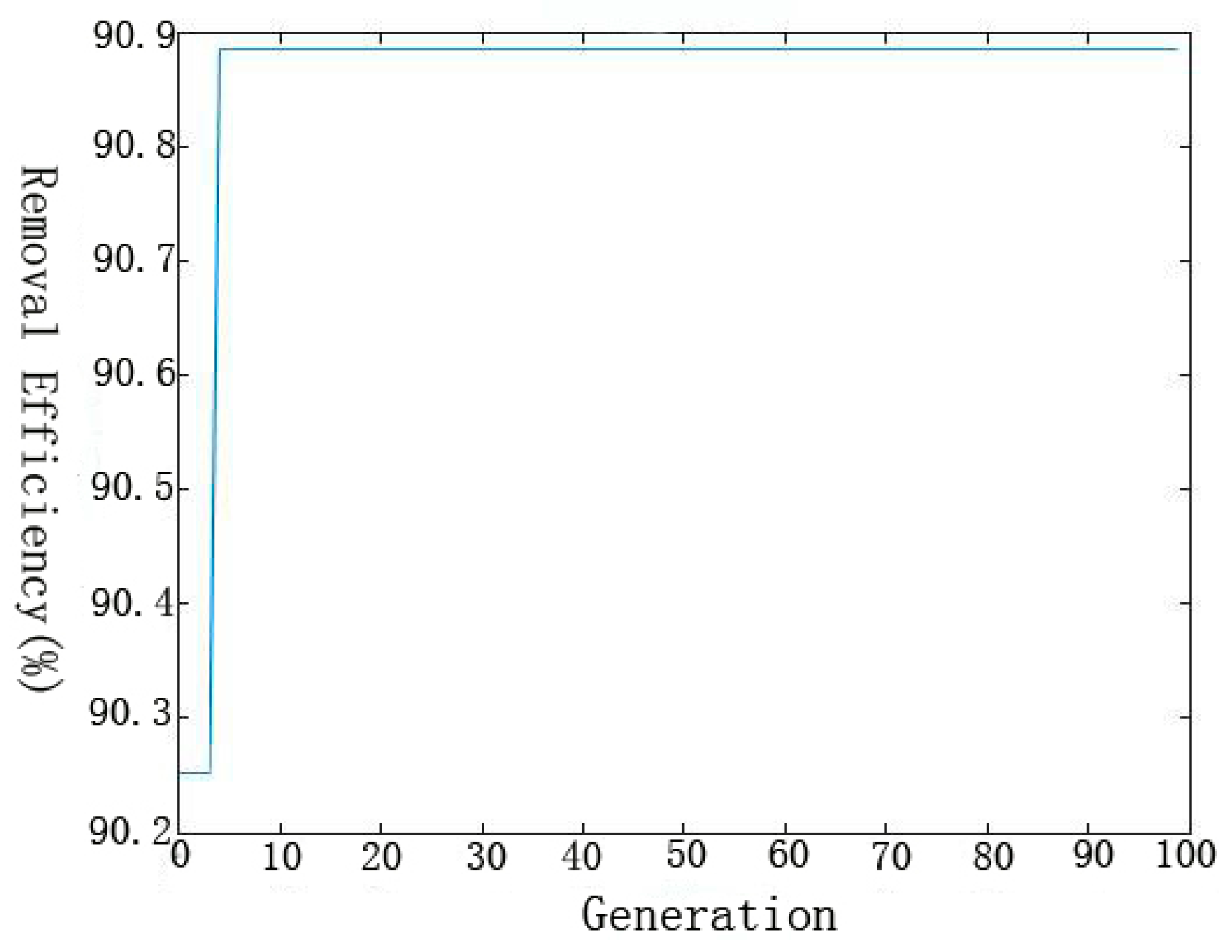

Figure 2. Schematic representation of the optimization rationale for genetic algorithm (GA).
Figure 2. Schematic representation of the optimization rationale for genetic algorithm (GA).
Materials 11 00428 g002

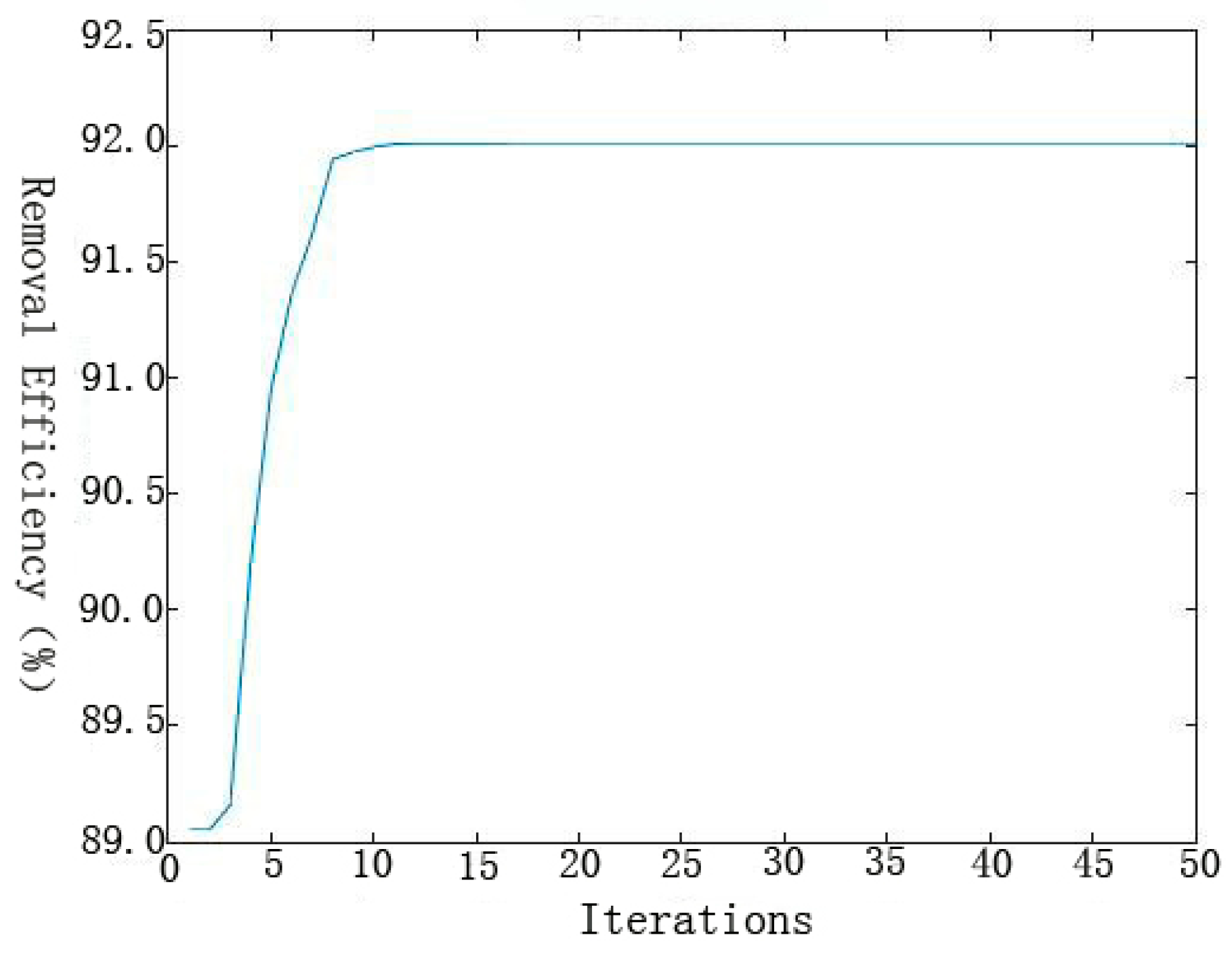

Figure 3. Schematic representation of the optimization rationale for for particle swarm optimization (PSO).
Figure 3. Schematic representation of the optimization rationale for for particle swarm optimization (PSO).
Materials 11 00428 g003

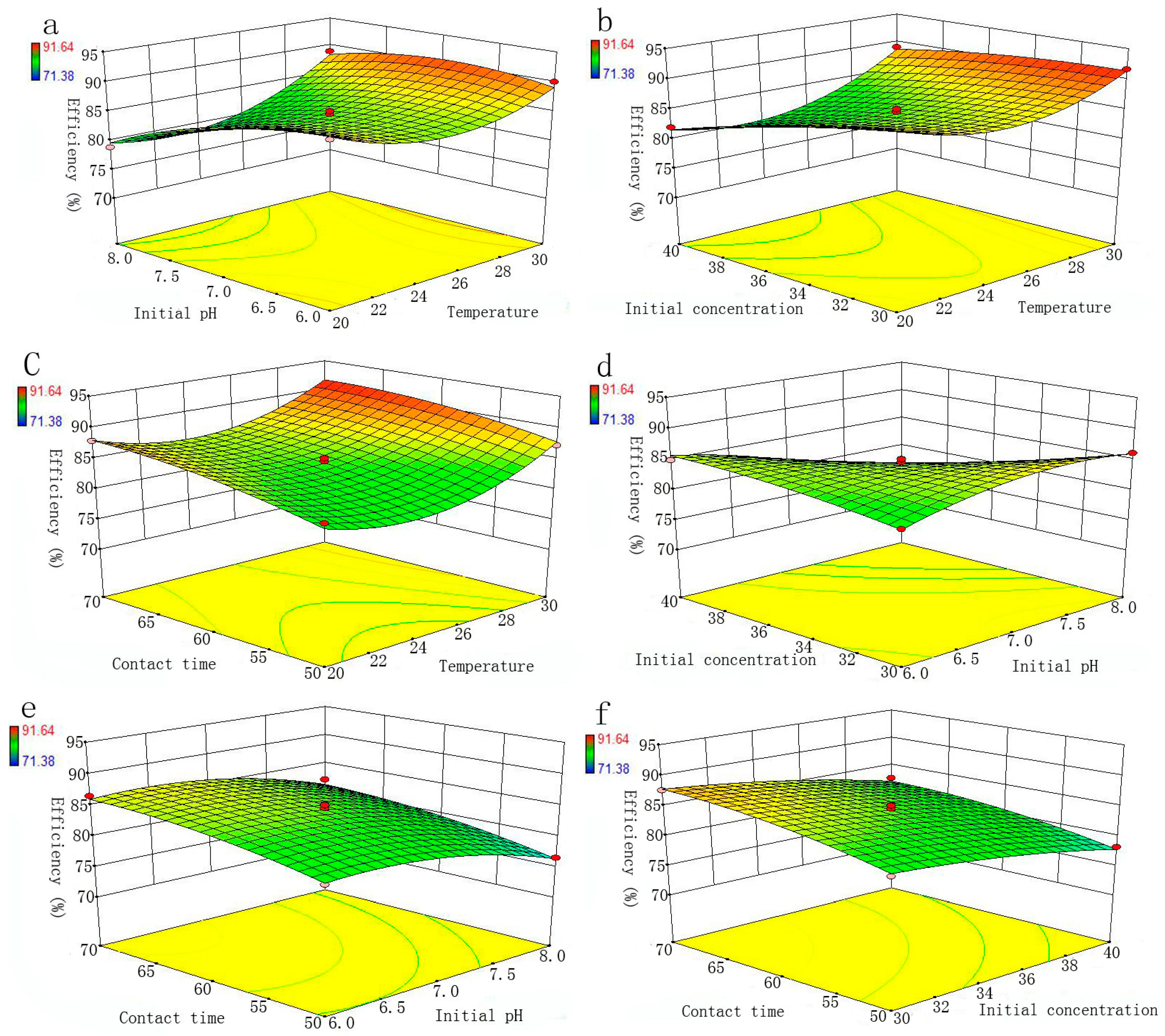

Figure 4. The 3-D surface plots for interactive effect of temperature and initial pH (a); initial Se(IV) concentration and temperature (b); contact time and temperature (c); initial pH and initial Se(IV) concentration (d); contact time and initial pH (e) and contact time and initial Se(IV) concentration (f); on the removal of the Se(IV) (the red dot represents the center point).
Figure 4. The 3-D surface plots for interactive effect of temperature and initial pH (a); initial Se(IV) concentration and temperature (b); contact time and temperature (c); initial pH and initial Se(IV) concentration (d); contact time and initial pH (e) and contact time and initial Se(IV) concentration (f); on the removal of the Se(IV) (the red dot represents the center point).
Materials 11 00428 g004

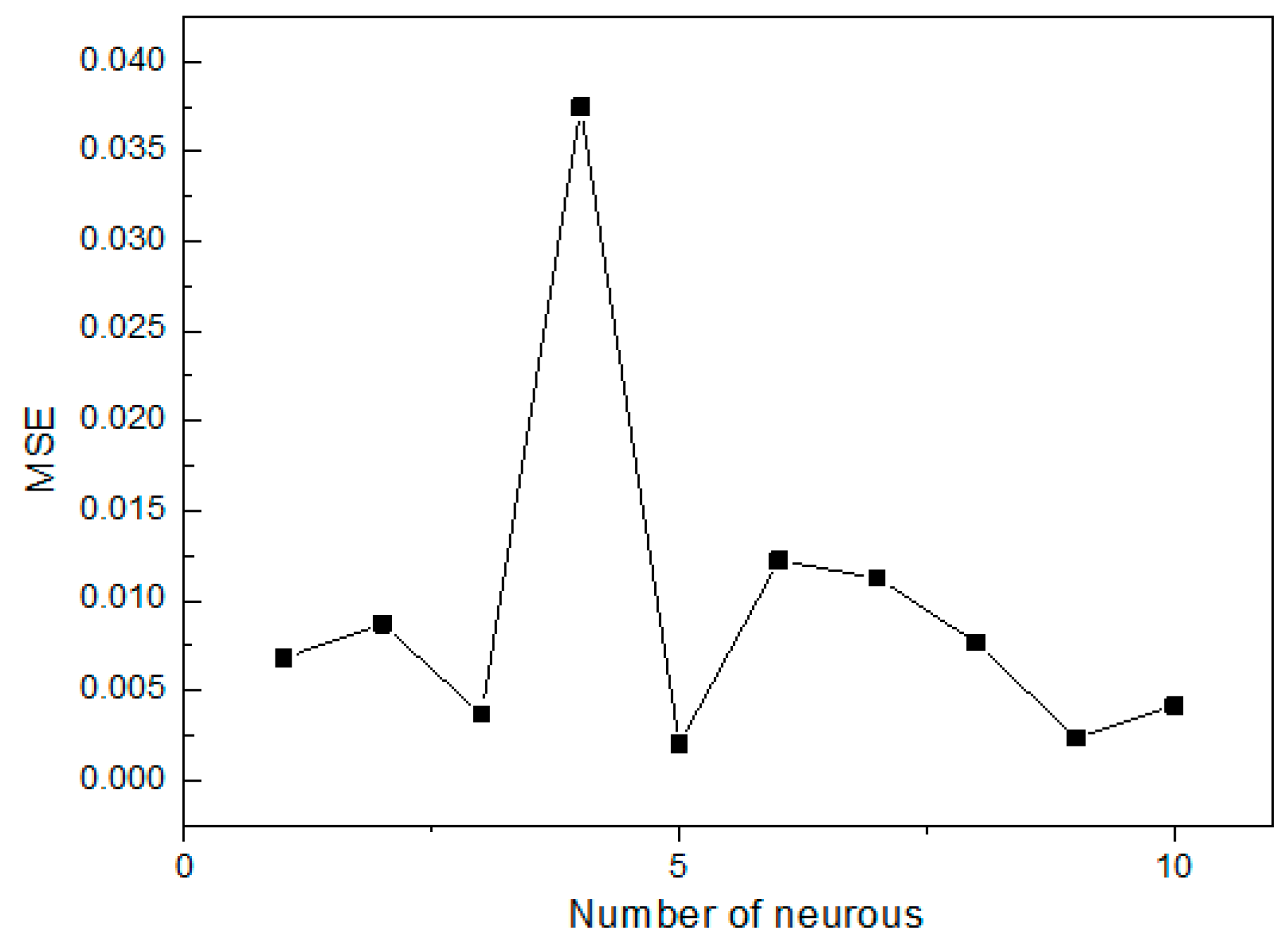

Figure 5. Effect of neuron number on the performance of ANN using mean squared error (MSE) as a criterion.
Figure 5. Effect of neuron number on the performance of ANN using mean squared error (MSE) as a criterion.
Materials 11 00428 g005
Figure 6. Illustration of back propagation (BP)-ANN architecture (the yellow oval represents neurons in the hidden layer; the green oval represents neurons in the output layer).
Figure 6. Illustration of back propagation (BP)-ANN architecture (the yellow oval represents neurons in the hidden layer; the green oval represents neurons in the output layer).
Materials 11 00428 g006

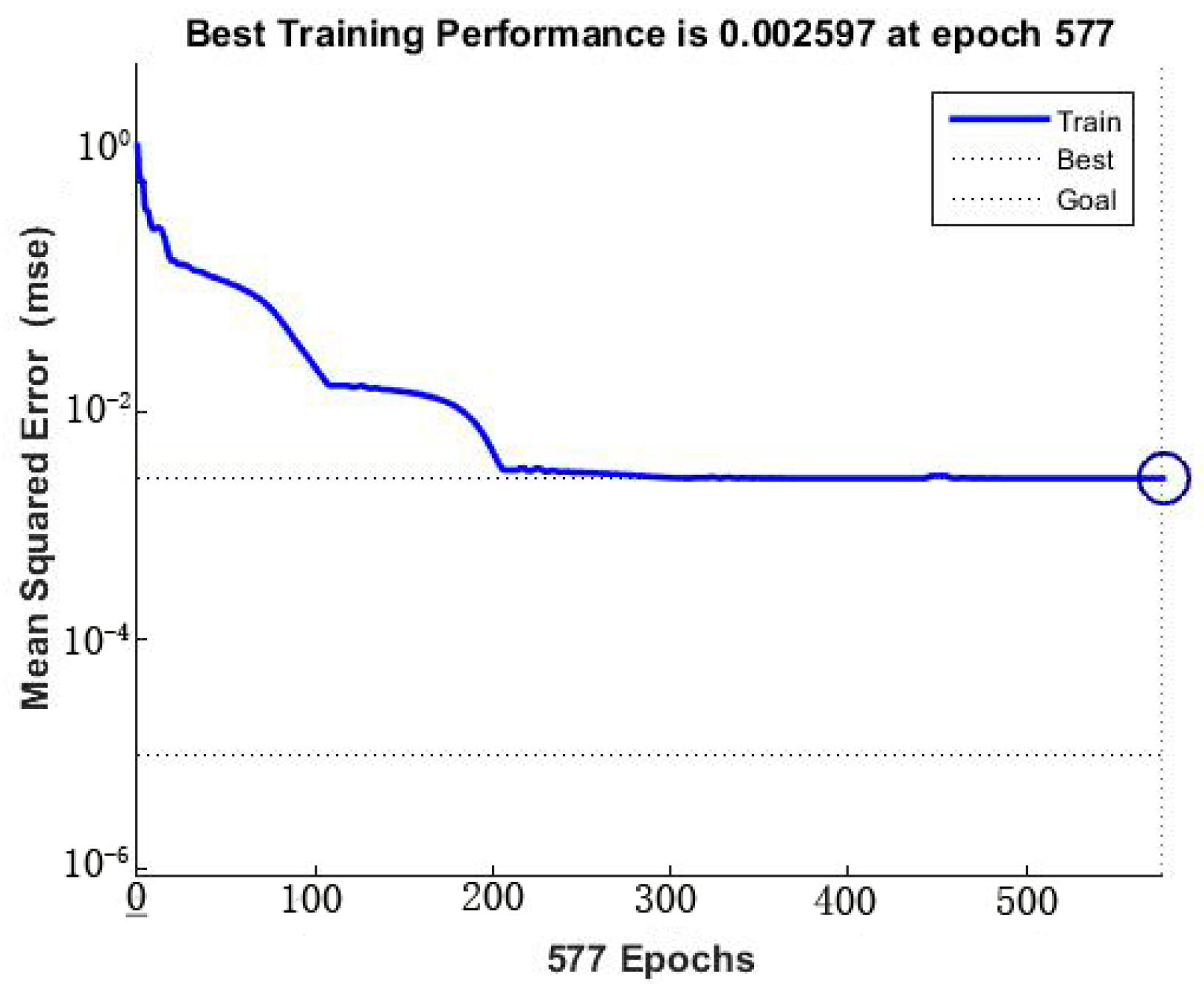

Figure 7. MSE vs. the number of epochs.
Figure 7. MSE vs. the number of epochs.
Materials 11 00428 g007
Figure 8. Evolvement of fitness with 100 generations.
Figure 8. Evolvement of fitness with 100 generations.
Materials 11 00428 g008
Figure 9. The maximum removal efficiency against iterations.
Figure 9. The maximum removal efficiency against iterations.
Materials 11 00428 g009

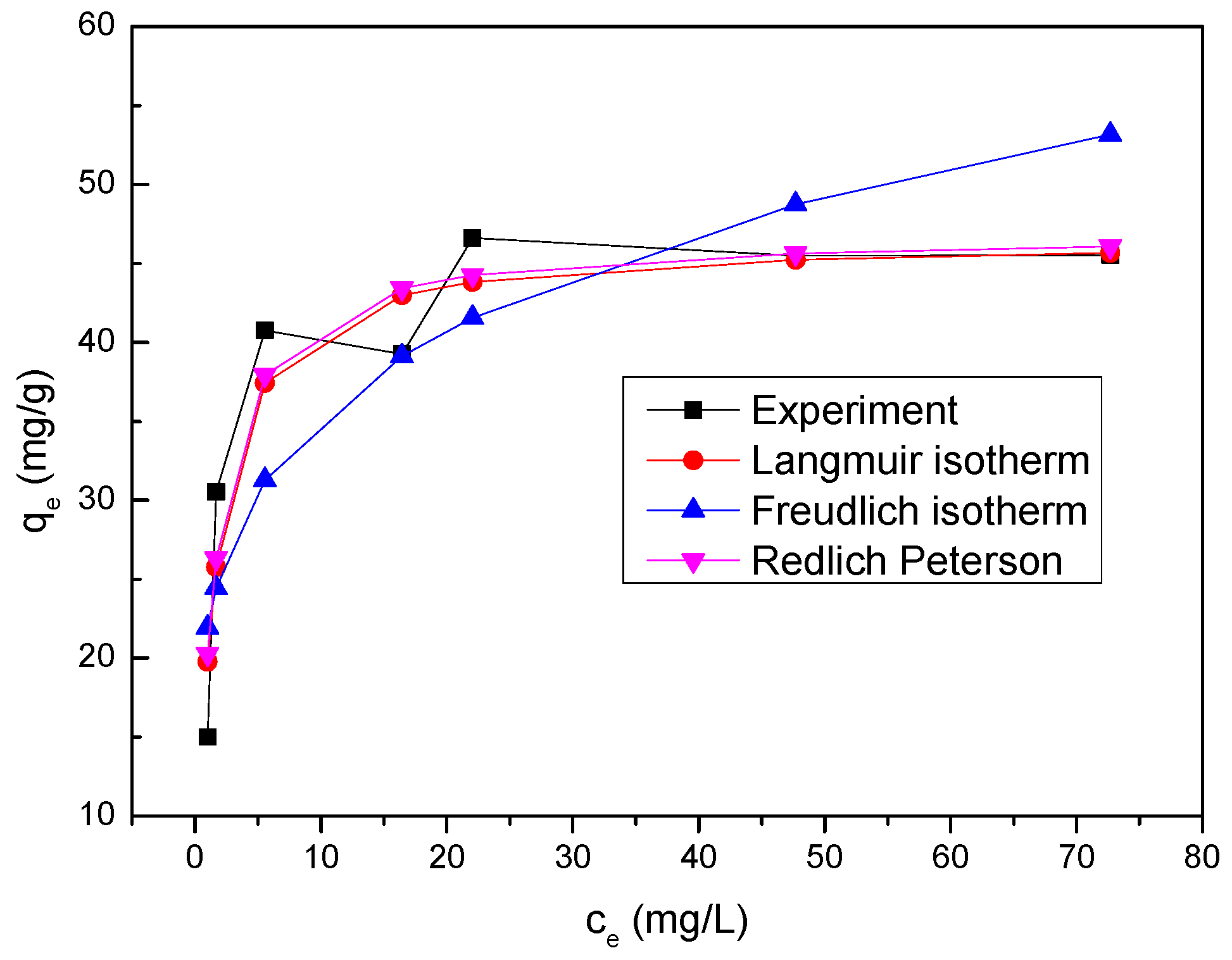

Figure 10. Adsorption isotherm for Se(IV) onto nZVI/rGO composites (nZVI/rGO dosage = 30 mg; initial pH = 8.0; t = 1 h; T = 25 °C).
Figure 10. Adsorption isotherm for Se(IV) onto nZVI/rGO composites (nZVI/rGO dosage = 30 mg; initial pH = 8.0; t = 1 h; T = 25 °C).
Materials 11 00428 g010

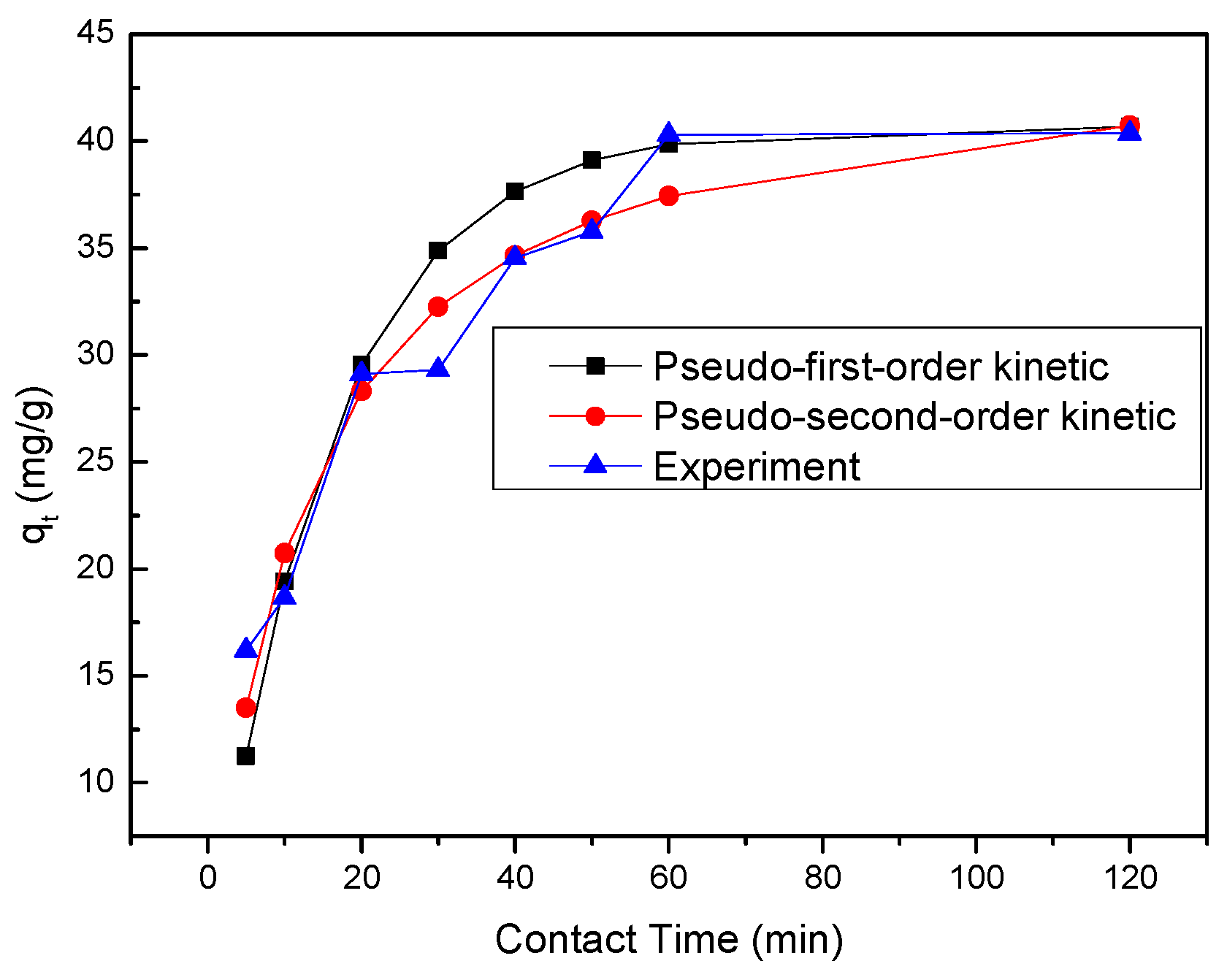

Figure 11. Time dependent study of Se(IV) removal by nZVI/rGO composites (initial pH = 8.0; nZVI/rGO dosage = 30 mg; T = 25 °C; C = 30 mg/L).
Figure 11. Time dependent study of Se(IV) removal by nZVI/rGO composites (initial pH = 8.0; nZVI/rGO dosage = 30 mg; T = 25 °C; C = 30 mg/L).
Materials 11 00428 g011
Figure 12. Wide-scan XPS survey of nZVI/rGO-Se(IV) (a); high-resolution spectrum of Se 3d for nZVI/rGO-Se(IV) (b); the XPS spectra of Se 3p for nZVI/rGO-Se(IV) (c).
Figure 12. Wide-scan XPS survey of nZVI/rGO-Se(IV) (a); high-resolution spectrum of Se 3d for nZVI/rGO-Se(IV) (b); the XPS spectra of Se 3p for nZVI/rGO-Se(IV) (c).
Materials 11 00428 g012
Table 1. The experimental factors and levels for the Box–Behnken design.
Table 1. The experimental factors and levels for the Box–Behnken design.
FactorsNameUnitsRange and Levels (Coded)
−101
x1Temperature°C202530
x2initial pH-678
x3Initial Se(IV) concentrationmg·L1303540
x4Timemin506070
Table 2. The results of ANOVA for the second-order polynomial equation.
Table 2. The results of ANOVA for the second-order polynomial equation.
SourceSum of SquaresdfMean SquareF-Valuep-ValueRemarks
Model565.4614.0040.3951.27<0.0001significant
x156.641.0056.6471.90<0.0001
x277.321.0077.3298.15<0.0001
x387.101.0087.10110.57<0.0001
x463.571.0063.5780.70<0.0001
x1x217.981.0017.9822.820.0003
x1x36.891.006.898.750.0104
x1x40.491.000.490.620.4434
x2x371.401.0071.4090.64<0.0001
x2x40.081.000.080.110.7487
x3x40.121.000.120.150.7074
x12112.941.00112.94143.37<0.0001
x2226.501.0026.5033.64<0.0001
x323.271.003.274.150.0610
x426.531.006.538.290.0121
R2 = 0.9809, Adequate precision = 30.520.
Table 3. Variables importance analysis of input for the output in ANN model.
Table 3. Variables importance analysis of input for the output in ANN model.
Input VariablesPercentage (%)Order
Operating temperature28.583
Initial pH30.492
Initial concentration4.504
Contact time36.431
Table 4. The optimized process parameters for Se(IV) removal by nZVI/rGO composites using different methods.
Table 4. The optimized process parameters for Se(IV) removal by nZVI/rGO composites using different methods.
Process ParametersOptimization
ANN-GAANN-PSO
Operating temperature (°C)29.65 °C23.74 °C
Initial pH6.556.78
Initial Se(IV) concentration (mg/L)36.13 mg/L30 mg/L
Contact time (min)64.22 min60.00 min
Removal efficiency of model (%)90.89%92.02%
Experimental verification values (%)88.01%87.39%
Average values of absolute errors (%)2.884.63
R20.9949
MSE0.0020
Table 5. Parameters of isotherm models for the adsorption of Se(IV) onto the nZVI/rGO composites.
Table 5. Parameters of isotherm models for the adsorption of Se(IV) onto the nZVI/rGO composites.
IsothermsParametersValues of ParametersError Function
x2SAE
LangmuirKL (L·mg1)0.74140.0127
qmax (mg·g1)46.511619.8041
R20.9986
FreundlichKF (mg·g1)21.97050.1498
n4.849738.6090
R20.6904
Redlich PetersonA35.80930.0845
B0.763538.6090
R20.8818
Table 6. Removal quantity of various adsorbents for Se(IV).
Table 6. Removal quantity of various adsorbents for Se(IV).
Materialsqmax (mg/g)Reference
tropical soil0.15[58]
Fe(III)/Cr(III) hydroxide15.63[59]
Mg/Fe Hydrotalcite-Like-Compound4.70[60]
Aluminium oxide coated sand1.08[61]
Fe-GAC2.58[62]
nZVI/rGO nanocomposites46.51Present work
Table 7. The values of RL for the adsorption of Se(IV) by the nZVI/rGO composites.
Table 7. The values of RL for the adsorption of Se(IV) by the nZVI/rGO composites.
Initial Concentration (mg/L)RL Value
100.1188
200.0632
300.0430
400.0326
500.0263
750.0177
1000.0133
Table 8. Kinetic parameters for removal of the Se(IV) by the nZVI/rGO composites.
Table 8. Kinetic parameters for removal of the Se(IV) by the nZVI/rGO composites.
ModelParametersValue of Parameters
pseudo-first-orderk1 (1·min1)0.0648
R20.6134
qe40.7056
pseudo-second-order k2 (g·mg1min1)0.0018
R20.9938
qe44.6400
Intraparticle diffusionk3 (mg·g1 min1/2)2.7259
B (mg·g1)14.1790
R20.8590
Table 9. Thermodynamic parameters for Se(IV) removal by nZVI/rGO composites.
Table 9. Thermodynamic parameters for Se(IV) removal by nZVI/rGO composites.
ΔH0 (kJ·mol−1)ΔS0 (J·mol−1 K−1)ΔG0 (kJ/mol)
9.053140.7386293 K303 K313 K
−5.6658−7.1402−9.4507
Back to TopTop
