Investigation of Zinc and Phosphorus Elements Incorporated into Micro-Arc Oxidation Coatings Developed on Ti-6Al-4V Alloys
by
Yaping Wang
1,2,†,
Lilan Zeng
2,†,
Honghua Zhang
1,
Junhuai Xiang
1,
Shufang Zhang
1,
Wenhui Chang
1,
Rongfa Zhang
1,*,
Qiao Wang
1,
Yang Sheng
1 and
Ying Zhao
2,* 1
School of Materials and Electromechanics, Jiangxi Science and Technology Normal University, Nanchang 330013, China
2
Shenzhen Institutes of Advanced Technology, Chinese Academy of Sciences, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this study.
Materials 2018, 11(3), 344; https://doi.org/10.3390/ma11030344
Submission received: 25 January 2018
/
Revised: 19 February 2018
/
Accepted: 20 February 2018
/
Published: 27 February 2018
Abstract
:In order to clarify the mechanism that zinc and phosphorus elements entering the micro-arc oxidation (MAO) coatings developed on Ti-6Al-4V alloys, anodic coatings containing different zinc and phosphorus were fabricated using an orthogonal experiment of four factors with three levels in an electrolyte containing EDTA-ZnNa2, KOH, and phytic acid. Surface morphology, element composition, chemical state and phase structure of MAO coatings were characterized by scanning electron microscope (SEM), energy dispersive X-ray spectrometer (EDS), X-ray photoelectron spectroscopy (XPS) and X-ray diffraction (XRD). The concentrations of zinc and phosphorus in the electrolyte were analyzed by an inductively coupled plasma optical emission spectrometry (ICP-OES). The results show that zinc and phosphorus elements in MAO coatings exist in the form of Zn3(PO4)2. Phytic acid is the most important factor on both zinc and phosphorus contents of MAO coatings. With the increase of phytic acid concentration or the decrease of KOH concentration, the contents of zinc and phosphorus in MAO coatings present a similarly increasing tendency. Our results indicate that phosphorus takes part in coating formation mainly by diffusion, while zinc enters into MAO coatings with phosphorus from phytic acid.
1. Introduction
Titanium alloys are widely used as metallic implants due to the combination of their outstanding characteristics such as high strength, low density, high immunity to corrosion, and good biocompatibility [1,2,3]. However, titanium alloys do not form sufficient osseointegration with surrounding bones in vivo [1,2] and also do not possess antibacterial ability [4]. Therefore, it is necessary to fabricate coatings with increased osseointegration and appropriate antibacterial properties on titanium alloys for clinic application [3,4].
Among the various surface modification processes, micro-arc oxidation (MAO) has received considerable attention since the MAO coatings possess high hardness, good wear resistance, moderate corrosion resistance, and good thermal stability [3]. Especially, the functional coatings can be developed on titanium alloys by adjusting the electrolyte compositions, concentration and the applied electric parameters [3,5]. Phosphorus (P) is a main component of human bone, and phosphorus-containing anodic coatings on titanium implants can improve cell adhesion and proliferation [6]. Therefore, inorganic phosphorus-containing electrolytes, for example, H3PO4, glycerophosphate disodium salt pentahydrate, NaH2PO4, and (NaPO3)6 are widely used in MAO on titanium alloys [5,6,7,8,9]. As a natural and nontoxic organic macromolecule, phytic acid, also known as inositol hexakisphosphate (C6H6(PO4)6H12, as shown in Figure 1), is recently used as a novel phosphorus-containing electrolyte on titanium alloys and the fabricated MAO coatings show good biocompatibility [10].
Mn, Fe, Cu, Zn, and Se are considered as essential trace elements in humans [11]. For example, zinc (Zn) is involved in a great number of cellular processes, such as DNA synthesis, enzyme activity and cell division [7,11,12,13]. Moreover, Zn is one kind of inorganic antibacterial agent [7,8,11,12,13,14,15]. Therefore, it is important to fabricate MAO coatings with appropriate Zn content by using zinc-containing electrolytes like zinc acetate [7,14]. The results show that zinc-containing coatings are biocompatible for rat bone marrow stromal cells and present an increased proliferation and ALP expression [7]. However, the influencing regularity of processing factors on the Zn content in MAO coatings is rarely reported.
Cations and anions in water solution can enter into MAO coatings by diffusion, electric migration, and convection [16]. During MAO, an electric field developed between the anode and the cathode, becomes stronger with the increase of the applied current density or final voltage. Therefore, anions can arrive at the anode by both diffusion and electromigration, while cations move to the anode mainly by diffusion. In a solution containing chelating agents such as phytic acid, some cations, which have been combined with the chelating agents and become negatively charged, can enter MAO coatings by diffusion and electromigration [17]. At present, the effects of processing parameters on coating properties are widely investigated by the conventional method, namely, at a time, one factor is kept varying and all the other factors are kept constant. Compared with the conventional method, an orthogonal experiment can fast and accurately reveal the influences of processing factors on the objective parameters. Especially, the affecting sequence of processing factors, which is the most or the least important factor, can be achieved by the orthogonal experiment. Therefore, it is very meaningful to reveal the entrance mechanism of cations and anions into MAO coatings by using the orthogonal experiment.
In this work, ethylene diamine tetraacetic acid zinc disodium salt hydrate (C10H12N2O8Na2Zn, EDTA-ZnNa2), a zinc-containing soluble substance, was selected as the key composition of MAO electrolytes. The influences of EDTA-ZnNa2, KOH, phytic acid concentrations and treating time on the contents of Zn and P elements in MAO coatings were systematically investigated. The mechanism of Zn and P ions incorporated into MAO coatings was discussed as well.
2. Experimental
2.1. Materials and MAO Treatment
Ti-6Al-4V plates with the dimensions of 50 × 50 × 3 mm3 were used as the samples for MAO treatment. Samples were successively ground with SiC paper from 80 to 1000 grit, washed with distilled water and dried in a hot wind stream. The orthogonal experiment of four factors with three levels including EDTA-ZnNa2, KOH and phytic acid concentration as well as treating time was used to comprehensively investigate the effects of processing factors on the contents of Zn and P elements in MAO coatings.
The levels of each factor were selected according to the reported results and our previous experiments. The factors and levels of the orthogonal experiment are listed in Table 1.
EDTA-ZnNa2 and phytic acid were separately purchased from Shandong Xiya Reagent Chemistry Co. Ltd. (Linshu, China) and Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). A homemade MAO5D power supply (Chengdu Tongchuang New Material Surface Engineering and Technology Center, Chengdu, China) was used under a constant current control mode. For the power supply used, pulse frequency and duty cycle could be regulated in the range of 100–2000 Hz and 5–40%, respectively. A Ti-6Al-4V sample was placed into a plastic barrel and used as the anode, while another Ti-6Al-4V sample of 50 × 50 × 3 mm3 was used as the cathode, as shown in Figure 2. During MAO treatment, current density, pulse frequency, and duty cycle were kept constant. These were 110 mA/cm2, 2000 Hz, and 35%, respectively. The fabricated MAO samples containing 2.86 wt %, 5.83 wt %, and 8.81 wt % Zn were abbreviated as Zn-2.86 wt %, Zn-5.83 wt %, and Zn-8.81 wt %, respectively.
2.2. Measurement
2.2.1. Surface Characterization
Surface morphology and chemical composition of the MAO-treated titanium alloys were characterized by a field emission scanning electron microscope (SEM, Zeiss, Oberkochen, Germany) and energy dispersive X-ray spectrometer (EDS) attached to SEM. The phase structure of the samples was analyzed by X-ray diffraction (XRD-6100, Shimadzu, Kyoto, Japan). An X-ray photoelectron spectroscopy (XPS, ESCALAB250, Thermo VG, Waltham, MA, USA) with an Al Kα anode (λ = 1486.6 eV) was used to detect the chemical states on the surface of MAO coatings.
2.2.2. The Measurement of Zn and P concentration
In order to further clarify the underlying mechanism of Zn and P ions into MAO coatings, one MAO solution was simultaneously fetched by three syringes in anode area, the middle area and cathode area during treatment for 40 s and 120 s (Figure 2). The concentrations of Zn and P ions were analyzed by ICP-OES (PE Optima8300, Perkin-Elmer Corporation, Waltham, MA, USA).
3. Results
3.1. Results of the Orthogonal Experiment
The orthogonal experimental array and the contents of Zn and P elements analyzed by EDS were listed in Table 2.
The experimental data were treated by the method of the intuitionistic analysis. K1, K2 and K3 listed in Table 2 separately stand for the sum of Zn content in MAO coatings fabricated at Level 1, Level 2, and Level 3 of four factors. The maximum difference between the total Zn content at two levels of each factor shows the general influence of that factor. The greater the difference, the more important the factor. Based on this, the influencing sequence of factors on Zn content of MAO coating was ranked as phytic acid concentration > KOH concentration > EDTA-ZnNa2 concentration > treating time. With the increase of phytic acid concentration or the decrease of KOH concentration, the Zn content in MAO coatings increased. EDTA-ZnNa2 concentration was the third important affecting factor on the Zn content in MAO coatings. With the increasing EDTA-ZnNa2 concentration, the Zn content in MAO coatings increased from Level 1 to Level 2 but decreased from Level 2 to Level 3, indicating that the increased EDTA-ZnNa2 concentration could not continually increase the Zn content.
Table 2 also shows that among nine samples, sample No.7, namely fabricated in the solution of 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid, achieved the highest P content of 14.1 wt % in MAO coatings. The data of P content (listed in brackets) were dealt with the same method as the data of Zn content. The ranking of influencing factors on P content of anodic coatings was as follows: phytic acid concentration > KOH concentration > treating time> EDTA-ZnNa2 concentration.
Based on the results listed in Table 2, the influences of the four factors on the Zn and P contents of MAO coatings were shown in Figure 3.
In the experiment, phytic acid concentration and KOH concentration were the main influencing factors on both Zn and P contents of anodic coatings (Table 2). In addition, their influencing regularity on Zn and P contents were similar. With the increasing phytic acid concentration or the decreasing KOH concentration, the contents of Zn and P in MAO coatings increased (Figure 3). With the increase of EDTA-ZnNa2 concentration or the prolonging of treating time, both Zn and P amounts firstly rapidly increased from Level 1 to Level 2, but then slightly decreased from Level 2 to Level 3. The results shown in Figure 3 indicated that the changing regularity of P amount in MAO coatings was similar to that of Zn amount.
3.2. Effects of Processing Factors on Coating Property
In order to reveal the influencing regularity of four factors on Zn and P contents, it is necessary to examine surface morphology, chemical composition, phase structure, and the element state of the coatings.
3.2.1. Surface Morphology and Chemical Composition of the MAO Film
As listed in Table 2, sample NO. 6 presented the lowest both Zn and P amount, while sample No. 7 achieved the highest both Zn and P amount. The surface morphologies of nine MAO coatings are shown in Figure 4.
As shown in Figure 4a, dense anodic coatings were formed on titanium alloys. In comparison, the coatings shown in Figure 4b–e and g exhibited a typically porous structure, suggesting that the MAO coatings were successfully developed. It was clearly that anodic coatings were not developed on sample No. 6 (Figure 4f). As shown in Figure 4h,i, porous anodic coatings were partially developed on samples No. 8 and No. 9. According to Figure 4 and the corresponding electrolyte composition, the MAO coatings were difficult to develop in solutions composed of low phytic acid concentration (Figure 4a,f,h) or high KOH concentration (Figure 4f,i).
3.2.2. XRD Analysis
The XRD spectra of the untreated Ti6Al4V, Zn-2.86 wt %, Zn-5.83 wt % and Zn-8.81 wt % were shown in Figure 5.
As shown in Figure 5, the MAO coatings were mainly composed of anatase and rutile. No zinc-containing or phosphorus-containing substances were identified by XRD. Therefore, XPS was utilized to further characterize the chemical state of the elements in MAO coatings.
3.2.3. XPS Analysis
The survey spectrum of anodic coatings with Zn-8.81 wt % and the high-resolution XPS spectra of C, P and Zn elements are shown in Figure 6.
According to Figure 6a, C, O, Ti, P and Zn elements were present in MAO coatings. C 1s spectrum was divided into two peaks at binding energy of 284.6 and 286.0 eV (Figure 6b), separately corresponding to C–C or C–H and C–O [6]. The P 2p spectrum exhibited three peaks at 133.4, 134.3 and 140.8 eV, which were the phosphorus peaks of Zn3(PO4)2 [18]. The Zn 2p peaks at 1022.5 and 1045.6 eV were well assigned to Zn3(PO4)2 [18].
3.3. Zn and P Concentrations
For MAO times of 40 s and 120 s, the concentrations of Zn and P in the solution of 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid are shown in Figure 7. The Zn concentration at 40 s in anode area, the middle area and cathode area were separately 1.43 ± 0.02, 1.43 ± 0.02 and 1.43 ± 0.01 g/L. At 120 s, the values were separately 1.40 ± 0.02, 1.38 ± 0.01 and 1.38 ± 0.01 g/L (Figure 7a). The higher Zn concentration at 120 s in anode area than that in cathode area suggested that electromigration may induce Zn ions to be incorporated into MAO coatings. However, the P concentrations at 40 s in anode area, the middle area and cathode were separately 1.14 ± 0.01, 1.16 ± 0.01 and 1.17 ± 0.01 g/L. At 120 s, the values were separately 1.18 ± 0.01, 1.18 ± 0.01 and 1.20 ± 0.01 g/L (Figure 7b). Regardless of 40 s or 120 s, the P content in anode area was lower than those in cathode area (Figure 7b).
4. Discussion
In order to elucidate the influences of the four factors on the Zn and P amounts, the formation process of anodic coatings is deduced according to the property of the used electrolytes, the characteristics of MAO treatment and the coating performance.
4.1. How Zn Enters MAO Coatings
Anions and cations in water solution should arrive first at the anode/electrolyte interface and then enter into MAO coatings [16]. Anions can move to the anode by diffusion and electromigration, while cations usually move to the anode by diffusion [19,20]. With the prolonging of treating time, the developed electric field becomes stronger, and electromigration can play an important role in driving the anions toward the anode. During MAO, the ion concentration in the anode area is determined by its reaction speed into MAO coatings and the moving speed toward the anode. If the reaction speed is faster than the moving speed, the ion concentration in the anode area is lower than in the cathode area. In contrary, the ion concentration in the anode area is higher than in the cathode area when the reaction speed is slower than the moving speed.
According to the orthogonal experiment, EDTA-ZnNa2 concentration was not the first, but the third important factor on the Zn content of anodic coatings (Table 2). In addition, with the increasing EDTA-ZnNa2 concentration, the Zn content in MAO coatings did not continually increase. These results indicate that diffusion is not the main way of Zn ions into MAO coatings. According to ICP results shown in Figure 7a, at 40 s, the Zn concentration in anode area and cathode area did not exhibit significant differences. At 120 s, the Zn concentration in the anode area was larger than in the cathode area. This may have resulted from the properties of EDTA-ZnNa2 and phytic acid. In a water solution, EDTA-ZnNa2 can ionize into Na+ and negatively charged EDTA-Zn2−. Therefore, EDTA-Zn2− can move toward the anode by diffusion and electromigration [17], as shown in Figure 8. In addition, as an organic macromolecule with 24 oxygen atoms, 12 hydroxyl groups and six phosphate carboxyl groups, phytic acid has powerful chelating capability with divalent and trivalent minerals [21,22]. Zn ions can also combine with phytic acid radicals to become negatively charged. Under the stronger field resulting from the prolonging of treating time (Figure 7a), electromigration but not diffusion, becomes the main method for Zn ions to integrate into MAO coatings. The results of the higher Zn concentration in the anode area than in the cathode area (Figure 7a) and the Zn content in MAO coatings determined by phytic acid concentration (Table 2) indicate that the reaction speed of Zn combined with P, not its moving speed, mainly influences the Zn amount in MAO coatings.
4.2. How P Enters the MAO Coatings
During MAO, the P content in anode area was lower than that in cathode area (Figure 7b). The reason may be pertinent to the property and structure of phytic acid. On the one hand, phytic acid is favorable for coating formation (Figure 4), and its reaction speed into anodic coatings may be fast during MAO. On the other hand, as a ringed carbohydrate with six phosphate groups, the moving speed of phytic acid toward the anode may be slow. Therefore, compared to Zn ions, electromigration plays a weaker role in driving P ions toward the anode. Under the fast reaction speed of phytic acid into MAO coatings and the slow moving speed toward the anode, the P concentrations in the anode area were lower than those in cathode area (Figure 8).
As an organic substance, phytic acid radicals are not stable and can be hydrolyzed into small molecular inositol phosphates in the temperature range between 320 and 345 °C [23]. It is believed that the instantaneous temperature on the anode surface during MAO can reach 2000 °C due to spark discharge [24]. Under the instantaneous high temperature on the anode, phytic acid radicals adjacent to the anode are hydrolyzed into inorganic phosphates, as shown in Figure 8. During MAO, the following reactions on the anode may take place [10]:
Ti − 4e− = Ti4+
H2O = 2H+ + O2−
Ti4+ + 2O2− = TiO2
H3PO4= 3H+ + PO43−
3Zn2+ + 2PO43− = Zn3(PO4)2
Anatase and rutile TiO2 are acquired in anodic coatings during MAO treatment by Equations (1)–(3). According to Figure 9 and Figure 10 and Equations (4) and (5), Zn and P are incorporated into MAO coatings and their contents increase with the increasing phytic acid concentration. Meanwhile, Zn and P present the similar influencing regularity due to the formation of Zn3(PO4)2 in MAO coatings (Figure 3).
5. Conclusions
The influencing regularity of processing factors on Zn and P contents were investigated by using the orthogonal experiment of four factors with three levels in a solution containing EDTA-ZnNa2, KOH and phytic acid. Some conclusions are drawn as follows.
- (1)
- Zn element in MAO coatings combined with P element exists in the form of Zn3(PO4)2. Zn enters into MAO coatings with P from phytic acid, while P takes part in coating formation mainly by diffusion.
- (2)
- The impact of factors on the Zn content in MAO coatings is as follows: phytic acid concentration > KOH concentration > EDTA-ZnNa2 concentration > treating time, while the influencing order on the P amount is phytic acid concentration > KOH concentration > treating time> EDTA-ZnNa2 concentration.
- (3)
- Phytic acid is beneficial to the development of MAO coatings, while NaOH inhibits the coating formation. With the increase of phytic acid concentration or the decrease of KOH concentration, the contents of Zn and P in MAO coatings present similar increasing tendencies.
Acknowledgments
The study was financially supported by the National Natural Science Foundation of China (51661010, 51361011, 51501218, 81572113), The Center for 2011 in Vitro Diagnostic Reagent and Instrument Collaborative Innovation, Guangdong Provincial Science and technology projects (2014A010105033), Guangdong Natural Science Foundation (2014A030310129), Shenzhen Peacock Programs KQCX20140521115045444 and 110811003586331, Shenzhen-Hong Kong Technology Cooperation Funding Scheme (SGLH20150213143207910), Shenzhen Science and Technology Research Funding (JCYJ20160229195249481, JCYJ20160429185449249, JCYJ20160608153641020).
Author Contributions
Junhuai Xiang, Rongfa Zhang and Ying Zhao conceived and designed the experiments; Wenhui Chang, Qiao Wang and Yang Sheng performed the experiments; Lilan Zeng, Honghua Zhang and Shufang Zhang analyzed the data; Yaping Wang wrote the paper.
Conflict of Interest
The authors declare no conflict of interest.
References
- Geetha, M.; Singh, A.K.; Asokamani, R.; Gogia, A.K. Ti based biomaterials, the ultimate choice for orthopaedic implants—A review. Prog. Mater. Sci. 2009, 54, 397–425. [Google Scholar] [CrossRef]
- Zhao, Y.; Wong, S.M.; Wong, H.M.; Wu, S.L.; Hu, T.; Yeung, K.W.K.; Chu, P.K. Effect of carbon and nitrogen plasma immersion ion implantation on in vitro and in vivo biocompatibility of titanium alloy. ACS Appl. Mater Interfaces 2013, 5, 1510–1516. [Google Scholar] [CrossRef] [PubMed]
- Krzakala, A.; Kazek-Kesik, A.; Simka, W. Application of plasma electrolytic oxidation to bioactive surface formation on titanium and its alloys. RSC Adv. 2013, 3, 19725–19743. [Google Scholar] [CrossRef]
- Zhao, L.Z.; Chu, P.K.; Zhang, Y.M.; Wu, Z.F. Antibacterial coatings on titanium implants. J. Biomed. Mater. Res. Part B 2009, 91, 470–480. [Google Scholar] [CrossRef] [PubMed]
- Rokosz, K.; Hryniewicz, T.; Matysek, D.; Raaen, S.; Valicek, J.; Dudek, L.; Harnicarova, M. SEM, EDS and XPS analysis of the coatings obtained on titanium after plasma electrolytic oxidation in electrolytes containing copper nitrate. Materials 2016, 9, 318. [Google Scholar] [CrossRef] [PubMed]
- Zhu, X.L.; Chen, J.; Scheideler, L.; Reichl, R.; Geis-Gerstorfer, J. Effects of topography and composition of titanium surface oxides on osteoblast responses. Biomaterials 2004, 25, 4087–4103. [Google Scholar] [CrossRef] [PubMed]
- Hu, H.; Zhang, W.; Qiao, Y.; Jiang, X.; Liu, X.; Ding, C. Antibacterial activity and increased bone marrow stem cell functions of Zn-incorporated TiO2 coatings on titanium. Acta Biomater. 2012, 8, 904–915. [Google Scholar] [CrossRef] [PubMed]
- Zhang, J.Y.; Ai, H.J.; Qi, M. Osteoblast growth on the surface of porous Zn-containing HA/TiO2 hybrid coatings on Ti substrate by MAO plus sol-gel methods. Surf. Coat. Technol. 2013, 228, S202–S205. [Google Scholar] [CrossRef]
- Wang, Y.M.; Lei, T.Q.; Jiang, B.L.; Guo, L.X. Growth, microstructure and mechanical properties of microarc oxidation coatings on titanium alloy in phosphate-containing solution. Appl. Surf. Sci. 2004, 233, 258–267. [Google Scholar] [CrossRef]
- Wang, Y.P.; Lou, J.; Zeng, L.L.; Xiang, J.H.; Zhang, S.F.; Wang, J.; Xiong, F.C.; Li, C.L.; Zhao, Y.; Zhang, R.F. Osteogenic potential of a novel microarc oxidized coating formed on Ti6Al4V alloys. Appl. Surf. Sci. 2017, 412, 29–36. [Google Scholar] [CrossRef]
- Fraga, C.G. Relevance, essentiality and toxicity of trace elements in human health. Mol. Asp. Med. 2005, 26, 235–244. [Google Scholar] [CrossRef] [PubMed]
- Jin, G.D.; Cao, H.L.; Qiao, Y.Q.; Meng, F.H.; Zhu, H.Q.; Liu, X.Y. Osteogentic activity and antibacterial effects of zinc ion implanted titanium. Colloids Surf. B Biointerfaces 2014, 117, 158–165. [Google Scholar] [CrossRef] [PubMed]
- Huang, Y.; Zhang, X.J.; Mao, H.H.; Li, T.T.; Zhao, R.L.; Yan, Y.J.; Pang, X.F. Osteoblastic cell responses and antibacterial efficacy of Cu/Zn co-substitued hydroxyapatite coatings on pure titanium using electrodeposition method. RSC Adv. 2015, 5, 17076–17086. [Google Scholar] [CrossRef]
- Zhao, B.H.; Zhang, W.; Wang, D.N.; Feng, W.; Liu, Y.; Lin, Z.; Du, K.Q.; Deng, C.F. Effect of Zn content on cytoactivity and bacteriostasis of micro-arc oxidation coatings on pure titanium. Surf. Coat. Technol. 2013, 228, S428–S432. [Google Scholar] [CrossRef]
- Jin, G.D.; Qin, H.; Cao, H.L.; Qian, S.; Zhao, Y.C.; Peng, X.C.; Zhang, X.L.; Liu, X.Y.; Chu, P.K. Synergistic effects of dual Zn/Ag ion implantation in osteogenic activity and antibacterial ability of titanium. Biomaterials 2014, 35, 7699–7713. [Google Scholar] [CrossRef] [PubMed]
- Zhang, R.F.; Shan, D.Y.; Chen, R.S.; Han, E.H. Effects of electric parameters on properties of anodic coatings formed on magnesium alloys. Mater. Chem. Phys. 2008, 107, 356–363. [Google Scholar] [CrossRef]
- Qiao, L.P.; Lou, J.; Zhang, S.F.; Qu, B.; Chang, W.H.; Zhang, R.F. The entrance mechanism of calcium and phosphorus elements into micro arc oxidation coatings developed on Ti6Al4V alloy. Surf. Coat. Technol. 2016, 185, 187–196. [Google Scholar] [CrossRef]
- Liu, J.; Zhu, R.L.; Xu, T.Y.; Xu, Y.; Ge, F.; Xi, Y.F.; Zhu, J.X.; He, H.P. Co-adsorption of phosphate and zinc(Ⅱ) on the surface of ferrihydrite. Chemosphere 2016, 144, 1148–1155. [Google Scholar] [CrossRef] [PubMed]
- Liu, S.M.; Yang, X.J.; Cui, Z.D.; Zhu, S.L.; Wei, Q. One-step synthesis of petal-like apatite/titania composite coating on a titanium by micro-arc treating. Mater. Lett. 2011, 65, 1041–1044. [Google Scholar] [CrossRef]
- Yan, Y.Y.; Sun, J.F.; Han, Y.; Li, D.C.; Cui, K. Microstructure and bioactivity of Ca, P and Sr doped TiO2 coating formed on porous titanium by micro-arc oxidation. Surf. Coat. Technol. 2010, 205, 1702–1713. [Google Scholar] [CrossRef]
- Torres, J.; Dominguez, S.; Cerda, M.F.; Obal, G.; Mederos, A.; Irvine, R.F.; Diaz, A.; Kremer, C. Solution behaviour of myo-inositol hexakisphosphate in the presence of multivalent cations. Prediction of a neutral pentamagnesium species under cytosolic/nuclear conditions. J. Inorg. Biochem. 2005, 99, 828–840. [Google Scholar] [CrossRef] [PubMed]
- Crea, F.; Stefano, C.D.; Milea, D.; Sammartano, S. Formation and stability of phytate complexes in solution. Coord. Chem. Rev. 2008, 252, 1108–1120. [Google Scholar] [CrossRef]
- Zhang, R.Y.; Cai, S.; Xu, G.H.; Zhao, H.; Li, Y.; Wang, X.X.; Huang, K.; Ren, M.G.; Wu, X.D. Crack self-healing of phytic acid conversion coating on AZ31 magnesium alloy by heat treatment and the corrosion resistance. Appl. Surf. Sci. 2014, 313, 896–904. [Google Scholar] [CrossRef]
- Xue, W.B.; Deng, Z.W.; Lai, Y.C.; Chen, R.Y. Analysis of phase distribution for ceramic coatings formed by microarc oxidation on aluminum alloy. J. Am. Ceram. Soc. 1998, 81, 1365–1368. [Google Scholar] [CrossRef]

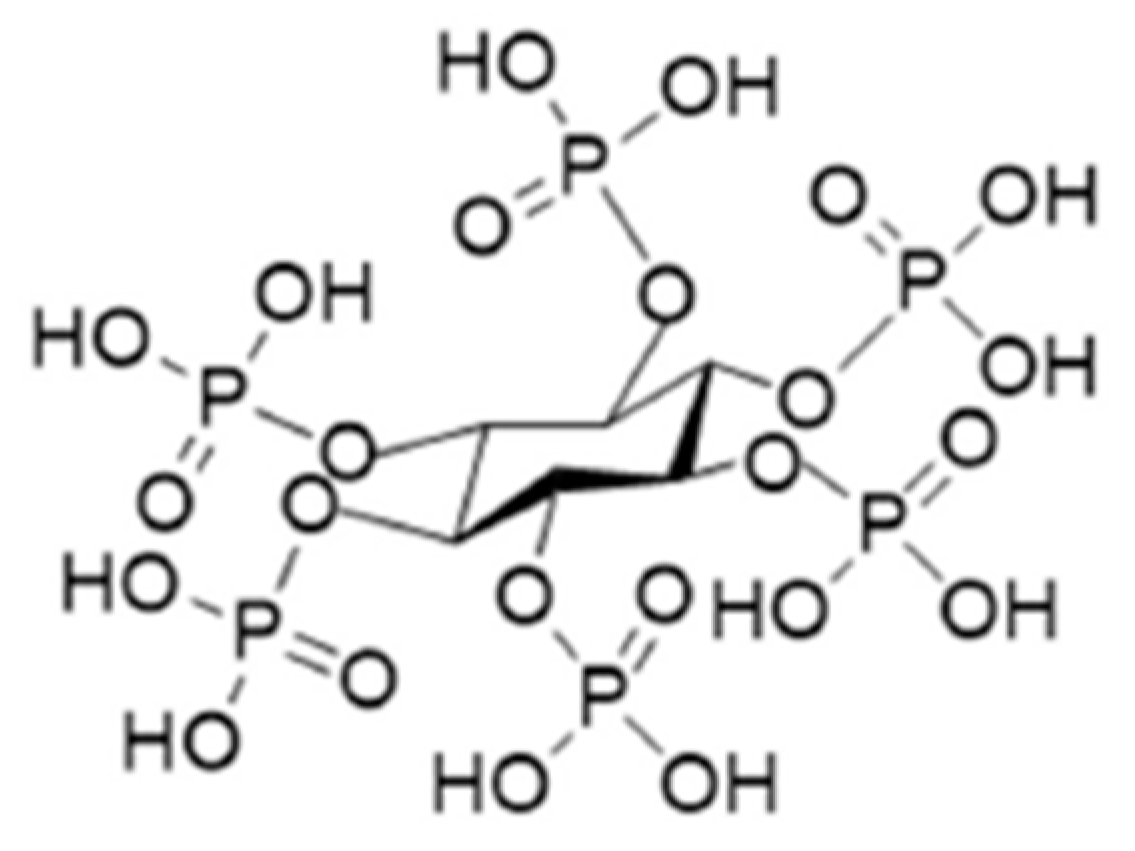

Figure 1.
Chemical structure of phytic acid.

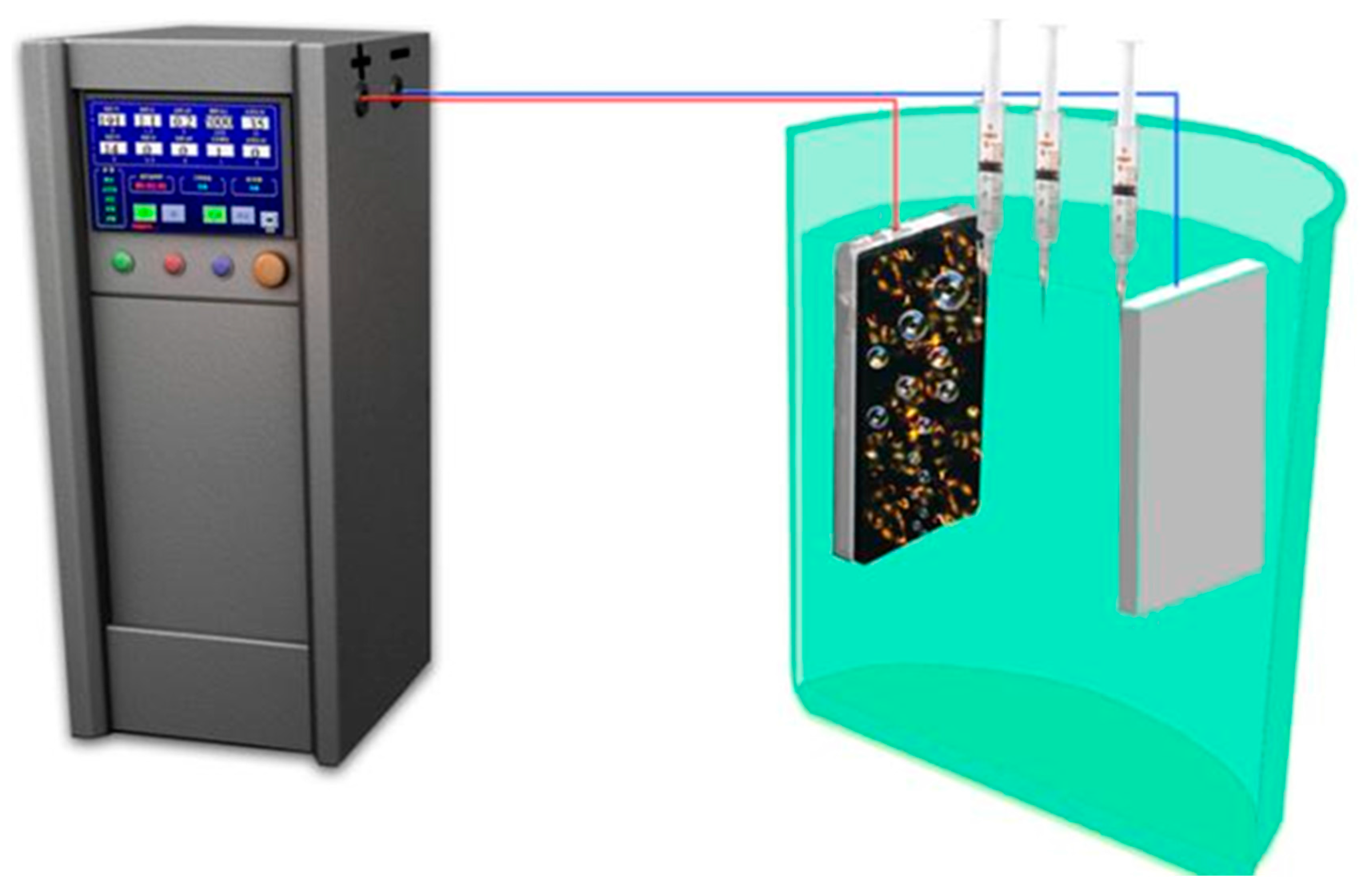

Figure 2.
The schematic diagram of micro arc oxidation experiment.

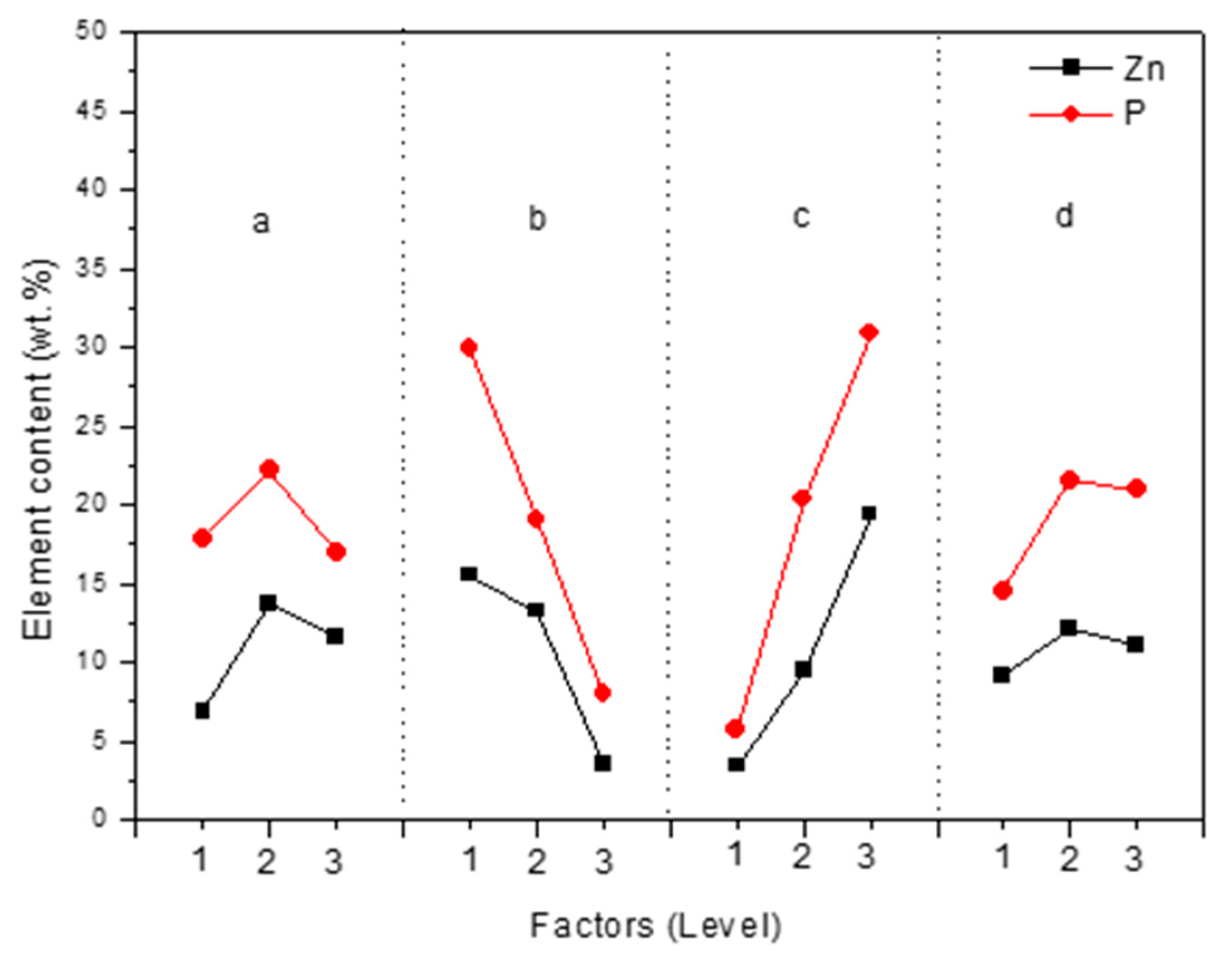

Figure 3.
Effects of factors on the content of Zn and P elements in anodic coatings: (a) EDTA-ZnNa2 concentration; (b) KOH concentration; (c) phytic acid concentration; (d) treating time.
Figure 3.
Effects of factors on the content of Zn and P elements in anodic coatings: (a) EDTA-ZnNa2 concentration; (b) KOH concentration; (c) phytic acid concentration; (d) treating time.

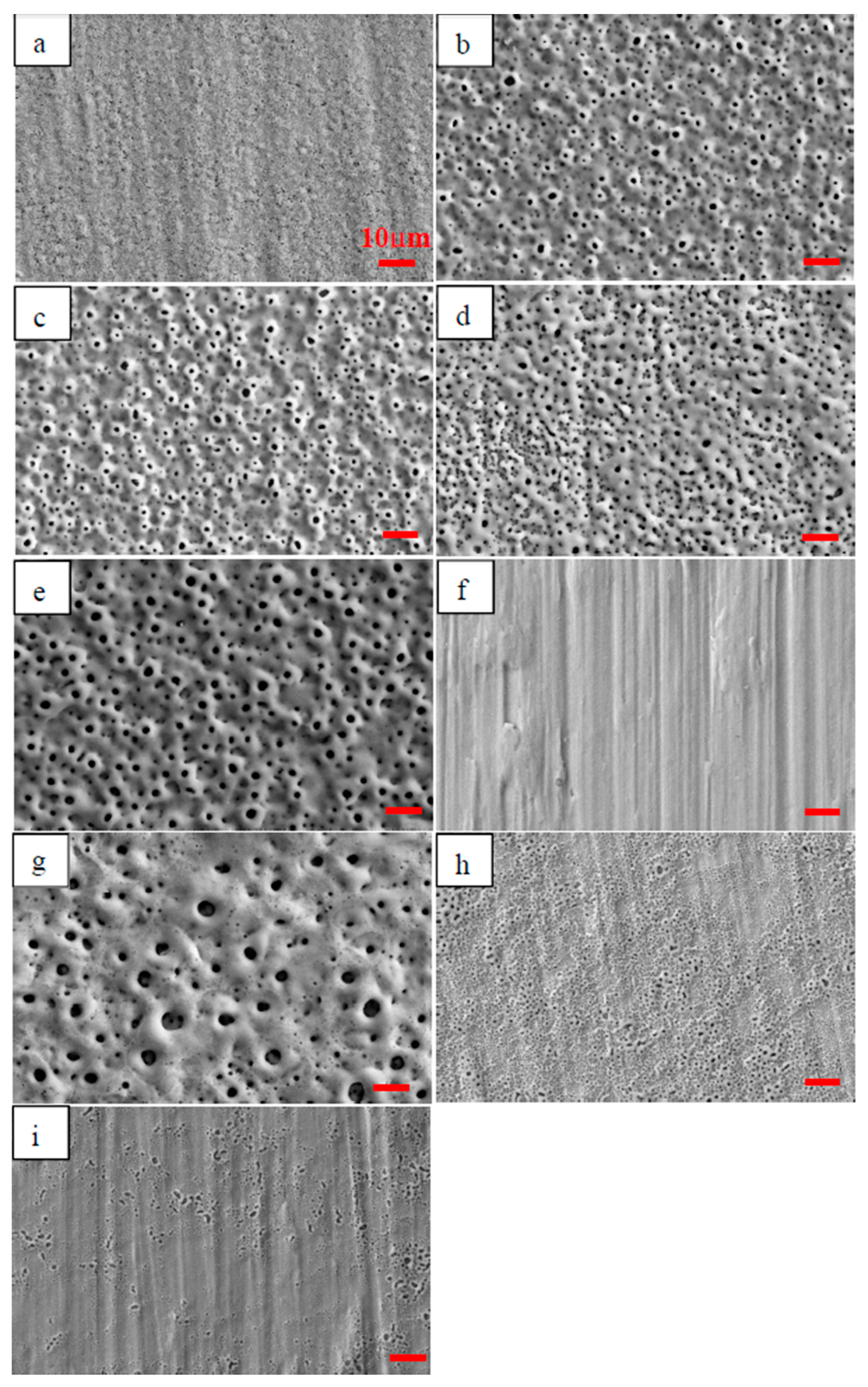

Figure 4.
Surface morphologies of micro-arc oxidation (MAO) coatings developed under different processing parameters: (a) No. 1, (b) No. 2, (c) No. 3, (d) No. 4, (e) No. 5, (f) No. 6, (g) No. 7, (h) No. 8 and (i) No. 9.

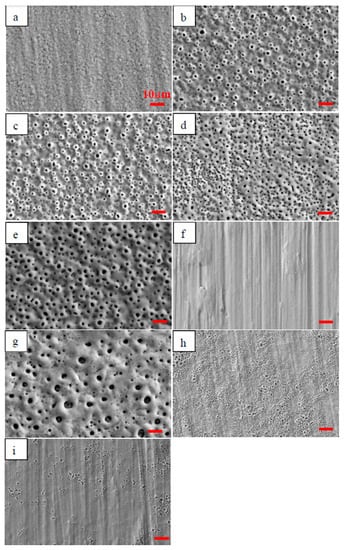

Figure 4.
Surface morphologies of micro-arc oxidation (MAO) coatings developed under different processing parameters: (a) No. 1, (b) No. 2, (c) No. 3, (d) No. 4, (e) No. 5, (f) No. 6, (g) No. 7, (h) No. 8 and (i) No. 9.

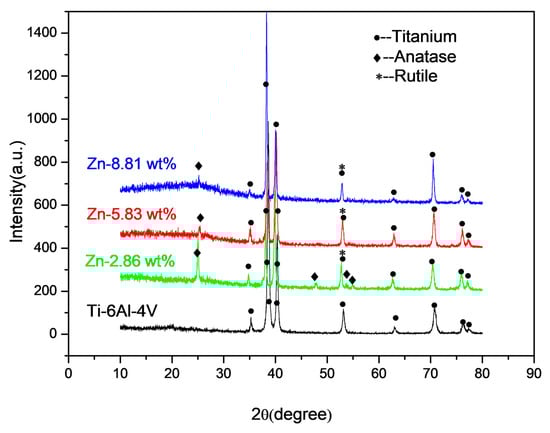

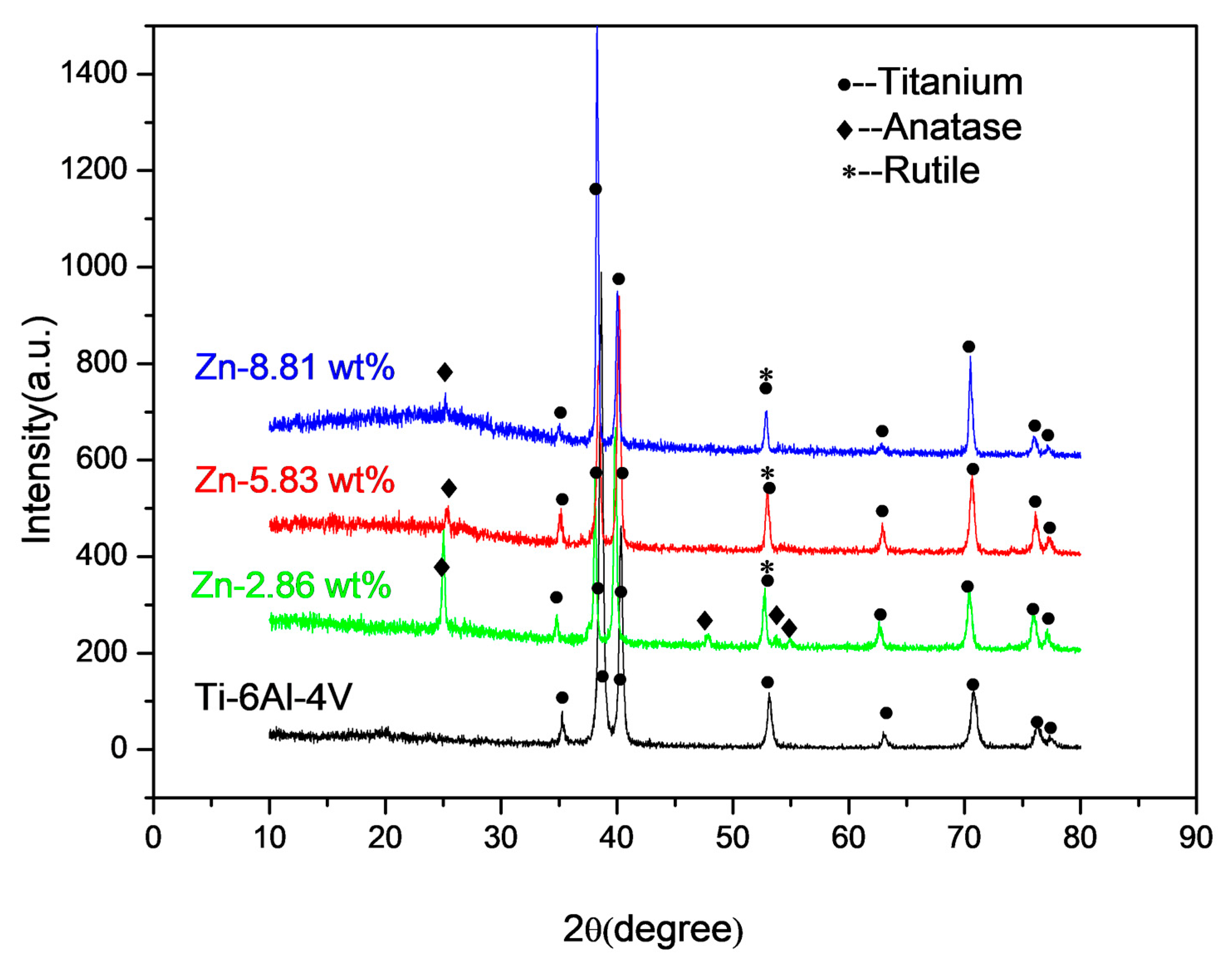

Figure 5.
The X-ray diffraction patterns of the untreated Ti-6Al-4V, the MAO coatings containing 2.86 wt %, 5.83 wt % and 8.81 wt % zinc.
Figure 5.
The X-ray diffraction patterns of the untreated Ti-6Al-4V, the MAO coatings containing 2.86 wt %, 5.83 wt % and 8.81 wt % zinc.

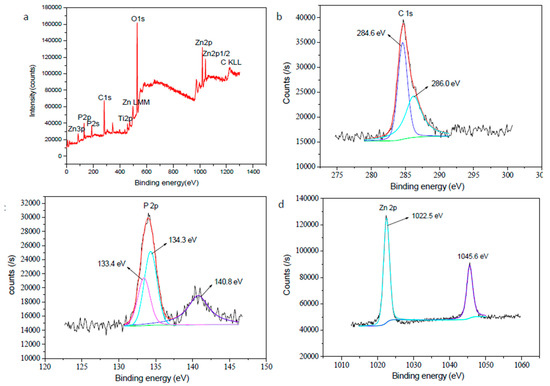

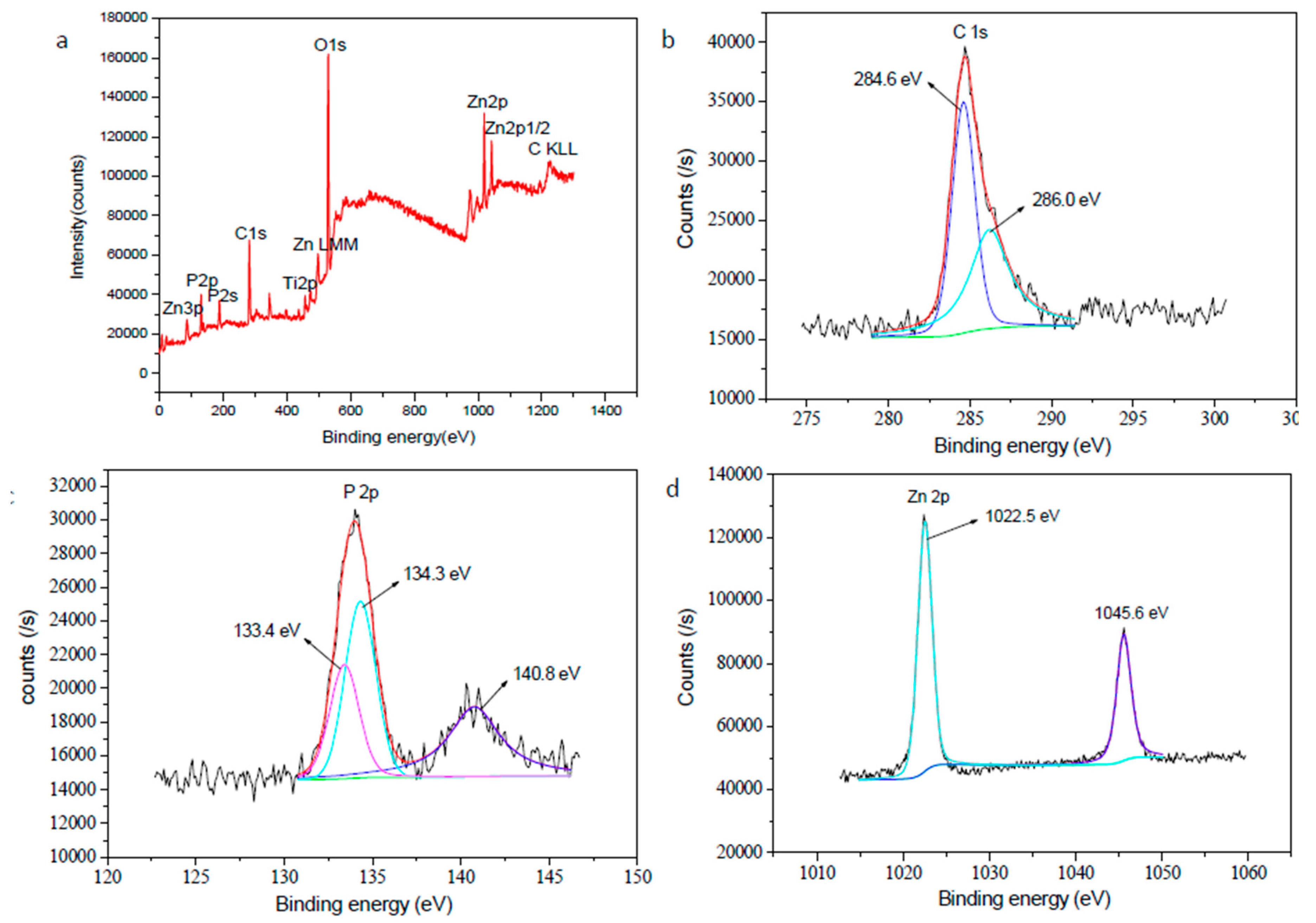

Figure 6.
X-ray photoelectron spectroscopy (XPS) spectra of MAO coatings obtained under current density 50 mA/cm2, duty cycle 35%, pulse frequency 2000 Hz and treating time 3.0 min in the solution containing 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid: (a) survey; (b) C1s, (c) P 2p, (d) Zn 2p.
Figure 6.
X-ray photoelectron spectroscopy (XPS) spectra of MAO coatings obtained under current density 50 mA/cm2, duty cycle 35%, pulse frequency 2000 Hz and treating time 3.0 min in the solution containing 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid: (a) survey; (b) C1s, (c) P 2p, (d) Zn 2p.

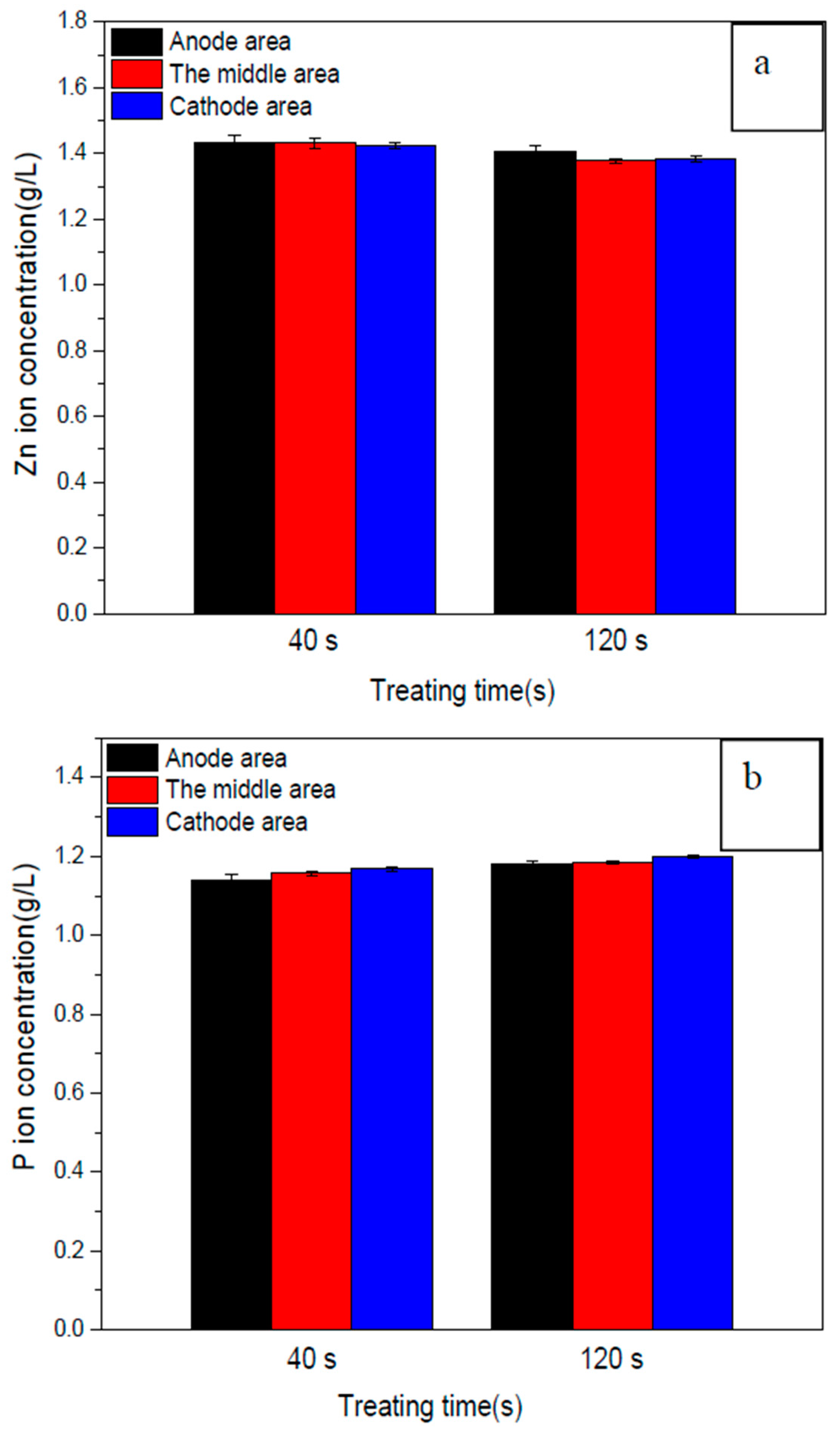

Figure 7.
The concentrations of Zn and P in the solution containing 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid in anode area, the middle area and cathode area during MAO treatment for 40 s and 120 s.
Figure 7.
The concentrations of Zn and P in the solution containing 10 g/L EDTA-ZnNa2, 2 g/L KOH and 8 g/L phytic acid in anode area, the middle area and cathode area during MAO treatment for 40 s and 120 s.

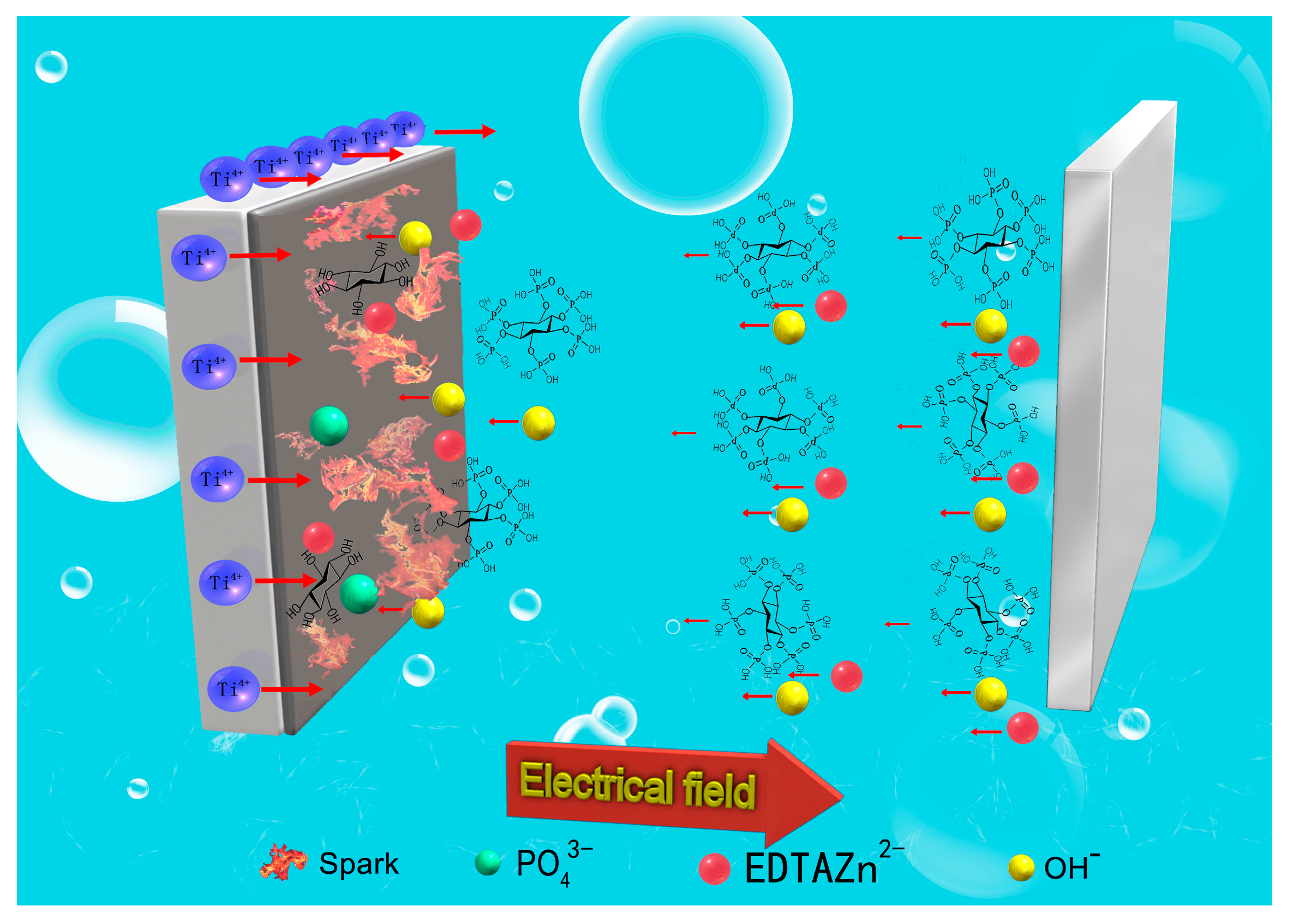

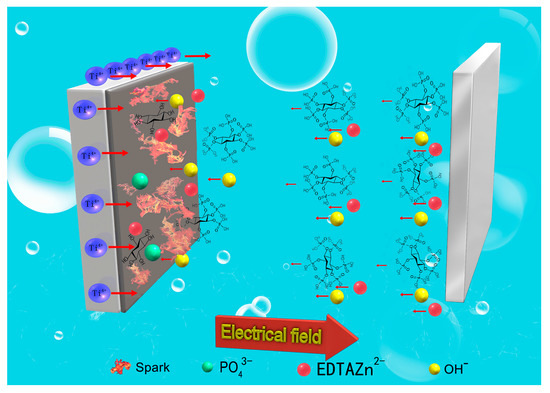

Figure 8.
The schematic diagram showing the coating formation during MAO treatment.

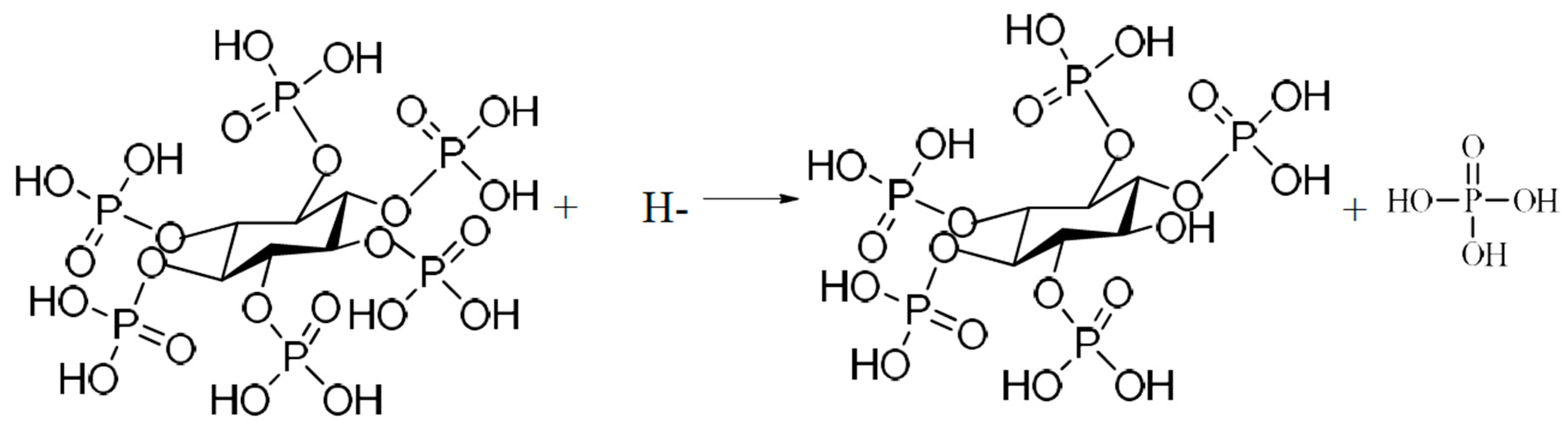

Figure 9.
The first hydrolysis step of phytic acid during MAO.

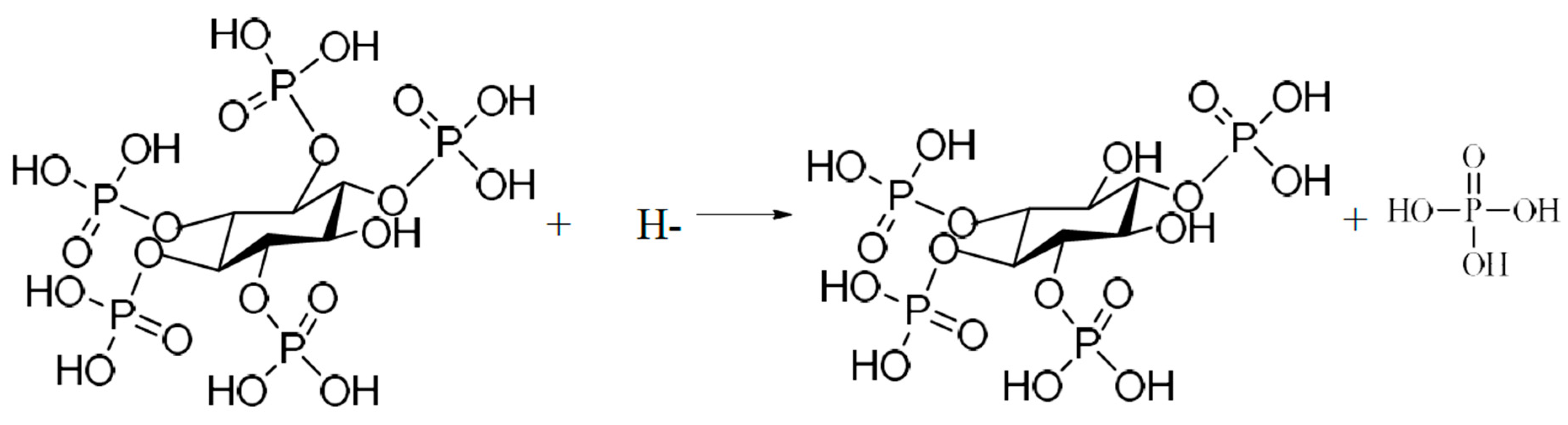

Figure 10.
The second hydrolysis step of phytic acid during MAO.
Table 1.
Factors and levels of the orthogonal experiment.
| Levels | Factors | |||
|---|---|---|---|---|
| EDTA-ZnNa2 Concentration (g/L) | KOH Concentration (g/L) | Phytic Acid Concentration (g/L) | Treating Time (min) | |
| 1 | 2 | 2 | 2 | 2.5 |
| 2 | 6 | 5 | 5 | 3 |
| 3 | 10 | 8 | 8 | 3.5 |
Table 2.
The orthogonal experimental array and experimental results.
| Experiment No. | EDTA-ZnNa2 Concentration (g/L) | KOH Concentration (g/L) | Phytic Acid Concentration (g/L) | Treating Time (min) | Zn (wt %) | P (wt %) |
|---|---|---|---|---|---|---|
| No.1 | 2 | 2 | 2 | 2.5 | 0.89 | 3.70 |
| No.2 | 2 | 5 | 5 | 3 | 3.16 | 7.27 |
| No.3 | 2 | 8 | 8 | 3.5 | 2.86 | 6.88 |
| No.4 | 6 | 2 | 5 | 3.5 | 5.83 | 12.14 |
| No.5 | 6 | 5 | 8 | 2.5 | 7.73 | 9.89 |
| No.6 | 6 | 8 | 2 | 3 | 0.18 | 0.15 |
| No.7 | 10 | 2 | 8 | 3 | 8.81 | 14.10 |
| No.8 | 10 | 5 | 2 | 3.5 | 2.36 | 1.93 |
| No.9 | 10 | 8 | 5 | 2.5 | 0.48 | 0.96 |
| K1 | 6.91 (17.85) | 15.53 (29.94) | 3.43 (5.78) | 9.1 (14.55) | ||
| K2 | 13.74 (22.18) | 13.25 (19.09) | 9.47 (20.37) | 12.15 (21.52) | ||
| K3 | 11.65 (16.99) | 3.52 (7.99) | 19.4 (30.87) | 11.05 (20.95) | ||
| Difference | 6.83 (5.19) | 12.01 (21.95) | 15.97 (25.09) | 3.05 (6.97) | ||
| Rank | 3 (4) | 2 (2) | 1 (1) | 4 (3) |
