# A Dislocation-Scale Characterization of the Evolution of Deformation Microstructures around Nanoindentation Imprints in a TiAl Alloy

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

_{2}as a minor phase. The α

_{2}phase is hexagonal ($\frac{c}{a}=$ 0.8) with a DO19 structure, while the γ phase is tetragonal with a L1

_{0}structure close to cubic ($\frac{c}{a}=\frac{c}{b}=$ 1.02). Therefore, six order variants are possible. They can be visualized as generated by a 120° rotation around the $(1\text{}1\text{}1)$ plane normal [9].

_{2}[10,11].

_{0}structure [12]: along the $\langle \overline{1}\text{}1\text{}0]$-directions, there is only one kind of atom (Ti or Al). In this case, dislocations are called ordinary dislocations, and their Burgers vectors are $\frac{1}{2}\langle 1\text{}1\text{}0]$ types. Because Ti-atoms and Al-atoms interchange in $\langle 0\text{}1\text{}1]$-directions, the $\langle 1\text{}1\text{}\overline{2}]$ and the $\langle 1\text{}0\text{}1]$ dislocations are called superdislocations. These two types of superdislocations can undergo various dissociations into superpartials (i.e., partial dislocations with the associated planar faults). In addition, true twinning along $\frac{1}{6}\langle 1\text{}1\text{}\overline{2}]\{1\text{}1\text{}1\}$ occurs that does not alter the ordered L1

_{0}structure of the γ-TiAl. Because of the specific structure of the γ-TiAl, it is relatively easy to know the direction for either slip of ordinary dislocations or for true twinning when the slip/twin plane is known [12]. Note also that at RT twinning and then glide of ordinary dislocations are the easiest deformation modes [2,7,8]. In this manner, Kauffmann et al. suggested that increasing deformation leads to the nucleation of only a few new mechanical twins, since the dislocation movement becomes more dominant with increasing strain [8].

_{2}phase does not contribute to the deformation [6,12], evidence of prismatic slip $\langle 1\text{}\overline{2}\text{}1\text{}0\rangle \{1\text{}0\text{}\overline{1}\text{}0\}$, basal slip $\langle 1\text{}\overline{2}\text{}1\text{}0\rangle (0\text{}0\text{}0\text{}1)$, and pyramidal slip $\langle 1\text{}1\text{}\overline{2}\text{}\overline{6}\rangle \{1\text{}\overline{2}\text{}1\text{}1\}$ was reported [12].

## 2. Materials and Methods

## 3. Results

#### 3.1. Characterization of the Microstructure around the Regions of Interest

**g**were accessible by tilting and rotating the specimen: ${\mathit{g}}_{\mathbf{1}}=\text{}(1\text{}\overline{1}\text{}0)$, ${\mathit{g}}_{\mathbf{2}}=\text{}(1\text{}1\text{}\overline{1})$, ${\mathit{g}}_{\mathbf{3}}=\text{}(3\text{}\overline{1}\text{}\overline{1})$, ${\mathit{g}}_{\mathbf{4}}=\text{}(3\text{}\overline{3}\text{}1)$, ${\mathit{g}}_{\mathbf{5}}=\text{}(1\text{}3\text{}\overline{3})$, ${\mathit{g}}_{\mathbf{6}}=\text{}(1\text{}\overline{3}\text{}1)$, ${\mathit{g}}_{\mathbf{7}}=\text{}(4\text{}0\text{}\overline{2})$ (note that only the ECC image taken with

**g**is shown in Figure 2a). In such conditions, all defects are expected to be in contrast. Neither dislocation nor superdislocation are observed before deformation in Figure 2a. Only parallel linear contrasts (labelled NT) are clearly visible. In addition, they are aligned along the $~[2\text{}\overline{3}\text{}1]$ direction. Such BSE contrast is generally attributed to nano-twins (NTs) and is consistent with $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ as a true twin system [20,21]. After deformation (see Figure 2b), no dislocation is visible, but clearly identifiable changes are localized in the vicinity of the indent (Area 1 and Area 2 in Figure 2b). In Area 1, near the imprint, a $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ deformation NT was created. At the other side of the imprint (Area 2) NT5 extends along the $~[2\text{}\overline{3}\text{}1]$. Note that NT7 visible in Figure 2b comes from a neighbor imprint.

_{1}#### 3.2. Microstructure Evolution of ROI2

## 4. Discussion

- At RT, twinning was observed to be the main deformation mechanism, in agreement with literature [2,7,8]. However, this runs contrary to Zambaldi et al., who prefer to suggest that ordinary dislocation glide is the main deformation mechanism at RT (without totally excluding twinning) from observations by atomic force microscopy around high-load (3000 µN) imprints [18].
- Deformation was observed to be localized near the indent.

- Under the indent, the $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ NT was formed.
- The stress concentration at the tip of the $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ NT nucleated ordinary $\pm \frac{1}{2}[1\text{}1\text{}0]$ dislocation loops gliding in the $(1\text{}\overline{1}\text{}1)$ planes. The dislocation loops formed an ellipsoid surrounding the NT, thus producing lines after projection on the observation plane.
- The elliptical area or B1 grew by adding successive dislocation loops at its extremity.
- B1 extended until it met an obstacle, such as the TB (for B2 for example).
- At the location where B2 intercepts the TB, a stress concentration appeared. It resulted in a local distortion of the boundary. Therefore, the TB seems to be a strong obstacle to the propagation of the deformation, and at higher load it may cause microcracking at its vicinity, as observed in References [18,25,26].

## 5. Conclusions

- At RT, twinning was observed to be the main deformation mechanism.
- Twinning was accommodated by ordinary dislocation mechanism, leading to the canalization of the deformation.
- TB could play the role of obstacle to the propagation of deformation to neighbor grains, leading to a stress concentration at the vicinity of the boundary. Therefore, the true twin seems to be one of the weak links explaining the poor ductility of γ-TiAl at RT.

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Kim, Y.; Dimiduk, D. Progress in the understanding of gamma titanium aluminides. JOM
**1991**, 43, 40–47. [Google Scholar] [CrossRef] - Appel, F.; Wagner, R. Microstructure and deformation of two-phase gamma-titanium aluminides. Mater. Sci. Eng. R Rep.
**1998**, 22, 187–268. [Google Scholar] [CrossRef] - Loria, E. Quo vadis gamma titanium aluminide. Intermetallics
**2001**, 9, 997–1001. [Google Scholar] [CrossRef] - Schuster, J.; Palm, M. Reassessment of the binary aluminum-titanium phase diagram. J. Phase Equilib. Diff.
**2006**, 27, 255–277. [Google Scholar] [CrossRef] - Zambaldi, C. Micromechanical Modeling Gamma-TiAl Based Alloys; RWTH Aachen University: Aachen, Germany, 2010; ISBN 978-3-8322-9717-6. [Google Scholar]
- Appel, F.; Paul, D.; Oehring, M. Gamma Titanium Aluminide Alloys: Science and Technology; Wiley-VCH Verlaf GmbJ: Weinheim, Germany, 2011; ISBN 9783527315253. [Google Scholar]
- Beran, P.; Heczko, M.; Kruml, T.; Panzner, T.; Van Petegem, S. Complex investigation of deformation twinning in γ-TiAl by TEM and neutron diffraction. J. Mech. Phys. Sol.
**2016**, 95, 647–662. [Google Scholar] [CrossRef] - Kauffmann, F.; Bidlingmaier, T.; Dehm, G.; Wanner, A.; Clemens, H. On the origin of acoustic emission during room temperature compressive deformation of a gamma-TiAl based alloy. Intermetallics
**2000**, 8, 823–830. [Google Scholar] [CrossRef] - Zambaldi, C.; Zaefferer, C.; Wright, S. Characterization of order domains in γ-TiAl by orientation microscopy based on electron backscatter diffraction. J. Appl. Crystallogr.
**2009**, 42, 1092–1101. [Google Scholar] [CrossRef] - Dey, S.; Hazotte, A.; Bouzy, E. Multiscale gamma variant selection in a quaternary near-gamma Ti-Al alloy. Philos. Mag.
**2006**, 86, 3089–3112. [Google Scholar] [CrossRef] - Dey, S.; Morawiec, A.; Bouzy, E.; Hazotte, A.; Fundenberger, J.-J. Determination of gamma/gamma interface relationships in a (alpha2 + gamma) TiAl base alloy using TEM Kikuchi patterns obtained by nanoprobe scanning. Mater. Lett.
**2003**, 60, 646–650. [Google Scholar] [CrossRef] - Marketz, M.; Fischer, F.; Clemens, H. Deformation mechanisms in TiAl intermetallics—Experiments and modeling. Int. J. Plast.
**2003**, 19, 281–321. [Google Scholar] [CrossRef] - Zghal, S.; Coujou, A.; Couret, A. Transmission of the deformation through γ-γ interfaces in a polysynthetically twinned TiAl alloy. Philos. Mag.
**2001**, 81, 345–382. [Google Scholar] [CrossRef] - Dey, S.; Hazotte, A.; Bouzy, E.; Naka, S. Development of Widmanstätten laths in a near-gamma TiAl alloy. Acta Mater.
**2005**, 53, 3783–3794. [Google Scholar] [CrossRef] - Mansour, H.; Guyon, J.; Crimp, M.; Gey, N.; Beausir, B.; Maloufi, N. Accurate electron channeling contrast analysis of dislocations in fine grained bulk materials. Scr. Mater.
**2014**, 84, 11–14. [Google Scholar] [CrossRef] - Kriaa, H.; Guitton, A.; Maloufi, N. Fundamental and experimental aspects of diffraction for characterizing dislocations by electron channeling contrast imaging in scanning electron microscope. Sci. Rep.
**2017**, 7, 9742. [Google Scholar] [CrossRef] [PubMed] - Guyon, J.; Mansour, H.; Gey, N.; Crimp, M.; Chalal, S.; Maloufi, N. Sub-micron resolution selected area electron channeling patterns. Ultromicroscopy
**2015**, 149, 34–44. [Google Scholar] [CrossRef] [PubMed] - Zambaldi, C.; Raabe, D. Plastic anisotropy of gamma-TiAl revealed by axisymmetric indentation. Acta Mater.
**2010**, 58, 3516–3530. [Google Scholar] [CrossRef] - Kad, B.; Asaro, R.J. Apparent Hall-Petch effects in polycrystalline lamellar TiAl. Philos. Mag. A
**2006**, 75, 87–104. [Google Scholar] [CrossRef] - Simki, B.; Ng, B.; Crimp, M.; Bieler, T. Crack opening due to deformation twin shear at grain boundaries in near-γ TiAl. Intermetallics
**2007**, 15, 55–60. [Google Scholar] [CrossRef] - Ng, B.; Simki, B.; Crimp, M.; Bieler, T. The role of mechanical twinning on microcrack nucleation and crack propagation in a near-γ TiAl alloy. Intermetallics
**2004**, 12, 1317–1323. [Google Scholar] [CrossRef] - Gehard, S.; Pyczak, F.; Göken, M. Microstructural and micromechanical characterisation of TiAl alloys using atomic force microscopy and nanoindentation. Mater. Sci. Eng. A
**2009**, 523, 235–241. [Google Scholar] [CrossRef] - Hirth, J.P.; Lothe, J. Theory of Dislocations, 2nd ed.; Krieger Publishing Company: Malabar, FL, USA, 1982; p. 756. ISBN 0521864364. [Google Scholar]
- Gibson, M.; Forwood, C. Slip transfer of deformation twins in duplex γ-based Ti-Al alloys: Part III. Transfer across general large-angle γ-γ grain boundaries. Philos. Mag. A
**2002**, 82, 1381–1404. [Google Scholar] [CrossRef] - Simki, B.; Crimp, M.; Bieler, T. A factor to predict microcrack nucleation at gamma-gamma grain boundary in TiAl. Scr. Mater.
**2003**, 49, 149–154. [Google Scholar] [CrossRef] - Bieler, T.; Fallahi, A.; Ng, B.; Kumar, D.; Crimp, M.; Simki, B.; Zamiri, A.; Pourboghrat, F.; Mason, D. Fracture initiation/propagation parameters for duplex TiAl grain boundaries based on twinning, slip, crystal orientation and boundary misorientation. Intermetallics
**2005**, 13, 979–984. [Google Scholar] [CrossRef]

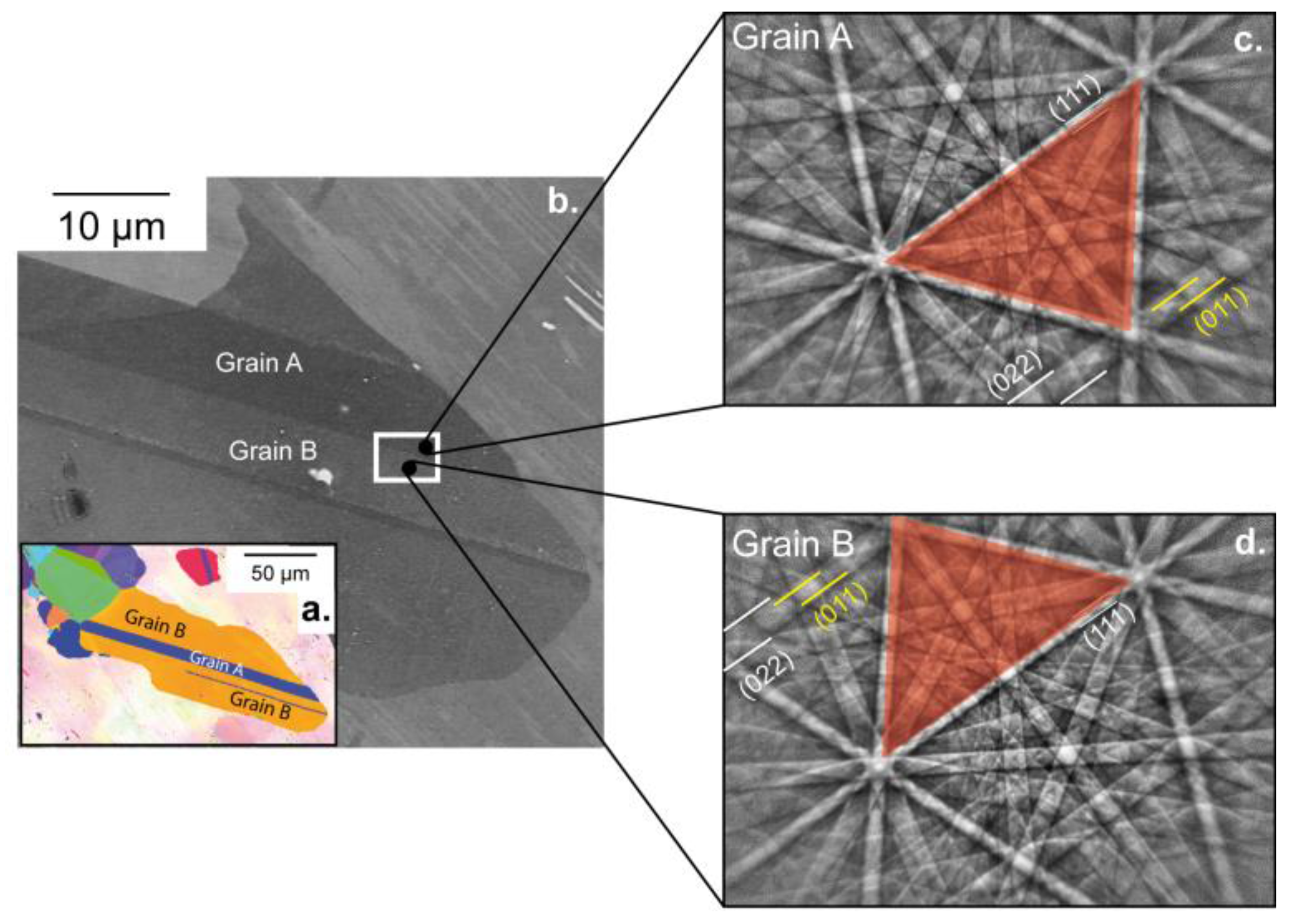

**Figure 1.**(

**a**) Electron backscattered diffraction (EBSD) orientation map of the zone of interest. (

**b**) Enhanced BSE image showing the microstructure before deformation. The nanoindentation array is localized in the white rectangle. (

**c**,

**d**) EBSD patterns corresponding to grains A and B.

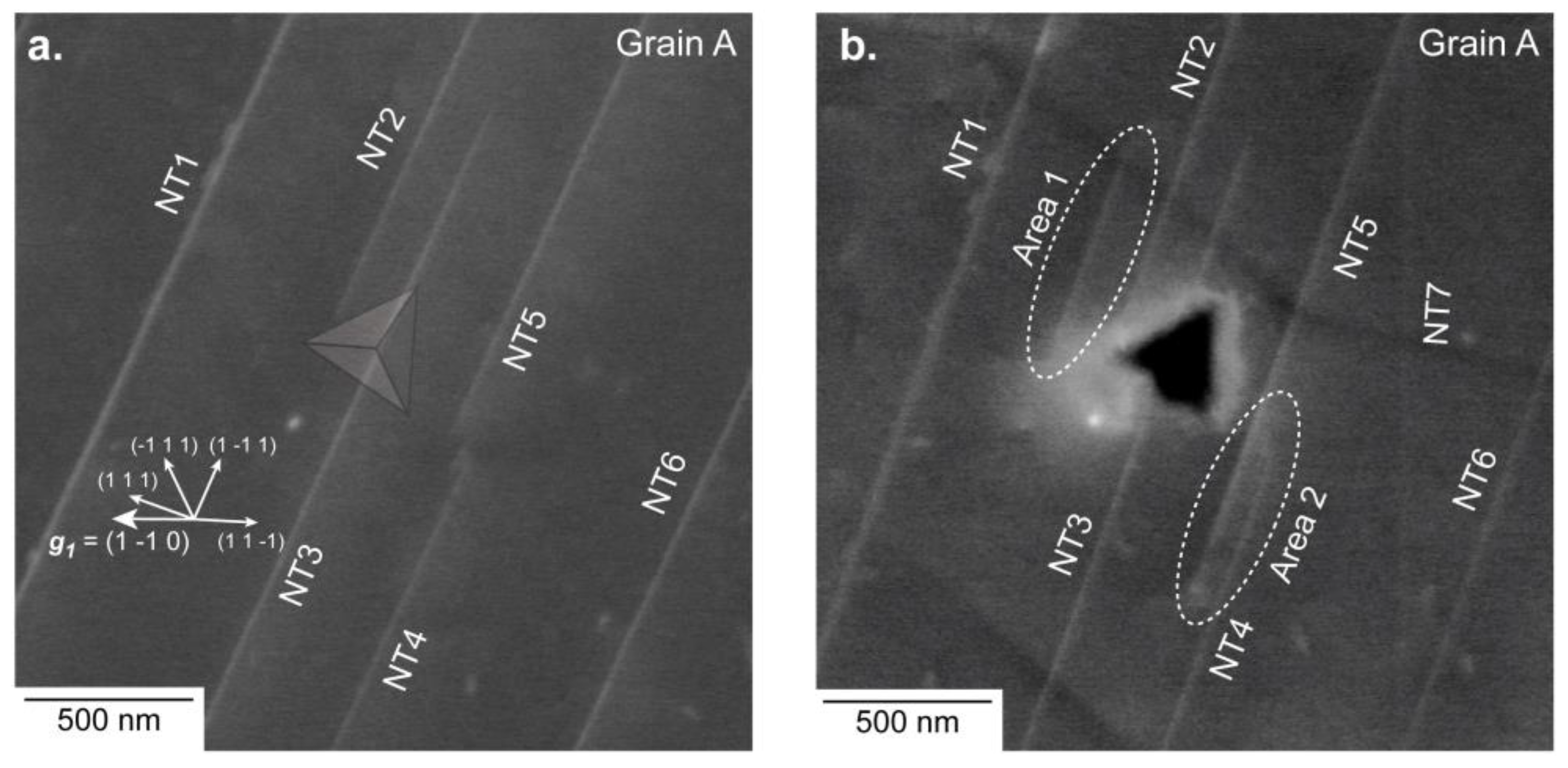

**Figure 2.**Region of interest 1 (ROI1) for which the surface is close to $(4\text{}5\text{}7)$. (

**a**) Accurate electron channeling contrast imaging (aECCI) obtained with ${\mathit{g}}_{\mathbf{1}}=\text{}(1\text{}\overline{1}\text{}0)$ showing six $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ Nano-Twins (NTs) and the position of the imprint (transparent Berkovich imprint). The white arrows indicate the trace of the $\{111\}$ planes. (

**b**) Enhanced BSE image showing the 500 µN indent. Two areas (labelled Areas 1 and 2) have changed. The NT7 slightly visible in (

**b**) comes from a neighbor imprint.

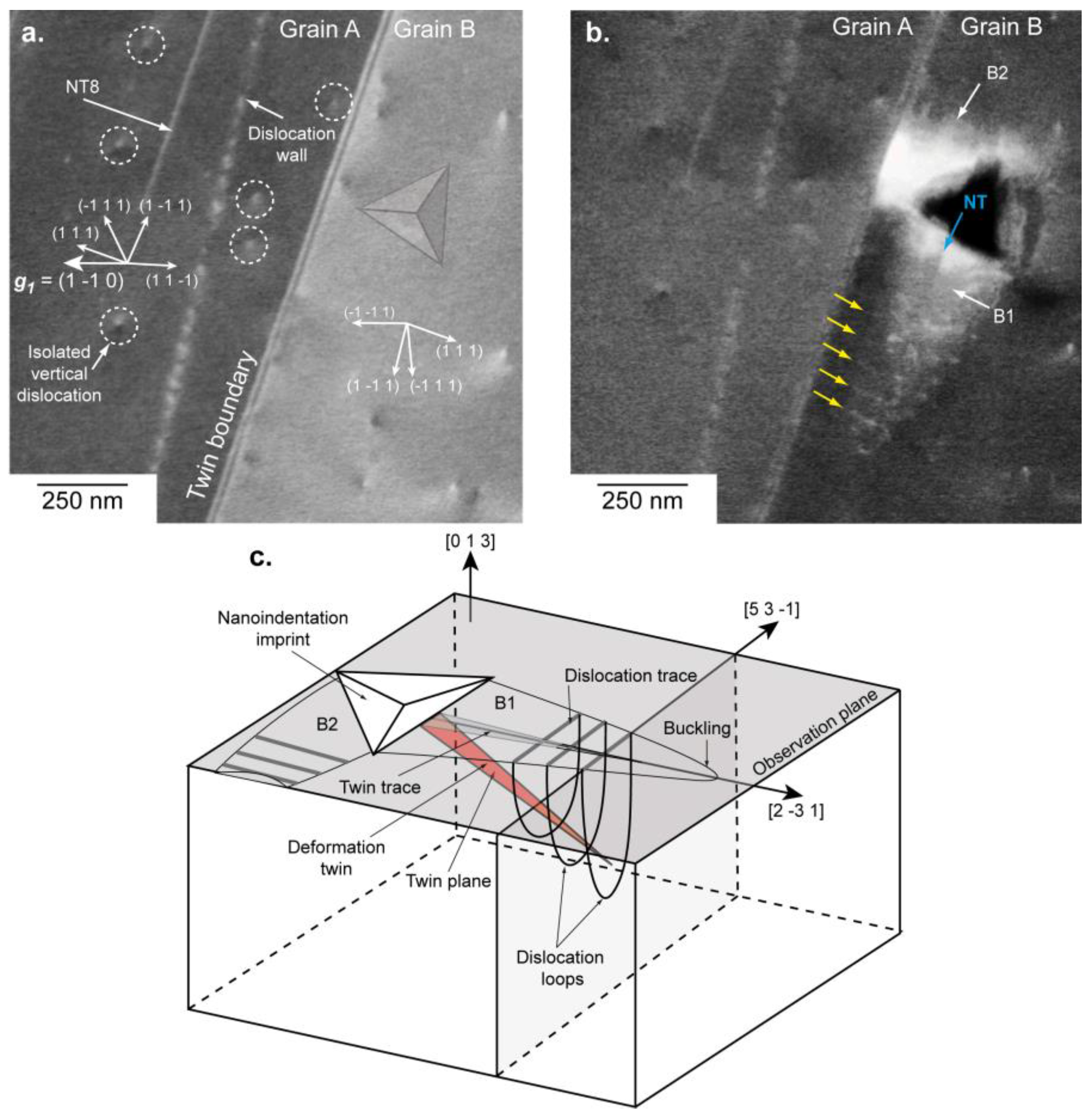

**Figure 3.**ROI2, where the surface plane is near $(4\text{}5\text{}7)$ for twin A (left) and near $(0\text{}1\text{}3)$ for grain B. The TB corresponds to $[1\text{}1\text{}\overline{2}](1\text{}1\text{}1)$ the system. (
