Next Article in Journal
Auxeticity of Concentric Auxetic-Conventional Foam Rods with High Modulus Interface Adhesive
Next Article in Special Issue
The Influence of the Interlayer Distance on the Performance of Thermally Reduced Graphene Oxide Supercapacitors
Previous Article in Journal / Special Issue
Two-Dimensional Layered Double Hydroxides for Reactions of Methanation and Methane Reforming in C1 Chemistry
Article Menu
Issue 2 (February) cover image

Export Article

Open AccessArticle

Influence of PEG Stoichiometry on Structure-Tuned Formation of Self-Assembled Submicron Nickel Particles

State Key Laboratory of Electronic Thin Film and Integrated Devices, School of Materials and Energy, University of Electronic Science and Technology of China, Chengdu 610054, China
School of Architecture and Urban Planning, Shandong Jianzhu University, Jinan 250101, China
Authors to whom correspondence should be addressed.
Materials 2018, 11(2), 222;
Received: 2 January 2018 / Revised: 29 January 2018 / Accepted: 29 January 2018 / Published: 31 January 2018
(This article belongs to the Special Issue Advanced Functional Nanomaterials and Their Applications)
PDF [8617 KB, uploaded 1 February 2018]

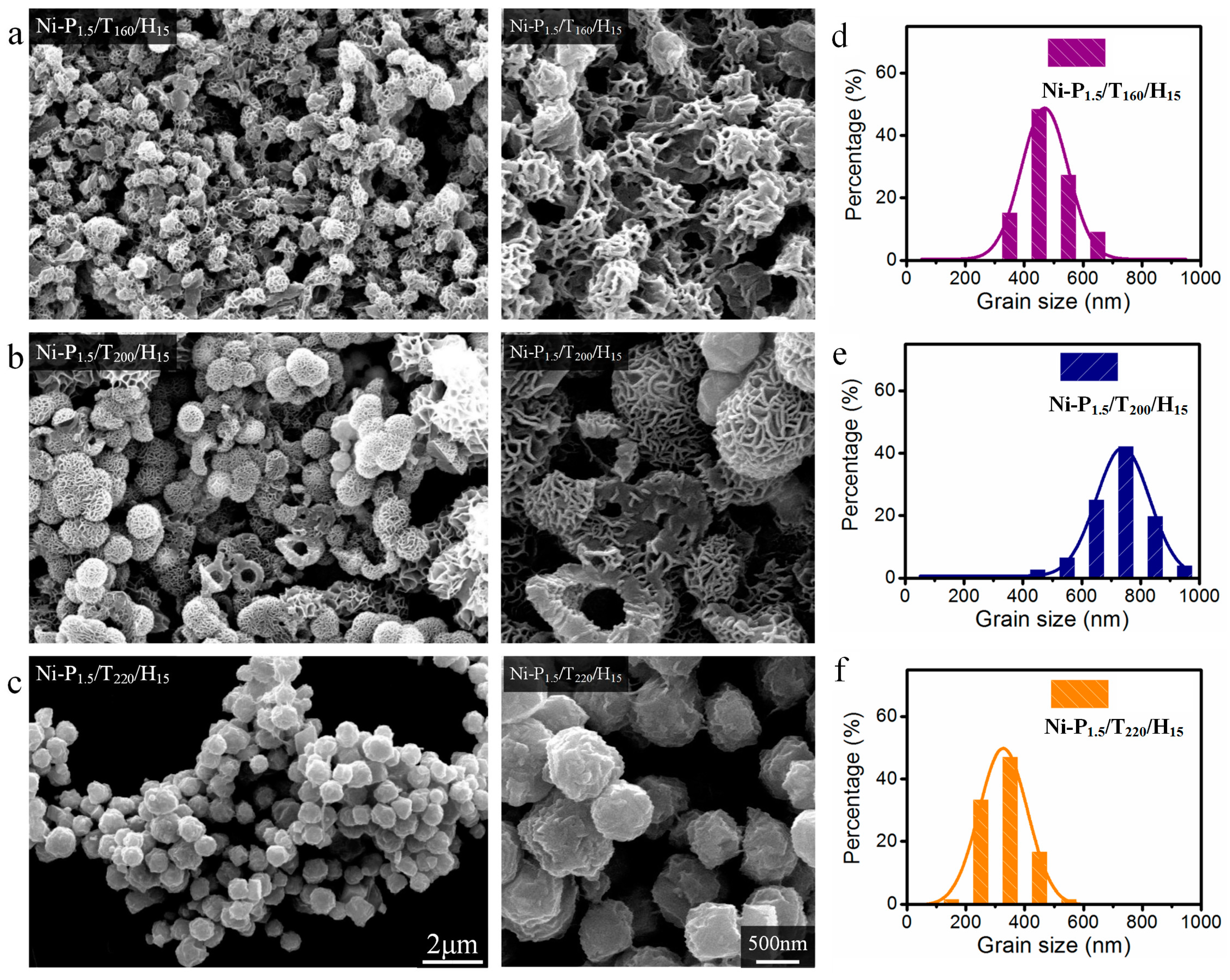

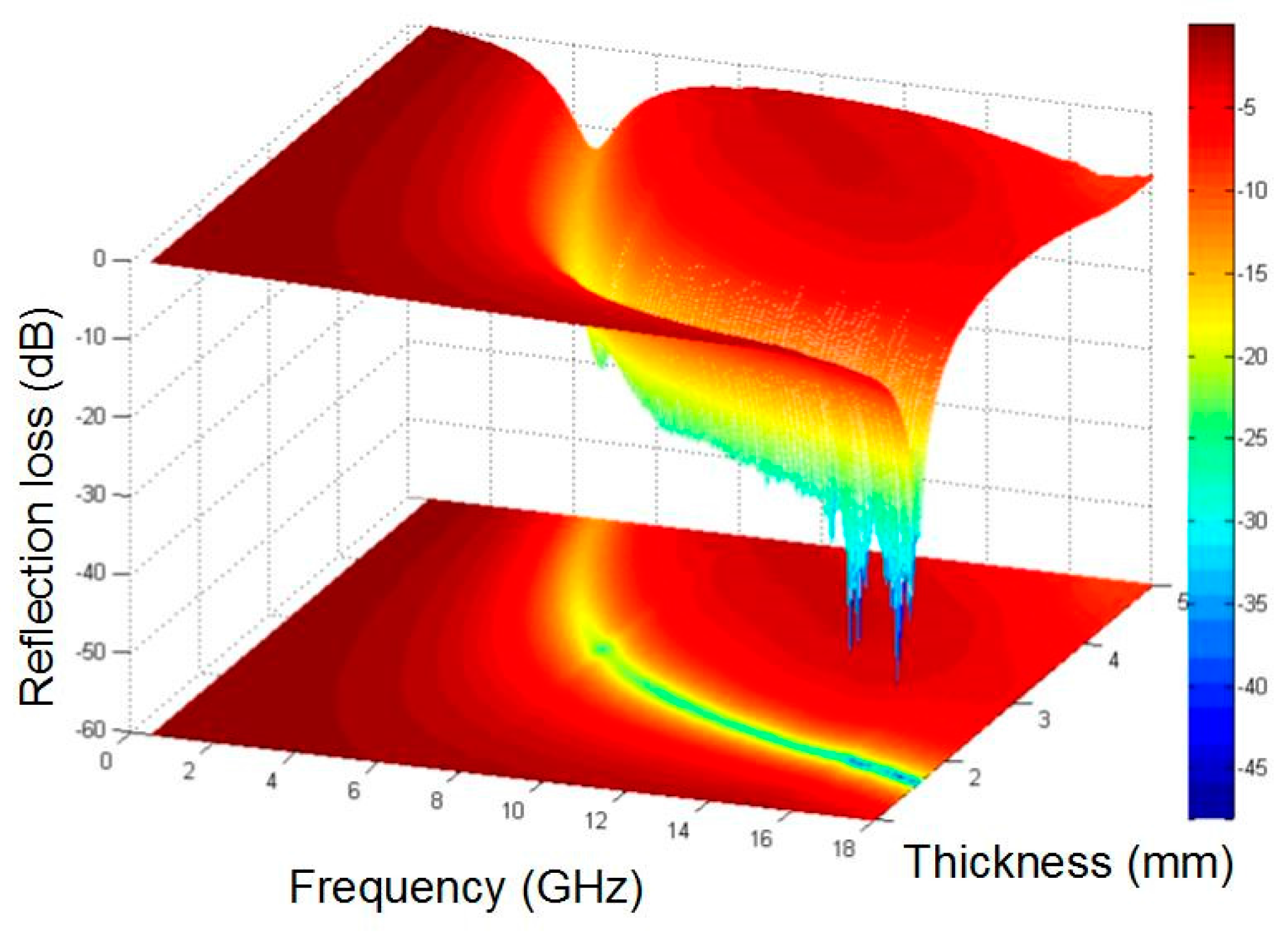

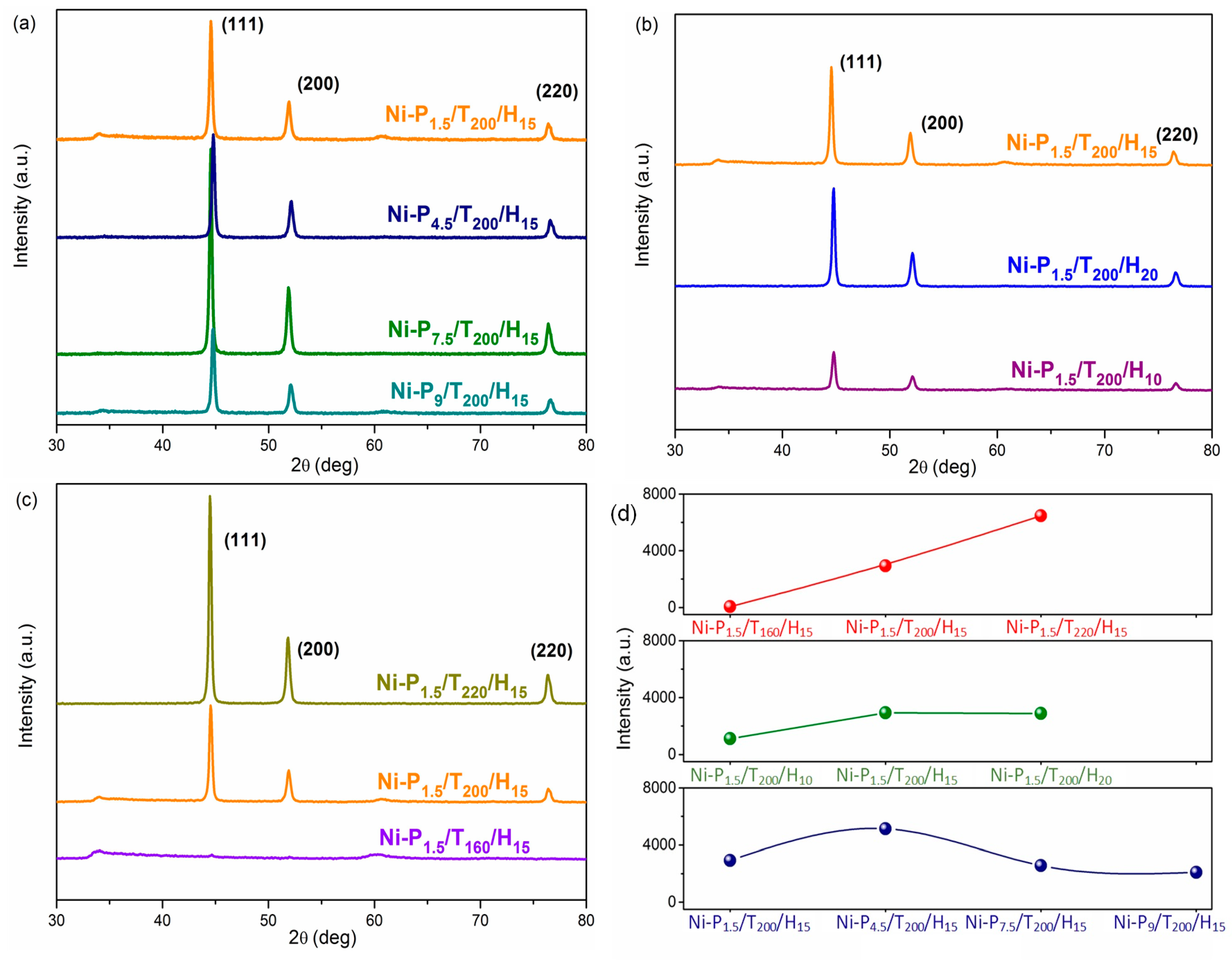

Self-assembled submicron nickel particles were successfully synthesized via the one-step surfactant-assisted solvothermal method. The impact of surfactant and reducing agent stoichiometry is investigated in this manuscript. Different morphologies and structures of Ni particles, including flower-like nanoflakes, hydrangea-like structures, chain structures, sphere-like structures, and hollow structures were prepared through different processing conditions with two parameters such as temperature and time. Based on scanning electron microscopy (SEM), X-ray diffraction (XRD), thermal gravimetric analysis (TGA) and vibrating sample magnetometry (VSM), the submicron nickel particles show good saturation magnetization and excellent thermal stabilities with a possible growth mechanism for the variety of the structure-tuned formation. Importantly, the microwave absorption properties of the submicron nickel particles were studied. The lowest reflection loss of Ni-P9/T200/H15 with a thin layer thickness of 1.7 mm can reach −42.6 dB at 17.3 GHz. View Full-Text
Keywords: Ni nanoparticles; solvothermal method; magnetic materials; microwave absorption Ni nanoparticles; solvothermal method; magnetic materials; microwave absorption

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Pu, B.; Wang, L.; Guo, H.; Yang, J.; Chen, H.; Zhou, Y.; Yang, J.; Zhao, B.; Niu, X. Influence of PEG Stoichiometry on Structure-Tuned Formation of Self-Assembled Submicron Nickel Particles. Materials 2018, 11, 222.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics



[Return to top]
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
