Sulfonitric Treatment of Multiwalled Carbon Nanotubes and Their Dispersibility in Water

by
Hui Liu
,
Jianfeng Wang
,
Jiachen Wang
and
Suping Cui
*
College of Materials Science and Engineering, Beijing University of Technology, Beijing 100124, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(12), 2442; https://doi.org/10.3390/ma11122442
Submission received: 7 November 2018 / Revised: 29 November 2018 / Accepted: 30 November 2018 / Published: 2 December 2018
(This article belongs to the Section Carbon Materials)
Browse Figures
Versions Notes

Abstract

:
In this study, Multiwalled carbon nanotubes (MWCNTs) were oxidized by a mixture of sulfuric acid and nitric acid (V:V = 3:1) at 70 °C for 1, 2, and 4 h, respectively. The oxidized MWCNTs were characterized by N2 adsorption, Fourier-transform infrared spectroscopy (FT-IR), X-ray photoelectron spectroscopy (XPS), thermal gravimetric analysis (TGA), and Raman spectroscopy to determine the oxidation degree. The dispersion of the MWCNTs was investigated by UV-vis-NIR, SEM, and dynamic light scattering measurements. Results show that sulfonitric treatment increased the surface area and total pore volume and reduced the average pore diameter of MWCNTs. The treatment promoted the formation of oxidized species on the surface MWCNTs, as identified by FT-IR, TGA, and X-ray photoelectron spectroscopy measurements, and more oxygen-containing functional groups were generated when treatment time was extended. Moreover, a general relationship between oxidation degree and dispersibility of MWCNTs in water was established. UV-vis-NIR and dynamic light scattering measurements and SEM images revealed that MWCNTs with higher oxidation degree showed better dispersibility in water.

1. Introduction

Multiwalled carbon nanotubes (MWCNTs) have attracted a great deal of attention from research institutes and enterprises due to their excellent mechanical, electrical, thermodynamic, and chemical stability properties [1,2,3]. MWCNTs have been successfully used to prepare cementitious nanocomposites, energy storage materials, microelectronics, etc. [4,5] However, MWCNTs tend to agglomerate into bundles due to their large specific surface area and strong van der Waals forces, which would inhibit the nanoenhancement or modification effect [6,7]. Therefore, the homogeneous dispersion of carbon nanotubes has become a major challenge to fabricate MWCNT-composited cementitious materials. Many solvents and surfactants, such as liquid sodium metal ammonia solution methylcellulose [8], Pluronic F-127 and sodium dodecylbenzenesulfonate (SDBS) TritonX-100, and gum Arabic [9,10], have been employed to disperse MWCNTs. However, these additives may be not effective to disperse MWCNTs in cement pastes due to the possibility of preventing hydration, air entertainment, or undergoing reactions with other admixtures.
Oxidation treatment is an effective covalent functionalization approach to improve the physicochemical properties of carbon materials such as carbon fiber, activated carbon, and carbon nanotubes. Oxidization technology of carbon materials with sodium dichlororisocyanurate [11], nitric acid [12,13], or hydrogen peroxide [14] has been developed. Oxidation with nitric acid was shown to be more effective than hydrogen peroxide in functionalizing the carbon surface. Oxidized carbon materials are more efficient when used in ammonia adsorption [11], amide functionalization [15], polymerization catalysis [14], etc. Oxidized carbon nanotubes can be used directly to prepare nanocomposited materials or as a first step for surface modification [16,17,18]. The dispersive effect is attributed to two aspects: one is that oxidation improves the hydrophilicity of carbon nanotubes; another is that oxygen-containing functional groups, such as carboxyl produced by oxidation, play a role in electrostatic repulsion.
From the results presented in many studies, it can be summarized that the main factors affecting the oxidation processes of carbon nanotubes include oxidant types, temperature, and treatment time [19,20,21]. Oxidants containing concentrated nitric acid (HNO3) and sulfuric acid (H2SO4), potassium permanganate (KMnO4), or hydrogen peroxide (H2O2) were employed to modify carbon nanotubes [22,23,24,25]. A mixture of these oxidants, such as HNO3/H2SO4, H2O2/H2SO4 [26,27,28], HNO3/H2SO4/H2O2 [29], or H2SO4/HNO3/KMnO4 [30], can also achieve the oxidation of carbon nanotubes (CNTs), among which the HNO3/H2SO4 mixture is the most commonly used oxidant.
Chiu et al. [31] utilized a concentrated H2SO4/HNO3 mixture (V:V = 3:1) at 50 °C to treat MWCNTs and found that carboxyl groups (–COOH) and other functional groups (–OH, –C=O) formed on the surface of MWCNTs. The carboxylic groups can be observed at initial defect sites and newly created defect sites along the walls [32], which suggest that oxidization may lead to structural damages of MWCNTs. Su et al. [33] and Rosca et al. [34] also observed excessive oxidization and dissolution of MWCNTs when the treatment time was extended. Zhou et al. [35] reported that the appropriate acid treatment time would result in an effective number of nanodefects via suitable carboxyl functionalization, thus improving the dispersibility of MWCNTs. However, many groove defects appeared on the surface of MWCNTs treated with H2SO4 and HNO3 solution. Xing et al. [36] developed a sonochemical method to promote the density of functional groups (–C–O–, –C=O, and–COOH) and minimize structural damage to CNTs. Excessive oxidation of carbon nanotubes leads to the destruction of their structures, while the insufficient oxidation does not guarantee the formation of sufficient oxygen-containing functional groups to cause water-based dispersion. On the other hand, few studies have focused on the relation between the oxidation degree and the dispersion of MWCNTs.
For these considerations, a mixture of H2SO4 and HNO3 (V:V = 3:1) at 70 °C was considered to treat MWCNTs for 1–4 h. The content and type of functional groups formed on the surface of MWCNTs were investigated to identify the changes in composition and structural variations with treatment time. Finally, the relationship between the oxidation degree and the dispersion of MWCNTs was established. The definition of oxidation degree is a fractional conversion of C=C in the MWCNTs structure to oxygen-containing groups.

2. Materials and Methods

2.1. Materials

Multiwalled carbon nanotubes (CNT-1) were purchased from Beijing DK nano technology Co., Ltd. (Beijing, China). The physical properties of the carbon nanotubes are presented in Table 1. The oxidant consists of concentrated nitric acid (65%–68%) and concentrated sulfuric acid (95%–98%), provided by Beijing chemical works.

2.2. Characterization of MWCNT Powders

For acid treatment, the surface modification of CNT-1 was performed with 1:3 (V:V) mixtures of concentrated HNO3 and H2SO4 at 70 °C for 1, 2, and 4 h. The reaction scheme for the oxidation is shown in Figure 1. The concentration of CNTs was fixed at 10 mg/ml. The functionalized CNTs were washed with water and ethanol to remove HNO3 and H2SO4 up to pH ~7 after cooling to 25 °C. Finally, the black solid was dried at 100 °C for 24 h. The samples treated for 1, 2, and 4 h were designated as CNT-2, CNT-3, and CNT-4, respectively.
The pore structures of pristine and oxidized MWCNTs were characterized by N2 adsorption using a surface area and porosimetry analyzer (Tristar TM II 3020, Micromeritics, Norcross, GA, USA). Oxygen-containing functional groups in MWCNTs were identified using Fourier-transform infrared spectroscopy (TENSOR 27, BRUKER, Bremen, Germany) in the wavenumber ranges of 1000–4000 cm−1. The samples were well mixed with KBr and pressed into a disk before being scanned by a Fourier-transform infrared spectrometer. X-ray photoelectron spectroscopy (XPS) (ESCALAB 250 XI, Thermo Scientific, Waltham, MA, USA) was performed to characterize the surface of MWCNTs. The content of C and O atoms can be obtained from the spectra recorded in the kinetic energy range of 0–1200 eV to quantitatively identify the relationship between oxidation degree and oxidation time. Thermogravimetry (TG) was performed by using NETZSCH STA-449-F3 (NETZSCH, Selb, Germany) from 30 to 900 °C under N2 atmosphere with a heating rate of 10 °C/min. The quantitative relationship between the treatment time and the content of oxidized species was established from the XPS and thermal gravimetric analysis (TGA) measurements. High-resolution Raman spectroscopy (LabRAM HR Evolution, HORIBA, Kyoto, Japan) was used to investigate the structural changes of the functionalized CNTs and the light source used was 532 nm.

2.3. Characterization of Aqueous MWCNT Dispersions

Dispersion of MWCNTs was analyzed by UV-vis-NIR spectroscopy (UV-4800, Shimadzu, Kyoto, Japan). The wavelength of spectrophotometer ranged from 200 to 800 nm for all measurements. As dispersed MWCNTs can absorb light in the UV-vis region effectively, the measured absorbance at a specific wavelength range could reflect the dispersive degree of primary or treated MWCNTs [37,38].
At first, samples were prepared from 10 mg of MWCNTs and 40 mL of water; then, the suspension was sonicated for 5 min at room temperature using a 200 W cup-horn high-intensity ultrasonic processor. After that, the suspensions were diluted up to 0.040–0.100 mg/mL followed by sonicating another 5 min before UV-vis-NIR measurement.
The particle size distribution (PSD) of MWCNT suspensions at a concentration of 0.040 mg/mL was characterized using a Malvern Zetasizer nano series instrument (Malvern Panalytical Ltd., Malvern, UK). The hydrodynamic particle size and particle size distribution can be obtained from the PSD measurement. The morphology of MWCNTs was taken without a carbon or gold film using an FEI QUANTA 250G (Field Electron and Ion Company, Hillsboro, OR, USA) in the low-vacuum mode of 70 Pa.

3. Results and Discussion

3.1. Nitrogen Adsorption Analyses

In order to investigate the pore structure of MWCNT samples, nitrogen adsorption isotherms were measured and analyzed. Table 2 shows the results of nitrogen adsorption analysis for the pristine and acidized MWCNTs. From the results, it was found that the surface area, average pore diameter, and total pore volume of pristine MWCNTs (CNT-1) were 80.72 m2/g, 16.14 nm, and 0.32 cm3/g, respectively. Obviously, acidification increased the surface area and total pore volume and reduced the average pore diameter. The effect was more remarkable when prolonging the treatment time. This phenomenon may be attributed to the destruction of the agglomeration structure resulting from sulfonitric treatment.

3.2. FT-IR Spectroscopy

The FT-IR spectra of MWCNTs oxidized for 1, 2, and 4 h are shown in Figure 2. Results show that no obvious vibration peak presented in the FT-IR spectra of the pristine MWCNTs (CNT-1), which indicates that the primary MWCNTs contained few functional groups. Two obvious vibration peaks appeared in the FT-IR spectra of MWCNTs after sulfonitric treatment for 2 and 4 h. The stretching vibrations of –OH bonds were evidenced by the appearance of the band at 3420 cm−1, and the presence of bands near 1639 cm−1 were due to the –C=O stretching vibrations of –COOH and N-atoms that were covalently bonded to the carbon network (C=N). Figure 3 shows that the hydrophilic groups (–COOH, –OH) were generated on the surfaces of the MWCNTs, as observed by Zhang et al. [32]. However, N-containing groups, such as C–N or C–O–N observed in [39,40], were not detected through FT-IR measurement. These hydrophilic groups in MWCNTs may determine the dispersibility behavior in aqueous solutions. In addition, the above observations suggest that the oxidation degree increased with extended treatment time.
Although FT-IR analysis confirmed the functionalization of MWCNTs qualitatively, more details of MWCNTs resulting from sulfonitric treatment need to be further discussed.

3.3. XPS Characterization

Figure 3a–d presents the XPS spectrum of CNT-1 treated for 1, 2, and 4 h, respectively. Results show that the main components of the carbon nanotubes were C, O, and a small amount of Si. A characteristic peak for the C 1s located at a binding energy of 284.4 eV can be observed in the spectrum of primary and oxidized MWCNTs. The deconvolution of C 1s spectra of CNTs revealed the presence of C–H and C–C in carbon nanotubes, as confirmed by a main peak at ~284.1 eV. After sulfonitric treatment, functional groups, such as C–OH, C=O, C–N, C–O–C, and N–C–O, were generated. In addition, O=C–O–R was generated in the CNTs after being oxidized for 4 h. The XPS O 1s peak appeared at a binding energy of 531 eV, which confirmed that some oxidized species were generated on the surface of treated MWCNTs. Deconvolution of the O 1s peak of pristine and oxidized MWCNTs are presented in Figure 4a–d. Three peaks appeared at 533.2, 531.9, and 530.7 eV, which confirmed the generation of carboxylic, hydroxyl species, and physically adsorbed oxygen/carbonates, as reported by Datsyuk [31]. The quantification of possible band assignments determined from XPS O 1s deconvolution are presented in Table 3. Results show that the low content of the carboxylic and hydroxyl functions (1.10% and 0.32%) presented on the surface of MWCNTs. The content of such functions increased from extending the oxidation time and reached 3.03% and 1.21%, respectively.
The atomic percentages of oxygen, carbon, and silicon on the pristine/acidized MWCNTs characterized by XPS measurements are summarized in Table 4. There is a remarkable increase in oxygen content of MWCNTs after being subjected to sulfonitric treatment. When oxidized by an HNO3/H2SO4 mixture, MWCNTs underwent some oxidative cleavage of C–C bonds, converting sp2 hybridized carbon atoms into oxidized sp3 ones to form oxygen-containing functionalized groups such as carboxylic and hydroxyl. Therefore, the overall amount of oxygen increased with treatment time and the O/C ratio in the sample also increased significantly from 2.11% to 6.13% (Table 4) after treatment for 4 h, which manifested oxidized species generated on the surface of MWCNTs during the sulfonitric treatment process. As expected, the oxidation degree of MWCNTs increased with prolonged treatment time.

3.4. Thermogravimetric Analysis

Figure 5 shows the TGA curves measured in the temperature range from 30 to 900 °C with a heating rate of 10 °C/min in the N2 atmosphere before and after oxidation of MWCNTs. The weight loss process can be divided into four stages. The first stage occurs below 150 °C, which is attributed to the loss of moisture [28,41]. The second weight loss stage from 150 to 350 °C is ascribed to the decarboxylation of –COOH presented on the MWCNTs [42]. The third step in the range between 350 and 500 °C is due to the elimination of –OH [43]. The last one occurs between 500 and 900 °C and is attributed to the thermal oxidation of the remaining amorphous carbon [39]. The mass loss ratio calculated from the curve at different temperature ranges is presented in Table 5. The content of the carboxyl and hydroxyl groups increased with the extension of oxidation time, which is in agreement with the results obtained from FT-IR and XPS analyses. Among the four samples, the pristine MWCNTs (CNT-1) exhibited the lowest total mass loss (1.22%) up to 900 °C, which conformed to the results obtained by Chiu et al. [31], due to the good thermal stability of the MWCNTs with a perfect hexagon crystal structure. This means oxidation decreased the thermal stability of MWCNTs. The worsening thermal stability of MWCNTs as a result of the oxidation is not detrimental for the application of the formulated materials when used in cementitious materials, as the service temperature of cement-based materials is generally not more than 100 °C.

3.5. Raman Spectroscopy

In order to identify the structural integrity of carbon nanotubes during the treatment process, Raman spectroscopy was used due to its high sensitivity to the structural change of MWCNTs. The Raman spectra of pristine and treated MWCNTs with acid for 1, 2, and 4 h are presented in Figure 6. Results show that the main feature of each spectra was the two characteristic bands: the G-band (graphic band) at 1570 cm−1 accounted for the degree of crystallinity of graphitic sheets, and the D-band (disorder band) at 1338 cm−1 represented the crystal defect degree of graphitic sheets [44].
The intensity ratio of the D and G bands (ID/IG) was employed to determine the degree of structural defects or disorders in MWCNTs [45,46]. The position of the peak D and G (ID/IG) ratio is presented in Table 6. From the results presented in Figure 6 and Table 6, it can be seen that the value of ID/IG increased with increasing treatment time, which suggests that more defects formed in the surface of MWCNTs with longer treatment time. Similar results were also found by Chiu et al. [31] through chemical modification of MWCNTs.
From the Raman spectra of MWCNTs, an upfield shift of the D-band for the MWCNTs with sulfonitric treatment was noticed, which may correlate with the intertubular coupling resulting from repulsive van der Waals forces [47].
The above results were used to qualitatively and quantitatively analyze the effect of sulfonitric treatment on the composition and structure of MWCNTs. In summary, the sulfonitric treatment of MWCNTs resulted in decreasing the crystallinity of MWCNTs with the generation of oxygen-containing groups such as –OH and –COOH. The effect was more evident when increasing the oxidation time. To establish the relationship between the degree of oxidation and the dispersion of MWCNTs, the suspensions were characterized by UV-vis-NIR and dynamic light scattering measurements.

3.6. The Dispersion of Sulfonitric Treated MWCNTs

3.6.1. The Relationship between the Concentration of MWCNTS and Absorbance

The UV-vis-NIR spectrum was used to characterize the dispersion of MWCNTs in water due to individual nanotubes having strong absorption in the UV-vis region, while bundled CNTs are not active. Figure 7a–d depicts the absorbance spectra of UV-vis-NIR scans between 200 and 800 nm for MWCNTs at different concentrations (0.040–0.100 mg/mL). The relationships between the absorbance at 265, 350, 500, and 700 nm and concentrations are also presented in Figure 7. From the results, the maximum absorption for the MWCNTs was found at wavelength of 265 nm, and no position shift was observed for the four MWCNTs. In addition, the absorption value of MWCNTs increased linearly with the concentration of carbon nanotubes in the suspensions (R2 ≥ 95%), which is in accordance with the Lambert-Beer law. Figure 7 shows that the fitted line obtained from the absorbance at 265 nm showed the maximum slope, which implies that the absorbance at 265 nm was more sensitive to the concentration of MWCNTs in suspensions. According to the Lambert-Beer law, the absorbance value (A) of MWCNT suspensions obtained from UV-vis-NIR spectroscopy measurement can be expressed as:
A = lg (1/T) = lg (I0/I) = Kbc
T: transmission;
I0 and I: intensity of the measuring beam before/after passing through the sample;
K: molar absorption coefficient of MWCNTs;
c: concentration of MWCNTs;
b: path length of the measuring beam in the sample.
For the same MWCNT type, the absorbance value is proportional to the concentration of MWCNTs in suspensions due to the same value of K and b. However, the distinguished slopes of MWCNTs treated for different time can be observed in Figure 7 and are related to the oxidization degree of MWCNTs.

3.6.2. The Relationship between the Oxidation Degree and the Absorbance

The primary CNTs and sulfonitric-treated CNTs for 1, 2, and 4 h were dispersed in water at different concentrations (0.040–0.100 mg/mL). Figure 8a–d also shows the absorbance of MWCNT suspensions at 0.040, 0.053, 0.080, and 0.100 mg/mL, respectively. As expected, a clear tendency for the absorbance value of MWCNTs to increase with extended oxidation time can be noticed. Among the MWCNTs in this study, CNT-4 exhibited the optimal dispersibility at the same concentration. This is due to the hydrophobic groups providing repulsive forces among the carbon nanotubes, thus improving the dispersion of CNTs. For HNO3/H2SO4-treated MWCNTs, the distinguished absorbance value was detected at the same MWCNT concentration, which indicated that the K value varied with treatment time. The molar absorption coefficient of CNT-1–CNT-4 was assumed as K1, K2, K3, and K4. According to the Lambert-Beer law, the values of K2/K1, K3/K1 and K4/K1 can be calculated, which were about 1.31, 1.50, and 1.75, respectively. Therefore, the increase of the molar absorption coefficient resulting from oxidization may contribute to the positive effect on the dispersion of MWCNTs in water.

3.7. The PSD of MWCNT Suspensions

For a better understanding of the dispersive effect for MWCNTs after oxidation treatment, the intensity of particle size distribution was measured by dynamic light scattering. Figure 9 shows the images of the pristine/oxidized MWCNTs dispersed in water at a concentration of 0.040 mg/mL. The morphology of CNT-1 shows that the pristine MWCNTs agglomerated heavily into particles due to strong van der Waals forces. Notably, the MWCNTs after treatment (CNT-4) were better dispersed in water than pristine MWCNTs (CNT-1). This suggests oxidized MWCNTs exhibit better dispersibility in water.
The hydrodynamic size distribution of MWCNTs at a concentration of 0.040 mg/mL is depicted in Figure 10 and the average hydrodynamic size of MWCNT suspensions is shown in Table 7. Experimental data indicated that MWCNT particle sizes in the suspensions ranged from 60 to 4000 nm, which means the primary and treated CNT suspensions were in large agglomerates or bundles. By comparing with the PSD of primary and treated MWCNTs, it is notable that oxidation treatment led to a dispersive effect on MWCNTs, as indicated by the decrease of hydrodynamic size from 609.9 to 364.3 nm. In addition, the hydrodynamic size seemed to decrease with prolonged treatment time. Among the modified MWCNTs, CNT-4 exhibited the best dispersibility, as indicated by the lowest hydrodynamic size. Combined with the results presented in Section 3.6, we can conclude that the sulfonitric treatment of MWCNTs using a HNO3/H2SO4 mixture had a positive effect on their dispersion in water, and the effect was even more remarkable with prolonged treatment time.

4. Conclusions

Sulfonitric treatment of MWCNTs and their dispersibility in water were investigated using various measurements. Nitrogen adsorption analyses showed that sulfonitric treatment increased the surface area and total pore volume and reduced the average pore diameter of MWCNTs. The treatment promoted the generation of oxygen-containing species such as carboxylic, hydroxyl species, and physically adsorbed oxygen/carbonates. The effects were more obvious when increasing oxidation degree by prolonging the treatment time, as confirmed by quantitative analysis of these species and Raman spectroscopy measurements. Oxidized MWCNTs exhibited a higher dispersion efficiency in water than pristine MWCNTs, indicated by an increasing UV absorbance value and a decreasing average hydrodynamic size. SEM observations also confirmed the dispersive effect of sulfonitric treatment on MWCNTs. Moreover, the absorption value of MWCNTs increased linearly with the concentration of carbon nanotubes in the suspensions. The oxidation degree of MWCNTs was proportional to their dispersibility in water, which may relate to the formation of oxygen-containing species and the molar absorption coefficient.

Author Contributions

Conceptualization, methodology, software, formal analysis, investigation, resources and data curation H.L. and J.W. (Jiachen Wang); writing—original draft preparation, H.L.; writing—review and editing, S.C.; visualization and supervision, J.W. (Jianfeng Wang); project administration, S.C.; funding acquisition, J.W. (Jianfeng Wang).

Funding

This research was funded by the National Nature Science Foundation of China, grant numbers 51504013, and the National Nature Science Fund for Innovation Research Groups, grant numbers 51621003.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siddique, R.; Mehta, A. Effect of carbon nanotubes on properties of cement mortars. Constr. Build. Mater. 2014, 50, 116–129. [Google Scholar] [CrossRef]
  2. Yu, M.F.; Lourie, O.; Dyer, M.J.; Moloni, K.; Kelly, T.F.; Ruoff, R.S. Strength and breaking mechanism of multiwalled carbon nanotubes under tensile load. Science 2000, 287, 637–640. [Google Scholar] [CrossRef] [PubMed]
  3. Walters, D.A.; Ericson, L.M.; Casavant, M.J.; Liu, J. Elastic strain of freely suspended single-wall carbon nanotube ropes. Appl. Phys. Lett. 1999, 74, 3803–3805. [Google Scholar] [CrossRef]
  4. Hanus, M.J.; Harris, A.T. Nanotechnology innovations for the construction industry. Prog. Mater. Sci. 2013, 58, 1056–1102. [Google Scholar] [CrossRef]
  5. Tian, M.; Wang, W.; Liu, Y.; Jungjohann, K.L.; Harris, C.T.; Lee, Y.C.; Yang, R. A three-dimensional carbon nano-network for high performance lithium ion batteries. Nano Energy 2015, 11, 500–509. [Google Scholar] [CrossRef] [Green Version]
  6. Liu, Y.; Yu, L.; Zhang, S.; Yuan, J.; Shi, L.; Zheng, L. Dispersion of multiwalled carbon nanotubes by ionic liquid-type gemini imidazolium surfactants in aqueous solution. Coll. Surf. A 2010, 359, 66–70. [Google Scholar] [CrossRef]
  7. Ma, P.C.; Siddiqui, N.A.; Marom, G.; Kim, J.K. Dispersion and functionalization of carbon nanotubes for polymer-based nanocomposites: A review. Comp. Part A 2010, 41, 1345–1367. [Google Scholar] [CrossRef]
  8. Fogden, S.; Howard, C.A.; Heenan, R.K.; Skipper, N.T.; Shaffer, M.S. Scalable method for the reductive dissolution, purification, and separation of single-walled carbon nanotubes. ACS Nano 2012, 6, 54–62. [Google Scholar] [CrossRef]
  9. Parveen, S.; Rana, S.; Fangueiro, R.; Paiva, M.C. Microstructure and mechanical properties of carbon nanotube reinforced cementitious composites developed using a novel dispersion technique. Cem. Concr. Res. 2015, 73, 215–227. [Google Scholar] [CrossRef]
  10. Han, B.; Sun, S.; Ding, S.; Zhang, L.; Yu, X.; Ou, J. Review of nanocarbon-engineered multifunctional cementitious composites. Compos. A Appl. Sci. Manuf. 2015, 70, 69–81. [Google Scholar] [CrossRef]
  11. Molina-Sabio, M.; Gonçalves, M.; Rodríguez-Reinoso, F. Oxidation of activated carbon with aqueous solution of sodium dichloroisocyanurate: Effect on ammonia adsorption. Microporous Mesoporous Mater. 2011, 142, 577–584. [Google Scholar] [CrossRef] [Green Version]
  12. Bleda-Martínez, M.J.; Lozano-Castelló, D.; Morallón, E.; Cazorla-Amorósa, D.; Linares-Solano, A. Chemical and electrochemical characterization of porous carbon materials. Carbon 2006, 44, 2642–2651. [Google Scholar] [CrossRef] [Green Version]
  13. Zubizarreta, L.; Menéndez, J.A.; Job, N.; Marco-Lozar, J.P.; Pirard, J.P.; Pis, J.J.; Linares-Solano, A.; Cazorla-Amorós, D.; Arenillas, A. Ni-doped carbon xerogels for H2 storage. Carbon 2010, 48, 2722–2733. [Google Scholar] [CrossRef]
  14. Barrientos-Ramírez, S.; Montes de Oca-Ramírez, G.; Ramos-Fernández, E.V.; Sepúlveda-Escribano, A.; Pastor-Blas, M.M.; González-Montiel, A.; Rodríguez-Reinoso, F. Influence of the surface chemistry of activated carbons on the ATRP catalysis of methyl methacrylate polymerization. Appl. Catal. A 2011, 397, 225–233. [Google Scholar] [CrossRef]
  15. Mostazo-López, M.J.; Ruiz-Rosas, R.; Morallón, E.; Cazorla-Amorósa, D. Generation of nitrogen functionalities on activated carbons by amidation reactions and Hofmann rearrangement: Chemical and electrochemical characterization. Carbon 2015, 91, 252–265. [Google Scholar] [CrossRef]
  16. Kim, S.D.; Park, S.J.; Lee, Y.K. Chemical surface treatment for highly improved dispersibility of multi-walled carbon nanotubes in water. J. Dispers. Sci. Technol. 2008, 29, 426–430. [Google Scholar]
  17. Balasubramanian, K.; Burghard, M. Chemically functionalized carbon nanotubes. Small 2005, 1, 180–192. [Google Scholar] [CrossRef]
  18. Gojny, F.H.; Nastalczyk, J.; Roslaniec, Z.; Schulte, K. Surface modified multi-walled carbon nanotubes in CNT/epoxy-composites. Chem. Phys. Lett. 2003, 370, 820–824. [Google Scholar] [CrossRef]
  19. Karousis, N.; Tagmatarchis, N.; Tasis, D. Current progress on the chemical modification of carbon nanotubes. Chem. Rev. 2010, 110, 5366–5397. [Google Scholar] [CrossRef]
  20. Hui, H.; Zhao, B.; Itkis, M.E.; Haddon, R.C. Nitric acid purification of single-walled carbon nanotubes. J. Phys. Chem. B 2004, 107, 13838–13842. [Google Scholar] [CrossRef]
  21. MartíNez, M.T.; Calleja, M.A.; Benito, A.M.; Cochet, M.; Seeger, T.; Ansón, A.; Schreiber, J.; Gordon, C.; Marhic, C.; Chauvet, O.; et al. Sensitivity of single wall carbon nanotubes to oxidative processing: Structural modification, intercalation and functionalization. Carbon 2003, 41, 2247–2256. [Google Scholar] [CrossRef]
  22. Kukovecz, A.; Kramberger, Ch.; Holzinger, M.; Kuzmany, H.; Schalko, J.; Mannsberger, M.; Hirsch, A. On the stacking behavior of functionalized single-wall carbon nanotubes. J. Phys. Chem. B 2015, 106, 6374–6380. [Google Scholar] [CrossRef]
  23. Liu, L.; Qin, Y.; Guo, Z.X.; Zhu, D. Reduction of solubilized multi-walled carbon nanotubes. Carbon 2003, 41, 331–335. [Google Scholar] [CrossRef]
  24. Hayashi, S.; Handa, S.; Tsubokawa, N. Introduction of peroxide groups onto carbon black surface by radical trapping and radical graft polymerization of vinyl monomers initiated by the surface peroxide groups. J. Polym. Sci. A Polym. Chem. 2015, 34, 1589–1595. [Google Scholar] [CrossRef]
  25. Marega, R.; Accorsi, G.; Meneghetti, M.; Parisini, A.; Prato, M.; Bonifazi, D. Cap removal and shortening of double-walled and very-thin multi-walled carbon nanotubes under mild oxidative conditions. Carbon 2009, 47, 675–682. [Google Scholar] [CrossRef]
  26. Kuznetsova, A.; Popova, I.; Yates, J.T.; Bronikowski, M.J.; Huffman, C.B.; Liu, J.; Smalley, R.E.; Hwu, H.; Chen, J. Oxygen-containing functional groups on single-wall carbon nanotubes:  NEXAFS and vibrational spectroscopic studies. J. Am. Chem. Soc. 2001, 123, 10699–10704. [Google Scholar] [CrossRef] [PubMed]
  27. Ziegler, K.J.; Gu, Z.; Peng, H.; Flor, E.L.; Hauge, R.H.; Smalley, R.E. Controlled oxidative cutting of single-walled carbon nanotubes. J. Am. Chem. Soc. 2005, 127, 1541–1547. [Google Scholar] [CrossRef]
  28. Datsyuk, V.; Kalyva, M.; Papagelis, K.; Parthenios, J.; Tasis, D.; Siokou, A.; Kallitsisa, I.; Galiotisa, C. Chemical oxidation of multiwalled carbon nanotubes. Carbon 2008, 46, 833–840. [Google Scholar] [CrossRef]
  29. Avilés, F.; Cauich-Rodríguez, J.V.; Moo-Tah, L.; May-Pat, A.; Vargas-Coronado, R. Evaluation of mild acid oxidation treatments for MWCNT functionalization. Carbon 2009, 47, 2970–2975. [Google Scholar] [CrossRef]
  30. Hiura, H.; Ebbesen, T.W.; Tanigaki, K. Opening and purification of carbon nanotubes in high yields. Adv. Mater. 2010, 7, 275–276. [Google Scholar] [CrossRef]
  31. Chiu, W.M.; Chang, Y.A. Chemical modification of multiwalled carbon nanotube with the liquid phase method. J. Appl. Polym. Sci. 2008, 107, 1655–1660. [Google Scholar] [CrossRef]
  32. Zhang, J.; Zou, H.L.; Qing, Q.; Yang, Y.; Li, Q.; Liu, Z.; Guo, X.; Du, Z. Effect of Chemical Oxidation on the Structure of Single-Walled Carbon Nanotubes. J. Phys. Chem. B 2015, 107, 3712–3718. [Google Scholar] [CrossRef]
  33. Su, S.H.; Chiang, W.T.; Lin, C.; Yokoyama, M. Multi-wall carbon nanotubes: Purification, morphology and field emission performance. Phys. E Low Dimens. Syst. Nanostruct. 2008, 40, 2322–2326. [Google Scholar] [CrossRef]
  34. Rosca, I.D.; Watari, F.; Uo, M.; Akasaka, T. Oxidation of multiwalled carbon nanotubes by nitric acid. Carbon 2005, 43, 3124–3131. [Google Scholar] [CrossRef]
  35. Zhou, W.; Sasaki, S.; Kawasaki, A. Effective control of nanodefects in multiwalled carbon nanotubes by acid treatment. Carbon 2014, 78, 121–129. [Google Scholar] [CrossRef]
  36. Xing, Y.; Li, L.; Chusuei, C.; Hull, R.V. Sonochemical oxidation of multiwalled carbon nanotubes. Langmuir 2005, 21, 4185–4190. [Google Scholar] [CrossRef] [PubMed]
  37. Grossiord, N.; Regev, O.; Loos, J.; Meuldijk, J.; Koning, C.E. Time-dependent study of the exfoliation process of carbon nanotubes in aqueous dispersions by using UV-visible spectroscopy. Anal. Chem. 2005, 77, 5135–5139. [Google Scholar] [CrossRef]
  38. Yu, J.; Grossiord, N.; Koning, C.E.; Loos, J. Controlling the dispersion of multi-wall carbon nanotubes in aqueous surfactant solution. Carbon 2007, 45, 618–623. [Google Scholar] [CrossRef]
  39. Wang, L.; Liu, N.; Guo, Z.; Wu, D.; Chen, W.; Chang, Z.; Wang, J. Nitric acid-treated carbon fibers with enhanced hydrophilicity for candida tropicalis immobilization in xylitol fermentation. Materials 2016, 9, 206. [Google Scholar] [CrossRef]
  40. Gómez, S.; Rendtorff, N.M.; Aglietti, E.F.; Sakka, Y.; Suarez, G. Intensity of sulfonitric treatment on multiwall carbon nanotubes. Chem. Phys. Lett. 2017, 289, 135–141. [Google Scholar]
  41. Park, O.K.; Kim, N.H.; Yoo, G.H.; Rhee, K.Y.; Lee, J.H. Effects of the surface treatment on the properties of polyaniline coated carbon nanotubes/epoxy composites. Compos. B Eng. 2010, 41, 2–7. [Google Scholar] [CrossRef]
  42. Tang, M.; Dou, H.; Sun, K. One-step synthesis of dextran-based stable nanoparticles assisted by self-assembly. Polymer 2006, 47, 728–734. [Google Scholar] [CrossRef]
  43. Grandi, S.; Magistris, A.; Mustarelli, P.; Quartarone, E.; Tomasi, C.; Meda, L. Synthesis and characterization of SiO2–PEG hybrid materials. J. Non Cryst. Solids 2006, 352, 273–280. [Google Scholar] [CrossRef]
  44. Hou, P.; Liu, C.; Tong, Y.; Xu, S.; Liu, M.; Chen, H. Purification of single-walled carbon nanotubes synthesized by the hydrogen arc-discharge method. J. Mater. Res. 2001, 16, 2526–2529. [Google Scholar] [CrossRef]
  45. Flahaut, E.; Laurent, C.; Peigney, A. Catalytic CVD synthesis of double and triple-walled carbon nanotubes by the control of the catalyst preparation. Carbon 2005, 43, 375–383. [Google Scholar] [CrossRef] [Green Version]
  46. Dresselhaus, M.S.; Dresselhaus, G.; Jorio, A. Raman spectroscopy of carbon nanotubes in 1997 and 2007. J. Phys. Chem. C 2007, 111, 17887–17893. [Google Scholar] [CrossRef]
  47. Chen, C.; Ogino, A.; Wang, X.; Nagatsu, M. Oxygen functionalization of multiwall carbon nanotubes by Ar/H2O plasma treatment. Diam. Relat. Mater. 2001, 20, 153–156. [Google Scholar] [CrossRef]
Materials 11 02442 g001 550

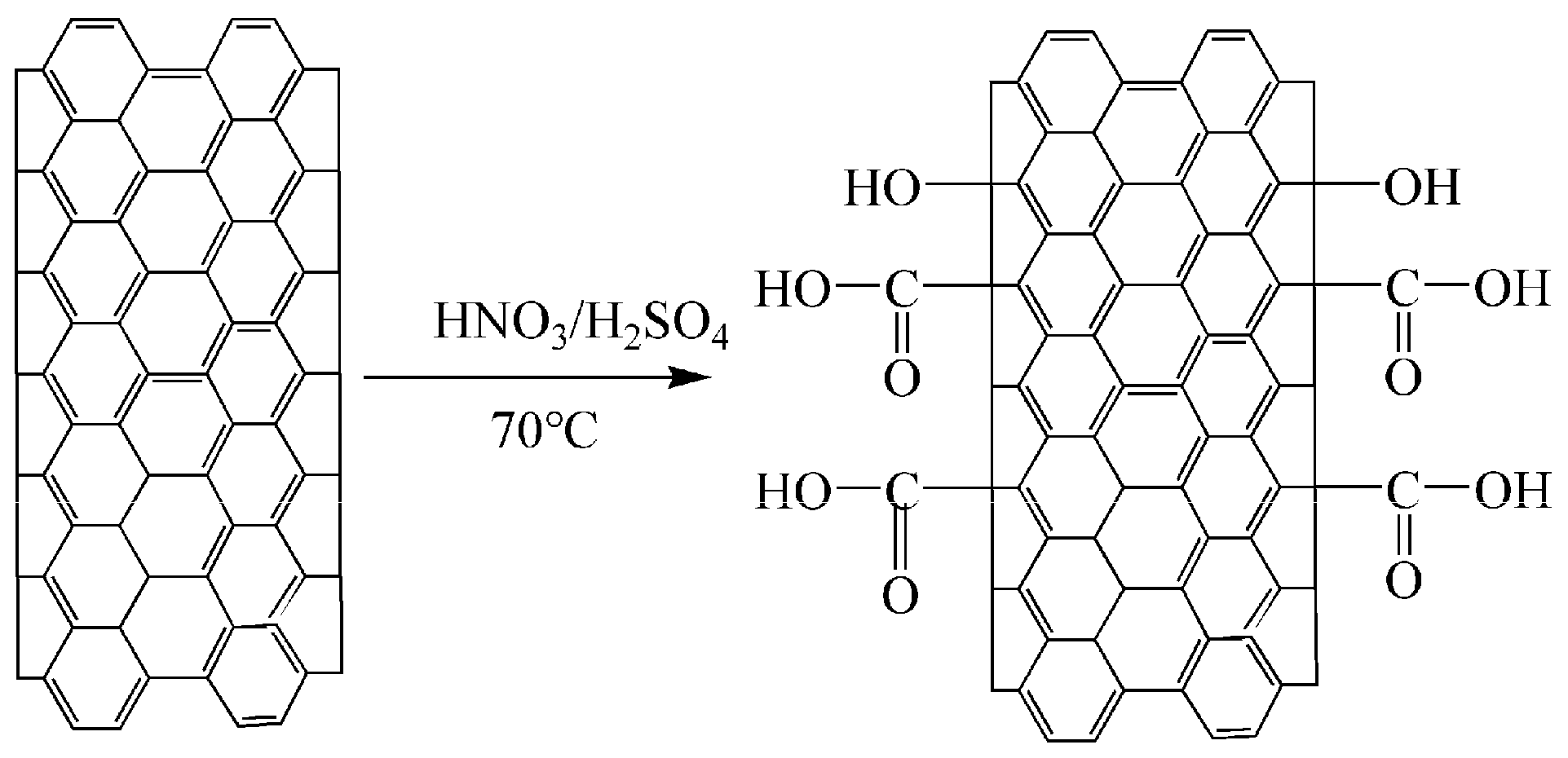

Figure 1. Reaction scheme for the acid treatment of MWCNTs.
Figure 1. Reaction scheme for the acid treatment of MWCNTs.
Materials 11 02442 g001
Materials 11 02442 g002 550

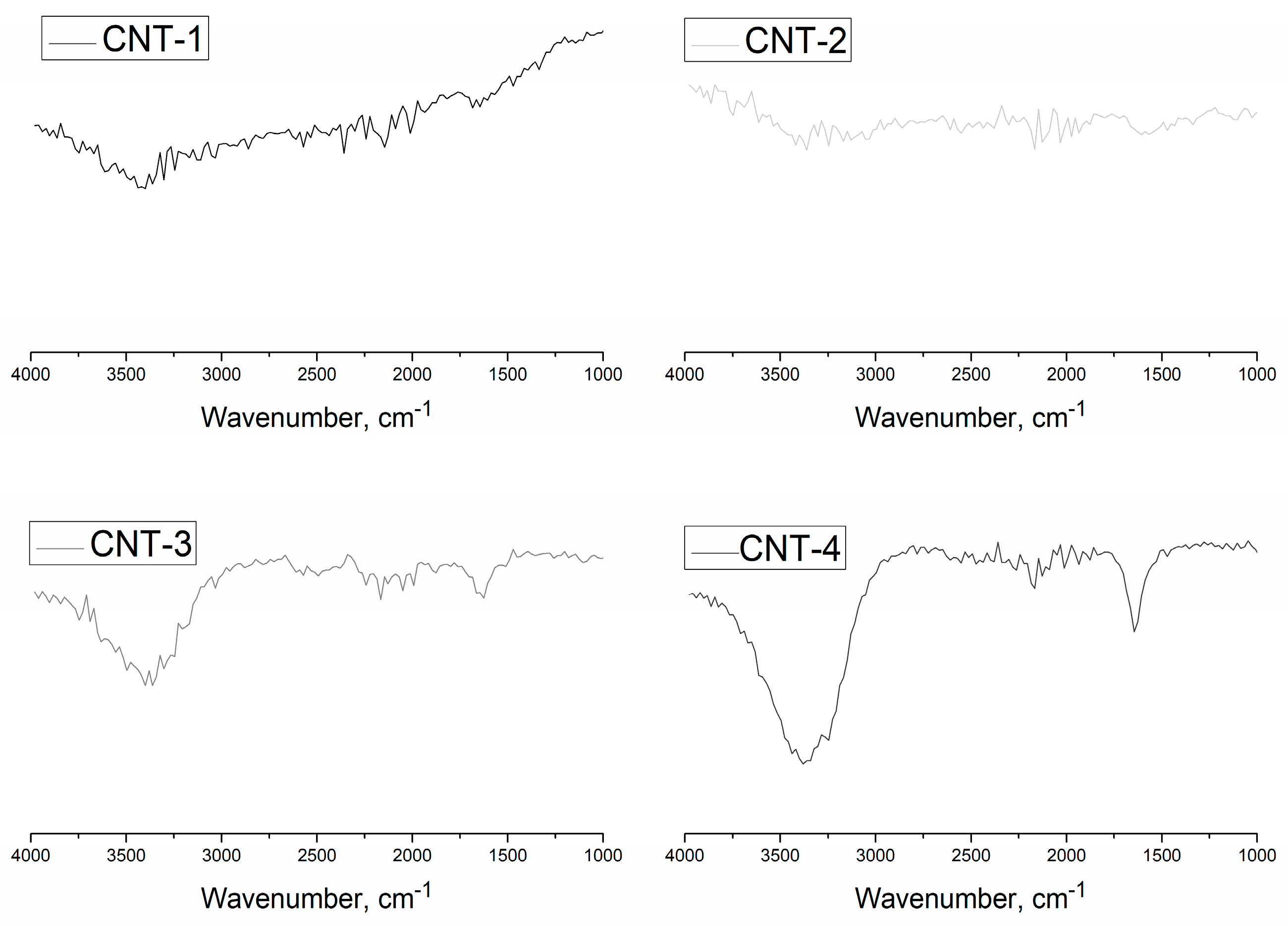

Figure 2. Fourier-transform infrared spectroscopy (FT-IR) spectra of MWCNTs after oxidation.
Figure 2. Fourier-transform infrared spectroscopy (FT-IR) spectra of MWCNTs after oxidation.
Materials 11 02442 g002
Materials 11 02442 g003 550

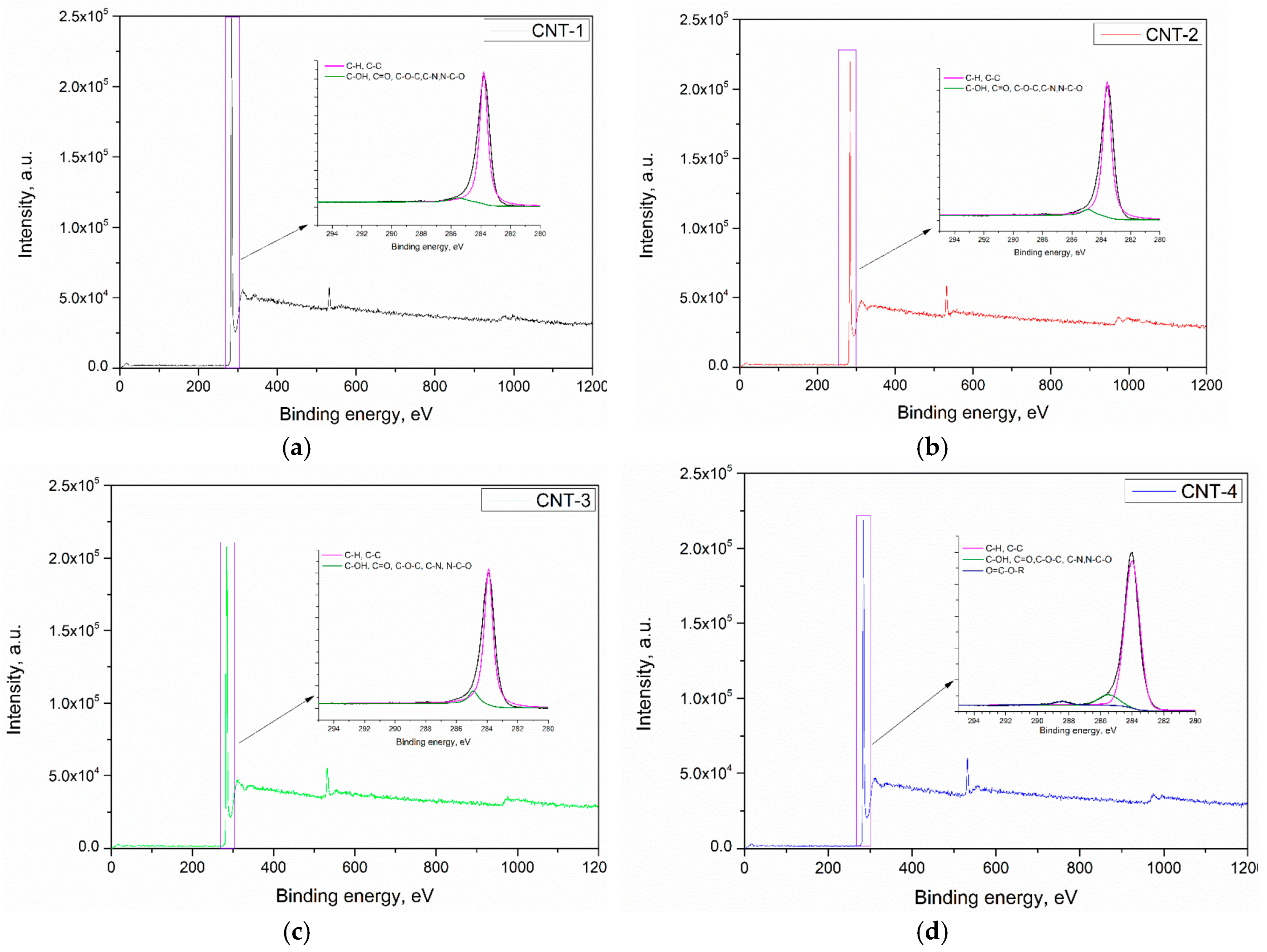

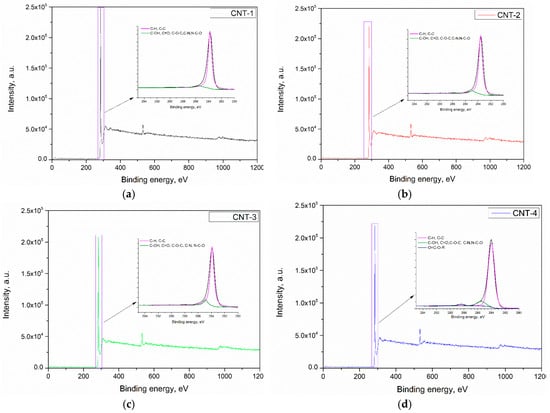

Figure 3. X-ray photoelectron spectroscopy (XPS) pattern of MWCNTs after treatment with acid: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Figure 3. X-ray photoelectron spectroscopy (XPS) pattern of MWCNTs after treatment with acid: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Materials 11 02442 g003
Materials 11 02442 g004 550

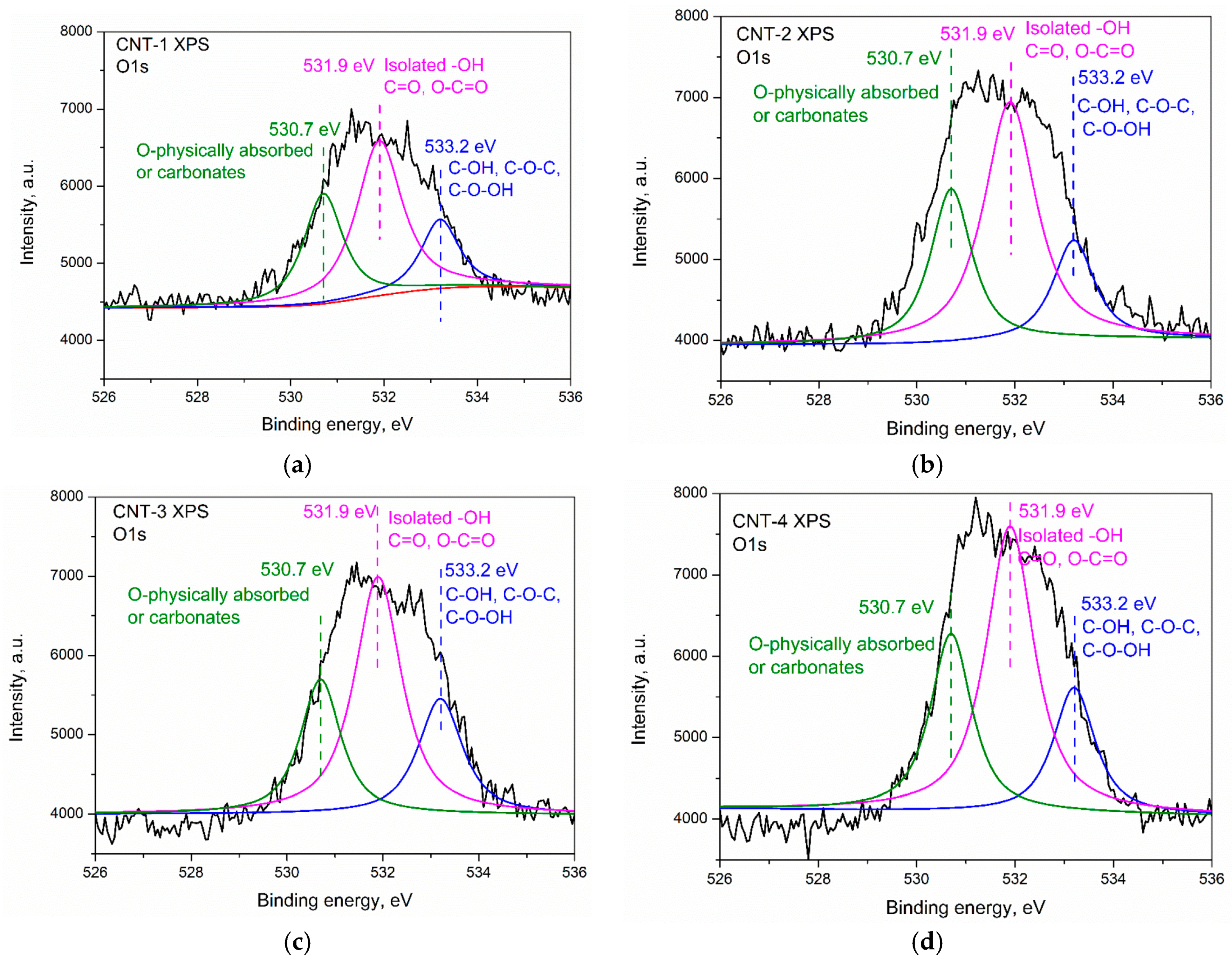

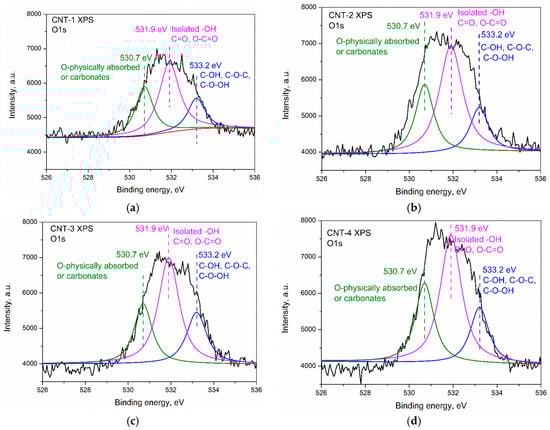

Figure 4. Deconvolution of the XPS O 1s peaks of the MWCNTs: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Figure 4. Deconvolution of the XPS O 1s peaks of the MWCNTs: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Materials 11 02442 g004
Materials 11 02442 g005 550

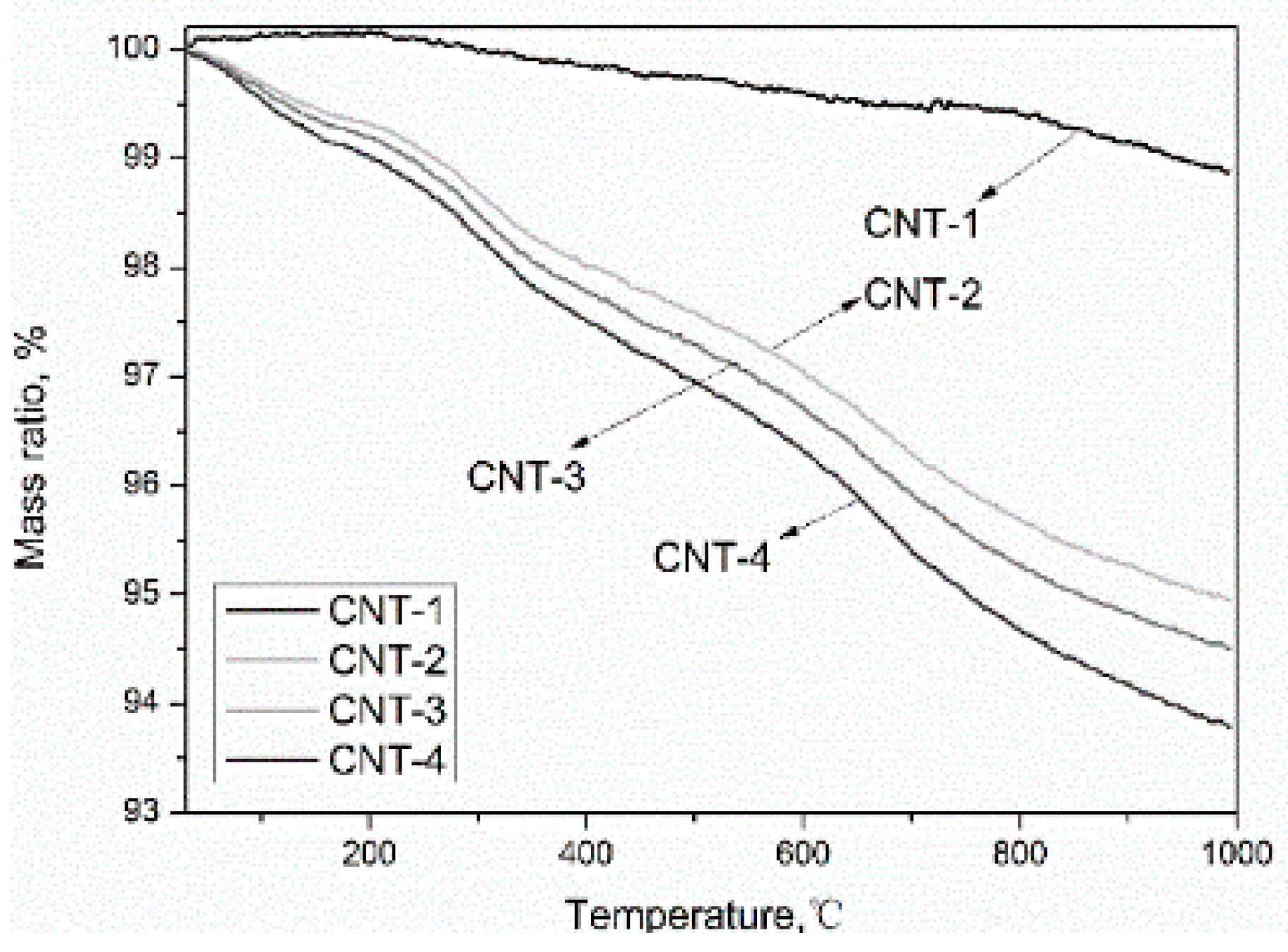

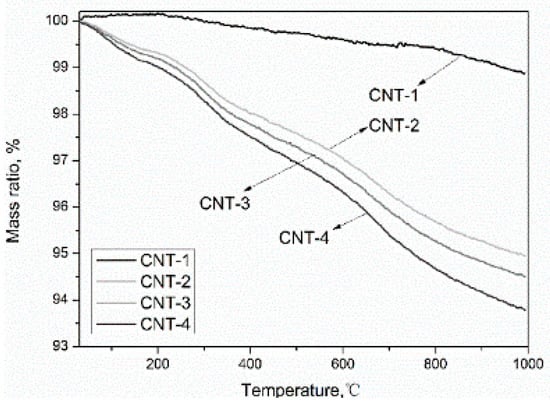

Figure 5. Thermal gravimetric analysis (TGA) curve of acid-treated MWCNTs.
Figure 5. Thermal gravimetric analysis (TGA) curve of acid-treated MWCNTs.
Materials 11 02442 g005
Materials 11 02442 g006 550

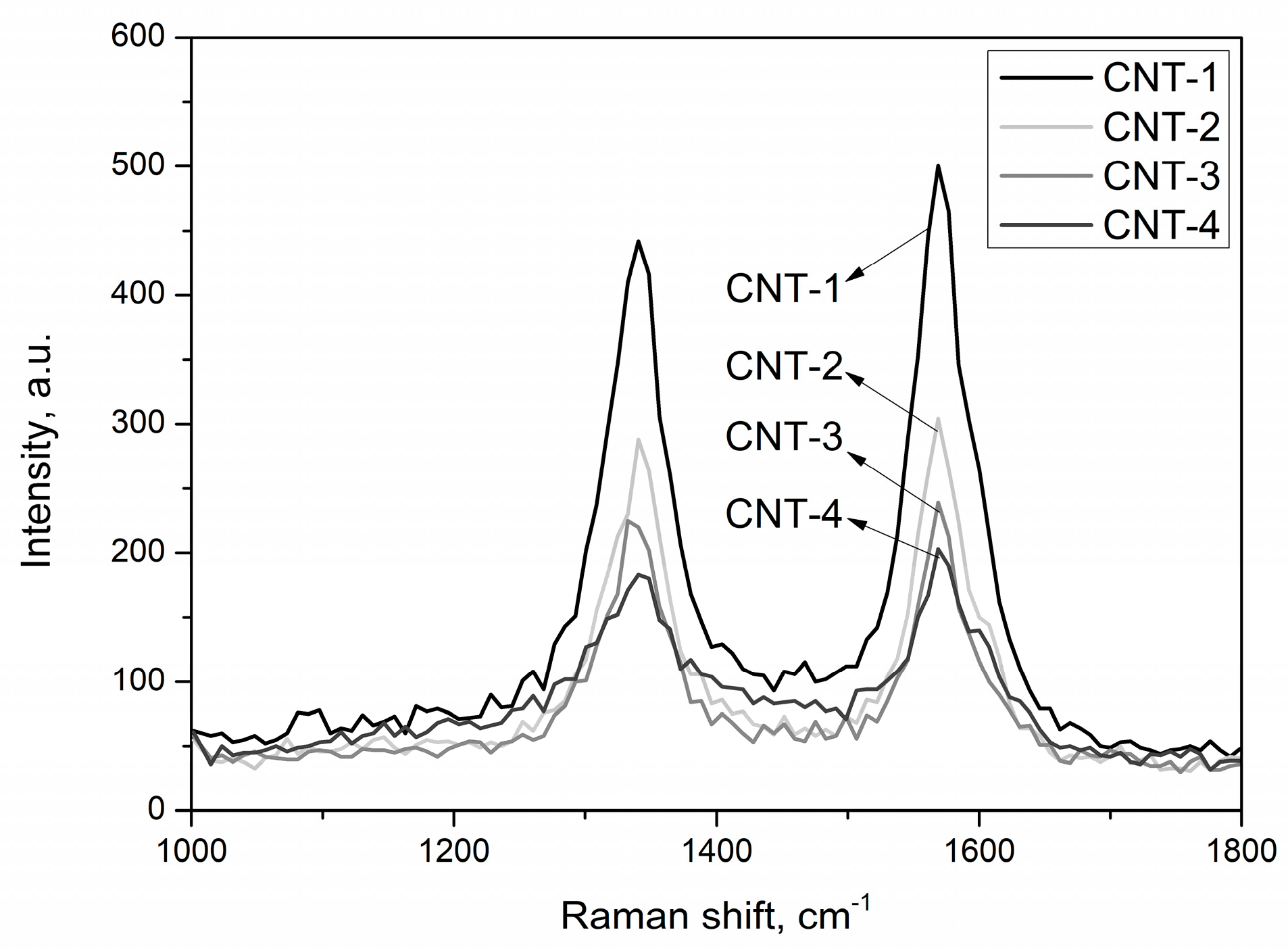

Figure 6. Raman spectra of MWCNTs after treatment with acid.
Figure 6. Raman spectra of MWCNTs after treatment with acid.
Materials 11 02442 g006
Materials 11 02442 g007 550

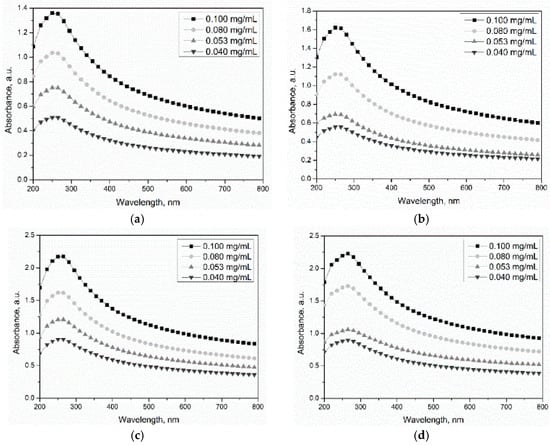

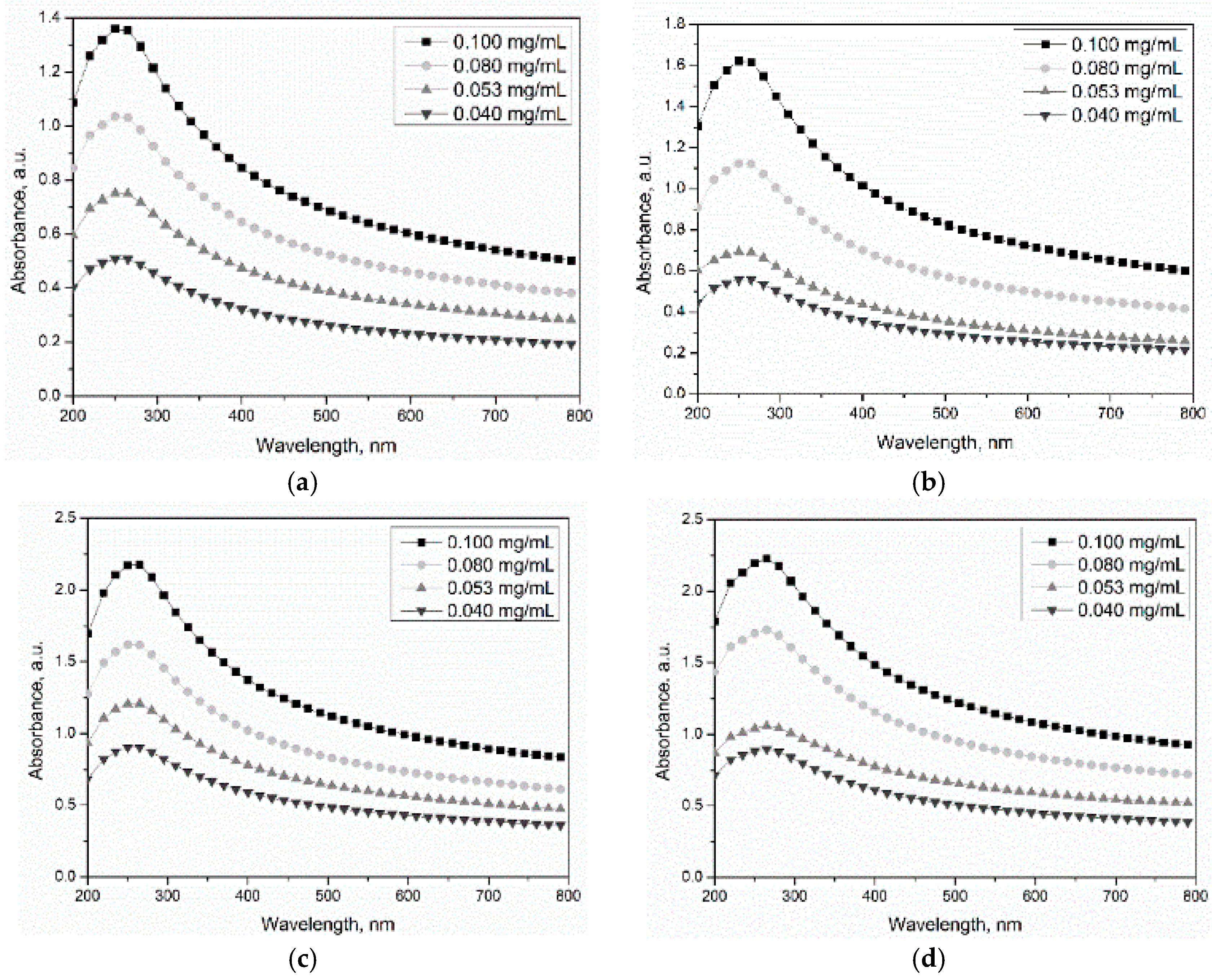

Figure 7. UV-vis-NIR spectra of oxidized MWCNT suspensions: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Figure 7. UV-vis-NIR spectra of oxidized MWCNT suspensions: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Materials 11 02442 g007
Materials 11 02442 g008 550

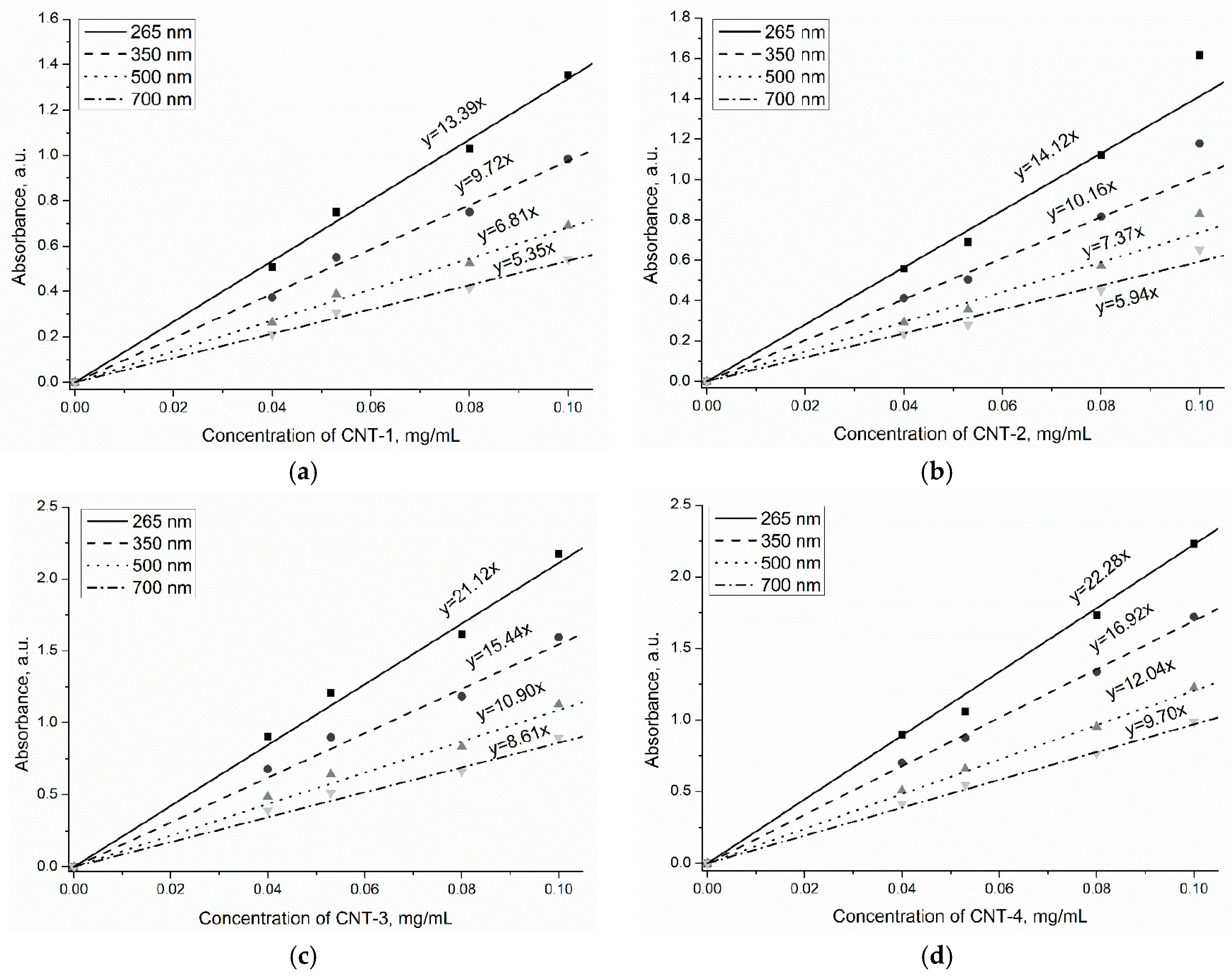

Figure 8. Calibration lines of MWCNTs after treatment: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Figure 8. Calibration lines of MWCNTs after treatment: (a) CNT-1, (b) CNT-2, (c) CNT-3, and (d) CNT-4.
Materials 11 02442 g008
Materials 11 02442 g009 550
Figure 9. The images of the dispersed samples in water. (a) CNT-1; (b) CNT-4.
Figure 9. The images of the dispersed samples in water. (a) CNT-1; (b) CNT-4.
Materials 11 02442 g009
Materials 11 02442 g010 550

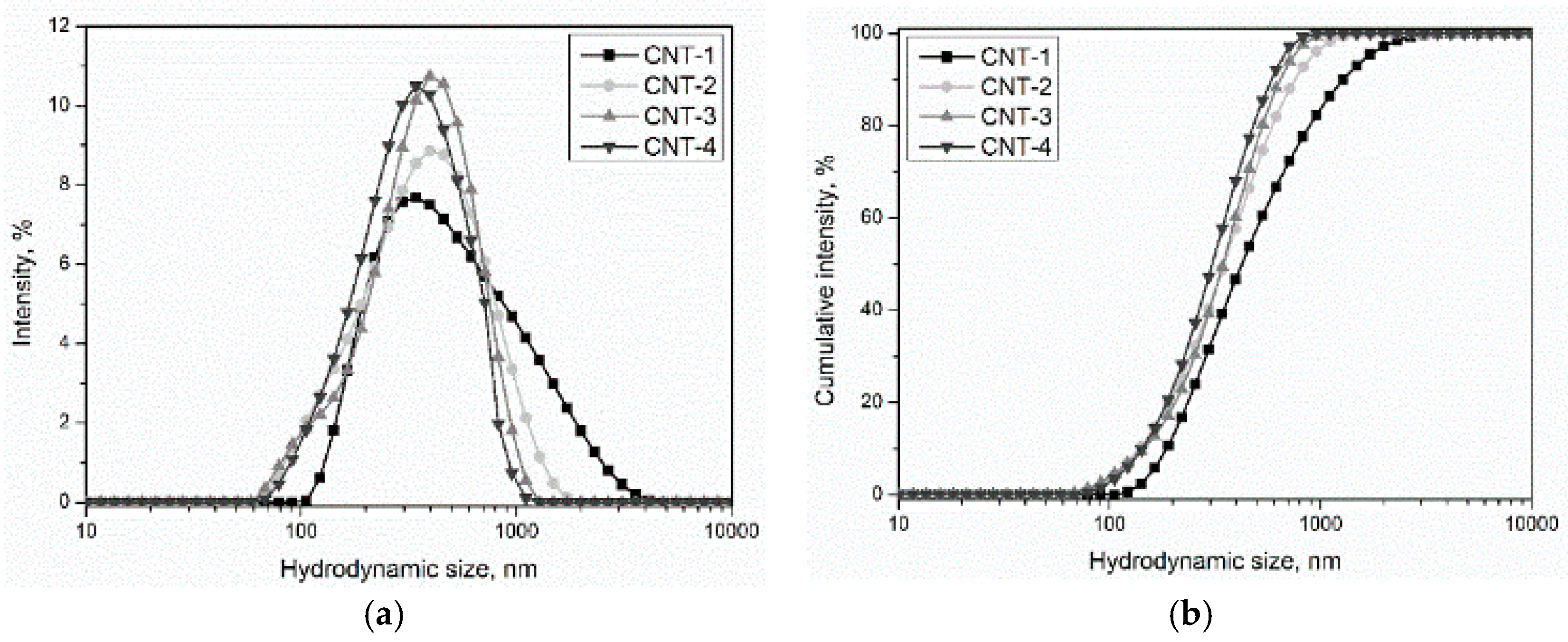

Figure 10. The hydrodynamic size distribution of MWCNT suspensions: (a) hydrodynamic size distribution and (b) cumulative intensity.
Figure 10. The hydrodynamic size distribution of MWCNT suspensions: (a) hydrodynamic size distribution and (b) cumulative intensity.
Materials 11 02442 g010
Table
Table 1. Properties of pristine multiwalled carbon nanotubes (MWCNTs) (CNT-1).
Table 1. Properties of pristine multiwalled carbon nanotubes (MWCNTs) (CNT-1).
TypeInside DiameterOutside DiameterLengthDensitySpecial Surface Area
CNT-13–10 nm8–30 nm10–50 μm2.1 g/cm3>110 cm2/g
Table
Table 2. Results of nitrogen adsorption analysis for the carbon nanotube (CNT) samples.
Table 2. Results of nitrogen adsorption analysis for the carbon nanotube (CNT) samples.
SamplesBET Surface Area (m2/g)Average Pore Diameter (4V/A) (nm)Total Pore Volume (cm3/g)
CNT-180.7216.140.32
CNT-2113.2215.090.43
CNT-3118.4814.500.44
CNT-4130.8014.070.51
Table
Table 3. Assignments of the O1s spectra fitting into chemical groups for XPS spectra of pristine and functionalized CNTs.
Table 3. Assignments of the O1s spectra fitting into chemical groups for XPS spectra of pristine and functionalized CNTs.
SamplesContent, %
533.2 eV531.9 eV530.7 eV
C–OH
C–O–C
C–O–OH		C=O
O–C=O		O-Physically Absorbed or Carbonates
CNT-10.321.100.64
CNT-20.941.361.27
CNT-31.172.401.44
CNT-41.213.031.51
Table
Table 4. Atomic content of MWCNTs after acid treatment.
Table 4. Atomic content of MWCNTs after acid treatment.
SamplesAtomic, %O/C, %
C 1sO 1sSi 2p
CNT-197.612.060.332.11
CNT-296.123.570.313.71
CNT-394.665.010.335.29
CNT-493.845.750.416.13
Table
Table 5. The mass loss of MWCNTs after treatment with acid obtained from the TGA curve.
Table 5. The mass loss of MWCNTs after treatment with acid obtained from the TGA curve.
SampleMass Loss, %Total Mass Loss, %
150–350 °C350–500 °C500–900 °C
CNT-10.080.180.861.22
CNT-21.190.712.635.06
CNT-31.320.872.785.50
CNT-41.410.753.166.22
Table
Table 6. ID/IG ratio of MWCNTs after acid treatment.
Table 6. ID/IG ratio of MWCNTs after acid treatment.
SamplePosition of Peak D and GID/IG
CNT-1(1335, 1570)0.847
CNT-2(1342, 1569)0.936
CNT-3(1339, 1570)0.958
CNT-4(1337, 1569)1.050
Table
Table 7. The average hydrodynamic size of MWCNT suspensions.
Table 7. The average hydrodynamic size of MWCNT suspensions.
SampleAverage Hydrodynamic Size, nm
CNT-1609.9
CNT-2437.2
CNT-3402.4
CNT-4364.3

Share and Cite

MDPI and ACS Style

Liu, H.; Wang, J.; Wang, J.; Cui, S. Sulfonitric Treatment of Multiwalled Carbon Nanotubes and Their Dispersibility in Water. Materials 2018, 11, 2442. https://doi.org/10.3390/ma11122442

AMA Style

Liu H, Wang J, Wang J, Cui S. Sulfonitric Treatment of Multiwalled Carbon Nanotubes and Their Dispersibility in Water. Materials. 2018; 11(12):2442. https://doi.org/10.3390/ma11122442

Chicago/Turabian Style

Liu, Hui, Jianfeng Wang, Jiachen Wang, and Suping Cui. 2018. "Sulfonitric Treatment of Multiwalled Carbon Nanotubes and Their Dispersibility in Water" Materials 11, no. 12: 2442. https://doi.org/10.3390/ma11122442

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
