Solar Light Induced Photon-Assisted Synthesis of TiO₂ Supported Highly Dispersed Ru Nanoparticle Catalysts

Abstract

Ru/TiO₂ are promising heterogeneous catalysts in different key-reactions taking place in the catalytic conversion of biomass towards fuel additives, biofuels, or biochemicals. TiO₂ supported highly dispersed nanometric-size metallic Ru catalysts were prepared at room temperature via a solar light induced photon-assisted one-step synthesis in liquid phase, far smaller Ru nanoparticles with sharper size distribution being synthesized when compared to the catalysts that were prepared by impregnation with thermal reduction in hydrogen. The underlying strategy is based on the redox photoactivity of the TiO₂ semi-conductor support under solar light for allowing the reduction of metal ions pre-adsorbed at the host surface by photogenerated electrons from the conduction band of the semi-conductor in order to get a fine control in terms of size distribution and dispersion, with no need of chemical reductant, final thermal treatment, or external hydrogen. Whether acetylacetonate or chloride was used as precursor, 0.6 nm sub-nanometric metallic Ru particles were synthesized on TiO₂ with a sharp size distribution at a low loading of 0.5 wt.%. Using the chloride precursor was necessary for preparing Ru/TiO₂ catalysts with a 0.8 nm sub-nanometric mean particle size at 5 wt.% loading, achieved in basic conditions for benefitting from the enhanced adsorption between the positively-charged chloro-complexes and the negatively-charged TiO₂ surface. Remarkably, within the 0.5–5 wt.% range, the Ru content had only a slight influence on the sub-nanometric particle size distribution, thanks to the implementation of suitable photo-assisted synthesis conditions. We demonstrated further that a fine control of the metal Ru nanoparticle size on the TiO₂ support was possible via a controlled nanocluster growth under irradiation, while the nanoparticles revealed a good resistance to thermal sintering.

1. Introduction

The crucial role that is played by heterogeneous catalysis in industrial chemical processes usually requires the engineering of tailored supported metal nanoparticles as catalysts, since the catalytic activity and the reaction rates can be strongly influenced by both the shape and the size of supported metallic nanoparticles [1,2,3]. A fine control over both the size and the size distribution of supported metal nanoparticles is necessary for increasing the metal dispersion for a given metal loading and improving the performances of catalytic reactions, as well as for investigating the mechanisms taking place in size–dependent catalytic reactions thanks to the establishment of more detailed structure-properties relationship studies [4,5,6].

The solar light photon-assisted synthesis method is considered as a sustainable and elegant preparation method for synthesising well-defined and small-size supported metal nanoparticles, and for providing a control over their size, distribution, and oxidation state [7]. Provided that the support carrier is a semi-conductor material, the underlying strategy relies on the use of the redox photo-activity of the semi-conductor support for promoting under appropriate light electrons from the valence to the conduction band of the semi-conductor, subsequently available for reducing metal ions adsorbed at the support surface. The low-temperature and one-step photon-assisted synthesis method differs from the most widely used preparation methods, for which a final post-deposition reduction/activation/ step is required to form the supported metallic particles after the metal precursor has been introduced onto the support carrier, and usually consisting either in a thermal treatment with the use of external hydrogen, or in a chemical reduction in solution with external reducing agent [8].

Although the influence of the synthesis parameters on the deposition rate and on the metallic nanoparticle shape and it was investigated in some early studies [9], the photodeposition synthesis method has been mainly used for preparing catalytic and photocatalytic materials consisting in monometallic and more scarcely bimetallic particles being dispersed on a medium or high surface area support. TiO₂ was the main semi-conductor support used, although other materials, such as BiVO₄ or GaN:ZnO, were also investigated, while Au [10,11], Pd [12], Ag [13,14], Pt [9,15], Rh [16], Cu [17,18], and Pt-Ag [19] were the most studied metals, using usually acetylacetonates, chlorides, nitrates, and chloric acids as metallic precursors.

The aim of this paper is to report on the use of a photodeposition method as an alternative method to classical wet impregnation, followed by a final reduction in temperature under hydrogen for preparing Ru/TiO₂ catalysts. Indeed, Ru/TiO₂ are promising heterogeneous catalysts in different key-reactions taking place in the catalytic conversion of biomass towards biochemicals, including e.g., biofuels or fuel additives. Catalysts that were supported on TiO₂ were proved to be remarkably stable for biomass conversion reactions, while ruthenium is a metal of choice notably for hydrogenating biomass-derived molecules [20]. Till now, the synthesis of Ru nanoparticles at the surface of a support via a photodeposition method remained scarce, and was achieved using (NH₄)₃RuCl₆ or RuCl₃ as ruthenium salts, and TiO₂, CdS, CeO₂ and CuInS₂ quantum dots as host semiconductors under ultra-violet/vis or visible light irradiation [21,22,23,24].

Here, we show that a one-step photon-assisted synthesis method can be implemented under simulated solar light for preparing Ru/TiO₂ catalysts with a Ru content ranging from 0.5 to 5 wt.%, with a sharp, nanometer-size and finely tunable Ru particle size distribution.

2. Materials and Methods

2.1. Ru/TiO₂ Material Preparation

Aeroxide© P25 TiO₂ (Evonik, Essen, Germany) has been used as TiO₂ support for preparing Ru/TiO₂ catalysts under simulated solar light irradiation. Ruthenium (III) acetylacetonate (Ru(acac)₃, 97%, Sigma-Aldrich, Saint-Louis, MO, USA), and ruthenium (III) chloride hydrate (RuCl₃•xH₂O, min 40% Ru content, Sigma-Aldrich) were used as ruthenium metallic precursors. Dissolution of the Ru(acac)₃ precursor was achieved in distilled water under stirring at 50 °C for two days, whereas the RuCl₃ precursor was dissolved under stirring in 10 mL of methanol for 12 h, prior to the addition of 90 mL of distilled water to give a methanol:water ratio of 1:9 v/v. In each experiment, the TiO₂ support was dispersed under stirring in 100 mL of ruthenium solution in a beaker-type glass reactor at a 1 g/L concentration, with a precursor concentration depending on the targeted Ru content to be achieved in the final Ru/TiO₂ material. Prior to irradiation, the suspension was stirred in the dark for 2 h to ensure the establishment of the adsorption-desorption equilibrium. In the case of Ru(acac)₃, the pH value of the suspension was adjusted with NaOH to pH = 10, whereas for higher Ru loading (5%) using RuCl₃, the pH was adjusted with NaOH to pH = 8. The TiO₂ suspension was further exposed under stirring to a 500 W/m² solar light irradiation within an ATLAS Suntest XLS+ reaction chamber equipped with a Xenon arc lamp NXE 2201 (Atlas Material Testing Technology, Mount Prospect, IL, USA).

At each time interval, 1 mL of solution was sampled and filtrated through a 0.20 µm porosity filter (Aireka Scientific Co., Ltd., Hangzhou, China) to remove the titania powder, if any. The deposition was followed by UV-vis spectrophotometry using a Cary 100 Scan Varian spectrophotometer (Agilent Technologies, Santa Clara, CA, USA) monitoring the disappearance of the main absorption peak at λ = 272 nm and λ = 324 nm for Ru(acac)₃ and RuCl₃ precursors, respectively. After completion of the process, the catalysts were recovered by filtration and dried at 100 °C for 1 h.

2.2. Characterisations

The Ru content in the catalysts was determined by chemical analysis after a microwave-assisted acidic dissolution in aqua regia at 185 °C under autogenic pressure. Inductively coupled plasma optical emission spectroscopy (ICP-OES) was carried out on an Optima 7000 DV spectrometer (Perkin Elmer, Waltham, MA, USA) at the Analysis Platform of IPHC, Strasbourg, France.

The Ru nanoparticle size distribution of Ru/TiO₂ samples was determined by transmission electron microscopy (TEM) performed using a JEOL 2100F (JEOL Ltd., Tokyo, Japan) with a point resolution of 0.2 nm. The samples were sonically dispersed in an ethanol solution before a drop of the solution was deposited onto a copper grid covered by a holey carbon membrane for observation. The size distributions were calculated for each sample by averaging 300 particles from the TEM images using ImageJ software (National Institutes of Health, Bethesda, MD, USA).

X-Ray Photoelectron Spectroscopy (XPS) characterization was performed on a ThermoVGMultilabESCA3000 spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) that was equipped with an Al K_α anode (hλ = 1486.6 eV). The energy shift due to electrostatic charging was subtracted using the adventious sp² carbon C 1s band at 284.6 eV. The spectra were decomposed assuming several contributions, each of them having a Doniach–Sunjic shape [25] and a’ S-shaped’ Shirley type background [26]. Surface atomic ratios were derived using the appropriate experimental sensitivity factors [27].

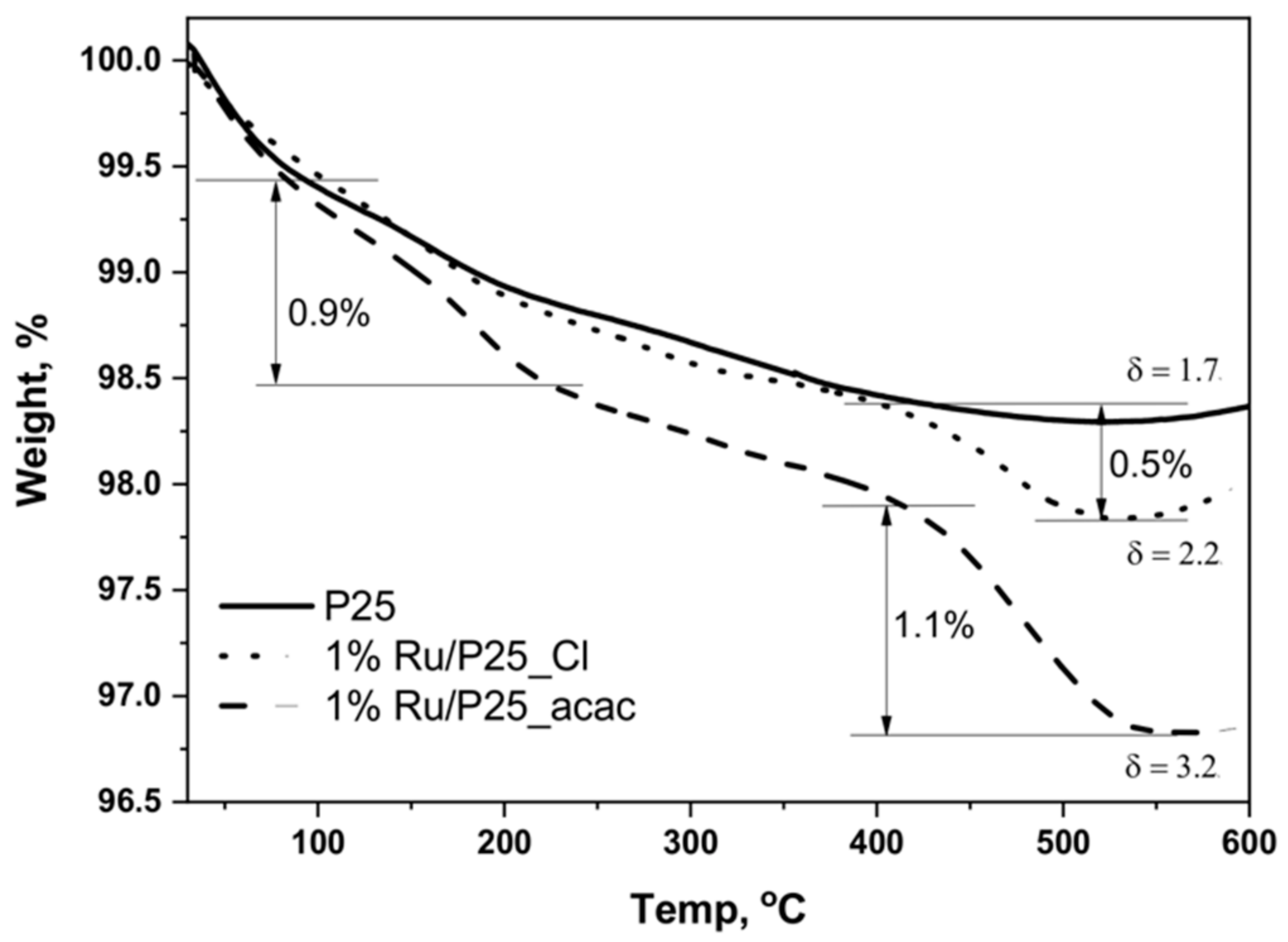

Thermogravimetric analysis (TGA) was carried out with a 20% (v/v) O₂/N₂ mixture at a flow rate of 40 mL/min at a heating rate of 10 °C/min from 25 °C to 600 °C using a Q 5000 thermoanalyzer from TA instrument (New Castle, DE, USA).

3. Results and Discussion

3.1. Influence of the Ru Metallic Precursor and of the Targeted Ru Content

Ru(acac)₃ and hydrated RuCl₃ are the most used Ru precursors allowing for the preparation of supported Ru catalysts on a wide variety of supports via wet or wetness impregnation with final thermal reduction under hydrogen, so that they both have been used as metallic precursors for preparing a series of ruthenium catalysts with a targeted nominal Ru content from 0.5 wt.% to 5 wt.%.

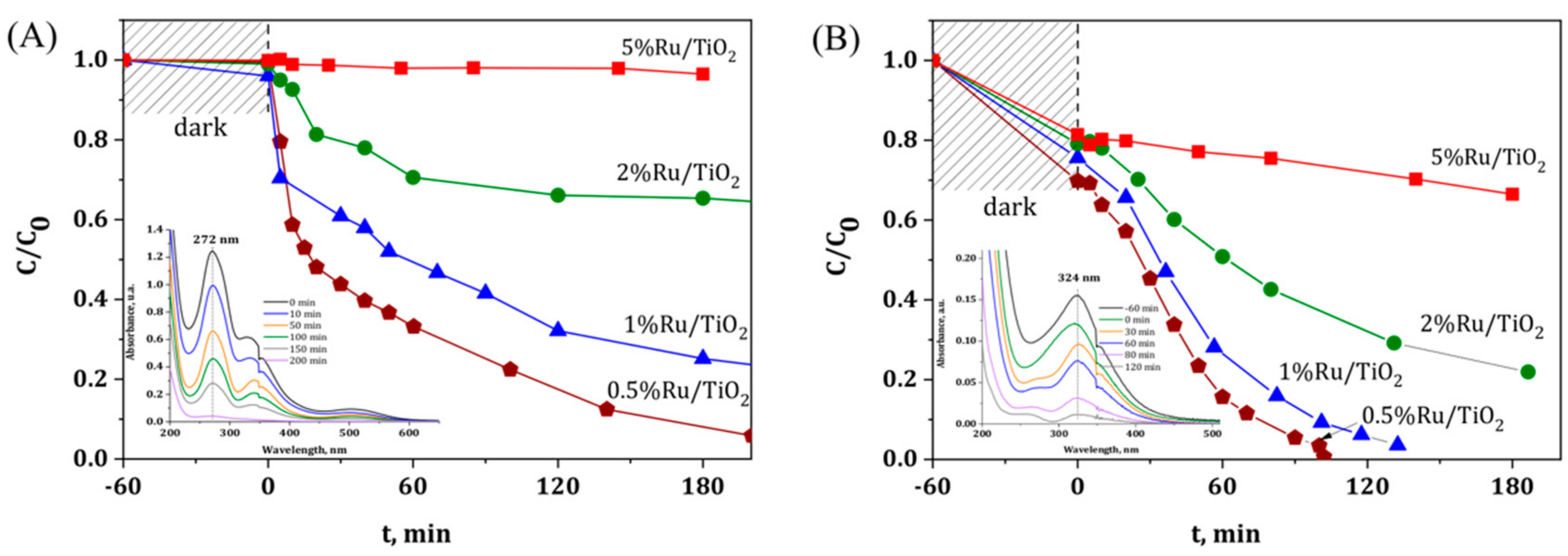

Figure 1 shows the disappearance with time under illumination of both Ru metallic precursors using TiO₂ P25 as semi-conductor host support. First, photolysis of the ruthenium precursors could be neglected under solar light in our experimental conditions, since no disappearance of the main absorption peaks that were assigned to both precursors was observed whatever the precursor used (not shown). The evolution with time of the relative concentration evidenced that both the Ru concentration and the Ru precursor nature are strongly influencing the kinetics of the photocatalytic degradation of the Ru(acac)₃ and of the RuCl₃ species at the surface of the irradiated TiO₂ support. Whatever the Ru content, a slower degradation was observed with the acetylacetonate as compared to the chloride precursor. Indeed, at a content of 0.5 wt.%, a reaction time greater than 200 min was needed for achieving the complete disappearance of the Ru precursor using acetylacetonate, while only 100 min was necessary while using the chloride precursor.

Table 1. Ru content in Ru/TiO₂ materials determined by inductively coupled plasma optical emission spectroscopy (ICP-OES).

Ruthenium Precursor, pH	Targeted Ru Content, wt.%	Ru Content, wt.% a
acetylacetonate	0.5	0.45
chloride, 4.4	0.5	0.46
chloride, 6.4	1	0.92
chloride, 8.0	5	4.9
chloride, 6.4	5	4.8

^a a maximum of about 10% relative difference was observed between the measured Ru content and the theoretical one derived from the UV-vis absorbance profile, demonstrating that the direct monitoring of the Ru precursor disappearance by UV-Vis spectrophotometry was a fast and suitable method for obtaining the Ru content in the catalysts.

shows the real metal content of selected Ru/TiO₂ catalysts after the photon-assisted synthesis, with close agreement being observed between the measured Ru content and the theoretical one derived from the UV-vis absorbance spectra evolution.

For both Ru precursors, increasing the Ru concentration led to increase the necessary reaction time, the effect being more pronounced using acetylacetonate. Indeed, targeting a Ru content of 2 wt.% led only to a photodeposition yield of 35%, where no photodeposition was observed for a Ru concentration of 5 wt.%. Even in the case of the chloride precursor, for which faster kinetics have been observed, the preparation of highly loaded Ru/TiO₂ catalyst with loadings that are higher than 2 wt.% could not be achieved within a reasonable time under irradiation.

3.2. Characterization of the Ru(0.5 wt.%)/TiO₂ Catalysts

TEM images with the derived histograms of the Ru nanoparticle size distribution for Ru/TiO₂ catalysts prepared with both Ru(acac)₃ and RuCl₃ metallic precursors with a Ru concentration of 0.5 wt.% are shown in Figure 2.

Whether the chloride or the acetylacetonate form of the Ru metallic precursor was used, the nanoparticles that were synthesized on the TiO₂ support were dispersed homogeneously and no Ru nanoparticle aggregates were observed. Although both precursors strongly differ in terms of chemical nature, small Ru nanoparticles were synthesized on the TiO₂ support with a similar sharp sub-nanometric particle size distribution centered on 0.6 nm in both cases. A slightly sharper nanoparticle size distribution was obtained using the chloride precursor as compared to that obtained with the acetylacetonate counterpart, with a Full Width at Half Maximum (FWHM) of 0.27 vs. 0.35.

XPS surface characterization and high resolution TEM analysis confirmed the metallic nature of the Ru nanoparticles that were synthesized on the TiO₂ support (Figure 3). Whatever the Ru precursor used, contributions attributed to both metallic Ru⁰ (484.1 eV) and Ru⁴⁺ (488.7 eV) species were observed in the Ru 3p_1/2 orbital XPS spectra of Ru(0.5 wt.%)/TiO₂ [28]. Within a more complex multi-contribution envelope resulting from the binding energy overlap between Ru 3d and C 1s XPS spectra, the Ru 3d spectra confirmed the presence of both Ru⁰ and Ru⁴⁺ species, with the presence of two Ru 3d_5/2-Ru 3d_3/2 orbital doublet contributions at 280.2 eV and 281.9 eV with a 4.1 eV spin orbit splitting, in addition to the contributions due to the adventious carbon [28].

It was noteworthy that both the ratio of atomic concentrations between Ru⁰ and Ru⁴⁺ (estimated at 70/30 ± 7 by combining both Ru 3d and Ru 3p spectra results) and the Ru/Ti surface atomic ratio calculated at ca. 0.02 were not influenced by the kind of precursor used. This confirmed that both Ru nanoparticle size distribution and the Ru oxidation state at the TiO₂ surface were not affected by the choice of the metallic precursor.

In addition, an interplane distance of 2.1 Å corresponding to the (101) atomic planes of metallic Ru was measured on TEM images [29]. The mean Ru nanoparticle size derived from TEM images being of 0.6 nm, the Ru nanoparticles that were supported on TiO₂ could be considered in a first approximation as being composed in average of only about 3–4 atomic layers. Considering the Ru⁰/Ru⁴⁺ surface atomic ratio, we propose that the Ru⁴⁺ species related to the presence of one monolayer resulting from a natural surface oxidation of the metallic Ru nanoparticle, as observed for many supported noble metals [30]. No presence of any residual chlorine was observed by XPS at the surface of TiO₂ when the chloride precursor was used (Cl 2p XPS spectra not shown).

The different behavior in terms of degradation kinetics observed on TiO₂ depending on the nature of the Ru metallic precursor used led to propose that the photon-assisted synthesis of Ru nanoparticles on TiO₂ occurred via two different mechanisms, as it was supported by a previous mechanistic study [31].

In the case of the RuCl₃ precursor, the photogenerated holes would not be involved in the mechanism proposed, which would only use the photogenerated electrons for obtaining the reduced metallic form of Cu, as the RuCl₃ precursor is present in aqueous solution as a mixture of Ru chloro-complexes [32,33,34]. By contrast, the mechanism that is proposed in the case of the acetylacetonate precursor involves both holes and electrons charge carriers in the oxidation and reduction steps, respectively, and is derived from the study of Naya et al. on the photon-assisted synthesis of Cu nanoparticles supported on BiVO₄ photocatalysts from Cu acetylacetonate [34] and schematized in Equations (1)–(4).

The Ru acetylacetonate adsorbed at the TiO₂ surface can be oxidized by OH° hydroxyl radicals formed via the oxidation of adsorbed water or of surface –OH groups by the photogenerated holes from the valence band, or directly by the holes. Although solar light was used as incident light, only its UV-A fraction activated the Aeroxide^© P25 TiO₂ support, and consequently generated the electron/hole pairs, due to the 3.2 eV band gap energy of the main anatase phase of the material.

$${\mathrm{TiO}}_2+\mathrm{Ru}{(\mathrm{acac})}_3\leftrightarrow \mathrm{Ru}{(\mathrm{acac})}_{3\mathrm{ad}}-{\mathrm{TiO}}_2$$

(1)

$${\mathrm{TiO}}_2+\mathrm{h}\mathsf{\nu }\to {\mathrm{e}}^{-}+{\mathrm{h}}^{+}\left(\mathrm{UVA} \mathrm{fraction} \mathrm{of} \mathrm{the} \mathrm{solar} \mathrm{light}\right)$$

(2)

$$\mathrm{Ru}{(\mathrm{acac})}_{3\mathrm{ad}}+3{\mathrm{h}}^{+}\to {\mathrm{Ru}}^{3+}+{(\mathrm{acac})}_{\mathrm{ox}}+{\mathrm{H}}^{+}$$

(3)

$${\mathrm{Ru}}^{3+}+3{\mathrm{e}}^{-}\to {\mathrm{Ru}}^0$$

(4)

The ligand oxidation would generate adsorbed Ru³⁺ ions that can further be reduced into metallic Ru by the photogenerated electrons from the conduction band. As far as Cu was concerned, the direct reduction of Cu(acac)₂ into metallic Cu was reported to be strongly unfavored as compared to that of Cu²⁺ [35]. Total Organic Carbon measurements showed that the acetylacetonate ligand was mineralized into CO₂ with a 35% yield at the end of the photo-assisted synthesis process in the case of a 0.5 wt.% Ru content. It was proposed that the acetylacetonate ligand oxidation might follow a usual oxidation pathway for carboned molecules, with consecutive oxidation steps leading to form first partially-oxidized carboned molecules and further short-chain acids, and progressively allowing the complete substrate mineralization into CO₂ to be achieved. The presence of small amounts of carbon-containing reaction intermediate species at the surface of the Ru/TiO₂ resulting from the ligand oxidation was confirmed by TGA analysis, with a higher weight loss that is attributed to the desorption and the combustion of those species when using acetylacetonate as compared to that observed on the material prepared with chloride (Figure 4).

However, when considering the presence at the TiO₂ surface of oxidative species in addition to the photogenerated electrons, we could not fully rule out that the Ru⁴⁺ surface monolayer observed was formed during the synthesis via the in situ oxidation of Ru⁰ by the photogenerated holes from the valence band or by hydroxyl radicals.

3.3. Influence of the Precursor Solution pH and Preparation of the Ru(5 wt.%)/TiO₂ Catalyst

Figure 5A shows the influence of the pH of the aqueous Ru precursor solution on the photodeposition kinetics of 0.5 wt.% Ru on TiO₂. It was worth noting that increasing the pH led to significantly enhancing the adsorption of the Ru precursor species on the TiO₂ support in the dark, while reducing strongly the time necessary for a complete precursor disappearance, and consequently for preparing the Ru(0.5 wt.%)/TiO₂ material. This behavior with increasing the pH of the solution has been attributed to the amphoteric nature of the TiO₂ support, for which the surface is negatively-charged for pH higher that the zero-charge point (i.e., ca. 6.25 for TiO₂-P25), and positively-charged for pH lower that the zero-charge point [36]. Thus, the TiO₂ surface is considered to be negatively-charged when the photodeposition was performed at pH = 8, whereas the surface charge increased gradually with decreasing the solution pH, so that the reaction was implemented on a zero charge surface at pH 6.4 and on a positively-charged surface at pH = 2.

In water, RuCl₃ species are very complex systems and co-exists in the form of various aqueous chloro-complexes, for which the thermodynamic equilibrium depends on parameters, like the pH, temperature, and the concentration [32]. The determination of Ru forms in solution remains however very challenging, due to the multiple degrees of polymerization of the Ru chloro complexes, as well as the co-existence of different oxidation states for Ru [37]. Considering the aqueous Ru chloro-complexes distribution diagrams with the chloride concentration evolution, we could propose to rule out the existence of negatively-charged Ru complexes like RuCl₆³⁻, RuCl₅(H₂O)²⁻ and RuCl₄(H₂O)₂⁻ in the TiO₂ suspension, and we assumed that the Ru species are most probably present as a mixture of RuCl₃(H₂O)₃, and of positively-charged RuCl₂(H₂O)₄⁺ and RuCl(H₂O)₅²⁺ species [33,34].

As a result, at low pH, the adsorption of Ru species on the positively charged TiO₂ surface was unfavored due to electrostatic repulsion, while by contrast the increase in the solution pH above the isoelectrical point strongly enhanced the adsorption of Ru species on the positively charged TiO₂ surface.

The strong influence of the pH on the adsorption behavior and consequently on the photodeposition kinetics opened the possibility of preparing Ru/TiO₂ catalysts with a high Ru metal loading of 5 wt.%, as shown in Figure 5B and in Table 1. At a higher Ru loading, a similar pattern was obtained, with a higher adsorption on the TiO₂ support at pH 8 as compared to that observed at pH 6.4, so that a reaction time greater than 200 min was needed for achieving the complete precursor disappearance at pH 6.4, while only 90 min was necessary at pH 8.

3.4. Characterization of the Ru(5 wt.%)/TiO₂ Catalyst

Figure 6 shows the TEM images and the derived histograms of the Ru nanoparticle size distribution for the Ru(5 wt.%)/TiO₂ catalyst prepared at pH = 8.0 and pH = 6.4. First, in both cases the supported nanoparticles were dispersed homogeneously and no Ru aggregates were observed. Small and sharp nanoparticle size distributions were obtained, centered on 0.8 nm (FWHM = 0.34 nm) and 1.0 nm (FWHM = 0.70 nm) at pH = 8,0 and pH = 6.4, respectively. The slightly smaller and sharper particle size distribution achieved at pH = 8.0 was attributed to the higher adsorption of the aqueous Ru chloro-complexes with the negatively-charged TiO₂ surface at this pH, which led to maintain a higher and more narrow dispersion at the support surface. When performing the reaction at pH 8, it is remarkable that the increase in the Ru content by an order of magnitude did not result neither in a strong increase in the average particle size, nor in its broadening.

The metallic nature of the supported nanoparticles of the Ru(5 wt.%)/TiO₂ catalyst was confirmed by the high resolution TEM image (insert of Figure 6A) that evidenced an interplane distance of 2.1 Å corresponding to the (101) atomic planes of metallic Ru, as well as by XPS surface characterization (Figure 7). The Ru 3p_1/2 and Ru 3d_5/2 − Ru 3d_3/2 orbital XPS spectra exhibited similar patterns than those that were recorded on the TiO₂ support with a low 0.5 wt.% of Ru. The Ru⁰/Ru⁴⁺ atomic concentration ratio was estimated at 80/20 ± 7. The XPS patterns differed only in terms of intensity of both Ru⁰ and Ru⁴⁺ doublets for the 3d orbitals in respect to the C1s main peak at 284.6 eV attributed to contamination carbon, and consequently in terms of Ru/Ti surface atomic ratio. The surface atomic ratio was calculated at 0.23 for 5 wt.% of Ru vs. 0.02 for 0.5 wt.% of Ru. The approximatively ten-fold higher ratio while increasing the Ru loading by an order of magnitude, characterized the maintain of a very high dispersion of small size Ru nanoparticles at the TiO₂ support surface confirmed the slight increase in mean particle size from 0.6 nm to 0.8 nm and the slight increase in FHWM from 0.27 nm to 0.34 nm.

This highlighted the interest of the synthesis method for preparing Ru/TiO₂ catalysts with well-calibrated Ru nanoparticles dispersed at the surface of the TiO₂ support. This contrasted with the Ru(5 wt.%)/TiO₂-P25 catalysts prepared via classical impregnation with final reduction under hydrogen at 200 °C, which exhibited a broader nanoparticle size distribution (FHWM = 1.86) centered on a larger average particle size, at 2.9 nm (Figure 8).

3.5. Fine Control of the Ru Particle Size Distribution

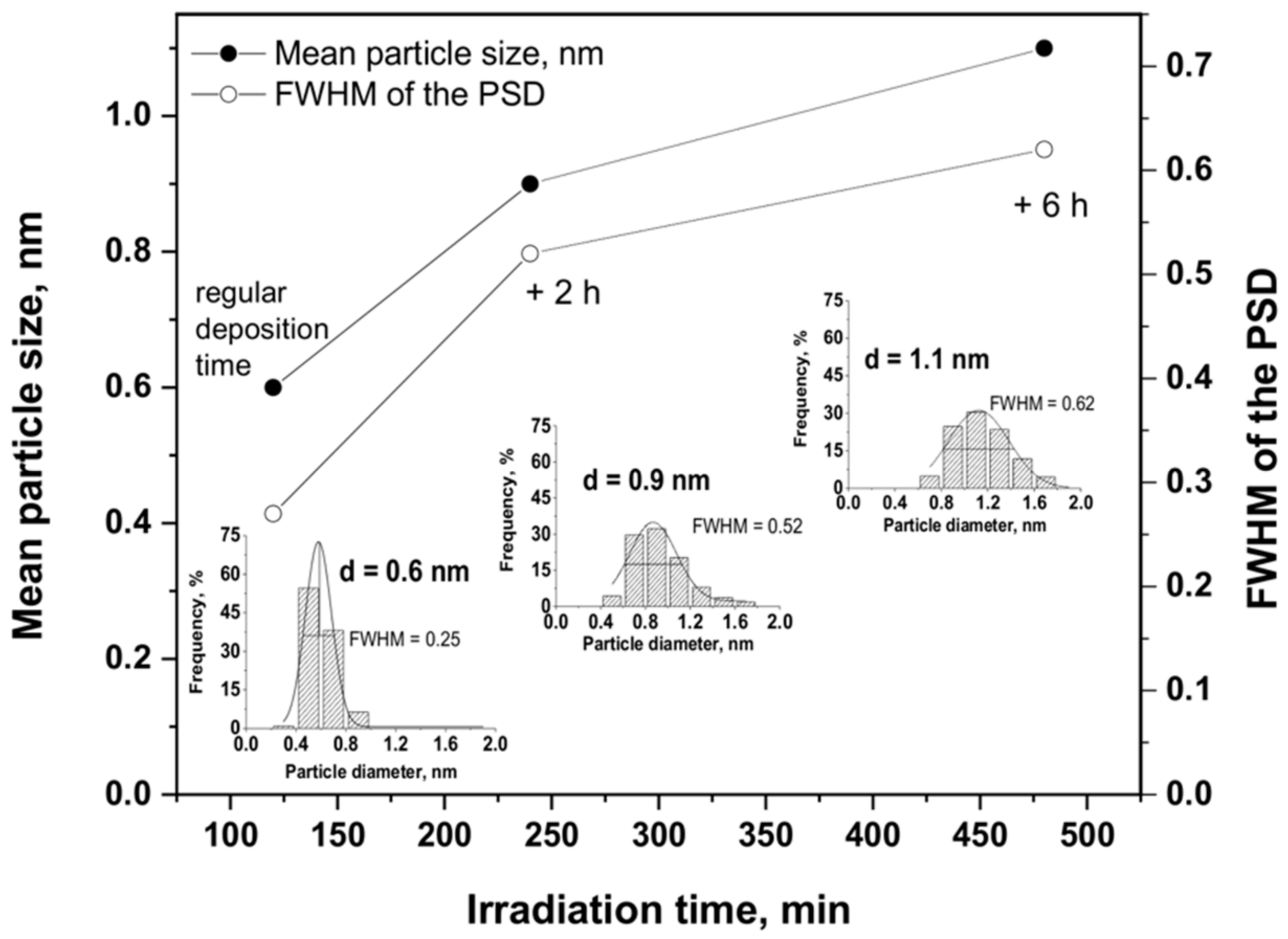

It has been further demonstrated that a fine monitoring of the metal Ru particle size on the TiO₂ support was possible via a controlled growth of the Ru nanoclusters under irradiation, which was achieved by extending the duration of the irradiation after the full conversion of the Ru precursor salt was achieved. Indeed, Figure 9 shows that the mean Ru particle size progressively and slightly increased from 0.6 nm to 0.9 nm and further to 1.1 nm, when 2 h and 6 h of supplementary irradiation time was provided to the system, respectively. Simultaneously, the FWHM values slightly increased from 0.25 nm to 0.52 nm and further to 0.62 nm, evidencing a slight broadening of the particle size distribution. Whatever the irradiation time, the nanoparticles remained homogeneously dispersed on the support with a small mean particle size and without the formation of large Ru nanoparticle aggregates. This highlighted the possibility to provide on-demand Ru/TiO₂ catalysts with a monomodal particle size distribution and a well-calibrated mean particle size for studying and optimizing the reactivity of heterogeneous catalysts in different size-dependent or structure-sensitive reactions [5,6].

3.6. Influence of Thermal Reduction

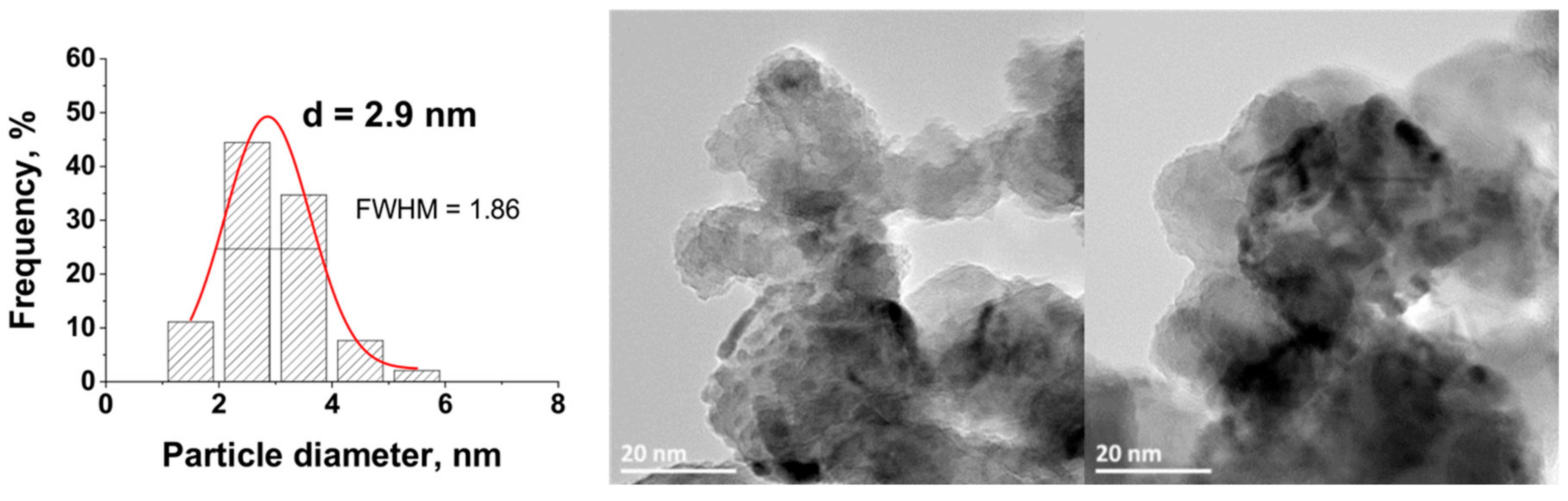

The stability of the Ru(5 wt.%)/TiO₂ catalyst has been evaluated by submitting the as-prepared catalysts to further reduction under hydrogen at 200 °C for 1 h. Those conditions are classical conditions for getting metallic Ru nanoparticles on supports such as e.g., titania, activated carbon, alumina, or zirconia by classical incipient wetness or wet impregnation with acetylacetonate or chloride precursors [28,36,38]. In addition, many reactions that are involved in the catalytic conversion of biomass-derived molecules on Ru catalysts are also implemented at temperatures lower than 200 °C [20], so that 200 °C remains an appropriate temperature for evaluating the thermal stability of the catalysts. Figure 10 shows the TEM images with the derived histograms of the Ru nanoparticle size distribution for the treated Ru/TiO₂-P25 catalyst.

It has been evidenced that the Ru(5 wt.%)/TiO₂ catalyst displayed a good resistance to nanoparticle sintering and growth. Indeed, the mean Ru particle size slightly increased from 0.8 nm to 1.7 nm, with a slight broadening of the distribution from 0.27 nm to 0.87 nm in terms of FWHM values. The nanoparticles remained homogeneously dispersed on the support with a small mean particle size still far lower and a particle size distribution still far sharper to those that were obtained on the Ru(5 wt.%)/TiO₂ catalyst prepared via classical impregnation with reduction in H₂ at 200 °C.

4. Conclusions

In this study, we proved the effectiveness of an elegant low-temperature one-step photon-assisted synthesis method taking advantage of the redox photoactivity of the TiO₂ semi-conductor support under solar light, for preparing highly dispersed TiO₂ supported metallic Ru catalysts that are promising heterogeneous catalysts in different key-reactions that are involved in the catalytic biomass conversion into fuel additives, biofuels, or biochemicals. They exhibited an enhanced catalytic activity in the combined hydrogenation of levulinic acid into γ-valerolactone using formic acid as internal hydrogen source, as well as in the levulinic acid hydrogenation with external hydrogen, in comparison to that shown by the reference counterpart catalysts that were prepared by incipient wet impregnation [39]. This was possible thanks to the stabilization of well-dispersed, small, and uniform metal crystallites.

Far smaller Ru nanoparticles with sharper size distribution were synthesized when compared to the catalysts that were prepared via wet or incipient wetness impregnation with final thermal reduction in hydrogen. While XPS and TEM analyses evidenced the highly dispersed and metallic state of the Ru nanoparticles, we have demonstrated that by implementing a suitable photo-assisted synthesis protocol, the size distribution of the supported sub-nanometric size Ru nanoparticles was only very slightly influenced by the Ru content within a large 0.5–5 wt.% range. Further, a fine monitoring of the metal Ru nanoparticle size on the TiO₂ support was possible via a controlled growth of the Ru nanoclusters under irradiation. Those catalysts exhibited a good resistance to thermally activated nanoparticle sintering. This opens the possibility to prepare on-demand Ru/TiO₂ catalysts with a monomodal and well-calibrated particle size distribution for performing fundamental investigation on the reactivity of heterogeneous catalysts in different size-dependent or structure-sensitive reactions.
