Article

The Synthesis Process and Thermal Stability of V2C MXene

1
School of Materials Science and Engineering, Henan Polytechnic University, Jiaozuo 454000, Henan, China
2
Henan International Joint Research Laboratory for High-Performance Light Metallic Materials and Numerical Simulations, Henan Polytechnic University, Jiaozuo 454000, Henan, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(11), 2112; https://doi.org/10.3390/ma11112112
Submission received: 16 September 2018 / Revised: 14 October 2018 / Accepted: 18 October 2018 / Published: 27 October 2018
(This article belongs to the Special Issue MAX Phases and MXenes: Synthesis and Applications)

Abstract

:
The effect of etching solution on the synthesis process of two-dimensional vanadium carbide (V2C MXene) was researched. Three etching solutions were used to etch ternary carbide V2AlC at 90 °C. The three solutions were: lithium fluoride + hydrochloric acid (LiF + HCl), sodium fluoride + hydrochloric acid (LiF + HCl), and potassium fluoride + hydrochloric acid (KF + HCl). It was found that only NaF + HCl solution was effective for synthesizing highly pure V2C MXene. The existence of sodium (Na+) and chloridion (Cl) in etching solution was essential for the synthesis. The thermal stability of the as-prepared V2C MXene in argon or air was studied. From thermogravimetry and differential thermal analysis, V2C MXene was found to be stable in argon atmosphere at a temperature of up to 375 °C. As the temperature increased, V2C MXene was gradually oxidized to form nanoparticles composed of vanadium trioxide (V2O3) and a part of V2C MXene was broken and transformed to vanadium carbide (V8C7) at 1000 °C. In air atmosphere, V2C MXene was stable at 150 °C. At 1000 °C, V2C MXene was oxidized to form vanadium pentoxide (V2O5).

Graphical Abstract

1. Introduction

In 2011, a novel two-dimensional (2D) transition metal carbide, Ti3C2, was synthesized by removing the Al layer from titanium aluminum carbide (Ti3AlC2) in hydrofluoric acid (HF) [1]. The precursor, Ti3AlC2, is a member of MAX phases, which is a family of ternary carbide or nitride with the formula Mn+1AXn, where M is a transition metal, A is the main-group element, and X is either or both C and N. Inspired by the synthesis of Ti3C2, similar 2D materials, such as Ti2C [2], Mo2C [3], Nb2C, and V2C [4], were synthesized. These 2D materials are made by removing the A element from MAX phases and have a similar structure to graphene, and are thus named MXenes. Because MXenes are made in aqueous solution of F, due to the high surface energy, the surface of MXenes are always terminated with F/OH/O groups [5,6,7]. Tx was used to denote the surface terminated functional groups. Thus, the chemical formula of Ti3C2 can be changed to Ti3C2Tx, and that of V2C can be changed to V2CTx.
MXenes havemany important applications in many fields, such as in the anode of a lithium-ion battery (LIB) [4,8,9,10,11] and the catalyst for the hydrogen evolution reaction (HER) [3,12,13]. Recently, based on theoretical calculation [14], V2C MXene was found to have a better performance as an anode of LIB than many other MXenes. Additionally, many applications of V2C MXene have been reported. V2C MXene can be used as the positive electrode of sodium ion capacitors, showing good results for sodium ion capacitors [15]. V2C MXene was reported to be used to capture CO2 in the interlayer space [16]. Furthermore, it was also found that V2C MXene decorated with metals displays extremely high catalytic activity for the hydrogen evolution reaction (HER), which provides a new possibility for cost-effective alternatives to the noble metal Pt [6].
Although V2C MXene theoretically has a much better performance than other MXenes, highly pure V2C MXene is difficult to be made. This is because the formation energy of V2C MXene is lower than that of other MXenes [17]. The common method employed to make MXenes has been to etch MAX phases precursor in HF solution at room temperature [1,5,18]. However, V2C MXene made by this method has been shown to contain plenty of vanadium aluminum carbide (V2AlC) precursor [4,15,19,20].
In 2017, we found a new method, sodium fluoride/hydrochloric acid (NaF + HCl) etching at 90 °C, to synthesize V2C MXene. By that method, highly pure V2C MXene with good Li storage properties was synthesized [21]. This work was inspired by a report on synthesizing Ti3C2 MXene by lithium fluoride/hydrochloric acid (LiF + HCl) etching [22]. Thus, a question was proposed. Why is NaF+HCl rather than LiF+HCl a suitable etchant? If NaF is replaced by LiF or other fluorides, can V2C be synthesized? One of the purposes of this paper is to answer this question. Three fluorides were used to make etching solutions with HCl for V2C MXene synthesis. The effects of these solutions on the etching process were clarified.
Because of the low formation energy, V2C MXene is difficult to synthesize. For the same reason, V2C MXene is highly unstable. Li et al., studied the thermal stability of Ti3C2 in oxygen and argon [23]. Zhou et al., studied the structural stability of Zr3C2 and Ti3C2 at elevated temperatures. Compared to Ti-based MXene, Zr3C2 exhibits relatively better high-temperature stability [24]. As the authors know, there is no report on the thermal stability of V2C MXene. Therefore, another purpose of this paper is to study the thermal stability of V2C MXene by thermal analysis.

2. Experimental

2.1. Syntheses of V2C MXene

V2C MXene was produced by immersing V2AlC powders in etching solution. The V2AlC powders were synthesized by the molten salt method [25] from vanadium powders (V, 99.6 wt.%, 325 mesh, Xingrongyuan Company, Beijing, China), aluminum powders (Al, 99.6 wt.%, 200 mesh, Xingrongyuan Company, Beijing, China), and graphite powders (C, 99.0 wt.%, 200 mesh, Jingchunshenghua Company, Shanghai, China). V, Al, and C powders were weighed according to the molar ratio of 2:1.2:1. Then, sodium chloride (NaCl) powders (99.5 wt.%, Yongda Company, Tianjin, China) were weighed according to the mass ratio of (2V/1.2Al/C): NaCl = 1:1. All powders were mixed by a ball mill machine for 12 h. Then, the mixtures of 2V/1.2Al/C and NaCl were placed in an alumina crucible and put in a tube furnace. The samples were annealed in flowing Ar atmosphere (99%) at 1400 °C for 2 h. The obtained sample was crushed and sieved through a 500-mesh sieve to yield powders.
The etching solution was made by mixing fluoride with hydrochloric acid (HCl, 6 mol/L, Shuangshuang Chemical Company, Yantai, China). The fluoride was NaF (≥98 wt.%, Sinopharm Chemical Reagent Company, Beijing, China), LiF (≥98.5 wt.%, Guangfu Fine Chemical Research Institute, Tianjin, China), or KF (≥99 wt.%, Chemical Reagent Factory, Luoyang, China). The fluoride (2.00 g NaF, 1.24 g LiF or 4.48 g KF·2H2O) was ultrasonic mixed with 40 mL HCl and 40 mL distilled water for 15 min, respectively. The mass difference of fluoride was used to obtain etching solution with the same molar concentration (0.6 mol/L). After that, 1.44 g V2AlC powders were immersed in the solutions, and the solutions were then kept for 72 h at 90 °C with magnetic stirring. Thereafter, V2C MXene powders were centrifugally separated from the etching solutions, and washed with deionized water and ethanol repeatedly to remove possible absorbed ions and remaining precursors. Before characterization, the obtained powders were dried in vacuum at 80 °C for 24 h.
The abbreviations and the corresponding full names of chemical substances that appear in this paper are listed in Table 1.

2.2. Characterization

X-ray diffraction patterns of sample powders were obtained with an X-ray diffractometer (XRD; Rigaku, Samart-lab, Tokyo, Japan) with Cu Kα radiation, λ = 1.5406 Å. A field emission scanning electron microscope (SEM; Merlin Compact, Carl Zeiss NTS GmbH, Jena, Germany) equipped with an energy disperse spectroscope (EDS; X-MaxN, Oxford, UK) and a transmission electron microscope (TEM; JEOLJEM-2010, Tokyo, Japan) with an accelerating voltage of 200 kV were used to observe the microstructure morphology and element distribution of samples. Raman spectrum was recorded with a confocal spectrometer (Horiba JobinYvon, LabRAM HR800, Paris, France), using the 514.5 nm excitation of the argon laser at room temperature. The Raman spectral resolution was <0.35 cm−1.
The thermal stability of the sample was analyzed by a thermal analyzer (STA449C, Netzsch, Selb, Germany) with α-Al2O3 pans under argon/air flow with a heating rate of 5 °C/min from room temperature (RT) to 1000 °C. The thermogravimetric (TG) curve and differential thermal analysis (DTA) curve were obtained by this analysis.

3. Results and Discussion

3.1. Synthesis Process Analysis

The XRD patterns of V2AlC samples before and after the etching in different solutions are shown in Figure 1.
In Figure 1, after V2AlC powders are etched by LiF + HCl for 72 h, the peaks of V2AlC still exist and very strong diffraction peaks of LiF appear. A weak peak appears at 2θ ≈ 9°, which belongs to newly formed V2C MXene. However, the main diffraction peaks still belong to V2AlC and LiF. Thus, LiF + HCl etching cannot make highly pure V2C MXene. After etching in NaF + HCl solution, the diffraction peaks of V2AlC completely disappear and a strong peak at 8.03° appears, corresponding to the (002) plane of V2C MXene. This result indicates that Al was selectively etched off from V2AlC and most V2AlC had already been transformed to V2C MXene. The c lattice parameter (c-LP) of V2C calculated from the 2θ is 22.0 Å. The c-LP of V2C MXene made by HF etching at RT was 19.8 Å [15]. Compared with that V2C MXene, the V2C made by this method has obviously larger c-LP and a higher purity. Thus, highly pure V2C MXene can be made by NaF + HCl etching. However, after etching in KF + HCl solution, there were only the diffraction peaks of V2AlC in the product; in other words, V2AlC cannot be exfoliated in KF + HCl solution at 90 °C for 72 h.
From the above results, V2AlC can only be effectively exfoliated in NaF + HCl solution. In the three etching solutions, the type and concentration of anions (F and Cl) are the same and the concentration of cations is also the same. The only difference is the type of cation. Therefore, the type of cation is an important factor that affects the synthesis of V2C MXene. For the radius of the three cations, K+ > Na+ > Li+. However, in aqueous etching solution, the cations are hydrated. For the radius of hydrated cations, [Li(H2O)x]+ > [Na(H2O)y]+ > [K(H2O)z]+ [26]. Thus, [Li(H2O)x]+, among the three hydrated cations, should have the largest ability to exfoliate V2C MXene. However, LiF is hardly soluble in water, so the concentration of [Li(H2O)x]+ is the smallest, which can be confirmed by the LiF peaks in the XRD of Figure 1. Thus, LiF + HCl can be used to exfoliate V2AlC; however, the exfoliation is not thorough. For [Na(H2O)y]+, the radius is larger than that of [K(H2O)z]+ and the concentration is much larger than that of [Li(H2O)x]+. Therefore, [Na(H2O)y]+ can be used to thoroughly exfoliate V2AlC, and NaF + HCl is the best etching solution for making V2C MXene.
Initially, MXenes (Ti3C2, Ti2C, etc.) were synthesized in HF solution [1,27]. Thus, H+ and F are considered to be essential for the synthesis of MXene. In order to reduce the toxicity and causticity of HF, fluoride salt (LiF/NaF/KF, etc.) + HCl was used to replace HF [21,28]. However, in this research, it is found that, for the V2C synthesis, NaF + HCl not only reduces the toxicity of HF, but also increases the exfoliating ability by providing Na+. Besides Na+, compared with HF, NaF + HCl also provides Cl. Does the existence of Cl affect the synthesis? In order to investigate the influence of Cl, we conducted the following experiment: 1.44 g V2AlC powders were soaked in NaF + HF solution without Cl. This NaF + HF solution was composed of 1 mL HF (48 mol/L, Aladdin Co., Shanghai, China), 99 mL distilled water, and 0.50 g NaF. The F concentration was 0.6 mol/L, consistent with the NaF + HCl solution (0.6 mol/L). As shown in the top pattern of Figure 1, the main composition of the etched product in NaF + HF was still V2AlC. Thus, as is the same as the effect of Na+, H+, and F, the existence of Cl in etching solution is essential for the synthesis of highly pure V2C MXene.
At this point, we do not clearly know the chemical reason why Cl is required in the etching. A possible reason is that the concentration of Na+ is important for the exfoliation of V2AlC. NaF has a better solubility in NaF + HCl solution than that in NaF + HF solution due to the concentration of F. Thus, NaF + HCl has a better exfoliation ability than NaF + HF.
Table 2 lists the 2θ (°) of the (002) peak of newly formed V2C MXene by different methods and the intensity ratio of V2C’s (002) peak to V2AlC’s (002) peak (IMXene/IMAX). The IMXene/IMAX for V2C MXene etched by NaF + HCl is 18.11, and this value is much higher than the value (1.00 or 0.22) of previously reported samples etched by HF at room temperature [4,19]. This means that the V2C MXenes made by this method were much purer than the samples reported in previous literature.
Figure 2a,b show the SEM images of V2AlC and etched samples. As shown in Figure 2a, V2AlC exhibits typical dense ceramic particles. As shown in Figure 2b, etched samples by NaF + HCl have a multi-layer stacked structure, and the inset has a typical 2D stack structure of MXene. Thus, exfoliation was achieved and quasi-2D MXene sheets were obtained by NaF + HCl etching. All the SEM results in Figure 2a,b agree well with the conclusions drawn from the XRD results in Figure 1.
In order to determine the element content on the sample surface, the sample was analyzed by EDS. The EDS results of V2AlC after being treated at 90 °C for 72 h in NaF and HCl solution indicated the presence of V, C, O, F, and small amounts of Al at an atomic ratio of 2.00:1.00:0.98:0.3:0.03, respectively. Assuming, conservatively, that the entirety of the Al signal originates from unreacted V2AlC, the amount of Al would be around 0.59 wt.% after treatment. This indicates that only a very small part of V2AlC had not been etched. This is more proof that highly pure V2C MXene was successfully prepared.
Figure 2c is the TEM image of a piece of fully exfoliated V2C sheet. From this image, the electron-transparent thin morphology and 2D structure of V2C MXene are shown. Moreover, the thin nanosheet is presented as flexible. Figure 2d is the Raman spectrum of V2C MXene. The bands of V2AlC at 158, 240, 257, and 361 cm−1 and weaker peaks near 413, 509, and 693 cm−1 [29,30] vanished and new bands appeared at 115, 138, 195, 262, 485, and 560 cm−1. According to the theoretical work of Champagne et al. [30], the peak at 195 cm−1 corresponds to the Eg model of V2CF2; the peak at 262 cm−1 corresponds to the Eg model of V2C; the peak at 485 cm−1 corresponds to the Eg model of V2C(OH)2; and the peak at 560 corresponds to the A1g model of V2CF2 and V2C(OH)2. The Eg model is due to the in-plane vibration of V atoms and the A1g model is due to the out-of-plane vibration of V atoms. The two peaks at 115 and 138 cm−1 cannot currently be explained. Champagne et al. [30] reported similar results where, in the spectrum of V2C MXene, sharp peaks of V2AlC vanished. However, only two unsharp peaks at ~260 and ~410 cm−1 appeared in the spectrum. Thus, the spectrum in Figure 2d has more peaks that fit the theoretical prediction in [30]. The difference should be because the V2C MXene samples were made by different methods (NaF + HCl high temperature etching in this paper and HF room temperature etching in [30]) and the samples had different terminations and impurities.

3.2. Thermal Stability Analysis

The TG curves and DTA curves of as-prepared V2C MXene etched by NaF + HCl are shown in Figure 3a,b. In order to know the phase and morphology change at a high temperature, V2C MXene samples were heat treated at different temperatures in Ar or air atmosphere. The XRD patterns of the sample before and after heat treatment are shown in Figure 3c,d. SEM micrographs are shown in Figure 4. Based on these results, the phase change of V2C MXene from room temperature (RT) to 1000 °C is discussed.

(1) Thermal Stability in Ar

In Ar atmosphere, the TG curve of V2C MXene in Figure 3a is divided into two stages. The first stage is 5.52% weight loss from RT to 375 °C. Most of the weight loss occurred in the temperature range of 70–120 °C, which is due to the loss of physically adsorbed water. The DTA curve at this temperature range does not display obvious change. Additionally, the structure of MXene has not changed. The second stage is 5.48% weight loss from 375 °C to 900 °C, which is caused by the loss of OH/O/F terminated groups. The weight loss needs energy to break the bonds between OH/O/F and V2C crystals. Thus, the corresponding DTA curve is obviously endothermic. In this process, OH/O/F are released in the form of H2O/O2/HF. At high temperatures (>900 °C), almost all terminated groups have already been lost; therefore, the weight loss stops. At such a high temperature, V2C reacts with previously released oxygen to form oxides. Thus, there is a weak weight gain. According to this analysis, the heat process of V2C in Ar is mainly a weight loss process at a low temperature and a weak weight gain at a temperature >900 °C.
The conclusion drawn from Figure 3a can be supported by the XRD patterns in Figure 3c and the SEM micrographs in Figure 4. In Figure 3c, after heating at 375 °C in Ar, the sample’s main composition was still V2C MXene. The physically adsorbed water and some surface terminations were lost, and the interlayer distance of V2C MXene was reduced. As shown in Figure 3c, the 2θ angle of the (002) peak shifted from 9.172° to 10.35°, which means that the d space of the basal plane, including the thickness of the V2C layer and interlayer distance, was reduced from 0.963 nm to 0.854 nm. This reduction of the value was due to the reduction of the interlayer distance. After heat treatment at 1000 °C, some V2C was oxidized to form V2O3, and some V2C was transformed to V8C7.
From the SEM image in Figure 4a, 150 °C treatment did not change the 2D structure of V2C MXene. From Figure 4b,c, however, 1000 °C treatment obviously changed the 2D structure of V2C MXene. A large number of nanoparticles appeared and were distributed on the surface and in the interlayer space of the multilayered 2D structure. From EDS, the particles consisted of V and O elements, and the element ratio was 2.1:2.9, so it can be confirmed that these particles were V2O3. This result agrees with the XRD patterns in Figure 3c.
The derived material consisted of V2O3 nanoparticles distributed in the 2D structure. The vanadium oxide had a very high specific surface area. Vanadium oxide is used as a catalyst in many areas. If the composition and structure can be better controlled, the derived material can be applied as a catalyst with a high performance.

(2) Thermal Stability in Air

In air atmosphere, as shown in Figure 3b, the first stage of the TG curve shows a weak weight loss (RT to 150 °C) due to the loss of physically adsorbed water. As shown in Figure 3d, the XRD pattern of V2C does not display obvious change, except for the fact that the (002) peak shifts to a high angles direction.
With the temperature rising, the surface of V2C begins to be oxidized in air atmosphere. Therefore, there is a large exothermic peak at 332 °C in the DTA curve and a drastic weight gain in the TG curve (Figure 3b). According to the XRD pattern in Figure 3d, the oxidation product is V2O5 rather than V2O3, because there is enough oxygen in air atmosphere. After the exothermic peak at 332 °C, there is an endothermic peak at ~660 °C, which corresponds the melt of newly formed V2O5 (the melting point of pure V2O5 is 690 °C [31]). Therefore, there is an exothermic peak (332 °C) and an endothermic peak (660 °C) in the DTA curve of V2C.
According to the XRD and SEM results in Figure 3d and Figure 4d, the oxidation products of V2CTx in air at 1000 °C are a lot of V2O5 crystals in a rectangular block shape and a small amount of NaV6O15 [32].
The following reaction is proposed to describe the oxidation of V2CTx in air:
V2CTx + 3.5 O2 = V2O5 + CO2↑ + Tx

4. Conclusions

Based on the research in this paper, it is concluded that only NaF + HCl etching solution can be used to synthesize highly pure V2C MXene. Neither LiF + HCl nor KF + HCl can be used. The existence of Na+ and Cl in etching solution is essential for the synthesis of highly pure V2C. The chemical reason for this is related to the radius of hydrated cations and the solubility fluoride salts. From the radius of hydrated cations, Na+ > K+; from the solubility, NaF > LiF. Thus, Na+ has a better exfoliation ability than Li+ and K+. Additionally, NaF has a better solubility in NaF + HCl solution than in NaF + HF solution. Thus, NaF + HCl has a better exfoliation ability than NaF + HF. The suitable condition is etching in NaF + HCl solution at 90 °C for 72 h.
The synthesized V2C MXene was stable in Ar atmosphere below 375 °C; above this temperature, V2C was oxidized to form V2O3 nano-crystals, which were evenly distributed on 2D V2C sheets. In air, V2C maintained a stable 2D structure at 150 °C; above this temperature, V2C was oxidized and V2O5 was the final oxidized product.

Author Contributions

Conceptualization & Supervision: Q.H., L.W., and A.Z.; Methodology: M.W., B.W., and A.Z.; Analysis: B.W. and A.Z.; Writing and Editing: M.W., B.W., and A.Z.

Funding

This work was supported by National Natural Science Foundation of China (Grant numbers 51772077, 51472075), Natural Science Foundation of Henan Province (Grant numbers 182300410228, 182300410275), and Program for Innovative Research Team (in Science and Technology) at the University of Henan Province (19IRTSTHN027).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Naguib, M.; Kurtoglu, M.; Presser, V.; Lu, J.; Niu, J.; Min, H.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional nanocrystals produced by exfoliation of Ti3AlC2. Adv. Mater. 2011, 23, 4207. [Google Scholar] [CrossRef]
  2. Ying, G.; Dillon, A.D.; Fafarman, A.T.; Barsoum, M.W. Transparent, conductive solution processed spincast 2D Ti3AlC2. (MXene) films. Mate. Res. Lett. 2017, 5, 391–398. [Google Scholar] [CrossRef]
  3. Zhi, W.S.; Fredrickson, K.D.; Anasori, B.; Kibsgaard, J.; Strickler, A.L.; Lukatskaya, M.R.; Gogotsi, Y.; Jaramillo, T.F.; Vojvodic, A. Two-dimensional molybdenum carbide (MXene) as an efficient electrocatalyst for hydrogen evolution. ACS Energy Lett. 2016, 1, 589–594. [Google Scholar] [CrossRef]
  4. Naguib, M.; Halim, J.; Lu, J.; Cook, K.M.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. New two-dimensional niobium and vanadium carbides as promising materials for li-ion batteries. J. Am. Chem. Soc. 2013, 135, 15966–15969. [Google Scholar] [CrossRef] [PubMed]
  5. Zhang, X.; Xue, M.; Yang, X.; Wang, Z.; Luo, G.; Huang, Z.; Sui, X.; Li, C. Preparation and tribological properties of Ti3C2(OH)2 nanosheets as additives in base oil. Rsc. Adv. 2014, 5, 2762–2767. [Google Scholar] [CrossRef]
  6. Ling, C.; Li, S.; Ouyang, Y.; Chen, Q.; Wang, J. Transition metal-promoted V2CO2(MXenes): A new and highly active catalyst for hydrogen evolution reaction. Adv. Sci. 2016, 3, 1600180. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, Y.; Zhang, X.; Dong, S.; Ye, Z.; Wei, Y. Synthesis and tribological property of Ti3C2Tx nanosheets. J. Mater. Sci. 2017, 52, 2200–2209. [Google Scholar] [CrossRef]
  8. Wu, Y.; Nie, P.; Jiang, J.; Ding, B.; Dou, H.; Zhang, X. MoS2-Nanosheet- Decorated 2D titanium carbide (MXene) as high-performance anodes for sodium-ion batteries. Chem. Electro. Chem. 2017, 4, 1560–1565. [Google Scholar] [CrossRef]
  9. Li, X.; Qian, Y.; Liu, T.; Cao, F.; Zang, Z.; Sun, X.; Sun, S.; Niu, Q.; Wu, J. Enhanced lithium and electron diffusion of LiFePO4 cathode with two- dimensional Ti3C2 MXene nanosheets. J. Mater. Sci. 2018, 53, 1–13. [Google Scholar] [CrossRef]
  10. Wang, F.; Wang, Z.; Zhu, J.; Yang, H.; Chen, X.; Wang, L.; Yang, C. Facile synthesis SnO2 nanoparticle-modified Ti3C2 MXene nanocomposites for enhanced lithium storage application. J. Mater. Sci. 2016, 52, 1–10. [Google Scholar] [CrossRef]
  11. Sun, D.; Wang, M.; Li, Z.; Fan, G.; Fan, L.Z.; Zhou, A. Two-dimensional Ti3C2 as anode material for Li-ion batteries. Electrochem. Commun. 2014, 47, 80–83. [Google Scholar] [CrossRef]
  12. Ran, J.; Gao, G.; Li, F.T.; Ma, T.Y.; Du, A.; Qiao, S.Z. Ti3C2 MXene co-catalyst on metal sulfide photo-absorbers for enhanced visible-light photocatalytic hydrogen production. Nat. Commun. 2017, 8, 13907. [Google Scholar] [CrossRef] [PubMed]
  13. Guo, Z.; Zhou, J.; Zhu, L.; Sun, Z. MXene: A promising photocatalyst for water splitting. J. Mater. Chem. A 2016, 4, 11446–11452. [Google Scholar] [CrossRef]
  14. Sun, D.; Hu, Q.; Chen, J.; Zhang, X.; Wang, L.; Wu, Q.; Zhou, A. Structural Transformation of MXene (V2C, Cr2C, and Ta2C) with O Groups during Lithiation: A First-Principles Investigation. ACS Appl. Mater. Interfaces 2016, 8, 74–81. [Google Scholar] [CrossRef] [PubMed]
  15. Dall’Agnese, Y.; Taberna, P.L.; Gogotsi, Y.; Simon, P. Two-dimensional vanadium carbide (MXene) as positive electrode for sodium-ion capacitors. J. Phys. Chem. Lett. 2015, 6, 2305–2309. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, B.; Zhou, A.; Liu, F.; Cao, J.; Wang, L.; Hu, Q. Carbon dioxide adsorption of two-dimensioanl carbide MXenes. J. Adv. Ceram. 2018, 7, 237–245. [Google Scholar] [CrossRef]
  17. Sun, D.D.; Hu, Q.K.; Chen, J.F.; Zhou, A.G. First principles calculations of the relative stability, structure and electronic properties of two dimensional metal carbides and nitrides. Key Eng. Mater. 2014, 602–603, 527–531. [Google Scholar] [CrossRef]
  18. Yang, J.; Chen, B.; Song, H.; Tang, H.; Li, C. Synthesis, characterization, and tribological properties of two-dimensional Ti3C2. Cryst. Res. Technol. 2014, 49, 926–932. [Google Scholar] [CrossRef]
  19. Chen, J.; Chen, K.; Tong, D.; Huang, Y.; Zhang, J.; Xue, J.; Huang, Q.; Chen, T. CO2 and temperature dual responsive “Smart” MXene phases. Chem. Commun. 2015, 51, 314–317. [Google Scholar] [CrossRef] [PubMed]
  20. Zhou, J.; Gao, S.; Guo, Z.; Sun, Z. Ti-enhanced exfoliation of V2AlC into V2C MXene for lithium-ion battery anodes. Ceram. Int. 2017, 43, 11450–11454. [Google Scholar] [CrossRef]
  21. Liu, F.; Zhou, J.; Wang, S.; Wang, B.; Shen, C.; Wang, L.; Hu, Q.; Huang, Q.; Zhou, A. Preparation of high-purity V2C MXene and electrochemical properties as li-ion batteries. J. Electrochem. Soc. 2017, 164, A709–A713. [Google Scholar] [CrossRef]
  22. Anasori, B.; Lukatskaya, M.R.; Gogotsi, Y. 2D metal carbides and nitrides (MXenes) for energy storage. Nat. Rev. Mater. 2017, 2, 16098. [Google Scholar] [CrossRef]
  23. Li, Z.; Wang, L.; Sun, D.; Zhang, Y.; Liu, B.; Hu, Q.; Zhou, A. Synthesis and thermal stability of two-dimensional carbide MXene Ti3C2. Mater. Sci. Eng. B. 2015, 191, 33–40. [Google Scholar] [CrossRef]
  24. Zhou, J.; Zha, X.; Chen, F.Y.; Ye, Q.; Eklund, P.; Du, S.; Huang, Q. A Two-Dimensional Zirconium Carbide by Selective Etching of Al3C3 from Nanolaminated Zr3Al3C5. Angew. Chem. 2016, 55, 5008–5013. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, B.; Zhou, A.; Hu, Q.; Wang, L. Synthesis and oxidation resistance of V2AlC powders by molten salt method. Int. J. Appl. Ceram. Tec. 2017, 14, 873–879. [Google Scholar] [CrossRef]
  26. Duan, X.; Wu, C.; Xiang, S.; Zhou, W.; Yildirim, T.; Cui, Y.; Yang, Y.; Chen, B.; Qian, G. Novel microporous metal-organic framework exhibiting high acetylene and methane storage capacities. Inorg. Chem. 2015, 54, 4377–4381. [Google Scholar] [CrossRef] [PubMed]
  27. Naguib, M.; Mashtalir, O.; Carle, J.; Presser, V.; Lu, J.; Hultman, L.; Gogotsi, Y.; Barsoum, M.W. Two-dimensional transition metal carbides. ACS Nano. 2012, 6, 1322–1331. [Google Scholar] [CrossRef] [PubMed]
  28. Ghidiu, M.; Lukatskaya, M.R.; Zhao, M.Q.; Gogotsi, Y.; Barsoum, M.W. Conductive two-dimensional titanium carbide ‘clay’ with high volumetric capacitance. Nature 2014, 516, 78–81. [Google Scholar] [CrossRef] [PubMed]
  29. Spanier, J.E.; Gupta, S.; Amer, M.; Barsoum, M.W. Vibrational behavior of the Mn+1AXn phases from first-order raman scattering (M = Ti, V, Cr, A = Si, X = C, N). Phys. Rev. B 2005, 71, 012103. [Google Scholar] [CrossRef]
  30. Champagne, A.; Lu, S.; Ouisse, T.; Hackens, B.; Charlier, J.C. Electronic and vibrational properties of V2C-based MXenes: From experiments to first-principles modeling. Phys. Rev. B 2017, 97, 115439. [Google Scholar] [CrossRef]
  31. Wu, Y.P.; Ong, C.K.; Li, Z.W.; Chen, L.; Lin, G.Q.; Wang, S.J. Microstructural and high-frequency magnetic characteristics of W-type barium ferrites doped with V2O5. J. Appl. Phys. 2005, 97, 1294. [Google Scholar] [CrossRef]
  32. Zhang, H.; Wang, L.; Shen, C.; Qin, G.; Hu, Q.; Zhou, A. Synthesis of NaV6O15 nanorods via thermal oxidation of sodium-intercalated 2d V2CTx and their electrochemical properties as anode for lithium-ion batteries. Electrochim. Acta 2017, 248, 178–187. [Google Scholar] [CrossRef]
Figure 1. XRD patterns of V2AlC samples before and after the etching in different solutions.
Figure 1. XRD patterns of V2AlC samples before and after the etching in different solutions.
Materials 11 02112 g001

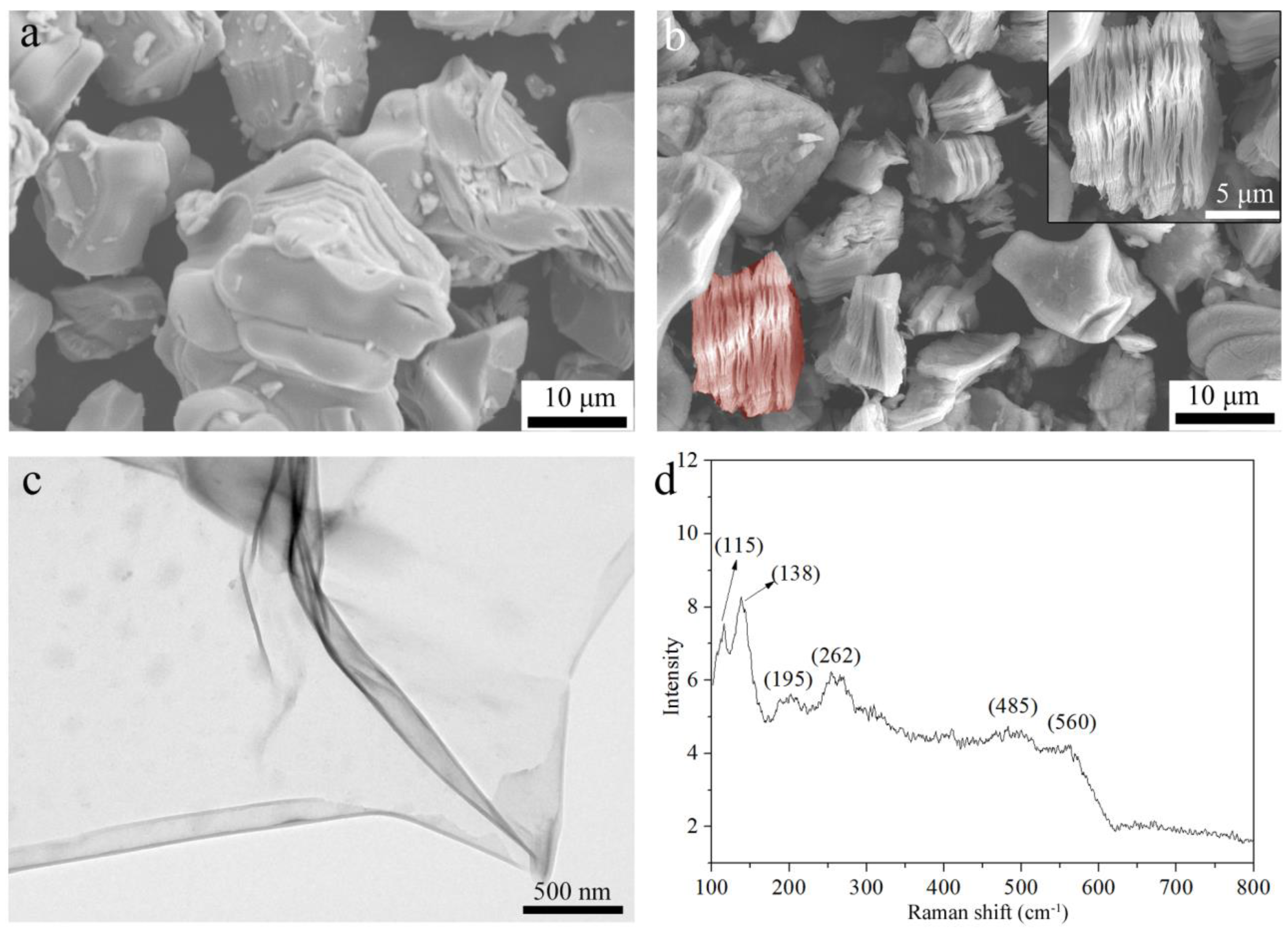

Figure 2. SEM (a,b) and TEM (c) images and Raman spectrum (d) of samples. (a) V2AlC, (bd) exfoliated product in NaF + HCl. The inset is an enlarged image of (b).
Figure 2. SEM (a,b) and TEM (c) images and Raman spectrum (d) of samples. (a) V2AlC, (bd) exfoliated product in NaF + HCl. The inset is an enlarged image of (b).
Materials 11 02112 g002
Figure 3. TG and DTA curves of V2C MXene in (a) Ar atmosphere and (b) air atmosphere. XRD patterns of V2C MXene samples after heat treatment in (c) Ar atmosphere and (d) air atmosphere.
Figure 3. TG and DTA curves of V2C MXene in (a) Ar atmosphere and (b) air atmosphere. XRD patterns of V2C MXene samples after heat treatment in (c) Ar atmosphere and (d) air atmosphere.
Materials 11 02112 g003

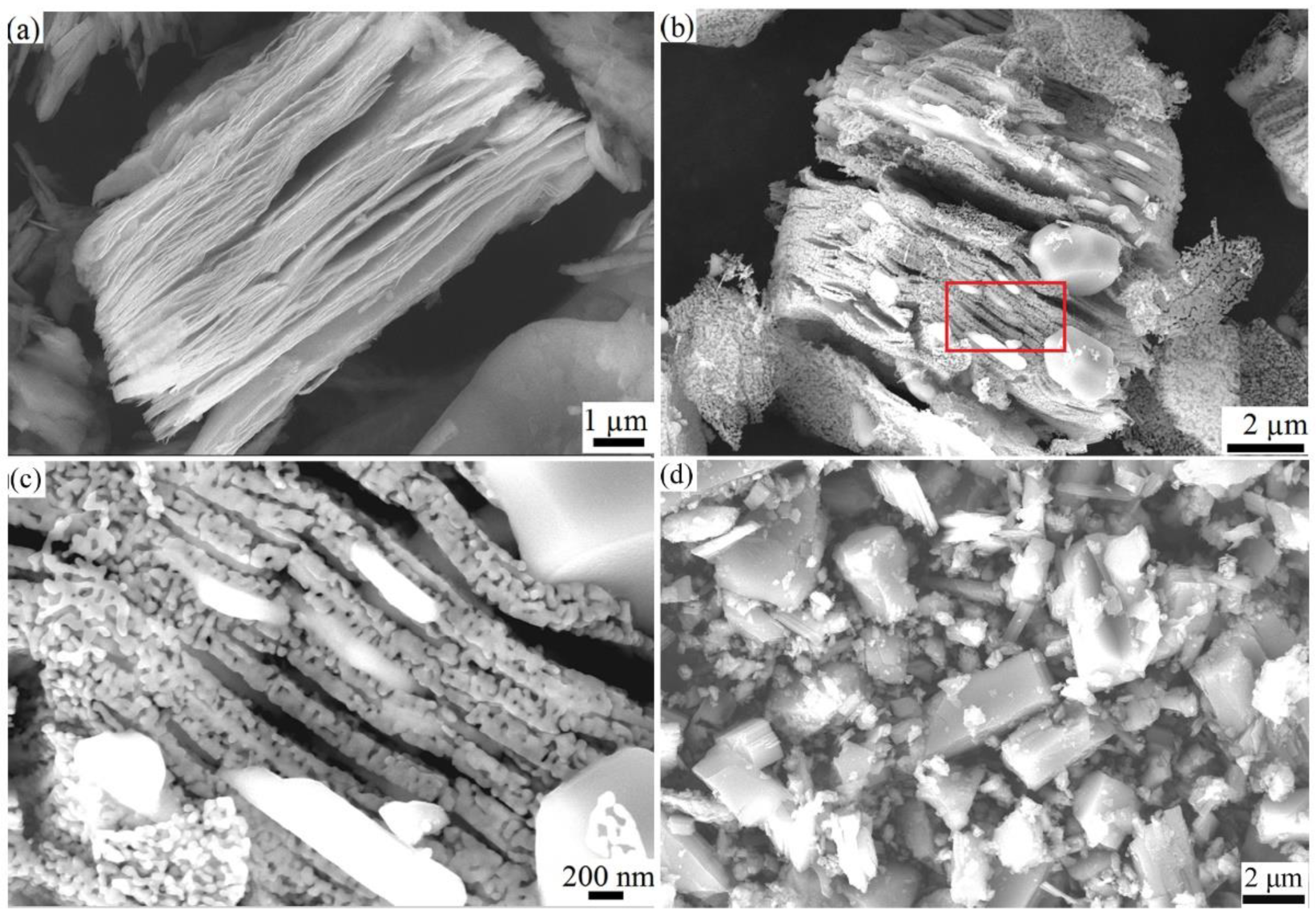

Figure 4. SEM images of V2C MXene after heat treatment at (a) 150 °C in Ar; (b) 1000 °C in Ar; (c) is a highly magnification image of area in the red rectangle of b; (d) at 1000 °C in air.
Figure 4. SEM images of V2C MXene after heat treatment at (a) 150 °C in Ar; (b) 1000 °C in Ar; (c) is a highly magnification image of area in the red rectangle of b; (d) at 1000 °C in air.
Materials 11 02112 g004
Table 1. Abbreviations and the corresponding full names of chemical substances.
Table 1. Abbreviations and the corresponding full names of chemical substances.
AbbreviationFull Name
V2C MXenetwo-dimensional vanadium carbide
V2AlCvanadium aluminum carbide
V2O3vanadium trioxide
V2O5vanadium pentoxide
V8C7vanadium carbide
NaV6O15sodium vanadium oxide
LiFlithium fluoride
NaFsodium fluoride
KFpotassium fluoride
HClhydrochloric acid
HFhydrofluoric acid
NaClsodium chloride
Table 2. 2θ (°) of the (002) peak of newly formed V2C by different methods and the intensity ratio of V2C’s (002) peak to V2AlC’s (002) peak (IMXene/IMAX).
Table 2. 2θ (°) of the (002) peak of newly formed V2C by different methods and the intensity ratio of V2C’s (002) peak to V2AlC’s (002) peak (IMXene/IMAX).
Etching Solution2θ (°) of (002) PeakIMXene/IMAX
LiF + HCl9.130.66
NaF + HCl8.0318.11
KF + HCl--
NaF + HF7.80.18
40% HF [19]7.331.00
50% HF [4]8.960.22
