Article

In Situ Vapor Polymerization of Poly(3,4-ethylenedioxythiophene) Coated SnO2-Fe2O3 Continuous Electrospun Nanotubes for Rapid Detection of Iodide Ions

by
Xiuru Xu
1,2,*,
Wei Wang
3,
Bolun Sun
1,
Xue Zhang
4,
Rui Zhao
1 and
Ce Wang
1,*
1
Alan G. MacDiarmid Institute, Jilin University, Changchun 130012, China
2
School of Advanced Materials, Peking University Shenzhen Graduate School, Shenzhen 518055, China
3
State Key Laboratory of Urban Water Resource and Environment (SKLU-WRE), School of Municipal and Environmental Engineering, Harbin Institute of Technology, Harbin 150090, China
4
College of Resources and Environment, Jilin Agriculture University, Changchun 130118, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(11), 2084; https://doi.org/10.3390/ma11112084
Submission received: 26 September 2018 / Revised: 20 October 2018 / Accepted: 21 October 2018 / Published: 24 October 2018
(This article belongs to the Special Issue Advanced Functional Nanomaterials and Their Applications)
Browse Figures
Versions Notes

Abstract

:
In this work poly(3,4-ethylenedioxythiophene) (PEDOT) coated SnO2-Fe2O3 continuous nanotubes with a uniform core–shell structure have been demonstrated for rapid sensitive detection of iodide ions. The SnO2-Fe2O3 nanotubes were firstly fabricated via an electrospinning technique and following calcination process. An in situ polymerization approach was then performed to coat a uniform PEDOT shell on the surface of as-prepared SnO2-Fe2O3 nanotubes by vapor phase polymerization, using Fe2O3 on the surface of nanotubes as an oxidant in an acidic condition. The resultant PEDOT@SnO2-Fe2O3 core-shell nanotubes exhibit a fast response time (~4 s) toward iodide ion detection and a linear current response ranging from 10 to 100 μM, with a detection limit of 1.5 μM and sensitivity of 70 μA/mM/cm2. The facile fabrication process and high sensing performance of this study can promote a wide range of potential applications in human health monitoring and biosensing systems.

Graphical Abstract

1. Introduction

Iodine is an important trace mineral and nutrient for humans, which is greatly needed for producing thyroid hormones in our body. Iodine deficiency is an important public health issue because it is a preventable cause of intellectual disability [1,2]. Therefore, rapid and sensitive detection of iodide ions is necessary for both diagnostic and pathological research. To date, a large variety of methods have been developed to detect iodide ions, including inductively coupled plasma mass spectrometry method (ICP-MS) [3], atomic absorption spectrometry method (AAS) [4], field-effect transition sensor (FET) [5], flow injection analysis (FIA) [6], etc. Among the developed approaches, voltammetric methods have gained great attention owing to their rapid, accurate, and high responses. The voltammetric method is strongly dependent on modification of traditional electrodes.
In the past few years, poly(3,4-ethylenedioxythiophene (PEDOT) has been reported to be utilized as a very stable and promising electrode material for iodide ion detection [7,8,9]. On the other hand, one-dimensional (1D)-based electrode modification nanomaterials for electrocatalytic oxidation such as nanotubes, nanorods, and nanofibers, have attracted considerable attention. Benefiting from their geometric advantages (light weight, high surface-to-volume ratio etc.), they can access aimed ions easily, provide excellent electron transport, efficient responses, and have sensitive properties [10,11,12,13]. However, fabrication of PEDOT composites with a 1D nanostructure is mainly realized by electrochemical polymerization with nanowire templates, such as ZnO nanowire arrays from a chemical vapor deposition or hydrothermal process [14,15,16], or with porous alumina [17] and a porous PC membrane [18]. Therefore, it is highly desirable to fabricate a 1D nanostructure PEDOT composite with a simple, low cost, and well-controlled approach.
Herein, we present the fabrication of continuous core-shell structured nanotubes composed of conducting polymers and metal oxides, which can be used as a good electrochemical iodide ion sensor. PEDOT coated SnO2-Fe2O3 core-shell nanotubes were prepared by combination of the electrospinning technique, calcination procedure, and an in situ vapor phase polymerization. In application to the determination of iodide ions, PEDOT coated SnO2-Fe2O3 core-shell nanotubes with modified glass carbon electrodes (GCE) exhibited high sensitivity with a low detection limit.

2. Results and Discussion

The detailed fabrication process of PEDOT coated SnO2-Fe2O3 core-shell nanotubes is schematically shown in Figure 1. Firstly, PVP poly(vinyl pyrrolidone) (PVP)/SnCl2/Fe(NO3)3 precursor nanofibers were obtained by an electrospinning technique. Resulting nanofibers were then calcined at 600 °C in air for 5 h to remove PVP and convert precursors into stable metal oxide crystals. As a result, heterojuncted SnO2-Fe2O3 nanotubes with a reddish color were obtained. An in situ vapor polymerization method was followed to fabricate PEDOT coated SnO2-Fe2O3 core-shell nanotubes. As-prepared SnO2-Fe2O3 nanotubes were exposed to HCl vapor and 3,4-ethoxylene-dioxy-thiophene (EDOT) vapor under ambient conditions (8.0 Torr at 60 °C, where 1.0 Torr ≈ 133 Pa). During this process a small amount of Fe2O3 nanocrystals were dissolved into Fe3+, which is also the oxidizing agent for polymerization of EDOT. Therefore, a uniform shell of PEDOT was grown and gradually polymerized on the surface of resulting SnO2-Fe2O3 nanotubes (Figure 1d). Compared to the liquid phase in situ polymerization reported in previous work [19,20], in situ vapor phase polymerization [21,22] enables the fabrication of materials with improved ordering, stability, and controllability at the nanoscale.
Morphologies of samples were characterized by SEM and TEM measurements. Figure 2a–c shows morphologies of as-prepared SnO2-Fe2O3 heterojuncted nanotubes. After calcination, Figure 2a–c clearly exhibit nanotube structures of as-prepared SnO2-Fe2O3 composed with small nanocrystals of SnO2 and Fe2O3, with a wall thickness of about 15–30 nm. The average diameter of SnO2-Fe2O3 nanotubes ranges from 150 to 200 nm and small nanocrystals from 5–15 nm. Figure 2d shows a high resolution transmission electron microscope (HRTEM) image of SnO2-Fe2O3 nanotubes, which exhibit the crystalline nature of the two metal oxides. Lattice fringe spacing of 0.34 nm is related to the (110) crystal plane of the rutile phase of SnO2 [23]. The other lattice fringe spacing of 0.27 nm is consistent with the (104) crystal plane of α-Fe2O3 [24]. From the selected area electron diffraction (SAED) pattern (inset of Figure 2d), the (110) and (211) crystal planes from the rutile phase of SnO2 and the (104) and (300) crystal planes from α-Fe2O3 are also found. Therefore, SnO2-Fe2O3 heterojuncted nanotubes were successfully synthesized in this work via a simple electrospinning technique combined with the calcination process. Formation of the nanotube structure of heterojuncted SnO2-Fe2O3 is likely due to phase separation among the precursors of tin (II) chloride, iron (III) nitrate, the PVP carrier, and the evaporation of solvents during the electrospinning process [25,26,27]. Subsequently, SnO2-Fe2O3 nanotubes were used for further preparation of PEDOT on their surface, through an in situ self-assembly vapor phase polymerization process. Morphology of the resulting PEDOT@SnO2-Fe2O3 core-shell nanotubes can be confirmed by TEM images in Figure 2e,f. The smooth, uniform PEDOT shell was polymerized on the surface of SnO2-Fe2O3 nanotubes with a sheath thickness of approximately 10–20 nm.
To further confirm the crystal structure of SnO2-Fe2O3 composite electrospun nanotubes, X-ray diffraction was characterized. As shown in Figure 3a, in agreement with the HRTEM and SAED results in Figure 2d, crystalline peaks at approximately 26.5°, 33.9°, 37.9°, 39.0°, 51.8°, 54.6°, 58.2°, 61.9°, 64.8°, 65.8°, 71.3° and 78.7° are ascribed to the (110), (101), (200), (111), (211), (220), (002), (310), (112), (301), (202) and (321) facet Bragg reflection of SnO2 respectively. All these diffraction peaks can be indexed as the tetragonal rutile structure of SnO2 (JCPDS 41-1445), further confirming the tetragonal rutile structure in samples [28,29]. Other diffraction peaks at approximately 24.1°, 33.1°, 35.6°, 40.8°, 49.4°, 54.0°, 57.5°, 57.9°, 62.4°, 64.0° and 71.8° are assigned to (012), (104), (110), (113), (024), (116), (112), (018), (214), (300) and (10(10)) of hematite (JCPDS 33-0664), respectively [30]. This indicates formation of the spinel α-Fe2O3 and successful fabrication of SnO2-Fe2O3 composite nanotubes in this work. After vapor polymerization the fourier transform infrared spectoscopy (FT-IR) spectrum of PEDOT@SnO2-Fe2O3 core-shell nanotubes shows sharp peaks at around 1517, 1474, 1358, and 1340 cm−1, which are ascribed to the stretching vibration of C=C and C–C in the thiophene ring. Bands at 1203 and 1092 cm−1 are assigned to the stretching vibration of the ethylenedioxy group (shown as Figure 3b) [12,31]. These results indicate formation of PEDOT on the surface of SnO2-Fe2O3 nanotubes.
Iodide ion sensing activities of as-prepared PEDOT@SnO2-Fe2O3 core-shell nanotubes were investigated. Figure 4a shows typical cyclic voltammogram (CV) curves of comparison between bare GCE, modified GCE with SnO2-Fe2O3 nanotubes, and modified GCE with PEDOT@SnO2-Fe2O3 core-shell nanotubes. It can obviously be noticed that no peaks can be observed from CV plots of bare GCE or modified GCE with SnO2-Fe2O3 nanotubes. Peak potentials of modified GCE with PEDOT@SnO2-Fe2O3 core-shell nanotubes were about 0.437 V and 0.558 V and peak currents were about 38.9 μA and −69.6 μA respectively. Response peaks with an obviously high current, from oxidation of iodide ions on GCE modified with PEDOT-SnO2-Fe2O3 core-shell nanotubes, indicated their high iodide ion sensitivity. Figure 4b,c shows the effect of scanning rate on electrochemical oxidation of iodide ions on GCE modified by PEDOT-SnO2-Fe2O3 core-shell nanotubes. It can be observed that the current response to iodide ions increases with increasing scanning rate (Figure 4b). Figure 4c shows the fitting plot of the response peak current to the square root of different scanning rates. Ranging from the scanning rate of 60 to 400 mV/s, the linear regression equation is: I (μA) = −83.45v1/2 − 20.479 (R2 = 0.9984). Therefore, the dynamic mechanism of detecting iodide ions on GCE modified by PEDOT@SnO2-Fe2O3 core-shell nanotubes is controlled by diffusion processes, according to the proportional relation between peak current and the square root of scanning rate [32].
The amperometric response of GCE modified with PEDOT@SnO2-Fe2O3 core–shell electrospun nanotubes is shown in Figure 4d. It was performed by successively adding KI into 10 mL 0.1 M HClO4 solution. It shows a rapid and sensitive response to the change of KI concentration with an excellent linear response within the range from 10 μM to 100 μM of iodide ions. Calculated sensitivity of 70.1 μA/mM/cm2 was obtained with a detection limit of 1.5 μM (based on S/N = 3) [33]. Average response time was approximately 4 s. The linearity regression equation is: I (μA) = −0.0244C + 0.136 (R2 = 0.9935) (Figure 4e). In addition, we also tested the anti-interference ability against other halide ions (Cl− and Br−) on the modified GCE by as-prepared PEDOT-SnO2-Fe2O3 core-shell nanotubes (Figure 4f). It can be clearly observed that there is almost no current response to 0.5 mM concentration of Cl− and Br−. Comparison of the detection of iodide ions by various methods is summarized in Table 1. Accordingly, results show that voltammetric methods by PEDOT-SnO2-Fe2O3 core-shell nanotube modified GCE have achieved a rapid response time of approximately 4 s, which is much faster than the response time of other measurements. The iodide ion detection mechanism may be due to formation of charge-transfer complexes with iodine molecules. Iodine is the product of iodide ion oxidation on modified GCE with PEDOT@SnO2-Fe2O3 core-shell nanotubes [7,34,35]. The conductive polymer PEDOT is the material which is mainly sensitive towards iodide ion detection, forming charge-transfer complexes with the product iodide, which acts as a donor and the latter acting as acceptors. Furthermore, good sensitivity and fast response time could be attributed to the 1D continuous electrospun core-shell nanotube structure of PEDOT@SnO2-Fe2O3. The core-shell nanotube structure can facilitate oxidation of iodide ions and formation of PEDOT-iodine charge-transfer complexes, which can react both at the inner wall and outer wall of PEDOT@SnO2-Fe2O3 nanotubes. It can also improve the rate of charge carriers in the PEDOT transversing along the nanotubes.

3. Materials and Methods

3.1. Preparation of PVP/SnCl2/Fe(NO3)3 Precursor Electrospun Nanofibers

All chemicals were purchased from Aladdin Industrial (Shanghai, China), unless mentioned otherwise and were used as received without any further purification. 4 wt% of tin (II) chloride dihydrate (SnCl2•2H2O), 2 wt% of iron (III) nitrate nonahydrate (Fe(NO3)3•9H2O) were dissolved in 42 wt% of ethanol (EtOH) firstly and then 42 wt% of N′,N′-dimethylformamide (DMF) was added under vigorous stirring. After 15 min, 10 wt% of poly(vinyl pyrrolidone) (PVP, MW = 1,300,000, Sigma-Aldrich, Shanghai, China) was added with vigorous stirring for 30 min. Subsequently, precursor solution was loaded into a glass syringe with the tip inner diameter of approximately 1 mm. It was applied with a 15 kV DC voltage between tip and aluminum foil plate collector with a distance of 15 cm.

3.2. Preparation of PEDOT@SnO2-Fe2O3 Core-Shell Nanotubes

As-prepared PVP/SnCl2/Fe(NO3)3 precursor electrospun nanofibers were peeled off from the collector and placed in a crucible. As described in Figure 1, a 600 °C calcination process for 5 h was followed to remove PVP and obtain the heterojuncted SnO2-Fe2O3 electrospun nanotubes. Then, an in situ vapor phase polymerization was performed by exposing heterojuncted SnO2-Fe2O3 electrospun nanotubes to HCl vapor and monomer 3,4-ethoxylene-dioxy-thiophene (EDOT) vapor under ambient conditions. After in situ vapor phase polymerization for 6–12 h, a uniform shell of PEDOT was grown and gradually polymerized on the surface of resulting SnO2-Fe2O3 nanotubes and the PEDOT@SnO2-Fe2O3 core-shell nanotubes were obtained.

3.3. Fabrication of PEDOT@SnO2-Fe2O3 Core-Shell Nanotube Modified GCE

As-prepared PEDOT-SnO2-Fe2O3 core-shell nanotubes were washed with deionized (DI) water and ethanol for several times. Then, PEDOT@SnO2-Fe2O3 nanotubes were dispersed into ethanol to prepare the dispersion, the concentration was 5 mg/mL. Subsequently, 10 μL of as-prepared PEDOT@SnO2-Fe2O3 nanotube/ethanol dispersion was dropped onto a clean GCE surface and then evaporated in air at room temperature. Therefore, the PEDOT@SnO2-Fe2O3 core-shell nanotube modified GCE was obtained and used as the working electrode. All solutions were purged with N2 for 15 min to remove O2 before using and all experiments were performed in the glove box under a N2 atmosphere [9]. Electrochemical performance of the PEDOT@SnO2-Fe2O3 core-shell nanotube modified GCE was investigated by using CV scanning with a CHI660B Electrochemical Station (Shanghai CHENHUA instrument Co., Ltd., Shanghai, China). In a three-electrode system, the PEDOT-SnO2-Fe2O3 core-shell nanotube modified GCE was used as the working electrode. A platinum wire and saturated calomel electrode (SCE) were used as the counter electrode and reference electrode respectively.

4. Conclusions

In summary, PEDOT@SnO2-Fe2O3 core-shell nanotubes with well-defined morphology have been successfully fabricated via an electrospinning technique, calcination procedure, and in situ vapor polymerization process. As-prepared PEDOT@SnO2-Fe2O3 core-shell nanotubes exhibited high current response and rapid response time toward detection of iodide ions. It is anticipated that this electrode could be used for construction of high-performance biosensors.

Author Contributions

X.X., W.W., and C.W. conceived the idea and designed the experiments. X.X. led the experiments. X.X., X.Z., B.S., and R.Z. contributed to data analysis and interpretation. X.X. wrote the paper, and all authors provided feedback.

Funding

This research was funded by National Science Foundation of China (NSFC) grant number [61805004], China (Shenzhen)-Israel Technology Collaboration Project grant number [GJHZ20170313145720459] and the NSFC grant number [21274052] and [21474043].

Acknowledgments

We thank Xiaofeng Lu and Xiujie Bian for the discussion and we also thank Xue Zhang for her contribution with the artwork.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dissanayake, C. Of stones and health: Medical geology in Sri Lanka. Science 2005, 309, 883–885. [Google Scholar] [CrossRef] [PubMed]
  2. Jacob, P.; Goulko, G.; Heidenreich, W.F.; Likhtarev, I.; Kairo, I.; Tronko, N.D.; Bogdanova, T.I.; Kenigsberg, J.; Buglova, E.; Drozdovitch, V.; et al. Thyroid cancer risk to children calculated. Nature 1998, 392, 31–32. [Google Scholar] [CrossRef] [PubMed]
  3. Haldimann, M.; Zimmerli, B.; Als, C.; Gerber, H. Direct determination of urinary iodine by inductively coupled plasma mass spectrometry using isotope dilution with iodine-129. Clin. Chem. 1998, 44, 817–824. [Google Scholar] [PubMed]
  4. Yebra, M.C.; Bollain, M.H. A simple indirect automatic method to determine total iodine in milk products by flame atomic absorption spectrometry. Talanta 2010, 82, 828–833. [Google Scholar] [CrossRef] [PubMed]
  5. Puchnin, K.; Andrianova, M.; Kuznetsov, A.; Kovalev, V. Field-effect transition sensor for KI detection based on self-assembled calixtube monolayers. Biosen. Bioelectron. 2017, 98, 140–146. [Google Scholar] [CrossRef] [PubMed]
  6. Nacapricha, D.; Sangkarn, P.; Karuwan, C.; Mantim, T.; Waiyawat, W.; Wilairat, P.; Cardwell, I.; McKelvie, I.D.; Ratanawimarnwong, N. Pervaporation-flow injection with chemiluminescence detection for determination of iodide in multivitamin tablets. Talanta 2007, 72, 626–633. [Google Scholar] [CrossRef] [PubMed]
  7. Biallozor, S.; Kupniewska, A. Study on poly(3,4-ethylenedioxythiophene) behaviour in the I−/I2 solution. Electrochem. Commun. 2000, 2, 480–486. [Google Scholar] [CrossRef]
  8. Dielacher, B.; Tiefenauer, R.F.; Junesch, J.; Voeroes, J. Iodide sensing via electrochemical etching of ultrathin gold films. Nanotechnology 2015, 26, 025202. [Google Scholar] [CrossRef] [PubMed]
  9. Mao, H.; Lu, X.; Wang, C.; Zhang, W. Investigation on PEDOT/β-Fe3+O(OH,Cl) nanospindles as a new steady electrode material for detecting iodic compounds. Electrochem. Commun. 2009, 11, 603–607. [Google Scholar] [CrossRef]
  10. Huang, J.; Wang, D.; Hou, H.; You, T. Electrospun palladium nanoparticle-loaded carbon nanofibers and their electrocatalytic activities towards hydrogen peroxide and NADH. Adv. Funct. Mater. 2008, 18, 441–448. [Google Scholar] [CrossRef]
  11. Ju, Y.-W.; Choi, G.-R.; Jung, H.-R.; Lee, W.-J. Electrochemical properties of electrospun PAN/MWCNT carbon nanofibers electrodes coated with polypyrrole. Electrochim. Acta 2008, 53, 5796–5803. [Google Scholar] [CrossRef]
  12. Chi, M.; Nie, G.; Jiang, Y.; Yang, Z.; Zhang, Z.; Wang, C.; Lu, X. Self-assembly fabrication of coaxial Te@poly(3,4-ethylenedioxythiophene) nanocables and their conversion to Pd@poly(3,4-ethylenedioxythiophene) nanocables with a high peroxidase-like activity. ACS Appl. Mater. Interfaces 2016, 8, 1041–1049. [Google Scholar] [CrossRef] [PubMed]
  13. Lu, X.; Wang, C.; Favier, F.; Pinna, N. Electrospun nanomaterials for supercapacitor electrodes: Designed architectures and electrochemical performance. Adv. Energy Mater. 2017, 7, 1601301. [Google Scholar] [CrossRef]
  14. Trevisan, R.; Dobbelin, M.; Boix, P.P.; Braea, E.M.; Tena-Zaera, R.; Mora-Sero, I.; Bisquert, J. PEDOT nanotube arrays as high performing counter electrodes for dye sensitized solar cells. Study of the interactions among electrolytes and counter electrodes. Adv. Energy Mater. 2011, 1, 781–784. [Google Scholar] [CrossRef]
  15. Greene, L.E.; Law, M.; Goldberger, J.; Kim, F.; Johnson, J.C.; Zhang, Y.F.; Saykally, R.J.; Yang, P.D. Low-temperature wafer-scale production of ZnO nanowire arrays. Angew. Chem. Int. Ed. 2003, 42, 3031–3034. [Google Scholar] [CrossRef] [PubMed]
  16. Yang, P.D.; Yan, H.Q.; Mao, S.; Russo, R.; Johnson, J.; Saykally, R.; Morris, N.; Pham, J.; He, R.R.; Choi, H.J. Controlled growth of ZnO nanowires and their optical properties. Adv. Funct. Mater. 2002, 12, 323–331. [Google Scholar] [CrossRef]
  17. Back, J.-W.; Lee, S.; Hwang, C.-R.; Chi, C.-S.; Kim, J.-Y. Fabrication of conducting PEDOT nanotubes using vapor deposition polymerization. Macromol. Res. 2011, 19, 33–37. [Google Scholar] [CrossRef]
  18. Cho, S.I.; Choi, D.H.; Kim, S.-H.; Lee, S.B. Electrochemical synthesis and fast electrochromics of poly(3,4-ethylenedioxythiophene) nanotubes in flexible substrate. Chem. Mater. 2005, 17, 4564–4566. [Google Scholar] [CrossRef]
  19. Wang, W.; Lu, X.; Li, Z.; Lei, J.; Liu, X.; Wang, Z.; Zhang, H.; Wang, C. One-dimensional polyelectrolyte/polymeric semiconductor core/shell structure: Sulfonated poly(arylene ether ketone)/polyaniline nanofibers for organic field-effect transistors. Adv. Mater. 2011, 23, 5109–5112. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, Z.; Jiang, Y.; Chi, M.; Yang, Z.; Nie, G.; Lu, X.; Wang, C. Fabrication of Au nanoparticles supported on CoFe2O4 nanotubes by polyaniline assisted self-assembly strategy and their magnetically recoverable catalytic properties. Appl. Surf. Sci. 2016, 363, 578–585. [Google Scholar] [CrossRef]
  21. Winther-Jensen, B.; West, K. Vapor-phase polymerization of 3,4-ethylenedioxythiophene: A route to highly conducting polymer surface layers. Macromolecules 2004, 37, 4538–4543. [Google Scholar] [CrossRef]
  22. Winther-Jensen, B.; Winther-Jensen, O.; Forsyth, M.; MacFarlane, D.R. High rates of oxygen reduction over a vapor phase-polymerized PEDOT electrode. Science 2008, 321, 671–674. [Google Scholar] [CrossRef] [PubMed]
  23. Wang, Y.; Lee, J.Y.; Zeng, H.C. Polycrystalline SnO2 nanotubes prepared via infiltration casting of nanocrystallites and their electrochemical application. Chem. Mater. 2005, 17, 3899–3903. [Google Scholar] [CrossRef]
  24. Cao, K.; Jiao, L.; Liu, H.; Liu, Y.; Wang, Y.; Guo, Z.; Yuan, H. 3D hierarchical porous alpha-Fe2O3 nanosheets for high-performance lithium-ion batteries. Adv. Energy Mater. 2015, 5, 1401421. [Google Scholar] [CrossRef]
  25. Zhang, K.; Wang, X.; Yang, Y.; Wang, L.; Zhu, M.; Hsiao, B.S.; Chu, B. Aligned and molecularly oriented semihollow ultrafine polymer fiber yarns by a facile method. J. Polym. Sci. B Polym. Phys. 2010, 48, 1118–1125. [Google Scholar] [CrossRef]
  26. Sun, W.; Lu, X.; Xue, Y.; Tong, Y.; Wang, C. One-step preparation of CoFe2O4/polypyrrole/Pd ternary nanofibers and their catalytic activity toward p-nitrophenol hydrogenation reaction. Macromol. Mater. Eng. 2014, 299, 361–367. [Google Scholar] [CrossRef]
  27. Yang, Z.; Zhang, Z.; Jiang, Y.; Chi, M.; Nie, G.; Lu, X.; Wang, C. Palladium nanoparticles modified electrospun CoFe2O4 nanotubes with enhanced peroxidase-like activity for colorimetric detection of hydrogen peroxide. RSC Adv. 2016, 6, 33636–33642. [Google Scholar] [CrossRef]
  28. Xu, X.; Yin, M.; Li, N.; Wang, W.; Sun, B.; Liu, M.; Zhang, D.; Li, Z.; Wang, C. Vanadium-doped tin oxide porous nanofibers: Enhanced responsivity for hydrogen detection. Talanta 2017, 167, 638–644. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, W.; Ghosh, D.; Chen, S. Large-scale electrochemical synthesis of SnO2 nanoparticles. J. Mater. Sci. 2008, 43, 5291–5299. [Google Scholar] [CrossRef]
  30. Qin, W.; Yang, C.; Yi, R.; Gao, G. Hydrothermal synthesis and characterization of single-crystalline α-Fe2O3 nanocubes. J. Nanomater. 2011, 2011, 159259. [Google Scholar] [CrossRef]
  31. Funda, S.; Ohki, T.; Liu, Q.; Hossain, J.; Ishimaru, Y.; Ueno, K.; Shirai, H. Correlation between the fine structure of spin-coated PEDOT:PSS and the photovoltaic performance of organic/crystalline-silicon heterojunction solar cells. J. Appl. Phys. 2016, 120, 033103. [Google Scholar] [CrossRef]
  32. Lin, W.-J.; Liao, C.-S.; Jhang, J.-H.; Tsai, Y.-C. Graphene modified basal and edge plane pyrolytic graphite electrodes for electrocatalytic oxidation of hydrogen peroxide and β-nicotinamide adenine dinucleotide. Electrochem. Commun. 2009, 11, 2153–2156. [Google Scholar] [CrossRef]
  33. Tong, Y.; Li, Z.; Lu, X.; Yang, L.; Sun, W.; Nie, G. Wang, Z.; Wang, C. Electrochemical determination of dopamine based on electrospun CeO2/Au composite nanofibers. Electrochim. Acta 2013, 95, 12–17. [Google Scholar] [CrossRef]
  34. Tang, H.; Kitani, A.; Shiotani, M. Cyclic voltammetry of KI at polyaniline-filmed Pt electrodes part I: Formation of polyaniline-iodine charge transfer complexes. J. Appl. Electrochem. 1996, 26, 36–44. [Google Scholar] [CrossRef]
  35. Tang, H.; Kitani, A.; Shiotani, M. Cyclic voltammetry of KI at polyaniline-filmed Pt electrodes part II: Effects of pH. J. Appl. Electrochem. 1996, 26, 45–50. [Google Scholar] [CrossRef]
Materials 11 02084 g001 550

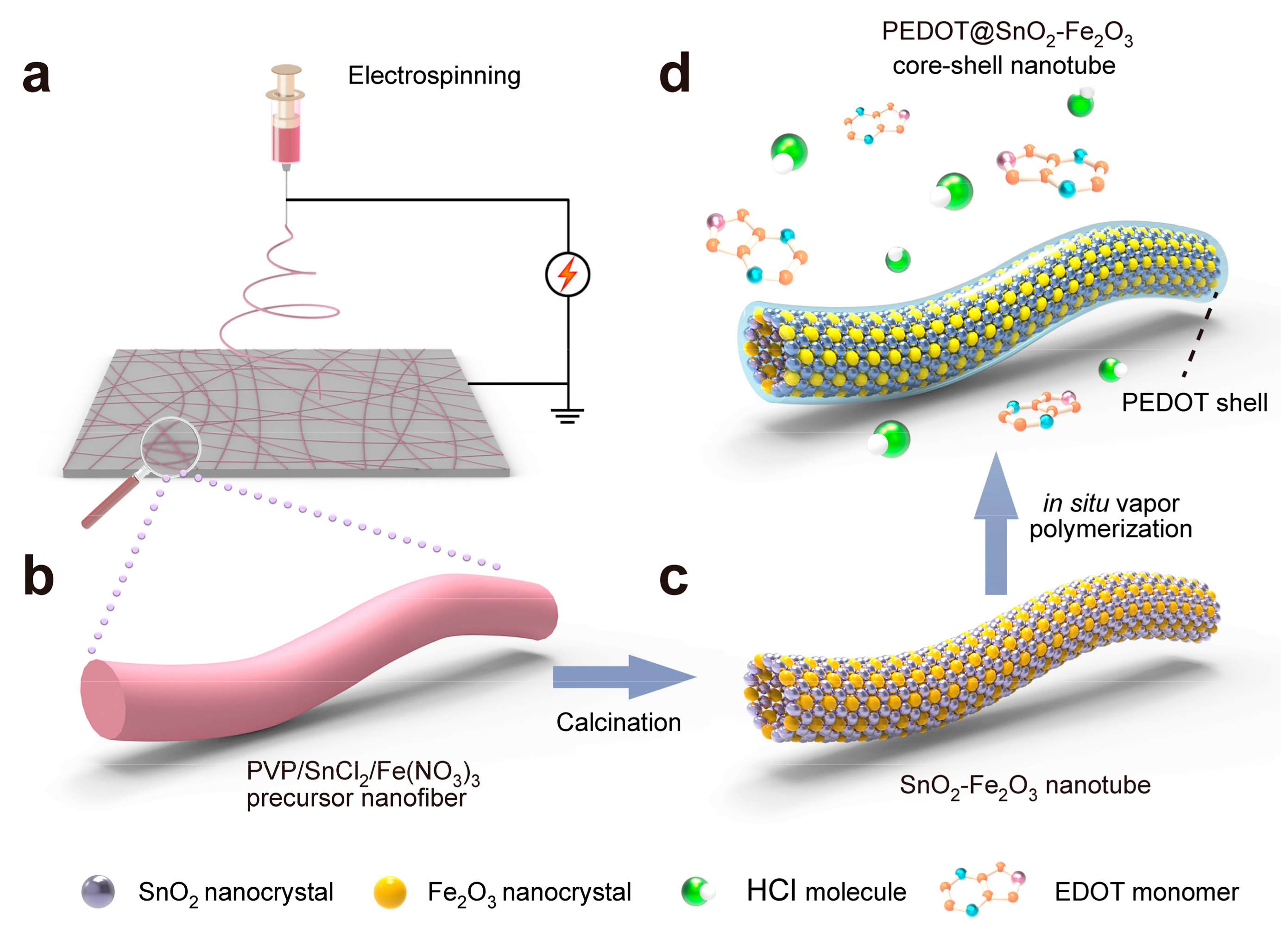

Figure 1. (a) Illustration of the electrospinning process used to fabricate PVP/SnCl2/Fe(NO3)3 precursor nanofibers. (b–d) Illustration of the in situ vapor polymerization method used to provide PEDOT@SnO2-Fe2O3 core-shell electrospun nanotubes by sequential calcination and exposure to HCl and 3,4-ethoxylene-dioxy-thiophene (EDOT) vapor under 8.0 Torr and 60 °C.
Figure 1. (a) Illustration of the electrospinning process used to fabricate PVP/SnCl2/Fe(NO3)3 precursor nanofibers. (b–d) Illustration of the in situ vapor polymerization method used to provide PEDOT@SnO2-Fe2O3 core-shell electrospun nanotubes by sequential calcination and exposure to HCl and 3,4-ethoxylene-dioxy-thiophene (EDOT) vapor under 8.0 Torr and 60 °C.
Materials 11 02084 g001
Materials 11 02084 g002 550
Figure 2. (a) SEM image, (b,c) TEM images, and (d) HRTEM image (Inset: SAED pattern) of SnO2-Fe2O3 heterojuncted electrospun nanotubes. (e,f) TEM images of PEDOT@SnO2-Fe2O3 core-shell electrospun nanotubes after in situ vapor polymerization. HRTEM image and SAED pattern could be indexed to SnO2 and α-Fe2O3. After in situ vapor polymerization, an approximately 10–20 nm-thick poly-3,4-ethylenedioxythiophene (PEDOT) shell was polymerized, resulting in the PEDOT-SnO2-Fe2O3 core-shell electrospun nanotube structure.
Figure 2. (a) SEM image, (b,c) TEM images, and (d) HRTEM image (Inset: SAED pattern) of SnO2-Fe2O3 heterojuncted electrospun nanotubes. (e,f) TEM images of PEDOT@SnO2-Fe2O3 core-shell electrospun nanotubes after in situ vapor polymerization. HRTEM image and SAED pattern could be indexed to SnO2 and α-Fe2O3. After in situ vapor polymerization, an approximately 10–20 nm-thick poly-3,4-ethylenedioxythiophene (PEDOT) shell was polymerized, resulting in the PEDOT-SnO2-Fe2O3 core-shell electrospun nanotube structure.
Materials 11 02084 g002
Materials 11 02084 g003 550

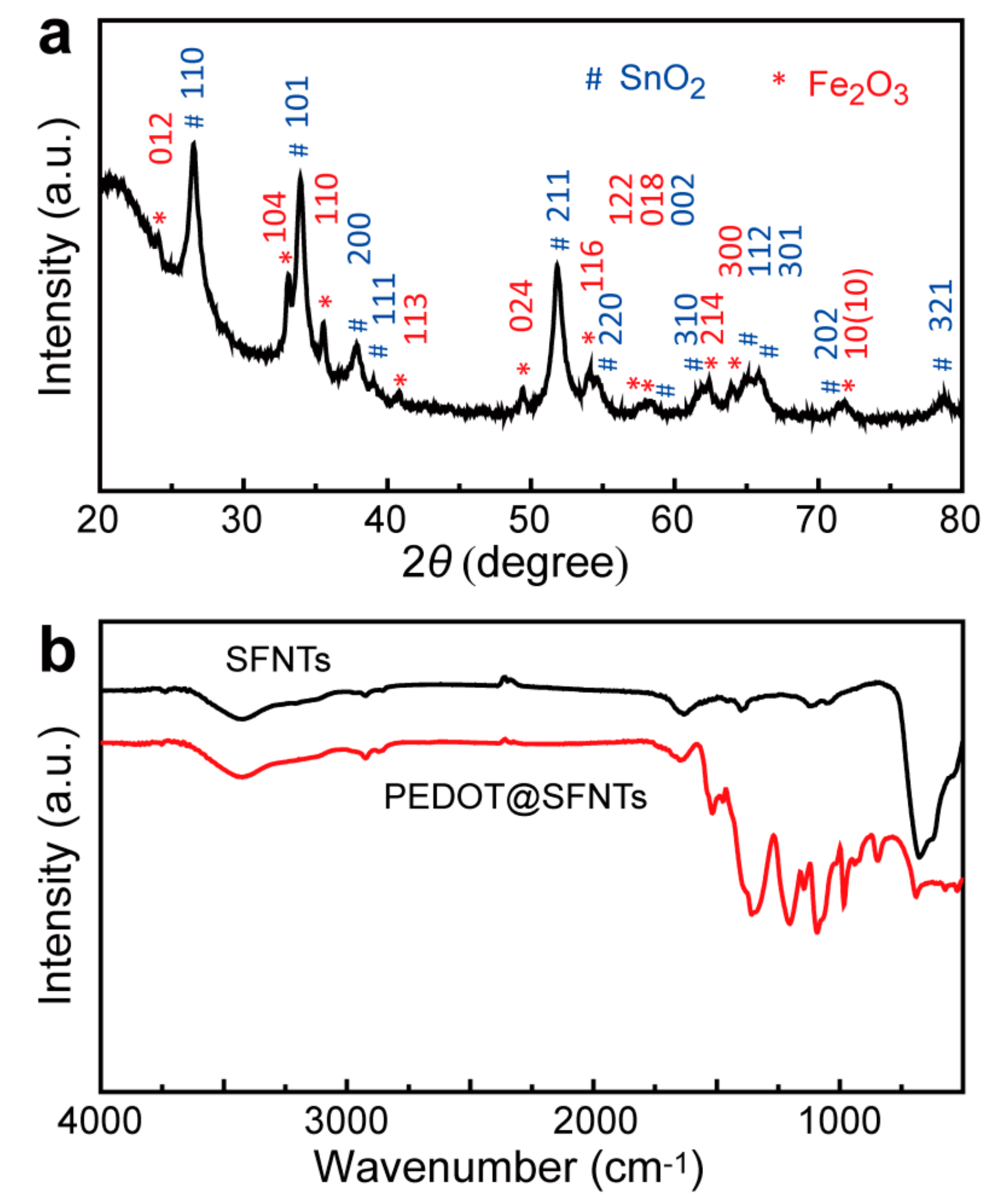

Figure 3. (a) X-ray diffraction of SnO2-Fe2O3 electrospun nanotubes (SFNTs); (b) The fourier transform infrared spectoscopy (FT-IR) spectra of SnO2-Fe2O3 nanotubes and PEDOT@SnO2-Fe2O3 core-shell nanotubes.
Figure 3. (a) X-ray diffraction of SnO2-Fe2O3 electrospun nanotubes (SFNTs); (b) The fourier transform infrared spectoscopy (FT-IR) spectra of SnO2-Fe2O3 nanotubes and PEDOT@SnO2-Fe2O3 core-shell nanotubes.
Materials 11 02084 g003
Materials 11 02084 g004 550

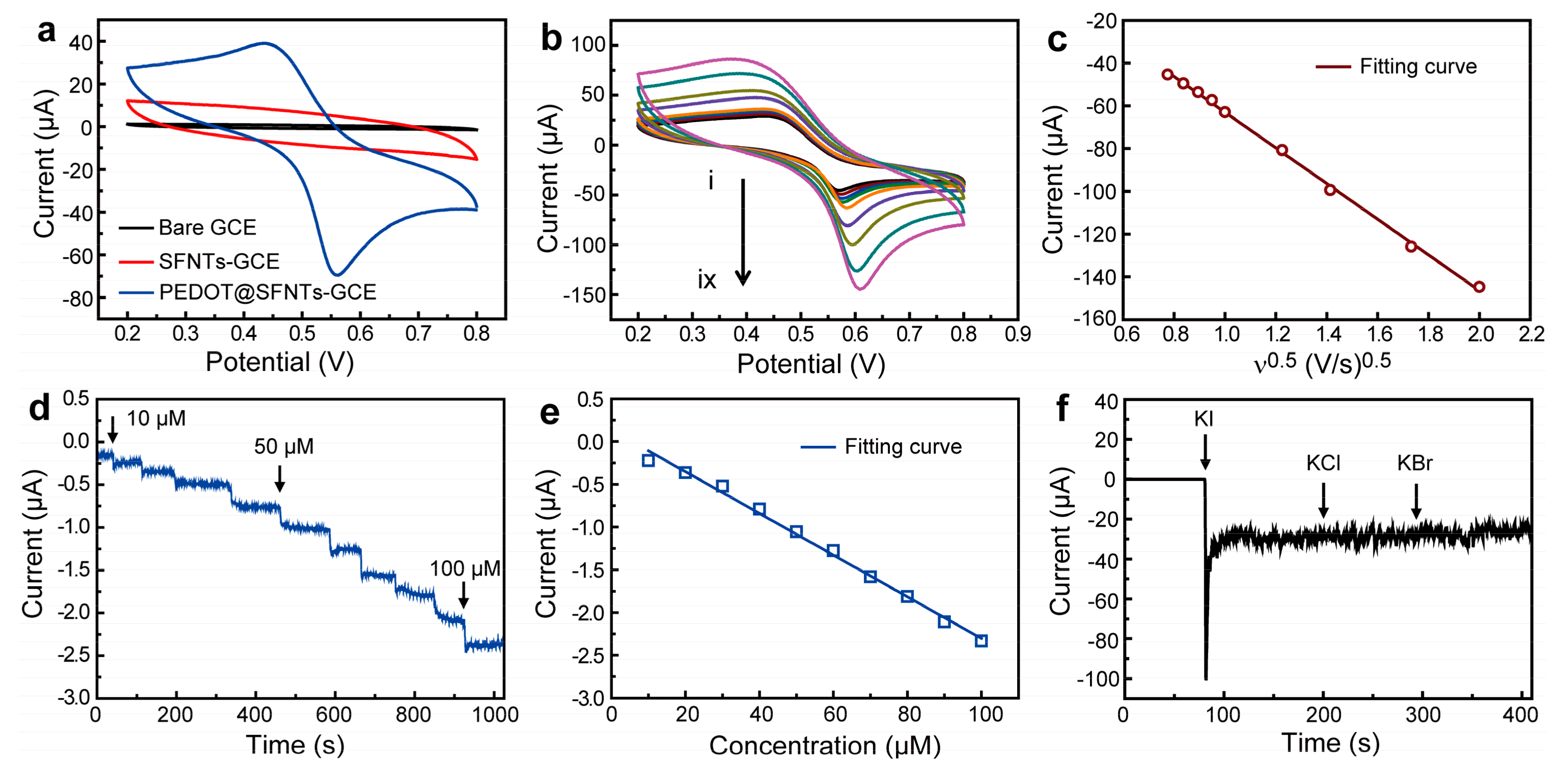

Figure 4. (a) Cyclic voltammogram (CV) curves of the bare glass carbon electrodes (GCE) (in black), SnO2-Fe2O3 electrospun nanotube modified GCE (SFNTs-GCE in red) and PEDOT@SnO2-Fe2O3 core-shell electrospun nanotube modified GCE (PEDOT@SFNTs-GCE in blue) in 1 mM KI and 0.1 M HClO4 with a scanning rate of 100 mV/s. (b) CV curves of as-prepared PEDOT-SnO2-Fe2O3 core-shell nanotube modified GCE in 1 mM KI and 0.1 M HClO4 solution at the scanning rate of (i) 60, (ii) 70, (iii) 80, (iv) 90, (v) 100, (vi) 150, (vii) 200, (viii) 300 and (ix) 400 mV/s. (c) Plot of the square root of scanning rate to peak current values. (d) Amperometric response of as-prepared PEDOT-SnO2-Fe2O3 core-shell nanotube modified GCE at 0.55 V to successive addition of KI into a 10 mL 0.1 M HClO4 solution with constant stirring in the KI range of 10–100 μM. (e) Calibration plot of current against various KI concentrations. (f) Interference behavior of as-prepared PEDOT@SnO2-Fe2O3 core-shell nanotube modified GCE illustrated by amperometric response at 0.55 V to successive addition of 0.5 mM KI, KCl, and KBr into 10 mL 0.1 M HClO4 solution stirred constantly, respectively.
