Recent Progress in Magnetron Sputtering Technology Used on Fabrics

1
College of Textiles, Tianjin Polytechnic University, Tianjin 300387, China
2
Key Laboratory of Advanced Textile Composites Ministry of Education, Tianjin Polytechnic University, Tianjin 300387, China
*
Authors to whom correspondence should be addressed.
Materials 2018, 11(10), 1953; https://doi.org/10.3390/ma11101953
Submission received: 18 September 2018 / Revised: 4 October 2018 / Accepted: 9 October 2018 / Published: 12 October 2018
(This article belongs to the Section Advanced Nanomaterials and Nanotechnology)

Abstract

:
The applications of magnetron sputtering technology on the surface coating of fabrics have attracted more and more attention from researchers. Over the past 15 years, researches on magnetron sputtering coated fabrics have been mainly focused on electromagnetic shielding, bacterial resistance, hydrophilic and hydrophobic properties and structural color etc. In this review, recent progress of the technology is discussed in detail, and the common target materials, technologies and functions and characterization of coated fabrics are summarized and analyzed. Finally, the existing problems and future prospects of this developing field are briefly proposed and discussed.

1. Introduction

Nano-films are widely used in electronics, textiles, biomedicine, ceramics and other fields [1,2,3,4,5,6]. Fabrics coated with Nano film are usually prepared through chemical vapor deposition [7], chemical deposition [8,9], sol-gel [10] method and magnetron sputtering [11]. Among them, the magnetron sputtering method has the advantages of controllable film thickness, high purity, high speed and low temperature, favorable adhesion, easy operation, and environmental friendliness, etc. [12,13].
Magnetron sputtering technology can deposite metal or non-metal films on the substrate surface of textiles such as polyester, cotton, linen, silk, wool, polyamide, polylactic acid and polypropylene through selecting the appropriate sputtering process, different target materials and ambient gases [14,15]. The main structures of the textiles substrate include woven fabrics, knitted fabrics and non-woven fabrics. The sputtering target materials are metals such as Cu, Ti, Ag, Al, W, Ni, Sn, Pt or non-metals such as Si, graphite as well as metal oxides such as TiO2, Fe2O3, WO3, ZnO and non-metal oxide such as SiO2. It can also deposit ceramic materials, and single or multi-layer composite nano-films formed with polymers such as polyimide, and polytetrafluoroethylene etc. It can not only endow fabrics with single or compound functions such as electromagnetic shielding, UV protection, anti-static, antibacterial, conductive or waterproof properties, etc., but also obtain structural colors through interference and diffraction characters of the nano-films [16,17,18,19,20,21,22,23,24,25,26,27,28]. Therefore, the magnetron sputtering coating nano-films technology used on fabrics has been vigorously developed and applied [22,29].
The summary of magnetron sputtering target materials commonly used and coated fabrics’ functionalities are shown in Table 1.

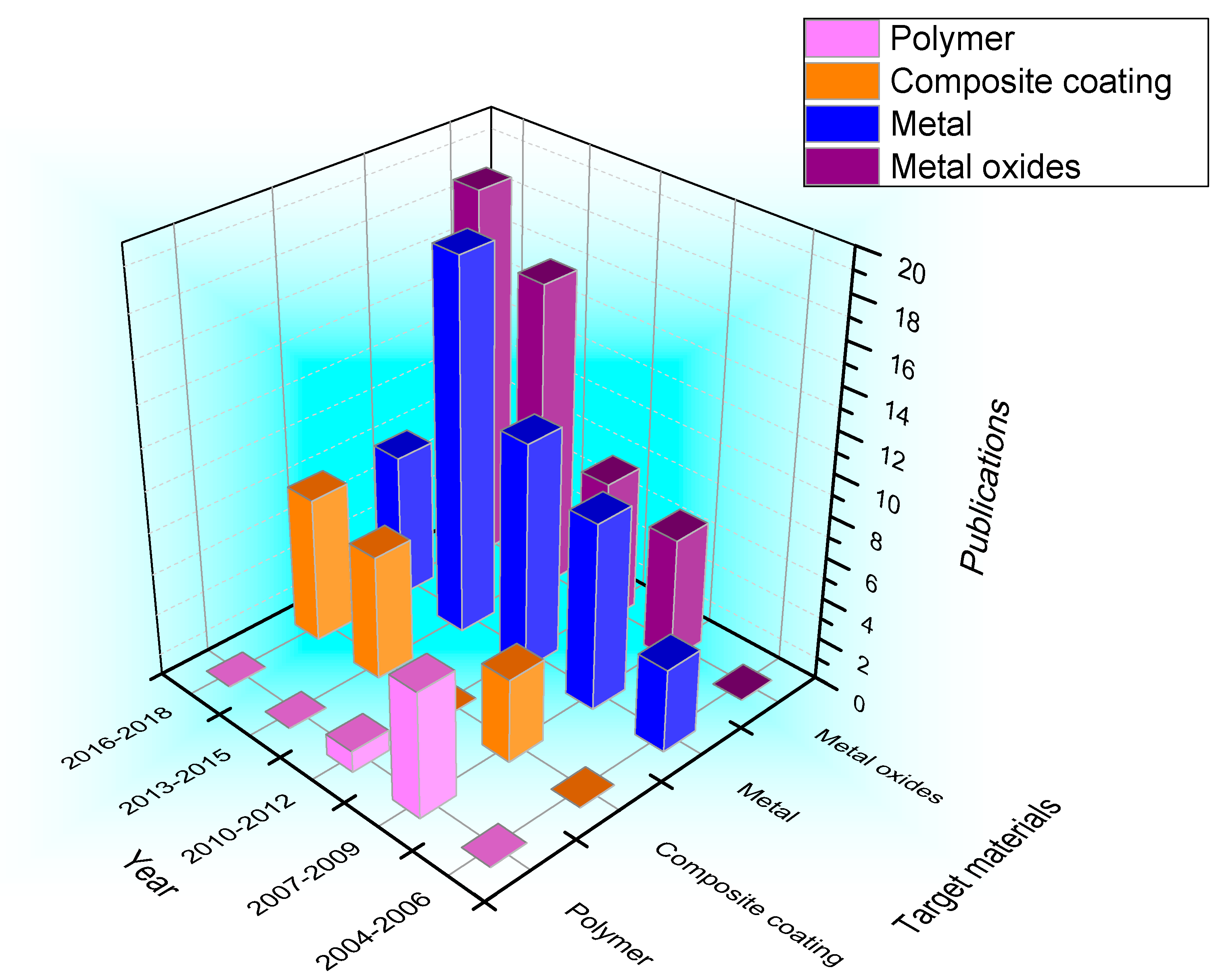

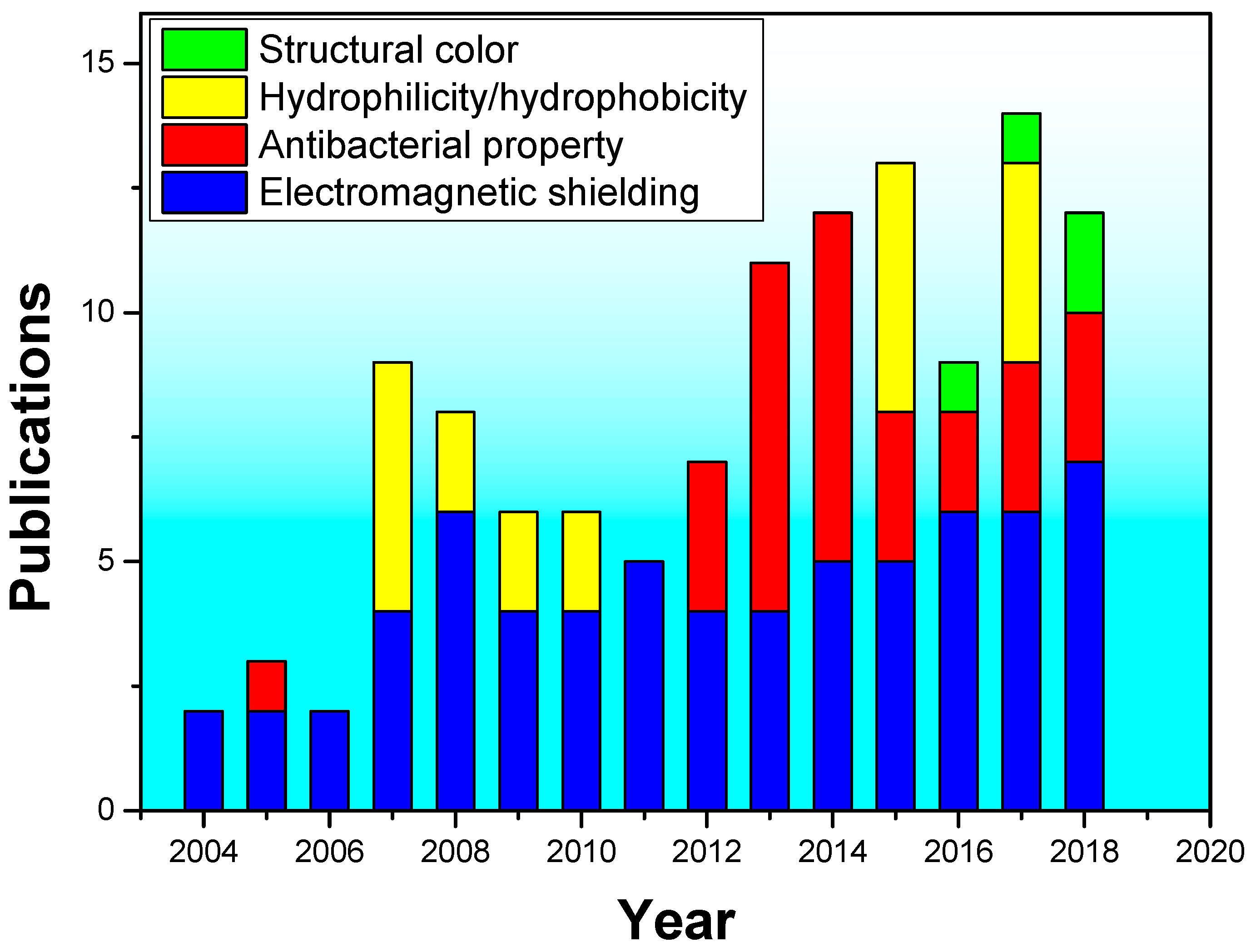

The number of references related to the functionality and target materials of magnetron sputtering coated fabrics in the last 15 years are illustrated in Figure 1 and Figure 2, respectively (the year of 2018 is from January to July). In Figure 1, it can be found that the number of literatures on magnetron sputtering coated fabrics from 2004 to 2018 increased year by year. Among them, the research on preparation of electromagnetic shielding fabrics is most extensive, and a certain number of research papers are published every year. However, papers on hydrophilic and hydrophobic-coated fabrics have been published on and off since 2007. The application to prepare antibacterial fabrics has been a continuing research content since 2012. The research papers of structural color of coated fabrics have only been published in the last three years because of the characteristics of saving water resources and environmental protection. It is also an important trend in the field of textile printing and dyeing research in the future. In Figure 2, it can be found that the commonly used target materials on magnetron sputtering coated fabrics were metals, metal oxides, polymer materials and composite coatings from 2004 to 2018. The research on polymer materials as target materials has been mainly focused on 2007–2009, the polymer target materials are commonly used for hydrophobic finishing and the amount of literatures is small. The application of metal target materials to obtain electrical conductivity, shielding efficiency had gradually increased in 2004–2015, but decreased from 2016. However, the metal oxides as target materials have been researched increasingly. In addition, it is necessary to pay attention to the increasing trend of composite sputtering using various target materials. Although the number of studies is not much, this method can combine the advantages of various target materials to impart fabrics multiple functions at the same time. So, it is a possible research focus for the future.

2. Application of Fabrics Coated with Magnetron Sputtering Nano Film

2.1. Nano Metal Film

Through magnetron sputtering technology, metallization of the fabric surface can be realized [30]. Surface metallization endows fabrics and fibers multiple functions [31], such as antibacterial, antistatic, anti-ultraviolet, electrical conductivity and electromagnetic shielding properties, etc. The metalized fabrics can be used for medical materials, anti-eavesdrop materials, decorative materials, radar reflective materials, military tents and pregnancy protection cloth, etc. [32,33,34].

2.1.1. Nano Cu Film

Nano Cu film-coated fabrics have excellent electromagnetic shielding, electrical conductivity, UV resistance and antibacterial properties [35,36].
The nano Cu film fabrics coated by magnetron sputtering had favorable antibacterial property against Escherichia coli. Under the same sputtering conditions, bacteriostatic rates against Escherichia coli of the nano Cu film deposited by high-power pulse sputtering was more than three times higher than that deposited through direct current magnetron sputtering [37]. Scholz et al. [38] sputtered Cu and Ag on fabrics, respectively. Compared with Cu and Ag nano-films, the antibacterial properties of Cu exceeded that of Ag. Although the Cu coated fabric has favorable antibacterial effect, it currently only act on several limited kinds of bacteria, such as Staphylococcus aureus and Escherichia coli. It is difficult to achieve broad spectrum antibacterial effects [39].
Magnetron sputtering nano Cu film coated fabrics have so favorable electromagnetic shielding performance. Kim et al. [40] used direct current magnetron sputtering method to deposite Ag nano-film firstly on polyimide substrate, and then to deposite a layer of Cu nano-film. The electromagnetic shielding efficiency of the prepared composite fabric was greater than 55 dB at a frequency range of 10 MHz to 1.3 GHz. At ambient temperature, Wang L. et al. [41] deposited nano Cu film on the surface of polyester fabric. The coated fabric not only had favorable shielding effectiveness and electrical conductivity, but also excellent shielding effect on ultraviolet light. Meanwhile the shielding effect is also affected by the substrates, especially the porosity of the substrate. Huang et al. [41] used radio frequency (RF) magnetron sputtering method to sputter nano Cu film on substrates with different structures. Among them, the coated fabric with the lowest porosity based on polyester non-woven fabric had the best electromagnetic shielding effect, and the shielding efficiency was up to 40 dB at a frequency range of 30 MHz to 1.5 GHz. In order to reduce the porosity of the fabric [42], the cotton fabric with large porosity was first coated with polyvinyl alcohol (PVA), then the Cu or Ti were sputtering deposited on the treated fabric substrates respectively. The schematic of the preparation of PVA impregnated cotton fabric by padding and sputtering method is shown in Figure 3. The results showed that electrical conductivity and electromagnetic shielding properties of them were improved, and electromagnetic shielding efficiency of the Cu coated samples reaches 30 dB at a frequency range of 300 kHz to 1.8 GHz.
When the Cu film coated on fabric reaches a certain thickness, it also perform better in aspects of infrared and ultraviolet shielding properties. Cu film with thickness of 200 nm was deposited onto cotton fabric by magnetron sputtering technology [43]. The physical properties of the coated fabrics that are evaluated include the infrared emissivity, reflection rate and ultraviolet protection factor (UPF) value. It was found that the Cu coated fabric samples had an infrared reflection rate of 20–30%, infrared emissivity of about 0.7 and UPF value of 273. The Cu-coated fabric samples therefore provide excellent UV radiation protection and good infrared shielding, which make them promising materials for sunlight management textiles.
In summary, the Cu film coated fabrics can achieve favorable electromagnetic shielding, UV resistance and anti-infrared properties. However, it is difficult to achieve shielding effectiveness of greater than 60 dB for general electromagnetic shielding fabrics. There are few researches on microwave electromagnetic shielding at a higher frequency range of 10–18 GHz. In addition, we take into account the phenomenon of photonic band gap generated by the special periodic structure of photonic crystals, it is worthwhile to study whether the periodic multilayer metal films can selectively shield electromagnetic waves with different frequencies.

2.1.2. Nano Ag Film

In metals, Ag has the best thermal conductivity and electrical conductivity and it has soft texture, ductility, good wear resistance and antibacterial properties [44,45,46]. Montazer et al. [47] sputtered a variety of metal films on nylon 6 fabrics, and it was found that the electric conductivity of the samples from strong to weak was Ag film, Cu film, and Al film, which was consistent with the order of electric conductivity of metal Ag, Cu and Al.
The square resistance of nano Ag films deposited by magnetron sputtering can reach 10−2 Ω orders, shielding efficiency is as high as 60–80 dB. Therefore, Ag film coated fabric can endow excellent electromagnetic shielding and electrical conductivity properties to textiles [48]. Even if very thin Ag films of 2–20 nm are sputtered on the PET fabric surface, the coated fabrics can achieve favorable electromagnetic shielding effect and excellent electrical conductivity property [49].
The experiments by Montazer et al. [47] also proved that the electrical conductivity of the coated fabric was related to the film’s density. Compared with the traditional metal printing, the nano Ag particles coated by magnetron sputtering dispersed more evenly on the surface of fabric, better reflecting electromagnetic waves, and the fabric damage is very little [23]. Experiments by Du et al. [50] also proved that the better the continuity and compaction of the nano Ag film was, the higher the electromagnetic shielding efficiency was.
Metal Ag is also widely used to prepare antibacterial fabrics. Before sputtering deposition, low temperature plasma pretreatment can effectively improve the adhesion of the films. The washing fastness was up to five grades, and the samples had favorable antibacterial activity against Staphylococcus aureus and Escherichia coli. After 20 times washing, the original antibacterial effect was still maintained and the mechanical properties of the original fabric were also maintained [18]. Rtimi [51] sputtered ZrNO and Ag on PET fabrics to prepare antibacterial fabrics with ZrNO-Ag composite films, compared with the single layer film, the antibacterial effect of the composite film on Escherichia coli was significantly enhanced.
In addition, it is also possible to use the properties of high scattering and reflectivity of Ag to shield ultraviolet rays. When the sputtering pressure was 0.3 Pa, polyester fabric sputtered with Ag had the best UV resistance property [52]. Depositing nano Ag film on cotton fabric can also obtain favorable infrared resistance and hydrophobic properties. In some research the infrared reflectivity was up to 18% [53,54].

2.1.3. Nano Ti Film

Metal Ti has the characteristics of light weight, high strength and biological compatibility etc. [55,56,57]. For example, Esen et al. deposited metal Ti films on a polyamide/cotton fabric (The textile material is composed of cotton and polyamide in different ratios) to develop a kind of electromagnetic wave absorbing fabric, which can be applied in radio communication and radar aspects [58]. Moreover, it is well known that the metal Ti would not cause any allergic reaction to human skin.

2.1.4. Nano Al film

Metal Al has favorable physical and chemical properties such as corrosion resistance, thermal conductivity and electrical conductivity, etc. [59,60,61]. Sputtering Al films on the surface of fabrics can yield an impart effect, such as electrical conductivity, electromagnetic shielding and UV resistance to them.
Zhimin et al. [62] deposited nano Al films with different thickness on PET substrates. With the increase of film thickness, the electrical conductivity and electromagnetic shielding performance of coated fabrics were significantly improved. In addition, the theoretical calculation and transfer matrix method were used to verify that electrical conductivity had a significant effect on the microwave absorption performance. Bandorf et al. [63] sputtered Al on polyester fabric to prepare a uniform and compact film. With the increase of sputtering peak current, the adhesion of metal particles on the fabric surface was significantly improved, and the coated fabric had favorable UV shielding property.
In addition, it can also impart a certain water-repellent property for textiles to deposite Al film on fabric surface. Shahidi et al. [64] sputtered nano Al film on cotton fabrics. Water-repellent property of the fabrics was increased with the extension of sputtering time. Water-repellent property reached an optimum value when the fabric was sputtered for 30 min.

2.1.5. Other Nano Metal Films

There was not much research on other metals used in textile sputtering processing except for Ni and Pt. Yuen et al. [65] sputtered metal Ni film on the surface of polyester fabrics. The coated fabric was significantly improved with hydrophilicity and ultraviolet shielding function. Shahidi et al. [66] sputtered metal Pt film on the polyester fabrics’ surface. The dyeing fastness of madder and henna on the polyester fabrics were improved by 4–5 grades. The mechanism was that metal ions as the central ions could coordinate with the fiber and the dyes.

2.2. Nano Metal Oxide Films

The deposition of metal oxide on the surface of the fabrics can endow them with antibacterial property, anti-static, gas sensitivity, ultraviolet resistance, electromagnetic shielding property, electrical conductivity and other properties [67,68]. For example, the semiconductor ceramic film materials such as SnO2, ZnO, Al2O3 and other oxides [69,70,71,72]. They have gas-sensitivity, therefore they could selectively adsorb gases. When their surface free energy was changed, the electrical conductivity was varied accordingly. So, it could be used to judge the kind of gases and measure their concentration. For example, oxygen, methane, ethylene and other gases.

2.2.1. Nano TiO2 Film

Sputtering deposition of nano TiO2 film on fabrics mainly imparts favorable UV resistance and photocatalytic function to them, as well as additional functions such as antibacterial property, formaldehyde adsorption and hydrophilicity [73,74,75].
When TiO2 [76] was used as an ultraviolet shielding agent, the performance of the rutile type was more effective than that of the anatase type. As the nano TiO2 particles size increased, the nano film became more uniform and compact. When the film thickness increased to a critical value, the UV-resistant and photocatalytic properties of the coated fabrics could achieve the best effect. Zgura et al. [75] sputtered nano TiO2 film on polylactic acid (PLA) fabric. As the sputtering pressure increased, the photocatalytic property was improved, and degrading effect of methylene blue was more effective. Zhang [77], Rtimi et al. [78] sputtering deposited nano TiO2 film on the surface of non-woven fabric. Due to its unique photocatalytic property, it could obtain anti-fouling and deodorizing functions.
In order to improve the photocatalytic activity and enhance the antibacterial effect, Rtimi et al. sputtered nano TiON and TiON/Ag [79] films on polyester fabrics. When the thickness of the TiON film was 70 nm, Escherichia coli was completely deactivated in 120 min. If the Ag film was sputtered furthermore, Escherichia coli was deactivated quickly within 55 min on the TiON/Ag composite. Rtimi et al. also sputtered nano TiN and TiN/Ag [80] films on polyester fabrics. It was found that the rate of bacteria deactivation became faster for Ag enhanced the photocatalytic activity of TiN in TiN/Ag film.
When polyacrylonitrile (PAN) and polyurethane (PU) composite materials (mass ratio of PAN/PU was 8/2) substrate was deposited with Nano TiO2 film [81], it not only had excellent UV resistance (UPF value was 148.5), but also good super-hydrophobility (contact angle was 152.1°). Its super-hydrophobic property was mainly due to rough surface structure was constructed on the fibers’ surface. For example, nano TiO2 films were deposited on cotton and polyester fabrics and the TiO2 films on fabric’s surface had unique high porosity and amorphous structure [82]. Its coating scheme was shown in Figure 4. With the increasement of sputtering time, the surface tension of the coated fabric was improved. Its waterproof property was improved significantly [83].

2.2.2. Nano ZnO Film

When sputtering ZnO films on fabrics, the coated fabrics could get favorable anti-ultraviolet property, electrical conductivity and other properties [85,86]. Moreover, through improving its photocatalytic activity. The coated fabrics could obtain excellent antibacterial property [86]. Deng et al. [87] sputtered nano ZnO films on the surface of polyester non-woven fabric. With the increasement of sputtering time and power, the nano ZnO particles became larger, the film was uniform, and the coated fabric had favorable UV resistance. Boroujeni et al. [34] sputtered nano ZnO film on the surface of carbon fiber composite material. Its tensile strength was improved by 18% and it was obtained certain anti-ultraviolet property.

2.2.3. ITO (Indium Tin Oxide) and AZO (Aluminum Doped Zinc Oxide) Films

ITO film is a kind of transparent conductive film [88]. AZO film is extremely highly electrically conductive and has a photoelectric property comparable to ITO. Deposited with ITO or AZO film, the coated fabrics can get favorable function of electrochromism, UV resistance, infrared resistance, electrical conductivity, hydrophilicity or hydrophobicity, etc. [89].
Sputtering ITO film exclusively can only provide a certain electrical conductivity and UV resistance properties, Beica et al. [90] sputtering deposited ITO film on glass fiber woven fabric, which obtained the properties mentioned above.
Under certain conditions, AZO film can provide good waterproof property. For example, Jiang et al. [91] sputtered AZO film on polyester fabrics. When the thickness of the film was 450 nm, its contact angle (CA) was 146 degrees. Meanwhile, UV transmittance and infrared emissivity were greatly decreased.
More applications of ITO films are to make the substrates have electrochromic and electrically conductive property. For example, ITO, Pt, and WO3 films were sputtered on wool fabrics, respectively. The coated fabrics not only had electrically conductive and electrochromic properties, but also obtain excellent UV resistance property [92]. Or, the ITO film was firstly electrochemical deposited on the surface of polyester fabrics, and then the WO3 film was sputtering deposited on the surface of ITO film. The sputtering coated fabrics had electrochromic and electrical conductivity property [93].

2.2.4. Other Nano Metal Oxides Films

Nano CuO films were sputtering deposited on polyester non-woven fabrics. The coated fabrics had strong antibiotic effect on Escherichia coli and Staphylococcus aureus [94].
Eren et al. [95] deposited nano V2O5 film on the surface of polyester fabric to prepare electrochromic fabric. With the increase of sputtering time, the films became continuous and compact. And the coated fabrics had favorable electrochromic properties.

2.3. Polymer Nano Film

Sputtered nano polymer films enable fabrics to obtain multiple functions. The most common sputtered polymer is polytetrafluoroethylene (PTFE) which can endow fabrics with anti-ultraviolet, waterproof and other performance [96,97].
PTFE has perfect hydrophobic performance. Huang et al. [98] deposited PTFE films on the surface of silk which make the coated fabrics become hydrophobic. The contact angle was increased from 68 degrees to 138 degrees. With the increase of sputtering pressure, the phenomenon of contact angle hysteresis became inconspicuous. In the same way, Wi et al. [99] deposited PTFE film on cotton fabric and the contact angle reached 134.2 degrees.
In addition, PET fabric sputtered with PTFE can also be UV resistant. The influence of substrate temperature, sputtering power, and sputtering pressure on UV resistance increased successively [100].

2.4. Multi-layer Coated Nano Film

Compared with single-layer film, multi-layer films can obtain multiple properties, such as UV resistance, antistatic, electromagnetic shielding property, antibacterial property and other properties. Miao et al. [101] sputtered AZO/Ag/AZO three-layer film on polyester fabric. When the Ag layer reached 10nm, a continuous film was formed, and its visible light transmittance was 80.5%. When the AZO (30 nm)/Ag (13 nm)/AZO (30 nm) structure was formed, the infrared reflectance was as high as 96%. In this research, properties of AZO/Cu/AZO films were compared with that of AZO/Ag/AZO films on polyester fabrics. At sputtering pressure of 100 Pa. The AZO/Cu/AZO three-layer film coated fabrics’ hydrophilicity was slightly improved (contact angle is reduced from 93.5 degrees to 88.5 degrees), UV resistance was slightly improved (UPF value increased from 40.64 to 48.437), and the infrared reflectance was reduced greatly, from 96 to 60% [102].
Multilayer composite films can also obtain structural color due to interference and diffraction of the films [103]. As the thickness of TiO2 increased, the sputtered fabric colors were different, such as purple (42 nm), light blue (66 nm), blue (82 nm), pink (98 nm) and deep red (115 nm) in Ag/TiO2 composite film on the surface of polyester fabric [17]. However, the researches on structural color through magnetron sputtering technology were less published at present. It mainly involved the generation of colors. Deeper researches on the extensiveness of structural color chromatography and the stability and reproducibility of structural colors had not been reported. More often, multi-layer films can achieve better effect than single layer films. Koprowska et al. [104] sputtered Cu/Sn and Cu/Zn/Ni films on the surface of polypropylene (PP) nonwoven fabrics. Ziaja et al. [105] sputtered Zn/Bi film and ZnO/Ti film on the surface of same fabrics. Both of them obtained favorable electromagnetic shielding property and good adhesion between the films and PP [106]. Rtimi et al. [107] also found that in Cu film, TiO2 film and TiO2/Cu composite film, antibacterial effect of TiO2/Cu composite film was much better than that of the others. It was suggested that TiO2 had a synergistic effect on Cu [108]. Similarly, the antibacterial efficiency of the Cu/CuO composite film sputtered on polyester fabric against E. coli was more than three times higher than that of the sputtered Cu film [109].

2.5. Effect of Plasma Pre-Treatment on Sputtering Coat

There is better adhesion between magnetron sputter coatings and fabrics compared to other methods. However, the adhesion between coatings and fabrics was discrepant due to sputtering processes and substrates different. For example, high-power impulse magnetron sputtering proceeded with a higher density of electrons/metalion pairs and at higher energies compared to direct current magnetron sputtering (DCMS) and direct current pulsed magnetron sputtering (DCMSP), thereby improved the adhesion between coatings and substrates [37]. For this kind of fabric substrate, the different surface chemical property, surface morphology and porosity size of the fiber materials can also cause differences in adhesion between coatings and substrates, besides the fabric structure differences such as knitted fabrics, woven fabrics and nonwoven fabrics, etc. When the adhesion was not good enough, it was possible to significantly improve the adhesion by appropriately improved the insufficient activation of fibers surface, internal stress, and differences in the thermal expansion coefficient [31]. Plasma pre-treatment of the fabric can increase adhesion between films and fabrics. The improving effect on adhesion was universal.
Before depositing a brass (Cu: Zn = 65:35, wt.%, Cu/Zn elemental composition ratio of 1.86) film on polyester fabric by high-power impulse magnetron sputtering (HIPIMS), Chen et al. [110] used oxygen plasma to pretreat the fabric for 1 min. The adhesion between brass film and fabric was increased obviously. When it was sputtered for 1 min, the coated fabric provided durable antibacterial properties against Staphylococcus aureus and Escherichia coli. Dry and wet rubbing fastness of the coated fabric can reach grade 5 and grade 4–5, respectively. Overall, the increased coating adhesion improves the color fastness of the pretreated fabric in rubbing, such that the coating reaches grade 5 during dry rubbing. The pre-treatment with oxygen plasma increases the film adhesion because it causes activation and the required PET surface functionalization. Such chemical importance brought about by oxygen plasma pre-treatment is crucial as well as physically cleaning the surface.
Saffari et al. [111] used low temperature plasma to pre-treat polylactic acid (PLA) fabric before depositing TiO2 film on it. With the increase of plasma treating time and sputtering time, TiO2 particles on the PLA fibers’ surface became more compact. Figure 5 shows the scanning electron microscope image of the samples. When plasma pre-treatment was 10 min, the antibacterial and photo-catalytic properties of the coated fabric was best and can endure many times washing. The initially grown TiO2 film and the chemical modification that is caused by pretreatment with oxygen plasma clearly synergistically improved film adhesion to resist washing.
In other studies, for example, Wei et al. [112] deposited transparent ITO films on polyester nonwoven fabrics. Depla et al. [22] deposited Al2O3 films on the surface of polyester woven and non-woven ones, plasma pre-treatment all can significantly improve the adhesion of the coatings and their continuity and compactness.

3. Conclusions and Outlooks

Magnetron sputtering technology is a new-style method for the surface modification of textiles. The use of magnetron sputtering technology can impart textiles anti-static, antibacterial, anti-ultraviolet, electromagnetic shielding, electrical conductivity and other single or composite properties. The effect of interference and diffraction of nano-films even can also be used to obtain structural color effect. However, there are still many problems that require further research.
First, the functions of coated fabrics need to be further improved. For example: (1) How electromagnetic shielding fabrics achieve high effectiveness (≥60 dB); (2) How to achieve microwave electromagnetic shielding at a higher frequency range of 10–18 GHz; (3) How to achieve the selective shielding within the specified frequency range; (4) How antibacterial fabrics achieve low drug resistance, broad spectrum antibacterial properties and no toxicity.
Second, the papers on structural color coated fabrics have only been published in the past two years. The research is still not perfect and will probably be the hotspot and trend of future research. (1) How to achieve the extensiveness of structural colors’ chromatography; (2) How to make the structural color obtain favorable reproducibility and stability; (3) Characterization methods of structural color textiles and their various fastness. The structural color of coated fabrics is different from traditional dyeing. The fastness evaluation method applied to traditional dyeing cannot be applied to structural color. However, there is no applicable method for characterizing structural color fastness at present. So, further exploration is required.
Third, research on the safety of coated fabrics on the human body needs to be further strengthened. Since various metals and metallic compounds are required for the sputtering process, there are few studies on the effect of these nano-sized metals and metallic compounds on human health. There is an urgent need to strengthen research.

Author Contributions

X.-Q.T. proposed this review and organized all the sections. X.-Q.T. wrote the first draft of the manuscript. X.-Q.T., J.-Y.L. (Jian-Yong Liu) and J.-R.N. conceived the idea for this paper and supervised the work. J.-Y.L. (Jia-Yin Liu) and X.-Q.T. compiled the literature data. J.-Y.T., J.-Y.L. (Jian-Yong Liu) and J.-R.N. polished the language and discussed the whole manuscript. J.-Y.L. (Jia-Yin Liu) and X.-Q.T. made careful proofreading for the manuscript.

Funding

This research received no external funding.

Conflicts of Interest

The authors declare no conflict of interests.

References

  1. Asad, M.; Saba, N.; Asiri, A.M. Preparation and characterization of nanocomposite films from oil palm pulp nanocellulose/poly (vinyl alcohol) by casting Method. Carbohyd. Polym. 2018, 191, 103–111. [Google Scholar] [CrossRef] [PubMed]
  2. Grant, D.S.; Siegele, R.; Bazaka, K. Formation of nanocrystalline and amorphous carbon by high fluence swift heavy ion irradiation of a plasma polymerized polyterpenol thin film precursor. J. Appl. Polym. Sci. 2018, 135, 29. [Google Scholar] [CrossRef]
  3. Comini, E. Metal oxide nano-crystals for gas sensing. Anal. Chim. Acta 2006, 568, 28–40. [Google Scholar] [CrossRef] [PubMed]
  4. Alagarasi, A.; Rajalakshmi, P.U.; Shanthi, K. Ordered mesoporous nanocrystalline titania: A promising new class of photocatalyic materials. Catal. Today 2018, 309, 202–211. [Google Scholar] [CrossRef]
  5. Meyers, M.A.; Mishra, A.; Benson, D.J. Mechanical properties of nanocrystalline materials. Prog. Mater. Sci. 2006, 51, 427–556. [Google Scholar] [CrossRef]
  6. Weng, X.; Ahmed, S.R.; Neethirajan, S. A nanocomposite-based biosensor for bovine haptoglobin on a 3D paper-based analytical device. Sens. Actuator B Chem. 2018, 265, 242–248. [Google Scholar] [CrossRef]
  7. Lomov, S.V.; Wicks, S.; Gorbatrkh, L. Compressibility of nanofibre-grafted alumina fabric andyarns: Aligned carbon nanotube forests. Compos. Sci. Technol. 2014, 90, 57–66. [Google Scholar] [CrossRef]
  8. Lu, Y. Electroless copper plating on 3-mercaptopropyltriethoxysilane modified PET fabric challenged by ultrasonic washing. Appl. Surf. Sci. 2009, 255, 8430–8434. [Google Scholar] [CrossRef]
  9. Choi, K.K.; Lee, J.Y.; Lee, W.B. Chemical vapor deposition carbon film as a capping layer in 4H-SiC based mosfets. J. Nanosci. Nanotechnol. 2018, 18, 5868–5875. [Google Scholar] [CrossRef] [PubMed]
  10. Pan, C.; Shen, L.; Shang, S. Preparation of superhydrophobic and UV blocking cotton fabric via solgel method and self-assembly. Appl. Surf. Sci. 2012, 259, 110–117. [Google Scholar] [CrossRef]
  11. Ellmer, K. Magnetron sputtering of transparent conductive zinc oxide: Relation between the sputtering parameters and the electronic properties. J. Phys. D Appl. Phys. 2000, 33, 17–32. [Google Scholar] [CrossRef]
  12. Vaideki, K.; Jayakumar, S.; Rajendran, R. Investigation on the effect of RF air plasma and neemleaf extract treatment on the surface modification and antimicrobial activity of cotton fabric. Appl. Surf. Sci. 2008, 254, 2472–2478. [Google Scholar] [CrossRef]
  13. Xue, C.H.; Wang, R.L.; Zhang, J. Growth of ZnO nanorod forests and characterization of ZnO coated nylonfibers. Mater. Lett. 2010, 64, 327–330. [Google Scholar] [CrossRef]
  14. Liu, J.Y.; Cheng, K.B.; Hwang, J.F. Study on the electrical and surface properties of polyester, polypropylene, and polyamide 6 using pen-type RF plasma treatment. J. Ind. Text. 2011, 41, 123–141. [Google Scholar] [CrossRef]
  15. Hegemann, D.; Amberg, M.; Ritter, A. Recent developments in Ag metallised textiles using plasma sputtering. Mater. Technol. 2009, 24, 41–45. [Google Scholar] [CrossRef]
  16. Kelly, P.J.; Arnell, R.D. Magnetron Sputtering: A Review of recent developments and applications. Vacuum 2000, 56, 159–172. [Google Scholar] [CrossRef]
  17. Yuan, X.; Wei, Q.; Chen, D. Electrical and optical properties of polyester fabric coated with Ag/TiO2 composite films by magnetron sputtering. Text. Res. J. 2016, 86, 887–894. [Google Scholar] [CrossRef]
  18. Chen, Y.; Hsu, C.; He, J. Antibacterial silver coating on poly(ethylene tterephthalate) fabric by using high power impulse magnetron sputtering. Surf. Coat. Technol. 2013, 232, 868–875. [Google Scholar] [CrossRef]
  19. Baghriche, O.; Kiwi, J.; Pulgarin, C. Antibacterial Ag-ZrN surfaces promoted by subnanometric Zr N-clusters deposited by reactive pulsed magnetron sputtering. J. Photochem. Photobiol. A Chem. 2012, 229, 39–45. [Google Scholar] [CrossRef]
  20. Shahidi, S.; Ghoranneviss, M. Plasma sputtering for fabrication of antibacterial and ultraviolet protective fabric. Cloth. Text. Res. J. 2015, 34, 37–47. [Google Scholar] [CrossRef]
  21. Wu, Y.; Zhang, L.; Min, G. Surface functionalization of nanostructured LaB6-coated poly trilobal fabric by magnetron sputtering. Appl. Surf. Sci. 2016, 384, 413–418. [Google Scholar] [CrossRef]
  22. Depla, D.; Segers, S.; Leroy, W. Smart textiles: An explorative study of the use of magnetron sputter deposition. Text. Res. J. 2011, 81, 1808–1817. [Google Scholar] [CrossRef]
  23. Yip, J.; Jiang, S.; Wong, C. Characterization of metallic textiles deposited by magnetron sputtering and traditional metallic treatments. Surf. Coat. Technol. 2009, 204, 380–385. [Google Scholar] [CrossRef]
  24. Sanjines, R.; Ruales, C.; Castro, C. Antimicrobial Cu-functionalized surfaces prepared by bipolar asymmetric DC-pulsed magnetron sputtering (DCP). J. Photochem. Photobiol. A Chem. 2011, 220, 70–76. [Google Scholar]
  25. Hegemann, D.; Hossain, M.M.; Balazs, D.J. Nanostructured plasma coatings to obtain multifunctional textile surfaces. Prog. Org. Coat. 2007, 58, 237–240. [Google Scholar] [CrossRef]
  26. Zhang, H.; Zhang, H. Silver plating on hollow glass microsphere and coating finishing of PET/cotton fabric. J. Ind. Text. 2013, 42, 283–296. [Google Scholar] [CrossRef]
  27. Lai, K.; Sun, R.J.; Chen, M.Y. Electromagnetic shielding effectiveness of fabrics with metallized polyester filaments. Text. Res. J. 2007, 77, 242–246. [Google Scholar] [CrossRef]
  28. Weickmann, H.; Tiller, J.C.; Thomann, R. Metallized organoclays as new intermediates for aqueous nanohybrid dispersions, nanohybrid catalysts and antimicrobial polymer hybrid nanocomposites. Macromol. Mater. Eng. 2005, 290, 875–883. [Google Scholar] [CrossRef]
  29. Putnina, A.; Kukle, S. Textile Surface Modification of Materials by Sputtering Technology. Ph.D. Thesis, Riga Technical University, Riga, Latvia, 2010. [Google Scholar]
  30. Shcherbakova, N.N.; Pereshivailov, V.K.; Perevoznikova, Y.V. Intermediate process control of the fabrication of a conducting layer on the surface of nanofibrous materials. Glass Ceram. 2018, 74, 329–331. [Google Scholar] [CrossRef]
  31. Chodun, R.; Wicher, B.; Okrasa, S. Multi-sided metallization of textile fibers by using magnetron system with grounded cathode. Mater. Sci. 2017, 35, 639–646. [Google Scholar]
  32. Yu, X.; Shen, Z. Metal copper films coated on microparticle substrates using an ultrasonic-assisted magnetron sputtering system. Powder Technol. 2008, 187, 239–243. [Google Scholar] [CrossRef]
  33. Thornton, J.A. Magnetron sputtering: basic physics and application to cylindrical magnetrons. J. Vac. Sci. Technol. 1977, 15, 171–177. [Google Scholar] [CrossRef]
  34. Boroujeni, A.Y.; Alhaik, M.; Emami, A. Hybrid ZnO nanorod grafted carbon fiber reinforced polymer composites; Randomly versus radially aligned long ZnO nanorods growth. J. Nanosci. Nanotechnol. 2018, 18, 4182–4188. [Google Scholar] [CrossRef] [PubMed]
  35. Jia, Z.N.; Hao, C.Z.; Yang, Y.L. Tribological performance of hybrid PTFE/serpentine composites reinforced with nanoparticles. Tribol. Mater. Surf. Interface 2014, 8, 139–145. [Google Scholar] [CrossRef]
  36. Liu, Y.; Leng, J.; Wu, Q. Investigation on the properties of nano copper matrix composite via vacuum arc melting method. Mater. Res. Express 2017, 4, 10. [Google Scholar] [CrossRef]
  37. Ehiasarian, A.; Pulgarin, C.; Kiwi, J. Inactivation of bacteria under visible light and in the dark by Cu films. Advantages of Cu-HIPIMS-sputtered films. Environ. Sci. Pollut. Res. 2012, 19, 3791. [Google Scholar] [CrossRef] [PubMed]
  38. Scholz, J.; Nocke, G.; Hollstein, F. Investigations on fabrics coated with precious metals using the magnetron sputter technique with regard to their anti-microbial properties. Surf. Coat. Technol. 2005, 192, 252–256. [Google Scholar] [CrossRef]
  39. Russell, A.D. Biocide use and antibiotic resistance: The relevance of laboratory findings to clinical and environmental situations. Lancet Infect. Dis. 2003, 3, 794–803. [Google Scholar] [CrossRef]
  40. Kim, D.H.; Kim, Y.; Kim, J.W. Transparent and flexible film for shielding electromagnetic interference. Mater. Des. 2016, 89, 703–707. [Google Scholar] [CrossRef]
  41. Wang, L.; Wei, Q.; Meng, L. Morphology and properties of nanoscale copper films deposited on polyester substrates. Int. J. Cloth. Sci. Technol. 2014, 26, 367–376. [Google Scholar]
  42. Jiang, S.; Xu, J.; Chen, Z. Enhanced electro-conductivity and multi-shielding performance with copper, stainless steel and titanium coating onto PVA impregnated cotton fabric. J. Mater. Sci. Mater. Electron. 2018, 29, 5624–5633. [Google Scholar] [CrossRef]
  43. Miao, D.; Jiang, S.; Liu, J. Fabrication of copper and titanium coated textiles for sunlight management. J. Mater. Sci. Mater. Electron. 2017, 28, 9852–9858. [Google Scholar] [CrossRef]
  44. Amirsoleimani, M.; Khalilzadeh, M.A.; Sadeghifar, F. Surface modification of nanosatrch using nano silver: a potential antibacterial for food package coating. J. Food Sci. Technol. Mysore 2018, 55, 899. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, C.; Suganuma, K.; Iwashige, T. High-temperature reliability of sintered microporous Ag on electroplated Ag, Au, and sputtered Ag metallization substrates. J. Mater. Sci. Mater. Electron. 2018, 29, 1785–1797. [Google Scholar] [CrossRef]
  46. Chu, Z.; Zhao, T.; Li, L. Characterization of antimicrobial poly (lactic acid)/nano-composite films with silver and zinc oxide nanoparticles. Materials 2017, 10, 659. [Google Scholar] [CrossRef] [PubMed]
  47. Montazer, M.; Komeily, N.Z. Conductive nylon fabric through in situ synthesis of nano-silver: Preparation and characterization. Mater. Sci. Eng. C Mater. Biol. Appl. 2015, 56, 341–347. [Google Scholar] [CrossRef] [PubMed]
  48. Perumalraj, R.; Narayanan, K.S. Nano silver conductive composite material for electromagnetic compatibility. J. Reinf. Plast. Compos. 2014, 33, 1000–1016. [Google Scholar] [CrossRef]
  49. Charton, C.; Fahland, M. Electrical properties of Ag films on polyethylene terephthalate deposited by magnetron sputtering. Thin Solid Films 2004, 449, 100–104. [Google Scholar] [CrossRef]
  50. Du, W.Q.; Yu, F.; Qi, H.J. Sputter-deposited nano-metal films in a short period for electromagnetic shielding textiles. Adv. Mater. Res. 2011, 150, 1383–1386. [Google Scholar] [CrossRef]
  51. Rtimi, S.; Pascu, M.; Sanjines, R. ZrNO–Ag co-sputtered surfaces leading to E. coli, inactivation under actinic light: Evidence for the oligodynamic effect. Appl. Catal. B Environ. 2013, 138, 113–121. [Google Scholar] [CrossRef]
  52. Huang, X.M.; Wang, Q.W.; Li, Y.L. Effects of Ar gas pressure on characterization of nano-structured silver films deposited on the surface of polyester fabric. Appl. Mech. Mater. 2012, 189, 105–109. [Google Scholar] [CrossRef]
  53. Jiang, S.X.; Qin, W.F.; Guo, R.H. Surface functionalization of nanostructured silver-coated polyester fabric by magnetron sputtering. Surf. Coat. Technol. 2010, 204, 3662–3667. [Google Scholar] [CrossRef]
  54. Miao, D.; Li, A.; Jiang, S. Fabrication of Ag and AZO/Ag/AZO ceramic films on cotton fabrics for solar control. Ceram. Int. 2015, 41, 6312–6317. [Google Scholar] [CrossRef]
  55. Talebi, S.; Chaibakhsh, N.; Moradi-Shoeili, Z. Application of nanoscale ZnS/TiO2 composite for optimized photocatalytic decolorization of a textile dye. J. Appl. Res. Technol. 2017, 15, 378–385. [Google Scholar] [CrossRef]
  56. Veerachamy, S.; Hameed, P.; Sen, D. Studies on mechanical, biocompatibility and antibacterial activity of plasma sprayed nano/micron ceramic bilayered coatings on Ti-6Al-4V alloy for biomedical application. J. Nanosci. Nanotechnol. 2018, 18, 4515–4523. [Google Scholar] [CrossRef] [PubMed]
  57. Pan, F.; Gao, S.; Chen, C. Recent progress in resistive random access memories: Materials, switching mechanisms, and performance. Mater. Sci. Eng. R Rep. 2014, 83, 1–59. [Google Scholar] [CrossRef]
  58. Esen, M.; Ilhan, I.; Karaaslan, M. Electromagnetic absorbance properties of a textile material coated using filtered arc-physical vapor deposition method. J. Ind. Text. 2015, 45, 298–309. [Google Scholar] [CrossRef]
  59. Yao, C.W.; Sebastian, D.; Lian, I. Corrosion resistance and durability of superhydrophobic copper surface in corrosive NaCl aqueous solution. Coatings 2018, 8, 70. [Google Scholar] [CrossRef]
  60. Habisch, S.; Böhme, M.; Peter, S. The effect of interlayer materials on the joint properties of diffusion-bonded aluminium and magnesium. Metals 2018, 8, 138. [Google Scholar] [CrossRef]
  61. Xiao, H.; Guo, X.F.; Wang, X.S. Tensile properties affected by magnetron sputtering of nylon yam and its surface morphology observation. Text. Res. J. 2010, 5, 14. [Google Scholar]
  62. Liu, Z.M.; Du, H.; Shi, N.L.; Wen, L.S. Influence of conductivity size effect on the microwave absorption properties of aluminium films. Acta Metall. Sin. 2008, 44, 1099–1104. [Google Scholar]
  63. Bandorf, R.; Waschke, S.; Carreri, F.C. Direct metallization of PMMA with aluminum films using HIPIMS. Surf. Coat. Technol. 2016, 290, 77–81. [Google Scholar] [CrossRef]
  64. Shahidi, S.; Ghoranneviss, M.; Moazzenchi, B. Aluminum coatings on cotton fabrics with low temperature plasma of argon and oxygen. Surf. Coat. Technol. 2007, 201, 5646–5650. [Google Scholar] [CrossRef]
  65. Yuen, C.W.M.; Jiang, S.Q.; Kan, C.W. Influence of surface treatment on the electroless nickel plating of textile fabric. Appl. Surf. Sci. 2007, 253, 5250–5257. [Google Scholar] [CrossRef]
  66. Shahidi, S.; Ghoranneviss, M. Investigation on dye ability and antibacterial activity of nanolayer platinum coated polyester fabric using DC magnetron sputtering. Prog. Org. Coat. 2011, 70, 300–303. [Google Scholar] [CrossRef]
  67. Dhineshbabu, N.R.; Bercy, E.W. Multifunctional property of graphene oxide nanostructures on silica-coated cotton fabrics. J. Nanosci. Nanotechnol. 2018, 18, 4923. [Google Scholar] [CrossRef] [PubMed]
  68. Nam, Y.W.; Kumar, S.; Akhil, V. Multi-functional aramid/epoxy composite for stealth space hypervelocity impact shielding system. Compos. Struct. 2018, 193, 113–120. [Google Scholar] [CrossRef]
  69. Wilson, R.L.; Simion, C.E.; Blackman, C.S. The effect of film thickness on the gas sensing properties of ultra-thin TiO₂ films deposited byatomic layer deposition. Sensors 2018, 18, 735. [Google Scholar] [CrossRef] [PubMed]
  70. Alexandra, P.P.; Thomas, M.; Sandra, T. Highly sensitive SnO2 sensor via reactive laser-induced transfer. Sci. Rep. 2016, 6, 25144. [Google Scholar]
  71. Ramesan, M.T.; Santhi, V. In situ synthesis, characterization, conductivity studies of polypyrrole/silver doped zinc oxide nanocomposites and their application for ammonia gas sensing. J. Mater. Sci. Mater. Electron. 2017, 28, 18804–18814. [Google Scholar] [CrossRef]
  72. Molina-Reyes, J. Design and electrochemical characterization of ion-sensitive capacitors with ALD Al2O3 as the sensitive dielectric. IEEE Sens. J. 2018, 18, 231–236. [Google Scholar] [CrossRef]
  73. Mothes, F.; Ifang, S.; Gallus, M. Bed flow photoreactor experiments to assess the photocatalytic nitrogen oxides abatement under simulated atmospheric conditions. Appl. Catal. B Environ. 2018, 231, 161–172. [Google Scholar] [CrossRef]
  74. Xu, Y.; Wang, H.; Wei, Q. Structures and properties of the polyester nonwovens coated with titanium dioxide by reactive sputtering. J. Coat. Technol. Res. 2010, 7, 637–642. [Google Scholar] [CrossRef]
  75. Zgura, I.; Frunza, S.; Frunza, L. Titanium dioxide layer deposited at low temperature upon polyester fabrics. J. Optoelectron. Adv. Mater. 2015, 17, 1055–1063. [Google Scholar]
  76. Xu, Y.; Xu, W.; Huang, F. Preparation and photocatalytic activity of TiO2-deposited fabrics. Int. J. Photoenergy 2012, 2012, 1–5. [Google Scholar]
  77. Zhang, Y.M. Research on preparation and properties of textile materials deposited with nanostructured titanium oxide. Adv. Mater. Res. 2014, 998, 136–139. [Google Scholar] [CrossRef]
  78. Rtimi, S.; Sanjines, R.; Andrzejczuk, M. Innovative transparent non-scattering TiO2, bactericide thin films inducing increased E. coli cell wall fluidity. Surf. Coat. Technol. 2014, 254, 333–343. [Google Scholar] [CrossRef]
  79. Rtimi, S.; Baghriche, O.; Sanjines, R. TiON and TiON-Ag sputtered surfaces leading to bacterial inactivation under indoor actinic light. J. Photochem. Photobiol. A Chem. 2013, 256, 52–63. [Google Scholar] [CrossRef] [Green Version]
  80. Rtimi, S.; Baghriche, O.; Sanjines, R. Photocatalysis/catalysis by innovative TiN and TiN-Ag surfaces inactivate bacteria under visible light. Appl. Catal. B Environ. 2012, 123, 306–315. [Google Scholar] [CrossRef] [Green Version]
  81. Xu, Y.; Sheng, J.; Yin, X. Functional modification of breathable polyacrylonitrile/polyurethane/TiO2 nanofibrous membranes with robust ultraviolet resistant and waterproof performance. J. Colloid Interface Sci. 2017, 508, 508–516. [Google Scholar] [CrossRef] [PubMed]
  82. Miao, D.; Hu, H.; Li, A. Fabrication of porous and amorphous TiO2, thin films on flexible textile substrates. Ceram. Int. 2015, 41, 9177–9182. [Google Scholar] [CrossRef]
  83. Wang, Q.; Wang, X.; Li, X. Surface modification of PMMA/O-MMT composite microfibers by TiO2 coating. Appl. Surf. Sci. 2011, 258, 98–102. [Google Scholar] [CrossRef]
  84. Chuang, K.T.; Abdullah, H.; Leu, S.J. Metal oxide composite thin films made by magnetron sputtering for bactericidal application. J. Photochem. Photobiol. A Chem. 2017, 337, 151–164. [Google Scholar] [CrossRef]
  85. Ni, L.W.S.; Kaneti, Y.V.; Yuliarto, B. Hybrid nanoarchitecturing of hierarchical zinc oxide wool-ball-like nanostructures with multi-walled carbon nanotubes for achieving sensitive and selective detection of sulfur dioxide. Sens. Actuator B Chem. 2018, 261, 241–251. [Google Scholar]
  86. Ahmed, M.A.M.; Mwankemwa, B.S.; Carleschi, E. Effect of Sm doping ZnO nanorods on structural optical and electrical properties of Schottky diodes prepared by chemical bath deposition. Mater. Sci. Semicond. Process 2018, 79, 53–60. [Google Scholar] [CrossRef]
  87. Deng, B.; Yan, X.; Wei, Q. AFM characterization of nonwoven material functionalized by ZnO sputter coating. Mater. Charact. 2007, 58, 854–858. [Google Scholar] [CrossRef]
  88. Mao, X.; Zou, J.; Li, H. Magnetron sputtering fabrication and photoelectric properties of WSe2 film solar cell device. Appl. Surf. Sci. 2018, 444, 126–132. [Google Scholar] [CrossRef]
  89. Wang, K.L.; Xin, Y.Q.; Zhao, J.F. High transmittance in IR region of conductive ITO/AZO multilayers deposited by RF magnetron sputtering. Ceram. Int. 2018, 44, 6769–6774. [Google Scholar] [CrossRef]
  90. Beica, T.; Nistor, L.C.; Morosanu, C. Studies on multifunctional textile materials. Plasma deposition onto textile materials and onto reference plates. J. Optoelectron. Adv. Mater. 2008, 10, 2811–2817. [Google Scholar]
  91. Jiang, S.; Xu, J.; Miao, D. Water-repellency, ultraviolet protection and infrared emissivity properties of AZO film on polyester fabric. Ceram. Int. 2017, 43, 2424–2430. [Google Scholar] [CrossRef]
  92. Koc, U.; Karaca, G.Y.; Oksuz, A.U. RF sputtered electrochromic wool textile in different liquid media. J. Mater. Sci. Mater. Electron. 2017, 28, 8725–8732. [Google Scholar] [CrossRef]
  93. Schawaller, D.; Voss, M.; Bauch, V. Flexible, switchable electrochromic textiles. Macromol. Mater. Eng. 2014, 299, 330–335. [Google Scholar] [CrossRef]
  94. Subramanian, B.; Priya, K.A.; Rajan, S.T. Antimicrobial activity of sputtered nanocrystalline CuO impregnated fabrics. Mater. Lett. 2014, 128, 1–4. [Google Scholar] [CrossRef]
  95. Eren, E.; Karaca, G.Y.; Alver, C. Fast electrochromic response for RF-magnetron sputtered electrospun V2O5 mat. Eur. Polym. J. 2016, 84, 345–354. [Google Scholar] [CrossRef]
  96. Alawajji, R.A.; Kannarpady, G.K.; Biris, A.S. Fabrication of transparent superhydrophobic polytetrafluoroethylene coating. Appl. Surf. Sci. 2018, 444, 208–215. [Google Scholar] [CrossRef]
  97. Mahdavi, H.R.; Arzani, M.; Isanejad, M. Effect of hydrophobic and hydrophilic nanoparticles loaded in D2EHPA/M2EHPA—PTFE supported liquid membrane for simultaneous cationic dyes pertraction. J. Environ. Manag. 2018, 213, 288–296. [Google Scholar] [CrossRef] [PubMed]
  98. Huang, F.; Wei, Q.; Liu, Y. Surface functionalization of silk fabric by PTFE sputter coating. J. Mater. Sci. 2007, 42, 8025–8028. [Google Scholar] [CrossRef]
  99. Wi, D.Y.; Kim, I.W.; Kim, J. Water repellent cotton fabrics prepared by PTFE RF sputtering. Fiber Polym. 2009, 10, 98–101. [Google Scholar] [CrossRef]
  100. Huang, M.L.; Di, J.F.; Qi, H.J. Research of producing antiultraviolet PET fabric through magnetron sputtering. Cotton Text. Technol. 2008, 36, 7–9. [Google Scholar]
  101. Miao, D.; Jiang, S.; Shang, S. Infrared reflective properties of AZO/Ag/AZO trilayers prepared by RF magnetron sputtering. Ceram. Int. 2014, 40, 12847–12853. [Google Scholar] [CrossRef]
  102. Miao, D.; Zhao, H.; Peng, Q. Fabrication of high infrared reflective ceramic films on polyester fabrics by RF magnetron sputtering. Ceram. Int. 2015, 41, 1595–1601. [Google Scholar] [CrossRef]
  103. Yuan, X.; Xu, W.; Huang, F. Structural colors of fabric from Ag/TiO2 composite films prepared by magnetron sputtering deposition. Int. J. Cloth. Sci. Technol. 2017, 29, 427–435. [Google Scholar] [CrossRef]
  104. Koprowska, J.; Dobruchowska, E.; Reszka, K. Morphology and electromagnetic shielding effectiveness of PP nonwovens modified with metallic layers. Fiber Text. East. Eur. 2015, 5, 84–91. [Google Scholar] [CrossRef]
  105. Ziaja, J.; Koprowska, J.; Janukiewicz, J. Using plasma metallisation for manufacture of textile screens against electromagnetic fields. Fiber Text. East. Eur. 2008, 16, 64–66. [Google Scholar]
  106. Ziaja, J.; Ozimek, M.; Koprowska, J. Metallic and oxide Zn and Ti layers on unwoven fabric as shields for electromagnetic fields. In Proceedings of the 2009 EMC Europe Workshop Materials in EMC Applications, Athens, Greece, 11 June 2009; pp. 1–4. [Google Scholar]
  107. Rtimi, S.; Baghriche, O.; Pulgarin, C. Growth of TiO2/Cu films by hipims for accelerated bacterial loss of viability. Surf. Coat. Technol. 2013, 232, 804–813. [Google Scholar] [CrossRef]
  108. Rtimi, S.; Giannakis, S.; Pulgarin, C. Self-sterilizing sputtered films for applications in hospital facilities. Molecules 2017, 22, 7. [Google Scholar] [CrossRef] [PubMed]
  109. Rtimi, S.; Sanjines, R.; Bensimon, M. Accelerated Escherichia coli inactivation in the dark on uniform copper flexible surfaces. Biointerphases 2014, 9, 2. [Google Scholar] [CrossRef] [PubMed]
  110. Chen, Y.H.; Wu, G.W.; He, J.L. Antimicrobial brass coatings prepared on poly (ethylene terephthalate) textile by high power impulse magnetron sputtering. Mater. Sci. Eng. C Mater. Biol. Appl. 2015, 48, 41–47. [Google Scholar] [CrossRef] [PubMed]
  111. Saffari, M.R.; Miab, R.K. The antibacterial property of PLA textiles coated by nano-TiO2 through eco-friendly low temperature plasma. Int. J. Cloth. Sci. Technol. 2016, 28, 830–840. [Google Scholar] [CrossRef]
  112. Wei, Q.; Wang, H.; Deng, B. Surface and interface investigation of indium-tin-oxide (ITO) coated nonwoven fabrics. J. Adhes. Sci. Technol. 2010, 24, 135–147. [Google Scholar] [CrossRef]
Figure 1. The amount of literatures on magnetron sputtering functional textiles in recent years.
Figure 1. The amount of literatures on magnetron sputtering functional textiles in recent years.
Materials 11 01953 g001
Figure 2. The amount of literatures on magnetron sputtering coated fabrics target materials in recent years.
Figure 2. The amount of literatures on magnetron sputtering coated fabrics target materials in recent years.
Materials 11 01953 g002

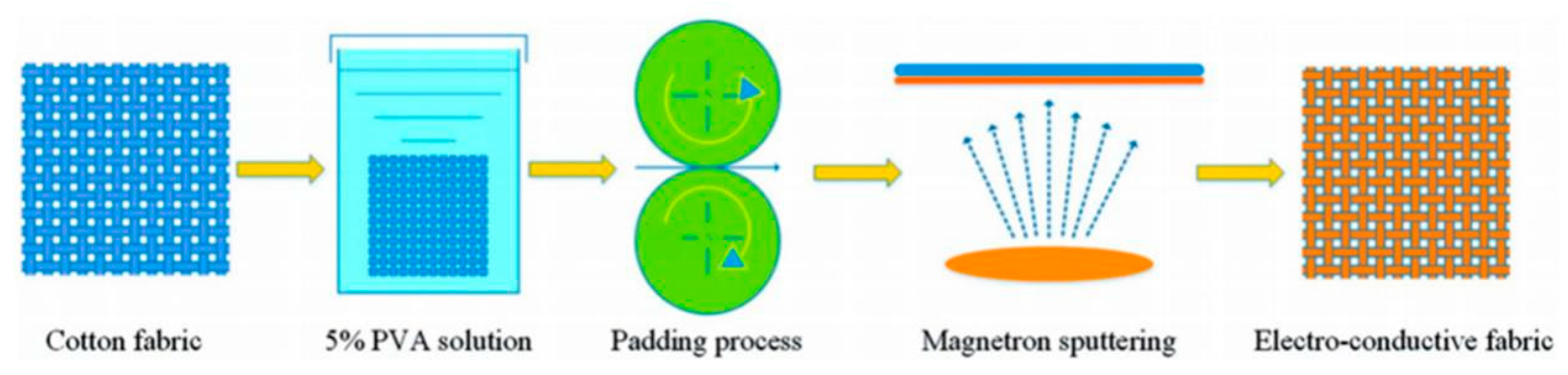

Figure 3. Schematic of the preparation of PVA impregnated cotton fabric by padding and sputtering. (Reprinted from Reference [43] with permission).
Figure 3. Schematic of the preparation of PVA impregnated cotton fabric by padding and sputtering. (Reprinted from Reference [43] with permission).
Materials 11 01953 g003

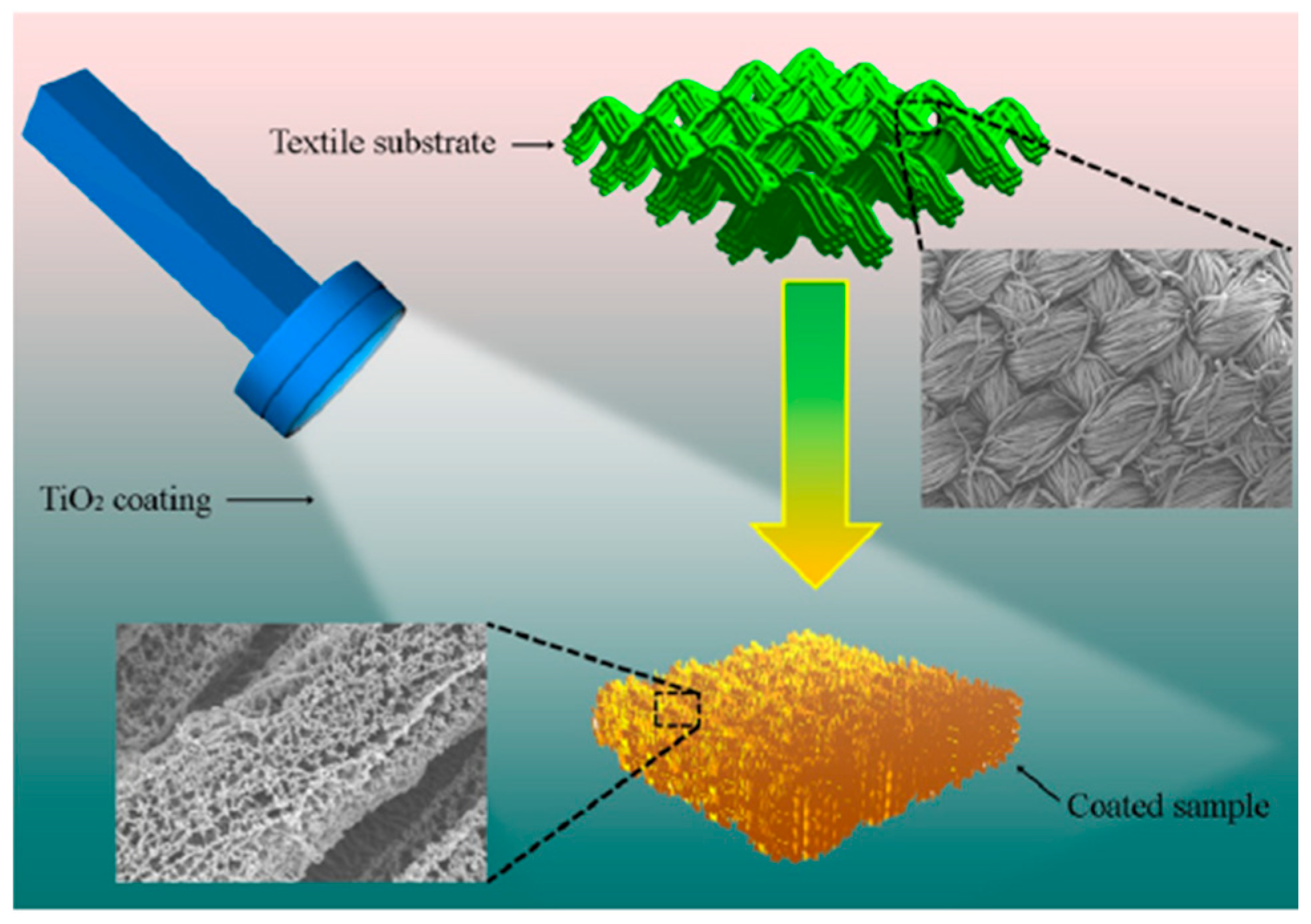

Figure 4. Scheme of the coating process. (Reprinted from Reference [84] with permission).
Figure 4. Scheme of the coating process. (Reprinted from Reference [84] with permission).
Materials 11 01953 g004

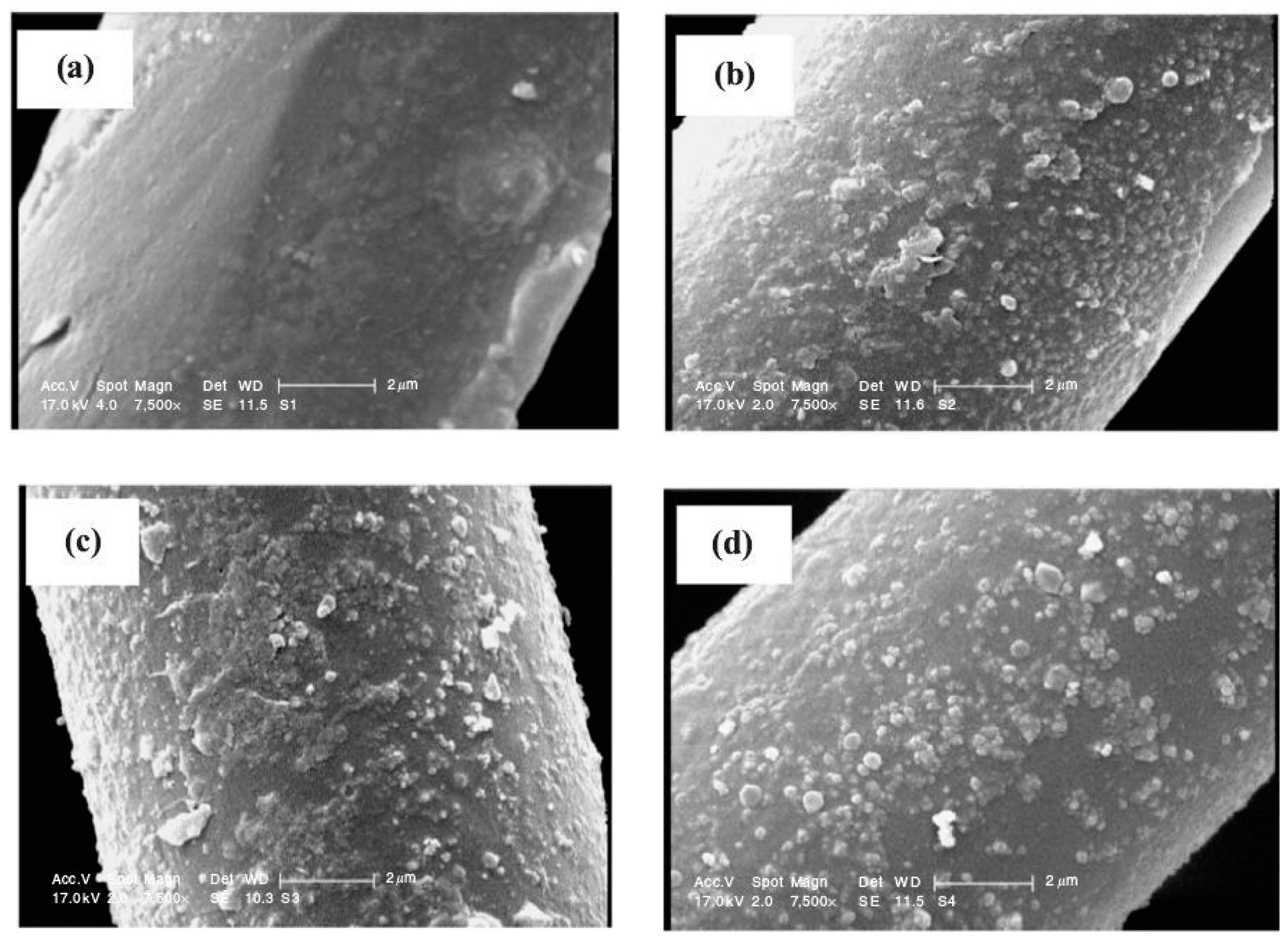

Figure 5. SEM images from surfaces that were plasma-treated with subsequent deposition. (a) Untreated; (b) 3 min plasma treated; (c) 5 min plasma treated; (d) 10 min plasma treated. Scale 2 μm (Reprinted from Reference [111] with permission).
Figure 5. SEM images from surfaces that were plasma-treated with subsequent deposition. (a) Untreated; (b) 3 min plasma treated; (c) 5 min plasma treated; (d) 10 min plasma treated. Scale 2 μm (Reprinted from Reference [111] with permission).
Materials 11 01953 g005
Table 1. Common target materials and functions and characterizing methods of magnetron sputtering coated fabrics.
Table 1. Common target materials and functions and characterizing methods of magnetron sputtering coated fabrics.
Serial NumberTarget MaterialsFunctionsCharacterizing Methods
1Cu, Ag, Ti, Al, Ni, TiO2, ZnO, WO3, V2O5, Al2O3, ITO, AZO, etc.Electromagnetic shielding, anti-static, conductive propertiesElectromagnetic shielding efficiency, charge surface density, electrical conductivity, resistivity, square resistance
2Cu, Ag, Ti, Al, Ni, Pt, TiO2, ZnO, MgO, ITO, AZO, PTFE, etc.Anti-UV, anti-infrared propertiesUPF (ultraviolet protection factor) value, infrared reflectivity
3Cu, Ag, Zn, Ti, TiO2, Pt, ZnO, MgO, CuO, brass, etc.Antibacterial propertyBacteriostatic rate
4Ni, Al, TiO2, PTFE, TiN, SiO2, etc.Hydrophobic and hydrophilic propertiesStatic contact angle, surface free energy
5TiO2, ZnO, MgO, SnO2, Al2O3, Fe2O3, etc.Adsorbed gas or gas sensitivity propertiesResistivity, electrical conductivity
6Ti, Al, TiO2, WO3, SiO2, SnO2, TiN, etc.Structural color effectReflectance, transmittance, refractive index
7SiO2, Al2O3, LaB6, etc.Heat resistant or warmnessThermal stability, Thermal insulation coefficient, Thermal conductivity
8Cu, Ag, PtImproved dyeing fastnessLight fastness, washing fastness

Share and Cite

MDPI and ACS Style

Tan, X.-Q.; Liu, J.-Y.; Niu, J.-R.; Liu, J.-Y.; Tian, J.-Y. Recent Progress in Magnetron Sputtering Technology Used on Fabrics. Materials 2018, 11, 1953. https://doi.org/10.3390/ma11101953

AMA Style

Tan X-Q, Liu J-Y, Niu J-R, Liu J-Y, Tian J-Y. Recent Progress in Magnetron Sputtering Technology Used on Fabrics. Materials. 2018; 11(10):1953. https://doi.org/10.3390/ma11101953

Chicago/Turabian Style

Tan, Xue-Qiang, Jian-Yong Liu, Jia-Rong Niu, Jia-Yin Liu, and Jun-Ying Tian. 2018. "Recent Progress in Magnetron Sputtering Technology Used on Fabrics" Materials 11, no. 10: 1953. https://doi.org/10.3390/ma11101953

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
