Open AccessFeature PaperArticle

A Hybrid Textile Electrode for Electrocardiogram (ECG) Measurement and Motion Tracking

Research Institute for Flexible Materials, Heriot-Watt University, Edinburgh TD1 3HF, UK
Author to whom correspondence should be addressed.
Materials 2018, 11(10), 1887;
Received: 27 July 2018 / Revised: 19 September 2018 / Accepted: 28 September 2018 / Published: 2 October 2018
(This article belongs to the Special Issue Novel Smart Textiles)
PDF [11038 KB, uploaded 2 October 2018]

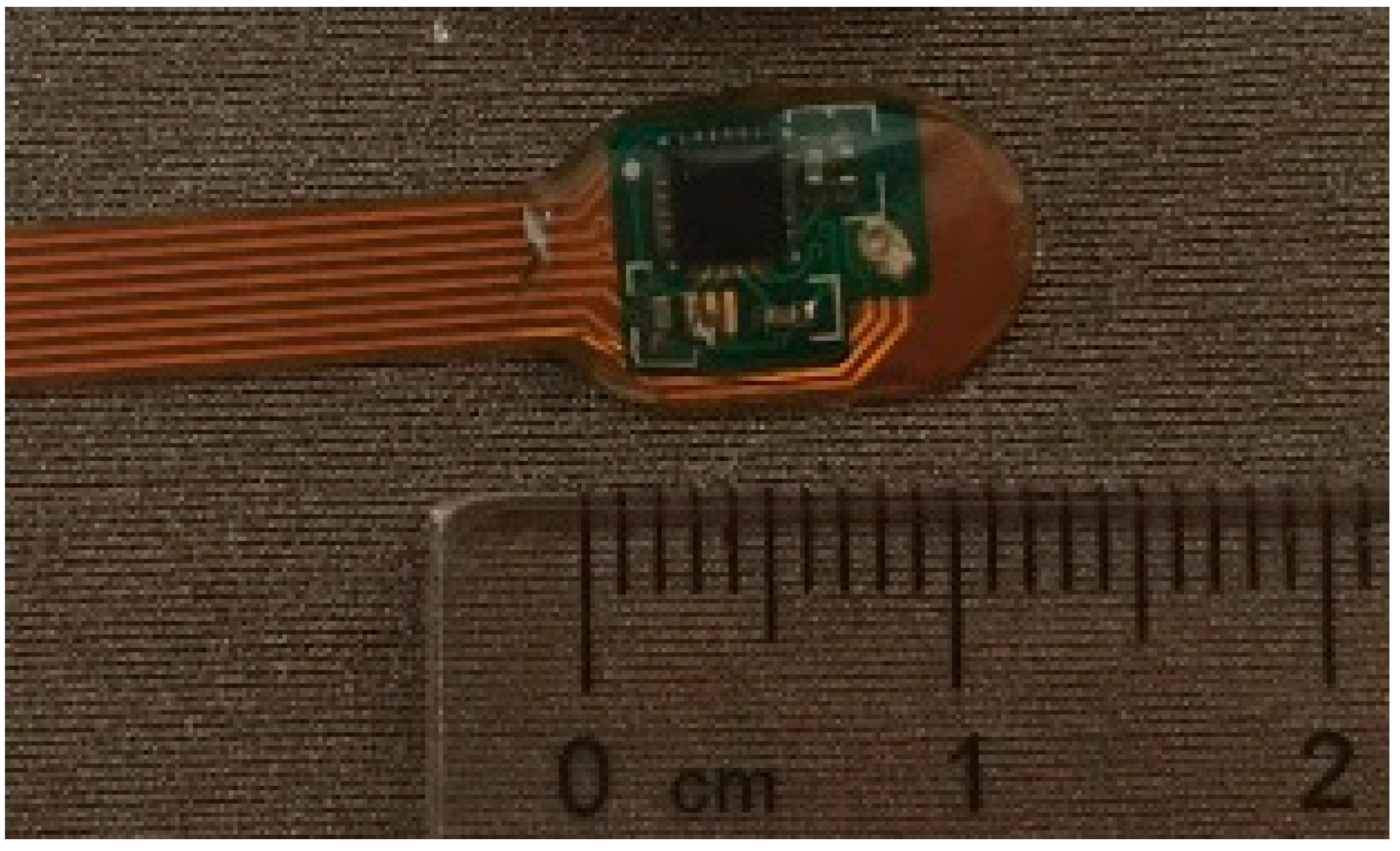

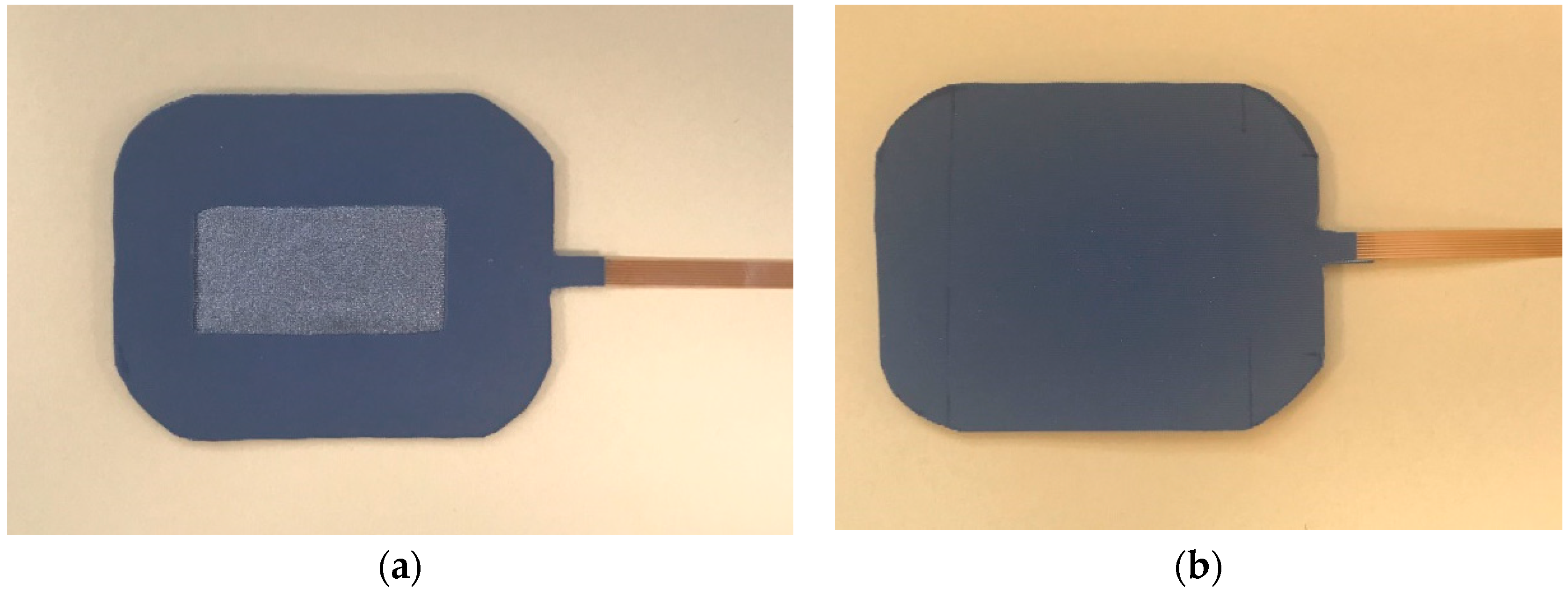

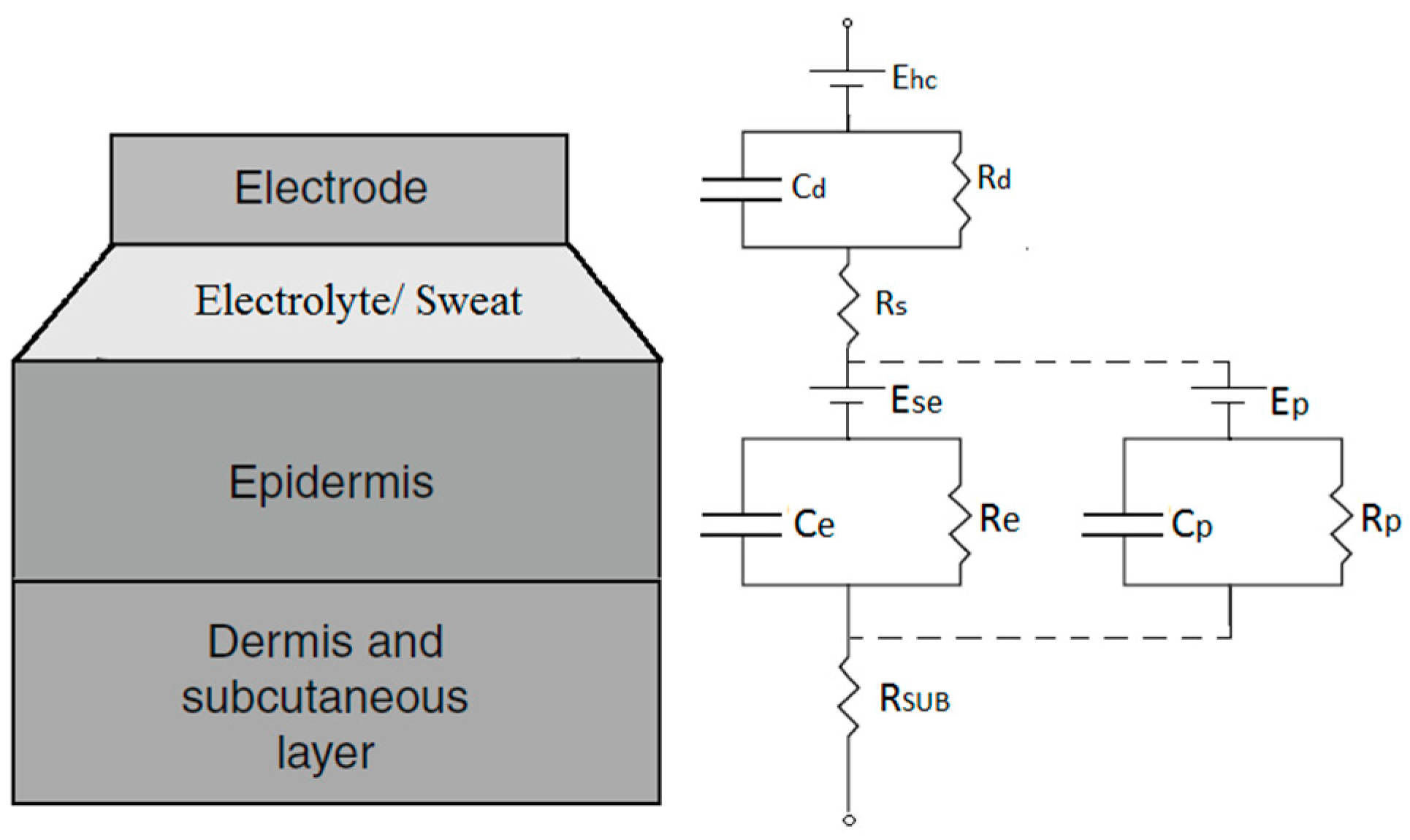

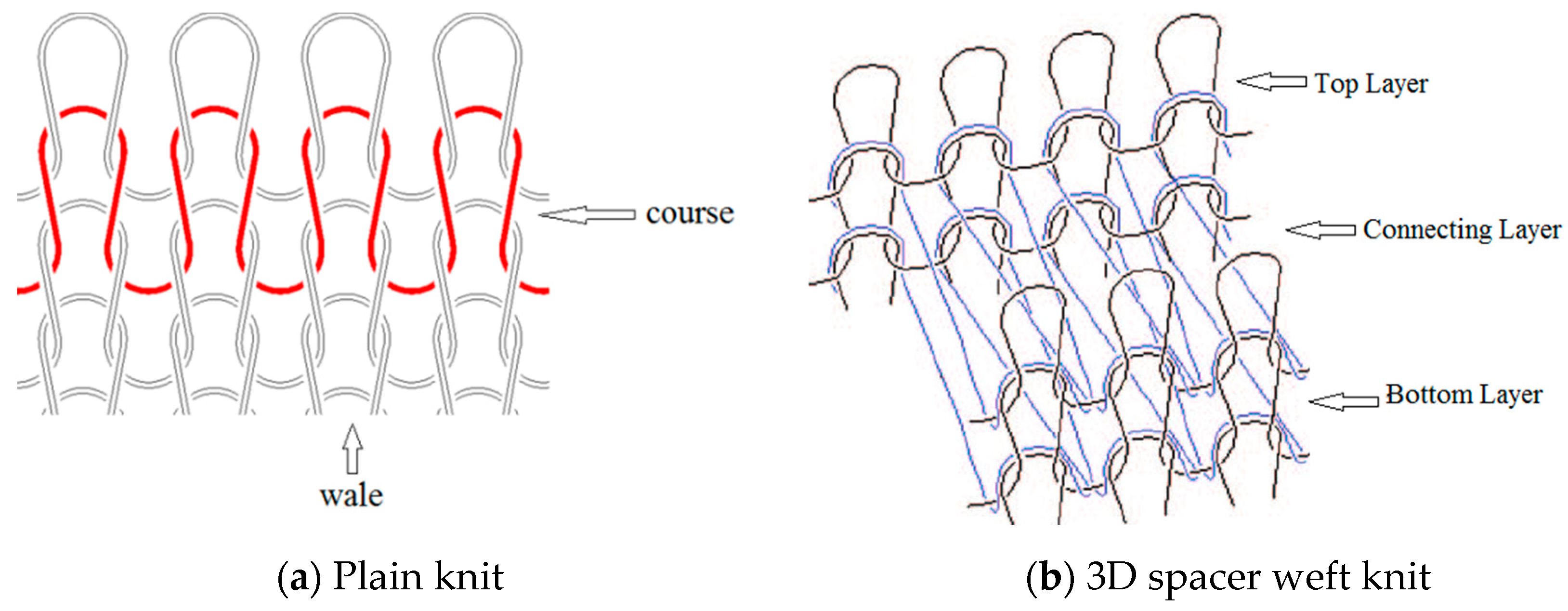

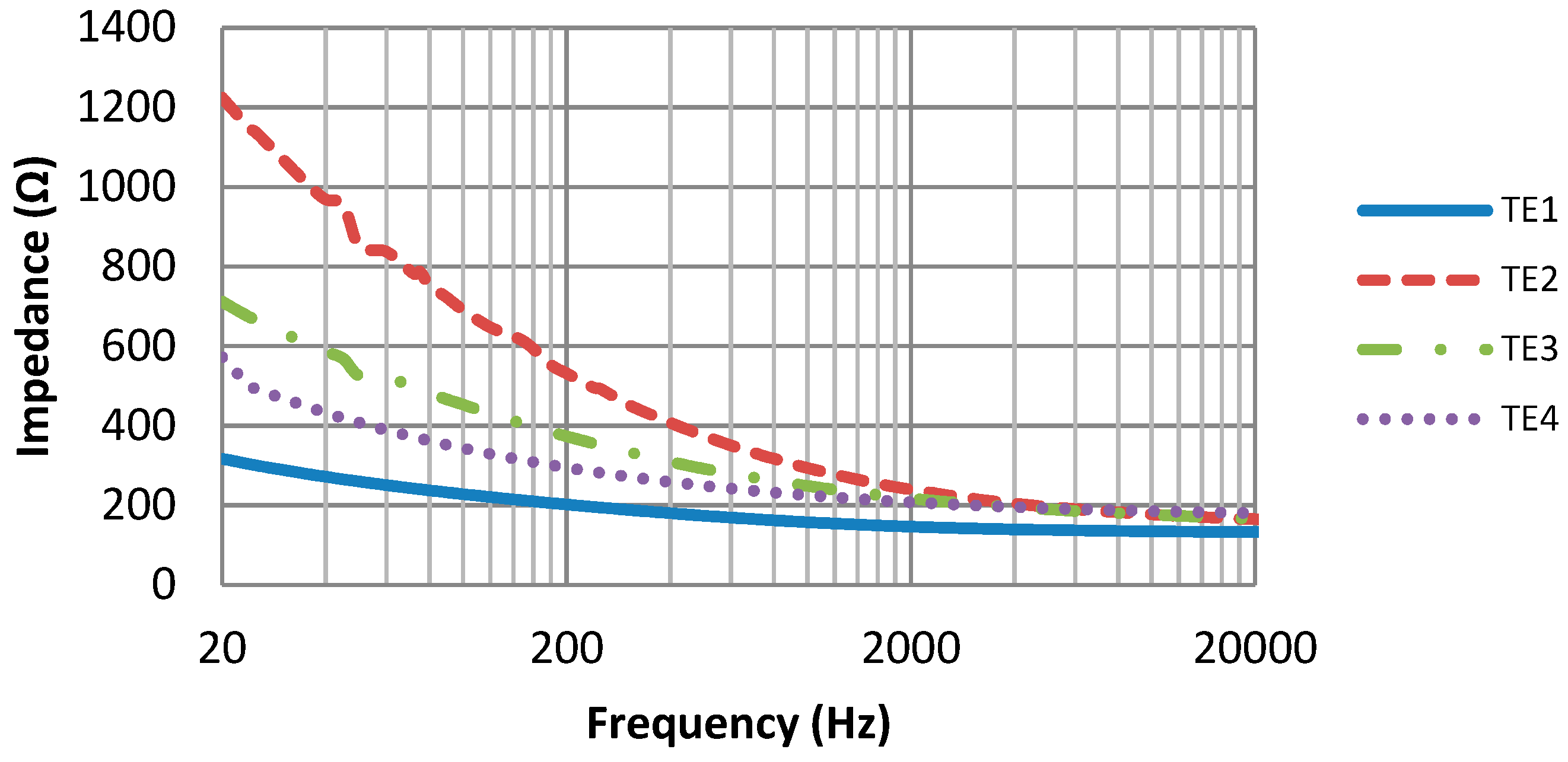

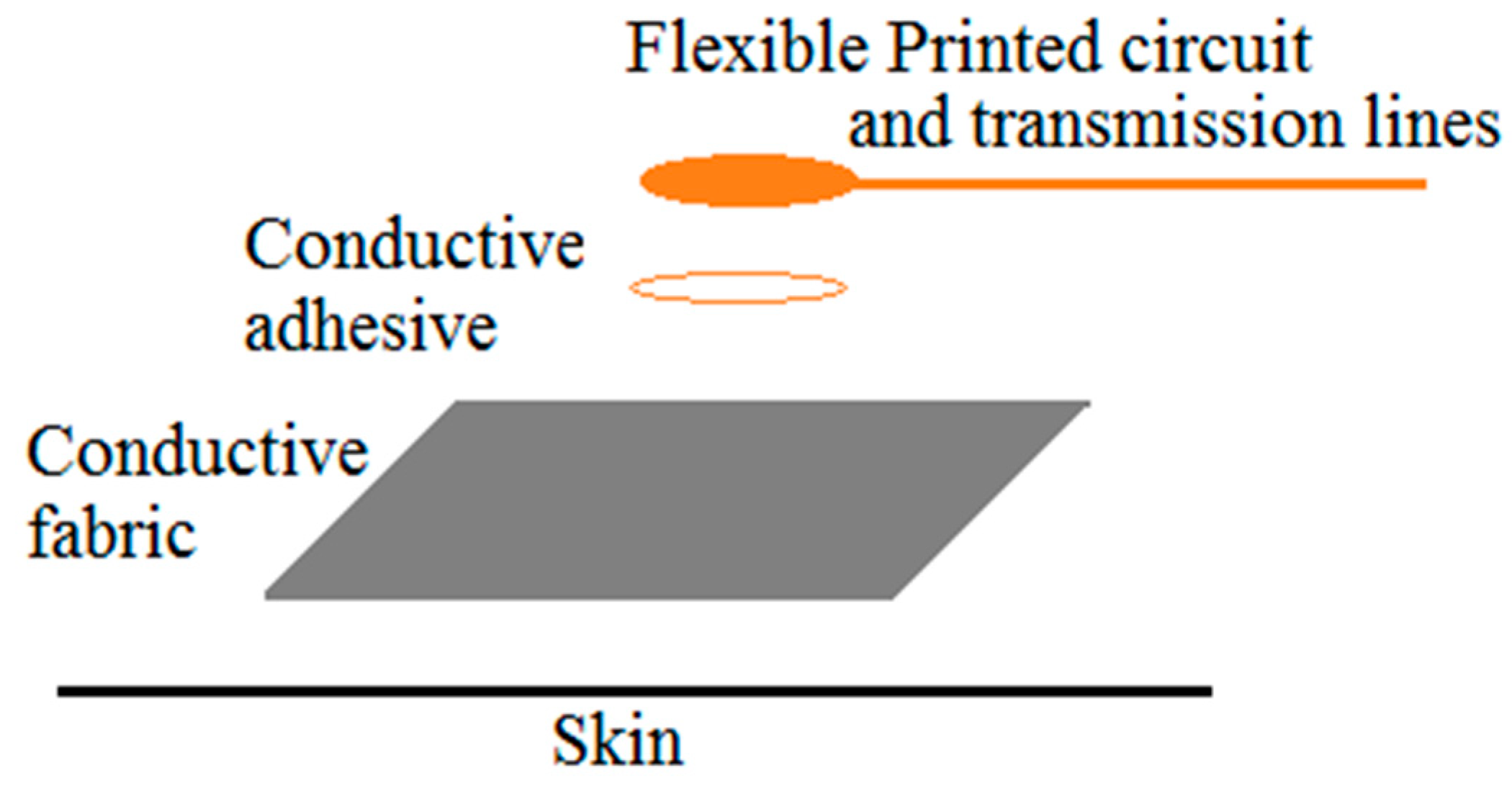

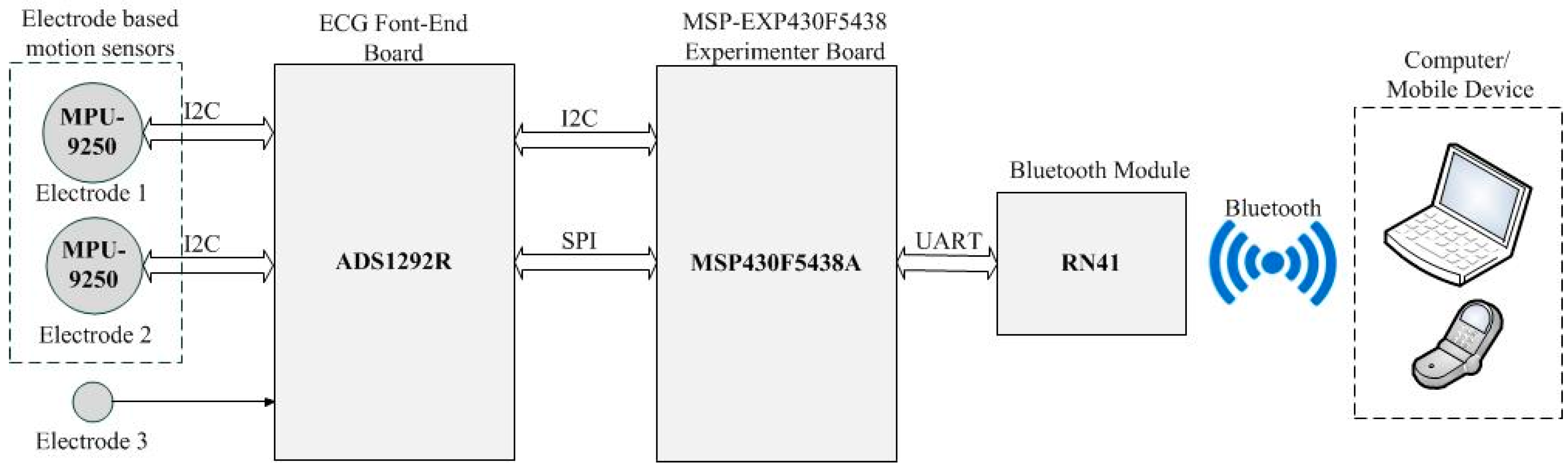

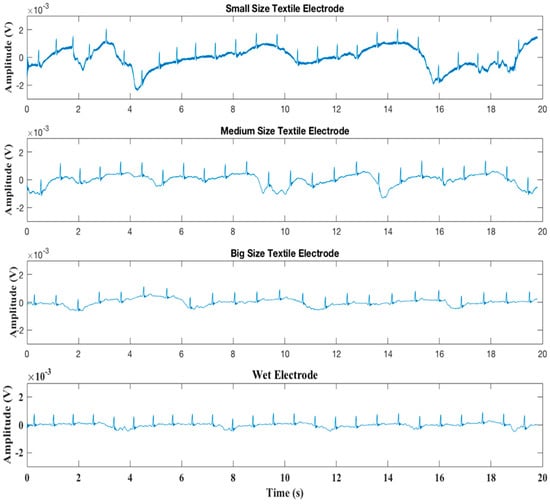

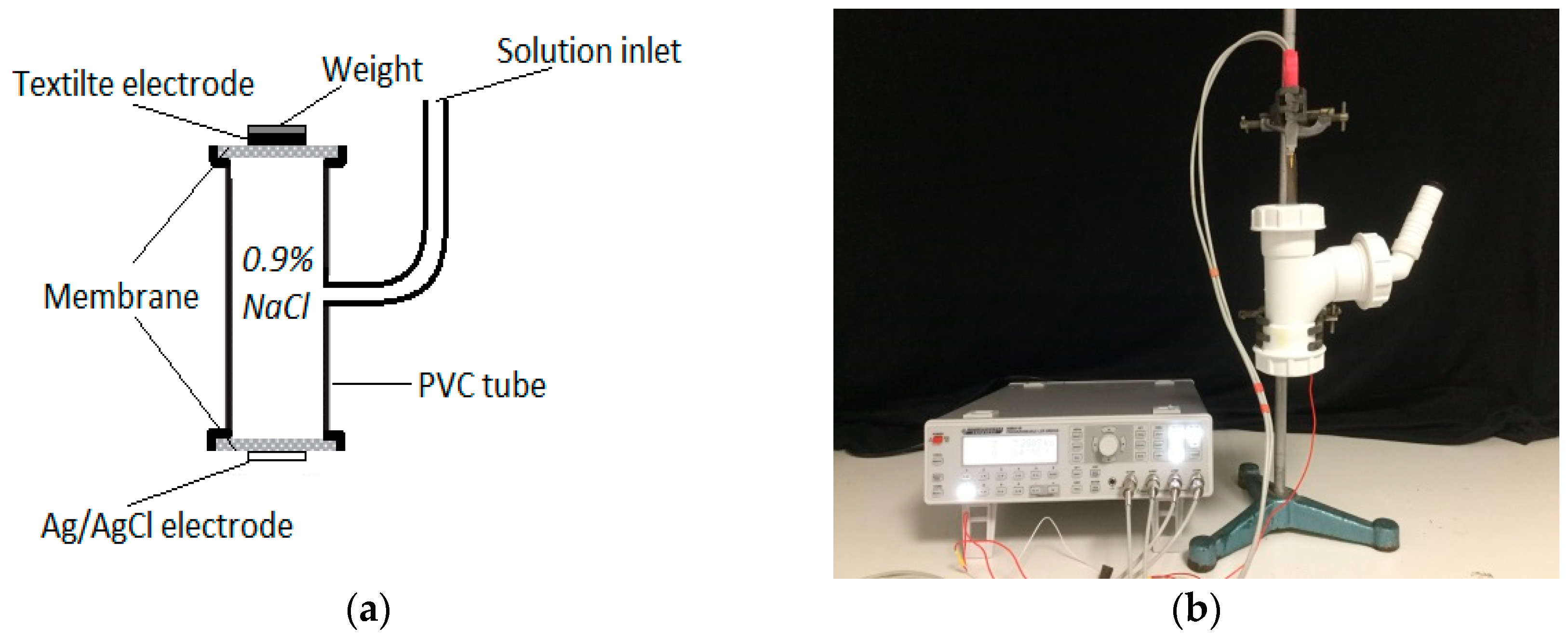

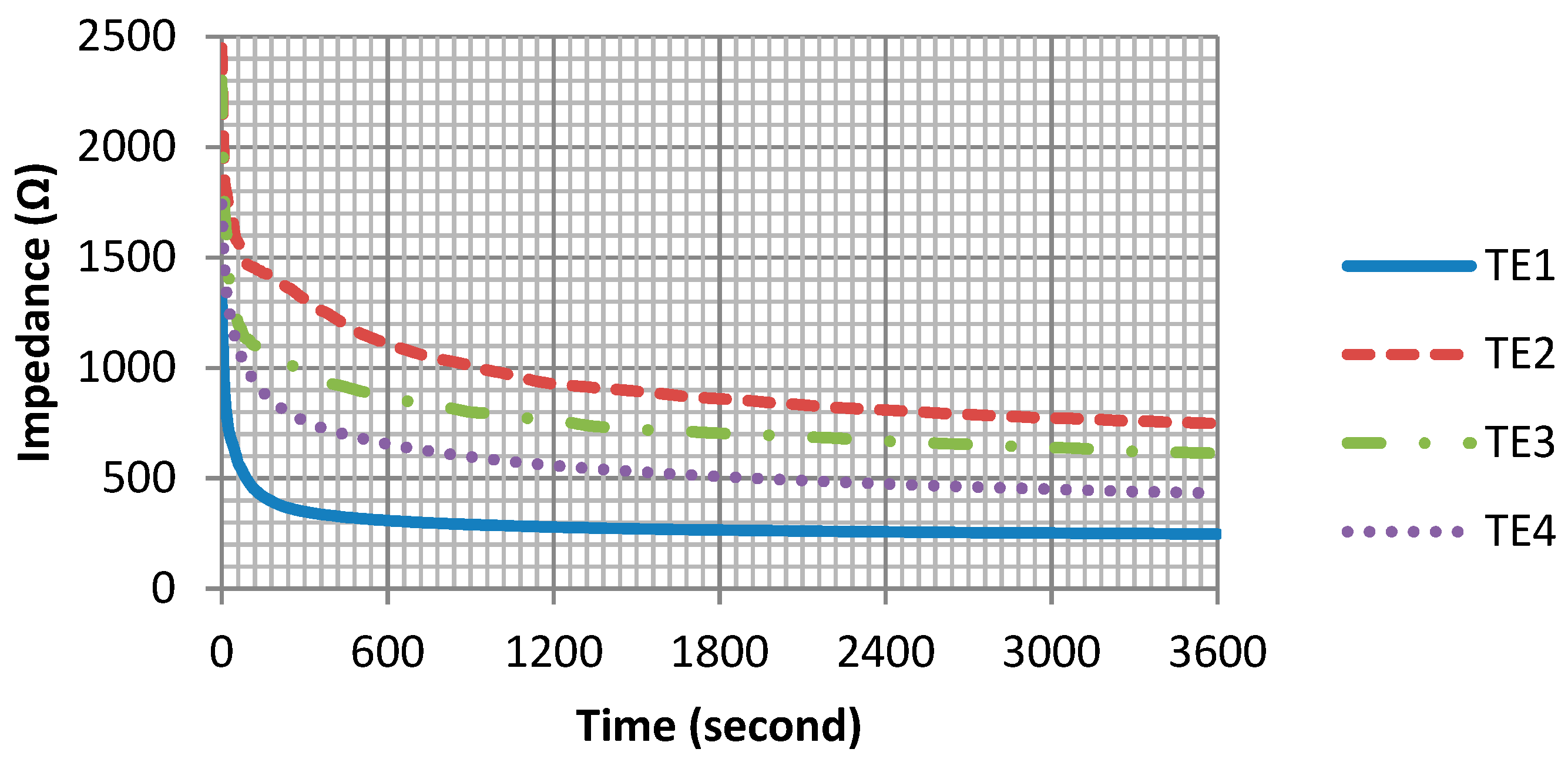

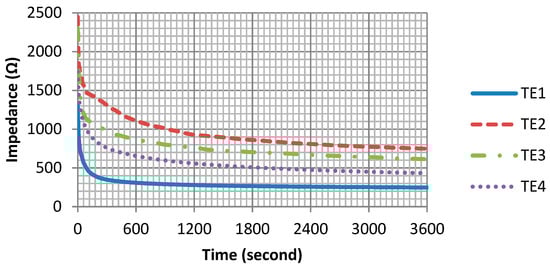

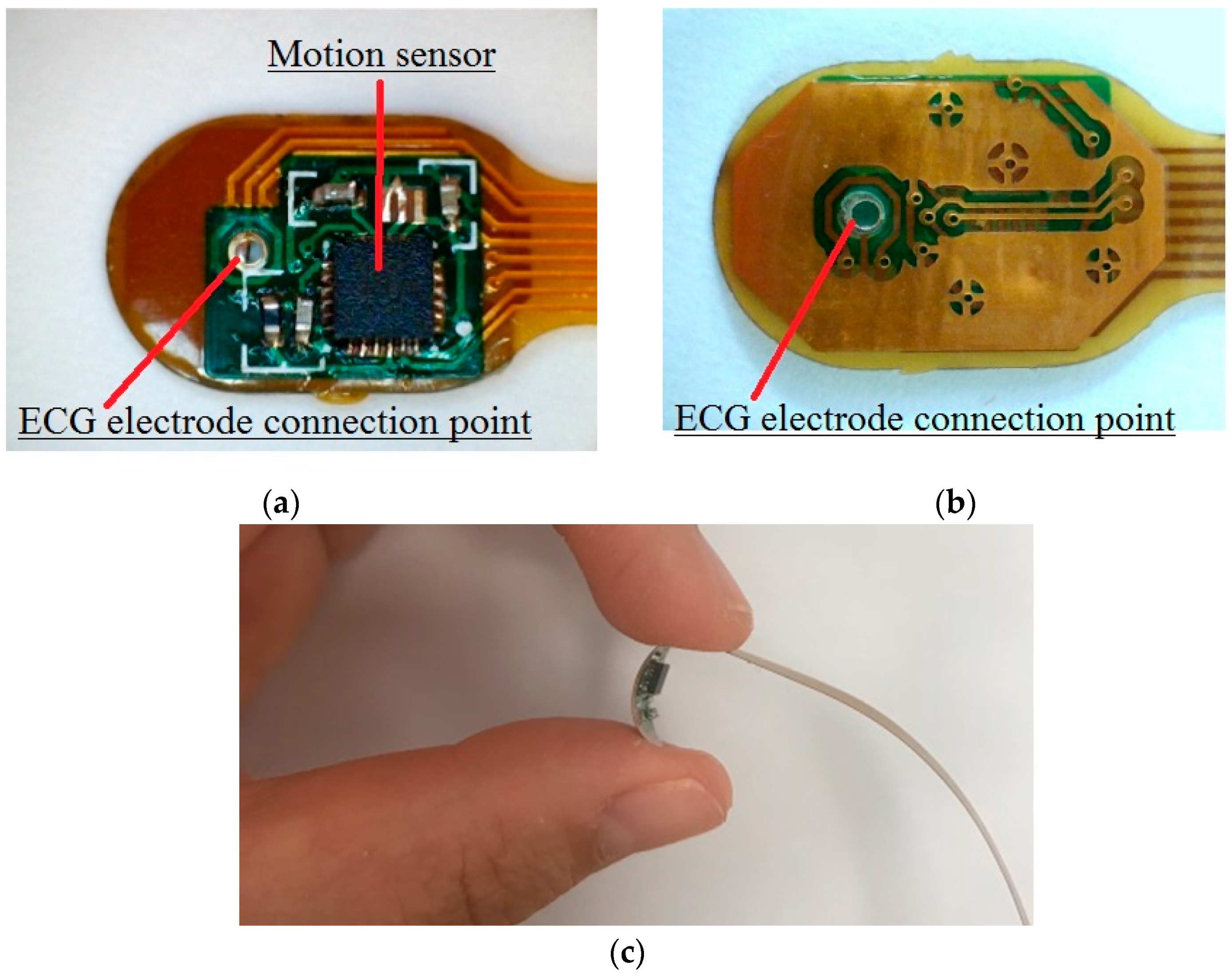

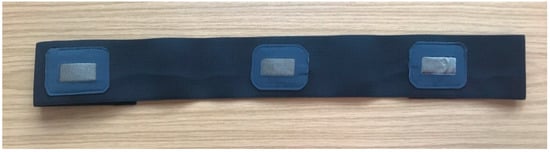

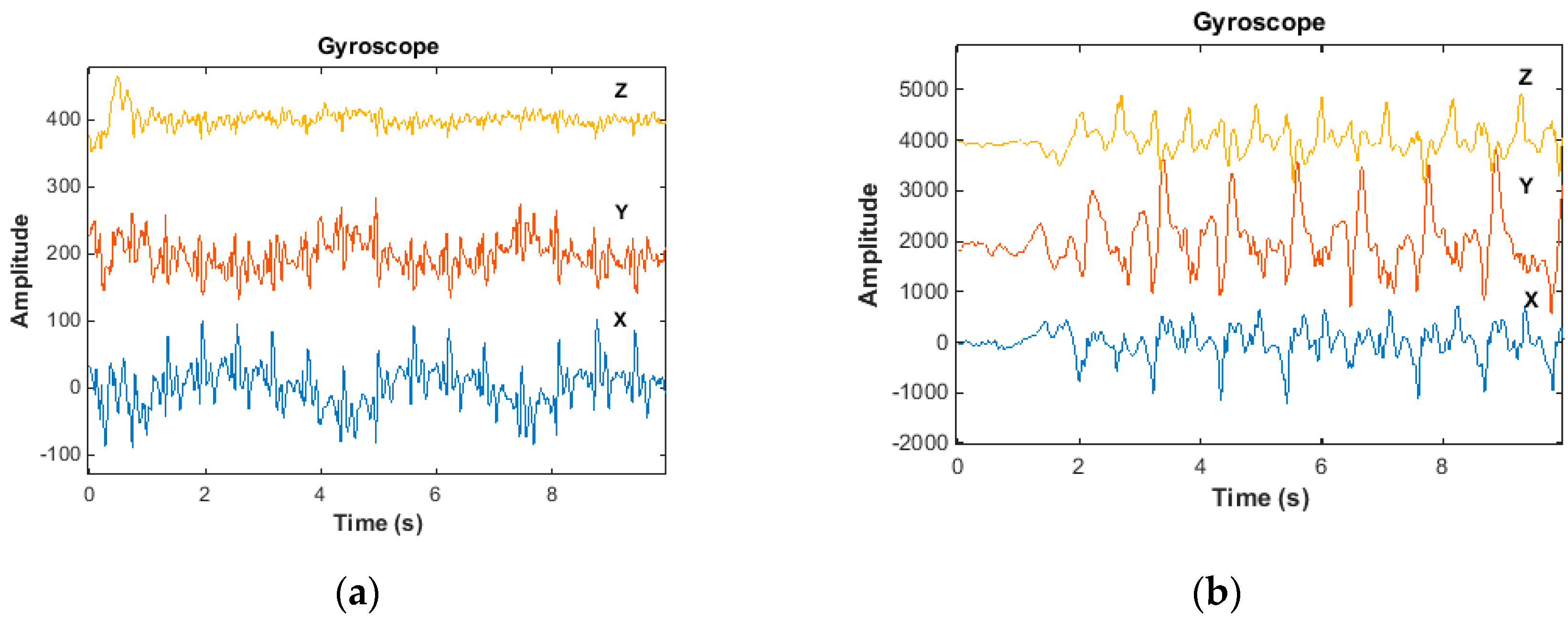

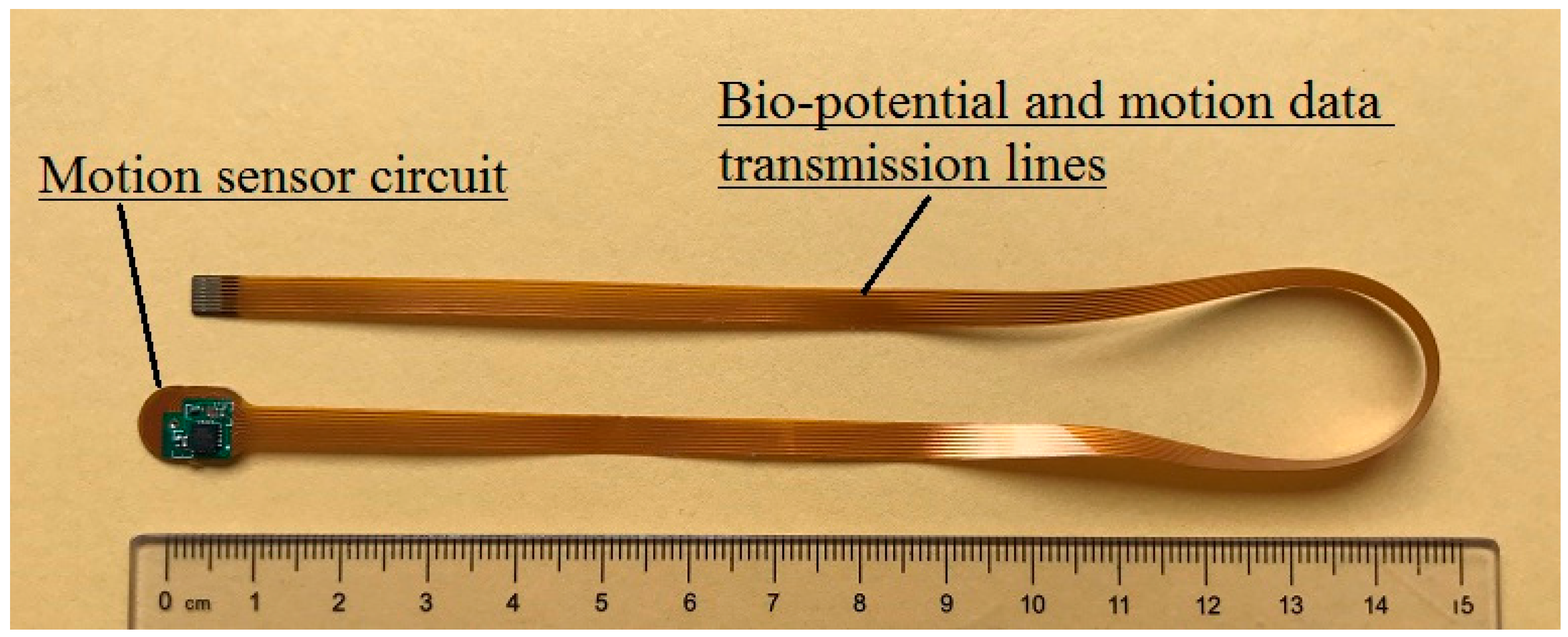

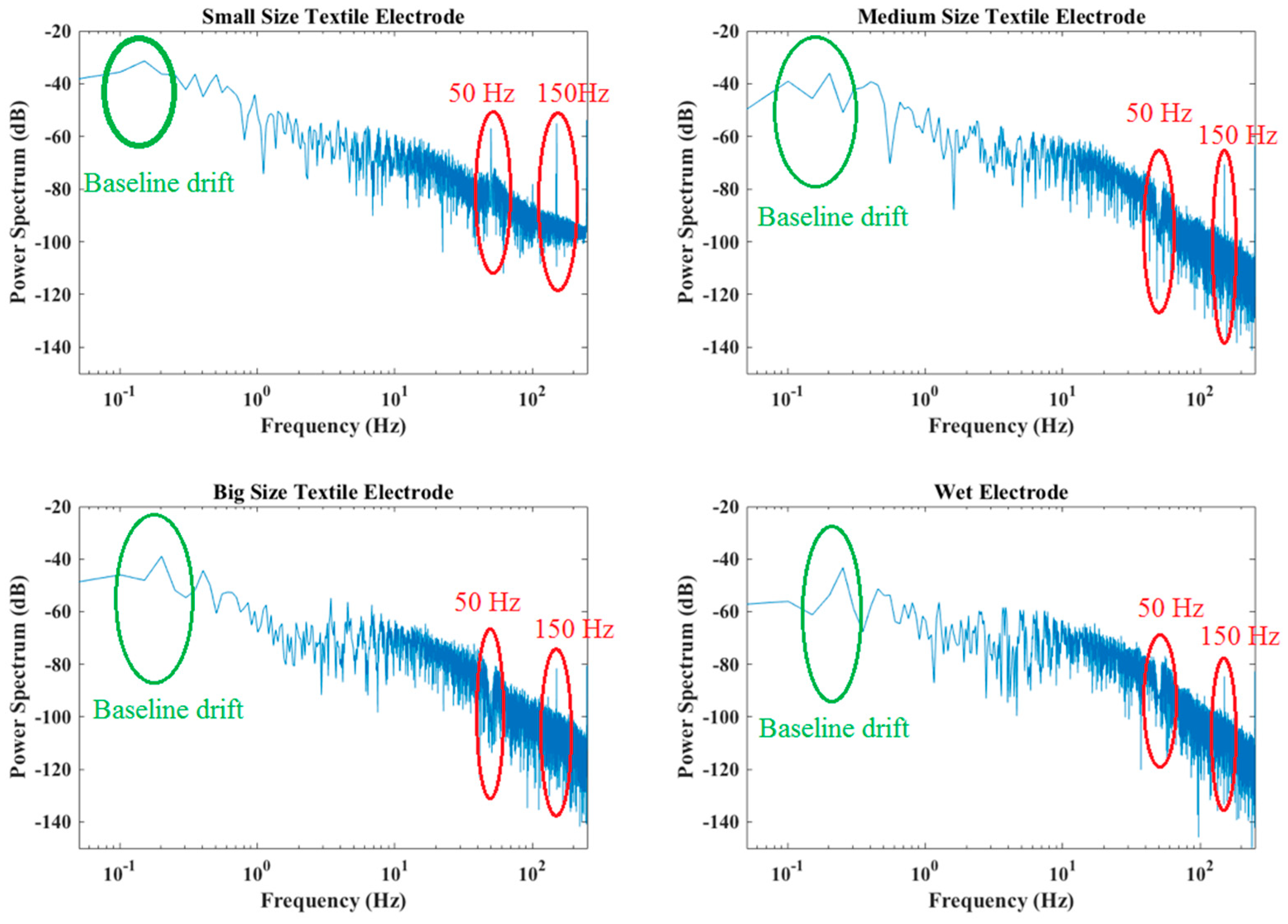

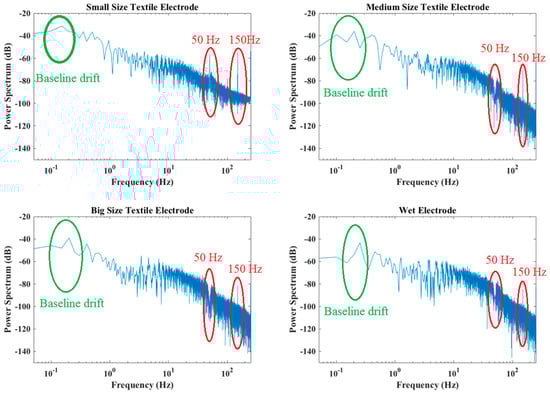

Wearable sensors have great potential uses in personal health monitoring systems, in which textile-based electrodes are particularly useful because they are comfortable to wear and are skin and environmentally friendly. In this paper, a hybrid textile electrode for electrocardiogram (ECG) measurement and motion tracking was introduced. The hybrid textile electrode consists of two parts: A textile electrode for ECG monitoring, and a motion sensor for patient activity tracking. In designing the textile electrodes, their performance in ECG measurement was investigated. Two main influencing factors on the skin-electrode impedance of the electrodes were found: Textile material properties, and electrode sizes. The optimum textile electrode was silver plated, made of a high stitch density weft knitted conductive fabric and its size was 20 mm × 40 mm. A flexible motion sensor circuit was designed and integrated within the textile electrode. Systematic measurements were performed, and results have shown that the hybrid textile electrode is capable of recording ECG and motion signals synchronously, and is suitable for ambulatory ECG measurement and motion tracking applications. View Full-Text
Keywords: textile electrode; ECG; motion sensor; skin-electrode impedance textile electrode; ECG; motion sensor; skin-electrode impedance

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
