Open AccessArticle

Flexible Strain Sensor Based on Carbon Black/Silver Nanoparticles Composite for Human Motion Detection

1,2, 1,2,* and 1,2
1
School of Microelectronics, Tianjin University, Tianjin 300072, China
2
Tianjin Key Laboratory of Imaging and Sensing Microelectronic Technology, Tianjin University, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Materials 2018, 11(10), 1836; https://doi.org/10.3390/ma11101836
Received: 24 August 2018 / Revised: 21 September 2018 / Accepted: 25 September 2018 / Published: 27 September 2018
(This article belongs to the Special Issue Flexible Sensors and Actuators for Novel Wearable Solutions)
  |
PDF [2548 KB, uploaded 27 September 2018]
  |

Abstract

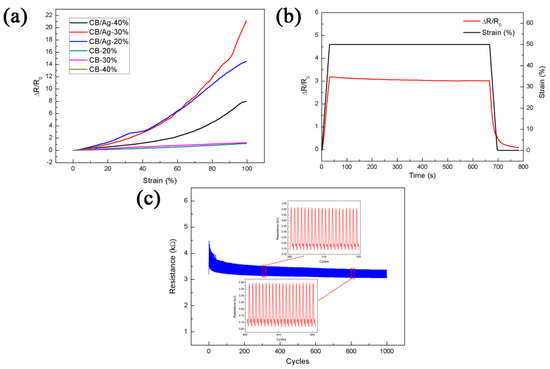

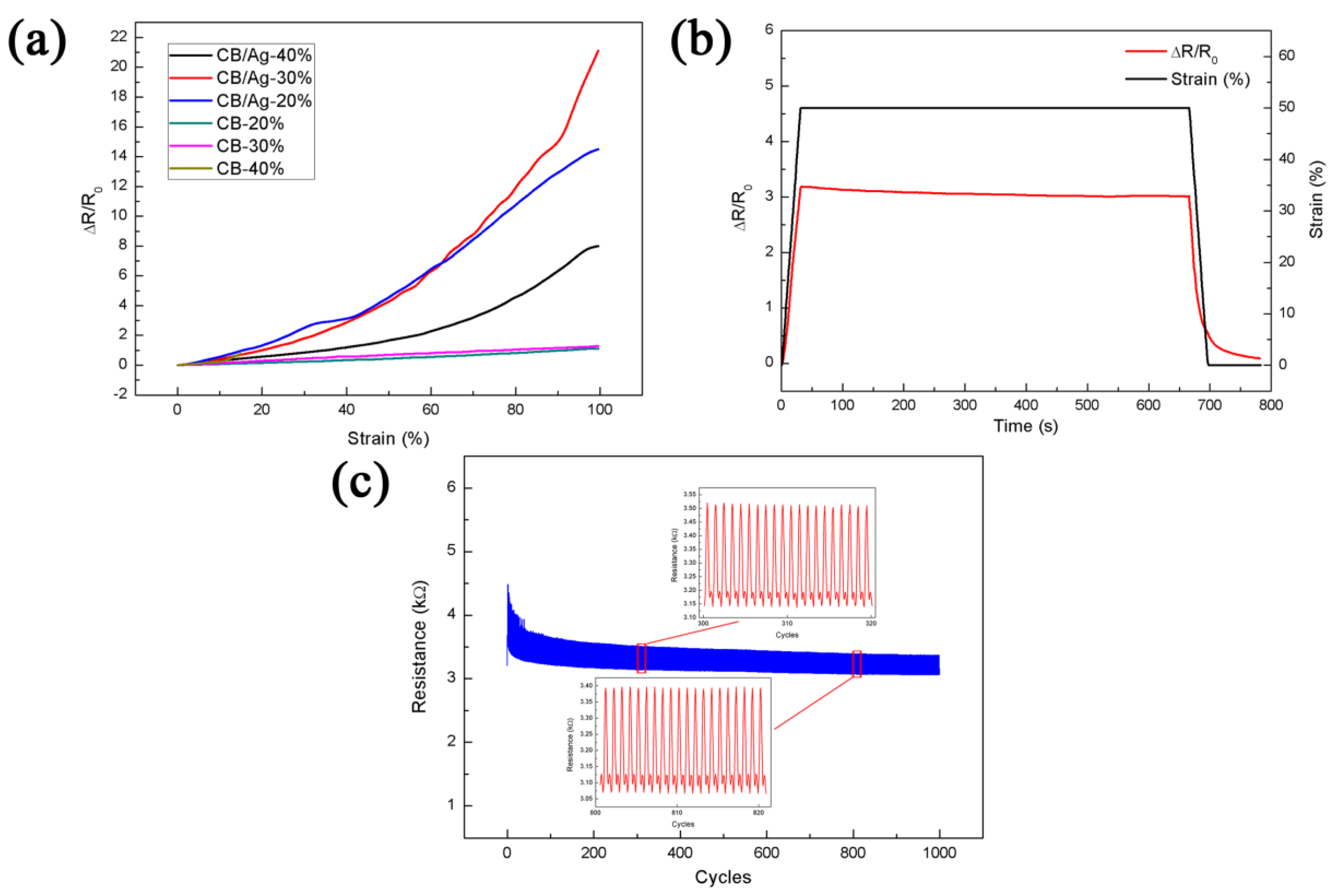

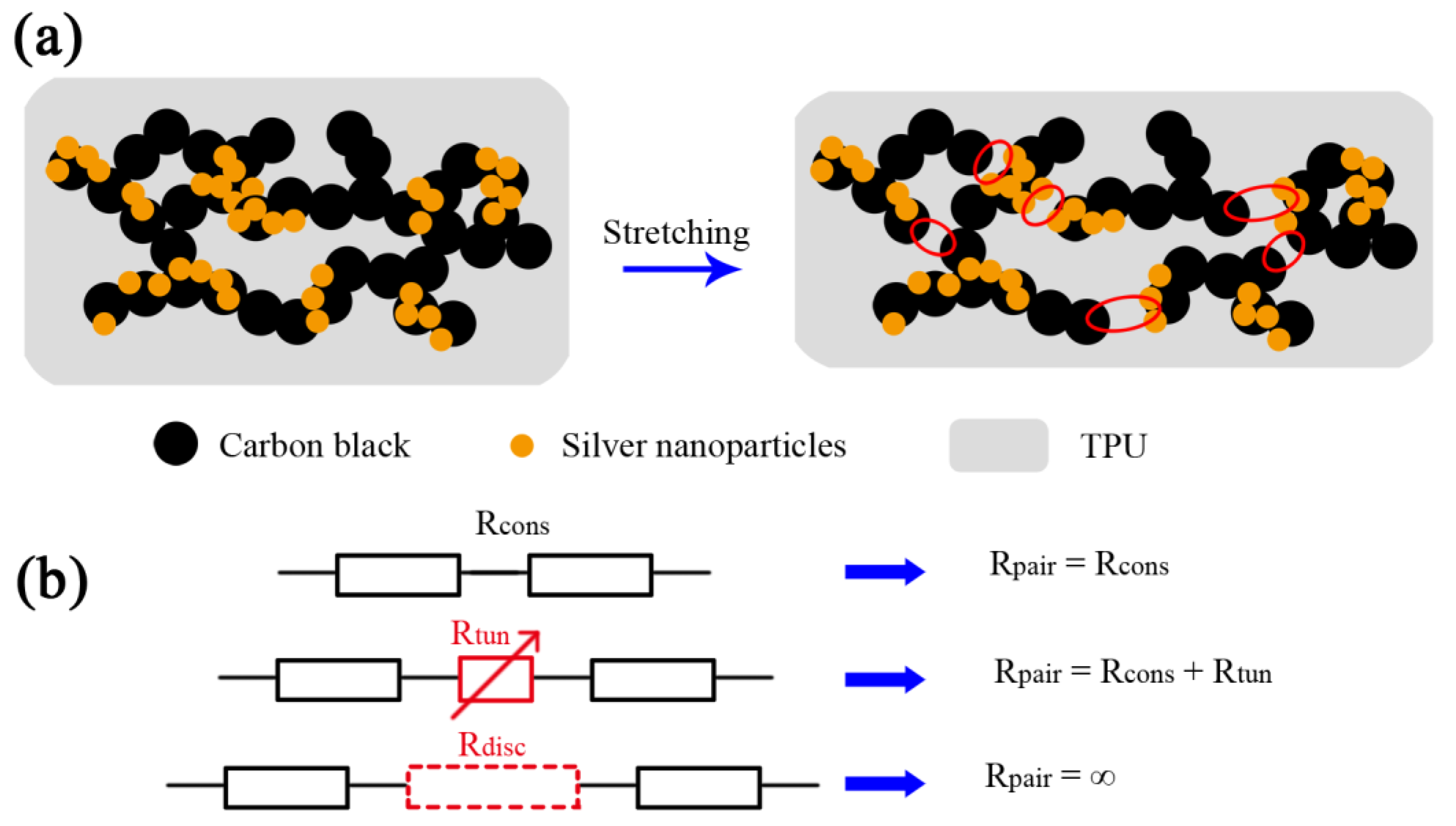

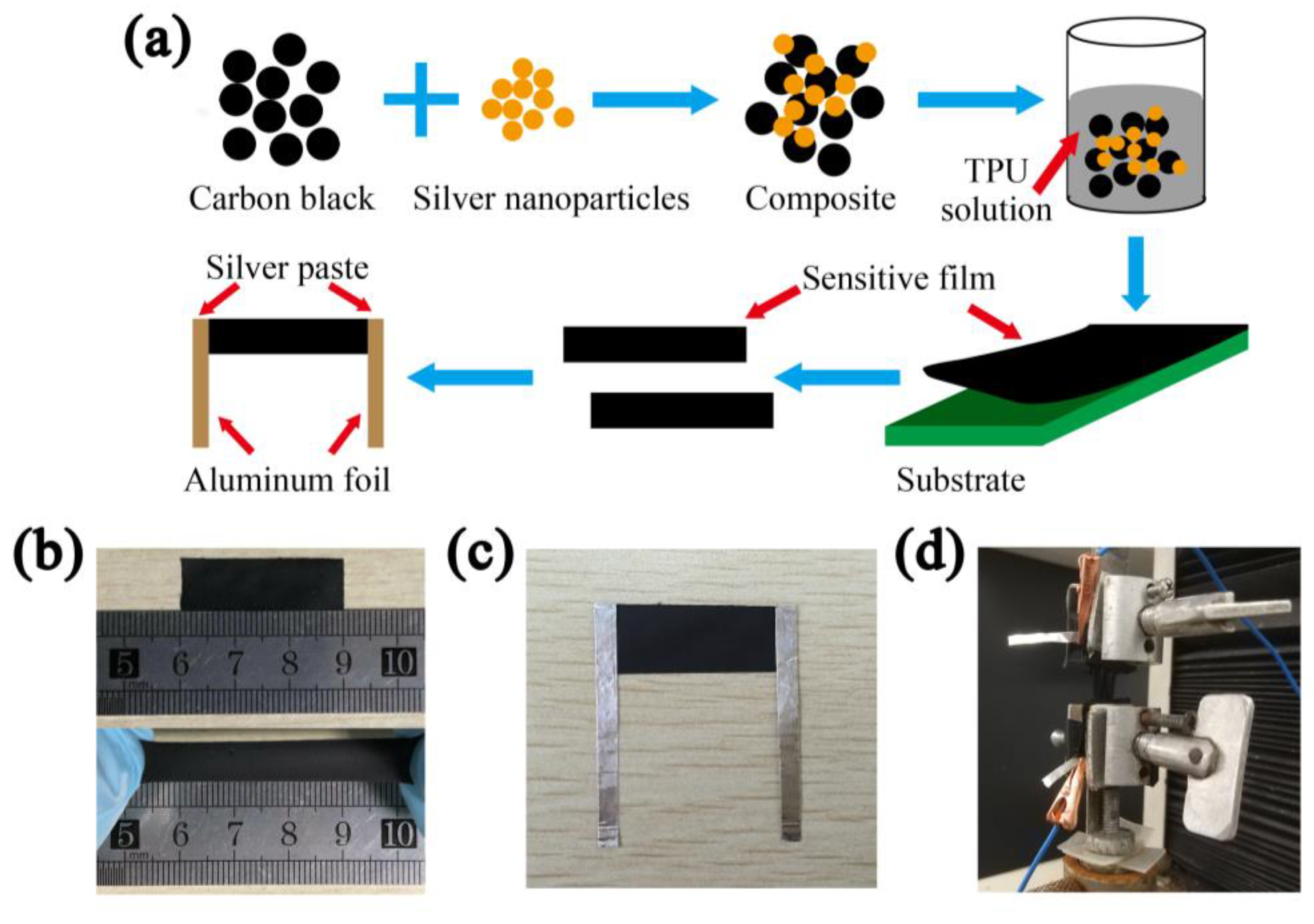

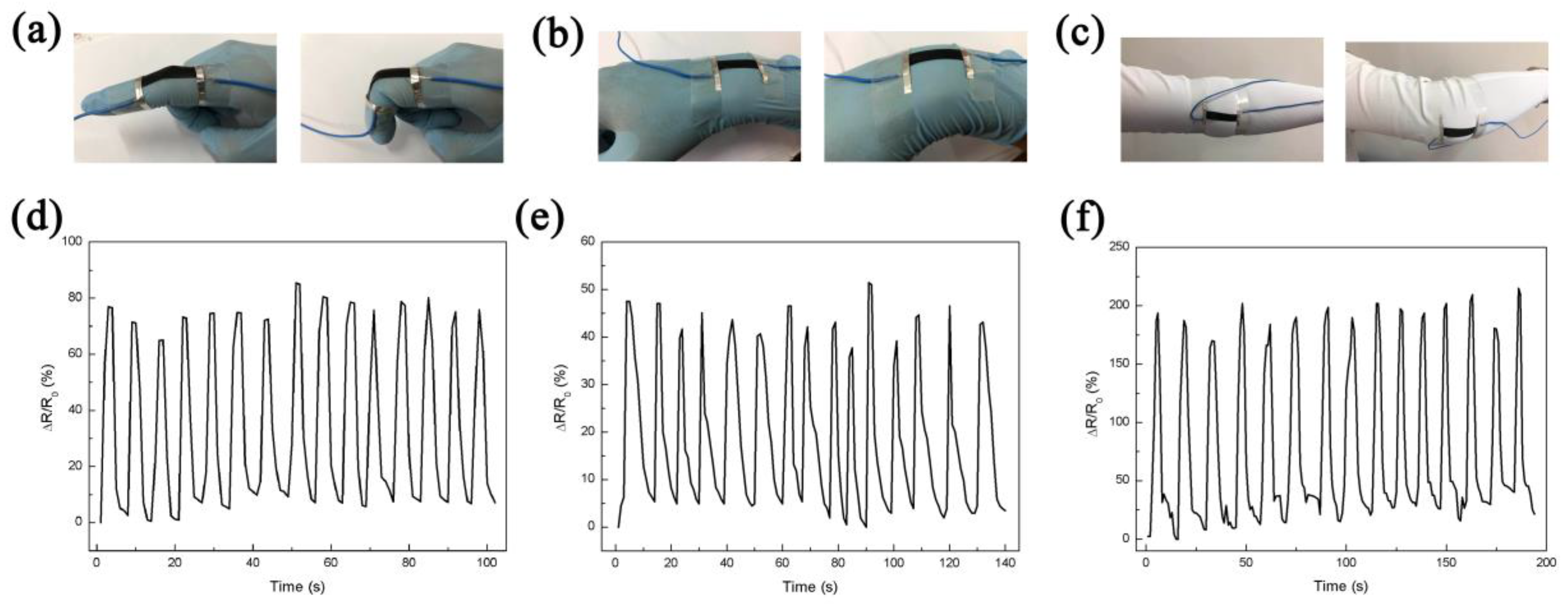

The demand for flexible and wearable electronic devices with excellent stretchability and sensitivity is increasing, especially for human motion detection. In this work, a simple, low-cost and convenient strategy has been employed to fabricate flexible strain sensor with a composite of carbon black and silver nanoparticles as sensing materials and thermoplastic polyurethane as matrix. The strain sensors thus prepared possesses high stretchability and good sensitivity (gauge factor of 21.12 at 100% tensile strain), excellent static (almost constant resistance variation under 50% strain for 600 s) and dynamic (100 cycles) stability. Compared with bare carbon black-based strain sensor, carbon black/silver nanoparticles composite-based strain sensor shows ~18 times improvement in sensitivity at 100% strain. In addition, we discuss the sensing mechanisms using the disconnection mechanism and tunneling effect which results in high sensitivity of the strain sensor. Due to its good strain-sensing performance, the developed strain sensor is promising in detecting various degrees of human motions such as finger bending, wrist rotation and elbow flexion. View Full-Text
Keywords: carbon black; silver nanoparticles; composite; flexible strain sensor; human motion detection carbon black; silver nanoparticles; composite; flexible strain sensor; human motion detection
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
