Abstract

To understand the role of molecular structure on the crystallization behavior of copolyester in thermoplastic poly(ether ester) elastomers (TPEEs), series of poly(butylene-co-1,4-cyclohexanedimethylene terephthalate) (P(BT-co-CT))-b-poly(tetramethylene glycol) (PTMG) are synthesized through molten polycondensation process. The effects of poly(cyclohexanedimethylene terephthalate) (PCT) content on the copolymer are investigated by Fourier transform infrared spectroscopy (FT-IR), 1H and 13C nuclear magnetic resonance (NMR), gel permeation chromatographs (GPC), wide-angle X-ray diffraction (WAXD), differential scanning calorimetry (DSC), thermogravimetric analysis (TGA), mechanical, and visible light transmittance tests. FT-IR and NMR results confirm the incorporation of PCT onto the copolymer. WAXD and DSC indicate that the crystalline structure of the copolymers changed from α-PBT lattice to trans-PCT lattice when the molar fraction of PCT (MPCT) is above 30%, while both crystallization and melting temperatures reach the minima. An increase in MPCT led to an increase in the number sequence length of PCT, the thermal stability and the visible light transmittance of the copolymer, but to a slight decrease in tensile strength and elastic modulus.
Keywords: poly(ester ether); copolymerization; microstructures; crystallization behavior poly(ester ether); copolymerization; microstructures; crystallization behavior

1. Introduction

Thermoplastic poly(ether ester) elastomers (TPEEs) are usually block copolymers composed of polyester segment (hard segment) and polyether segment (soft segment) [1,2,3]. The hard segment forms physical crosslinks, while the soft segment is highly elastic and contributes to flexibility. Thus, in addition to possessing rubber-like properties, TPEEs can also be processed similar to thermoplastics. Because of the unique processing and mechanical properties, TPEEs are considered to be “third-generation synthetic rubbers”, which are applied in numerous applications such as electronics and automotive industries, in skin tissue engineering, and so on [4,5,6,7].
Poly(butylene terephthalate) (PBT)-b-poly(tetramethylene glycol) (PTMG) is one of the most typical TPEEs with useful properties such as high tensile strength and elastic modulus. This is due to the thermodynamic immiscibility between the hard and soft segments, which dictates the crystallization behavior, morphology, and thermal and mechanical properties of PBT-b-PTMG [8,9]. Many attempts have been made to improve its properties. Celebi et al. attempted to add TiO2 or ZnO particles to the PBT-b-PTMG to improve its thermal stability, storage modulus, and mechanical properties [10]. Zhang et al. partially substituted aromatic segment PBT with aliphatic poly(butylene succinate) (PBS) to accelerate the degradation rate [11]. Liu et al. incorporated an aliphatic ring to partially replace the aromatic ring in PBT-b-PTMG to decrease its melting temperature without altering thermal stability [12].
However, the hard segment, PBT, is easy crystallized, which limits the transparency of TPEEs. Hence, there is still a need to improve properties of TPEEs with the emphasis on their transparency. The key to obtain this property is how to synchronize the mechanical properties with crystallization property such as degree of crystallinity, crystallization rate and crystallization temperature. Copolymerization is a powerful method to combine the advantages of corresponding homopolymers [13,14]. At the same time, it is also an effective way to decrease the average sequence length of the segments, as well as the degree of crystallinity [15].
It is worth noting poly(ethylene glycol-co-1,4-cyclohexanedimethanol terephthalate) (PETG) copolyester, which shows special crystallization behavior and high transparency [16,17,18]. PETG is prepared by partially replacing the ethylene glycol (EG) groups of poly(ethylene terephthalate) (PET) with 1,4-cyclohexanedimethanol (CHDM) groups. The PETG copolymer is essentially amorphous when CHDM content is in the range of 32–62%, but its mechanical properties are close to those of PET [19]. CHDM has two isomers, trans (axial–axial or equatorial–equatorial) and cis (axial–equatorial), the former being more stable than the latter. Many investigations on the copolymers with cyclohexanedimethylene group reveal that the cyclohexane ring in the structure improves the thermal stability, mechanical properties and the transparency of the copolymer [20,21,22,23,24]. Therefore, the use of CHDM as a co-monomer makes the development of new types of optically interesting thermoplastic elastomers possible.
To improve the transparency of the copolymer, this work attempts to incorporate CHDM as a third co-monomer. The content of the hard segment PBT is decreased upon introducing PCT which has good crystallization behavior. The resulting copolymers are denoted as (PBT-co-PCT)-b-PTMG, which have constant soft segment length and molar fraction at 1000 g mol−1 and 20%, respectively. The microstructure, crystallization behavior and properties of the copolymer are affected by the copolyester hard segments. Furthermore, compared to traditional TPEEs, the (PBT-co-PCT)-b-PTMG copolymers synthesized in this work show better performance in many aspects, such as high transparency and good thermal stability. For the sake of simplicity, they are designated by their theoretical PCT molar fractions (MPCT) as PCT-MPCT.

2. Materials and Methods

2.1. Materials

Dimethyl terephthalate (DMT), 1,4-butanediol (BDO), catalysts tetrabutyl titanate (TBT) and magnesium acetate (MgAc2) were purchased from Sinopharm Chemical Reagent Co. Ltd. (Shanghai, China). CHDM was purchased from Aladdin Reagent Co. Ltd. (Shanghai, China); it was the mixture of 69% trans and 31% cis, and PTMG with an average molar weight of 1000 g mol−1 was supplied by BASF (Shanghai, China). The antioxidants (Irganox 1010 and Irgafos 168) were supplied by Ciba (Basel, Switzerland). All of these chemical materials were dried under vacuum at 80 °C for 24 h to a constant mass before use.

2.2. Experiments

(PBT-co-PCT)-b-PTMG copolymers were synthesized through molten polycondensation process in a dried steel reactor (Weihai Xingyu Chemical Machinery Co., Weihai, China) equipped with a stirrer, a condenser and a gas inlet.
A typical procedure for the synthesis of (PBT-co-PCT)-b-PTMG copolymers is shown by the example of PCT50. The following chemicals were charged to the reactor under nitrogen: co-monomers DMT (0.5 mol), CHDM (0.255 mol), BDO (0.445 mol) and PTMG (100 g); catalysts TBT (0.1% of the total mass) and MgAc2 (0.02% of the total mass); and antioxidants Irganox 1010 and Irgafos 168 (0.5% of the total mass). Then, the reactor was heated up to 205 °C at 5 °C min−1 and remained at that temperature for 3 h to reach the end of the transesterification. The polycondensation was then performed upon raising the temperature to 265 °C and the pressure was below 50 Pa. After 3.5 h, the copolymer was extruded from the reactor under nitrogen, cooled down in a water bath, and dried in a vacuum dryer at 50 °C for 24 h to a constant mass.
It is worth noting that the reaction time and temperature were increased slightly with the increasing CHDM content. The reactions involved in these syntheses were formulated in Figure 1 and the compositions of all samples are given in Table 1.

2.3. Characterization

ATR-FTIR spectroscopy was performed on a FTIR spectrometer in the attenuated total reflectance mode (PE-Spectrum one, Perkinelmer, Waltham, MA, USA). The spectra were scanned from 600 to 4000 cm−1 with a resolution of 4 cm−1.
1H NMR and 13C NMR spectra were recorded on a spectrometer of Inova-600, USA, operating at 600 MHz. They were used for determining the copolymer composition and average sequence length, respectively. Deuterated chloroform (CDCl3) was used as a solvent and tetramethylsilane (TMS) as an internal reference.
The number average molecular weight (Mn) and the dispersity (Mw/Mn) were determined by GPC (PL-GPC220, Agilent Technologies, CA, USA). The GPC measurements were carried out at 150 °C using 1,2,4-trichlorobenzene as the eluent at a flow rate of 1 mL min−1.
Wide-angle X-ray diffraction patterns were recorded on a WAXD diffractometer of type Bruker D8 Advance (Bruker, Karlsruhe, Germany) in the 2θ range from 5° to 40° at a scanning rate of 2° min−1 for the copolymers prepared by a hot press. The crystal size in the perpendicular direction of the planes was calculated using the Scherrer’s formula [25]:
L = Kλ/βcosθ
where L is the crystal size; K is a structure constant, taken as 1; λ is the wavelength of the monochromatic X-ray beam (0.154 nm for CuKα radiation); β is the full width at half maximum for the diffraction peak (rad); and the θ is the Bragg angle (°).
A differential scanning calorimeter of type Q-2000 (TA, Newcastle, PE, USA) was used to investigate the thermal properties of the copolymers. The measurement was performed using about 10 mg sample sealed in an aluminum pan under the nitrogen atmosphere. Firstly, the sample was heated to 300 °C rapidly and kept isothermally for 1 min to remove the previous thermal history. Secondly, the sample was quenched to −80 °C and heated to 300 °C at a speed of 10 °C min−1 to detect the glass transition temperature. Finally, a second cool scan and a third heat scan was performed at a speed of 10 °C min−1 to investigate the thermal properties of the copolymers. The crystallinity of hard segments was measured from the heat fusion obtained from DSC curves using Equation (2) according to group contribution theory [26,27],
W C = Δ H m m P B T × Δ H P B T 0 + m P C T × Δ H P C T 0
where Δ H P B T 0 (144.5 J g−1) [28] and Δ H P C T 0 (102.0 J g−1) [29] are the heats of fusion of 1 mol PBT and PCT perfect crystals, respectively; and the mass fractions of the two types of hard segments are designated as mPBT and mPCT, respectively.
The thermal stability of the copolymers was evaluated by TGA of type TASDT-Q600 (TA, Newcastle, PE, USA). The measurement was performed under nitrogen and oxygen flow, respectively. The heating rate was 20 °C min−1 in range from 30 to 800 °C.
The specimens for tensile testing were prepared by a hot press with the following dimensions: 33 × 6.2 × 2 mm3. Stress-strain curves were recorded by a CMT4104 testing machine (SUNS, Shenzhen, China) at a constant crosshead speed of 50 mm min−1, according to the standard ISO 37-2011. At least five specimens were tested and the average values of the elastic modulus (E), tensile strength (σmax) and elongation at break (εb) were calculated.
The specimens for optical testing were prepared by a hot press and their thickness was 2 mm. The visible light transmittance and haze were recorded on a Transmittance haze tester (WGT-S, Shanghai, China) according to ISO 14782.

3. Results and Discussion

3.1. Structure and Molecular Weight Analysis

The structure of those copolymers is first probed by a FTIR spectrometer in an ATR mode. Figure 2 shows the spectrum of PCT50 as an example. The peaks at 2941 and 2862 cm−1 are assigned to the asymmetric and symmetric aliphatic C–H stretching vibrations of PBT [10]. C=O stretching peak and ester group skeleton peak are observed at 1715 and 1268 cm−1, respectively. The C–O–C skeleton asymmetric vibration of soft segment, CH2 bending vibration, C–H stretching vibration of cyclohexylene ring and C–H vibration of benzene ring appear at 1104, 1454, 958 and 727 cm−1, respectively [30].
Figure 3 shows a typical 1H NMR spectrum of PCT50, which corroborates its ATR-FTIR spectrum. Peak a at 8.01 ppm is the characteristic peak of protons in the benzene ring and stands for the total molar content of the acidic moieties herein. Peaks b and c, with chemical shifts at 4.35 and 1.98 ppm, respectively, correspond to the methylene protons of the hard segments PBT. The splits with chemical shift at 4.21 and 4.11 ppm are ascribed to the resonance peaks of methylene protons in CHDM moieties with cis and trans conformation and marked as dc and dt, respectively. The proton resonances of the cyclohexylene group appear between 1.08 ppm and 1.86 ppm and are marked as e1, e2, e3, e4 and e5, respectively. Peak f at 3.40 ppm and g at 1.53 ppm correspond to the soft segment. The chemical shifts of the tetramethylene protons attached to the ester group of the soft segment are peaks f1 at 4.36 ppm and g1 at 1.59 ppm [31,32].
Based on the 1H NMR spectra, the copolymer compositions can be determined from the respective peak areas as follows:
M PBT = I b I a
M PCT = I d c + I d t I a
M PTMG = I f 1 I a
where MPBT, MPCT and MPTMG denote the molar fractions of butylene terephthalate (BT), 1,4-cyclohexanedimethanol terephthalate (CT) and PTMG, respectively. Ia, Ib, Idc, Idt and If1 represent the integral areas of peaks a, b, dc, dt and f1 in Figure 3, respectively. Table 2 shows that the compositions calculated by Equations (3)–(5) match relatively well the feed compositions.
The theoretical MPTMG is fixed at 20% and the measured values are very close to it. However, the measured values of MPCT are always slightly higher than the theoretical ones. This is because CHDM is more difficult to remove than BDO during the polycondensation under the vacuum. Moreover, BDO participates in side reactions during the transesterification upon forming tetrahydrofuran. It is also interesting to note that the molar ratio of trans to cis isomers of the CT is almost constant at about 2.3 to 1 for all copolymers. This indicates that isomerization between trans and cis of CHDM did not occur during the polymerization.
Table 2 also shows the molecular weights of the copolymers. Both the number and weight average molecular weights of the copolymers decrease very slightly with increasing CT content. This is because it is more difficult to remove CHDM than BDO during the polycondensation under the vacuum.

3.2. Sequence Distribution Analysis

Since Yamadera and Murano [33] proposed a method to determine the average sequence length and the distribution of copolyesters, many studies focused on the analysis of the microstructures of copolymers by 13C NMR [34,35,36]. Figure 4 shows the 13C NMR spectra of the (PBT-co-PCT)-b-PTMG copolymers. The quaternary carbon atom resonance in benzene rings splits into five peaks. Peak b is due to the quaternary carbon atom of the benzene ring linked to the soft segment PTMG because its relative integral intensity changes slightly with increasing MPCT at a constant molar fraction of soft segment. The sequence distribution of the two hard segments, PBT and PCT, is analyzed according to the following procedure.
The molar fractions of BT moiety and CT moiety are determined from integration of the peaks. PB (PC) is the molar fraction of the BT (CT) moiety, and fBB, fBC, fCB and fCC correspond to the proportions of the integrated intensities of four types of dyads, BB, BC, CB and CC, respectively. Then, PBC (PCB) is the probability of finding a BT (CT) moiety next to a CT (BT) moiety. The number average sequence lengths of BT and CT moieties are designed by LnB and LnC, respectively. The degree of randomness is designated by DR and is equal to 0 for a mixture of homopolymers, and is equal to 2 for an alternating distribution [37,38]. The above parameters can be calculated by the following equations:
P B = f B C + f C B 2 + f B B   P C = f B C + f C B 2 + f C C
P B C = f B C + f C B 2 P B   P C B = f B C + f C B 2 P C
L nB = 2 P B f B C + f C B   L nC = 2 P C f B C + f C B
D R = p B C + P C B
Their values are gathered in Table 3. All the values of DR are very close to 1, indicating that the sequence distribution in the copolymers is random in the entire range of the CT composition. The number average sequence length LnB decreases while LnC increases with increasing CT content, as expected. This is due to the increasing content of monomer CHDM, which leads to an increase of the probability that the bis(hydroxymethylcyclohexane)terephthalate (BHCT) reacts with BHCT during the polycondensation reaction.

3.3. WAXD Analysis

Figure 5 shows the WAXD diagrams of the (PBT-co-PCT)-b-PTMG copolymers. The intensities of the peaks increase with the increasing PCT content. Table 4 shows the corresponding WAXD data.
According to Briber and Thomas [39], hard segments PBT moieties in a thermoplastic elastomer always organize in the α-PBT form when crystallized from the molten state, and the lattice is independent of the concentration of soft segment. Therefore, for the (PBT-co-PCT)-b-PTMG copolymers when MPCT is below 30%, the hard segments are organized in the form of α-PBT crystal. The peaks (and the corresponding Miller indices) of the α-PBT at 2θ are 16.12° (0 1 ¯ 1), 17.38° (010), 20.91° ( 1 ¯ 01), 23.36° (100), and 25.31° (1 1 ¯ 1). The unit cell of α-PBT is triclinic with the cell parameters a = 0.483 nm, b = 0.594 nm, c = 1.159 nm and α = 99.7°, β = 115.2°, and γ = 110.8°, according to the reported literature [40].
Boye [41] reported that WAXD pattern of PCT homopolymer with a trans/cis isomer ratio of more than 68/32 was the same as the pure trans-PCT. In this study, trans/cis isomer ratio is around to 70/30, as shown in Table 1. Since the trans/cis isomer ratios of the (PBT-co-PCT)-b-PTMG copolymers are about 70/30, their CT moieties for MPCT of more than 30% are expected to form triclinic crystal lattices with the reported cell parameters: a = 0.637 nm, b = 0.663 nm, and c = 1.42 nm; and α = 89.35°, β = 47.11°, and γ = 134.36°. The peaks (and the corresponding Miller indices of trans-PCT) at 2θ are 14.94° ( 011 ), 16.68° ( 1 1 ¯ 1 ), 19.32° ( 1 1 ¯ 0 ), 23.26° (100), and 25.57° ( 1 ¯ 11 ), according to the reported literature [32].
Figure 5 shows that when MPCT is less than 30%, the CT moieties do not intervene in the formation of α-PBT crystal lattices. When it is above 30%, the intensities of the peaks corresponding to the trans-PCT crystal lattices increase rapidly with increasing MPCT because CT moieties with an average sequence length exceeding 1.5 can crystallize. The transition from α-PBT crystal lattices to trans-PCT crystal lattices of the (PBT-co-PCT)-b-PTMG copolymers can be explained from the viewpoint of cohesive energy (E).
Cohesive energy (E) is used to describe the energetic interactions between the segments of each component polymer molecules in the molten state. The cohesive energies corresponding to A and B components in an A/B binary random copolymer are assumed to be proportional to the copolymer composition and can be calculated according to the group contribution method [29,31]. When the cohesive energies of A and B components are identical, both A and B can co-crystallize into a crystal lattice at certain compositions. According to the group contribution method, the cohesive energies of hard segments PBT and PCT are 89,420 J mol−1 and 119,160 J mol−1 [15], respectively. Moreover, the PCT composition of the (PBT-co-PCT)-b-PTMG copolymer at which the two hard segments PBT and PCT undergo co-crystallization, denoted as M*PCT, is 43%. This value is close to the molar fraction of the CT hard segments in Table 1. That is to say, theoretically, when MPCT is less than M*PCT, only BT moieties can be crystallize and form α-PBT crystal lattices, and the CT moieties would be repelled into non-crystallized regions; and, when MPCT is above M*PCT, CT moieties begin to crystallize and form trans-PCT crystal lattices, while the BT moieties would be repelled into non-crystallized regions. It is worth noting that the crystal lattice transition from α-PBT to trans-PCT also manifests itself by the minimum melting temperature, minimum heat of fusion, and the discontinuous jump of the glass transition temperature for the (PBT-co-PCT)-b-PTMG copolymer, as will be shown below.
In Table 4, the crystal size of the α–PBT crystals of PCT0 are larger than those of PCT10 and PCT30 under the same crystallization condition, and those of the trans-PCT crystals of PCT70 are larger than those of PCT50. These results indicate that the crystal size of the (PBT-co-PCT)-b-PTMG copolymer decreases first and then increases with the increasing CT content.

3.4. DSC Analysis

Figure 6 shows the DSC traces of the (PBT-co-PCT)-b-PTMG copolymers and Table 5 gathers the values of the glass transition temperatures of the soft and hard segments (Tgs and Tgh), crystallization temperature (Tc), melting temperature (Tm) and enthalpies of crystallization (ΔHc) and fusion (ΔHm). In Figure 6a, all copolymers crystallize when cooled down from the molten state as they all exhibit a crystallization peak. The crystallization temperature decreases with the increasing CT content until 30%; and it increases with the increasing CT content when exceeding 30%. The enthalpy of crystallization follows the same trend and reaches a minimum at MPCT of around 30%. At around this CT content, none of the average sequences of the PBT and PCT hard segments is long enough to fully crystallize.
From the DSC heating traces (Figure 6b), the melting temperature decreases first from 187.8 °C to 150.6 °C and then increases again to 245.2 °C. Meanwhile, the enthalpy of fusion (ΔHm) and the degree of crystallinity (XC) follow a trend similar to that of the melting temperature, and reach minima when the CT content is around 30%, for the reason above.
Furthermore, Figure 6c shows the glass transition temperature of the (PBT-co-PCT)-b-PTMG copolymers previously quenched from the melt. Their value is estimated through the tangent midpoint of the curves. The glass transition temperature of the soft segments PTMG (Tgs) appears in the vicinity of −14 °C, which is slightly higher than that of PTMG homopolymer because of the loss of free volume of the amorphous domains with the interference of the amorphous hard segments. On the other hand, the glass transition temperature of the hard segments PBT and PCT (Tgh) decreased with increasing CT content until 30%. It is 33.8 °C for PCT0 and 23.5 °C for PCT30. This is due to the structure regularity of the hard segments. When the CT content is less than 30%, Tgh is lower than that of PBT homopolymer because of the influence of the CT content in amorphous. Thereafter, when the CT content is above 30%, the structure of hard segments become regular again, Tgh increases with increasing CT content and reaches 45.5 °C for PCT70.

3.5. TGA Analysis

Figure 7 shows the thermal gravimetrical traces of the (PBT-co-PCT)-b-PTMG copolymers. In Figure 7a,c, the thermal decomposition temperature increases with increasing CT content under nitrogen atmosphere, indicating that the thermal stability of the copolymer is improved by CT moieties. This is due to the increase of thermally stable cyclohexylene group [15].
Compared with the thermal decomposition under nitrogen atmosphere, three degradation platforms are observed under the oxygen atmosphere in Figure 7b,d. The first and second platforms are assigned to the oxygen degradation of the ether bond in the soft segment and the copolyester in the hard segments, respectively [42,43]. It is worth noting that the CT moieties mainly increase the thermal stability of the hard segments of the copolymers. The third platform is due to the further oxidation of the oxidation products of the first and second stages.

3.6. Mechanical Properties

Figure 8 shows the stress–strain curves of the (PBT-co-PCT)-b-PTMG copolymers. Each curve is the average of five specimens. They all exhibit a typical thermoplastic elastomer behavior: an elastic deformation with small elongations, followed by a decrease in the slope without an apparent yield point. Moreover, the mechanical properties of a (PBT-co-PCT)-b-PTMG copolymer depends very much on its composition, especially the crystallinity of its hard segments. The elastic modulus (E) and tensile strength (σb) of PCT30 are the lowest while its elongation at break is the highest, because its crystallinity is the lowest. Table 6 gathers the values of these properties for the (PBT-co-PCT)-b-PTMG copolymers synthesized in this work.

3.7. Optical Properties

Figure 9 shows the visible light transmittance and haze of the (PBT-co-PCT)-b-PTMG copolymers as a function of their CT content. Overall, the visible light transmittance increases first and then levels off with the increasing CT content, and concomitantly the haze decreases first and then levels off with the increasing CT content. In other words, the incorporation of CT moieties improves the optical properties of the (PBT-co-PCT)-b-PTMG copolymer.

4. Conclusions

In summary, this work shows that partial substitution of the BT hard segments of PBT-b-PTMG copolymers by CT moieties decreases the average sequence length of BT moiety and the crystallinity of the copolymers, resulting in a decrease in elastic modulus and tensile strength, and an increase in the average sequence length of CT moiety and elongation at break. On the other hand, it improves their thermal stability and optical properties.

Acknowledgments

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors.

Author Contributions

This research was done by Yi-Cheng Feng and Hui Zhao, Tao Jiang and Tong-Hui Hao guided it, Yi-Cheng Feng finished this paper with the help of Qun-Chao Zhang, and it was revised by Guo-Hua Hu.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Orimo, Y.; Hotta, A. Stress-strain behavior, elastic recovery, fracture points, and time-temperature superposition of an oot-possessing triblock copolymer. Macromolecules 2011, 44, 5310–5317. [Google Scholar] [CrossRef]
  2. Tomita, S.; Wataoka, I.; Igarashi, N.; Shimizu, N.; Takagi, H.; Sasaki, S.; Sakurai, S. Strain-induced deformation of glassy spherical microdomains in elastomeric triblock copolymer films: Time-resolved 2D-SAXS measurements under stretched state. Macromolecules 2017, 50, 677–686. [Google Scholar] [CrossRef]
  3. Paszkiewicz, S.; Piesowicz, E.; Szymczyk, A. Phase separation and elastic properties of poly(trimethylene terephthalate)-block-poly(ethylene oxide) copolymers. Polymers 2016, 8, 237. [Google Scholar] [CrossRef]
  4. Zhang, Z.Y.; Zhang, Q.K.; Yu, J.P.; Wu, Y.X.; Shen, Z.; Fan, X.H. Synthesis and properties of a new high-temperature liquid crystalline thermoplastic elastomer based on mesogen-jacketed liquid crystalline polymer. Polymer 2017, 108, 50–57. [Google Scholar] [CrossRef]
  5. Zhang, K.; Gao, L.; Chen, Y. Organic/inorganic nanoobjects with controlled shapes from gelable triblock copolymers. Polymer 2010, 51, 2809–2817. [Google Scholar] [CrossRef]
  6. Eberl, A.; Heumann, S.; Kotek, R.F.; Mitsche, S. Enzymatic hydrolysis of ptt polymers and oligomers. J. Biotechnol. 2008, 135, 45–51. [Google Scholar] [CrossRef] [PubMed]
  7. Gao, L.; Zhang, K.; Chen, Y. Functionalization of shaped polymeric nanoobjects via bulk co-self-assembling gelable block copolymers with silane coupling agents. Polymer 2011, 52, 3681–3686. [Google Scholar] [CrossRef]
  8. Gabriëlse, W.; Maria Soliman, A.; Dijkstra, K. Microstructure and phase behavior of block copoly(ether ester) thermoplastic elastomers. Macromolecules 2001, 34, 1685–1693. [Google Scholar] [CrossRef]
  9. Szymczyk, A. Structure and properties of new polyester elastomers composed of poly(trimethylene terephthalate) and poly(ethylene oxide). Eur. Polym. J. 2009, 45, 2653–2664. [Google Scholar] [CrossRef]
  10. Celebi, H.; Bayram, G.; Dogan, A. Effect of zno type and concentration on the mophology, thermal, and mechanical properties of poly(ether ester)/ZnO composites. J. Appl. Polym. Sci. 2013, 129, 3417–3424. [Google Scholar] [CrossRef]
  11. Szymczyk, A.; Nastalczyk, J.; Sablong, R.J.; Roslaniec, Z. The influence of soft segment length on structure and properties of poly(trimethylene terephthalate)-block-poly(tetramethylene oxide) segmented random copolymers. Polym. Adv. Technol. 2011, 22, 72–83. [Google Scholar] [CrossRef]
  12. Liu, F.; Zhang, J.; Wang, J.; Na, H.; Zhu, J. Incorporation of 1,4-cyclohexanedicarboxylic acid into poly(butylene terephthalate)-b-poly(tetramethylene glycol) to alter thermal properties without compromising tensile and elastic properties. RSC Adv. 2015, 5, 94091–94098. [Google Scholar] [CrossRef]
  13. Kint, D.P.R.; Muñoz-Guerra, S. Modification of the thermal properties and crystallization behaviour of poly(ethylene terephthalate) by copolymerization. Polym. Int. 2003, 52, 321–336. [Google Scholar] [CrossRef]
  14. Rosales, A.M.; Murnen, H.K.; Zuckermann, R.N.; Segalman, R.A. Control of crystallization and melting behavior in sequence specific polypeptoids. Macromolecules 2010, 43, 5627–5636. [Google Scholar] [CrossRef]
  15. Zhang, Y.; Feng, Z.; Feng, Q.; Cui, F. Preparation and properties of poly(butylene terephthalate-co-cyclohexanedimethylene terephthalate)-b-poly(ethylene glycol) segmented random copolymers. Polym. Degrad. Stab. 2004, 85, 559–570. [Google Scholar] [CrossRef]
  16. Chen, T.; Zhang, J.; You, H. Photodegradation behavior and mechanism of poly(ethylene glycol-co-1,4-cyclohexanedimethanol terephthalate) (PETG) random copolymers: Correlation with copolymer composition. RSC Adv. 2016, 6, 102778–102790. [Google Scholar] [CrossRef]
  17. Chen, T.; Jiang, G.; Li, G.; Wu, Z.; Zhang, J. Poly(ethylene glycol-co-1,4-cyclohexanedimethanol terephthalate) random copolymers: Effect of copolymer composition and microstructure on the thermal properties and crystallization behavior. RSC Adv. 2015, 5, 60570–60580. [Google Scholar] [CrossRef]
  18. Chen, T.; Zhang, J. Surface hydrophilic modification of acrylonitrile-butadiene-styrene terpolymer by poly(ethylene glycol-co-1,4-cyclohexanedimethanol terephthalate): Preparation, characterization, and properties studies. Appl. Surf. Sci. 2016, 388, 133–140. [Google Scholar] [CrossRef]
  19. Rao, Y.Q.; Greener, J.; Avila-Orta, C.A.; Hsiao, B.S.; Blanton, T.N. The relationship between microstructure and toughness of biaxially oriented semicrystalline polyester films. Polymer 2008, 49, 2507–2514. [Google Scholar] [CrossRef]
  20. Jung, I.K.; Lee, K.H.; Chin, I.J.; Yoon, J.S.; Kim, M.N. Properties of biodegradable copolyesters of succinic acid-1,4-butanediol/succinic acid-1,4-cyclohexanedimethanol. J. Appl. Polym. Sci. 2015, 72, 553–561. [Google Scholar] [CrossRef]
  21. Sun, Y.M.; Wang, C.S. Preparation and characterization of poly(ethylene-1,4-cyclohexanedimethylene arylate). Eur. Polym. J. 1999, 35, 1087–1096. [Google Scholar] [CrossRef]
  22. Liu, Y.; Ranucci, E.; Lindblad, M.S.; Albertsson, A.C. New biodegradable polymers from renewable sources: Polyester-carbonates based on 1,3-propylene-co-1,4-cyclohexanedimethylene succinate. J. Polym. Sci. Part A Polym. Chem. 2001, 39, 2508–2519. [Google Scholar] [CrossRef]
  23. Ki, H.C.; Park, O.O. Synthesis, characterization and biodegradability of the biodegradable aliphatic-aromatic random copolyesters. Polymer 2001, 42, 1849–1861. [Google Scholar] [CrossRef]
  24. Celli, A.; Marchese, P.; Sisti, L.; Dumand, D.; Sullalti, S.; Totaro, G. Effect of 1,4-cyclohexylene units on thermal properties of poly(1,4-cyclohexylenedimethylene adipate) and similar aliphatic polyesters. Polym. Int. 2013, 62, 1210–1217. [Google Scholar] [CrossRef]
  25. Bigi, A.; Boanini, E.; Capuccini, C.; Fini, M.; Mihailescu, I.N.; Ristoscu, C.; Sima, F.; Torricelli, P. Biofunctional alendronate-hydroxyapatite thin films deposited by matrix assisted pulsed laser evaporation. Biomaterials 2009, 30, 6168–6177. [Google Scholar] [CrossRef] [PubMed]
  26. Ernault, E.; Richaud, E.; Fayolle, B. Thermal-oxidation of epoxy/amine followed by glass transition temperature changes. Polym. Degrad. Stab. 2017, 138, 82–90. [Google Scholar] [CrossRef]
  27. Vasanthan, N.; Manne, N.J.; Krishnama, A. Effect of molecular orientation on the cold crystallization of amorphous-crystallizable polymers: The case of poly(trimethylene terephthalate). Ind. Eng. Chem. Res. 2013, 52, 17920–17926. [Google Scholar] [CrossRef]
  28. Shi, X.Q.; Aimi, K.; Ito, H.; Ando, S.; Kikutani, T. Characterization on mixed-crystal structure of poly(butylene terephthalate/succinate/adipate) biodegradable copolymer fibers. Polymer 2005, 46, 751–760. [Google Scholar] [CrossRef]
  29. Yoo, H.Y.; Umemoto, S.; Kikutani, T.; Okui, N. Co-crystallization behaviour and melting-point depression in poly(ethylene terephthalate-co-1,4-cyclohexylene dimethylene terephthalate) random copolyesters. Polymer 1994, 35, 117–122. [Google Scholar] [CrossRef]
  30. Bessadok, A.; Roudesli, S.; Marais, S.; Follain, N.; Lebrun, L. Alfa fibres for unsaturated polyester composites reinforcement: Effects of chemical treatments on mechanical and permeation properties. Compos. Part A Appl. Sci. Manuf. 2009, 40, 184–195. [Google Scholar] [CrossRef]
  31. Saint-Loup, R.; Robin, J.J.; Boutevin, B. Synthesis of poly(ethylene terephthalate)- block -poly(tetramethylene oxide) copolymer by direct polyesterification of reactive oligomers. Macromol. Chem. Phys. 2003, 204, 970–982. [Google Scholar] [CrossRef]
  32. Sandhya, T.E.; Ramesh, C.; Sivaram, S. Copolyesters based on poly(butylene terephthalate)s containing cyclohexyl and cyclopentyl ring: Effect of molecular structure on thermal and crystallization behavior. Macromolecules 2007, 40, 6906–6915. [Google Scholar] [CrossRef]
  33. Yamadera, R.; Murano, M. The determination of randomness in copolyesters by high resolution nuclear magnetic resonance. J. Polym. Sci. Part A Polym. Chem. 1967, 5, 2259–2268. [Google Scholar] [CrossRef]
  34. Li, W.D.; Zeng, J.B.; Lou, X.J.; Zhang, J.J.; Wang, Y.Z. Aromatic-aliphatic random and block copolyesters: Synthesis, sequence distribution and thermal properties. Polym. Chem. 2012, 3, 1344–1353. [Google Scholar] [CrossRef]
  35. Matsuda, H.; Nagasaka, B.; Asakura, T. Sequence analysis of poly(ethylene/1,4-cyclohexanedimethylene terephthalate) copolymer using 1H and 13C NMR. Polymer 2003, 44, 4681–4687. [Google Scholar] [CrossRef]
  36. Diao, L.; Su, K.; Li, Z.; Ding, C. Furan-based co-polyesters with enhanced thermal properties: Poly(1,4-butylene-co-1,4-cyclohexanedimethylene-2,5-furandicarboxylic acid). RSC Adv. 2016, 6, 27632–27639. [Google Scholar] [CrossRef]
  37. Zhao, H.B.; Wang, X.L.; Guan, Y.; Wang, X.L.; Chen, L.; Wang, Y.Z. Block self-cross-linkable poly(ethylene terephthalate) copolyester via solid-state polymerization: Crystallization, cross-linking, and flame retardance. Polymer 2015, 70, 68–76. [Google Scholar] [CrossRef]
  38. Gigli, M.; Lotti, N.; Gazzano, M.; Siracusa, V.; Finelli, L.; Munari, A.; Rosa, M.D. Biodegradable aliphatic copolyesters containing peg-like sequences for sustainable food packaging applications. Polym. Degrad. Stab. 2014, 105, 96–106. [Google Scholar] [CrossRef]
  39. Briber, R.M.; Thomas, E.L. Crystallization behaviour of random block copolymers of poly(butylene terephthalate) and poly(tetramethylene ether glycol). Polymer 1985, 26, 8–16. [Google Scholar] [CrossRef]
  40. Li, R.K.Y.; Tjong, S.C.; Xie, X.L. The structure and physical properties of in situ composites based on semiflexible thermotropic liquid crystalline copolyesteramide and poly(butylene terephthalate). J. Polym. Sci. Part B Polym. Phys. 2000, 38, 403–414. [Google Scholar] [CrossRef]
  41. Boye, C.A. X-ray diffraction studies of poly(1,4-cyclohexylenedimethylene terephthalate). J. Polym. Sci. 1961, 55, 275–284. [Google Scholar] [CrossRef]
  42. Han, S.; Kim, C.; Kwon, D. Thermal degradation of poly(ethyleneglycol). Polym. Degrad. Stab. 1995, 47, 203–208. [Google Scholar] [CrossRef]
  43. Lotti, N.; Colonna, M.; Fiorini, M.; Finelli, L.; Berti, C. Poly(butylene terephthalate) modified with ethoxylated bisphenol s with increased glass transition temperature and improved thermal stability. Polymer 2011, 52, 904–911. [Google Scholar] [CrossRef]

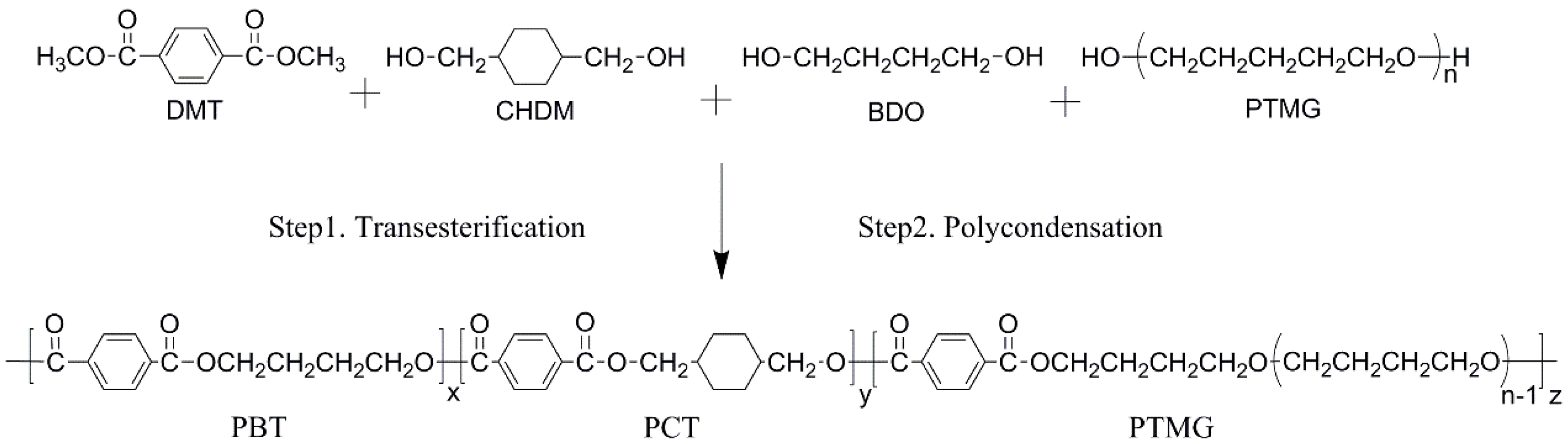

Figure 1. Synthesis route of the (PBT-co-PCT)-b-PTMG copolymers.
Figure 1. Synthesis route of the (PBT-co-PCT)-b-PTMG copolymers.
Materials 10 00694 g001

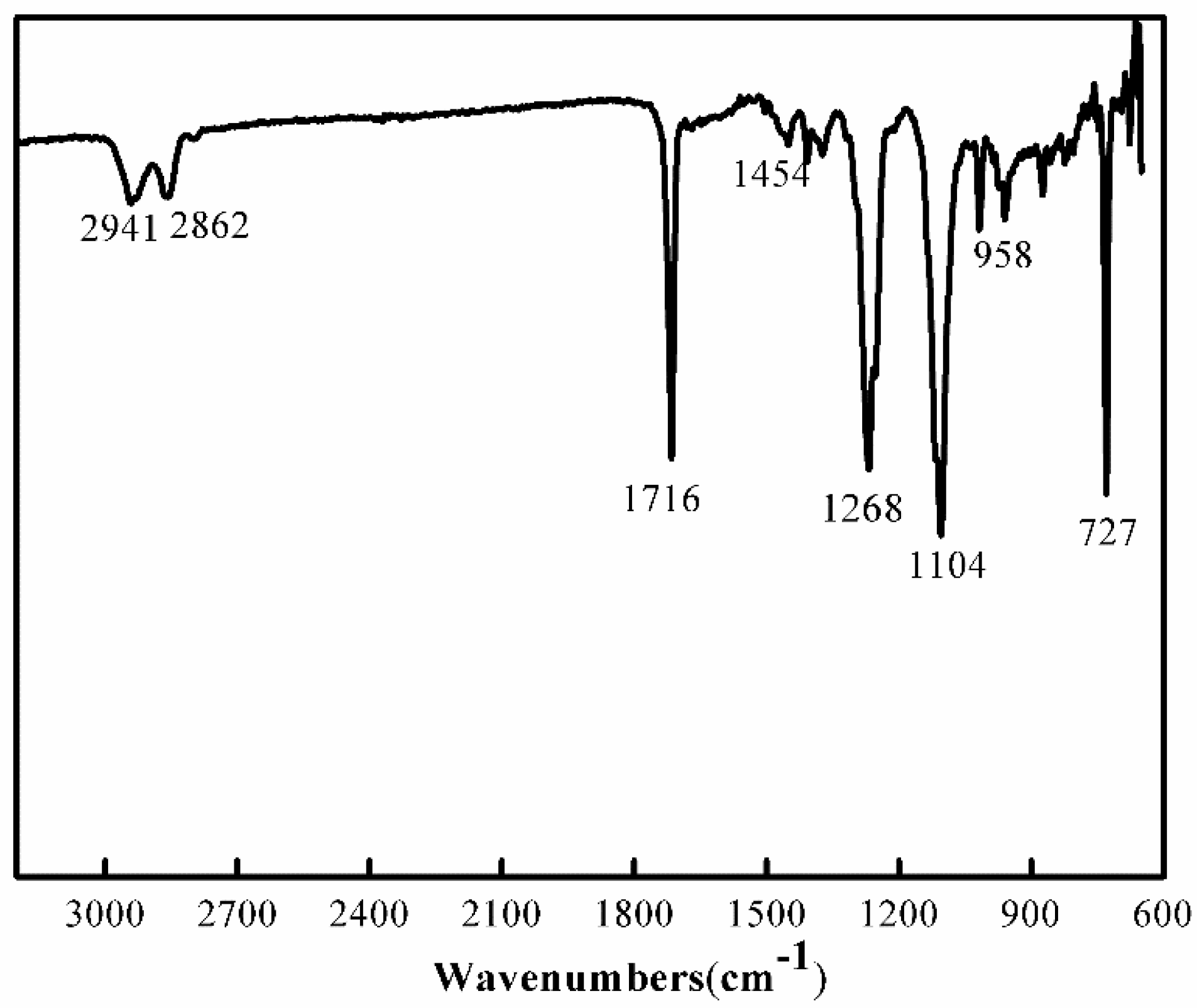

Figure 2. ATR-FTIR spectra of the sample PCT50.
Figure 2. ATR-FTIR spectra of the sample PCT50.
Materials 10 00694 g002

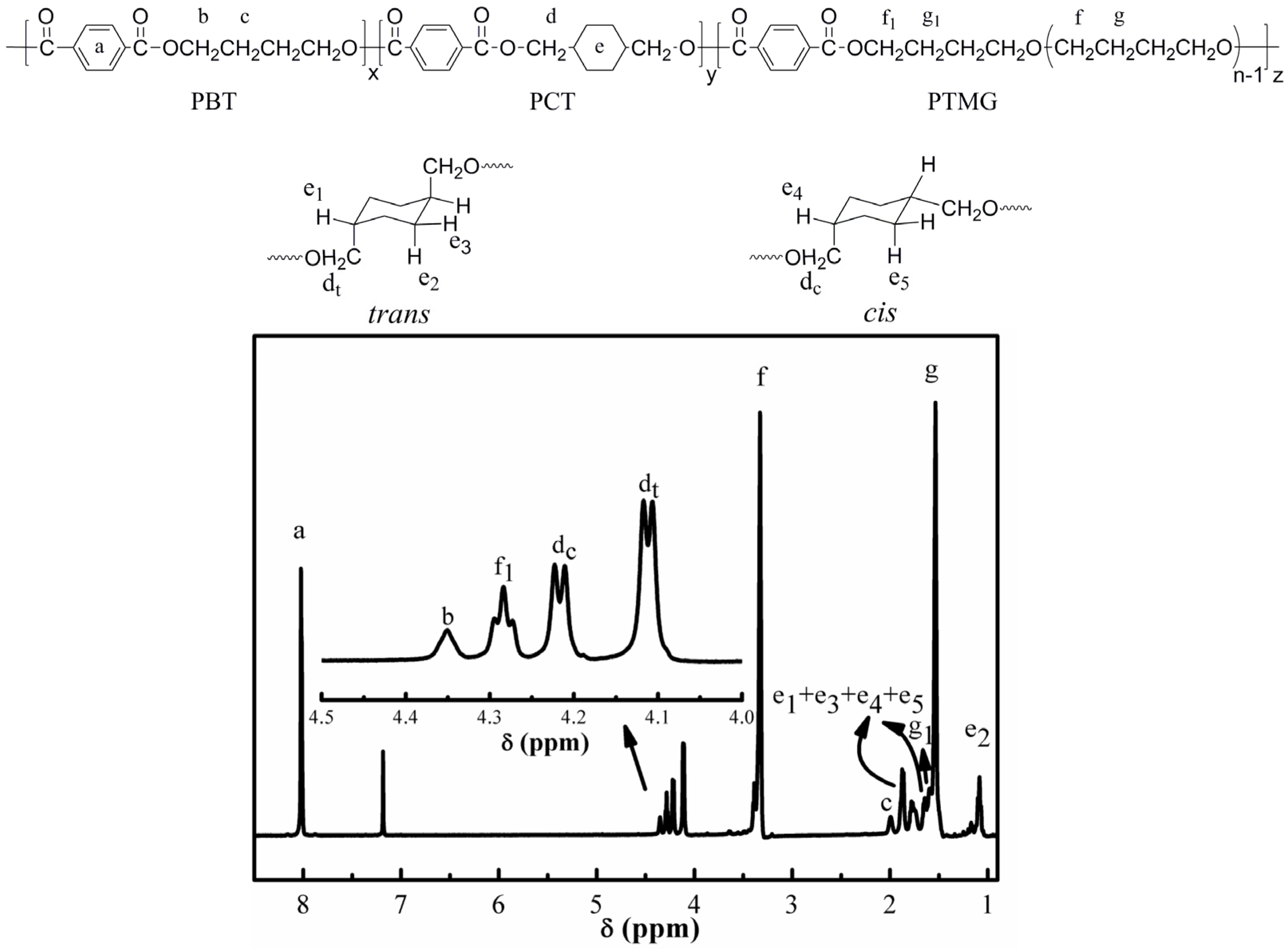

Figure 3. 1H nuclear magnetic resonance spectra of sample PCT50.
Figure 3. 1H nuclear magnetic resonance spectra of sample PCT50.
Materials 10 00694 g003
Figure 4. 13C NMR spectra of the (PBT-co-PCT)-b-PTMG copolymers.
Figure 4. 13C NMR spectra of the (PBT-co-PCT)-b-PTMG copolymers.
Materials 10 00694 g004
Figure 5. WAXD patterns of the (PBT-co-PCT)-b-PTMG copolymers.
Figure 5. WAXD patterns of the (PBT-co-PCT)-b-PTMG copolymers.
Materials 10 00694 g005

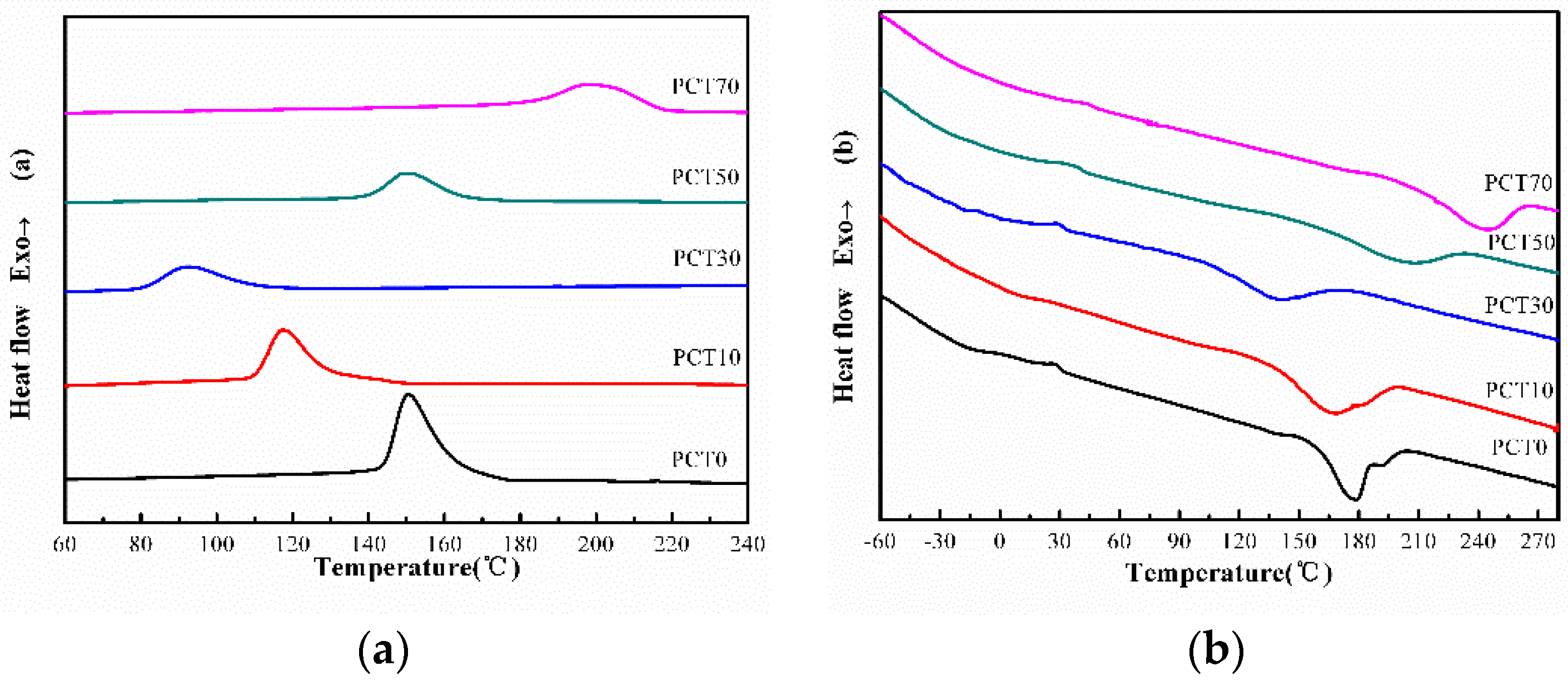

Figure 6. DSC traces of the (PBT-co-PCT)-b-PTMG copolymers at 10 °C min1 in nitrogen: (a) cooling traces; (b) heating traces; and (c) heating traces of the quenched samples.
Figure 6. DSC traces of the (PBT-co-PCT)-b-PTMG copolymers at 10 °C min1 in nitrogen: (a) cooling traces; (b) heating traces; and (c) heating traces of the quenched samples.
Materials 10 00694 g006aMaterials 10 00694 g006b

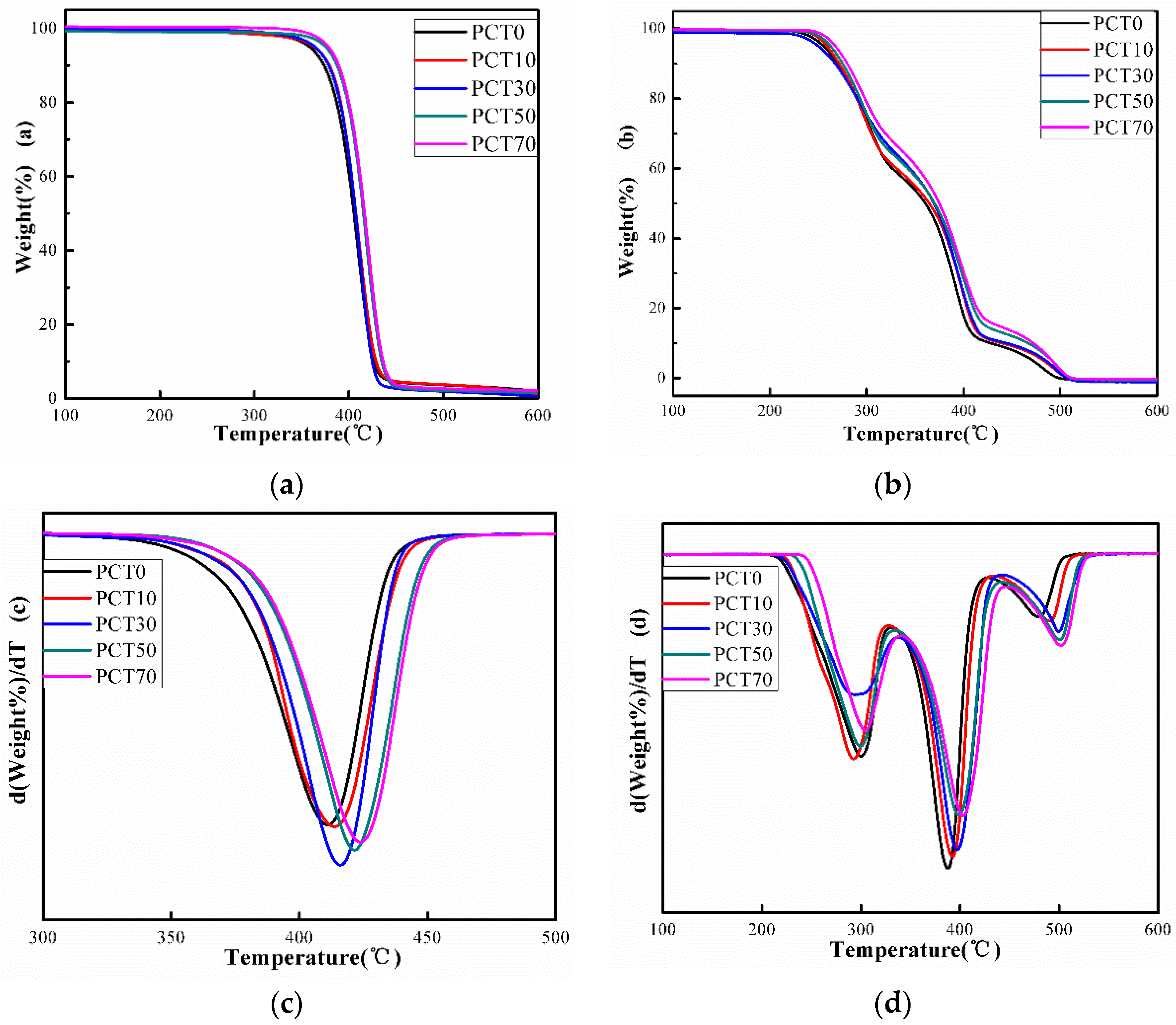

Figure 7. TGA and DTG thermograms of the (PBT-co-PCT)-b-PTMG copolymers at 20 °C min1: (a) TGA in nitrogen atmosphere; (b) TGA in oxygen atmosphere; (c) DTG in nitrogen atmosphere; and (d) DTG in oxygen atmosphere.
Figure 7. TGA and DTG thermograms of the (PBT-co-PCT)-b-PTMG copolymers at 20 °C min1: (a) TGA in nitrogen atmosphere; (b) TGA in oxygen atmosphere; (c) DTG in nitrogen atmosphere; and (d) DTG in oxygen atmosphere.
Materials 10 00694 g007
Figure 8. Tensile stress–strain curves of the (PBT-co-PCT)-b-PTMG copolymer.
Figure 8. Tensile stress–strain curves of the (PBT-co-PCT)-b-PTMG copolymer.
Materials 10 00694 g008

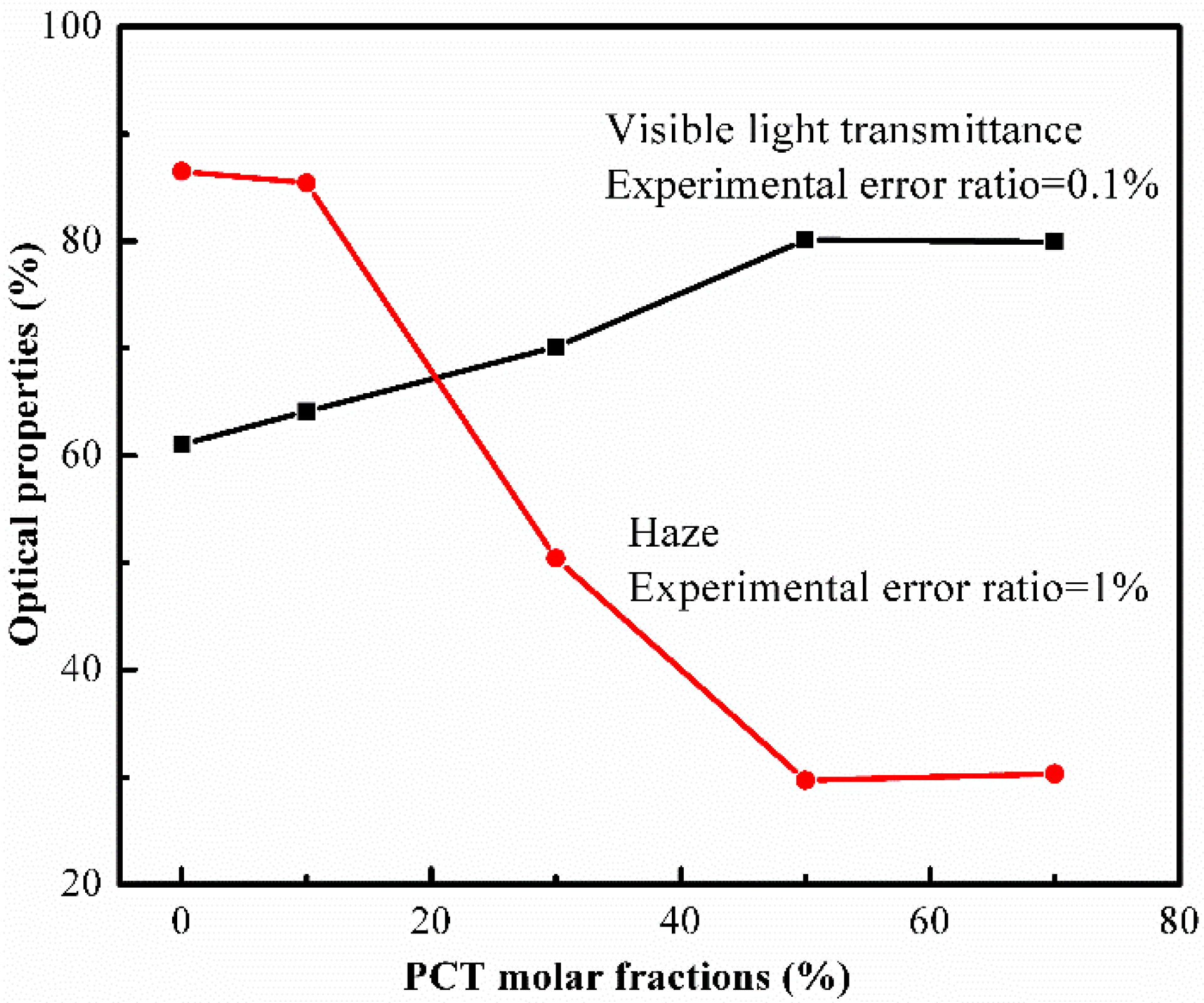

Figure 9. The optical properties of the (PBT-co-PCT)-b-PTMG copolymers.

Figure 9. The optical properties of the (PBT-co-PCT)-b-PTMG copolymers.
Materials 10 00694 g009
Table 1. Compositions for the synthesis of the (PBT-co-PCT)-b-PTMG copolymers.
Table 1. Compositions for the synthesis of the (PBT-co-PCT)-b-PTMG copolymers.
SamplesDMT (mol)CHDM (mol)BDO (mol)PTMG (g)
PCT00.5-0.7100
PCT100.50.0520.648100
PCT300.50.1530.547100
PCT500.50.2550.445100
PCT700.50.3550.345100
Table 2. Compositions, molecular weights and polydispersity of the (PBT-co-PCT)-b-PTMG copolymers.
Table 2. Compositions, molecular weights and polydispersity of the (PBT-co-PCT)-b-PTMG copolymers.
SamplesMPTMG (%)MPBT (%)MPCT (%)trans/cisMnMwPDI
PCT020.279.1--1.8 × 1043.7 × 1042.08
PCT1019.869.610.669.8/30.21.7 × 1043.6 × 1042.12
PCT3019.749.530.870.3/29.71.7 × 1043.5 × 1042.11
PCT5020.12851.971.6/28.41.6 × 1043.3 × 1042.07
PCT7020.37.672.169.1/30.91.5 × 1043.1 × 1042.06
Table 3. Sequence distribution analysis of the (PBT-co-PCT)-b-PTMG copolymers.
Table 3. Sequence distribution analysis of the (PBT-co-PCT)-b-PTMG copolymers.
SamplesFraction of DyadMolar Fraction of DiesterAverage Sequence LengthDegree of Randomness
fBBfBC + fCBfCCPBPCLnBLnCDR
PCT0--------
PCT100.5780.3820.040.7780.2224.11.21.05
PCT300.4560.4410.1030.6770.3233.11.51.01
PCT500.1920.4830.3250.4340.5661.82.30.98
PCT700.1120.4620.4260.3430.6571.52.81.02
Table 4. WAXD data of the (PBT-co-PCT)-b-PTMG copolymers.
Table 4. WAXD data of the (PBT-co-PCT)-b-PTMG copolymers.
SamplesCrystal Plane2θ (°)d (Å)β (°)L (Å)
PCT00 1 ¯ 116.275.460.59151.14
01017.395.100.43207.69
1 ¯ 1120.654.290.9693.47
10023.333.800.61147.77
1 1 ¯ 125.203.520.64141.34
PCT100 1 ¯ 116.065.510.61146.15
01017.255.130.45198.42
1 ¯ 1120.364.350.9891.52
10023.193.830.67134.50
1 1 ¯ 125.073.540.66137.02
PCT30-----
01016.805.270.47189.87
1 ¯ 1120.164.401.0188.78
10022.963.870.82109.8
-----
PCT5001115.135.850.53168.02
01016.835.270.46193.99
1 1 ¯ 019.364.580.77116.31
10023.563.770.66136.64
1 ¯ 1125.723.460.66137.20
PCT7001115.175.830.47189.49
01016.835.260.45198.31
1 1 ¯ 019.244.610.73122.66
10023.393.790.64140.86
1 ¯ 1125.503.490.65139.24
Table 5. Thermal properties of the (PBT-co-PCT)-b-PTMG copolymers obtained from DSC.
Table 5. Thermal properties of the (PBT-co-PCT)-b-PTMG copolymers obtained from DSC.
SamplesCoolingHeating
Tc (°C)ΔHc (J·g−1)Tgs (°C)Tgh (°C)Tm (°C)ΔHm (J·g−1)WC (%)
PCT0147.622.6−16.133.8187.822.819.9
PCT10118.117.0−16.726.4158.817.715.9
PCT3083.912.0−17.023.5150.612.110.5
PCT50147.913.7−11.942.9206.514.015.0
PCT70198.015.6−12.745.5245.215.718.6
Table 6. The mechanical properties for the (PBT-co-PCT)-b-PTMG copolymers
Table 6. The mechanical properties for the (PBT-co-PCT)-b-PTMG copolymers
SamplesElastic Modulus (E)Tensile Strength σmax (MPa)Elongation at Break εb (%)
PCT0101.7 (±9.8)25.1 (±3.7)505.3 (±49.8)
PCT1071.2 (±7.4)16.6 (±1.8)527.7 (±47.2)
PCT3033.2 (±3.6)10.1 (±1.2)647.7 (±61.3)
PCT5035.2 (±3.3)16.7 (±1.7)624.4 (±63.7)
PCT7043.4 (±4.7)19.0 (±2.1)547.9 (±50.7)
