Next Article in Journal
Theoretical Investigations of Si-Ge Alloys in P42/ncm Phase: First-Principles Calculations
Previous Article in Journal
Structural, Morphological, Optical and Photocatalytic Properties of Y, N-Doped and Codoped TiO2 Thin Films
Article Menu
Issue 6 (June) cover image

Export Article

Materials 2017, 10(6), 602;

Chitosan Biomaterials for Current and Potential Dental Applications
Department of Dental Materials, College of Dentistry, Jinnah Sindh Medical University, Karachi 75110, Pakistan
Department of Restorative Dentistry, College of Dentistry, Taibah University, Al Madinah, Al Munawwarah 41311, Saudi Arabia
Bow River Dental, Calgary, Alberta AB T3B 0M3, Canada
Department of Dental Materials, Islamic International Dental College, Riphah International University, Islamabad 44000, Pakistan
Prosthodontic and Implantology Department, College of Dentistry, King Faisal University, P.O. Box 380, Al-Hofuf, Al-Ahsa 31982, Saudi Arabia
Department of Biomedical Engineering, School of Engineering, King Faisal University, P.O. Box 380, Al-Hofuf, Al-Ahsa 31982, Saudi Arabia
Department of Restorative and Prosthetic Dental Sciences, Dar al Uloom University, College of Dentistry, P.O. Box 45142, Riyadh 11512, Saudi Arabia
Author to whom correspondence should be addressed.
Academic Editor: Jiujiang Yu
Received: 1 May 2017 / Accepted: 27 May 2017 / Published: 31 May 2017


Chitosan (CHS) is a very versatile natural biomaterial that has been explored for a range of bio-dental applications. CHS has numerous favourable properties such as biocompatibility, hydrophilicity, biodegradability, and a broad antibacterial spectrum (covering gram-negative and gram-positive bacteria as well as fungi). In addition, the molecular structure boasts reactive functional groups that provide numerous reaction sites and opportunities for forging electrochemical relationships at the cellular and molecular levels. The unique properties of CHS have attracted materials scientists around the globe to explore it for bio-dental applications. This review aims to highlight and discuss the hype around the development of novel chitosan biomaterials. Utilizing chitosan as a critical additive for the modification and improvement of existing dental materials has also been discussed.
natural biomaterials; biopolymers; chitin; dental materials; dental restorations; tissue regeneration

1. Introduction

Natural biomaterials are known for a range of biological properties such as biocompatibility and biodegradation [1] required for biomedical applications. A few examples of natural biomaterials include collagen [2,3,4] fibrin [5,6,7], natural silk [8,9,10,11], and chitosan [11,12,13,14]. Chitosan is a natural biomaterial that is purified mainly from chitin. The major source of chitin remains the crustacean’s (such as crab and shrimp) exoskeleton [15,16]. Other sources include insects [17,18,19], fungi [18,20] and certain plants such as mushrooms [21,22,23]. During the process of deacetylation (Figure 1), the water-insoluble chitin (Mw > 1000 kDa) changes to chitosan (Mw > 100 kDa) that is poorly soluble in water [24,25]. Further enzymatic hydrolyzation transforms chitosan to chitosan oligosaccharide that has a lower molecular weight (Mw < 2 kDa) and is highly soluble in water [26].
Chemically, chitosan (CHS) is a polymeric material comprised of N-acetylglucosamine and glucosamine copolymer units (Figure 2) [16]. CHS has a range of favourable properties (it is anti-bacterial and biocompatible) and can be combined with various bioactive materials for osteoconductivity [27,28,29]. These unique properties have led to a number of ample opportunities for exploitation in the areas of bioengineering research in general and regenerative medicine in particular [30,31]. For instance, the primary uses of chitosan as a substrate include drug and growth factor delivery [32,33,34], and as a scaffold material for particular types of tissue (bone) engineering [35,36,37].
The ability to harness and tailor properties based on particular application gives CHS a significant edge. For example, regarding the material’s properties, the characteristics of chitosan are dependent on structural parameters such as molecular weight and its degree of deacetylation. Moreover, the source of extraction and procedures adapted to conduct deacetylation may affect the final properties. The extent of deacetylation strongly influences physical, chemical and biological properties. It is usually available in low medium and high molecular weights and can be used according to the intended application alone or in composite formulations. Its pH-dependent versatility at a low pH can cause amine groups to be protonated, exhibiting a polycationic nature [38]. At higher pH, chitosan amines are deprotonated and reactive, hence promoting intermolecular interactions advances the formation of fibres, films, porous scaffolds or even gels [12]. Properties such as mechanical strength, biodegradability, and cell affinity can be tailored using various chemical modifications including cross-linking [12,39,40].
Chitosan has been recognised as an antimicrobial agent, however its ability to act in this way is not completely elucidated as several different mechanisms have been attributed to this nature of chitosan [41,42]. One theory suggests that when exposed to bacterial cell wall, chitosan promotes displacement of Ca++ of anionic sites of the membrane, resulting in cellular destruction [43]. It is also known to exhibit a potent antiplaque activity against several oral pathogens such as Porphyronomas gingivalis, Prevotella intermedia and Actinobacillus actinomycetemcomitans [38]. Chitosan has a high degree of biocompatibility in animal models and can be conveniently adapted for the development of implantable biomaterials [44,45]. In addition, chitosan can be chemically functionalized using various compounds (Figure 3).
The design of a suitable dental material is quite a challenging task which hence remains an active area of research as there is still room for improvement in the current commercially available materials [49]. Although there have been some studies documenting the potential or current uses of chitosan in dentistry. To date, no comprehensive reviews have been published reporting applications of chitosan in dentistry. Therefore, the aim of this review is to evaluate the current status of chitosan at the forefront of innovative bio-dental materials development. The potential applications of chitosan are discussed in detail, including the advantages and further prospects.

2. Applications of Chitosan Materials in Dentistry

Chitosan has emerged as a potential material for biodental applications corresponding to its unique properties such as bioactivity [50,51], antimicrobial [41,42,52], biocompatibility [14,53,54] and compatibility to blend with other materials [1,55,56]. The chitosan-based materials have been explored extensively for a wide range of dental applications (Figure 4.)

2.1. Oral Drug Delivery

Several studies have been conducted to ascertain the potential of chitosan as oral drug carriers [13,57]. Using such drug carriers limits the adverse effects of systemic administration. Chitosan-based composites (CBCs) can be used to design a robust local drug delivery system with the required mechanical properties, contact time, a sustained release profile, while maintaining an intimate contact with the oral mucosa. CBC leads to enhance the bioavailability for treating various oral pathologies. CHS microspheres have been developed for the active release of drugs at sites of pathologies [58,59,60]. Oral administration of CHS is non-toxic. The Food and Drug Administration (FDA) has approved CHS as a food additive. Also, CHS has been explored for drug delivery for a range of biomolecules including DNA, siRNA, growth factors and various drugs [57,61,62,63,64]. The Medical Devices Directive (MDD) has classified all medical devices containing chitin and its derivatives as class III [65].
Chitosan in the form of nano-particles and resorbable films can be used to deliver antibiotics (such as metronidazole, chlorhexidine and nystatin) to periodontal tissues in situ [12,40,66], against fungal infections [33,67] and oral mucositis [33]. The nanoparticles have higher surface area and reactivity to facilitate the drug release [68,69]. Similarly, thiolated chitosan-based formulations have also been used in mucoadhesive patches to prevent dental caries. The sustained release of antibacterial medicament inhibits the growth of cariogenic Streptococcus mutans [28,70]. Although electrospun mats display useful properties such as surface smoothness and non-toxicity coupled with a rapid release of the incorporated substances [14,71,72], further studies are required to validate the exact nature of the release profile and whether the sustained release of drugs can be maintained [12,42,70,73].
The adhesion of oral bacteria to the tooth surfaces (e.g., hydroxyapatite (HA)) can be considered for the synthesis of antibacterial medicaments, and dentifrices for the oral environment. Chitin and chitosan have long been implicated with respect to their bacteriostatic and bactericidal actions against a variety of oral microorganisms. The roles of S. mutans [74,75,76] and Porphyromonas gingivalis [77,78] have been recognised in dental caries and periodontal disease, respectively. On the whole, chitosan materials have low toxicity and antimicrobial activity levels ranging from 100 to 100,000 mg L−1 and 100 to 1250 mg L−1 against gram-negative and gram-positive bacteria, respectively [41]. It has been established that low molecular weight chitosan varieties have a profound role towards impeding colonization of pathogenic strains (such as S. mutans) on tooth surfaces without disrupting normal oral flora [79]. Chitosan ranging from low molecular weight (50–190 kDa), medium molecular weight (190–300 kDa) and high molecular weight (310–375 kDa) may be implicated at some level in terms of imparting antimicrobial activity [80]. For instance, low molecular weight chitosan has superior penetrating capabilities, hence impairing the bacterial physiological activities at the cellular level. In contrast, high weight molecular chitosan is credited for an indirect approach involving the formation of a film around the bacterial cells and choking the entry of nutrients to the central metabolic machinery [81,82].
A comprehensive understanding of the antibacterial activity of CHS-based materials remains elusive to date. Plausible theories have been represented with respect to the protonation of the amino groups of CHS upon coming in contact with physiological fluids such as saliva. The cationic species thus generated interact with the anionic groups on the bacterial cell wall, imparting a makeshift bacteriostatic effect by bacterial agglutination and/or alterations in permeability—an impediment to uncontrolled growth [83]. Other investigators have implicated the Ca++ displacement from the membranes upon interaction with chitosan as a plausible alternative [43]. Camacho et al. 2010 [84] described antimicrobial properties stemming from the positive charge possessed by the CHS polymeric chain amino groups counteracting with negatively charged macromolecular remnants e.g., proteins and lipopolysaccharides in the cell membrane. This eventually leads to obstruction of nutrient exchange between the cell interior and the extracellular matrix. The electrostatic charges are responsible for competing for calcium for electronegative sites in the membrane, hence compromising the integrity. This process leads to the subsequent release of intracellular material and cellular death. In dentistry, CHS has displayed effective plaque control in vitro by inhibiting specific dental plaque pathogens (Actinobacillus actinomycetemcomitans, P. gingivalis and S. mutans) [27,28].

2.2. Guided Tissue Regeneration (GTR)

Periodontal disease is considered a major affliction worldwide [85]. The growing world population indicates a predictable increment in periodontal diseases. This can be correlated with an increase in the average age and centurions globally [86,87]. Periodontitis is a chronic inflammatory process that culminates irreversible loss of periodontal tissues and ultimately tooth loss [85]. The inhospitable mouth environment becomes worse in the presence of periodontitis [49]. A variety of periodontal treatment approaches rely mostly on oral hygiene maintenance, plaque control [88,89] and direct localised clinical/surgical intervention for promoting healing of the periodontal tissues [90,91]. There is an increasing level of interest in developing regenerative periodontal therapeutic strategies vis-à-vis the concept of guided tissue regeneration (GTR) or guided bone regeneration (GBR) [92,93,94]. The technique of GBR has been shown schematically in Figure 5. This relatively novel therapeutic modality has been at the centre of numerous successful clinical trials [95,96]. The underlying strategy in GTR involves isolating the periodontal defect with a suitable membrane (resorbable or non-resorbable) that acts as a physical impediment to gingival tissue infiltration into the osseous defects, thereby encouraging bone regeneration and preventing spaces for fibrous tissue proliferation simultaneously [97].
In order to achieve this objectively in an efficient and clinically viable manner, it is imperative for the template to possess certain biological, physical, chemical and bioactive characteristics that encourage favourable host tissue response in a self-contained temporal system amenable to tissue regeneration [99,100]. The spectrum of properties desirable in a comprehensive GTR membrane therapy system ranges from robust constructs (smart, bio-integrative and conducive) to drug delivery applications. An optimal particle size and biological behaviour of the inclusive elements improves the receptiveness to cellular and extracellular matrix (ECM) cues. Due to the compliance with the aforementioned properties, chitosan has been pinned as a favourable substrate material for periodontal tissue regeneration. Some investigators have worked on producing and subsequently analysing chitosan membranes coated with a bioactive material such as a bioceramic-based agent like HA and calcium phosphate variants which include tricalcium phosphate (TCP) α and β [101]. Other researchers also looked into building on the promising results of the former by the addition of a cross-linking agent such as sodium tripolyphosphate [102], genipin [103,104] and glutaraldehyde. This was done as a pretext to enhancing the mechanical properties (such as modulus of elasticity, hardness and toughness) of the chitosan membrane substructures. Composite formulations of chitosan and hydroxyapatite have been heavily investigated to fabricate chitosan and HA templates using novel methodologies [105,106,107]. Ang and co-workers [107] deposited layer by layer chitosan–HA composite materials using a preprogrammed lay-down pattern and a desktop rapid prototyping system. Chavanne and colleagues also worked on similar lines and developed a porous cylindrical template [108].
A number of studies have proposed the concept of functionally graded membranes [12,61,109]. The concept revolves around employing the use of a graded structure at the defect site around the tooth and/or implant interface. This approach fully addresses the local biological, physicochemical and functional requirements for the functioning of functionally graded membranes (FGMs) in situ [97,110,111]. The syntheses of functionally graded membranes using different material fabrication protocols have been reported. These include the use of layered casting protocols comprising PLGA, nanohydroxyapatite and collagen [112] with an HA/collagen/PLGA porous side for promoting adequate levels of resident cellular recruitment and adhesion. Other uses involve electrospinning techniques for fabricating graded nanofiber scaffolds and multilayer electrospinning [113] for designing FGMs with a stabilising core constituting poly L lactide co-caprolactone and two functionalized surface layers of HA and a polymer–gelatine composite [97]. The grading of structures by such a method provides the means to tailor the time stability and further improve the periodontal outcome [49]. Recently, Qasim et al. [113] have reported the development and subsequent characterisation of porous CHS–HA membranes using ascorbic acid and acetic acid as solvents. The freeze gelation technique was used with the aim of developing a suitable core layer boasting desirable mechanical and biological properties in an FGM construct for periodontal tissue regeneration.
Regardless of other components (cross-linking agents and bioactive calcium phosphates), the formation of a bio-ceramic layer of variable crystallinity was detected on templates with a chitosan backbone. The functionally graded conditions are essential for tissue implant interface. There are three possible perspectives; biological, mechanical and anatomical. In terms of biological perspective, one layer may comprise cell bearing phenotypes that may differ to other layers within the construct hence influencing the quality and distribution of ECM production. Considering mechanical properties, the scaffolds should closely match those of the target tissues. This would be synchronous with the intention of producing a template that would be devoid of localised stress concentration regions along its entire covered area. Moreover, the resident cells would receive similar mechanical cues as in a physiological environment [114].

2.3. Modifications of Dentifrices

Toothpastes are known to be an integral component of the daily oral hygiene maintenance regimen. Their role is evident in warding off dental erosive demineralisation of the tooth structure due to intermittent exposure to acidic drinks. Many toothpaste formulations and their modifications have been investigated over the years with different active ingredients (Table 1). These include preparations containing nanohydroxyapatite, 5% KNO3 [115,116,117] and SnF2 [118,119] with the intent of complementing the action of NaF towards remineralisation and re-hardening of enamel surfaces. Although the literature gives mixed results with respect to the anti-erosive effect of the aforementioned additives, Sn-containing dentifrices were deemed the most efficient in terms of imparting excellent anti-erosive potential compared to standard NaF-based formulations.
Ganss et al. [120] reported on the commercially available chitosan-based dentifrice (Chitodent® (B&F)), that is a non-fluoride formulation, and highlighted a significant reduction of tissue loss. Similar results have been reported while using NaF- and Sn-based dentifrices, i.e. with respect to hindering erosion of the dentin organic matrix [124] and enamel. These findings can be attributed to the cationic nature of chitosan coupled with a low pH, and high affinity for binding to structures with negative zeta potentials such as enamel and salivary pellicles. This would result in the subsequent formation of a protective multilayer organic matrix over mineralized surfaces [127,128]. In a similar setting, a chitosan additive enhanced the efficacy of Sn2+-based dentifrices towards tackling tissue loss in acidic oral environments by imparting dual-pronged anti-erosive and anti-abrasive effects [122,129].

2.4. Enamel Repair

Tooth enamel is a non-vascular and the hardest tissue of human body [130,131] hence the repair or regeneration of enamel is challenging. A number of chitosan-based restorative formulations have been explored and are under consideration for achieving human enamel regeneration through successful delivery of organic amelogenin at the site of enamel defects. Recently, Ruan et al. [132] employed a chitosan-based hydrogel as a delivery medium for amelogenin with the aim of rejuvenating the aligned crystal structure. The use of chitosan imparts a dual effect of offering a protective effect against secondary caries corresponding to its antibacterial properties along with not influencing enamel crystal orientation [28,70,133]. More research involving disciplines such as tissue engineering, biomolecules and materials science is required to explore the further potential of chitosan for enamel regeneration applications.

2.5. Adhesion and Dentine Bonding

The dentine-restoration interface and durability of bond strength have captured the interest of researchers. Currently, the dentine replacement materials have issues such as technique sensitivity of acid etching and removal of the smear layer [134]. The incomplete removal of the smear layer often gives rise to poor penetration of the resin monomer resulting in an unstable hybrid layer that is prone to nano leakage [135]. Hence, the area of bioadhesive polymers in general and chitosan-based dentine replacement materials in particular merits special attention. Antioxidant chitosan hydrogels with propolis, β carotene and nystatin were investigated and translated significant grounds towards delivering robust dentine bonding systems with a concomitant increase in shear bond strength. Some formulations tested in the studies reported shear bond strength values of up to 38 MPa after 24 h [136] and in excess of 20 MPa after 6 months. These values were deemed to be significantly higher than conventional dentine bonding systems with or without phosphoric acid treatment [137].

2.6. Modification of Dental Restorative Materials

There has been a significant level of effort towards paving the way for the entry of novel biomimetic dental restorative materials for clinical applications. The extent of damage to the enamel and/or components of the pulp/dentin complex are very significant in terms of promoting and treatment prognosis [138,139,140]. However, some of the drawbacks associated with bioactive restorative materials currently in development include poor adhesion coupled with less than desirable mechanical properties compared to resin and ceramic-based restorative materials. These discrepancies result in the interfacial failure owing to a mismatch of physical and chemical properties [141,142,143,144]. Among restorative materials, glass ionomers (fluoroaluminosilicate glass powder with poly(acrylic) acid liquid) form a chemical adhesion with the calcified tooth tissues [145]. Glass ionomer cements (GICs) have been presented with various modifications such as with resin or nano-additives [146,147,148] and are commonly used for applications such as cementation of prosthesis and restorations.
The favourable physicochemical properties of GICs, such as antibacterial effects and sustained fluoride release [149,150], biocompatibility, and superior natural affinity for tooth structure (enamel, dentine) reduce instances of microleakage or interfacial failure [146,151,152,153]. On the other hand, GICs are associated with insufficient fracture toughness, and flexural strength, particularly in the case of bulk-filled restorations. Hence conventional GICs are mostly associated with inferior mechanical properties, especially when used to replace lost tooth material in high load bearing areas [151,154,155]. The role of chitosan as a biocompatible polysaccharide oriented towards enhancing mechanical properties of GICs has been the subject of some featured investigations. These include the works of Petri et al. [156] who came up with much-improved values of the flexural strength of GICs post addition of chitosan with the added benefit of increasing the rate at which fluoride ions leached from the set material (Table 2). In addition, small volumes of CHS added to GICs (10% w/v) impart no adverse effects towards their performance in terms of microleakage, which paves the way for it to be a viable and promising candidate as an additive to GICs [157].
The facilitating role of CHS in the way of enhancing protein release profile when added to GICs is attributed to the formation of polymer complex phases as a result of the interaction of the CH with poly(acrylic) acid [158,159]. The concept has been taken a step further with respect to dental pulp regeneration. CHS has been added to conventional GICs with the aim of evaluating its effect on protein and/or growth factor release in the build-up to achieving reliable methods of vital pulp therapy [140,160]. Limapornvanich et al. [161] studied the release profile of bovine serum albumin (BSA) from CHS-modified GICs. The results indicated no cytotoxic effect on pulp cells coupled with a prolonged release effect of BSA, relative to conventional glass ionomer cement, when in contact with this formulation. These findings are suggestive of the biocompatible nature of CHS, and the interaction of its -NH2+ cationic and the anionic groups of poly(acrylic acid) towards the formation of complexes, respectively [158,162]. There have been attempts to catalogue the synergistic effect of CH and albumin in resin-modified GICs supplemented with translationally controlled tumour protein (TCTP) [163] and transforming growth factor beta-1 (TGF β1) [163,164] with respect to attaining a lower cell cytotoxicity value and the simultaneous promotion of anti-apoptotic activity in pulp cells as a pretext to promoting remineralization. This could be a significant development in the way of developing dental pulp-friendly restorative materials that offer a shielding effect from the toxicity stemming from the residual acid and monomer 2-hydroxyethyl methacrylate (HEMA) components of GICs and the resin element, respectively. The findings were in line with earlier reports regarding the leached HEMA monomer—a necessary component required to improve mechanical properties such as elastic modulus, flexural strength and wear resistance to name a few [165], as the primary culprit responsible for inducing pulp cell apoptosis [166,167,168]. Therefore, CHS-modified GICs could have applications in the area of bioactive dental restorations and regenerative endodontics in the guise of a vital pulp therapy material. Some restrictions to be taken into account with respect to in vitro studies assessing protein release from CH modified GICs implicate loss of some chemical extracts when filtering the residue prior to an MTT assay evaluation for cell cytotoxicity.

2.7. Chitosan for Coating Dental Implants

The clinical success of dental implants is based on degree of osseointegration of implant materials and alveolar bone [169,170,171]. In order to improve the osseointegration, a number of surface treatment and implant coatings have been tried, with promising results [172,173,174,175]. In addition, bioactive coatings of dental implants showed improved clinical longevity in medically compromised patients, affecting their bone health [169,173,176,177]. A number of studies have reported promising results for chitosan coating of dental implants [31,178,179]. The chitosan coating may affect the surface and bone interface by altering biological, mechanical and morphological surface properties. For example, considering mechanical properties, chitosan coating changes the elastic modulus hence reducing the mismatch between the implant surface and alveolar bone and reducing the areas of stress concentration [114]. Moreover, the chitosan coatings can potentially be used to carry various medicaments such as antibiotics for localised delivery around the implant area. However, further research is required to validate either such coatings are beneficial to inhibit infection and promote the osseointegration [180].

2.8. Stem-Based Regenerative Therapeutics

Stem cell-based transplantation strategies hold a great potential in the field of dentistry and can revolutionise the approach to treat diseases and alleviate oral conditions using embryonic stem cell (ESCs), and more recently adult dental stem cells, to induce pluripotent stem cells (iPSC) in tooth regeneration [93,181]. Moreover, rapid advancements in this field have led to the use of chitosan as a carrier for chitosan-mediated stem cell repair. The regeneration of dentine-pulp complex has been investigated by exploiting the regenerative potential of mobilised dental pulp stem cells (MDPSc) by Nakashima and co-workers in a clinical trial. The demonstrated that human MDPSc is safe and efficacious for complete pulp regeneration in the pilot study [182,183]. Yang et al. reported the use of dental pulp stem cells cultured on a collagen–chitosan complex and were also able to form a dentine–pulp complex [184]. The regeneration of entire tooth is also expected to be a goal of current research clusters. Tooth engineering to form dental structures in vivo has been established using different stem cells. Moreover, stem cell technology for regenerative therapies is already available as mesenchymal stem/ stromal cells (MSCs) already have been introduced in the clinic for alveolar bone augmentation [185,186].

3. Conclusions

Chitosan is a new biomaterial for dental applications ranging from restorative dentistry to tissue engineered scaffolds for the alveolar bone to periodontal complex healing. Although it has gone through rigorous investigations for its biocompatible nature, antimicrobial properties, and adjustable degradation characteristics according to the application, there still remain certain issues that need addressing, such as the fact that extracted chitosan may vary in terms of structure and molecular weights from low, medium to high, resulting in inconsistent physiochemical characteristics and variability. These variations, especially when looking at dental applications, are an issue as the molecular weight range varies, and reproducibility of the correct molecular weight is still a challenging task. Nevertheless, this ever-evolving field of dentistry can use this naturally derived polymer to its advantage in numerous other prosthetic, orthodontic and implant-related fields as well. Therefore, there is excellent potential for expanding its biological applications in future. However, very little clinical data is available regarding the clinical dental applications of chitosan-based materials. In order to translate chitosan-based materials from research to clinical applications, there is need for further research, particularly in vivo studies and clinical trials.

Author Contributions

Shehriar Husain and Shariq Najeeb conducted the primary literature search and drafted the majority of this manuscript; Khalid H. Al-Samadani and Muhammad S. Zafar contributed the part for restorative materials; Zohaib Khurshid and Sana Zohaib drafted the images, tables and wrote a part of manuscript. Saad B. Qasim. critically reviewed the contents and revision. Khalid H. Al-Samadani is the corresponding author. All authors agree to the final format of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Sionkowska, A. Current research on the blends of natural and synthetic polymers as new biomaterials: Review. Prog. Polym. Sci. 2011, 36, 1254–1276. [Google Scholar] [CrossRef]
  2. Helary, C.; Bataille, I.; Abed, A.; Illoul, C.; Anglo, A.; Louedec, L.; Letourneur, D.; Meddahi-Pellé, A.; Giraud-Guille, M.M. Concentrated collagen hydrogels as dermal substitutes. Biomaterials 2010, 31, 481–490. [Google Scholar] [CrossRef] [PubMed]
  3. Becker, J.; Al-Nawas, B.; Klein, M.O.; Schliephake, H.; Terheyden, H.; Schwarz, F. Use of a new cross-linked collagen membrane for the treatment of dehiscence-type defects at titanium implants: A prospective, randomized-controlled double-blinded clinical multicenter study. Clin. Oral Implants Res. 2009, 20, 742–749. [Google Scholar] [CrossRef] [PubMed]
  4. Chen, J.; Chang, G.; Chen, J. Electrospun collagen/chitosan nanofibrous membrane as wound dressing. Coll. Surf. Physicochem. Eng. Asp. 2008, 313, 183–188. [Google Scholar] [CrossRef]
  5. Demol, J.; Lambrechts, D.; Geris, L.; Schrooten, J.; Van Oosterwyck, H. Towards a quantitative understanding of oxygen tension and cell density evolution in fibrin hydrogels. Biomaterials 2011, 32, 107–118. [Google Scholar] [CrossRef] [PubMed]
  6. Des Rieux, A.; Shikanov, A.; Shea, L.D. Fibrin hydrogels for non-viral vector delivery in vitro. J. Control. Release 2009, 136, 148–154. [Google Scholar] [CrossRef] [PubMed]
  7. Hatakeyama, I.; Marukawa, E.; Takahashi, Y.; Omura, K. Effects of platelet-poor plasma, platelet-rich plasma, and platelet-rich fibrin on healing of extraction sockets with buccal dehiscence in dogs. Tissue Eng. Part A 2013, 20, 874–882. [Google Scholar] [CrossRef] [PubMed]
  8. Elliott, W.H.; Bonani, W.; Maniglio, D.; Motta, A.; Tan, W.; Migliaresi, C. Silk Hydrogels of Tunable Structure and Viscoelastic Properties using Different Chronological Orders of Genipin and Physical Crosslinking. ACS Appl. Mater. Interfaces 2015, 7, 12099–12108. [Google Scholar] [CrossRef] [PubMed]
  9. Wang, H.; Zhang, Y. Processing silk hydrogel and its applications in biomedical materials. Biotechnol. Prog. 2015, 31, 630–640. [Google Scholar] [CrossRef] [PubMed]
  10. Zafar, M.S.; Al-Samadani, K.H. Potential use of natural silk for bio-dental applications. J. Taibah Univ. Med. Sci. 2014, 9, 171–177. [Google Scholar] [CrossRef]
  11. Deng, J.; She, R.; Huang, W.; Dong, Z.; Mo, G.; Liu, B. A silk fibroin/chitosan scaffold in combination with bone marrow-derived mesenchymal stem cells to repair cartilage defects in the rabbit knee. J. Mater. Sci. Mater. Med. 2013, 24, 2037–2046. [Google Scholar] [CrossRef] [PubMed]
  12. Qasim, S.B.; Najeeb, S.; Delaine-Smith, R.M.; Rawlinson, A.; Rehman, I.U. Potential of electrospun chitosan fibers as a surface layer in functionally graded GTR membrane for periodontal regeneration. Dent. Mater. 2017, 33, 71–83. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, G.; Zhai, J.; Cheng, S.; Wang, Y.; Yang, L.; Liu, H.; Ran, R. The application of chitosan and its derivatives as nanosized carriers for the delivery of chemical drugs and genes or proteins. Curr. Drug Targets 2016, 17, 811–816. [Google Scholar]
  14. Norowski, P.A.; Fujiwara, T.; Clem, W.C.; Adatrow, P.C.; Eckstein, E.C.; Haggard, W.O.; Bumgardner, J.D. Novel naturally crosslinked electrospun nanofibrous chitosan mats for guided bone regeneration membranes: Material characterization and cytocompatibility. J. Tissue Eng. Regen. Med. 2015, 9, 577–583. [Google Scholar] [CrossRef] [PubMed]
  15. Paul, W.; Sharma, C.P. Chitosan and alginate wound dressings: A short review. Trends Biomater. Artif. Organs 2004, 18, 18–23. [Google Scholar]
  16. Younes, I.; Rinaudo, M. Chitin and chitosan preparation from marine sources. Structure, properties and applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [PubMed]
  17. Zhu, K.Y.; Merzendorfer, H.; Zhang, W.; Zhang, J.; Muthukrishnan, S. Biosynthesis, turnover, and functions of chitin in insects. Annu. Rev. Entomol. 2016, 61, 177–196. [Google Scholar] [CrossRef] [PubMed]
  18. Merzendorfer, H. The cellular basis of chitin synthesis in fungi and insects: Common principles and differences. Eur. J. Cell Biol. 2011, 90, 759–769. [Google Scholar] [CrossRef] [PubMed]
  19. Finke, M.D. Estimate of chitin in raw whole insects. Zoo Biol. 2007, 26, 105–115. [Google Scholar] [CrossRef] [PubMed]
  20. Blumenthal, H.J.; Roseman, S. Quantitative estimation of chitin in fungi. J. Bacteriol. 1957, 74, 222–224. [Google Scholar] [PubMed]
  21. Ifuku, S.; Nomura, R.; Morimoto, M.; Saimoto, H. Preparation of chitin nanofibers from mushrooms. Materials 2011, 4, 1417–1425. [Google Scholar]
  22. Nitschke, J.; Altenbach, H.; Malolepszy, T.; Mölleken, H. A new method for the quantification of chitin and chitosan in edible mushrooms. Carbohydr. Res. 2011, 346, 1307–1310. [Google Scholar] [CrossRef] [PubMed]
  23. Vetter, J. Chitin content of cultivated mushrooms Agaricus bisporus, Pleurotus ostreatus and Lentinula edodes. Food Chem. 2007, 102, 6–9. [Google Scholar]
  24. No, H.K.; Meyers, S.P. Preparation and characterization of chitin and chitosan—A review. J. Aquat. Food Prod. Technol. 1995, 4, 27–52. [Google Scholar]
  25. Knorr, D. Functional properties of chitin and chitosan. J. Food Sci. 1982, 47, 593–595. [Google Scholar] [CrossRef]
  26. Kumar, M.N.R. A review of chitin and chitosan applications. React. Funct. Polym. 2000, 46, 1–27. [Google Scholar] [CrossRef]
  27. Sarasam, A.R.; Brown, P.; Khajotia, S.S.; Dmytryk, J.J.; Madihally, S.V. Antibacterial activity of chitosan-based matrices on oral pathogens. J. Mater. Sci. Mater. Med. 2008, 19, 1083–1090. [Google Scholar] [CrossRef] [PubMed]
  28. Hayashi, Y.; Ohara, N.; Ganno, T.; Yamaguchi, K.; Ishizaki, T.; Nakamura, T.; Sato, M. Chewing chitosan-containing gum effectively inhibits the growth of cariogenic bacteria. Arch. Oral Biol. 2007, 52, 290–294. [Google Scholar] [CrossRef] [PubMed]
  29. Ignatova, M.; Manolova, N.; Rashkov, I. Novel antibacterial fibers of quaternized chitosan and poly(vinyl pyrrolidone) prepared by electrospinning. Eur. Polym. J. 2007, 43, 1112–1122. [Google Scholar]
  30. Guo, T.; Zhao, J.N.; Chang, J.B.; Ding, Z.; Hong, H.; Chen, J.N.; Zhang, J.F. Porous chitosan-gelatin scaffold containing plasmid DNA encoding transforming growth factor-beta 1 for chondrocytes proliferation. Biomaterials 2006, 27, 1095–1103. [Google Scholar] [PubMed]
  31. Bumgardner, J.D.; Wiser, R.; Gerard, P.D.; Bergin, P.; Chestnutt, B.; Marini, M.; Ramsey, V.; Elder, S.H.; Gilbert, J.A. Chitosan: Potential use as a bioactive coating for orthopaedic and craniofacial/dental implants. J. Biomater. Sci. Polym. Ed. 2003, 14, 423–438. [Google Scholar] [CrossRef] [PubMed]
  32. De la Torre, P.M.; Torrado, G.; Torrado, S. Poly (acrylic acid) chitosan interpolymer complexes for stomach controlled antibiotic delivery. J. Biomed. Mater. Res. Part B Appl. Biomater. 2005, 72, 191–197. [Google Scholar] [CrossRef] [PubMed]
  33. Aksungur, P.; Sungur, A.; Ãœnal, S.; Iskit, A.B.; Squier, C.A.; Åženel, S. Chitosan delivery systems for the treatment of oral mucositis: In vitro and in vivo studies. J. Control. Release 2004, 98, 269–279. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, S.C.; Wu, Y.C.; Mi, F.L.; Lin, Y.H.; Yu, L.C.; Sung, H.W. A novel pH-sensitive hydrogel composed of N,O-carboxymethyl chitosan and alginate cross-linked by genipin for protein drug delivery. J. Control. Release 2004, 96, 285–300. [Google Scholar] [CrossRef] [PubMed]
  35. Lee, J.E.; Kim, S.E.; Kwon, I.C.; Ahn, H.J.; Cho, H.; Lee, S.H.; Kim, H.J.; Seong, S.C.; Lee, M.C. Effects of a chitosan scaffold containing TGF-beta1 encapsulated chitosan microspheres on in vitro chondrocyte culture. Artif. Organs 2004, 28, 829–839. [Google Scholar] [CrossRef] [PubMed]
  36. Subramanian, A.; Lin, H.Y.; Vu, D.; Larsen, G. Synthesis and evaluation of scaffolds prepared from chitosan fibers for potential use in cartilage tissue engineering. Biomed. Sci. Instrum. 2004, 40, 117–122. [Google Scholar] [PubMed]
  37. Drury, J.L.; Mooney, D.J. Hydrogels for tissue engineering: Scaffold design variables and applications. Biomaterials 2003, 24, 4337–4351. [Google Scholar] [CrossRef]
  38. Qasim, S.B.; Husain, S.; Huang, Y.; Pogorielov, M.; Deineka, V.; Lyndin, M.; Rawlinson, A.; Rehman, I.U. In Vitro and in vivo degradation studies of freeze gelated porous chitosan composite scaffolds for tissue engineering applications. Polym. Degrad. Stab. 2017, 136, 31–38. [Google Scholar] [CrossRef]
  39. Li, W.; Long, Y.; Liu, Y.; Long, K.; Liu, S.; Wang, Z.; Wang, Y.; Ren, L. Fabrication and characterization of chitosan–collagen crosslinked membranes for corneal tissue engineering. J. Biomater. Sci. Polym. Ed. 2014, 25, 1962–1972. [Google Scholar] [CrossRef] [PubMed]
  40. Pichayakorn, W.; Boonme, P. Evaluation of cross-linked chitosan microparticles containing metronidazole for periodontitis treatment. Mater. Sci. Eng. C 2013, 33, 1197–1202. [Google Scholar] [CrossRef] [PubMed]
  41. De Carvalho, M.; Stamford, T.; Pereira, E.; Dos Santos, P.; Sampaio, F. Chitosan as an oral antimicrobial agent. Formatex 2011, 2012, 13. [Google Scholar]
  42. Dilamian, M.; Montazer, M.; Masoumi, J. Antimicrobial electrospun membranes of chitosan/poly(ethylene oxide) incorporating poly(hexamethylene biguanide) hydrochloride. Carbohydr. Polym. 2013, 94, 364–371. [Google Scholar] [CrossRef] [PubMed]
  43. Yadav, A.; Bhise, S. Chitosan: A potential biomaterial effective against typhoid. Curr. Sci. 2004, 87, 1176–1178. [Google Scholar]
  44. VandeVord, P.J.; Matthew, H.W.T.; DeSilva, S.P.; Mayton, L.; Wu, B.; Wooley, P.H. Evaluation of the biocompatibility of a chitosan scaffold in mice. J. Biomed. Mater. Res. 2002, 59, 585–590. [Google Scholar] [CrossRef] [PubMed]
  45. Konovalova, M.V.; Markov, P.A.; Durnev, E.A.; Kurek, D.V.; Popov, S.V.; Varlamov, V.P. Preparation and biocompatibility evaluation of pectin and chitosan cryogels for biomedical application. J. Biomed. Mater. Res. Part A 2017, 105, 547–556. [Google Scholar] [CrossRef] [PubMed]
  46. Yhee, J.Y.; Koo, H.; Lee, D.E.; Choi, K.; Kwon, I.C.; Kim, K. Multifunctional chitosan nanoparticles for tumor imaging and therapy. In Chitosan for Biomaterials I; Springer: Berlin/Heidelberg, Germany, 2011; pp. 139–161. [Google Scholar]
  47. Hong, Y.; Song, H.; Gong, Y.; Mao, Z.; Gao, C.; Shen, J. Covalently crosslinked chitosan hydrogel: Properties of in vitro degradation and chondrocyte encapsulation. Acta Biomater. 2007, 3, 23–31. [Google Scholar] [CrossRef] [PubMed]
  48. Chen, M.; Mi, F.; Liao, Z.; Sung, H. Chitosan: Its applications in drug-eluting devices. In Chitosan for Biomaterials I; Springer: Berlin/Heidelberg, Germany, 2011; pp. 185–230. [Google Scholar]
  49. Brostow, W.; Lobland, H.E.H. Materials: Introduction and Applications; John Wiley & Sons: Hoboken, NJ, USA, 2016. [Google Scholar]
  50. Ainola, M.; Tomaszewski, W.; Ostrowska, B.; Wesolowska, E.; Wagner, H.D.; Swieszkowski, W.; Sillat, T.; Peltola, E.; Konttinen, Y.T. A bioactive hybrid three-dimensional tissue-engineering construct for cartilage repair. J. Biomater. Appl. 2016, 30, 873–885. [Google Scholar] [CrossRef] [PubMed]
  51. Grobler, S.R.; Perchyonok, V.T.; Mulder, R.; Moodley, D. Towards Bioactive Dental Restorative Materials with Chitosan and Na-nodiamonds: Evaluation and Application. Int. J. Dent. Oral Sci. 2015, 2, 147–154. [Google Scholar]
  52. Hamilton, M.F.; Otte, A.D.; Gregory, R.L.; Pinal, R.; Ferreira-Zandona, A.; Bottino, M.C. Physicomechanical and antibacterial properties of experimental resin-based dental sealants modified with nylon-6 and chitosan nanofibers. J. Biomed. Mater. Res. B Appl. Biomater. 2015, 103, 1560–1568. [Google Scholar] [CrossRef] [PubMed]
  53. Croisier, F.; Jerome, C. Chitosan-based biomaterials for tissue engineering. Eur. Polym. J. 2013, 49, 780–792. [Google Scholar] [CrossRef]
  54. Chen, X.; Liu, C.; Liu, C.; Meng, X.; Lee, C.M.; Park, H. Preparation and biocompatibility of chitosan microcarriers as biomaterial. Biochem. Eng. J. 2006, 27, 269–274. [Google Scholar] [CrossRef]
  55. Dhandayuthapani, B.; Krishnan, U.M.; Sethuraman, S. Fabrication and characterization of chitosan-gelatin blend nanofibers for skin tissue engineering. J. Biomed. Mater. Res. Part B Appl. Biomater. 2010, 94B, 264–272. [Google Scholar] [CrossRef] [PubMed]
  56. Zivanovic, S.; Li, J.J.; Davidson, P.M.; Kit, K. Physical, mechanical, and antibacterial properties of chitosan/PEO blend films. Biomacromolecules 2007, 8, 1505–1510. [Google Scholar] [CrossRef] [PubMed]
  57. Saboktakin, M.R.; Tabatabaie, R.; Maharramov, A.; Ramazanov, M.A. Synthesis and characterization of superparamagnetic chitosan—Dextran sulfate hydrogels as nano carriers for colon-specific drug delivery. Carbohydr. Polym. 2010, 81, 372–376. [Google Scholar] [CrossRef]
  58. Abdel Mouez, M.; Zaki, N.M.; Mansour, S.; Geneidi, A.S. Bioavailability enhancement of verapamil HCl via intranasal chitosan microspheres. Eur. J. Pharm. Sci. 2014, 51, 59–66. [Google Scholar] [CrossRef] [PubMed]
  59. Soran, Z.; Aydin, R.S.; Gumusderelioglu, M. Chitosan scaffolds with BMP-6 loaded alginate microspheres for periodontal tissue engineering. J. Microencapsul. 2012, 29, 770–780. [Google Scholar] [CrossRef] [PubMed]
  60. Zhang, Y.; Wei, W.; Lv, P.; Wang, L.; Ma, G. Preparation and evaluation of alginate—Chitosan microspheres for oral delivery of insulin. Eur. J. Pharm. Biopharm. 2011, 77, 11–19. [Google Scholar] [CrossRef] [PubMed]
  61. Kumari, S.; Singh, R.P. Glycolic acid-functionalized chitosan-Co3O4-Fe3O4 hybrid magnetic nanoparticles-based nanohybrid scaffolds for drug-delivery and tissue engineering. J. Mater. Sci. 2013, 48, 1524–1532. [Google Scholar] [CrossRef]
  62. Singh, K.; Tiwary, A.K.; Rana, V. Spray dried chitosan-EDTA superior microparticles as solid substrate for the oral delivery of amphotericin B. Int. J. Biol. Macromol. 2013, 58, 310–319. [Google Scholar] [CrossRef] [PubMed]
  63. Wang, Y.; Liu, P.; Du, J.; Sun, Y.; Li, F.; Duan, Y. Targeted siRNA delivery by anti-HER2 antibody-modified nanoparticles of mPEG-chitosan diblock copolymer. J. Biomater. Sci. Polym. Ed. 2013, 24, 1219–1232. [Google Scholar] [CrossRef] [PubMed]
  64. Keegan, G.M.; Smart, J.D.; Ingram, M.J.; Barnes, L.; Burnett, G.R.; Rees, G.D. Chitosan microparticles for the controlled delivery of fluoride. J. Dent. 2012, 40, 229–240. [Google Scholar] [CrossRef] [PubMed]
  65. Struszczyk, M.H.; Struszczyk, K.J. Medical Application of Chitin and Its Derivatives. Pol. Chitin Soc. 2007, XII, 139–147. [Google Scholar]
  66. Al-Bayaty, F.H.; Kamaruddin, A.A.; Ismail, M.A.; Abdulla, M.A. Formulation and evaluation of a new biodegradable periodontal chip containing thymoquinone in a chitosan base for the management of chronic periodontitis. J. Nanomater. 2013, 2013, 16. [Google Scholar] [CrossRef]
  67. Albasarah, Y.Y.; Somavarapu, S.; Stapleton, P.; Taylor, K.M. Chitosan-coated antifungal formulations for nebulisation. J. Pharm. Pharmacol. 2010, 62, 821–828. [Google Scholar] [CrossRef] [PubMed]
  68. Paul, D.R.; Robeson, L.M. Polymer nanotechnology: Nanocomposites. Polymer 2008, 49, 3187–3204. [Google Scholar] [CrossRef]
  69. Khurshid, Z.; Zafar, M.; Qasim, S.; Shahab, S.; Naseem, M.; AbuReqaiba, A. Advances in Nanotechnology for Restorative Dentistry. Materials 2015, 8, 717–731. [Google Scholar] [CrossRef]
  70. Samprasit, W.; Kaomongkolgit, R.; Sukma, M.; Rojanarata, T.; Ngawhirunpat, T.; Opanasopit, P. Mucoadhesive electrospun chitosan-based nanofibre mats for dental caries prevention. Carbohydr. Polym. 2015, 117, 933–940. [Google Scholar] [CrossRef] [PubMed]
  71. Li, W.; Mauck, R.L.; Tuan, R.S. Electrospun Nanofibrous Scaffolds: Production, Characterization, and Applications for Tissue Engineering and Drug Delivery. J. Biomed. Nanotechnol. 2005, 1, 259–275. [Google Scholar] [CrossRef]
  72. Zafar, M.; Najeeb, S.; Khurshid, Z.; Vazirzadeh, M.; Zohaib, S.; Najeeb, B.; Sefat, F. Potential of electrospun nanofibers for biomedical and dental applications. Materials 2016, 9, 73. [Google Scholar] [CrossRef]
  73. Naseri, N.; Algan, C.; Jacobs, V.; John, M.; Oksman, K.; Mathew, A.P. Electrospun chitosan-based nanocomposite mats reinforced with chitin nanocrystals for wound dressing. Carbohydr. Polym. 2014, 109, 7–15. [Google Scholar] [CrossRef] [PubMed]
  74. Almas, K.; Al-Sanawi, E.; Al-Shahrani, B. The effect of tongue scraper on mutans streptococci and lactobacilli in patients with caries and periodontal disease. Odontostomatol. Trop. 2005, 28, 5–10. [Google Scholar] [PubMed]
  75. Hamada, S.; Slade, H.D. Biology, immunology, and cariogenicity of Streptococcus mutans. Microbiol. Rev. 1980, 44, 331–384. [Google Scholar] [PubMed]
  76. Sakanaka, S.; Kim, M.; Taniguchi, M.; Yamamoto, T. Antibacterial substances in Japanese green tea extract against Streptococcus mutans, a cariogenic bacterium. Agric. Biol. Chem. 1989, 53, 2307–2311. [Google Scholar] [CrossRef]
  77. Johansson, A.; Buhlin, K.; Koski, R.; Gustafsson, A. The immunoreactivity of systemic antibodies to Actinobacillus actinomycetemcomitans and Porphyromonas gingivalis in adult periodontitis. Eur. J. Oral Sci. 2005, 113, 197–202. [Google Scholar] [CrossRef] [PubMed]
  78. Park, E.; Na, H.S.; Kim, S.M.; Wallet, S.; Cha, S.; Chung, J. Xylitol, an anticaries agent, exhibits potent inhibition of inflammatory responses in human thp-1-derived macrophages infected with Porphyromonas gingivalis. J. Periodontol. 2014, 85, e212–e223. [Google Scholar] [CrossRef] [PubMed]
  79. Tarsi, R.; Corbin, B.; Pruzzo, C.; Muzzarelli, R. Effect of low molecular weight chitosans on the adhesive properties of oral streptococci. Mol. Oral Microbiol. 1998, 13, 217–224. [Google Scholar] [CrossRef]
  80. Shuai, H.; Yang, C.; Hans, I.; Harn, C.; York, R.L.; Liao, T.; Chen, W.; Yeh, J.A.; Cheng, C. Using surfaces to modulate the morphology and structure of attached cells—A case of cancer cells on chitosan membranes. Chem. Sci. 2013, 4, 3058–3067. [Google Scholar] [CrossRef]
  81. Kong, M.; Chen, X.G.; Xing, K.; Park, H.J. Antimicrobial properties of chitosan and mode of action: A state of the art review. Int. J. Food Microbiol. 2010, 144, 51–63. [Google Scholar] [CrossRef] [PubMed]
  82. Feng, Y.; Xia, W. Preparation, characterization and antibacterial activity of water-soluble O-fumaryl-chitosan. Carbohydr. Polym. 2011, 83, 1169–1173. [Google Scholar] [CrossRef]
  83. Goy, R.C.; Britto, D.D.; Assis, O.B. A review of the antimicrobial activity of chitosan. Polímeros 2009, 19, 241–247. [Google Scholar] [CrossRef]
  84. Martínez-Camacho, A.; Cortez-Rocha, M.; Ezquerra-Brauer, J.; Graciano-Verdugo, A.; Rodriguez-Félix, F.; Castillo-Ortega, M.; Yépiz-Gómez, M.; Plascencia-Jatomea, M. Chitosan composite films: Thermal, structural, mechanical and antifungal properties. Carbohydr. Polym. 2010, 82, 305–315. [Google Scholar] [CrossRef]
  85. Pihlstrom, B.L.; Michalowicz, B.S.; Johnson, N.W. Periodontal diseases. Lancet 2005, 366, 1809–1820. [Google Scholar] [CrossRef]
  86. Albandar, J.M.; Rams, T.E. Global epidemiology of periodontal diseases: An overview. Periodontology 2000 2002, 29, 7–10. [Google Scholar] [CrossRef] [PubMed]
  87. Dye, B.A. Global periodontal disease epidemiology. Periodontology 2000 2012, 58, 10–25. [Google Scholar] [CrossRef] [PubMed]
  88. Niazi, F.; Naseem, M.; Khurshid, Z.; Zafar, M.S.; Almas, K. Role of Salvadora persica chewing stick (miswak): A natural toothbrush for holistic oral health. Eur. J. Dent. 2016, 10, 301–308. [Google Scholar] [PubMed]
  89. Malik, A.S.; Shaukat, M.S.; Qureshi, A.A.; Abdur, R. Comparative effectiveness of chewing stick and toothbrush: A randomized clinical trial. N. Am. J. Med. Sci. 2014, 6, 333. [Google Scholar] [CrossRef] [PubMed]
  90. Deas, D.E.; Moritz, A.J.; Sagun, R.S.; Gruwell, S.F.; Powell, C.A. Scaling and root planing vs. conservative surgery in the treatment of chronic periodontitis. Periodontology 2000 2016, 71, 128–139. [Google Scholar] [CrossRef] [PubMed]
  91. Zafar, M. Comparing the effects of manual and ultrasonic instrumentation on root surface mechanical properties. Eur. J. Dent. 2016, 10, 517–521. [Google Scholar] [CrossRef] [PubMed]
  92. Stockmann, P.; Park, J.; von Wilmowsky, C.; Nkenke, E.; Felszeghy, E.; Dehner, J.; Schmitt, C.; Tudor, C.; Schlegel, K.A. Guided bone regeneration in pig calvarial bone defects using autologous mesenchymal stem/progenitor cells—A comparison of different tissue sources. J. Cranio-Maxillofac. Surg. 2012, 40, 310–320. [Google Scholar] [CrossRef] [PubMed]
  93. Zafar, M.; Khurshid, Z.; Almas, K. Oral tissue engineering progress and challenges. Tissue Eng. Regen. Med. 2015, 12, 387–397. [Google Scholar] [CrossRef]
  94. Villar, C.C.; Cochran, D.L. Regeneration of Periodontal Tissues: Guided Tissue Regeneration. Dent. Clin. N. Am. 2010, 54, 73–92. [Google Scholar] [CrossRef] [PubMed]
  95. Jung, R.E.; Haelg, G.A.; Thoma, D.S.; Haemmerle, C.H.F. A randomized, controlled clinical trial to evaluate a new membrane for guided bone regeneration around dental implants. Clin. Oral Implants Res. 2009, 20, 162–168. [Google Scholar] [CrossRef] [PubMed]
  96. Ramel, C.F.; Wismeijer, D.A.; Hammerle, C.H.F.; Jung, R.E. A Randomized, Controlled Clinical Evaluation of a Synthetic Gel Membrane for Guided Bone Regeneration Around Dental Implants: Clinical and Radiologic 1-and 3-Year Results. Int. J. Oral Maxillofac. Implants 2012, 27, 435–441. [Google Scholar] [PubMed]
  97. Bottino, M.C.; Thomas, V.; Schmidt, G.; Vohra, Y.K.; Chu, T.G.; Kowolik, M.J.; Janowski, G.M. Recent advances in the development of GTR/GBR membranes for periodontal regeneration—A materials perspective. Dent. Mater. 2012, 28, 703–721. [Google Scholar] [CrossRef] [PubMed]
  98. Scantlebury, T.; Ambruster, J. The development of guided regeneration: Making the impossible possible and the unpredictable predictable. J. Evid. Based Dent. Pract. 2012, 12, 101–117. [Google Scholar] [CrossRef]
  99. Lotfi, G.; Shokrgozar, M.A.; Mofid, R.; Abbas, F.M.; Ghanavati, F.; Baghban, A.A.; Yavari, S.K.; Pajoumshariati, S. Biological Evaluation (In Vitro and In Vivo) of Bilayered Collagenous Coated (Nano Electrospun and Solid Wall) Chitosan Membrane for Periodontal Guided Bone Regeneration. Ann. Biomed. Eng. 2016, 44, 2132–2144. [Google Scholar] [CrossRef] [PubMed]
  100. Miranda, D.G.; Malmonge, S.M.; Campos, D.M.; Attik, N.G.; Grosgogeat, B.; Gritsch, K. A chitosan-hyaluronic acid hydrogel scaffold for periodontal tissue engineering. J. Biomed. Mater. Res. Part B Appl. Biomater. 2016, 104, 1691–1702. [Google Scholar] [CrossRef] [PubMed]
  101. Fraga, A.F.; de Almeida Filho, E.; da Silva Rigo, E.C.; Boschi, A.O. Synthesis of chitosan/hydroxyapatite membranes coated with hydroxycarbonate apatite for guided tissue regeneration purposes. Appl. Surf. Sci. 2011, 257, 3888–3892. [Google Scholar] [CrossRef]
  102. Ma, S.; Chen, Z.; Qiao, F.; Sun, Y.; Yang, X.; Deng, X.; Cen, L.; Cai, Q.; Wu, M.; Zhang, X. Guided bone regeneration with tripolyphosphate cross-linked asymmetric chitosan membrane. J. Dent. 2014, 42, 1603–1612. [Google Scholar] [CrossRef] [PubMed]
  103. Muzzarelli, R.A.A. Genipin-crosslinked chitosan hydrogels as biomedical and pharmaceutical aids. Carbohydr. Polym. 2009, 77, 1–9. [Google Scholar] [CrossRef]
  104. Xu, J.; Strandman, S.; Zhu, J.X.X.; Barralet, J.; Cerruti, M. Genipin-crosslinked catechol-chitosan mucoadhesive hydrogels for buccal drug delivery. Biomaterials 2015, 37, 395–404. [Google Scholar] [CrossRef] [PubMed]
  105. Ang, T.; Sultana, F.; Hutmacher, D.; Wong, Y.S.; Fuh, J.; Mo, X.; Loh, H.T.; Burdet, E.; Teoh, S. Fabrication of 3D chitosan–hydroxyapatite scaffolds using a robotic dispensing system. Mater. Sci. Eng. C 2002, 20, 35–42. [Google Scholar] [CrossRef]
  106. Han, J.; Zhou, Z.; Yin, R.; Yang, D.; Nie, J. Alginate—Chitosan/hydroxyapatite polyelectrolyte complex porous scaffolds: Preparation and characterization. Int. J. Biol. Macromol. 2010, 46, 199–205. [Google Scholar] [CrossRef] [PubMed]
  107. Oliveira, J.M.; Rodrigues, M.T.; Silva, S.S.; Malafaya, P.B.; Gomes, M.E.; Viegas, C.A.; Dias, I.R.; Azevedo, J.T.; Mano, J.F.; Reis, R.L. Novel hydroxyapatite/chitosan bilayered scaffold for osteochondral tissue-engineering applications: Scaffold design and its performance when seeded with goat bone marrow stromal cells. Biomaterials 2006, 27, 6123–6137. [Google Scholar] [CrossRef] [PubMed]
  108. Chavanne, P.; Stevanovic, S.; Wüthrich, A.; Braissant, O.; Pieles, U.; Gruner, P.; Schumacher, R. 3D printed chitosan/hydroxyapatite scaffolds for potential use in regenera-tive medicine. Biomed. Tech. 2013, 58, 1. [Google Scholar]
  109. Jiang, T.; Zhang, Z.; Zhou, Y.; Liu, Y.; Wang, Z.; Tong, H.; Shen, X.; Wang, Y. Surface Functionalization of Titanium with Chitosan/Gelatin via Electrophoretic Deposition: Characterization and Cell Behavior. Biomacromolecules 2010, 11, 1254–1260. [Google Scholar] [CrossRef] [PubMed]
  110. Bottino, M.C.; Thomas, V.; Janowski, G.M. A novel spatially designed and functionally graded electrospun membrane for periodontal regeneration. Acta Biomater. 2011, 7, 216–224. [Google Scholar] [CrossRef] [PubMed]
  111. Bottino, M.C.; Arthur, R.A.; Waeiss, R.A.; Kamocki, K.; Gregson, K.S.; Gregory, R.L. Biodegradable nanofibrous drug delivery systems: Effects of metronidazole and ciprofloxacin on periodontopathogens and commensal oral bacteria. Clin. Oral Investig. 2014, 18, 2151–2158. [Google Scholar] [CrossRef] [PubMed]
  112. Liao, S.; Wang, W.; Uo, M.; Ohkawa, S.; Akasaka, T.; Tamura, K.; Cui, F.Z.; Watari, F. A three-layered nano-carbonated hydroxyapatite/collagen/PLGA composite membrane for guided tissue regeneration. Biomaterials 2005, 26, 7564–7571. [Google Scholar] [CrossRef] [PubMed]
  113. Qasim, S.B.; Delaine-Smith, R.M.; Fey, T.; Rawlinson, A.; Rehman, I.U. Freeze gelated porous membranes for periodontal tissue regeneration. Acta Biomater. 2015, 23, 317–328. [Google Scholar] [CrossRef] [PubMed]
  114. Leong, K.; Chua, C.; Sudarmadji, N.; Yeong, W. Engineering functionally graded tissue engineering scaffolds. J. Mech. Behav. Biomed. Mater. 2008, 1, 140–152. [Google Scholar] [CrossRef] [PubMed]
  115. Maggio, B.; Guibert, R.G.; Mason, S.C.; Karwal, R.; Rees, G.D.; Kelly, S.; Zero, D.T. Evaluation of mouthrinse and dentifrice regimens in an in situ erosion remineralisation model. J. Dent. 2010, 38, S37–S44. [Google Scholar] [CrossRef]
  116. Zero, D.T.; Hara, A.T.; Kelly, S.A.; Gonzalez-Cabezas, C.; Eckert, G.J.; Barlow, A.P.; Mason, S.C. Evaluation of a desensitizing test dentifrice using an in situ erosion remineralization model. J. Clin. Dent. 2006, 17, 112–116. [Google Scholar] [PubMed]
  117. Hara, A.T.; Kelly, S.A.; Gonzalez-Cabezas, C.; Eckert, G.J.; Barlow, A.P.; Mason, S.C.; Zero, D.T. Influence of fluoride availability of dentifrices on eroded enamel remineralization in situ. Caries Res. 2009, 43, 57–63. [Google Scholar] [CrossRef] [PubMed]
  118. Young, A.; Thrane, P.S.; Saxegaard, E.; Jonski, G.; Rölla, G. Effect of stannous fluoride toothpaste on erosion-like lesions: An in vivo study. Eur. J. Oral Sci. 2006, 114, 180–183. [Google Scholar] [CrossRef] [PubMed]
  119. Hooper, S.; Newcombe, R.G.; Faller, R.; Eversole, S.; Addy, M.; West, N. The protective effects of toothpaste against erosion by orange juice: Studies in situ and in vitro. J. Dent. 2007, 35, 476–481. [Google Scholar] [CrossRef] [PubMed]
  120. Ganss, C.; Lussi, A.; Grunau, O.; Klimek, J.; Schlueter, N. Conventional and anti-erosion fluoride toothpastes: Effect on enamel erosion and erosion-abrasion. Caries Res. 2011, 45, 581–589. [Google Scholar] [CrossRef] [PubMed]
  121. Ganss, C.; Von Hinckeldey, J.; Tolle, A.; Schulze, K.; Klimek, J.; Schlueter, N. Efficacy of the stannous ion and a biopolymer in toothpastes on enamel erosion/abrasion. J. Dent. 2012, 40, 1036–1043. [Google Scholar] [CrossRef] [PubMed]
  122. Schlüter, N.; Klimek, J.; Ganss, C. Effect of a chitosan additive to a Sn2 -containing toothpaste on its anti-erosive/anti-abrasive efficacy—A controlled randomised in situ trial. Clin. Oral Investig. 2014, 18, 107–115. [Google Scholar] [CrossRef] [PubMed]
  123. Ozalp, S.; Tulunoglu, O. SEM–EDX analysis of brushing abrasion of chitosan and propolis based toothpastes on sound and artificial carious primary enamel surfaces. Int. J. Paediatr. Dent. 2014, 24, 349–357. [Google Scholar] [CrossRef] [PubMed]
  124. Ganss, C.; Klimek, J.; Schlueter, N. Erosion/abrasion-preventing potential of NaF and F/Sn/chitosan toothpastes in dentine and impact of the organic matrix. Caries Res. 2014, 48, 163–169. [Google Scholar] [CrossRef] [PubMed]
  125. Carvalho, T.; Lussi, A. Combined effect of a fluoride-, stannous-and chitosan-containing toothpaste and stannous-containing rinse on the prevention of initial enamel erosion–abrasion. J. Dent. 2014, 42, 450–459. [Google Scholar] [CrossRef] [PubMed]
  126. Aykut-Yetkiner, A.; Attin, T.; Wiegand, A. Prevention of dentine erosion by brushing with anti-erosive toothpastes. J. Dent. 2014, 42, 856–861. [Google Scholar] [CrossRef] [PubMed]
  127. Young, A.; Smistad, G.; Karlsen, J.; Rolla, G.; Rykke, M. Zeta potentials of human enamel and hydroxyapatite as measured by the Coulter DELSA 440. Adv. Dent. Res. 1997, 11, 560–565. [Google Scholar] [CrossRef] [PubMed]
  128. Van Der Mei, H.C.; Henny, C.; Engels, E.; De Vries, J.; Dijkstra, R.J.; Busscher, H.J. Chitosan adsorption to salivary pellicles. Eur. J. Oral Sci. 2007, 115, 303–307. [Google Scholar] [CrossRef] [PubMed]
  129. Schlueter, N.; Klimek, J.; Ganss, C. Randomised in situ study on the efficacy of a tin/chitosan toothpaste on erosive-abrasive enamel loss. Caries Res. 2013, 47, 574–581. [Google Scholar] [CrossRef] [PubMed]
  130. Zafar, M.S.; Ahmed, N. Nanomechanical characterization of exfoliated and retained deciduous incisors. Technol. Health Care 2014, 22, 785–793. [Google Scholar] [PubMed]
  131. Zafar, M.S.; Ahmed, N. The effects of acid etching time on surface mechanical properties of dental hard tissues. Dent. Mater. J. 2015, 34, 315–320. [Google Scholar] [CrossRef] [PubMed]
  132. Ruan, Q.; Siddiqah, N.; Li, X.; Nutt, S.; Moradian-Oldak, J. Amelogenin—Chitosan matrix for human enamel regrowth: Effects of viscosity and supersaturation degree. Connect. Tissue Res. 2014, 55, 150–154. [Google Scholar] [CrossRef] [PubMed]
  133. Choi, B.K.; Kim, K.Y.; Yoo, Y.J.; Oh, S.J.; Choi, J.H.; Kim, C.Y. In vitro antimicrobial activity of a chitooligosaccharide mixture against Actinobacillus actinomycetemcomitans and Streptococcus mutans. Int. J. Antimicrob. Agents 2001, 18, 553–557. [Google Scholar] [CrossRef]
  134. Murray, P.; Windsor, L.; Hafez, A.; Stevenson, R.; Cox, C. Comparison of pulp responses to resin composites. Oper. Dent. 2003, 28, 242–250. [Google Scholar] [PubMed]
  135. Chen, R.; Liu, C.; Tseng, W.; Jeng, J.; Lin, C. Cytotoxicity of three dentin bonding agents on human dental pulp cells. J. Dent. 2003, 31, 223–229. [Google Scholar] [CrossRef]
  136. Perchyonok, V.T.; Grobler, S.; Zhang, S.; Olivier, A.; Oberholzer, T. Insights into chitosan hydrogels on dentine bond strength and cytotoxicity. Open J. Stomatol. 2013, 3, 75–82. [Google Scholar] [CrossRef]
  137. Perchyonok, V.T.; Zhang, S.; Grobler, S.R.; Oberholzer, T.G. Insights into and relative effect of chitosan-H, chitosan-H-propolis, chitosan-H-propolis-nystatin and chitosan-H-nystatin on dentine bond strength. Eur. J. Dent. 2013, 7, 412–418. [Google Scholar] [CrossRef] [PubMed]
  138. Saoud, T.M.A.; Sigurdsson, A.; Rosenberg, P.A.; Lin, L.M.; Ricucci, D. Treatment of a large cystlike inflammatory periapical lesion associated with mature necrotic teeth using regenerative endodontic therapy. J. Endod. 2014, 40, 2081–2086. [Google Scholar] [CrossRef] [PubMed]
  139. Cohenca, N.; Paranjpe, A.; Berg, J. Vital pulp therapy. Dent. Clin. N. Am. 2013, 57, 59–73. [Google Scholar] [CrossRef] [PubMed]
  140. Tziafas, D.; Belibasakis, G.; Veis, A.; Papadimitriou, S. Dentin Regeneration in Vital Pulp Therapy: Design Principales. Adv. Dent. Res. 2001, 15, 96–100. [Google Scholar] [CrossRef] [PubMed]
  141. Drummond, J.L. Degradation, fatigue, and failure of resin dental composite materials. J. Dent. Res. 2008, 87, 710–719. [Google Scholar] [CrossRef] [PubMed]
  142. Ho, T.F.T.; Smales, R.J.; Fang, D.T.S. A 2-year clinical study of two glass ionomer cements used in the atraumatic restorative treatment (ART) technique. Community Dent. Oral Epidemiol. 1999, 27, 195–201. [Google Scholar] [PubMed]
  143. Bentley, C.; Drake, C. Longevity of restorations in a dental school clinic. J. Dent. Educ. 1986, 50, 594–600. [Google Scholar] [PubMed]
  144. Önal, B.; Pamir, T. The two-year clinical performance of esthetic restorative materials in noncarious cervical lesions. J. Am. Dent. Assoc. 2005, 136, 1547–1555. [Google Scholar] [CrossRef] [PubMed]
  145. Wilson, A.D.; Kent, B.E. The glass-ionomer cement, a new translucent dental filling material. J. Appl. Chem. Biotechnol. 1971, 21, 313. [Google Scholar] [CrossRef]
  146. Najeeb, S.; Khurshid, Z.; Zafar, M.S.; Khan, A.S.; Zohaib, S.; Martí, J.M.N.; Sauro, S.; Matinlinna, J.P.; Rehman, I.U. Modifications in Glass Ionomer Cements: Nano-Sized Fillers and Bioactive Nanoceramics. Int. J. Mol. Sci. 2016, 17, 1134. [Google Scholar] [CrossRef] [PubMed]
  147. Pameijer, C.H.; Garcia-Godoy, F.; Morrow, B.R.; Jefferies, S.R. Flexural strength and flexural fatigue properties of resin-modified glass ionomers. J. Clin. Dent. 2015, 26, 23–27. [Google Scholar] [PubMed]
  148. Babannavar, R.; Shenoy, A. Evaluation of shear bond strength of silorane resin to conventional, resin-modified glass ionomers and nano-ionomer cements. J. Investig. Clin. Dent. 2014, 5, 295–300. [Google Scholar] [CrossRef] [PubMed]
  149. Zafar, M.S.; Ahmed, N. Therapeutic roles of fluoride released from restorative dental materials. Fluoride 2015, 48, 184–194. [Google Scholar]
  150. Shah, F.A. Fluoride-containing bioactive glasses: Glass design, structure, bioactivity, cellular interactions, and recent developments. Mater. Sci. Eng. C 2016, 58, 1279–1289. [Google Scholar] [CrossRef] [PubMed]
  151. Mount, G.J. Glass ionomers: A review of their current status. Oper. Dent. 1999, 24, 115–124. [Google Scholar] [PubMed]
  152. Hewlett, E.R.; Mount, G.J. Glass ionomers in contemporary restorative dentistry—A clinical update. J. Calif. Dent. Assoc. 2003, 31, 483–492. [Google Scholar] [PubMed]
  153. Zafar, M.S. Effects of Surface Pre-Reacted Glass Particles on Fluoride Release of Dental Restorative Materials. World Appl. Sci. J. 2013, 28, 457–462. [Google Scholar]
  154. Moshaverinia, A.; Roohpour, N.; Chee, W.W.L.; Schricker, S.R. A review of polyelectrolyte modifications in conventional glass-ionomer dental cements. J. Mater. Chem. 2012, 22, 2824–2833. [Google Scholar] [CrossRef]
  155. Nicholson, J.W. Chemistry of glass-ionomer cements: A review. Biomaterials 1998, 19, 485–494. [Google Scholar] [CrossRef]
  156. Petri, D.F.S.; Donegá, J.; Benassi, A.M.; Bocangel, J.A. Preliminary study on chitosan modified glass ionomer restoratives. Dent. Mater. 2007, 23, 1004–1010. [Google Scholar] [CrossRef] [PubMed]
  157. Abraham, D.; Thomas, A.M.; Chopra, S.; Koshy, S. A Comparative Evaluation of Microleakage of Glass Ionomer Cement and Chitosan-modified Glass Ionomer Cement: An in vitro Study. Int. J. Clin. Pediatr. Dent. 2014, 7, 6–10. [Google Scholar] [CrossRef] [PubMed]
  158. Peniche, C.; Argüelles-Monal, W.; Davidenko, N.; Sastre, R.; Gallardo, A.; San Román, J. Self-curing membranes of chitosan/PAA IPNs obtained by radical polymerization: Preparation, characterization and interpolymer complexation. Biomaterials 1999, 20, 1869–1878. [Google Scholar] [CrossRef]
  159. Borchard, G.; Junginger, H.E. Modern drug delivery applications of chitosan. Adv. Drug Deliv. Rev. 2001, 52, 103. [Google Scholar] [PubMed]
  160. Goldberg, M.; Lacerda-Pinheiro, S.; Priam, F.; Jegat, N.; Six, N.; Bonnefoix, M.; Septier, D.; Chaussain-Miller, C.; Veis, A.; Denbesten, P. Matricellular molecules and odontoblast progenitors as tools for dentin repair and regeneration. Clin. Oral Investig. 2008, 12, 109–112. [Google Scholar] [CrossRef] [PubMed]
  161. Limapornvanich, A.; Jitpukdeebodintra, S.; Hengtrakool, C.; Kedjarune-Leggat, U. Bovine serum albumin release from novel chitosan-fluoro-aluminosilicate glass ionomer cement: Stability and cytotoxicity studies. J. Dent. 2009, 37, 686–690. [Google Scholar] [CrossRef] [PubMed]
  162. Kumar, M.R.; Muzzarelli, R.; Muzzarelli, C.; Sashiwa, H.; Domb, A. Chitosan chemistry and pharmaceutical perspectives. Chem. Rev. 2004, 104, 6017–6084. [Google Scholar] [CrossRef] [PubMed]
  163. Wanachottrakul, N.; Chotigeat, W.; Kedjarune-Leggat, U. Effect of novel chitosan-fluoroaluminosilicate resin modified glass ionomer cement supplemented with translationally controlled tumor protein on pulp cells. J. Mater. Sci. Mater. Med. 2014, 25, 1077–1085. [Google Scholar] [CrossRef] [PubMed]
  164. Rakkiettiwong, N.; Hengtrakool, C.; Thammasitboon, K.; Kedjarune-Leggat, U. Effect of novel chitosan-fluoroaluminosilicate glass ionomer cement with added transforming growth factor beta-1 on pulp cells. J. Endod. 2011, 37, 367–371. [Google Scholar] [CrossRef] [PubMed]
  165. Li, J.; Beetzen, M.V.; Sundström, F. Strength and setting behavior of resin-modified glass ionomer cements. Acta Odontol. Scand. 1995, 53, 311–317. [Google Scholar] [CrossRef] [PubMed]
  166. Pawlowska, E.; Poplawski, T.; Ksiazek, D.; Szczepanska, J.; Blasiak, J. Genotoxicity and cytotoxicity of 2-hydroxyethyl methacrylate. Mutat. Res./Genet. Toxicol. Environ. Mutagen. 2010, 696, 122–129. [Google Scholar] [CrossRef] [PubMed]
  167. Rathke, A.; Alt, A.; Gambin, N.; Haller, B. Dentin diffusion of HEMA released from etch-and-rinse and self-etch bonding systems. Eur. J. Oral Sci. 2007, 115, 510–516. [Google Scholar] [CrossRef] [PubMed]
  168. Imazato, S.; Horikawa, D.; Nishida, M.; Ebisu, S. Effects of monomers eluted from dental resin restoratives on osteoblast-like cells. J Biomed. Mater. Res. B Appl. Biomater. 2009, 88, 378–386. [Google Scholar] [CrossRef] [PubMed]
  169. Javed, F.; Vohra, F.; Zafar, S.; Almas, K. Significance of Osteogenic Surface Coatings on Implants to Enhance Osseointegration Under Osteoporotic-like Conditions. Implant Dent. 2014, 23, 679–686. [Google Scholar] [CrossRef] [PubMed]
  170. Albrektsson, T.; Brånemark, P.; Hansson, H.; Lindström, J. Osseointegrated titanium implants: Requirements for ensuring a long-lasting, direct bone-to-implant anchorage in man. Acta Orthop. 1981, 52, 155–170. [Google Scholar] [CrossRef]
  171. Mori, H.; Manabe, M.; Kurachi, Y.; Nagumo, M. Osseointegration of dental implants in rabbit bone with low mineral density. J. Oral Maxillofac. Surg. 1997, 55, 351–361. [Google Scholar] [CrossRef]
  172. Najeeb, S.; Khurshid, Z.; Zohaib, S.; Zafar, M.S. Bioactivity and osseointegration of PEEK are inferior to those of titanium-A systematic review. J. Oral Implantol. 2016, 42, 512–516. [Google Scholar] [CrossRef] [PubMed]
  173. Abtahi, J.; Tengvall, P.; Aspenberg, P. A bisphosphonate-coating improves the fixation of metal implants in human bone. A randomized trial of dental implants. Bone 2012, 50, 1148–1151. [Google Scholar] [CrossRef] [PubMed]
  174. Pang, X.; Huang, Y. Physical Properties of Nano-HAs/ZrO2 Coating on Surface of Titanium Materials Used in Dental-Implants and Its Biological Compatibility. J. Nanosci. Nanotechnol. 2012, 12, 902–910. [Google Scholar] [CrossRef] [PubMed]
  175. Najeeb, S.; Zafar, M.S.; Khurshid, Z.; Siddiqui, F. Applications of polyetheretherketone (PEEK) in oral implantology and prosthodontics. J. Prosthodont. Res. 2016, 60, 12–19. [Google Scholar] [CrossRef] [PubMed]
  176. Najeeb, S.; Khurshid, Z.; Siddiqui, F.; Zohaib, S.; Zafar, M.S. Outcomes of dental implant therapy in patients with down syndrome: A systematic review. J. Evid. Based Dent. Pract. 2017. [Google Scholar] [CrossRef]
  177. Alghamdi, H.S.; Cuijpers, V.M.J.I.; Wolke, J.G.C.; van den Beucken, J.J.J.P.; Jansen, J.A. Calcium-phosphate-coated Oral Implants Promote Osseointegration in Osteoporosis. J. Dent. Res. 2013, 92, 982–988. [Google Scholar] [CrossRef] [PubMed]
  178. Luo, Y.; Teng, Z.; Li, Y.; Wang, Q. Solid lipid nanoparticles for oral drug delivery: Chitosan coating improves stability, controlled delivery, mucoadhesion and cellular uptake. Carbohydr. Polym. 2015, 122, 221–229. [Google Scholar] [CrossRef] [PubMed]
  179. Bumgardner, J.D.; Chesnutt, B.M.; Yuan, Y.; Yang, Y.; Appleford, M.; Oh, S.; McLaughlin, R.; Elder, S.H.; Ong, J.L. The integration of chitosan-coated titanium in bone: An in vivo study in rabbits. Implant Dent. 2007, 16, 66–79. [Google Scholar] [CrossRef] [PubMed]
  180. Norowski, P.A.; Courtney, H.S.; Babu, J.; Haggard, W.O.; Bumgardner, J.D. Chitosan coatings deliver antimicrobials from titanium implants: A preliminary study. Implant Dent. 2011, 20, 56–67. [Google Scholar] [CrossRef] [PubMed]
  181. Wan, M.; Du, W.; Zhou, X.; Xu, X.; Zheng, L. Stem cell-based tooth engineering and their potential in dental medicine. Curr. Stem Cell Res. Ther. 2015, 10, 443–449. [Google Scholar] [CrossRef] [PubMed]
  182. Nakashima, M.; Iohara, K.; Murakami, M.; Nakamura, H.; Sato, Y.; Ariji, Y.; Matsushita, K. Pulp regeneration by transplantation of dental pulp stem cells in pulpitis: A pilot clinical study. Stem Cell Res. Ther. 2017, 8, 61. [Google Scholar] [CrossRef] [PubMed]
  183. Nakashima, M.; Iohara, K. Regeneration of dental pulp by stem cells. Adv. Dent. Res. 2011, 23, 313–319. [Google Scholar] [CrossRef] [PubMed]
  184. Yang, X.; Han, G.; Pang, X.; Fan, M. Chitosan/collagen scaffold containing bone morphogenetic protein-7 DNA supports dental pulp stem cell differentiation in vitro and in vivo. J. Biomed. Mater. Res. Part A 2012. [Google Scholar] [CrossRef] [PubMed]
  185. Egusa, H.; Sonoyama, W.; Nishimura, M.; Atsuta, I.; Akiyama, K. Stem cells in dentistry–Part II: Clinical applications. J. Prosthodont. Res. 2012, 56, 229–248. [Google Scholar] [CrossRef] [PubMed]
  186. D’aquino, R.; De Rosa, A.; Laino, G.; Caruso, F.; Guida, L.; Rullo, R.; Checchi, V.; Laino, L.; Tirino, V.; Papaccio, G. Human dental pulp stem cells: From biology to clinical applications. J. Exp. Zool. Part B Mol. Dev. Evol. 2009, 312, 408–415. [Google Scholar] [CrossRef] [PubMed]

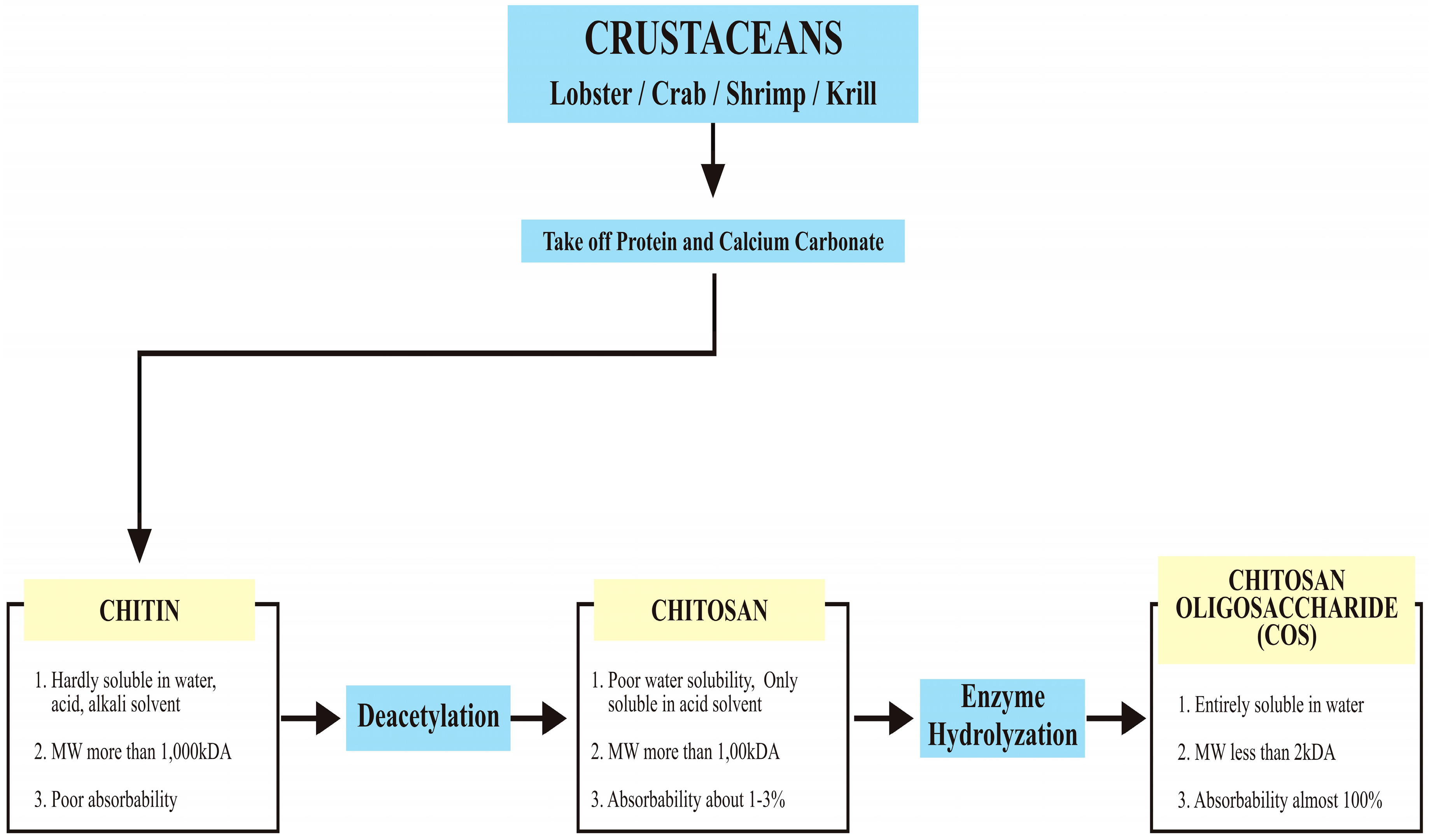

Figure 1. Schematic presentation of deacetylation of chitin derived from crustacean exoskeletons.
Figure 1. Schematic presentation of deacetylation of chitin derived from crustacean exoskeletons.
Materials 10 00602 g001

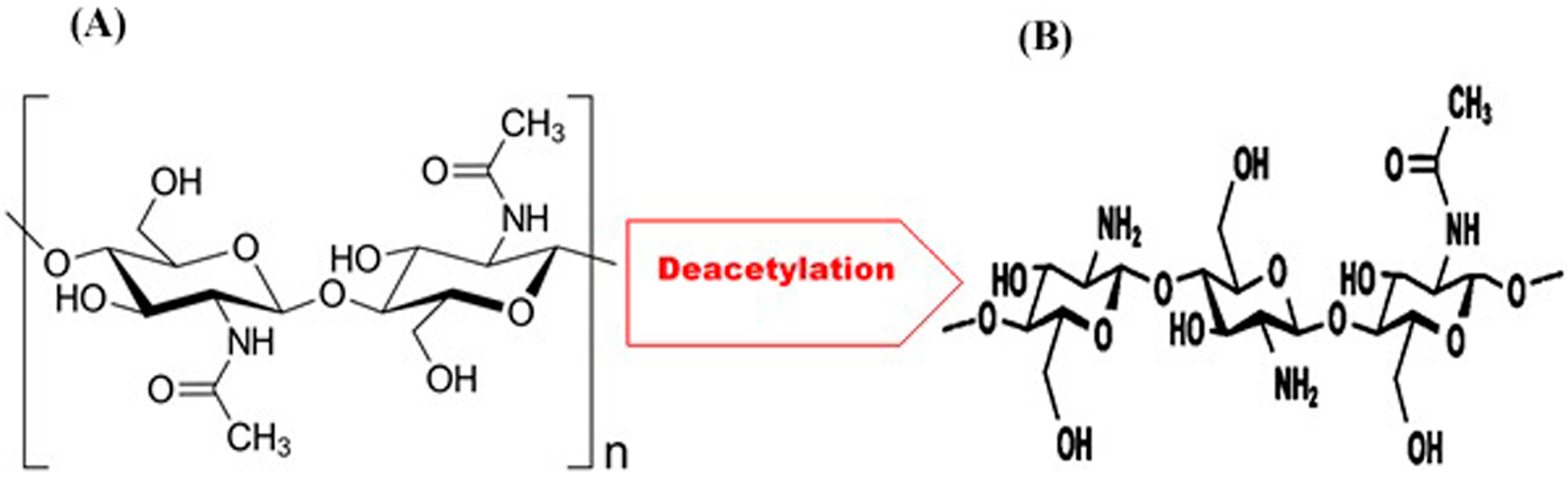

Figure 2. The comparison of chemical structural units: (A) chitin; and (B) chitosan formed following the process of deacetylation [16].
Figure 2. The comparison of chemical structural units: (A) chitin; and (B) chitosan formed following the process of deacetylation [16].
Materials 10 00602 g002

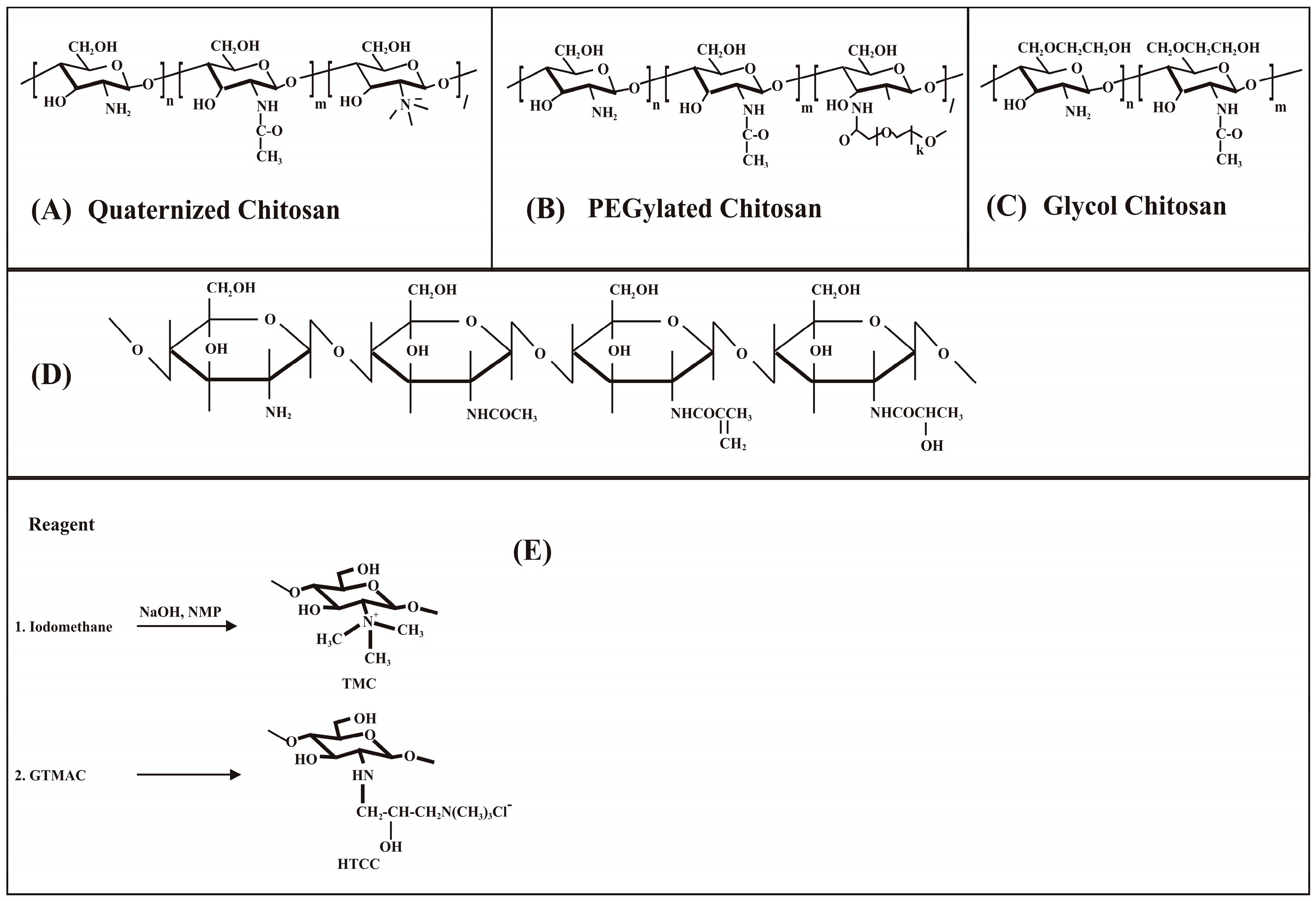

Figure 3. Various structures of modified chitosan in combination with other compounds. (A) quaternized chitosan (N,N,N trimethyl chitosan); (B) water-soluble polyethylene-glycol conjugated chitosan; (C) glycol chitosan containing short ethylene glycol groups [46]; (D) water-soluble and cross-linkable chitosan derivative obtained by grafting methacrylic acid and lactic acid onto the pendant amine groups of chitosan [47]; (E) quaternized chitosan modified using glycidyl trimethyl ammonium chloride (GTMAC) for protein delivery [48].
Figure 3. Various structures of modified chitosan in combination with other compounds. (A) quaternized chitosan (N,N,N trimethyl chitosan); (B) water-soluble polyethylene-glycol conjugated chitosan; (C) glycol chitosan containing short ethylene glycol groups [46]; (D) water-soluble and cross-linkable chitosan derivative obtained by grafting methacrylic acid and lactic acid onto the pendant amine groups of chitosan [47]; (E) quaternized chitosan modified using glycidyl trimethyl ammonium chloride (GTMAC) for protein delivery [48].
Materials 10 00602 g003
Figure 4. Current and potential applications of chitosan materials in dentistry.
Figure 4. Current and potential applications of chitosan materials in dentistry.
Materials 10 00602 g004

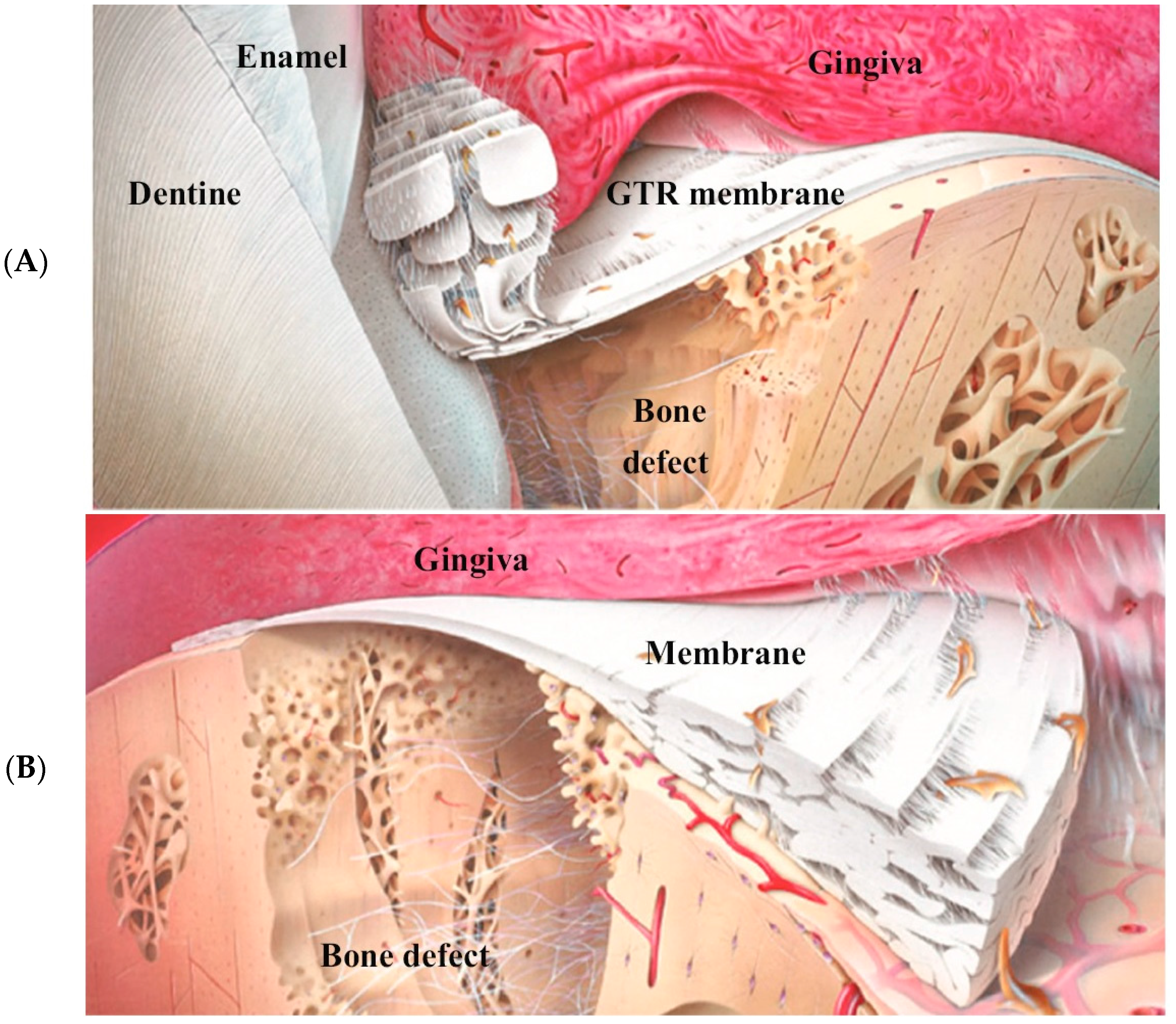

Figure 5. The schematic presentation of bone regeneration using the guided bone regeneration (GBR) approach. (A) shows the barrier preventing the contact of “the dentogingival epithelium and gingival connective tissues” with the curetted root surface; (B) shows the Gore-Tex augmentation membrane in a closed (primary soft tissue coverage) supporting new connective tissue regeneration and attachment on a previously periodontaly involved root surface (adapted from Scantlebury and Abmbruster [98] with the permission from publisher). GTR: guided tissue regeneration
Figure 5. The schematic presentation of bone regeneration using the guided bone regeneration (GBR) approach. (A) shows the barrier preventing the contact of “the dentogingival epithelium and gingival connective tissues” with the curetted root surface; (B) shows the Gore-Tex augmentation membrane in a closed (primary soft tissue coverage) supporting new connective tissue regeneration and attachment on a previously periodontaly involved root surface (adapted from Scantlebury and Abmbruster [98] with the permission from publisher). GTR: guided tissue regeneration
Materials 10 00602 g005
Table 1. Studies reporting effects of chitosan-modified dentifrices.
Table 1. Studies reporting effects of chitosan-modified dentifrices.
StudyType of StudyActive Ingredients of Tested DentifriceControlsErosive Solution (s)MethodologyResults
Ganss et al. [120]In vitroChitosan, NaF, KNO3/NaF, HA/NaF, ZnCO3-HA, SnF2F-free mouthwash, F-containing mouthwash0.05 M citric acidProfilometric analysis of extracted teeth; immersion only and brushingSlurry only: SnF2 most effective (p ≤ 0.005); Toothbrush simulation: KNO3 most effective (p ≤ 0.005).
Ganss et al. [121]In vitroNaF, NaF/SnCl2, AmF/NaF/SnCl2, AmF/NaF/SnCl2/chitosan, AmF/SnF2,SnF2, placebo toothpaste0.05 wt. % citric acidProfilometric analysis of extracted teeth; brushingAmF/NaF/SnCl2/chitosan was most effective in preventing tissue loss (p ≤ 0.01).
Schlueter et al. [122]Random-ised in situ trial (double blinded)F/Sn, F/Sn/chitosanPlacebo toothpaste, SnF2 gel0.5% citric acidProfilometric analysis of enamel specimens in situ; slurry (3 weeks) without/with brushing No significant difference among Sn-containing pastes after only immersion and immersion and brushing.
Ozalp et al. [123]In vitroChitosan, propolis, AmFNo treatment Demineralization solutionSEM-EDX analysis of sound and demineralized brushed enamel No significant differences between the tested pastes on sound lesions.
Ganss et al. [124]In vitroNaF, AmF/NaF/SnCl2/chitosanPlacebo, SnF2 gelCitric acid (1%), citric acid (1%) + collagenaseProfilometric analysis of dentine sections; slurry only, slurry + brushingAmF/NaF/SnCl2/chitosan significantly reduced erosion with organic tissue loss when brushed (p ≤ 0.05). No differences with slurries only.
Carvalho and Lussi [125]In vitroNaF (with and without NaF rinse), F/Sn/chitosan (with and without Sn rinse)Placebo toothpaste Artificial saliva, 1% citric acidSEM/EDX of enamel specimens brushed with tested toothpastes Surface micro-hardness, tooth structure loss F/Sn/chitosan followed by Sn rinse showed the least reduction in surface hardness (p < 0.001) and the least substance loss (p < 0.05).
Aykut-Yetkiner et al. [126]In vitroAmF, NaF/Nano-HA, ZnCO3-HA, NaF/AmF/SnCl2/Chitosan, NaF/HA, NaF/KNO3No treatmentCitric acid, HCl/pepsinProfilometry of bovine dentine specimens brushed with tested toothpastesAll toothpastes reduced significantly but AmF toothpaste had the most significant effect.
Amine fluoride (AmF); hydroxyapatite (HA); potassium nitrate (KNO3); sodium fluoride (NaF); scanning electron microscope elemental analyses (SED-EDX); zinc carbonate (ZnCO3), stannous fluoride (SnF2).
Table 2. Summary of the flexural strengths of different formulations of chitosan-modified glass ionomer restorations along with estimated fluoride release [156]. GICs: glass ionomer cements.
Table 2. Summary of the flexural strengths of different formulations of chitosan-modified glass ionomer restorations along with estimated fluoride release [156]. GICs: glass ionomer cements.
Chitosan in GICs (wt. %)Flexural Strength (MPa)Fluoride Release (µg/cm2)
After 21 hAfter 1 Month
014.27 ± 2.60~100~500
0.00418.41 ± 3.26~1500~3700
0.01217.00 ± 3.98~400~1000
0.02515.07 ± 4.34NRNR
0.0456.88 ± 1.63NRNR

© 2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (
Materials EISSN 1996-1944 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
