Next Article in Journal
Microwave-Assisted Synthesis of Nickel Oxide Nanoparticles Using Coriandrum sativum Leaf Extract and Their Structural-Magnetic Catalytic Properties
Next Article in Special Issue
The Present SP Tests for Determining the Transition Temperature TSP on “U” Notch Disc Specimens
Previous Article in Journal
Effect of Surface-Modified TiO2 Nanoparticles on the Anti-Ultraviolet Aging Performance of Foamed Wheat Straw Fiber/Polypropylene Composites
Previous Article in Special Issue
Determination of Material Strengths by Hydraulic Bulge Test
Open AccessArticle

High Temperature Deformation Mechanisms in a DLD Nickel Superalloy

Institute of Structural Materials, Swansea University, Bay Campus, Fabian Way, Swansea SA1 8EN, UK
Rolls-Royce plc, P.O. Box 31, Derby DE24 8BJ, UK
Author to whom correspondence should be addressed.
Academic Editors: Robert Lancaster, Karel Matocha and Shou Binan
Materials 2017, 10(5), 457;
Received: 30 March 2017 / Revised: 19 April 2017 / Accepted: 21 April 2017 / Published: 26 April 2017
(This article belongs to the Special Issue Selected Papers from SSTT2016)
The realisation of employing Additive Layer Manufacturing (ALM) technologies to produce components in the aerospace industry is significantly increasing. This can be attributed to their ability to offer the near-net shape fabrication of fully dense components with a high potential for geometrical optimisation, all of which contribute to subsequent reductions in material wastage and component weight. However, the influence of this manufacturing route on the properties of aerospace alloys must first be fully understood before being actively applied in-service. Specimens from the nickel superalloy C263 have been manufactured using Powder Bed Direct Laser Deposition (PB-DLD), each with unique post-processing conditions. These variables include two build orientations, vertical and horizontal, and two different heat treatments. The effects of build orientation and post-process heat treatments on the materials’ mechanical properties have been assessed with the Small Punch Tensile (SPT) test technique, a practical test method given the limited availability of PB-DLD consolidated material. SPT testing was also conducted on a cast C263 variant to compare with PB-DLD derivatives. At both room and elevated temperature conditions, differences in mechanical performances arose between each material variant. This was found to be instigated by microstructural variations exposed through microscopic and Energy Dispersive X-ray Spectroscopy (EDS) analysis. SPT results were also compared with available uniaxial tensile data in terms of SPT peak and yield load against uniaxial ultimate tensile and yield strength. View Full-Text
Keywords: small punch; tensile; powder bed direct laser deposition; C263 small punch; tensile; powder bed direct laser deposition; C263
Show Figures

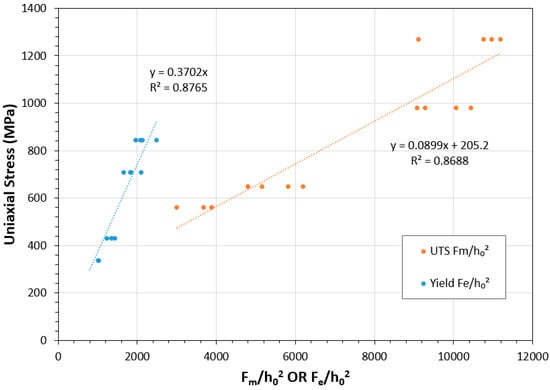

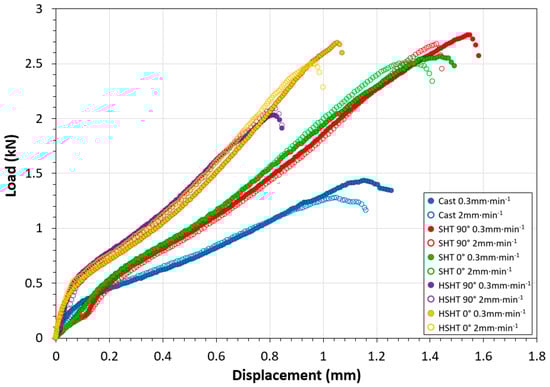

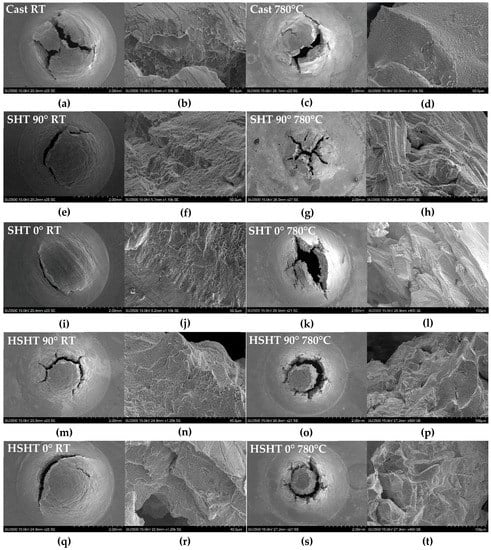

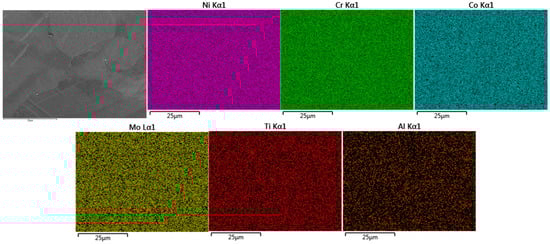

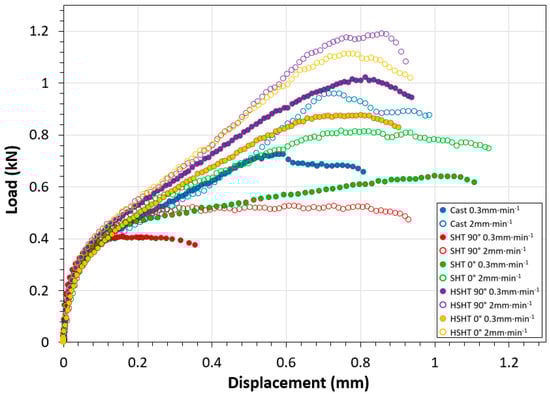

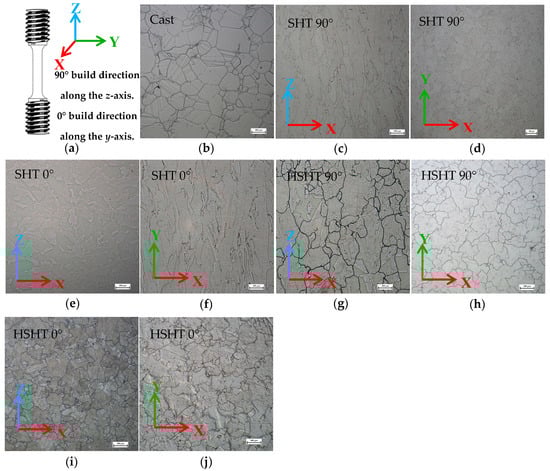

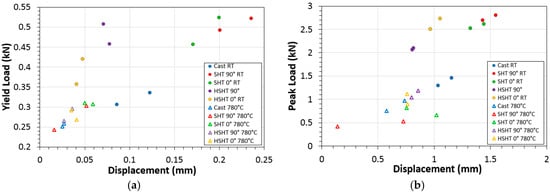

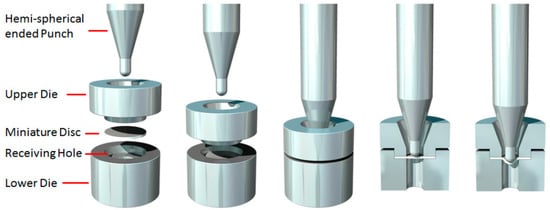

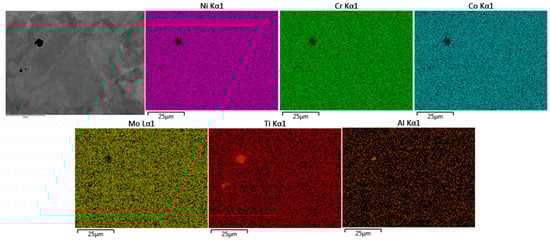

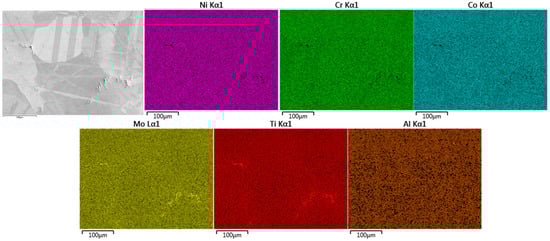

Figure 1

MDPI and ACS Style

Davies, S.; Jeffs, S.; Lancaster, R.; Baxter, G. High Temperature Deformation Mechanisms in a DLD Nickel Superalloy. Materials 2017, 10, 457.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

Back to TopTop
