Next Article in Journal
Streptococcus Sanguis Biofilm Architecture and Its Influence on Titanium Corrosion in Enriched Artificial Saliva
Previous Article in Journal
Wettability and Contact Time on a Biomimetic Superhydrophobic Surface
Open AccessArticle

Ductility Improvement of an AZ61 Magnesium Alloy through Two-Pass Submerged Friction Stir Processing

1
National Engineering Research Center of Near-net shape Forming for Metallic Materials, South China University of Technology, Guangzhou 510640, China
2
Guangdong Key Laboratory for Advanced Metallic Materials Processing, South China University of Technology, Guangzhou 510640, China
*
Author to whom correspondence should be addressed.
Academic Editor: Daolun Chen
Materials 2017, 10(3), 253; https://doi.org/10.3390/ma10030253
Received: 26 January 2017 / Revised: 23 February 2017 / Accepted: 24 February 2017 / Published: 2 March 2017

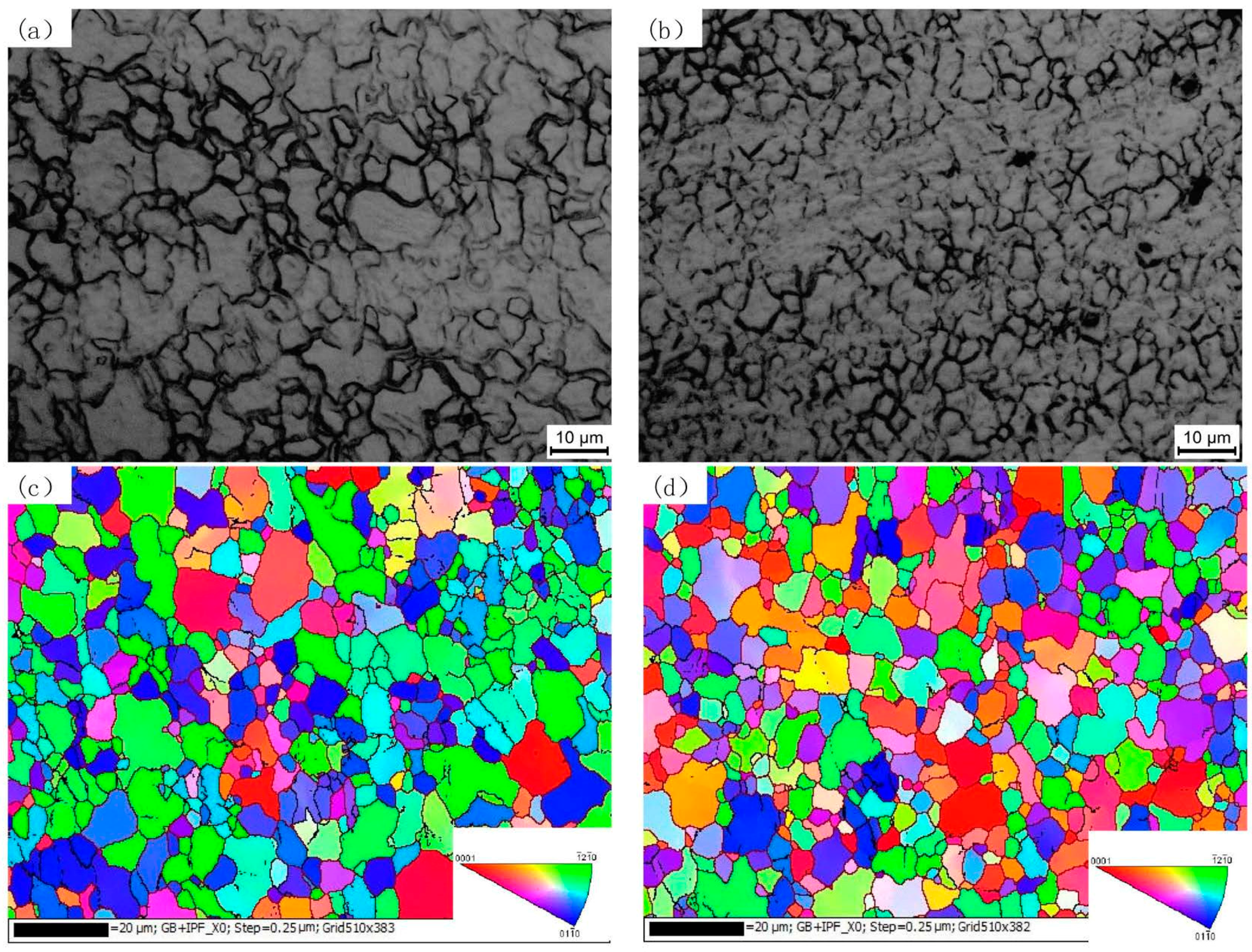

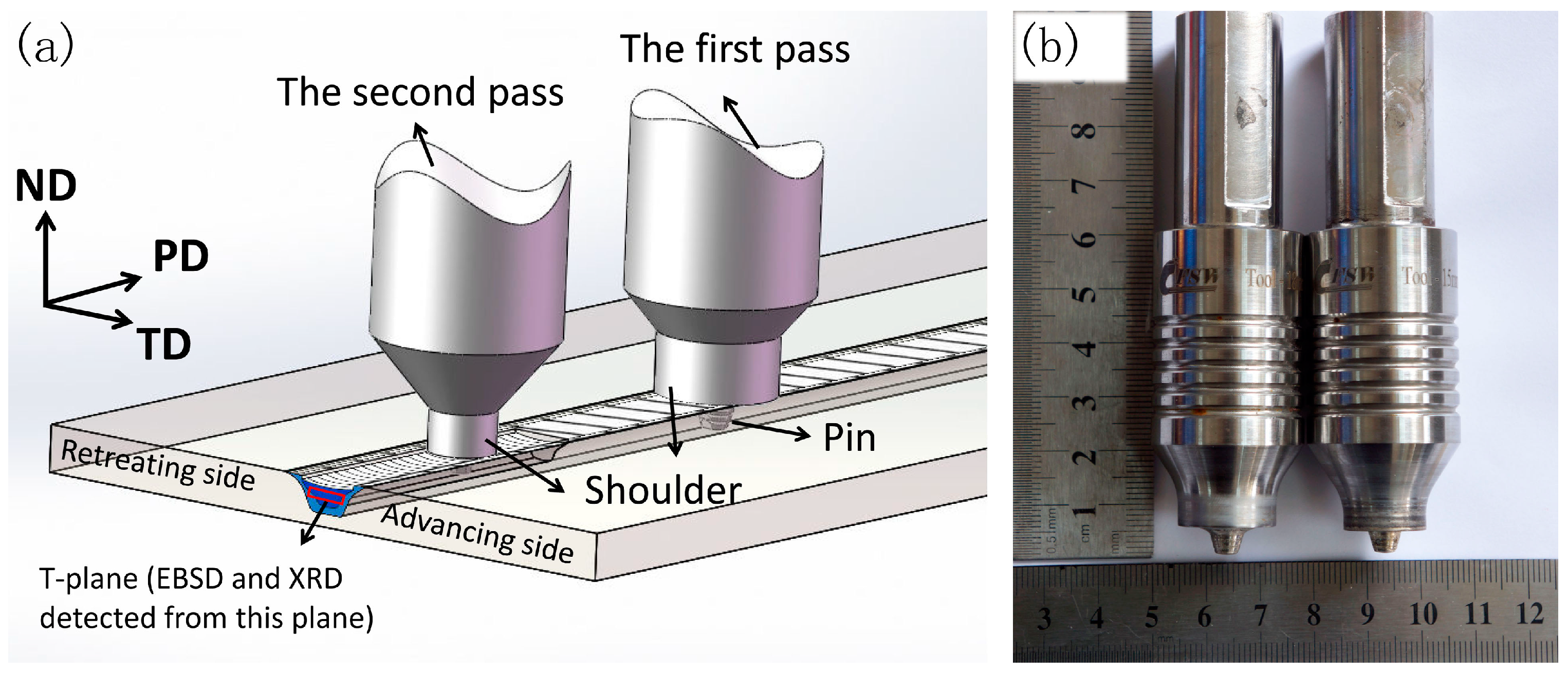

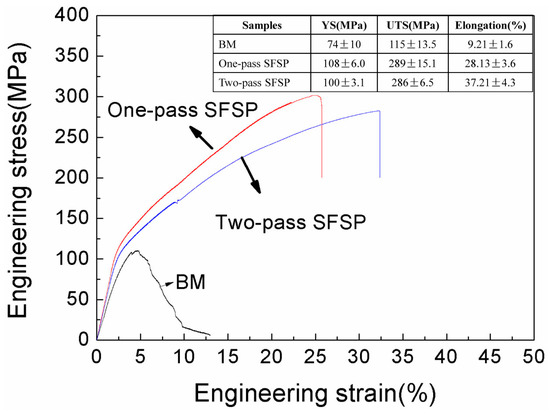

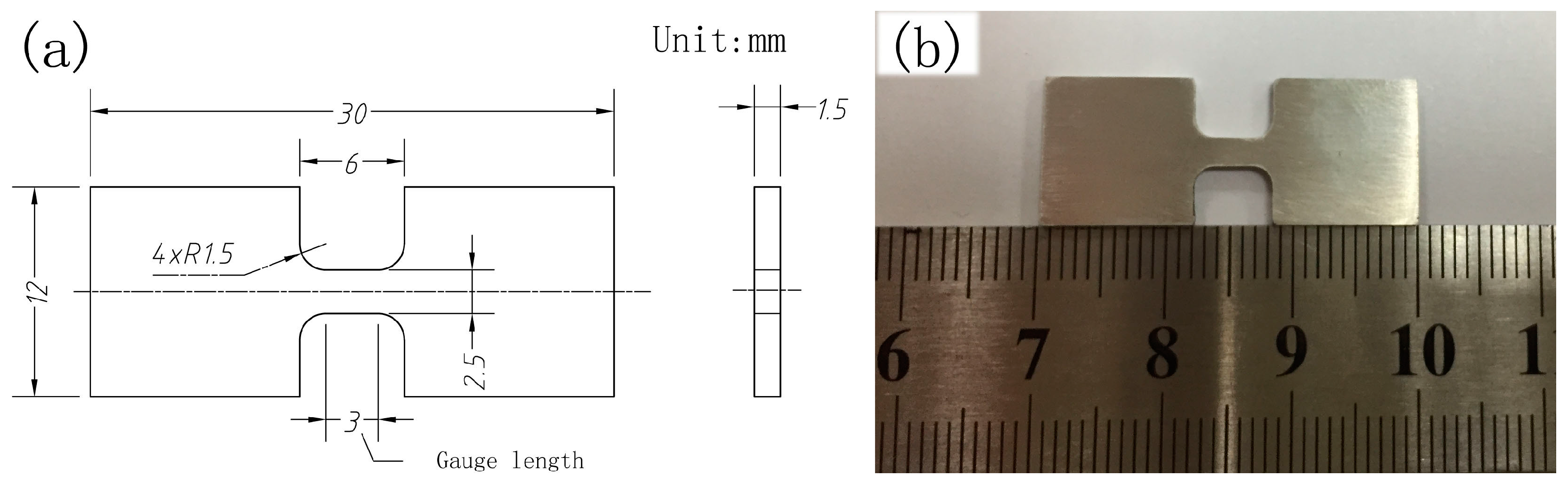

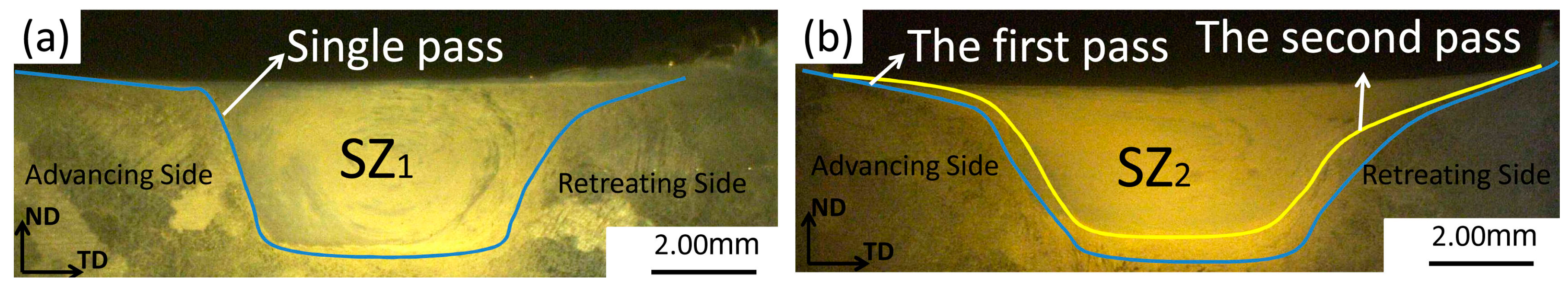

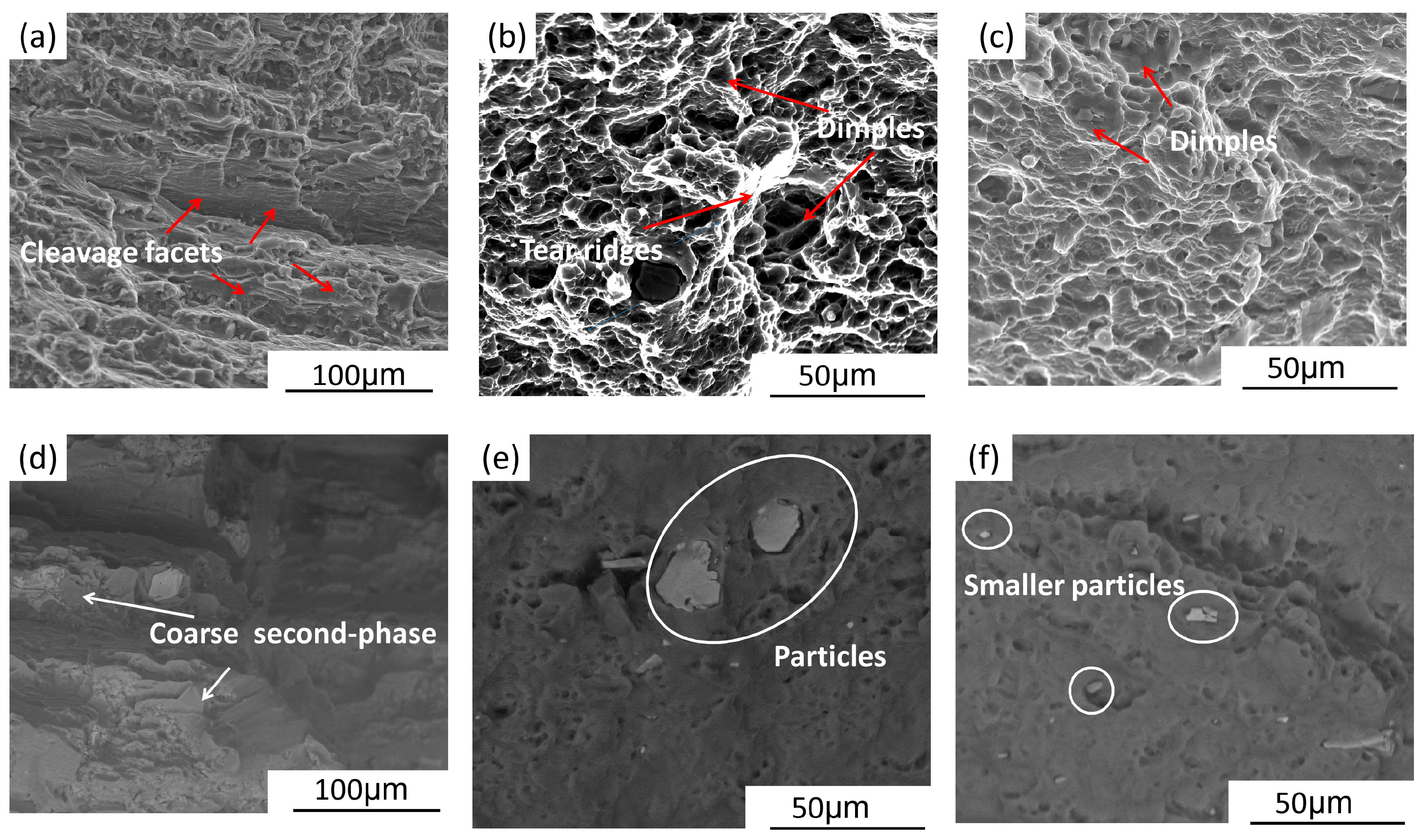

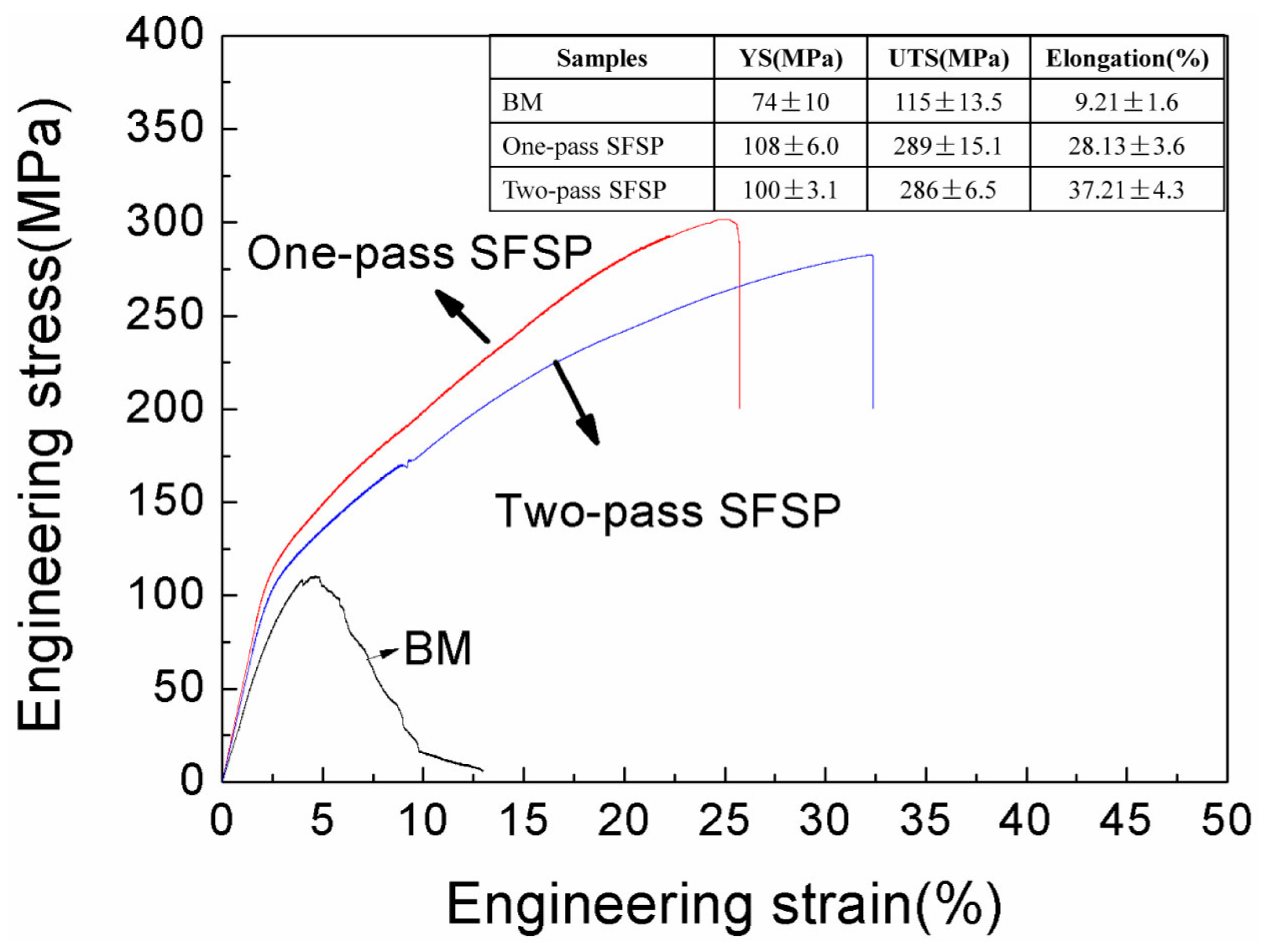

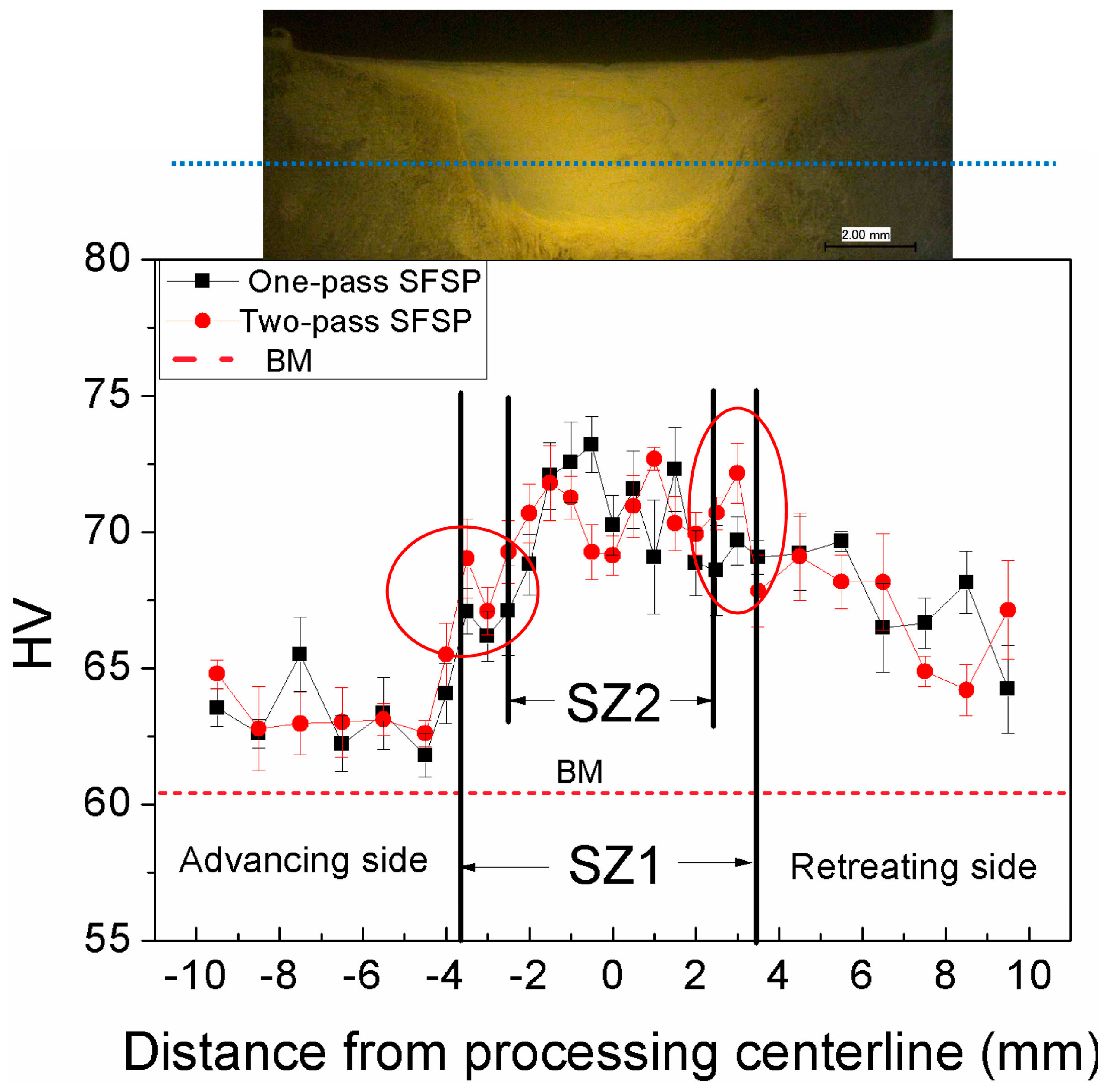

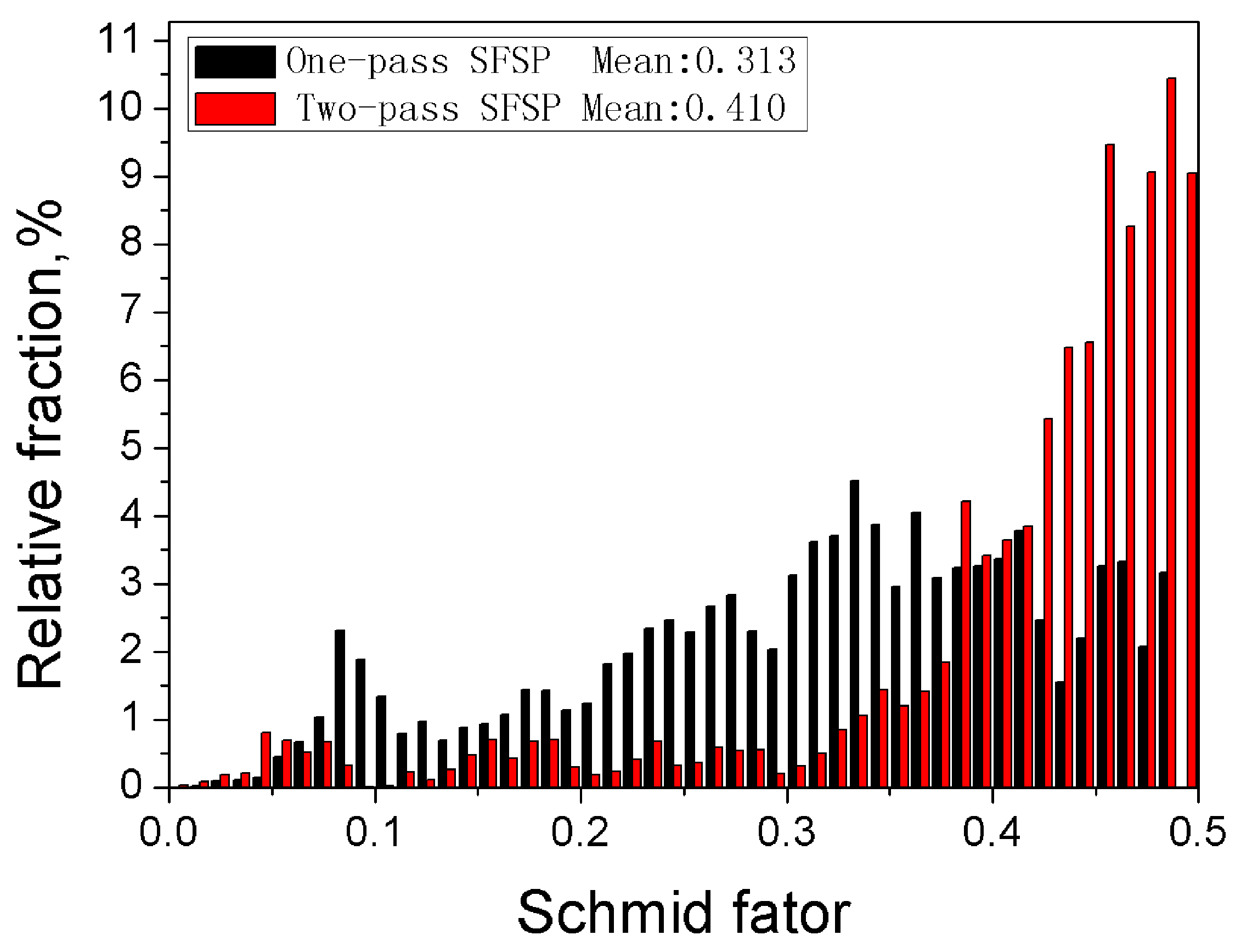

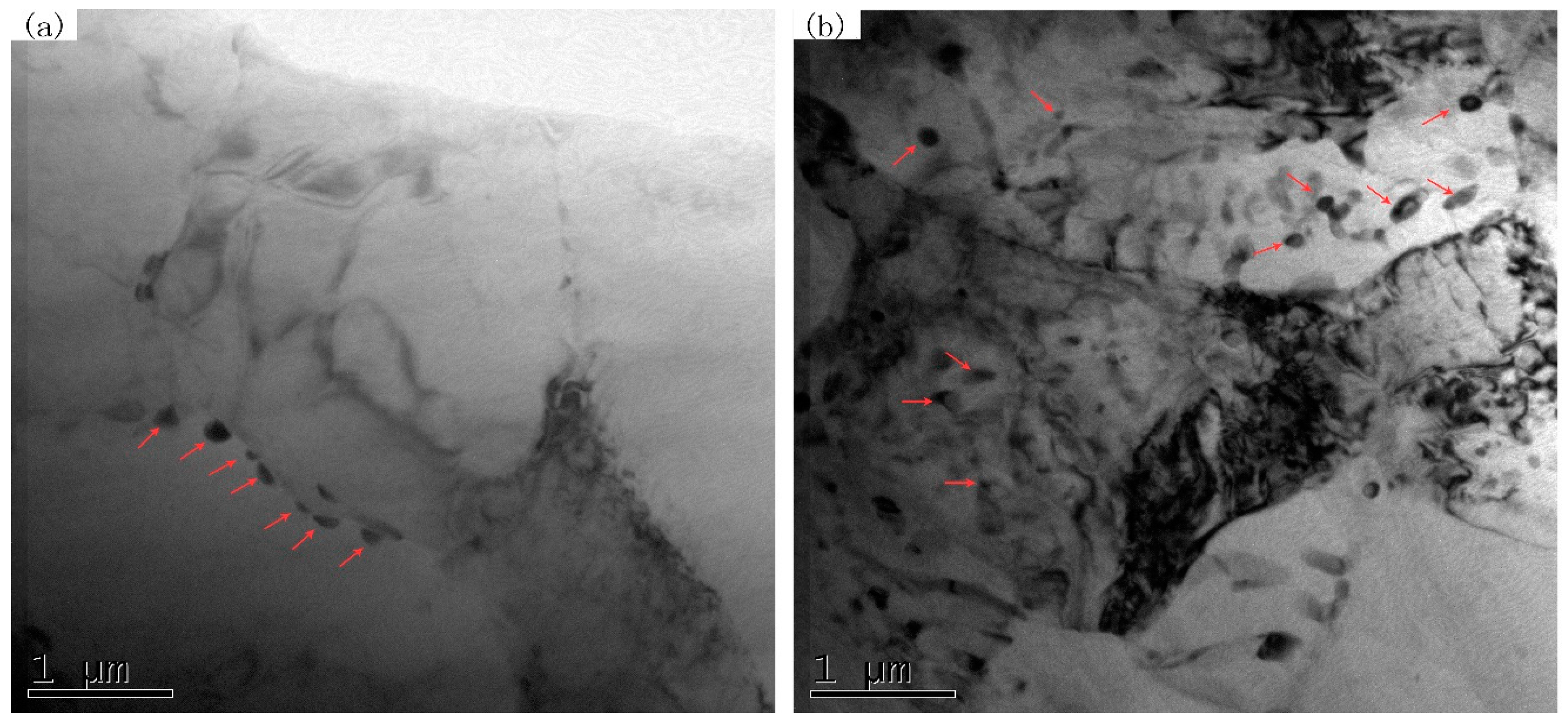

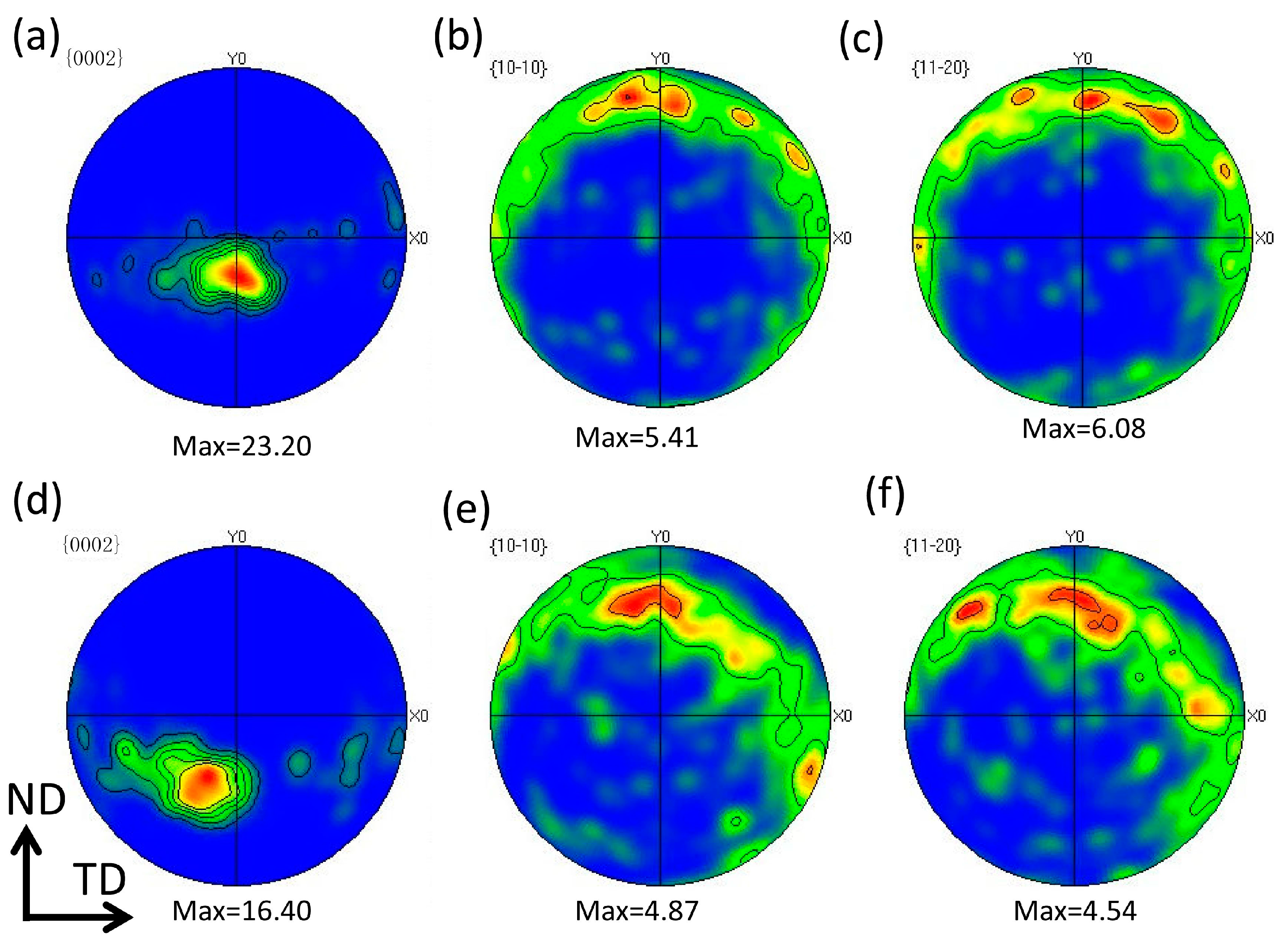

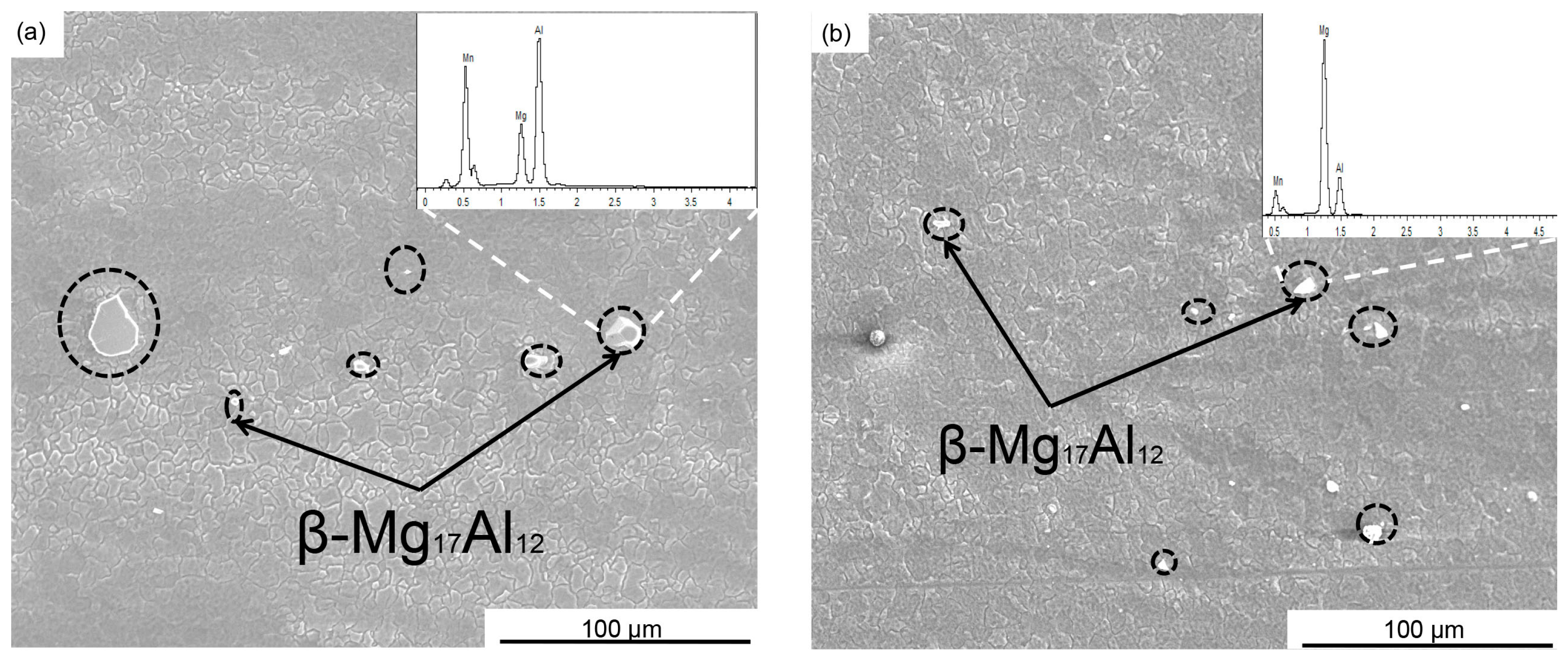

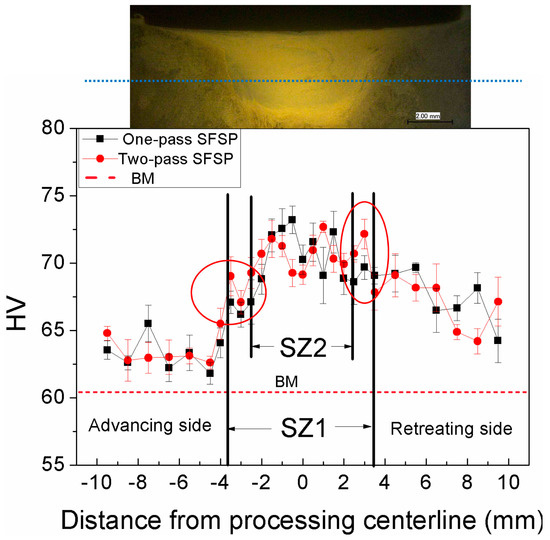

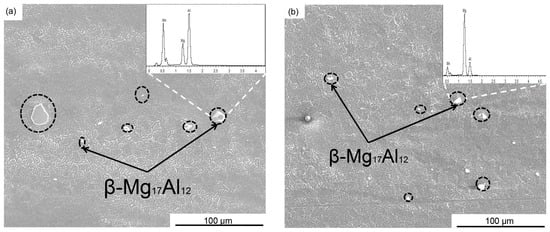

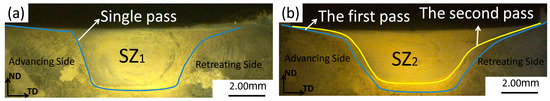

Friction stir processing (FSP) has been considered as a novel technique to refine the grain size and homogenize the microstructure of metallic materials. In this study, two-pass FSP was conducted under water to enhance the cooling rate during processing, and an AZ61 magnesium alloy with fine-grained and homogeneous microstructure was prepared through this method. Compared to the as-cast material, one-pass FSP resulted in grain refinement and the β-Mg17Al12 phase was broken into small particles. Using a smaller stirring tool and an overlapping ratio of 100%, a finer and more uniform microstructure with an average grain size of 4.6 μm was obtained through two-pass FSP. The two-pass FSP resulted in a significant improvement in elongation of 37.2% ± 4.3%, but a slight decrease in strength compared with one-pass FSP alloy. Besides the microstructure refinement, the texture evolution in the stir zone is also considered responsible for the ductility improvement. View Full-Text
Keywords: AZ61 magnesium alloys; friction stir processing; microstructure; texture; mechanical property AZ61 magnesium alloys; friction stir processing; microstructure; texture; mechanical property
Show Figures

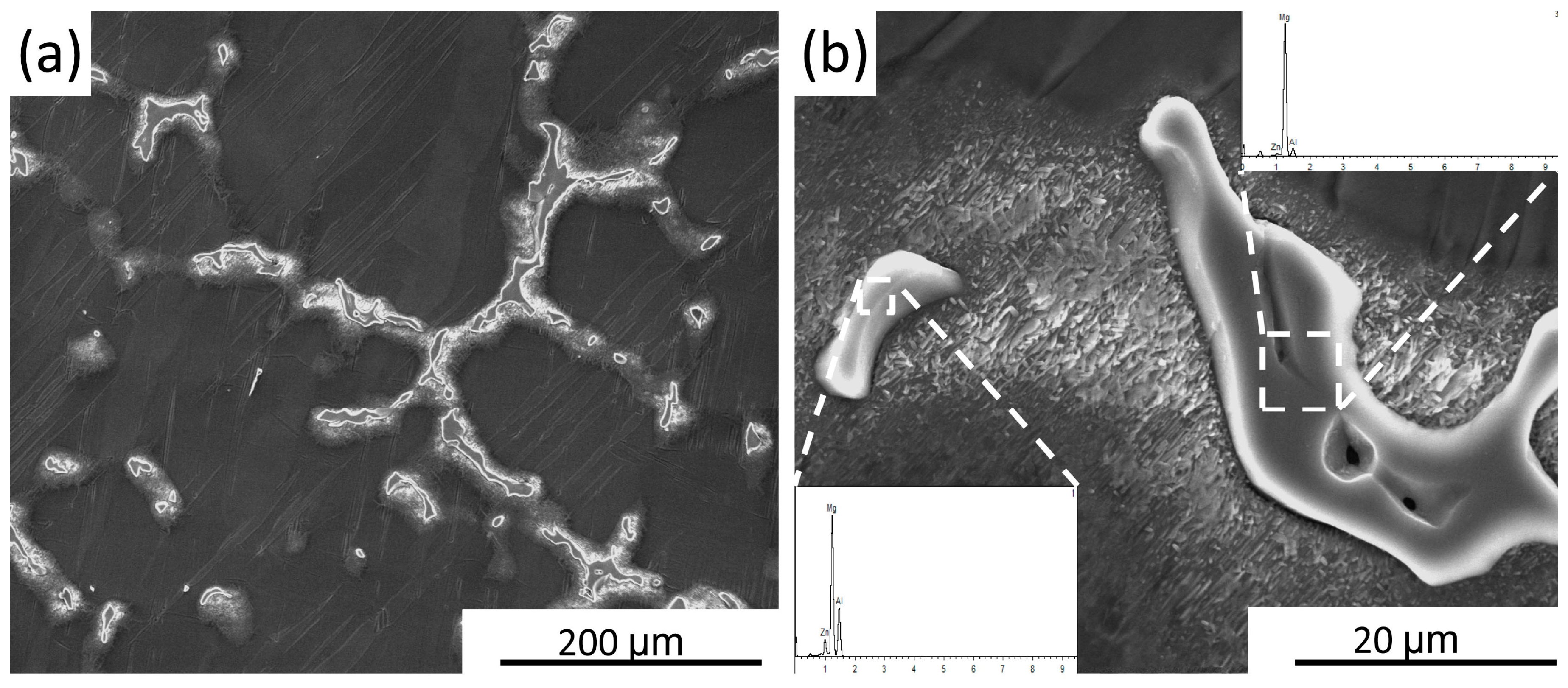

Figure 1

MDPI and ACS Style

Luo, X.; Cao, G.; Zhang, W.; Qiu, C.; Zhang, D. Ductility Improvement of an AZ61 Magnesium Alloy through Two-Pass Submerged Friction Stir Processing. Materials 2017, 10, 253.

Show more citation formats Show less citations formats
Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Access Map by Country/Region

1
Back to TopTop
