Synthesis of a Novel Polyethoxysilsesquiazane and Thermal Conversion into Ternary Silicon Oxynitride Ceramics with Enhanced Thermal Stability

Abstract

A novel polyethoxysilsesquiazane ([EtOSi(NH)_1.5]_n, EtOSZ) was synthesized by ammonolysis at −78 °C of ethoxytrichlorosilane (EtOSiCl₃), which was isolated by distillation as a reaction product of SiCl₄ and EtOH. Attenuated total reflection-infra red (ATR-IR), ¹³C-, and ²⁹Si-nuclear magnetic resonance (NMR) spectroscopic analyses of the ammonolysis product resulted in the detection of Si–NH–Si linkage and EtO group. The simultaneous thermogravimetric and mass spectrometry analyses of the EtOSZ under helium revealed cleavage of oxygen-carbon bond of the EtO group to evolve ethylene as a main gaseous species formed in-situ, which lead to the formation at 800 °C of quaternary amorphous Si–C–N with an extremely low carbon content (1.1 wt %) when compared to the theoretical EtOSZ (25.1 wt %). Subsequent heat treatment up to 1400 °C in N₂ lead to the formation of X-ray amorphous ternary Si–O–N. Further heating to 1600 °C in N₂ promoted crystallization and phase partitioning to afford Si₂N₂O nanocrystallites identified by the XRD and TEM analyses. The thermal stability up to 1400 °C of the amorphous state achieved for the ternary Si-O-N was further studied by chemical composition analysis, as well as X-ray photoelectron spectroscopy (XPS) and ²⁹Si-NMR spectroscopic analyses, and the results were discussed aiming to develop a novel polymeric precursor for ternary amorphous Si–O–N ceramics with an enhanced thermal stability.

1. Introduction

Silicon oxynitride (Si₂N₂O) is a unique crystalline compound in the silica (SiO₂)-silicon nitride (Si₃N₄) binary system, and Si₂N₂O ceramics exhibit attractive properties for its structural application, such as low theoretical density with high hardness and low thermal expansion coefficient [1], low thermal conductivity [2], excellent oxidation resistance up to 1600 °C, and high temperature strength without degradation up to 1400 °C [3]. Moreover, the low dielectric constant and loss of the porous Si₂N₂O material [4] is attractive as ceramic insulators.

Crystalline Si₂N₂O can be produced through the following routes: (i) high-temperature solid state reaction of Si₃N₄ with SiO₂ [5]; (ii) nitridation of a mixture of Si and SiO₂ [6]; (iii) carbothermal reduction nitridation by reacting mixtures of carbon and SiO₂ under flowing nitrogen [7,8]; and, (iv) self-propagating high-temperature synthesis [9,10]. Similar to Si₃N₄, Si₂N₂O decomposes close to the sintering temperature, and generally hot-pressing is required for fabricating fully dense Si₂N₂O ceramics [2,11].

On the other hand, nonstoichiometric silicon oxynitride (SiO_xN_y) films can be fabricated by plasma enhanced chemical vapour deposition (PECVD) [12,13,14,15,16,17,18,19]. In addition to better dielectric properties, SiO_xN_y films show excellent optical properties. The optical losses in SiO_xN_y films are significantly low, and the refractive index of the films can be controlled in the wide range from 1.45 for SiO₂ to 2.0 for Si₃N₄ [12], which can offer potential applications, such as antireflective coatings [13] and waveguide layers [14,15,16]. Moreover, SiO_xN_y films exhibit sufficient thermal and chemical stabilities, and can thus be expected to be used for electronic devices [13,17] and buffer layers [18,19].

Recently, increasing attention has been directed to the synthesis of silicon-based non-oxide ceramics through the Polymer-Derived Ceramics (PDCs) route [20,21]. Potential advantages of this route are lower processing temperatures, easy purification of starting polymers, and, thus, the effective reduction of impurities in the final ceramic product, and formation of novel inorganic-organic hybrids, and metastable amorphous ceramics that cannot be produced by conventional powder processing methods. Moreover, polymerization and cross-linking provide a means to vary the specific properties of the pre-ceramic compounds, such as solubility, fusibility, or viscosity, extensively providing the versatility in processing and shaping capabilities, including thin film and long fiber syntheses that are similar to that successfully achieved with polymer materials. In this route, copolymers of the methylcyclosiloxanes and methylcyclolosilazanes [22], poly(Si-isocyanato-Si-methylpolysilazane) [23], and polysilyloxycarbodiimide [24] were synthesized and successfully converted to both amorphous SiO_xN_y and crystalline Si₂N₂O. Perhydropolysilazane (–SiH₂–NH–) was also found as a useful starting polymer to fabricate dense and hydrophilic SiO_xN_y bond coat in a double-layer EBC system, which showed outstanding performance in long-term static oxidation tests at 800 °C [25].

In this study, a novel polyethoxysilsesquiazane was designed and synthesized as a single source precursor for the ternary Si–O–N ceramic system. In addition to several spectroscopic analyses, the polymer to amorphous SiO_xN_y conversion process was in-situ monitored by the simultaneous thermogravimetric and mass spectrometry analyses. Then, the crystallization and phase partitioning behavior of the polymer-derived amorphous SiO_xN_y was discussed from a viewpoint to develop a novel polymeric precursor for ternary amorphous Si-O-N ceramics with an enhanced thermally stability.

2. Experimental Section

2.1. Precursor Synthesis

The handling of all the reagents and products in this study was performed under inert atmosphere of pure nitrogen (N₂). Polyethoxysilsesquiazane ([EtOSi(NH)_1.5]_n, EtOSZ) was synthesized via simple 2-steps reaction (Equations (1) and (2)).

(1) Synthesis of ethoxytrichlorosilane (EtOSiCl₃)

$${\mathrm{SiCl}}_4+{\mathrm{CH}}_3{\mathrm{CH}}_2\mathrm{OH}\underset{\mathrm{r}.\mathrm{t}.}{\to }{\mathrm{EtOSiCl}}_3$$

(1)

A 1 L four-neck round-bottom flask equipped with a dropping funnel, a magnetic stirrer, and a septum, was charged with tetrachlorosilane (500 g, 2.94 mol, Wako Pure Chemicals Industry, Osaka, Japan). Through the funnel, ethanol (99.5%, 172 mL, 2.94 mol, Wako Pure Chemicals Industry) was added dropwise at room temperature over 2 h. The mixture was then stirred at room temperature for additional 1 h. After distillation, 316 g of EtOSiCl₃ was obtained at 102 °C/760 mmHg as a colorless liquid. The purity of the distillated EtOSiCl₃ was monitored by gas chromatography (GC) analysis and the EtOSiCl₃ fraction with the purity higher than 95% was collected and used for next reaction.

(2) Synthesis of EtOSZ

$${\mathrm{EtOSiCl}}_3\underset{-78°\mathrm{C}\mathrm{to}\mathrm{r}.\mathrm{t}.}{\overset{\mathrm{N}{\mathrm{H}}_3}{\to }}{\left[{\mathrm{EtOSi}\left(\mathrm{NH}\right)}_{1.5}\right]}_n$$

(2)

A 500 mL four-neck round-bottom flask equipped with a cold finger condenser, mechanical stirrer and a condenser topped with a gas outlet tube was charged with EtOSiCl₃ (24.2 g, 0.135 mol), and freshly dried tetrahydrofuran (THF, 250 mL, Wako Pure Chemicals Industry, Osaka, Japan), and cooled to −78 °C.

Gaseous pure ammonia (NH₃, >99.9%, Sumitomo Seika Chemicals, Osaka, Japan) at a flow rate of 500 mL/min was bubbled into the solution for 1 h through a glass tube. The suspension was stirred at −78 °C for additional 1 h, and then allowed to warm up to room temperature overnight as the excess of NH₃ evaporated. The NH₄Cl precipitate was then filtered off under N₂ pressure, and was washed with fresh THF under N₂ atmosphere. The filtrate was transferred into a 500 mL round-bottom flask and removed the solvent under vacuum at 40 °C to afford EtOSZ (12.2 g, 0.128 mol) as colorless solid. The yield was 95%.

2.2. Pyrolysis and Heat Treatment

The synthesized EtOSZ was placed on an alumina tray and pyrolyzed in a quartz tube furnace under flowing N₂ (200 mL/min) by heating from room temperature up to 800 °C with a heating rate of 5 °C/min, maintaining the temperature at 800 °C for an additional 1 h and finally furnace cooling down to room temperature to give a product as a slightly brown solid.

The pyrolyzed sample was ground to fine powders using a mortar and a pestle. The powdered sample was placed on a BN plate within a BN crucible and was heat-treated in a graphite resistance-heated furnace (Model High Multi 5000, Fujidempa Kogyo, Osaka, Japan) under vacuum from room temperature to 500 °C. Then, N₂ gas was introduced into the furnace at 500 °C and the temperature was increased to 1400, 1600, or 1800 °C, and was held for an additional 1 h. The heating rate was 10 °C /min. The N₂ pressures that were applied in this heat treatment procedure were 196 kPa between 500 °C and 1200 °C, 392 kPa between 1200 and 1600 °C and 980 kPa between 1600 and 1800 °C. After the heat treatment, the sample was cooled down to room temperature in the furnace.

2.3. Characterizations

¹³C and ²⁹Si solid state nuclear magnetic resonance (NMR) spectra for the as-synthesized EtOSZ polymer and its heat-treated powdered materials were acquired using magic angle spinning (MAS), with a rotation frequency of 15 kHz (Model ECA-400, JEOL, Tokyo, Japan) at room temperature. The resonance frequencies for the ¹³C- and ²⁹Si-NMR spectra that were recorded in this study were 100 and for 79.5 MHz, respectively. The chemical shifts of the peak signals in the ¹³C- and ²⁹Si-NMR spectra were quoted relative to the signals of adamantine (29.5 pm) and 3-(trimethylsilyl) propionic acid sodium salt (2 ppm), respectively.

The Attenuated Total Reflection-Infra Red (ATR-IR) spectra were recorded on the as-synthesized and pyrolyzed EtOSZ with a diamond prism under an incidence angle of 45° (Model Spectrum 100, Perkin Elmer, Waltham, MA, USA).

The thermal behaviors up to 1000 °C were studied by thermogravimetric/differential thermal analysis (TG/DTA) in air or N₂ (Model TG-DTA 6300, Hitachi High Technologies Ltd., Tokyo, Japan), and simultaneous TG-mass spectrometry (MS) analyses (Model STA7200, Hitachi High Technologies Ltd., Tokyo, Japan/Model JMS-Q1500 GC, JEOL, Tokyo, Japan). The measurements were performed under flowing helium (100 mL/min) with a heating rate of 10 °C/min.

Elemental analyses were performed on the pyrolyzed or heat-treated samples for oxygen, nitrogen, and hydrogen (inert-gas fusion method, Model EMGA-930, HORIBA, Ltd., Kyoto, Japan), and carbon (non-dispersive infrared method, Model CS844, LECO Co., St. Joseph, MI, USA). The silicon content in the samples was calculated as the difference of the sum of the measured C, N, O, and H content to 100 wt %.

X-ray diffraction (XRD) measurements were performed on pyrolyzed or heat-treated samples (Model X’pert Pro α1, Philips Ltd., Amsterdam, The Netherlands).

X-ray photoelectron spectroscopy (XPS) measurements were performed on heat-treated samples (Model PHI-5000, Ulvac-phi, Kanagawa, Japan).

Crystallization behavior of the EtOSZ-derived amorphous silicon oxynitride (Si–O–N) materials was observed by using a transmission electron microscope (TEM, Model 2010, JEOL, Tokyo, Japan, operating at 200 kV, camera length = 80 cm).

3. Results and Discussion

3.1. Chemical Structure of EtOSZ

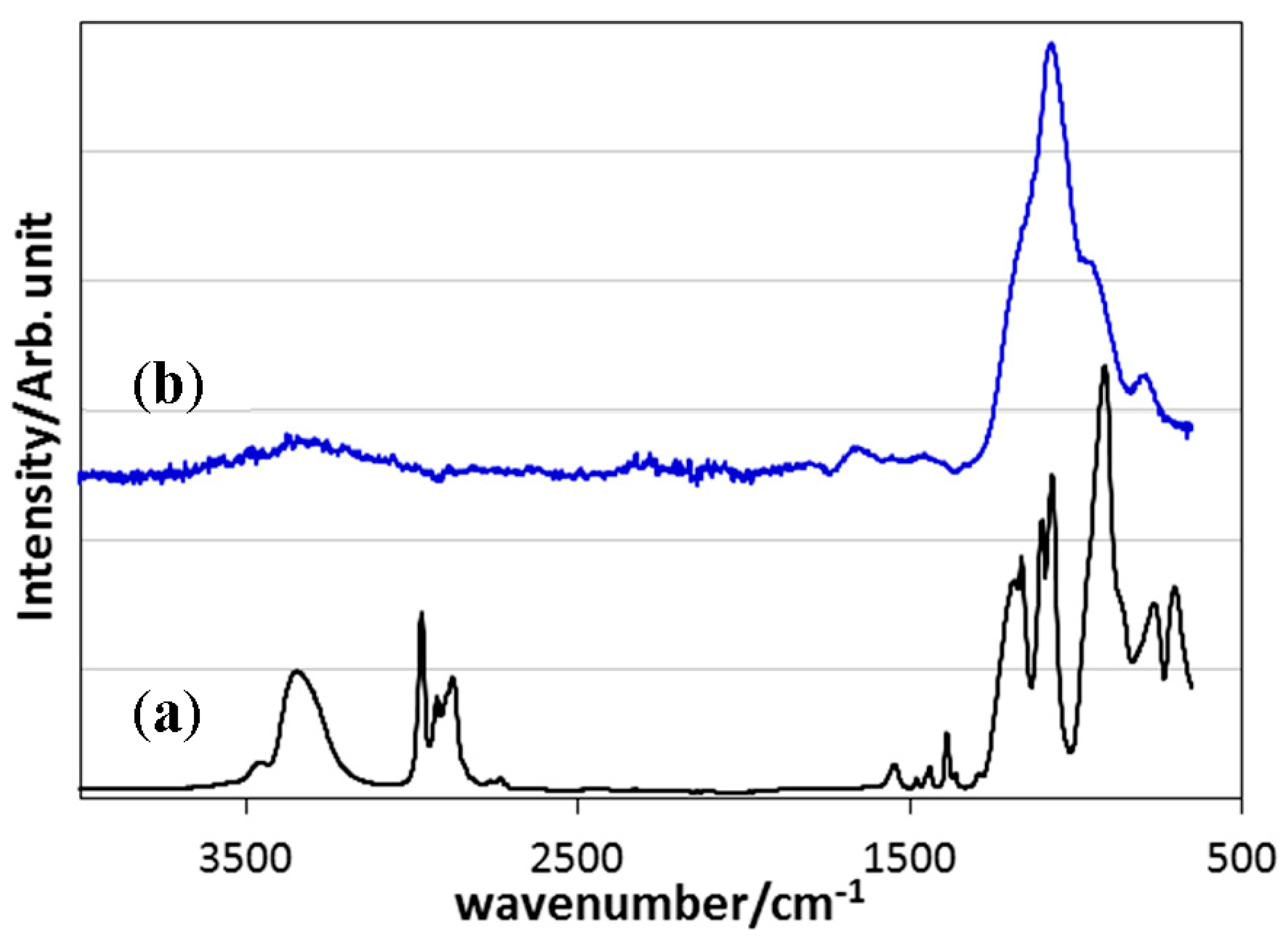

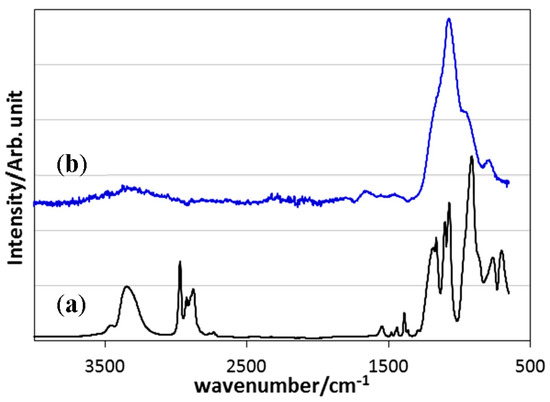

The chemical structure of the synthesized EtOSZ was initially studied by the ATR-IR spectroscopic analysis. As shown in Figure 1, the spectrum of the as-synthesized sample exhibited characteristic absorption bands at 3350 (broad), 2800–3000, and 1070 cm⁻¹, attributed to νN–H, νC–H, and δN–H that were involved in Si–NH–Si unit [26], respectively.

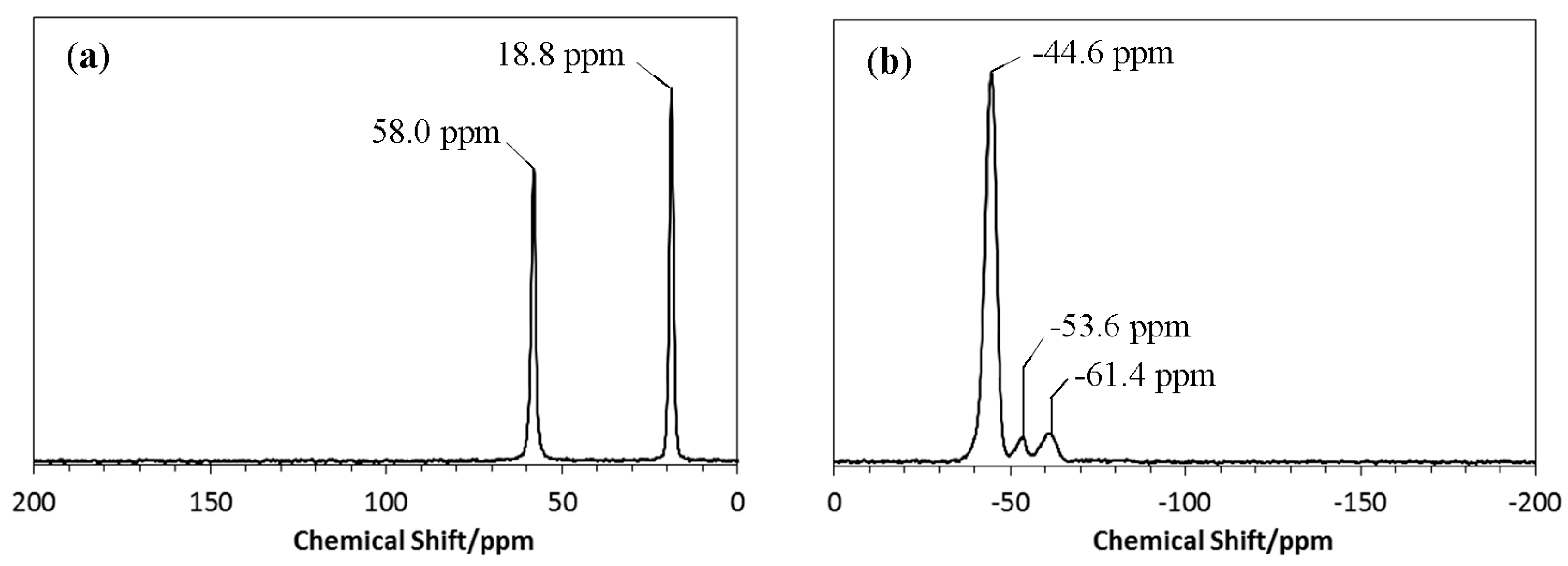

To identify the chemical structure of the EtOSZ in more details, ¹³C- and ²⁹Si-NMR spectroscopic analyses were performed in solid state. Results were shown in Figure 2. The ¹³C-NMR spectrum presented two sharp signals at 58.0 and 18.8 ppm, assigned to methylene (CH₂) unit, and terminate methyl (CH₃) unit in the ethoxy (OCH₂CH₃) group, respectively [27]. On the other hand, the corresponding ²⁹Si-NMR spectrum exhibited a strong single signal at −44.6 ppm that was assigned to SiO(NH)₃ unit of the reaction product, EtOSZ ([CH₃CH₂OSi(NH)_1.5]_n). The weak signals at −53.6 and −61.4 ppm were thought to be attributed to by-products that could not be removed by the distillation after the alkoxylation of SiCl₄ (Equation (1)). The signals at −53.6 and −61.4 ppm were assigned to (EtO)₂–Si–(NH)₂ (linear or cyclic) and (EtO)₃–Si–NH, respectively. As mentioned in the experimental section, the purity of the distilled EtOSiCl₃ was higher than 95%, and the total amount of these by-products was small.

These results supported that the two-steps reaction route that was investigated in this study is useful for the synthesis of EtOSZ.

3.2. Conversion to Inorganic Compound

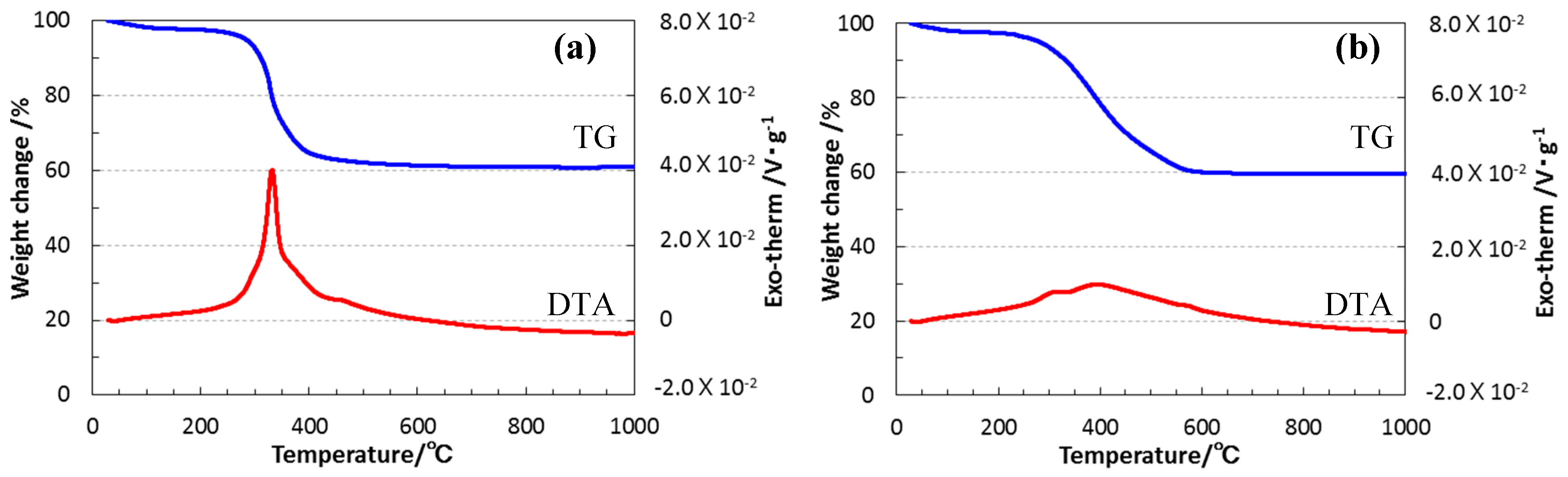

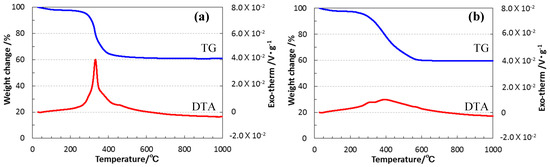

To study the thermal property of the EtOSZ that was synthesized in this study, the TG/DTA analyses both in air and in N₂ atmosphere were, respectively, performed. The results are shown in Figure 3.

In air (Figure 3a), the sample showed a slight weight loss of approximately 2.5% up to 200 °C, which could be due to the residual solvent. Then, a main weight loss was observed at around 300 to 600 °C, with a distinct exothermic peak that was centered at 321 °C, typical for the combustion of organic molecules. The final recovery rate (ceramic yield) at 1000 °C was 60%. This yield was assumed to be recognized as a result of the combustion of organic substituents and subsequent oxidation of Si atom in the EtOSZ to yield silica (Equation (3)), since the observed mass loss was consistent with the weight difference between the molecular unit of EtOSZ (CH₃CH₂OSi(NH)_1.5) and the molecular weight of silica (SiO₂).

CH₃CH₂OSi(NH)_1.5 + 7.75O₂ → SiO₂ + 2CO₂↑ + 1.5NO₂↑ + 3.25H₂O↑

(3)

Under flowing N₂ (Figure 3b), EtOSZ also showed a main weight loss at the same temperatures ranging from 300 to 600 °C, and the ceramic yield at 1000 °C was 58%, close to that achieved in air, while a weak and very broad exothermic peak appeared at 50 to 700 °C.

In the ATR-IR spectrum for the sample after pyrolysis at 800 °C in N₂ (Figure 1), the characteristic peaks due to the organic substituents disappeared and the spectrum was similar to that of silica composed of a weak and broad band at 3000–3700 cm⁻¹ and a strong band centered around 1010 cm⁻¹ assigned to intermolecular hydrogen-bonded Si–OH groups and ν_as Si–O in Si–O–Si linkage [27,28].

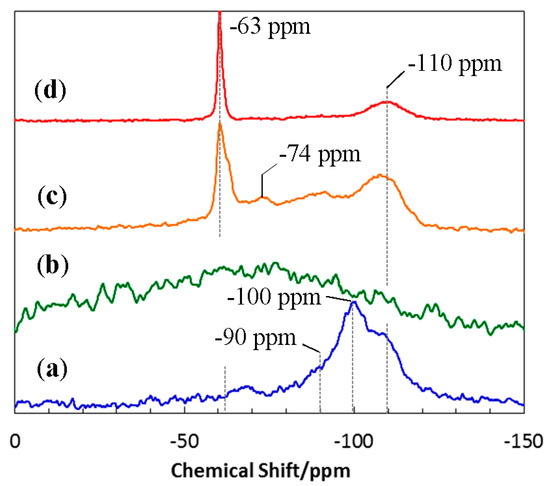

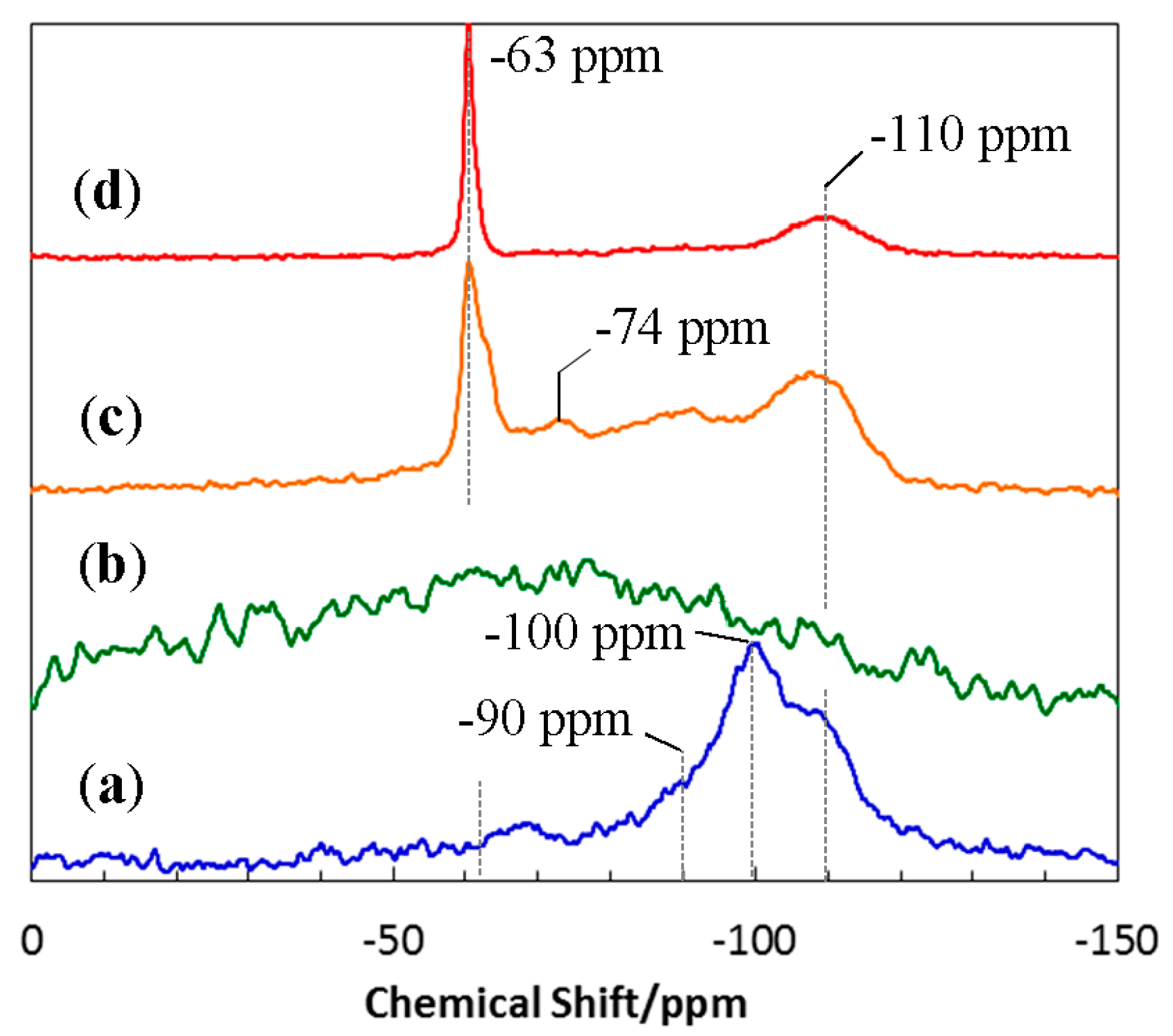

To study the chemical structure of the 800 °C-pyrolyzed EtOSZ in more detail, ²⁹Si-NMR spectroscopic analysis was performed. The result was shown in Figure 4.

One broad peak at around −100 ppm was deconvoluted to three broad peaks centered at −110, −100, and −90 ppm that were assigned to silicon tetrahedral units of SiO₄ [29], HO–SiO₃ (Q3) [30], and SiO₃N [31,32], respectively.

Chemical composition of the 800 °C-pyrolyzed EtOSZ was listed in

Table 1. Composition change of EtOSZ through 800 °C-pyrolysis and subsequent heat treatment up to 1800 °C in N₂.

Sample	Composition/wt %					Empirical Ratio
	Si	C	O	N	H
As-synthesized	29.3	25.1	16.8	22.0	6.80	Si1.0C2.0O1.0N1.5H6.5
800 °C-pyrolysed	51.3	1.10	32.4	13.5	1.69	Si1.0C0.05O1.1N0.5H0.9
1400 °C-heat treated	54.7	0.41	29.4	15.5	0.03	Si1.0C0.01O0.9N0.6H0.0
1600 °C-heat treated	55.1	0.30	31.8	12.8	0.01	Si1.0C0.01O1.0N0.5H0.0
1800 °C-heat treated	56.2	0.04	33.2	10.6	0.01	Si1.0C0.0O1.0N0.4H0.0

. As a reference data, the theoretical composition of the as-synthesized EtOSZ was also listed in this table.

In spite of the pyrolysis under inert atmosphere of N₂, the carbon content remarkably decreased from 25.1 to 1.1 wt %, and the resulting C/Si atomic ratio was 0.05. The N/Si atomic ratio also decreased from 1.5 to 0.5, while the O/Si atomic ratio was 1.1, and close to that of the ideal EtOSZ (1.0). Then, TG-MS analysis was performed on the as-synthesized EtOSZ under He atmosphere. The results were summarized and are shown in Figure 5.

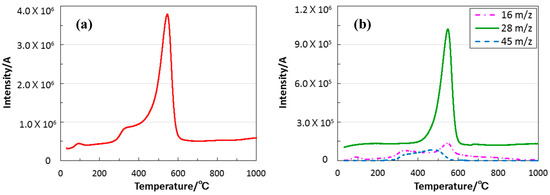

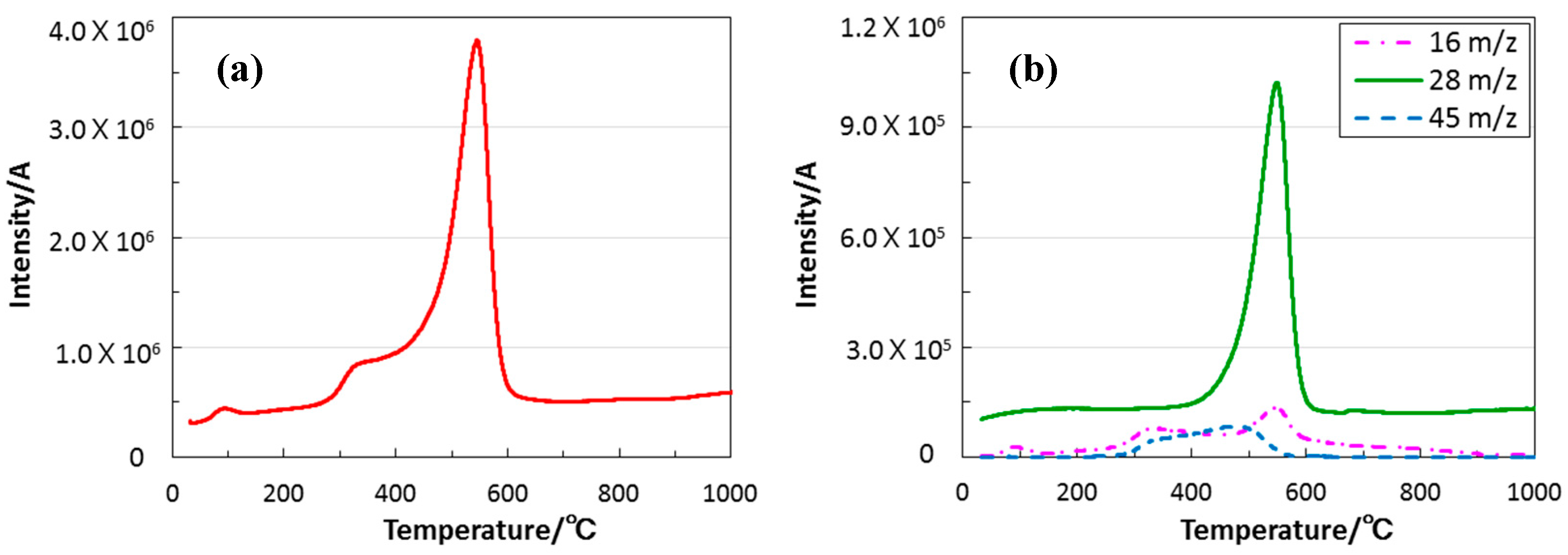

The TG-curve that was measured in He was quite similar to the previous one in N₂ (Figure 3b), and the gaseous species formed in-situ were mainly detected during the main weight loss at 300 to 600 °C. As-shown in Figure 5a, the total ion current chromatogram (TICC) spectrum showed a broad bimodal signal composed of a weak peak at 300 to 400 °C, and a dominant one at 400 to 600 °C. The simultaneous MS analysis resulted in the detection of three kinds of gaseous species at the m/z ratios of 45, 28, and 16 (Figure 5b).

The gaseous species, m/z ratios at 45 and 16 were assigned to SiNH₃⁺ and NH₂⁺, respectively. These fragment ions could be due to the partial decomposition of the silsesquiazane linkage, which leading to the lower nitrogen content observed for the 800 °C-pyrolysed sample. On the other hand, the m/z ratio at 28 could be assigned to ethylene (CH₂ = CH₂⁺), and it turned out that the dominant thermal decomposition reaction of the EtOSZ was the C-O bond cleavage of the ethoxy group to afford CH₂ = CH₂⁺ as the main hydrocarbon gaseous product (Equation (4)), which was leading to the remarkable decrease in carbon content:

–Si–O–CH₂–CH₃ → –SiO^●+ + CH₂ = CH₂⁺ + 1/2H₂

(4)

3.3. Crystallization Behavior of EtOSZ-Derived Amorphous Si-O-N in N₂

Polymer-derived ternary and quaternary amorphous Si–(M)–C–N (M = B, Ti, etc.) show a unique high-temperature stability in terms of restricting crystallization and subsequent phase partitioning under an inert atmosphere of N₂ or Ar [20,21]. On the other hand, very limited study has been done for the crystallization behavior of polymer-derived ternary Si–O–N or quaternary Si–O–C–N systems [22,24]. Therefore, high-temperature crystallization behavior above 1000 °C of the present EtOSZ-derived amorphous Si–O–C–N was further studied. To restrict Si–N bond cleavage, as mentioned in the experimental section, the additional heat treatment at 1200 to 1400 °C, and above 1400 °C, were performed under the N₂ atmospheres of 392 and 980 kPa, respectively. As shown in Figure 6, the total weight loss up to 1800 °C of the 800 °C-pyrolyzed sample was approximately 9%, and was found to be much lower than that during pyrolysis up to 800 °C (42 %, Figure 3b).

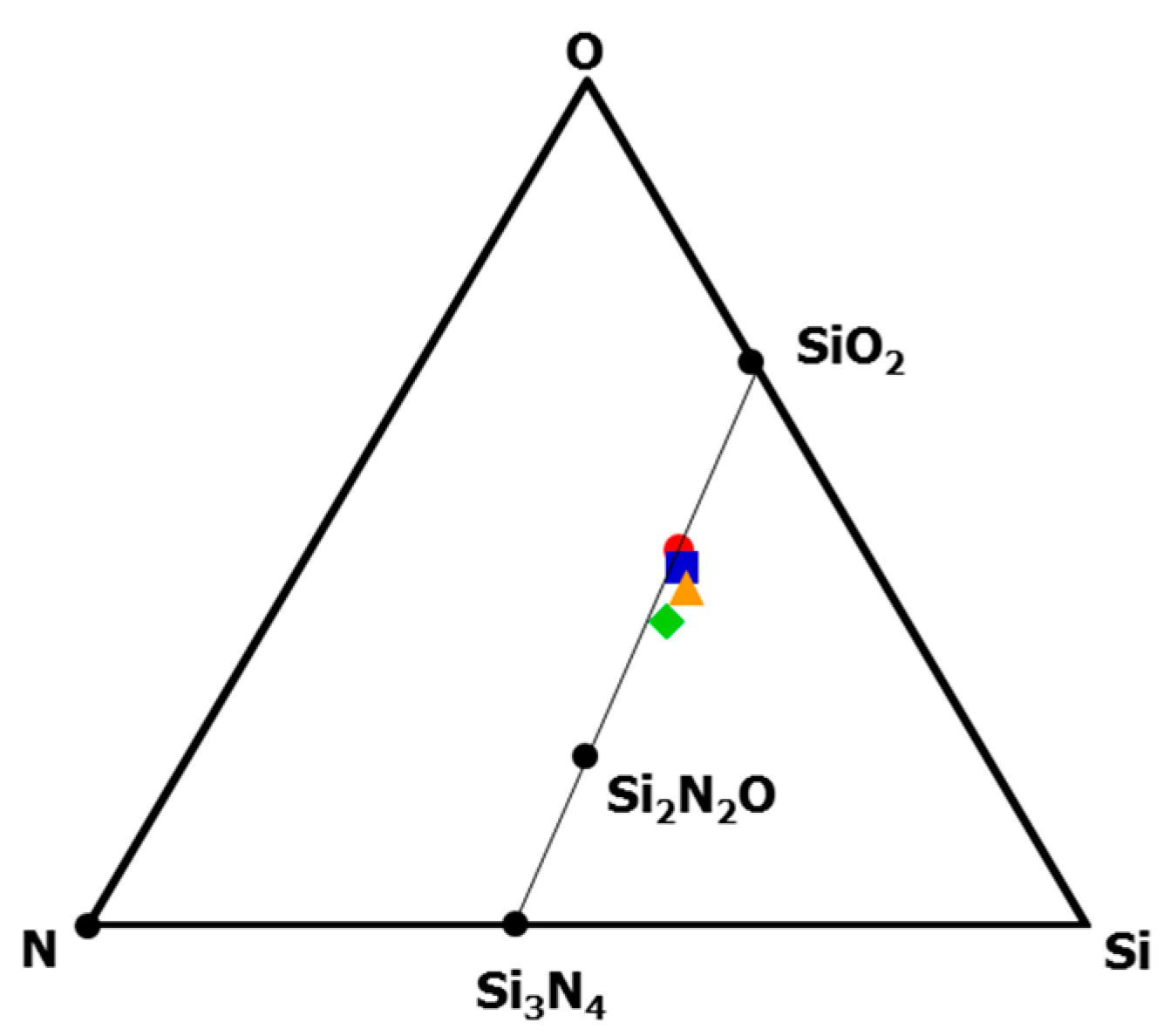

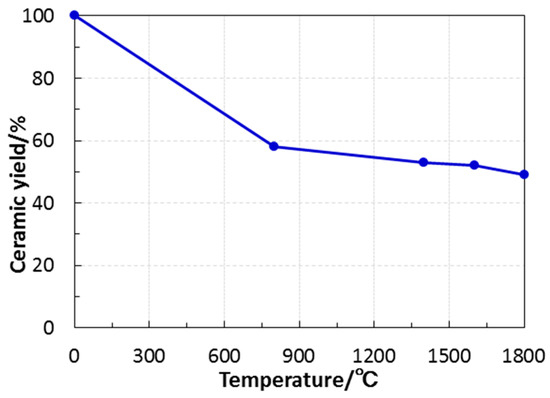

To study the composition change during the heat treatment up to 1800 °C, elemental analyses were performed on the heat-treated samples. The results were summarized in Table 1. Since the carbon and hydrogen contents in the heat-treated samples were negligibly small (below 0.5%), the compositions of the samples were also plotted in the ternary Si–O–N phase diagram (Figure 7). As a reference sample, 800 °C-pyrolyzed sample was also plotted in this diagram without counting the contents of carbon and hydrogen. Upon heating to 1400 °C, carbon in the EtOSZ-derived Si–O–C–N could be almost spent out to yield gaseous CO_x (x = 1, 2). The resulting composition of the 1400 °C-heated sample that was located close to the tie line between Si₂N₂O and SiO₂. Then, above 1400 °C, the position shifted toward SiO₂ along the Si₂N₂O-SiO₂ tie line due to the decreasing nitrogen content.

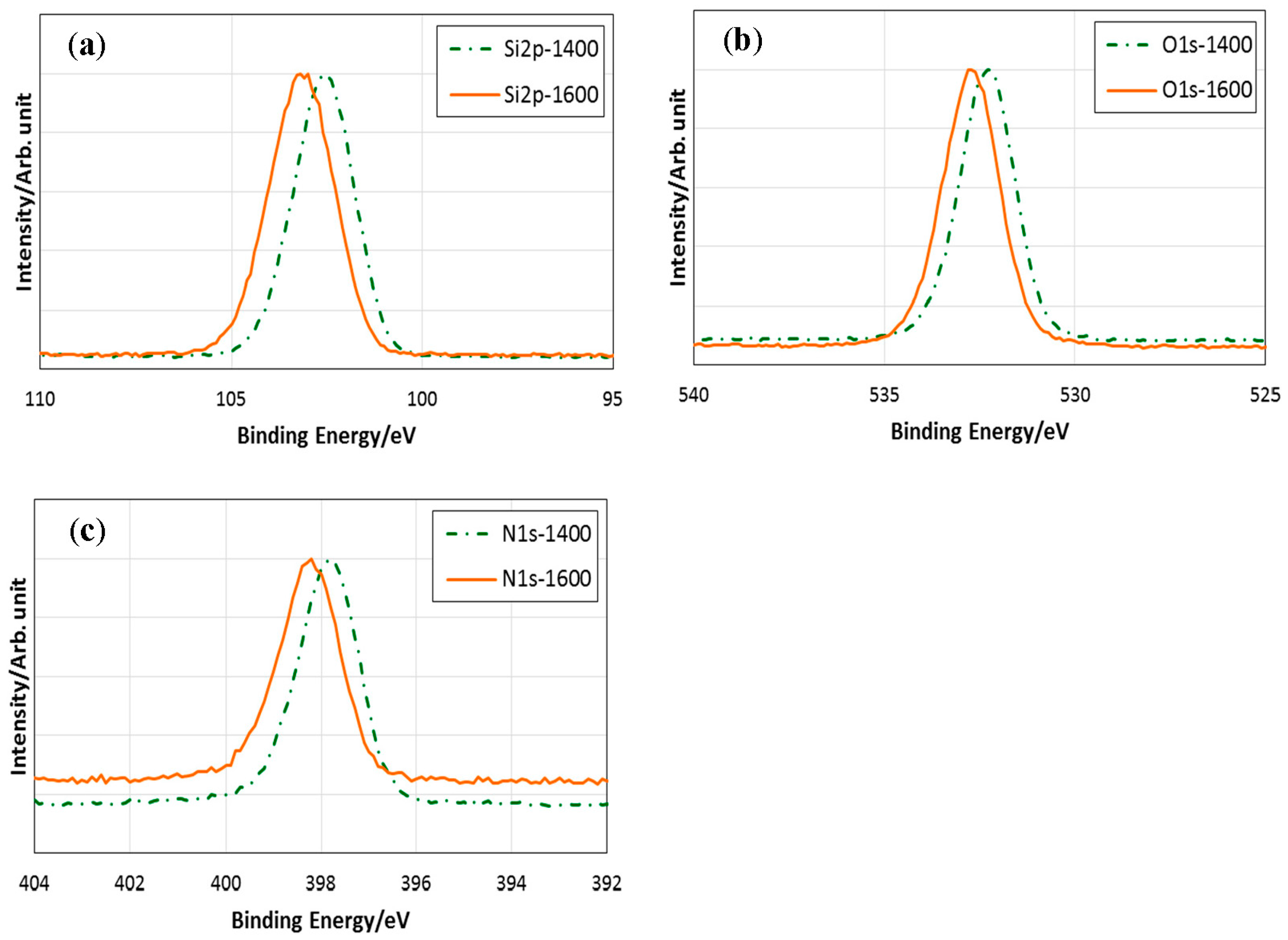

Figure 8 shows the results of XPS analysis for the heat-treated samples. The 1400 °C heat-treated sample had a Si2p binding energy of 102.6 eV, intermediate to SiO₂ (103.4 eV) and Si₃N₄ (101.7 eV) [33]. This value was closed to that reported for amorphous silicon oxynitride (102.4 eV) [34] and was consistent with the random bonding model for the partial replacement of oxygen in the SiO₄ tetrahedron by nitrogen, causing the lower binding energies of the Si2p binding energy [35].

After the heat treatment at 1600 °C, the Si2p binding energy was centered at 103 eV (Figure 8a). By the 1600 °C-heat treatment, the peak center of the N1s binding energy also shifted from 397.8 to 398.2 eV (Figure 8c). These peaks that shift behaviors toward higher binding energy were consistent with the decrease in nitrogen content (Table 1, Figure 7), as reported for the ternary amorphous silicon oxynitride (Si–O–N) by Weeren et al. [32]. The peak centers of the O1s binding energies for the 1400 °C- and 1600 °C-heated samples were 532.2 and 532.7 eV, respectively (Figure 8b). These values were also compatible with those reported for SiO₂ and amorphous silicon oxynitride having nitrogen content ranging from 0 to 47 at %.

These results indicate that the EtOSZ that was investigated in this study could be converted to a unique oxygen rich amorphous silicon oxynitride (Si–O–N) by pyrolysis at 800 °C, followed by heat treatment at 1400 °C in N₂.

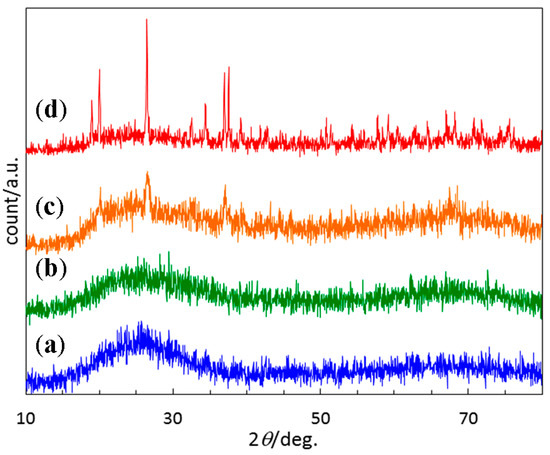

As shown in Figure 9, this material was found to keep X-ray amorphous up to 1400 °C. Then, after the 1600 °C-heat treatment, the sample began to show a diffraction pattern that was identical to crystalline Si₂N₂O (JCPDS 47-1627) [36], and the intensity of the Si₂N₂O diffraction peaks increased to some extent by the 1800 °C-heat treatment. Actually, as shown in Figure 10a, the 1400 °C-heated sample exhibited a futureless structure, which is typical for amorphous compounds. Then, after the 1600 °C-heat treatment, some crystallites of several ten nanometers in size were observed within the amorphous matrix (marked by arrows in Figure 10b). The inter planer spacing that was observed for the nanocrystallite formed in-situ was measured to be 0.336 nm, which was corresponding to (111) plane of orthorhombic Si₂N₂O [36] (Figure 10c), and the selected area electron diffraction (SAED) pattern that was obtained from the nanocrystallite could be also indexed as (110) orthorhombic Si₂N₂O [36] (Figure 10d).

To study the unique thermal stability up to 1400 °C of the EtOSZ-derived oxygen-rich amorphous Si–O–N, ²⁹Si-NMR spectroscopic analysis was performed on the heat-treated samples. The resulting spectra were shown in Figure 4. The 1400 °C-heated sample showed a broad line without peaks that were characteristic for the short-range ordering of tetrahedral Si coordination, such as SiO₄, HO–SiO₃, and SiO₃N. Then, after the 1600 °C-heating, the sample exhibited a relatively strong peak at −63 ppm that was attributed to SiON₃ unit [31,32], which composing crystalline Si₂N₂O along with three broad peaks at around −110, −90 and −74 ppm assigned to SiO₄, SiO₃N, and SiO₂N₂ [31,32], respectively. Finally, after the 1800 °C-heating, the spectrum tuned to be composed of a distinct peak of SiON₃ unit at −63 ppm and a broad peak centered at -110 ppm assigned to SiO₄ unit, which was indicating that the Si₂N₂O and SiO₂ two-phase partitioning was almost completed. The 800 °C-pyrolysis of EtOSZ resulted in the formation of an inorganic amorphous network that was mainly composed of SiO₄ and HO–SiO₃ units. Moreover, the subsequent heat treatment in N₂ lead to the structural rearrangement to afford random network prior to the formations of SiON₃ and SiO₂ units that are essential for the nucleation and crystallization of thermodynamically stable Si₂N₂O and SiO₂, respectively. As a result, the EtOSZ-derived oxygen rich Si–O–N could keep amorphous state up to 1400 °C in N₂.

4. Summary

In this study, a novel preceramic polymer, polyethoxysilsesquiazane (EtOSZ), was designed and synthesized for ternary Si–O–N ceramic system. Chemical structure and the thermal behavior up to 1600 °C in N₂ of the synthesized EtOSZ was investigated. The results can be summarized as follows:

(1)

ATR-IR, ¹³C- and ²⁹Si-NMR spectroscopic analyses revealed that the synthesized polymer was composed of EtOSi(NH)₃ unit, and polyethoxysilsesquiazane was successfully synthesized in a good yield via simple two-steps reaction, stoichiometric reaction of SiCl₄ with EtOH to afford EtOSiCl₃, followed by ammonolysis at −78 °C.

(2)

Under an inert atmosphere, thermal decomposition of EtOSZ mainly proceeded at around 200 to 600 °C, and the resulting ceramic yield after heating to 1000 °C was 58%.

(3)

The simultaneous TG-MS analyses for the thermal decomposition identified ethylene as a main gaseous species that was formed in-situ, and it was clarified that cleavage of oxygen-carbon bond of the EtO group in the EtOSZ contributed to the formation of the quaternary amorphous Si–O–C–N with extremely low carbon content (1.1 wt %) after pyrolysis at 800 °C in N₂.

(4)

Additional heat treatment up to 1400 °C of the 800 °C-pyrolyzed EtOSZ resulted in the further reduction of the carbon content to afford oxygen rich Si–O–N amorphous ceramics.

(5)

The EtOSZ-derived Si–O–N was found to keep an amorphous state up to 1400 °C in N₂, then Si₂N₂O crystallization started during heat treatment from 1400 to 1600 °C.

The enhanced thermal stability that was achieved for the EtOSZ-derived amorphous Si–O–N in this study could be due to the following structural changes in a short range order: Formation of amorphous network mainly composed of SiO₄ and HO–SiO₃ units at 800 °C, followed by structural rearrangement to afford random amorphous network at around 1400 °C prior to the formation of SiON₃ and SiO₄ units that are essential for the formation of Si₂N₂O nanocylstallites-dispersed amorphous SiO₂ composite.
