Spectroscopic, Electrochemical and DFT Studies of Phosphorescent Homoleptic Cyclometalated Iridium(III) Complexes Based on Substituted 4-Fluorophenylvinyl- and 4-Methoxyphenylvinylquinolines

by
Adewale O. Adeloye
1,*,
Malose J. Mphahlele
1,
Abolanle S. Adekunle
2,
Lydia Rhyman
3 and
Ponnadurai Ramasami
3
1
Department of Chemistry, College of Science, Engineering and Technology, University of South Africa, Private Bag X6, Florida 1710, South Africa
2
Department of Chemistry, Faculty of Science, Obafemi Awolowo University, Ile-Ife, Nigeria
3
Computational Chemistry Group, Department of Chemistry, Faculty of Science, University of Mauritius, Réduit 80837, Mauritius
*
Author to whom correspondence should be addressed.
Materials 2017, 10(10), 1061; https://doi.org/10.3390/ma10101061
Submission received: 14 August 2017 / Revised: 31 August 2017 / Accepted: 6 September 2017 / Published: 21 September 2017
(This article belongs to the Section Energy Materials)
Browse Figures
Versions Notes

Abstract

:
This study reports the synthesis and comparative investigation of the substituent effects of a new series of highly luminescent homoleptic tris-cyclometalated iridium(III) complexes of the type [Ir(N˄C)3]. These are based on two ligand type derivatives comprising of 4-fluorophenylvinylquinolines and 4-methoxyphenylvinylquinolines with electron-donating and/or electron-withdrawing groups as aryl substituents at 2-position. The structures of the ligands and their complexes were characterized by means of FT-IR, UV-Vis and NMR spectrometry complemented with photoluminescence and cyclic voltammetry. The photophysical properties of 2-aryl-4-(4-fluorophenylvinyl)quinoline and its corresponding complex were also studied using the density functional theory method. The photoluminescent properties of the ligands and the corresponding complexes showed high fluorescent intensities and quantum yields in solvents of different polarities. The photoluminescence spectra of the complexes in solid film, showed common transmission curves at longer wavelengths maximum (λem = 697 nm) possibly originating from the interference of scattered light of higher-order transmission of monochromators.

Graphical Abstract

1. Introduction

In the past few years, luminescent cyclometalated iridium(III) complexes have continued to attract significant attention. The studies involving the photophysical and electrochemical properties of iridium coordination and organometallic complexes have gathered much interest. The reasons for such an interest are due to their strong metal-ligand bonding interactions as well as their ability to emit light from both singlet and triplet excitons leading to high chemical photostability, which allows continuous exposure of the complexes to irradiation, long emission lifetimes, and large Stokes’ shifts [1,2,3,4,5,6,7,8,9,10,11,12,13]. The tuning of the second-order nonlinear optical (NLO) response of the unusual family of 3D chromophores of certain cyclometallated Ir(III) complexes with appropriate ligand substitution has allowed contribution to their interesting luminescent properties [14]. A correlated investigation of the photoluminescent and electroluminescent properties at different bias voltages of iridium(III) ionic transition metals complexes (Ir-iTMC), for example, has been shown to be dependent on the applied electric field. Increased bias voltage leads to Electroluminescent (EL) spectrum dominated by red-shifted components that are related to the morphological rearrangement of the materials due to enhanced local electric field. The overall effect is the contribution to degradation and changes in the spectral behavior of the electroluminescent and photoluminescent decay times [14,15,16,17,18]. The development of pure-blue-to-deep-blue-emitting ionic phosphors is an ultimate challenge for full-colour displays and white-light sources in the field of optoelectronics. However, it has been reported that the control of the frontier orbital energy level (HOMO-LUMO, Highest Occupied Molecular Orbital-Lowest Unoccupied Molecular Orbital) is the sole method to achieve better blue phosphorescent iridium complexes by appropriate ligand selection and the introduction of adequate substituents [19].
Based on the synthesis of cyclometalated Ir(ppy)3 (where ppy represents 2-phenylpyridine), which has been extensively investigated as a green material for Organic Light Emitting Diodes (OLEDs), a strong emission originates from the triplet excited states having both the π→π* and metal-to-ligand-charge-transfer (MLCT) characteristics. Several methods have been employed in order to tune the emission to the red region of the spectrum. The elongation of conjugative bonds in molecules, replacement of one CH– group at the pyridyl ring of phenylpyridine ligand by nitrogen, doping of cyclometalated iridium complexes into a host thus given control of the intermolecular interaction, introduction of dendrimers due to their three-dimensional hyper branched structural types into the molecular structures and the addition of either electron-donating or electron-withdrawing functional groups to the pyridyl ring and the phenyl ring, respectively, were among the methods used for wavelength enhancement [20,21,22,23,24,25,26,27,28].
In this paper, we report the synthesis, characterization and comparative studies of eight novel highly luminescent 4-fluorophenylvinylquinolines (2a–d) and 4-methoxyphenylvinylquinolines (3a–d) ligands containing both electron donating and withdrawing groups particularly as aryl-substituents at 2-position of the quinoline scaffold and their corresponding homoleptic cyclometalated iridium(III) complexes of the type [Ir(N∧C)3]. The molecular rearrangement of the different substituents on quinoline ligands reflects the general changes in the photophysical and electrochemical properties of the compounds. We complemented this study using the density functional theory (DFT) method on one of the ligands, namely 2-aryl-4-(4-fluorophenylvinyl)quinoline and its corresponding complex.

2. Results

2.1. Synthesis

The synthesis of the reported compounds first involves the use of the 2-aryl-4-chloroquinolines (1a–d) as substrates for palladium-catalyzed Suzuki cross-coupling with 4-(fluorophenylvinyl)boronic acid and 4-(methoxyphenylvinyl)boronic acid (1.2 equiv.) as coupling partners in the presence of Pd(PPh3)4–PCy3 catalyst complex as Pd(0) source and potassium carbonate as a base in 3:1 dioxane-water mixture (v/v) under reflux (Scheme 1) [29]. The prepared 2-aryl-4-(4-fluorophenylvinyl)quinolines (2a–d) and 2-aryl-4-(4-methoxyphenylvinyl)quinolines (3a–d) were used in this investigation as models for comparative studies in the electronic absorption and emission properties, and a further electrochemical studies for the corresponding homoleptic Ir(III) complexes of the type [Ir(N˄C)3], coded as 4a–d and 5a–d, respectively. The structure of the prepared complexes was characterized by means of 1H NMR spectroscopy and elemental (C/H/N) analysis. The coordinates for the optimised structures of the ligand 2a and the corresponding complex 4a in the gas phase are provided as Supplementary Materials (Tables S1 and S2, respectively). Table 1 summarizes the selected bond lengths (Ir–N and Ir–C) of the complex (4a). The literature values of these bond lengths of compounds with quinoline moiety are also included in the table, and it is observed that there is a good comparison.

2.2. Electronic Absorption and Luminescence Spectra of Ligands

2.2.1. Electronic Absorption of Ligands

As a prelude to compounds with potential photoelectronic properties, the absorption spectra of the ligands were investigated in solution at room temperature (RT). The electronic absorption of the compounds 2a–d and 3a–d measured in chloroform are shown in Figure 1 and Figure 2 and summarized in Table S3 (see Supplementary Materials). The strong absorption maxima wavelength bands in the region λabs = 261–297 nm in the ultraviolet region areas were assigned to the spin-allowed ligand-centered (1LC) π→π* transitions and the bands in the region λabs = 320–354 nm also assigned to the π→π* intramolecular charge transitions (ICT), which possibly originate from further conjugation made by the electron donor and electron acceptor species present in the cyclometalated ligands. The types and positions of the substituents were found to have strong effects on the molar extinction coefficients (ε) and wavelengths (λabs) of the compounds [31,32,33]. By comparison, ligands 2a and 3a with a phenyl substituent at position 2 of the quinoline framework showed no apparent change in the molar extinction coefficient, as the wavelengths almost close to each other. Clear distinctions of the molar extinction coefficient were, however, observed with the 2-aryl-4-(4-fluorostyryl)quinolines 2b–d and 2-aryl-4-(4-methoxystyryl)quinolines 3b–d substituted at the para-positon of the 2-aryl ring with a strong electron withdrawing halogen atom (F, Cl) and strong electron donating methoxy group. A red-shift in wavelength maxima was observed 2b (λabs = 278 nm) and 2d (λabs = 293 nm) substituted with 2-(4-fluorophenyl)- and 2-(4-methoxyphenyl)- group, respectively. On the other hand, a blue-shift in wavelength to λabs = 267 nm was observed for 2c substituted with a 2-(4-chlorophenyl) group. By comparison, in the red region of absorption, compounds 2a–c and 3a–c showed a corresponding steady increase in wavelength maxima at (λabs = 335, 337 and 328 nm) and (λabs = 340, 354 and 348 nm), respectively. No apparent change was observed in the wavelength maxima for 2d and 3d at (λabs = 338 nm). DFT computation in chloroform indicates that the most intense peak appears at λabs = 362 nm (experiment, λabs = 335 nm) with an oscillator strength of 0.595, and this is assigned to HOMO to LUMO transition. The HOMO-LUMO gap of ligand (2a) is 3.82 eV in chloroform. Similar patterns in the absorption wavelengths were observed in the analogues’ derivatives 3b, 3c and 3d at λmax = 354, 348 and 338 nm, respectively. However, significant changes in spectral pattern and reduced molar extinction coefficient generally characterized the ligands 3b, 3c and 3d than those of 2b, 2c, 2d with exception in 3c, which showed significant hyperchromic effect. It has been reported that an increase in the wavelength as observed for the 4-methoxyphenyl substituents plays a useful role in the energy gap determination between the highest occupied molecular orbital (HOMO) and the lowest unoccupied molecular orbital (LUMO) [28]. It is well known that consideration of the electronic effects has been shown to have a significant influence on orbital energies and the relative ease with which electron-withdrawing (e.g., –F, –CF3) and electron-donating (e.g., –(CH3)3, –OCH3) groups can be incorporated into the ligand structure. Accordingly, electron-withdrawing substituents tend to stabilize the HOMO by removing electron density from the metal, whereas donating groups have an inverse effect [34,35,36,37,38]. This relationship is complicated by the fact that electron withdrawing groups may also lower the energy of the LUMO (i.e., increasing the electron affinity of the parent ligand).

2.2.2. Photoluminescence Properties of Ligands

The emission properties of the ligands were investigated in three different solvents of varying polarities at excitation wavelengths in the region λex = 350–385 nm. Highly intense photoluminescence (PL) with a similar pattern characterized by single emission bands were observed for the ligands 2a–d and 3a–d in chloroform and methanol with λem values located in the regions 449–478 nm and 455–470 nm, respectively (Figure 3 and Figure 4). These values in dimethyl formamide solution are located in the region λem at 406–442 nm (see Figure 3b) for 2a–d and λem 389–454 nm for 3a–d (refer to Figure 4b). The effects of the position or type of substituents on quinoline framework were particularly observed in the 2-(4-halogenophenyl)-4-(4-fluorostyryl)quinolines 2b and 2d, and the analogous 2-(4-halogenophenyl)-4-(4-methoxystyryl)quinolines 3b and 3d. In chloroform or methanol solutions, 2b with a combination of 2-(4-fluorophenyl)- and 4-(4-fluorostyryl) moieties was found to exhibit lower emission value at λem = 454 and 439 nm, respectively. Compound 3d with a combination of the 2-(4-methoxyphenyl)- and 4-(4-methoxystyryl) groups was found to emit at λem = 455 and 470 nm. Likewise, a combination of 2-(4-methoxyphenyl)- and 4-(4-fluorostyryl) groups in 2b or 2-(4-fluorophenyl)- and 4-(4-methoxystyryl) groups in 3b resulted in the highest emission wavelength at λem = 478 and 482 nm or λem = 470 and 481 nm, respectively [26]. Interestingly, the nature and position of the substituents on the aromatic rings did not show any significant effect on the wavelength shifts between 2d and 3b in the polar protic methanol. Accordingly, the quinoline framework is expected to be made more electron-deficient as a result of the formation of strong solute–solvent interaction through intermolecular hydrogen bond with N-1 as expected from the strong protic methanol [28]. On the other hand, in the DMF solution, the effect of the electron-withdrawing groups increases the emission intensity steadily between the 4–FC6H4- and the 4–ClC6H4- group and the trend is as follows: 2c > 2b > 2a. However, this effect is of a lesser extent when compared to the electron-donating methoxy group in 2d with a bathochromic shift in emission wavelength (Figure 3b). On the other hand, the emission intensities of compounds 3a–d were significantly reduced and followed the trend 3a > 3b > 3c with a blue-shift in emission wavelength of about 53 nm in 3d compared to 2d (Figure 4b).

2.3. Electronic Absorption and Luminescence Spectra of Complexes

2.3.1. Electronic Absorption of Complexes

The electronic absorption spectra of the homoleptic Ir(III) cyclometalated complexes 4a–d and 5a–d obtained from ligands 2a–d and 3a–d and recorded at room temperature in methanolic solution are shown in Figure 5 and Figure 6, respectively, and the corresponding data is summarized in Table S4 in the Supplementary Materials. All of the complexes showed intense spin-allowed intraligand (1IL) absorption bands at the higher energy region λmax = 261–300 nm (ε on the order of 104 dm3 mol−1 cm−1), which are attributed to the π→π* transitions and the intramolecular charge transfer transitions due to derivatized quinoline framework. The less intense low-lying absorption bands were in the range λmax 335–397 nm for Ir(III)-(4a–d) and λmax 348–384 nm for Ir(III)-(5a–d) complexes. These bands are attributed to the spin-allowed metal-to-ligand charge transfer (1MLCT) (dπ(Ir)→π*(N˄C) transitions, although assumed to be possibly mixed to a certain extent, with ligand-centered π→π* transitions to form metal-to-ligand-ligand charge transfer (MLLCT) [39]. On the other hand, the spin-forbidden metal-to-ligand charge transfer band (3MLCT) transitions appear as weak shoulder bands at lower energy absorption in the λmax region 450–500 nm, which may be attributed to (dπ(Ir)→π*(N˄C) transitions [40]. The most intense peak of complex (4a) in methanol is observed at λmax = 378 nm or 3.28 eV with an oscillator strength of 0.7374, and this is assigned mostly to HOMO-4 to LUMO transition. The HOMO-LUMO gap is 2.99 eV, and this gap is in agreement with analogous iridium complexes reported in the literature [41].
As observed in Figure 5, the introduction of 4-(4-fluorophenylvinyl) group on the quinoline framework and the presence of a 2-(4-halogenophenyl) ring lead to increased molar extinction coefficients at the higher energy region of the spectra as compared to those for 2-phenyl- and 2-(4-methoxyphenyl)substituted derivatives in the trend 4c > 4b > 4a > 4d. The absorption wavelength maxima for these complexes tend towards the lower energy region and the trend is reversed as follows: 4d > 4a > 4b > 4c. Complex 4c with a 2-(4-chlorophenyl) substituted 4-(4-fluorostyryl)quinoline framework does not exhibit appreciable MLCT absorption band in the wavelength region longer than λmax = 360 nm. Complexes 4a, 4b and 4d, on the other hand, have absorption extended to about λmax = 445 nm, which may be due to the forbidden 3MLCT transition of the complexes. It is well known in the literature that molecules with intramolecular donor–acceptor (DA) systems exhibit bathochromic shifts of both absorption and emission spectra [21]. A low 1MLCT absorption band was recorded for complex 4c, and the reason for this anomalous behavior is not clear to us at this stage. The characteristics of the absorption wavelengths were strongly influenced when the substituent on the 4-position of the quinoline scaffold is the 4-methoxyphenylvinyl functionality with variations in the para-position of the 2-aryl group incorporating the electron-donating or electron-withdrawing substituents as shown in Figure 6. The absorption spectra of complexes 5a–d when compared to those of 4a–d counterparts (see Figure 5) showed absorption wavelengths for 5b and 5c containing the 4-(halogenophenyl) rings at the 2-position. These two complexes maintained their higher molar extinction coefficient values at the higher energy levels as compared to other complexes containing the 2-phenyl or 2-(4-methoxyphenyl) substituted quinoline scaffolds with the following trend 5c > 5b > 5d > 5a. However, in a similar fashion, as the absorption bands tend towards the lower energy region of spectra, the molar extinction coefficients of the halogenophenyl group decrease steadily in the trend 5d > 5b > 5c > 5a. Clear and significant reduction in molar extinction coefficient was observed for 5a (ε = 0.27 × 104 M−1 cm−1) having only phenyl ring at the 2-position of the quinoline framework as compared to 5d with 4–OCH3 (ε = 0.61 × 104 M−1 cm−1). It has previously been established that an electron-donating group can influence the highest occupied molecular orbital (HOMO) and/or the lowest unoccupied molecular orbital (LUMO) level as well as 1MLCT state of the iridium(III) complex [32].

2.3.2. Photoluminescent Properties of Complexes

Photoluminescent properties of the complexes 4a–d and 5a–d were investigated both in methanolic solution as well as in the solid state at room temperature. Figure 7, Figure 8, Figure 9 and Figure 10 show the luminescence spectra of the Ir complexes and summary of data reported in Table S4 in the Supplementary Materials. All of these complexes emit intense phosphorescence bands with λem values ranging from 470 nm to 545 nm in solution, which corresponds to blue-green light [39,40,41]. In comparison to complexes containing 4-(4-fluorophenylvinyl)quinoline as the common substituent group as shown in Figure 7, complex 4b having 2-(4-fluorophenyl) group exhibits the highest emission wavelength at λem = 530 nm, followed by the 2-phenyl substituted complex 4a at λem = 499 nm. A further blue-shift in wavelengths was observed at λem = 489 nm or at λem = 470 nm for 4c or 4d bearing the 2-(4-chlorophenyl) or 2-(4-methoxyphenyl) group, respectively. As shown in Figure 8, no appreciable changes in wavelengths were observed for the 2-phenyl- 5a, 2-(4-flurophenyl) 5b and 2-(4-chlorophenyl) substituted derivative 5c. However, moderate red-shift in wavelength at λem = 545 nm was observed for 5d having strongly electron-donating 2-(4-methoxyphenyl) and 4-(4-methoxystyryl) groups on the quinolone framework. As previously accounted for in the ligands, it may be assumed possibly that strong solute–solvent interaction through intermolecular hydrogen bond with N-1 as expected from the strong protic methanol solvent effect plays a major role in the enhancement of luminescent properties of the strong electron-donating 4-methoxyphenyl and 4-methoxystyryl groups on the quinoline ring system for these complexes. A common interesting feature among the two series of complexes 4 and 5 is the observed lower emission intensity exhibited by the 2-(4-chlorophenyl)quinoline–based complexes 4c and 5c. The decrease in emission intensity may be due to the heavy atom effect of chlorine, which increases the probability of the intersystem crossing as the size of the molecule increases [42].

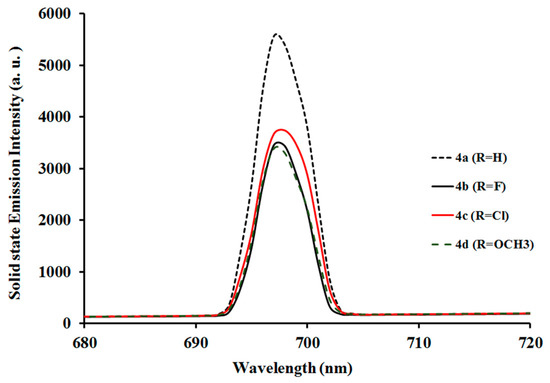

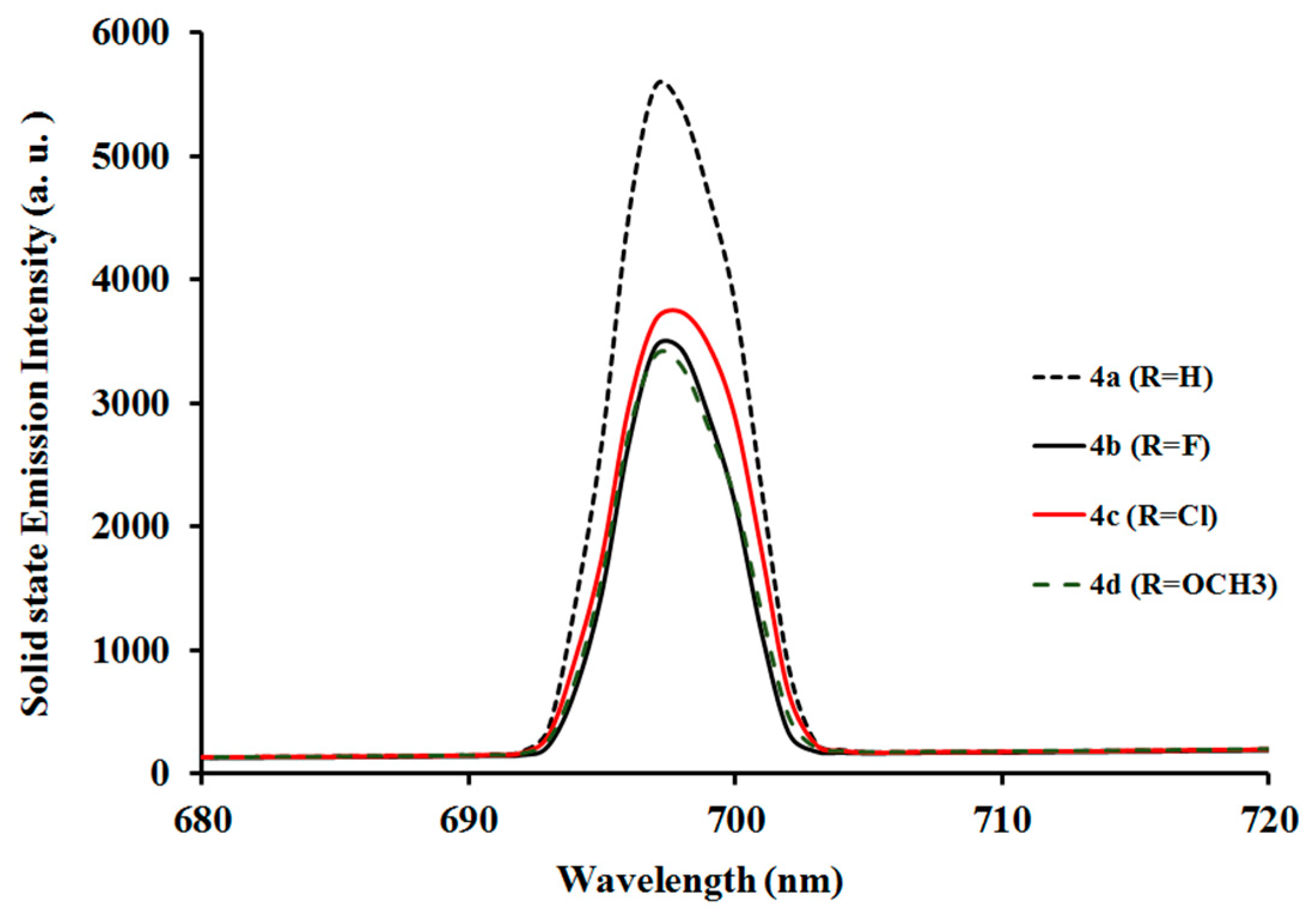

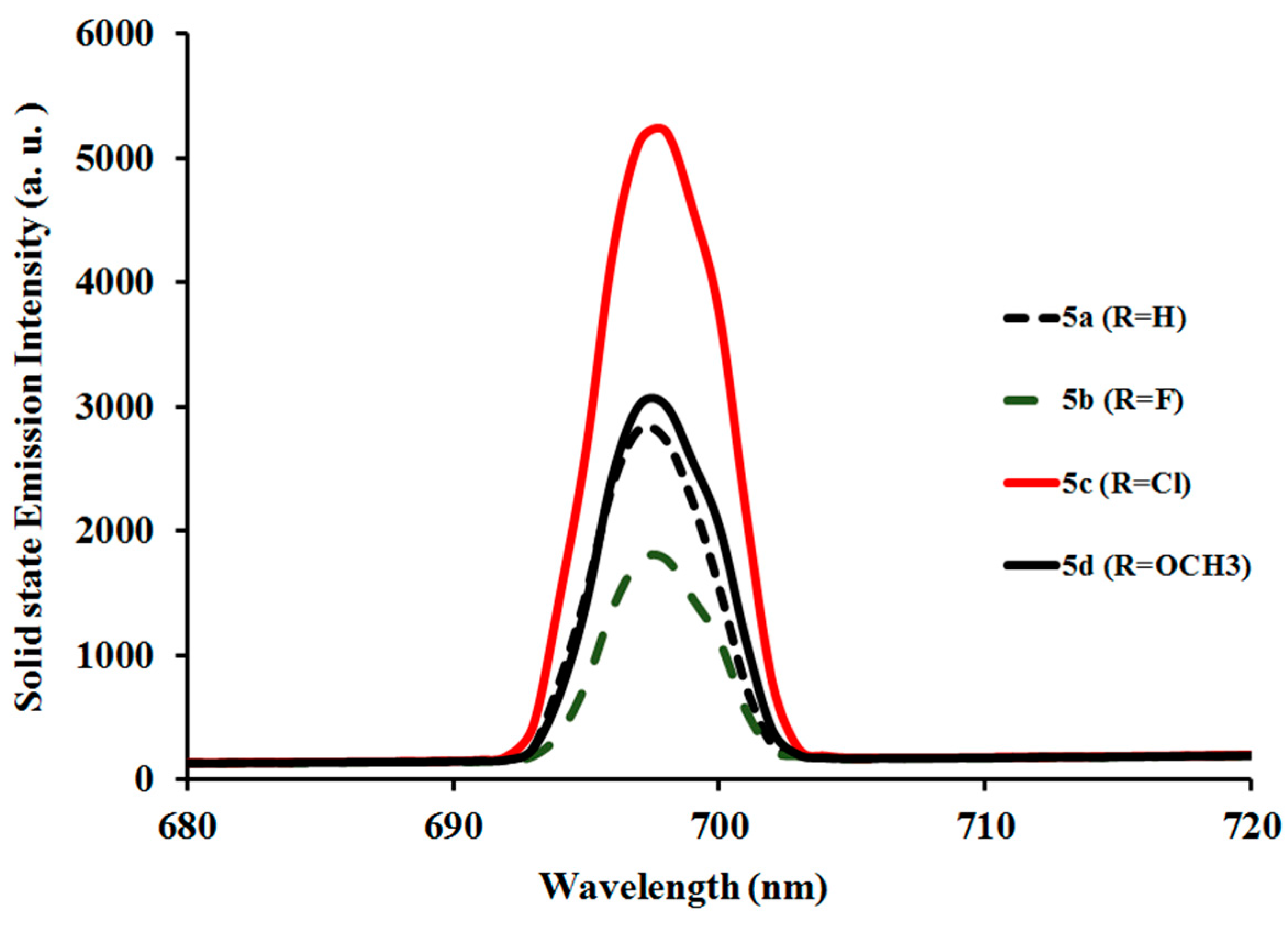

It is interesting to note that, under photoexcitation in the solid state, all of the Ir(III) complexes tuned the emission from the green to red light as shown (Figure 9 and Figure 10) compared to those in methanolic solution. All complexes emit at a common wavelength of λem = 697 nm with varied emission intensities. It has been reported that emission becomes more dominant in the solid state when more efficient energy transfer obtained from intermolecular energy transfer from the ligand to the complex are induced by shorter intermolecular distance in the solid state [41]. These emission profiles were envisioned to originate from the ligand-centred excited state, metal-centred excited state, and the MLCT excited state, since in the cyclometalated Ir complexes, the wave function of the excited triplet state, ΦT, responsible for phosphorescence is principally expressed to be:
ΦT = a × Φ(LC)T + b × Φ(MLCT)T,
where a and b are the normalized coefficients and Φ(LC)T and Φ(MLCT)T are the wave functions of the ligand-centred (3π–π*) and the MLCT excited triplet state, respectively. Accordingly, the above equation showed that the excited triplet states of the iridium complexes are a mixture of Φ(LC)T and Φ(MLCT)T, whereas, the triplet excited state is attributed to the dominantly 3π–π* excited state when a > b and the dominantly 3MLCT excited state when b > a [21,39,43,44,45,46,47,48,49]. The emission curves may be the product of transmission at longer wavelengths, which originated due to the interference from scattered light made possible through the higher-order transmission of monochromators. This would probably account for the observed reduction in emission intensities of the complexes 4a–d and 5a–d at higher excitation wavelengths 400 nm and 450 nm (not shown). The optical density of the samples due to sample preparation and concentration errors may also have contributed to the distortion of the emission spectra if the linear range of about 0.1 absorbance units is exceeded leading to intensity fluctuations as particles drift through the laser beam [50,51,52].
The phosphorescence spectra of the Ir complexes of 4a–d shown in Figure 9 reveal the highest emission intensity for 4a bearing a 2-phenyl ring. A slightly higher emission intensity was observed for the 2-(4-chlorophenyl)–substituted complex 4c as compared to the analogous 2-(4-fluorophenyl)–substituted complex 4b. The 2-(4-methoxyphenyl)–substituted complex 4d was found to exhibit the lowest emission intensity than the other derivatives. Figure 10 shows the solid state phosphorescence emission spectra of complexes 5a–d. The highest emission intensity was observed for complex 5c with a 2-(4-chlorophenyl) and 4-(4-methoxystyryl) groups around the quinoline core. Within this series, complex 5b with a 2-(4-fluorophenyl) group on the 4-methoxystyrylquinoline exhibits the lowest emission intensity than the other derivatives. Complexes 5a and 5d only showed moderate emission intensity. The presence of the 2-(4-fluorophenyl) substituent on the 4-(4-fluorostyryl)quinoline 4b or 4-(4-methoxystyryl)quinoline framework of 5b resulted in 50% reduction in emission intensity of these complexes. Although it has been reported that the characteristic red shift of the photoluminescent spectra in the solid state are thought to be related to the formation of intermolecular aggregation [41], these results demonstrate the influence of introducing electron-withdrawing groups on phenyl ring for the effective lowering of the HOMO energy level as electron releasing group raises the HOMO energy level in Ir(III) complexes for their phosphorescence properties.

2.4. Electrochemical Studies

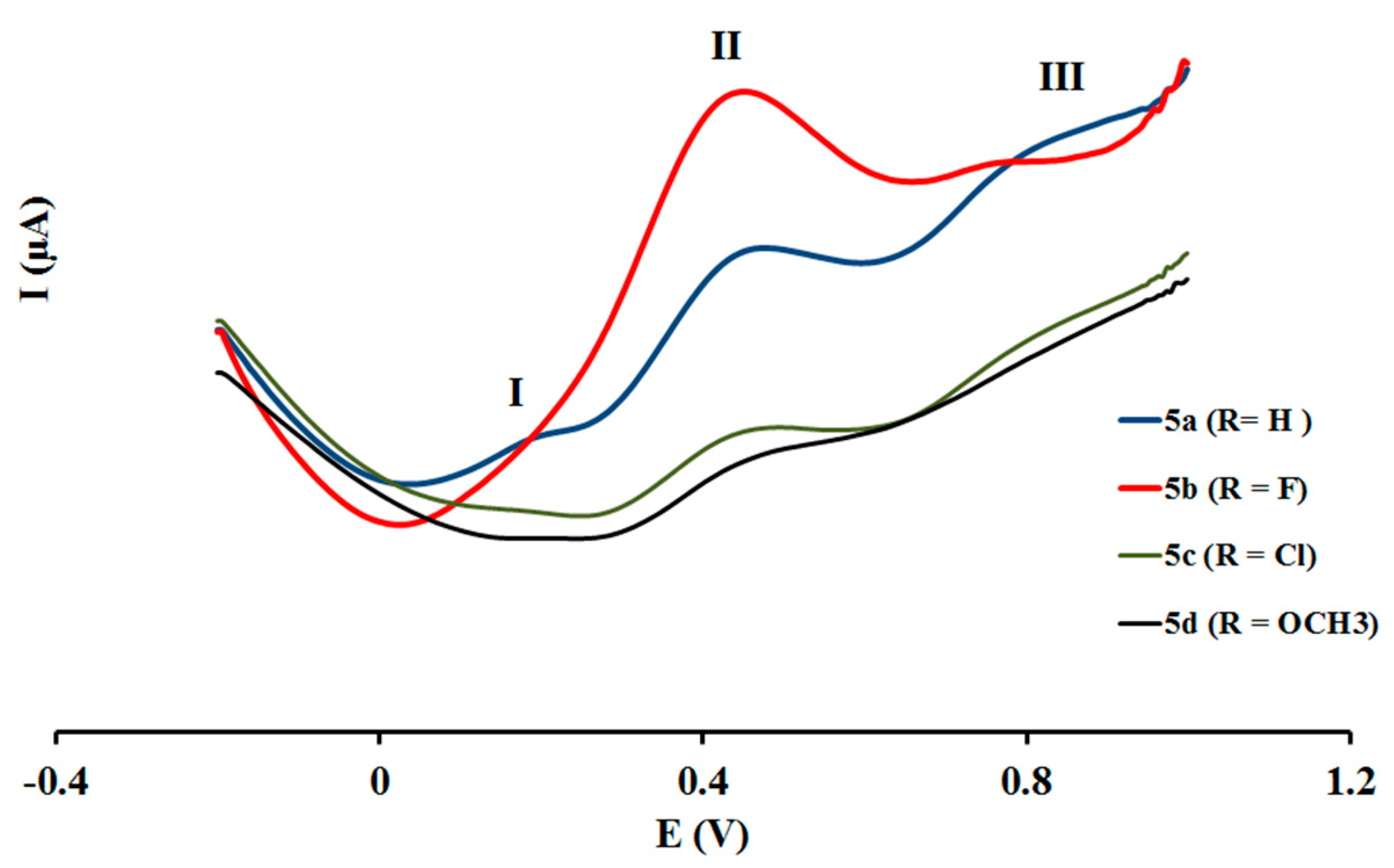

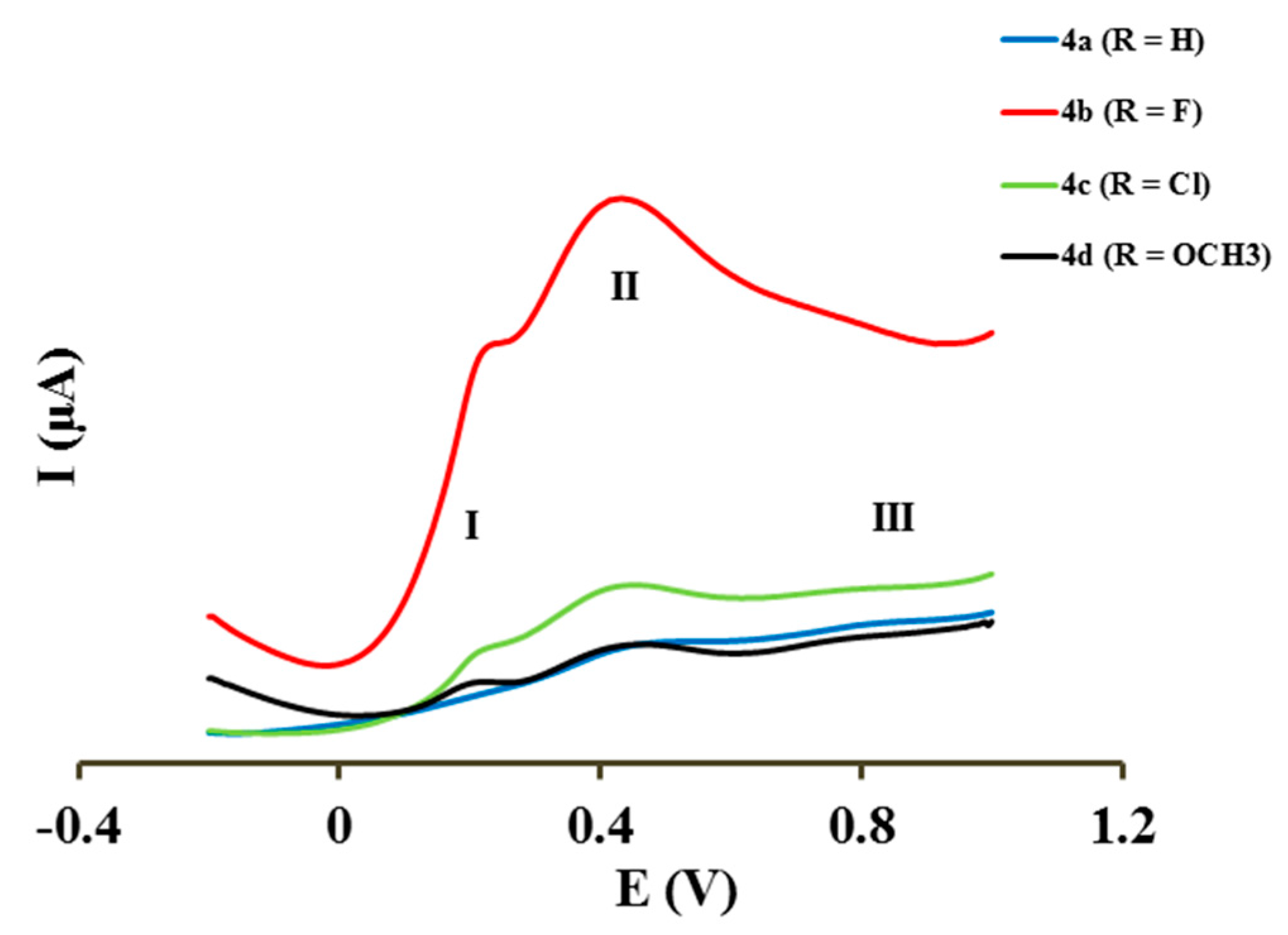

The electrochemical properties of the iridium metal complexes 4a–d and 5a–d in CHCl3 solution were investigated by cyclic voltammetry (refer to Figures S1 and S2 in the Supplementary Materials) and square-wave voltammetry (Figure 11 and Figure 12) using ferrocene/ferrocenium as the internal standard. All complexes show a similar profile with irreversible oxidation waves in the range 0.15–0.84 V and also undergo one electron reversible reduction profile (see Table S4 in the Supplementary Materials). The values of E1/2 at 50 to 60 mV s−1 scan rates are listed in Table S4 in the Supplementary Materials. Previous studies of iridium complexes assigned these oxidation peaks to both the metal-centered IrIII/IrIV oxidation process and the cyclometalated ligands [22,38,53,54,55]. The observed comparable oxidation potential values obtained for these complexes may be due to the same nature of the species involved in the process. In addition, upon switching on to cathodic sweep and electrode studied in the potential range +1.5 to −1.5 V and at a scan rate 50 mV s−1 (Table S4, Supplementary Materials), the voltammogram displays one reversible reduction peak with potentials range between −0.54 to −0.89 V, which were attributed to ligand-centered redox processes. Since all the complexes were differed only by nature of substituents and their positions either on the 2-phenyl- and/or 4-(4-phenylvinylene) rings, it is assumed that their HOMO and LUMO energy levels, and hence their redox potentials may be similar. Generally, compounds with electron withdrawing substituents were found to reduce more easily than those substituted with electron donating groups [56,57,58]. However, the reverse in reduction potentials was obtained for negative E1/2 values of the complexes 4b (at −0.64 V) with a combination of moderately resonance donating 4-fluorophenyl and 4-fluorostyryl groups and complex 5d (at −0.62 V) with only strongly electron-donating 4-methoxyphenyl and 4-methoxystyryl groups. This may possibly explain the contributory nature of the electron-donating group to reduction processes. Moreover, higher negative E1/2 values were obtained in complexes having a combination of an electron-donating and electron-withdrawing group on the same heterocyclic framework. Complex 4d with a combination of 2-(4-methoxyphenyl) and 4-(4-fluorostyryl) groups was reduced at −0.82 V, whereas 5c with a combination of 2-(4-chlorophenyl) and 4-(4-methoxystyryl) groups on the quinoline framework was reduced at −0.79 V. However, the reduction potentials in 4c and 5c at −0.54 V may further suggest that the electron acceptor performance of the ligand causes stabilization of the LUMO energy level of the complex [59]. In general, common trends observed in the electrochemistry are entirely closely related with those in the emission spectroscopy. It can reasonably, therefore, be confirmed that the oxidation potentials of these complexes primarily occur on the iridium metal centre, together with additional contributions from the cyclometalated quinoline framework. On the other hand, the reduction processes may be concentrated on the substituted styryl moiety of the quinoline chromophores.

3. Materials and Methods

All chemical and reagents were analytically pure and used without further purification. Melting points were recorded on a Thermocouple digital melting point apparatus (Mettler Toledo LLC, Columbus, OH, USA) and are uncorrected. Microanalyses (C, H, and N) were carried out with a Fisons elemental analyzer (Fisons Thermo Scientific, Waltham, MA, USA) and Infrared spectra were recorded as powders using a Bruker VERTEX 70 FT-IR Spectrometer (Bruker Optics, Billerica, MA, USA) with a diamond ATR (attenuated total reflectance) accessory by using the thin-film method. The UV-Vis spectra were recorded on a Cecil CE 9500 (9000 Series) UV-Vis spectrometer (Cecil Instruments Cambridge, UK) while emission spectra were taken using a Perkin Elmer LS 45 fluorescence spectrometer (PerkinElmer, Llantrisant, UK) and Shimadzu RF-6000 Spectrofluoro-photometer (Shimadzu Europa GmbH, Duisburg, Germany). Quinine sulphate/1.0 N H2SO4 was used as a reference assuming a quantum yield of 0.55 with 360 nm excitation to determine luminescence quantum yields of the studied compounds, which was denoted as (Φfx) with the following equation: Φfx = Φfx(FsAx/FxAs)(ns2/nx2), where the subscript x refers to the unknown sample and the subscript s to the standard, A is the absorbance at the excitation wavelength, F is the integrated emission across the band and n denotes the refractive index of the solvent [60]. For column chromatography, Merck Kieselgel 60 (0.063–0.200 mm) (Merck KGaA, Frankfurt, Germany) was used as stationary phase. NMR spectra were obtained as CDCl3 solutions using Varian Mercury 300 MHz NMR spectrometer (Varian Inc., Palo Alto, CA, USA) and the chemical shifts are quoted relative to the solvent peaks. Electrochemical experiment was performed using a PGSTAT 302 Autolab potentiostat (EcoChemie, Utrecht, The Netherlands) driven by the general purpose Electrochemical System data processing software (GPES, software version 4.9, Eco Chemie B.V, Kanaalweg, Utrecht, The Netherland). The electrochemical cell consists of a glassy carbon working electrode, platinum wire counter electrode and Ag/AgCl reference electrode. The oxidation and reduction measurements were recorded in a dichloromethane solution containing tetra(n-butyl)- ammonium tetrafluorophosphate as a supporting electrolyte at the scan rate of 50 mV s−1 under nitrogen conditions. Each oxidation potential was calibrated with the use of ferrocene/ferrocenium as a reference. The reported complexes were examined at a concentration of 10−3 M and supporting electrolyte at 10−1 M. The synthesis and analytical data of 1 have been described elsewhere [29].

3.1. Typical Procedure for the Suzuki–Miyaura Cross-Coupling of 1 with Arylboronic Acids

2-Aryl-4-chloroquinoline 1 (1 equiv.), 4-arylvinylboronic acid (1.2 equiv.), Pd(PPh3)4 (5% of 1), PCy3 (10% of 1) and K2CO3 (2.0 equiv.) in 4:1 dioxane-water (15 mL/mmol of 1) were added to a two-necked flask equipped with a stirrer bar, rubber septum and a condenser. The mixture was flushed for 20 min with argon gas and a balloon filled with argon gas was connected to the top of the condenser. The mixture was heated with stirring at 80–90 °C under argon atmosphere for 3 h and then allowed to cool to room temperature. The cooled mixture was poured into ice-cold water and the product was taken-up into chloroform. The combined organic extracts were washed with brine, dried over anhydrous MgSO4, filtered and then evaporated under reduced pressure. The residue was purified by column chromatography to afford 2. The following products were prepared in this fashion:
4-(4-Fluorophenyvinyl)-2-phenylquinoline (2a). A mixture of 1a (0.30 g, 1.25 mmol), 4-fluorophenyl vinylboronic acid (0.27 g, 1.63 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.04 g, 0.13 mmol) and K2CO3 (0.35 g, 2.51 mmol) in aqueous dioxane (15 mL) afforded 2a as a yellow solid (0.16 g, 42%), mp. 128–130 °C; Rf (chloroform) 0.52; νmax (ATR) 481, 505, 672, 685, 754, 1228, 1508, 1578, 3056 cm−1; δH (CDCl3) 7.12 (t, 2H), 7.29 (d, J = 16.8 Hz, 1H), 7.48–7.59 (m, 6H), 7.70 (d, J = 16.8 Hz, 1H), 7.73 (d, J = 15 Hz, 1H), 7.99 (s, 1H), 8.13 (d, J = 7.5, 1H), 8.21 (d, J = 7.5 Hz, 3H); δC (75 MHz, CDCl3) 114.9, 115.8 (d, 2JCF = 21.6 Hz), 123.0 (d, 4JCF = 2.3 Hz), 123.1, 125.3, 126.2, 127.5, 128.6 (d, 3JCF = 8.3 Hz), 128.8, 129.2, 129.5, 130.3, 132.7 (d, 4JCF = 3.4 Hz), 133.5, 139.7, 143.3, 148.7, 157.1, 162.9 (d, 1JCF = 247.4 Hz); Anal. Calcd. for C23H16NF: C, 84.89; H, 4.96; N, 4.31. Found: C, 84.94; H, 4.92; N, 4.38.
2-(4-Fluorophenyl)-4-(4-fluorophenyvinyl)quinoline (2b). A mixture of 1b (0.30 g, 1.16 mmol), 4-fluorophenylvinylboronic acid (0.25 g, 1.51 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.03 g, 0.12 mmol) and K2CO3 (0.32 g, 2.32 mmol) in aqueous dioxane (15 mL) afforded 2b as a yellow solid (0.15 g, 38%), mp. 125–126 °C; Rf (chloroform) 0.72; νmax (ATR) 481, 505, 629, 754, 837, 956, 1155, 1225, 1424, 1501, 1579, 3055, 2922 cm−1; δH (CDCl3): 7.13–7.22 (m, 4H), 7.34 (d, J = 15.3 Hz, 1H), 7.54–7.64 (m, 3H), 7.74 (d, J = 16.8 Hz, 1H), 7.76 (d, J = 16.8 Hz, 1H), 7.98 (s, 1H), 8.16–8.22 (m, 4H); δC (75 MHz, CDCl3) 114.7, 115.6, 115.7 (d, 2JCF = 21.3 Hz), 115.8, 116.1, 118.4, 123.1 (d, 4JCF = 2.6 Hz), 123.3, 124.5, 125.3, 126.3, 128.8 (d, 3JCF = 8.0 Hz), 129.4 (d, 3JCF = 8.6 Hz), 129.7, 130.3, 132.7, 132.8, 133.8, 135.9, 143.6, 148.7, 156.1, 161.7 (d, 1JCF = 59.2 Hz), 165.0 (d, 1JCF = 58.6 Hz); Anal. Calcd. for C23H15NF2: C, 80.44; H, 4.41; N, 4.08. Found: C, 80.70; H, 4.78; N, 4.25.
2-(4-Chlorophenyl)-4-(4-fluorophenyvinyl)quinoline (2c). A mixture of 1c (0.09 g, 0.35 mmol), 4-fluorophenylvinylboronic acid (0.08 g, 0.46 mmol), Pd(PPh3)4 (0.02 g, 0.02 mmol), PCy3 (0.01 g, 0.04 mmol) and K2CO3 (0.09 g, 0.70 mmol) in aqueous dioxane (15 mL) afforded 2c as off-white solid (0.15 g, 48%), mp. 98–101°C; Rf (chloroform) 0.43; νmax (ATR) 459, 533, 689, 753, 826, 836, 1090, 1321, 1416, 1486, 1543, 1572, 1588, 2924 cm−1; δH (CDCl3) 7.01 (t, 1H), 7.36–7.41 (m, 1H), 7.49 (d, J = 9.0 Hz, 3H), 7.63 (t, 1H), 7.78 (t, 2H), 7.99 (s, 1H), 8.09 (d, J = 9.3 Hz, 3H), 8.15 (d, J = 7.5 Hz, 2H), 8.22 (d, J = 9.3 Hz, 1H); δC (75 MHz, CDCl3) 115.6 (d, 2JCF = 21.6 Hz), 118.7, 123.9, 125.3, 127.5, 127.8 (d, 3JCF = 7.7 Hz), 128.7, 129.1, 130.0, 130.8, 131.5, 133.4 (d, 4JCF = 3.4 Hz), 136.1, 136.9, 143.4, 148.9, 155.9, 162.3 (d, 1JCF = 245.9 Hz); Anal. Calcd. for C23H15NFCl: C, 76.86; H, 4.21; N, 3.90. Found: C, 76.42; H, 4.54; N, 3.55.
4-(4-Fluorophenyvinyl)-2-(4-methoxyphenyl)quinoline (2d). A mixture of 1d (0.30 g, 1.11 mmol), 4-fluorophenylvinylboronic acid (0.24 g, 1.44 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.03 g, 0.11 mmol) and K2CO3 (0.31 g, 2.22 mmol) in aqueous dioxane (15 mL) afforded 2d as a brilliant yellow solid (0.19 g, 48%), mp. 125–128 °C; Rf (chloroform) 0.50; νmax (ATR) 481, 753, 838, 1091, 1173, 1229, 1416, 1486, 1503, 1543, 1586, 2927, 3045 cm−1; δH (CDCl3) 3.88 (s, 3H), 6.96 (m, 1H), 7.04–7.15 (m, 3H), 7.32 (d, J = 16.8 Hz, 1H), 7.52 (t, 1H), 7.58–7.62 (m, 2H), 7.71 (d, J = 15.3 Hz, 1H), 7.73 (d, J = 16.8 Hz, 1H), 7.97 (s, 1H), 8.12–8.18 (m, 3H); δC (75 MHz, CDCl3) 55.4, 114.2, 114.7, 115.9 (d, 2JCF = 21.6 Hz), 118.3, 123.2, 123.3 (d, 4JCF = 2.3 Hz), 124.4, 125.1, 125.9, 128.7 (d, 3JCF = 8.0 Hz), 128.8, 129.5, 129.7, 130.2, 130.7 (d, 3JCF = 8.0 Hz), 132.3, 132.8 (d, 4JCF = 3.4 Hz), 133.5, 143.3, 148.7, 156.7, 160.8, 162.9 (d, 1JCF = 247.4 Hz); Anal. Calcd. for C24H18NFO: C, 81.10; H, 5.11; N, 3.94. Found: C, 81.43; H, 5.39; N, 4.12.
4-(4-Methoxyphenyvinyl)-2-phenylquinoline (3a). A mixture of 1a (0.30 g, 1.25 mmol), 4-methoxyphenylvinylboronic acid (0.27 g, 1.50 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.04 g, 0.12 mmol) and K2CO3 (0.35 g, 2.51 mmol) in aqueous dioxane (15 mL) afforded 3a as a yellow oil (0.20 g, 67%); Rf (chloroform) 0.44; νmax (ATR) 515, 691, 754, 767, 1028, 1172, 1250, 1508, 1583, 1604, 2834, 2930 cm−1; δH (CDCl3) 3.86 (s, 3H), 6.97 (d, J = 9.0 Hz, 2H), 7.36 (d, J = 15.9 Hz, 1H), 7.49–7.61 (m, 6H), 7.71 (d, J = 15.3 Hz, 1H), 7.74 (d, J = 15.2 Hz, 1H), 8.04 (s, 1H), 8.18–8.23 (m, 4H); δC (75 MHz, CDCl3) 55.3, 113.7, 114.3, 114.7, 118.8, 120.9, 123.3, 123.7, 124.7, 125.4, 126.1, 126.2, 127.4, 127.5, 128.5, 128.7, 128.8, 129.2, 129.3, 129.4, 129.7, 130.1, 130.2, 130.4, 133.6, 134.5, 139.8, 143.9, 148.7, 157.1, 160.1; Anal. Calcd. for C24H19NO: C, 85.42; H, 5.68; N, 4.15. Found: C, 85.77; H, 5.85; N, 4.34.
2-(4-Fluorophenyl)-4-(4-methoxyphenylvinyl)quinoline (3b). A mixture of 1b (0.30 g, 1.16 mmol), 4-methoxyphenylvinylboronic acid (0.25 g, 1.39 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.03 g, 0.12 mmol) and K2CO3 (0.32 g, 2.32 mmol) in aqueous dioxane (15 mL) afforded 3b as a light yellow solid (0.09 g, 42%), mp. 95–98 °C; Rf (chloroform) 0.67; νmax (ATR) 755, 839, 964, 1156, 1172, 1250, 1416, 1486, 1503, 1544, 1582, 2958 cm−1; δH (CDCl3) 3.87 (s, 3H), 6.97 (d, J = 8.1 Hz, 2H), 7.22 (t, 3H), 7.36 (d, J = 15.9 Hz, 1H), 7.57 (m, 4H), 7.71 (d, J = 15.3 Hz, 1H), 7.99 (s, 1H), 8.15–8.21 (m, 3H); δC (75 MHz, CDCl3) 55.4, 113.7, 114.1, 114.3, 114.4, 115.6 (d, 4JCF = 5.1 Hz), 115.9 (d, 4JCF = 5.2 Hz), 118.5, 120.9, 123.5 (d, 2JCF = 22.8 Hz), 124.7, 126.2, 126.3, 128.5, 129.3, 129.4 (d, 3JCF = 8.0 Hz), 129.6, 129.8, 130.2, 130.1, 130.2, 130.4, 133.8, 134.6, 160.2 (d, 1JCF = 247.4 Hz); Anal. Calcd. for C24H18NOF: C, 81.10; H, 5.11; N, 3.94. Found: C, 81.40; H, 5.36; N, 4.16.
2-(4-Chlorophenyl)-4-(4-methoxyphenylvinyl)quinoline (3c). A mixture of 1c (0.25 g, 0.91 mmol), 4-methoxyphenylvinylboronic acid (0.20 g, 1.09 mmol), Pd(PPh3)4 (0.05 g, 0.05 mmol), PCy3 (0.03 g, 0.09 mmol) and K2CO3 (0.25 g, 1.82 mmol) in aqueous dioxane (15 mL) afforded 3c as a bright yellow solid (0.11 g, 41%), mp. 144–146 °C; Rf (chloroform) 0.70; νmax (ATR) 518, 529, 763, 822, 835, 966, 1027, 1172, 1253, 1509, 1582 cm−1; δH (CDCl3) 3.87 (s, 3H), 6.96 (d, J = 8.4 Hz, 2H), 7.35 (d, J = 15.9 Hz, 1H), 7.51 (d, J = 8.4 Hz, 2H), 7.58–7.70 (m, 4H), 7.70 (d, J = 16.4 Hz, 2H), 7.99 (s, 1H), 8.14–8.20 (m, 3H); δC (75 MHz, CDCl3) 55.4, 114.3, 120.8, 123.3, 125.4, 126.3, 127.4, 128.5, 128.8, 128.9, 129.3, 129.6, 130.3, 133.8, 134.6, 135.4, 138.3, 144.1, 148.7, 155.8, 160.2; Anal. Calcd. for C24H18NOCl: C, 77.61; H, 4.89; N, 3.77. Found: C, 78.02; H, 4.76; N, 3.58
2-(4-Methoxyphenyl)-4-(4-methoxyphenylvinyl)quinoline (3d). A mixture of 1d (0.30 g, 1.11 mmol), 4-methoxyphenylvinylboronic acid (0.24 g, 1.33 mmol), Pd(PPh3)4 (0.07 g, 0.06 mmol), PCy3 (0.03 g, 0.11 mmol) and K2CO3 (0.31 g, 2.22 mmol) in aqueous dioxane (15 mL) afforded 3d as a cream-white solid (0.19 g, 47%), mp. 75–78 °C; Rf (chloroform) 0.22; νmax (ATR) 533, 751, 823, 1026, 1171, 1250, 1326, 1491, 1574, 2922 cm−1; δH (CDCl3) 3.88 (s, 6H), 7.04 (d, J = 9.3 Hz, 3H), 7.58 (t, 2H), 7.75 (t, 2H), 7.92 (s, 1H), 8.11 (d, J = 7.8 Hz, 2H), 8.18 (t, 5H); δC (75 MHz, CDCl3) 55.4, 114.1, 114.3, 118.6, 123.9, 124.9, 126.8, 127.4, 127.5, 128.8, 129.8, 130.4, 131.0, 131.2, 142.9, 149.0, 156.8, 161.1; Anal. Calcd. for C25H21NO2: C, 81.71; H, 5.76; N, 3.81. Found: C, 82.05; H, 5.98; N, 3.89.

3.2. Synthetic Method and Characterization of Iridium(III) Complexes 4a–d and 5a–d

The reported cyclometalated Ir(III) complexes 4a–d) and 5a–d were synthesized by a slight modification to the method as previously reported in the literature [35]. In a 2-necked round bottomed flask, each of the ligand 2a–d or 3a–d (1 equiv.) was dissolved in 3:1 2-ethoxyethanol–water (v/v), and the mixture was purged with argon gas for 5 min, before iridium trichloride hydrate [IrCl3(H2O)3] (one-third equimolar ratio of ligand) was added and the mixture heated at 120 °C under argon atmosphere for 12 h. After reaction, the solution was allowed to cool to room temperature and then filtered. The filtrate was concentrated under vacuum to remove 2-ethoxyethanol, and the crude complex product was further purified by column chromatography in ethyl acetate-toluene (9:1) to obtain brown powder. The iridium complexes were characterized by 1H NMR and elemental analysis. The 1H NMR peaks of the complexes are very similar to those of the starting ligands due to chemical equivalence. The principal difference is the downfield shift due to the loss of one hydrogen atom and coordination of the N˄C-ligand to the iridium metal center.
Complex 4a: Brown solid (54 mg, 27%), 1H NMR (300 MHz, CDCl3): δ 6.91 (t), 7.02 (d, J = 7.5 Hz), 7.07 (d, J = 7.5 Hz), 7.12 (s), 7.19 (t), 7.28 (d, J = 7.8 Hz), 7.38 (d, J = 7.5 Hz), 7.44 (d, J = 6.0 Hz), 7.54–7.99 (m), 8.05 (d, J = 3.3 Hz), 8.28 (d, J = 7.8), 8.50 (d, J = 7.5 Hz). Anal. Calcd. for IrC69H45N3F3: C, 71.12; H, 3.89; N, 3.61. Found: C, 71.45; H, 3.96; N, 3.87.
Complex 4b: Brown solid (62 mg, 30%), 1H NMR (300 MHz, CDCl3): δ 6.98 (s), 7.11 (s), 7.14–7.23 (m), 7.44 (d, J = 15.3 Hz), 7.07 (d, J = 7.5 Hz), 7.12 (s), 7.19 (t), 7.28 (d, J = 7.8 Hz), 7.38 (d, J = 7.5 Hz), 7.44 (d, J = 6.0 Hz), 7.54–7.67 (m), 7.73 (s), 7.77–7.81 (m), 8.00 (s), 8.20 (d, J = 7.5 Hz), 8.40 (s, br). Anal. Calcd. for IrC69H42N3F6: C, 67.97; H, 3.47; N, 3.45. Found: C, 67.83; H, 3.56; N, 3.54.
Complex 4c: Pink solid. Yield: 25% (31 mg), 1H NMR (300 MHz, CDCl3): δ 6.61 (d, J = 12.3 Hz), 6.81 (d, J = 3.0 Hz), 6.86 (d, J = 3.0 Hz), 6.99–7.07 (m), 7.37–7.41 (m), 7.50 (d, J = 6.0 Hz), 7.64 (t), 7.80 (t), 7.94 (s), 8.11 (d, J = 7.8 Hz), 8.22 (t). Anal. Calcd. for IrC69H42N3F3Cl3: C, 65.32; H, 3.34; N, 3.31. Found: C, 65.53; H, 3.48; N, 3.47.
Complex 4d: Dark brown solid (30 mg, 28%), 1H NMR (300 MHz, CDCl3): δ 3.65 (s, OCH3), 6.80 (d, J = 7.8 Hz), 6.97 (d, J = 7.8 Hz), 7.09 (t), 7.17 (d, J = 7.8 Hz), 7.52–7.68 (m), 7.73–7.79 (m), 7.84 (d, J = 9.0 Hz), 7.96 (d, J = 7.5 Hz), 8.00 (s), 8.13 (d, J = 9.3 Hz), 8.24 (d, J = 9.3 Hz), 8.41 (br, s), 8.64 (s). Anal. Calcd. for IrC72H51N3F3O3: C, 72.16; H, 4.29; N, 3.51. Found: C, 72.42; H, 4.27; N, 3.66.
Complex 5a: Brown solid (74 mg, 53%), 1H NMR (300 MHz, CDCl3): δ 3.94 (s, OCH3), 7.16 (d, J = 9.3 Hz), 7.30 (t), 7.43 (t), 7.62 (d, J = 9.3 Hz), 7.71 (m), 7.87 (s), 7.93 (d, J = 9.3 Hz), 8.14 (d, J = 7.5 Hz), 8.34 (br, s). Anal. Calcd. for IrC72H54N3O3: C, 71.98; H, 4.53; N, 3.50. Found: C, 71.85; H, 4.33; N, 3.57.
Complex 5b: Brown solid (79 mg, 57%), 1H NMR (300 MHz, CDCl3): δ 3.74 (s, OCH3), 6.93 (d, J = 7.8 Hz), 7.60 (d, J = 3.0 Hz), 7.61 (d, J = 13.5 Hz), 7.67 (d, J = 7.5 Hz), 7.80 (s), 7.95 (d, J = 7.5 Hz), 8.02 (d, J = 7.5 Hz), 8.53 (br, s). Anal. Calcd. for IrC72H51N3F3O3: C, 68.88; H, 4.09; N, 3.35. Found: C, 68.62; H, 4.37; N, 3.53.
Complex 5c: Brown solid (74 mg, 42%), 1H NMR (300 MHz, CDCl3): δ 3.96 (s, OCH3), 7.14 (d, J = 8.7 Hz), 7.56 (d, J = 8.7 Hz), 7.52 (d, J = 8.7 Hz), 7.77–7.80 (br, s), 8.02 (d, J = 8.1 Hz), 8.16 (d, J = 8.4 Hz), 8.31 (d, J = 8.4 Hz). Anal. Calcd. for IrC72H51N3Cl3O3: C, 66.28; H, 3.94; N, 3.22. Found: C, 66.12; H, 3.80; N, 3.54.
Complex 5d: Dark brown solid (85 mg, 45%), 1H NMR (300 MHz, CDCl3): δ 3.68 (s, OCH3), 3.91 (s, OCH3), 6.88 (d, J = 7.8 Hz), 7.11 (d, J = 9.3 Hz), 7.56 (d, J = 7.5 Hz), 7.61 (s), 7.76 (s), 7.82 (t), 8.04 (t), 8.46 (d, J = 9.0 Hz). Anal. Calcd. for IrC75H60N3O6: C, 69.75; H, 4.68; N, 3.25. Found: C, 69.52; H, 4.87; N, 3.64.

3.3. DFT Computation

The ligand (2a) and its corresponding iridium(III) complex (4a) were optimised in the gas phase using the DFT method. The B3LYP functional was used in conjunction with the 6-31G(d,p) basis set for all atoms except for iridium, where the LANL2DZ ECP basis set was used. The ligand was also optimised in three solvents, namely methanol, chloroform and dimethyl formamide. The complex was optimised in methanol. Solvent computations were based on the PCM model [61,62]. Frequency computations were performed on all of the optimised structures to confirm the nature of the stationary points. All the structures were optimised as ground states without any imaginary frequency. To simulate the UV-Vis spectra, Time-dependent density functional theory (TDDFT) computations were performed for the ligand in chloroform and the complex in methanol. All computations were carried out using Gaussian 09 software running on Gridchem [63,64,65].

4. Conclusions

This study has shown that the electronic absorption, emission and electrochemical properties of the complexes originate from the ligands and the both electron-donating and electron-withdrawing groups on the quinoline framework play an important role in the determination of the optical properties, the quantum yields and the redox properties. It has been shown among the d6 metals, that the cyclometalated iridium(III) complexes represent the most promising high performance emitters due to their strong Ir-C bonds, which ensure good photo- and thermal stability, thermally accessible destabilization and non-emissive metal centred (MC) states. The molecular framework of the quinoline ligands used in this study is linked directly to the aryl ring or through a pi-conjugated bridge leading to low redox potentials and a greater tendency to undergo electron transfer reactions. It is quite interesting to observe the tunable photoluminescence from blue to green to red for the iridium(III) complexes on the basis of π→π* elongation of conjugation, electron-withdrawing or electron-donating substituent at the 4-position of the phenylvinylene moiety of the quinoline framework. The reported Ir(III) complexes may find use as potential emissive dopants, fluorescent marker, electron transport materials for OLEDs application, and drug discovery.

Supplementary Materials

The following are available online at www.mdpi.com/1996-1944/10/10/1061/s1, Figure S1: Cyclic voltammograms of [Ir(4a–d)3] showing the quasi-reversible oxidation potential against ferrocene/ferrocenium; Figure S2: Cyclic voltammograms of [Ir(4a–d)3] showing the reversible reduction potential against ferrocene/ferrocenium; Figure S3: Cyclic voltammograms of [Ir(5a-d)3] showing the quasi-reversible oxidation potential against ferrocene/ferrocenium; Figure S4: Cyclic voltammograms of [Ir(5a–d)3] showing the reversible reduction potential against ferrocene/ferrocenium; Table S1: Cartesian coordinates of ligand 2a in the gas phase; Table S2: Cartesian coordinates of complex 4a in the gas phase; Table S3: Summary of Physico-chemical properties of ligands (2a–d) and (3a–d) and complexes (4a–d) and (5a–d); Table S4: Summary of photophysical data of ligands (2a–d) and (3a–d); Table S5: Summary of photophysical and electrochemical data of [Ir(4a–d)3] and [Ir(5a–d)3].

Acknowledgments

The authors are grateful to the University of South Africa (UNISA) and the National Research Foundation (NRF) for financial support. A.O.A. thanks the University of South Africa for a postdoctoral research fellowship.

Author Contributions

A.O.A. and A.S.A. collaborated in the experimental work with M.J.M. as a postdoctoral mentor of A.O.A., L.R. and P.R. performed DFT studies and helped with the discussion of the corresponding data. All of the authors contributed to the compilation of the manuscript with A.O.A. as the lead author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Welter, S.; Brunner, K.; Hofstraat, J.W.; De Cola, L. Electroluminescent device with reversible switching between red and green emission. Nature 2003, 421, 54–57. [Google Scholar] [CrossRef] [PubMed]
  2. Yang, C.H.; Beltran, J.; Lemaur, V.; Cornil, J.; Hartmann, D.; Sarfert, W.; Frohlich, R.; Bizzarri, C.; De Cola, L. Iridium metal complexes containing N-heterocyclic carbene ligands for blue-light-emitting electrochemical cells. Inorg. Chem. 2010, 49, 9891–9901. [Google Scholar] [CrossRef] [PubMed]
  3. Slinker, J.D.; Gorodetsky, A.A.; Lowry, M.S.; Wang, J.J.; Parker, S.; Rohl, R.; Bernhard, S.; Malliarasa, G.G. Efficient yellow electroluminescence from a single layer of a cyclometalated iridium complex. J. Am. Chem. Soc. 2004, 126, 2763–2767. [Google Scholar] [CrossRef] [PubMed]
  4. Bolink, H.J.; Coronado, E.; Costa, R.D.; Lardies, N.; Orti, E. Near-quantitative internal quantum efficiency in a light-emitting electrochemical cell. Inorg. Chem. 2008, 47, 9149–9151. [Google Scholar] [CrossRef] [PubMed]
  5. Bolink, H.J.; Cappelli, L.; Coronado, E.; Gratzel, M.; Orti, E.; Costa, R.D.; Viruela, P.M.; Nazeeruddin, M.K. Stable single-layer light-emitting electrochemical cell using 4,7-Diphenyl-1,10-phenanthroline-bis(2-phenylpyridine)iridium(III) hexafluorophosphate. J. Am. Chem. Soc. 2006, 128, 14786–14787. [Google Scholar] [CrossRef] [PubMed]
  6. Su, H.-C.; Fang, F.-C.; Hwu, T.-Y.; Hsieh, H.-H.; Chen, H.-F.; Lee, G.-H.; Peng, S.-M.; Wong, K.-T.; Wu, C.-C. Highly efficient orange and green solid-state light-emitting electrochemical cells based on cationic IrIII complexes with enhanced steric hindrance. Adv. Funct. Mater. 2007, 17, 1019–1027. [Google Scholar] [CrossRef]
  7. Colman, E.Z.; Slinker, J.D.; Parker, J.B.; Malliaras, G.G.; Bernhard, S. Improved turn-on times of light-emitting electrochemical cells. Chem. Mater. 2008, 20, 388–396. [Google Scholar] [CrossRef]
  8. Dixon, I.M.; Collin, J.P.; Sauvage, J.P.; Flamigni, L.; Encinas, S.; Barigelletti, F. A family of luminescent coordination compounds: Iridium(III) polyimine complexes. Chem. Soc. Rev. 2000, 29, 385–391. [Google Scholar] [CrossRef]
  9. Ulbricht, C.; Beyer, B.; Friebe, C.; Winter, A.; Schubert, U.S. Recent developments in the application of phosphorescent iridium(III) complex systems. Adv. Mater. 2009, 21, 4418–4441. [Google Scholar] [CrossRef]
  10. Chi, Y.; Chou, R.-T. Transition-metal phosphors with cyclometalating ligands: Fundamentals and applications. Chem. Soc. Rev. 2010, 39, 638–655. [Google Scholar] [CrossRef] [PubMed]
  11. Haugland, R.P. The Handbook—A Guide to Fluorescent Probes and Labelling Technologies, 10th ed.; Molecular Probes Inc.: Eugene, OR, USA, 2005. [Google Scholar]
  12. Lo, K.K.-W.; Li, S.P.-Y.; Zhang, K.Y. Development of luminescent iridium(III) polypyridine complexes as chemical and biological probes. New J. Chem. 2011, 35, 265–287. [Google Scholar] [CrossRef]
  13. Fernandez-Moreira, V.; Thorp-Greenwood, F.L.; Coogan, M.P. Application of d6 transition metal complexes in fluorescence cell imaging. Chem. Commun. 2010, 46, 186–202. [Google Scholar] [CrossRef] [PubMed]
  14. Margapoti, E.; Shukla, V.; Valore, A.; Sharma, A.; Dragonetti, C.; Kitts, C.C.; Roberto, D.; Murgia, M.; Ugo, R.; Muccini, M. Excimer emission in single layer electroluminescent devices based on [Ir(4,5-diphenyl-2-methylthiazolo)2(5-methyl-1,10-phenanthroline)]+[PF6]−. J. Phys. Chem. C 2009, 113, 12517–12522. [Google Scholar] [CrossRef]
  15. Margapoti, E.; Muccini, M.; Sharma, A.; Colombo, A.; Dragonetti, C.; Robertob, D.; Valore, A. Optoelectronic properties of OLEC devices based on phenylquinoline and phenylpyridine ionic iridium complexes. Dalton Trans. 2012, 41, 9227–9231. [Google Scholar] [CrossRef] [PubMed]
  16. Shen, Y.; Kuddes, D.D.; Naquin, C.A.; Hesterberg, T.W.; Kusmierz, C.; Holliday, B.J.; Slinker, J.D. Improving light-emitting electrochemical cells with ionic additives. Appl. Phys. Lett. 2013, 102, 203305–203309. [Google Scholar] [CrossRef]
  17. Meier, S.B.; Hartmann, D.; Tordera, D.; Bolink, H.J.; Winnackera, A.; Sarfert, W. Dynamic doping and degradation in sandwich-type light-emitting electrochemical cells. Phys. Chem. Chem. Phys. 2012, 14, 10886–10890. [Google Scholar] [CrossRef] [PubMed]
  18. Zaarour, M.; Guerchais, V.; Le Bozec, H.; Dragonetti, C.; Righetto, S.; Roberto, D.; De Angelis, F.; Fantacci, S.; Lobello, M.G. An investigation on the second order nonlinear optical response of tris-cyclometallated Ir(III) complexes with various substituted 2-phenylpyridines. Dalton Trans. 2013, 42, 155–159. [Google Scholar] [CrossRef] [PubMed]
  19. Zaarour, M.; Singh, A.; Latouche, C.; William, J.G.; Ledoux-Rak, I.; Zyss, J.; Boucekkine, A.; Le Bozec, H.; Guerchais, V.; Dragonetti, C.; et al. Linear and nonlinear optical properties of tris cyclometalated phenylpyridine Ir(III) complexes incorporating π-conjugated substituents. Inorg. Chem. 2013, 52, 7987–7994. [Google Scholar] [CrossRef] [PubMed]
  20. Albini, A.; Fasani, E. A specialist periodical report. Photochemistry 2016, 43, 148–172. [Google Scholar]
  21. Tsuboyama, A.; Iwawaki, H.; Furugori, M.; Mukaide, T.; Kamatani, J.; Igawa, S.; Moriyama, T.; Miura, S.; Takiguchi, T.; Okada, S.; et al. Homoleptic cyclometalated iridium complexes with highly efficient red phosphorescence and application to organic light-emitting diode. J. Am. Chem. Soc. 2003, 125, 12971–12979. [Google Scholar] [CrossRef] [PubMed]
  22. Wu, F.-I.; Su, H.-J.; Shu, C.-F.; Luo, L.; Diau, W.-G.; Cheng, C.-H.; Duan, J.-P.; Lee, G.-H. Tuning the emission and morphology of cyclometalated iridium complexes and their applications to organic light-emitting diodes. J. Mater. Chem. 2005, 15, 1035–1042. [Google Scholar] [CrossRef]
  23. Park, Y.H.; Park, G.Y.; Kim, Y.S. Heteroleptic iridium(III) complexes with phenylpridine and diphenylquinoline derivative ligands. Mol. Cryst. Liq. Cryst. 2007, 462, 197–207. [Google Scholar] [CrossRef]
  24. Dahule, H.K.; Dhoble, S.J. Effect of substituents on the photoluminescence performance of Ir(III) complexes: Synthesis and photo physical properties. J. Chem. Biol. Phys. Sci. 2012, 2, 1539–1550. [Google Scholar]
  25. Lupton, J.M.; Samuel, I.D.W.; Frampton, M.J.; Beavington, R.; Burn, P.L. Control of electrophosphorescence in conjugated dendrimer light-emitting diodes. Adv. Funct. Mater. 2001, 11, 287–294. [Google Scholar] [CrossRef]
  26. Lo, S.-C.; Richards, G.J.; Markham, J.P.J.; Namdas, E.B.; Sharma, S.; Burn, P.L. A light-blue phosphorescent dendrimer for efficient solution-processed light-emitting diodes. Adv. Funct. Mater. 2005, 15, 1451–1458. [Google Scholar] [CrossRef]
  27. Li, X.; Chen, Z.; Zhao, Q.; Shen, L.; Li, F.; Yi, T.; Cao, Y.; Huang, C. Nonconjugated dendritic iridium(III) complexes with tunable pyridine-based ligands: Synthesis, photophysical, electrochemical, and electroluminescent properties. Inorg. Chem. 2007, 46, 5518–5527. [Google Scholar] [CrossRef] [PubMed]
  28. Lowry, M.S.; Bernhard, S. Synthetically tailored excited states: Phosphorescent, cyclometalated iridium(III) complexes and their applications. Chem. Eur. J. 2006, 12, 7970–7977. [Google Scholar] [CrossRef] [PubMed]
  29. Adeloye, A.O.; Mphahlele, M.J. 2,4-Diarylquinolines: Synthesis, absorption and emission properties. J. Chem. Res. 2014, 38, 254–259. [Google Scholar] [CrossRef]
  30. Aranda, B.S.; Aguirre, P.; Moya, S.A.; Bonneau, M.; Williams, J.G.; Toupet, L.; Escadeillas, M.; Le Bozec, H.; Guerhais, V. Luminescent bis-cyclometallated iridium(III) complexes containing phosphine-based ligands: Influence of the P^N bridge. Polyhedron 2015, 86, 120–124. [Google Scholar] [CrossRef] [Green Version]
  31. Grushin, V.V.; Herron, N.; LeCloux, D.D.; Marshall, W.J.; Petrov, V.A.; Wang, Y. New, efficient electroluminescent materials based on organometallic Ir complexes. Chem. Commun. 2001, 16, 1494–1495. [Google Scholar] [CrossRef]
  32. Jung, S.O.; Kang, Y.; Kim, H.S.; Kim, Y.H.; Lee, C.L.; Kim, J.J.; Lee, S.K.; Kwon, S.K. Effect of substitution of methyl groups on the luminescence performance of IrIII complexes: Preparation, structures, electrochemistry, photophysical properties and their applications in organic light-emitting diodes (OLEDs). Eur. J. Inorg. Chem. 2004, 16, 3415–3423. [Google Scholar] [CrossRef]
  33. Lee, S.J.; Park, K.M.; Yang, K.; Kang, Y. Blue phosphorescent Ir(III) complex with high color purity: fac-Tris(2’,6’-difluoro-2,3’-bipyridinato-N,C4’)iridium(III). Inorg. Chem. 2009, 48, 1030–1037. [Google Scholar] [CrossRef] [PubMed]
  34. Lowry, M.S.; Hudson, W.R.; Pascal, R.A., Jr.; Bernhard, S. Accelerated luminophore discovery through combinatorial synthesis. J. Am. Chem. Soc. 2004, 126, 14129–14135. [Google Scholar] [CrossRef] [PubMed]
  35. Lowry, M.S.; Goldsmith, J.I.; Slinker, J.D.; Rohl, R.; Pascal, R.A., Jr.; Malliaras, G.G.; Bernhard, S. Single-layer electroluminescent devices and photoinduced hydrogen production from an ionic iridium(III) complex. Chem. Mater. 2005, 17, 5712–5719. [Google Scholar] [CrossRef]
  36. Laskar, I.R.; Chen, T.M. Tuning of wavelengths: Synthesis and photophysical studies of iridium complexes and their applications in organic light emitting devices. Chem. Mater. 2004, 16, 111–117. [Google Scholar] [CrossRef]
  37. Coppo, P.; Plummer, E.A.; De Cola, L. Tuning iridium(III) phenylpyridine complexes in the “almost blue” region. Chem. Commun. 2004, 15, 1774–1775. [Google Scholar] [CrossRef] [PubMed]
  38. Sengottuvelan, N.; Seo, H.-J.; Kang, S.K.; Kim, Y.-I. Tuning photophysical and electrochemical properties of heteroleptic cationic iridium(III) complexes containing substituted 2-phenylquinoxaline and biimidazole. Bull. Korean Chem. Soc. 2010, 31, 2309–2314. [Google Scholar] [CrossRef]
  39. Lamansky, S.; Djurovich, P.; Murphy, D.; Abdel-Razzaq, F.; Kwong, R.; Tsyba, I.; Bortz, M.; Mui, B.; Bau, R.; Thompson, M.E. Synthesis and characterization of phosphorescent cyclometalated iridium complexes. Inorg. Chem. 2001, 40, 1704–1711. [Google Scholar] [CrossRef] [PubMed]
  40. Colombo, M.G.; Brunold, T.C.; Riedener, T.; Gudel, H.U.; Fortsch, M.; Burgi, H. Facial tris cyclometalated rhodium(3+) and iridium(3+) complexes: Their synthesis, structure, and optical spectroscopic properties. Inorg. Chem. 1994, 33, 545–550. [Google Scholar] [CrossRef]
  41. Park, J.; Park, J.S.; Park, Y.G.; Lee, J.Y.; Kang, J.W.; Liu, J.; Dai, L.; Jin, S.H. Synthesis, characterization of the phenylquinoline-based on iridium(III) complexes for solution processable phosphorescent organic light-emitting diodes. Org. Electron. 2013, 14, 2114–2123. [Google Scholar] [CrossRef]
  42. Joshi, N.B.; Gangola, P.; Pant, D.D. Internal heavy atom effect on the radiative and non-radiative rate constants in xanthene dyes. J. Lumin. 1979, 21, 111–118. [Google Scholar] [CrossRef]
  43. Duprez, V.; Biancardo, M.; Spanggaard, H.; Krebs, F.C. Synthesis of conjugated polymers containing terpyridine–ruthenium complexes: Photovoltaic applications. Macromolecules 2005, 38, 10436–10448. [Google Scholar] [CrossRef]
  44. Schmid, B.; Graces, F.O.; Watts, R.J. Synthesis and characterizations of cyclometalated iridium(III) solvento complexes. Inorg. Chem. 1994, 33, 9–14. [Google Scholar] [CrossRef]
  45. Colombo, M.G.; Gudel, H.U. Synthesis and high-resolution optical spectroscopy of bis[2-(2-thienyl)pyridinato-C3,N’](2,2’-bipyridine)iridium(III). Inorg. Chem. 1993, 32, 3081–3087. [Google Scholar] [CrossRef]
  46. Ichimura, K.; Kobayashi, T.; King, K.A.; Watts, R.J. Excited-state absorption spectroscopy of ortho-metalated iridium(III) complexes. J. Phys. Chem. 1987, 91, 6104–6106. [Google Scholar] [CrossRef]
  47. King, K.A.; Spellane, P.J.; Watts, R.J. Excited-state properties of a triply ortho-metalated iridium(III) complex. J. Am. Chem. Soc. 1985, 107, 1431–1432. [Google Scholar] [CrossRef]
  48. Balton, C.B.; Murtaza, Z.; Shaver, R.J.; Rillema, D.P. Excited-state properties of platinum(II) complexes containing biphenyl as a ligand: Complexes of the type [(bph)PtL2], where L = monodentate or saturated bidentate ligands. Inorg. Chem. 1992, 31, 3230–3235. [Google Scholar]
  49. Wong, W.Y.; Zhou, G.J.; Yu, X.M.; Kwok, H.S.; Tang, B.Z. Amorphous diphenylaminofluorene-functionalized iridium complexes for high-efficiency electrophosphorescent light-emitting diodes. Adv. Funct. Mater. 2006, 16, 838–846. [Google Scholar] [CrossRef]
  50. Lakowicz, J.R. Principles of Fluorescence Spectroscopy, 3rd ed.; Springer: Berlin, Germany, 2006; 954p, ISBN 978-0-387-31278-1. [Google Scholar]
  51. Eisinger, J. A variable temperature, UV luminescence spectrograph for small samples. Photochem. Photobiol. 1969, 94, 15–21. [Google Scholar]
  52. Kasha, M. Paths of molecular excitation. Radiat. Res. 1960, 2, 243–275. [Google Scholar] [CrossRef] [PubMed]
  53. Ge, G.; Zhang, G.; Guo, H.; Chuai, Y.; Zou, D. Yellow organic light-emitting diodes based on phosphorescent iridium(III) pyrazine complexes: Fine tuning of emission. Inorg. Chim. Acta 2009, 362, 2231–2236. [Google Scholar] [CrossRef]
  54. Dragonetti, C.; Falciola, L.; Mussini, P.; Righetto, S.; Roberto, D.; Ugo, R.; Valore, A.; Angelis, D.F.; Fantacci, S.; Sgamellotti, A.; et al. The role of substituents on functionalized 1,10-phenanthroline in controlling the emission properties of cationic iridium(III) complexes of interest for electroluminescent devices. Inorg. Chem. 2007, 46, 8533–8547. [Google Scholar] [CrossRef] [PubMed]
  55. De Angelis, F.; Fantacci, S.; Evans, N.; Klein, C.; Zakeeruddin, S.M.; Moser, J.E.; Kalyanasundaram, K.; Bolink, H.J.; Gratzel, M.; Nazeeruddin, M.K. Controlling phosphorescence color and quantum yields in cationic iridium complexes: A combined experimental and theoretical study. Inorg. Chem. 2007, 46, 5989–6001. [Google Scholar] [CrossRef] [PubMed]
  56. Hasan, K.; Pal, A.K.; Auvray, T.; Zysman-Colman, E.; Hanan, G.S. Blue-green emissive cationic iridium(III) complexes using partially saturated strongly-donating guanidyl-pyridine/-pyrazine ancillary ligands. Chem. Commun. 2015, 51, 14060–14063. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Gonzalez, I.; Dreyse, P.; Cortes-Arriagada, D.; Sundararajan, M.; Morgado, C.; Brito, I.; Roldan-Carmona, C.; Bolink, H.J.; Loeb, B. A comparative study of Ir(III) complexes with pyrazino[2,3-f][1,10]phenanthroline and pyrazino[2,3-f][4,7]phenanthroline ligands in light-emitting electrochemical cells (LECs). Dalton Trans. 2015, 44, 14771–14781. [Google Scholar] [CrossRef] [PubMed]
  58. He, L.; Qiao, J.; Duan, I.; Dong, G.; Zhang, D.; Wang, L.; Qiu, Y. Toward highly efficient solid-state white light-emitting electrochemical cells: Blue-green to red emitting cationic iridium complexes with imidazole-type ancillary ligands. Adv. Funct. Mater. 2009, 19, 2950–2960. [Google Scholar] [CrossRef]
  59. Sunahara, H.; Urano, Y.; Kijima, H.; Nagano, T. Design and synthesis of a library of BODIPY-based environmental polarity sensors utilizing photoinduced electron-transfer-controlled fluorescence ON/OFF switching. J. Am. Chem. Soc. 2007, 129, 5597–5604. [Google Scholar] [CrossRef] [PubMed]
  60. Tomasi, J.; Persico, M. Molecular interactions in solution: An overview of methods based on continuous distributions of the solvent. Chem. Rev. 1994, 94, 2027–2094. [Google Scholar] [CrossRef]
  61. Simkin, B.Y.; Sheikhet, I. Quantum Chemical and Statistical Theory of Solutions—A Computational Approach; Ellis Horwood: London, UK, 1995. [Google Scholar]
  62. Frisch, M.J.E.A.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D. 01, Gaussian, Inc.: Wallingford, CT, USA, 2009.
  63. Dooley, R.; Milfeld, K.; Guiang, C.; Pamidighantam, S.; Allen, G. From proposal to production: Lessons learned developing the computational chemistry grid cyberinfrastructure. J. Grid Comput. 2006, 4, 195–208. [Google Scholar] [CrossRef]
  64. Milfeld, K.; Guiang, C.; Pamidighantam, S.; Giuliani, J. Cluster computing through an application-oriented computational chemistry grid. In Proceedings of the 2005 Linux Clusters: The HPC Revolution, NCSA University of Illinois, CHPC University of New Mexico and IBM, Chapel Hill, NC, USA, 25–28 April 2005. [Google Scholar]
  65. Dooley, R.; Allen, G.; Pamidighantam, S. Computational chemistry grid: Production cyberinfrastructure for computational chemistry. In Proceedings of the 13th Annual Mardi Gras Conference, CCT, Louisiana State University, Baton Rouge, LA, USA, 3–5 February 2005; p. 83. [Google Scholar]
Materials 10 01061 sch001 550

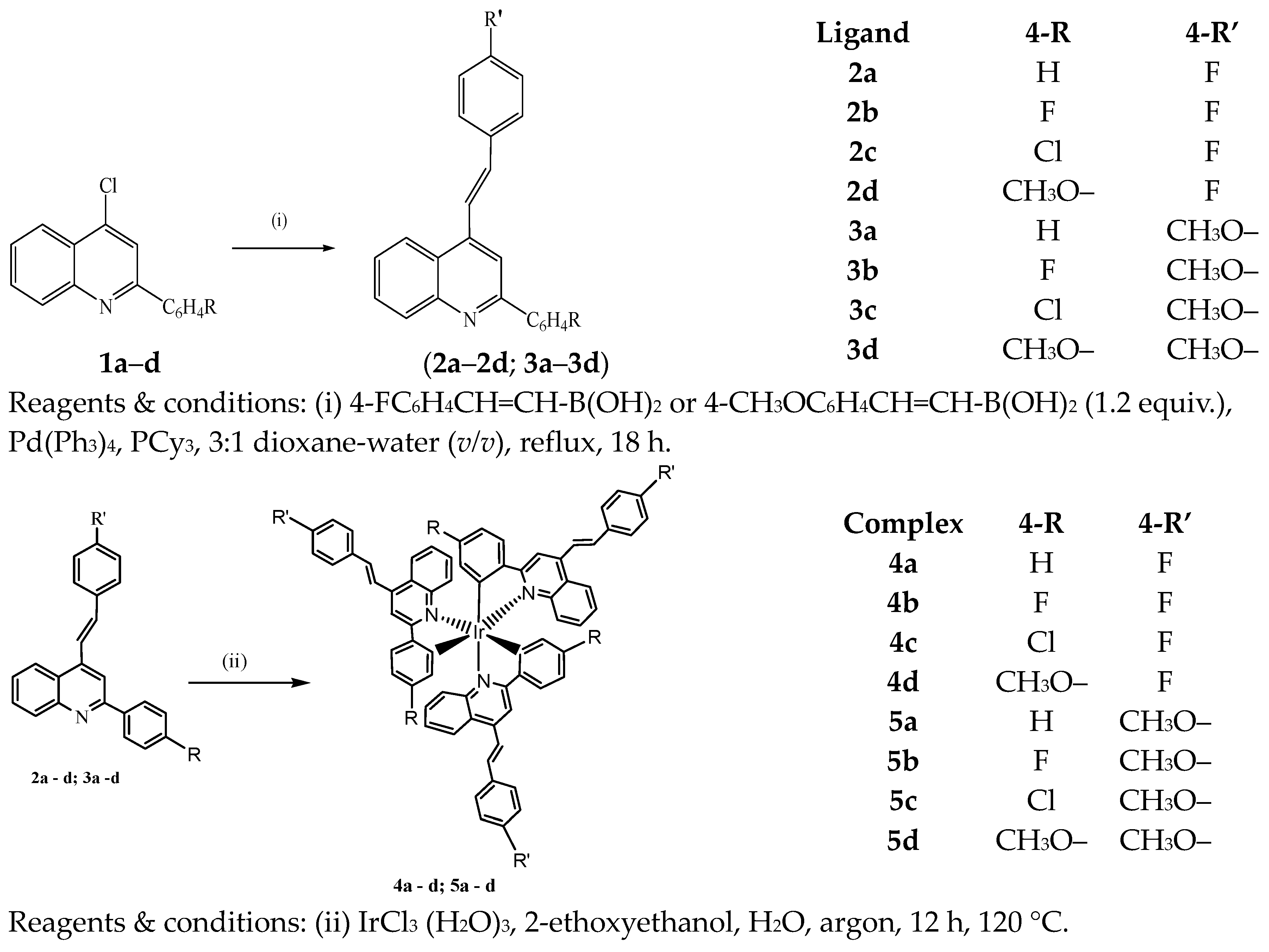

Scheme 1. Suzuki cross-coupling of the 2-aryl-4-chloroquinolines 1a–d with arylvinylboronic acids.
Scheme 1. Suzuki cross-coupling of the 2-aryl-4-chloroquinolines 1a–d with arylvinylboronic acids.
Materials 10 01061 sch001
Materials 10 01061 g001 550

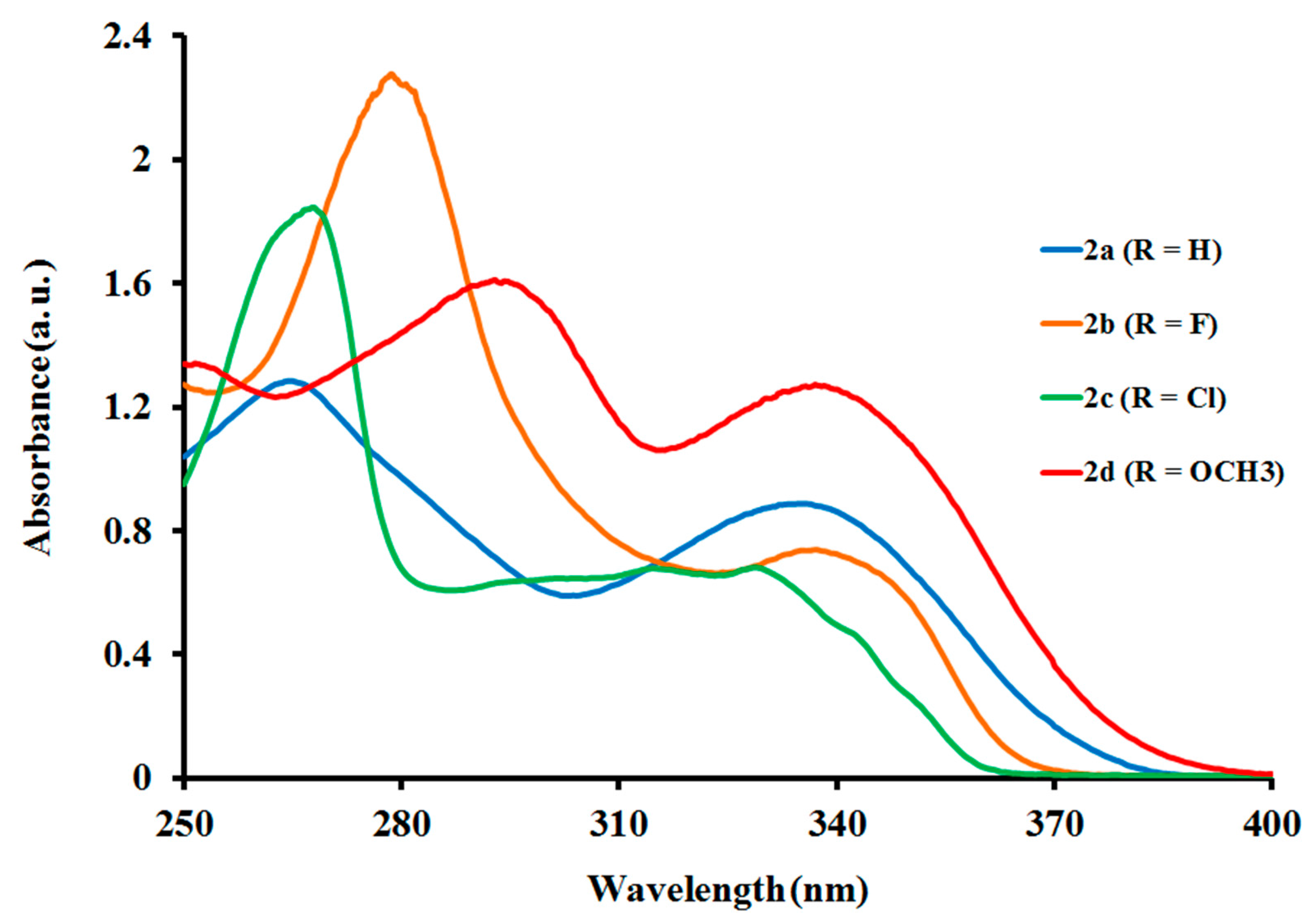

Figure 1. UV-Vis Absorption spectra of (2a–d) in chloroform (concentration 1.0 × 10−3 mol/L).
Figure 1. UV-Vis Absorption spectra of (2a–d) in chloroform (concentration 1.0 × 10−3 mol/L).
Materials 10 01061 g001
Materials 10 01061 g002 550

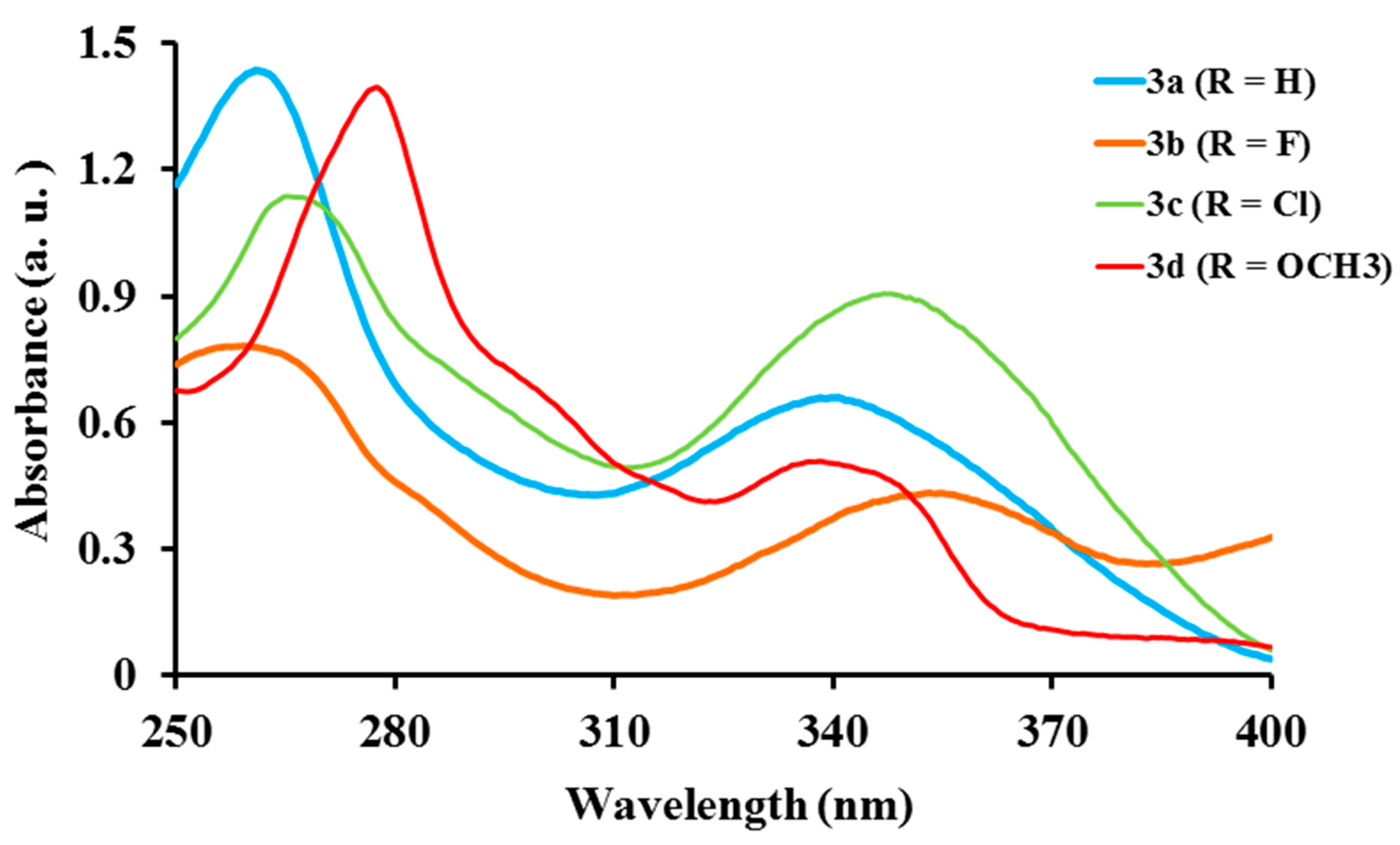

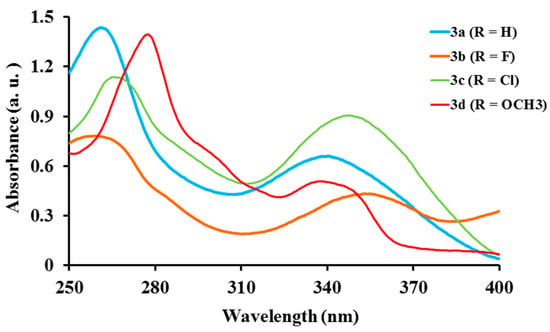

Figure 2. UV-Vis absorption spectra of 3a–d in chloroform (concentration 1.0 × 10−3 mol/L).
Figure 2. UV-Vis absorption spectra of 3a–d in chloroform (concentration 1.0 × 10−3 mol/L).
Materials 10 01061 g002
Materials 10 01061 g003 550

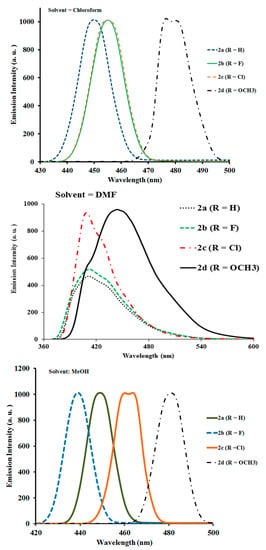

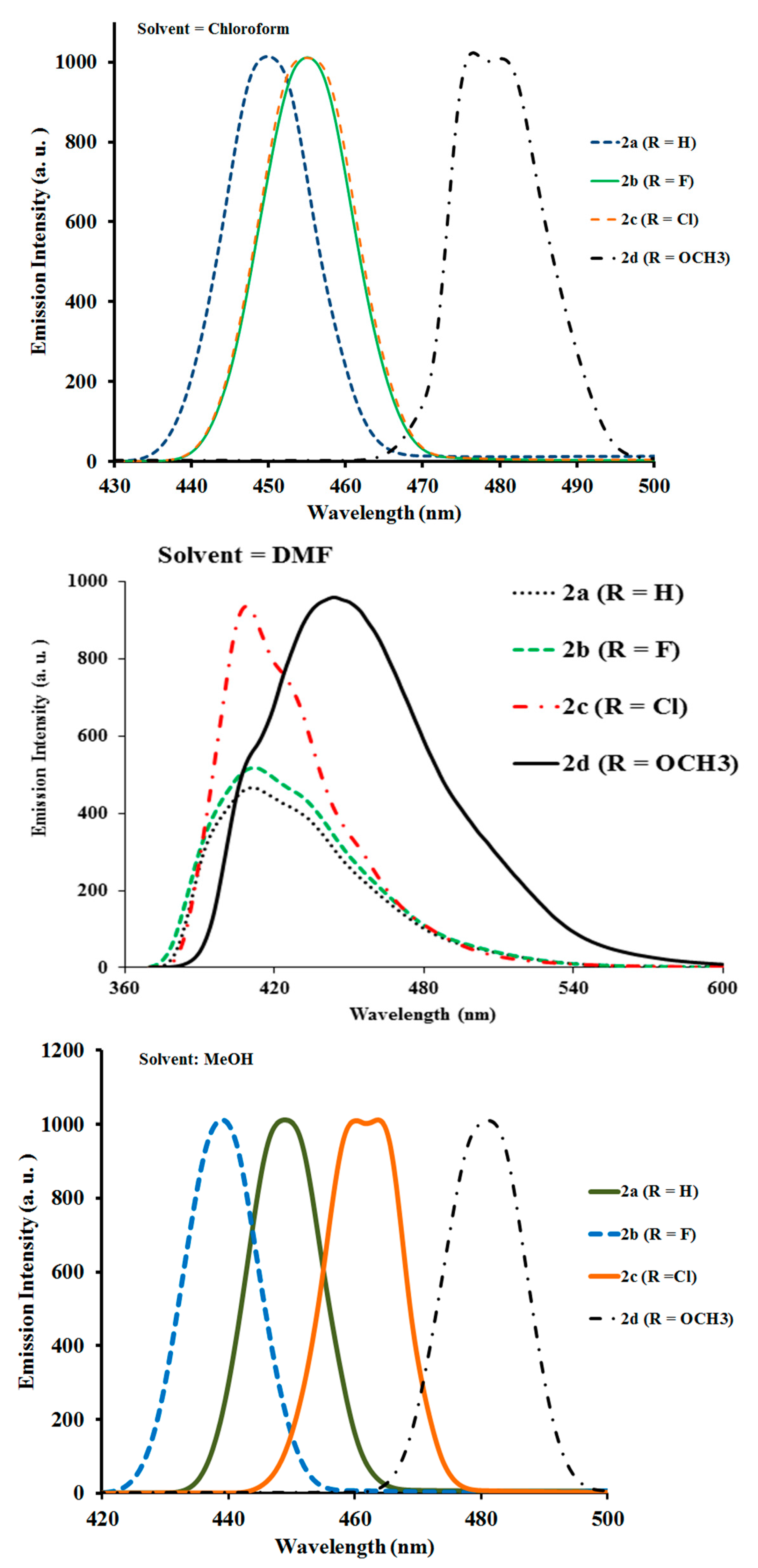

Figure 3. Fluorescence emission spectra of 2a–d (concentration 2.0 × 10−7 mol/L) at RT (room temperature).
Figure 3. Fluorescence emission spectra of 2a–d (concentration 2.0 × 10−7 mol/L) at RT (room temperature).
Materials 10 01061 g003
Materials 10 01061 g004 550

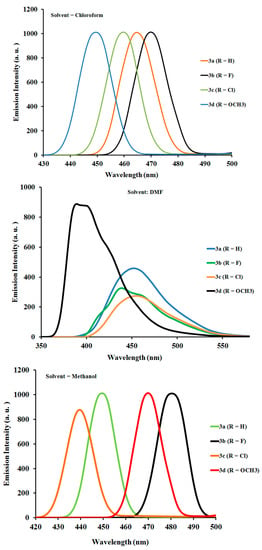

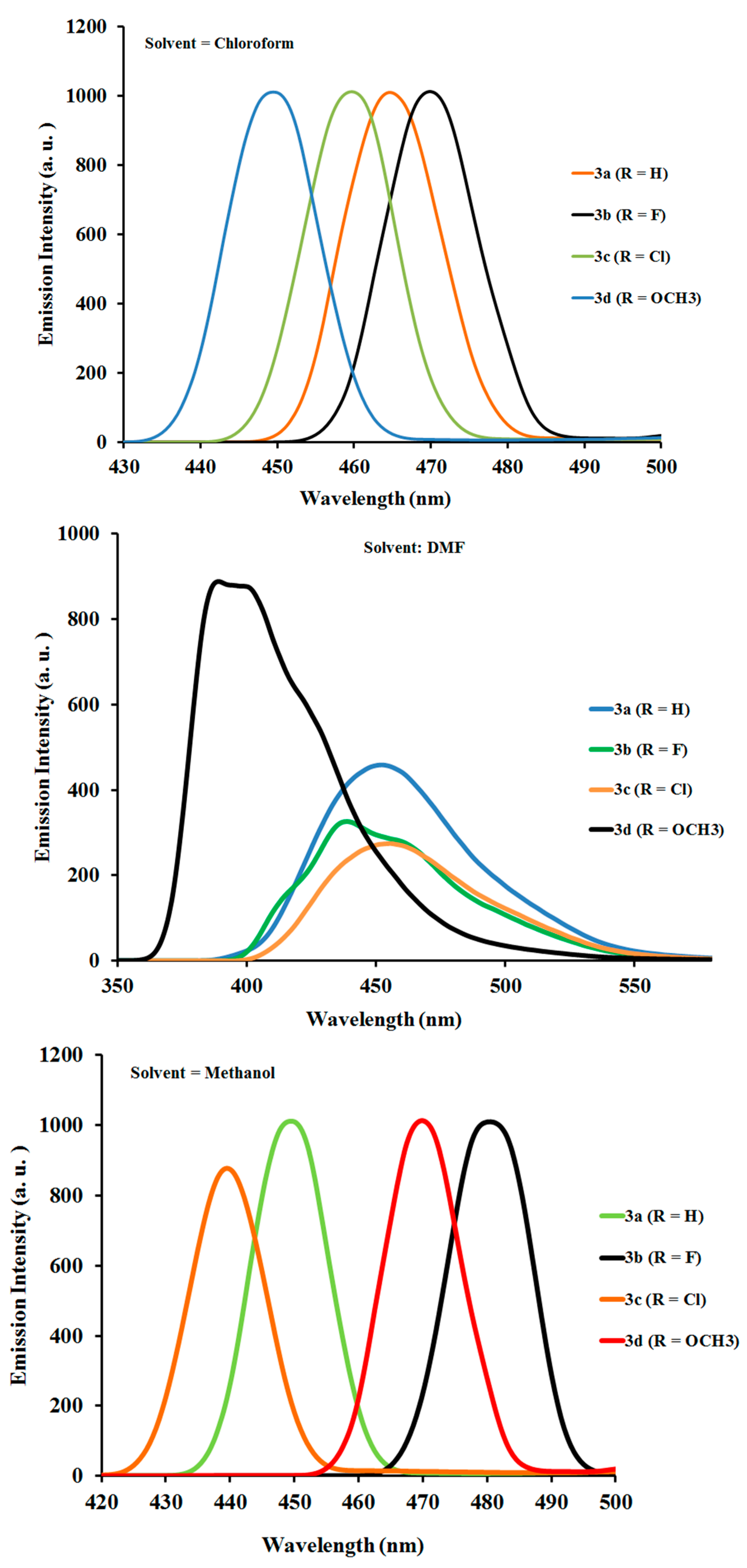

Figure 4. Fluorescence emission spectra of 3a–d (concentration 2.0 × 10−7 mol/L) at RT.
Figure 4. Fluorescence emission spectra of 3a–d (concentration 2.0 × 10−7 mol/L) at RT.
Materials 10 01061 g004
Materials 10 01061 g005 550

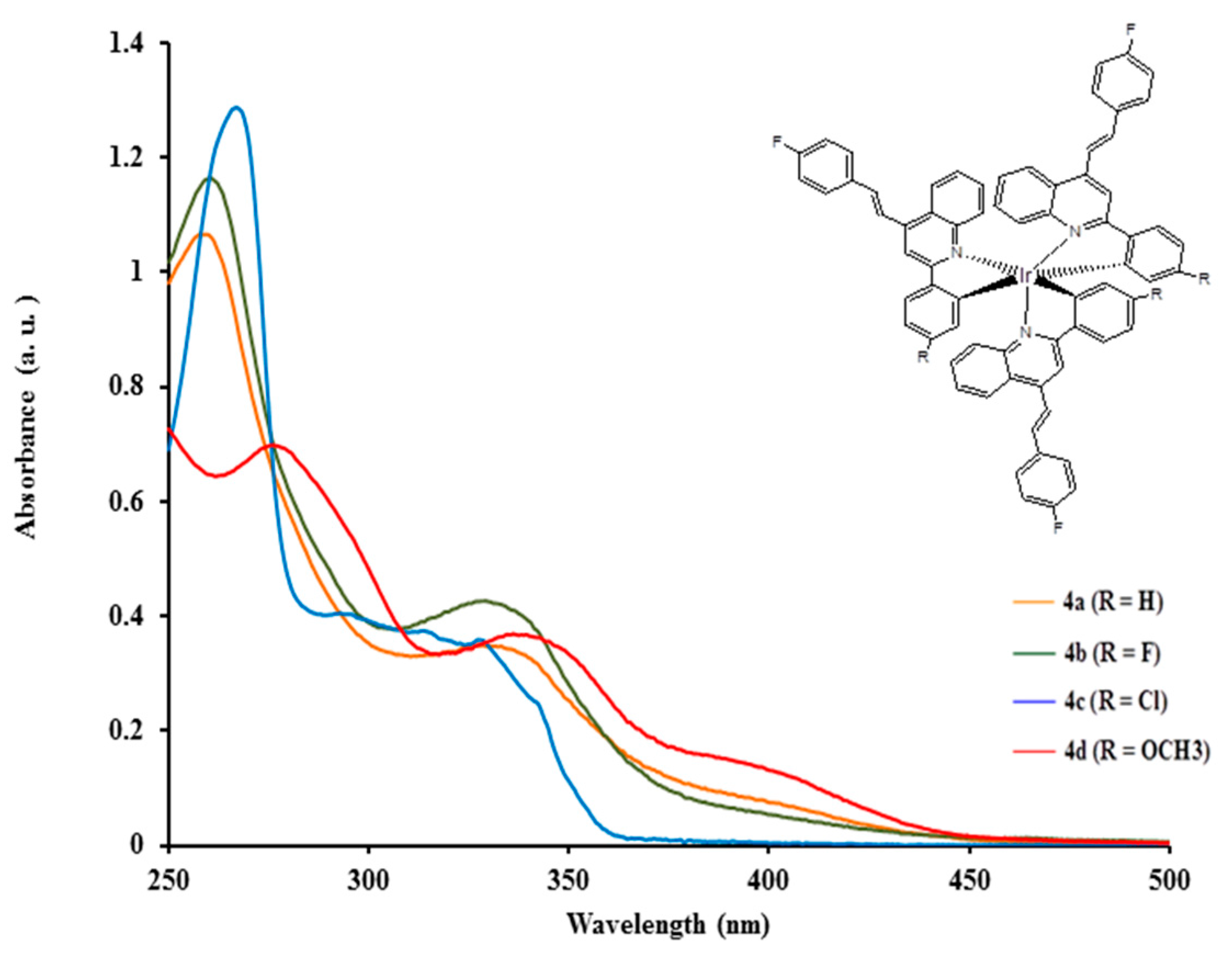

Figure 5. UV-Vis Absorption spectral of Ir(III) complexes 4a–d in methanol (concentration 1.0 × 10−3 mol/L).
Figure 5. UV-Vis Absorption spectral of Ir(III) complexes 4a–d in methanol (concentration 1.0 × 10−3 mol/L).
Materials 10 01061 g005
Materials 10 01061 g006 550

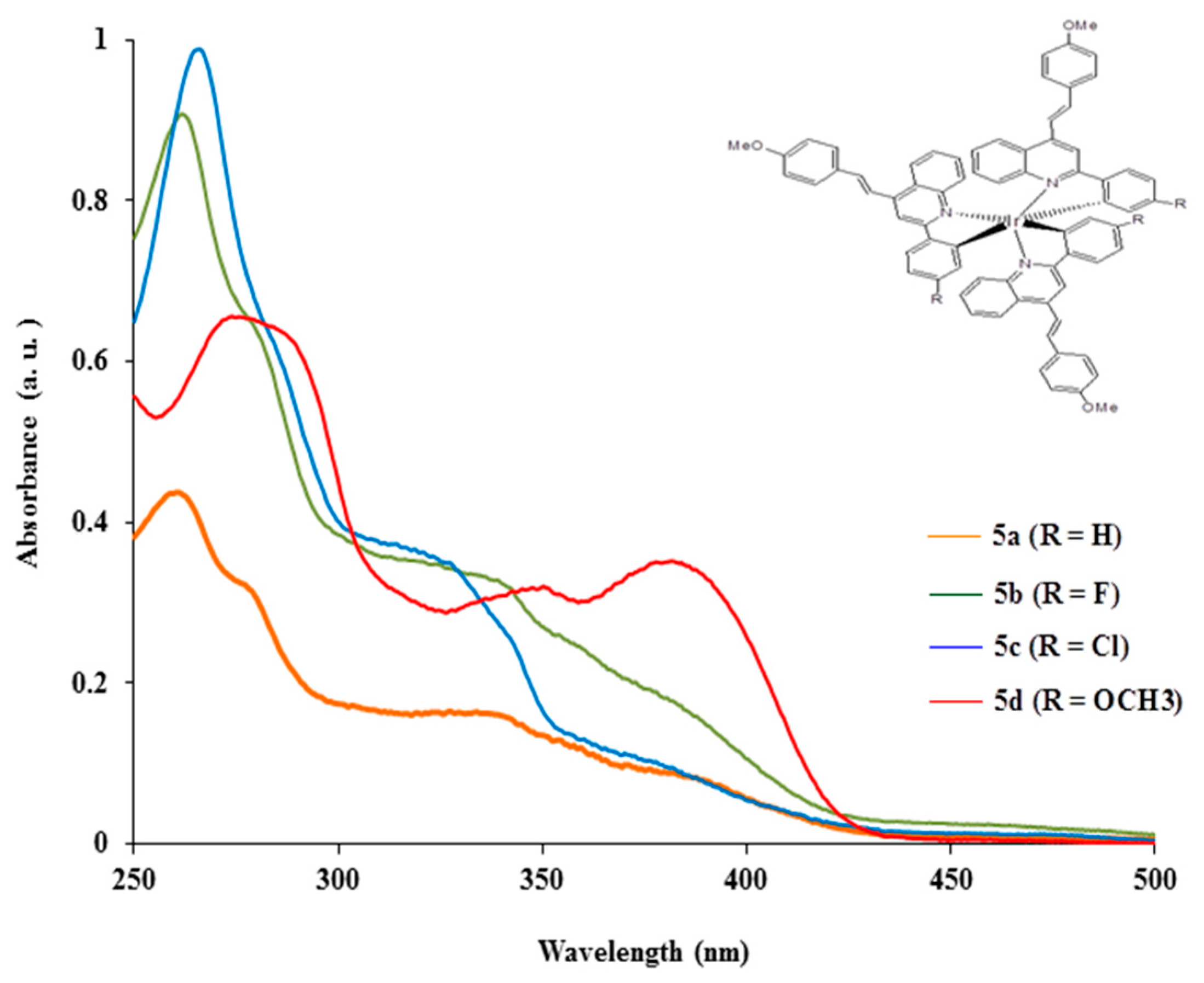

Figure 6. UV-Vis Absorption spectral of Ir(III) complexes of 5a–d in methanol (concentration 1.0 × 10−3 mol/L).
Figure 6. UV-Vis Absorption spectral of Ir(III) complexes of 5a–d in methanol (concentration 1.0 × 10−3 mol/L).
Materials 10 01061 g006
Materials 10 01061 g007 550

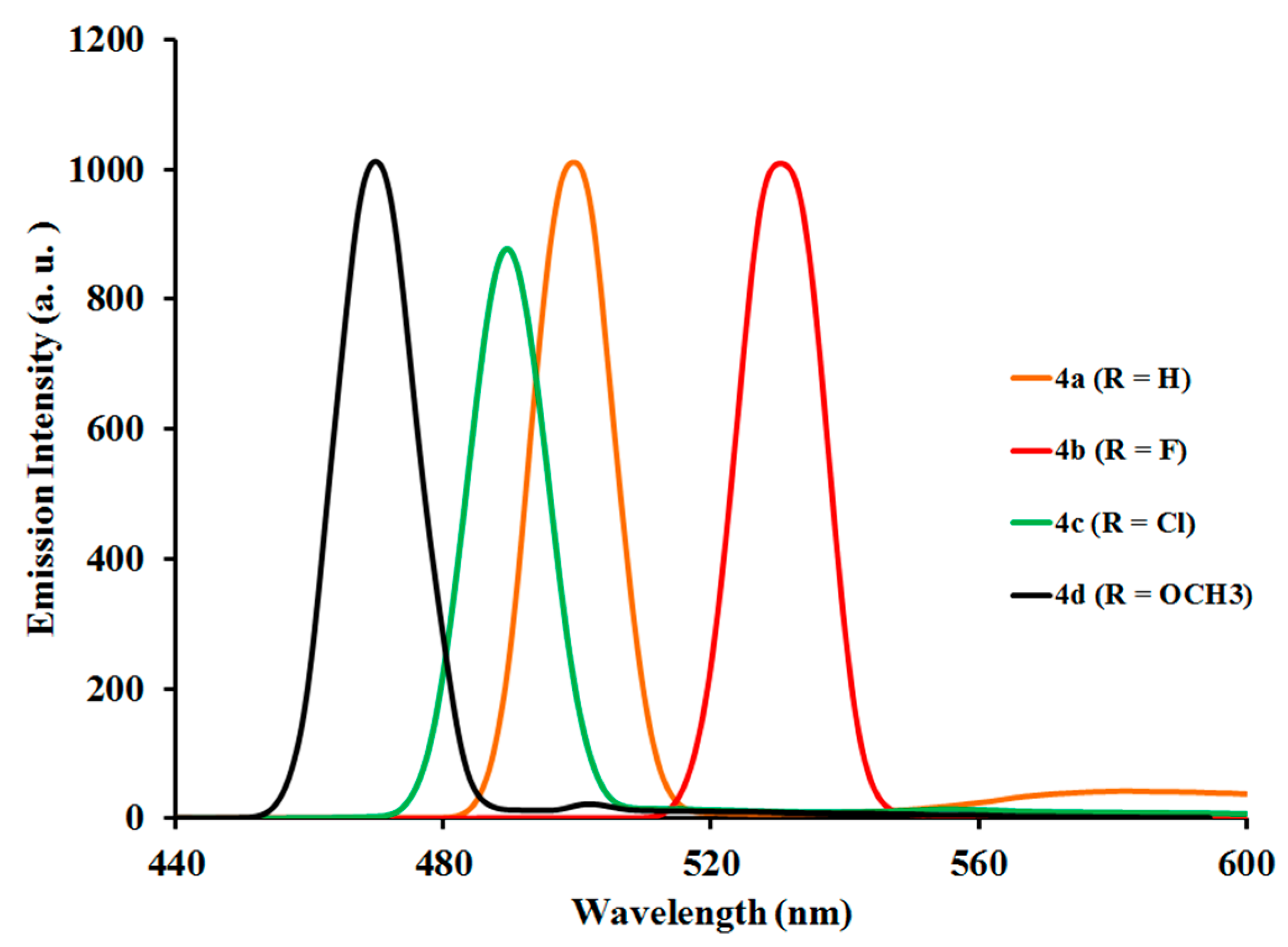

Figure 7. Phosphorescence emission spectra of (Ir(4a–d)3) at λex = 350 nm in methanol (concentration 2.0 × 10−7 mol/L) at RT.
Figure 7. Phosphorescence emission spectra of (Ir(4a–d)3) at λex = 350 nm in methanol (concentration 2.0 × 10−7 mol/L) at RT.
Materials 10 01061 g007
Materials 10 01061 g008 550

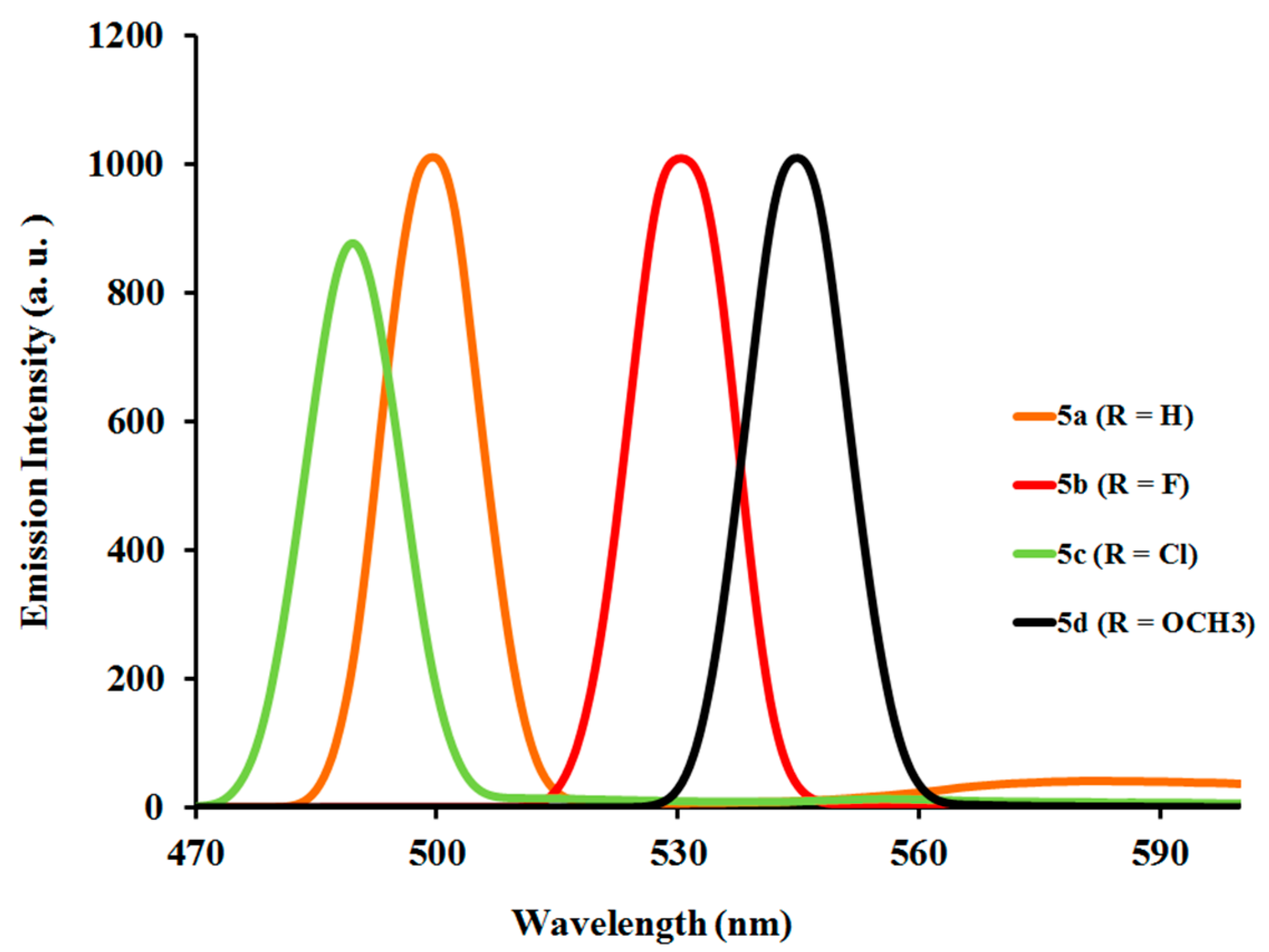

Figure 8. Phosphorescence emission spectra of (Ir(5a–d)3) at λex = 350 nm in methanol (concentration 2.0 × 10−7 mol/L) at RT.
Figure 8. Phosphorescence emission spectra of (Ir(5a–d)3) at λex = 350 nm in methanol (concentration 2.0 × 10−7 mol/L) at RT.
Materials 10 01061 g008
Materials 10 01061 g009 550
Figure 9. Solid state phosphorescence emission spectra of (Ir(4a–d)3) at λex = 350 nm at RT.
Figure 9. Solid state phosphorescence emission spectra of (Ir(4a–d)3) at λex = 350 nm at RT.
Materials 10 01061 g009
Materials 10 01061 g010 550
Figure 10. Solid state phosphorescence emission spectra of (Ir(5a–d)3) at λex = 350 nm at RT.
Figure 10. Solid state phosphorescence emission spectra of (Ir(5a–d)3) at λex = 350 nm at RT.
Materials 10 01061 g010
Materials 10 01061 g011 550
Figure 11. Square-wave voltammograms of (Ir(4a–d)3) complexes.
Figure 11. Square-wave voltammograms of (Ir(4a–d)3) complexes.
Materials 10 01061 g011
Materials 10 01061 g012 550
Figure 12. Square-wave voltammograms of (Ir(5a–d)3) complexes.
Figure 12. Square-wave voltammograms of (Ir(5a–d)3) complexes.
Materials 10 01061 g012
Table
Table 1. Selected bond lengths (Ir–N and Ir–C) in Å of complex 4a and their comparison with literature values.
Table 1. Selected bond lengths (Ir–N and Ir–C) in Å of complex 4a and their comparison with literature values.
4aLiterature [30]
Ir–N2.2992.173
Ir–C2.0182.017

Share and Cite

MDPI and ACS Style

Adeloye, A.O.; Mphahlele, M.J.; Adekunle, A.S.; Rhyman, L.; Ramasami, P. Spectroscopic, Electrochemical and DFT Studies of Phosphorescent Homoleptic Cyclometalated Iridium(III) Complexes Based on Substituted 4-Fluorophenylvinyl- and 4-Methoxyphenylvinylquinolines. Materials 2017, 10, 1061. https://doi.org/10.3390/ma10101061

AMA Style

Adeloye AO, Mphahlele MJ, Adekunle AS, Rhyman L, Ramasami P. Spectroscopic, Electrochemical and DFT Studies of Phosphorescent Homoleptic Cyclometalated Iridium(III) Complexes Based on Substituted 4-Fluorophenylvinyl- and 4-Methoxyphenylvinylquinolines. Materials. 2017; 10(10):1061. https://doi.org/10.3390/ma10101061

Chicago/Turabian Style

Adeloye, Adewale O., Malose J. Mphahlele, Abolanle S. Adekunle, Lydia Rhyman, and Ponnadurai Ramasami. 2017. "Spectroscopic, Electrochemical and DFT Studies of Phosphorescent Homoleptic Cyclometalated Iridium(III) Complexes Based on Substituted 4-Fluorophenylvinyl- and 4-Methoxyphenylvinylquinolines" Materials 10, no. 10: 1061. https://doi.org/10.3390/ma10101061

APA Style

Adeloye, A. O., Mphahlele, M. J., Adekunle, A. S., Rhyman, L., & Ramasami, P. (2017). Spectroscopic, Electrochemical and DFT Studies of Phosphorescent Homoleptic Cyclometalated Iridium(III) Complexes Based on Substituted 4-Fluorophenylvinyl- and 4-Methoxyphenylvinylquinolines. Materials, 10(10), 1061. https://doi.org/10.3390/ma10101061

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
