Article

Bonding to Different PEEK Compositions: The Impact of Dental Light Curing Units

by
Nina Lümkemann
,
Marlis Eichberger
and
Bogna Stawarczyk
*
Department of Prosthodontics, Dental School, Ludwig-Maximilians-University Munich, Goethestrasse 70, 80336 Munich, Germany
*
Author to whom correspondence should be addressed.
Materials 2017, 10(1), 67; https://doi.org/10.3390/ma10010067
Submission received: 29 November 2016 / Revised: 15 December 2016 / Accepted: 10 January 2017 / Published: 14 January 2017
Browse Figures
Versions Notes

Abstract

:
This study investigated the impact of different light curing units (LCUs) for the polymerization of adhesive system visio.link (VL) on the tensile bond strength (TBS) of different PEEK compositions. For TBS measurements, 216 PEEK specimens with varying amounts of TiO2 (PEEK/0%, PEEK/20%, PEEK/>30%) were embedded, polished, air abraded (Al2O3, 50 µm, 0.4 MPa), conditioned using VL, and polymerized using either a halogen LCU (HAL-LCU) or a LED LCU (LED-LCU) for chairside or labside application, respectively. After thermocycling (5000×, 5/55 °C), TBS was measured, and fracture types were determined. Data was analyzed using a 2-way ANOVA followed by Tukey–HSD, Kruskal–Wallis H and Mann–Whitney U tests as well as a Chi2-test and a Ciba–Geigy table (p < 0.05). Globally, the light curing units, followed by PEEK composition, was shown to have the highest impact on TBS. The HAL-LCUs, compared to the LED-LCUs, resulted in a higher TBS for all PEEK compositions—without significant differences between chairside and labside units. Regarding the different PEEK compositions, PEEK/20%, compared to PEEK/0%, resulted in a higher TBS when both, HAL-LCUs or LED-LCUs were used for labside application. In comparison with PEEK/>30%, PEEK/20% resulted in a higher TBS after using HAL-LCU for labside application. No significant differences were found between PEEK/0% and PEEK/>30%. HAL-LCU with PEEK/20% for labside application showed a higher TBS than HAL-LCU with PEEK/20% for chairside application, whereas LED-LCU with PEEK/>30% for chairside application showed a higher TBS than LED-LCU with PEEK/>30% for labside application.

1. Introduction

In dentistry, polyetheretherketone (PEEK) is one of the most frequently used high-performance thermoplastic [1]. Due to its excellent mechanical, physical, and chemical properties [2,3] it is applicable in a wide range of indications in the dental field [4]. Even though PEEK is a plastic material with a low elastic modulus, the mechanical properties are adjustable by adding varying amounts of titanium oxide (TiO2) as filler particles [5]. TiO2 is already known for different applications in dentistry, and, similar to PEEK, it is proven to be biocompatible. In addition, adding TiO2 as inorganic filler particles also satisfies the optical properties for dental applications with PEEK and endorses extending the range of indications. For this reason, many studies have investigated the material regarding the relevant properties, e.g., wear resistance [6], fracture load [7,8,9], retention load and retention forces [10,11], hardness [12], flexural behavior [13], and discoloration [14]. PEEK has thus been proven to be a suitable material for fixed dental prostheses (FDPs) [15,16,17] and long-term restorations [4,6,10,11,12,13,18].
However, to apply PEEK successfully to the applications mentioned above, a durable and effective bonding to other dental materials is required. However, since PEEK is in focus in the field of dental materials science, this demand is known to be a critical factor due to its inert surface character. Recent studies have proven the enhanced bonding properties via surface modifications with PEEK consisting of air-particle abrasion and/or conditioning using adhesive systems. Regarding the particle size of Al2O3, no influence on bonding properties has been found [18]. Regarding adhesive systems, compositions based on methylmethacrylate (MMA) in combination with other dimethacrylates (DMAs) showed significantly higher bonding strength [19].
Internal investigations indicated that the adhesive system Pekk Bond (Anaxdent) resulted in a significant higher bond strength when the PEEK surface was air-abraded with higher pressure (0.4 MPa). In comparison, the adhesive system visio.link (bredent) resulted in the highest bond strength irrespectively of the air-abrasion pressure when it was applied as recommended by the manufacturer. Since visio.link has been the most frequently investigated adhesive system on PEEK resulting in the highest bond strength [12,20,21,22,23,24], the chemical mechanism of adhesion is still challenging. Successful bonding is known to be a complex phenomenon that depends on many parameters and the interaction of chemical, physical, and mechanical effects can be influenced in unexpected ways by changing only one parameter during the bonding process.
With regard to the high potential of different PEEK compositions—unfilled and filled with varying amounts of TiO2 particles—it is desirable to enable a durable cementation of PEEK restorations in chairside applications. Due to new technologies, chairside applications have become more and more attractive for the patient and the dentist, as it is timesaving. For this, LED light curing units (LED-LCUs) have been developed to replace the common halogen light curing units (HAL-LCUs). In comparison with well-established HAL-LCUs, the newer LED-LCUs are characterized by a smaller wavelength range, higher light intensities, and a longer lifetime. Moreover, they are timesaving, more user-friendly, and more comfortable for the patient because no ventilation is required, which in turn reduces heat and noise development. However, it has to be considered that the choice of LCU has to be made taking into account the photoinitiator used in the relevant adhesive system.
Since the light curing units for the polymerization of adhesive systems as well as the varying compositions of PEEK material are possible parameters that may influence bonding properties, this study investigated the null hypotheses that neither different PEEK compositions (PEEK/0%, PEEK/20%, and PEEK/>30%) nor the application of different light curing units (LED-LCUs and HAL-LCUs designed for either chairside or labside application) affect bonding properties with respect to the adhesive system visio.link. To characterize the bonding properties, tensile bond strength was measured, and corresponding fracture types were determined.

2. Material and Methods

This study investigated the impact of four different light curing units (LCUs) on the effectiveness of the adhesive system visio.link (bredent, Senden, Germany) as a surface conditioner for three different PEEK compositions with varying filler amounts of TiO2 (PEEK/0%, PEEK/20%, PEEK/<30%) to achieve durable bonding. Therefore, tensile bond strength (TBS) measurements with fracture type (FT) analysis were performed (Figure 1). All materials and light curing units used in this study are listed in Table 1.

2.1. Preparation of Specimens

For TBS measurements, 216 PEEK specimens (PEEK/0%, PEEK/20%, PEEK/>30%, n = 72) with a surface area of approximately 16 mm2 were cut under dry conditions using a handpiece (KaVo EWL K9, KaVo Dental GmbH, Biberach, Germany) and embedded in acrylic resin (ScandiQuick A and B, ScanDia, Hagen, Germany, Lot No. 09201 and 09202). Specimens were polished up to P1200 (SiC Foil, Struers, Ballerup, Denmark) for 20 s with an automatic polishing device (Tegramin 20, Struers, Ballerup, Denmark) under permanent water cooling. After ultrasonically cleaning (L&R Transistor/Ultrasonic T-14, L&R, Kearny, NJ, USA) for 60 s in distilled water, the specimens were air-dried and air-abraded (basis Quattro IS, Renfert, Hilzingen, Germany) with alumina particles (Al2O3, Orbis Dental, Münster, Germany) using the following air-abrading parameters: a particle size of 50 µm, a duration of 10 s, a distance of 5 mm at 45°, and a pressure of 0.4 MPa. After air-abrasion, specimens were ultrasonically cleaned and carefully air-dried.
Seventy-two specimens for each PEEK composition were subsequently divided into 4 groups according to the type of LCU (i.e., halogen vs. LED) and the type of application (i.e., chairside vs. labside) (n = 18) (Figure 1, Table 1). The air-abraded surface of the PEEK specimens was conditioned for 5 s with the adhesive system visio.link (VL) using a microbrush. Then, VL was polymerized either for 90 s when HAL-LCUs were used or 10 s when LED-LCUs were used.
The HAL-LCUs and LED-LCUs differ regarding chairside and labside applications. Chairside devices are designed to be applied intraoral by the dentist. For this, the chairside LCUs have a handle and can directly and be precisely directed towards the relevant area. The light intensities for both chairside LCUs were determined (Table 1) using a precise dental radiometer (Bluephase Meter II, Ivoclar Vivadent, Schaan, Liechtenstein). In contrast, labside LCUs devices are designed for the fabrication of dental restorations in the dental laboratory. For this, so-called polymerization furnaces are used where the restoration is placed into it and interior mirrors guarantee a reflection of light onto the restoration.
The polymerization times were chosen depending on the type of LCU. The polymerization time of 90 s for the adhesive system visio.link using the halogen LCUs was chosen based on the manufacturer’s recommendation. In comparison, the reduced polymerization time of 10 s using the LED LCUs was chosen based on the commonly used adhesive systems for chairside treatments that are polymerized for 10–20 s.
After polymerization of visio.link, an acrylic cylinder (SD Mechatronik GmbH, Feldkirchen–Westerham, Germany) with an inner diameter of 2.9 mm was positioned onto the conditioned PEEK surface, filled with self-adhesive resin cement (Clearfil SA Cement, Kuraray Medical, Tokyo, Japan) and polymerized for 20 s using a chairside LED-LCU (Elipar S10, 3M, Seefeld, Germany). Subsequently, all specimens were stored in distilled water at 37 °C for 24 h (HeraCee 150, Heraeus, Hanau, Germany) and aged by thermal cycling for 5000 cycles between 5 and 55 °C (Thermocycler THE 1100, SD Mechatronik, Feldkirchen-Westerham, Germany). After 2 h of relaxation, TBS measurements were performed with a crosshead speed of 5 mm/min by applying the tensile stress perpendicular to the specimen’s surface until fracture of each specimen occurred (Zwick 1445 RetroLine, Zwick Roel Group, Ulm, Germany). TBS was calculated as the maximal force at the debonding/bonding area. Figure 2 presents the processing of the specimen preparation.

2.2. Fracture Type Anaysis

Corresponding FT of debonded areas were analyzed using a stereomicroscope at a magnification of 20× (Carl Zeiss Axioskop 2 MAT, Zeiss, Jena, Germany) and defined as follows: (1) adhesively—with no resin cements remnants left on the PEEK surface; (2) cohesively—with partial remnants of resin cement on PEEK to which the PEEK surface is also exposed.

2.3. Statistical Analyses

In the first step, data were analyzed using descriptive statistics (mean, standard deviation (SD), 95% confidence intervals (CI), minimum, median, and maximum). A Kolmogorov–Smirnov test examined the test groups on the assumption of normality. For global analysis, a univariate 2-way ANOVA was calculated followed by a partial eta-squared (ηP2) to determine the effects of the investigated parameters on the results of TBS. Moreover, significant differences and homogenous groups were determined using a post-hoc Tukey–HSD test. Data were divided according to the null hypothesis and additional analyzed using non-parametric Kruskal–Wallis H and Mann–Whitney U tests. The relative frequency of fracture types were analyzed according to a Chi2-test and a Ciba–Geigy table. The level of significance was set to 5% for all statistical tests. All analyses were computed using the software IBM SPSS (Version 23; IBM Corporation, Armonk, NY, USA).

3. Results

3.1. Tensile Bond Strength

The highest impact on TBS was exerted by the light curing units (ηP2 = 0.630, p < 0.001), while the PEEK composition also affected the TBS (ηP2 = 0.055, p = 0.003). The Kolmogorov–Smirnov test indicated that 25% of the test groups were not normally distributed (Table 2). Therefore, the data was analyzed non-parametrically. The global analysis indicated significant higher TBS values for chairside and labside HAL-LCUs compared to the chairside and labside LED-LCUs (p = 0.003). However, between the HAL-LCUs and LED-LCUs, no significant differences regarding the intended individual application that the light units are designed for (chairside or labside) were observed. Regarding the different PEEK compositions, PEEK/20% showed the highest results of TBS (p < 0.001) followed by PEEK/>30% and PEEK/0% (Table 2).
After dividing data according to null hypotheses, non-parametric tests indicated significant differences between PEEK compositions with HAL-LCU and LED-LCU for labside application (p < 0.022) (Table 2). Compared to PEEK/0%, PEEK/20% resulted in a higher TBS when labside LED-LCU were applied (p < 0.034). Compared to PEEK/>30%, PEEK/20% resulted in a higher TBS when labside HAL-LCU was applied (p < 0.01). In comparison with PEEK/0% and PEEK/>30%, no significant differences were found with respect to the LCUs (p > 0.181). Regarding the LCUs, significant differences between PEEK/20% and PEEK/>30% were found (p < 0.001). For PEEK/20%, the labside HAL-LCU resulted in a higher TBS than the chairside halogen unit (p = 0.007), while for PEEK/>30%, the chairside LED-LCU reached higher values than the labside LED-LCU (p = 0.047) (Table 2, Figure 3).

3.2. Fracture Types

The fracture types showed significant differences between the different LCUs (p < 0.001). The adhesive fracture type occurred more frequently for specimens polymerized using LED-LCUs, while for specimens polymerized with HAL-LCUs, the cohesive fracture type was observed more frequently (Table 3). No differences in fracture type were found between PEEK compositions. (p = 0.878).

4. Discussion

Previously published literature has proven the adhesive system visio.link to achieve the best bonding properties as a surface conditioner after pretreatment of PEEK specimens when applied as recommended by the manufacturer. To the best of our knowledge, the impact of different light curing units for polymerization of visio.link on the bonding strength in combination with different PEEK compositions has not been investigated yet.
First of all, the results show that the highest bond strength for all PEEK compositions was achieved after polymerizing visio.link using halogen LCUs for both chairside or labside application. On the one hand, this is in accordance with all previously published studies [12,20,21,22,23,24]. On the other hand—of course—this is in accordance with the recommendation of the manufacturer. Basically, this fact is based on the chemical composition of visio.link as the used photoinitiator (diphenyl(2,4,6,-trimethylbenzoyl)phosphinoxide) requires a certain wavelength to cure successfully. The photoinitiator acrylphosphinoxide is a commonly used system for dental materials and shows the corresponding absorption maximum at a wavelength of 380 nm. The results and technical details show that the certain range of wavelength is only provided by the halogen LCUs but not by the LED-LCUs (Figure 4). Alternatively, to acrylphosphinoxide, camphor quinone is another well-established photoinitiator often used in dentistry. Compared to acrylphosphinoxide, camphor quinone shows the absorption maximum at higher wavelengths (468 nm) (Figure 4). This range of wavelength in turn is provided by the LED-LCUs but also by the HAL-LCUs and shows that HAL-LCUs provide a wider range of wavelength and thus are applicable for curing different photoinitiator systems successfully.
Moreover, the results show that the bonding properties are affected by the PEEK composition, as the amount of 20% TiO2 filler particles resulted in the highest bond strength. Regarding the halogen LCUs, this finding may be caused by the activation of TiO2 particles at wavelengths smaller than 385 nm. TiO2 particles are known for intense UV absorption and superior hydrophilicity [25]. For medical applications, the antibacterial characteristics of irradiated TiO2 materials especially are of interest [26]. When the antibacterial activity of nano-TiO2-reinforced PEEK/PEI blends against two bacteria was investigated, reduced survival rates of the bacteria after UV irradiation with a wavelength of 365 nm were found [5]. This effect can be associated with the generation of reactive radicals (oxygen species) when TiO2 materials are irradiated with UV light [27]. As the results of the present study were not explicit regarding the different PEEK compositions, it is a question whether dental LCUs provide the spectral range and fluency rates that are needed in order to achieve a significant photocatalytic effect of TiO2 particles at all. The result that the TBS of PEEK/>30% irradiated with the labside HAL-LCU is not comparable to PEEK/20% could be explained by the differences in the type, morphology, particle size, or possible coating of the TiO2 particles. Unfortunately, no information about the filler particles were provided by the manufacturer. However, with respect to the antibacterial action of TiO2 materials, a higher bioactivity was reported when TiO2 nanoparticles were used compared to conventional microparticles [28].
With respect to the present study, the generation of reactive radicals on the irradiated surface of the 20%-TiO2-filled PEEK composition with the halogen LCUs may improve the bonding properties to the initially inert surface character. This assumption can also be justified by a heating effect that may be greater for halogen LCUs than for LED-LCUs. This in turn can be accompanied by a higher degree of conversion of the adhesive monomers resulting in higher bond strengths. As the distance between the light source and the specimen surface varies regarding chairside or labside LCUs, this assumption should be investigated in detail using a standardized test set-up. The heating effect should be determined with respect to the PEEK composition and the LCU in combination. Moreover, a comparison of the output spectra of all investigated LCUs would be helpful in subsequent studies. In general, the measurement of the light intensities of the chairside LED-LCUs showed higher values than the chairside HAL-LCUs, which are in accordance with the manufacturer’s information.
At last, the photocatalytic degradation of PEEK is another important aspect that has to be taken into consideration when the surface is irradiated by LCUs to polymerize the transparent adhesive system visio.link. Even though PEEK is known to be resistant to radiation [2], investigations have found an impact of UV radiation (250–400 nm) on the mechanical properties of PEEK sheets resulting in reduced hardness [29]. This is comprehensible, as the photocatalytic degradation of PEEK causes chain scission reactions, crosslinking, and the formation of carbonyl and hydroxyl groups [5,30]. Certainly, in the ATR-FTIR spectrum of irradiated nano-TiO2-reinforced PEEK/PEI blends (356 nm), hardly any changes were found. This proves the high UV resistance of the material; nonetheless, UV radiation has also recently been used to functionalize PEEK materials [31], which in turn emphasizes the strong effect of UV radiation on PEEK surfaces once again.

5. Conclusions

The adhesive system visio.link achieves effective and durable bonding with different PEEK compositions when it is polymerized using a halogen LCU for 90 s. Due to the results found in this study, varying parameters such as different ranges of wavelength and the presence of TiO2 filler particles are assumed to cause complex effects that influence the bonding properties for PEEK conditioned with visio.link. Further research is necessary to prove and to understand the possible impacts of these effects.

Acknowledgments

This research was partially supported by research grant ZF4052001MU5 AiF Projekt GmbH, ZIM-Kooperationsprojekte, Projektträger des BMWi.

Author Contributions

Nina Lümkemann designed the experiment, fabricated and measured the specimens, analyzed the data, and wrote the manuscript; Marlis Eichberger assisted with specimen preparation and proofread the manuscript; Bogna Stawarczyk designed the experiment, analyzed the data, and proofread the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
PEEKpolyetheretherketone
MMAmethylmethacrylate
DMAdimethacrlyate
TiO2titanium dioxide
LEDlight-emitting diode
HALhalogen
TBStensile bond strength
LCUlight curing unit
FDPsfixed dental prostheses
VLvisio.link
Al2O3alumina oxide

References

  1. Modjarrad, K.; Ebnesajjad, S. Handbook of Polymer Applications in Medicine and Medical Devices; Elsevier: Amsterdam, The Netherlands, 2013. [Google Scholar]
  2. Kurtz, S.M.; Devine, J.N. PEEK biomaterials in trauma, orthopedic, and spinal implants. Biomaterials 2007, 28, 4845–4869. [Google Scholar] [CrossRef] [PubMed]
  3. Toth, J.M.; Wang, M.; Estes, B.T.; Scifert, J.L.; Seim, H.B.; Turner, A.S. Polyetheretherketone as a biomaterial for spinal applications. Biomaterials 2006, 27, 324–334. [Google Scholar] [CrossRef] [PubMed]
  4. Najeeb, S.; Zafar, M.S.; Khurshid, Z.; Siddiqui, F. Applications of polyetheretherketone (PEEK) in oral implantology and prosthodontics. J. Prosthodont. Res. 2016, 60, 12–19. [Google Scholar] [CrossRef] [PubMed]
  5. Diez-Pascual, A.M.; Diez-Vicente, A.L. Nano-TiO2 reinforced PEEK/PEI blends as biomaterials for load-bearing implant applications. ACS Appl. Mater. Interfaces 2015, 7, 5561–5573. [Google Scholar] [CrossRef] [PubMed]
  6. Wimmer, T.; Huffmann, A.M.S.; Eichberger, M.; Schmidlin, P.R.; Stawarczyk, B. Two-body wear rate of PEEK, CAD/CAM resin composite and PMMA: Effect of specimen geometries, antagonist materials and test set-up configuration. Dent. Mater. 2016, 32, e127–e136. [Google Scholar] [CrossRef] [PubMed]
  7. Stawarczyk, B.; Thrun, H.; Eichberger, M.; Roos, M.; Edelhoff, D.; Schweiger, J.; Schmidlin, P.R. Effect of different surface pretreatments and adhesives on the load-bearing capacity of veneered 3-unit PEEK FDPs. J. Prosthet. Dent. 2015, 114, 666–673. [Google Scholar] [CrossRef] [PubMed]
  8. Abdullah, A.O.; Tsitrou, E.A.; Pollington, S. Comparative in vitro evaluation of CAD/CAM vs conventional provisional crowns. J. Appl. Oral Sci. Rev. FOB 2016, 24, 258–263. [Google Scholar] [CrossRef] [PubMed]
  9. Taufall, S.; Eichberger, M.; Schmidlin, P.R.; Stawarczyk, B. Fracture load and failure types of different veneered polyetheretherketone fixed dental prostheses. Clin. Oral Investig. 2016, 20, 2493–2500. [Google Scholar] [CrossRef] [PubMed]
  10. Stock, V.; Schmidlin, P.; Merk, S.; Wagner, C.; Roos, M.; Eichberger, M.; Stawarczyk, B. PEEK primary crowns with cobalt-chromium, zirconia and galvanic secondary crowns with different tapers—A comparison of retention forces. Materials 2016, 9, 187. [Google Scholar] [CrossRef]
  11. Wagner, C.; Stock, V.; Merk, S.; Schmidlin, P.R.; Roos, M.; Eichberger, M.; Stawarczyk, B. Retention load of telescopic crowns with different taper angles between cobalt-chromium and polyetheretherketone made with three different manufacturing processes examined by pull-off test. J. Prosthodont. 2016. [Google Scholar] [CrossRef] [PubMed]
  12. Liebermann, A.; Wimmer, T.; Schmidlin, P.R.; Scherer, H.; Loffler, P.; Roos, M.; Stawarczyk, B. Physicomechanical characterization of polyetheretherketone and current esthetic dental CAD/CAM polymers after aging in different storage media. J. Prosthet. Dent. 2016, 115, 321–328. [Google Scholar] [CrossRef] [PubMed]
  13. Schwitalla, A.D.; Spintig, T.; Kallage, I.; Muller, W.-D. Flexural behavior of PEEK materials for dental application. Dent. Mater. 2015, 31, 1377–1384. [Google Scholar] [CrossRef] [PubMed]
  14. Heimer, S.; Schmidlin, P.R.; Stawarczyk, B. Discoloration of PMMA, composite, and PEEK. Clin. Oral Investig. 2016. [Google Scholar] [CrossRef] [PubMed]
  15. Zoidis, P.; Papathanasiou, I.; Polyzois, G. The use of a modified poly-ether-ether-ketone (PEEK) as an alternative framework material for removable dental prostheses. A clinical report. J. Prosthodont. 2016, 25, 580–584. [Google Scholar] [CrossRef] [PubMed]
  16. Zoidis, P.; Papathanasiou, I. Modified PEEK resin-bonded fixed dental prosthesis as an interim restoration after implant placement. J. Prosthet. Dent. 2016, 116, 637–641. [Google Scholar] [CrossRef] [PubMed]
  17. Zoidis, P.; Bakiri, E.; Polyzois, G. Using modified polyetheretherketone (PEEK) as an alternative material for endocrown restorations: A short-term clinical report. J. Prosthet. Dent. 2016. [Google Scholar] [CrossRef] [PubMed]
  18. Stawarczyk, B.; Beuer, F.; Wimmer, T.; Jahn, D.; Sener, B.; Roos, M.; Schmidlin, P.R. Polyetheretherketone-a suitable material for fixed dental prostheses? J. Biomed. Mater. Res. Part B Appl. Biomater. 2013, 101, 1209–1216. [Google Scholar] [CrossRef] [PubMed]
  19. Keul, C.; Liebermann, A.; Schmidlin, P.R.; Roos, M.; Sener, B.; Stawarczyk, B. Influence of PEEK surface modification on surface properties and bond strength to veneering resin composites. J. Adhes. Dent. 2014, 16, 383–392. [Google Scholar] [PubMed]
  20. Stawarczyk, B.; Keul, C.; Beuer, F.; Roos, M.; Schmidlin, P.R. Tensile bond strength of veneering resins to PEEK: Impact of different adhesives. Dent. Mater. J. 2013, 32, 441–448. [Google Scholar] [CrossRef] [PubMed]
  21. Uhrenbacher, J.; Schmidlin, P.R.; Keul, C.; Eichberger, M.; Roos, M.; Gernet, W.; Stawarczyk, B. The effect of surface modification on the retention strength of polyetheretherketone crowns adhesively bonded to dentin abutments. J. Prosthet. Dent. 2014, 112, 1489–1497. [Google Scholar] [CrossRef] [PubMed]
  22. Silthampitag, P.; Chaijareenont, P.; Tattakorn, K.; Banjongprasert, C.; Takahashi, H.; Arksornnukit, M. Effect of surface pretreatments on resin composite bonding to PEEK. Dent. Mater. J. 2016, 35, 668–674. [Google Scholar] [CrossRef] [PubMed]
  23. Stawarczyk, B.; Bahr, N.; Beuer, F.; Wimmer, T.; Eichberger, M.; Gernet, W.; Jahn, D.; Schmidlin, P.R. Influence of plasma pretreatment on shear bond strength of self-adhesive resin cements to polyetheretherketone. Clin. Oral Investig. 2014, 18, 163–170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Stawarczyk, B.; Jordan, P.; Schmidlin, P.R.; Roos, M.; Eichberger, M.; Gernet, W.; Keul, C. PEEK surface treatment effects on tensile bond strength to veneering resins. J. Prosthet. Dent. 2014, 112, 1278–1288. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, X.; Mao, S.S. Titanium dioxide nanomaterials: Synthesis, properties, modifications, and applications. Chem. Rev. 2007, 107, 2891–2959. [Google Scholar] [CrossRef] [PubMed]
  26. Visai, L.; de Nardo, L.; Punta, C.; Melone, L.; Cigada, A.; Imbriani, M.; Arciola, C.R. Titanium oxide antibacterial surfaces in biomedical devices. Int. J. Artif. Org. 2011, 34, 929–946. [Google Scholar] [CrossRef] [PubMed]
  27. Neal, A.L. What can be inferred from bacterium-nanoparticle interactions about the potential consequences of environmental exposure to nanoparticles? Ecotoxicology 2008, 17, 362–371. [Google Scholar] [CrossRef] [PubMed]
  28. Gutwein, L.G.; Webster, T.J. Osteoblast and chrondrocyte proliferation in the presence of alumina and titania nanoparticles. J. Nanopart. Res. 2002, 4, 231–238. [Google Scholar] [CrossRef]
  29. Nakamura, H.; Nakamura, T.; Noguchi, T.; Imagawa, K. Photodegradation of PEEK sheets under tensile stress. Polym. Degrad. Stab. 2006, 91, 740–746. [Google Scholar] [CrossRef]
  30. Patel, P.; Hull, T.R.; McCabe, R.W.; Flath, D.; Grasmeder, J.; Percy, M. Mechanism of thermal decomposition of poly(ether ether ketone) (PEEK) from a review of decomposition studies. Polym. Degrad. Stab. 2010, 95, 709–718. [Google Scholar] [CrossRef]
  31. Zhou, T.; Zhu, Y.; Li, X.; Liu, X.; Yeung, K.W.; Wu, S.; Wang, X.; Cui, Z.; Yang, X.; Chu, P.K. Surface functionalization of biomaterials by radical polymerization. Prog. Mater. Sci. 2016, 83, 191–235. [Google Scholar] [CrossRef]
Materials 10 00067 g001 550
Figure 1. Study design for TBS measurement and fracture type analysis.
Figure 1. Study design for TBS measurement and fracture type analysis.
Materials 10 00067 g001
Materials 10 00067 g002 550
Figure 2. Process of specimen preparation.
Figure 2. Process of specimen preparation.
Materials 10 00067 g002
Materials 10 00067 g003 550

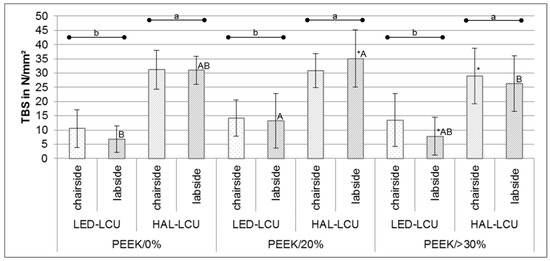

Figure 3. TBS (mean ± SD) divided by different PEEK compositions and LCUs with significant differences, respectively.
Figure 3. TBS (mean ± SD) divided by different PEEK compositions and LCUs with significant differences, respectively.
Materials 10 00067 g003
Materials 10 00067 g004 550

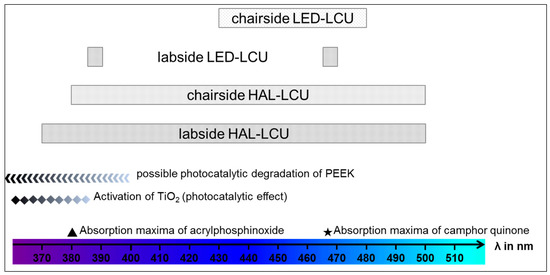

Figure 4. Summary of the possible parameters and effects that may influence the bonding properties to different PEEK compositions with respect to the adhesive system visio.link that was polymerized with four different LCUs and their corresponding wavelengths.
Figure 4. Summary of the possible parameters and effects that may influence the bonding properties to different PEEK compositions with respect to the adhesive system visio.link that was polymerized with four different LCUs and their corresponding wavelengths.
Materials 10 00067 g004
Table
Table 1. Summary of used products and light curing units (LCUs).
Table 1. Summary of used products and light curing units (LCUs).
Material GroupsProduct Name AbbreviationManufacturerLOT No.
PEEKTizian PEEK
PEEK/0%		Schütz Dental Group, Rosbach, Germany2014004126
Dentokeep PEEK
PEEK/20%		nt-trading, Karlsruhe, Germany11DK14001
bre.CAM. BioHPP dentine shade 2
PEEK/>30%		bredent, Senden, Germany438251
Adhesive systemvisio.link (VL)bredent, Senden, Germany135071
Luting cementPanavia SA CementKuraray Medical Inc., Tokyo, Japan058AAA
Light curing unit (LCU) Wavelength/Light Intensity
LEDchairsideElipar S103M, Seefeld, Germany430–480 nm
1200 mW/cm2
labsideEyeVolution MAXDreve, Unna, Germany1 × 385−390 nm
6 × 465−470 nm
HalogenchairsideTranslux CLHeraeus Kulzer, Hanau, Germany380–500 nm
450 mW/cm2
labsidebre.Lux Power Unitbredent, Senden, Germany370–500 nm
Table
Table 2. Descriptive statistics such as mean with standard deviation (SD), 95% confidence intervals (95% CI), and the minimum/median/maximum. All values for TBS are presented in MPa (N/mm2).
Table 2. Descriptive statistics such as mean with standard deviation (SD), 95% confidence intervals (95% CI), and the minimum/median/maximum. All values for TBS are presented in MPa (N/mm2).
TBS
PEEKLight Curing UnitMean ± SD95% CIMin/Median/Max
PEEK/0%LED-LCUchair10.5 ± 6.7 b7.0; 13.80.0/9.0/ 23.8
lab6.8 ± 4.7 B,b4.3; 9.20.0/6.4/14.7
HAL-LCUchair31.2 ± 6.8 a27.7; 34.612.1/31.0/41.2
lab31.0 ± 4.9 A,B,a28.4; 33.522.3/31.6/38.6
PEEK/20%LED-LCUchair14.2 ± 6.4 b10.8; 17.40.0/15.6/23.6
lab13.2 ± 9.6 A,b8.3; 18.00.0/10.9/35.3
HAL-LCUchair30.9 ± 6.0 a27.7; 33.915.3/32.5/39.1
lab35.1 ± 10.0 *,A,a30.0; 40.20.0/37.3/43.9
PEEK/>30%LED-LCUchair13.5 ± 9.2 b8.8; 17.90.0/12.9/34.5
lab7.8 ± 6.6 *,A,B,b4.4; 11.20.0/8.2/17.3
HAL-LCUchair29.0 ± 9.8 *,a24.0; 33.94.6/30.7/40.6
lab26.3 ± 9.8 B,a21.3; 31.32.6/28.3/39.7
LED: Light-emitting diode; HAL: halogen; LCU light curing unit; chair: chairside; lab: labside. * No normal distribution. A,B Significant differences between the PEEK compositions with the same light unit. a,b Significant differences between the light units with the same PEEK composition.
Table
Table 3. Relative frequency of adhesive and cohesive fracture types and 95% CI divided by LCU and PEEK composition.
Table 3. Relative frequency of adhesive and cohesive fracture types and 95% CI divided by LCU and PEEK composition.
Fracture Types
PEEKLight Curing UnitAdhesiveCohesive
PEEK/0%LED-LCUchair100 (80; 100)0 (0; 19)
lab94 (72; 100)6 (0; 28)
HAL-LCUchair0 (0; 19)100 (80; 100)
lab6 (0; 28)94 (72; 100)
PEEK/20%LED-LCUchair83 (57; 97)17 (2; 42)
lab100 (80; 100)0 (0; 19)
HAL-LCUchair0 (0; 19)100 (80; 100)
lab0 (0; 19)100 (80; 100)
PEEK/>30%LED-LCUchair89 (64; 99)11 (0; 35)
lab89 (64; 99)11 (0; 35)
HAL-LCUchair11 (0; 35)89 (64; 99)
lab6 (0; 28)94 (72; 100)
LED: Light-emitting diode; HAL: halogen; LCU light curing unit; chair: chairside; lab: labside.
