# A New Fault Location Approach for Acoustic Emission Techniques in Wind Turbines

^{*}

## Abstract

**:**

## 1. Introduction

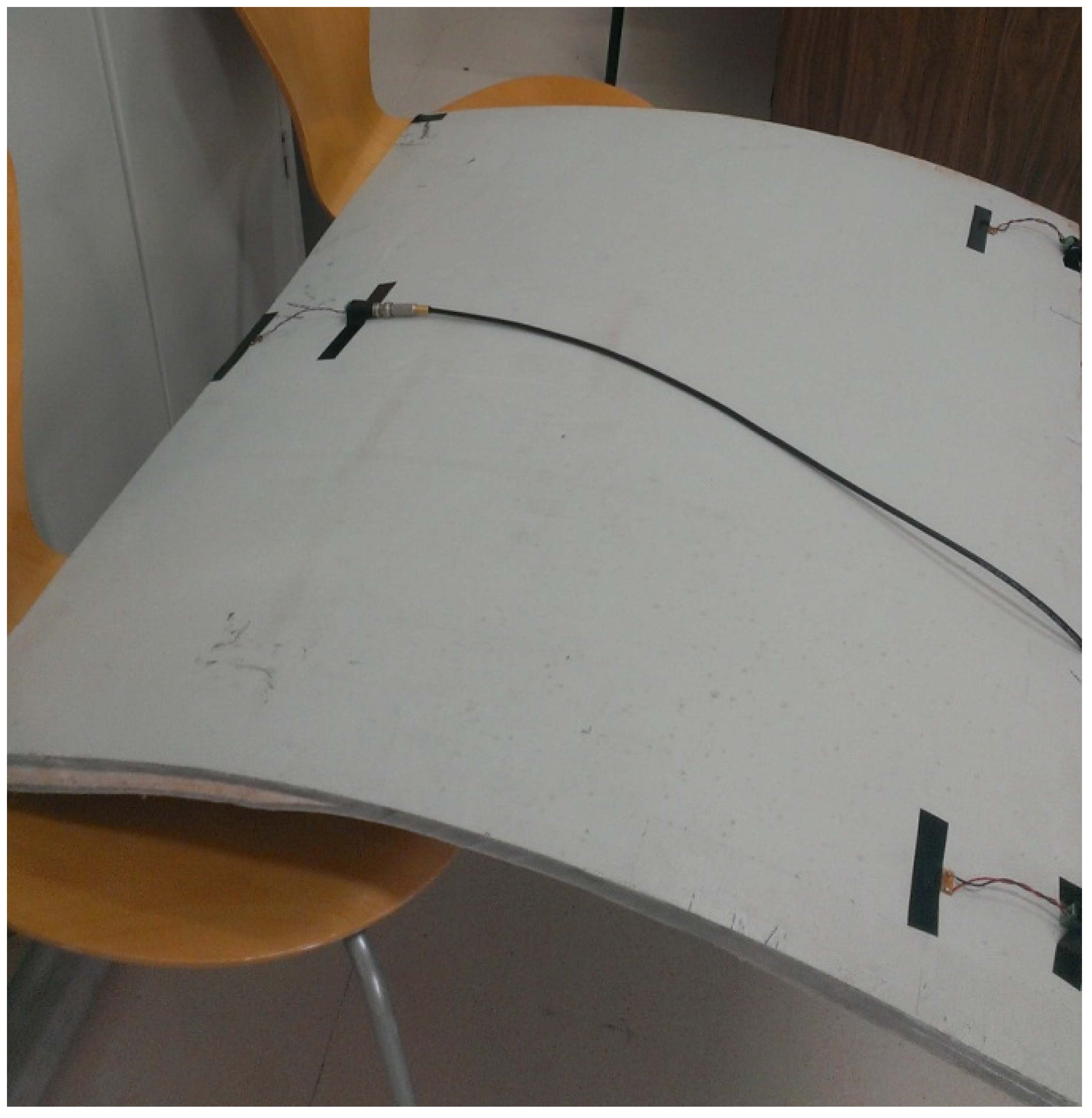

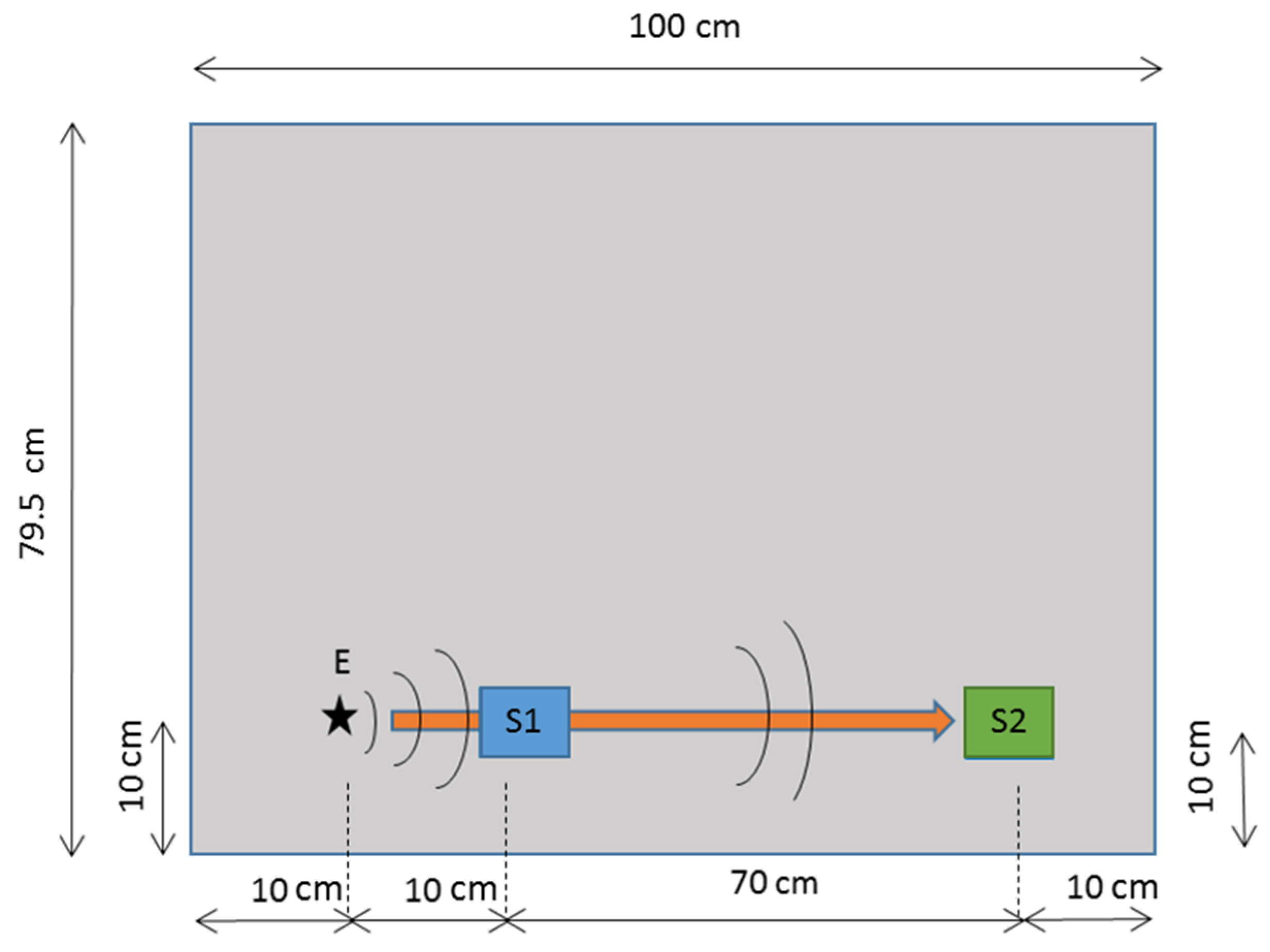

## 2. Experiments

## 3. Location of the Fiber Breakage by the Triangulation Methodology

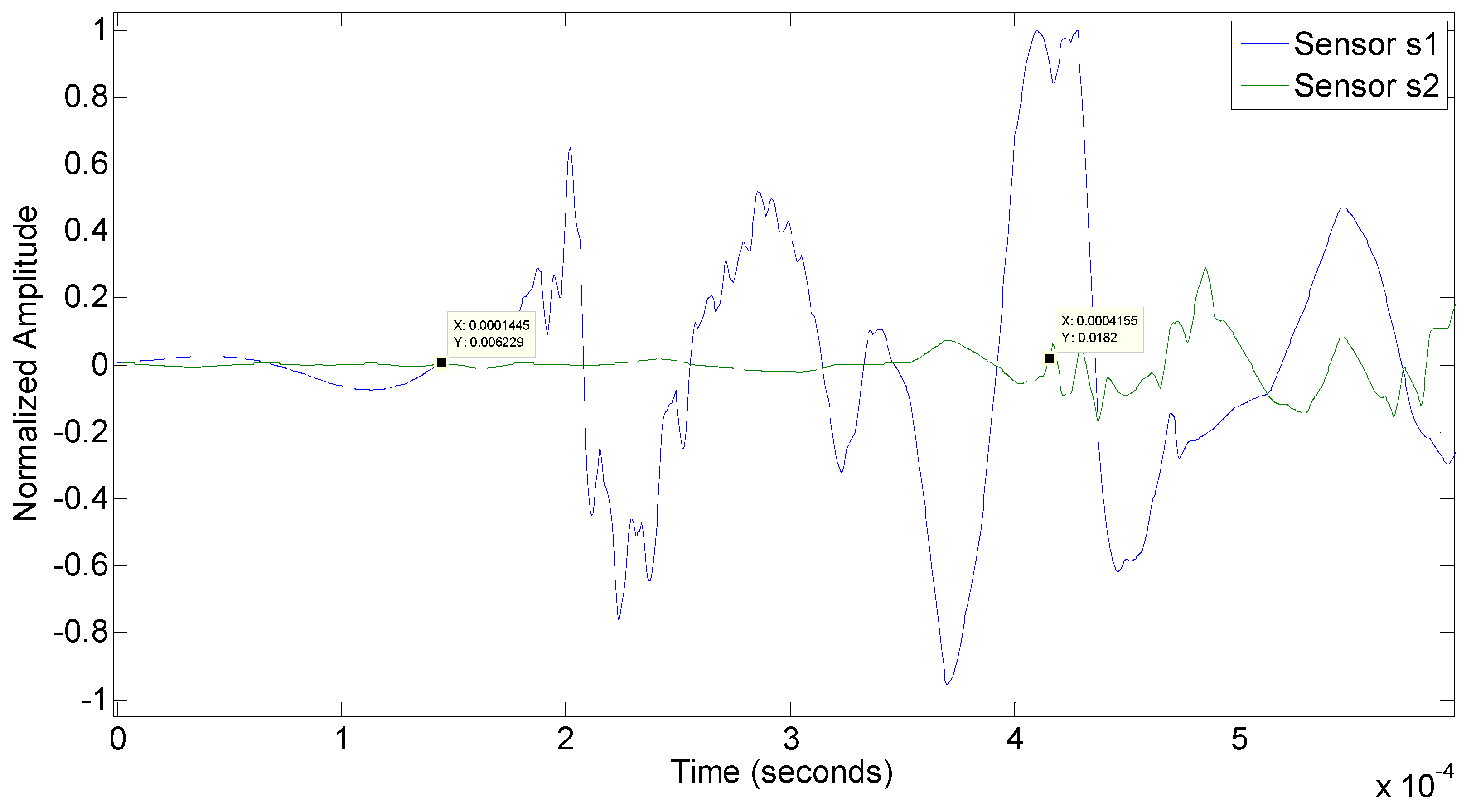

**Figure 3.**Peak detection of the acoustical emission collected by Sensor 1 (

**blue**) and Sensor 2 (

**green**) to obtain the experimental propagation velocity in the composite material.

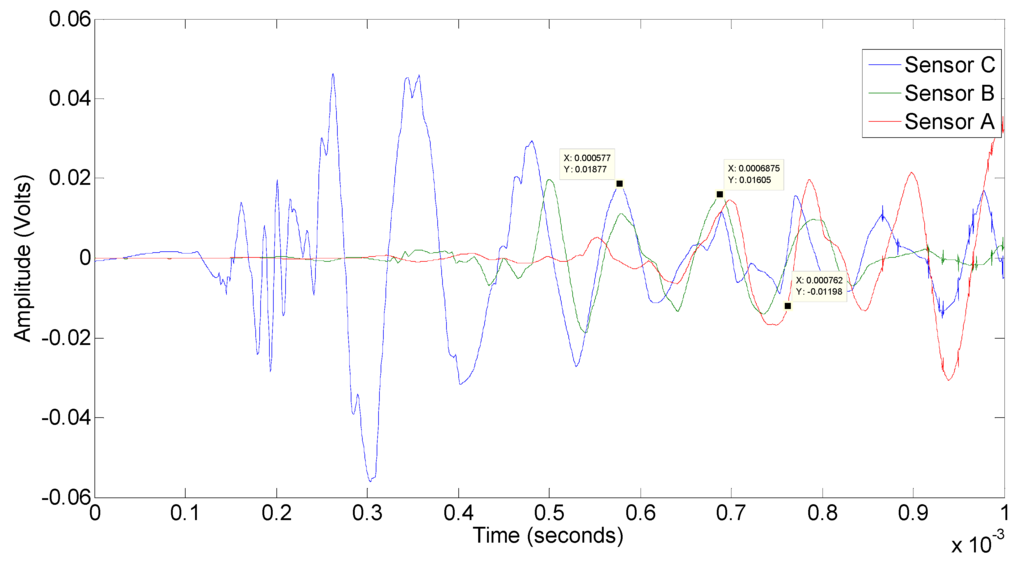

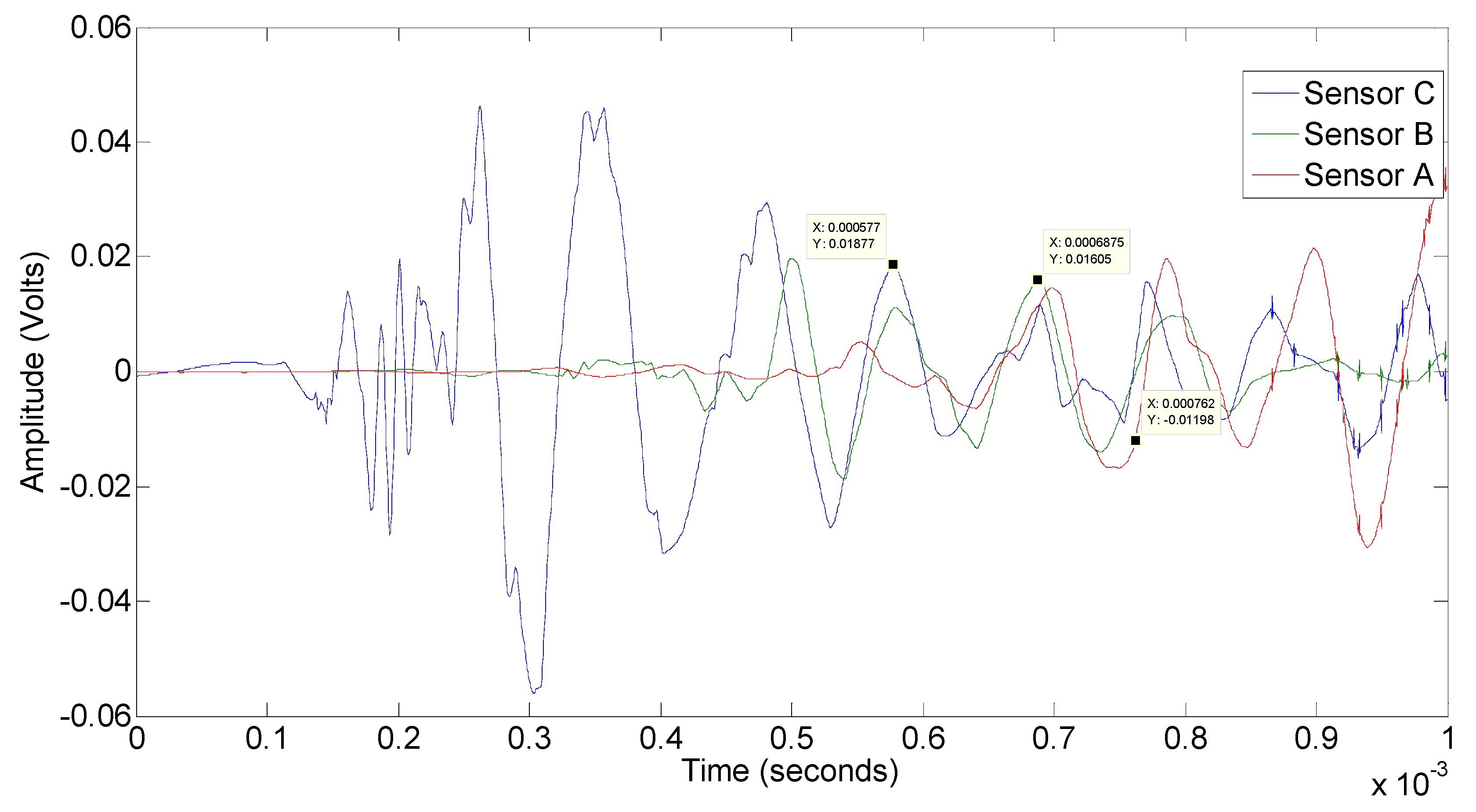

**Figure 4.**Pre-processing of the signal. Wave front collected by Sensors C (

**blue**), B (

**green**) and A (

**red**).

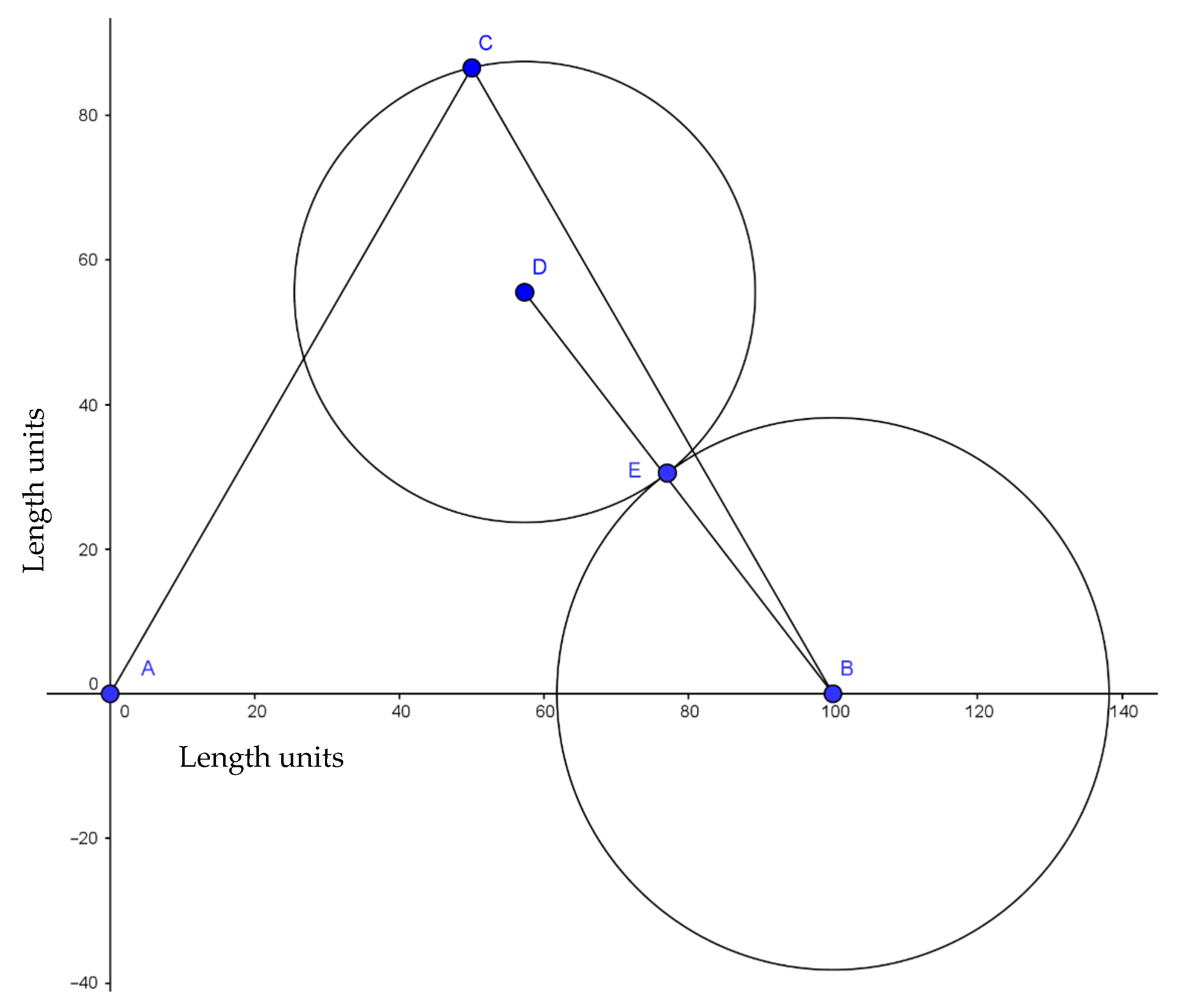

_{EB}is the distance between E and B, v is the propagation velocity of the wave (obtained experimentally) and t

_{CB}is the time delay between the excitation of Sensors C and B.

_{FA}in Equation (2).

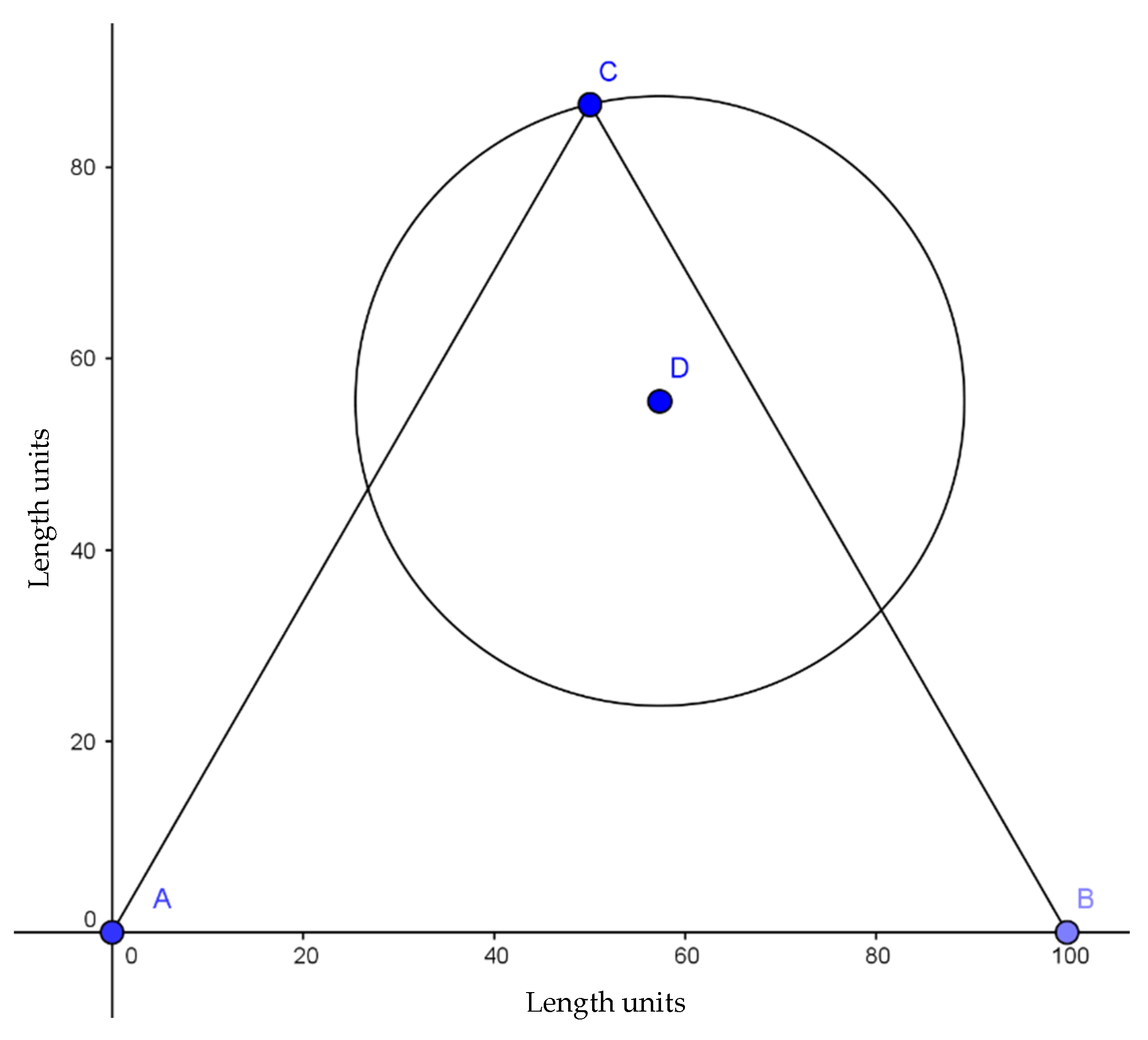

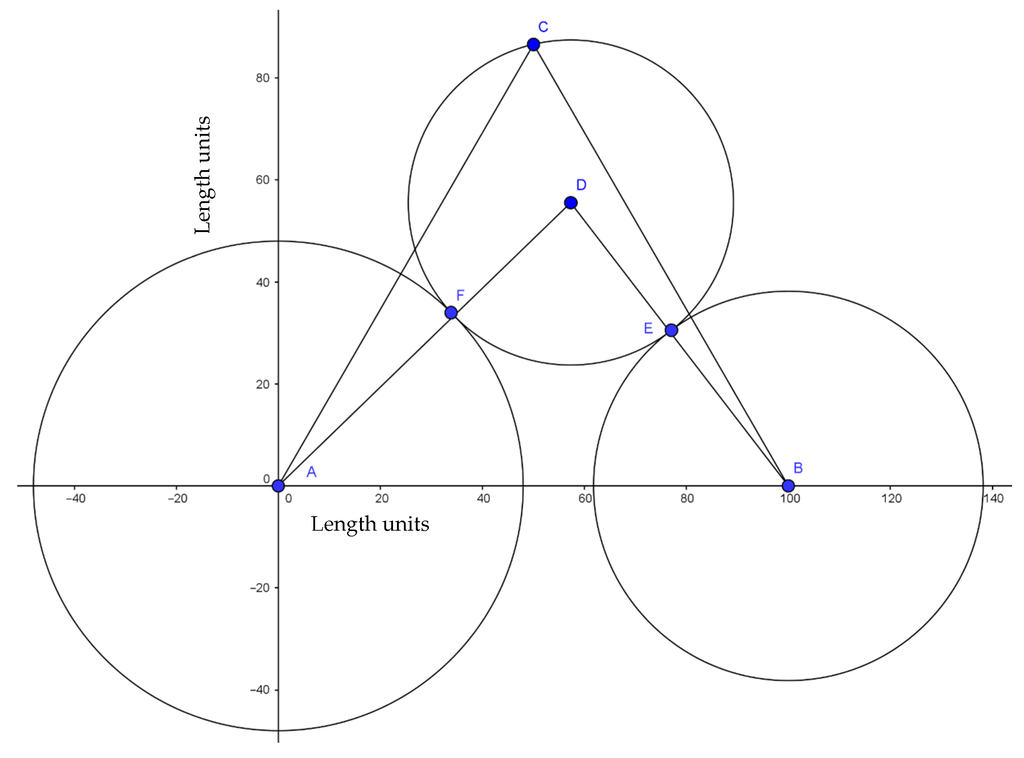

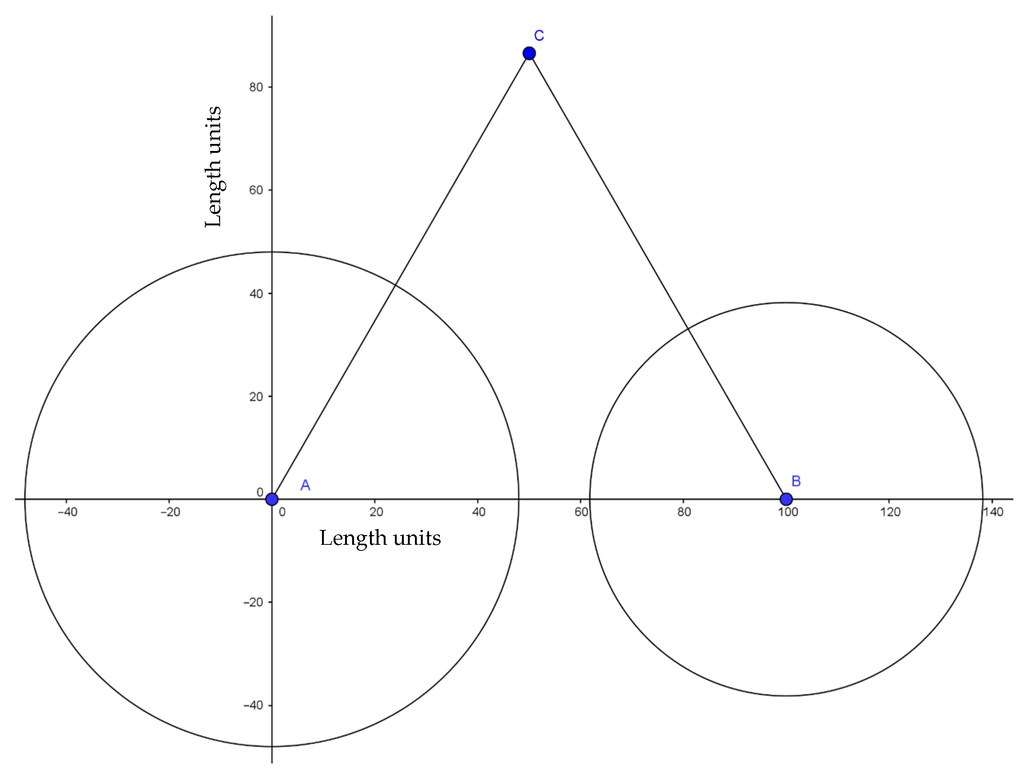

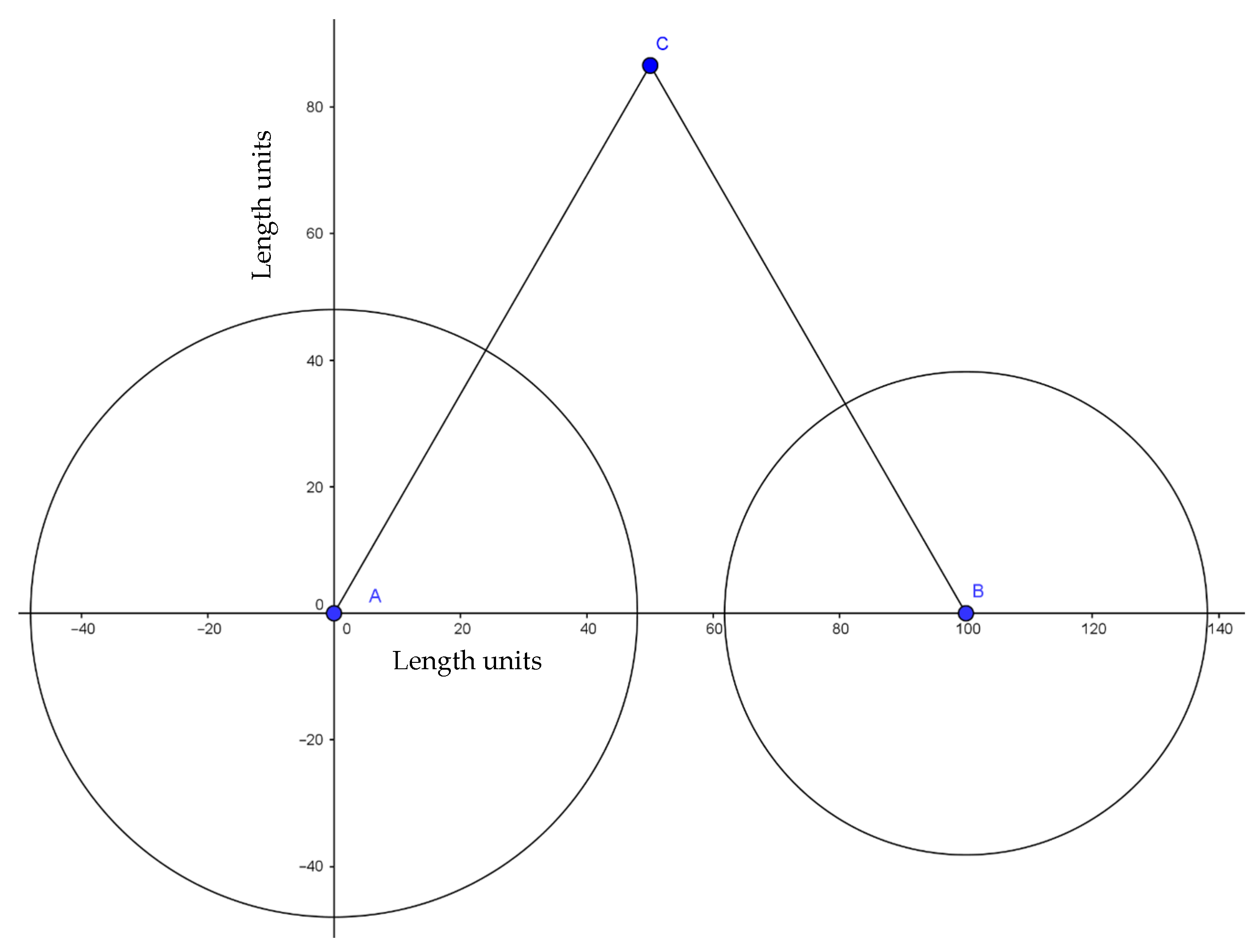

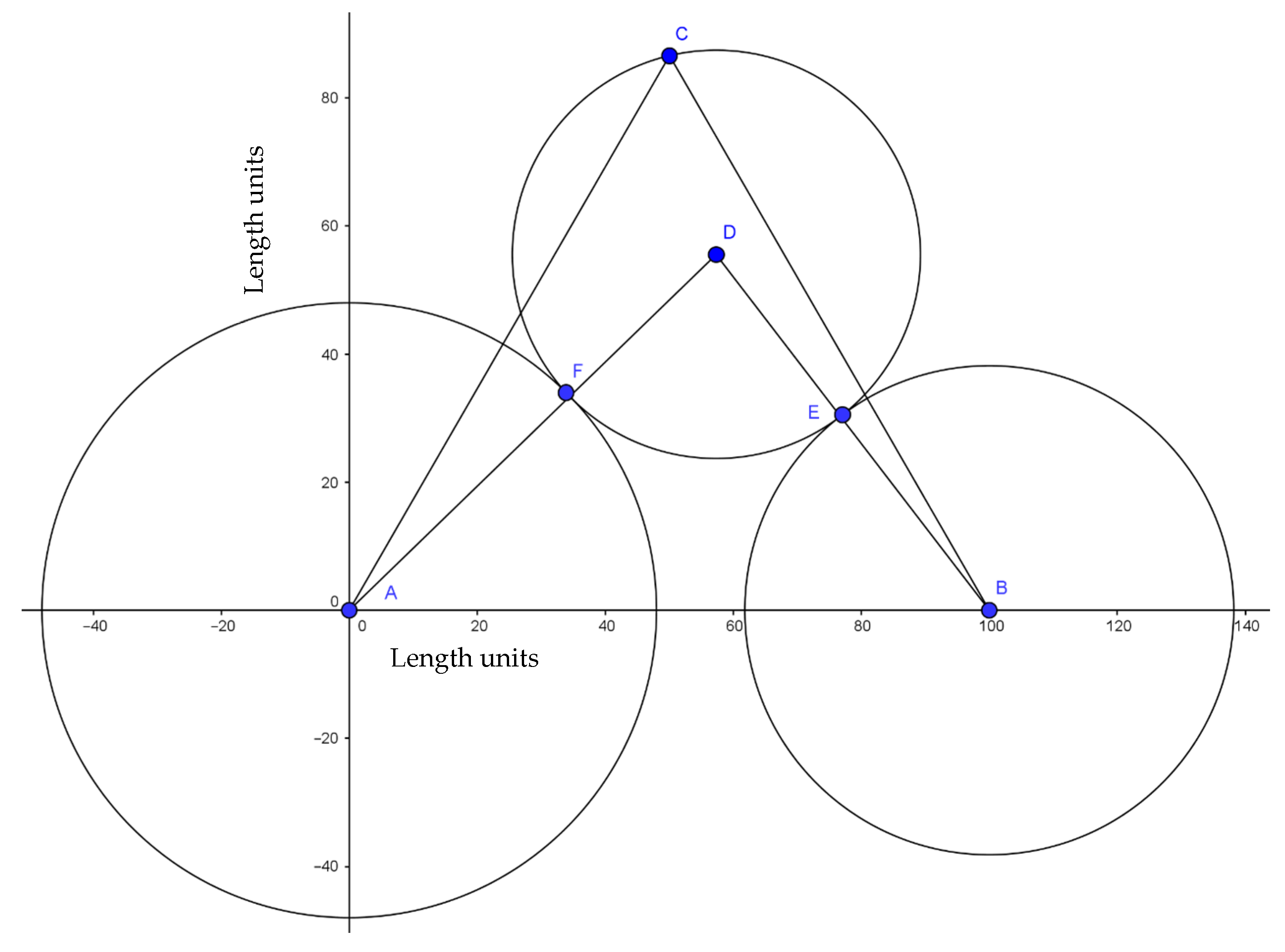

_{CA}is the time delay between the excitation of Sensor C and Sensor A. Figure 8 shows the scheme of the triangulation approach, the delay being represented by a circle.

## 4. Triangulation Equations System

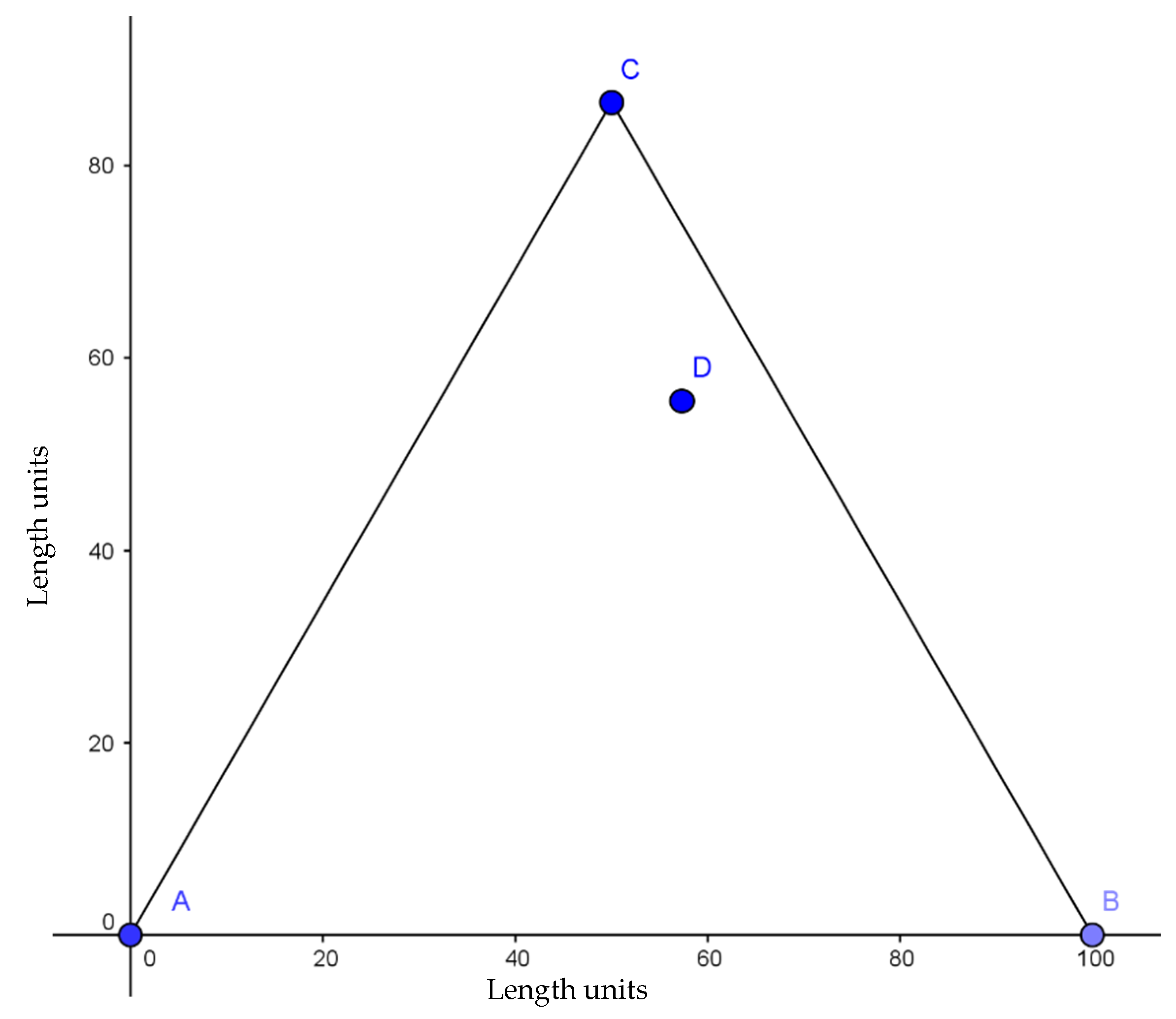

- x
_{c}: x-coordinate at the top of the triangle. - y
_{c}: y-coordinate at the top of the triangle. - x
_{a}: x-coordinate at the left lower corner of the triangle. - y
_{a}: y-coordinate at the left lower corner of the triangle. - x
_{b}: x-coordinate at the right lower corner of the triangle. - y
_{b}: y-coordinate at the right lower corner of the triangle. - r
_{a}: radius of the circle originated from A (delay of Sensor A). - r
_{b}: radius of the circle originated from B (delay of Sensor B).

_{1}, x

_{2}, x

_{3}, x

_{4}, x

_{5}, x

_{6}and x

_{7}, being:

- x
_{1}and x_{2}the coordinates of the emission Source D. - x
_{3}and x_{4}the coordinates of the tangency of Point F. - x
_{5}and x_{6}the coordinates of the tangency of Point E. - x
_{7}is the radius of the circumference with the center D.

## 5. Experimental Procedure and Results

**Table 1.**First case study: detection time; delay with C; delay; theoretical distance; experimental distance.

Sensors | Detection Time (Samples) | Delay with C (Samples) | Delay (s) | Theoretical Distance (m) | Experimental Distance (m) |
---|---|---|---|---|---|

C | 1152 | - | - | - | - |

B | 1381 | 229 | 1.15 × 10^{−4} | 0.30 | 0.30 |

A | 1528 | 376 | 1.88 × 10^{−4} | 0.49 | 0.49 |

Locations | x-Coordinate (m) | y-Coordinate (m) | Radius (m) |
---|---|---|---|

A | 0 | 0 | 0.49 |

B | 0.8 | 0 | 0.30 |

C | 0.4 | 0.69 | - |

1 | 0.55 | 0.495 | - |

**Table 3.**Second case study: detection time; delay with C; delay; theoretical distance; experimental distance.

Sensors | Detection Time (Samples) | Delay with C (Samples) | Delay (s) | Theoretical Distance (m) | Experimental Distance (m) |
---|---|---|---|---|---|

C | 912 | - | - | - | - |

B | 1063 | 151 | 7.55 × 10^{−5} | 0.20 | 0.20 |

A | 1296 | 384 | 1.92 × 10^{−4} | 0.50 | 0.50 |

Locations | x-Coordinate (m) | y-Coordinate (m) | Radius (m) |
---|---|---|---|

A | 0 | 0 | 0.50 |

B | 0.8 | 0 | 0.20 |

C | 0.4 | 0.69 | - |

2 | 0.65 | 0.495 | - |

**Table 5.**Third case study: detection time; delay with C; delay; theoretical distance; experimental distance.

Sensors | Detection Time (Samples) | Delay with C (Samples) | Delay (s) | Theoretical Distance (m) | Experimental Distance (m) |
---|---|---|---|---|---|

C | 962 | - | - | - | - |

B | 1298 | 336 | 1.68 × 10^{−4} | 0.43 | 0.43 |

A | 1087 | 125 | 6.25 × 10^{−5} | 0.17 | 0.16 |

Locations | x-Coordinate (m) | y-Coordinate (m) | Radius (m) |
---|---|---|---|

A | 0 | 0 | 0.16 |

B | 0.8 | 0 | 0.43 |

C | 0.4 | 0.69 | - |

3 | 0.2 | 0.445 | - |

**Table 7.**Fourth case study: detection time; delay with C; delay; theoretical distance; experimental distance.

Sensors | Detection Time (Samples) | Delay with C (Samples) | Delay (s) | Theoretical Distance (m) | Experimental Distance (m) |
---|---|---|---|---|---|

C | 1155 | - | - | - | - |

B | 1650 | 495 | 2.48 × 10^{−4} | 0.64 | 0.64 |

A | 1385 | 230 | 1.15 × 10^{−4} | 0.29 | 0.30 |

Locations | x-Coordinate (m) | y-Coordinate (m) | Radius (m) |
---|---|---|---|

A | 0 | 0 | 0.30 |

B | 0.8 | 0 | 0.64 |

C | 0.4 | 0.69 | / |

4 | 0.05 | 0.645 | / |

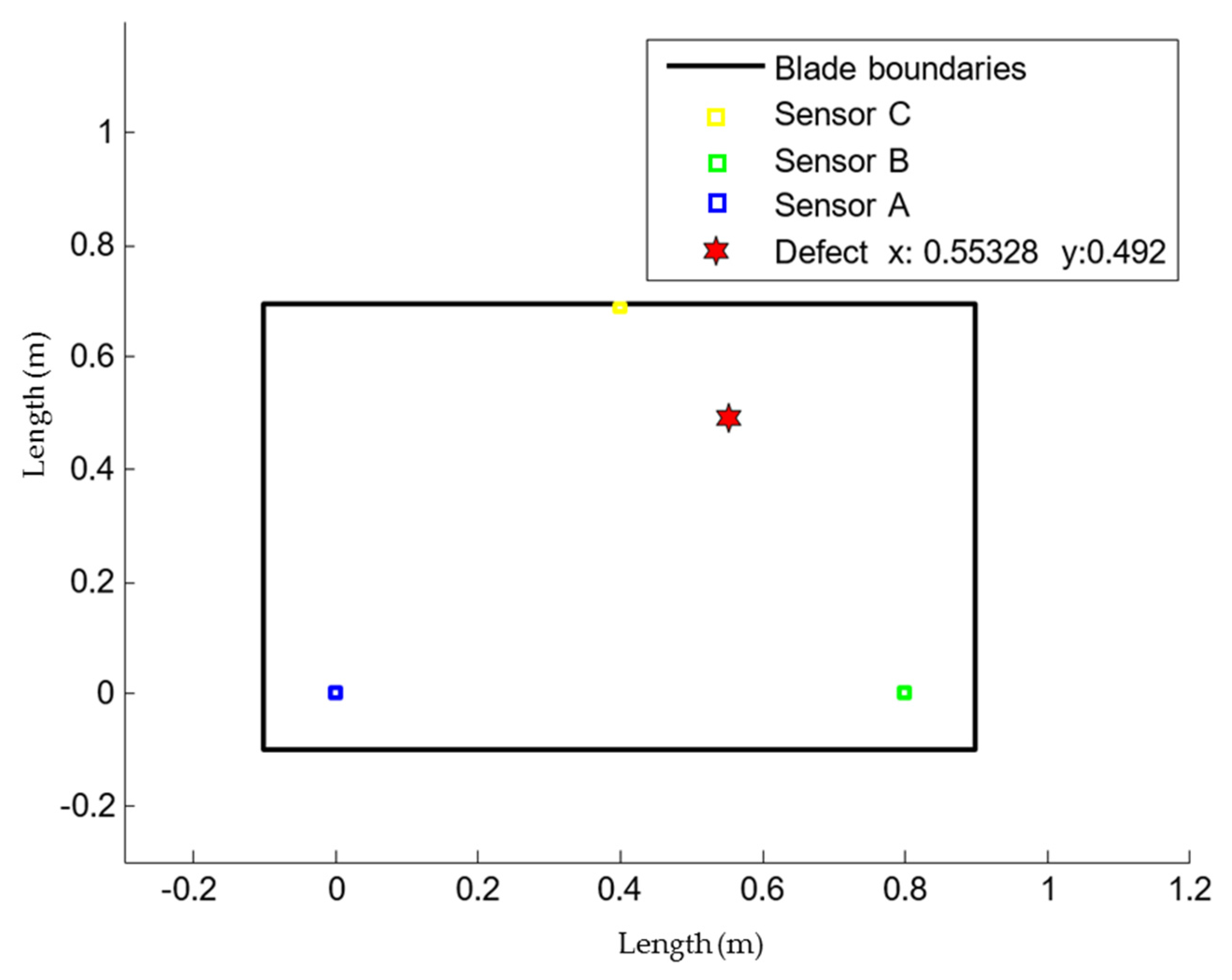

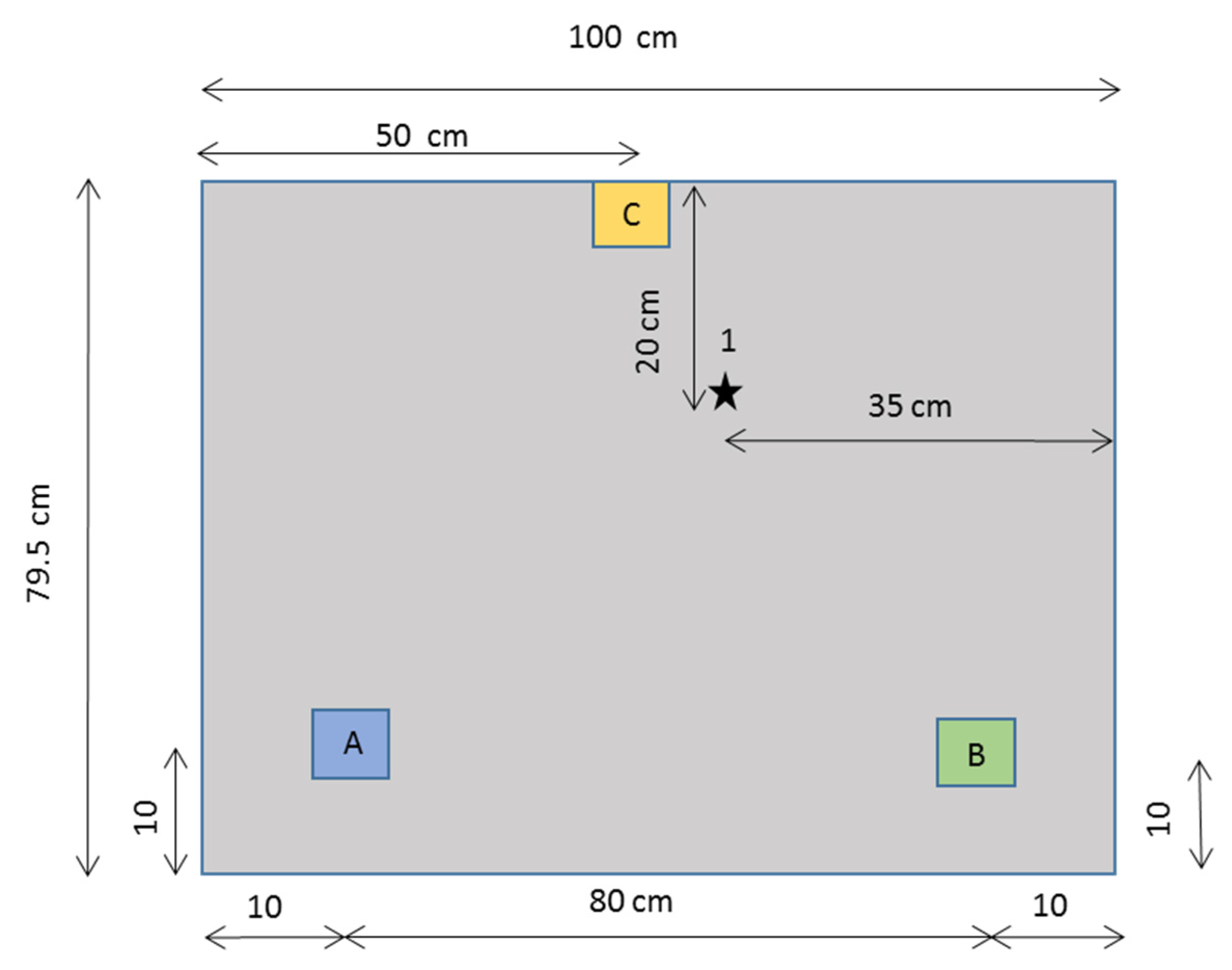

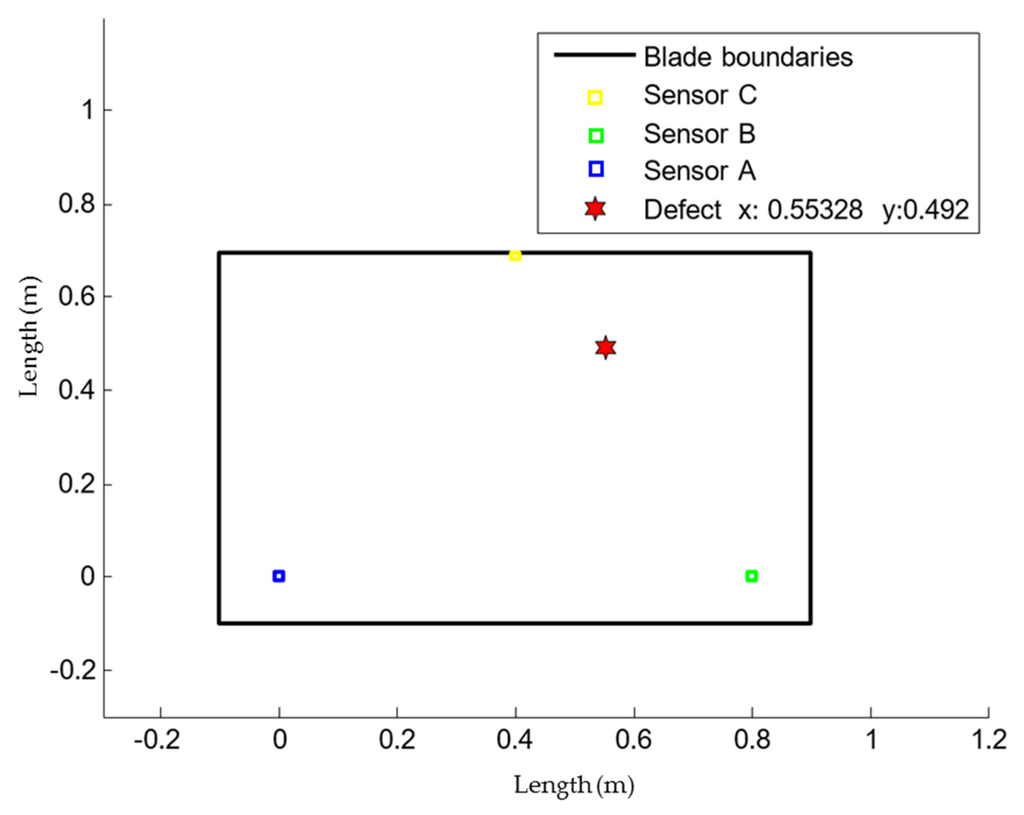

#### 5.1. Case Study 1

- -
- Coordinate x: 0.55.
- -
- Coordinate y: 0.495.

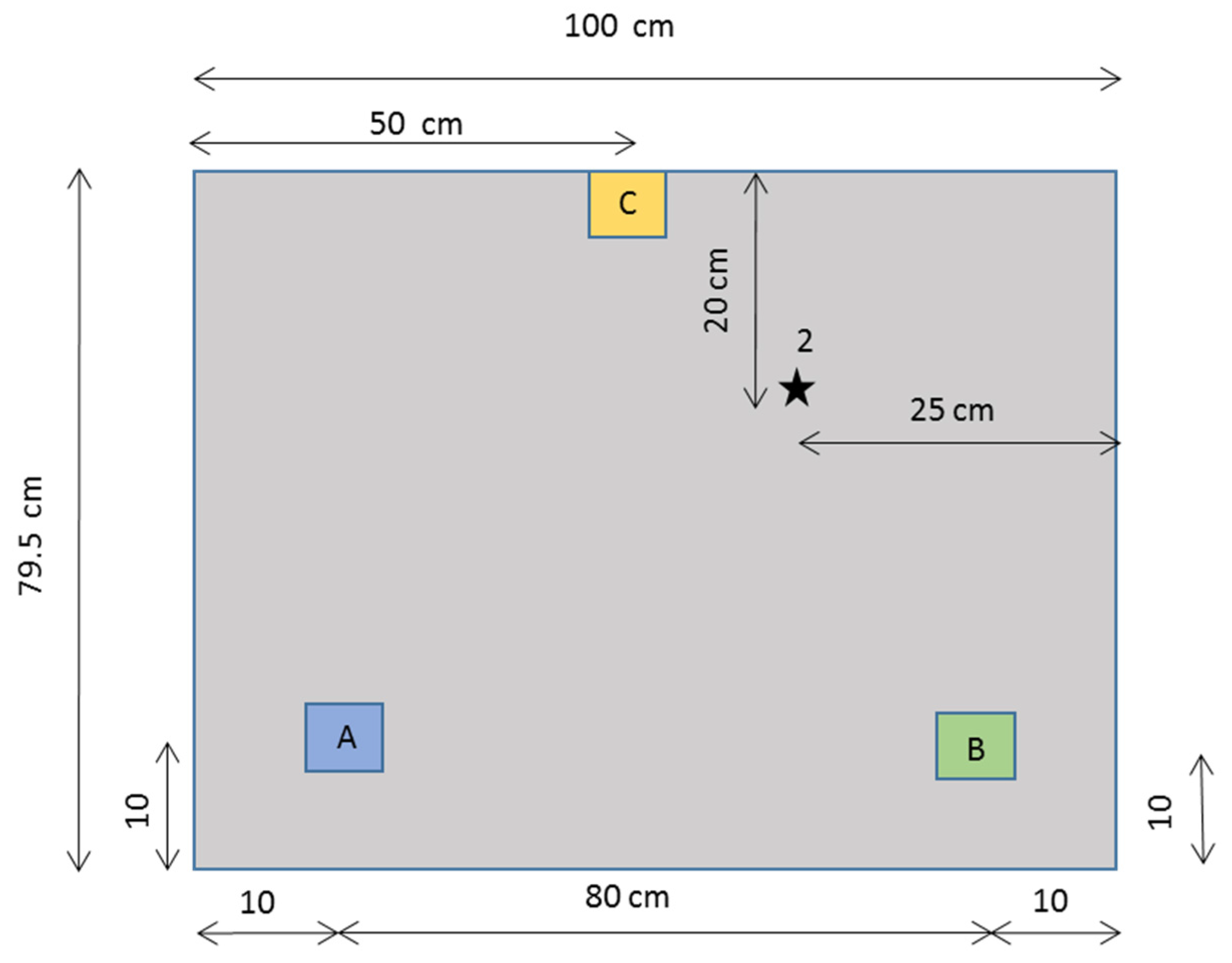

#### 5.2. Case Study 2

- -
- Coordinate x: 0.65.
- -
- Coordinate y: 0.495.

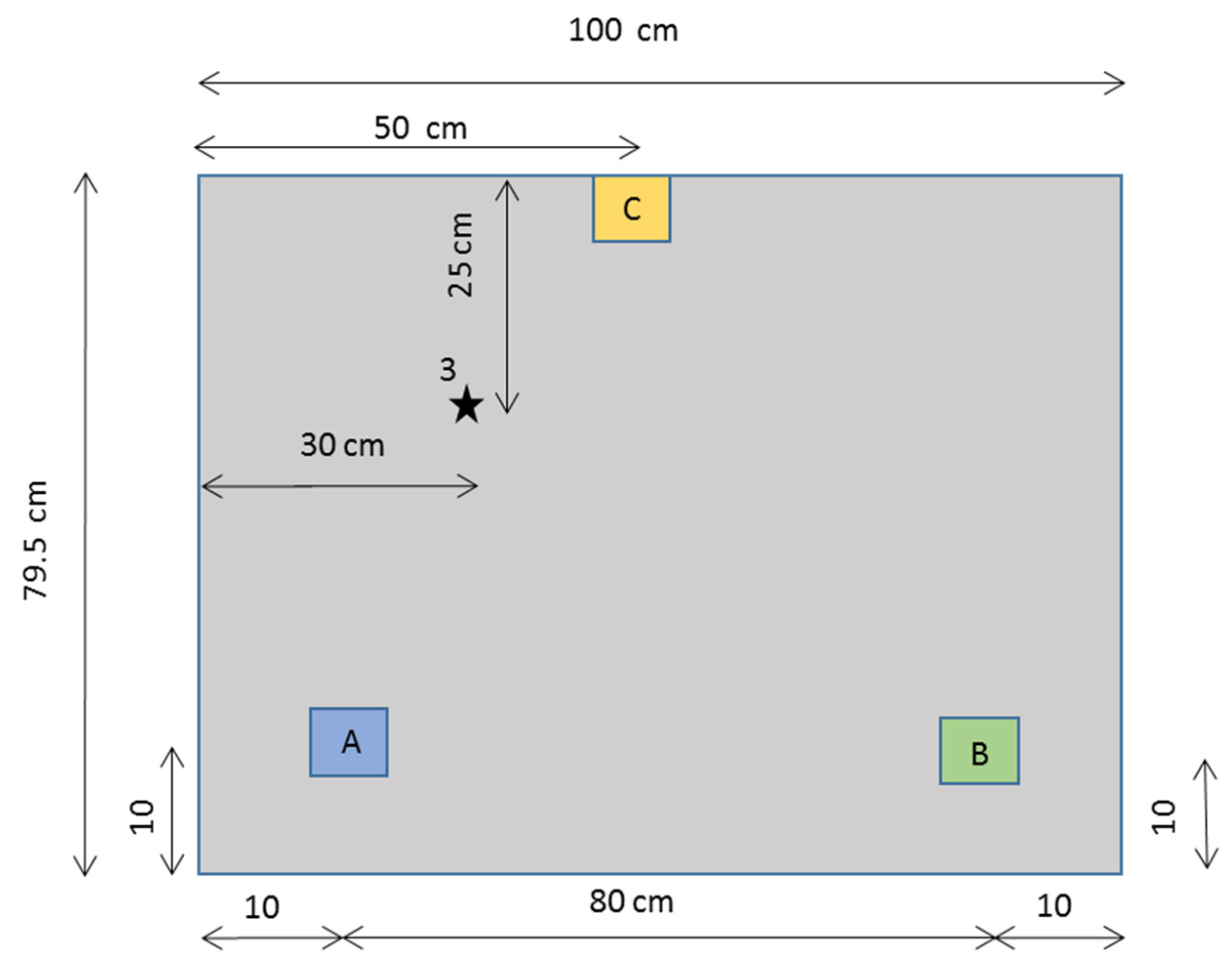

#### 5.3. Case Study 3

- -
- Coordinate x: 0.20.
- -
- Coordinate y: 0.445.

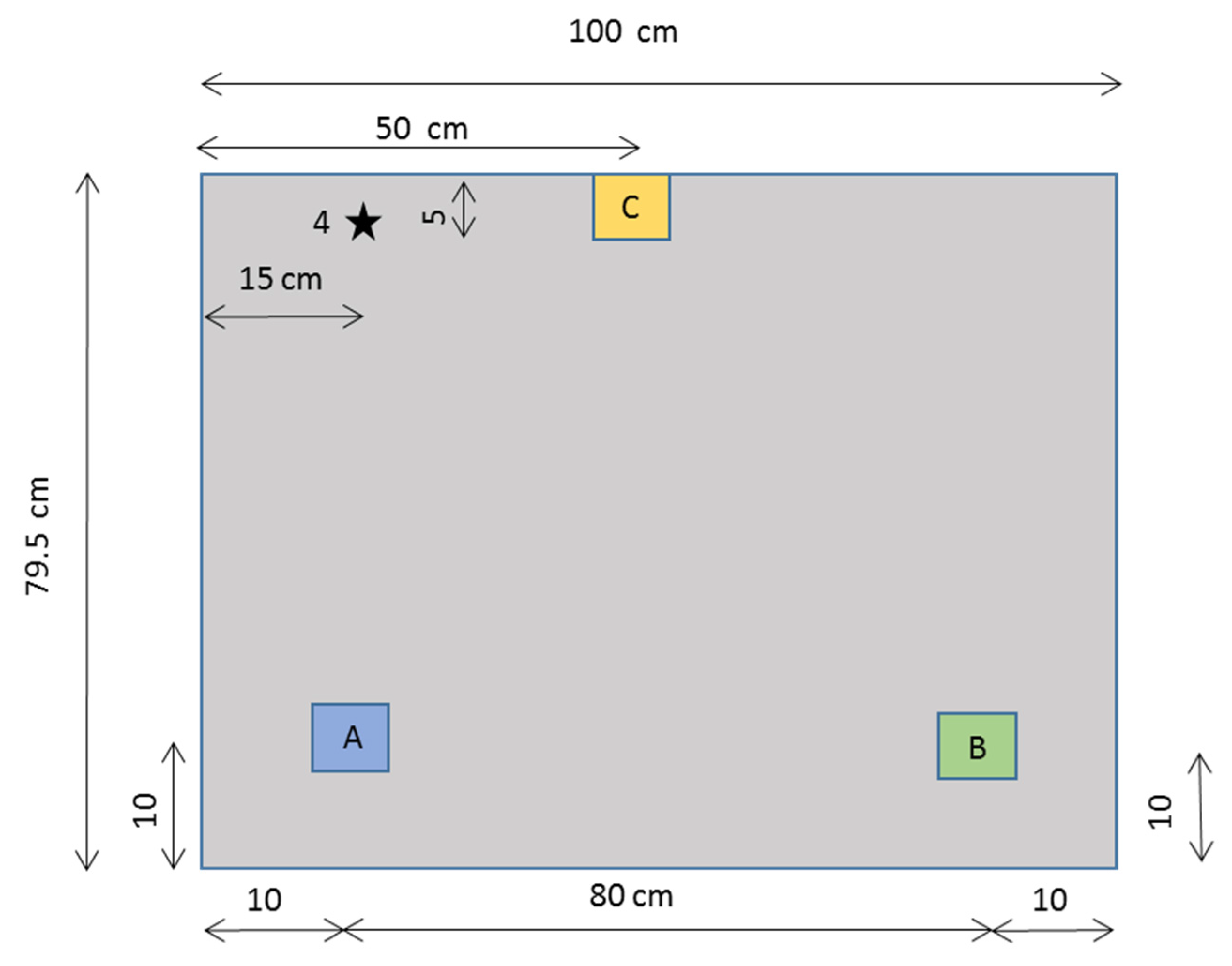

#### 5.4. Case Study 4

- -
- Coordinate x: 0.05.
- -
- Coordinate y: 0.645.

## 6. Conclusions
