Open AccessArticle
Energies 2014, 7(11), 7125-7146;

Uncertainties in Life Cycle Greenhouse Gas Emissions from Advanced Biomass Feedstock Logistics Supply Chains in Kansas

Civil, Architectural and Environmental Engineering, Drexel University, Philadelphia, PA 19104, USA
Department of Biofuels and Renewable Energy Technologies, Idaho National Laboratory, P.O. Box 1625, Idaho Falls, ID 83415, USA
Author to whom correspondence should be addressed.
Received: 14 July 2014 / Revised: 18 October 2014 / Accepted: 20 October 2014 / Published: 4 November 2014
(This article belongs to the Special Issue Biomass Resource Efficiency for the Biobased Industries)
Full-Text   |   PDF [1968 KB, uploaded 17 March 2015]   |


To meet Energy Independence and Security Act (EISA) cellulosic biofuel mandates, the United States will require an annual domestic supply of about 242 million Mg of biomass by 2022. To improve the feedstock logistics of lignocellulosic biofuels in order to access available biomass resources from areas with varying yields, commodity systems have been proposed and designed to deliver quality-controlled biomass feedstocks at preprocessing “depots”. Preprocessing depots densify and stabilize the biomass prior to long-distance transport and delivery to centralized biorefineries. The logistics of biomass commodity supply chains could introduce spatially variable environmental impacts into the biofuel life cycle due to needing to harvest, move, and preprocess biomass from multiple distances that have variable spatial density. This study examines the uncertainty in greenhouse gas (GHG) emissions of corn stover logistics within a bio-ethanol supply chain in the state of Kansas, where sustainable biomass supply varies spatially. Two scenarios were evaluated each having a different number of depots of varying capacity and location within Kansas relative to a central commodity-receiving biorefinery to test GHG emissions uncertainty. The first scenario sited four preprocessing depots evenly across the state of Kansas but within the vicinity of counties having high biomass supply density. The second scenario located five depots based on the shortest depot-to-biorefinery rail distance and biomass availability. The logistics supply chain consists of corn stover harvest, collection and storage, feedstock transport from field to biomass preprocessing depot, preprocessing depot operations, and commodity transport from the biomass preprocessing depot to the biorefinery. Monte Carlo simulation was used to estimate the spatial uncertainty in the feedstock logistics gate-to-gate sequence. Within the logistics supply chain GHG emissions are most sensitive to the transport of the densified biomass, which introduces the highest variability (0.2–13 g CO2e/MJ) to life cycle GHG emissions. Moreover, depending upon the biomass availability and its spatial density and surrounding transportation infrastructure (road and rail), logistics can increase the variability in life cycle environmental impacts for lignocellulosic biofuels. Within Kansas, life cycle GHG emissions could range from 24 g CO2e/MJ to 41 g CO2e/MJ depending upon the location, size and number of preprocessing depots constructed. However, this range can be minimized through optimizing the siting of preprocessing depots where ample rail infrastructure exists to supply biomass commodity to a regional biorefinery supply system. View Full-Text
Keywords: life cycle assessment (LCA); lignocellulosic ethanol LCA; greenhouse gas (GHG) emissions; biomass supply chains; uncertainty in biofuel LCA life cycle assessment (LCA); lignocellulosic ethanol LCA; greenhouse gas (GHG) emissions; biomass supply chains; uncertainty in biofuel LCA

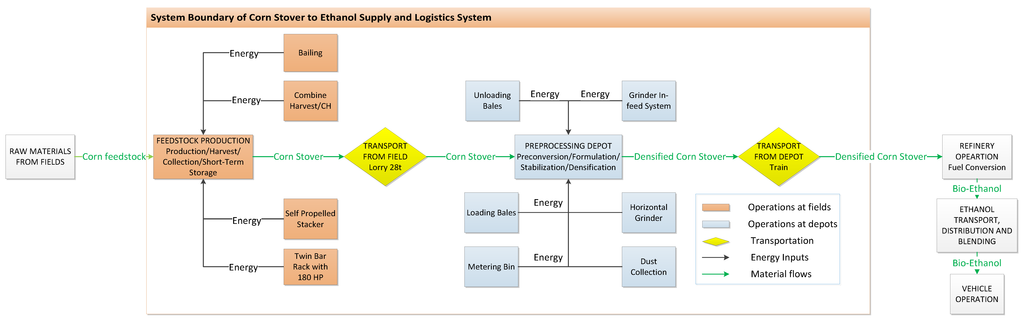

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Supplementary material


Share & Cite This Article

MDPI and ACS Style

Nguyen, L.; Cafferty, K.G.; Searcy, E.M.; Spatari, S. Uncertainties in Life Cycle Greenhouse Gas Emissions from Advanced Biomass Feedstock Logistics Supply Chains in Kansas. Energies 2014, 7, 7125-7146.
