A Demonstration of Carbon-Assisted Water Electrolysis

Chemical & Biological Engineering Department, University of Sheffield, Mappin Street, Sheffield S1 3JD, UK
School of Engineering and Engineering Technology, Federal University of Technology, Gidan Kwano Campus PMB 65, Minna, Niger State, Nigeria
Author to whom correspondence should be addressed.
Received: 19 December 2012 / Revised: 22 February 2013 / Accepted: 5 March 2013 / Published: 11 March 2013
Full-Text   |   PDF [298 KB, uploaded 17 March 2015]   |

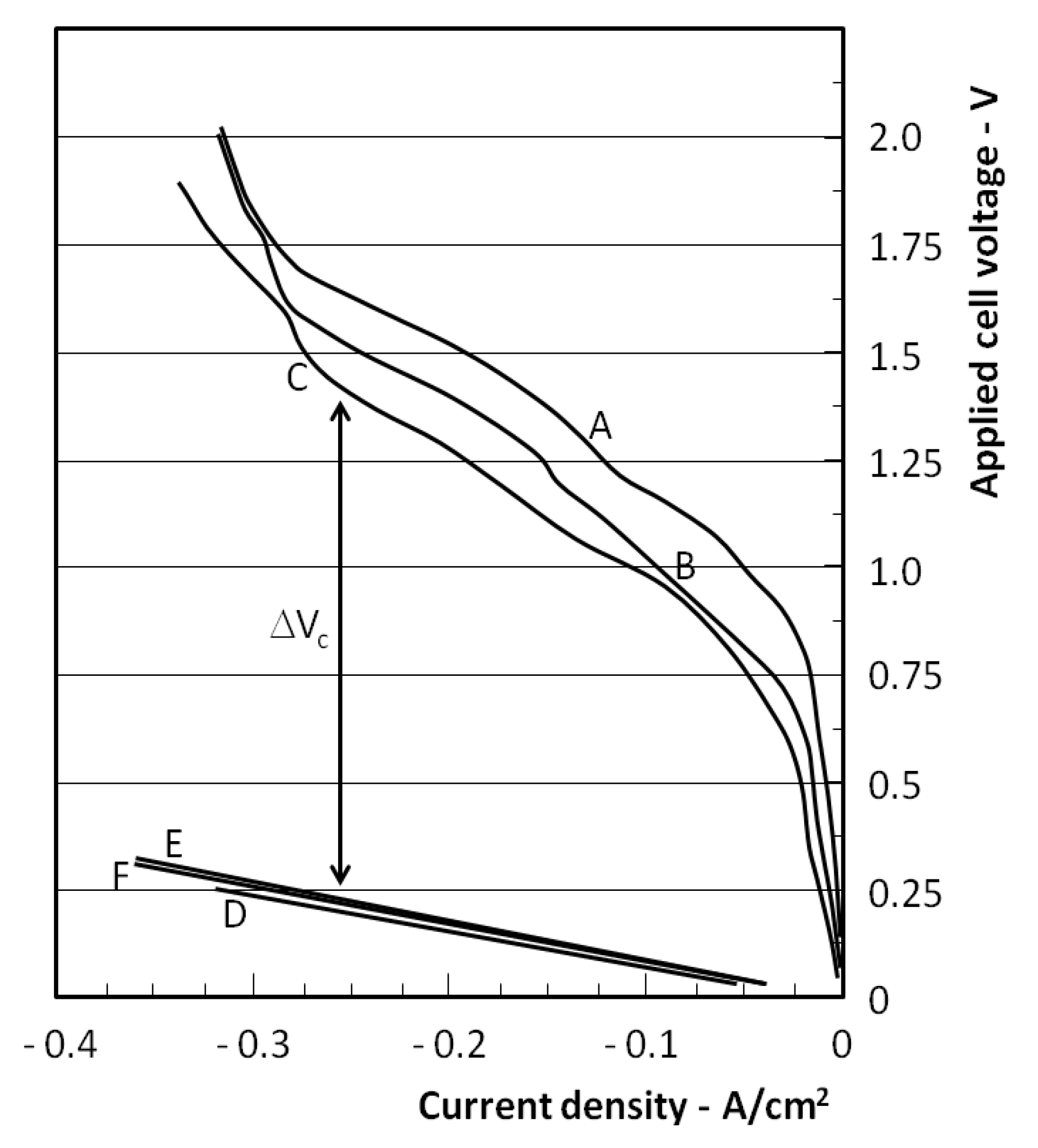

It is shown that carbon fuel cell technology can be combined with that of high temperature steam electrolysis by the incorporation of carbon fuel at the cell anode, with the resulting reduction of the required electrolysis voltage by around 1 V. The behaviour of the cell current density and applied voltage are shown to be connected with the threshold of electrolysis and the main features are compared with theoretical results from the literature. The advantage arises from the avoidance of efficiency losses associated with electricity generation using thermal cycles, as well as the natural separation of the carbon dioxide product stream for subsequent processing. View Full-Text
Keywords: electrolysis; gasification; carbon fuel cell; solid oxide cell electrolysis; gasification; carbon fuel cell; solid oxide cell

Figure 1

This is an open access article distributed under the Creative Commons Attribution License (CC BY 3.0).
