The Effect of a Teflon Insulation Layer Installed Inside the Pump on the Insulation of a Centrifugal Pump for Transporting Liquid Hydrogen

Abstract

One of the most important goals in developing centrifugal pumps for liquid hydrogen transport is to minimize the temperature rise of the working fluid caused by internal and external heat sources during operation. In this paper, as part of our evaluation of the internal insulation characteristics of a centrifugal pump for liquid hydrogen transport, we removed the external vacuum insulation layer and installed a Teflon insulation layer inside the pump. We investigated the process of heat transfer from the outside to the working fluid due to internal heat flow loss during the pumping process and the resulting temperature rise of the working fluid through CHT (Conjugate Heat Transfer) analysis. The results show that, compared to a pump without a Teflon insulation layer, increasing the insulation layer thickness to 10 mm reduces external heat input from about 1300 W to 300 W. Furthermore, the Teflon insulation layer reduces the heat generated by internal heat flow losses during pump operation from approximately 37 W to 11 W.

1. Introduction

Hydrogen is considered a key energy source for the carbon-neutral era, as it emits zero greenhouse gases during combustion and has an energy density per unit mass three times that of gasoline. Therefore, technologies for storing and transporting hydrogen have emerged as key research topics [1,2,3]. The most efficient way to handle hydrogen is to convert room-temperature gaseous hydrogen into liquid form for storage and transportation. Liquid hydrogen at a cryogenic temperature of 20 K reduces its volume by about 800 times compared to gaseous hydrogen, allowing more hydrogen to be stored in the same space. Furthermore, it offers significant safety advantages, as it allows for the rapid transport of large quantities of hydrogen without the need for high-pressure processes. However, because liquid hydrogen can only exist at extremely low temperatures, maintaining cryogenic temperatures during transport and storage presents a major technical challenge [4,5].

The most critical challenge in developing centrifugal pumps for liquid hydrogen transport is minimizing heat transfer to the working fluid during operation. Research on this topic has only recently begun, and research directly related to insulation for liquid hydrogen pumps is particularly scarce. In a similar study, Li et al., using computational fluid dynamics analysis, demonstrated that the heat generated by the motor during the pumping of liquid hydrogen using a submersible centrifugal pump increases the temperature of the liquid hydrogen by 0.5 K [6]. Yin et al., comprehensively reviewed recent trends in the insulation structure of liquid hydrogen storage tanks, highlighting the challenges associated with the types of insulation used and the deterioration of the vacuum level in the tank’s vacuum insulation layer [7]. Jeong et al., using computational fluid dynamics analysis, numerically analyzed the pressure changes and thermal fluid characteristics of a liquid hydrogen tank under fixed ambient temperature and wind speed conditions to evaluate the insulation performance of polyurethane foam with three different insulation thicknesses. And the research results showed that as the insulation thickness decreases, the internal enthalpy of the liquid hydrogen inside the tank increases rapidly, causing evaporation to start sooner [8].

Our research team has been conducting ongoing research related to the development of centrifugal pumps and valves for transporting liquid hydrogen. The most critical challenge in developing centrifugal pumps for transporting liquid hydrogen is minimizing heat transfer to the working fluid during operation. To achieve this, it is crucial to minimize internal heat generated due to flow loss of the working fluid during pump operation. To do this, we conducted research to optimize the design of the impeller and volute to minimize internal heat generation [9]. Furthermore, it is essential to minimize the heat transferred from the external environment to the liquid hydrogen, the working fluid, during operation. To this end, we adopted a magnetic drive centrifugal pump, which remotely drives the impeller instead of the impeller’s rotating shaft. This design prevents heat transfer from the motor shaft driving the impeller to the liquid hydrogen. Furthermore, all internal surfaces of the pump, including the impeller, which comes into direct contact with the liquid hydrogen, are insulated with Teflon, a cryogenic insulator.

In this paper, we applied a centrifugal pump with an impeller designed to minimize internal flow heat generation [9]. To actively block external heat inflow, we lined all internal surfaces of the pump, including the impeller, with thick Teflon. Furthermore, we systematically analyzed the heat transfer phenomena occurring when pumping liquid hydrogen under these conditions using CHT (Conjugate Heat Transfer) analysis. Through this analysis, we aimed to determine the heat transfer-reducing effect of Teflon layer, an insulating material, in a centrifugal pump used for liquid hydrogen transport.

2. CFD Simulation Models and Boundary Conditions

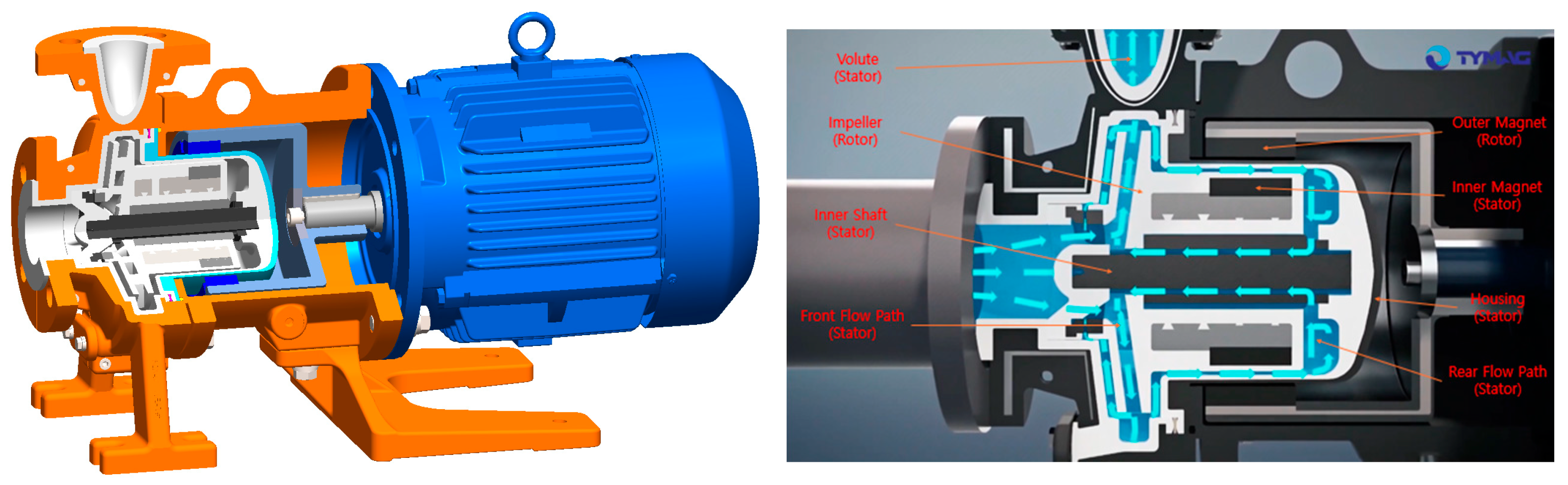

Figure 1 shows the cross-section of the magnetic drive centrifugal pump employed in this study and the flow of the working fluid. As can be seen, the magnetic drive was used to fundamentally block the transfer of heat generated by the motor during operation to the cryogenic working fluid, liquid hydrogen. Furthermore, all surfaces in contact with the working fluid were lined with Teflon, a cryogenic insulator, to block heat transfer from the pump’s outer wall, which is exposed to the atmosphere, to the working fluid, liquid hydrogen.

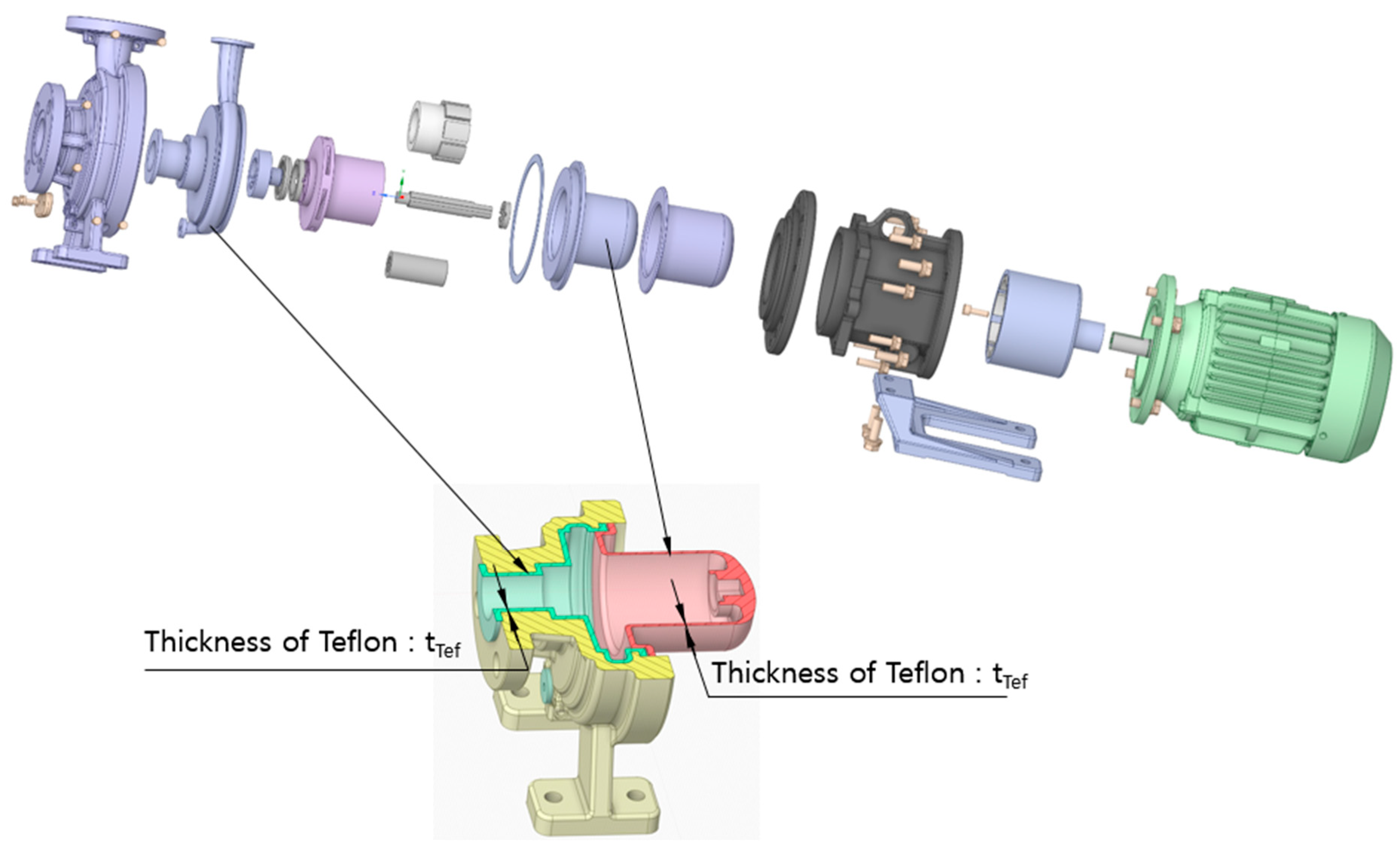

Figure 2 illustrates the components of the centrifugal pump used in the CHT analysis. The upper part of the figure shows the main components of the pump, which transports liquid hydrogen. The lower part shows the drive section, which magnetically drives the impeller contained within the casing. The figure illustrates the appearance and thickness of the insulation installed on the inner wall of the pump to block heat from entering the working fluid from the outer wall of the pump. In this study, analyses were conducted by varying the insulation thickness up to 10 mm, taking into account the physical limitations of pump manufacturing. In the CHT analysis, the motor body was treated as a single mass, and the temperature obtained through experiments during operation, 333.15 K, was applied as the surface boundary condition for calculations.

Figure 3 shows the mesh used for the CHT analysis of these components. The final mesh configuration was determined through mesh independence analysis [9,10]. The solid part, consisting of the 62 major components shown in Figure 2, was composed of approximately 68 million tetrahedral meshes, while the working fluid, liquid hydrogen, was composed of approximately 23 million tetrahedral and prismatic meshes. Considering the highly complex geometrical shapes of the components constituting the centrifugal pump, tetrahedral meshes were primarily used for mesh generation. In addition, five thin prism mesh layers were added to all channel walls to ensure that the Y+ value was less than 100 to sufficiently reflect the effects of the turbulence model of the working fluid during the analysis.

Table 1. Physical properties of the working fluid, boundary conditions and mesh information.

Grid Information & Boundary Conditions
Items	Conditions
Fluid	Liquid Hydrogen
	Density [kg/m3]	70.5
	Specific heat capacity [J/kg K]	9580
	Dynamic viscosity [kg/m s]	1.3 × 10−5
	Thermal conductivity [W/m K]	0.0984
Interface	Rotor-Stator	Stage
	Other	General Contact
Pump Inlet Boundary	Total Pressure = 1 bar	Temperature = 20 K
Pump Outlet Boundary	Flow Rate = 0.118 kg/s
Turbulence Model	SST
Heat Transfer Model	Thermal Energy
Pump Head	25 m
Pump Rotational Speed	3450 rpm
Heat Transfer Coefficient	h = 15 W/m2
Air Temperature	Temperature = 293.15 K
Number of Mesh	Fluid = 23,214,142
	Solid = 68,025,440

shows the material properties and operating boundary conditions of the working fluid used in the CHT analysis. The CHT computational fluid analysis was performed using Ansys CFX 2025R1, a specialized pump analysis software. The heat transfer properties of the solid components of the pump, not shown in Table 1, were determined using specific values provided by the material supplier. For the cryogenic insulator Teflon, a thermal conductivity of K = 0.25 W/(m·K) was used.

The CHT analysis is configured to perform an overall heat flow evaluation by simultaneously calculating the phenomenon of heat transfer to the liquefied hydrogen through the materials constituting the pump with a natural convection heat transfer rate determined by the value of h = 15 W/m² from the pump outer wall exposed to the ambient temperature condition of 293.15 K during a series of flow analysis processes in which liquefied hydrogen at 1 bar and 20 K enters the pump inlet through an impeller rotating at 3450 rpm and exits the pump outlet at a flow rate of 0.118 kg/s. Finally, in order to confirm the heat blocking effect of the Teflon layer, which is an insulation material attached to block the heat entering the working fluid from the outside, a quantitative analysis of the heat blocking effect from the outside during operation was performed by changing the thickness of the insulation material. In addition, by utilizing the CHT analysis results, the heat generated by the internal flow loss of liquid hydrogen during pump operation and the heat entering the 20 K cryogenic liquid hydrogen through the pump body under the conditions of external ambient temperature (293.15 K) were separately analyzed.

3. Results and Discussions

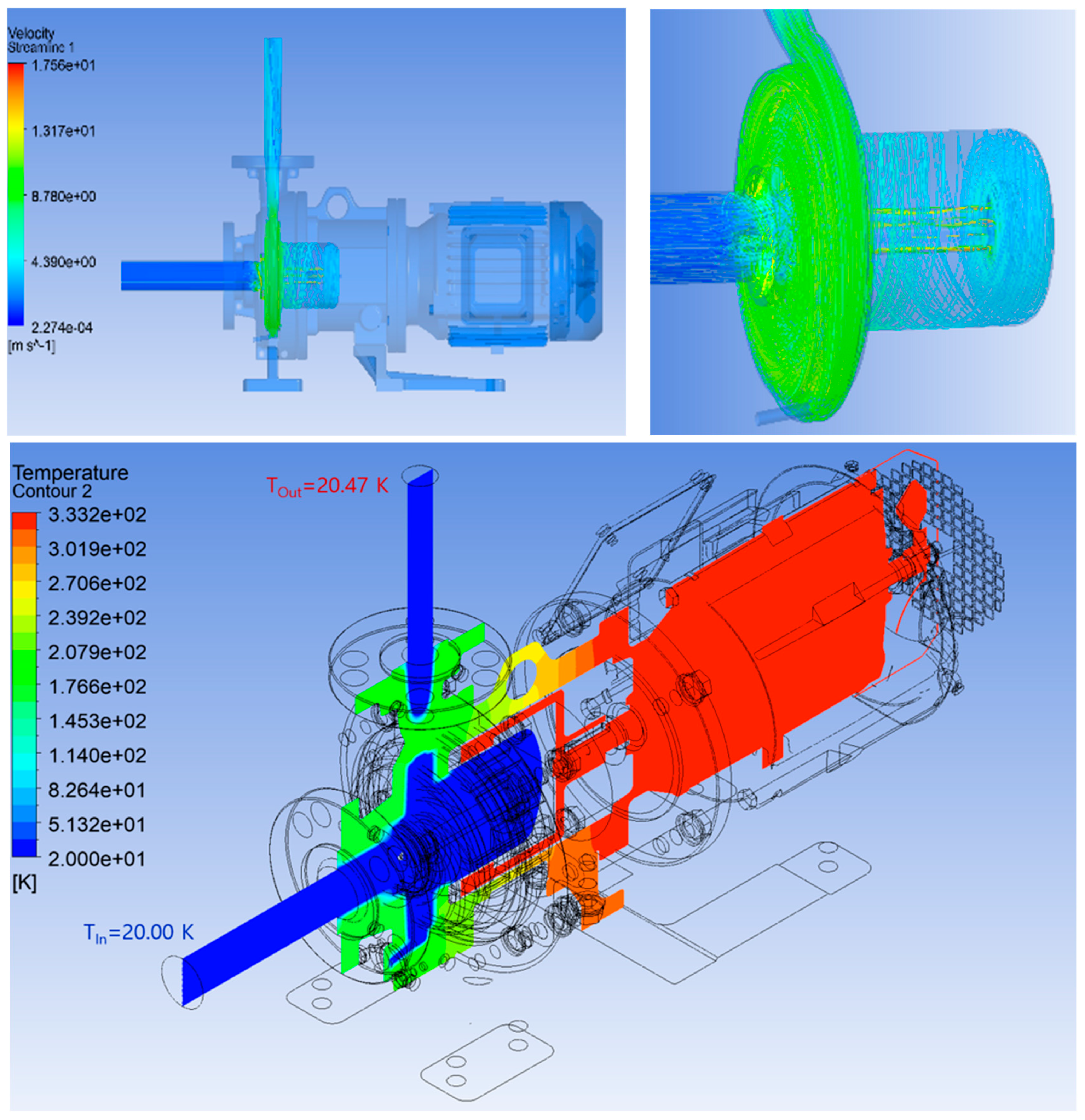

Figure 4 shows a portion of the CHT analysis results. The figure shows the liquid hydrogen entering the pump inlet rotating through the complex flow path between the impeller and the magnetic drive and flowing out the outlet. Simultaneously, it shows the temperature distribution experienced by the liquid hydrogen and the pump body during operation, due to heat supplied from outside the pump and internal flow losses generated during the pumping process. The figure below shows heat transfer from the motor, which uses the experimentally measured temperature of 333.15 K as the surface boundary condition, to the impeller transporting the liquid hydrogen. Furthermore, this heat transfer is prevented from occurring through conduction within the pump due to the magnetic drive blocking the motor shaft.

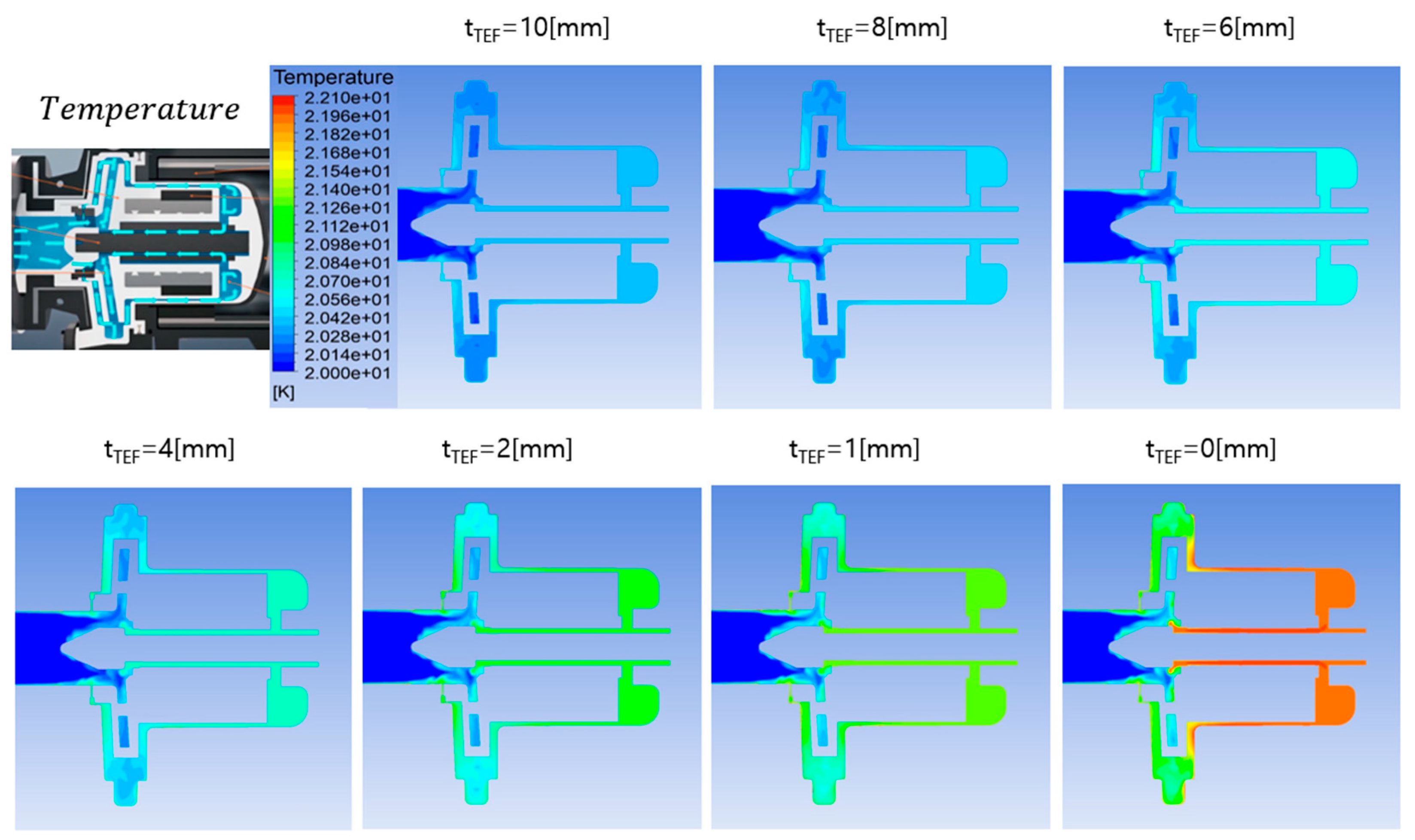

Figure 5 shows the temperature distribution of the working fluid during operation, calculated by varying the thickness of the Teflon layer, the insulation defined in Figure 2. Comparing the figures, we can see that as the insulation thickness decreases, the overall temperature of the working fluid increases. In particular, a portion of the working fluid entering the pump inlet at 20 K passes through the narrow passage created between the magnetic drives, receiving heat from the pump wall and increasing its temperature.

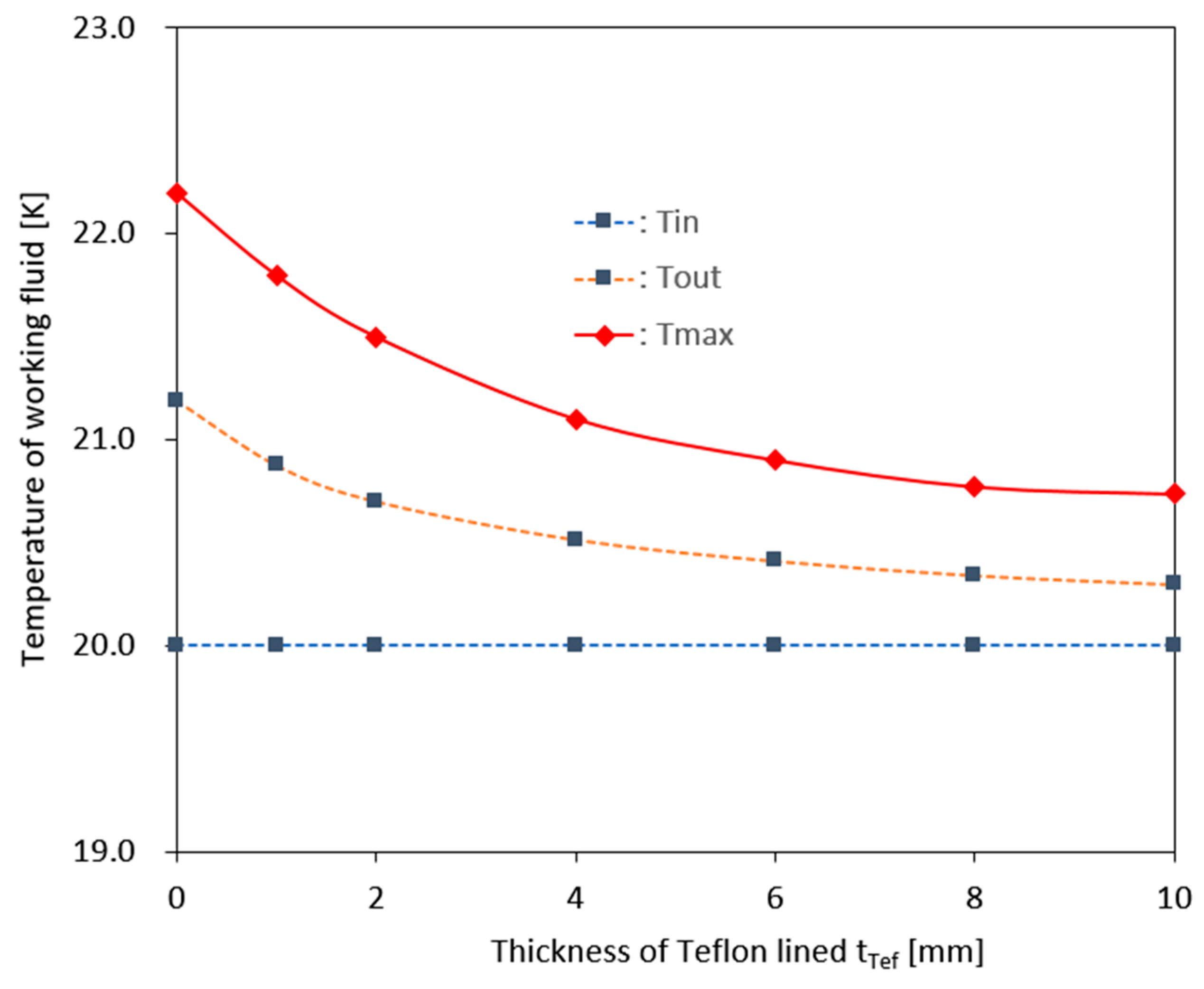

Figure 6 shows the calculated changes in the average temperature at the pump outlet and the maximum temperature inside the pump when the insulation thickness was varied, as shown in Figure 5. The figure shows that as the insulation thickness increases, both the outlet temperature of the working fluid and the maximum temperature of the working fluid inside the pump decrease rapidly. This confirms that the insulation effectively blocks heat entering the working fluid from the outside during operation. However, not all sources of increased working fluid temperature during operation are external heat sources; internal flow losses during operation may also contribute.

Recent studies have used entropy production in the analysis of heat flow losses (which appear as temperature rise) occurring during the operation of fluid machinery [10,11,12,13]. According to references by Li and Herwig et al., the total entropy production rate ($S_{pro}$) related to fluid machinery losses considering heat transfer is composed of a part due to flow and a part due to heat transfer, as shown in Equation (1) [14,15,16,17]. The part due to flow is expressed as a part due to viscous dissipation ($S_{pro,\overline{v}}$) and a part due to turbulent dissipation ($S_{pro,v^{\prime }}$), as shown in Equations (2) and (3), respectively. And the part due to heat transfer is expressed as a part due to heat conduction due to the average temperature gradient ($S_{pro,\overline{T}}$) and a part due to heat conduction due to the fluctuating temperature gradient ($S_{pro,T^{\prime }}$), as shown in Equations (4) and (5). Equations (6)–(9) represent heat flow losses due to the entropy productions defined using the entropy production rate defined above [18]. Each heat flow loss is obtained by spatially integrating the product of the entropy generation rate generated by the working fluid during pump operation and the temperature of the working fluid. The sum of these values is defined as the total heat flow loss, which is expressed as the total heat flow loss occurring during pump operation, as in Equation (10).

$$S_{pro}=S_{pro,\overline{v}}+S_{pro,v^{\prime }}+S_{pro,\overline{T}}+S_{pro,T^{\prime }}$$

(1)

$$S_{pro,\overline{v}}={\displaystyle \frac{\mu }{\overline{T}}}\left\{2\left[{\left({\displaystyle \frac{\partial \overline{u}}{\partial x}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{v}}{\partial y}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{w}}{\partial z}}\right)}^2\right]+{\left({\displaystyle \frac{\partial \overline{u}}{\partial y}}+{\displaystyle \frac{\partial \overline{v}}{\partial x}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{u}}{\partial z}}+{\displaystyle \frac{\partial \overline{w}}{\partial x}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{v}}{\partial z}}+{\displaystyle \frac{\partial \overline{w}}{\partial y}}\right)}^2\right\}$$

(2)

$$S_{pro,v^{\prime }}={\displaystyle \frac{\mu }{\overline{T}}}\left\{2\left[\overline{{\left({\displaystyle \frac{\partial u^{\prime }}{\partial x}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial v^{\prime }}{\partial y}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial w^{\prime }}{\partial z}}\right)}^2}\right]+\overline{{\left({\displaystyle \frac{\partial u^{\prime }}{\partial y}}+{\displaystyle \frac{\partial v^{\prime }}{\partial x}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial u^{\prime }}{\partial z}}+{\displaystyle \frac{\partial w^{\prime }}{\partial x}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial v^{\prime }}{\partial z}}+{\displaystyle \frac{\partial w^{\prime }}{\partial y}}\right)}^2}\right\}={\displaystyle \frac{\rho \epsilon }{\overline{T}}}={\displaystyle \frac{\beta \rho \omega \kappa }{\overline{T}}}$$

(3)

$$S_{pro,\overline{T}}={\displaystyle \frac{K}{{\overline{T}}^2}}\left[{\left({\displaystyle \frac{\partial \overline{T}}{\partial x}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{T}}{\partial y}}\right)}^2+{\left({\displaystyle \frac{\partial \overline{T}}{\partial z}}\right)}^2\right]$$

(4)

$$S_{pro,T^{\prime }}={\displaystyle \frac{K}{{\overline{T}}^2}}\left[\overline{{\left({\displaystyle \frac{\partial T^{\prime }}{\partial x}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial T^{\prime }}{\partial y}}\right)}^2}+\overline{{\left({\displaystyle \frac{\partial T^{\prime }}{\partial z}}\right)}^2}\right]={\displaystyle \frac{{\alpha }_t}{\alpha }}{S}_{pro,\overline{T}}$$

(5)

$${PS}_{pro,\overline{v}}=\iiint {T·S}_{pro,\overline{v}} dV$$

(6)

$${PS}_{pro,v^{\prime }}=\iiint T·S_{pro,v^{\prime }} dV$$

(7)

$${PS}_{pro,\overline{T}}=\iiint T·S_{pro,\overline{T}} dV$$

(8)

$${PS}_{pro,T^{\prime }}=\iiint T·S_{pro,T^{\prime }} dV$$

(9)

$${PS}_{pro}={PS}_{pro,\overline{v}}+{PS}_{pro,v^{\prime }}+{PS}_{pro,\overline{T}}+{PS}_{pro,T^{\prime }}$$

(10)

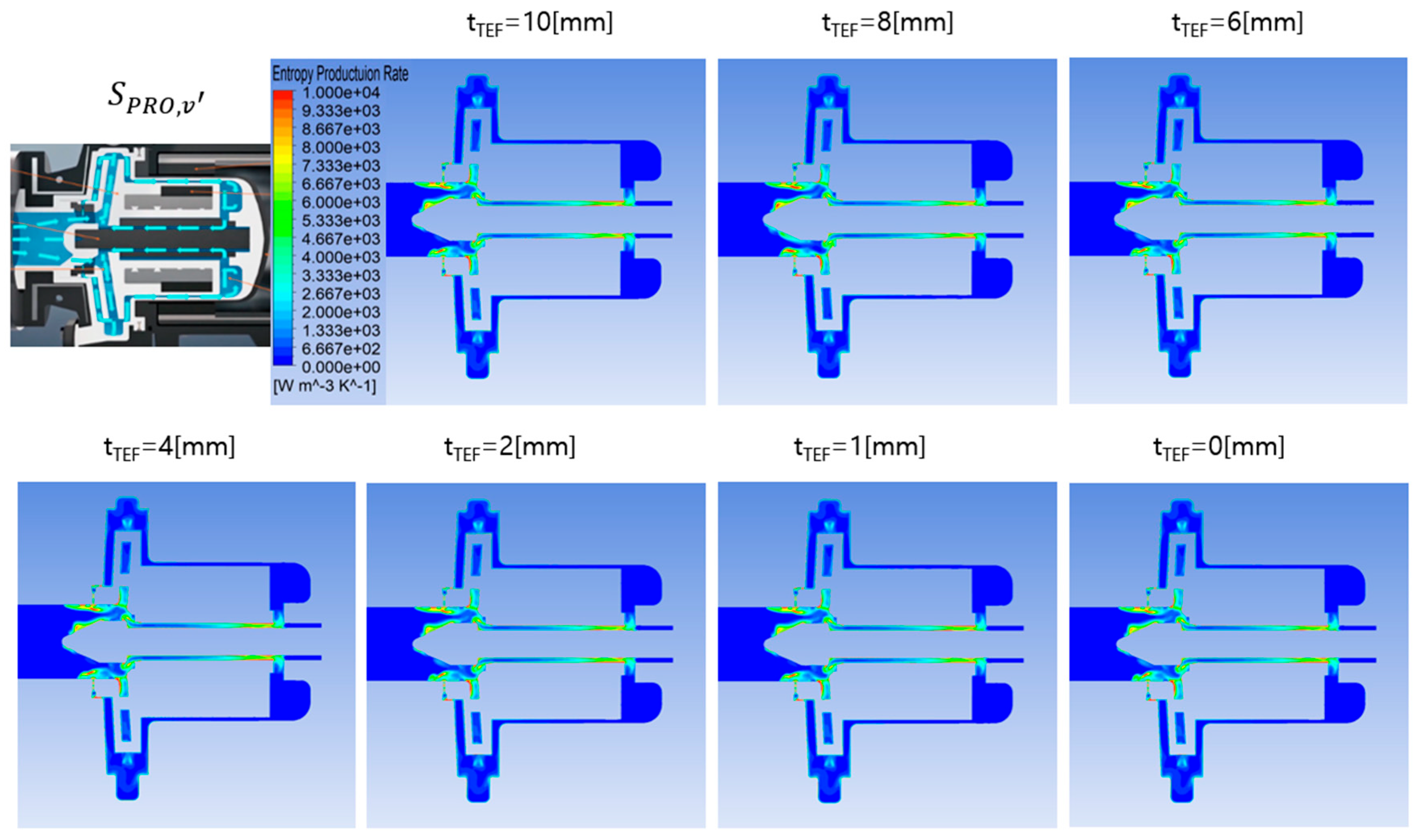

Figure 7 shows the calculated entropy production rate ($S_{pro,v^{\prime }}$) changes due to the velocity fluctuation component of the working fluid when the insulation thickness is varied. As shown in the figure, $S_{pro,v^{\prime }}$ shows a nearly constant distribution regardless of the change in insulation thickness. As can be seen in the streamlines in Figure 4, $S_{pro,v^{\prime }}$ is distributed at a large value around the narrow balancing hole that extends from the back of the impeller to the front and the complexly structured pump inlet where turbulence is enhanced. From this, it can be seen that $S_{pro,v^{\prime }}$, which represents the loss due to the velocity fluctuation component among the losses due to the heat flow inside the pump during operation, has a constant value regardless of the insulation thickness.

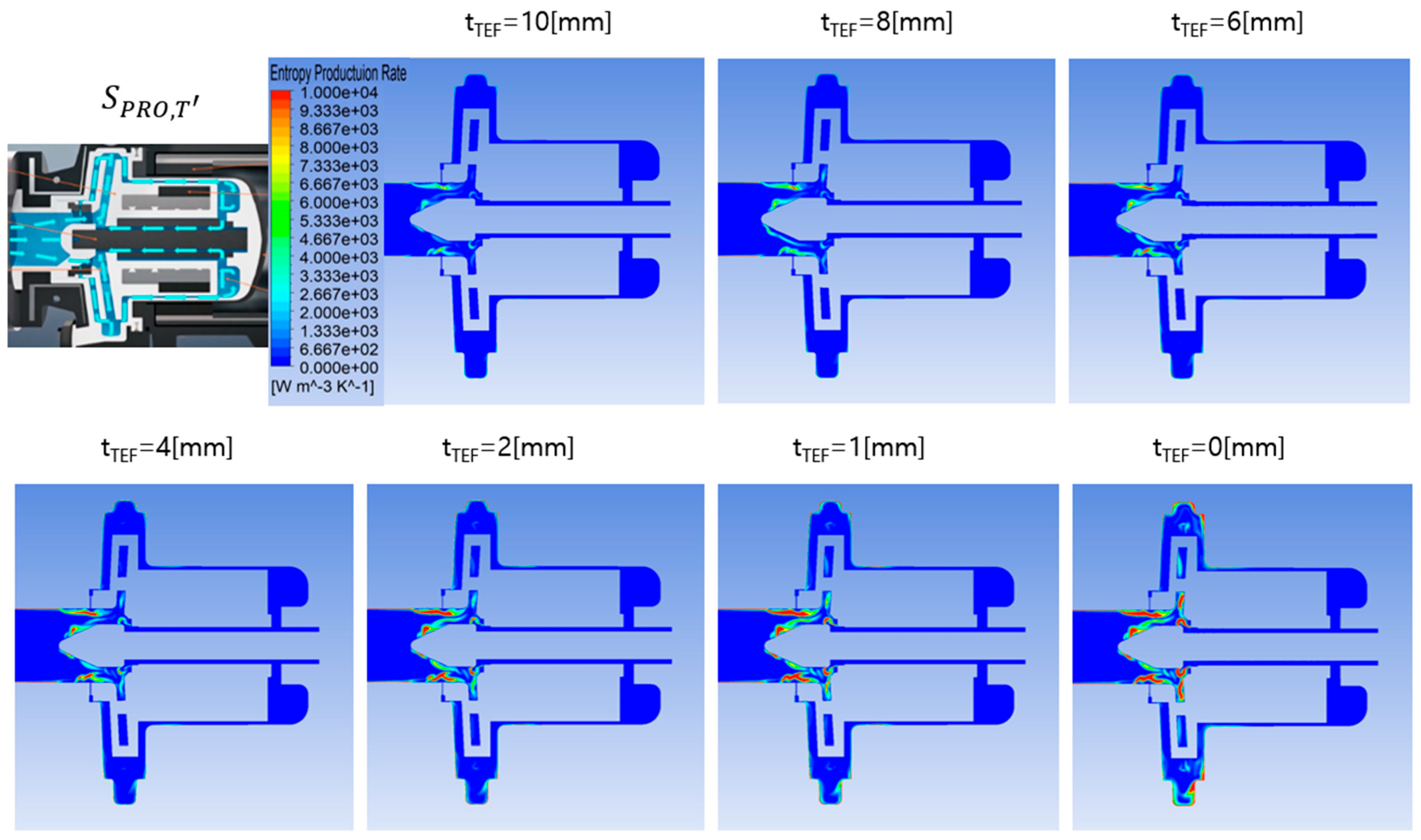

Figure 8 shows the calculated entropy production rate ($S_{pro,T^{\prime }}$) changes due to the temperature fluctuation component of the working fluid when the insulation thickness was varied. The figure shows that $S_{pro,T^{\prime }}$ increases rapidly as the insulation thickness decreases. Unlike the entropy production rate ($S_{pro,v^{\prime }}$) due to the velocity fluctuation component shown in Figure 7, $S_{pro,T^{\prime }}$ occurs primarily around the pump inlet, where the external heat source rapidly mixes with the internal flow. Furthermore, when no insulation is applied, the entropy production rate due to the temperature fluctuation component is found to be high at the impeller outlet, in addition to around the pump inlet. This is believed to be due to the hot heat source from the motor entering the working fluid inside the pump along the wall, as shown in the lower figure of Figure 4. From these results, it can be seen that $S_{pro,T^{\prime }}$, which represent the loss due to temperature fluctuation among the losses due to heat flow inside the pump during operation, are closely related to the thickness of the insulation.

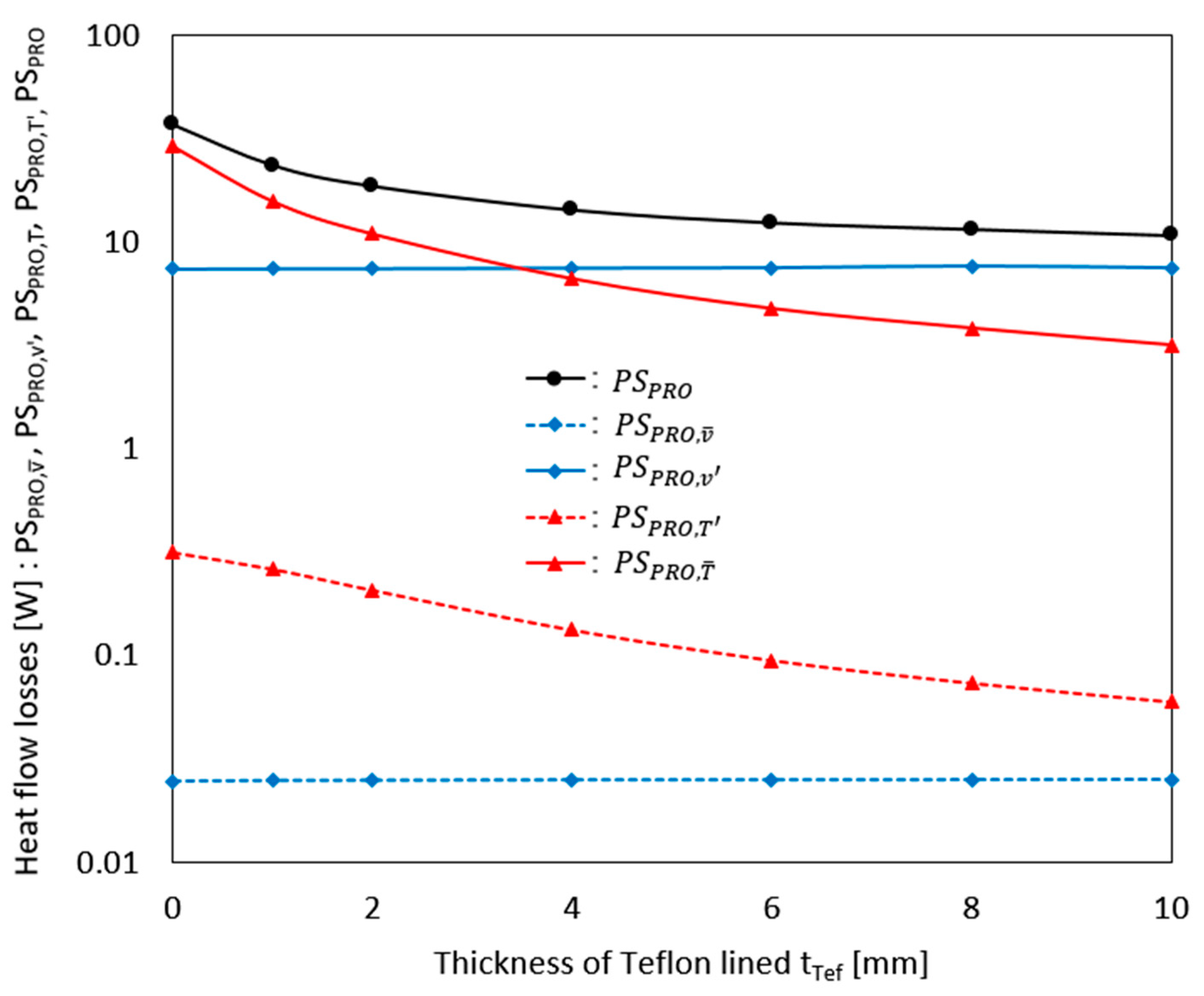

Figure 9 shows the results of calculating the entropy production values of the working fluid due to the average and fluctuating components of the temperature and the velocity within the pump according to changes in the insulation thickness using Equations (6)–(10). Looking at the graph plotted on a logarithmic scale, we can see that the heat flux loss due to the average temperature and velocity components of the working fluid during pump operation is negligible compared to the loss due to the fluctuating components. This is because the pump is a fluid machine that rotates at a high speed of 3450 rpm, so the flow is mainly dominated by turbulence. As shown in Figure 8 and Figure 9, the loss due to velocity fluctuations remains constant regardless of the insulation thickness, while the loss due to temperature fluctuations decreases rapidly with increasing insulation thickness. The total heat flow loss (${PS}_{pro}$), which is the sum of these values, shows a decreasing trend with increasing insulation thickness due to the loss due to temperature fluctuations. The total internal heat flow loss calculated using the target model pump under the operating conditions shown in Table 1 decreases from approximately 37 W when no insulation is used to about 11 W when lined with 10 mm of Teflon insulation.

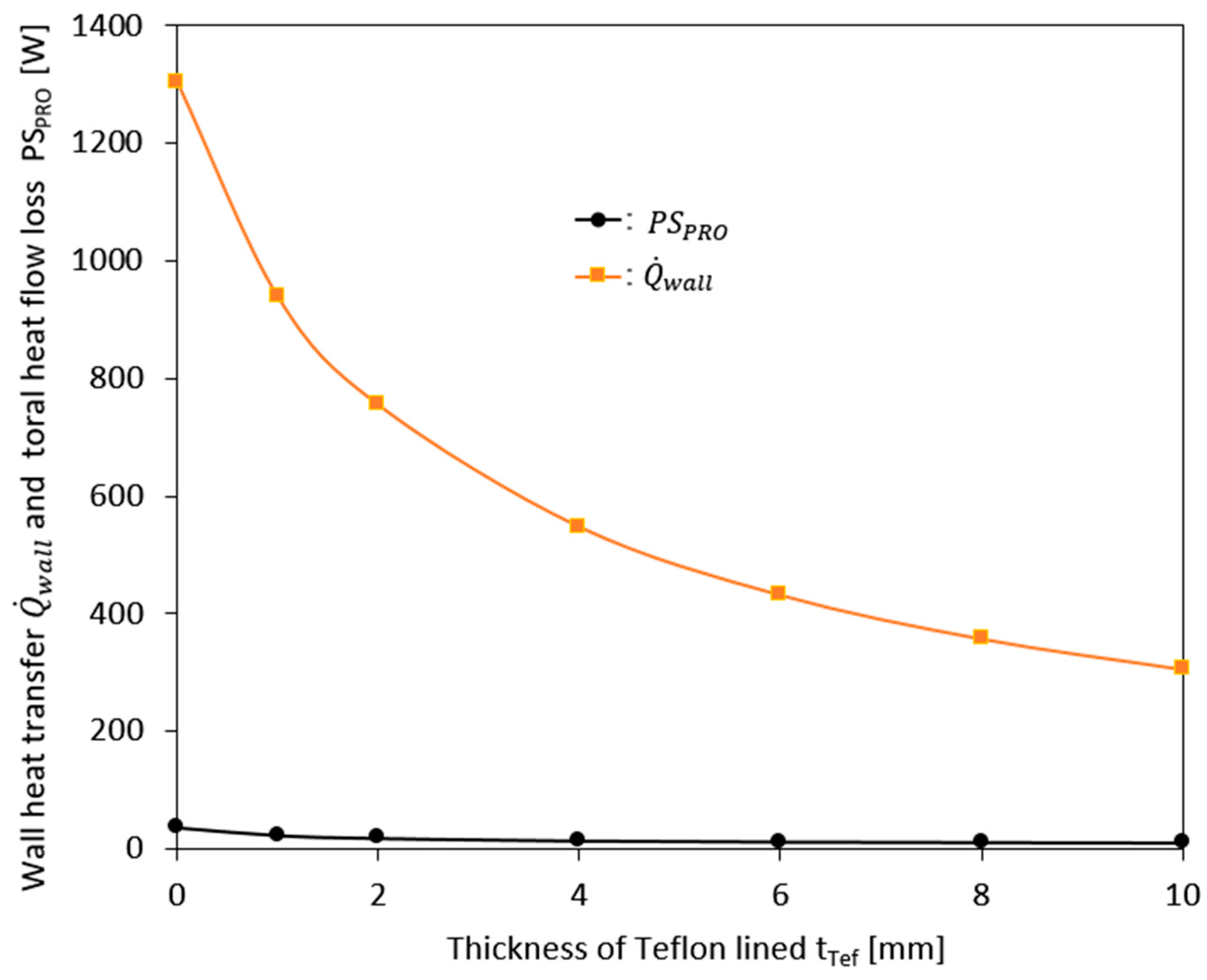

Figure 10 shows the results of calculating the total heat flow loss (${PS}_{pro}$) occurring inside the pump and heat transfer (${\dot{Q}}_{wall}$) transmitted from the outside due to changes in insulation thickness. As shown in the figure, the heat conduction from the outside of the pump through the pump body to the working fluid inside the pump decreases rapidly as the thickness of the insulation increases. In addition, the heat flow loss of the internal working fluid also decreases rapidly as the thickness of the insulation increases. This is because, as explained in Figure 9, the heat entering from the outside decreases due to the increase in the thickness of the insulation, which reduces the temperature of the internal working fluid and thus the internal heat flow loss. Under the operating conditions shown in Table 1, the heat transferred from the outside to the internal working fluid calculated using the target model pump decreases from approximately 1300 W when no insulation was used to approximately 300 W when lined with 10 mm of Teflon as insulation. This confirms that approximately 97–98% of the total heat received by the working fluid (liquid hydrogen) during operation is from an external heat source. And when operated under the operating conditions given in Table 1 by these internal and external heat sources, the average outlet temperature of the model pump under study decreases from about 1.2 K when no insulation is used, as shown in Figure 6, to about 0.3 K when lined with 10 mm of Teflon as insulation.

4. Conclusions

One of the most important challenges in developing centrifugal pumps for liquid hydrogen transport is minimizing the temperature rise of the working fluid caused by internal and external heat sources during operation. This study was conducted to determine the effect of Teflon insulation installed inside the pump on the insulation of the working fluid during operation. To this end, the heat transfer phenomenon from an external heat source to the working fluid was evaluated when the external vacuum insulation layer was removed and only a Teflon insulation layer was installed inside the pump. Furthermore, the temperature rise of the working fluid due to internal heat flow losses during the internal pumping process was studied. The following conclusions were drawn from this research.

• The magnetic drive system, which remotely drives the pump’s impeller, is effective in blocking external heat sources generated by the motor during pump operation from entering the working fluid inside the pump.
• When the thickness of the insulation layer installed on the inner wall of the pump is increased from 0 to 10 mm, the average temperature rise at the outlet of the liquid hydrogen, which is the working fluid at the outlet of the pump, is reduced from 1.2 K to 0.4 K.
• Among the losses due to heat flow inside a pump operating at a high speed of, 3450 rpm, the heat loss due to the average components of velocity and temperature has a value that can be ignored when compared to the loss due to the fluctuating components.
• Heat flow loss (${PS}_{pro,v^{\prime }}$) due to velocity fluctuations remains constant regardless of insulation thickness, while heat flow loss (${PS}_{pro,T^{\prime }}$) due to temperature fluctuations decrease rapidly with increasing insulation thickness. The sum of these values, the total heat flow loss (${PS}_{pro}$), tends to decrease with increasing insulation thickness due to losses due to temperature fluctuations.
• During operation, the heat transferred from the outside of the pump to the internal working fluid is reduced from about 1300 W when no Teflon insulation is used to approximately 300 W when a 10 mm thickness Teflon insulation layer is used. Furthermore, it is shown that approximately 97 to 98% of the total heat received by the working fluid during operation from internal and external heat sources comes from external heat sources.
