A Visual and Strategic Framework for Integrated Renewable Energy Systems: Bridging Technological, Economic, Environmental, Social, and Regulatory Dimensions

Abstract

Renewable energy integration is no longer a solely technical endeavor; it necessitates a multidimensional transformation that spans technological, economic, environmental, social, and regulatory dimensions. This review presents a visual and strategic framework for addressing the complex challenges of integrating solar, wind, hydro, geothermal, and biomass energy systems. The objective is to redefine traditional approaches by linking specific integration barriers to tailored strategies and measurable outcomes. The study uses comparative analysis, regional case studies, and a variety of visual tools—such as flowcharts, spider charts, and challenge–strategy–outcome maps—to spatially express interdependencies and trade-offs. These tools enable stakeholders to determine the best integration pathways based on performance measures, regional restrictions, and system synergies. The results reveal that visual mapping not only clarifies complex system dynamics, but also enhances stakeholder collaboration by translating technical data into accessible formats. The framework supports adaptive planning, smart grid adoption, and community-centered microgrid development. In conclusion, the study provides a forward-looking strategy for developing resilient, inclusive, and intelligent renewable energy systems. It highlights that future energy resilience will be built on integrated, regionally informed, and socially inclusive design, with technology, policy, and community engagement combined to drive sustainable energy transitions.

1. Introduction

The global energy environment is undergoing a significant transformation, driven by the pressing need to combat climate change, improve energy security, and promote equal access to renewable energy. By the end of 2024, global renewable power capacity had reached 4448 GW, a record annual rise of 585 GW—an astonishing 15.1% increase over the previous year [1].

Solar energy dominated the increase with 452 GW, followed by wind with 113 GW, accounting for more than 96% of all new renewable capacity1. Despite this momentum, the world is still falling short of the 2030 targets set by Sustainable Development Goal 7, which calls for universal access to affordable, reliable, sustainable, and modern energy [2].

The 2025 Tracking SDG7 report reveals that, while worldwide energy access has increased to approximately 92%, progress remains uneven, particularly in Sub-Saharan Africa [3]. Furthermore, international financial support for renewable energy in developing countries has decreased, indicating a major gap between aspiration and attainment [4]. The World Energy Investment 2025 study emphasizes this inequality, stating that, while clean energy investment has exceeded fossil fuel investment globally, more than 80% of this capital is concentrated in advanced economies and China [5].

In response to these challenges, the global policy momentum is changing. The 2023 COP28 resolution to triple renewable energy capacity and double energy efficiency improvements by 2030 sparked additional national commitments [2]. However, the transition is not without challenges. The integration of variable renewable energy sources (VREs) such as solar and wind into existing grids poses substantial technological and regulatory challenges, including intermittency, grid congestion, and a lack of storage [6]. These issues are exacerbated by fragmented policy environments and ineffective stakeholder collaboration.

This study aims to develop a comprehensive framework for integrating renewable energy systems that addresses not only technological issues but also economic, environmental, social, and institutional factors. It aims to provide visual tools, such as flowcharts and strategy maps, to demystify complex system dynamics and facilitate stakeholder interaction. The paper advocates for flexible, inclusive, and regionally informed energy planning by relating specific integration challenges to personalized strategies and measurable outcomes. Through comparative analysis and case studies, the framework will be validated as a useful tool for directing resilient and sustainable energy transitions. By bridging technical, economic, environmental, social, and regulatory dimensions, this study contributes to the design of smarter and more sustainable energy futures.

Recent study emphasizes that addressing these challenges necessitates a multidimensional strategy. Qi et al. [1] present a multiscale stochastic model for integrated energy systems that takes into consideration uncertainties in supply, demand, and pricing, emphasizing the importance of comprehensive planning [7]. Similarly, Tian et al. [5] warn against “carbon tunnel vision”—the tendency to focus primarily on emissions reduction—arguing that energy transitions must also include biodiversity, land use, and social fairness [5].

In this context, visual and strategic frameworks are emerging as essential tools for bridging the gap between complex system modelling and real-world decision-making. These frameworks assist in translating technical data into accessible formats, enabling stakeholders to better comprehend interdependencies, evaluate trade-offs, and co-design solutions. Shafie-kha (2025) [6] emphasizes the significance of optimization and modelling tools, such as multi-attribute decision models and goal programming, in sustainable energy planning, highlighting how visual tools promote transparency and decision quality in complex systems [5]. Similarly, a Special Issue of Discover Sustainability focuses on computational methodologies that enable evidence-based energy planning, highlighting the importance of visual and interactive tools in building resilient energy systems [8].

Studies on renewable energy hybridization and integration strategies provide additional justification for using such frameworks to improve system resilience and stakeholder engagement. For example, J. Li et al. [9] propose a flexible electrification solution for China’s chemical industry that combines co-located renewables and demand-side control. Their findings show how spatial and temporal mismatches between renewable generation and industrial demand can be reduced through strategic planning and system interaction visualization [9]. These findings highlight the importance of integrated, visible, and adaptive frameworks in driving the next phase of global energy transformations.

Existing models, such as multi-objective optimization frameworks, emphasize quantitative trade-offs, whereas energy justice or transition governance frameworks emphasize normative and institutional dimensions, frequently lack operational tools to facilitate stakeholder engagement and decision clarity. This study proposes a visual and Strategic Integration Framework to bridge these gaps by transforming complex, multidimensional challenges into understandable visual formats. The framework, which draws on boundary object theories [10] and cognitive tools [10], functions as both a collaborative interface and a reasoning scaffold, enabling various stakeholders to collaborate on the design of resilient energy systems. This dual function provides theoretical novelty in renewable energy planning by using visualization not only as a communication tool, but also as a decision-support mechanism based on interdisciplinary theory.

The study is designed to provide a thorough and logical exploration of renewable energy integration challenges and innovative solutions. Following the introduction, Section 2 provides a thorough examination of the technological, economic, environmental, social, and institutional challenges confronting renewable energy systems. Section 3 compares the major renewable energy sources (solar, wind, hydro, geothermal, and biomass), highlighting their respective advantages and limitations. Section 4 provides regional insights that reflect the different realities of renewable energy deployment around the world. Section 5 presents a novel visual paradigm for mapping the relationship between issues, methods, and outcomes, improving decision-making clarity. Section 6 outlines the verification process, which includes validity checks and sensitivity analyses to ensure that the proposed tools are robust and useful. Section 7 explores novel approaches to future energy resilience, including smart grids, improved storage, community-centered models, and supportive policy and financing to improve adaptability, sustainability, and security. Section 8 discusses insights from the visual framework, showing how charts and maps communicate renewable energy challenges and strategies. Finally, Section 9 provides differentiated and actionable policy recommendations tailored to regions and energy sources, as well as guidance for policymakers, researchers, and industry practitioners.

Section 6 concludes the review by summarizing key findings, emphasizing the proposed framework’s novelty and future relevance, and making actionable recommendations to policymakers, researchers, and industry practitioners.

1.1. Problem Statements

Despite unprecedented growth in renewable energy deployment, at more than 4400 GW globally by the end of 2024 [4], the energy transition is still falling short of meeting the 2030 targets of Sustainable Development Goal 7, which calls for universal access to affordable, reliable, sustainable, and modern energy [3]. According to the World Energy Transitions Outlook 2024, fossil fuels continue to dominate the energy mix in major economies, and the rate of infrastructure development, policy reform, and institutional alignment is insufficient to fulfil climate objectives [11]. The gap between ambition and implementation emphasizes the need for more integrated and adaptable planning strategies.

One of the most significant problems is the fragmented structure of renewable energy integration, which is frequently viewed via narrow technical or economic perspectives. However, recent studies reveal that successful integration requires a multidimensional strategy that concurrently addresses technological, economic, environmental, social, and regulatory dimensions [12]. For example, Farghali et al. [12] show that, while renewable energy systems may reduce emissions and provide jobs, they also pose dangers to land usage, social equality, and environmental deterioration if not managed appropriately [12]. Similarly, R. Pawar et al. [8] argue that hybrid renewable energy systems, which combine solar, wind, hydro, and storage, necessitate coordinated planning across various domains to maintain dependability and sustainability [8].

The lack of accessible and strategic tools to enhance decision-making exacerbates these challenges. Traditional energy models are typically too complex or opaque for non-specialist stakeholders, making them ineffective for participatory planning and policy design. Visual and strategic frameworks, such as spider charts, flow diagrams, and challenge–strategy–outcome maps, are widely acknowledged as valuable tools for transforming complex system dynamics into actionable insights [13]. Alsenani and Amiri [14] show how such tools increase transparency and stakeholder engagement with sustainable energy planning, while J. Li et al. [9] show how visualizing spatial and temporal mismatches in energy demand and supply can guide more successful electrification strategies [9].

Furthermore, regional variations in energy accessibility and investment continue to pose a significant barrier. The Tracking SDG7 Report 2025 observes that, while worldwide electricity availability has reached 92%, development is uneven, particularly in Sub-Saharan Africa, where financial shortfalls and policy fragmentation remain [3]. Renewable energy systems run the risk of exacerbating rather than alleviating existing inequities if they are not regionally and socially inclusive.

As a result, this review addresses the critical need for a visual and strategic framework that links integration challenges to tailored strategies and measurable outcomes. By doing so, it aims to support the development of renewable energy systems that are not only technically sound and low carbon, but also equitable, resilient, and contextually grounded.

1.2. Motivation for This Study

This research is motivated by the critical need to address the increasingly complex and interconnected challenges related to renewable energy integration. As countries speed their transition to low-carbon energy systems, it is certain that traditional, siloed approaches are insufficient. This research is motivated by three primary factors: the need for multidimensional frameworks, the significance of visual tools in planning and communication, and the necessity for strategic integration with regional and societal settings.

First, the integration of renewable energy systems, such as solar, wind, hydro, and biomass, necessitates a multidimensional framework that can account for the interaction of technical, economic, environmental, and social variables. Qi et al. [1] found that integrated energy systems confront major planning challenges due to uncertainties in renewable output, variable demand, and long-term infrastructure needs. Their proposed multiscale stochastic model emphasizes the importance of comprehensive planning at both the operational and strategic levels [2]. Similarly, Wehbi [15] underlines that energy transition strategies must address environmental, technical, economic, and institutional factors all at the same time to prevent fragmented or inequitable outcomes [15].

Second, there is a growing understanding of the significance of visual aids in renewable energy planning and stakeholder interaction. As energy systems grow increasingly data-intensive and interdisciplinary, the ability to transmit complicated information clearly and easily is crucial. The Nature Research Figure Guide (2025) emphasizes that well-designed images not only improve comprehension but also broaden the scope and effect of scientific discoveries [9]. Similarly, the Nature Reviews guide to designing figures emphasizes that clarity, hierarchy, and accessibility in visual communication are vital for effective decision-making, particularly in collaborative and policy-driven contexts [16].

Third, this study is driven by the need to strategically integrate renewable energy systems with regional policies, infrastructure, and community needs. J. Li et al. [9] present a paradigm for regional collaboration in Japan that integrates renewable energy growth with urbanization patterns and local governance structures, demonstrating how such alignment can considerably increase energy efficiency and policy coherence [1]. Furthermore, Tian et al. [5] warn against the “carbon tunnel vision” that frequently dominates renewable energy discourse, suggesting that without a broader perspective on social and economic implications, renewable energy initiatives risk undermining other sustainability goals [17,18].

Together, these motivations underline the importance of a visual and strategic framework that not only identifies integration challenges but also connects them to specific, measurable solutions. This research aims to promote more flexible, inclusive, and resilient energy transitions.

1.3. Research Methods

This study adopts a mixed-methods approach, combining comparative analysis, regional case studies, and visualization tools to provide a multidimensional framework for renewable energy integration. The methodology is designed to ensure transparency, repeatability, and empirical validity across the technological, economic, environmental, social, and policy dimensions.

1.3.1. Data Collection Scope

The data collected from peer-reviewed literature, institutional reports, and national databases. Key sources include the International Renewable Energy Agency (IRENA) reports on renewable capacity, cost trends, and policy frameworks [19]; the International Energy Agency (IEA), for investment data, grid integration metrics, and regional energy outlooks [20]; the World Bank and UN SDG7 Tracker for socioeconomic indicators and data on energy access [21]; national statistics bureaus for data on energy production, consumption, and regulations by countries [22,23,24]; and current studies, like Smart Green Tide: A Bibliometric Analysis of AI and Renewable Energy Transition, to validate the importance of indicators and emerging trends [25].

1.3.2. Case Selection Criteria

Regional case studies were selected based on energy system diversity, policy innovation, geographical representation, and data availability. Germany was selected for its advanced smart grid infrastructure as well as high renewable energy adoption [26]. Kenya demonstrates decentralized microgrid innovation in a developing country [27]. The Philippines reflects Southeast Asia’s land use and restriction challenges [28]. The United States offers valuable insights into hybrid renewable systems and the policy polarization concerning energy transitions [29].

1.3.3. Radar Chart Scoring Criteria

The regional energy transition preparedness and resilience were scored on a scale of 1 to 5, in line with the ESRAM and ETRI frameworks. A score of 1 indicates very low readiness and resilience, as well as severe limitations in infrastructure, policy, and capacity. A score of 2 reflects low readiness and resilience, where basic systems exist but are fragmented and underdeveloped. A score of 3 indicates moderate readiness and resilience, with functional systems including major gaps or inconsistencies. A score of 4 reflects high readiness and resilience, with strong performance across most indicators with minor constraints. A score of 5 indicates very high readiness and resilience, with cohesive, advanced, and adaptive systems in all dimensions.

1.3.4. References Supporting the Scoring Framework

The Energy System Resilience Assessment Model (ESRAM) developed by Arup [30] evaluates energy systems’ ability to absorb, adapt, and recover from disruptions. The World Economic Forum [31] developed the Energy Transition Readiness Index (ETRI) to assess energy transition readiness across policy, infrastructure, and social dimensions. The International Energy Agency (IEA) [20] data and national energy agency reports provide empirical inputs for scoring, including metrics as grid flexibility, investment flows, regulatory coherence, public participation, and environmental vulnerability.

1.3.5. Visualization Tool Development

Lucid chart and PowerPoint SmartArt were used to develop flowcharts that map the challenge–strategy–outcome path. Radar visualizations used normalized data from institutional datasets and peer-reviewed studies. Comparative tables used conditional formatting to emphasize strengths and weaknesses across regions and technologies. All tools were designed to be editable and reproducible, allowing users to enter region-specific data and adjust score weights based on local priorities. This ensures that the Strategic Integration Framework is not only theoretically grounded, but also practically relevant in a wide range of energy conditions.

2. Understanding Renewable Energy Challenges

Renewable energy integration into current energy systems is essential to achieving a sustainable energy future. However, numerous challenges across the five aspects of energy sustainability—technological, environmental, social, economic, and institutional/political/regulatory/legal—must be addressed in order to maximize renewable energy uptake and deployment.

Integrating renewable energy into current energy systems is a revolutionary step toward sustainability, not just a technological upgrade. This transformation is intrinsically complicated, necessitating a complete understanding of challenges across five interconnected dimensions: technological, environmental, social, economic, and institutional.

Technological challenges, such as the intermittent nature of solar and wind power, continue to pose a challenge to grid resilience. However, innovations such as AI-powered energy management and IoT-enabled smart grids are emerging as key solutions for enhancing system responsiveness and efficiency [32]. While renewables reduce carbon emissions, they also raise concerns regarding land usage, biodiversity, and lifecycle sustainability, necessitating ecologically sensitive planning [33].

Social acceptance and community engagement are equally important. Projects frequently meet opposition when governance lacks transparency or people are excluded from planning processes, particularly in regions with a history of institutional mistrust [33]. Economically, while renewable energy needs significant upfront investment, it provides long-term improvements in productivity, employment, and GDP growth, particularly in resource-rich regions [32].

Institutional challenges, such as fragmented policies and regulatory delays, complicate integration. The World Economic Forum’s Fostering Effective Energy Transition 2025 report advocates for a “multi-speed transition” that balances global ambition with national capacity [33].

This study addresses these numerous issues by proposing for a comprehensive, visually guided framework that illustrates the relationships between different dimensions. Its aim is to help develop renewable energy systems that are resilient, flexible, and socially grounded.

2.1. Technical Challenges

Integrating renewable energy into existing power systems presents significant technical challenges, especially given the intermittent and unpredictable nature of solar and wind resources, the limitations of current energy storage technologies, and the constraints of grid infrastructure that was not originally designed for decentralized generation. Current grid infrastructure and energy storage technologies tend to be insufficient to handle these variations. Hossain et al. [34] emphasize the importance of hybrid energy storage systems and smart grid developments in improving flexibility and reliability [34]. However, outdated grid architecture and lagging regulatory frameworks continue to impede the scalable deployment of advanced technology such as battery energy storage systems (BESS) and real-time energy management tools [35,36]

2.1.1. Intermittency

Variability in wind and solar output negatively impacts grid stability and electricity quality, particularly at high penetration levels [37]. While forecasting approaches are important for reducing these consequences, standard models frequently lack the precision required in regions with high weather variability.

AI-driven weather prediction and machine learning have enhanced short- and ultra-short-term accuracy, enabling better generation and reserve scheduling [31]. Hybrid models that combine NWP and deep learning algorithms can capture non-linear weather patterns, minimizing forecast errors for solar irradiance and wind speed.

Demand-side flexibility methods, such as dynamic pricing, automated demand response, and smart appliance scheduling, can supplement storage solutions by shifting consumption to periods that have high renewable output [38]. This combined strategy of improved forecasting and flexible demand management eliminates the need for costly reserve capacity while increasing renewable utilization.

2.1.2. Energy Storage

Energy storage is vital for balancing supply and demand in systems with significant renewable penetration, but present technologies face technical, economic, and scalability challenges.

Lithium-ion batteries are widely used due to their excellent round-trip efficiency and low cost; however, they are best suited for short-duration applications. Flow batteries (e.g., vanadium redox) offer longer discharge durations and increased cycle life, making them suitable for medium- to long-duration storage. However, costs remain higher [39]. Hydrogen storage has potential for seasonal balancing and high energy density, but challenges include electrolysis efficiency, infrastructural needs, and cost [40].

Case studies highlight the benefits of Hybrid Energy Storage Systems (HESS), which integrate complimentary technologies. Adeyinka et al. [39] and Ergun et al. [41] found that combining lithium-ion batteries with supercapacitors results in rapid frequency response and sustained energy supply, while merging pumped hydro with battery storage provides multi-day resilience. Such hybrid installations have been successfully implemented in markets such as Germany and Australia, where they support grid stability during renewable surges and shortages.

2.1.3. Grid Integration

Integrating decentralized, variable renewables into existing grids poses challenges for voltage stability, frequency management, and overall reliability [42].

Adopting interoperability standards like IEC 61850 [43] and IEEE 1547 [44] has proven effective in leading markets like the EU, Japan, and the United States [41]. These standards ensure that distributed energy resources (DERs) can communicate and operate seamlessly across a diverse grid context, minimizing integration costs and complexity.

Adopting interoperability standards like IEC 61850 (communication networks and systems for power utility automation) and IEEE 1547 (standards for interconnecting distributed resources with electric power systems) has been effective in leading markets like the EU, Japan, and the United States [41]. These standards ensure that distributed energy resources (DERs) may communicate and function seamlessly across several grid contexts, minimizing integration costs and complexity.

Phased smart grid rollouts provide a viable approach to upgrading. The U.S. Department of Energy’s staged strategy, which includes enhanced metering infrastructure, distribution automation, and complete DER integration, enables utilities spread investment costs and gain operational competence [45]. Similar staged deployments in South Korea and Denmark have shown how progressive enhancements may be coordinated with policy targets, market readiness, and consumer adoption rates.

2.2. Environmental Challenges

While renewable energy systems have substantial climatic benefits, their implementation can harm biodiversity, disturb ecosystems, and change land use patterns. Large-scale solar and wind installations frequently necessitate considerable land use, resulting in habitat fragmentation and conflict with agriculture and conservation areas [46]. Wind farms in biodiversity hotspots have been associated with decreased bat activity and bird mortality [47], whilst poorly sited solar PV arrays may disrupt plant and arthropod populations [48].

Furthermore, the extraction of rare earth metals for wind turbines and solar panels has high environmental consequences [49]. These processes are energy-intensive and generate toxic waste, with low recovery rates at the end of life [50]. Renewable technologies’ environmental footprint may jeopardize their sustainability goals if recycling infrastructure and circular economy techniques are not in place.

This review employs Schlosberg’s (2007) [51] justice framework—distributional, procedural, and recognition—to evaluate how renewable energy integration affects vulnerable groups across gender, ethnicity, and urban–rural divides [52,53] (see Appendix A for definitions of key terms). Energy transitions frequently result in disproportionate benefits and burdens. Without equal outcomes, inclusive decision-making, and recognition of diverse identities, technological advancement may exacerbate existing injustices, undermining trust and legitimacy [53,54]. Women, indigenous peoples, and informal communities bear disproportionate time, health, and financial burdens [55,56].

Distributional justice examines how energy costs and benefits are distributed. Metrics include energy burden, reliability gaps, and externality exposure. In Sub-Saharan Africa, gendered energy poverty imposes significant time and health costs on women [55]. Indigenous communities in Latin America frequently suffer environmental degradation without benefit-sharing [56].

Procedural justice focusses on participation and transparency. Indicators include consultation rates, FPIC status, siting and tariff transparency, and grievance systems. The under-representation of crucial groups can cause project delays and erode legitimacy. Inclusive design increases acceptance and durability [52,53,57].

Recognition justice examines whether policies represent cultural identities and livelihoods. This includes adapting technologies into cooking traditions, protecting tenure, and ensuring governance representation. Ignoring certain aspects, such as fishing or pastoralist communities, might lead to resistance [56,58].

This framework must be operationalized using disaggregated data from surveys, ESIAs, regulatory records, and worldwide datasets [19,20,57,59,60]. Indicators should be scaled, weighted clearly, and triangulated with qualitative findings.

Regionally, low-income African households suffer high diesel costs and unstable supply, while Ethiopia’s reliance on hydropower contributes to cooking energy poverty. In Asia, the Philippines confronts curtailment risks for small users, while Thailand’s floating PV-hydro hybrids reduce land pressure while maintaining fossil fuel subsidies [57,61].

The transition that ignores justice risks compromising its objectives. One that integrates these dimensions, as well as technical and policy measures, is more likely to be equitable, durable, and broadly accepted.

Renewable technologies, while essential for decarbonization, have varying levels of sustainability throughout their life cycles. According to ISO 14040 and 14044, Life Cycle Assessment (LCA) is structured into four phases: goal and scope definition, inventory analysis, impact assessment, and interpretation [62]. Rare earth extraction for wind and PV systems is energy-intensive and hazardous, with low recovery rates [50]. Biomass and waste-to-energy systems may emit additional greenhouse gases over their lifetimes, especially if residue recovery is not implemented [52]. Decommissioning impacts are becoming more quantifiable: PV recycling and disassembly account for 8–12% of total life-cycle emissions, but silicon wafer recycling can reduce material consumption by 35%. Offshore wind decommissioning accounts for 5–10% of energy use and 4–7% of greenhouse gas emissions, although advanced steel re-cycling can cut expenses in half.

Renewable technologies, while necessary for decarbonization, have varying levels of sustainability throughout their life cycles. ISO 14040/14044 defines Life Cycle Assessment (LCA) as a four-phase procedure that includes aim and scope definition, inventory, impact assessment, and interpretation. Rare earth extraction for wind and PV systems is energy intensive and hazardous, with low recovery rates. Biomass and waste-to-energy systems may produce more greenhouse gases over their lives, particularly if residue recovery is not implemented. Decommissioning impacts are becoming more quantifiable: PV recycling and disassembly account for 8–12% of total life-cycle emissions, but silicon wafer recycling can reduce material consumption by 35%. Offshore wind decommissioning accounts for 5–10% of energy use and 4–7% of greenhouse gas emissions, although advanced steel recycling can cut expenses in half.

2.3. Social Challenges

Social acceptance is an important issue in renewable energy integration. Projects could face public opposition due to lack of transparency, inadequate consultation, and the exclusion of local communities from planning processes. This resistance is frequently motivated by procedural injustice as well as concerns about land use, visual impacts, and cultural disruption [50].

If systems are not regionally and socially inclusive, they risk increasing existing imbalances. Vulnerable groups, such as rural people, Indigenous communities, and low-income households, may be disproportionately impacted by energy transitions that do not take into consideration local requirements and interests [56]. Inclusive planning, benefit-sharing methods, and community ownership models are important for achieving equitable outcomes. The main facets of social barriers, study findings, and the gaps that need to be addressed are examined here.

2.4. Economic Challenges

Renewable energy systems frequently demand significant upfront capital investment, particularly for infrastructure like solar farms, wind turbines, and energy storage systems. This financial obstacle is particularly obvious in underdeveloped countries, where access to concessional financing and private capital is limited [63]. Despite declining levelized costs of energy (LCOE) for solar and wind, the absence of specialized finance instruments and risk mitigation frameworks continues to impede development.

Furthermore, the lack of an integrated and stable policy framework contributes to low investor confidence. Fragmented regulations, inconsistent subsidies, and confusing permitting processes all contribute to uncertainty, inhibiting long-term investment in renewable infrastructure [54]. Addressing these gaps necessitates coordinated policy design, region-specific incentives, and performance-based finance mechanisms.

2.5. Institutional (Regulatory and Policy) Challenges

Institutional fragmentation and weak collaboration among stakeholders remain major barriers to renewable energy integration. In many regions, overlapping mandates, siloed governance systems, and a lack of inter-agency coordination impede efficient implementation [63]. This is especially visible in multi-level systems in which national, regional, and local agencies act independently.

In addition, several jurisdictions lack technical standards for network compatibility and interoperability. Without consistent standards, integrating dispersed energy resources into existing grids becomes expensive and inefficient. Leading markets have embraced standards like as IEC 61850 and IEEE 1547, but global adoption remains unequal [26].

Policy implementation is inconsistent, particularly in parts of Eastern Europe where economic restrictions and political hesitation impede renewable deployment. Within the EU, differences in permit processes, grid access, and subsidy schemes lead to uneven progress [54]. Strengthening institutional capacity, streamlining regulatory processes, and encouraging cross-sector collaboration are critical for overcoming these challenges.

3. Comparative Analysis of Major Renewable Energy Sources

A comparative review of main renewable energy sources (solar, wind, hydro, geothermal, and biomass) finds distinct advantages and challenges for each. Recent improvements have greatly increased their efficiency and cost-effectiveness, making them critical in the transition to sustainable energy systems. The following are key characteristics of each energy source.

3.1. Solar Energy

In the past decade, solar energy has experienced a significant transformation, becoming increasingly efficient, affordable, and environmentally beneficial. Advances in photovoltaic technology have resulted in an approximate 5% enhancement in efficiency, enabling solar panels to convert more sunlight into usable electricity than ever before [64]. This technological advancement has coincided with a substantial reduction in costs—solar energy is now approximately 67% less expensive than it was a decade ago, enhancing accessibility for households, businesses, and governments [64]. In addition to technical and economic improvements, solar energy is vital in mitigating carbon dioxide emissions, directly contributing to global climate objectives and the broader initiative for decarbonization [14]. These advancements establish solar power as a fundamental element of the clean energy transition, providing a scalable and sustainable solution to the world’s growing energy demands.

3.2. Wind Energy

Wind energy has made notable strides in recent years, particularly through technological advancements that have boosted the efficiency of wind turbines by around 10% [64]. These improvements mean that turbines can now generate more electricity from the same wind resources, making wind power a more viable and competitive option in the global energy mix. Beyond its technical evolution, wind energy offers substantial environmental benefits. Each year, it helps prevent the release of approximately 120,000 metric tons of carbon dioxide, contributing meaningfully to climate mitigation efforts [64]. However, wind energy’s potential is not limitless. Its usefulness is frequently linked to geography and weather patterns, implying that not all places can use wind power equally. Areas with irregular wind speeds or inappropriate terrain may find it difficult to rely on wind as a primary energy source [65]. Despite these limits, wind energy remains an important component of the renewable energy revolution, particularly when carefully incorporated into larger, regionally customized energy programs.

3.3. Hydropower

Hydropower is the most efficient form of renewable energy, converting over 90% of available energy into electricity—a level of efficiency unmatched by other renewable sources [64]. This high conversion rate makes it the reliable backbone for many national electricity systems, particularly in regions with abundant water supplies. However, while hydropower is important in decreasing greenhouse gas emissions and achieving climate goals, it is not without adverse environmental effects. Large-scale hydroelectric projects can affect local ecosystems, alter river flows, and endanger biodiversity, especially in vulnerable regions [14]. These ecological consequences emphasize the significance of careful site selection, environmental studies, and community involvement in hydropower planning. When managed appropriately, hydropower may remain a cornerstone of clean energy strategies, combining great efficiency with a dedication to environmental stewardship.

3.4. Geothermal Energy

Geothermal energy is an appealing but challenging alternative in the renewable energy landscape. It provides a highly reliable and low-emission source of electricity, making it an appealing option for countries looking for consistent baseload energy without the variability associated with solar or wind. However, its widespread adoption is severely constrained by geography and cost. The method requires access to specific geological conditions, often areas with considerable volcanic or tectonic activity, which limits its use to certain regions of the world [3]. Even in ideal locations, the initial investment required to build geothermal infrastructure is significant. Drilling deep into the Earth’s crust and installing the requisite systems need advanced technology and large resources, which can be prohibitively expensive for many governments and corporate businesses [14].

3.5. Biomass

Biomass energy has a distinct position in the renewable energy mix, frequently lauded for its potential carbon neutrality but plagued by economic and environmental challenges. In theory, biomass can be termed carbon-neutral because the carbon dioxide produced during combustion is about equal to the quantity absorbed by plants throughout their growth. However, this equilibrium is heavily reliant on how biomass is collected and managed. In practice, the economic feasibility of biomass is frequently hampered by high operational and maintenance expenses, making it less competitive than other renewables such as solar or wind [3]. The availability and management of feedstock are also important factors in determining biomass sustainability. The energy potential of biomass is dependent on a consistent and sustainable supply of organic material, which frequently competes with land used for food production or conservation. Land use decisions become critical to the long-term viability of biomass energy. If not carefully planned, large-scale biomass production might result in deforestation, soil deterioration, or the relocation of agricultural operations [14]. Despite these limitations, when integrated wisely and supported by solid land management policies, biomass may make a significant contribution to a diverse and resilient renewable energy strategy.

While renewable energy sources offer various advantages, they also have disadvantages such as intermittency, high initial costs, and geographical constraints. Addressing these difficulties through technological innovation and supportive legislation (multidimensional strategy) is critical to realizing their full potential in reaching a sustainable energy future [65,66].

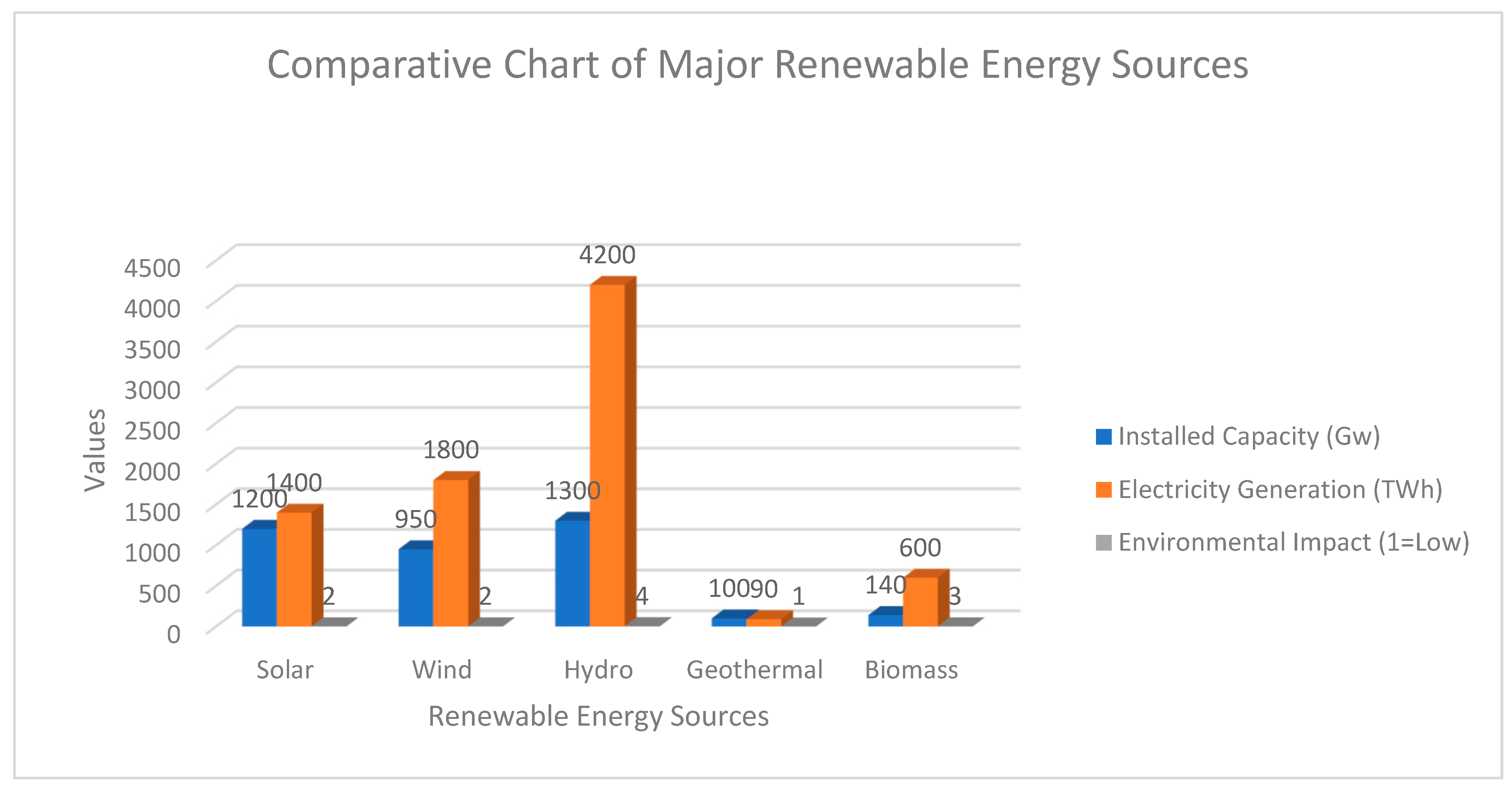

The bar chart in Figure 1 below, compares the five major renewable energy sources—solar, wind, hydro, geothermal, and biomass—using three essential metrics: installed capacity (GW), electricity generation (TWh), and environmental impact (ranked on a relative scale, with 1 being the lowest impact).

3.5.1. Installed Capacity

Hydropower leads the world with an installed capacity of approximately 1300 GW, indicating its long-standing significance in energy systems, particularly in countries with plentiful water resources [67]. Solar energy follows closely at 1100 GW, spurred by rapid deployment of photovoltaic (PV) systems and declining costs [67]. Wind energy, including onshore and offshore, has reached over 850 GW, primarily due to technology developments and favorable policy conditions [68]. Biomass and geothermal remain minor contributors, with 120 GW and 90 GW respectively, due to feedstock limitations and geographical constraints [67].

3.5.2. Electricity Generation

Despite Solar’s large installed capacity, hydropower dominates actual electricity generation, delivering over 4000 TWh per year due to its high capacity factor and reliability [67]. Wind energy generates around 1800 TWh and benefits from stable wind patterns in significant regions. Solar generates around 1500 TWh, which is limited by intermittency and lower capacity factors. Biomass and geothermal produce 900 TWh and 600 TWh, respectively, with geothermal providing reliable base-load power in geologically active regions [67].

3.5.3. Environmental Impact

The environmental impact is measured on a relative scale, with geothermal scoring the lowest (1) due to low emissions and land utilization [67]. Solar and wind have scores of 2 and 3, respectively indicating low operating emissions but considerable material and land use issues. Biomass receives a higher rating (4) due to emissions from burning and land/resource utilization. Hydropower, despite producing clean energy, has the greatest environmental impact (5) because to ecological damage, land floods, and methane emissions from reservoirs [67].

The chart shows that each renewable energy source has unique strengths and limitations. Hydropower is the best in terms of generation but has a high environmental impact. Solar and wind are rapidly increasing and generally clean, albeit intermittent. Geothermal energy is clean and reliable, but it has a restricted geographical reach. Biomass is adaptable, but less efficient and more polluting.

This analysis emphasizes the significance of diverse, region-specific energy policies and is supported by current data from the U.S. Energy Information Administration (2025) [68] and Dunlap’s comparative study (2024) [67,69]. For a resilient and sustainable energy future, hybrid systems and integrated planning are important, as no single source is universally optimal.

4. Regional Variations in Renewable Energy Integration

A regional analysis of renewable energy integration in Africa, Asia, Europe, and the Americas reveals a deeply unequal global landscape determined by a complex interplay of regulatory, economic, technological, social, and environmental factors. While each region has its own peculiarities, they all reflect a common truth: the global energy transition is not merely a matter of technological deployment, but a multidimensional transformation that necessitates context-sensitive, inclusive, and adaptive strategies.

4.1. Africa

In Africa, the promise of abundant renewable resources is continually undermined by ineffective government, fragmented stakeholder cooperation, and persistent underinvestment. The absence of cohesive urban energy planning and rural electrification projects, as noted by [70,71,72], demonstrates how institutional fragility and infrastructural inadequacies can stymie development even in resource-rich environments. Financial constraints, including the lack of methods to attract private money and foreign finance, exacerbate energy poverty. Technological limitations, particularly in off-grid and rural locations, exacerbate these challenges, emphasizing the importance of localized, capacity-building programs that are both socially inclusive and technologically adequate.

Nigeria exemplifies both ambition and limitation. It is rich in renewable resources and has launched on a path led by its Renewable Energy Roadmap, yet more than 40% of its inhabitants still lack access to reliable power. Decentralized solar mini-grids and community clusters are a viable but under-scaled solution to the ongoing use of diesel generators in urban areas [19]. In Ethiopia, however, hydropower dominates—accounting for nearly all generation—while rural households continue to rely on traditional biomass for cooking. The government’s attempt to expand electric cooking to millions of homes has the potential to significantly reduce emissions, but it is strongly dependent on large-scale climate financing mobilization [60]. Together, these experiences demonstrate how diverse integration journeys can be, even within a single continent.

4.2. Asia

Asia is a mix of extremes. On the one hand, industrial powerhouses such as China and India are gaining traction, aided by policies, investments, and manufacturing scale. On the other hand, much of Southeast Asia continues to face grid congestion, regulatory ambiguity, and uneven access to power [73,74,75]. Balancing affordability with sustainability can lead to concessions that hinder long-term planning, while social awareness and cultural acceptance may lag [63]. The Philippines has successfully promoted solar and wind energy through feed-in tariffs and renewable portfolio standards, attracting significant investment. As capacity increases, curtailment and grid instability may hinder progress, leading to increased focus on large-scale battery storage and inter-island connections [57]. Thailand has pioneered the use of floating solar-hydro hybrids to increase power while conserving land. Still, fossil fuel subsidies and lengthy permitting processes hamper its progress [61]. These national snapshots show a region whose energy transformation pace is determined not just by policy ambition, but also by the ability to upgrade and modernize key infrastructure.

4.3. Europe

Europe’s status as a leader in renewable energy integration is well-deserved, but it is not without challenges. EU policies provide a strong framework, but execution varies, especially in Eastern member states where economic pressures and political hesitance hinder progress [57,76]. Even in wealthy countries, growing energy costs and inflation have put public support to the test, with energy poverty becoming manifest in unexpected areas. Technological advancements in offshore wind and smart grids are mitigated by aging infrastructure and interconnection limits [76,77].

Poland has had a significant increase in solar PV deployment due to the “My Electricity” scheme and increased public support [78,79]. However, wind power is still recuperating from unduly restrictive siting laws that were just recently modified. Meanwhile, Romania is investing EU funding in wind and solar expansion, with the goal of achieving 30% renewable energy by 2030. The ambition exists, but so do the challenges—permitting delays, grid capacity constraints, and the need to connect quick implementation with larger economic growth objectives [59,80].

4.4. America

The Americas exhibit a significant continental division. Despite leading with cutting-edge technology and large-scale renewable investments, the United States lacks national policy coherence, resulting in a patchwork of state-led alternatives [81]. In Latin America, natural resource abundance—from wind corridors to enormous hydropower basins—is frequently counterbalanced by political instability, finance difficulties, and land use conflicts with local and Indigenous communities [82].

Brazil is at the lead, generating more than 80% of its electricity from renewable sources, primarily hydropower and biofuels. The next frontier is offshore, with wind and green hydrogen projects in the works—but transmission capacity must expand to match this promise [19]. Colombia’s solar boom is fueled by targeted tax reductions and competitive auctions, but there is also social pushback, particularly in La Guajira’s wind projects, where people demand more equitable planning and benefit-sharing [83]. These accounts highlight the importance of governance and participation in energy transitions, in addition to technology.

4.5. Key Insights

Taken together, these regional analyses reinforce this review’s central argument: that the global energy transition is hindered not by a lack of ambition, but by a failure to integrate the various components of renewable energy planning into a coherent, strategic whole. The continuation of fragmented approaches—whether technical, economic, or policy-driven—has resulted in a gap between global objectives and local reality. This is precisely the gap that the proposed visual and strategic framework seeks to bridge.

By linking specific integration challenges with tailored strategies and measurable outcomes, the framework provides a practical tool for navigating the complexities of renewable energy systems. It enables stakeholders to visualize interdependence, evaluate trade-offs, and collaborate to develop regionally relevant solutions. Spider charts and challenge–strategy–outcome maps are examples of tools that convert abstract data into understandable insights, promoting transparency, collaboration, and adaptive planning. This allows policymakers and communities to play an active role in shaping their energy futures.

Ultimately, the regional study confirms that resilience, fairness, and sustainability are not by-products of renewable energy adoption; they are prerequisites. Only by adopting a multidimensional, regionally informed, and visually transparent strategy can we hope to bridge the gap between ambition and implementation and achieve the promise of a truly inclusive global energy transition.

4.6. Major Contributing Factors for Renewable Energy Development

4.6.1. Technological and Economic Factors

In the last two years, the economic feasibility of renewable energy sources has significantly improved due to supply-chain expansion, efficiency improvements, and sharp drops in capital costs. The International Energy Agency’s World Energy Investment 2025 report states that record-low module prices, enhanced capacity factors, and less expensive balance-of-system components helped utility-scale solar PV in China achieve a levelized cost of electricity (LCOE) below USD 0.03/kWh in 2025, down from approximately USD 0.038/kWh in 2023 [20,60]. The global benchmark LCOE for utility-scale PV decreased by 26% between 2023 and 2025, with China, India, and the Middle East achieving the lowest costs. Additionally, paired PV-plus-4-h-battery systems in China now provide LCOEs below USD 0.06/kWh, according to BloombergNEF’s New Energy Outlook 2025 [84].

Solar PV and PV-plus-storage are significantly cheaper than new coal or gas generation in most major markets, even before considering carbon price or environmental externalities. In high-irradiance regions with favorable grid and market conditions, the payback period for storage integration has dramatically reduced, notwithstanding the need for significant initial capital expenditure. Previous forecasts that China’s renewable portfolio would not attain net economic advantage until mid-century are already outdated. Current cost trajectories imply competitiveness has already been achieved in several provinces.

4.6.2. Social and Environmental Impacts

The social and environmental consequences of renewable energy development cannot be ignored. The study on Switzerland shows how important it is to incorporate societal preferences into the location of renewable energy infrastructure in order to increase social acceptance and reduce ecosystem service costs [85]. Similarly, the Chinese study emphasizes the importance of taking geographical disparities into account when distributing health and economic co-benefits from renewable energy installations [86].

4.6.3. Geographic and Spatial Factors

The geographical distribution of renewable energy resources is a critical factor influencing their potential. Solar and wind resources are widely distributed, but their intensity and reliability fluctuate greatly between places. The study on worldwide solar and wind potential emphasizes the concentration of high-quality solar and wind resources near cities, which can be used to supply current electricity demands [87]. However, the study on Southeast Asia emphasizes the need of taking geographical variety into account when establishing renewable energy policies [55].

4.6.4. Policy and Regulatory Frameworks

Renewable energy integration relies on policy and regulatory frameworks, which impact not only technology deployment but also economic and social conditions for long-term viability. As shown in Table 1, the regional analysis, areas with strong policy support, such as India and parts of China, are better positioned to maximize their renewable potential. Conversely, regions with weaker governance or financial institutions, such as Sub-Saharan Africa, face larger barriers.

The policy dimension of the integration framework should be understood in a broad sense, comprising fiscal instruments and sector-specific regulations. Recent evidence from China’s VAT reform shows that well-designed tax policies can significantly improve total factor carbon emission efficiency, complementing and amplifying the benefit of renewable energy regulations [88]. This is consistent with the framework’s economic and policy dimensions, demonstrating how fiscal levers such as targeted tax incentives, carbon pricing, or VAT adjustments can lower costs, boost private investment, and expedite technology adoption.

In practice, integrating fiscal measures into renewable energy strategies could assist regions such as the Middle East in addressing intermittency concerns by incentivizing storage and hybrid systems, or Ukraine to strengthen energy security through rapid wind and solar deployment. Policymakers may create a more enabling environment by embedding fiscal policy into the larger multidimensional integration framework, addressing the economic, technological, and social dimensions simultaneously, while protecting environmental outcomes.

Table 1. Comparative table summarizing renewable energy integration challenges and opportunities across Africa, Asia, Europe and the Americas aligned with the five key dimensions of technology, economic, environmental and policy.

Dimension	Africa	Asia	Europe	Americas
Technological	Insufficient capacity building, limited rural solutions, and Inadequate infrastructure, [63]	Some countries have advanced grids, whereas others have outdated grids [63].	Leadership in smart grids and offshore wind, an aging infrastructure [79].	Strong in the United States and Canada, rural electrification gaps in Latin America [89].
Economical	Limited investment, high initial costs, and reliance on traditional biomass [63]	Disparity in funding access, affordability versus sustainability tension [63].	Robust financing, but inflation and energy prices strain budgets [77].	Innovation in the North and financial volatility in Latin America [90].
Environmental	Risks of environmental degradation associated with unmanaged deployment [63].	Urban pollution and land use pressures in densely populated places [63].	Focus on decarbonization, while grid congestion limits efficiency [81].	Hydropower expansion in Latin America raises ecological problems [89,91].
Social	Low collaboration among stakeholders, access disparities between urban and rural areas [63,72].	Energy access gaps, cultural resistance, and limited awareness [91]	High public support, but increased energy poverty among low-income people [81]	Indigenous rights and land conflicts: the necessity for participatory planning [91]
Policy	Weak governance, policy inconsistency, and a lack of urban energy planning [63,72].	Fragmented policy and regulatory instability in Southeast Asia [63].	Strong EU frameworks, inconsistent implementation across member states [76]	Policy polarization in North America and weak institutions in Latin America [90]

Table 1. Comparative table summarizing renewable energy integration challenges and opportunities across Africa, Asia, Europe and the Americas aligned with the five key dimensions of technology, economic, environmental and policy.

Dimension	Africa	Asia	Europe	Americas
Technological	Insufficient capacity building, limited rural solutions, and Inadequate infrastructure, [63]	Some countries have advanced grids, whereas others have outdated grids [63].	Leadership in smart grids and offshore wind, an aging infrastructure [79].	Strong in the United States and Canada, rural electrification gaps in Latin America [89].
Economical	Limited investment, high initial costs, and reliance on traditional biomass [63]	Disparity in funding access, affordability versus sustainability tension [63].	Robust financing, but inflation and energy prices strain budgets [77].	Innovation in the North and financial volatility in Latin America [90].
Environmental	Risks of environmental degradation associated with unmanaged deployment [63].	Urban pollution and land use pressures in densely populated places [63].	Focus on decarbonization, while grid congestion limits efficiency [81].	Hydropower expansion in Latin America raises ecological problems [89,91].
Social	Low collaboration among stakeholders, access disparities between urban and rural areas [63,72].	Energy access gaps, cultural resistance, and limited awareness [91]	High public support, but increased energy poverty among low-income people [81]	Indigenous rights and land conflicts: the necessity for participatory planning [91]
Policy	Weak governance, policy inconsistency, and a lack of urban energy planning [63,72].	Fragmented policy and regulatory instability in Southeast Asia [63].	Strong EU frameworks, inconsistent implementation across member states [76]	Policy polarization in North America and weak institutions in Latin America [90]

The table illustrates that no single region possesses all five dimensions; rather, each faces a unique set of strengths and vulnerabilities. This underlines the importance of a strategic, visual approach that can map these challenges to specific solutions. This strategy facilitates more effective decision-making, stakeholder collaboration, and adaptive planning by converting complicated, region-specific dynamics into accessible formats. It becomes more than a diagnostic tool; it is a road map for developing resilient, inclusive, and culturally grounded renewable energy systems.

4.7. Comparative Readiness and Resilience Across Regions

This section presents a comparative regional study organized around two globally accepted frameworks: The Energy System Resilience Assessment Model (ESRAM), developed by Arup [30], and the Energy Transition Readiness Index (ETRI), formulated by the World Economic Forum [31]. These models offer a multidimensional perspective for evaluating regional energy systems’ ability to adapt, absorb, and recover from systemic disruptions in addition to their ability to function under current conditions.

The analysis examines four major regions—Africa, Asia, Europe, and the Americas—across five unifying dimensions: technology, economy, policy, society, and environment. These factors represent both transitional preparation and resilience to disruption. The scoring system is based on a five-point scale (1 = low readiness/resilience, 5 = high readiness/resilience), which is guided by recent data from the IEA [20], and national energy agencies. Grid flexibility, investment flows, regulatory coherence, public engagement, and environmental vulnerability are some of the indicators.

Africa has significant potential in environmental resilience due to its enormous renewable resource base and comparatively low historical emissions. However, its scores in technology, economy, and policy are limited by infrastructure constraints, fragmented governance, and limited financial resources. Despite positive improvements in community-based microgrid initiatives, persisting energy poverty and uneven access pose further challenges to social readiness.

Asia presents a diverse profile. China, Japan, and South Korea have all made significant technological advances, particularly in solar production and smart grid implementation. However, Southeast Asia has unequal policy execution and minimal stakeholder engagement, resulting in moderate scores on most dimensions. Environmental factors, such as land use conflicts and climatic vulnerability, also limit the region’s overall readiness.

Europe leads in terms of policy coherence and technological development. Cohesive EU policies, high renewable penetration, and resilient grid infrastructure all contribute to drive excellent performance. Public support for the energy transition remains high, and environmental regulations are quite stringent. Nonetheless, regional discrepancies persist, especially in Eastern Europe, where fossil fuel dependence and energy security concerns remain a challenge.

The Americas have a bifurcated landscape. North America, particularly the United States and Canada, scores well in technology and policy, supported by advanced hybrid systems and innovation incentives. In contrast, Latin America is plagued by regulatory instability and underinvestment, notably in rural electrification and grid modernization. Environmental risks, such as deforestation and water stress, contribute to lower environmental dimension.

Table 2. Regional energy transition readiness and resilience scores [20].

Region	Technology	Economy	Policy	Society	Environment	Composite Score
Africa	2	2	2	2	3	2.2
Asia	3	3	3	2	3	2.8
Europe	4	4	5	4	3	4.0
America	3	3	3	3	2	2.8

summarizes these comparison scores, highlighting regional strengths and vulnerabilities, and provides a diagnostic tool for tailoring transition strategies to specific conditions. This systematic comparison reinforces the significance of various strategies that are tailored to each region’s specific readiness and resilience profile.

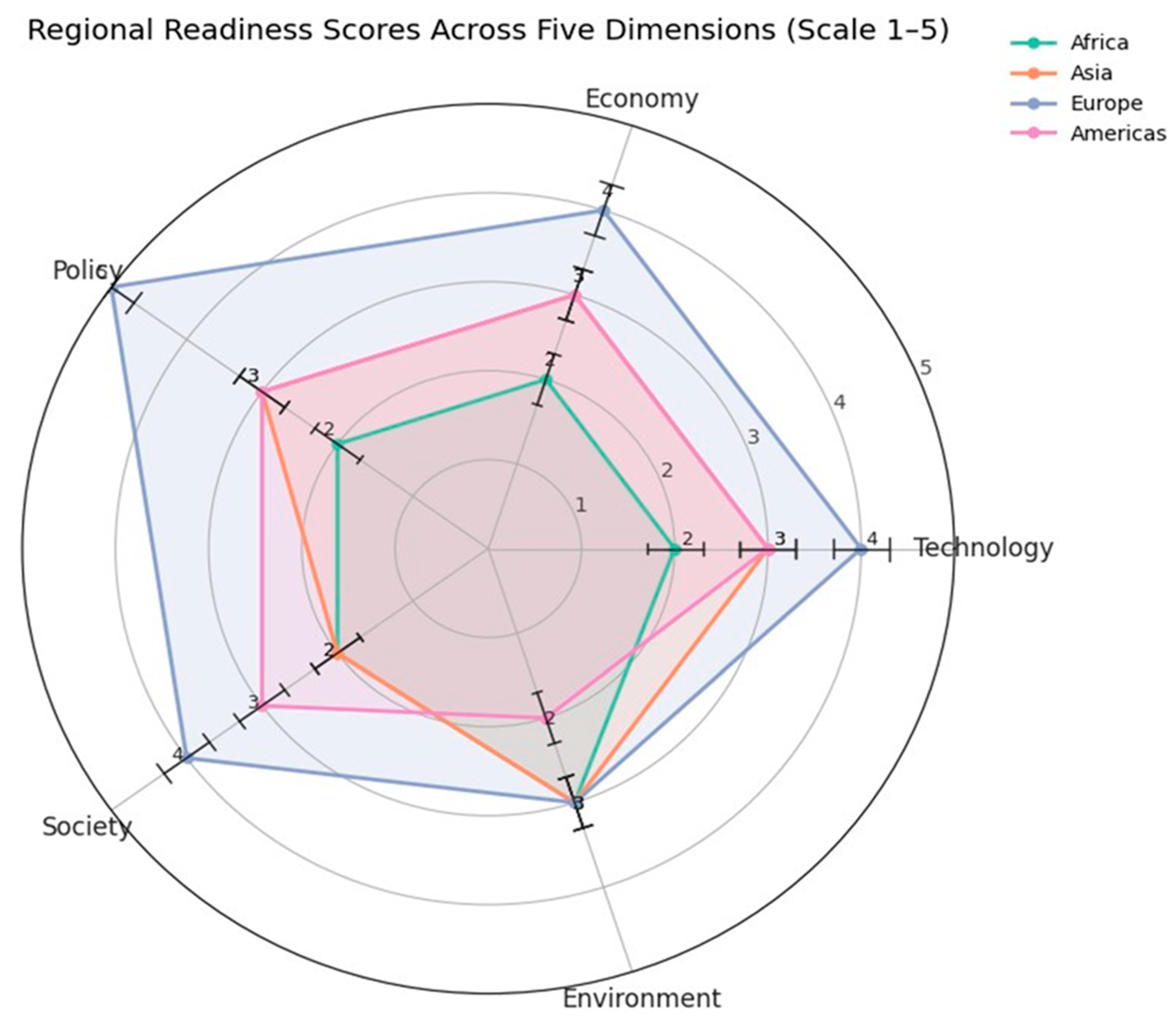

The spider chart in Figure 2 provides a visual representation of regional preparation and resilience across the five evaluated dimensions: technology, economy, policy, society, and environment, complementing the tabular summary in Table 2. Each region is represented on a standardized five-point scale, facilitating intuitive comparison of strengths and weaknesses. Europe’s extended policy (5) and technological reach (4) reflect a cohesive regulatory framework and advanced infrastructure. Asia has modest scores across most aspects, with a lower score in society (2) indicating limited stakeholder engagement. The Americas have a balanced profile, but a lower environment score (2) highlights ecological concerns, especially in Latin America. Africa’s relatively high environmental score (3) contrasts with lower institutional and financial capacity scores (2). The chart translates numerical data into spatial patterns, strengthening the diagnostic value of the ESRAM and ETRI frameworks.

This visual synthesis emphasizes the significance of dimension-specific interventions. Regions with concentrated weaknesses, such as Africa’s infrastructure and governance gaps, necessitate targeted investment and policy reform, whereas regions with uneven profiles, such as Asia’s technological strength but social fragility, benefit from inclusive engagement strategies. Europe’s high scores demonstrate its leadership, but internal disparities suggest the need for tailored responses across the continent. The Americas’ diverse environment necessitates distinct planning in North and Latin America. Overall, the spider chart strengthens the need for context-sensitive energy transition strategies that are tailored to each region’s readiness and resilience profile.

In summary, this comparative regional analysis provides a structured and evidence-based foundation for understanding Africa, Asia, Europe, and the Americas’ distinct capacities in navigating the energy transition. The study goes beyond descriptive reports by using a unified framework based on the Energy Transition Readiness Index and the Energy System Resilience Assessment Model to reveal dimension-specific strengths and vulnerabilities across regions. The main takeaway is that effective energy transition strategies must be locally tailored, with technological deployment and policy design matching local readiness and resilience profiles. This diagnostic approach not only improves the analytical rigor of the review but also reinforces the strategic imperative for context-sensitive planning in global renewable energy integration.

5. Strategic Integration Framework: Mapping Challenges to Solutions

In the complicated world of today, recognizing and successfully resolving issues is essential for long-term development and innovation. The Strategic Integration Framework provides a comprehensive approach that links challenges with customized strategies and quantifiable results, bridging the gap between complex problems and workable solutions.

5.1. Challenges–Solution Strategy–Outcome Visual Framework

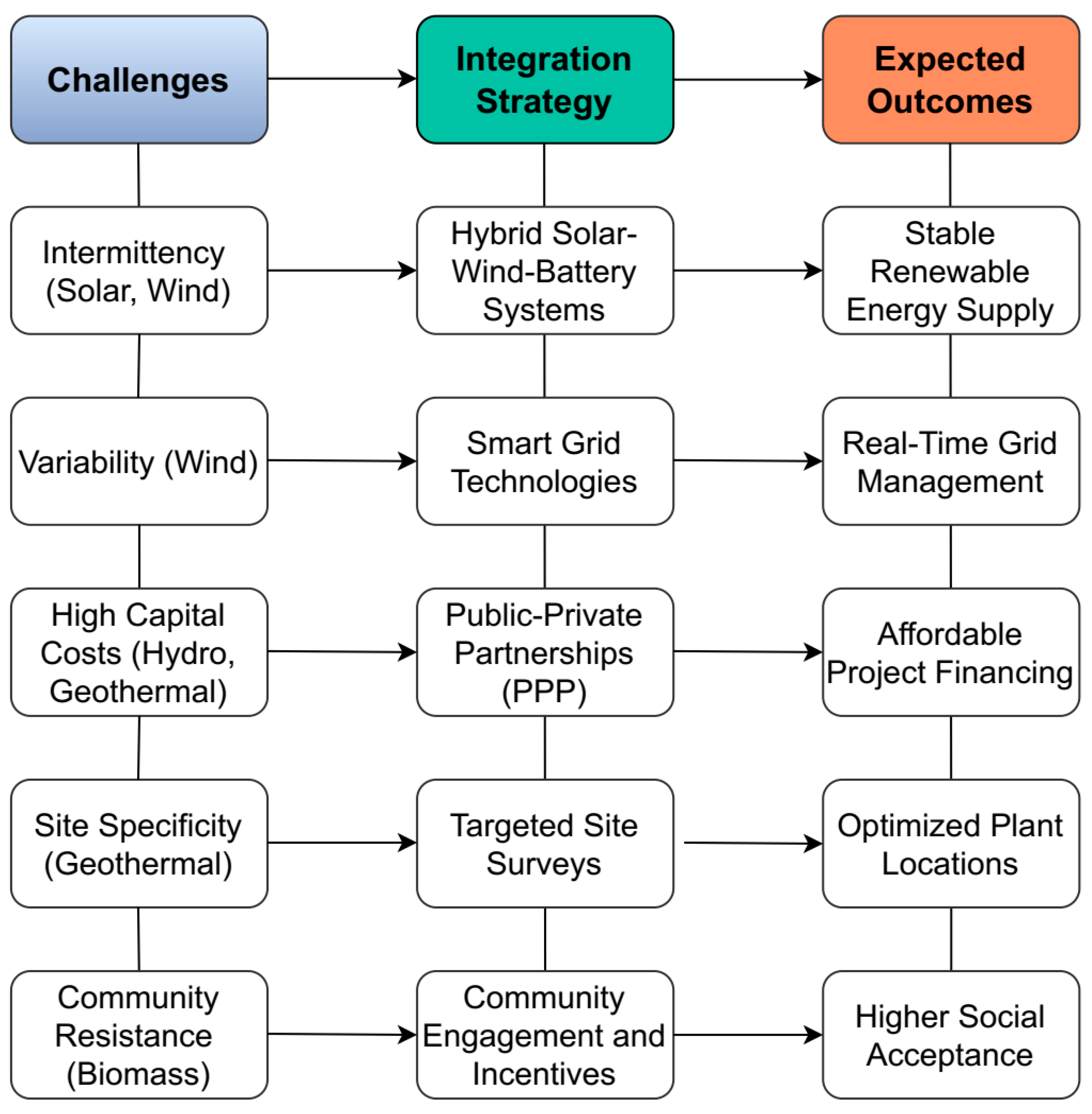

The Challenges–Strategy–Outcome Visual Framework presented in Figure 3 is a powerful conceptual tool that improves strategic decision-making by explicitly mapping the interactions between challenges, the solutions they require, and the outcomes they produce. In both business and educational settings—particularly in the renewable energy sector—this paradigm aids companies in navigating challenging contexts, aligning actions with desired outcomes, and building robust, sustainable solutions.

The framework is based on a three-step approach.

Recognizing both internal and external barriers: Recognizing both internal and external barriers is vital for comprehending the complexities of renewable energy deployment. These barriers range from market competitiveness and rapid technological advancements to resource-specific constraints such as intermittency, geographical limitations, and grid integration issues [63,92]. Obuseh et al. [63] systematic review finds that technical restrictions such as storage limitations and forecasting accuracy, as well as economic and regulatory fragmentation, continue to impede development [63].

Strategic Response: Creating personalized and innovative strategies that use visual tools to encourage clarity, communication, and open innovation [93].

Outcome Evaluation: Assessing results using extensive data analysis and visualization to ensure that each strategic move produces measurable advantages and hence informs future decisions [29].

In the context of renewable energy, the framework addresses key challenges that are specific to each energy source. For example, integrating hybrid solar-wind-battery systems successfully addresses the intermittent nature of solar and wind energy, ensuring a consistent renewable supply. Wind variability is addressed using advanced smart grid technology that allow for real-time system monitoring and dynamic balancing of energy demand and supply. High capital costs are a key barrier to hydroelectric and geothermal projects; nevertheless, the establishment of Public–Private Partnerships (PPP) helps harness shared investment and alleviate financial burdens. Furthermore, geothermal energy’s inherent site specificity is overcome by conducting targeted site surveys to identify and optimize plant locations, while community resistance to biomass initiatives is mitigated by proactive community engagement and incentive programs, resulting in increased social acceptance.

The use of visual frameworks in renewable energy highlights how, when effectively implemented, such models can deliver significant insights. The framework facilitates the integration of smart technology, targeted investment mechanisms, and community-centric approaches, ultimately resulting in more sustainable, economically viable, and socially acceptable renewable energy solutions.

A complete framework for evaluating renewable energy sources is provided in

Table 3. Challenge–integration strategy analysis table of different renewable energy sources [13,16].

Energy Source	Technical Challenge	Economical Challenge	Environmental Challenge	Social Challenge	Regulatory Challenge	Integration Strategy
Solar	High intermittency due to variations in sunshine	Moderate panel and installation costs	Low impact if well-sighted, but adequate land management is required.	Medium acceptance of aesthetic and land use issues.	Challenges with zoning and permitting regulations; evolving policy framework	Needs to be integrated with reliable storage systems in order to combat intermittency.
Wind	High wind speed variability has an impact on output.	Moderate installation and infrastructure investment	Moderate impact on wildlife, particularly bats and birds, which call for mitigating.	Acceptance is generally positive but quite location specific	Navigate regulations regarding zoning and long environmental review processes	Best integrated through hybrid configurations to balance variable output
Hydro	Generating consistently but relying on fluctuations in water flow	High infrastructure and dam building capital costs	High likelihood of altering habitats and ecological disruption	Low to moderate social resistance, local displacement challenges may emerge	Subject to stringent environmental permits, water rights, and licensing regulations	Requires site-specific planning and stringent regulatory compliance
Geothermal	Limited by geographical availability and site-specific considerations.	Moderate costs, primarily due to exploration and drilling costs.	Medium-risk factors include generated seismicity and land subsidence.	Generally low community opposition when properly positioned.	Requires a thorough safety and environmental assessment in accordance with strict regulations.	Demands specific investigation and customized development procedures
Biomass	Medium challenges in maintaining constant and sustainable feedstock supply	Moderate supply chain and operational expenses	Medium impacts as a result of emission and land use issues	Acceptance varies widely based on the views of the local community.	Demands strict adherence to agricultural regulations and emissions requirements.	Depends on efficient feedstock logistics and sustainable resource management regulations

by looking at their technical, economic, environmental, and social aspects, as well as the results of their integration into larger energy systems. In this perspective, technical problems are the intrinsic operating characteristics of each energy source. For example, solar energy’s dependency on sunlight causes substantial intermittency concerns, but wind energy’s output can be highly variable. These technical constraints need supplementary solutions, such as energy storage devices or hybrid designs, to maintain a steady power supply. The economic challenges in the table address the costs associated with each technology. Hydro energy, while capable of delivering a consistent output, necessitates a large capital investment and continuous maintenance costs that might be prohibitively expensive, whereas solar and wind systems often have low initial costs that are mitigated by falling component prices over time.

Environmental challenges are particularly important when evaluating renewable energy sources. Hydro projects can cause serious ecosystem disruptions since they drastically change the way water flows naturally, whereas solar systems usually have little effect on the environment when placed properly. Land use problems which are frequently seen in biomass or solar projects that address public concerns about aesthetics or environmental imprint, are examined in the social dimension along with possible disputes that may emerge. Synthesizing such challenges yields integration outcomes, which include customized solutions for everything from the requirement for reliable energy storage with solar systems to the use of hybrid wind configurations or site-specific deployment tactics for geothermal and hydro projects.

This integrated approach is supported by academic research, which emphasizes the necessity of a multidimensional review when planning for sustainable energy transition. Farghali et al. [12], emphasize the interconnectedness of social, environmental, and economic concerns, whilst Tian et al. [5] and Crutchfield et al. [29] investigate the unique problems and strategic frameworks required for effective renewable integration. These references emphasize the need of addressing each factor to ensure that renewable energy solutions produce consistent performance while also contributing to broader sustainable development goals.

5.2. Practical Usability of Visualization Tools

To maximize the functional value of the visualization tools presented in this study, including radar charts, flowcharts, and comparative tables, their development incorporates clearly defined data sourcing protocols, transparent weighting procedures, and structured user operation pathways. These elements ensure the tools operate as interactive, evidence-based decision-support mechanisms rather than static illustrations, making them adaptable to a wide range of policies [94,95,96].

The radar chart: Quantitative inputs for the radar chart, including cost, technical reliability, environmental impact, social acceptance, and policy support, are sourced from verifiable materials such as datasets from the International Renewable Energy Agency (IRENA), national energy statistics, and peer-reviewed studies. Weight settings are clearly defined, enabling stakeholders to adjust priorities. For instance, one might increase the weight of “technical reliability” in regions with unstable grids or “cost efficiency” in markets where affordability is essential [94,95].

The flowchart serves as an editable template connecting specific integration challenges, such as solar intermittency, wind variability, and biomass community resistance, to specific interventions, including hybrid systems, smart grids, and community engage-ment and incentives, along with measurable outcomes like improved stable renewable energy supply, real-time grid management, and enhanced community acceptance. The template was developed with Microsoft PowerPoint SmartArt (Microsoft Office 365, Version 2308, Build 16.0.16731.20182). Similar platforms such as Lucidchart, Miro, or PowerPoint SmartArt, could also be used to provide a clear and context-specific progression from problem identification to solution implementation [97].

The comparative table is interactive, allowing users to enter region-specific performance statistics across five evaluation dimensions. Conditional formatting or other visual cues can be utilized to indicate high, medium, and low scores, making it easier to identify strengths, weaknesses, and intervention priorities. Although the color-coding approach is unique to this work, the usage of interactive MCDA matrices for comparative analysis is well-established in the literature [96].

The integration of these operational standards and editable templates into the Smart Integration Framework positions the visualization tools as practical resources for scenario analysis, stakeholder engagement, and informed policy creation. When combined with regional case studies like Germany’s Energiewende, China’s smart grid initiatives for wind variability, and Kenya’s community-driven biomass-solar microgrids, they serve as a strategic roadmap and actionable tools for designing balanced, resilient, and sustainable renewable energy systems [95].

The framework’s applicability is tested through quantitative verification using regional case simulations, demonstrating how it performs in real-world renewable energy integration settings.

5.3. Quantitative Verification Through Regional Case Simulations

Two regional case simulations were conducted to increase the empirical credibility of the Strategic Integration Framework, in addition to visualization-based research. Simulations validate the framework’s applicability in many circumstances, resulting in measurable performance outcomes [26,27].

In Germany (Europe), a developed renewable energy economy with substantial intermittent solar and wind penetration, long-term grid simulations were performed to analyze the impact of combining advanced storage systems and smart grid upgrades. Maia and Zondervan’s [26] study and the Fraunhofer IEE Kombi Kraftwerk 2 project demonstrate that reaching high renewable penetration (80–100% by mid-century) while maintaining grid stability is possible with adequate flexibility mechanisms in place. According to Fraunhofer IEE (2014) [98] solutions including large-scale storage, demand-side management, and efficient dispatch can greatly minimize curtailment and increase system resilience.

In Kenya, a developing market with decentralized energy systems, hybrid renewable energy system (HRES) simulations were used to evaluate biomass-solar microgrids with integrated battery storage. Mundu et al. [27] and Gulraiz et al. [28] found that integrating localized storage into hybrid microgrids improves system stability and reliability in rural areas, while maintaining cost-effective. Field-validated projects, such as the Kalobeyei Integrated Settlement solar-battery mini-grid in Turkana County, have shown demonstrated benefits in economic activity, healthcare delivery, and community security [99].

These quantitative results validate the Strategic Integration Framework’s adaptability to various regional contexts and empirically show increases in efficiency, penetration, and reliability. This strengthens the framework’s credibility as a data-driven and visual decision-support tool for sustainable energy integration.

6. Tool Verification

This section outlines the verification process implemented to assess the clarity, usefulness, and robustness of the proposed tools following the implementation of the strategic visualization framework. Radar charts, flowcharts, and comparative scoring tables were designed to support multidimensional decision-making in energy transition planning. However, their practical value depends on more than conceptual elegance—they must be empirically credible, interpretable by diverse stakeholders, and resilient to methodological variation. Radar charts, flowcharts, and comparative scoring tables were designed to support multidimensional decision-making in energy transition planning. Nonetheless, their practical significance relies on factors beyond conceptual elegance: they must possess empirical credibility, be interpretable by various stakeholders, and demonstrate resilience to methodological variations.

Verification was performed using expert interviews, structured usability testing, and sensitivity analysis. A Delphi-style review comprising academic researchers, policy analysts, and energy planners was used to evaluate the concept validity and content. Indicator definitions and scoring criteria were improved during this process, ensuring conformity with recognized standards as the ESRAM framework [30] and the Energy Transition Index [31]. Participants in usability testing completed diagnostic tasks and provided feedback using the System Usability Scale (SUS). The evaluation was structured according to ISO-9241-11 guidelines [100,101]. The outcomes demonstrated that the instruments were both understandable and effective in supporting strategic decision-making.

To evaluate reliability, inter-rater and test–retest procedures were used to score exercises across regions. Consistency ratios calculated from the Analytic Hierarchy Process inputs [102] revealed consistent stakeholder preferences. Deterministic and probabilistic approaches were used to do sensitivity analysis. One-way and multi-way perturbations of weights and indicators indicated stable regional rankings, while Monte Carlo simulations and Sobol indices assessed each parameter’s contribution on output variability [103,104]. These results demonstrate that the tools are robust to reasonable changes in assumptions and modelling choices.

This verification process is consistent with recent empirical standards for validating policy instruments and decision dashboards, as demonstrated in studies such as Unlocking the Carbon Reduction Potential of Digital Trade: Evidence from China’s Comprehensive Cross-border E-Commerce Pilot Zones [105]. By documenting scoring logic, indicator sources, and aggregation criteria, the study ensures transparency and repeatability, allowing for future adjustments without compromising methodological integrity.

7. Innovative Approaches for Future Energy Resilience

The complexity of energy systems and frequent interruptions, such as cyber-attacks, extreme weather, and market instability, have prompted research into robust energy infrastructures. Contemporary approaches stress the use of advanced digital technologies, decentralized control, and adaptive management strategies. Emerging technologies, including artificial intelligence, digital twin simulations, and distributed control architectures, are crucial in allowing grids to forecast, adapt to, and recover swiftly from disturbances [106]. These technologies mark a significant transition from traditional, centralized networks and toward systems that are flexible and responsive in real time. This can be achieved through a variety of innovative approaches, such as community-centred energy models, energy storage innovations, smart grids, and regulatory changes. These strategies seek to improve energy systems’ resilience, sustainability, and efficiency in response to the world’s expanding energy needs and environmental challenges.

7.1. Smart Grids and Digitalization

Smart grids represent the digital transformation of energy networks. Smart grids improve operating efficiency, reliability, and security by integrating sensors, communication technology, and advanced analytics. Recent research has demonstrated how real-time data capture and machine learning algorithms improve load forecasting, fault detection, and distributed resource management [107]. Furthermore, smart grids allow for two-way communication between utilities and consumers, enabling dynamic demand response and renewable integration [108]. Such digitalization not only enhances reliability, but also prepares grids for future developments, promoting long-term energy resilience.

7.2. Energy Storage Innovation

Energy storage has emerged as a key enabler for integrating intermittent renewable energy sources into the system. Battery technology innovations, ranging from advanced lithium-ion systems to future flow batteries, are essential for reducing power output variability. Hybrid energy storage methods and innovative materials are improving storage system performance while reducing costs [108]. These developments are crucial for mitigating peak demand, regulating grid frequency, and ensuring a stable electricity supply despite the inherent fluctuations in renewable sources. The combination of storage improvements and digital control systems provides more resilient, adaptable energy networks [106].

7.3. Community-Centred Energy Models

Decentralized and community-centred energy schemes provide significant advantages in terms of resilience and sustainability. By enabling local generation through microgrids and energy cooperatives, communities can minimize their reliance on centralized systems while improving energy security. These models frequently include renewable resources as well as specialized energy storage technologies to satisfy local demand, promoting both economic growth and environmental stewardship [108]. Research shows that when communities actively participate in energy planning and management, the emerging models are not only more adaptable to local conditions, but also more socially equitable, ensuring that the advantages of modern energy systems are widely distributed.

7.4. Policy Innovations and Financial Mechanism

The successful implementation of advanced energy technology is dependent on strong policy frameworks and innovative financing structures. Regulatory stability, clear incentives, and flexible market models are required to encourage investment in smart grids, storage, and decentralized systems. Green bonds, feed-in tariffs, and performance contracts are becoming increasingly popular tools for policymakers to assist modernization efforts [103]. Gartner, 2024 [108] found that integrated policy frameworks that connect technology advancement with economic incentives can accelerate the transition to resilient, sustainable energy systems. These policy improvements are crucial for mitigating financial risk and creating an environment in which technical advances can be efficiently scaled.

Innovative approaches to future energy resilience are developing from the nexus of technology, community participation, and smart policy. The integration of smart grids and digitalization, advances in energy storage, the promotion of community-centred models, and the creation of supportive financial and regulatory frameworks all contribute to more adaptable and strong energy infrastructures. Moving forward, a comprehensive knowledge that connects these disparate disciplines will be vital for establishing a secure, efficient, and sustainable energy future.

8. Discussion

8.1. Key Insights from the Visual Framework

The visual framework, which includes flowcharts, spider charts, comparative tables, and challenge–strategy–outcome maps, presents an organized perspective for examining the complex challenges surrounding the integration of renewable energy. The framework makes it clear where each renewable technology (solar, wind, hydropower, geothermal, and biomass) stands in relation to its peers by spatially mapping technical barriers (such as intermittency, grid compatibility, storage limitations), economic constraints (such as high initial costs, market volatility), environmental concerns (such as land use, ecological impacts), and social hurdles (such as public acceptance, policy support). Spider charts, for example, enable the simultaneous visualization of several performance metrics, enabling stakeholders to rapidly identify trade-offs like the environmental impact versus the cost-effectiveness of a renewable system. Furthermore, flowcharts depicting smart integration pathways demonstrate how layered solutions, such as smart grid adoption, energy storage technologies, and community-centred methods, may function together to overcome these challenges. Australian Energy Market Operator [103] propose that visual mapping captures complex interactions and enables focused regional examination of integration challenges and strategies.

8.2. Implications for Policy, Engineering, and Community Planning

The insight obtained from these visual aids directly affects a wide range of stakeholders. Policymakers can utilize the structured framework to recognize crucial places of intervention where technical realities need to be reflected in regulations, financial incentives, and innovative policy. According to Rajaperumal & Columbus [106], the identification of areas with a high potential for renewable energy but limited grid capacity can lead to the creation of laws that encourage smart grid investments and advantageous financial tools like green bonds. Having a comprehensive, comparative understanding of how various renewable sources operate under various operating circumstances helps engineering teams better build adaptive grid systems and integrate hybrid storage technologies. Innovation in system resilience and grid stabilization is subsequently stimulated by this. Meanwhile, community planners can benefit from visual representations that link local economic gains to sustainable energy models. Such technologies can help drive the development of localized microgrids, boosting public participation and community ownership by directly tying project outcomes to local requirements. Overall, the visual framework serves as a link between high-level strategic planning and on-the-ground implementation, ensuring that technical, economic, environmental, and social factors are seamlessly integrated into decision-making processes.

8.3. Bridging Complexity and Clarity in Energy Systems

The challenges of renewable energy systems are naturally intricate and interconnected. Through the breakdown of the system into its component elements and the visual correlation of challenges to possible solutions, the visual framework successfully and clearly bridges this variety. Comparative tables and spider charts help decision-makers understand otherwise complex data and identify the exact areas where interventions will have the most effects. Moreover, flowchart representations of intelligent integration pathways help to clarify the complex process of transitioning from traditional to resilient, decentralized systems. A shared understanding between engineers, legislators, and community people is fostered by this clarity, which is crucial for strategic planning and stakeholder communication. Technical jargon and multidimensional data are transformed into easily comprehensible visual forms by the framework, enabling stakeholders to participate in cooperative problem-solving and educated discussion. Finally, this combination of visual aids not only facilitates thorough analytical evaluations but also stimulates the structural adjustments needed to build resilient, future-proof energy systems [108].

This study’s theoretical contribution is that it reconceptualizes visualization as more than a descriptive tool—it serves as a boundary object that enables cross-sectoral collaboration among engineers, policymakers, and communities. The visual framework enables shared understanding across disciplines and stakeholder groups by maintaining interpretive flexibility while maintaining structural coherence. It also serves as a cognitive tool, guiding users through complex decision-making processes by organizing information spatially and relationally. This approach distinguishes the framework from existing models, such as those by Mulder et al. [109] and Sovacool [110], which, while rich in governance and justice perspectives, do not offer integrated, visual mechanisms for scenario analysis and participatory planning.

The importance of using a comprehensive, visually oriented, regional study for strategic integration of renewable energy is shown by these multi-layered insights. The framework aligns technological, economic, and socio-political initiatives toward resilient energy futures while also clearly and actionably highlighting the problems.

9. Conclusions

This study examined the technological, economic, environmental, social, and institutional challenges that shape the global renewable energy landscape, providing a complete assessment of strategic integration pathways. The review examines solar, wind, hydropower, geothermal, and biomass technologies in detail, identifying both systemic barriers and context-specific opportunities that influence deployment. Regional case studies from Europe, Asia, Africa, and the Americas highlight the importance of tailoring energy strategies to local conditions, whether structural, regulatory, or sociocultural.

A fundamental contribution of this work is the development of a visual framework that synthesizes complex system interactions into understandable formats such as flowcharts, spider charts, comparative tables, and challenge–strategy–outcome maps. These tools enable stakeholders to identify readiness gaps, align interventions with local capacities, and visualize trade-offs between dimensions. However, the utility of such tools depends on their empirical credibility and practical operability. As a result, the study contains a verification procedure that involves expert input and sensitivity analysis to ensure that the framework is both resilient and adaptive to real-world decision-making.

The findings confirm that integrating renewable energy requires not only intelligent systems (such as smart grids, advanced analytics, and hybrid storage), but also human-centered approaches that take into consideration regional differences. Rather than providing generalized prescriptions, the study recommends differentiated policy approaches that adapt to the individual readiness profiles of each region.

In Africa, where energy poverty and infrastructural gaps are most severe, establishing a Renewable Energy Poverty Alleviation Fund in conjunction with Community Microgrid Pilots can speed up access and strengthen local capacity. These activities should be supported by performance-based awards, standardized mini-grid licenses, and concessional financing mechanisms [111].

In Asia, particularly in densely populated and water-rich areas, promoting a standardized policy package for floating PV systems integrated with energy storage provides a scalable solution. Technical guidelines, streamlined permits, and competitive auctions with predetermined storage ratios can help to accelerate adoption while addressing land use constraints [112,113].

In Europe, where policy consistency and technological maturity have improved, the emphasis should move to system integration and market reform. Cross-border grid development, capacity market adjustments, and locational pricing mechanisms can improve flexibility and decarbonization while maintaining reliability [20,31].

Technology-specific recommendations also emerge. Wind energy curtailment can be reduced through hybridization with storage and co-location near demand centres. Net billing schemes that include time-varying export rates and smart inverter specifications enhance distributed solar installations. Hydropower modernization, through digital controls and turbine upgrades, can deliver rapid flexibility while reducing environmental impact [103].

This framework provides a scalable and adaptable foundation for strategic planning, although it does not cover all circumstances. It does not take into consideration geopolitical instability, armed conflict, or the inherent constraints encountered by small island developing states and isolated energy systems. These limitations highlight the need for further research to broaden the framework’s application and improve its assumptions.

Ultimately, the study presents a road map for a reliable, equitable, and context-sensitive energy transition—one that enables policymakers, engineers, and communities to proceed from strategy to implementation with confidence.

10. Recommendations

This section organizes the essential recommendations for researchers, policymakers, and practitioners that will enable them to translate strategic insights into actionable solutions. Each recommendation is embedded in the Strategic Integration Framework, with a clear path from challenge to strategy to outcome. This alignment promotes cross-domain coherence and maintains the multidimensional logic introduced previously in the study.

10.1. Research

• Challenge: Fragmented, compartmentalized studies.
• Strategy: Multidisciplinary methods that integrate engineering, data science, economics, and social sciences, supplemented by visual analytics (spider charts, comparative tables, flow mapping).
• Outcome: Integrated insights that capture all technical, economic, environmental, and social complexity.

▪

Challenge: Limited localization.

▪

Strategy: Context-specific modelling for geographical, cultural, and economic distinctions.

▪

Outcome: Findings that are relevant, adaptable, and transferable to local realities.

10.2. Policy

• Challenge: Policy gaps and fragmented regulation.
• Strategy: Implement region-specific frameworks with flexible subsidies, adaptable permitting, and technology-responsive incentives.
• Outcome: Increased investment certainty, faster deployment, and greater public acceptance

▪

Challenges: Grid restrictions and market volatility.

▪

Strategy: Smart grid investment, dynamic pricing, and integrated storage support.

▪

Outcome: improved reliability, optimized demand-supply balancing, and increased renewable penetration.

❖

Challenge: Low trust and minimal stakeholder inclusion.

❖

Strategy: Participatory planning with clear visual communication of options and trade-offs.

❖

Outcome: Improved legitimacy, increased adoption, and sustained stakeholder support.

10.3. Practice

• Challenge: Incomplete operational performance data.
• Strategy: Digital dashboards and multi-criteria analysis provide holistic, data-driven management.
• Outcome: Agile project management, optimized performance, and rapid response capabilities.

▪

Challenge: Weak community integration.

▪

Strategy: Inclusive engagement during planning and implementation, linking solutions with local concerns

▪

Outcome: Long-term acceptability, community ownership, and maximum socioeconomic benefits.

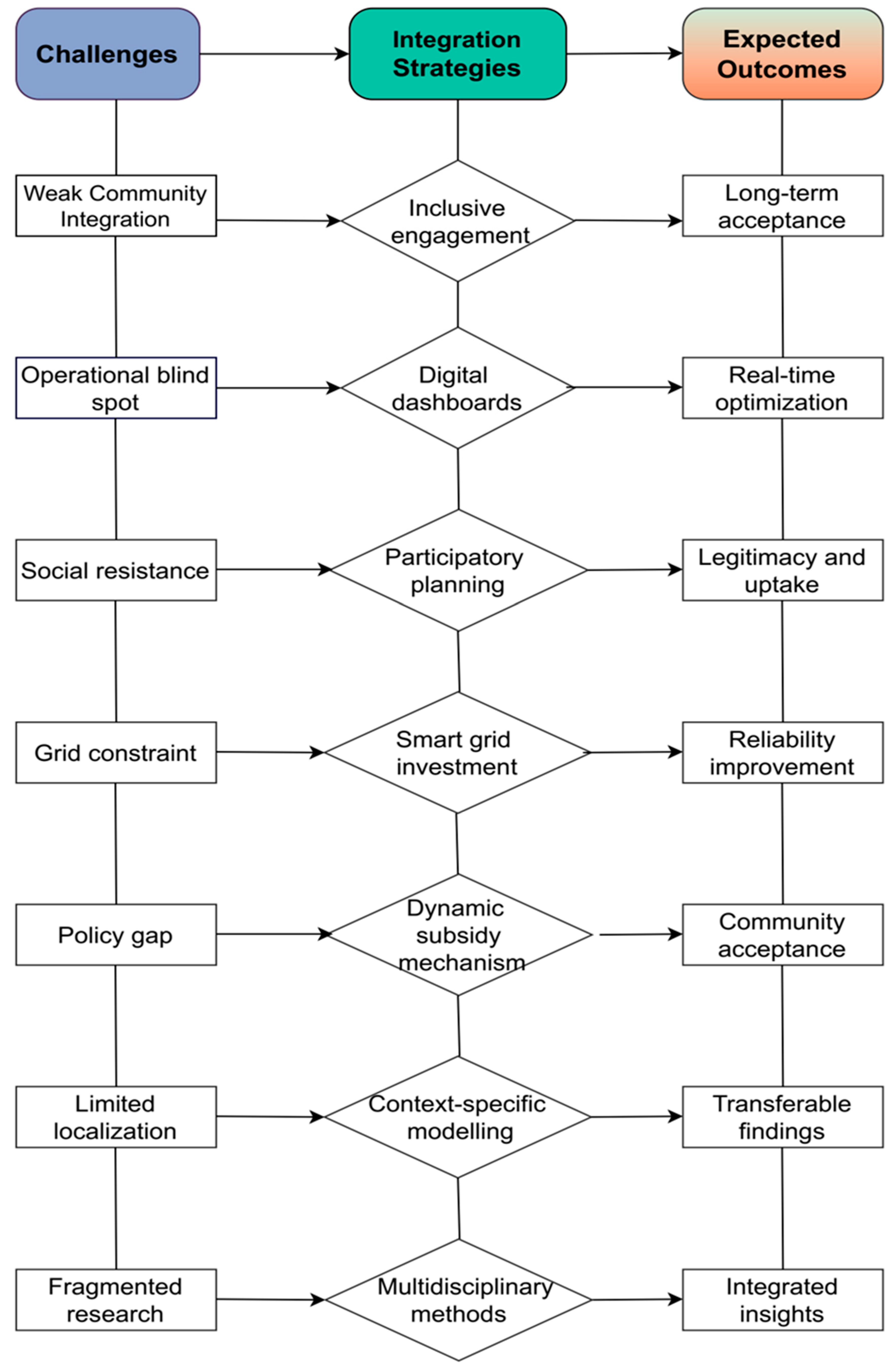

The accompanying Figure 4 depicts these recommendations as distinct nodes of the Strategic Integration Framework. Each branch—research, policy, and practice—follows the same logic: beginning with a specific challenge, progressing through a targeted strategy, and culminating with a measurable outcome.

This structure not only highlights the interactions between interventions and outcomes, but it also reinforces the interrelated nature of renewable energy integration, which requires technological, social, and institutional factors to evolve simultaneously.

While the Strategic Integration Framework provides a consistent structure for translating challenges into actionable strategies, it is crucial to recognize that broad recommendations, such as improving policy coordination or promoting community participation, may lack the operational specificity required for real-world implementation. The comparative regional analysis presented earlier in this paper emphasizes the importance of differentiated policy tools that respond directly to localized limits and capacities. Africa, for example, requires targeted mechanisms such as a Renewable Energy Poverty Alleviation Fund and Community Microgrid Pilots, whereas Asia’s land use pressures and grid variability necessitate standardized deployment packages for floating photovoltaic systems integrated with energy storage. Europe’s developed energy systems benefit more from market reforms and cross-border grid coordination, whereas Latin America needs bankable hybrid contracts and rural grid modernization. Similarly, technology-specific strategies—such as wind hybridization, smart inverter standards for distributed solar, and basin-level hydropower planning—must be tailored to each context’s practical realities. By integrating these regionally and technologically grounded pathways into the broader framework, recommendations become not only conceptually coherent but also practically actionable, guiding policymakers, engineers, and community leaders towards resilient, equitable, and context-sensitive energy transitions.
